Electromagnetic waves propagation through an array of superconducting qubits: manifestations of non-equilibrium steady states of qubits

TL;DR

This paper presents a theoretical analysis of electromagnetic wave propagation through superconducting qubit arrays, revealing nonlinear effects and non-equilibrium steady states that influence wave transmission in complex ways.

Contribution

It introduces a dynamic nonlinear wave equation for qubit arrays and explores the nonlinear transmission phenomena and steady states under moderate microwave power.

Findings

Resonant suppression of transmission in linear regime

Enhanced transmission in narrow frequency regions

Transitions between high and low transmission states in nonlinear regime

Abstract

We report a theoretical study of the electromagnetic waves (EWs) propagation through an array of superconducting qubits, i.e. coherent two-level systems, embedded in a low-dissipative transmission line. We focus on the near-resonant case as the frequency of EWs $\omega \simeq \omega_q$, where $\omega_q$ is the qubit frequency. In this limit we derive the effective dynamic nonlinear wave equation allowing one to obtain the frequency dependent transmission coefficient of EWs, $D(\omega)$. In the linear regime and a relatively wide frequency region we obtain a strong resonant suppression of $D(\omega)$ in both cases of a single qubit and chains composed of a large number of densely arranged qubits. However, in narrow frequency regions a chain of qubits allows the resonant transmission of EWs with greatly enhanced $D(\omega)$. In the nonlinear regime realized for a moderate power of applied microwave radiation, we predict and analyze various transitions between states characterized by high and low values of $D(\omega)$. These transitions are manifestations of nonequilibrium steady states of an array of qubits achieved in this regime.

Figures

A) Pashkin *et al.* ([2003](#bib.bib12)), flux qubits weakly Macha *et al.* ([2014](#bib.bib17)) (Fig. 1B) and strongly (Fig. 1C) Shulga *et al.* ([2018](#bib.bib2)) interacting with a low-dissipative transmission line, transmons Houck *et al.* ([2009](#bib.bib13)); Shulga *et al.* ([2017](#bib.bib18)) etc.

Equations

$$L=L_{EW}+L_{qb}+L_{int}.$$

$$L_{EF}=\frac{L_0\ell }{2}\left\{{\left[\frac{\partial Q}{\partial t}\right]}^2-c_0^2{\left[\frac{\partial Q}{\partial x}\right]}^2\right\},$$

$$L_{qb}=\sum _{n=1}^N\frac{E_J}{2{\omega }_p^2}({\dot{\phi }}_n-{\dot{\varphi }}_{0n}{)}^2-U({\phi }_n),$$

$$L_{int}=-\frac{\hslash \alpha w}{2e}\sum _{n=1}^N\delta (na-x)Q(t,x){\dot{\phi }}_n,$$

$$\frac{{\partial }^{2}Q}{\partial t^2}-\gamma \frac{\partial Q}{\partial t}-c_0^2\frac{{\partial }^{2}Q}{\partial x^2}=-\frac{\hslash }{2e}\frac{\alpha w}{L_0\ell }\sum _{n=1}^N\delta (na-x)<{\dot{\phi }}_n{>}_{eq},$$

$${\hat{H}}_0=\frac{{\omega }_p^2}{2E_J}({\hat{p}}_{\phi }-p_0{)}^2+U(\phi )$$

$${\hat{H}}_t=\frac{\hslash \alpha {\omega }_p^2}{2e{E}_J}Q(t,x){\hat{p}}_{\phi }.$$

$${\hat{H}}_{eff}=\frac{E_J}{2}{\hat{\sigma }}_z+\frac{(\hslash {\omega }_p{)}^2\alpha }{4e{E}_J}Q(x,t){\hat{\sigma }}_x,$$

$$\Psi (t)=C_{-}(t)f_{-}+C_{+}(t)f_{+},$$

$$<\dot{\phi }{>}_{eq}=\frac{\hslash {\omega }_p^2}{E_J}\Re e[C_{-}(t)C_{+}(t)]$$

$$S_n^{nd}(\omega )=\int dt{e}^{i\omega t}\Re e[C_{-}(t)C_{+}(t)]=$$

$$=\eta q(x_n,\omega )\frac{1-\omega /{\omega }_q}{(1-\omega /{\omega }_q{)}^2+{\eta }^2|q(x_n,\omega ){|}^2},$$

$$S_n(\omega )=\eta \frac{1-\omega /{\omega }_q+i/({\omega }_{q}T)}{(1-\omega /{\omega }_q{)}^2+1/({\omega }_{q}T{)}^2+{\eta }^2|q(x_n,\omega ){|}^2}q(x_n,\omega )$$

$$c_0^2\frac{d^{2}q}{d{x}^2}+{\omega }^{2}q(x)+i\gamma {\omega }_q(x)=\frac{2w\hslash {\omega }_q}{e^2{L}_0\ell }{\eta }^2$$

$$\sum _{n=1}^N\delta (na-x)\frac{1-\omega /{\omega }_q+i/(T{\omega }_q)}{{\eta }^2|q(x,\omega ){|}^2+(1-\omega /{\omega }_q{)}^2+1/(T{\omega }_q{)}^2}q(x,\omega ).$$

$$c_0^2\frac{d^{2}q}{d{x}^2}+[{\omega }^2+i\gamma \omega ]q(x)=\frac{2\hslash w{\omega }_q}{e^2{L}_0\ell }{\eta }^2$$

$$\delta (x)\frac{1-\omega /{\omega }_q+i/(T{\omega }_q)}{{\eta }^2|q(x,\omega ){|}^2+(1-\omega /{\omega }_q{)}^2+1/(T{\omega }_q{)}^2}q(x,\omega ).$$

$$D(\omega )={\left[1+\frac{g}{4}\frac{g+4\Gamma }{(\omega /{\omega }_q-1{)}^2+{\Gamma }^2}\right]}^{-1}.$$

$$D(\omega )={\left\{1+\frac{g}{4}\frac{(4\Gamma +g)[(\omega /{\omega }_q-1{)}^2+{\Gamma }^2]+4\Gamma {\eta }^2{P}_{0}D(\omega )}{{\left[(\omega /{\omega }_q-1{)}^2+{\eta }^2{P}_{0}D(\omega )+{\Gamma }^2\right]}^2}\right\}}^{-1}$$

$$q(x)=-\frac{i}{2k{c}_0^2}\sum _n\beta \{q_n\}{q}_n\exp (ik|x-x_n|),$$

$$\beta ={\eta }^2\frac{2\hslash }{e^2}\frac{w{\omega }_q}{L_0\ell }\frac{1-\omega /{\omega }_q+i/(T{\omega }_q)}{(1-\omega /{\omega }_q{)}^2+1/(T{\omega }_q{)}^2+{\eta }^2|q(x,\omega ){|}^2}.$$

$$q_{n+1}+q_{n-1}-\left[2\cos ka-\frac{\beta \{q_n\}}{k{c}_0^2}\sin (ka)\right]q_n=0.$$

$$c_o^2\frac{d^{2}q(x)}{d{x}^2}+\left[{\omega }^2+i\gamma \omega +\frac{\beta \{q(x)\}}{a}\right]q(x)=0.$$

$$D={\left|cos(k\ell \sqrt{K(\omega )})+\frac{i}{2}\sqrt{K(\omega )}sin(k\ell \sqrt{K(\omega )})\right|}^{-2}$$

$$\frac{d^{2}q}{d{x}^2}+\left[k^2+\frac{\chi }{|q{|}^2+{\xi }^2}\right]q(x)=0,$$

$$r^2\frac{d\varphi }{dx}=C$$

$$\frac{d}{dx}\left[(r^{\prime }{)}^2+\frac{C^2}{r^2}\right]+(r^2{)}^{\prime }\left[k^2+R(r)\right]=0,$$

$$\{\begin{array}{l}\frac{d}{dx}\ln q(\ell )=ik\\ A+B=q(0)\\ A-B=q^{\prime }(0)/ik,\end{array}$$

$$\underset{r(0)}{\overset{r(\ell )}{\int }}\frac{du}{\sqrt{E-\frac{C^2}{r^2}-r^2{k}^2-\chi \ln (r^2+{\xi }^2)}}=\ell ,$$

$$D=\frac{1}{1+\frac{\chi }{2k^2{\xi }^2}(1-z)},$$

Full text

I Introduction

Electromagnetic waves (EWs) propagation in metamaterials-artificially prepared media composed of a network of interacting lumped electromagnetic circuits- attracts recently an enormous attention due to variety of physical phenomena occurring in such systems, e.g. electromagnetically induced transparency (reflectivity) Liao et al. (2016); Shulga et al. (2018); Chaldyshev et al. (2011), ”left-handed” metamaterials Smith et al. (2004); Zharov et al. (2003), dynamically induced metastable states Lazarides et al. (2015); Jung et al. (2014), just to name a few. These networks have been fabricated from metallic, semiconducting, magnetic or superconducting materials.

The latter case of networks based on superconducting elementary circuits presents a special interest because of an extremely low dissipation, a great tunabilty of the microwave resonances, and a strong nonlinearity Jung et al. (2014); Ricci et al. (2005); Anlage (2010). In most of studied systems these superconducting electromagnetic circuits contained by one or a few Josephson junctions, can be precisely described as classical nonlinear oscillators, and the interaction of propagating EWs with a network of such superconducting lumped circuits is determined by a set of classical nonlinear dynamic equations Jung et al. (2014); Miroshnichenko et al. (2001); Filatrella et al. (2000).

However, it is well known for many years that small superconducting circuits can be properly biased in the coherent macroscopic quantum regime, and in a simplest case the dynamics of such circuits is equivalent to the quantum dynamics of two-level systems, i.e. qubits Pashkin et al. (2003); Houck et al. (2009); Chiorescu et al. (2004); Majer et al. (2007); Fink et al. (2009); Macha et al. (2014); Shulga et al. (2017). A surfeit of different types of superconducting qubits has been realized , e.g. dc voltage biased charge qubits (Fig. 1A) Pashkin et al. (2003), flux qubits weakly Macha et al. (2014) (Fig. 1B) and strongly (Fig. 1C) Shulga et al. (2018) interacting with a low-dissipative transmission line, transmons Houck et al. (2009); Shulga et al. (2017) etc.

As a next step these qubits are organized in different arrays or lattices forming * quantum electromagnetic networks*, and an inductive or capacitive coupling of such networks to an external low-dissipative transmission line allows one to experimentally access the frequency dependent transmission coefficient of EWs, $D(\omega)$. The interaction of EWs with quantum networks of qubits results in a large amount of coherent quantum phenomena on a macroscopic scale , e.g. collective quantum states Fink et al. (2009); Macha et al. (2014); Shulga et al. (2017); Fistul (2017), magnetically induced transparency Shulga et al. (2018) have been observed, and the coherent electromagnetic pulses propagation Asai et al. (2015); Ivić et al. (2016), the nonclassical states of photons Iontsev et al. (2016) have been theoretically predicted and studied. Therefore, in this quickly developing field a natural question arises Rakhmanov et al. (2008); Asai et al. (2015); Ivić et al. (2016); Fistul (2017); Iontsev et al. (2016): how the coherent quantum dynamics of a network of superconducting qubits influences the EWs propagation?

In this paper we present a systematic study of EWs propagation through an array of qubits embedded in a low-dissipative transmission line (see Fig. 1). We will focus on the resonant case, i.e. $\omega\simeq\omega_{q}$, where $\omega_{q}$ is the qubit frequency, and the transmission coefficient $D(\omega)$ will be theoretically analyzed. To obtain $D(\omega)$ we derive the effective nonlinear EWs equation taking into account the coherent quantum dynamics of qubits exposed to the electromagnetic field. It allows us to address both limits, low and high power of applied microwave radiation.

In the linear regime and a relatively wide frequency region near the resonance we obtain a strong suppression of $D(\omega)$ in both cases of a single qubit and chains composed of a large number of densely arranged qubits. However, in a narrow frequency region for chains of qubits we obtain the resonant transmission of EWs with a greatly enhanced $D(\omega)$. As we turn to the nonlinear regime realized for a moderate power of applied microwave radiation, we predict and analyze various transitions between states characterized by high and low values of $D(\omega)$. We argue that these transitions are fingerprints of nonequilibrium steady states of an array of qubits.

The paper is organized as follows: In Section II we present our model for qubits array embedded in a low-dissipative transmission line, introduce the Lagrangian, and derive the effective nonlinear wave equation for the electromagnetic field interacting with an array of qubits. In Sec. III we analyze the coherent quantum dynamics of a single qubit subject to an applied electromagnetic field in both limits of low and high power. In Sec. IV we apply derived in Sec. II the effective nonlinear wave equation to a study of frequency dependent transmission coefficient, $D(\omega)$, for a chain of densely arranged qubits. Moreover, we address both regimes, i.e. linear and nonlinear ones. The Section V provides conclusions.

II Model, Lagrangian and Dynamic Equations

II.1 Model

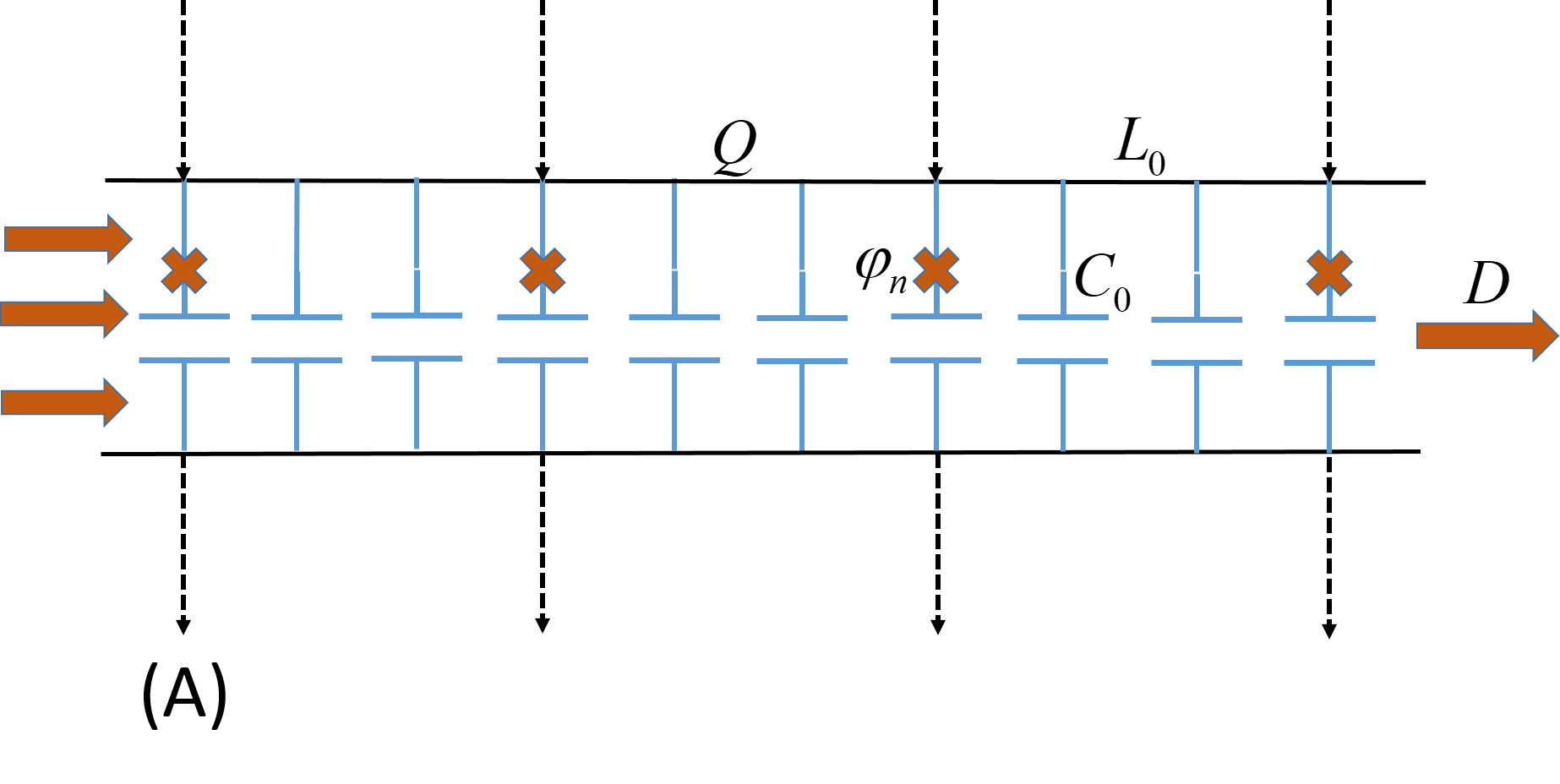

Let us consider a regular one-dimensional array of $N$ lumped superconducting quantum circuits embedded in a low-dissipative nondispersive transmission line (see Fig. 1). As the amplitude of propagating EWs is not too low, i.e in the regime of large number of photons, the electromagnetic field in the transmission line is characterized by coordinate and time dependent classical variables - the charge distribution, $Q(x,t)$. Different types of lumped superconducting quantum circuits have been realized (the schematics of arrays composed of charge (Fig. 1(A)) and flux (Fig. 1(B),(C)) qubits are shown), and the quantum dynamics of such circuits is characterized by quantum variables-the Josephson phases, $\varphi_{n}$. An artificially prepared potential $U(\varphi_{n})$ allows one to vary the circuits resonant frequencies in a wide region. The dynamics of a whole system in the classical regime is described by total Lagrangian, which consists of three parts: the Lagrangian of electromagnetic field $L_{EF}$, the Lagrangian of an array of lumped superconducting quantum circuits (qubits) $L_{qb}$, and the interaction Lagrangian $L_{int}$ describing the interaction between qubits and electromagnetic field:

[TABLE]

II.2 Lagrangian and dynamic equation

The electromagnetic field Lagrangian $L_{EF}$ is written as

[TABLE]

where $c_{0}=1/\sqrt{L_{0}C_{0}}$ is the velocity of EWs propagating in the transmission line, $L_{0}$ and $C_{0}$ are the inductance and capacitance of the transmission line per length, accordingly; $\ell$ is the length of the system.

The Lagrangian of an array of lumped quantum circuits is written as

[TABLE]

where $E_{J}$, $\omega_{p}$ are the Josephson energy and the plasma frequency, accordingly; the parameter $\dot{\phi}_{0n}$ is proportional to the gate voltage, and it allows one to vary the frequency of charge qubits (such gate circuits are shown by dashed arrows in Fig. 1(A)). For charge qubits the potential $U(\varphi_{n})$ is written explicitly as $U(\varphi_{n})=E_{J}(1-\cos\varphi_{n})$ whereas for flux qubits (see Fig. 1(B),(C)) the double well potential reads as: $U(\varphi_{n})=-E_{J}[2\cos\varphi_{n}-\eta\cos(2\varphi_{n})]$.

The interaction part of the Lagrangian is written as

[TABLE]

where the coupling coefficient $\alpha$ varies by around five order of magnitude from $10^{-2}$ for a weak coupling between qubits and transmission line Macha et al. (2014) (Fig. 1(B)) up to $4\times 10^{2}$ for strongly coupled qubits Shulga et al. (2018) (Fig. 1(C)). The $w$ is the geometrical size of lumped quantum circuits (qubits), $w\ll\ell$.

As we turn to the coherent quantum regime of networks of qubits, the dynamics of EWs is described by the specific wave equation as

[TABLE]

where we take into account the dissipation effects in the transmission line characterized by phenomenological parameter $\gamma\ll 1$. Here, $<...>_{eq}$ denotes the quantum mechanical averaging over the equilibrium state of quantum network.

II.3 Quantum dynamics of a single qubit and effective wave equation

Since we neglect the direct coupling between elementary circuits, the coherent quantum dynamics of a network is reduced to the sum of independent lumped electromagnetic circuit exposed to an applied electromagnetic field. The quantum dynamics of a single element is determined by the time-dependent Hamiltonian, $\hat{H}_{qb}=\hat{H}_{0}+\hat{H}_{t}$, where the equilibrium Hamiltonian $\hat{H}_{0}$ is

[TABLE]

and the nonequilibrium part of the total Hamiltonian, explicitly depending on time, $\hat{H}_{t}$ is

[TABLE]

In the resonant regime as the EW frequency $\omega\simeq\omega_{q}$, we truncate the explicit Hamiltonian (see Eqs . (6) and (7)) to the Hamiltonian of two-levels systems. These two levels can be fine-tuned to the resonance with the frequency of EW propagating in the transmission line. In particular, for the charge qubits case shown in Fig. 1(A), on the avoid-crossing point such truncation leads to the effective Hamiltonian written as Pashkin et al. (2003)

[TABLE]

where $\hat{\sigma}_{x,z}$ are the Pauli matrices. In this case the qubit frequency is expressed as $\omega_{q}=E_{J}$. The time-dependent wave function of a charge qubit is written as

[TABLE]

where $f_{\pm}=\frac{1}{\sqrt{4\pi}}\left(1\pm e^{i\varphi}\right)$ stationary wave functions of two states. The corresponding quantum-mechanical average of the operator $<\dot{\varphi}>$ in the right hand part of Eq. (5) reads as

[TABLE]

Taking into account the initial conditions $C_{-}(0)=1$ and $C_{+}(0)=0$, and using the resonant condition, $\omega_{q}\simeq\omega$ we obtain in the non-dissipative (nd) regime

[TABLE]

[TABLE]

where we introduce the dimensionless strength of interaction, $\eta=\alpha[\hbar\omega_{p}/(2E_{J})]^{2}$ and the dimensionless charge distribution, $q(x,t)=Q(x,t)/e$. In the low-dissipative regime we introduce the relaxation time $T$, and by solving the dynamic equations for the density matrix, the time-dependent correlation function of $n$-th qubit is written in the following form:

[TABLE]

Substituting (10) and (11) in (5) we obtain the effective equation allowing one to analyze the transmission coefficient $D(\omega)$ for propagating EWs of frequency $\omega$.

[TABLE]

[TABLE]

III EW transmission: a single qubit

In this Section we consider the EW transmission through a single qubit. The charge distribution $q(x,\omega)$ satisfies the effective equation

[TABLE]

[TABLE]

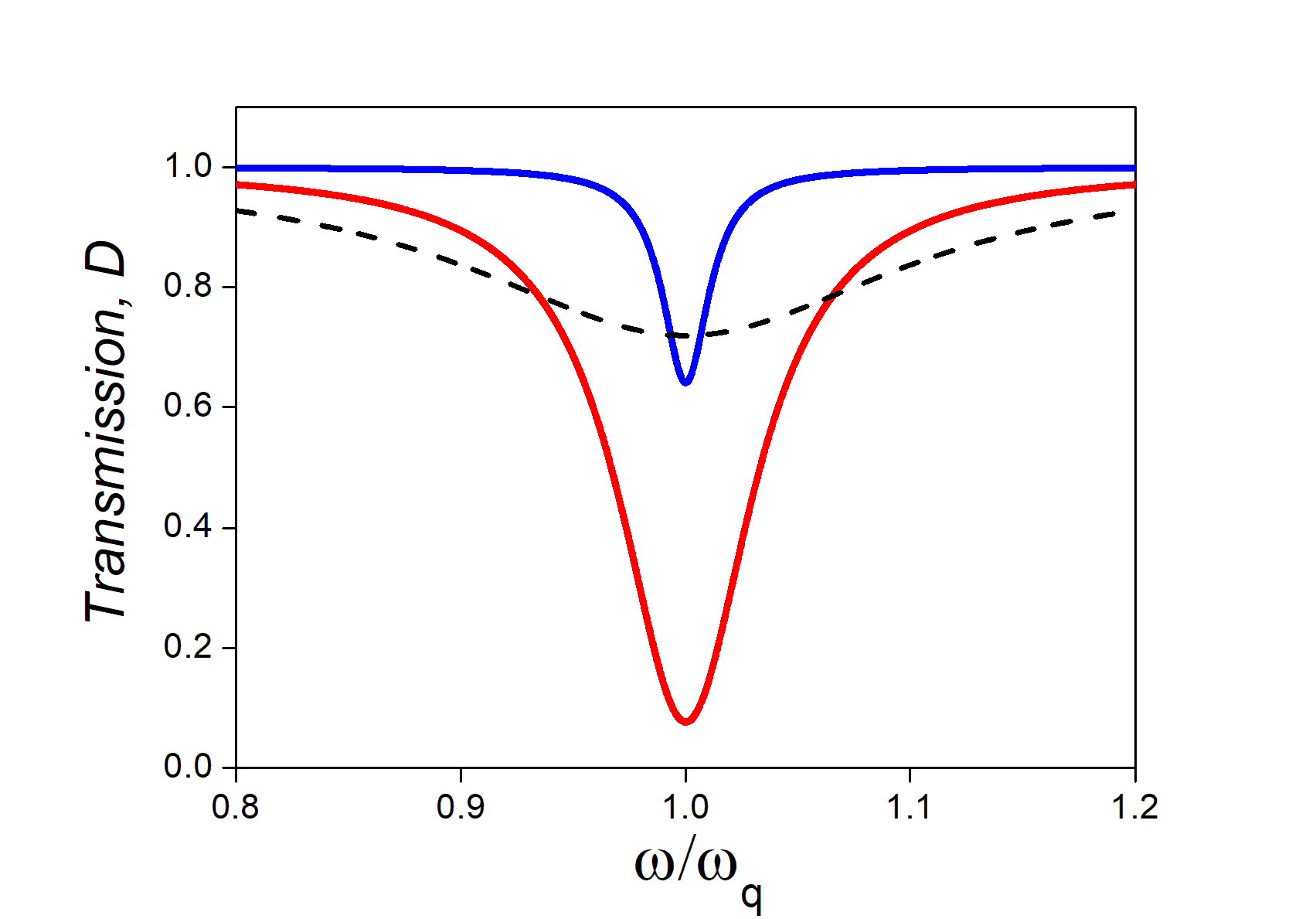

As the power of EW is small, i.e. $|Q(x)/e|<<(\eta\omega_{q}T)^{-1}$, the transmission coefficient $D(\omega)$ reads as

[TABLE]

Here, we introduce the dimensionless relaxation rate of a single qubit, $\Gamma=(T\omega_{q})^{-1}$ and the interaction strength $g=2\eta^{2}\frac{\hbar w}{e^{2}c_{0}L_{0}\ell}$, where $w$ is the geometrical size of the lumped quantum circuit (qubit), $w\ll\ell$. The dependencies of $D(\omega)$ in the linear regime for different values of $\Gamma$ and $g$ are presented in Fig. 2. A most important effect is a strong resonant suppression of EW propagation in the limit of $g/\Gamma\gg 1$. The width of the $D(\omega)$ curve is diminished as the relaxation rate $\Gamma$ decreases.

As we turn to the high power regime of applied microwave radiation, i.e. $|q(-\infty)|\simeq\sqrt{P_{0}}>>\Gamma/\eta$ we obtain the transmission coefficient as a solution of transcendent equation:

[TABLE]

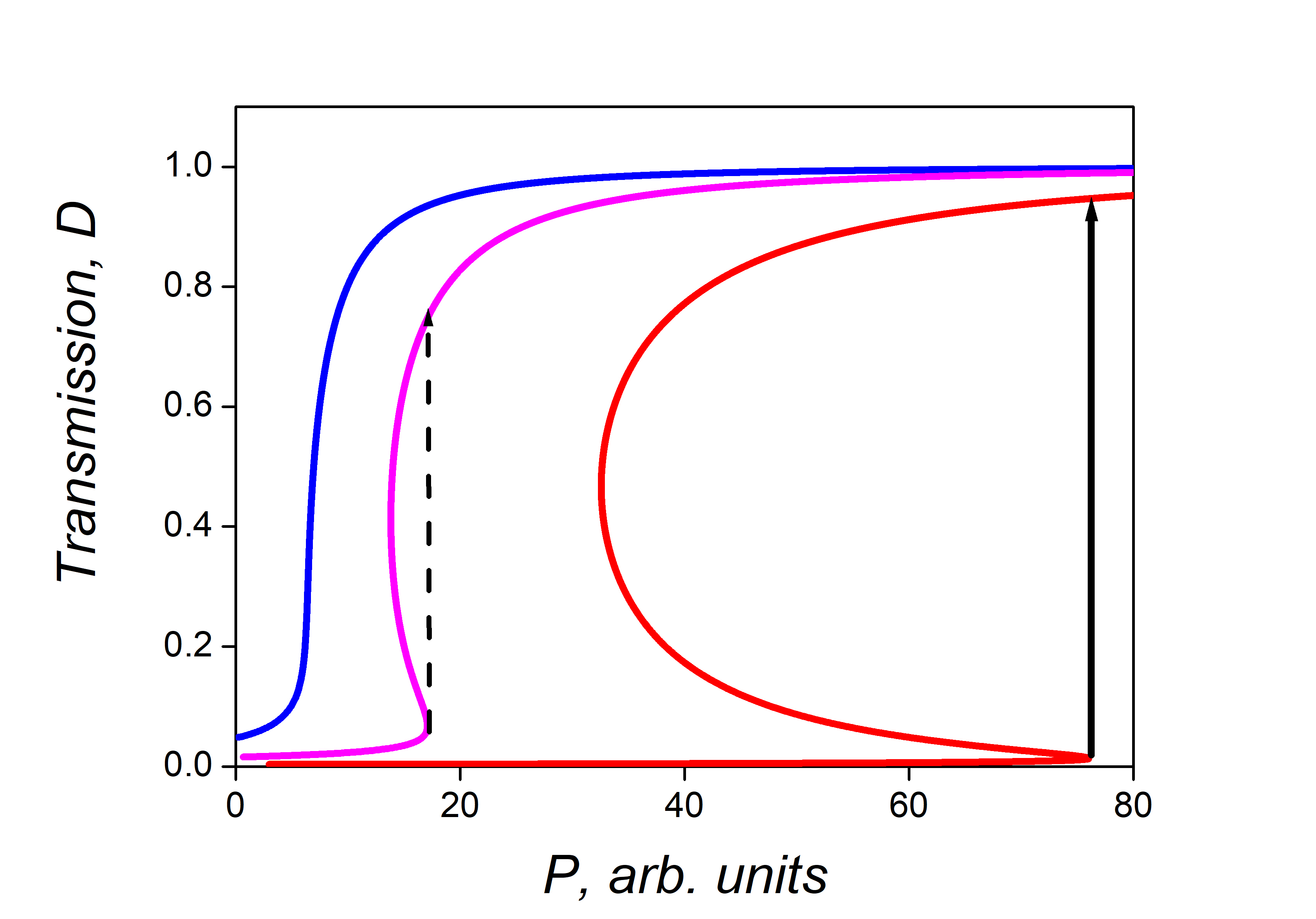

Here, $P_{0}$ is the power of applied microwave radiation far away from the resonator. An analysis of the Eq. (15) shows that in the nonlinear regime the transmission coefficient $D$ is determined strongly by the ratio of two parameters $g$ and $\sqrt{(\omega-\omega_{q})^{2}+\Gamma^{2}}$. Indeed, if $g/\sqrt{(\omega-\omega_{q})^{2}+\Gamma^{2}}\leq 1$ the transmission coefficient just monotonically increases with $P_{0}$ but in the opposite case, $g/\sqrt{(\omega-\omega_{q})^{2}+\Gamma^{2}}\gg 1$, there is a particular range of power $P_{0}$, where two dynamic states of EWs characterized by large and small transmission coefficients, are obtained. The numerically calculated dependencies of the transmission coefficient on the power $P_{0}$ are shown in Fig. 3.

IV EW Transmission: a periodic array of superconducting qubits

In this Section we consider the propagation of EWs through a periodic array of $N$ qubits. In this case the charge distribution $q(x,t)$ is determined by Eq. (12).

By making use of the method elaborated for the solution of the Schrödinger equation with the Kronig-Penney potential Lifshitz et al. (1988) we present the charge distribution $q(x)$ in the following form:

[TABLE]

[TABLE]

where the wave vector $k=\sqrt{\omega^{2}+i\gamma\omega}/c_{0}$, and $q_{n}=q(x_{n})$ is the amplitude of propagating charge distribution at the point of $x_{n}$. By making use of the properties of the $\delta-$ function, we obtain the set of discrete equations for $q_{n}$

[TABLE]

Here, $a=\ell/N$ is the distance between the adjacent qubits in the array.

Next, we study the EW propagation through an array of densely arranged qubits, i.e. as the condition $ka\ll 1$ is valid. In this case one can transform the difference equation (17) into the differential equation

[TABLE]

The transmission coefficient is determined as $D(\omega)=|q(\ell)/q(0)|^{2}$.

IV.1 Low power regime

As the power of applied microwave radiation is low, one can neglect the nonlinear dependence of $\beta(q)$ on $q$, and by making use of a well known result for the quantum tunneling through a rectangular barrier the transmission coefficient is written as

[TABLE]

where $K(\omega)=\frac{gc_{0}}{\omega_{q}a}\frac{(1-\omega/\omega_{q})+i\Gamma}{(1-\omega/\omega_{q})^{2}+\Gamma^{2}}$.

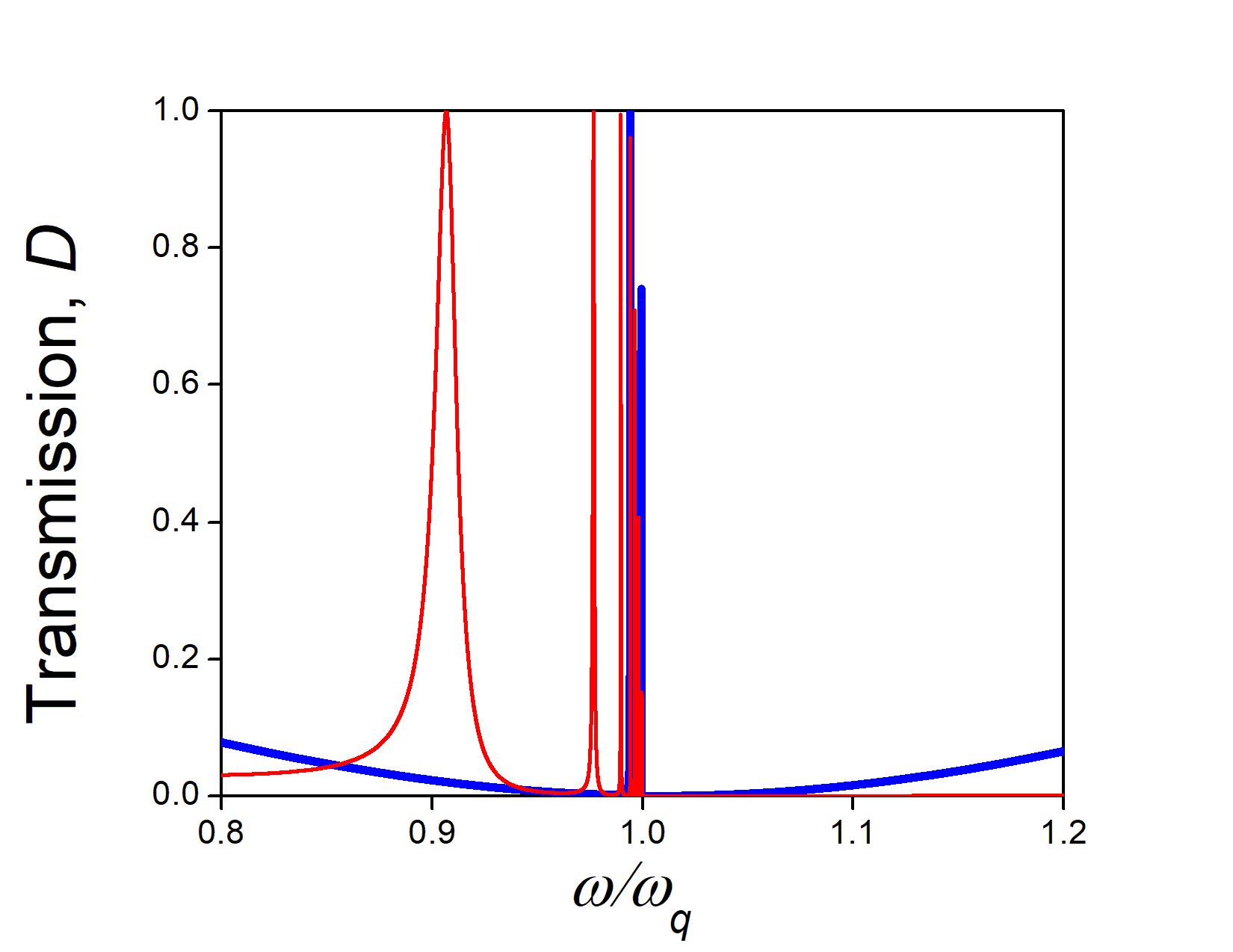

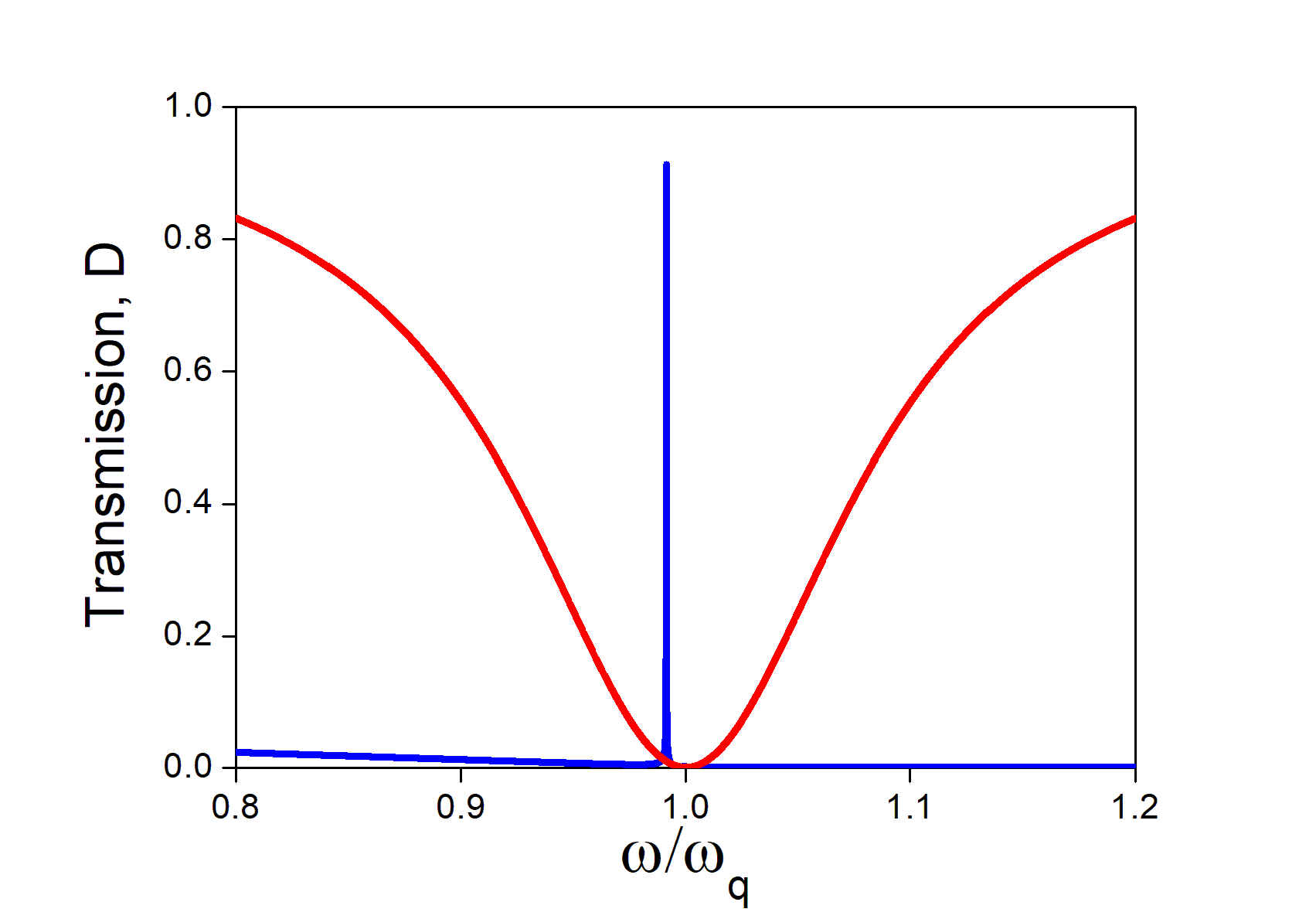

Here, we consider a regime most relevant to current experiments as the total length of a system is smaller than the wave length of EWs, i.e. $\ell\ll\lambda=c_{0}/\omega$, and the effective strength of interaction between a single qubit and EWs is large, i.e. $\beta/a\gg\omega_{q}^{2}$. With such assumptions the dependencies of $D(\omega)$ for different values of an effective strength of interaction $g$ are presented in Fig. 4. Beyond a standard resonant suppression of $D(\omega)$ observed for moderately large values of $g$ (see Fig.4, red line) , we obtain a great enhancement of $D(\omega)$ in an extremely narrow region of frequencies (see Fig.4, blue line). This effect of resonant transparency of EWs propagating through an array of qubits occurs for an extremely large values of an effective strength of interaction $g$. We notice that such resonant propagation of EWs through a chain of densely arranged superconducting qubits has been experimentally observed in Shulga et al. (2018) where an extremely large value of coupling was achieved by direct incorporation of qubits Josephson junctions in the superconducting transmission line. Moreover, as the size of the array increases we obtain a large set of peaks in the dependence of $D(\omega)$. It is shown in Fig. 5.

IV.2 High power regime

In the regime of high power applied microwave radiation the dynamics of EWs is determined by generic Eq. (18) written as

[TABLE]

where $\chi=[gc_{0}/(\eta^{2}\omega_{q}a)](\omega_{q}-\omega)$ and $\xi=(1/\eta^{2})[(\omega_{q}-\omega)^{2}+\Gamma^{2}]$. Here, we neglect a small absorption of EWs, i.e. an imaginary part of $k$ and $\chi$. We solve such intrinsically nonlinear wave equation by making use of an analogy with the famous Kepler problem in classical mechanics Landau and Lifshitz (1960). To make that we introduce the spatially dependent amplitude $r(x)$ and the phase $\phi(x)$ of EWs as $q(x)=r(x)e^{i\phi(x)}$ and $|q|=r$. Spatial distributions of the amplitude $r(x)$ and phase $\phi(x)$ of the electromagnetic field are determined by following equations:

[TABLE]

[TABLE]

where we introduce the nonlinear function $R(r)=\frac{\chi}{r^{2}+\xi^{2}}$, $C$ is the constant that have to be found from the boundary conditions. The boundary conditions are derived from the continuity of the electric and magnetic fields of EW at the boundaries, $x=0$ and $x=\ell$, of a system. The boundary conditions are explicitly written down as

[TABLE]

where the amplitude of incident EW, $A\propto\sqrt{P}$ and $P$ is the power of an incident EW. The transmission coefficient of propagating EWs is determined as $D=|q(\ell)/A|^{2}$. The solution of Eq. (21) is obtained as

[TABLE]

where the constant $E$ is the effective energy of a system. The constant $C$ is determined as: $C=k[r(\ell)]^{2}$. In the limit of not extremely large coupling $g$ and large system size, $kl\gg 1$, using the condition $|r(\ell)-r(0)|\ll r(0)$ we write down the expression for the transmission coefficient $D(\omega)$ as

[TABLE]

where the variable $z=r(0)/r(\ell)$ is closed to one. The parameter $z$ is determined by the transcendent equation derived from Eq. (23) as

[TABLE]

Thus, the parameter $z$ is obtained explicitly as

[TABLE]

Substituting (26) in (24) we obtain in a strongly nonlinear regime the transmission coefficient of $D(\omega)$ as

[TABLE]

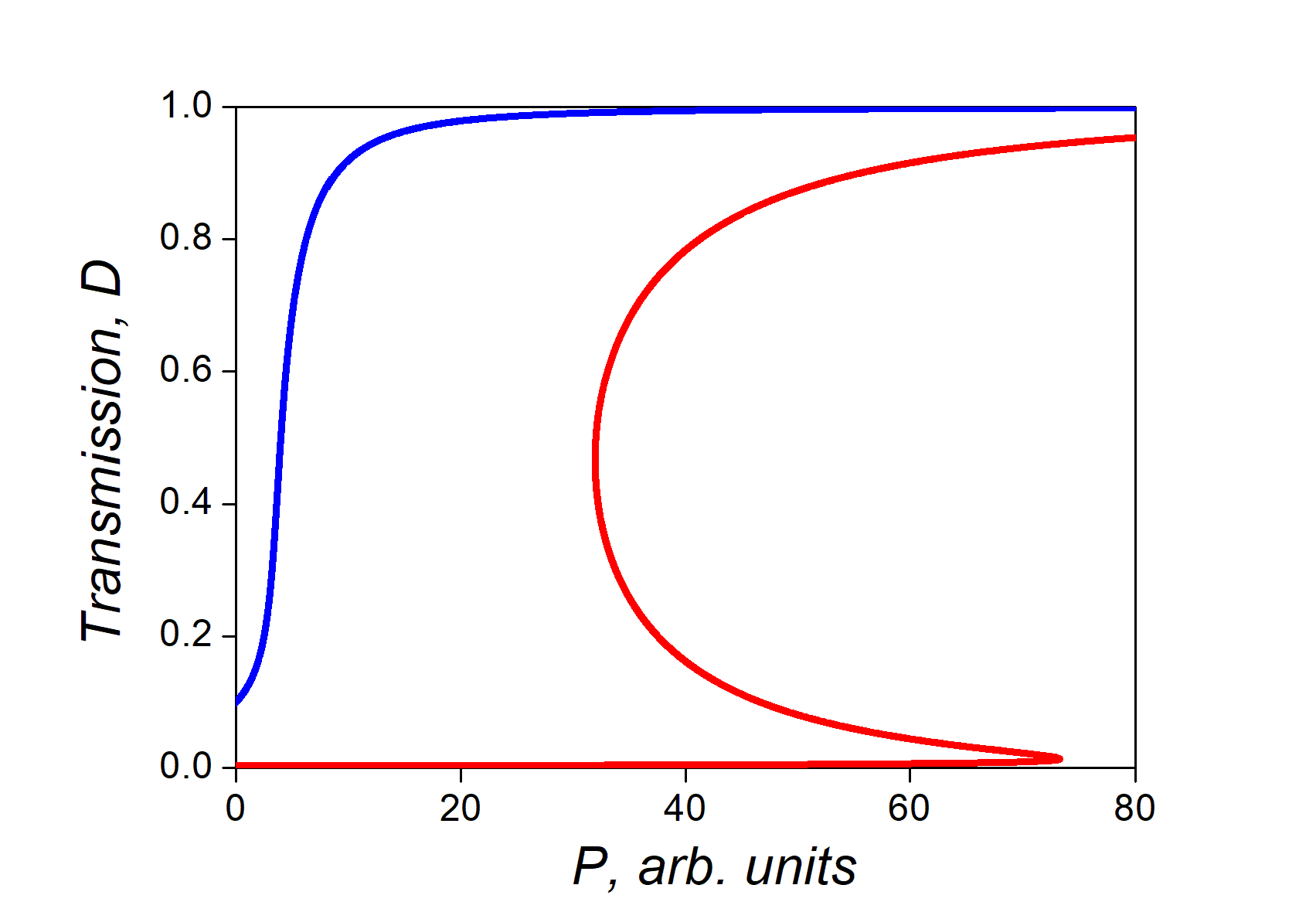

For various parameters $\omega_{q}-\omega$, $\chi$ and $\Gamma$ the dependencies of $D(P)$ are presented in Fig. 6.

Thus, the main result of this Section is that if for low power EWs the transmission $D$ is strongly suppressed ($D\ll 1$) but in the high-power limit the transmission will be recovered to $D\simeq 1$. The origin of such effect is an equalizing of the populations of qubits states in the limit of a large power of EWs, that, in turn, strongly suppresses the ac response of qubits to the applied electromagnetic field.

V Conclusion

In conclusion we theoretically studied the propagation of EWs through a one-dimensional array of densely arranged superconducting qubits, i.e. coherent two-level systems embedded in a low-dissipative transmission line (see Fig. 1). A particular near-resonant case as $\omega\simeq\omega_{q}$ has been studied. We derive an effective nonlinear wave equation taking into account a non-equilibrium state of qubits, i.e. Eq. (12).

The dependencies of transmission coefficient $D(\omega,P)$ on the frequency $\omega$ and power $P$ of applied microwave radiation were obtained. In particular, for both cases of a single qubit and large arrays of qubits the resonant suppression of $D(\omega)$ was found in the limit of small power $P$ and as $|\omega-\omega_{q}|\ll\omega_{q}$ (see Fig. 2 and 4). However, the resonant transmission with $D\simeq 1$ was found in large arrays of qubits for an extremely large coupling of qubits with EWs (see Fig. 4 and 5) and in a narrow band of frequencies. Notice here that the effect of resonant transmission of EWs through an array of qubits has been observed in Ref. Shulga et al. (2018).

In the limit of high powers of applied EWs the large transmission $D\simeq 1$ was recovered in both cases of a single qubit and an array of qubits.

We anticipate that strong variations of transmission coefficient $D$ on the frequency and power of EWs will be used in electronic devices with quantum efficiency.
