MTFS: Merkle-Tree-Based File System

TL;DR

This paper introduces MTFS, a Merkle-tree-based file system leveraging blockchain technology to enable secure, private, and efficient distributed file storage and exchange without central control.

Contribution

It proposes a novel blockchain-based file system using Merkle trees and proxy re-encryption for secure, private, and balanced distributed storage and transfer.

Findings

Enables secure private file storage with blockchain and Merkle trees.

Provides faster message propagation in a decentralized cluster.

Ensures balanced file distribution among service nodes.

Abstract

The blockchain technology has been changing our daily lives since Bitcoin - i.e., the first decentralized cryptocurrency - was invented and released as open-source software by an unidentified person or a group called Satoshi Nakamoto in 2009. Of many applications which can be implemented based on the blockchain, storage is an important one, a notable example of which is the InterPlanetary File System (IPFS). IPFS is a distributed web based on a peer-to-peer hypermedia protocol to make the web faster, safer, and more open and focuses on public accessible files. To provide a solution for private file storage in the blockchain way, in this paper we propose a Merkle-tree-based File System (MTFS). In MTFS, the blockchain is more than a trust machine; it is an abstract of a cluster system. Distributed random nodes form a tree network cluster without a central controller to provide a secure private storage service and faster message propagation. Advance proxy re-encryption algorithm is applied to guarantee secure file exchanges under permission. Merkle tree will make sure that the files are distributed among the service nodes in a balanced way. The proposed MTFS can be used not only for personal file storage and exchange but also for industry requiring mutual trust in file uploading and downloading in making contracts like insurances.

Figures

Full text

I Introduction

The early Internet was created and used by academia mainly for research purpose: The email was used to exchange ideas, and the file transfer protocol (FTP) was used to exchange data like software packages and experimental results. Note that centralized file servers then couldn’t meet user demands all the time due to their limitations in network bandwidth, input/output (I/O) speed, and/or storage capacity. There are two major use cases for FTP: Public file distribution and private access. In the following years, hypertext transfer protocol (HTTP) replaced FTP for public file distribution as the world wide web (WWW) and browser technology became widely popular. The concept of mirror was also used to better serve users with higher speed from mirror servers geographically nearer to users than the original server. Later the peer-to-peer (P2P) technology brought another revolution, where a client downloading contents also serves other clients with downloaded contents, named a peer.

On the other hand, the development of private data storage has been taking a different path: FTP/secure FTP (SFTP) can be used for private data exchanges, but, because they are not supported by Windows File Explorer, the common internet file system (CIFS), a dialect of server message block (SMB) protocol, is used in private file storage purpose more often, especially in enterprises and commercial organizations. Due to the insufficient performance of CIFS/SMB, more powerful and user-friendly commercial applications like Dropbox, Google Drive, and Baidu Yun appeared, and similar services based on cloud also were directly integrated into operating systems like Microsoft OneDrive and Apple iCloud. BitTorrent Lab surprised us by introducing BitTorrent Sync (BTSync; now Resilio Sync), which is a Dropbox-like application without the requirement of a centralized server. Using existing P2P network, BTSync gets files synchronized among personal devices.

Bitcoin[1] based on blockchain and P2P technology. The blockchain technology brought us into a new era in private data storage as well. InterPlanetary File System (IPFS) [7] intends to build a new distributed web.

Merkle-Tree-based File System (MTFS), which we propose in this paper, is to provide a solution for private file storage based on P2P network and the blockchain technology. It uses the asymmetric cryptography including Proxy Re-Encryption (PRE)[8] technology to provide secure and reliable private storage under permission. Random nodes form a cluster without a central controller to provide a private storage service.

II Use Case

The use of cloud services is common nowadays in enterprises, schools, governments and even households for private files, and the proposed MTFS could provide an alternative solution for private file storage/exchange based on the blockchain technology. We illustrate the use case of the blockchain-based private file storage/exchange in the insurance industry as an example: People purchase insurance to cover accidental loss in life. An insurance company asks a person to provide certain information to insure him/her through risk evaluation. However, because those submitted files are only kept on the insurance company’s private server, it is not possible for the insured to verify the submission of those files later unless the insured kept the original reception as evidence. Blockchain-based private file storage can provide mutual trust for both insurer and insured. When the insured requests for insurance services, all supported materials are provided in a restricted network space, which are immutable and reliable.

III Design

Unlike public files which are usually shared among users with common interests, like movies, albums, open courses and software packages, private files are unique to each user and include confidential information (e.g., personal documents, photos and videos). Hence security is critical to private file storage in addition to speed and stability.

III-A Architecture

In P2P, a peer is defined as both uploader and downloader, which combines the role of a client and a server. A major concern for a P2P system is its relatively lower performance; lots of peers are behind firewalls and often connected with slow home connections like ADSL having much smaller uploading bandwidth than downloading one.

In MTFS’ design, a node is consisted of a batch of servers with professional connection sitting in a data center. The host is assigned with public IP address(es) and accessible open port(s) and the power supplied in 7x24. To build a modern and efficient service, we must base it on fundamental infrastructure.

III-B Cryptography

IPFS[7] comes without built-in cryptography. To put a file in a public place with the content encrypted safely, asymmetric cryptography algorithm needs to be applied to make sure that only the private key owner can decrypt the file content. In the application level, OpenPGP or GPG can be used to encrypt and decrypt the file content.

Because nowadays mobile users take a large proportion, the limited bandwidth of mobile connections and the limited power and storage space of mobile devices should be considered in design. Consider the scenario of sending an encrypted file to multiple users as an example. The following actions should be taken in this case:

Collect each user’s public key. 2. 2.

Encrypt the file with each user’s public key. 3. 3.

Upload encrypted files to a server.

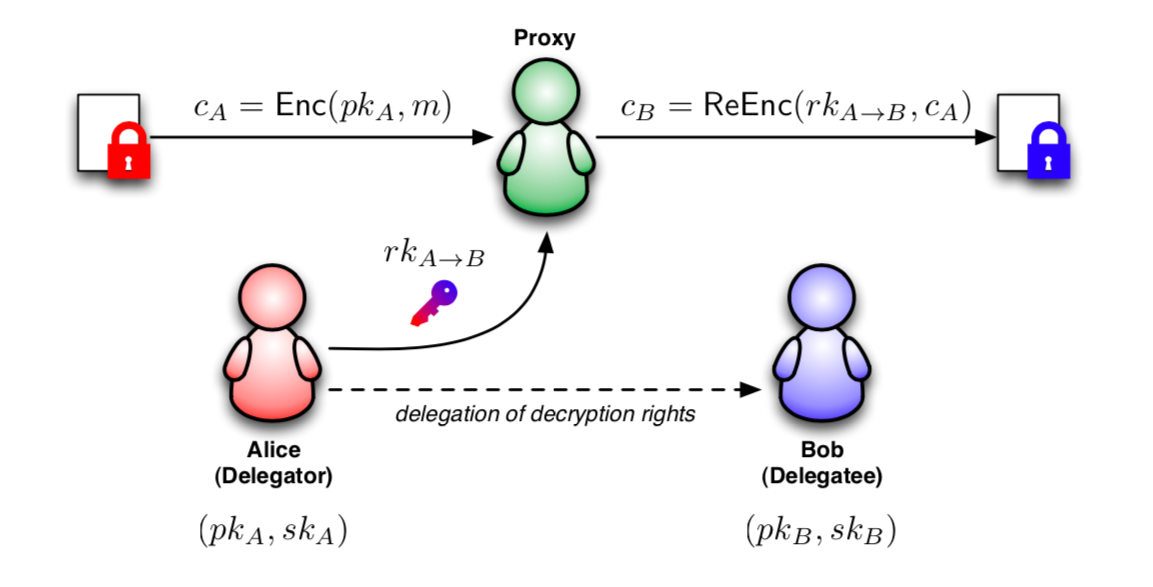

Note that the step 2 costs too much computing power and local storage and that the step 3 costs too much bandwidth. To address these issues, PRE[9] is used to re-encrypt the decoding capsule without modifying existing cipher texts.

III-C Broadcast network

P2P network is a mandatory component of the blockchain. Among the three types of P2P communication models (i.e., pair-wise, group-wise, and broadcast), broadcasting is the most common requirement as every transaction or new block discovery requires to be announced in the whole network as efficiently as possible.

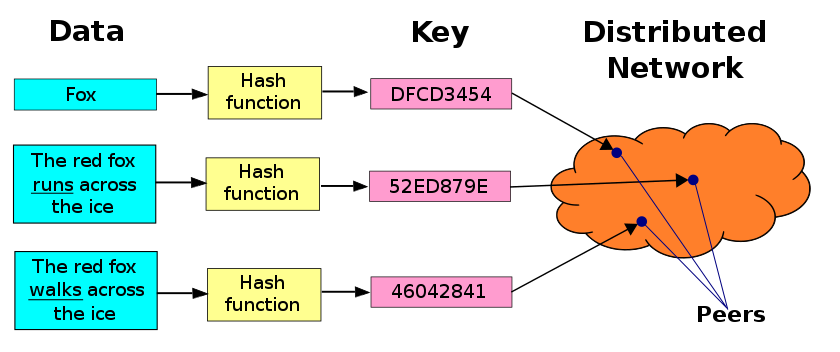

The broadcast network can be implemented with the gossip protocol[4] or DHT/KAD network[3]. The gossip protocol is extremely reliable, but it cannot ensure that the message can reach every corner of the network within a fixed time. The propagation convergence could take lots of time.

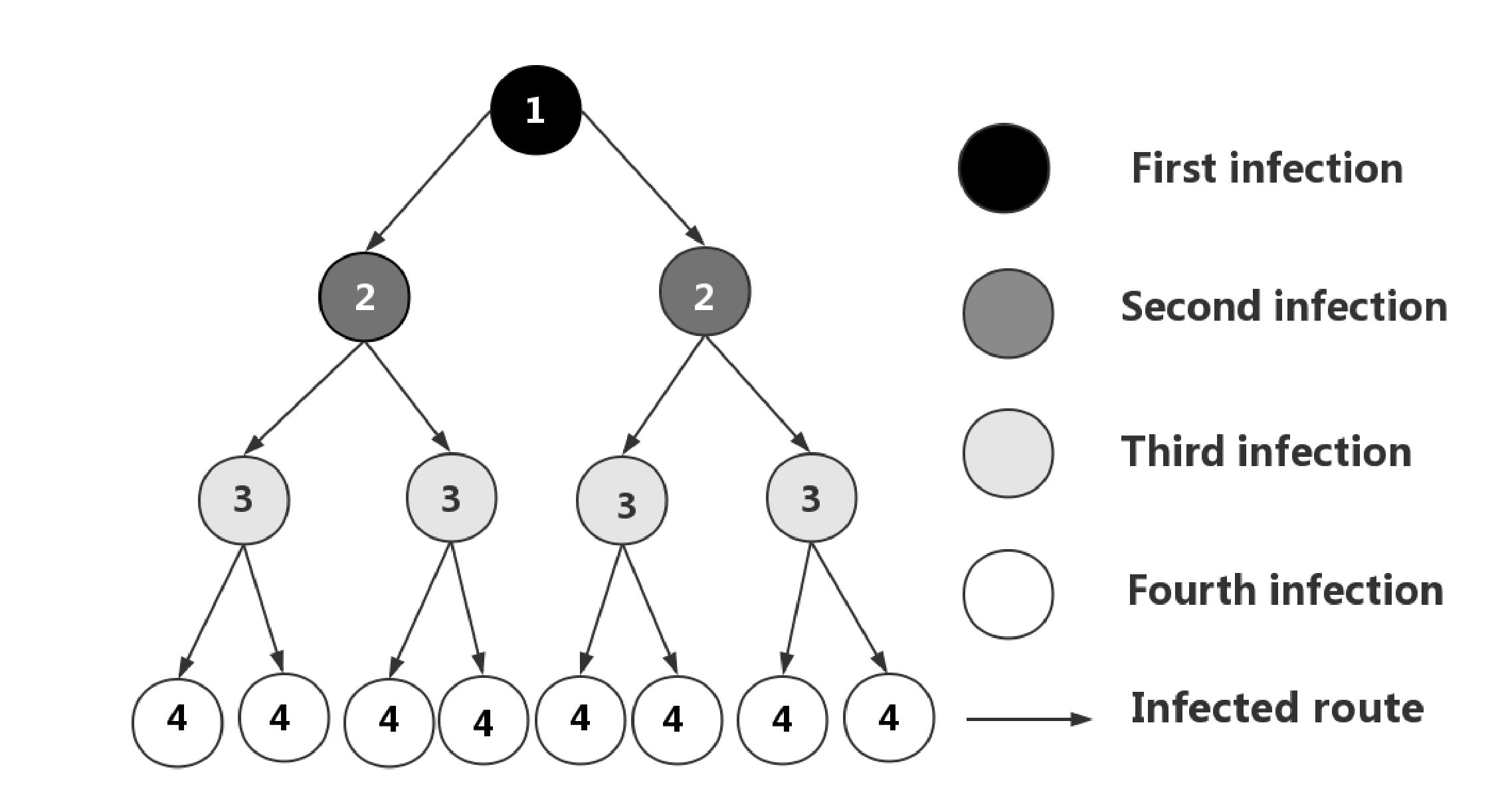

We propose a tree network for broadcasting as show in Figure 1. In the tree topology, a node joins the tree as a leaf one by one, and a protocol is set to ensure the tree is constructed as balance as possible. In a tree network, the longest distance between any two nodes will be less than 2 times of the tree height. That means even in a binary tree topology, the message can be passed to the farthest node with less than 2 times the tree height hops. It might be the most efficient way for message broadcasting in logic.

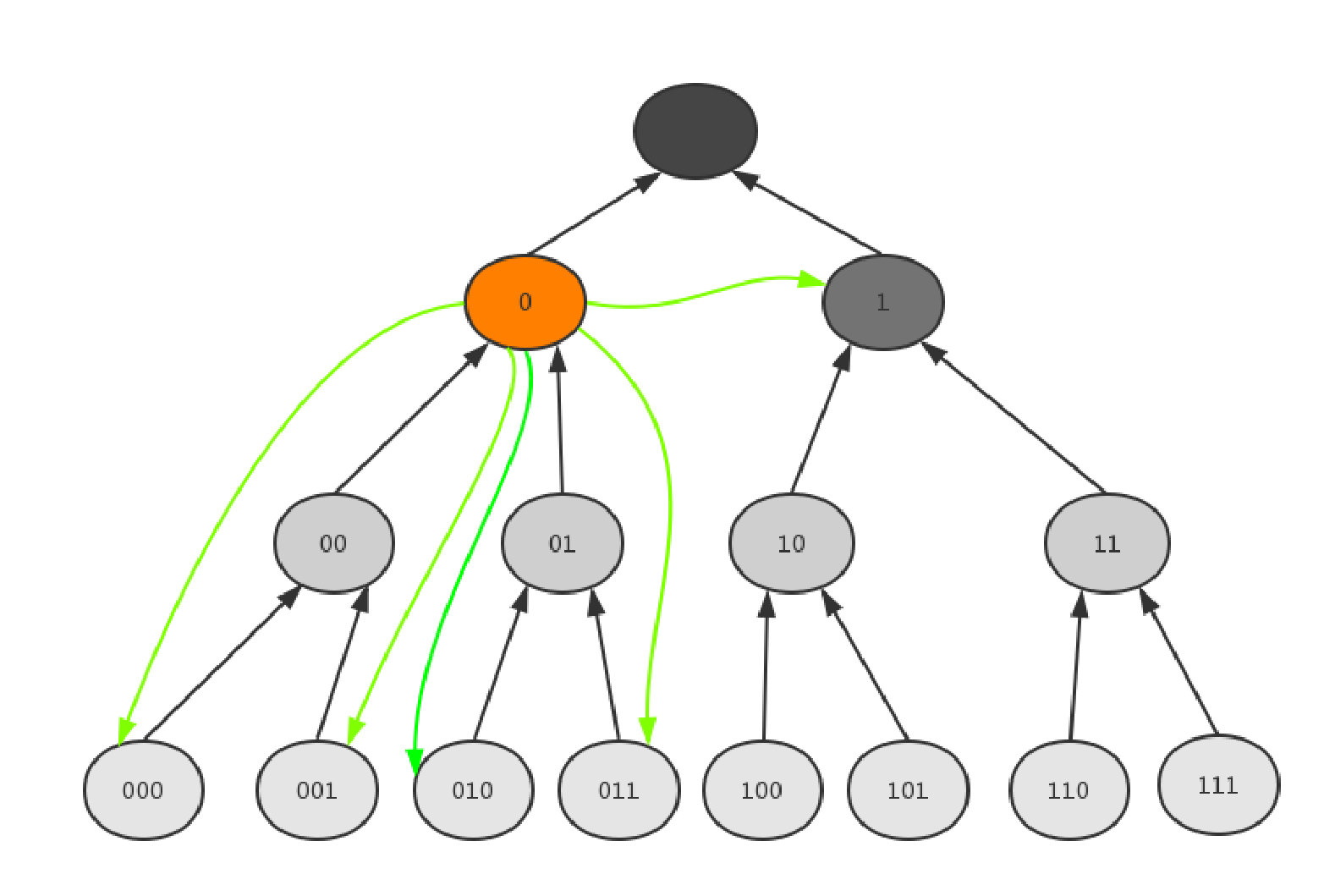

In the tree-based broadcast network, message could be initialized from any tree branch node. A binary tree node will pass the message to its parent and two children from the original node. A neighborhood receiving the message will forward it to other neighborhoods except the one from which it received the message.

Note that the tree network has also a disadvantage compared to the gossip protocol: A single node failure can block the message propagation, because there is only one way for a message to traverse. In the following, we discuss two options to address this issue.

III-C1 Tree-based network with redundant nodes

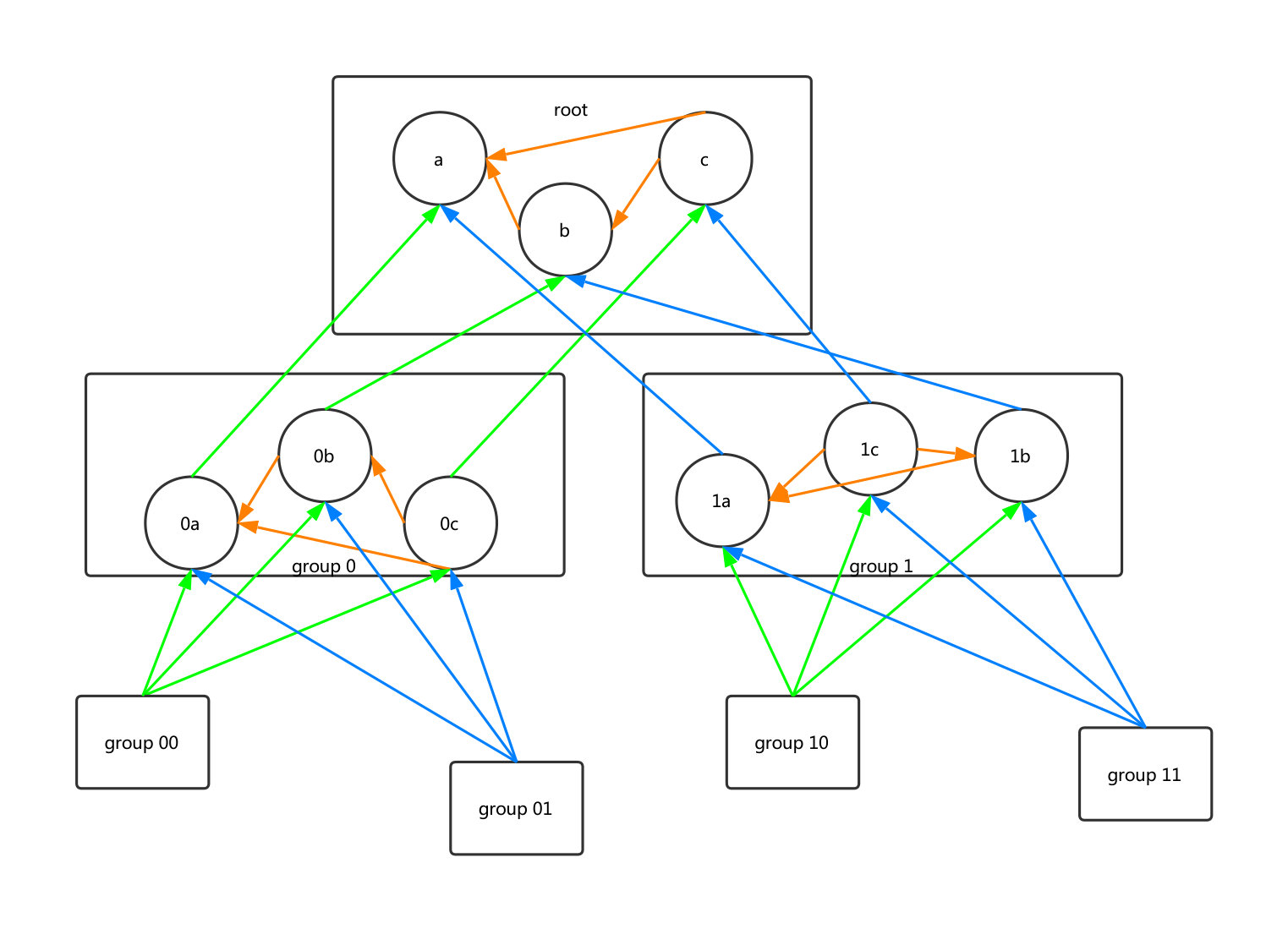

This option brings redundancy to a node by extending it to a cluster of multiple nodes. For the experiment purpose, we consider a cluster of up to 3 nodes. Inside the cluster, the nodes interlink with one another.

III-C2 Tree-based network with redundant connections

In this option, each node interlinks with not only the nearest neighbor but also neighbors within several hops. This makes the tree network redundant when a direct connection to the nearest neighbor fails; a message still can be passed to the nearby nodes.

III-D Blockchain

The last generation of P2P application like BitTorrent lacks the incentive mechanism. Users can join the file downloading any time. In MTFS, it’s required for the contributor (i.e., miner) stay online as long as possible.

The blockchain technology will take a very important part in MTFS design. When a user requests for certain file storage, a contract would be signed between the user and the system. A subscription relationship will be set up, unless the user decides to cancel or the node is about to quit.

IV Implementation

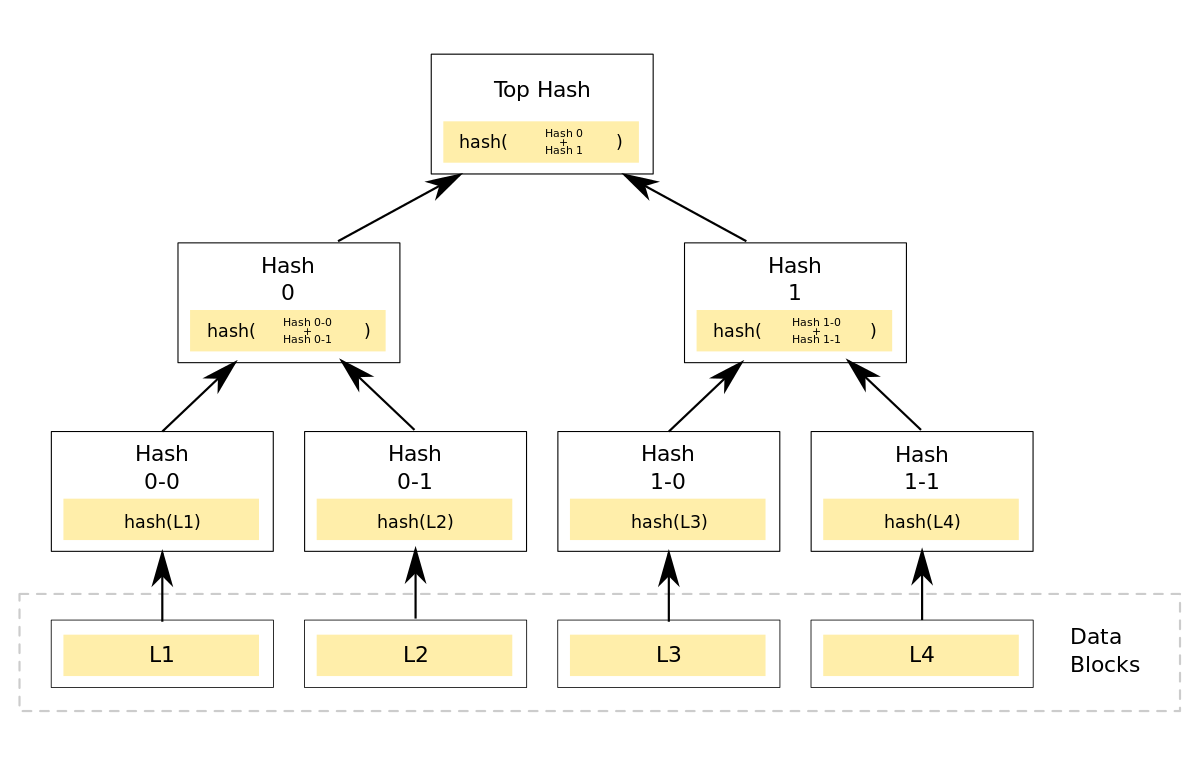

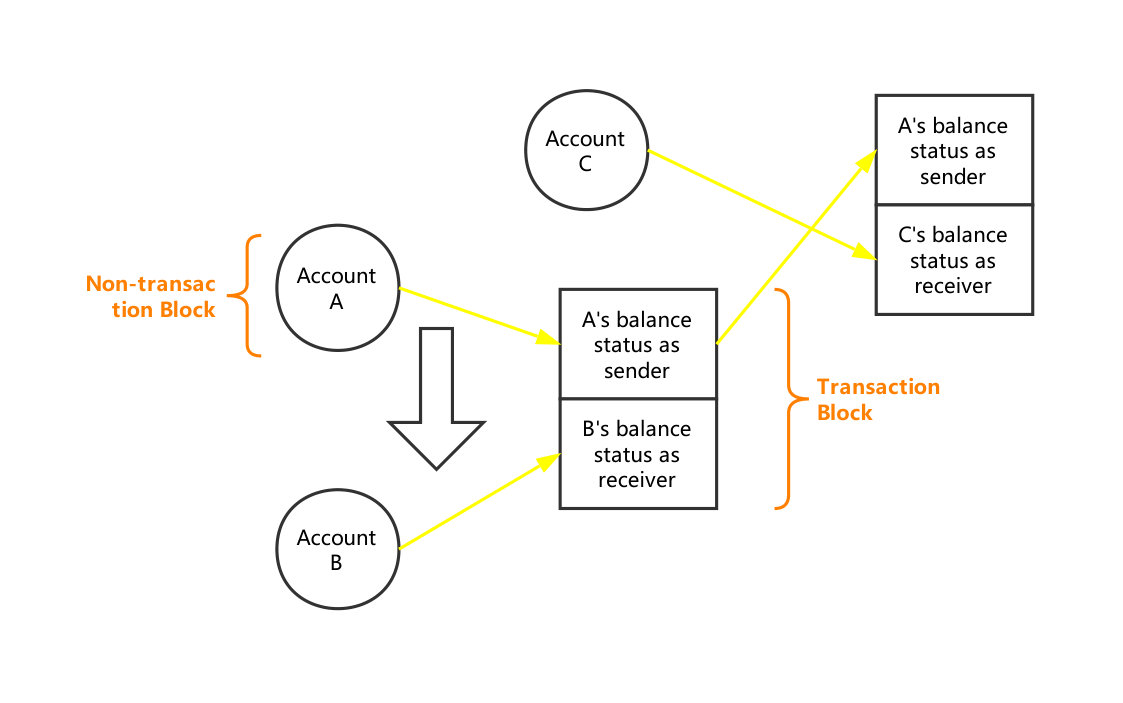

In the design of MTFS, Merkle tree[2] is used to split encrypted content to small pieces of objects (less or equal to 1 MB) and verify the completeness. With all the existing design including[9], GraphChain[5], Tree network[10], we are able to see the big picture of a private storage system now.

User will be able to start using MTFS by generating a public/private key pair. To store a file on the network, the content needs to be encrypted with the user’s public key first. After the cipher text generated, a storage contract between the user and a resource contributor will be signed, and the contract is recorded in blockchain. MTFS will host the encrypted content for the user.

IV-A Tree network construction

The tree network is the backbone of MTFS system. It interlinks the distributed system’s resources, plays the role of communication infrastructure and implements self governance. Each node in the network should be a server with public IP address and open accessed port.

The first node in a tree network becomes root node, whose group identifier (ID) is an empty string. Any node in the tree can have up to two children nodes. After the establishment of a connection, the parent node assigns the child node a group ID. Note that, during the establishment of a connection with the parent node, the child node itself can be a parent node for other nodes.

IV-A1 Open branches

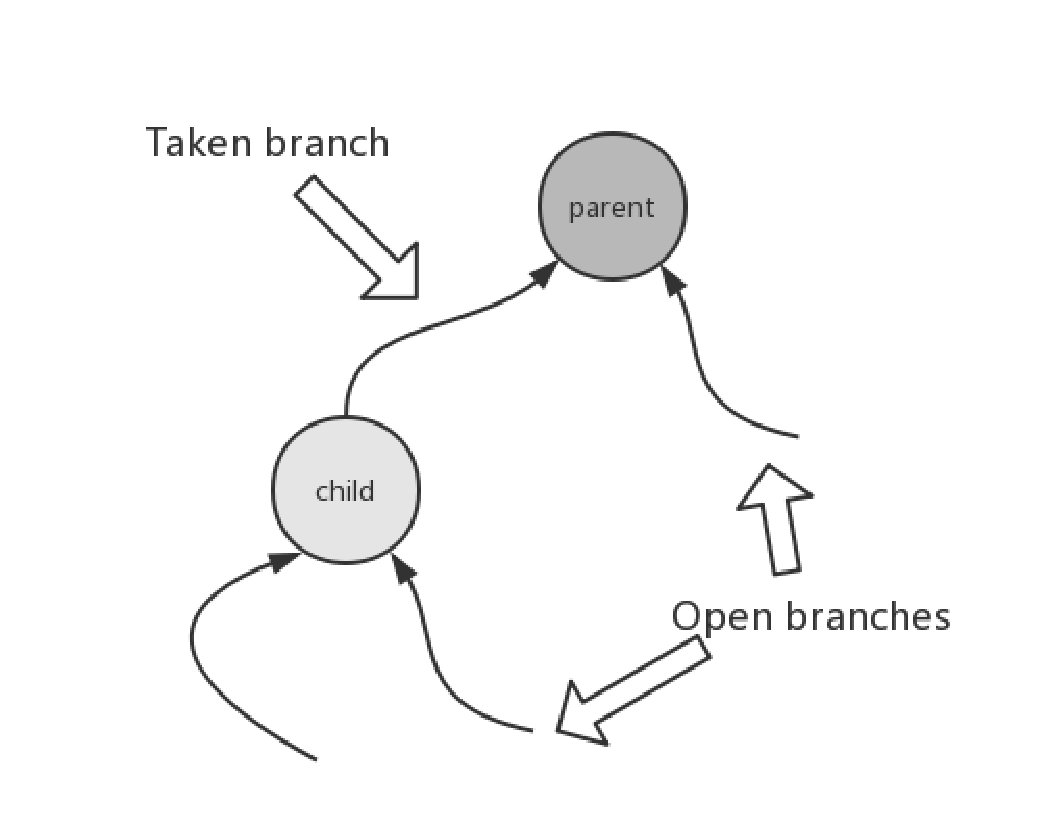

The tree network is used for message broadcasting; the information of open branches (Figure 2) is spreading and synchronized among nodes by message broadcasting. Each node keeps a copy of information listing available branches within the whole tree network.

Two message protocols are defined for the open branches information management: AVAILABLE_BRANCHES and DISCARDED_BRANCHES. The message AVAILABLE_BRANCHES is used to announce new open connection points to the network that new nodes can join the network. Another message DISCARDED_BRANCHES indicates that current branch already accepts a child node connection, so the node’s information will be removed from the list of globally available open branches.

When a child node managed to connect to a parent node, the parent node sends a DISCARDED_BRANCHES message to network due to its two available branches taken. Meanwhile, the connecting child node will send a message AVAILABLE_BRANCHES after its parent node assigns it a group ID, telling the network another two branches are open.

IV-A2 Group Naming

A node connects to a parent node; there might be two branches available for attaching. A binary tree has a left and a right branch. When a branch is attached, the parent will response a GROUP_ID message to confirm the official group ID of the newly-joined node. This action is to prevent a node to connect to a tree branch which is already taken by other node. In such a case, the parent will force to disconnect the duplicate connection.

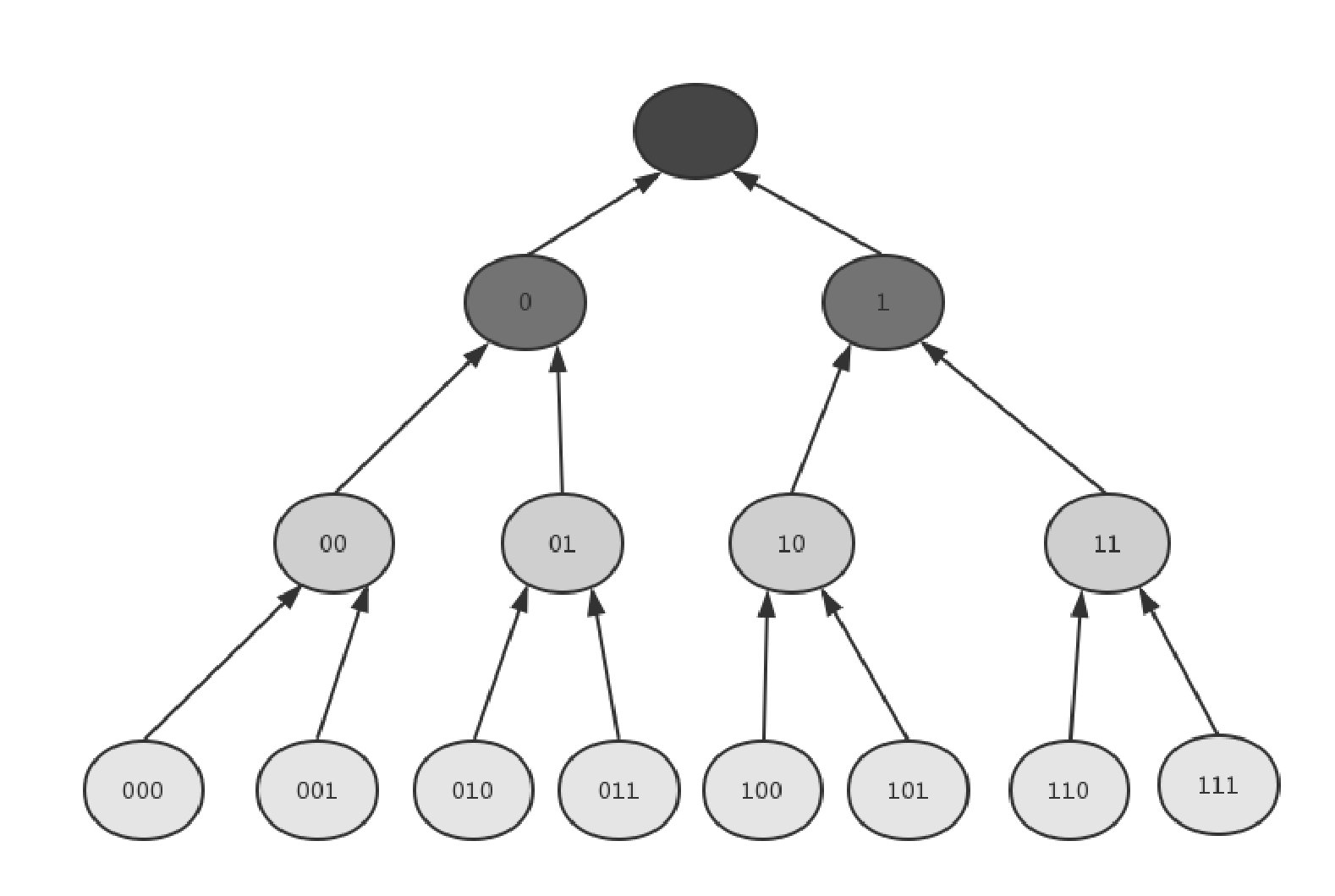

In a binary tree, a group ID is represented in a binary format with a varied length. The group ID of a root node is an empty string, while its left and right child node take 0 and 1 respectively, as shown in Figure 1. Any hash hex string, i.e., message digest like sha1 or md5, can be easily converted into a binary representation. As the tree network grows, the hash string can be mapped to the outer nodes by the same prefix in a distributed manner.

IV-B Discover of nearby nodes

As the tree network grows, there are two things for each node to memorize: First is the available branches, and second is all the nodes’ host information. The second requirement will be extremely expensive when the network size is large. Instead of storing all the nodes’ host information, it’s cheaper to remember the nearby neighbors’ IP and port in memory. We can set a distance $k$, ask node to remember the nodes within $k$ steps of hops. $k$ must be equal to or larger than 2; otherwise it’s meaningless as any node already knows the direct neighbors’ information such as its parent and children.

IV-B1 Recursive node discovery

If the encrypted file size is more than 1 MB, the file is divided into smaller objects by Merkle tree. Otherwise the file doesn’t need to be divided, and it can be directly uploaded to a node. By comparing the object hash with the existing group IDs, user can recursively find the outermost node in the tree.

IV-C Group Path

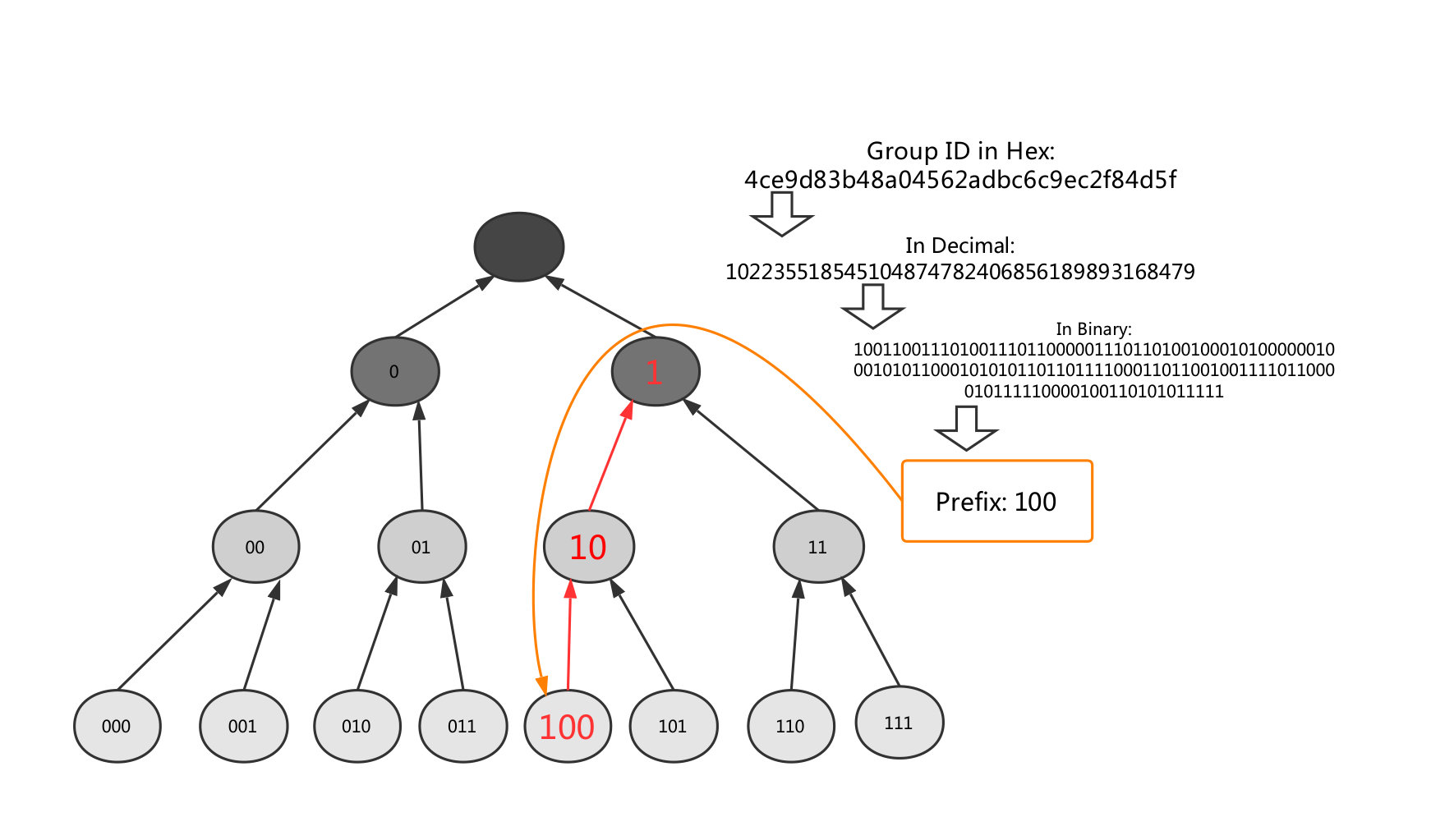

For a given hex hash string of node ID, it can be represented in a binary format. Comparing it with the existing network, we can find nodes whose group IDs are the prefix of the given hex hash string. Those nodes are defined as Group Path as shown in Figure 2.

IV-D Local encryption

PRE is an asymmetric encryption algorithm. When user uploads a file to the tree, it is required for the user to encrypt the files with the public key. Besides the cipher text, another file named capsule is generated. The encrypted cipher text can be decrypted with user’s private key and the capsule.

Plain text is encrypted with PRE, resulting in a cipher text file and a capsule file. The cipher text file size is usually as big as the plain text, while the capsule file size is small.

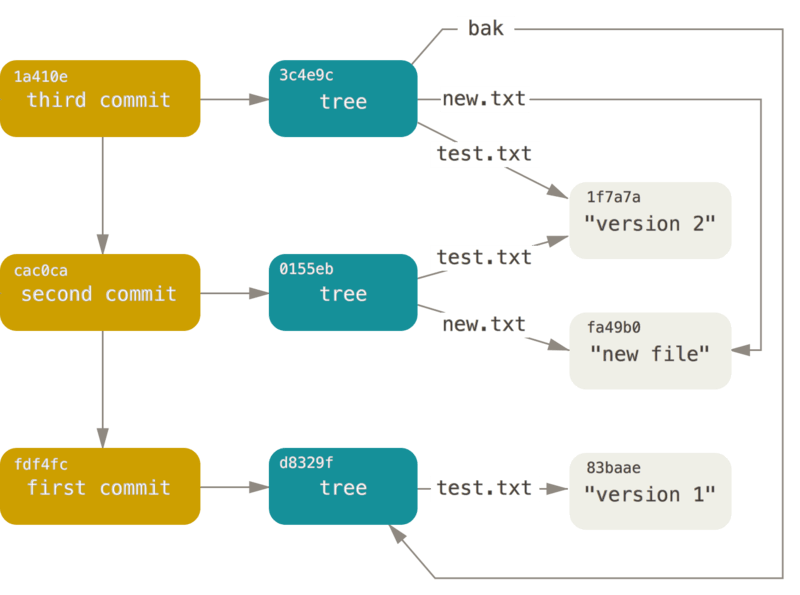

IV-E File and folder object

The objects are generated from the encrypted content using Merkle tree. If the encrypted content is less than 1 MB, only one object is created. In this case, root hash equals to the encrypted content hash. Otherwise, a file object named with root hash suffix ”_mt” is generated which contains Merkle tree structure of file objects. Besides, there is capsule file named with root hash suffix ”_capsule”.

We can decode the file content with user’s private key and the capsule, but the file name is lost. The file name and size is stored in the folder object.

IV-E1 Convention object size

The convention object size of MTFS is 1 MB (i.e., 1024*1024 bytes). It is the base size unit in MTFS. A small document file usually requires only one unit of the object. For large-size photos or videos, however, more objects are needed; in such a case, the allocation can be done in parallel for speedup.

IV-F User and nodes

IV-F1 File uploading

User’s root folder object is created when the user uploads the first file or creates a sub folder under the root folder.

The user is tended to choose the the edge node to store new objects; we can imagine the network like a city, where its central area is always busy with traffic jam, while its country side far from the central area has less traffic and enough land.

The user’s files, once encrypted and split into objects, are uploaded to the tree by comparing group ID and object hash and finally stored into MTFS. Then, the user’s root folder information is uploaded to MTFS as an object. The folder object is updated following the same process as the file object.

As the folder and file objects are saved into the tree, a contract is set up between the user and the nodes. The root folder object’s hash is committed into blockchain as a transaction. Besides the root hash, the transaction also includes the group ID information.

IV-F2 File retrieving

Inversely, when user browses file in MTFS, the first step is to look for the root folder information on the nodes. The user’s root folder object and location information (i.e., group ID of storage) is committed as the transaction of blockchain. With object ID and group ID, it’s easy to retrieve the content of the root folder object. If the folder content is larger than 1 MB, the user will follow the procedure to gather all the folder objects and decrypt them.

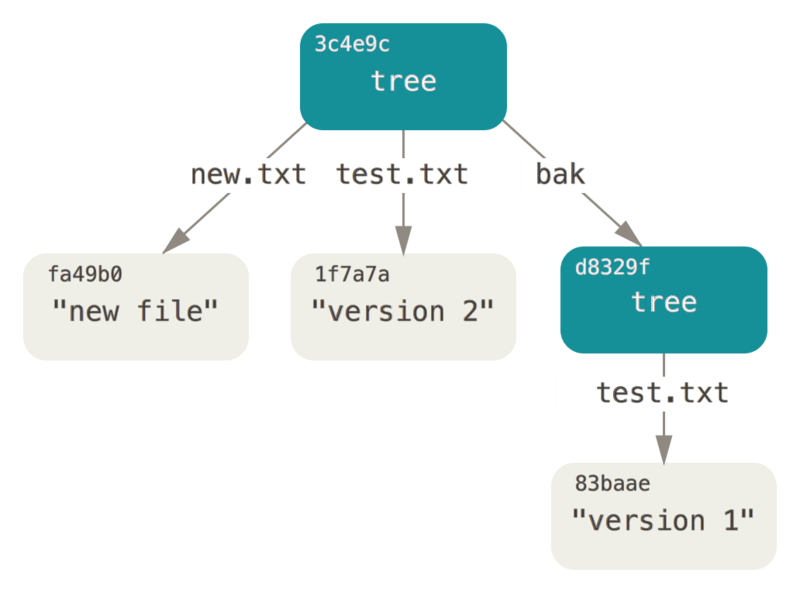

IV-F3 Folder object schema

User checks the group path on the tree, where there should be a node hosting the user’s information (assume the network keeps 3 replications).

A folder object is different from a file object. A folder object contains the encrypted folder data. Data are represented in JSON format. Entities in folder data link to other file object and folder object. File object size indicates the file size, and folder object size indicates the total file size under the folder. This information is useful to calculate how much storage consumed by the user.

If the file size is larger than 1 MB, use the Merkle tree root hash; otherwise use the hash of the file content.

IV-G File exchange

File exchange is similar to sending an email to another user. A sender should know the address of a receiver, i.e., the public key. The file sending action is a blockchain transaction operation; the transaction shows who and which file on MTFS will be added into the receiver’s folder.

MTFS is a secure system with permission. In the operation of file sending, no one except the owner has the permission to modify the folder information. However, user may interact with MTFS from a mobile device. It would be too expensive to do operations like downloading, decrypting, modifying, encrypting, and uploading in this case. Note that, if the user wants to modify the content, this series of operations has to be done. What if the user does not modify the content, was it possible to reduce the operation steps? PRE is introduced for this case.

With PRE, the file owner can encrypt the file content into a cipher text and a capsule. The cipher text is as long as the content, but the capsule is usually very short. The capsule can be re-encrypted with sender’s private key and receiver’s public key. Once the receiver accepts the re-encrypt capsule granted by sender, the receiver can easily decrypt the cipher text with the new capsule and his or her own private key.

IV-H Replication and verification

After the file is uploaded to the system, the file must replicate itself for several copies on the group path. Because the objects on the node is protected with authentication, the other nodes on the group path do not have the permission to pull the objects. So, it is required that the node pushes objects to the replicated nodes. The verification of the storage needs to be performed periodically, as the object content may be damaged, lost, or even the node may try to cheat by claiming that they have the objects but actually not.

V Conclusions

In this paper, we have proposed MTFS and discussed its many aspects from the technology requirements to the design and implementation with major focus on cryptography, blockchain, network and storage schema.

Based on a novel design we building a secure private file storage system using existing technologies: A tree network is used as a backbone network for storage with high performance broadcasting, where only servers with public IP addresses are allowed to join as nodes to avoid the issues related with firewall and gateway NAT in achieving higher performance. Also PRE encryption is introduced to re-encrypt the decoded capsule without modifying existing cipher texts. Base on these component technologies, the schema of storage is designed, and MTFS can provide a high-performance solution for a secure private file storage service based on the blockchain technology.
