Predicting neutrino oscillations with "bi-large" lepton mixing matrices

TL;DR

This paper introduces two models for lepton mixing matrices that connect neutrino and charged lepton sectors, predicting specific oscillation parameters and CP violation phases based on a simplified parameter dependence.

Contribution

It presents novel schemes for the lepton mixing matrix with CP conservation in neutrinos and CP violation arising from the charged lepton sector, linking mixing angles to the Cabibbo angle.

Findings

Predicted narrow ranges for solar and accelerator angles.

Estimated CP phase around 1.3π.

Dependence on a single parameter simplifies oscillation predictions.

Abstract

We propose two schemes for the lepton mixing matrix $U = U_l^\dagger U_\nu$, where $U = U_l$ refers to the charged sector, and $U_\nu$ denotes the neutrino diagonalization matrix. We assume $U_\nu$ to be CP conserving and its three angles to be connected with the Cabibbo angle in a simple manner. CP violation arises solely from the $U_l$, assumed to have the CKM form, $U_l\simeq V_{\rm CKM}$, suggested by unification. Oscillation parameters depend on a single parameter, leading to narrow ranges for the "solar" and "accelerator" angles $\theta_{12}$ and $\theta_{23}$, as well as for the CP phase, predicted as $\delta_{\rm CP}\sim 1.3\pi$.

Figures

Equations

$$\sin {\theta }_{23}^{\nu }=1-\lambda ,\sin {\theta }_{12}^{\nu }=2\lambda ,\sin {\theta }_{13}^{\nu }=\lambda ,$$

$$U_{\nu }\simeq \left(\begin{array}{ccc}1-\frac{5{\lambda }^2}{2}& 2\lambda & -\lambda \\ \lambda -2\sqrt{2}{\lambda }^{\frac{3}{2}}& \sqrt{2\lambda }-\frac{{\lambda }^{\frac{3}{2}}}{2\sqrt{2}}& 1-\lambda -\frac{{\lambda }^2}{2}\\ 2\lambda +\sqrt{2}{\lambda }^{\frac{3}{2}}& -1+\lambda & \sqrt{2\lambda }-\frac{{\lambda }^{\frac{3}{2}}}{2\sqrt{2}}\end{array}\right).$$

$$\displaystyle\begin{aligned} U_{l}&=R_{23}(\theta^{CKM}_{23})\,\Phi\,R_{12}(\theta^{CKM}_{12})\,\Phi^{\dagger}\\ &\simeq\left(\begin{array}[]{ccc}1-\frac{\lambda^{2}}{2}&\lambda e^{-i\phi}&0\\ -\lambda e^{i\phi}&1-\frac{\lambda^{2}}{2}&A\lambda^{2}\\ A\lambda^{3}e^{i\phi}&-A\lambda^{2}&1\end{array}\right)\,,\end{aligned}$$

$$\displaystyle\begin{aligned} \sin^{2}\theta_{13}&\simeq 4\lambda^{2}(1-\lambda)\cos^{2}\frac{\phi}{2}\,,\\ \sin^{2}\theta_{12}&\simeq 2\lambda^{2}\big{(}2-2\sqrt{2\lambda}\cos\phi+\lambda\big{)}\,,\\ \sin^{2}\theta_{23}&\simeq(1-\lambda)^{2}-2\sqrt{2}A\lambda^{\frac{5}{2}}-2\lambda^{3}(1+2\cos\phi)\,,\\ J_{CP}&\simeq-2\sqrt{2}\lambda^{\frac{5}{2}}\sin\phi\,.\end{aligned}$$

$$\begin{array}{r}0.0196\le {\sin }^2{\theta }_{13}\le 0.0241,\\ 0.302\le {\sin }^2{\theta }_{12}\le 0.309,\\ 0.572\le {\sin }^2{\theta }_{23}\le 0.574,\\ 1.303\le {\delta }_{CP}/\pi \le 1.307.\end{array}$$

$$\begin{array}{r}{\sin }^2{\theta }_{23}=0.573,{\sin }^2{\theta }_{13}=0.0216,\\ {\sin }^2{\theta }_{12}=0.306,{\delta }_{CP}=1.305\pi ,\end{array}$$

$$\sin {\theta }_{13}^{\nu }=1\lambda ,\sin {\theta }_{12}^{\nu }=2\lambda ,\sin {\theta }_{23}^{\nu }=3\lambda .$$

$$\displaystyle U_{\nu}\simeq\left(\begin{array}[]{ccc}1-\frac{5\lambda^{2}}{2}&2\lambda&-\lambda\\ -2\lambda+3\lambda^{2}&1-\frac{13\lambda^{2}}{2}&3\lambda\\ \lambda+6\lambda^{2}&-3\lambda+2\lambda^{2}&1-5\lambda^{2}\\ \end{array}\right)\,.$$

$$\displaystyle\begin{aligned} U_{l}&=\Phi^{\dagger}\,R_{12}^{T}(\theta^{CKM}_{12})\,\Phi\,R_{23}^{T}(\theta^{CKM}_{23})\\ &\simeq\left(\begin{array}[]{ccc}1-\frac{\lambda^{2}}{2}&-\lambda e^{i\phi}&A\lambda^{3}e^{i\phi}\\ \lambda e^{-i\phi}&1-\frac{\lambda^{2}}{2}&-A\lambda^{2}\\ 0&A\lambda^{2}&1\end{array}\right)\,,\end{aligned}$$

$$\displaystyle\begin{aligned} \sin^{2}\theta_{13}&\simeq\lambda^{2}-6\lambda^{3}\cos\phi\,,\\ \sin^{2}\theta_{12}&\simeq\lambda^{2}\big{(}5+4\cos\phi\big{)}\,,\\ \sin^{2}\theta_{23}&\simeq 9\lambda^{2}+6\lambda^{3}(A+\cos\phi)\,,\\ J_{CP}&\simeq-3\lambda^{3}\sin\phi\,.\end{aligned}$$

$$\begin{array}{r}0.0196\le {\sin }^2{\theta }_{13}\le 0.0241,\\ 0.315\le {\sin }^2{\theta }_{12}\le 0.323,\\ 0.512\le {\sin }^2{\theta }_{23}\le 0.514,\\ 1.265\le {\delta }_{CP}/\pi \le 1.274.\end{array}$$

$$\begin{array}{r}{\sin }^2{\theta }_{23}=0.513,{\sin }^2{\theta }_{13}=0.0216,\\ {\sin }^2{\theta }_{12}=0.320,{\delta }_{CP}=1.270\pi .\end{array}$$

Full text

††preprint: USTC-ICTS-19-04

I Introduction

After decades of hard work, the origin of flavor mixing and CP violation remains one of the most important challenges in particle physics. Understanding the flavor problem would help us to get a glimpse on physics beyond the standard model. Several approaches have been pursued to find an adequate and predictive description of lepton mixing. Using flavor symmetries from first principles [1] one can obtain “top down” restrictions on neutrino mixing within fundamental theories of neutrino mass [2, 3, 4, 5, 6]. Alternatively, one may make educated phenomenological guesses as to what the pattern of lepton mixing should look like. Specially influential were the ideas of mu-tau symmetry and the Tri-Bimaximal (TBM) lepton mixing ansatz proposed by Harrsion, Perkins and Scott [7, 8, 9]. The latter predicts the three mixing angles as $\sin^{2}\theta_{23}=1/2$, $\sin^{2}\theta_{12}=1/3$, $\sin^{2}\theta_{13}=0$, while the Dirac CP phase vanishes. However, the precise measurements of the reactor angle $\theta_{13}\sim 8.5^{\circ}$ in Daya Bay [10], RENO [11] and Double Chooz [12] now exclude TBM as a realistic lepton mixing pattern. The discrepancy between experiment and the prediction of TBM led people to pursue new lepton mixing structures. One method is to modify the TBM pattern based on flavor or CP symmetries such as in ref. [13, 14].

A more phenomenological approach is to explore new neutrino mixing patterns [15, 16, 17]. Recently a “bi-large” mixing scheme has been proposed in Ref. [18] assuming that $\sin\theta_{13}\simeq\lambda$ where $\lambda$ is the Cabibbo angle. A generalization of this pattern was proposed in Ref. [19], taking the Cabibbo angle as a universal seed for quark and lepton mixing. Such schemes may emerge from Grand Unified Theories (GUTs) and flavor symmetry [20]. The good features of such bi-large mixing patterns deserve further investigation.

In this paper we will propose two “bi-large” lepton mixing schemes and investigate their phenomenological implications. For definiteness, we assume normal ordered neutrino masses throughout this paper, since inverted ordering is disfavored at more than $3\sigma$ [21]. As in Ref. [19], we assume that the charged lepton diagonalization matrix is CKM-like, given in terms of the Wolfenstein parameters $\lambda$ and $A$, whose values we take from the PDG as $\lambda=0.22453$ and $A=0.836$ [22]. In our ansatz the three mixing angles characterizing the neutrino diagonalization matrix are related with $\lambda$ in a very simple manner. We obtain tight predictions for the physical lepton mixing angles and the CP phase. These are contrasted with current experiments and used to make projections for upcoming long baseline oscillation experiments.

II Bi-large: pattern I

In this section we propose our first “bi-large” lepton mixing pattern. Within the standard parameterization the three angles of the neutrino diagonalization matrix are assumed to be given as

[TABLE]

and the Dirac CP phase is taken as $\delta^{\nu}_{CP}=\pi$ 111The Majorana phases are taken to be zero, hence our ansatz is just for oscillation physics, with hardly any predictivity for neutrinoless double beta decay experiments.. In this case the neutrino diagonalization matrix can be approximated as

[TABLE]

If the charged leptons are taken diagonal then this will imply that the leptonic mixing parameters are the same as eq. (1): $\sin^{2}\theta_{23}=\sin^{2}\theta^{\nu}_{23}\simeq 0.601$, $\sin^{2}\theta_{12}=\sin^{2}\theta^{\nu}_{12}\simeq 0.202$ and $\sin^{2}\theta_{13}=\sin^{2}\theta^{\nu}_{13}\simeq 0.0504$, and lie outside the $3\sigma$ experimental range [21]. However, corrections are expected from the charged lepton diagonalization matrix. Following Ref. [19] we assume that the bi-large pattern arises from the simplest SO(10) model where the charged and the down-type quarks have roughly the same mass. Then the lepton diagonalization matrix is naturally of the CKM type

[TABLE]

where $\sin\theta^{CKM}_{23}=A\lambda^{2}$ and $\sin\theta^{CKM}_{12}=\lambda$, where $\lambda$ and $A$ are the Wolfenstein parameters, $R_{ij}$ is the $i$-$j$ real rotation matrix, and $\Phi=\text{diag}(e^{-i\phi/2},e^{i\phi/2},1)$ where $\phi$ is a free phase. For convenience we set $\phi\in(-\pi,\pi]$ throughout this paper. The elements of the lepton mixing matrix $U=U_{l}^{\dagger}U_{\nu}$ are all given in terms of just one free parameter $\phi$, leading to a very high degree of predictivity.

To leading order the three mixing angles and the Jarlskog invariant $J_{CP}$ are given by

[TABLE]

The fact that the above parameters depend on just one free parameter $\phi$, leads to strong correlations.

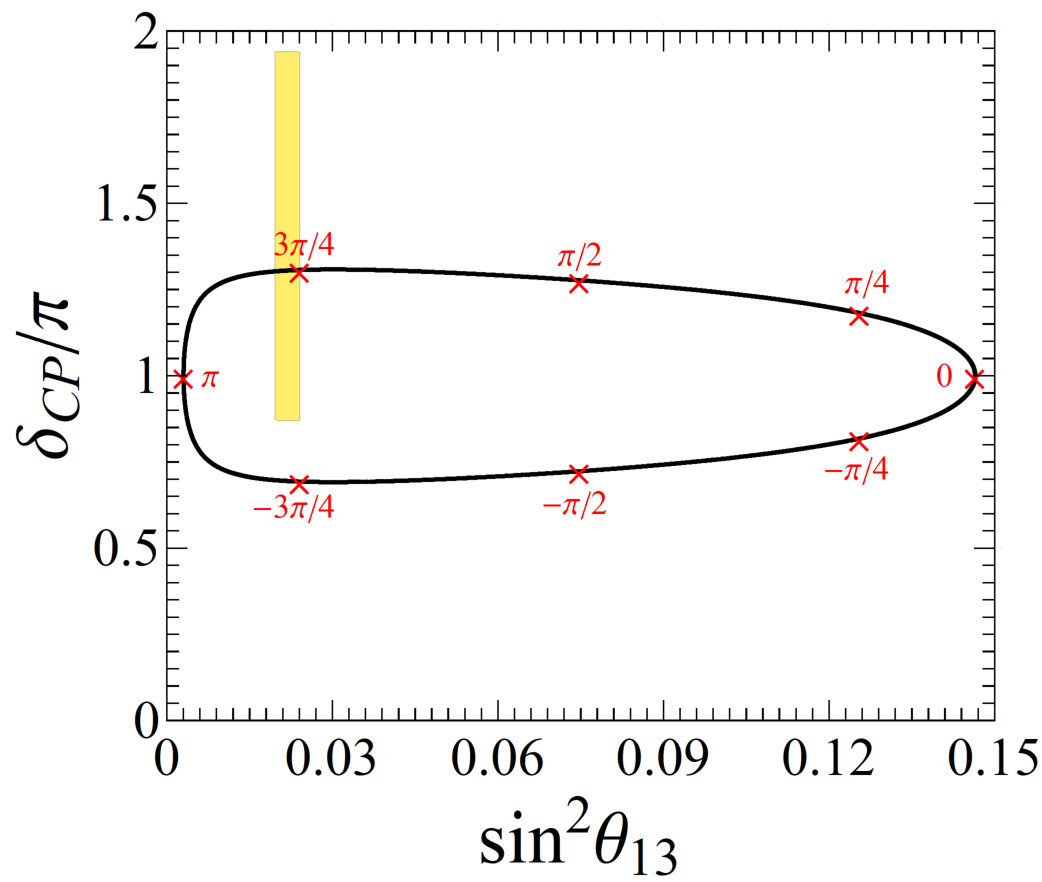

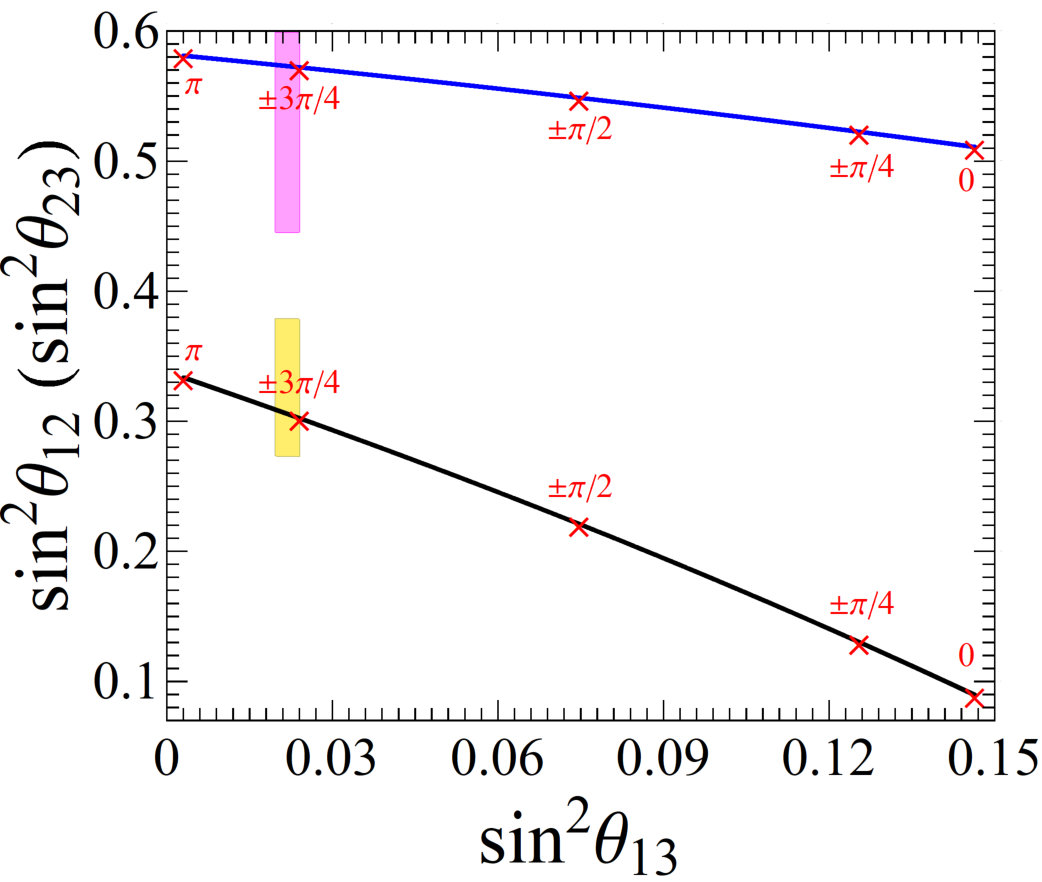

The predictions for the oscillation parameters are shown in Fig. 1 and Fig. 2. Requiring $\sin^{2}\theta_{13}$ to lie inside the allowed $3\sigma$ range implies that the value of $\phi/\pi$ should be inside the range of $[0.750,0.779]$. This severely restricts the allowed ranges for the $\theta_{12}$, $\theta_{23}$ and $\delta_{CP}$. The resulting ranges for the oscillation parameters become

[TABLE]

One sees that, given $\theta_{13}$, we find that the resulting allowed ranges for the other mixing angles and CP violation phase are very narrow. The $\chi^{2}$ takes the minimum value $\chi^{2}_{\rm min}=2.394$ when $\phi=0.766\pi$, leading to the following values for the physical mixing parameters,

[TABLE]

where $\sin^{2}\theta_{13}$, $\sin^{2}\theta_{12}$ and $\delta_{CP}$ are inside the $1\sigma$ range while $\sin^{2}\theta_{23}$ is inside the $2\sigma$ range of [21], hence fitting very well the experimental results. One sees that the three mixing angles and the Dirac phase are in very good agreement with the current experimental values [21]. It is also remarkable that, starting from a CP conserving $U_{\nu}$ in eq. (2), we obtain a CP violating phase that lies very close to the best fit value.

III Bi-large: pattern II

We now turn to our second example. Again we take the Dirac CP phase as $\delta^{\nu}_{CP}=\pi$ but now assume the neutrino mixing angles in the standard parameterization to be given by

[TABLE]

To order $\lambda^{2}$ the neutrino mixing matrix of such “1-2-3” bi-large mixing pattern is written as

[TABLE]

As theoretical motivation this time we consider the framework of SU(5) Grand Unified models. In the simplest SU(5) GUTs the lepton and down quark mass matrices obey the relation $M_{e}\sim M_{d}^{T}$. As in the previous section, this suggests us to adopt a CKM-type lepton diagonalization matrix

[TABLE]

with $\phi\in(-\pi,\pi]$. Then to leading order, the mixing angles and $J_{CP}$ obtained from the lepton mixing matrix $U=U_{l}^{\dagger}U_{\nu}$ are given by

[TABLE]

As before, requiring $\sin^{2}\theta_{13}$ to lie in the allowed 3$\sigma$ range severely restricts the consistency ranges for the other oscillation parameters $\theta_{12}$, $\theta_{23}$ and $\delta_{CP}$, as follows

[TABLE]

The $\chi^{2}$ takes the minimum value value $\chi^{2}_{\rm min}=2.954$ when $\phi=-0.232\pi$, and the mixing parameters are

[TABLE]

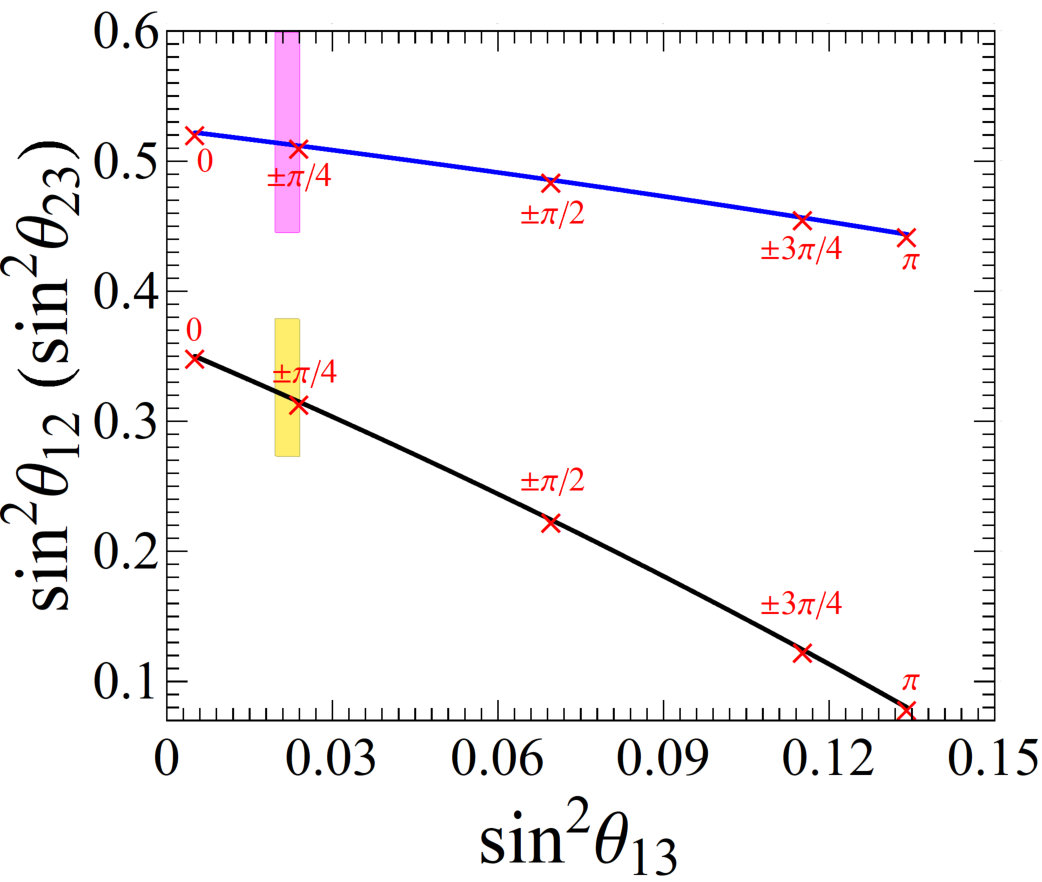

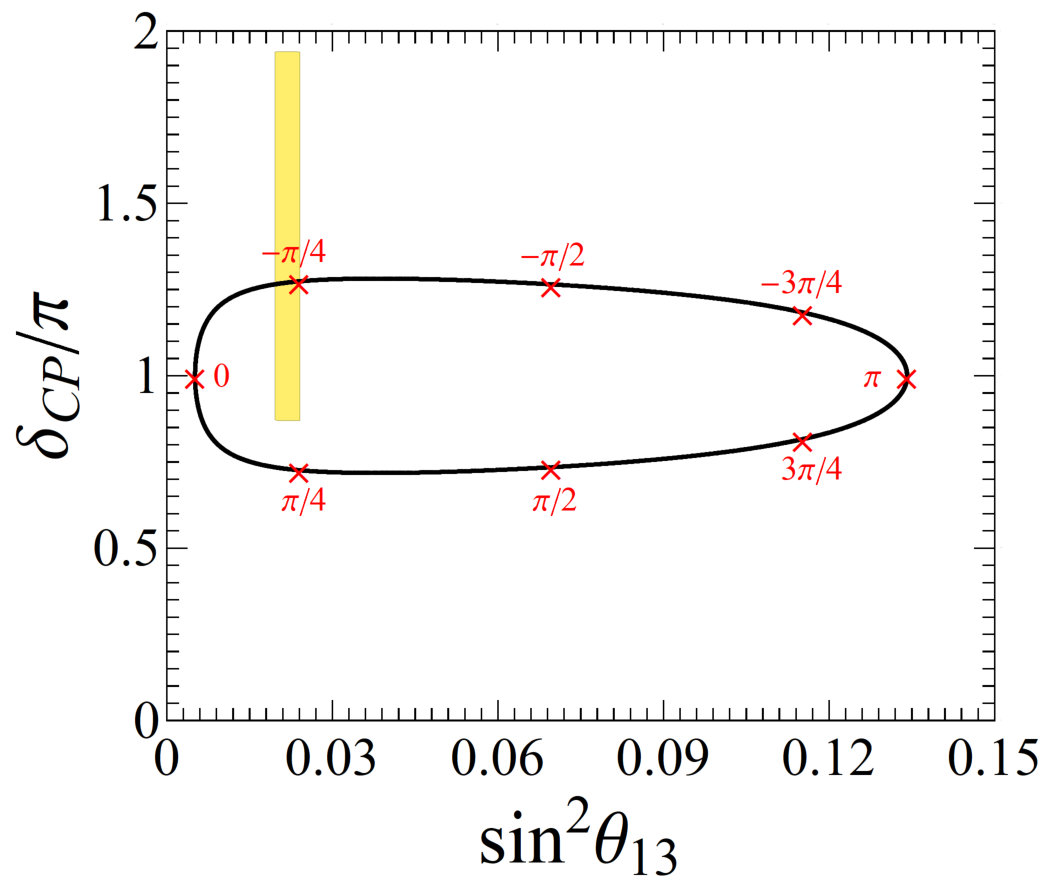

One sees that $\sin^{2}\theta_{13}$, $\sin^{2}\theta_{12}$ and $\delta_{CP}$ are inside the $1\sigma$ range, while $\sin^{2}\theta_{23}$ is inside the $2\sigma$ range given by current global oscillation fits. The results are displayed in Figs. 3 and 4. As before, one sees that the predictions fit very well with the observed oscillation parameter values.

IV long baseline oscillations

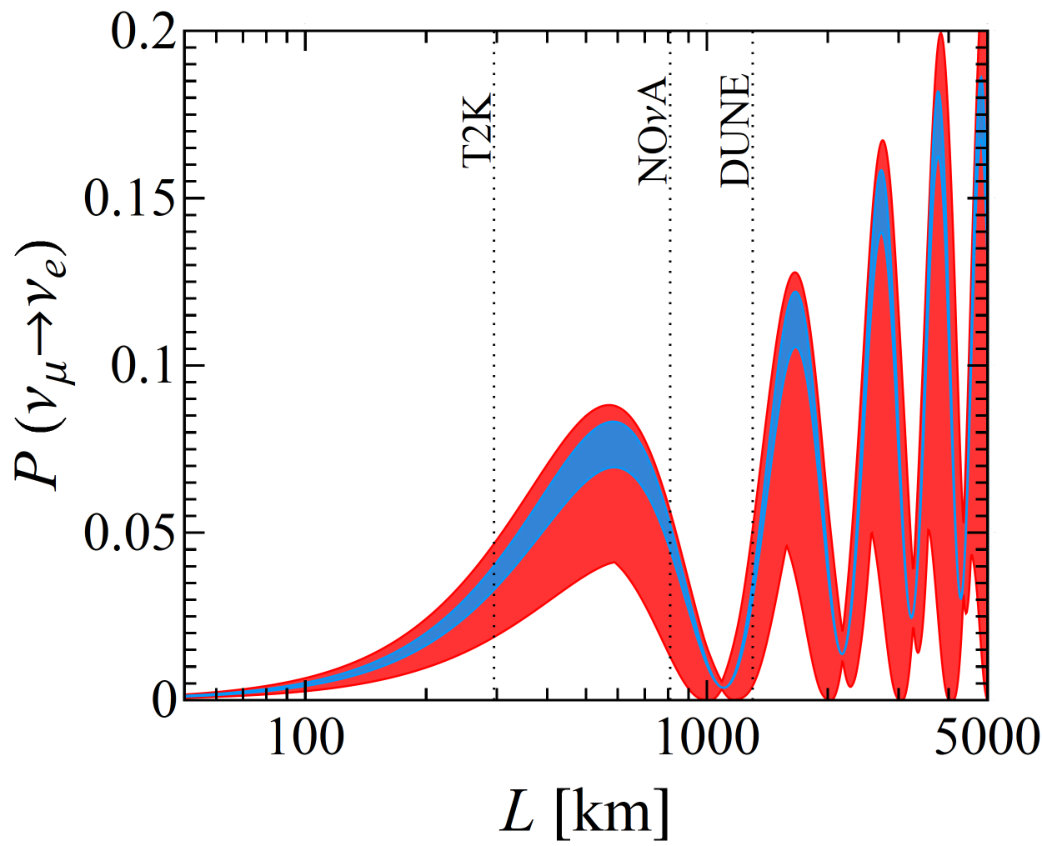

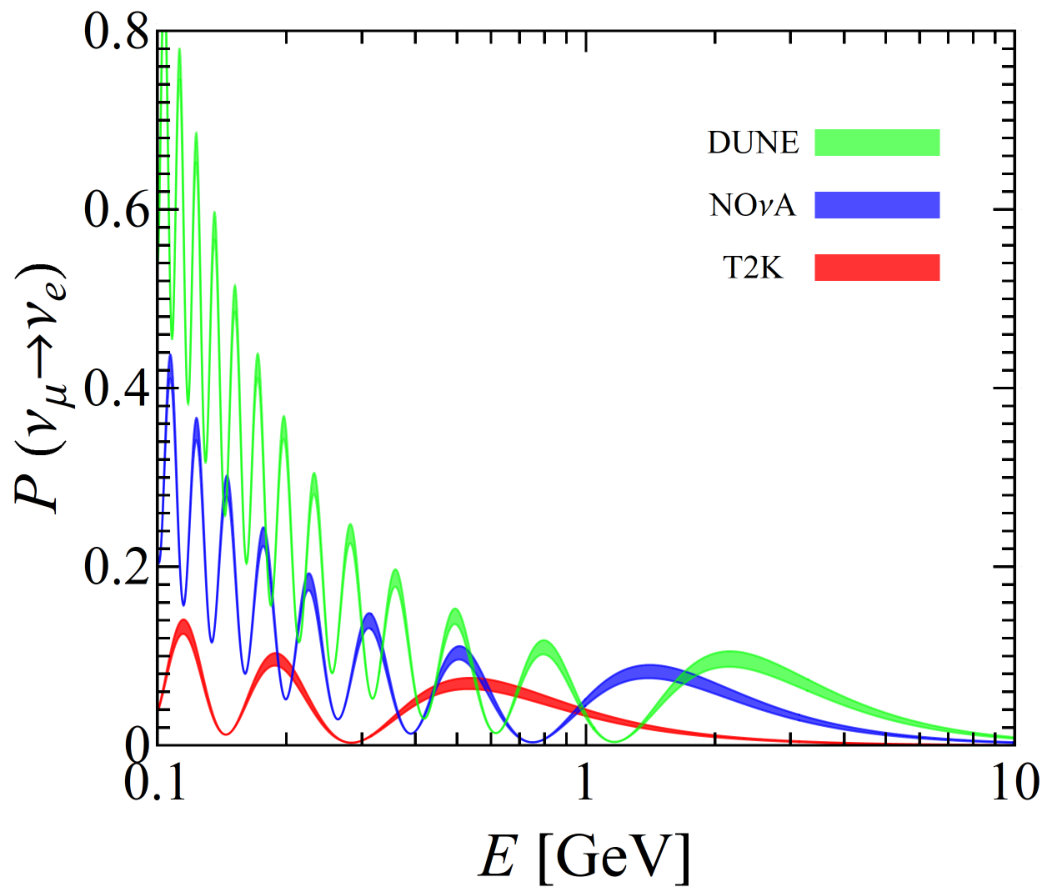

The lepton mixing matrix in both cases discussed above only depends on one free parameter $\phi$. As we saw, the one-parameter nature of both anzatze leads to tight correlations amongst the oscillation parameters and predict very narrow ranges for the “solar” and “accelerator” angles $\theta_{12}$ and $\theta_{23}$. This translates into phenomenological implications for the expected neutrino and anti-neutrino appearance probabilities in neutrino oscillation experiments [23, 24]. To illustrate the implications of our mixing patterns for future long baseline oscillation experiments we present the resulting oscillation probabilities in Figs. 5 and 6.

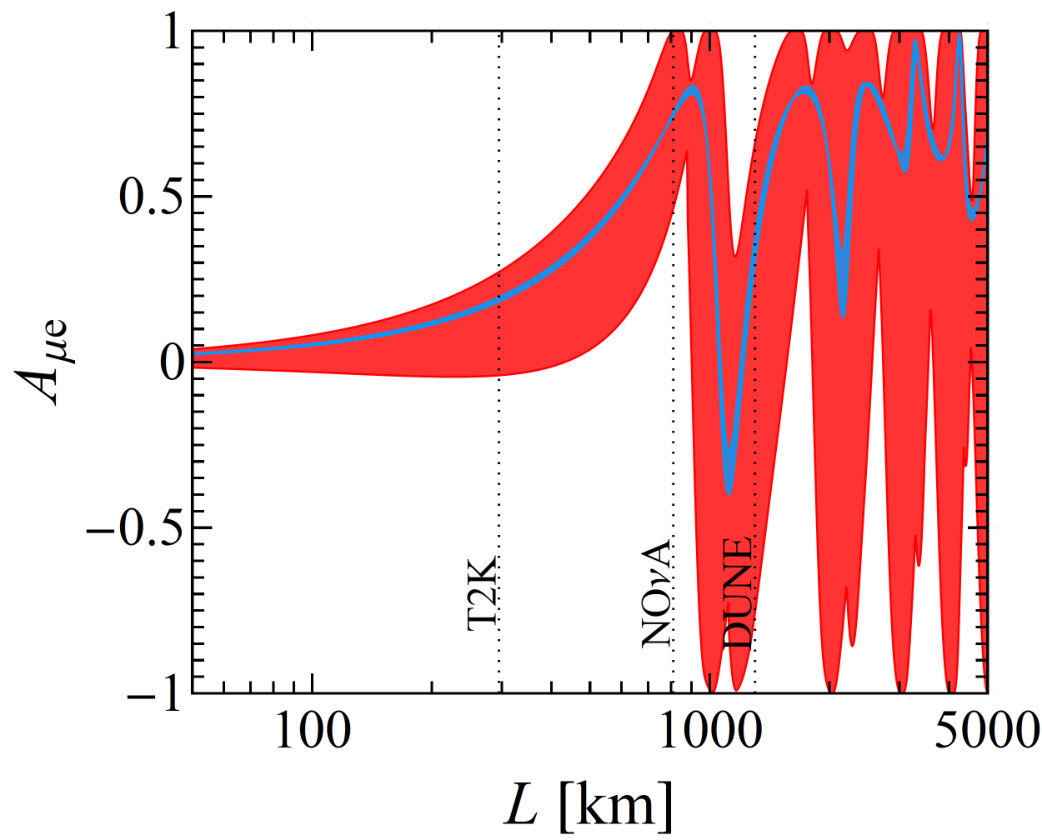

One sees that indeed the expected oscillation probabilities are tightly restricted, indicating that our bi-large mixing pattenrs should be testable at the upcoming long baseline oscillation experiments. In particular, the CP asymmetry, displayed in Fig. 7, is very tightly predicted as compared to the generic three-neutrino oscillation scheme. This is seen by comparing the thin band (blue) with the broad band (red) in the figure.

V Conclusion

In this letter we have proposed two bi-large-type lepton mixing schemes. They make definite assumptions on the two factors that comprise the lepton mixing matrix $U=U_{l}^{\dagger}U_{\nu}$, where $U=U_{l}$ comes from the charged sector while $U_{\nu}$ describes the neutrino diagonalization matrix. We assume $U_{\nu}$ to be CP conserving and its three angles to be related with the Cabibbo angle in a simple way, given as $\sin\theta^{\nu}_{13}=\lambda$, $\sin\theta^{\nu}_{12}=2\lambda$ and $\sin\theta^{\nu}_{23}=1-\lambda$ (pattern I) or $3\lambda$ (pattern II), with the Dirac CP phase taken at the CP conserving value $\delta^{\nu}_{CP}=\pi$. CP violation arises only from the $U_{l}$ factor, assumed to have the CKM form, $U_{l}\simeq V_{\rm CKM}$, as expected in the simplest Grand Unified models. The Dirac CP phase is predicted as $\delta_{\rm CP}\sim 1.3\pi$, very close to its current best fit value. The mixing angles also depend on a single parameter $\phi$. The good measurement of the “reactor” angle leads to tight correlations that predict narrow ranges for the “solar” and “accelerator” angles $\theta_{12}$ and $\theta_{23}$ in good agreement with current oscillation data. The predictions should be testable at the upcoming long baseline oscillation experiments. Moreover, the structure of the two patterns is very simple, consistent with unification scenarios, and suggestive of novel model building approaches involving Abelian family symmetries [20].
