Constraining quark-hadron interface tension in the multi-messenger era

TL;DR

This paper investigates how the quark-hadron interface tension influences the properties of hybrid stars, aiming to constrain this parameter through future gravitational wave and NICER observations.

Contribution

It introduces a model to study the effects of quark-hadron interface tension on star properties and suggests observational constraints in the multi-messenger era.

Findings

Varying interface tension significantly affects star radii and deformabilities.

Potential to constrain interface tension with upcoming gravitational wave data.

Model incorporates relativistic mean-field for nuclear matter and perturbation for quark phase.

Abstract

We study the interface effects of quark-hadron mixed phase in compact stars. The properties of nuclear matter are obtained based on the relativistic-mean-field model. For the quark phase, we adopt perturbation model with running quark masses and coupling constant. At certain choices of parameter sets, it is found that varying the quark-hadron interface tension will have sizable effects on the radii ($\Delta R \approx 600$ m) and tidal deformabilities ($\Delta \Lambda/\Lambda \approx 50\%$) of hybrid stars. These provide possibilities for us to constrain the quark-hadron interface tension with future gravitational wave observations as well as the ongoing NICER mission.

Figures

Equations

$$\mathcal{L}$$

$$g_{\sigma ,\omega }(n)$$

$$g_{\rho }(n)$$

$$E^H$$

$${\mu }_i$$

$${\mu }_{e,\mu }$$

$$P^H=\sum _i{\mu }_i{n}_i-E^H.$$

$${\Omega }^{\mathrm{pt}}=\sum _i^{N_f}\left({\omega }_i^0+{\omega }_i^1{\alpha }_{\mathrm{s}}\right),$$

$${\omega }_i^0$$

$${\omega }_i^1$$

$${\alpha }_{\mathrm{s}}(\bar{\Lambda })$$

$$m_i(\bar{\Lambda })$$

$$\bar{\Lambda }=\frac{C}{3}\sum _{i=u,d,s}{\mu }_i,$$

$$B=B_{\mathrm{QCD}}+(B_0-B_{\mathrm{QCD}})\exp \left[-{\left(\frac{{\sum }_i{\mu }_i-930}{\Delta \mu }\right)}^4\right],$$

$$E^Q={\Omega }^{\mathrm{pt}}+\frac{1}{3}{\omega }_e^0+B+\sum _i{\mu }_i{n}_i.$$

$${\mu }_i=B_i{\mu }_{\mathrm{b}}-q_i{\mu }_e,$$

$$P({\mu }_{\mathrm{b}},{\mu }_e)$$

$$E({\mu }_{\mathrm{b}},{\mu }_e)$$

$$n_{\mathrm{ch}}^{\prime }=\frac{\partial n_{\mathrm{ch}}}{\partial {\mu }_e},E^{\prime }=\frac{\partial E}{\partial {\mu }_e},E^{\prime \prime }=\frac{{\partial }^{2}E}{\partial {\mu }_e^2}.$$

$$n_{\mathrm{ch}}({\mu }_{\mathrm{b}},{\mu }_e)$$

$$n({\mu }_{\mathrm{b}},{\mu }_e)$$

$$P^H=P^Q.$$

$$\mathrm{Gibbs}:$$

$$\mathrm{Maxwell}:$$

$$\frac{\text{mbox}dP}{\text{mbox}dr}=-\frac{GME}{r^2}\frac{(1+P/E)(1+4\pi r^{3}P/M)}{1-2GM/r}$$

$$\frac{\text{mbox}dM(r)}{\text{mbox}dr}=4\pi E{r}^2.$$

$$\Lambda =\frac{2k_2}{3}{\left(\frac{R}{GM}\right)}^5,$$

$${\bar{\mu }}_i={\mu }_i(r)+q_i\phi (r)=\mathrm{constant},$$

$$r^2\frac{\text{mbox}{d}^2\phi }{\text{mbox}d{r}^2}+2r\frac{\text{mbox}d\phi }{\text{mbox}dr}+4\pi \alpha r^2{n}_{\mathrm{ch}}(r)=0.$$

$${\phi }^{\mathrm{I}}$$

$${\phi }^{\mathrm{O}}$$

$$P^{\mathrm{I}}(R)-2\frac{\sigma }{R}=P^{\mathrm{O}}(R).$$

$$M$$

$$A$$

$$\tilde{\Lambda }=\frac{16}{13}\frac{(m_1+12m_2)m_1^4{\Lambda }_1+(m_2+12m_1)m_2^4{\Lambda }_2}{(m_1+m_2{)}^5}.$$

Full text

I Introduction

With the first observation of gravitational waves from the binary neutron star merger event GW170817 LIGO Scientific and Virgo Collaborations (2017, 2019), astrophysics has entered the multi-messenger era. Combined with the electromagnetic observations of the transient counterpart AT2017gfo and short gamma ray burst GRB170817A Coughlin et al. , the dimensionless combined tidal deformability of the corresponding compact stars is constrained within $279\leq\tilde{\Lambda}\leq 720$ at 90% confidence level LIGO Scientific and Virgo Collaborations (2017, 2019); Coughlin et al. ; Carney et al. (2018); De et al. (2018); Chatziioannou et al. (2018). Meanwhile, the recent measurements of neutron stars’ radii indicate that their values lie at the lower end of 10-14 km range Guillot et al. (2013); Lattimer and Steiner (2014); Özel and Freire (2016); Li et al. (2015); Steiner et al. (2018); Most et al. (2018); LIGO Scientific and Virgo Collaborations (2018); Fattoyev et al. (2018); Raithel et al. (2018). In light of the precise mass measurements of the two-solar-mass pulsars PSR J1614-2230 ($1.928\pm 0.017\ M_{\odot}$) Demorest et al. (2010); Fonseca et al. (2016) and PSR J0348+0432 ($2.01\pm 0.04\ M_{\odot}$) Antoniadis et al. (2013), we have by far the most stringent constraint on the equation of states (EoS) of dense matter, which have been examined extensively in the past year Zhu et al. (2018); Malik et al. (2018); Sun et al. (2019); Dexheimer et al. (2019); Piekarewicz and Fattoyev ; Gomes et al. ; Sieniawska et al. (2019); Paschalidis et al. (2018); Han and Steiner ; Montana et al. (2018); Alvarez-Castillo et al. (2019); Christian et al. (2019).

The situation is even more exciting in the coming years. As the implementation of the upgraded detectors, the sensitivity of gravitational wave observation may be improved by several times, which enables us to observe postmerger signals and constrain neutron stars’ radii to higher accuracy (on the order of a few hundred meters) Torres-Rivas et al. (2019); Bauswein and Stergioulas . As the X-ray pulse profiles currently being measured by the NICER mission to an unprecedented accuracy Gendreau et al. (2016), a precise measurement on neutron stars’ masses and radii is likely to take place in the near future Zavlinand and Pavlov (1998); Bogdanov et al. (2007, 2008); Bogdanov (2013); Özel et al. (2016). Meanwhile, pulsars that are more massive than PSR J0348+0432 may be expected, e.g., PSR J0740+6620 ($2.17{}_{-0.10}^{+0.11}\ M_{\odot}$) Cromartie et al. (2019) and PSR J2215+5135 ($2.27{}_{-0.15}^{+0.17}\ M_{\odot}$) Linares et al. (2018). Thus, the perspective for future pulsar observations provide opportunities to constrain the properties of dense matter to an unprecedented accuracy.

At large energy densities, hadronic matter (HM) is expected to undergo a deconfinement phase transition. For vanishing chemical potentials, a crossover was observed at the critical temperature $T_{\mathrm{c}}\approx 170$ MeV Aoki et al. (2006). Similar cases were also expected to occur in dense matter, where the transition between HM and quark matter (QM) is a smooth crossover Baym (1979); Çelik et al. (1980); Schäfer and Wilczek (1999); Fukushima (2004); Hatsuda et al. (2006); Maeda et al. (2009); Masuda et al. (2013); Zhao et al. (2015); Kojo et al. (2015); Masuda et al. (2016); Whittenbury et al. (2016). More traditionally, one expects a first-order phase transition from HM to QM Dexheimer and Schramm (2010), which provides an important energy source for the supernova explosion of massive blue supergiant stars Fischer et al. (2018). In such cases, a distinct interface between quark and hadronic matter is formed. Adopting the Maxwell construction, the properties of hybrid stars with a strong first-order phase transition and their relevance to gravitational wave observations were investigated Sieniawska et al. (2019); Han and Steiner ; Paschalidis et al. (2018). The existence of third family solutions for hybrid stars was examined as well Alvarez-Castillo et al. (2019); Christian et al. (2019). It was found that a sharp phase transition will lead to small tidal deformabilities and induce discontinuities in the relation between tidal deformability and gravitational mass Han and Steiner . Meanwhile, a significant deviation from the empirical relation between the dominant postmerger gravitational wave frequency $f_{\mathrm{peak}}$ and the radius/tidal deformability of a star at a given mass was observed if a strong first-order phase transition occurs Bauswein et al. (2019); Bauswein and Stergioulas . All those features can serve as distinct signals for a strong first-order phase transition in the forthcoming gravitational wave observations.

Nevertheless, the Maxwell construction for the quark-hadron mixed phase (MP) is only valid if the surface tension $\sigma$ exceeds the critical value $\sigma_{\mathrm{c}}$ Maslov et al. . In fact, depending on the values of $\sigma$, MP exhibits various structures Maruyama et al. (2007). The MP consists of point-like HM and QM when the surface tension $\sigma$ is zero, which is consistent with the Gibbs construction Glendenning (2000). If the surface tension value is moderate, the finite-size effects become important and the geometrical structures such as droplet, rod, slab, tube, and bubble start to appear Heiselberg et al. (1993); Voskresensky et al. (2002); Tatsumi et al. (2003a); Voskresensky et al. (2003); Endo et al. (2005); Maruyama et al. (2007); Yasutake et al. (2012). The sizes of the geometrical structures increase with the surface tension and will approach to the limit of Maxwell construction scenarios at $\sigma>\sigma_{\mathrm{c}}$, i.e., bulk separation of quark and hadron phases, which suggests the nonexistence of MP inside hybrid stars.

Such kind of structural differences due to the quark-hadron interface effects are expected to affect many physical processes in hybrid stars. For example, the coherent scattering of neutrinos off the QM droplets may greatly enhance the neutrino opacity of the core Reddy et al. (2000). Due to the relaxation of charge neutrality condition, the emergence of hyperons may be hindered Maruyama et al. (2008), which prevents a fast cooling via the hyperon Urca processes Prakash et al. (1992); Tatsumi et al. (2003b); Takatsuka et al. (2006). Despite that the maximum mass of hybrid stars varies little with respect to the structural differences, it was found that their radii are more affected Maruyama et al. (2007). Similar cases were found in Ref. Ayriyan et al. (2018), where the robustness of third family solutions for hybrid stars was examined against the formation of pasta structures in the MP. Adopting both the Gibbs and Maxwell constructions for MP, it was shown that hybrid stars described with the Gibbs construction are more compact and less deformed by the tidal force Gomes et al. ; Montana et al. (2018). Since the Gibbs and Maxwell constructions correspond to MP obtained at two extreme surface tension values, i.e., $\sigma\rightarrow 0$ and $\sigma>\sigma_{\mathrm{c}}$, the observations of neutron stars’ radii and tidal deformabilities may provide a unique opportunity to constrain the interface tension $\sigma$.

In the last decade, extensive efforts were made trying to constrain the value of $\sigma$. Based on lattice QCD, the interface tension was evaluated for vanishing chemical potentials Huang et al. (1990, 1991); Alves (1992); Brower et al. (1992); de Forcrand et al. (2005); de Forcrand and Noth (2005). For dense matter, one has to rely on effective models, e.g., MIT bag model with color superconductivity Oertel and Urban (2008), linear sigma model Palhares and Fraga (2010); Pinto et al. (2012); Kroff and Fraga (2015), Nambu-Jona-Lasinio model Garcia and Pinto (2013); Ke and Liu (2014), three-flavor Polyakov-quark-meson model Mintz et al. (2013), Dyson-Schwinger equation approach Gao and Liu (2016), nucleon-meson model Fraga et al. (2019), and equivparticle model Xia et al. (2018), which predict small surface tensions with $\sigma\lesssim 30\ \mathrm{MeV/fm}^{2}$. The quasiparticle model gives slightly larger values for the quark-vacuum interface, i.e., $\sigma=30\sim 70\ \mathrm{MeV/fm}^{2}$ Wen et al. (2010). Adopting MRE method, larger surface tension ($\sigma=145\sim 165\ \mathrm{MeV/fm}^{2}$) were obtained based on Nambu-Jona-Lasinio model Lugones et al. (2013), which may vary with directions in the presence of a strong magnetic field Lugones and Grunfeld (2017, 2019). A dimensional analysis suggests that the surface tension value for color-flavor locked phase may be much larger, e.g., $\sigma\approx 300\ \mathrm{MeV/fm}^{2}$ Alford et al. (2001).

Due to the ambiguities in estimating the values of $\sigma$, in this work we consider the possibilities of constraining $\sigma$ with pulsar observations in the multi-messenger era. In particular, we study the interface effects of quark-hadron mixed phase in hybrid stars. It is found that the maximum mass, tidal deformabilities, and radii of hybrid stars increase with $\sigma$. These provide possibilities for us to constrain the quark-hadron interface tension with future gravitational wave observations as well as the ongoing NICER mission. The paper is organized as follows. In Sec. II, we present our theoretical framework, where the properties of nuclear matter and quark matter were obtained. The properties of their mixed phases and the interface effects are investigated in Sec. III, where both the Gibbs and Maxwell constructions are adopted and examined for the properties of hybrid stars in Sec. III.1. As an example, adopting certain choices of parameters, the geometrical structures in hybrid stars are investigated in Sec. III.2, which verifies our findings in Sec. III.1. Our conclusion is given in Sec. IV.

II Theoretical framework

II.1 Nuclear matter

In the mean field approximation, for infinite nuclear matter, the Lagrangian density of relativistic-mean-field model Meng (2016) is given as

[TABLE]

Three types of mesons are included to describe the interactions between nucleons, i.e., the isoscalar-scalar meson $\sigma$, isoscalar-vector meson $\omega$, and isovector-vector meson $\rho$. Note that the coupling constants $g_{\sigma}$, $g_{\omega}$, and $g_{\rho}$ are density dependent, which were obtained in accordance with the self-energies of Dirac-Brueckner calculations of nuclear matter Typel and Wolter (1999), i.e.,

[TABLE]

Here $n$ is the baryon number density and $n_{0}$ the saturation density of nuclear matter.

For the effective $N$-$N$ interactions, we adopt the covariant density functional TW99 Typel and Wolter (1999), which is consistent with all seven constraints related to symmetric nuclear matter, pure neutron matter, symmetry energy, and its derivatives Dutra et al. (2014). Carrying out a standard variational procedure, one obtains the energy density $E^{H}$, chemical potential $\mu_{i}$, and pressure $P^{H}$ at given particle number densities $n_{i}$. The energy density is determined by

[TABLE]

where $\epsilon_{i}$ is the kinetic energy density of free Fermi gas at given Fermi momentum $\nu_{i}$ and effective mass $m_{i}^{*}=m_{i}+g_{\sigma}\sigma$. Note that the effective masses remain the same for leptons, i.e., $m_{e,\mu}^{*}\equiv m_{e,\mu}$. The number density for particle type $i$ is given by $n_{i}={\nu_{i}^{3}}/{3\pi^{2}}$, while the chemical potentials for baryons $\mu_{i}$ and leptons $\mu_{e,\mu}$ are

[TABLE]

with $\Sigma^{\mathrm{R}}$ being the “rearrangement” term, which is introduced to maintain thermodynamic self-consistency with density dependent coupling constants Lenske and Fuchs (1995). The pressure is obtained with

[TABLE]

Based on Eqs. (4-7), the EoS for nuclear matter is obtained, which gives the saturation density $n_{0}=0.153\ \mathrm{fm}^{-3}$, saturation energy $E_{0}^{H}/n_{0}-m_{N}=-16.25$ MeV, incompressibility $K=240.2$ MeV and symmetry energy $E_{\mathrm{sym}}=32.77$ MeV. A detailed contour figure for the energy per baryon $\varepsilon=E^{H}/n$ of neutron star matter in $\beta$-equilibrium is presented in Fig. 1 as a function of the chemical potentials of baryons $\mu_{\mathrm{b}}=\mu_{n}$ and electrons $\mu_{e}$, in obtaining which we have disregarded the local charge neutrality condition.

II.2 Quark matter

At ultra-high densities, the properties of quark matter can be obtained with perturbative QCD (pQCD), which are often extrapolated to lower density regions Fraga et al. (2014); Kurkela et al. (2014). Similarly, here we adopt pQCD to the order of $\alpha_{\mathrm{s}}$ and investigate the properties of quark matter Fraga and Romatschke (2005), while the non-perturbative contributions are treated with phenomenological approaches. The pQCD thermodynamic potential density is given by

[TABLE]

with

[TABLE]

where $u_{i}\equiv\mu_{i}/m_{i}$ and $v_{i}\equiv\sqrt{u_{i}^{2}-1}$ with $\mu_{i}$ and $m_{i}$ being the chemical potential and mass for particle type $i$, respectively. By solving the $\beta$-function and $\gamma$-function Vermaseren et al. (1997) and neglecting higher order terms, the running coupling constant and quark masses read Fraga and Romatschke (2005)

[TABLE]

Here $L=2\ln\left(\frac{\bar{\Lambda}}{\Lambda_{\overline{\mathrm{MS}}}}\right)$ with $\Lambda_{\overline{\mathrm{MS}}}=376.9$ MeV being the $\overline{\mathrm{MS}}$ renormalization point, while the invariant quark masses are $\hat{m}_{u}=3.8$ MeV, $\hat{m}_{d}=8$ MeV, and $\hat{m}_{s}=158$ MeV according to the results obtained by Particle Data Group Particle Data Group (2014). Note that $\beta_{0}=\frac{1}{4\pi}(11-\frac{2}{3}N_{\mathrm{f}})$ and $\beta_{1}=\frac{1}{16\pi^{2}}(102-\frac{38}{3}N_{\mathrm{f}})$ for the $\beta$-function while $\gamma_{0}=1/\pi$ and $\gamma_{1}=\frac{1}{16\pi^{2}}(\frac{202}{3}-\frac{20}{9}N_{\mathrm{f}})$ for the $\gamma$-function. At present, it is not clear how the renormalization scale $\bar{\Lambda}$ evolves with the chemical potentials of quarks, where many possibilities exist Fraga and Romatschke (2005); Xu et al. (2015). In this work, we adopt the following formalism:

[TABLE]

with $C=1\sim 4$ Fraga et al. (2014).

To incorporate the non-perturbative effects, we introduce an extra bag constant $B$ to take into account the energy difference between the physical and perturbative vacua. According to various studies, it was found that the bag constant can vary with state variables, e.g., the temperature Song et al. (1992); Gorenstein and Yang (1995), chemical potentials of quarks Gardim and Steffens (2009), density Burgio et al. (2002) and even magnetic field Wen et al. (2012). The bag constant at vanishing chemical potentials is found to be around $455\ \mathrm{MeV\ fm}^{-3}$ according to QCD sum-rule Shuryak (1978), while carrying out fits to light hadron spectra suggests $B\approx 50\ \mathrm{MeV\ fm}^{-3}$ DeGrand et al. (1975). At larger chemical potentials, comparing Eq. (8) with the pQCD calculations to the order of $\alpha_{\mathrm{s}}^{2}$ Fraga et al. (2014), an increasing difference on the thermodynamic potential density is observed. At the same time, the dynamic equilibrium condition at the critical temperature of deconfinement phase transition demands $B\approx 400\ \mathrm{MeV\ fm}^{-3}$ 111Obtained by equating the pressures of QGP ($-B+37\pi^{2}T^{4}/90$) and pion gas ($\pi^{2}T^{4}/30$) at $T=T_{c}$ ($\sim$170 MeV)., indicating a large bag constant value at high energy density. On combination of those values, similar to Ref. Burgio et al. (2002); Maieron et al. (2004), we adopt the following parametrization of $B$, i.e.,

[TABLE]

which gives $B=B_{0}=50\ \mathrm{MeV\ fm}^{-3}$ at $\mu_{u}+\mu_{d}+\mu_{s}=930$ MeV. The width parameter $\Delta\mu$ and $B_{\mathrm{QCD}}$ are left undetermined and to be fixed later. Note that adopting smaller $B_{\mathrm{QCD}}$ reduces the maximum mass of hybrid stars and shrinks the parameter space for $\Delta\mu$ and $C$ in light of the observational mass of PSR J0348+0432 Antoniadis et al. (2013), which is indicated in Fig. 5.

Combining both the pQCD results in Eq. (8) and parameterized bag constant in Eq. (14), the thermodynamic potential density for quark matter is obtained with $\Omega^{Q}=\Omega^{\mathrm{pt}}+\omega^{0}_{e}/3+B$, including the contributions of electrons. Based on the basic thermodynamic relations, the particle number density is $n_{i}=-\frac{\partial\Omega}{\partial\mu_{i}}$, and energy density of quark matter

[TABLE]

The pressure takes negative values of the thermodynamic potential density, i.e., $P^{Q}=-\Omega^{Q}$.

II.3 Approximate the EoSs of HM and QM

For matter inside compact stars, to reach the lowest energy, particles will undergo weak reactions until the $\beta$-equilibrium condition is fulfilled, i.e.,

[TABLE]

where $B_{i}$ ($B_{p}=B_{n}=1$, $B_{u}=B_{d}=B_{s}=1/3$, and $B_{e}=B_{\mu}=0$) is the baryon number and $q_{i}$ ($q_{p}=1$, $q_{n}=0$, $q_{u}=2/3$, $q_{d}=q_{s}=-1/3$ and $q_{e}=q_{\mu}=-1$) the charge of particle type $i$. Note that the chemical potential of neutrinos is set to zero since they can leave the system freely.

To simplify our calculation, it is convenient to approximate the pressures and energy densities of HM and QM by expanding them with respect to $\mu_{e}$, i.e.,

[TABLE]

Here $P_{0}$, $E_{0}$, and $\mu_{e0}$ is the pressure, energy density, and electron chemical potential obtained by fulfilling the local charge neutrality condition $n_{\mathrm{ch}}=\sum q_{i}n_{i}=0$. We have adopted prime notion to represent taking derivatives with respect to $\mu_{e}$ at $\mu_{e}=\mu_{e0}$, i.e.,

[TABLE]

Note that $n_{\mathrm{ch}}^{\prime}$ is related to the Debye screening length with $\lambda_{\mathrm{D}}\equiv\left(-4\pi\alpha n_{\mathrm{ch}}^{\prime}\right)^{-1/2}$. Based on Eqs. (17-18) and basic thermodynamic relations, we have

[TABLE]

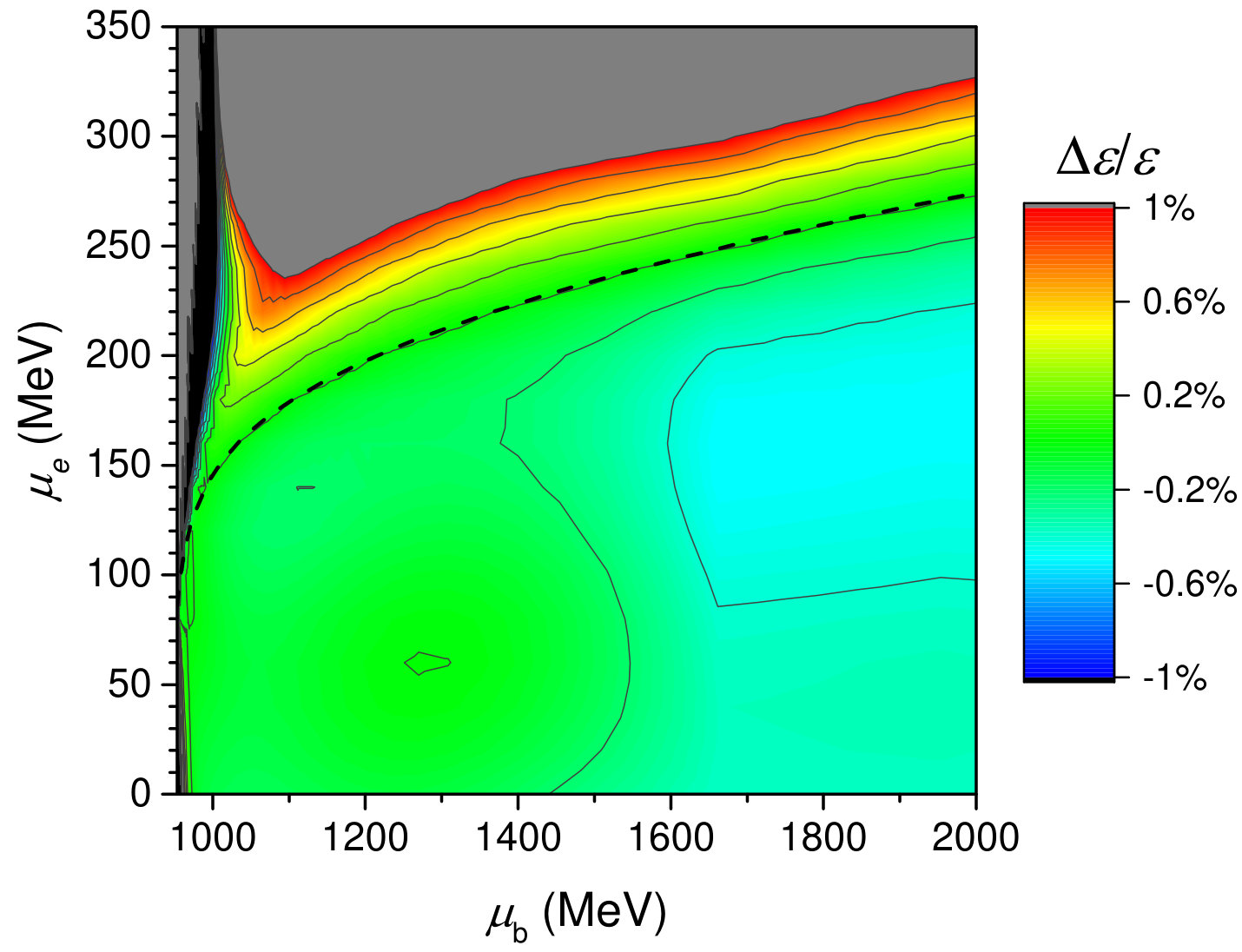

The obtained properties of HM and QM in Sec. II.1 and Sec. II.2 are then well reproduced by Eqs. (17-20). As an example, in Fig. 2 we plot the relative deviations of energy per baryon for nuclear matter with $\Delta\varepsilon=\varepsilon^{\mathrm{cal}}-\varepsilon^{\mathrm{fit}}$, which lies within 1%.

III Mixed phase and interface effects

III.1 The Gibbs and Maxwell constructions

To investigate the effects of quark-hadron interface on the properties of MP and compact stars, we consider two extreme cases, i.e., the Gibbs construction at $\sigma\rightarrow 0$ and the Maxwell construction at $\sigma>\sigma_{\mathrm{c}}$. In both cases, at a given baryon chemical potential $\mu_{\mathrm{b}}$, the dynamic stability condition needs to be satisfied, i.e.,

[TABLE]

In principle, leptons are free to move throughout the quark-hadron interface, then the chemical potentials of electrons in each phase become the same, i.e., $\mu_{e}^{H}=\mu_{e}^{Q}$, which is the case for the Gibbs construction. For the Maxwell construction, the scale of MP is much larger than the Debye screening length $\lambda_{\mathrm{D}}$, so that the local charge neutrality condition is effectively restored due to Coulomb repulsion. Thus, for the two types of phase construction schemes, we have

[TABLE]

Here the quark fraction $\chi\equiv V^{Q}/V$ with $V^{Q}$ being the volume occupied by quarks and $V$ the total volume. Based on Eqs. (17-20), Eqs. (21-23) can be solved analytically at given $\mu_{\mathrm{b}}$. Then the properties of MP can be obtained.

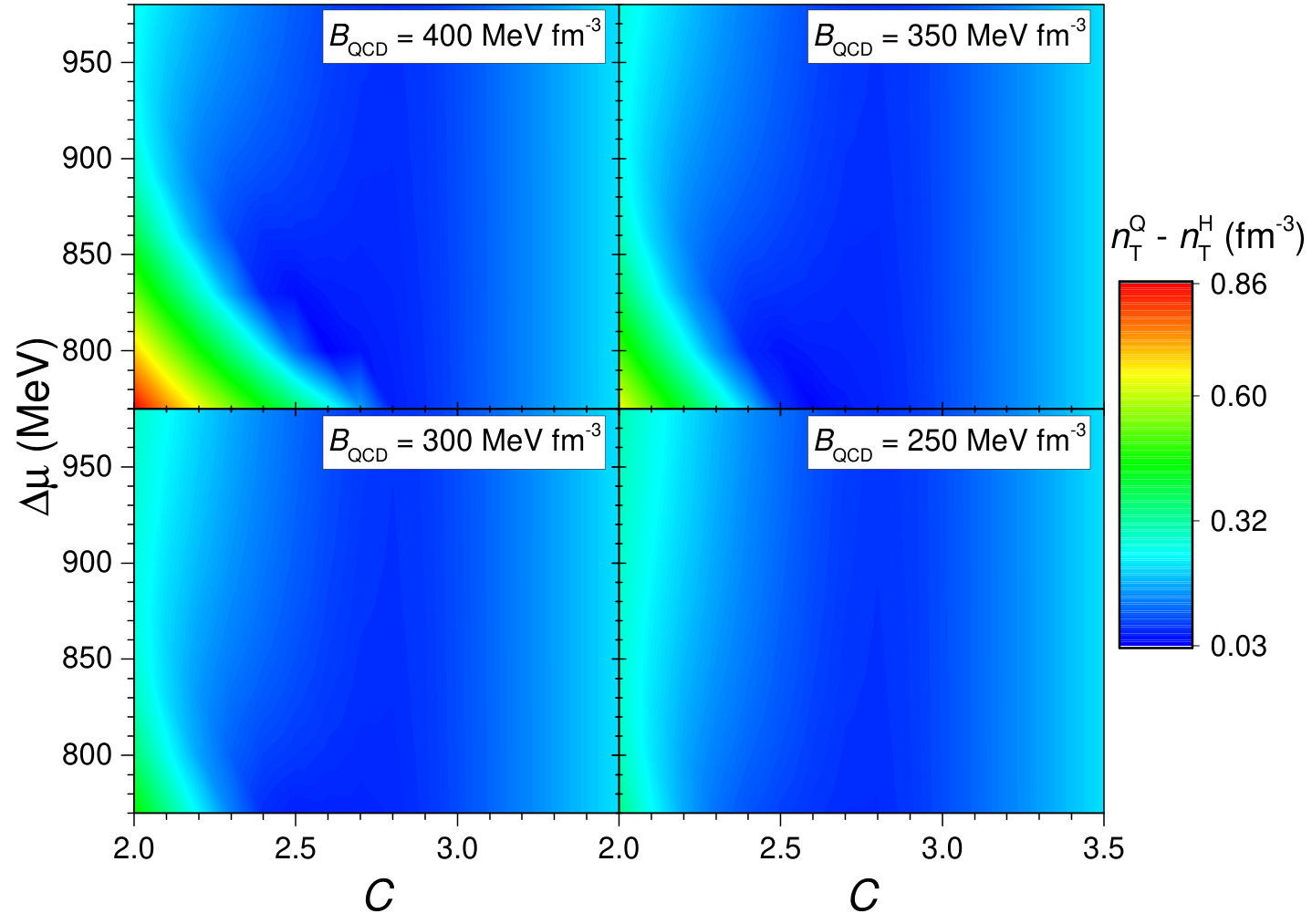

Adopting both the Gibbs and Maxwell constructions, we investigate the properties of MP at various parameter sets with $C=2\sim 3.5$ and $\Delta\mu=770\sim 1000$ MeV. Note that the deconfinement phase transition occurs at densities smaller than $0.09\ \mathrm{fm}^{-3}$ if $C\gtrsim 3.5$, while at $\Delta\mu\lesssim 770$ MeV and $B_{\mathrm{QCD}}=400\ \mathrm{MeV\ fm}^{-3}$ the velocity of sound in QM may exceeds the speed of light, which are excluded in our calculation. By solving Eq. (21) and (23), the densities of nuclear matter $n^{H}_{\mathrm{T}}$ and quark matter $n^{Q}_{\mathrm{T}}$ on the occurrence of deconfinement phase transition can be obtained at given $C$, $\Delta\mu$, and $B_{\mathrm{QCD}}$, which are presented in Figs. 3 and 4. Since the energy per baryon of QM decreases if we adopt larger $C$, $\Delta\mu$, and smaller $B_{\mathrm{QCD}}$, the transition density $n^{H}_{\mathrm{T}}$ decreases accordingly. The density jump $n^{Q}_{\mathrm{T}}-n^{H}_{\mathrm{T}}$ is increasing with $B_{\mathrm{QCD}}$ and decreasing with $C$ and $\Delta\mu$, where a large $n^{Q}_{\mathrm{T}}-n^{H}_{\mathrm{T}}$ indicates a strong first-order phase transition. At $C\gtrsim 2.8$, we find varying $\Delta\mu$ or $B_{\mathrm{QCD}}$ does not affect the transition densities $n^{H}_{\mathrm{T}}$ and $n^{Q}_{\mathrm{T}}$, while $n^{Q}_{\mathrm{T}}$ decreases slightly with $C$.

Finally, based on the EoSs of NM, QM, and MP, we solve the Tolman-Oppenheimer-Volkov (TOV) equation

[TABLE]

with subsidiary condition

[TABLE]

Here the gravity constant is taken as $G=6.707\times 10^{-45}\ \mathrm{MeV}^{-2}$. Note that at subsaturation densities, uniform nuclear matter becomes unstable and geometrical structures emerge. In such cases, we adopt the EoS presented in Refs. Feynman et al. (1949); Baym et al. (1971); Negele and Vautherin (1973) at $n<0.08\ \mathrm{fm}^{-3}$. The mass $M$ and radius $R$ of a compact star are obtained at given centre pressure. In Fig. 5 we present the maximum mass $M_{\mathrm{max}}$ of hybrid stars obtained with the Maxwell construction. It is found that $M_{\mathrm{max}}$ decreases with $\Delta\mu$ and increases with $B_{\mathrm{QCD}}$. At fixed $\Delta\mu$ and $B_{\mathrm{QCD}}$, the obtained maximum mass decreases with increasing $C$ at $C\lesssim 2.8$. This is mainly due to the softening of EoSs with the occurrence of deconfinement phase transition. For larger $C$, as indicated in Fig. 3, QM appears at densities smaller than $2n_{0}$. In such cases, the core of a hybrid star is comprised almost entirely of QM, which has a similar parameter dependence on $C$ as a strange star Xia and Zhou (2017), i.e., the corresponding $M_{\mathrm{max}}$ is increasing with $C$. For our calculation to be consistent with the observational mass of PSR J0348+0432 ($2.01\pm 0.04\ M_{\odot}$) Antoniadis et al. (2013), smaller $\Delta\mu$, $C$, and larger $B_{\mathrm{QCD}}$ are favored, i.e., the lower left regions in Fig. 5 with $M_{\mathrm{max}}>1.97\ M_{\odot}$. This area in the parameter space shrinks if we adopt smaller $B_{\mathrm{QCD}}$. Note that introducing the Gibbs construction will result in a different maximum mass. In Fig. 6 we present the variations on the maximum mass of hybrid stars $\Delta M_{\mathrm{max}}=M_{\mathrm{max}}^{\mathrm{Maxwell}}-M_{\mathrm{max}}^{\mathrm{Gibbs}}$ caused by introducing the Gibbs and Maxwell constructions. It is found that the difference is larger and positive at smaller $C$, while $\Delta M_{\mathrm{max}}$ becomes negative and approaches to its minimum at $C\approx 2.8$. Nevertheless, $\Delta M_{\mathrm{max}}$ is positive for the cases with $M_{\mathrm{max}}>1.97\ M_{\odot}$, where the obtained $M_{\mathrm{max}}^{\mathrm{Maxwell}}$ is larger than $M_{\mathrm{max}}^{\mathrm{Gibbs}}$. In general, we find that the difference is insignificant ($|\Delta M_{\mathrm{max}}|\lesssim 0.08\ M_{\odot}$) comparing with the masses of hybrid stars.

The tidal deformability can be estimated with

[TABLE]

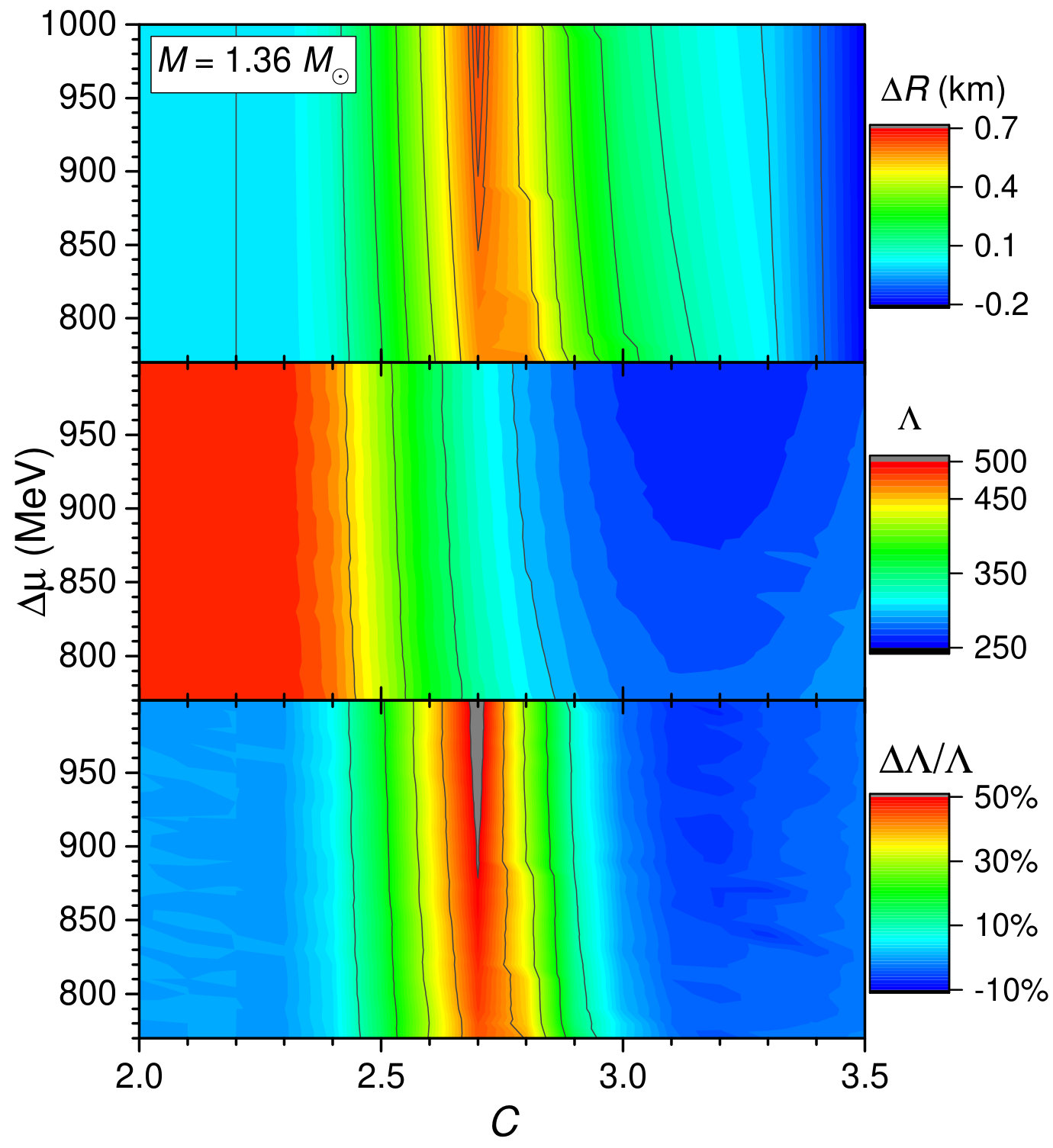

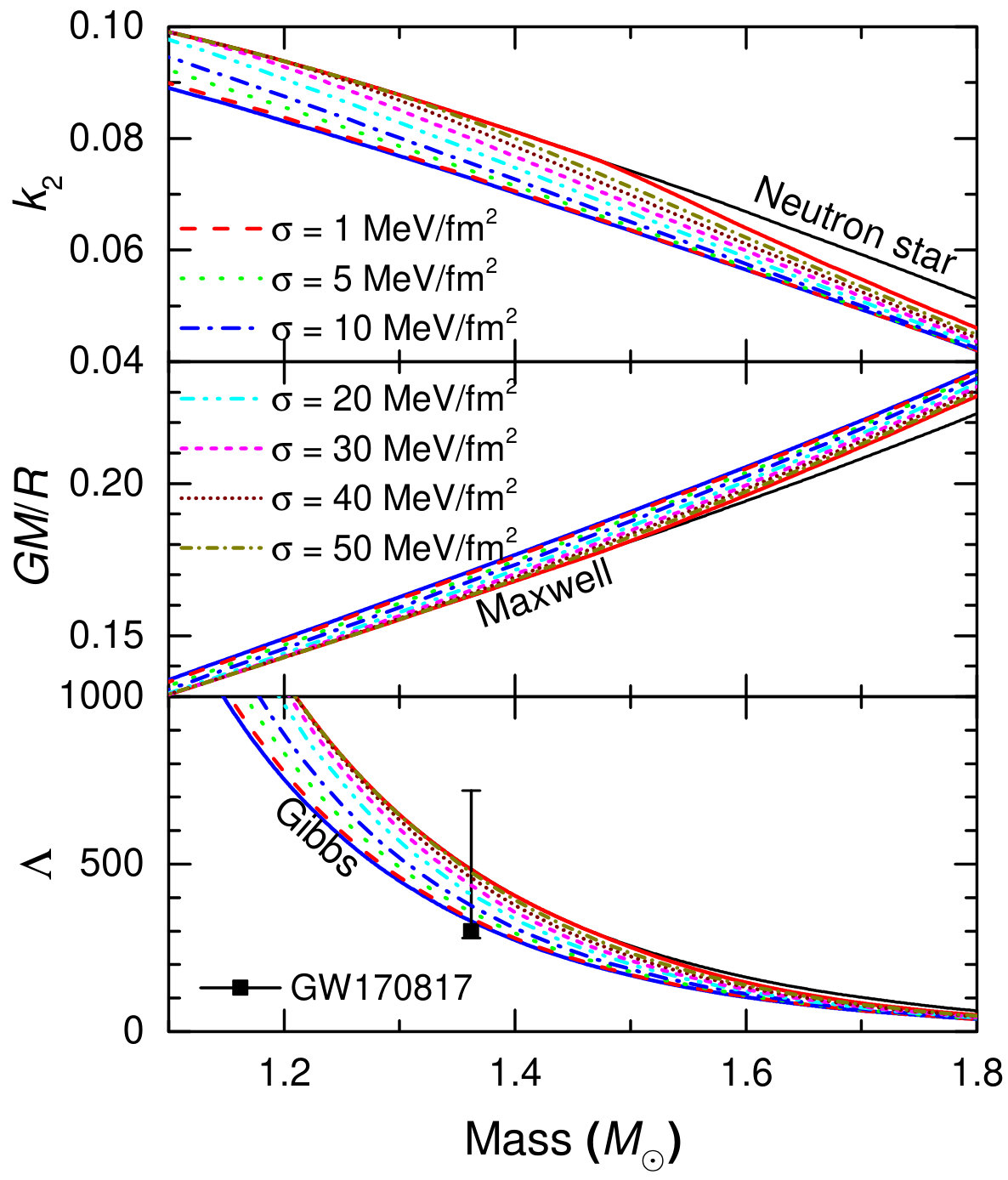

where $k_{2}$ is the second Love number Damour and Nagar (2009); Hinderer et al. (2010); Postnikov et al. (2010). For hybrid stars with $M=1.36\ M_{\odot}$, it is found that both tidal deformability $\Lambda_{1.36}$ and radius $R_{1.36}$ are insensitive to the choices of $B_{\mathrm{QCD}}$ according to our calculation. We thus take $B_{\mathrm{QCD}}=400\ \mathrm{MeV\ fm}^{-3}$ and present the obtained $\Lambda_{1.36}$ with the Gibbs construction at the centre panel of Fig. 7, which is decreasing with $C$ but insensitive to $\Delta\mu$ and $B_{\mathrm{QCD}}$. If we assume the mass ratio $m_{2}/m_{1}=1$ for the binary neutron star merger event GW170817, combined with the measured chirp mass $\mathcal{M}={(m_{1}m_{2})^{3/5}}{(m_{1}+m_{2})^{-1/5}}=1.186\pm 0.001\ M_{\odot}$ LIGO Scientific and Virgo Collaborations (2019), we then have $m_{1}=m_{2}=1.362\ M_{\odot}$ and the dimensionless combined tidal deformability $\tilde{\Lambda}=\Lambda_{1}=\Lambda_{2}\approx\Lambda_{1.36}$ with the constraint $279\leq\tilde{\Lambda}\leq 720$ LIGO Scientific and Virgo Collaborations (2017, 2019); Coughlin et al. ; Carney et al. (2018); De et al. (2018); Chatziioannou et al. (2018). In fact, the obtained $\tilde{\Lambda}$ may deviate slightly from $\Lambda_{1.36}$ for other mass ratios as indicated in Fig. 13, while the variations are insignificant. In such cases, the region in the parameter space centered at $C\approx 3.2$ can be excluded since a lower limit with $\tilde{\Lambda}>279$ was obtained based on the Bayesian analysis of the combined information from GW170817, AT2017gfo, and GRB170817 Coughlin et al. . To show the interface effects on the properties of hybrid stars at $M=1.36\ M_{\odot}$, we compare the radii and tidal deformabilities of hybrid stars obtained based on the Gibbs and Maxwell constructions. The variations on $\Lambda_{1.36}$ and $R_{1.36}$ are presented in the top and bottom panels of Fig. 7, where $\Delta R=R^{\mathrm{Maxwell}}-R^{\mathrm{Gibbs}}$ and $\Delta\Lambda/\Lambda=\Lambda^{\mathrm{Maxwell}}/\Lambda^{\mathrm{Gibbs}}-1$. At certain choice of parameters, e.g., $C\approx 2.7$, the interface effects on the properties of hybrid stars become sizable. It is found that the radius of a hybrid star at $M=1.36\ M_{\odot}$ may vary up to $600$ m, which is within the capability of the NICER mission Gendreau et al. (2016) or gravitational wave observations Torres-Rivas et al. (2019); Bauswein and Stergioulas . Meanwhile, the relative variations on the tidal deformability may even reach $50\%$, which can be distinguished by future gravitational wave observations. Nevertheless, it is worth mentioning that for traditional neutron stars without a deconfinement phase transition, the properties of nuclear matter at high densities would have sizable impacts on the radii and tidal deformabilities as well, e.g., the symmetry energy slope Zhu et al. (2018); Dexheimer et al. (2019). In such cases, due to the uncertainties in the properties of hadronic matter, it is necessary to adopt other hadronic EoSs in our future study and examine their impacts, e.g., DD2 EoS with light clusters Typel et al. (2010) or the nuclear EoS predicated by the cluster variational method using the Jastrow wave function Togashi et al. (2017).

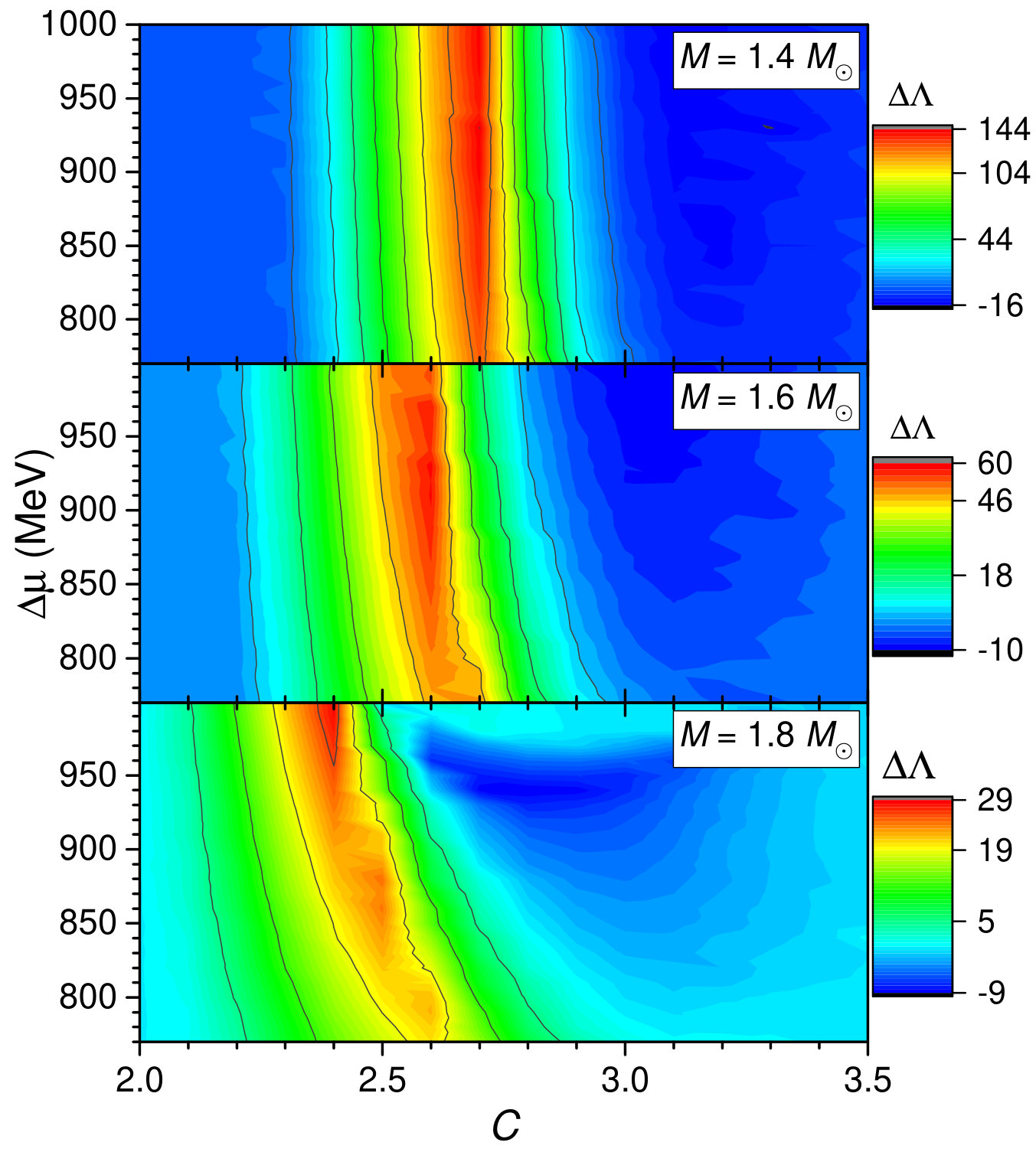

To further examine the interface effects on more massive hybrid stars, in Fig. 8 we present the variations of tidal deformability with $M=1.4$, 1.6, and $1.8\ M_{\odot}$ obtained at $B_{\mathrm{QCD}}=400\ \mathrm{MeV\ fm}^{-3}$. It is found that the region with large $\Delta\Lambda$ in the parameter space varies with the mass of hybrid stars, where the centre shifts to smaller $C$ as $M$ increases. This is mainly due to the fact that the interface effects become important when deconfinement phase transition starts to take place at the centre of the star, which is around the densities indicated in Figs. 3 and 4. Similar cases are expected for the radii of hybrid stars as well as adopting other values of $B_{\mathrm{QCD}}$.

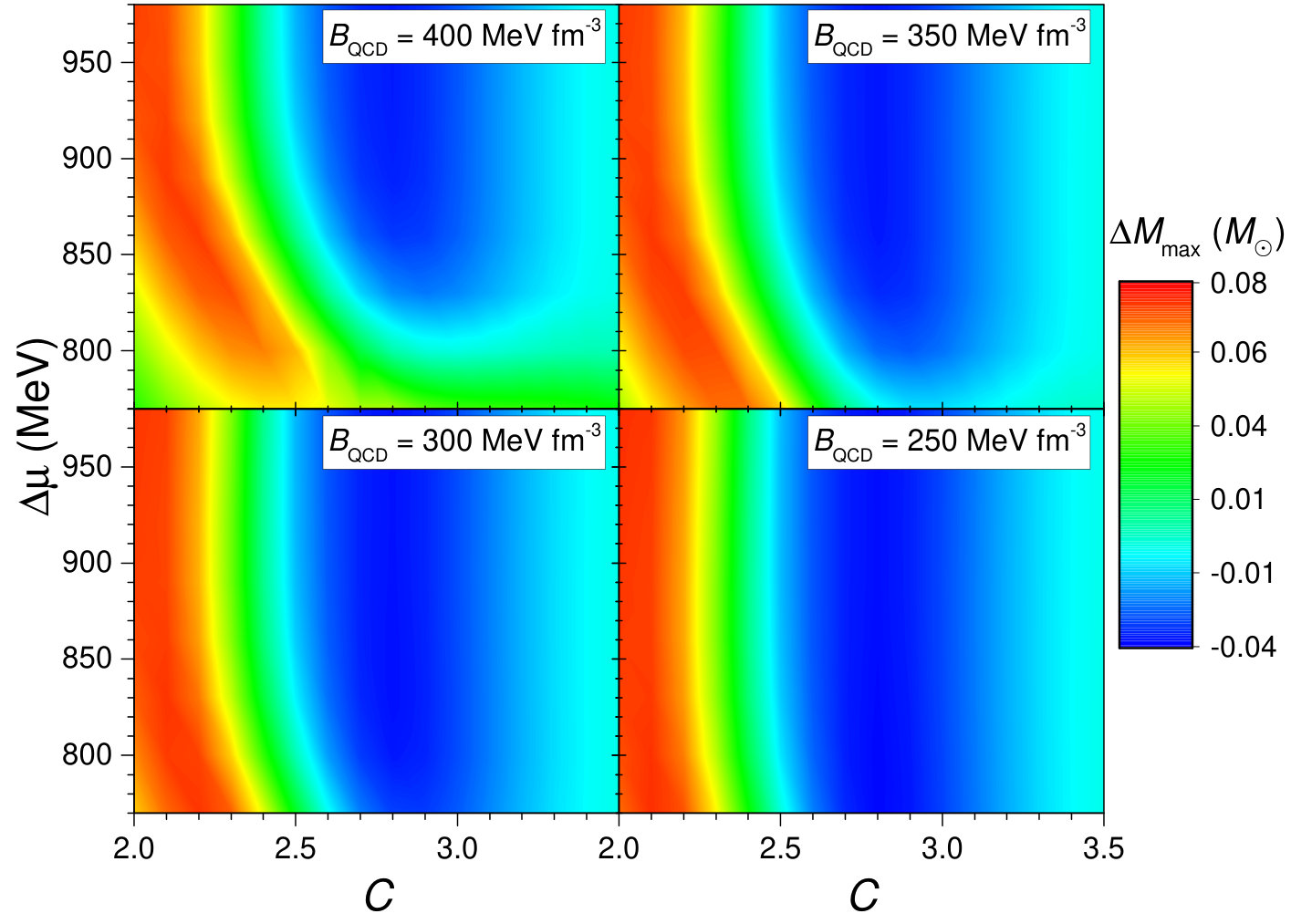

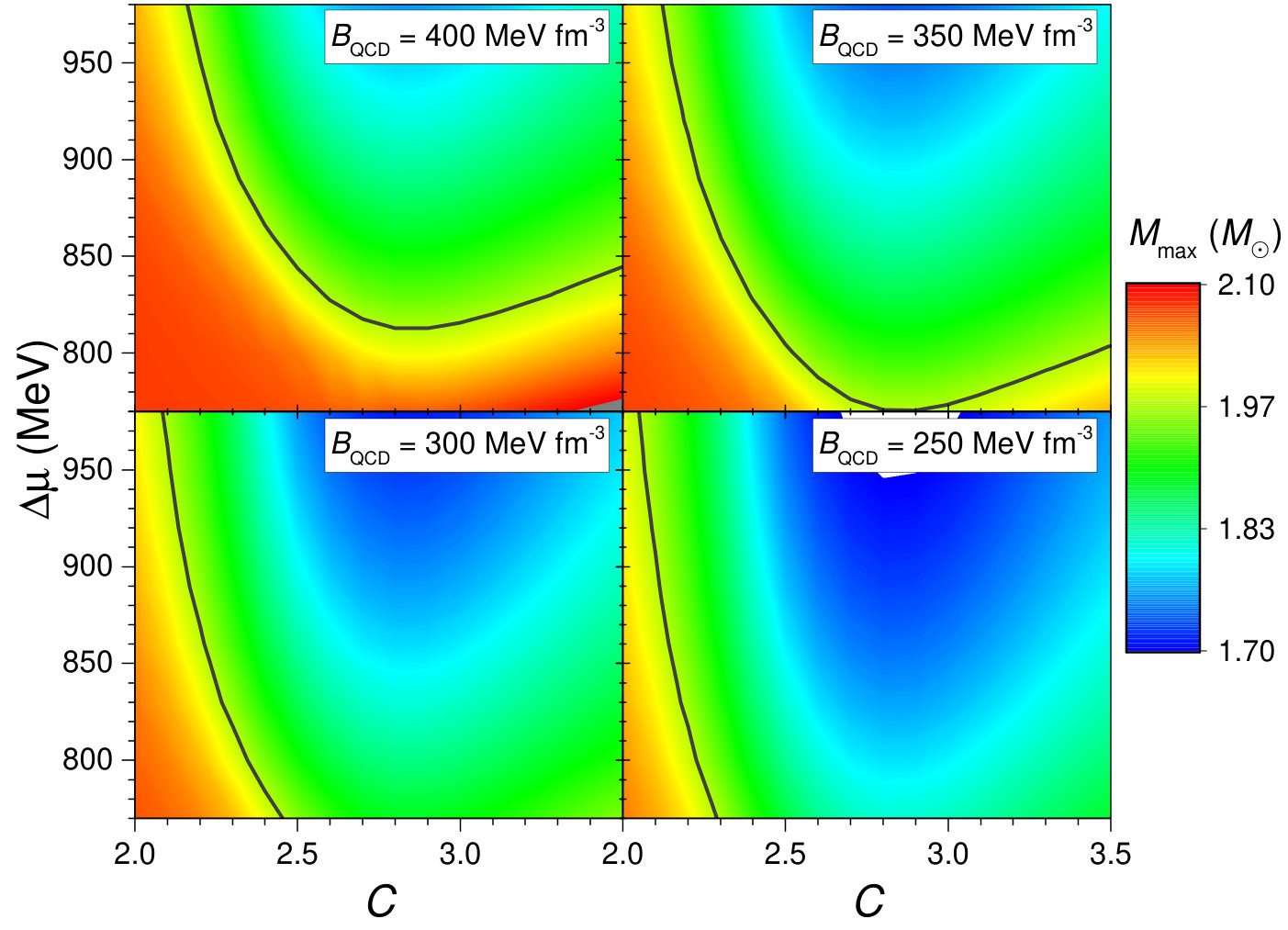

In summary, based on the results indicated in Figs. 3-8, the parameter $C$ can be constrained and is likely small ($\lesssim 3$) according to the expected hadron-quark transition density in heavy-ion collision phenomenology, the observational mass of PSR J0348+0432 Antoniadis et al. (2013), and the lower limit of the dimensionless combined tidal deformability Coughlin et al. . In such cases, the interface effects play important roles for the radii and tidal deformabilities of hybrid stars as indicated in Figs. 7 and 8. With the upgraded gravitational wave detectors Torres-Rivas et al. (2019); Bauswein and Stergioulas , the ongoing NICER mission Gendreau et al. (2016), and the mass measurements of massive pulsars Linares et al. (2018), we may have a good chance to constrain simultaneously the parameters $C$, $\Delta\mu$, $B_{\mathrm{QCD}}$, as well as the quark-hadron interface tension in the near future with the accurately measured masses, radii, and tidal deformabilities of pulsars.

III.2 Geometrical structures

Since the emergence of geometrical structures is inevitable if the interface tension $\sigma<\sigma_{\mathrm{c}}$, it is necessary to investigate the interface effects on those structures and consequently on the properties of MP. To construct the geometrical structures of MP, we employ a Wigner-Seitz approximation and assume spherical symmetry, i.e., only the droplet and bubble phases are considered.

As was done in Refs. Xia et al. (2016a); Xia (2016); Xia et al. (2016b); Xia and Zhou (2017) but neglecting the contributions of gravity, the internal structure of the Wigner-Seitz cell is determined by minimizing the mass, which is consistent with the constancy of chemical potentials

[TABLE]

with the electric potential $\varphi(r)$ determined by

[TABLE]

Here $\alpha=1/137$ is the fine-structure constant. Since the $\beta$-equilibrium condition is fulfilled, the local chemical potentials are determined by Eq. (16) with a constant $\mu_{\mathrm{b}}$ and space dependent $\mu_{e}(r)=\varphi(r)+m_{e}$. With the linearization adopted in Eq. (19), Eq. (28) can be solved analytically and gives

[TABLE]

Here the Wigner-Seitz cell is divided into the inner part (I) and outer part (O), i.e., a small sphere with radius $R$ enclosed within a spherical shell with outer radius $R_{\mathrm{W}}$. The MP is at the droplet phase if we have QM located at the inner part and HM in the outer part, and vice versa, the MP is at the bubble phase. The electric fields $\varphi^{\mathrm{I}}(r)$ ($r<R$) and $\varphi^{\mathrm{O}}(r)$ ($R<r\leq R_{\mathrm{W}}$) and their derivatives should match with each other at $r=R$, which determines the parameters $C^{\mathrm{I}}$, $\varphi^{\mathrm{I}}_{0}$, $C^{\mathrm{O}}$, and $\varphi^{\mathrm{O}}_{0}$ at given $\mu_{e0}^{\mathrm{I}}$ and $\mu_{e0}^{\mathrm{O}}$. The radius $R$ is fixed based on the dynamic stability of the quark-hadron interface, i.e.,

[TABLE]

The Wigner-Seitz cell radius $R_{\mathrm{W}}$ is obtained by minimizing the energy per baryon $M/A$ at a given baryon number density $n=A/V_{\mathrm{W}}$ ($V_{\mathrm{W}}=4\pi R_{\mathrm{W}}^{3}/3$), where the total mass $M$ and baryon number $A$ are fixed with

[TABLE]

Note that analytical expressions can be obtained for $M$ and $A$ based on Eqs. (18) and (20).

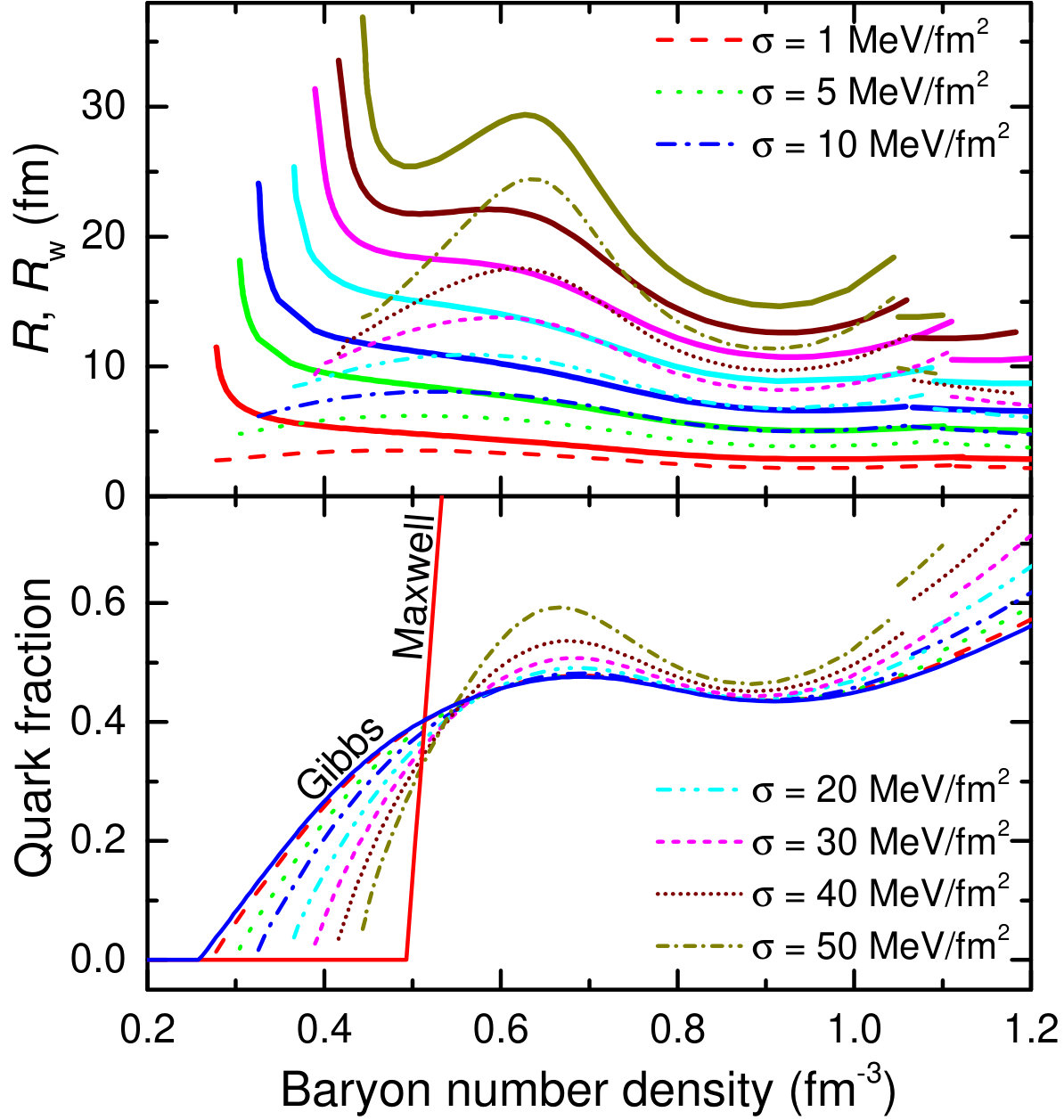

The properties of MP and the corresponding geometrical structures can then be determined based on Eqs. (27-33). To show the interface effects on the properties of MP and hybrid stars, as an example, we take $C=2.7$, $\Delta\mu=800$ MeV, $B_{\mathrm{QCD}}=400\ \mathrm{MeV\ fm}^{-3}$, and various surface tension values with $\sigma=1$, 5, 10, 20, 30, 40, and $50\ \mathrm{MeV/fm}^{2}$. The obtained Wigner-Seitz cell radius $R_{W}$, droplet radius $R$, and quark fraction $\chi$ are presented in Fig. 9 as functions of baryon number density $n$. The quark droplet starts to appear in nuclear matter at around $2n_{0}$ with a large Wigner-Seitz cell radius $R_{W}$ and small droplet radius $R$. As density increases, the thickness of the nuclear matter shell $R_{W}-R$ decreases, corresponding to the increasing quark fraction $\chi$. Nevertheless, the quark fraction $\chi$ starts to decrease at $\sim 0.65\ \mathrm{fm}^{-3}$ and reaches the minimum at $\sim 0.9\ \mathrm{fm}^{-3}$. This is mainly due to the fact that we have adopted stiff EoSs for quark matter, which is necessary for hybrid stars to be heavy as $2\ M_{\odot}$. Note that in a large density range the droplet phase is more stable, while the bubble phase starts to take place at much larger densities ($\sim 1\ \mathrm{fm}^{-3}$). As the surface tension $\sigma$ increases, the sizes of geometrical structures increase and the density range of MP decreases with an increasing onset density for QM, which is consistent with previous findings. According to the obtained quark fractions, our results become closer to the cases of the Gibbs construction if we adopt smaller $\sigma$, while at larger $\sigma$ they approach to the cases of the Maxwell construction.

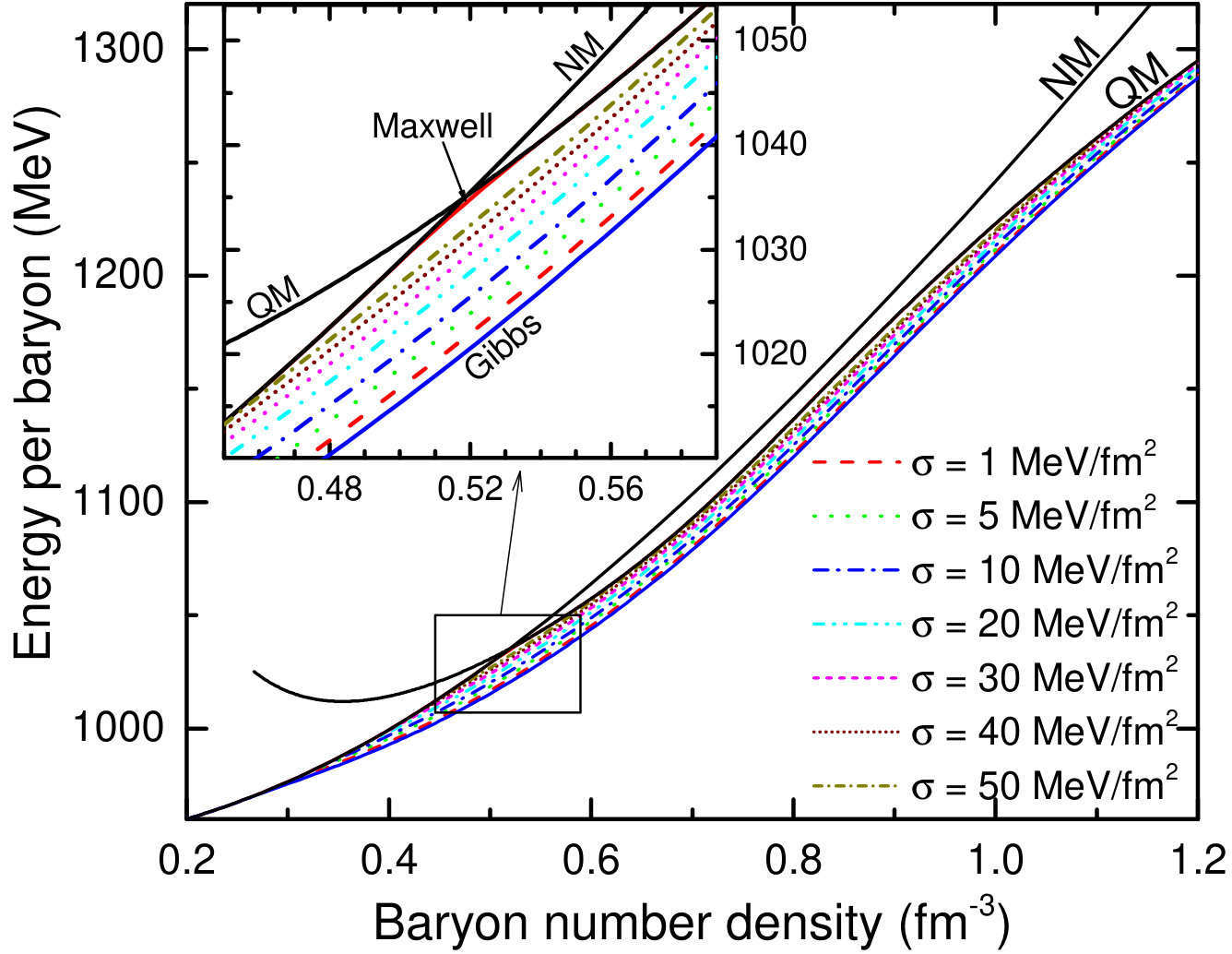

In Fig. 10 we present the energy per baryon of nuclear matter (NM), QM, and MP in compact stars as functions of baryon number density. According to Fig. 9, the onset density for QM increases with $\sigma$, which approaches to the transition densities $n^{H}_{\mathrm{T}}$ obtained with the Maxwell construction. Similarly, the corresponding energy density for the occurrence of deconfinement phase transition increases with $\sigma$. As the emergence of QM in NM, the EoSs become softer, which will consequently affect the properties of hybrid stars.

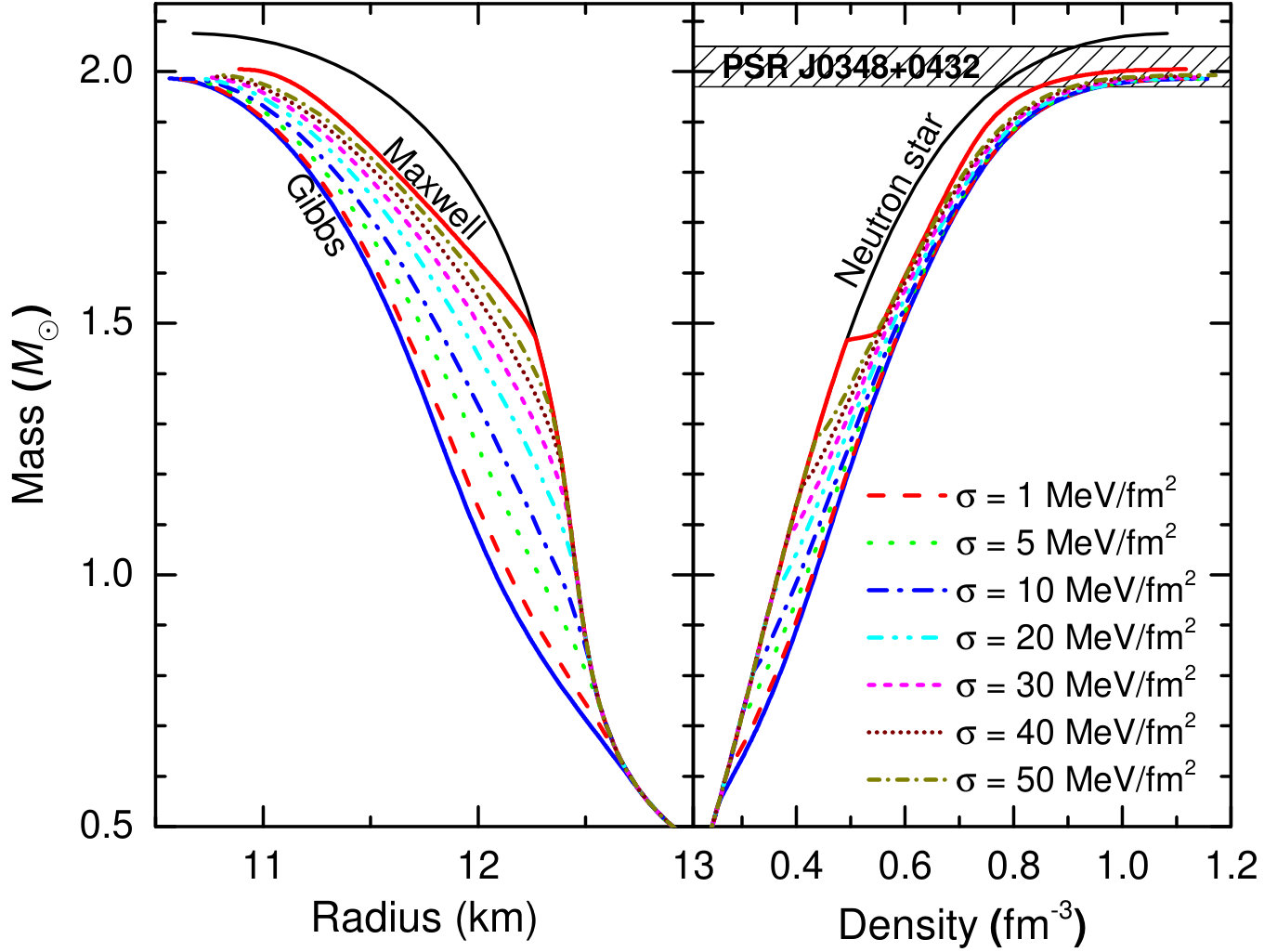

Based on the EoSs indicated in Fig. 10, we solve the TOV equation (24) and obtain the structures of compact stars. In Fig. 11 we present the masses of compact stars as functions of radius (Left panel) and central baryon number density (Right panel), which are compared with the observational mass of PSR J0348+0432 ($2.01\pm 0.04\ M_{\odot}$) Antoniadis et al. (2013). As QM starts to appear at the centre of hybrid stars, the maximum mass and radii become smaller. Comparing with the variations caused by introducing different $C$, $\Delta\mu$, and $B_{\mathrm{QCD}}$, interface effects on the maximum mass of hybrid stars are insignificant, which is consistent with our findings in Fig. 6 by introducing both the Gibbs and Maxwell constructions. Nevertheless, the interface effects on hybrid stars’ radii are sizable, where the variations can be as large as 600 m. For hybrid stars with a given mass, the radius increases with $\sigma$.

The tidal deformabilities of compact stars corresponding to Fig. 11 can be obtained with Eq. (26), which are presented in Fig. 12 along with the corresponding Love number $k_{2}$ and compactness $GM/R$. It is found that the tidal deformability increases if we adopt larger $\sigma$, with the positive contributions from both the increasing $k_{2}$ and decreasing $GM/R$. Based on the observations of the binary neutron star merger event GW170817 and its transient counterpart AT2017gfo and short gamma ray burst GRB170817A, the dimensionless combined tidal deformability is constrained within $279\leq\tilde{\Lambda}\leq 720$ LIGO Scientific and Virgo Collaborations (2017, 2019); Coughlin et al. ; Carney et al. (2018); De et al. (2018); Chatziioannou et al. (2018), which is a mass-weighted linear combination of tidal deformabilities Favata (2014)

[TABLE]

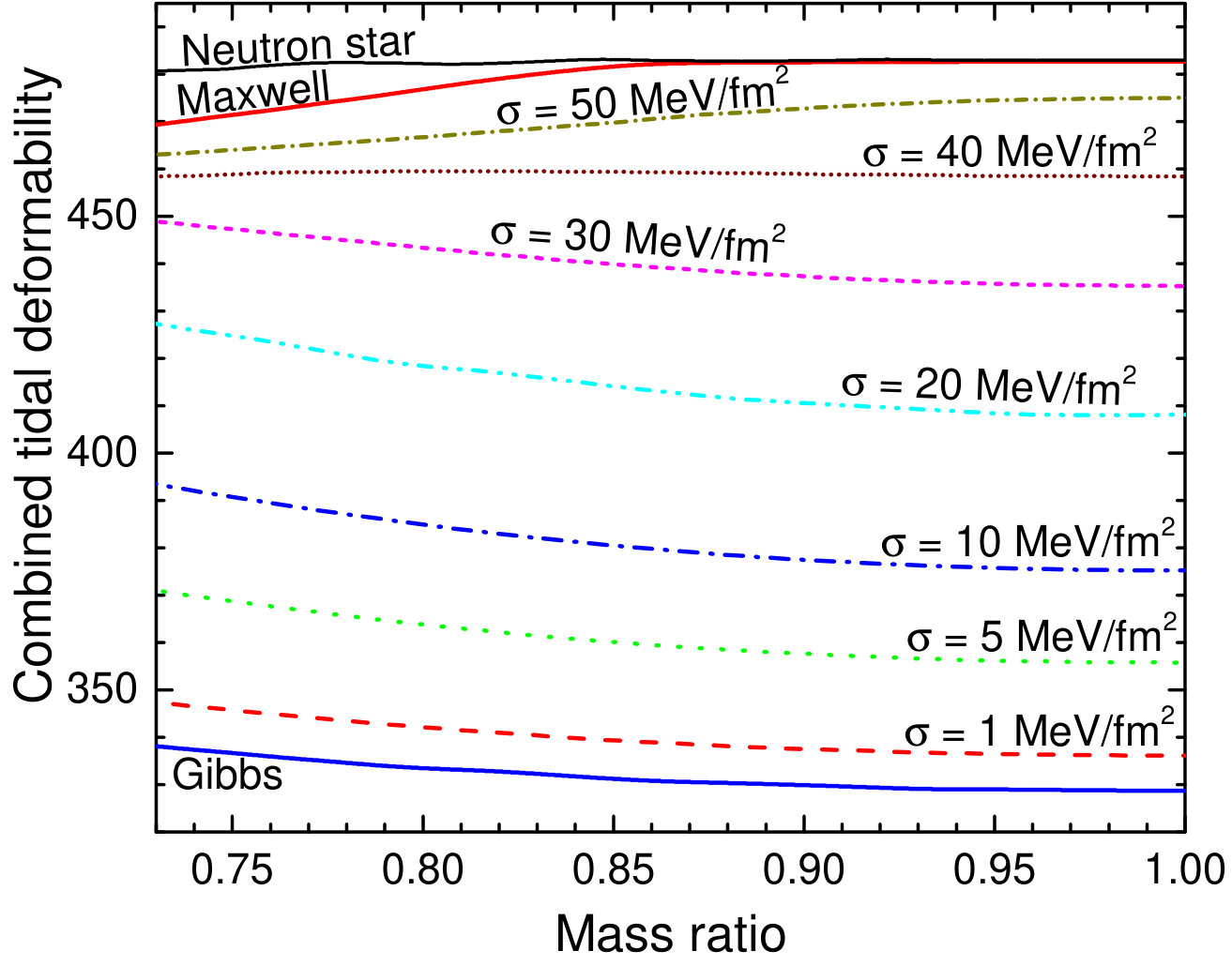

With the best measured chirp mass $\mathcal{M}={(m_{1}m_{2})^{3/5}}{(m_{1}+m_{2})^{-1/5}}=1.186\pm 0.001\ M_{\odot}$ LIGO Scientific and Virgo Collaborations (2019), in Fig. 13 we present the obtained $\tilde{\Lambda}$ as functions of the mass ratio $m_{2}/m_{1}$. Unlike traditional neutron stars Bhat and Bandyopadhyay (2018), a slight deviation ($|\Delta\tilde{\Lambda}|\lesssim 20$) is observed for hybrid stars as we vary $m_{2}/m_{1}$, which is insignificant comparing with the deviations caused by the interface effects. Similar cases are also observed for other choices of parameters, where the deviation on $\tilde{\Lambda}$ is insignificant. It is then convenient for us to assume $m_{1}=m_{2}=1.362\ M_{\odot}$ with $\Lambda_{1}=\Lambda_{2}=\tilde{\Lambda}$. The corresponding constraints are indicated in Fig. 12, which can not distinguish hybrid stars obtained at different $\sigma$. Nevertheless, the situation will likely be changed in the near future with the implementation of upgraded detectors for gravitational wave observations Torres-Rivas et al. (2019); Bauswein and Stergioulas .

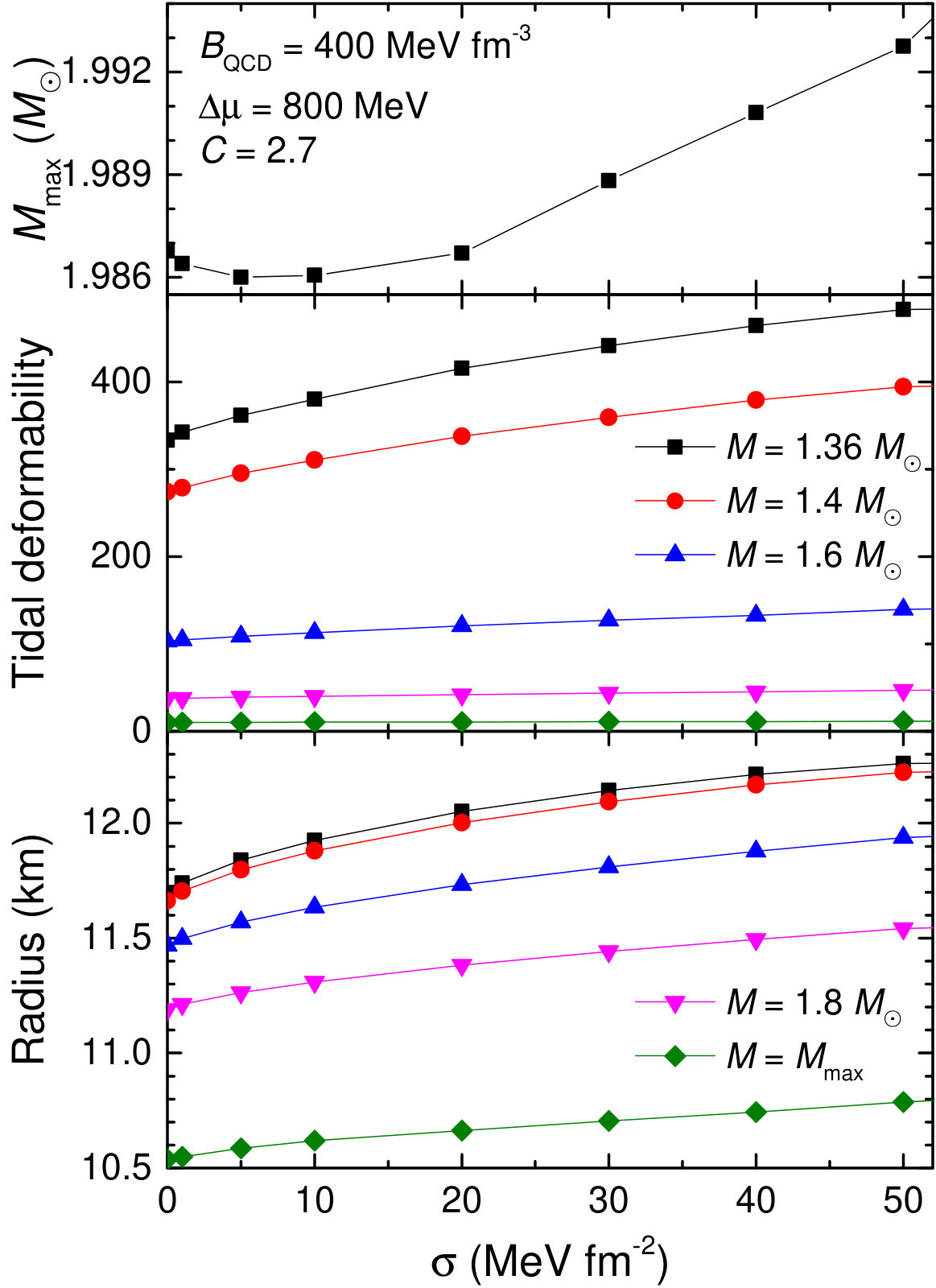

Based on Figs. 11 and 12, in Fig. 14 we present the evolution of maximum mass, tidal deformability, and radius of hybrid stars as functions of the surface tension $\sigma$, with given masses $M=1.36$, 1.4, 1.6, $1.8\ M_{\odot}$ and $M_{\mathrm{max}}$. For the cases with $\sigma=0$, we adopt the results obtained with the Gibbs construction. It is found that $M_{\mathrm{max}}$, $\Lambda$, and $R$ increase with $\sigma$. The results essentially interpolate between two types of values, i.e., as a function of $\sigma$ that connects the results obtained with the Gibbs construction at $\sigma\rightarrow 0$ and the Maxwell construction at $\sigma>\sigma_{\mathrm{c}}$, where we have found $\sigma_{\mathrm{c}}=79.12$ MeV/fm2. In principle, the corresponding function can be obtained by fitting to our results with certain assumption on its form, e.g., (Maslov et al., , Eq. (14)), which we intend to do in our future works. According to Fig. 14, we find the variations on the maximum mass, tidal deformability, and radius of hybrid stars are up to $\Delta M_{\mathrm{max}}\approx 0.02\ M_{\odot}$, $\Delta R\approx 600$ m, and $\Delta\Lambda/\Lambda\approx 50\%$, respectively. Even though $M_{\mathrm{max}}$ increases little with $\sigma$, sizable changes are observed for $\Lambda$ and $R$, which is within the capability of the NICER mission Gendreau et al. (2016) or future gravitational wave observations Torres-Rivas et al. (2019); Bauswein and Stergioulas .

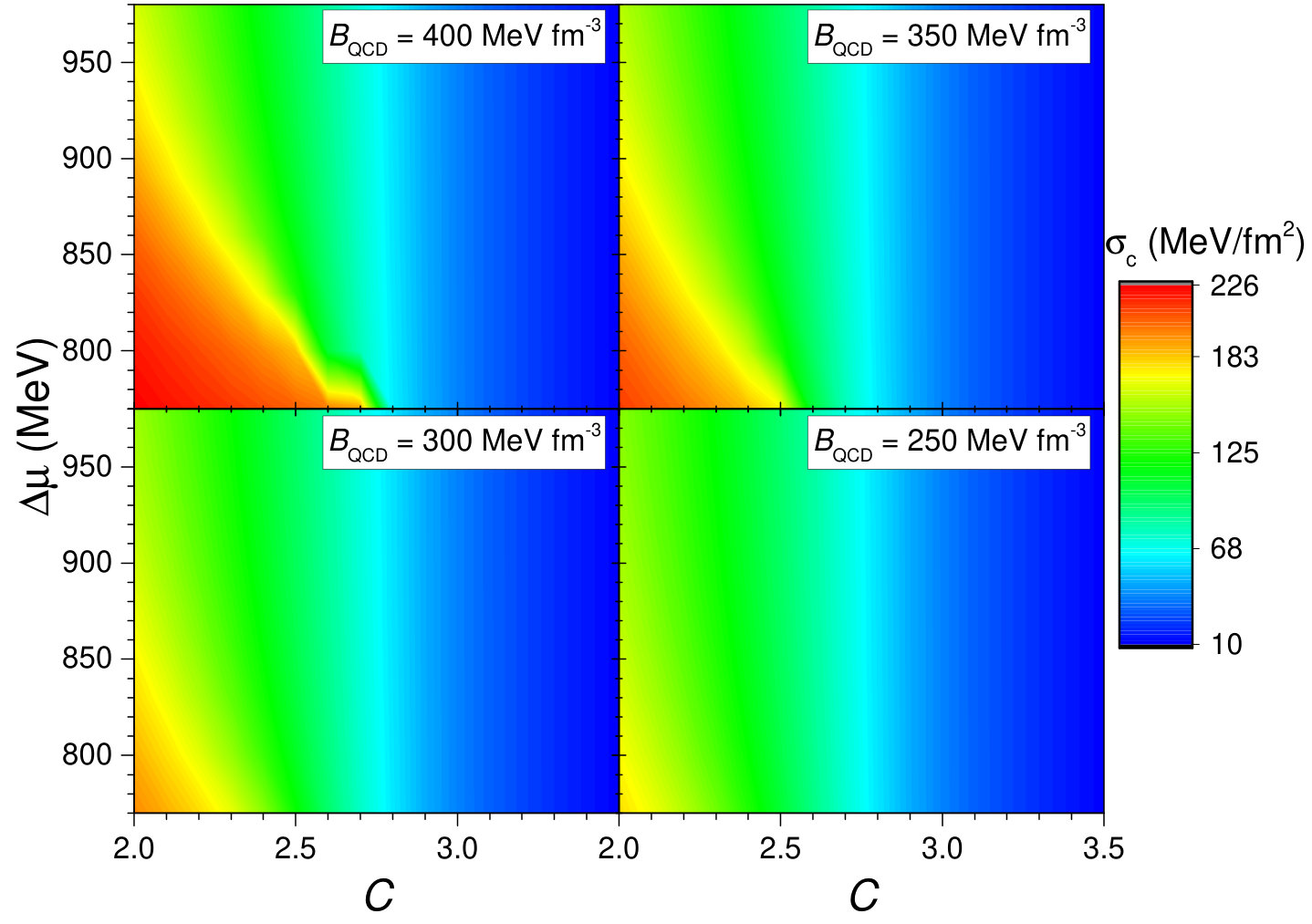

Finally, our investigations in Fig. 10-14 suggests that the radii and tidal deformabilities of hybrid stars are monotonous functions of $\sigma$, which approach to the scenarios of Gibbs construction at $\sigma\rightarrow 0$ and Maxwell construction at $\sigma>\sigma_{\mathrm{c}}$. For other choices of parameter sets, we expect similar trends, where the critical surface tension $\sigma_{\mathrm{c}}$ can be well reproduced with Voskresensky et al. (2003)

[TABLE]

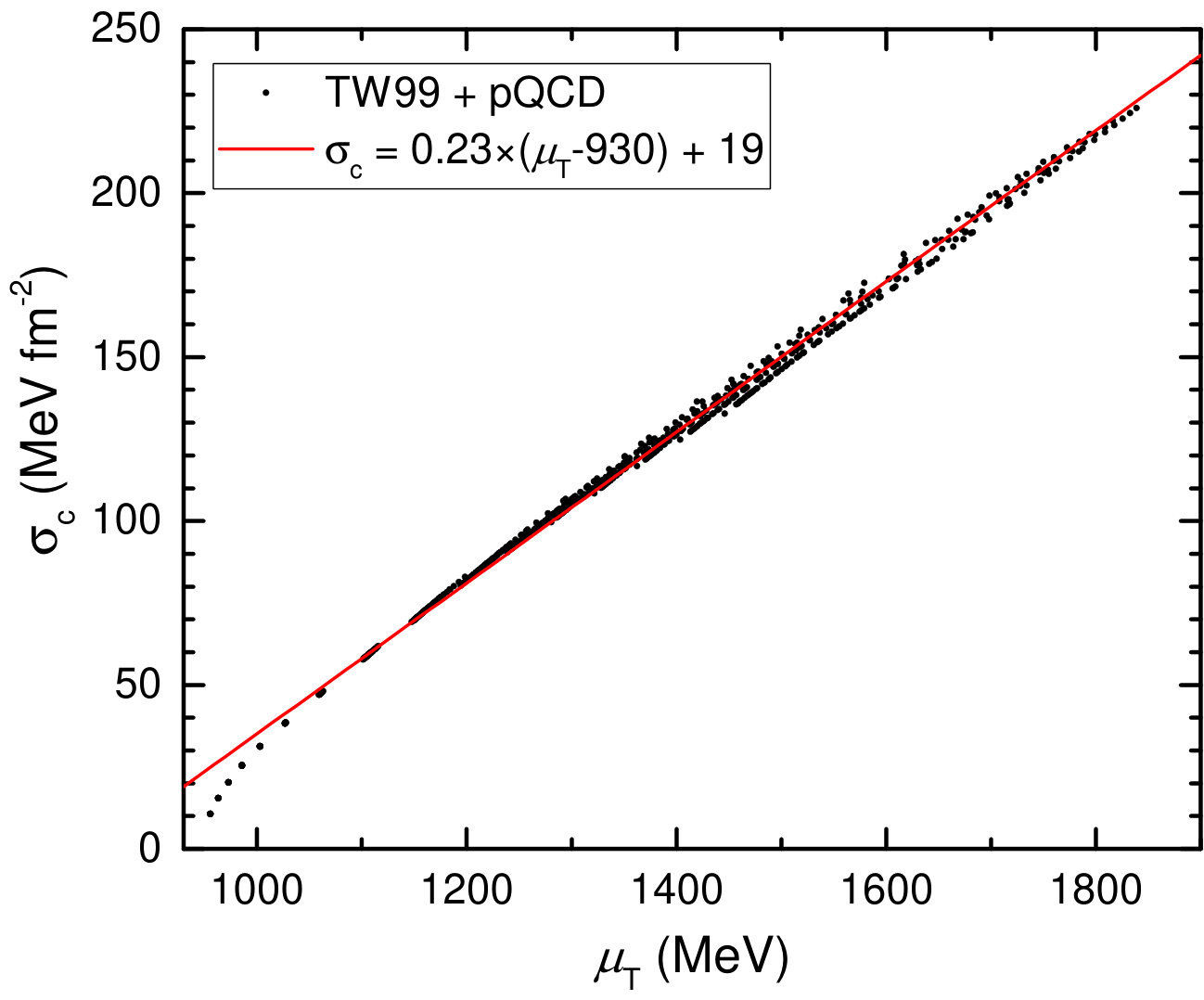

The obtained results for $\sigma_{\mathrm{c}}$ are presented in Fig. 15, where we have observed similar trends as in Fig. 3. This indicates correlations between the critical surface tension $\sigma_{\mathrm{c}}$ and the thermodynamic quantities of MP, which was pointed out in (Maslov et al., , Fig. 5). To show this explicitly, in Fig. 16 we present the obtained critical surface tension as a function of the baryon chemical potential $\mu_{T}$ on the occurrence of deconfinement phase transition. It is found that $\sigma_{\mathrm{c}}$ (in MeV/fm2) increases linearly with $\mu_{T}$ (in MeV) and can be well approximated with $\sigma_{\mathrm{c}}=0.23(\mu_{T}-930)+19$, where the coefficients depend on the EoSs of HM and QM. In such cases, if the deconfinement phase transition occurs at large $\mu_{T}$, the emergence of geometrical structures may be inevitable in hybrid stars since typical estimations suggest $\sigma<\sigma_{\mathrm{c}}$ with $\sigma\lesssim 30\ \mathrm{MeV/fm}^{2}$ Oertel and Urban (2008); Palhares and Fraga (2010); Pinto et al. (2012); Kroff and Fraga (2015); Garcia and Pinto (2013); Ke and Liu (2014); Mintz et al. (2013); Gao and Liu (2016); Xia et al. (2018).

IV Conclusion

We investigate the interface effects of quark-hadron mixed phase in hybrid stars. The properties of nuclear matter are obtained based on RMF model. For the $N$-$N$ interactions, we adopt the covariant density functional TW99 Typel and Wolter (1999), which is consistent with all seven constraints related to symmetric nuclear matter, pure neutron matter, symmetry energy, and its derivatives Dutra et al. (2014). For the quark phase, we adopt perturbation model by expanding the pQCD thermodynamic potential density to the order of $\alpha_{\mathrm{s}}$ Fraga and Romatschke (2005). A parameterized bag constant is introduced by comparing with pQCD calculations to the order of $\alpha_{\mathrm{s}}^{2}$ Fraga et al. (2014) as well as incorporating informations from QCD sum-rule Shuryak (1978) and light hadron mass spectra DeGrand et al. (1975). Since the mixed phases obtained with the Gibbs and Maxwell constructions correspond to the two limits of the quark-hadron interface tension, i.e., $\sigma\rightarrow 0$ for the Gibbs construction and $\sigma>\sigma_{\mathrm{c}}$ for the Maxwell construction, we investigate the interface effects by comparing the results obtained by those two phase construction schemes. It is found that the quark-hadron interface has sizable effects on the radii ($\Delta R\approx 600$ m) and tidal deformabilities ($\Delta\Lambda/\Lambda\approx 50\%$) of 1.36 solar mass hybrid stars for certain choices of parameters. This is then confirmed by considering the geometrical structures of the mixed phase with a specific choice of parameters, where for larger $\sigma$ the sizes of geometrical structures increase but the density range of mixed phase decreases. For the corresponding hybrid stars, we find the maximum mass, tidal deformability, and radius increase with $\sigma$, where the variations are up to $\Delta M_{\mathrm{max}}\approx 0.02\ M_{\odot}$, $\Delta R\approx 600$ m, and $\Delta\Lambda/\Lambda\approx 50\%$, respectively. This provides possibilities for us to constrain the quark-hadron interface tension with future gravitational wave observations Torres-Rivas et al. (2019); Bauswein and Stergioulas as well as the NICER mission Gendreau et al. (2016).

ACKNOWLEDGMENTS

NY, TM, and TT would like to thank K. Maslov, A. Ayriyan, D. Blaschke, H. Grigorian, and D. N. Voskresensky for fruitful discussion. This work was supported by National Natural Science Foundation of China (Grant Nos. 11705163, 11711540016, 11875052, 11575190, and 11525524), and JSPS KAKENHI (Grant No. 17K18792). The computation for this work was supported by the HPC Cluster of SKLTP/ITP-CAS and the Supercomputing Center, CNIC, of the CAS.
