Dynamically enhanced unconventional superconducting correlations in a Hubbard ladder

TL;DR

This paper demonstrates how Floquet driving can significantly enhance unconventional superconducting correlations in a Hubbard ladder, with potential applications in solid-state and cold atomic systems.

Contribution

The study introduces a theoretical method to boost superconducting pairing in a Hubbard ladder using Floquet modulation, monitored by advanced DMRG techniques.

Findings

Superconducting correlations increased by about tenfold.

Floquet drive effectively reduces tunneling along the ladder rungs.

Method applicable to both solid-state and cold atomic systems.

Abstract

We propose theoretically how unconventional superconducting pairing in a repulsively interacting Hubbard ladder can be enhanced via the application of a Floquet driving. Initially the Hubbard ladder is prepared in its charge-density-wave dominated ground state. A periodic Floquet drive is applied which modulates oppositely the energy offset of the two chains and effectively reduces the tunneling along the rungs. This modulation of the energy offsets might be caused by the excitation of a suitable phononic mode in solids or a superlattice modulation in cold atomic gases. We use state-of-the-art density matrix renormalization group methods to monitor the resulting real-time dynamics of the system. We find an enormous enhancement of the unconventional superconducting pair correlations by approximately one order of magnitude.

Figures

Equations

$$H_0(J_{\perp })=-J_{\parallel }\sum _{j,\sigma ,m=0,1}\left(c_{m,j,\sigma }^{†}{c}_{m,j+1,\sigma }+h.c.\right)$$

$$-J_{\perp }\sum _{j,\sigma }\left(c_{0,j,\sigma }^{†}{c}_{1,j,\sigma }+h.c.\right)$$

$$+U\sum _{j,m=0,1}{n}_{m,j,\uparrow }{n}_{m,j,\downarrow }.$$

$$V(t)=\sum _{j,\sigma ,m=0,1}A(t)(-1{)}^m\sin (\omega t)n_{m,j,\sigma },$$

$$⟨\Delta n(j)\Delta n(j+l)⟩\propto l^{-K_n}$$

$$⟨{\Delta }_d(j){\Delta }_d^{†}(j+l)⟩\propto l^{-\frac{1}{K_d}},$$

$$H_{\text{eff}}^{(1)}=H_0(J_{\perp }^{\text{eff}}).$$

Full text

Recent experimental progress in solid state and quantum gas experiments opened up the possibility to investigate phenomena far-from equilibrium Orenstein2012 ; GiannettiMihailovic2016 ; ZhangAveritt2014 ; BlochZwerger2008 . In pump-probe experiments on solids, the material is brought out-of equilibrium by a short pump laser pulse which either couples mainly to the electronic Orenstein2012 ; ZhangAveritt2014 ; PerfettiWolf2006 ; SchmittShen2008 ; HellmannRossnagel2010 ; RohwerBauer2011 ; GedikHardy2004 ; CortesBovensiepen2011 ; SmallwoodLanzara2012 or structural RiniCavalleri2007 ; FoerstCavalleri2011 ; SubediGeorges2014 modes of the material and the subsequent dynamics is monitored, e.g. by a probe pulse. The tailored pump pulse can induce a change in the properties of the material and states or properties which are not accessible in equilibrium can become reachable. Examples of such interesting non-equilibrium states reach from Floquet-Bloch states at the surface of topological insulators WangGedik2013 over hidden states in a layered dichalcogenide crystal StojchevskaMihailovic2014 to states in which the electron-phonon coupling is strongly enhanced PomaricoGirez2017 . An intensified effort has, in particular, been devoted to dynamically induce superconducting properties in materials FaustiCavalleri2011 ; KaiserCavalleri2012 ; MankowskyCavalleri2014 ; NicolettiCavalleri2014 ; CasandrucCavalleri2015 ; MitranoCavalleri2016 . However, despite the outstanding experimental progress the understanding of the underlying mechanisms of the dynamic control of materials and their properties such as superconductivity is still far from complete. Simplified models are being considered in order to identify the important ingredients of processes taking place. For example, the enhancement of s-wave superconducting correlations by the excitation of a specific phononic mode has been proposed SentefKollath2016 or by the use of competing ordersSentefKollath2017 . The build-up of short range Cooper-pair correlations DasariEckstein2018 ; SchlawinJaksch2018 is simulated in the driven attractive Hubbard model .

In this work, we show how unconventional superconducting pair correlations can be enhanced drastically by approximately one order of magnitude using tailored light-pulses. We consider a material in a charge density wave ground state which is described by a Hubbard ladder. We assume that a phononic mode can be excited which leads to a modulation of the energy offset between the two legs of the ladder. Alternatively, this situation can be emulated in cold atom experiments using time-dependent superlattices. The periodic modulation effectively lowers the tunneling along the rung of the ladder and thus drives the system towards the d-wave superconductor.

We consider a material which in equilibrium can be described by a Hubbard ladder with repulsive onsite interactions,

[TABLE]

Here, $c_{m,j,\sigma}$ $(c_{m,j,\sigma}^{{\dagger}})$ annihilates (creates) a fermion with spin $\sigma=\uparrow,\downarrow$ on leg $m=0,1$ and rung $j=1,\dots,L$ of the ladder. The operator $n_{m,j,\sigma}=c_{m,j,\sigma}^{{\dagger}}c_{m,j,\sigma}$ is the corresponding density operator. The fermions tunnel along the legs of the ladder with tunneling amplitudes $J_{\parallel}$ and along the rungs with a tunneling amplitude $J_{\perp}$. Fermions on the same site interact repulsively with strength $U>0$. The Hubbard ladder is a quasi-one-dimensional model in which some of the two-dimensional characteristics appears. It is one of the rare examples, where a purely repulsive interaction leads to a superconducting state Giamarchibook . In the limit of a large tunneling amplitude on the rungs, i.e. $J_{\perp}/J_{\parallel}$ an intuitive picture of the origin of this superconducting phase can be gained. In this limit, the fermions energetically favor to form singlet pairs extended over the rungs. At half filling, each rung is locked into a singlet state. Under doping of the half-filled case by two holes, two situations can occur: First the holes are located on different rungs and two singlets are broken. Second the holes are located on the same rung, only one singlet is destroyed. Since the second configuration of paired holes is energetically favorable, these pairs of holes can Bose-condense under certain conditions. They give rise to a superconducting state with unconventional pairing symmetry. This is a quasi-one dimensional example for the RVB (resonant valence bond) mechanism which was proposed as a possible origin of high-temperature superconductivity Anderson1997book .

We assume that by the coupling to a light field, phononic modes can be excited which result in an alternation of the potential underlying the legs of the Hubbard ladder. We describe these phononic modes classically by a time-dependent potential $V(t)$ with

[TABLE]

where $A(t)$ is the amplitude of the modulation which varies slowly in time compared to the oscillation period. Such a potential change could also be emulated in an optical lattice using a superlattice modulation AidelsburgerBloch2011 .

We will determine the time-evolution of the model quasi-exactly using the numerical time-dependent DMRG or MPS methods. We show how this modulation can be used starting from a charge density wave to enhance the unconventional superconducting correlations dynamically by an order of magnitude. However, before we do this, we first discuss the ground state properties of the repulsively interacting Hubbard ladder Giamarchibook , and then give an insight into the effect of such a modulation deriving a time-independent effective Hamiltonian using the Floquet representation of the system.

The ground state properties of the repulsively interacting Hubbard ladder have been studied both analytically and numerically (see e.g. Giamarchibook ; DolfiTroyer2015 ; NoackScalapino1996 and references therein).

At weak interaction, the bosonization method Giamarchibook predicts the occurrence of unconventional superconductivity and of a $4k_{F}$-charge density wave (CDW${}^{4k_{F}}$), where $k_{F}$ is the Fermi wave-vector. The unconventional superconducting pairs are singlets formed on the rungs of the ladder given by $\Delta_{d}(j)=c_{0,j,\uparrow}c_{1,j,\downarrow}-c_{0,j,\downarrow}c_{1,j,\uparrow}$ and are often loosely called of d-wave symmetry. At long distances, bosonization predicts that the density and unconventional pair correlations decay algebraically as

[TABLE]

respectively. Within bosonization the exponents of the decay are related by $K_{\rho}=K_{n}=K_{d}$ and $K_{\rho}$ is called the Luttinger liquid parameter. If $K_{\rho}>1$ the d-wave superconductor is the dominant ground state whereas for $K_{\rho}<1$ the $4k_{F}$-charge density wave (CDW${}^{4k_{F}}$) dominates. In contrast, on each leg of the ladder eg. leg with index $m=0$ the spin correlations $\langle S_{z}(j)S_{z}(j+l)\rangle$ with $S_{z}(j)=n_{j,0,\uparrow}-n_{j,0,\downarrow}$ decay exponentially due to the occurrence of a spin gap.

The field-theoretical description has been supported by early numerical work NoackScalapinto1994 ; NoackScalapino1995 ; NoackScalapino1996 which found dominating unconventional pair correlations already on relative short distances and confirmed the existence of an unconventional superconducting state. A decade later in Ref. DolfiTroyer2015 the numerical determination of the correlations by DMRG and extrapolation of results have been sufficiently good to confirm the relation between the exponents of the decay of the pair and density correlations (Eq. 3), i.e. the relation $K_{\rho}=K_{n}=K_{d}$. Moreover, the Luttinger parameter could be determined reliably for a few specific parameter sets.

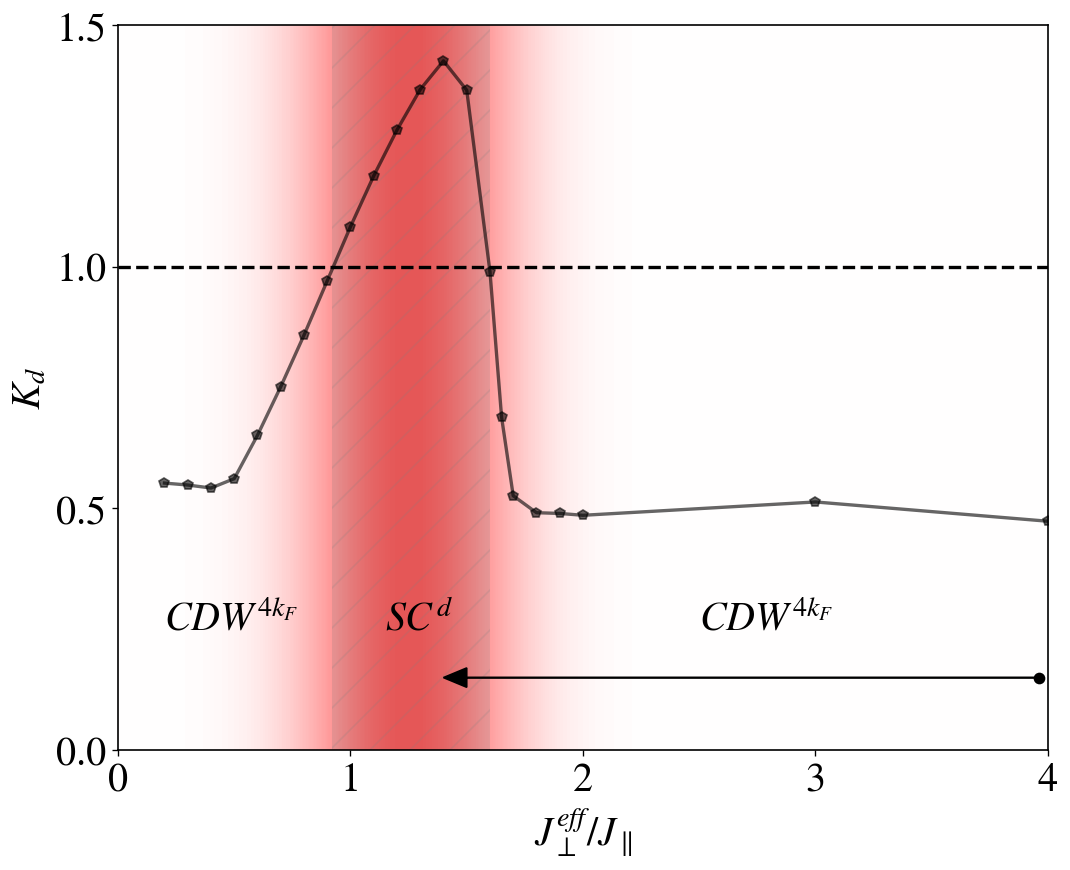

Fig. 1 shows the ground state phase diagram of the system for repulsive interaction $U=8J_{\parallel}$ and filling $n=\frac{N_{\uparrow}+N_{\downarrow}}{2L}=0.9375$, zero magnetization $M_{z}=N_{\uparrow}-N_{\downarrow}=0$ versus the ratio of the tunnelling amplitudes $J_{\perp}^{\text{eff}}/J_{\parallel}$. At small ratios of the tunneling amplitudes $J_{\perp}^{\text{eff}}/J_{\parallel}\lessapprox 0.9$, the charge-density-wave state is dominant. At intermediate ratios the unconventional superconducting state is stable. At large ratios $J_{\perp}^{\text{eff}}/J_{\parallel}\gtrapprox 1.65$ the state reenters the charge-density-wave state.

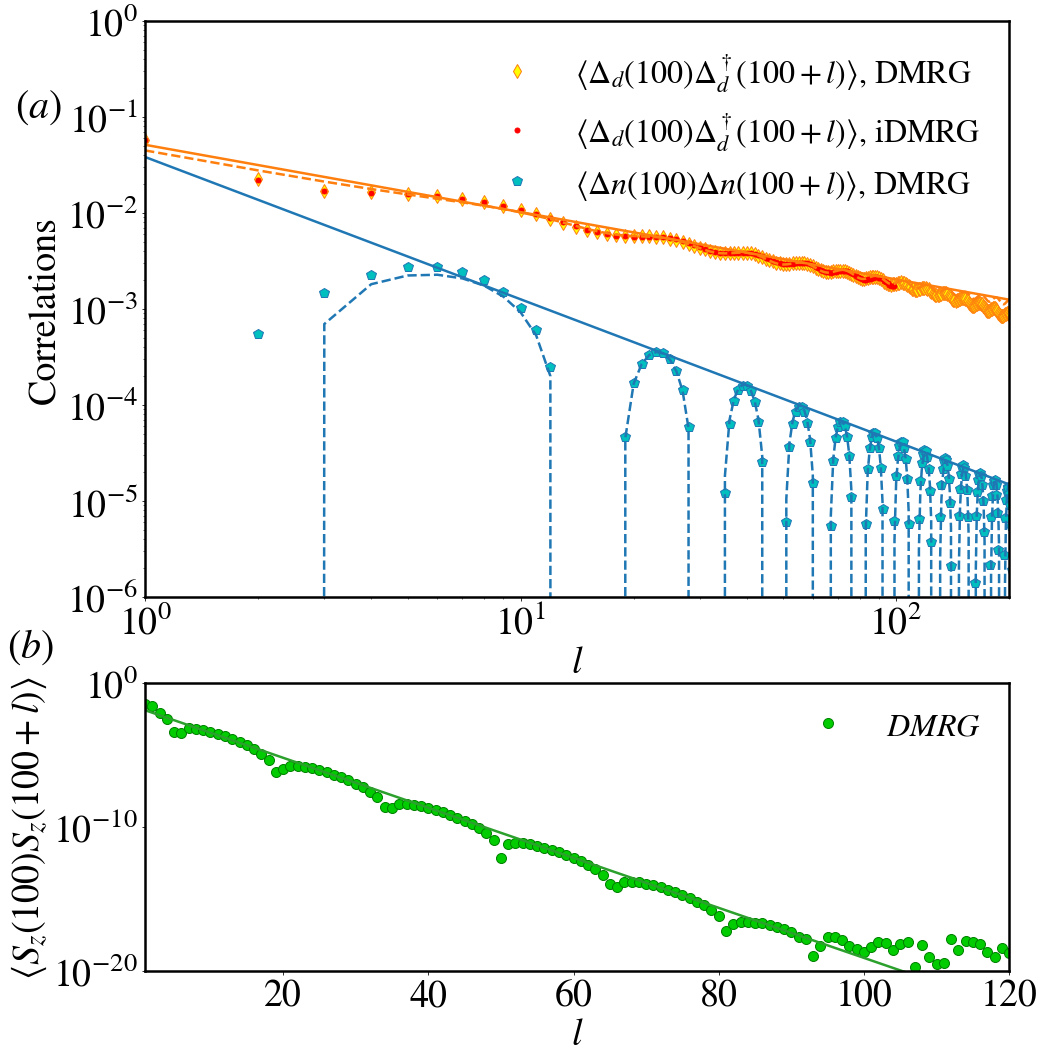

In order to extract the state diagram (Fig. 1), the unconventional-pair exponent $K_{d}$ is calculated for different ratios of the effective tunneling amplitude using the infinite DMRG (iDMRG) method. For the parameters $J_{\perp}^{\text{eff}}=1.4J_{\parallel}$, $U=8J_{\parallel}$, the corresponding correlations and fits are shown in Fig. 2 and compared to finite system calculations obtained by DMRG in order to check their accuracy. We use a high-performance density matrix renormalization group code for large finite systems (DMRG) and for infinite system (iDMRG) with ITensor itensor which enables us to target correlations over longer distances than previously obtained DolfiTroyer2015 . We checked the convergence of the obtained correlations to a sufficient accuracy.

We find that our results can be fitted in a region of distances up to $l=100$ (for density correlations the scaling behavior is preserved up to $l=200$) with the function $l^{-\nu}\left[a+b\cos(2\pi n(l-l_{0}))\right]$ where $\nu,a,b$ and $l_{0}$ are the fitting parameters. On top of the power-law decay an oscillation is observed at a wave vector $4k_{F}=2\pi n$. The extracted value of exponents from density and pair correlations for $L=394$ are $K_{n}=1.48$ and $K_{d}=1.43$ and are already close in their value. From the numerics (not shown) we observe that for smaller size of the system $L<394$ the power-law exponent extracted from density correlation lies above this value $(K_{n}>1.48)$ and the exponent extracted from unconventional pair correlation lies below it $(K_{d}<1.43)$. For example we obtain $K_{n}=1.52$ and $k_{d}=1.4$ for system of size $L=192$ which is the same value as calculated in the previous work DolfiTroyer2015 . Thus, the results for different system sizes suggest, that the values of $K_{n}$ and $K_{d}$ become equal in the thermodynamic limit of $L\to\infty$ and that the resulting Luttinger liquid parameter $K_{\rho}$ lies in the interval of $K_{\rho}\in[1.43,1.48]$. The value of the iDMRG calculations lies already very close to that value. Since the iDMRG calculations are computationally much less costly, we use these to extract the approximate crossover between the charge density-wave and the superconducting phases (Fig. 1).

The main aim of this work is to dynamically enhance unconventional superconducting correlations by driving effectively the system from a charge density wave to a state which resembles the superconducting state (see the arrow in Fig. 1). To gain an insight into the effect of the proposed time-dependent modulation of the energy offsets (Eq. Dynamically enhanced unconventional superconducting correlations in a Hubbard ladder), we use a Floquet description Floquet1883 and assume $A(t)$ to be constant. In the high frequency limit $\hbar\omega\gg J_{\parallel},J_{\perp}$ considering a perturbative expansion in powers of $\frac{A}{\hbar\omega}$ are given by

[TABLE]

Within this approach the time-dependent driving results mainly in a modified effective rung tunneling amplitude. The rung tunneling is modified as $J_{\perp}^{\text{eff}}=J_{\perp}{\cal J}_{0}(\frac{2A}{\hbar\omega})$ where ${\cal J}_{0}$ is the Bessel function of order zero.

This means that we can start initially with a material which has a CDW as the ground state and then switch the driving to a value such that $J_{\perp}^{\text{eff}}/J_{\parallel}$ corresponds to an unconventional superconductor (see the arrow in Fig. 1). Thus, within the effective approach the formation of the unconventional superconductor can be induced dynamically.

In order to study whether this superconducting state predicted by the perturbative effective model can be reached, we determine the full time-evolution of the time-dependent Hamiltonian (Eq. Dynamically enhanced unconventional superconducting correlations in a Hubbard ladder) using the time-dependent MPS (tMPS) method for finite systems WhiteFeiguin2004 ; DaleyVidal2004 . Starting from a charge-density-wave dominated ground state of the system with Hamiltonian $H_{0}$ (see Eq. Dynamically enhanced unconventional superconducting correlations in a Hubbard ladder) and parameters $J_{\perp}=3.9598J_{\parallel},U=8J_{\parallel}$ for a ladder of size $32\times 2$ and filling $n=0.9375$, the modulation is switched on at time $t=0$. In order to model a slow switch on of the driving as it can occur via the excitation of phononic modes SubediGeorges2013 , the modulation amplitude $A$ is ramped up linearly in time with the ramp time $T_{\text{ramp}}$ until it reaches the maximum value, i.e. $A(t)=A_{f}t/T_{\text{ramp}}$ for $t<T_{\text{ramp}}$ and $A(t)=A_{f}$ for $t>T_{\text{ramp}}$. We choose the driving parameters $\hbar\omega=100J_{\parallel}$ and $A_{f}=88.8J_{\parallel}$ which give the effective tunneling $J_{\perp}^{\text{eff}}=1.4J_{\parallel}$. The corresponding ground state is an unconventional superconductor with almost maximal superconducting correlations, i.e. the maximum value of the Luttinger liquid parameter $K_{\rho}=1.45\pm 0.3$ (see Fig. 1).

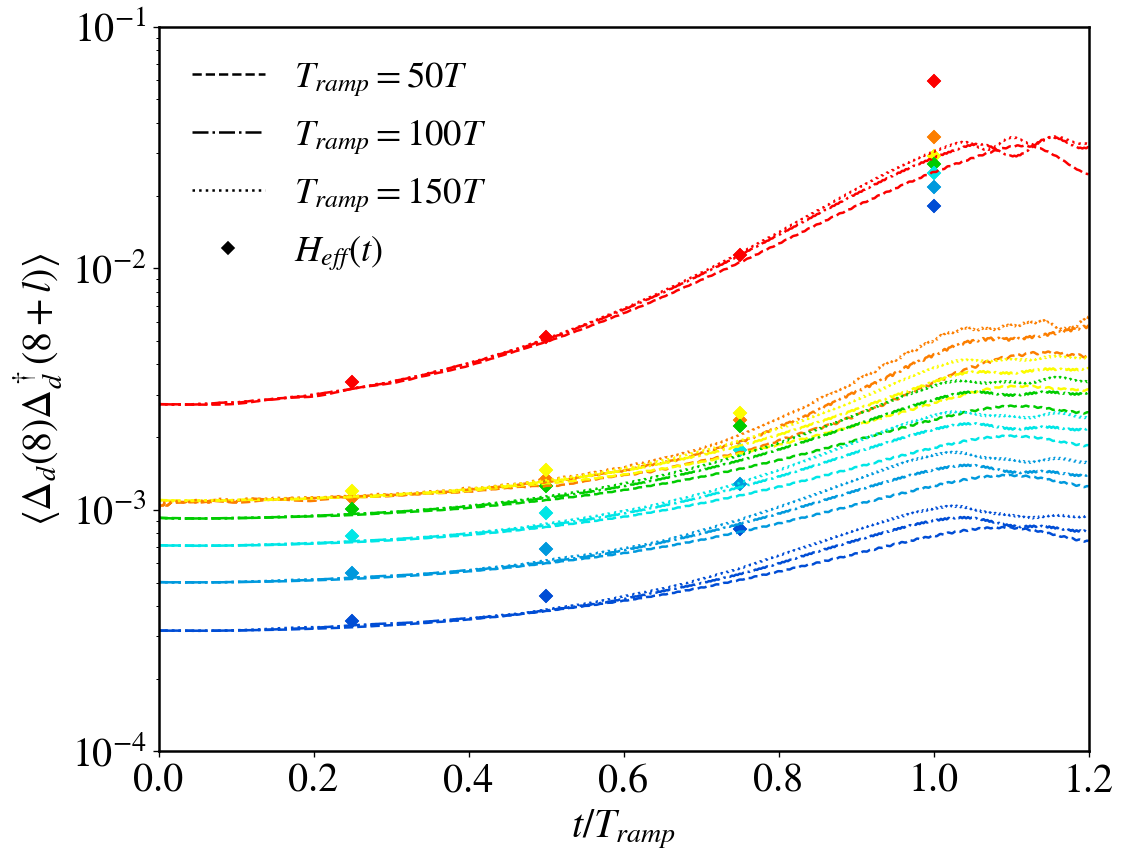

In Fig. 3 the results for the evolution of the unconventional pair correlations during the switch on of the drive is plotted for a time step $dt=0.01T$ with $T=2\pi/\omega$ and a bond dimension $M=1000$. The convergence of these results to a sufficient accuracy is checked for different bond dimensions $M=1000,\,1500,\,2000$ and different times steps $dt=0.01T,\,0.005T,\,0.001T$. The unconventional pair correlations show for all considered distances and ramp times a large rise on the time scale of the ramp time. After the ramp is concluded, the pair correlations saturate and oscillate around a saturation value. The saturation value for the short range correlations lies approximately one order of magnitude above the initial value. This shows that an enormous enhancement of the unconventional pair correlations can be induced dynamically by the external drive.

We compare the results from the exact time-evolution with the predicted ground state results from the effective Hamiltonian Eq. 4 at different times of the ramp. Considering $J_{\perp}^{\text{eff}}=J_{\perp}{\cal J}_{0}(\frac{2A(t^{*})}{\hbar\omega})$ for a few chosen $t^{*}$ during the ramp and the final time, we calculate the unconventional pair correlation for the corresponding effective ground state shown as dots in Fig. 3. We see that the short distance correlations $l=1$ follows approximately the expected values of the effective model at the initial times $t/T_{ramp}<0.8$. At larger ramp times $t\approx T_{ramp}$, larger deviations can be observed. The time-evolved correlation remains below the predicted value of the effective model. This effect becomes even more pronounced for larger distances ($l>1$) of the pair correlations for which the time-evolved value of the correlation remains already at earlier times below the predicted effective value.

Comparing different ramp times, the results for the correlations with slower ramp times reach larger values and come closer to the predicted effective value. The results for different ramp times start to deviate approximately at the time when deviations of the effective model occur and, thus, we attribute part of this deviation to the non-adiabatic following during the switch on of the driving (a similar effect had been seen in PolettiKollath2011 for bosonic atoms subjected to a Floquet drive). Additionally, the first order effective Hamiltonian $H_{\text{eff}}^{(1)}$ might not be accurate enough for the chosen parameters and some deviations might stem from this.

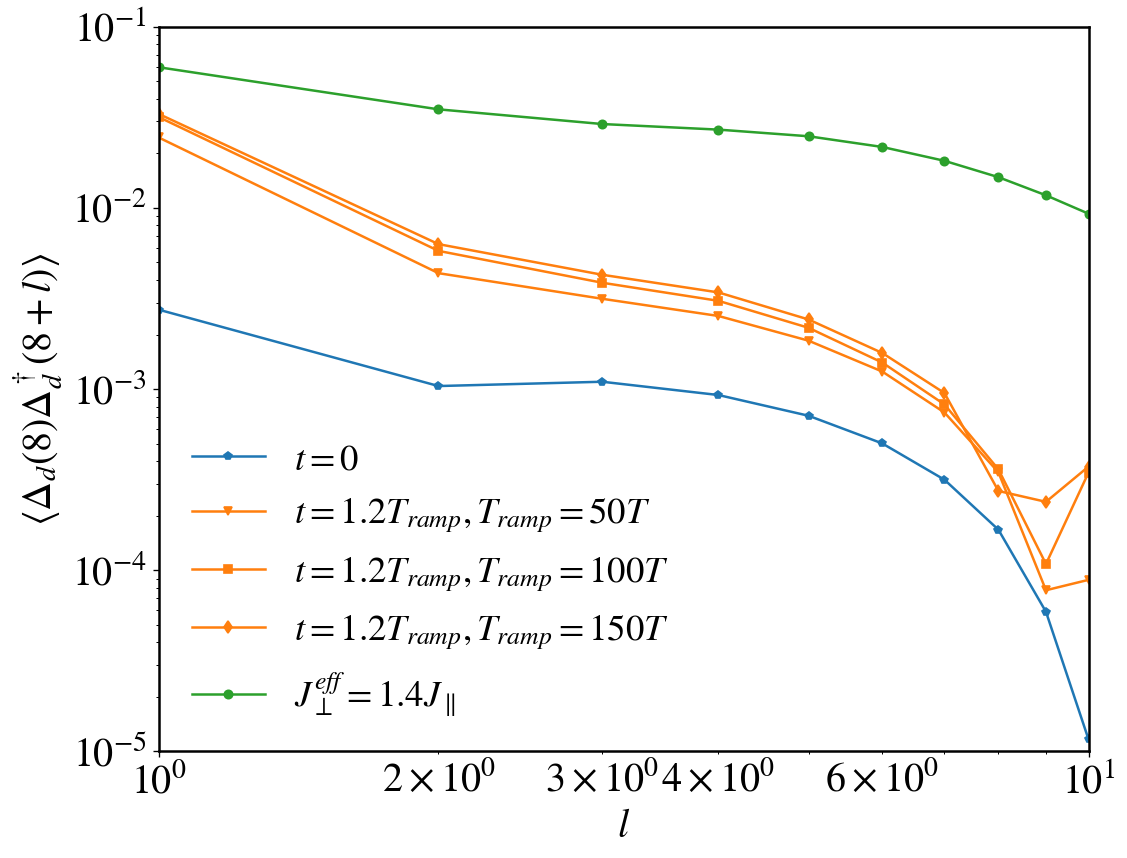

In order to investigate in more detail the final value reached after the switch on of the driving, in Fig. 4 the pair correlation after the ramp time ($t=1.2T_{\text{ramp}}$) is plotted versus distance $l$ for the different ramp times $T_{\text{ramp}}=50T,100T,150T$ and compared to the initial correlations and the predicted final value of the effective model 111Let us note that the algebraic decay predicted by bosonization for the ground states in only evident in larger systems.. A significant dynamic enhancement of the unconventional pair correlations by approximately one order of magnitude for $l=1,2$ is evident. Even though the high value of the final effective correlations is not fully reached, the enhancement increases with slower ramp times. We expect from this finding, that slower ramp times could be utilized in order to enhance the values of the unconventional pair correlations even more.

In this work we investigated the dynamic enhancement of unconventional-pair correlations in a periodically modulated Hubbard ladder. Starting with a state which is initially in a charge density wave state, the drive induces unconventional-pair correlations and drives the system towards an unconventional superconducting phase. We used the exact t-DMRG methods in order to determine the dynamics. Deviations from the predicted ground state of an effective Floquet-picture are found which are mainly attributed to the non-adiabatic switch on of the perturbation. Our results give a proof of principle that unconventional superconducting correlations can be induced via a dynamic control. Our results could be probed in quantum gas experiments in optical superlattices, where a dimerized modulation of an energy offset has already been realized EckardtHolthaus2005 ; LignierArimondo2007 ; SiasArimondo2008 ; AidelsburgerBloch2011 ; AidelsburgerGoldman2015 . A careful analysis of different phononic modes for example organic structure which realize Hubbard ladders in order to identify a mechanism for the realization in such systems and following simulations which take realistic parameters into account would be very fruitful.

We thank J.S. Bernier, T. Giamarchi, M. Köhl and E. Orignac for enlighting discussions. We acknowledge support from DFG (Project number 277625399- TRR 185, project B4, and CRC 1238 project number 277146847 - projects C05, and Einzelantrag) and the ERC Phonton (Grant Number 648166). A. S. thanks the research council of Shahid Beheshti University, G.C. (project number SAD/600/655)
