Highly structured disk around the planet host PDS 70 revealed by high-angular resolution observations with ALMA

TL;DR

This study uses high-resolution ALMA observations to reveal a highly structured circumstellar disk around PDS 70, providing insights into planet-disk interactions and the properties of a young planetary system at 5 million years.

Contribution

First detailed high-resolution ALMA imaging of PDS 70's disk, revealing complex structures and constraints on planetary mass and disk morphology.

Findings

Detection of a highly structured disk with multiple rings and gaps.

Evidence of a pressure gradient influencing dust distribution.

Possible need for additional low-mass companions to explain disk features.

Abstract

PDS 70b is the most robustly detected young planet imaged in the gap of a transition disk so far, found at a separation of ~195 mas (~22 au) from its host star and at a position angle of about 155 deg. This system is therefore a unique laboratory to characterize the properties of young planetary systems at the stage of their formation. We aim to trace direct and indirect imprints of PDS 70b on the gas and dust emission of the circumstellar disk in order to study the properties of this ~5 Myr young planetary system. We obtained ALMA band 7 observations of PDS 70 in dust continuum and $^{12}CO$ (3-2) and combined them with archival data resulting in an unprecedented angular resolution of about 70 mas (~8 au). We derive an upper limit on circumplanetary material at the location of PDS 70b of ~0.01 $M_{\oplus}$ and find a highly structured circumstellar disk in both dust and gas. The outer dust ring peaks at ~0.65" (74 au) and reveals a possible second unresolved peak at ~0.53" (60 au). The integrated intensity of CO also shows evidence of a depletion of emission at ~0.2" (23 au) with a width of ~0.1" (11 au). The gas kinematics show evidence of a deviation from Keplerian rotation inside $\lesssim$0.8" (91 au). This implies a pressure gradient that can account for the location of the dust ring well beyond the location of PDS 70b. Further in, we detect an inner disk which appears to be connected to the outer disk by a possible bridge feature in the North-West region in both gas and dust. We compare the observations to hydrodynamical simulations including a planet with different masses covering the estimated mass range previously derived from NIR photometry (~5-9 M$_{Jup}$). We find that even a planet with a mass of 10 M$_{Jup}$ may not be sufficient to explain the extent of the wide gap and an additional low-mass companion may be needed to account for the observed disk morphology.

Figures

Equations

$$T_d^4(r)=T_{irr,\star }^4(a_{\mathrm{P}})+T_{irr,p}^4(r)+T_{acc}^4(r),$$

$$T_{irr,p}(r)={\left(\frac{L_p}{{\sigma }_{SB}40\pi r^2}\right)}^{1/4},$$

$$T_{acc}^4(r)=\frac{3G{M}_p{\dot{M}}_{acc}}{8\pi {\sigma }_{SB}{r}^3}\left[1-{\left(\frac{r_p}{r}\right)}^{1/2}\right],$$

$$F_d=\frac{2\pi \cos i}{d^2}{\int }_{r_{in}}^{r_{out}}\left(1-\exp \left[-\frac{\Sigma (r)\kappa }{\cos i}\right]\right)\times B_{\nu }(T_d(r))rdr.$$

$$z(r)[\text{arcsec}]=\left(0.33\pm 0.01\right)\times {\left(\frac{r}{1\text{arcsec}}\right)}^{0.76\pm 0.01},$$

$${\Sigma }_{\mathrm{gas}}(R)={\Sigma }_c{\left(\frac{R}{R_c}\right)}^{-1}\exp \left(-\frac{R}{R_c}\right)$$

$$\frac{H}{R}={\left(\frac{H}{R}\right)}_p\times {\left(\frac{R}{R_p}\right)}^f,$$

$$\frac{T_{acc}^4}{T_{irr,p}^4}(r)=\frac{30G}{8\pi {\sigma }_{SB}{T}_p^4{r}_p^2}\frac{M_p{\dot{M}}_{acc}}{r}\left[1-{\left(\frac{r_p}{r}\right)}^{1/2}\right]$$

$$\begin{array}{rl}\frac{T_{acc}^4}{T_{irr,p}^4}& \le \frac{5G{M}_p{\dot{M}}_{acc}}{18\pi {\sigma }_{SB}{T}_p^4{r}_p^3}\\ & \approx 0.03{\left(\frac{1200\mathrm{K}}{T_P}\right)}^4\times {\left(\frac{3{\mathrm{R}}_{\mathrm{Jup}}}{R_P}\right)}^3\times \left(\frac{M_P}{5{\mathrm{M}}_{\mathrm{Jup}}}\right)\times \left(\frac{{\dot{M}}_{acc}}{10^{-8}{\mathrm{M}}_{\mathrm{Jup}}/yr}\right)\end{array}$$

Full text

*Aims. *We aim to trace direct and indirect imprints of PDS 70 b on the gas and dust emission of the circumstellar disk in order to study the properties of this $\sim$5 Myr young planetary system.

*Methods. *We obtained ALMA band 7 observations of PDS 70 in dust continuum and $\rm{}^{12}CO\,(3-2)$ and combined them with archival data. This resulted in an unprecedented angular resolution of about 70 mas ($\sim$8 au).

*Results. *We derive an upper limit on circumplanetary material at the location of PDS 70 b of $\sim$0.01 $\rm M_{\oplus}$ and find a highly structured circumstellar disk in both dust and gas. The outer dust ring peaks at 0.65″ (74 au) and reveals a possible second unresolved peak at about 0.53″ (60 au). The integrated intensity of CO also shows evidence of a depletion of emission at $\sim$0.2″ (23 au) with a width of $\sim$0.1″ (11 au). The gas kinematics show evidence of a deviation from Keplerian rotation inside $\lesssim$0.8″ (91 au). This implies a pressure gradient that can account for the location of the dust ring well beyond the location of PDS 70 b. Farther in, we detect an inner disk that appears to be connected to the outer disk by a possible bridge feature in the northwest region in both gas and dust. We compare the observations to hydrodynamical simulations that include a planet with different masses that cover the estimated mass range that was previously derived from near-infrared photometry ($\sim$5-9 $\rm M_{Jup}$). We find that even a planet with a mass of 10 $\rm M_{Jup}$ may not be sufficient to explain the extent of the wide gap, and an additional low-mass companion may be needed to account for the observed disk morphology.

1 Introduction

In recent years, high angular resolution observations of protoplanetary disks have revolutionized our view of disk evolution and showed that small-scale structures such as concentric rings and spiral arms are ubiquitous (e.g., Andrews et al., 2018; Long et al., 2018a), suggesting that planet formation might occur very early in the history of a young stellar system. Although these substructures are often interpreted as direct imprints of planet-disk interactions, it is still challenging to understand and constrain the architectures of planetary systems that are needed to account for them (e.g., Bae et al., 2018), or to rule out alternative scenarios (e.g., magneto-hydrodynamical instabilities, Ruge et al., 2016; Flock et al., 2017). In addition, an accurate determination of the properties of young planets (e.g., luminosity and mass at a given age) is needed to constrain the formation mechanisms that are at work (e.g., Mordasini et al., 2017).

The theory of interactions of embedded planets with their natal environment, the protoplanetary disk, and their relation to the observational signatures have been studied by many authors (e.g., Paardekooper & Mellema, 2004; Jin et al., 2016; Dipierro et al., 2018; Liu et al., 2018; Zhang et al., 2018). Currently the most promising methods for understanding the interaction of a young planet with its environment and its further evolution are to detect it through direct imaging (e.g., Keppler et al., 2018) or through the perturbations that it induces in the velocity field of the field (e.g., Pérez et al., 2015).

Current direct-imaging infrared surveys reach detection limits of a few Jupiter masses (e.g., Maire et al., 2017; Uyama et al., 2017), but are often limited by bright and complex disk features. Numerous claims of companion candidates in disks that show asymmetric features are indeed still debated (e.g., HD100546, HD169142, MWC758, LkCa15; see Quanz et al., 2015; Currie et al., 2015; Follette et al., 2017; Rameau et al., 2017; Biller et al., 2014; Reggiani et al., 2014; Ligi et al., 2018; Reggiani et al., 2018; Kraus & Ireland, 2012; Sallum et al., 2015; Mendigutía et al., 2018) and require confirmation through additional observations at different filter bands, for example.

The presence of three different planets in the disk around HD 163296 was claimed by two teams with a complementary method based on perturbations in the Keplerian velocity field of the disk. Pinte et al. (2018) detected a localized (both in space and velocity) deformation of the isovelocity curves in 12CO transitions that was consistent with the spiral wake induced by a 2 MJup planet at 260 au. Teague et al. (2018a) measured the rotation velocity curves of CO isotopologues as a function of distance to the star and found local pressure gradients consistent with gaps carved by two $\sim$1 MJup planets at 83 au and 137 au.

Using the Spectro-Polarimetric High-contrast Exoplanet REsearch instrument on the Very Large Telescope (VLT/SPHERE) and complementary datasets covering multiple epochs and various near-infrared (NIR) wavelengths, we recently discovered a companion to the 5.4$\pm$1.0 Myr old (Müller et al., 2018) and 113.4$\pm$0.5 pc distant (Gaia Collaboration et al., 2016, 2018) T Tauri star PDS 70 (Keppler et al., 2018; Müller et al., 2018). Comparison of the NIR photometry to evolutionary models implies that the companion is in the planetary mass regime ($\sim$5-9 $\mathrm{M_{\rm Jup}}$, Keppler et al., 2018) which is consistent with the mass range inferred from atmospheric modeling ($\sim$2-17 $\mathrm{M_{Jup}}$, Müller et al., 2018). PDS 70 b is located at a projected separation of about 22 au from the central star, within the large gap of the transition disk of its host, between an inner disk and a well-resolved outer disk (Hashimoto et al., 2012, 2015; Long et al., 2018b; Keppler et al., 2018). Follow-up direct-imaging observations with the Magellan Adaptive Optics telescope (MagAO) in the H$\alpha$ line enabled a 2-3$\sigma$ detection of the companion at two different epochs. The observations imply that it is likely still accreting gas from the disk (Wagner et al., 2018). This object is therefore a unique case of a directly imaged planet that still shapes its natal environment.

In this paper, we present new ALMA band 7 observations of PDS 70 obtained in Cycle 5. We combined the data with archival observations presented by Long et al. (2018b), thereby obtaining an unprecedented angular resolution of $\sim$0.07″. In Sect. 2 we describe the observing setup and data reduction, and Sect. 3 presents our results, which are discussed and compared to hydrodynamical simulations in Sect. 4.

2 Observations and data reduction

We obtained ALMA Cycle 5 director discretionary time (DDT) observations (Project ID: 2017.A.00006.S, PI: M. Keppler) of PDS 70 in band 7 on 2, 3 and 6 December 2017 under very good weather conditions (mean precipitable water vapor, pwv, $\leq$ 0.9 mm). For three of the four spectral windows, the correlator was tuned to a center frequency of 357.2, 355.3, and 344.3 GHz for continuum observations in dual-polarization mode with a bandwidth of 2.0 GHz. The fourth spectral window was centered around the 12CO(3-2) transition at 345.8 GHz with a bandwidth of 0.938 GHz. The quasars J1427-4206, J1337-1257, and J1517-2422 were used as bandpass, phase, and flux calibrators. The calibration was performed using the Common Astronomy Software Package (CASA), version 5.1.1. The total on-source integration time was 1.9 hours.

In addition to the 12CO J=3-2 line, we detected emission from the HCN (J=4-3; 354.505 GHz), HCO*+* (J=4-3; 356.734 GHz), and H13CN (J=4-3; 345.340 GHz) lines. In this paper, we focus on the dust continuum and 12CO emission, however.

Because the extended antenna configuration filters out the largest spatial scales in the disk, we made use of the archival Cycle 3 data taken in a similar spectral setup and presented by Long et al. (2018b) to recover the short baselines. Details regarding the observing strategy and setup are described in Long et al. (2018b). We transferred both Cycle 3 and Cycle 5 data to CASA v.5.3.0 and subtracted the continuum emission from the line data using the task UVCONTSUB. We corrected the phase center of the Cycle 3 data for the shift due to the proper motion of the star ((-29.7, -23.8) mas/yr, Gaia Collaboration et al., 2016, 2018) with respect to to the Cycle 5 data set. We then combined the two data sets and shifted the phase center by an amount of (0.509″, 0.490″), which was found to be the center of the disk by fitting a two-dimensional Gaussian to the continuum Cycle 5 emission using the UVMODELFIT tool. We finally used the task TCLEAN for imaging, applying Briggs weighting with a robust parameter of 0.5. Because self-calibration of both continuum and CO data did not significantly improve the images, we will base our analysis on the non-self-calibrated data. The resulting beam size for the dust continuum at a mean frequency of 350.6 GHz (855$\ \mu$m) is $74\times 57$ mas (8.4$\times$6.5 au) with a position angle ($PA$) of 63o. We measured an rms noise level of 0.026 \ \rm mJy\ beam^{-1}\from emission-free regions. For the CO, we obtained a beam size of $76\times 61$ mas (8.6$\times$6.9 au) with a $PA$ of $60^{\mathrm{o}}$ and a channel width of 425 m/s. The noise level per channel is determined to be 1.26 \ \rm mJy\ beam^{-1}\.

3 Results

3.1 855 $\mu$m dust continuum

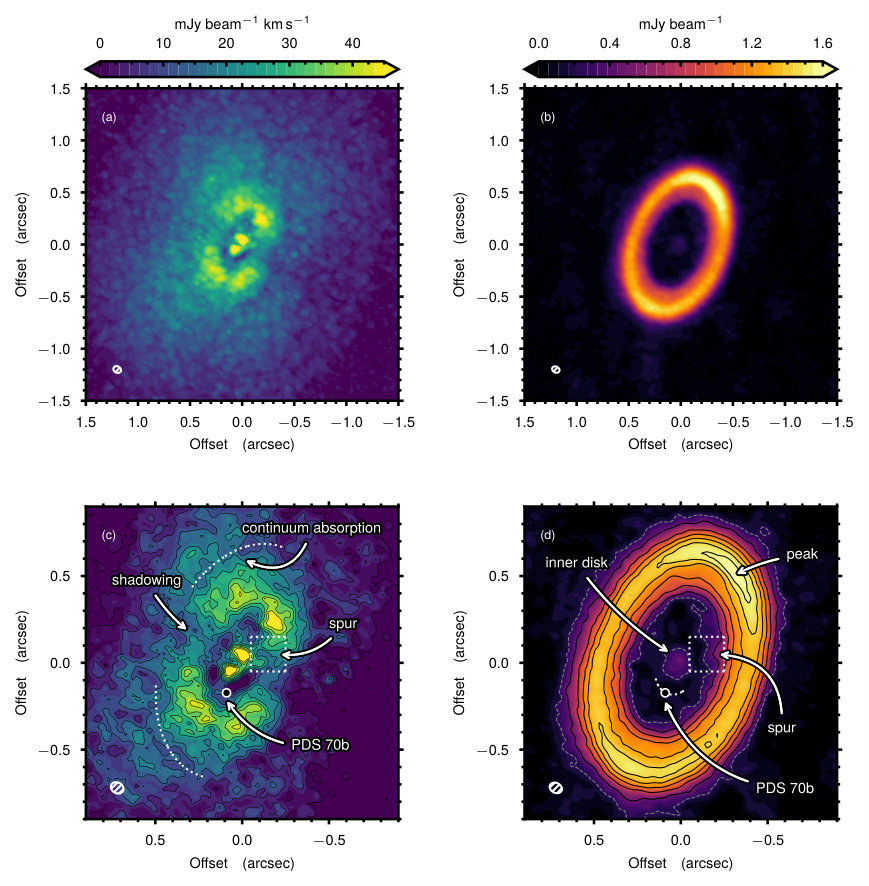

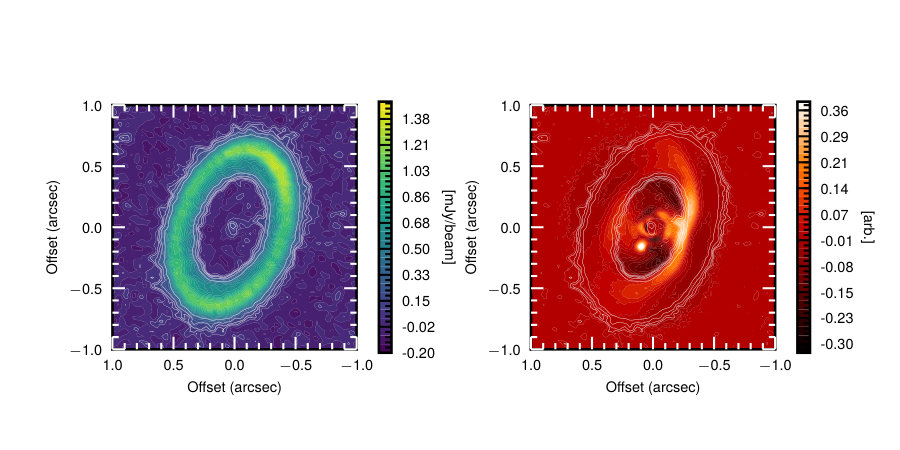

Figure 1 (right column) shows the continuum image at 350.6 GHz (855 $\mu$m). The disk is detected at a high signal-to-noise ratio (S/N; $\sim$65 at the peak). The integrated flux density of the disk inside $1.3\arcsec$ after applying 2$\sigma$ clipping is 230$\pm$23 mJy, where the error bar is dominated by the $\sim$10$\%$ uncertainty of the absolute amplitude calibration of ALMA in Band 7111see https://almascience.nrao.edu/documents-and-tools/cycle6/alma-proposers-guide. This is consistent with the value found by Long et al. (2018b). The dust continuum shows evidence of a large cavity, a dust ring with a brightness distribution that is slightly asymmetric in both radial and azimuthal direction, an inner disk, as well as a possible bridge feature, all of which we describe in the following paragraphs.

By fitting a two-dimensional Gaussian to the two data sets using the task UVMODELFIT, we find a disk inclination of 51.7$\pm$0.1o and 52.1$\pm$0.1o and a $PA$ of 156.7$\pm$0.1o and 159.7$\pm$0.1o, for the Cycle 5 and Cycle 3 data sets, respectively. We verified the inclination using only short baselines ($<$150 k$\lambda$, which correspond to the location of the null in the real part of the visibilities, see Fig. A.4) for the Gaussian fit, which ensures that the cavity is not resolved, as well as by using a disk model. These efforts yielded similarly good fits in all cases; the values for the inclination were consistently within 3o. We note, however, that all these models assume axial symmetry and therefore none of them reproduces the real morphology of the disk. Considering the complexity of the continuum emission that appears to be highly structured, such simple modeling appears limited. We adopt a final value of 51.7o because this corresponds to the model with the fewest assumptions.

3.1.1 Disk radial and azimuthal morphology

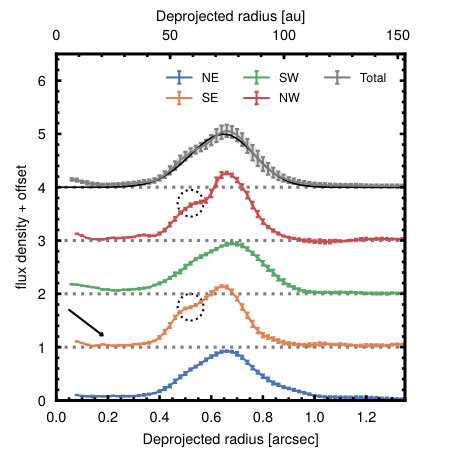

Figure 2 (uppermost, gray line) shows the azimuthally averaged and deprojected radial profile of the dust continuum, which clearly reveals a large gap and a ring component. The emission strongly decreases inside the ring, where the flux is reduced by more than 90$\%$.

The radial profile of the ring is asymmetric, which is best seen in the cuts along the major and minor axes (Fig. 2, colored lines). The inner edge of the continuum ring reveals a second peak located at a deprojected distance of about 0.53″ (60 au). The feature is most pronounced along the major axes, which can be explained by the projection effect as well as by the beam, whose major axis is oriented roughly along the minor axis of the disk. Observations at even higher angular resolution are required to quantify this structure in greater detail.

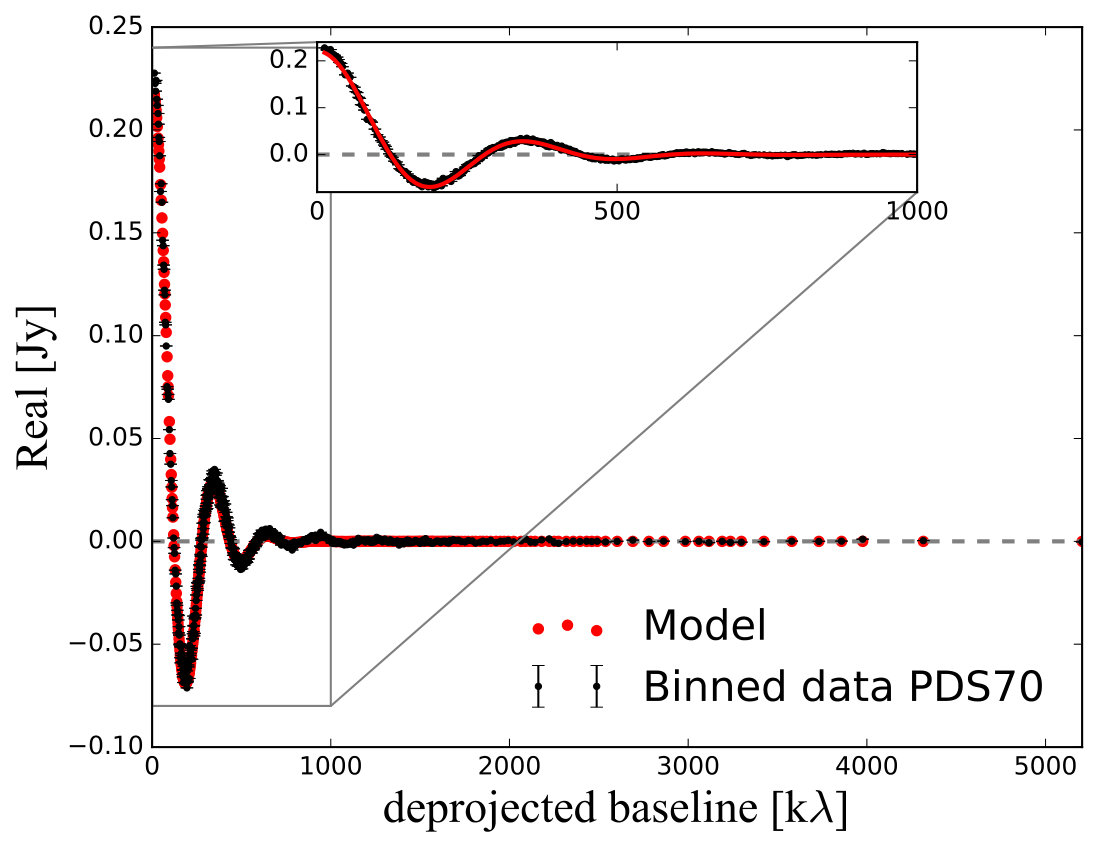

To quantify the radial brightness distribution of the dust ring, we used the same approach as Pinilla et al. (2018). We first deprojected the data assuming an inclination of 51.7o, and fit the real part of the deprojected visibilities with a radially asymmetric Gaussian ring using a Markov chain Monte Carlo (MCMC) method using emcee (Foreman-Mackey et al., 2013). The best-fit model has a peak radial position of 73.7$\pm$0.1 au, and an inner and outer width of 14.8$\pm$0.1 au and 13.4$\pm$0.1 au. The ring is therefore radially resolved by our observations. The best fit model is overplotted in Fig. 2 (black line) and is shown in Fig. A.4.

We confirm the azimuthal brightness enhancement of the ring that was reported by Long et al. (2018b) on the northwest side of the disk, which peaks at a PA of $\sim$327*∘* and is roughly 13$\%$ brighter than the opposite disk side.222Value found by comparing the peak pixel value of the northwest side with the peak pixel value of the southeast side. If the dust is optically thin, the asymmetry could trace the presence of an overdensity. As we argue below, the dust is likely almost optically thick. The brightness enhancement is therefore likely a combination of differences in mass density and temperature. Observations at longer wavelengths are required to break the degeneracies of temperature and density effects and to conclude on the origin of the azimuthal brightness asymmetry.

3.1.2 Inner disk

Our image also confirms the detection of a compact signal toward the location of the star, which has been detected and attributed to be a possible inner disk component by Long et al. (2018b) the existence of which is consistent with the NIR excess detected in the spectral energy distribution (SED). Our observations marginally resolve the emission inside the innermost $\sim$80 mas (9 au) at a 5$\sigma$ level. Observations at longer wavelengths will enable us to establish the spectral index of this central emission, which is required to exclude the possible contribution from free-free emission.

3.1.3 Possible bridge feature

We detect a spur that projects from the dust ring into the gap in the direction of the inner disk at a $PA$ of about 285o (referred to as ‘spur’ in Fig. 1 and best seen in panel (d)). This signal is even more clearly detected in the DDT data alone, which have a slightly higher resolution (71$\times$56 mas, see Fig. A.5). It is possible that the signal forms a bridge feature that connects the outer and inner disks. Whereas the spur is detected at high confidence ($>5\sigma$), the continuous connection to the inner disk in the dust continuum remains to be confirmed with deeper observations. Interestingly, this feature is cospatial with an extended feature found in scattered light (Keppler et al., 2018; Müller et al., 2018, see Fig.A.5). Furthermore, the CO shows evidence of a feature at that same location that seems indeed to connect the outer and inner disk (see Sect. 3.2).

3.1.4 Upper limits on CPD dust mass

Figure 2 shows that the radial profile along the southeast semi-major axis presents a marginally (S/N  $\sim$3) enhanced signal at $\sim$0.2″. This roughly corresponds to the expected location of PDS 70 b. We note, however, that flux density variations of similar amplitude are present at several other position angles as well, and the persistence of this signal is therefore to be tested with deeper observations.

Circumplanetary disks (CPD) are expected to have outer radii $R_{\rm out}$ of a fraction ($\sim$30-70$\%$) of the Hill radius $R_{\rm H}$ (e.g., Quillen & Trilling, 1998; D’Angelo et al., 2003; Ayliffe & Bate, 2009; Szulágyi et al., 2014), where $R_{\rm H}=a_{\rm P}\ (M_{\rm P}/3M_{\star})^{1/3}$ and $a_{\rm P}$ is distance of the planet to the star. For a 5 $M_{\rm Jup}$ companion at 22 au, this corresponds to $\sim$0.8-1.9 au, and the disk is therefore expected to be unresolved. Our measured noise level of 0.026 \ \rm mJy\ beam^{-1}\translates into a 5$\sigma$ upper limit on the flux density of an unresolved CPD around PDS 70 b of 0.130 \ \rm mJy\ beam^{-1}\.

We compared this value to the theoretically expected emission from a CPD in order to derive an upper limit on the dust mass. For this aim, we followed the approach presented by Isella et al. (2014), where the dust temperature $T_{d}$ in the CPD at a given radius $r$ from the planet is described as

[TABLE]

where $T_{irr,\star}$ is the temperature of the surrounding circumstellar disk heated by the central star at the distance of the planet to the star, $T_{irr,p}$ is the temperature due to the heating by the planet itself, and $T_{acc}$ denotes the contribution from viscous accretion within the CPD.

For $T_{irr,\star}$ we adopted a value of 19 K at a distance of 22 au from the star, which is estimated from our radiative transfer models (Keppler et al., 2018). The irradiation by the planet, $T_{irr,p}$, can be estimated (assuming a CPD aspect ratio of 0.1; Zhu et al., 2018) as

[TABLE]

where we used $L_{p}\sim$1.5$\times 10^{-4}L_{\odot}$ as the luminosity of PDS 70 b (Müller et al., 2018). Finally, the heating due to accreting material is given by

[TABLE]

where $\dot{M}_{acc}$ is the mass accretion rate onto the planet and $r_{p}$ is the planetary radius. Following Wagner et al. (2018), we assumed $\dot{M}_{acc}\,\sim\,10^{-8}\,\rm M_{\rm Jup}\,\rm yr^{-1}$ and $r_{P}\,\sim$ 3 $\rm R_{Jup}$ (Müller et al., 2018).

As in Isella et al. (2014), we assumed a power-law surface density $\Sigma(r)=C\times\ r^{-3/4}$, where C is the normalization constant for the total CPD dust mass $M_{d}=\int_{r_{in}}^{r_{out}}\Sigma(r)2\pi rdr$. We therefore computed the expected millimeter flux $F_{d}$ for a given $M_{d}$ by integrating the flux density contribution from each radius over the entire CPD:

[TABLE]

Here, $\kappa$ denotes the dust opacity, which we assumed to be 3.5 $\rm cm^{2}g^{-1}$ at 855 $\rm\mu m$, linearly scaled from Andrews et al. (2012), $B_{\nu}$ is the Planck function evaluated at $T_{d}$, and $i$ is the CPD inclination, which we assumed to be equal to the inclination of the circumstellar disk (51.7o).

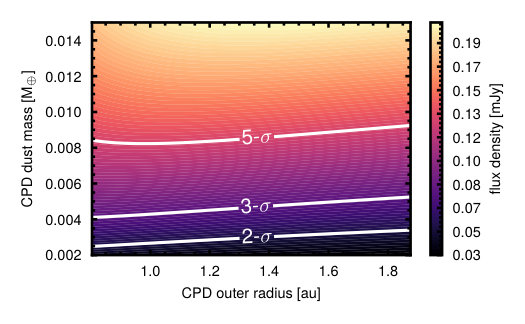

We computed the expected flux densities for different CPD dust masses considering outer CPD radii of 0.3-0.7 $r_{H}$ and assuming that the CPD touches the planetary surface (e.g., $r_{in}=r_{p}$, but note that regions in which the temperature exceeds the sublimation temperature of silicates ($\sim$1500 K) were taken out of the integral). The result was compared to our noise level of 0.026\ \rm mJy\ beam^{-1}\and is shown in Fig. 3. With the given choice of parameters, we find a 5$\sigma$ upper dust mass limit of $\sim$0.01 $\rm M_{\oplus}$ ($\sim$0.8 lunar masses). This value is roughly independent of the outer CPD radius, which means that the emission is likely optically thin. As shown in Appendix A.1, this detection limit holds for the entire estimated mass range of PDS 70 b.

3.2 12CO $J=3-2$

Figures 1 (a) and (c) show the 12CO $J=3-2$ integrated intensity (zeroth-moment) map; panel (c) includes annotations of the main features. The asymmetry with respect to the disk major axis is clear. This is due to the significantly elevated $\tau\sim 1$ surface of the 12CO, which is typically assumed to trace disk layers where $z\,/r\sim 0.25$ (Rosenfeld et al., 2013). In addition, several other features are visible, including two gaps (a prominent gap at $\sim 0.2\arcsec$ and a faint gap at $\sim 0.6\arcsec$), a bridge-like feature similar to the one observed in the continuum, and apparent shadowing along the major and minor axes that has previously been reported by Long et al. (2018b).

Toward the center of the image, the inner disk component is clearly detected, extending out to approximately 15 au, which is consistent with estimates from scattered light (Keppler et al., 2018). For disks shaped by planets, a bright gaseous inner disk (implying a gas gap rather than a cavity) is in agreement with the predictions from hydrodynamical models, even for the cases where the planet mass is as high as 10 $\rm M_{Jup}$  (Facchini et al., 2018).

At about the same location as the spur found in the continuum, the zeroth-moment map shows evidence of an extended signal that connects the inner disk and the outer ring in the northwest region. This signal may be connected to the extended feature detected in the NIR (Keppler et al., 2018; Müller et al., 2018, and Fig. A.5, right panel, of this paper), and might also be related to the features seen in CO and $\rm HCO^{+}$ by Long et al. (2018b) at similar locations. If this feature indeed connects the outer and inner disks, it may be tracing gas flow through the gap from the outer to the inner disk (e.g., Tang et al., 2017; Casassus et al., 2015; Price et al., 2018). This hypothesis could be confirmed through the detection of localised velocity changes in the given region, which we do not detect with our spectral resolution, however. The nature of this feature therefore needs to be tested with observations at higher spectral and angular resolution.

The inner gap at $\sim$0.2$\arcsec$ is likely due to a gap opened by PDS 70 b and is discussed further in Section 4.1. The outer gap at $\sim$0.6″ can be explained by continuum absorption of the bottom side of the disk: as shown in Fig. 4, the contours of equal projected velocity at the top and bottom sides of the disk in regions between the disk major and minor axes are spatially offset. While emission from the bottom side travels through the midplane toward the observer, it is absorbed by the dust, which reduces the integrated flux at that location (e.g., Isella et al., 2018). As emission from the bottom side of the disk is almost entirely absorbed, we conclude that the dust ring is likely optically thick at $\nu=345$ GHz, a result which has found at millimeter wavelengths for other disks as well (e.g., Pinilla et al., 2017).

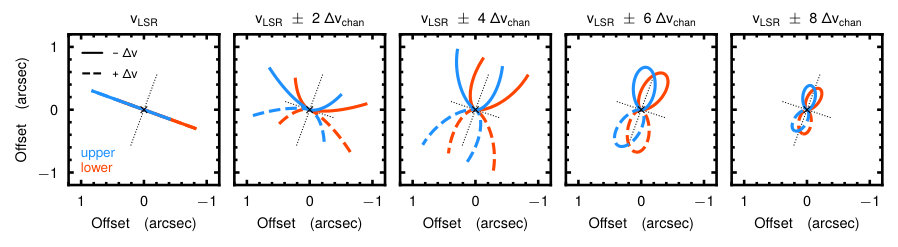

Along the disk major and minor axes, on the other hand, the iso-velocity contours do overlap. Because the 12CO is optically thick, emission from the bottom side of the disk is self-absorbed and only the top side is visible. This causes the apparent shadowing along the major and minor axes of the disk (and the shadowing observed in the HCO+ data presented by Long et al., 2018b). A more elevated emission layer results in a larger azimuthal variance, because the two sides become more spatially resolved. The difference between the value along an inter-axis region and along an axis will peak at roughly a factor of two, a feature that is commonly seen in the integrated intensity maps of high spatial resolution observations of 12CO (e.g., Rosenfeld et al., 2013).

3.2.1 Deriving a 12CO emission surface

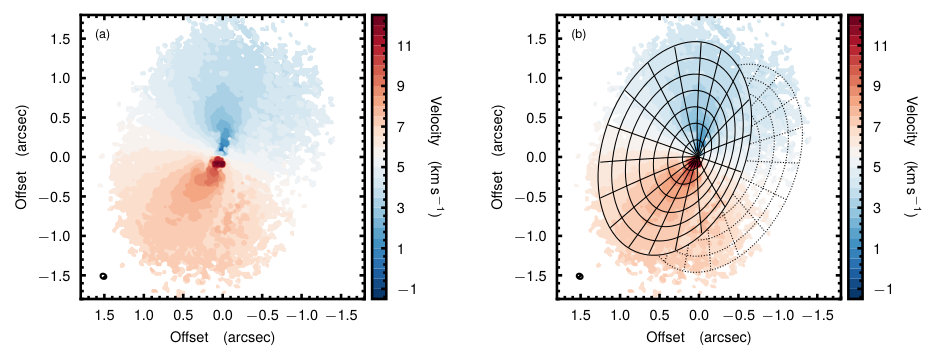

Because the 12CO emission comes from an elevated layer above the midplane, we needed to deproject the data in order to precisely analyze the emission and velocity structure as a function of the radius. For this aim, we wished to derive constraints on the emission height of the 12CO. Following Teague et al. (2018b), we generated a map of the rotation velocity using the method presented in Teague & Foreman-Mackey (2018)333using bettermoments (Teague & Foreman-Mackey, 2018), which is robust against confusion from the near and far sides of the disk444Carrying out this modeling approach on an intensity-weighted average velocity map (first-moment map), we find a much flatter disk due to the averaging of the upper and lower sides of the disk.. We then fit a Keplerian rotation pattern to the data, including a flared emission surface parameterized as $z(r)=z_{0}\times(r\,/\,1\arcsec)^{\varphi}$, and fixed the inclination at $i=51.7\degr$ to break the degeneracy with the stellar mass. We note that our modeling of the surface height is limited to a generic model of a flared surface because the resolution of our data is limited. To perform more detailed modeling of the emission surface under consideration of spatial variations of the underlying gas density structure, a higher resolution is required. Our modeling results in a tight constraint on the emission surface of

[TABLE]

with the additional parameters of $M_{\rm star}=0.875\pm 0.03\leavevmode\nobreak\ M_{\rm sun}$, ${\rm PA}=160.4\degr\pm 0.1\degr$, and $v_{\rm LSR}=5505\pm 2\leavevmode\nobreak\ {\rm m\,s^{-1}}$. These uncertainties describe the 16th to 84th percentile range of the posterior distributions for each parameter which are symmetric about the median. We note that these uncertainties correspond to the statistical uncertainties and do not take into account the systematic uncertainties that may be significantly larger. Figure 5 shows the best-fit emission surface overlaid on the rotation map.

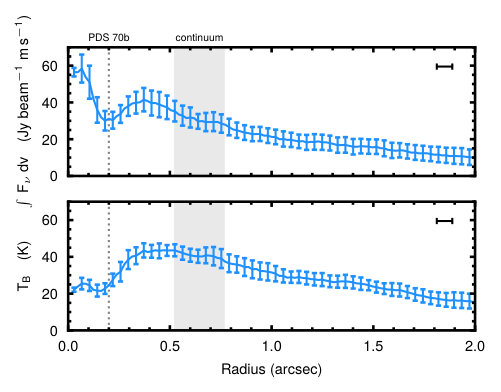

Using this emission surface, the data were deprojected into bins of constant radius and were azimuthally averaged with the resulting integrated intensity profiles shown in Fig. 6. The radial profile of the integrated flux density in the top panel shows a clear gap at $0.2\arcsec$ ($\sim$23 au), consistent with the orbit of PDS 70b (Keppler et al., 2018; Müller et al., 2018) and a gap width of $\sim 0.1\arcsec$. Because of the very high optical depth of 12CO, any visible gap feature requires a significant depletion of gas or considerable change in gas temperature (e.g., Facchini et al., 2018).

Using the brightness temperature, $T_{\rm B}$, presented in Fig. 6 (lower panel) as a proxy of the gas temperature, we infer a drop in the local gas temperature across the gap. This is consistent with a surface density depletion of the gas, which would move the $\tau=1$ surface of the 12CO deeper within the disk, closer to the cooler midplane, therefore dropping the temperature. One possibility to clearly distinguish the effects of temperature and density on the brightness temperature is to use the CO line width as a tracer for temperature variations (Teague et al., 2018a), for which higher spectral resolution is required than given by our data, however.

From the integrated flux density profile, we find that the gap extends from about 0.1 to 0.3$\arcsec$ ($\sim$11 to 34 au). It is spatially resolved, and does not seem to extend out to the location of the dust continuum ring, although it is not possible to measure the 12CO depletion accurately because of its large optical depth. This preferential depletion of grains compared to gas within a cavity is a common feature for transition disks (van der Marel et al., 2015, 2016).

3.2.2 12CO rotation curve

Radial gas pressure gradients perturb the gas rotation velocity and are used as tracers for planet-induced perturbations (Pérez et al., 2015; Pinte et al., 2018; Teague et al., 2018a). Velocity distortions by the planet at the close-in location of 22 au are small, such that their detection in single-channel maps as described by Pinte et al. (2018) is hampered by our limited angular and spectral resolution (see also Sect. 4.1.2), and further by the relatively low S/N of the CO emission at the location of the planet (well within the CO-integrated flux density gap). To improve the S/N of potential kinematic perturbations we therefore used of an azimuthally averaged rotation curve of the 12CO data to probe the underlying gas density structure (Teague et al., 2018a). This is even possible in cases when the line emission is optically thick. Whereas a negative pressure gradient induces sub-Keplerian rotation, a positive pressure gradient would cause super-Keplerian rotation.

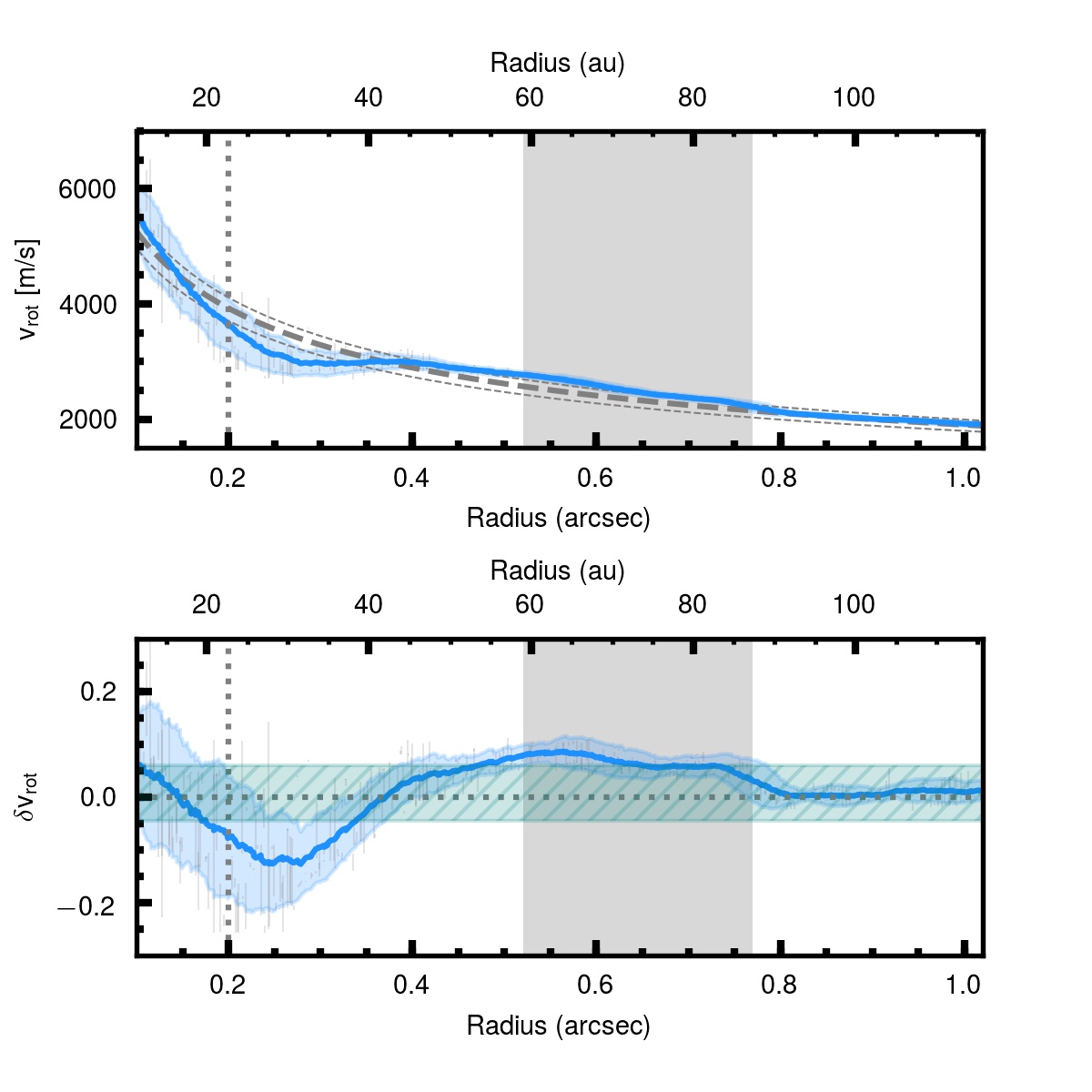

Following the method described in Teague et al. (2018b), we inferred the rotation profile by determining the rotation velocity for each radius which allows for all spectra in an annulus to be shifted back to the same systemic velocity555A Python implementation of this method, eddy (see Teague, 2019), is publicly available at https://github.com/richteague/eddy.. We ran ten different realizations of this, randomizing the pixels taken from each annulus (making sure they are separated by at least one FWHM of the beam), and randomizing the radial locations of the annuli while maintaining a radial bin width of a quarter beam width. The resulting rotation curve and the residual relative to the best-fit Keplerian profile are plotted in Fig. 7.

The absolute scale of the deviation from Keplerian rotation depends on the reference Keplerian velocity and therefore on the assumed stellar mass. The systematic uncertainties on the dynamical determination of the stellar mass as well as the parameterization of the surface together with the fact that our fiducial model for the rotation velocity does not take into account the overall pressure gradient in the disk may cause the uncertainty of the absolute scaling to be as large as 10$\%$. Figure 7 (bottom panel) shows the residuals of the rotation curve (blue), where the green hatched area marks the uncertainty of the zero-point of $\mathrm{\delta v_{rot}}$ inferred by the 3$\sigma$ statistical uncertainties of the stellar mass. Within these uncertainties, the peak of the continuum ring ($\sim$0.65″) lies close to the location where $\mathrm{\delta v_{rot}}$ recovers Keplerian rotation and therefore where pressure reaches its maximum.

A significant deviation of up to $\sim 12\%$ at $\sim 0.2\arcsec$ is observed, which is suggestive of significant changes in the gas pressure at this location, consistent with the structure observed in the rotation map in Fig. 5. The rotation curve clearly demonstrates a positive pressure gradient between $\sim$0.4 and 0.8″, reaching a maximum at about 0.55″. This implies that the gas density is likely depleted beyond $\sim$0.4″, and therefore suggests that the gap is in reality larger than what is observed in integrated emission: if the gap were only as wide as the gap in the 12CO integrated emission, then we would expect the peak residual of the rotation curve to fall at the edge of the gap at $\sim 0.3\arcsec$ (see Fig. 1 in Teague et al., 2018a, for example), but the peak is found closer to $0.55\arcsec$. The shape of the residual curve in the inner disk, r $<$ 0.3″, is dominated by the steep gradients in the intensity profile that are due to both the inner disk and the gap; this makes a direct analysis challenging. A more thorough discussion of this effect and the effect of beam smearing is discussed in Sect. 4.1.2 in the context of hydrodynamical models and in Appendix A.2.

3.2.3 Potential point source

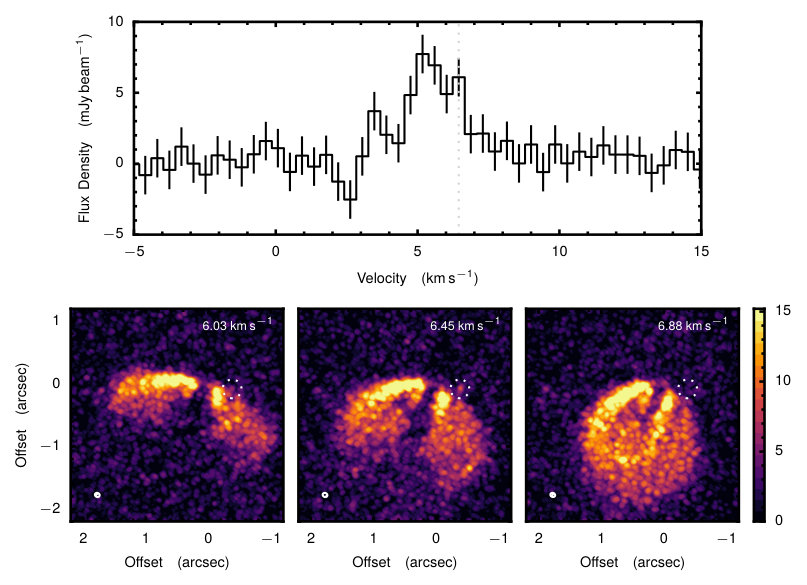

We tentatively detect a point source in the 12CO emission maps at a projected separation of $\sim$0.39$\arcsec$ and a PA of $\sim$260o. This corresponds to a deprojected radius of $\sim$71 au, if if comes from the midplane. The peak is detected at a $\sim 6\sigma$ level and is spatially offset from the Keplerian emission pattern. Figure 8 shows the spectrum extracted at the location of the source, and three channel maps showing the offset nature of the emission. The signal appears at a velocity of around 6.45 $\rm km\leavevmode\nobreak\ s^{-1}$, corresponding to a redshift of roughly 1 km/s with respect to the line center of the Keplerian profile. The spectrum also shows a blueshifted peak, whose emission may be biased from the bottom side of the disk, however. Interestingly, if it were located in the midplane, the source would be located well within the dust continuum ring, close to the dip between the main and the tentative second peak detected in the continuum profiles (see Sect. 3.1.1). Spatially offset emission has been shown to potentially be a signature of a CPD (Pérez et al., 2015), as the additional rotation of the CPD would shift the emission from the Keplerian pattern. If the signal were indeed connected to a forming embedded planet, this might explain the azimuthal gap found in the $\rm HCO^{+}$ emission at a similar location (Long et al., 2018b) because chemical changes due to heating from the planet may locally deplete HCO (Cleeves et al., 2015). Additional observations are required to confirm the potential point source.

4 Discussion

As shown by theoretical studies, the interaction of a massive body with the disk opens a gap in the gas (e.g., Lin & Papaloizou, 1986). The perturbation of the local gas density causes a change in the local pressure gradient, which manifests itself in two ways. First, it generates a pressure bump outside the planetary orbit, trapping large dust particles (while small particles that are well coupled to the gas may still enter the gap). This leads to a spatial segregation of large and small grains (e.g., Pinilla et al., 2012). Second, the change in pressure gradient manifests itself in a local deviation from Keplerian rotation the amplitude of which is sensitive to the planet mass (Teague et al., 2018a).

Our aim is to investigate the impact of PDS 70 b on the observed disk morphology. For this purpose we carried out hydrodynamic and radiative transfer simulations that we present in the next section.

4.1 Hydrodynamic and radiative transfer models

4.1.1 Model setup

To simulate interaction between PDS 70 b and the circumstellar disk of PDS 70, we carried out three-dimensional hydrodynamic calculations using FARGO3D (Benítez-Llambay & Masset, 2016; Masset, 2000). We adopted the disk density and aspect ratio profiles used in Keppler et al. (2018)

[TABLE]

and

[TABLE]

where $R_{c}=40$ au, $R_{p}=22$ au is the distance of PDS 70 b assuming a circular orbit, $(H/R)_{p}=0.089$, and $f=0.25$. $\Sigma_{c}=2.87\leavevmode\nobreak\ {\rm g\leavevmode\nobreak\ cm}^{-2}$ was chosen such that the total gas mass in the disk was $0.003\leavevmode\nobreak\ M_{\odot}$, consistent with the model presented in Keppler et al. (2018). The surface density profiles are shown in Fig. 9 (a). We assumed a vertically isothermal disk temperature structure and used an isothermal equation of state.

The simulation domain extends from $r=0.2\leavevmode\nobreak\ R_{p}$ to $9\leavevmode\nobreak\ R_{p}$ in the radial direction, from $\pi/2-0.4$ to $\pi/2$ in the meridional direction, and from 0 to $2\pi$ in the azimuthal direction. We adopted 256 logarithmically spaced grid cells in the radial direction, 48 uniformly spaced grid cells in the meridional direction, and 420 uniformly spaced grid cells in the azimuthal direction. A disk viscosity of $\alpha=10^{-3}$ was added to the simulations. This value of turbulence is consistent with the level of turbulence constrained for the protoplanetary disks around TW Hya (Teague et al., 2016, 2018c; Flaherty et al., 2018) and HD 163296 (Flaherty et al., 2015, 2017).

We tested three planet masses: 2, 5, and 10 $\rm M_{Jup}$, covering the range of potential planet masses proposed by Keppler et al. (2018), assuming a 0.85 solar-mass star. The simulations ran for 1000 orbits, after which we find that the gap width and depth reached a quasi-steady state. This is in agreement with other planet-disk interaction simulations from the literature (e.g., Duffell & MacFadyen, 2013; Fung et al., 2014; Kanagawa et al., 2015). The radial profile of the deviations from Keplerian rotation after 1000 orbits is shown in Fig. 10 (b).

We generated 12CO image cubes using the radiative transfer code RADMC3D version 0.41666http://www.ita.uni-heidelberg.de/~dullemond/software/radmc-3d/. We first computed the thermal structure of the disk by running a thermal Monte Carlo calculation. To do so, we placed a 0.85 solar-mass star at the center. This star had an effective temperature of 3972 K and a radius of $1.26\leavevmode\nobreak\ \rm R_{\odot}$ (Pecaut & Mamajek, 2016; Keppler et al., 2018), emitting $10^{8}$ photon packages. As in Keppler et al. (2018), we considered two grain size distributions whose number density followed a power law as a function of the grain size $a$ with $n(a)\propto a^{-3.5}$: small grains ranged from 0.001 to 0.15 $\mu m$ and large grains ranged from 0.15 to 1000 $\mu m$. The relative mass fraction of small to large grains was 1/31, implying that about 3$\%$ of the total dust mass was confined within the small grain population. This is consistent with previous radiative transfer models of PDS 70 (Dong et al., 2012; Keppler et al., 2018). We assumed that the grains are composed of $70\leavevmode\nobreak\ \%$ astronomical silicates (Draine, 2003) and $30\leavevmode\nobreak\ \%$ amorphous carbon grains (Zubko et al., 1996). The grain opacity was computed according to the Mie theory using the BHMIE code (Bohren & Huffman, 1983).

CO line radiative transfer was done under local thermal equilibrium (LTE) assumptions, assuming a constant $\rm{}^{12}CO$ to $\rm H_{2}$ ratio of $\rm 10^{-4}$ (e.g., Lacy et al., 1994; Williams & Best, 2014). A local spatially unresolved microturbulence was added at a constant level of $30\leavevmode\nobreak\ {\rm m\leavevmode\nobreak\ s}^{-1}$. This choice is equivalent to $\alpha$ of a few $\times 10^{-3}$. We simulated the ALMA observations using the SIMOBSERVE task in CASA version 5.1.2. using the same velocity resolution, synthesized beam, and on-source integration time as were used in the observations. Thermal noise from the atmosphere and from the antenna receivers was added by setting the thermalnoise option in the simobserve task to tsys-atm. Using the same tools as for the observations, we derived the velocity-integrated flux density, as well as the rotation profiles for each simulation (Figures 9 and 10).

4.1.2 Comparison with observations

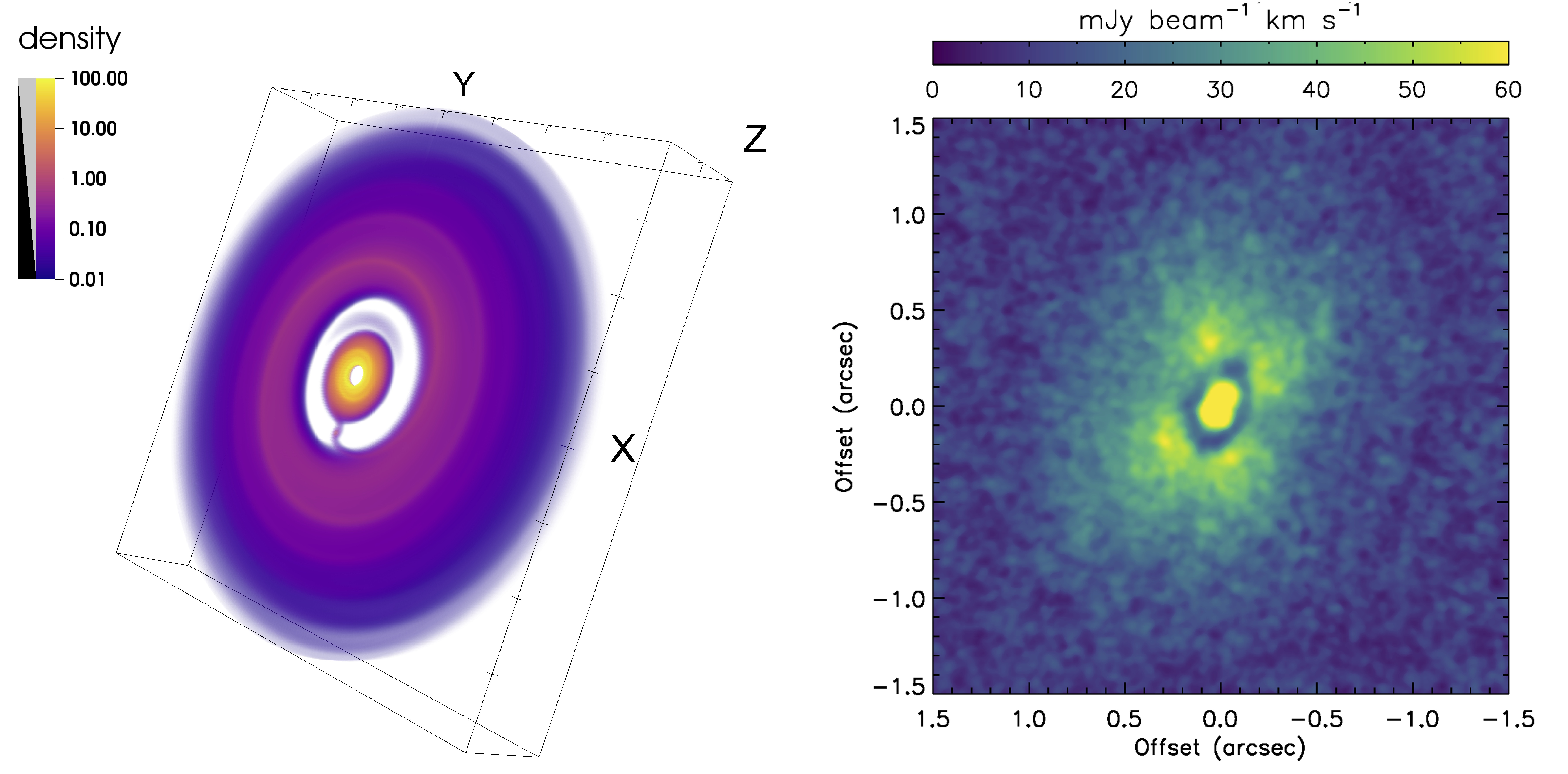

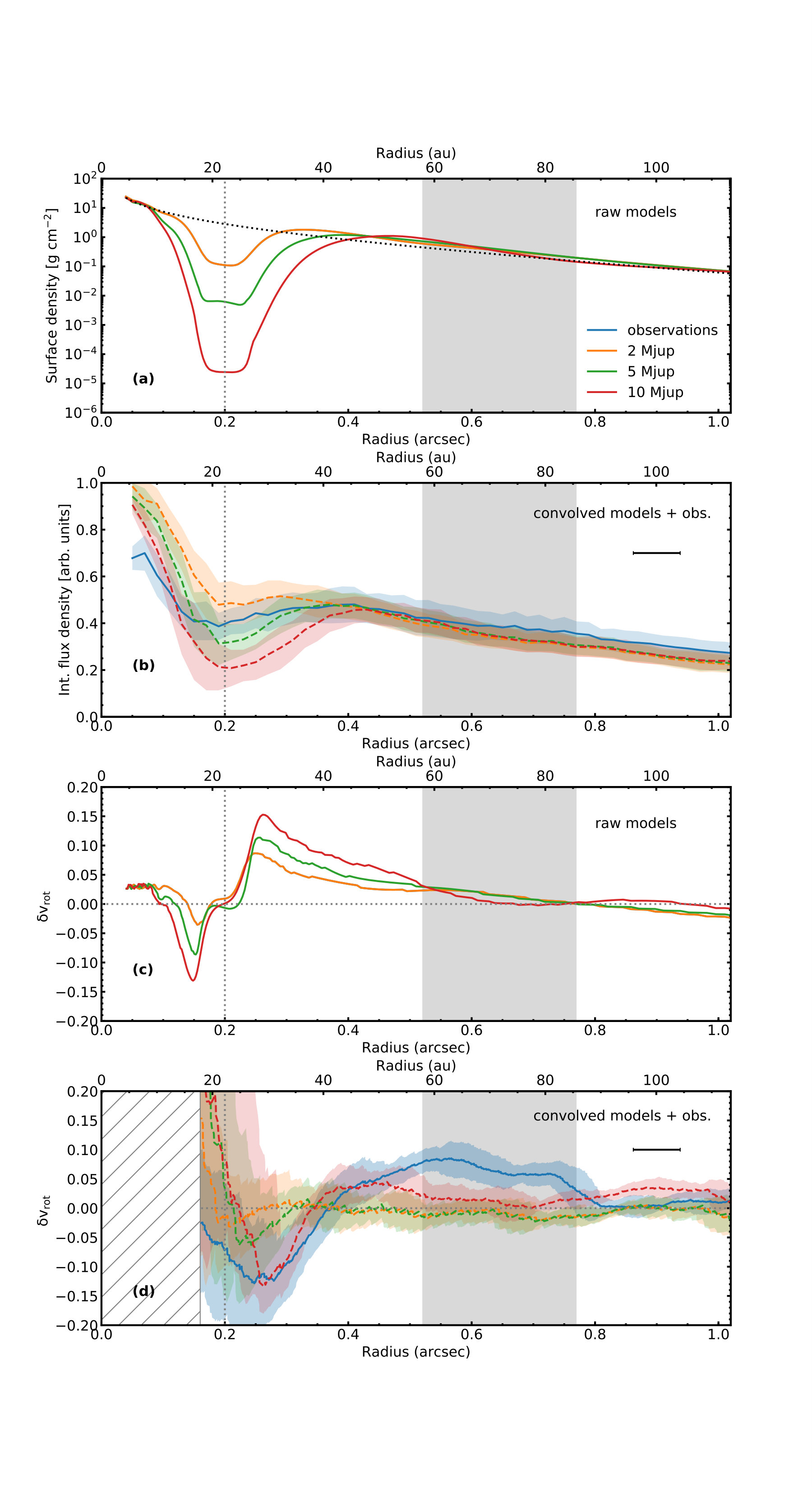

The disk density distribution from the hydrodynamic model and a simulated 12CO zeroth-moment map are presented in Fig. 11. The 5 $\rm M_{Jup}$ planet opens a gap around its orbit, which is clearly visible in the simulated zeroth moment map. We find that velocity kinks associated with the planet-driven spiral arms are present in raw simulated channel maps, similar to what is found in HD 163296 (Pinte et al., 2018). However, the velocity distortions are too small and thus smeared out after convolution with the ALMA beam.

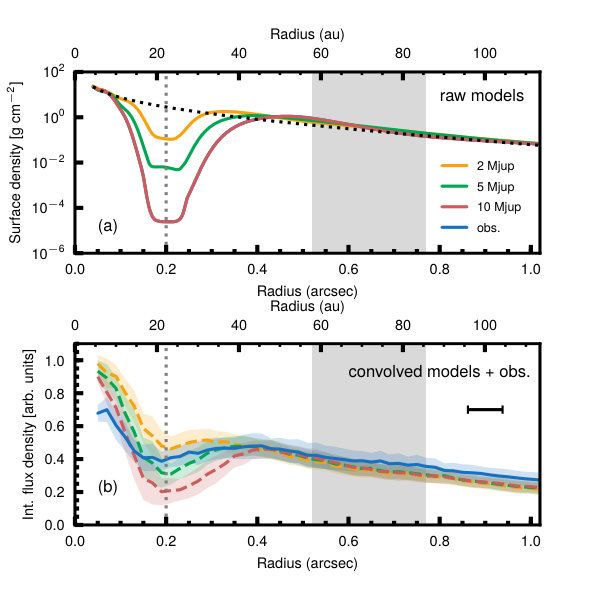

We compare the radial profiles of the simulated and observed integrated flux densities in Figure 9 ($b$). The profiles show evidence of a depletion in integrated flux density at the location of the planet, which is stronger for higher planet masses. The width and depth of the depleted flux density in the observations are reasonably well reproduced by a 5 $\rm M_{Jup}$ planet. We note that the models appear to overestimate the increase in flux density toward the inner disk. Because CO is optically thick, this is likely caused by a different temperature structure of the inner disk region, the reason for which could be a different density profile than assumed (e.g., overestimation of the actual density in the inner part of the disk, or a different gap shape), but needs further investigation with higher angular resolution that is able to better resolve these inner regions.

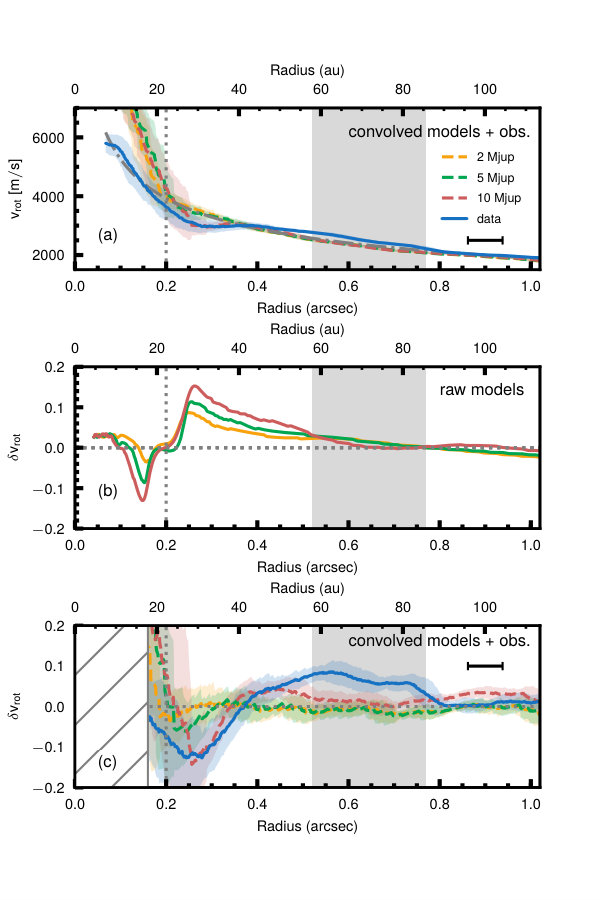

Figure 10 (panel $a$) presents the absolute rotation profiles, and the residual $\delta v_{\rm rot}$ profiles before and after radiative transfer and ALMA simulations are shown in panels $b$ and $c$, respectively. We note two points: first, a comparison of the residual model profiles before and after convolution alters the overall shape of the rotation curves. Second, the residual curve of the PDS 70 disk follows the general shape of the modeled curves, but it differs with respect to the location of the maximum, as well as the velocity gradient toward the inner disk.

The change in the shape of the rotation curve when simulating the observations is due to beam convolution effects in the presence of strong radial gradients in intensity and velocity. This is described in detail in Appendix A.2. In brief, sharp edges in the flux density profile induce a distortion in the measurement of the rotation curve because the velocities measured within one beam are biased toward those at the highest line intensity. This causes the velocity to be overestimated in the inner region of the gap and underestimated at the outer edge of the gap. The resulting rotation curve is of a characteristic shape that is asymmetric with respect to the gap center (see Fig. A.2). It shows evidence of strong super-Keplerian rotation in the inner gap region, and a weaker region of sub-Keplerian rotation at the outer gap edge. This effect is now superimposed on the effect of the planet-induced pressure gradient on the rotation profile (sub-/super-Keplerian rotation inside/outside the planetary orbit). This effect can be fully accounted for when performing forward modeling. As Fig. 10 ($c$) shows, all convolved model profiles show this characteristic shape, and the amplitudes of their minima and maxima depend on the planetary mass.

The observed rotation curve of PDS 70 shows the same characteristic transition from sub-Keplerian to super-Keplerian transition as the models. While we found that the width and depth of the integrated flux density profiles seem consistent with the effect of a 5 $\rm M_{Jup}$ planet, we find that the radial location and the amplitude of the minimum $\delta v_{\rm rot}$ of the rotation curve of the PDS 70 disk is best matched by the perturbations created by a 10 $\rm M_{Jup}$ planet. We note, however, that our hydrodynamic models consider a vertically isothermal temperature structure, whereas in a more realistic approach (introducing a more physical prescription for the vertical temperature structure), the deviation from Keplerian rotation may be higher in the disk surface than in the midplane, implying that the $\delta v_{\rm rot}$ in the current models may be underestimated (Bae et al in prep.; see also Fig. 3 of Teague et al., 2018a). Relaxing the isothermal assumption and introducing a more physical prescription of the vertical temperature structure may be able to solve this discrepancy, but is beyond the scope of this study.

Toward the inner region the observed rotation curve is flatter, which may again be due to a slightly different gap shape (i.e., a flatter inner edge). The most conspicuous difference to the models is the region of super-Keplerian rotation beyond the planet, which extend farther out than in the models. As shown in Sect. 3.2.2, within the uncertainties, the observed rotation curve returns to Keplerian rotation close to the location of maximum emission in the continuum ring ($\sim$0.65″ or 74 au) (see Fig. 7). This is consistent with the interpretation of large grains being trapped in the region of maximum pressure (e.g., Pinilla et al., 2012). While we have shown that the observed integrated flux density profile can be reproduced well by one planet of 5 $\rm M_{Jup}$, the large extension of super-Keplerian rotation and the concomitant far-out location of the continuum ring imply that the gap is wider in reality than predicted by all the models. It therefore appears within our model assumptions that only one planet located at the orbit of PDS 70 b may not be sufficient to generate a kinematic signature in the disk with the inferred width or maintain a continuum ring at $\sim$74 au. This scenario needs to be probed by future observations at higher spectral resolution.

This is consistent with gap width considerations in the literature. As an example, hydrodynamical and dust simulations suggest that the accumulation of large dust grains is expected to be found at roughly 10 $\rm R_{H}$ outward of the planetary orbit (Pinilla et al., 2012; Rosotti et al., 2016). For a 10 $\rm M_{Jup}$ planet at the location of the PDS 70 b orbit, the dust ring would therefore be expected at about 46-56 au, assuming a stellar mass of 0.88 $\rm M_{\odot}$.

This suggests that an additional low-mass planet located beyond PDS 70  or the combination with other physical mechanisms such as photoevaporation or dead zones may be needed to explain the outward-shifted location of the pressure bump. Models indeed predict that large gaps in transitional disks can be reproduced by introducing multiple planets (Dodson-Robinson & Salyk, 2011; Zhu et al., 2011; Duffell & Dong, 2015). Detailed modeling of the system by introducing multiple planets as well as deep observations are required to constrain the planetary architecture that is responsible for the observed features; this is beyond the scope of this study.

An alternative scenario to explain the distant location of the ring compared to the position of PDS 70 b is to consider that the ring traces a secondary pressure bump. Single planets can indeed open multiple gaps in a disk with low viscosity, or alternatively, vortices generated at the edge of a gap can lead to a secondary ring (Lobo Gomes et al., 2015). In this latter scenario, the primary ring, located at $\sim$50 au (corresponding to $\sim$10 $\rm R_{H}$ from a 5 $\rm M_{Jup}$ planet at 22 au), would be depleted. The secondary ring would be located at $\sim$1.5$\times$ the location of the primary ring (Lobo Gomes et al., 2015), corresponding to $\sim$75 au, which is where the dust ring is found in the PDS 70 system. Furthermore, secondary vortices may be generated at the edge of the secondary ring. If this is the case, this may also explain the azimuthal asymmetry observed in the dust continuum. A detailed exploration of this scenario will be the subject of a follow-up study.

4.2 Upper limit on CPD dust mass

The detection of H$\alpha$ emission at the location PDS 70 implies that PDS 70 b is actively accreting (Wagner et al., 2018) and therefore likely possesses an accretion disk. Still, we can only derive upper limits on the circumplanetary disk with our data. Models of planet formation predict circumplanetary dust around young planets, implying that CPDs should be frequent. However, searches for circumplanetary material in the submillimeter/millimeter continuum around other young substellar companions have been unsuccessful, although active accretion through the H$\alpha$ and/or Pa$\beta$ lines was detected in some of these cases (e.g., Isella et al., 2014; Bowler et al., 2015; MacGregor et al., 2017; Wolff et al., 2017; Ricci et al., 2017; Pineda et al., 2019). Our upper limit on the CPD dust content of $\sim$0.01 $\rm M_{\oplus}$ is similar to that derived for other systems (Pineda et al., 2019).

The detection of CPDs in the (sub-)millimeter regime may be challenging for several reasons. First, CPDs are expected to be very small, which substantially reduces the emitting area and therefore the expected signal. Second, because the large grains are substantially trapped in the outer dust ring, the replenishment of large grains within the gap is expected to be inefficient. Even if small grains pass the gap and replenish the CPD, the radial drift is expected to be extremely efficient when they grow. The radial drift will deplete the large grains very fast (Pinilla et al., 2013; Zhu et al., 2018). A search for the CPD using gas kinematics as a tracer or NIR observations might therefore be more promising.

5 Summary and conclusions

The young planet PDS 70 b is the most robust case of a directly imaged forming planet in the gap of a transition disk. We obtained ALMA Band 7 DDT observations in Cycle 5 and combined them with previous Cycle 3 data (Long et al., 2018b) to study the natal environment of the planet at high angular resolution ($\sim$0.07″) in dust continuum and at the 12CO J=3-2 transition. Our conclusions are listed below.

• •

We detected the emission from the dust continuum as a highly structured ring. Its radial distribution peaks at $\sim$74 au. The inner edge of the ring shows evidence of a marginally resolved second ring component that peaks at around 60 au. We also detected a spur that projects into the gap at a PA of about 285o and confirmed an azimuthal brightness asymmetry with a brightness enhancement of about 13$\%$ in the northwest part of the ring.

• •

We derived upper limits on the circumplanetary disk. Based on the noise level of the image we infer a 5$\sigma$ upper dust limit lower than $\sim$0.01 $\rm M_{\oplus}$.

• •

The CO-integrated intensity shows evidence of two radial intensity depressions; the inner depression of the flux density lies at $\sim$0.2$\arcsec$ (corresponding to the location of PDS 70 b) and a second gap at about 0.6$\arcsec$. The inner gap is most likely carved by PDS 70 b. Comparison of the flux density profile to hydrodynamical simulations showed that the gap width and depth is best reproduced by a 5 $\rm M_{Jup}$ body. The outer gap can be explained by the dust being optically thick. Furthermore, we found evidence for an azimuthal intensity modulation that is due to self-absorption by optically thick CO. We also detected a bridge-like feature in the CO at the location of the spur seen in the continuum as well as the inner disk, which extended out to $\sim$15 au. Finally, we reported the tentative detection of a possible point source in the 12CO emission maps, the existence of which needs to be confirmed with additional observations.

• •

We detected significant deviation from Keplerian rotation inside $\sim$0.8″. The width of the $\delta v_{\rm rot}$ feature is consistent with the far-out location of the dust ring. Comparison to hydrodynamical simulations implies that the depth of the kinematic signature is best matched by a $\sim$10 $\rm M_{Jup}$ object (within our model assumptions of an isothermal disk), but the width of the feature suggests that one planet alone located at the orbit of PDS 70 b may not be sufficient to generate a gap with the inferred extension. An additional physical mechanisms or a second low-mass body may be required to explain the disk morphology. Future observations at higher angular and spectral resolution will allow us to place tighter constraints on the planetary system architecture that can account for all of the observed features in the PDS 70 disk morphology.

Acknowledgements.

We thank the anonymous referee for constructive comments that helped improve the manuscript. This paper makes use of the following ALMA data: ADS/JAO.ALMA$\#$2017.A.00006.S, ADS/JAO.ALMA$\#$2015.1.00888.S. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada) and NSC and ASIAA (Taiwan) and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ. The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. This publication has received funding from the European Union’s Horizon 2020 research and innovation program under grant agreement No 730562 (RadioNet). R.T. acknowledges funding from the NSF grants AST-1514670 and NASA NNX16AB48G. M.B. acknowledges funding from ANR of France under contract number ANR-16-CE31-0013 (Planet Forming disks). J.B. acknowledges support from NASA grant NNX17AE31G and computing resources provided by the Advanced Research Computing at the University of Michigan, Ann Arbor. Y.L. acknowledges supports by the Natural Science Foundation of Jiangsu Province of China (Grant No. BK20181513) and by the Natural Science Foundation of China (Grant No. 11503087). S.F. acknowledges an ESO Fellowship. G.R. and A.J. are supported by the DISCSIM project, grant agreement 341137 funded by the European Research Council under ERC-2013-ADG. G.R. acknowledges support from the Netherlands Organisation for Scientific Research (NWO, program number 016.Veni.192.233). GHMB and M.F. acknowledge funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement No. 757957). L.P. acknowledges support from CONICYT project Basal AFB-170002 and from FONDECYT Iniciación project No. 11181068. A.M. acknowledges the support of the DFG priority program SPP 1992 ”Exploring the Diversity of Extrasolar Planets” (MU 4172/1-1).

Appendix A Appendix information

A.1 Dependency of CPD detection limits on planetary mass and accretion rate

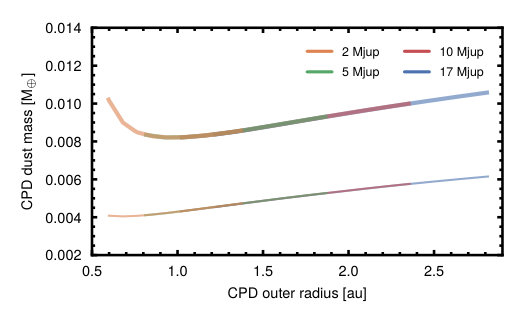

We explore the dependency of the CPD detection limit on the planetary mass and accretion rate. In our approach, the CPD temperature profile results from three contributions: heating from irradiation by the central star, from irradiation by the planet, and from viscous accretion (see Equ. 1). The irradiation by the planet depends on its luminosity, and therefore on its temperature and radius ($T_{P}\sim 1200$ K, $r_{P}\sim$3 $\rm R_{Jup}$ for PDS 70 b; Müller et al. 2018), and the contribution from accretional heating is proportional to the product of planet mass and accretion rate (see Equ. 2 and 3). Their relative contribution can be expressed as

[TABLE]

This expression has a maximum at about 2.25 $\times$ $r_{p}$, and we can therefore write

[TABLE]

For the given parameter choice, accretional heating is therefore negligible.

For a planetary mass of 5 $\rm M_{Jup}$ and radius of 3 $\rm R_{Jup}$, Wagner et al. (2018) calculated an accretion rate for PDS 70 b of 3$\times 10^{-9}$ to 9$\times 10^{-8}$ $\rm M_{Jup}$/yr, depending on the assumed extinction. Thus, even in case of high extinction and therefore high accretion rate, the term $T_{acc}^{4}/T_{irr,p}^{4}$ is lower than 0.3, and the contribution from accretional heating is still marginal. We note that the planetary mass cannot be varied independently of the accretion rate because the product $M_{P}\dot{M}_{acc}$ is to be conserved. We therefore conclude that the temperature structure in our calculation is insensitive to the choice of the planet mass within the estimated range for a CPD of a given size.

The outer outer radius does depend on the planet mass, however. The lower the planet mass, the smaller the disk it will be able to retain. This is illustrated in Fig. A.1, which shows the 5$\sigma$ and 3$\sigma$ detection limits for the estimated mass ranges based on the comparison of NIR photometry with evolutionary models and atmospheric modeling (Keppler et al. 2018; Müller et al. 2018). The figure illustrates that 1) at a given CPD size, the CPD flux is independent of the planetary mass, 2) the 5$\sigma$ detection limits (thick lines) are rather constant for all disk sizes, mostly below $\sim$0.01 $\rm M_{\oplus}$, indicating optically thin emission (except for the case of 2 $\rm M_{Jup}$, where emission is in transition to optically thick), and 3) CPDs around planets with different masses cover different ranges of disk sizes.

A.2 Effect of beam smearing on the rotation curve

For a beam of a given size, the spectrum, and thus the velocity of the gas traced, observed at each pixel corresponds to the average of all spectra within the beam centered on that pixel, weighted by their line intensities and the beam shape. If the intensity gradient across the beam is steep, this will cause the sampled velocity to be strongly biased toward the region of highest intensity, rather than the beam center.

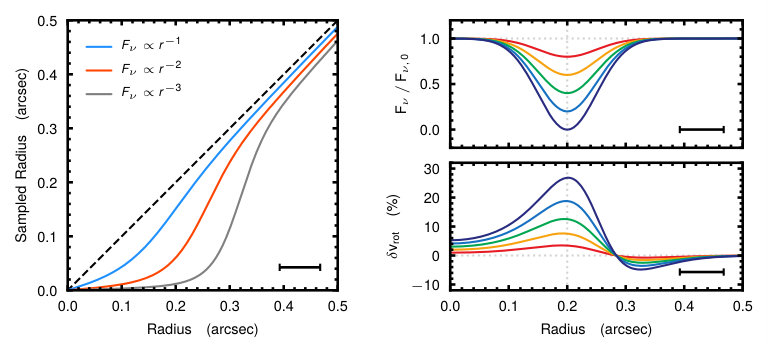

This effect is illustrated in Fig. A.2 (left). For a smooth radial disk intensity profile, the figure shows for each distance the sampled radius, that is, the radius within the beam at which the velocity receives the highest weighting and which therefore corresponds to the effective radius at which the velocity is observed. This is shown for different power-law exponents of the radial intensity profile of the disk. We note that the steeper the intensity profile, the greater the bias of the sampled radius toward smaller radii, and the greater the overestimate of the measured velocity.

This is even more complex when the intensity profile deviates from a simple power law, as in the presence of a gap structure. The additional steep gradients at the gap edges cause regions closer to the inner gap edge to become even more biased toward smaller distances and therefore higher velocities, whereas regions close to the outer gap edge are biased toward larger distances and lower velocities. Figure A.2 (bottom right) shows the deviation from Keplerian rotation, assuming an intensity profile with a gap structure centered around 0.2″ and a beam size of 76 mas (top right). The resulting $\delta\rm{v_{rot}}$ profile is asymmetric with respect to the gap center, with super-Keplerian rotation in the inner regions changing into sub-Keplerian rotation beyond $\sim$ 0.3 ″, and the strength of the deviation is sensitive to the gap depth. This beam-smearing effect is added to the deviation from Keplerian rotation that is due to the planet-induced pressure gradient.

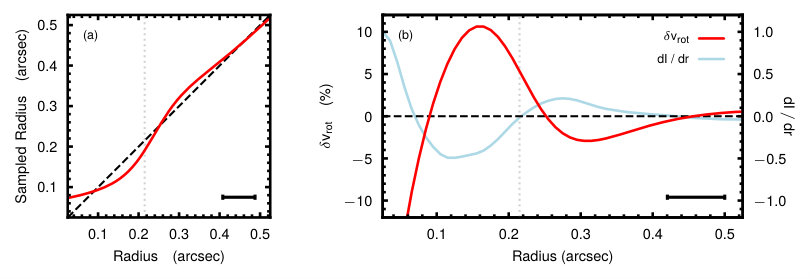

Figure A.3 demonstrates the effects of this bias using the radial intensity profile from Fig. 6 and compares this effect to the functional form from the pressure gradient (shown in light blue). The resulting profile is the combination of both factors, whose relative amplitudes depend on the gap shape. While this limits interpretation, these effects are fully accounted for with forward modeling, as presented in Section 4.1.
