Estimating Treatment Effects with Causal Forests: An Application

TL;DR

This paper demonstrates the application of causal forests to estimate treatment effects using data from the National Study of Learning Mindsets, addressing practical challenges like confounding and clustered errors.

Contribution

It provides an applied analysis of causal forests, highlighting their robustness to confounding and data clustering in real-world datasets.

Findings

Causal forests effectively handle confounding via propensity scores.

They manage clustered errors in observational data.

Application to educational data shows practical utility.

Abstract

We apply causal forests to a dataset derived from the National Study of Learning Mindsets, and consider resulting practical and conceptual challenges. In particular, we discuss how causal forests use estimated propensity scores to be more robust to confounding, and how they handle data with clustered errors.

Figures

Tables

Table 1. Table 1 : Definition of variables measured in the National Study of Learning Mindsets

S3	Student’s self-reported expectations for success in the future, a proxy for prior achievement, measured prior to random assignment
C1	Categorical variable for student race/ethnicity
C2	Categorical variable for student identified gender
C3	Categorical variable for student first-generation status, i.e. first in family to go to college
XC	School-level categorical variable for urbanicity of the school, i.e. rural, suburban, etc.
X1	School-level mean of students’ fixed mindsets, reported prior to random assignment
X2	School achievement level, as measured by test scores and college preparation for the previous 4 cohorts of students
X3	School racial/ethnic minority composition, i.e., percentage of student body that is Black, Latino, or Native American
X4	School poverty concentration, i.e., percentage of students who are from families whose incomes fall below the federal poverty line
X5	School size, i.e., total number of students in all four grade levels in the school
$Y$	Post-treatment outcome, a continuous measure of achievement
$W$	Treatment, i.e., receipt of the intervention

Equations

$$\left\{Y_{i}(0),\,Y_{i}(1)\right\}\mathchoice{\mathrel{\hbox to0.0pt{$\displaystyle\perp$\hss}\mkern 2.0mu{\displaystyle\perp}}}{\mathrel{\hbox to0.0pt{$\textstyle\perp$\hss}\mkern 2.0mu{\textstyle\perp}}}{\mathrel{\hbox to0.0pt{$\scriptstyle\perp$\hss}\mkern 2.0mu{\scriptstyle\perp}}}{\mathrel{\hbox to0.0pt{$\scriptscriptstyle\perp$\hss}\mkern 2.0mu{\scriptscriptstyle\perp}}}W_{i}\,\big{|}\,X_{i}.$$

$${\hat{\mu }}_j=\frac{1}{n_j}\sum _{\left\{i:A_i=j\right\}}{Y}_i,\hat{\mu }=\frac{1}{J}\sum _{j=1}^J{\hat{\mu }}_j,{\hat{\sigma }}^2=\frac{1}{J(J-1)}\sum _{j=1}^J{\left({\hat{\mu }}_j-\hat{\mu }\right)}^2,$$

$$\hat{\mu }(x)=\frac{1}{B}\sum _{b=1}^B\sum _{i=1}^n\frac{Y_{i}1\left(\left\{X_i\in L_b(x),i\in {\mathcal{S}}_b\right\}\right)}{\left|\left\{i:X_i\in L_b(x),i\in {\mathcal{S}}_b\right\}\right|},$$

$$\hat{\tau }=\frac{\frac{1}{n}{\sum }_{i=1}^n\left(Y_i-{\hat{m}}^{(-i)}(X_i)\right)\left(W_i-{\hat{e}}^{(-i)}(X_i)\right)}{\frac{1}{n}{\sum }_{i=1}^n{\left(W_i-{\hat{e}}^{(-i)}(X_i)\right)}^2},$$

$$\hat{\tau }(\cdot )={\mathrm{argmin}}_{\tau }\left\{\sum _{i=1}^n{\left(\left(Y_i-{\hat{m}}^{(-i)}(X_i)\right)-\tau (X_i)\left(W_i-{\hat{e}}^{(-i)}(X_i)\right)\right)}^2+{\Lambda }_n\left(\tau (\cdot )\right)\right\},$$

$$\hat{\mu }(x)=\sum _{i=1}^n{\alpha }_i(x)Y_i,{\alpha }_i(x)=\frac{1}{B}\sum _{b=1}^B\frac{1\left(\left\{X_i\in L_b(x),i\in {\mathcal{S}}_b\right\}\right)}{\left|\left\{i:X_i\in L_b(x),i\in {\mathcal{S}}_b\right\}\right|},$$

$$\hat{\tau }=\frac{{\sum }_{i=1}^n{\alpha }_i(x)\left(Y_i-{\hat{m}}^{(-i)}(X_i)\right)\left(W_i-{\hat{e}}^{(-i)}(X_i)\right)}{{\sum }_{i=1}^n{\alpha }_i(x){\left(W_i-{\hat{e}}^{(-i)}(X_i)\right)}^2}.$$

$$\begin{array}{rl}& {\hat{\tau }}_j=\frac{1}{n_j}\sum _{\left\{i:A_i=j\right\}}{\hat{\Gamma }}_i,\hat{\tau }=\frac{1}{J}\sum _{j=1}^J{\hat{\tau }}_j,{\hat{\sigma }}^2=\frac{1}{J(J-1)}\sum _{j=1}^J{\left({\hat{\tau }}_j-\hat{\tau }\right)}^2,\\ & {\hat{\Gamma }}_i={\hat{\tau }}^{(-i)}\left(X_i\right)+\frac{W_i-{\hat{e}}^{(-i)}(X_i)}{{\hat{e}}^{(-i)}\left(X_i\right)\left(1-{\hat{e}}^{(-i)}\left(X_i\right)\right)}\left(Y_i-{\hat{m}}^{(-i)}(X_i)-\left(W_i-{\hat{e}}^{(-i)}\left(X_i\right)\right){\hat{\tau }}^{(-i)}\left(X_i\right)\right).\end{array}$$

$$Y_i=m(X_i)+W_i\tau (X_i)+{\beta }_{A_i}+W_i{\gamma }_{A_i}+{\epsilon }_i,$$

$$Y_i=m_{A_i}(X_i)+W_i{\tau }_{A_i}(X_i)+{\epsilon }_i,\tau (x)=\mathbb{E}\left[{\tau }_j(x)\right],$$

Full text

1 Methodology and Motivation

There has been considerable recent interest in methods for heterogeneous treatment effect estimation in observational studies (Athey and Imbens, 2016; Athey, Tibshirani, and Wager, 2019; Ding, Feller, and Miratrix, 2016; Dorie, Hill, Shalit, Scott, and Cervone, 2017; Hahn, Murray, and Carvalho, 2017; Hill, 2011; Imai and Ratkovic, 2013; Künzel, Sekhon, Bickel, and Yu, 2017; Luedtke and van der Laan, 2016; Nie and Wager, 2017; Shalit, Johansson, and Sontag, 2017; Su, Tsai, Wang, Nickerson, and Li, 2009; Wager and Athey, 2018; Zhao, Small, and Ertefaie, 2017). In order to help elucidate the drivers of successful approaches to treatment effect estimation, Carlos Carvalho, Jennifer Hill, Avi Feller and Jared Murray organized a workshop at the 2018 Atlantic Causal Inference Conference and asked several authors to analyze a shared dataset derived from the National Study of Learning Mindsets (Yeager et al., 2016).

This note presents an analysis using causal forests (Athey, Tibshirani, and Wager, 2019; Wager and Athey, 2018); other approaches will be discussed in a forthcoming issue of Observational Studies with title “Empirical Investigation of Methods for Heterogeneity.” All analyses are carried out using the R package grf, version 0.10.2 (Tibshirani et al., 2018; R Core Team, 2017). Full replication files are available at github.com/grf-labs/grf, in the directory experiments/acic18.

1.1 The National Study of Learning Mindsets

The National Study of Learning Mindsets is a randomized study conducted in U.S. public high schools, the purpose of which was to evaluate the impact of a nudge-like intervention designed to instill students with a growth mindset111According to the National Study, “A growth mindset is the belief that intelligence can be developed. Students with a growth mindset understand they can get smarter through hard work, the use of effective strategies, and help from others when needed. It is contrasted with a fixed mindset: the belief that intelligence is a fixed trait that is set in stone at birth.” on student achievement. To protect student privacy, the present analysis is not based on data from the original study, but rather on data simulated from a model fit to the National Study dataset by the workshop organizers. The present analysis could serve as a pre-analysis plan to be applied to the original National Study dataset (Nosek et al., 2015).

Our analysis is based on data from $n=10,391$ children from a probability sample of $J=76$ schools.222Initially, 139 schools were recruited into the study using a stratified probability sampling method (Gopalan and Tipton, 2018). Of these 139 recruited schools, 76 agreed to participate in the study; then, students were individually randomized within the participating schools. In this note, we do not discuss potential bias from the non-randomized selection of 76 schools among the 139 recruited ones. For each child $i=1,\,...,\,n$, we observe a binary treatment indicator $W_{i}$, a real-valued outcome $Y_{i}$, as well as 10 categorical or real-valued covariates described in Table 1. We expanded out categorical random variables via one-hot encoding, thus resulting in covariates $X_{i}\in\mathbb{R}^{p}$ with $p=28$. Given this data, the workshop organizers expressed particular interest in the three following questions:

Was the mindset intervention effective in improving student achievement? 2. 2.

Was the effect of the intervention moderated by school level achievement (X2) or pre-existing mindset norms (X1)? In particular there are two competing hypotheses about how X2 moderates the effect of the intervention: Either it is largest in middle-achieving schools (a “Goldilocks effect”) or is decreasing in school-level achievement. 3. 3.

Do other covariates moderate treatment effects?

We define causal effects via the potential outcomes model (Imbens and Rubin, 2015): For each sample $i$, we posit potential outcomes $Y_{i}(0)$ and $Y_{i}(1)$ corresponding to the outcome we would have observed had we assigned control or treatment to the $i$-th sample, and assume that we observe $Y_{i}=Y_{i}(W_{i})$. The average treatment effect is then defined as $\tau=\mathbb{E}\left[Y_{i}(1)-Y_{i}(0)\right]$, and the conditional average treatment effect function is \tau(x)=\mathbb{E}\left[Y_{i}(1)-Y_{i}(0)\,\big{|}\,X_{i}=x\right].

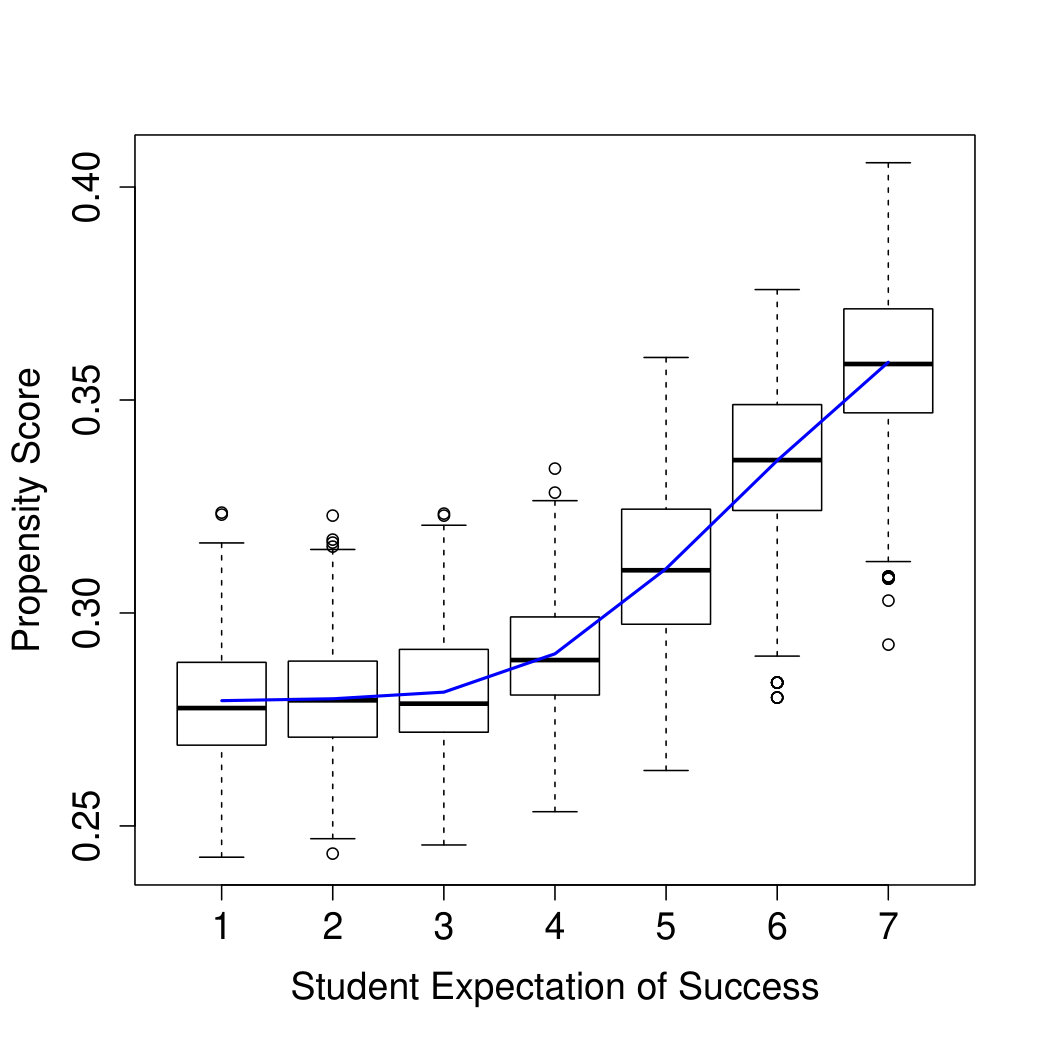

This dataset exhibits two methodological challenges. First, although the National Study itself was a randomized study, there seems to be some selection effects in the synthetic data used here. As seen in Figure 1, students with a higher expectation of success appear to be more likely to receive treatment. For this reason, we analyze the study as an observational rather than randomized study. In order to identify causal effects, we assume unconfoundedness, i.e., that treatment assignment is as good as random conditionally on covariates (Rosenbaum and Rubin, 1983)

[TABLE]

To relax this assumption, one could try to find an instrument for treatment assignment (Angrist and Pischke, 2008), or conduct a sensitivity analysis for hidden confounding (Rosenbaum, 2002).

Second, the students in this study are not independently sampled; rather, they are all drawn from 76 randomly selected schools, and there appears to be considerable heterogeneity across schools. Such a situation could arise if there are unobserved school-level features that are important treatment effect modifiers; for example, some schools may have leadership teams who implemented the intervention better than others, or may have a student culture that is more receptive to the treatment. If we want our conclusions to generalize outside of the 76 schools we ran the experiment in, we must run an analysis that robustly accounts for the sampling variability of potentially unexplained school-level effects. Here, we take a conservative approach, and assume that the outcomes $Y_{i}$ of students within a same school may be arbitrarily correlated within a school (or “cluster”), and then apply cluster-robust analysis tools (Abadie, Athey, Imbens, and Wooldridge, 2017).

The rest of this section presents a brief overview of causal forests, with an emphasis of how they address issues related to clustered observations and selection bias. Causal forests are an adaptation of the random forest algorithm of Breiman (2001) to the problem of heterogeneous treatment effect estimation. For simplicity, we start below by discussing how to make random forests cluster-robust in the classical case of non-parametric regression, where we observe pairs $(X_{i},\,Y_{i})$ and want to estimate \mu(x)=\mathbb{E}\left[Y_{i}\,\big{|}\,X_{i}=x\right]. Then, in the next section, we review how forests can be used for treatment effect estimation in observational studies.

1.2 Cluster-Robust Random Forests

When observations are grouped in unevenly sized clusters, it is important to carefully define the underlying target of inference. For example, in our setting, do we want to fit a model that accurately reflects heterogeneity in our available sample of $J=76$ schools, or one that we hope will generalize to students from other schools also? Should we give more weight in our analysis to schools from which we observe more students?

Here, we assume that we want results that generalize beyond our $J$ schools, and that we give each school equal weight; quantitatively, we want models that are accurate for predicting effects on a new student from a new school. Thus, if we only observed outcomes $Y_{i}$ for students with school membership $A_{i}\in\left\{1,\,...,\,J\right\}$ we would estimate the global mean as $\hat{\mu}$ with standard error $\hat{\sigma}$, with

[TABLE]

where $n_{j}$ denotes the number of students in school $j$. Our challenge is then to use random forests to bring covariates into an analysis of type (2). Formally, we seek to carry out a type of non-parametric random effects modeling, where each school is assumed to have some effect on the student’s outcome, but we do not make assumptions about its distribution (in particular, we do not assume that school effects are Gaussian or additive).

At a high level, random forests make predictions as an average of $b$ trees, as follows: (1) For each $b=1,\,...,\,B$, draw a subsample $\mathcal{S}_{b}\subseteq\left\{1,\,...,\,n\right\}$; (2) Grow a tree via recursive partitioning on each such subsample of the data; and (3) Make predictions

[TABLE]

where $L_{b}(x)$ denotes the leaf of the $b$-th tree containing the training sample $x$. In the case of out-of-bag prediction, we estimate $\hat{\mu}^{(-i)}(X_{i})$ by only considering those trees $b$ for which $i\not\in\mathcal{S}_{b}$. This short description of forests of course leaves many details implicit. We refer to Biau and Scornet (2016) for a recent overview of random forests and note that, throughout, all our forests are “honest” in the sense of Wager and Athey (2018).

When working with clustered data, we adapt the random forest algorithm as follows. In step (1), rather than directly drawing a subsample of observations, we draw a subsample of clusters $\mathcal{J}_{b}\subseteq\left\{1,\,...,\,J\right\}$; then, we generate the set $\mathcal{S}_{b}$ by drawing $k$ samples at random from each cluster $j\in\mathcal{J}_{b}$.333If $k\leq n_{j}$ for all $j=1,\,...,\,J$, then each cluster contributes the same number of observations to the forest as in (2). In grf, however, we also allow users to specify a value of $k$ larger than the smaller $n_{j}$; and, in this case, for clusters with $n_{j}\leq k$, we simply use the whole cluster (without duplicates) every time $j\in\mathcal{J}_{b}$. This latter option may be helpful in cases where there are some clusters with a very small number of observations, yet we want $\mathcal{S}_{b}$ to be reasonably large so that the tree-growing algorithm is stable. The other point where clustering matters is when we want to make out-of-bag predictions in step (3). Here, to account for potential correlations within each cluster, we only consider an observation $i$ to be out-of-bag if its cluster was not drawn in step (1), i.e., if $A_{i}\not\in\mathcal{J}_{b}$.

1.3 Causal Forests for Observational Studies

One promising avenue to heterogeneous treatment effect estimation starts from an early result of Robinson (1988) on inference in the partially linear model (Nie and Wager, 2017; Zhao, Small, and Ertefaie, 2017). Write e(x)=\mathbb{P}\left[W_{i}\,\big{|}\,X_{i}=x\right] for the propensity score and m(x)=\mathbb{E}\left[Y_{i}\,\big{|}\,X_{i}=x\right] for the expected outcome marginalizing over treatment. If the conditional average treatment effect function is constant, i.e., $\tau(x)=\tau$ for all $x\in\mathcal{X}$, then the following estimator is semiparametrically efficient for $\tau$ under unconfoundedness (1) (Chernozhukov et al., 2018a; Robinson, 1988):

[TABLE]

assuming that $\hat{m}$ and $\hat{e}$ are $o(n^{-1/4})$-consistent for $m$ and $e$ respectively in root-mean-squared error, that the data is independent and identically distributed, and that we have overlap, i.e., that propensities $e(x)$ are uniformly bounded away from 0 and 1. The (-i)-superscripts denote “out-of-bag” or “out-of-fold” predictions meaning that, e.g., $Y_{i}$ was not used to compute $\hat{m}^{(-i)}(X_{i})$.

Although the original estimator (4) was designed for constant treatment effect estimation, Nie and Wager (2017) showed that we can use it to motivate an “$R$-learner” objective function for heterogeneous treatment effect estimation,

[TABLE]

where $\Lambda_{n}\left(\tau(\cdot)\right)$ is a regularizer that controls the complexity of the learned $\hat{\tau}(\cdot)$ function. A desirable property of this approach is that, if the true conditional average treatment effect function $\tau(\cdot)$ is simpler than the main effect function $m(\cdot)$ or the propensity function $e(\cdot)$, e.g., qualitatively, if $\tau(\cdot)$ allows for a sparser representation than $m(\cdot)$ or $e(\cdot)$, then the function $\hat{\tau}(\cdot)$ learned by optimizing (5) may converge faster than the estimates for $\hat{m}(\cdot)$ or $\hat{e}(\cdot)$ used to form the objective function.

Causal forests as implemented in grf can be seen as a forest-based method motivated by the $R$-learner (5). Typically, random forests (Breiman, 2001) are understood as an ensemble method: A random forest prediction is an average of predictions made by individual trees. However, as discussed in Athey, Tibshirani, and Wager (2019), we can equivalently think of random forests as an adaptive kernel method; for example, we can re-write the regression forest from (3) as

[TABLE]

where, qualitatively, $\alpha_{i}(x)$ is a data-adaptive kernel that measures how often the $i$-th training example falls in the same leaf as the test point $x$. This kernel-based perspective on forests suggests a natural way to use them for treatment effect estimation based on (4) and (5): First, we grow a forest to get weights $\alpha_{i}(x)$, and then set

[TABLE]

Athey, Tibshirani, and Wager (2019) discuss this approach in more detail, including how to design a splitting rule for a forest that will be used to estimate predictions via (7). Finally, we address clustered observations by modifying the random forest sampling procedure in an analogous way to the one used in Section 1.2.

Concretely, the grf implementation of causal forests starts by fitting two separate regression forests to estimate $\hat{m}(\cdot)$ and $\hat{e}(\cdot)$. It then makes out-of-bag predictions using these two first-stage forests, and uses them to grow a causal forest via (7). Causal forests have several tuning parameters (e.g., minimum node size for individual trees), and we choose those tuning parameters by cross-validation on the $R$-objective (5), i.e., we train causal forests with different values of the tuning parameters, and choose the ones that make out-of-bag estimates of the objective minimized in (5) as small as possible.

We provide an exact implementation of our treatment effect estimation strategy with causal forests in Algorithm 1. We train the Y.forest and W.forest using default settings, as their predictions are simply used as inputs to the causal forest and default parameter choices often perform reasonably well with random forests.444The nuisance components Y.hat or W.hat need not be estimated by a regression forest. We could also use other predictive methods (e.g., boosting with cross-fitting) or use oracle values (e.g., the true randomization probabilities for W.hat in a randomized trial). If we simply run the command causal_forest(X, Y, W) without specifying Y.hat or W.hat, then the software silently estimates Y.hat or W.hat via regression forests. For our final causal forest, however, we deploy some tweaks for improved precision. Motivated by Basu, Kumbier, Brown, and Yu (2018), we start by training a pilot random forest on all the features, and then train a second forest on only those features that saw a reasonable number of splits in the first step.555Given good estimates of Y.hat and W.hat, the construction (7) eliminates confounding effects. Thus, we do not need to give the causal forest all features $X$ that may be confounders. Rather, we can focus on features that we believe may be treatment modifiers; see Zhao, Small, and Ertefaie (2017) for a further discussion. This enables the forest to make more splits on the most important features in low-signal situations. Second, we increase the samples_per_cluster parameter (called $k$ in Section 1.2) to increase the number of samples used to grow each tree. Finally, the option tune.parameters = TRUE has the forest cross-validate tuning parameters using the $R$-objective rather than just setting defaults.

2 Workshop Results

We now use our causal forest as trained in Algorithm 1 to explore the questions from Section 1.1.

2.1 The average treatment effect

The first question asks about the overall effectiveness of the intervention. The package grf has a built-in function for average treatment effect estimation, based on a variant of augmented inverse-propensity weighting (Robins, Rotnitzky, and Zhao, 1994). With clusters, we compute an average treatment effect estimate $\hat{\tau}$ and a standard error estimate $\hat{\sigma}^{2}$ as follows:

[TABLE]

See Section 2.1 of Farrell (2015) for a discussion of estimators with this functional form, and Section 2.4 of Athey, Imbens, and Wager (2018) for a recent literature review. The value of cross-fitting is stressed in Chernozhukov et al. (2018a). An application of this method suggests that the treatment had a large positive on average.

⬇

ATE = average_treatment_effect(cf)

paste("95% CI for the ATE:", round(ATE[1], 3),

  "+/-", round(qnorm(0.975) * ATE[2], 3))

"95% CI for the ATE: 0.247 +/- 0.04"

2.2 Assessing treatment heterogeneity

The next two questions pertain to treatment heterogeneity. Before addressing questions, however, it is useful to ask whether the causal forest has succeeded in accurately estimating treatment heterogeneity. As seen in Figure 2, the causal forest CATE estimates obviously exhibit variation; but this does not automatically imply that $\hat{\tau}^{(-i)}(X_{i})$ is a better estimate of $\tau(X_{i})$ than the overall average treatment effect estimate $\hat{\tau}$ from (8). Below, we seek an overall hypothesis test for whether heterogeneity in $\hat{\tau}^{(-i)}(X_{i})$ is associated with heterogeneity in $\tau(X_{i})$.

A first, simple approach to testing for heterogeneity involves grouping observations according to whether their out-of-bag CATE estimates are above or below the median CATE estimate, and then estimating average treatment effects in these two subgroups separately using the doubly robust approach (8). This procedure is somewhat heuristic, as the “high” and “low” subgroups are not independent of the scores $\widehat{\Gamma}_{i}$ used to estimate the within-group effects; however, the subgroup definition does not directly depend on the outcomes or treatments $(Y_{i},W_{i})$ themselves, and it appears that this approach can provide at least qualitative insights about the strength of heterogeneity.

We also try a second test for heterogeneity, motivated by the “best linear predictor” method of Chernozhukov, Demirer, Duflo, and Fernandez-Val (2018b), that seeks to fit the CATE as a linear function of the the out-of-bag causal forest estimates $\hat{\tau}^{(-i)}(X_{i})$. Concretely, following (4), we create two synthetic predictors, $C_{i}=\bar{\tau}(W_{i}-\hat{e}^{(-i)}(X_{i}))$ and $D_{i}=(\hat{\tau}^{(-i)}(X_{i})-\bar{\tau})(W_{i}-\hat{e}^{(-i)}(X_{i}))$ where $\bar{\tau}$ is the average of the out-of-bag treatment effect estimates, and regress $Y_{i}-\hat{m}^{(-i)}(X_{i})$ against $C_{i}$ and $D_{i}$. Then, we can interpret the coefficient of $D_{i}$ as a measure of the quality of the estimates of treatment heterogeneity, while $C_{i}$ absorbs the average treatment effect. If the coefficient on $D_{i}$ is 1, then the treatment heterogeneity estimates are well calibrated, while if the coefficient is $D_{i}$ significant and positive, then at least we have evidence of a useful association between $\hat{\tau}^{(-i)}(X_{i})$ and $\tau(X_{i})$. More formally, one could use the $p$-value for the coefficient of $D_{i}$ to test the hypothesis that the causal forest succeeded in finding heterogeneity; however, we caution that asymptotic results justifying such inference are not presently available.

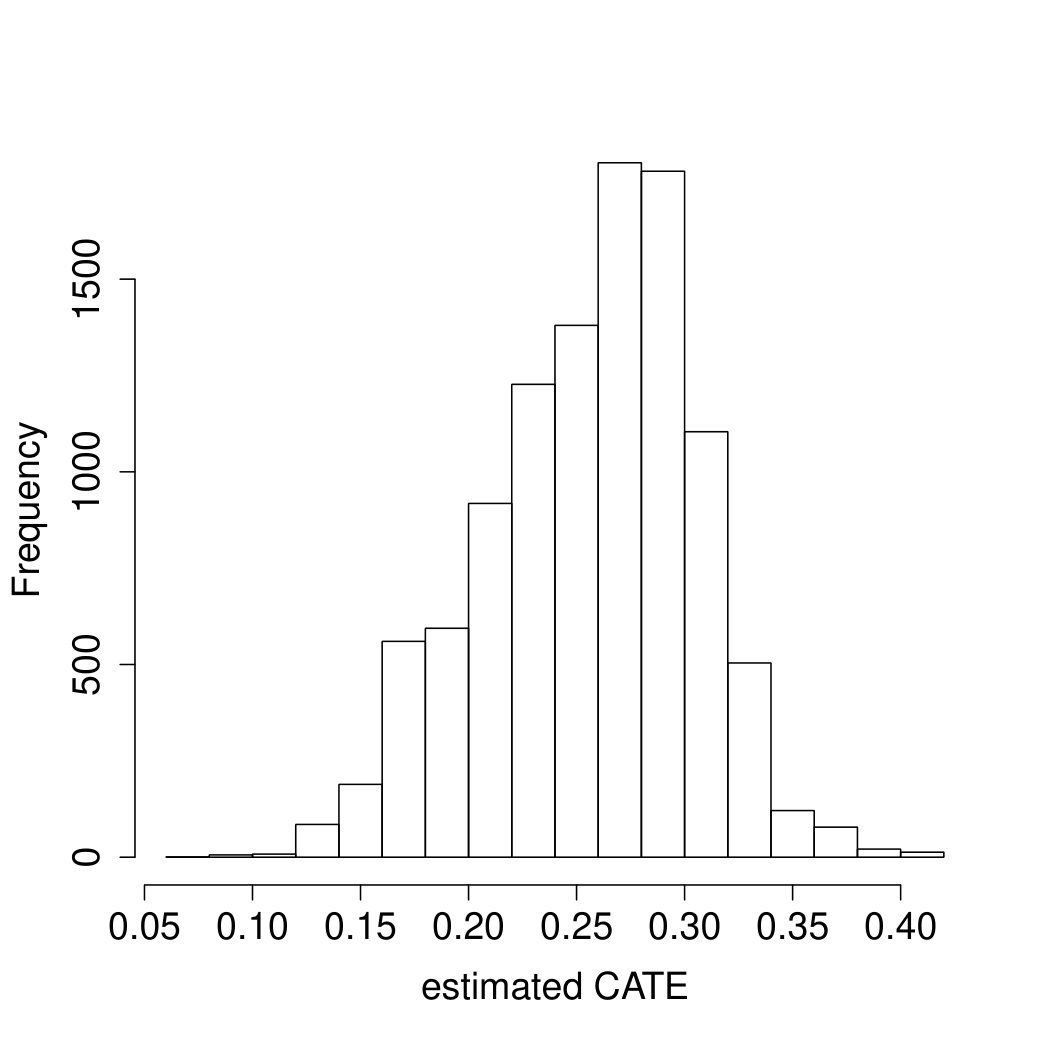

Below, we show output from running both analyses (note that all results are cluster-robust, where each cluster gets the same weight). The overall picture appears somewhat mixed: Although point estimates are consistent with the presence of heterogeneity, neither detection is significant. Thus, at least if we insist on cluster-robust inference, any treatment heterogeneity that may be present appears to be relatively weak, and causal forests do not identify subgroups with effects that obviously stand out. We discuss the role of cluster-robustness further in Section 3.1.

⬇

Compare regions with high and low estimated CATEs

high_effect = tau.hat > median(tau.hat)

ate.high = average_treatment_effect(cf, subset = high_effect)

ate.low = average_treatment_effect(cf, subset = !high_effect)

paste("95% CI for difference in ATE:",

  round(ate.high[1] - ate.low[1], 3), "+/-",

  round(qnorm(0.975) * sqrt(ate.high[2]^2 + ate.low[2]^2), 3))

"95% CI for difference in ATE: 0.053 +/- 0.071"

Run best linear predictor analysis

test_calibration(cf)

                    Estimate Std. Error t value Pr(>|t|)

mean.prediction 1.007477 0.083463 12.0710 <2e-16 ***

differential.prediction 0.321932 0.306738 1.0495 0.294

2.3 The effect of X1 and X2

Although our omnibus tests did not find strong evidence of treatment heterogeneity, this does not mean there is no heterogeneity present. Researchers had pre-specified interest in heterogeneity along two specific variables, namely pre-existing mindset (X1) and school-level achievement (X2), and it is plausible that a test for heterogeneity that focuses on these two variables may have more power than the agnostic tests explored above.

Both X1 and X2 are school-level variables, so we here design tests based on the per-school doubly robust treatment effect estimates $\hat{\tau}_{j}$ computed in (8). As seen below, this more targeted analysis uncovers notable heterogeneity along X1, i.e., schools with larger values of X1 appear to experience larger effects than schools with smaller values of X1. Conversely, we do not see much heterogeneity along X2, whether we divide schools into 2 subgroups (to test the monotone hypothesis) or into 3 subgroups (to test the goldilocks hypothesis).

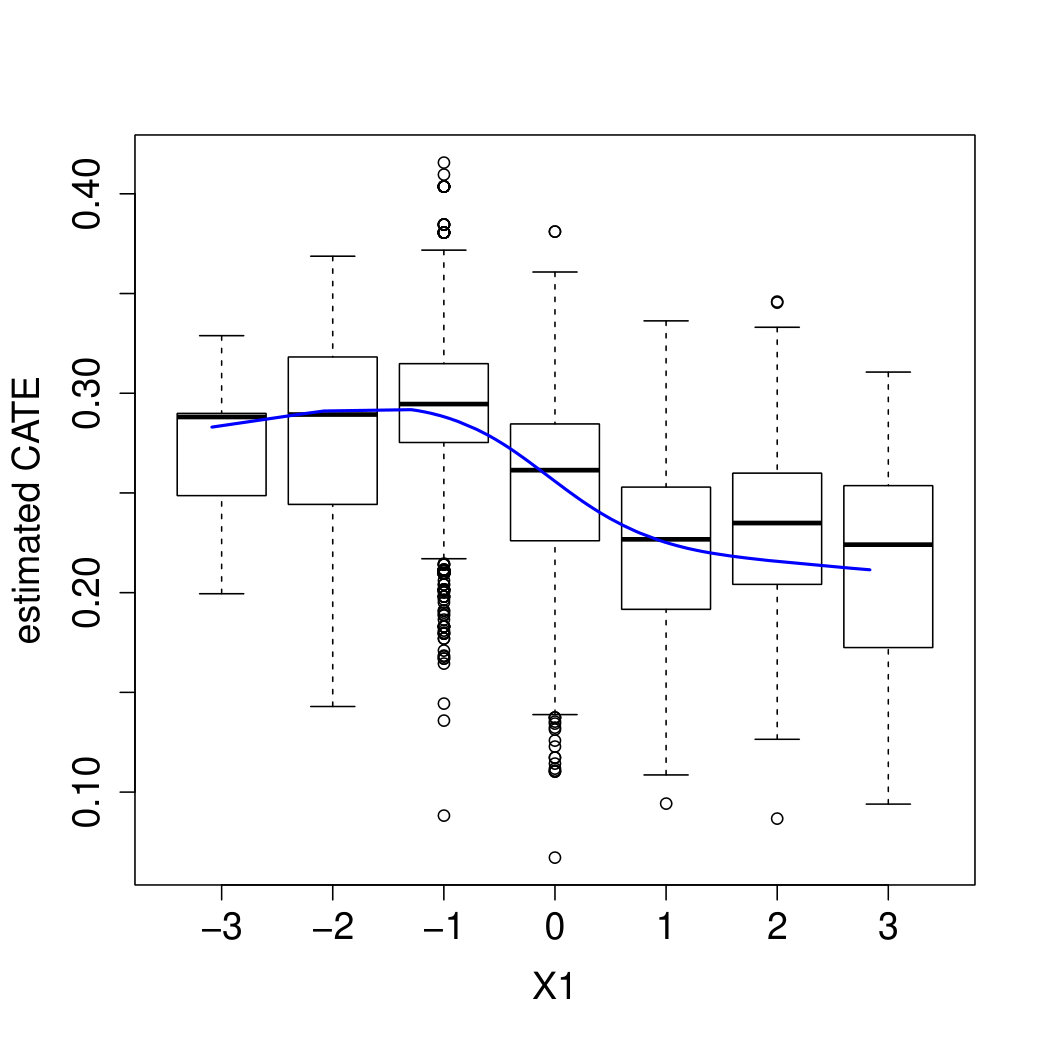

Although the $p$-value for heterogeneity along X1 is not small enough to withstand a Bonferroni test, it seems reasonable to take the detection along X1 seriously because heterogeneity along X1 was one of two pre-specified hypotheses. Interestingly, we also note that X1 was the most important variable in the causal forest: The final causal forest was trained on 9 “selected” variables, and spent 24% of its splits on X1 with splits weighted by depth (as in the function variable_importance). The left panel of Figure 3 plots the relationship between X1 and $\hat{\tau}^{(-i)}(X_{i})$.

⬇

dr.score = tau.hat + W / cf$W.hat *

(Y - cf$Y.hat - (1 - cf$W.hat) * tau.hat) -

(1 - W) / (1 - cf$W.hat) * (Y - cf$Y.hat + cf$W.hat * tau.hat)

school.score = t(school.mat) %*% dr.score / school.size

school.X1 = t(school.mat) %*% X$X1 / school.size

high.X1 = school.X1 > median(school.X1)

t.test(school.score[high.X1], school.score[!high.X1])

t = -3.0205, df = 72.087, p-value = 0.00349

95 percent confidence interval: -0.1937 -0.0397

school.X2 = (t(school.mat) %*% X$X2) / school.size

high.X2 = school.X2 > median(school.X2)

t.test(school.score[high.X2], school.score[!high.X2])

t = 1.043, df = 72.431, p-value = 0.3004

95 percent confidence interval: -0.0386 0.1234

school.X2.levels = cut(school.X2,

breaks = c(-Inf, quantile(school.X2, c(1/3, 2/3)), Inf))

summary(aov(school.score ~ school.X2.levels))

             Df Sum Sq Mean Sq F value Pr(>F)

school.X2.levels 2 0.085 0.04249 1.365 0.262

Residuals 73 2.272 0.03112

2.4 Looking for school-level heterogeneity

Our omnibus test for heterogeneity from Section 2.2 produced mixed results; however, when we zoomed in on the pre-specified covariates X1 and X2 in Section 2.3, we uncovered interesting results. Noticing that both X1 and X2 are school-level (as opposed to student-level) covariates, it is natural to ask whether an analysis that only focuses only on school-level effects may have had more power than our original analysis following Algorithm 1.

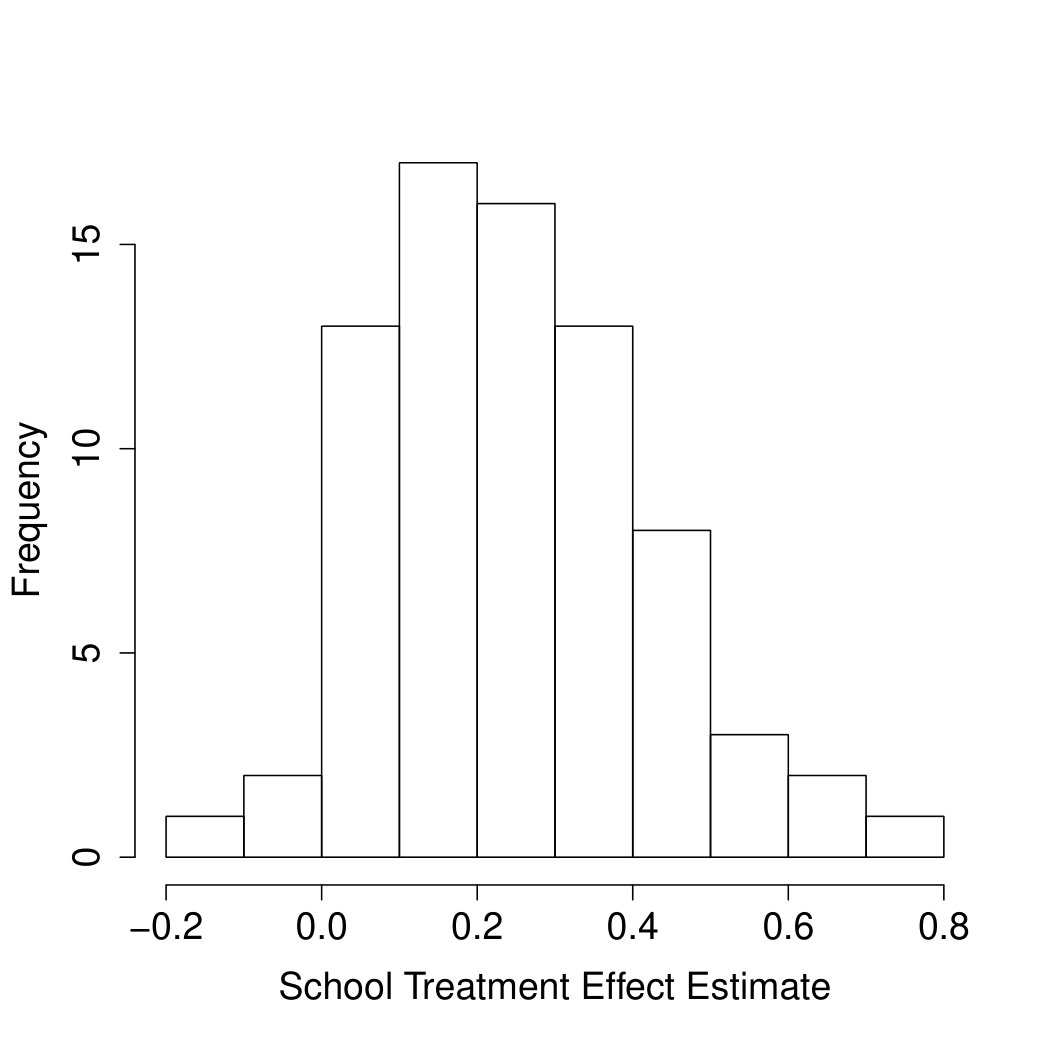

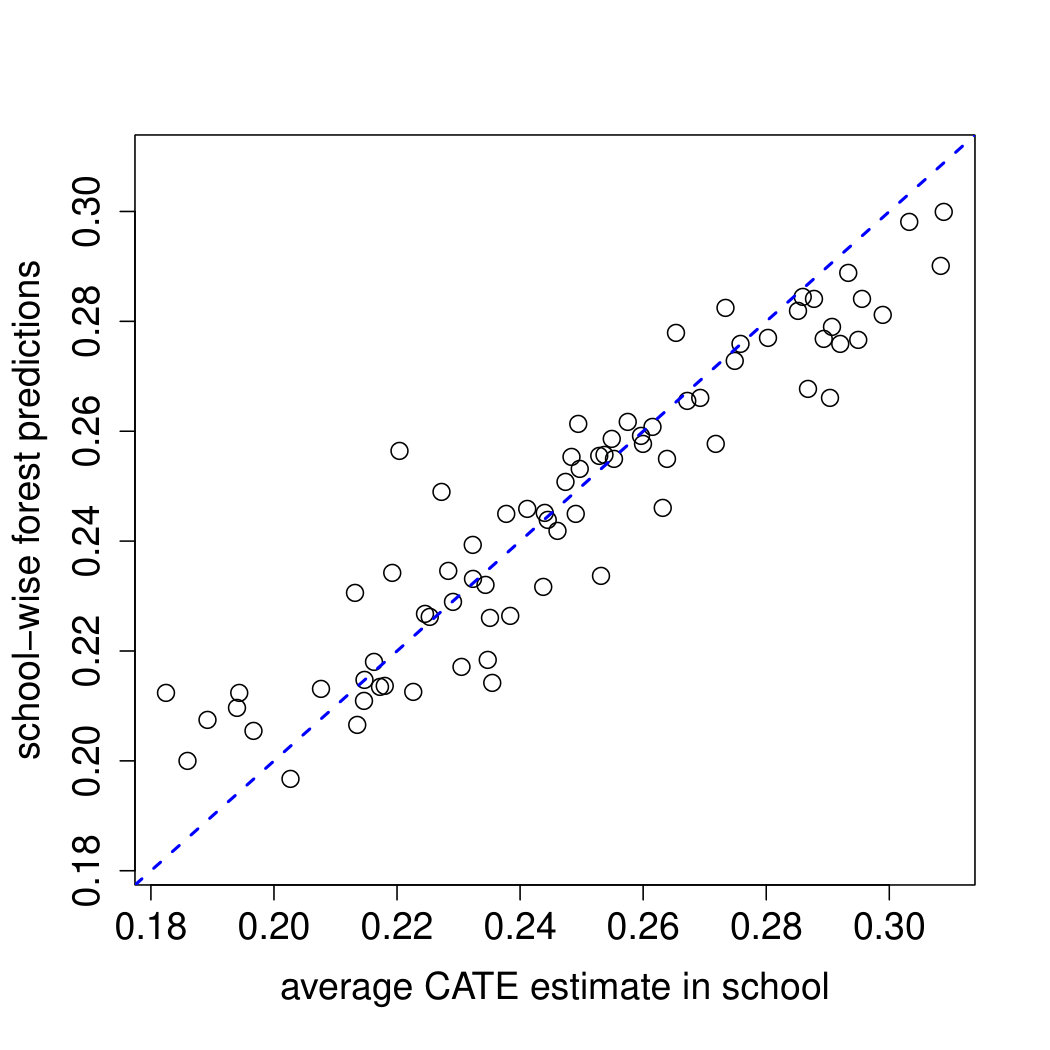

Here, we examine this question by fitting models to the school-level estimates $\hat{\tau}_{j}$ from (8) using only school level covariates. We considered both an analysis using a regression forest, as well as classical linear regression modeling. Both methods, however, result in conclusions that are in line with the ones obtained above. The strength of the heterogeneity found by the regression forest trained on the $\hat{\tau}_{j}$ as measured by the “calibration test” is comparable to the strength of the heterogeneity found by our original causal forest; moreover, as seen in the right panel of Figure 3, the predictions made by this regression forest are closely aligned with school-wise averaged predictions from the original causal forest. Meanwhile, a basic linear regression analysis uncovers a borderline amount of effect modification along X1 and nothing else stands out.

The overall picture is that, by looking at the predictor X1 alone, we can find credible effect modification that is correlated negatively with X1. However, there does not appear to be strong enough heterogeneity for us to be able to accurately fit a more complex model for $\tau(\cdot)$: Even a linear model for effect modification starts to suffer from low signal, and it is not quite clear whether X1 is an effect modifier after we control for the other school-level covariates.

⬇

Regression forest analysis

school.forest = regression_forest(school.X, school.score)

school.pred = predict(school.forest)$predictions

test_calibration(school.forest)

                    Estimate Std. Error t value Pr(>|t|)

mean.prediction 0.998765 0.083454 11.9679 <2e-16 ***

differential.prediction 0.619299 0.706514 0.8766 0.3836

Ordinary least-squares analysis

coeftest(lm(school.score ~ school.X), vcov = vcovHC)

          Estimate Std. Error t value Pr(>|t|)

(Intercept) 0.2434703 0.0770302 3.1607 0.002377 **

X1 -0.0493032 0.0291403 -1.6919 0.095377 .

X2 0.0143625 0.0340139 0.4223 0.674211

X3 0.0092693 0.0264267 0.3508 0.726888

X4 0.0248985 0.0258527 0.9631 0.339019

X5 -0.0336325 0.0265401 -1.2672 0.209525

XC.1 -0.0024447 0.0928801 -0.0263 0.979081

XC.2 0.0826898 0.1052411 0.7857 0.434845

XC.3 -0.1376920 0.0876108 -1.5716 0.120818

XC.4 0.0408624 0.0820938 0.4978 0.620313

3 Post-workshop analysis

Two notable differences between the causal forest analysis used here and a more direct machine-learning-based analysis were our use of cluster-robust methods, and of orthogonalization for robustness to confounding as in (7). To understand the value of these features, we revisit some analyses from Section 2 without them.

3.1 The value of clustering

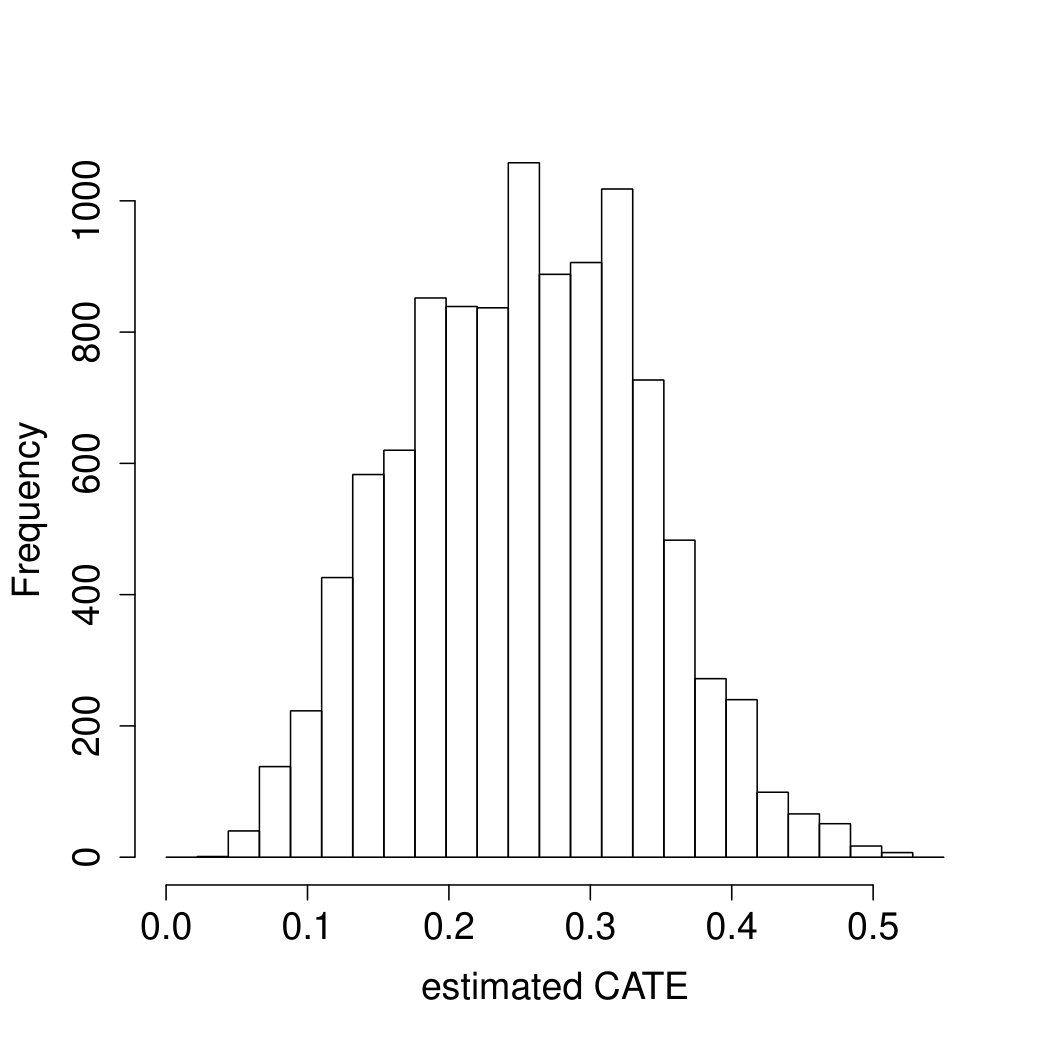

If we train a causal forest on students without clustering by school, we obtain markedly different results from before: The confidence interval for the average treatment effect is now roughly half as long as before, and there appears to be unambiguously detectable heterogeneity according to the test_calibration function. Moreover, as seen in the left panel of Figure 4, the CATE estimates $\hat{\tau}^{(-i)}(X_{i})$ obtained without clustering are much more dispersed than those obtained with clustering (see Figure 2): The sample variance of the $\hat{\tau}^{(-i)}(X_{i})$ increases by a factor 5.82 without clustering.

It appears that these strong detections without clustering are explained by excess optimism from ignoring variation due to idiosyncratic school-specific effects, rather than from a true gain in power from using a version of causal forests without clustering. The right panel of Figure 4 shows per-school estimates of $\hat{\tau}^{(-i)}(X_{i})$ from the non-cluster-robust causal forest, and compares them to predictions for the mean CATE in the school obtained in a way that is cluster-robust. The differences are striking: For example, the left-most school in the right panel of Figure 4 has non-cluster-robust $\hat{\tau}^{(-i)}(X_{i})$ estimates that vary from 0.26 to 0.36, whereas the cluster-robust estimate of its mean CATE was roughly 0.2. A simple explanation for how this could come about is that students in the school happened to have unusually high treatment effects, and that the non-cluster-robust forest was able to overfit to this school-level effect because it does not account for potential correlations between different students in the same school.

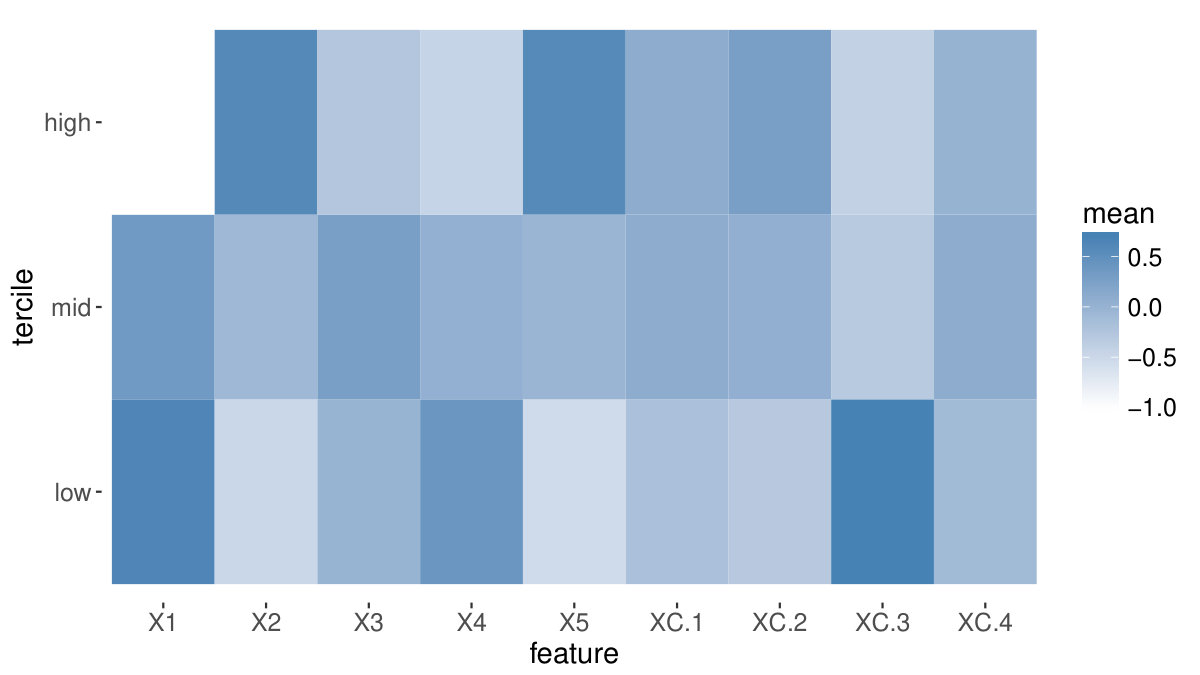

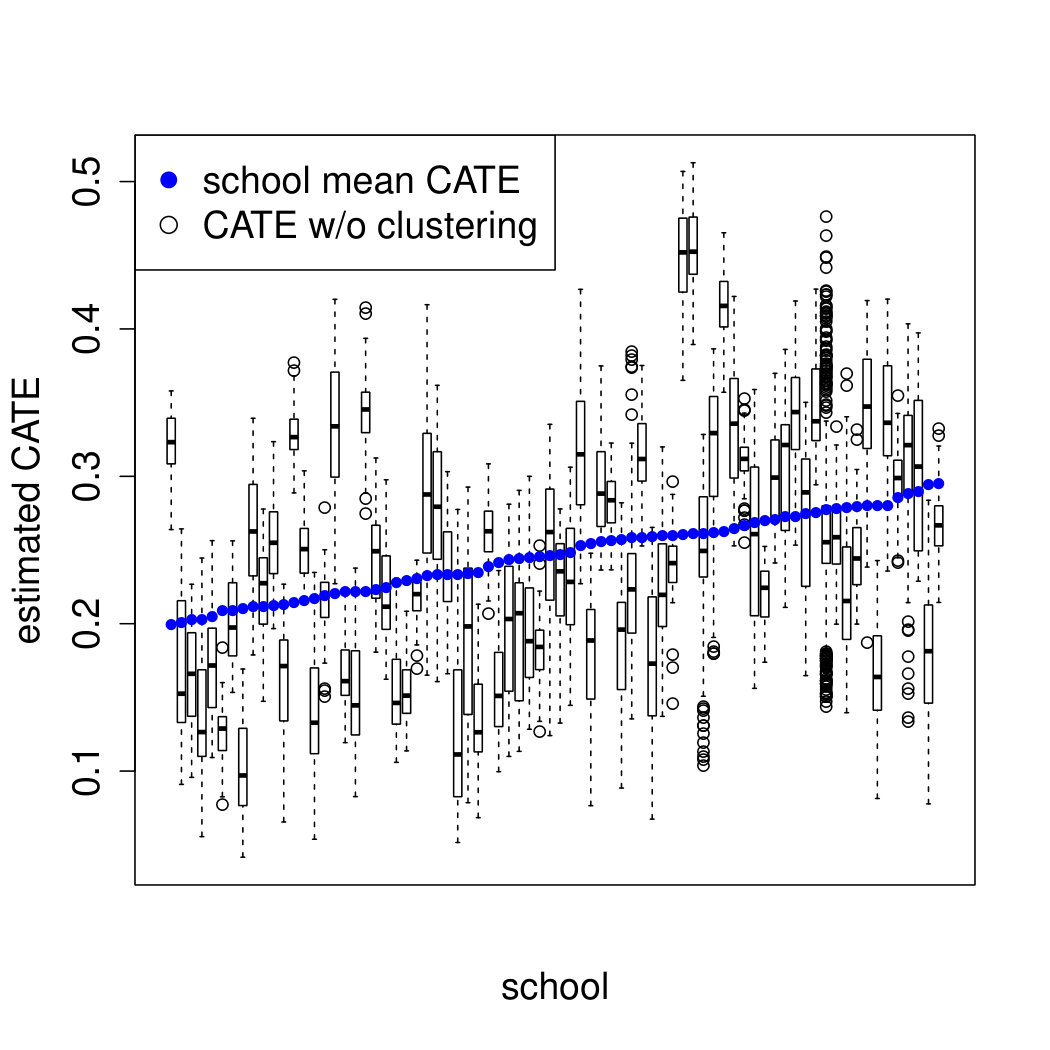

To gain deeper insights into the behavior of non-cluster robust forests, we tried a 5-fold version of this algorithm where the forests themselves are not cluster-robust, but the estimation folds are cluster aligned. Specifically, we split the schools into 5 folds; then, for each fold, we fit a causal forest without clustering on observations belonging to schools in the 4/5 other folds, and made CATE estimates on the held out fold. Finally, re-running a best linear prediction test on out-of-fold predictions as in the test_calibration function, we found at best tenuous evidence for the presence of heterogeneity (in fact, the resulting $t$-statistic for heterogeneity, 0.058, was weaker than the one in Section 2.2). In other words, if we use evaluation methods that are robust to clustering, then the apparent gains from non-cluster-robust forests wash away.

Thus, it appears that different schools have very different values of $\hat{\tau}_{j}$; however, most of the school-wise effects appear to be idiosyncratic, and cannot be explained using covariates. In order to gain insights that generalize to new schools we need to cluster by school; and, once we do so, much of the apparent heterogeneity between schools ends up looking like noise.

⬇

cf.noclust = causal_forest(X[,selected.idx], Y, W,

                       Y.hat = Y.hat, W.hat = W.hat,

                       tune.parameters = TRUE)

ATE.noclust = average_treatment_effect(cf.noclust)

paste("95% CI for the ATE:", round(ATE.noprop[1], 3),

  "+/-", round(qnorm(0.975) * ATE.noprop[2], 3))

"95% CI for the ATE: 0.253 +/- 0.022"

test_calibration(cf.noclust)

                    Estimate Std. Error t value  Pr(>|t|)

mean.prediction 1.003796 0.044779 22.4164 < 2.2e-16 ***

differential.prediction 0.634163 0.132700 4.7789 1.786e-06 ***

3.2 The value of orthogonalization

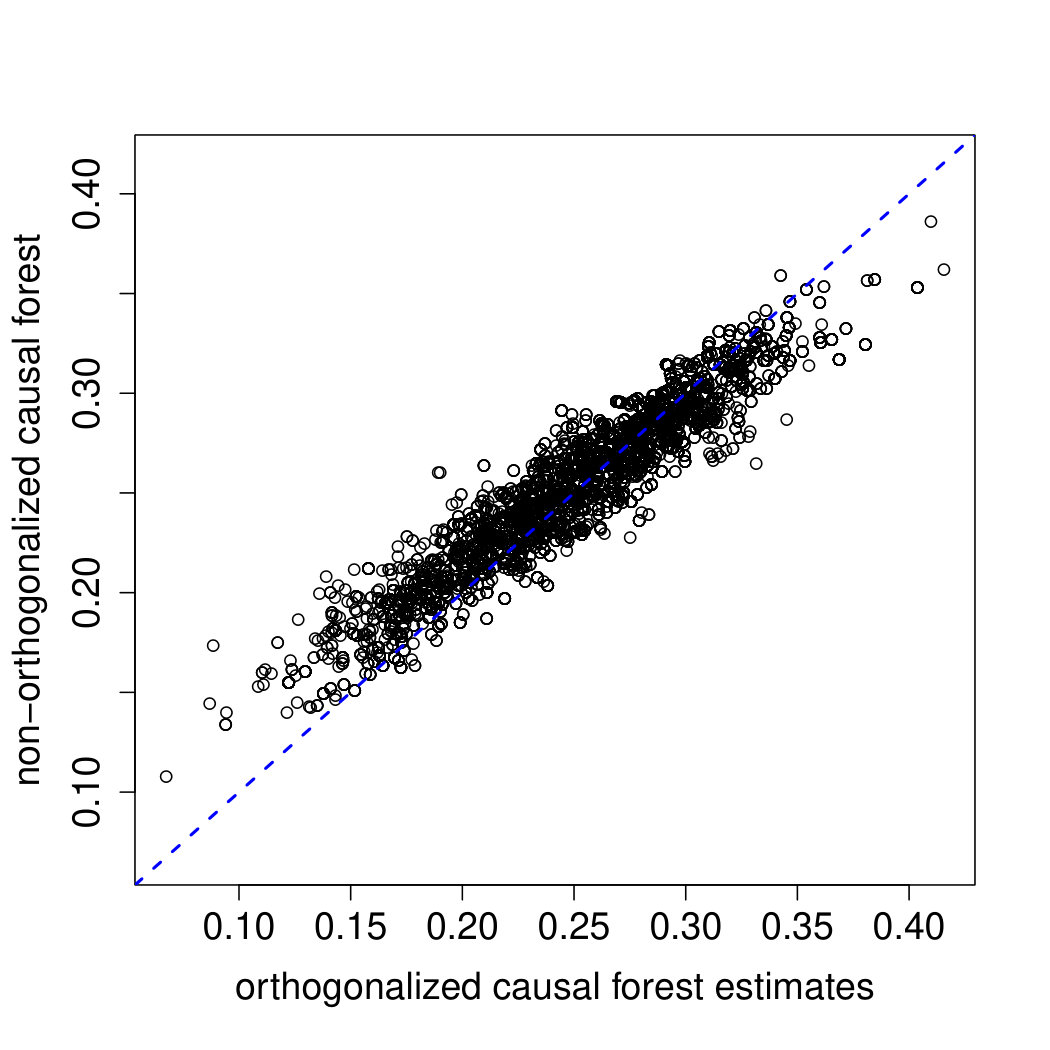

In this dataset, orthogonalization appears to be less important than clustering. If we train a causal forests without estimating the propensity score or, more specifically, using the trivial propensity model $\hat{e}(X_{i})=\overline{W}=n^{-1}\sum_{i=1}^{n}W_{i}$, we uncover essentially the same average treatment effect estimate as with orthogonalization. Moreover, as shown in Figure 5, the causal forests trained with or without orthogonalization yield essentially the same CATE estimates $\hat{\tau}^{(-i)}(X_{i})$.

One reason for this phenomenon may be that, here, the most important confounders are also important for predicting $Y$: In Algorithm 1, the most important predictor for both the $W$- and $Y$-forests is S3, with 22% of splits and 70% of splits respectively (both weighted by depth as in the variable_importance function). Meanwhile, as argued in Belloni, Chernozhukov, and Hansen (2014), orthogonalization is often most important when there are some features that are highly predictive of treatment propensities but not very predictive of $Y$. Thus, it is possible that the non-orthogonalized forest does well here because we were lucky, and there were no confounders that only had a strong effect the propensity model.

To explore this hypothesis, we present a synthetic example where some variables have stronger effects on $W$ than on $Y$ and see that, as expected, orthogonalization is now important. There is clearly no treatment effect, yet the non-orthogonalized forest appears to find a non-zero effect.

⬇

cf.noprop = causal_forest(X[,selected.idx], Y, W,

                      Y.hat = Y.hat, W.hat = mean(W),

                      tune.parameters = TRUE,

                      samples_per_cluster = 50,

                      clusters = school.id)

ATE.noprop = average_treatment_effect(cf.noprop)

paste("95% CI for the ATE:", round(ATE.noprop[1], 3),

  "+/-", round(qnorm(0.975) * ATE.noprop[2], 3))

"95% CI for the ATE: 0.253 +/- 0.04"

n.synth = 1000; p.synth = 10

X.synth = matrix(rnorm(n.synth * p.synth), n.synth, p.synth)

W.synth = rbinom(n.synth, 1, 1 / (1 + exp(-X.synth[,1])))

Y.synth = 2 * rowMeans(X.synth[,1:6]) + rnorm(n.synth)

Y.forest.synth = regression_forest(X.synth, Y.synth)

Y.hat.synth = predict(Y.forest.synth)$predictions

W.forest.synth = regression_forest(X.synth, W.synth)

W.hat.synth = predict(W.forest.synth)$predictions

cf.synth = causal_forest(X.synth, Y.synth, W.synth,

        Y.hat = Y.hat.synth, W.hat = W.hat.synth)

ATE.synth = average_treatment_effect(cf.synth)

paste("95% CI for the ATE:", round(ATE.synth[1], 3),

  "+/-", round(qnorm(0.975) * ATE.synth[2], 3))

"95% CI for the ATE: 0.125 +/- 0.151"

cf.synth.noprop = causal_forest(X.synth, Y.synth, W.synth,

        Y.hat = Y.hat.synth, W.hat = mean(W.synth))

ATE.synth.noprop = average_treatment_effect(cf.synth.noprop)

paste("95% CI for the ATE:", round(ATE.synth.noprop[1], 3),

  "+/-", round(qnorm(0.975) * ATE.synth.noprop[2], 3))

"95% CI for the ATE: 0.220 +/- 0.142"

4 Discussion

We applied causal forests to study treatment heterogeneity on a dataset derived from the National Study of Learning Mindsets. Two challenges in this setting involved an observational study design with unknown treatment propensities, and clustering of outcomes at the school level. Causal forests allow for an algorithmic specification that addresses both challenges. Of these two challenges, school-level clustering had a dramatic effect on our analysis. If we properly account for the clustering, we find hints of the presence of treatment heterogeneity (Section 2.3), but accurate non-parametric estimation of $\tau(x)$ is difficult (Section 2.2). In contrast, an analysis that ignores clusters claims to find very strong heterogeneity in $\tau(x)$ that can accurately be estimated (Section 3.1).

This result highlights the need for a deeper discussion of the how to work with clustered observations when modeling treatment heterogeneity. The traditional approach is to capture cluster effects via “fixed effect” or “random effect” models of the form

[TABLE]

where $A_{i}\in\left\{1,\,...,\,J\right\}$ denotes the cluster membership of the $i$-th sample whereas $\beta_{j}$ and $\gamma_{j}$ denote per-cluster offsets on the main effect and treatment effect respectively, and the nomenclature around fixed or random effects reflects modeling choices for $\beta$ and $\gamma$ (Wooldridge, 2010). In a non-parametric setting, however, assuming that clusters have an additive effect on $Y_{i}$ seems rather restrictive. The approach we took in this note can be interpreted as fitting a functional random effects model

[TABLE]

where each cluster has its own main and treatment effect function, and the expectation above is defined with respect to the distribution of per-cluster treatment effect functions. It would be of considerable interest to develop a better understanding of the pros and cons of different approaches to heterogeneous treatment effect estimation on clustered data.
