Emergent perturbation independent decay of the Loschmidt echo in a many-spin system studied through scaled dipolar dynamics

TL;DR

This study demonstrates that in many-spin quantum systems, the Loschmidt Echo decay rate becomes independent of perturbations and is governed solely by intrinsic interactions, revealing a fundamental aspect of quantum thermalization.

Contribution

The paper introduces a protocol to scale coupling strength in a nuclear spin system, showing perturbation-independent decay of Loschmidt Echoes governed by intrinsic interactions.

Findings

Loschmidt Echo decay rate depends only on interactions, not perturbations.

Scaling coupling strength extends coherence time T2.

Quantum information scrambling observed via OTOCs and LE metrics.

Abstract

Evaluating the role of perturbations versus the intrinsic coherent dynamics in driving to equilibrium is of fundamental interest to understand quantum many-body thermalization, in the quest to build ever complex quantum devices. Here we introduce a protocol that scales down the coupling strength in a quantum simulator based on a solid-state nuclear spin system, leading to a longer decay time T2, while keeping perturbations associated to control error constant. We can monitor quantum information scrambling by measuring two powerful metrics, out-of-time-ordered correlators (OTOCs) and Loschmidt Echoes (LEs). While OTOCs reveal quantum information scrambling involving hundreds of spins, the LE decay quantifies, via the time scale T3, how well the scrambled information can be recovered through time reversal. We find that when the interactions dominate the perturbation, the LE decay rate only depends on the interactions themselves, T3 ~ T2, and not on the perturbation. Then, in an unbounded many-spin system, decoherence can achieve a perturbation-independent regime, with a rate only related to the local second moment of the Hamiltonian.

Figures

Equations

$${\mathcal{H}}_{\text{d}}^z=\sum _{i<j}{d}_{ij}(3I_i^z{I}_j^z-{\text{I}}_i\cdot {\text{I}}_j),$$

$$P_z^{\delta }(t)=\mathrm{Tr}\left[e^{\mathrm{i}t{\mathcal{H}}_{\delta }}{I}^z{e}^{-\mathrm{i}t{\mathcal{H}}_{\delta }}{I}^z\right]=⟨I^z(t)I^z(0){⟩}_{\beta =0}.$$

$$M^{\delta }(t)=\text{Tr}[e^{\mathrm{i}t{\mathcal{H}}_F^{\delta }}{e}^{\mathrm{i}t{\mathcal{H}}_B^{\delta }}{I}^z{e}^{\text{-i}t{\mathcal{H}}_B^{\delta }}{e}^{\text{-i}t{\mathcal{H}}_F^{\delta }}{I}^z]=⟨I_F^z(t)I_B^z(t){⟩}_0$$

$$M^{\delta =0}(t)=\exp \left(2\frac{{\Gamma }_R^2}{{\sigma }_R^2}-2\sqrt{\frac{{\Gamma }_R^4}{{\sigma }_R^4}+{\Gamma }_R^2{t}^2}\right)$$

$${\Gamma }_R$$

$${\sigma }_R$$

$$M(t)=\exp [-{\sigma }_R^2{t}^2]=\exp [-t^2/2T_{\ast }^2]$$

$$P(t)$$

$$\simeq \exp [-M_2{t}^2/2]=\exp [-t^2/2T_2^2]$$

$$T_2=0.03834ms\ll T_{\ast }=\sqrt{2}/0.708=1.998ms,$$

$$M(t)=\exp [-2{\Gamma }_{R}t].$$

$${\Gamma }_R/\hslash =\frac{\pi }{\hslash }{\sigma }_R^2\frac{1}{{\sigma }_{1R}}$$

$${\sigma }_{1R}=0.759\pm 0.232(ms{)}^{-1}$$

$$\frac{{\sigma }_1}{\sqrt{2}}=0.525(ms{)}^{-1}\simeq \frac{1}{T_{\ast }}\equiv \frac{{\sigma }_R}{\sqrt{2}}\ll \frac{1}{T_2}$$

Full text

Extensive efforts are directed at storing and manipulating quantum information with the goal of building novel quantum devices Monroe et al. (2016). As in experiments the number of qubits increases Zhang et al. (2017); Bernien et al. (2017); Neill and et al. (2018), more precise control techniques and a deeper understanding of quantum many-body dynamics become imperative. In particular, assessing the degree of stability of multi-qubit superpositions is crucial not only for technology but also for fundamental physics, from statistical mechanics foundations Basko et al. (2006); Choi et al. (2016) to the quantum information essence of space-time geometry Pastawski et al. (2015); Cowen (2015). In the neighborhood of black holes, the elementary entangled qubits inherent to a quantum field theory at the Planck scale Maldacena et al. (2016); Swingle (2018) may be affected by a sort of “quantum butterfly effect” similar to the Lyapunov instability known to manifest in classical chaotic systems Larkin and Ovchinikov (1969); Jalabert and Pastawski (2001); Rozenbaum et al. (2017).

Of particular interest is to assess how local information scrambles through a lattice of interacting spin qubits due to unitary evolution, and how well we can protect or recover the information from scrambling. In addressing these questions, a privileged position is still held by Nuclear Magnetic Resonance (NMR), a quantum simulator that allows to tailor Hamiltonian and even invert its sign, effectively inverting the arrow of time. In addition, solid-state NMR experiments can access large quantum systems, revealing emergent behavior in the thermodynamic limit Levstein et al. (1998); Danieli et al. (2007); Álvarez et al. (2015); Wei et al. (2018a); Zangara (2017).

Here we study the dynamics of a 3D nuclear spin lattice under XXZ effective Hamiltonians with scaled interaction strengths with the goals to (i) create a complex multi-spin superposition through unitary dynamics, (ii) evaluate the degree of scrambling, understood as the progressive delocalization of initially localized information, and (iii) quantify the degree of controllability of these states. To characterize the dynamics we implement time reversal to measure out-of-time-order correlators (OTOCs) and Loschmidt Echoes (LE) Goussev et al. (2012) that reveal how perturbative terms affect the performance of time reversal. Both OTOCs and LEs are powerful metrics of information scrambling and equilibration in a many-body systems, inspired by the magic echo Jalabert and Pastawski (2001); Sánchez et al. (2016) and NMR multiple quantum coherence (MQC) experiments Baum and Pines (1986); Cho et al. (2005).

To discriminate between effects due to the intrinsic system dynamics and experimental errors, we develop control sequences that engineer a Floquet transverse dipolar Hamiltonian whose strength can be scaled down by a factor $\pm\delta$. Inverting the Hamiltonian sign should ideally refocus the evolution and undo the fast scrambling of local observables. Although our control protocol is imperfect, thus giving rise to a signal decay, it still allows us to vary the relative time scales between experimental imperfections and the dipolar Hamiltonian-induced scrambling. Surprisingly, when trying to fully recover the initial information through a Loschmidt Echo, we find that this recovery has a decay rate whose lower bound remains tied to the strength of the Hamiltonian, i.e., to the dynamics that we should have been able to refocus. We will discuss how this result hints at the emergence of an intrinsic irreversibility in the thermodynamic limit regardless of the weakness of the perturbation terms.

Controlling the dynamics –

We consider a system composed by $N$ interacting spins-$1/2$ (the 1H nuclear spins in poly-crystalline adamantane at room temperature Schnell and Spiess (2001)) in the presence of a strong magnetic field, $\text{{B}}_{0}=B_{0}\hat{z}$. In the rotating frame, the Hamiltonian ($\hbar=1$) is $\mathcal{H}=-\sum_{i}\omega_{i}I_{i}^{z}+\mathcal{H}_{\text{d}}^{z}$, where $I_{i}^{\alpha}$ are spin-1/2 operators ($\alpha=x,y,z$). The first term is the Zeeman Hamiltonian, with $\omega_{i}$ the difference between the i-th spin’s and the rotating frame frequencies. The second term is the secular part of the dipolar Hamiltonian with respect to the external magnetic field,

[TABLE]

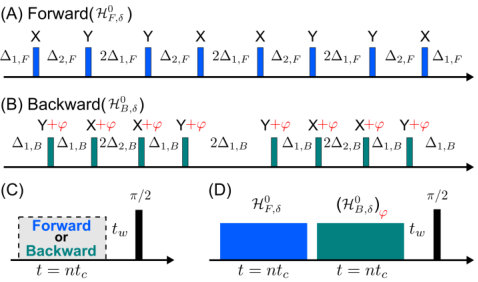

where the dipolar coupling strengths $d_{ij}$ decrease with distance as $r_{ij}^{-3}$. The system evolves under periodic trains of r.f. pulses that create desired Floquet Hamiltonians. Specifically, we designed pulse sequences, Fig. 1(A)-(B), that engineer a scaled dipolar Hamiltonian, with a scaling factor $\delta$ that can be adjusted by changing the time delays. We refer to the sequences as MPδ-A, where A=B,F indicates backward or forward respectively, $\delta$ refers to the scaling factor and M$=8$ or $16$ denotes the number of r.f. pulses. The 8Pδ-F,B (16Pδ-F,B) pulse sequences were designed to have the same number of pulses and cycle time $t_{c}=12\tau$ ($24\tau$), where $\tau$ is a variable time that enforces a safe minimum separation between r.f. pulses. This ensures that experimental errors are the same across all parameters employed, for both forward and backward evolution. We monitor the evolution with stroboscopic observations at multiples of the cycle time, when the time propagator can be described by an effective time-independent Hamiltonian Haeberlen (1976). This Floquet Hamiltonian can be obtained from a Magnus expansion $\mathcal{H}_{\delta}=\sum_{i=0}^{\infty}\mathcal{H}^{i}_{\delta}$, where $\mathcal{H}^{0}_{\delta}$ represents the average Hamiltonian and $\mathcal{H}^{i>0}_{\delta}$ are the $i$-th order correction terms. The forward (backward) sequence in Fig. 1C(D) yields the average Hamiltonian $\mathcal{H}^{0}_{F,\delta}=\delta\,\mathcal{H}^{y}_{d}$ ($\mathcal{H}^{0}_{B,\delta}=-\delta\,\mathcal{H}^{y}_{d}$), i.e., a rescaled dipolar Hamiltonian rotated to the $y$ -axis Wei et al. (2018b). The scaling factor $\delta$ is in the range $[0,1)$ for the forward sequence, while it can only go up to $1/2$ for the backward sequence that effectively reverses the arrow of time 111Note that depending on the value of $\tau$ it might not be possible to set $\delta$ to its extreme values, since experimentally we find that there needs to be a minimum time delay between pulses.. Both sequences cancel contributions from the Zeeman Hamiltonian, as well as other sources of dephasing. Furthermore, longer versions of the sequences (16Pδ-F,B), constructed by simply repeating the cycle with opposite phases, cancel the first order corrections, $\mathcal{H}_{\delta}^{1}$ (and all other odd-order corrections), as well as refocusing any heteronuclear dipolar interaction.

The experiments start with the system initially at equilibrium in a Boltzmann thermal state, which in the high temperature approximation can be described by the density operator $\rho(0)=\openone/D+\delta\rho(0)$, with $D$ the dimension of the Hilbert space and $\delta\rho(0)\propto I_{z}\!=\!\sum_{i}I_{i}^{z}$. As the identity does not evolve nor gives rise to signal, in the following we will be concerned only with the deviation $\delta\rho$. The system evolution under a scaled dynamics can be observed by applying the protocol of Fig 1(C): the system Hamiltonian is quenched to the Floquet Hamiltonian $\pm\delta\mathcal{H}_{d}^{y}$ by applying the pulse sequences of Fig. 1(A-B); then the total magnetization $I^{z}$ is measured after a short waiting time $t_{\text{w}}$ by applying a final $\pi/2$-pulse, prior to signal acquisition (which records the transverse magnetization by induction). This protocol yields a signal that provides a time-ordered correlation function:

[TABLE]

Scaled dynamics –

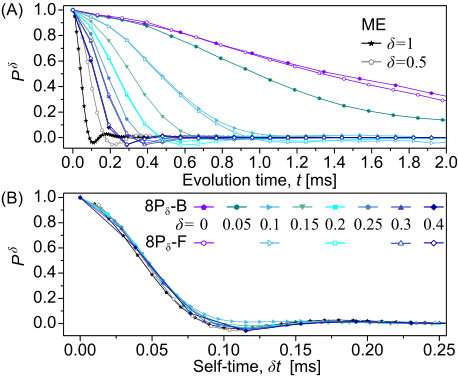

To evaluate the performance of the novel pulses sequences we used this protocol to measure the magnetization $P_{z}^{\delta}$ as a function of experimental time $t$ under the 8Pδ-F,B pulse sequences and scaling in the range $\delta=0-0.4$. We further consider the case $\delta=1$, obtained by simply allowing free evolution under the natural dipolar Hamiltonian (Eq. 1) in between two $\pi/2$-pulses and an additional $\pi$ pulse at half-time, to refocus the Zeeman dynamics. Also, we include evolution under a period of high power on-resonance r.f. irradiation of duration $t$ that results in $\delta=-1/2$ (Magic Echo sequence Rhim et al. (1971)). The results in Fig. 2 clearly show that the dynamics is modulated by the scaling factor, evolving slower as we decrease $\delta$. We further check that both forward and backward sequences give rise to the same magnetization dynamics, a crucial result when one seeks to achieve time reversal to evaluate Loschmidt echo and out-of-time order correlations.

Ideally we would expect no evolution for $\delta=0$ 222Indeed the sequence becomes a variant of the well-known WHH sequence Waugh et al. (1968), with pulse phases such that also the Zeeman hamiltonian is refocused.. Instead, the observed decay of $P^{\delta=0}(t)$, reveals limitations of the pulse sequence (non-zero higher order terms in the Magnus expansion) and experimental imperfections, due to uncorrected pulse errors. We can evaluate the effects of the lowest order errors in the Magnus approximation by applying symmetrized 16-pulse sequences that exactly cancel out all odd-order terms. While the 16Pδ-F,B sequences gives longer coherence times at $\delta=0$, the evolution for $\delta>0$ yields similar results SOM , pointing to the fact that the average Hamiltonian $\mathcal{H}^{0}$ is a good approximation to the effective Hamiltonian, with imperfections dominated by control errors. As the longer sequences only allow sparser stroboscopic observations, we kept using the 8-pulse sequences.

To appreciate the effects of the scaling factor in a more quantitative way, it is useful to plot the magnetizations $P^{\delta}$ as a function of the self-time, $\delta t=\delta\times t$, Fig. 2(B). Remarkably, all the experimental results collapse to a single curve, demonstrating the reliability of the 8Pδ-B pulse sequence, as well as the control used for $\delta=1$ and $\delta=-1/2$. For most of the $\delta$ values, the signal is consistent with an evolution dominated by the secular dipolar spin interaction, as highlighted by the fact that the same characteristic oscillation Abragam (2007) appears around $\delta t\approx 100~{}\mu$s. For $\delta=0.1$ and below (not shown), the behavior slightly departs from this common dynamics as we observe a simple decay. We can ascribe this result to the combination of two factors, the longer experimental time elapsed to achieve the same self-time $\delta t$ for smaller $\delta$, and the larger number of pulses required, which introduces more experimental errors. The dynamics for larger $\delta$ can instead be accurately fitted by the well-known function describing the signal decay under dipolar interaction Abragam (2007), $P(t)=\textrm{sinc}(wt)e^{-\frac{(ht)^{2}}{2}}$. The second moment and its corresponding relaxation time $M_{2}=(1/T_{2})^{2}$ can be calculated from the fitted parameters, $1/T_{2}=\sqrt{h^{2}+w^{2}/3}$. We find that $1/T_{2}$ is proportional to $\delta$, that is, the re-scaled second moment is constant, $1/\delta T_{2}\approx 23.4$kHz. This quantitatively confirms the robust behavior of the scaled dynamics observed in Fig. 2.

Time reversal –

The ability to engineer an Hamiltonian with a negative scaling factor is key to evaluate two quantities, the Loschmidt echo (LE) and the out-of-time order correlator (OTOC) that can reveal important properties of the many-spin dynamics. The Loschmidt echo can be observed by combining a forward and backward sequence (Fig. 1.B) for the same time $t$ and scaling $\delta$, yielding the signal:

[TABLE]

It is important to remark that if the time inversion were perfect, that is $\mathcal{H}_{F,\delta}=-\mathcal{H}_{B,\delta}$ to all orders, the LE intensity would stay constant, $M^{\delta}(t)=1$, thus its decay quantifies intrinsic and experimental imperfections.

OTO correlators and spin counting –

If the fidelity of forward and backward evolutions are good enough, we can get more insight into the multi-spin correlations created by the dynamics, widely known in NMR as multiple quantum coherences (MQC) Baum et al. (1985), by measuring OTOCs. Note that by inserting a collective spin rotation $\Phi=e^{-\mathrm{i}\varphi I_{z}}$ between the two pulse sequences blocks (see Fig. 1D), the signal is just the OTOC $S_{\varphi}=\langle{I_{z}(t)\Phi(t)I_{z}(t)\Phi}\rangle_{\beta=0}$. We can further evaluate the OTO commutator Wei et al. (2018b); Huang et al. (2017); Cohn et al. (2018); Niknam et al. $\mathcal{C}_{zz}=\langle|[I_{z},I_{z}(t)]|^{2}\rangle_{\beta=0}$, by repeating the experiment varying $\varphi$ in integer steps, $\varphi_{n}=2\pi n/Q$, $n=1,...,Q$ and extracting its discrete Fourier transform  Sánchez et al. (2016), $S_{q}^{\delta}(t)=\sum_{n=1}^{Q}e^{\mathrm{i}q\varphi}S_{\varphi_{n}}^{\delta}(t)$. The MQC intensities $S_{q}$ represent the contribution of all coherences of order $q$ in the density matrix of the multi-spin state, where a coherence $q$ with respect to a given basis (here the Zeeman basis $|{m_{z}}\rangle$) is any element $\langle r|\rho|s\rangle$ with $s\!-\!r\!=\!q$. While the sum of MQC intensities yields the LE, their second moment, $\mathcal{Q}^{2}=\sum_{q}q^{2}S_{q}(t)=\sum_{n}[Q^{2}+Q/\sin(\varphi_{n}/2)^{2}]S_{\varphi_{n}}(t)$ yields the OTOC Wei et al. (2018a, b), $\mathcal{Q}^{2}\propto\mathcal{C}_{zz}$. We remark that this second moment has been long interpreted in the NMR community as the number of interacting spins during the forward evolution, $N(t)=\mathcal{Q}$, under the assumption that due to the strong scrambling driven by spin-spin couplings all coherence orders accessible to the interacting spins are fully populated Baum et al. (1985); Baum and Pines (1986). According to this picture, the MQC intensity distribution at a fixed $t$ can be approximated by a Gaussian, $S(q,N(t))\propto e^{-q^{2}/N^{2}(t)}$, which allows spin counting, that is, evaluating the number of spins that have become correlated at time $t$ Sánchez C.M. (2014); Sánchez et al. (2016).

We extract the MQC intensities $S_{q}^{\delta}(t)$ by implementing the pulse protocol in Fig. 1(D) with the 16-pulse sequence for several scaling factors and evolution times. Each MQC distribution was fitted with a Gaussian to extract its second moment.

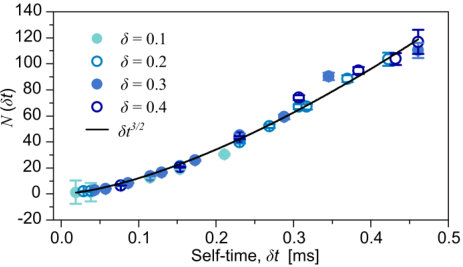

Figure 3 shows how the number of correlated spins $N$ (that is, the square root of the OTOC) grows as a function of the self-time. Even when varying the scaling factor $\delta$, the growth of spin correlation always shows the same behavior, and we can fit all the data to a single curve $N(\delta t)\sim\delta t^{3/2}$. This suggests a diffusive spread of scrambling among $2^{100}$ states of the Hilbert space in our adamantane 3D spin systems, while confirming the good performance of the sequence in scaling the dipolar evolution. This fast unbounded growth contrasts with the linear growth recently observed in linear chains Wei et al. (2018a) and weakly coupled molecules Niknam et al. , and with the saturation obtained under a non-interacting Hamiltonian (the double quantum Hamiltonian Pastawski et al. (1995); Madi et al. (1997)).

Loschmidt echoes under scaled dynamics –

The success of both pulse sequences, MPδ-B,F in scaling the evolution under the dipolar Hamiltonian is essential to investigate the role of the scaling parameter $\delta$ on the intrinsic irreversibility through the Loschmidt Echo. Experimental imperfections, such as non ideal r.f. pulses and higher order corrections to the average Hamiltonian, introduce a perturbative Hamiltonian term $\Sigma$, which is not inverted by our control and thus produces a decay in the echo intensity as a function of the evolution time. We first consider the LE decay at $\delta\!=\!0$ (inset of Fig. 4(B)), which represents the decay only due to these imperfections. We fit the $M^{\delta=0}(t)$ decay to the model first proposed in Ref. Flambaum and Izrailev (2001); Zangara (2017) (see SOM for details) $f(t)\!=\!\exp\!\left(2\tfrac{\Gamma^{2}}{\sigma^{2}}-2\sqrt{\tfrac{\Gamma^{4}}{\sigma^{4}}+\Gamma^{2}t^{2}}\right)$. From this fitting we define the characteristic time scale of the perturbations $\Sigma$, $T_{\Sigma}$, as the time associated to the half maximum intensity.

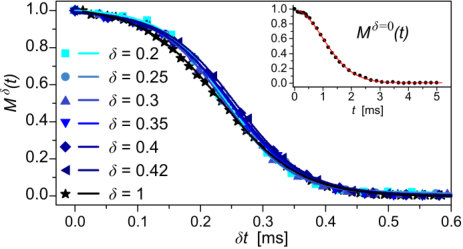

Even for $\delta>0$, the LE should only decay due to imperfections in the control, while the main dynamics is refocused by the time reversal. Still, we observe in Fig. 4 that LE curves, normalized by $M^{\delta=0}(t)$, present decay rates that increase with $\delta$, since they overlap when plotted as a function of self-time. The decays can be best fit to a Boltzmann function (sigmoid), $(1+e^{-\sigma^{2}(\delta t-t_{c})^{2}})^{-1}$ SOM , underlying an initial slow decay. Strikingly, the overlap of all $M^{\delta}$ as a function of the scaled time unveils that the rate of intrinsic irreversibility in the many spin system is directly related to the dominant Hamiltonian dynamics. We can define a (scaled) characteristic time for the degradation of the LEs, as a function of self-time, $\widetilde{T}_{3}=T^{\delta}_{3}\delta$, given by the time corresponding to half maximum intensity. To confirm our interpretation, we repeated the LE measurements with the longer 16Pδ sequence, which cancels the first order correction arising from finite width pulses ($\propto\delta t_{\pi/2}I_{x}$). While we obtain a longer $\widetilde{T}_{3}$ time for the symmetrized sequence ($\sim 20\%$ longer than for 8Pδ), the critical observation that the decay rate is proportional to the scaling $\delta$ still holds.

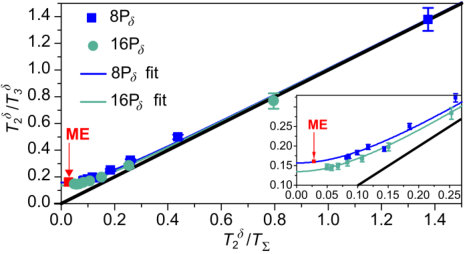

Following the analysis in Ref. Zangara (2017), we plot the LE decay rate, $1/T_{3}^{\delta}$, versus the perturbation’s characteristic rate $1/T_{\Sigma}$ for the various pulse sequences we implemented (8Pδ, 16Pδ and ME). Both rates are normalized by $1/T_{2}^{\delta}$, the second moment of the corresponding evolution $P^{\delta}(t)$. When residual interactions (characterized by $T_{\Sigma}$) dominate the intrinsic dipolar dynamics (described by $T^{\delta}_{2}$) at small $\delta$, the experimental points fall on a line with slope 1 ($T_{3}^{\delta}\approx T_{\Sigma}$). At larger values of $\delta$, instead, (in the limit of vanishing perturbation $T^{\delta}_{2}/T_{\Sigma}\ll 1$), the ratio $T_{2}^{\delta}/T_{3}^{\delta}$ surprisingly saturates at a fraction $R\approx 0.15\pm 0.02$ of the reversible time-scale (Fig. 5). That is, thanks to the good control we achieve in these many body systems, we can probe a regime where reversible interactions responsible for information scrambling become dominant over experimental imperfections and show that, as first proposed in Ref. (Zangara, 2017), it is these interactions responsible for scrambling, which are in principle reversed by the LE, that set the irreversibility rate revealed by the LE.

Conclusions –

We introduced pulse sequences capable to engineer a dipolar Hamiltonian with a controllable scaling factor and invert its sign. We demonstrate the effectiveness of the pulse sequences in scaling the interactions by showing that the signal following evolution under the scaled dynamics collapses to a single curve as a function of the self-time for a wide range of scaling factors. This is true not only when monitoring local operators via the total magnetization, but also when measuring OTO commutators via the MQC intensities. Thus the scaled dynamics still drives information scrambling over a large system, and we observe the number of correlated spins to grow with a single diffusive law as a function of self-time.

The good control we demonstrate enables studying the source of Loschmidt echo decay, by defining their characteristic decoherence time $T^{\delta}_{3}$ . When the usually dominating dipolar interaction has been canceled out by the control ($\delta=0$), we can extract a direct measure of the perturbation time-scale $T_{\Sigma}$ from the LE decay. Remarkably, when the dipolar interaction dominates (large $\delta$), we find $T_{3}^{\delta}\simeq T_{2}^{\delta}/R$, even if the LE should cancel the intrinsic dynamics. This result reinforces the Central Hypothesis of Irreversibility hinted by previous experiments: in a many-spin system in the thermodynamic limit, the Loschmidt echo decays with a perturbation-independent rate $1/T_{3}$, that is related to the local second moment of the unperturbed Hamiltonian, in a similar role to a Lyapunov exponent, and not to residual experimental imperfections. While this perturbation-independent time scale of the LE decay set a strong limit to preserving quantum information and avoiding thermalization, we note however that the the decay law is neither an exponential Jalabert and Pastawski (2001) nor Gaussian Zurek et al. (2007), but closer to a sigmoid Rufeil-Fiori et al. (2009). This indicates that in many-body systems, the evolution remains fairly reversible for short times and it is only after a few times $T_{2}$ that the scrambling dynamics becomes irreversible to all practical purposes. This initially slow decay opens the possibility to use error correcting protocols to protect information.

Experimental Details

The spin system consisted of protons in polycrystalline adamantane, a plastic crystal where the 1H spins form a dipole-coupled many-spin system. In this sample the rapid and isotropic rotation of molecules at room temperature averages out intramolecular dipole-dipole interactions as well as chemical shift anisotropy. Further details on polycrystalline adamantane can be found in Ref. Schnell and Spiess (2001).

All the experiments were performed in a Bruker Avance II spectrometer operating at 300 MHz Larmor frequency under controlled temperature at $303$ K.

The r.f. power was set to 125 kHz, resulting in $\pi/2$ pulses of length $t_{\pi/2}=2\mu$s. The waiting time $t_{w}$ before detection was set to $500\mu$s, in order to allow the decay of unwanted transverse magnetization. For the backward or forward pulse sequences, the parameter $\tau$ associated to the inter-pulse spacing, was selected in the range between $6$ to $16\mu$ s. For a given scaling factor, experiments with different $\tau$ values were conducted. The curves displayed in Fig. 10 correspond to the $\tau$ values producing maximum signal. Evolution times were studied in the range [math] to $3$ms. For multiple quantum coherence (MQC) experiments, the phase increments $\varphi$ were varied in $64$ steps in order to encode up to 32 coherence orders. The scaled dipolar evolution produces only even coherence orders, although it was verified the existence of odd coherences originating from experimental imperfections, with intensities much lower than the dominant even orders. Loschmidt echoes and MQC encoding experiments imply the application of forward and backward blocks with the same scaling $\delta$, that is in the range of [math] to $0.42$. Non-ideality of $\pi/2$ pulses was taken into account.

Quantifying the residual interaction

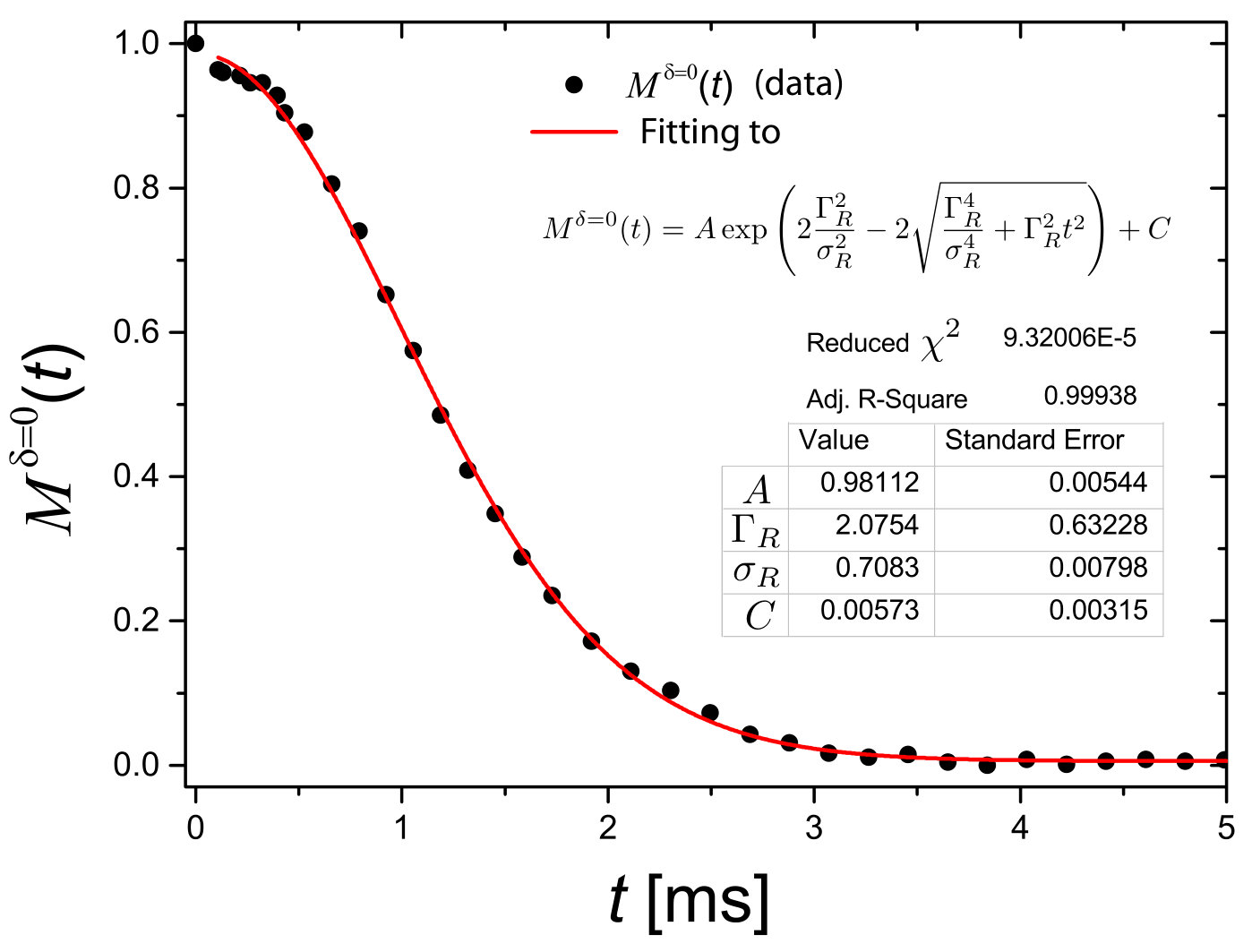

Once the scaling factor vanishes, $\delta=0$, only high order terms in the Magnus expansion remain, including those due to control imperfection. These residual interactions produce the decay of the Loschmidt echo. While a simple Gaussian fit is already a good approximation of the decay, further physical insight, especially about the long-time, exponential behavior, is gained by considering the Flambaum-Izrailev law Flambaum and Izrailev (2001), which describes both decays:

[TABLE]

Fitting the experimental data we obtain

[TABLE]

As $\Gamma_{R}$ is large, at short times the decay is Gaussian, with

[TABLE]

This short time decay has to be compared with the decay of the polarization due to a forward evolution in a spin environment, using the model proposed by Abragam Abragam (2007), which quantifies the second moment of the local interactions $M_{2}$

[TABLE]

Experimentally,

[TABLE]

which indicates that the scaling pulse sequence plus the Loschmidt time reversal procedure has almost frozen the spin dynamics to the point that the second moment of the residual interactions represents only 2% of its original value. Since these residual interactions, being high order, are not restricted to the original lattice geometry nor to two-body interactions, but involve instead a huge connectivity in the Hilbert space Zangara et al. (2015), such a reduction in the effective second moment is quite remarkable and indicates that the original interactions have been quite efficiently eliminated.

On the other hand, for longer times the LE decays as

[TABLE]

This exponential regime can be obtained from a Fermi Golden Rule derivation,

[TABLE]

where $1/\sigma_{1R}=N_{1}$ is the Density of Directly Connected States of the residual interaction, or correlations function of the environmental spins, after the scaling and the Loschmidt’s time reversal procedure has been applied. From the experimental fit we obtain

[TABLE]

which then leads to:

[TABLE]

This result means that after scaling and time reversal the remaining spin dynamics can be essentially assigned to a residual network of interacting spins where the effective interaction itself have been scaled down by two orders of magnitude respect to the original interaction. i.e. the scaling is a global effect. The finding $\sigma_{1}\simeq\sigma_{R,}$ confirms that Gaussian decay contains the right physics for all practical purposes.

Loschmidt echoes as a function of scaled time, $\delta t$.

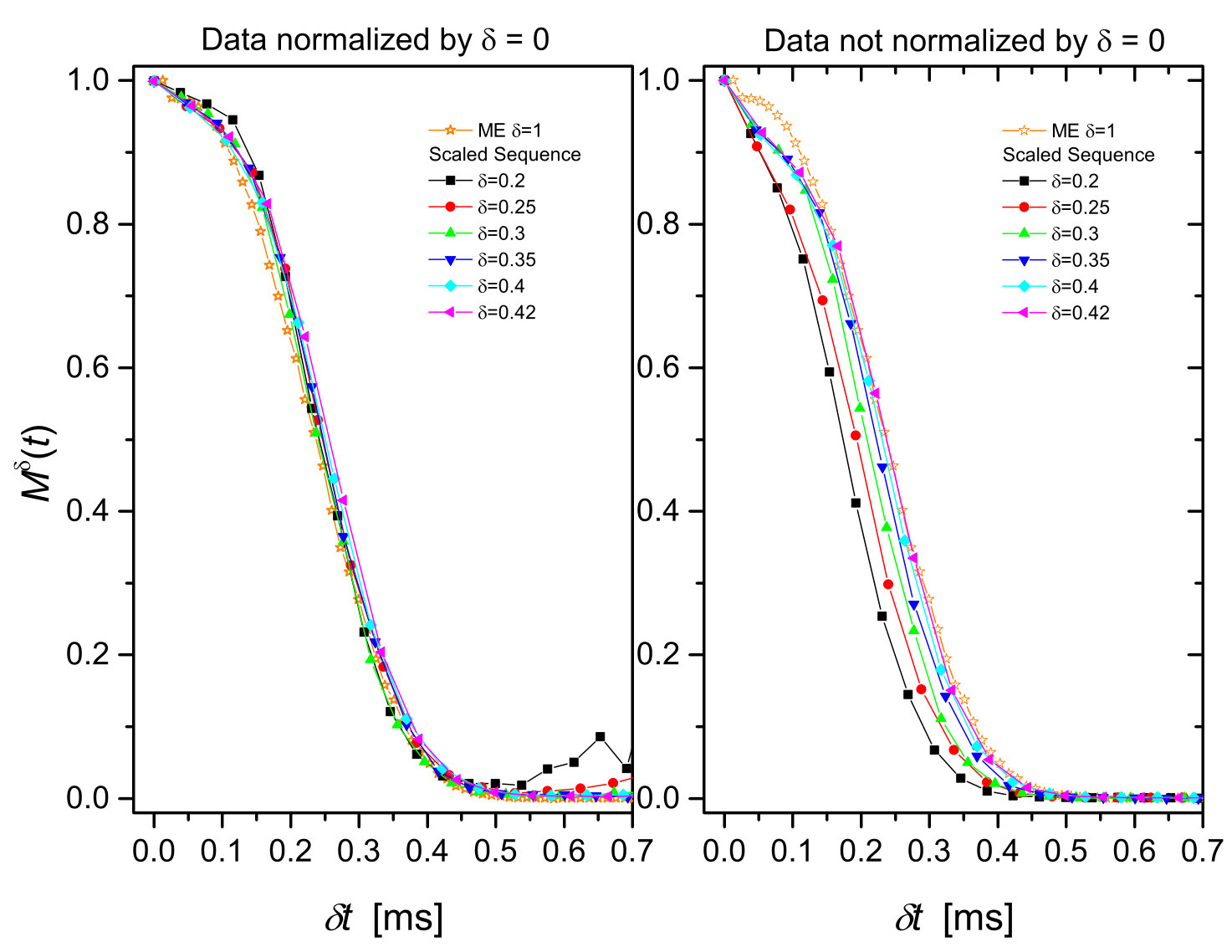

Figure 7 shows that only by normalizing to $M^{\delta=0}(t)$ we obtain a single behavior for all scaling factors $\delta$. Indeed, while the left plot shows the overlap of all the curves, in the right plot we observe instead that the different curves are ordered by the scale factor, decaying faster for smaller $\delta$ factor. This fact can be understood by taking into account that for a given $\delta t$ value, the data corresponding to smaller $\delta$, are obtained with a measurement with a longer experimental time, and therefore more affected by errors, which are removed when normalizing.

Comparison of normalized Loschmidt echoes for 8P and 16P sequences

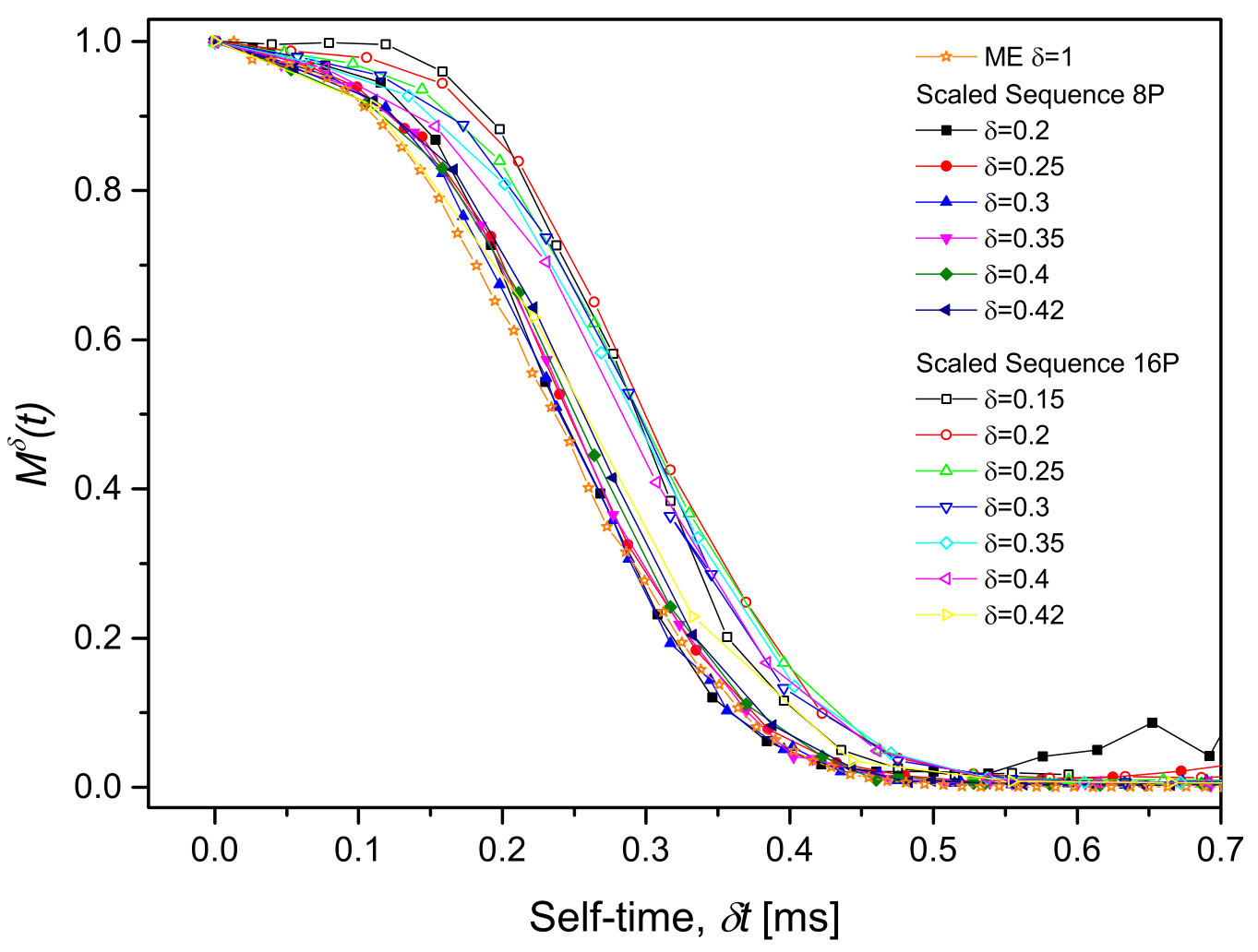

Each set of LE curves as a function of $\delta t$ overlap into a single behavior, one for 8P and another for 16P (see Fig. 8). We can observe that the behavior for 16P presents a longer characteristic time for the decay. This fact can be understood taking into account that the 16P sequence cancels out the $\mathcal{H}^{(1)}$ of the AHT.

Fitting the Loschmidt Echo curves

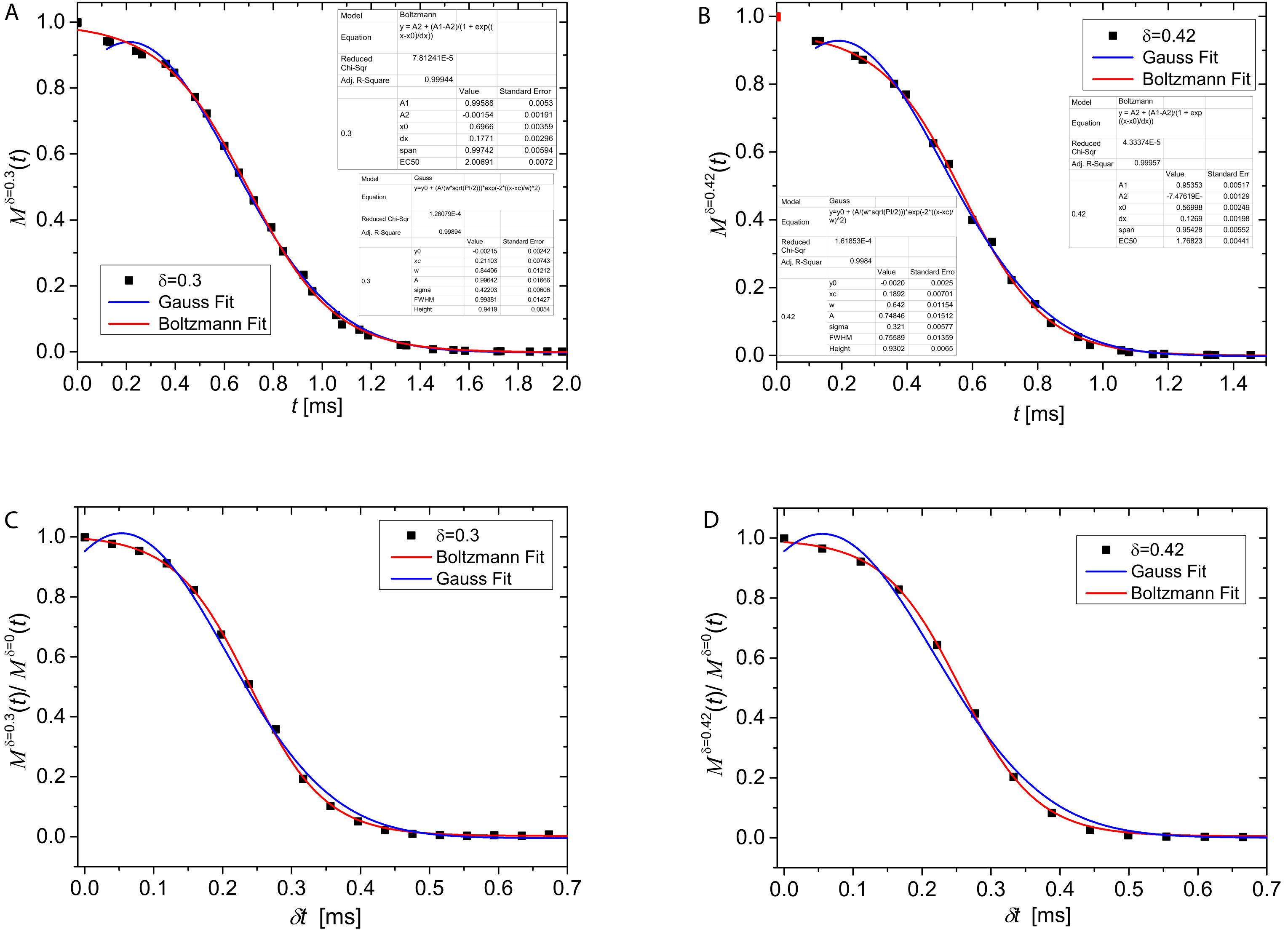

We compare models for fitting the LE decay (for $\delta>0$), in particular we consider fitting either to a Gaussian or a Boltzmann function, with equation $f(t)=A2+(A1-A2)/(1+exp((x-x0)/dx))$. In figures 9 A-B, we display, as an example, the LE data without normalization corresponding to $\delta=0.3$ and $\delta=0.42$ respectively. In the case of non-normalized LEs, fittings with a Gaussian curve or a Boltzmann one are both acceptable, although the Boltzmann one is better.

Figures 9 C-D display the normalized LE corresponding to the same $\delta=0.3$ and $\delta=0.42$ respectively. In these cases we can see that Bolzmann fittings are much better than Gaussian ones.

Loschmidt echoes as a function of experimental times

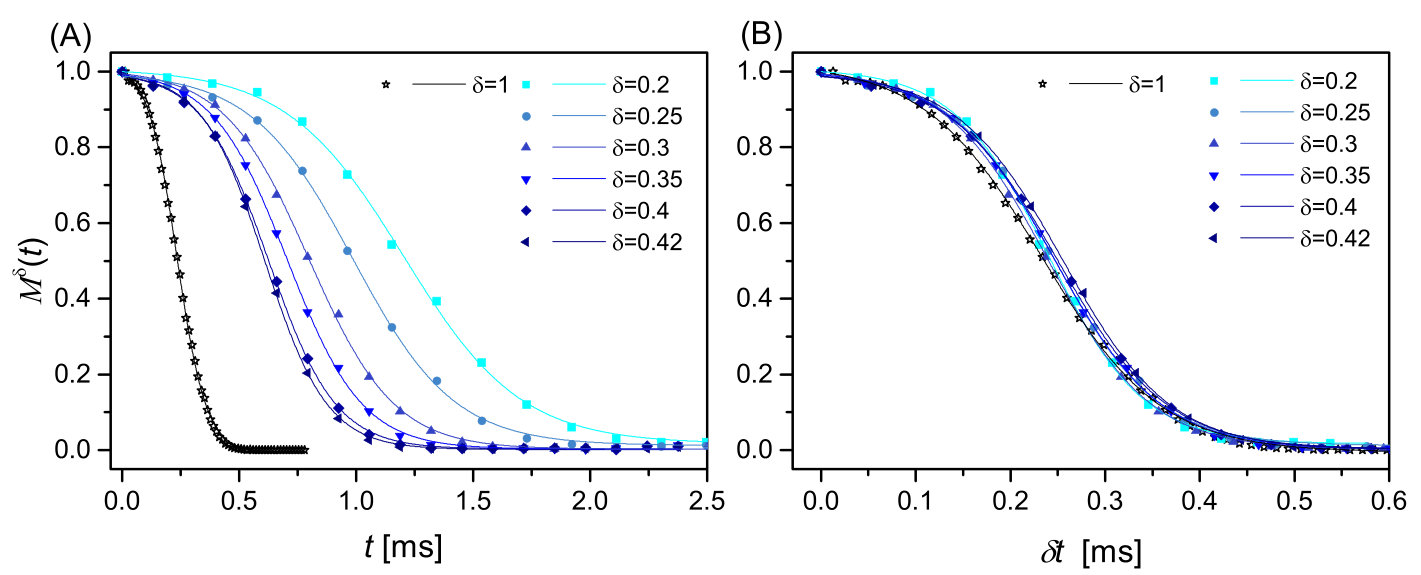

In Fig.10(A) we display the normalized LE by dividing to $M^{\delta=0}(t)$, as a function of the experimental time. In this case the curves appear ordered by the scaling factor $\delta$, decaying faster for larger $\delta$ values. In Fig.10(B) the same curves plotted vs. the scaled time $\delta t$ overlap in a single behavior.

Obtaining $T_{2}$ and $T_{3}$

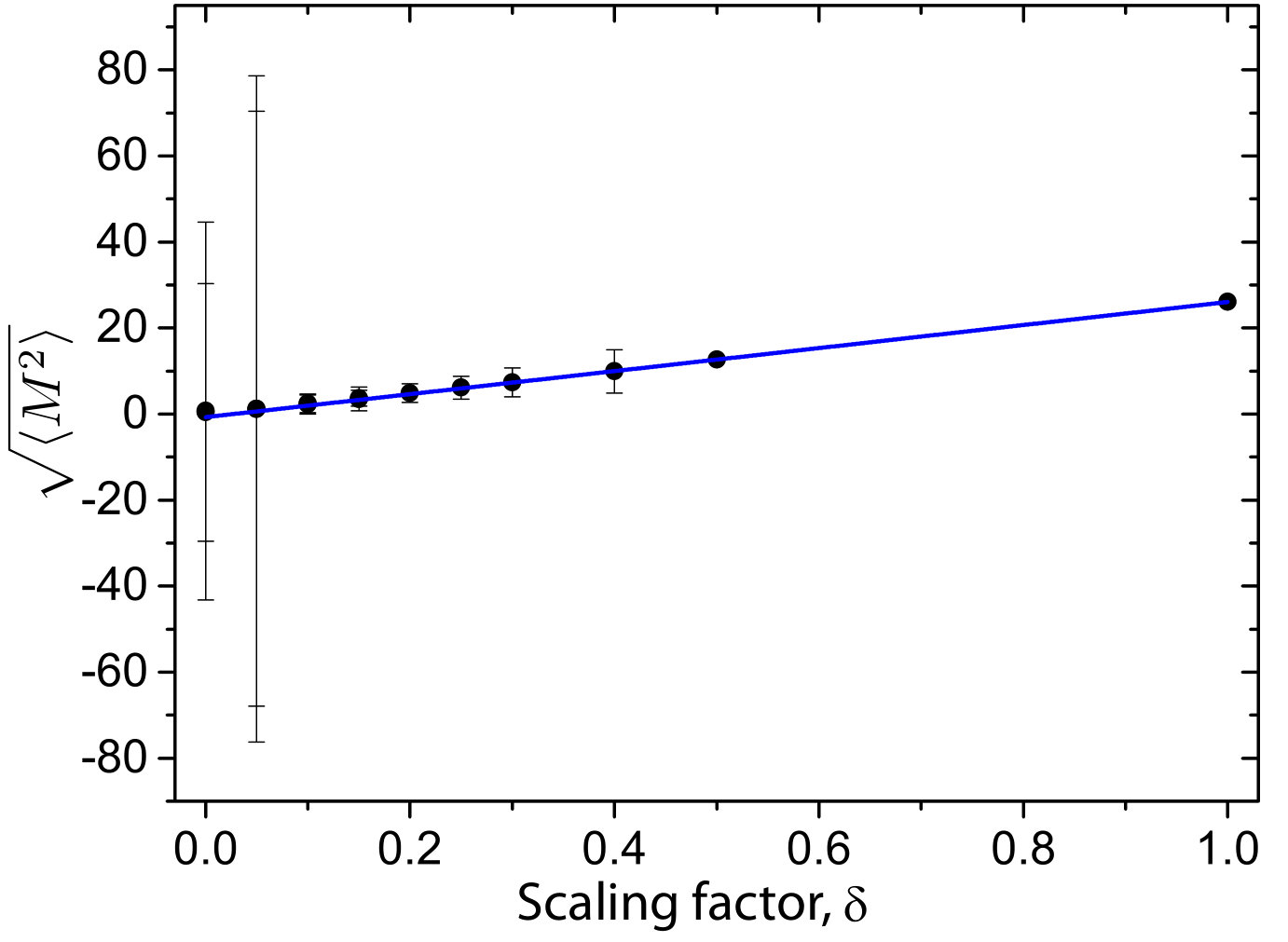

The forward or backward dynamics can be fitted by the well-known function describing the signal decay under dipolar interaction Abragam (2007), $P(t)=\textrm{sinc}(wt)e^{-\frac{(ht)^{2}}{2}}$. The second moment and its corresponding relaxation time $M_{2}=(1/T_{2})^{2}$ can be calculated from the fitted parameters, $1/T_{2}=\sqrt{h^{2}+w^{2}/3}$. We find that $1/T_{2}$ is proportional to $\delta$, fitting a linear curve, that is shown in Fig.. From this fitting we obtain the $1/T_{2}$ values as a function of $\delta$ used in Fig. 5 of the main paper.

The $T_{3}$ values were obtained from the non-normalized LE as a function of experimental time. $T_{3}$ corresponds to the time associated to the half maximum intensity. Note that these values are independent of the fitting curves mentioned in the previous section.

The $T_{\Sigma}$ values were obtained from the LE for $\delta=0$. It corresponds to the time associated to the half maximum intensity. Note that this times are independent of the fitting curve (and it’s $T_{\Sigma}\approx T_{\ast}$).
