Approximate Green's Function Coupled Cluster Method Employing Effective Dimension Reduction

TL;DR

This paper introduces a model-order-reduction technique for the Green's function coupled cluster method, significantly reducing computational costs while maintaining accuracy in spectral function calculations for molecular systems.

Contribution

The work applies model-order-reduction to GFCC, enabling efficient spectral calculations through reduced dimension models built iteratively from auxiliary vectors.

Findings

Reduced computational overhead demonstrated on molecular systems

Spectral functions computed with high accuracy using reduced models

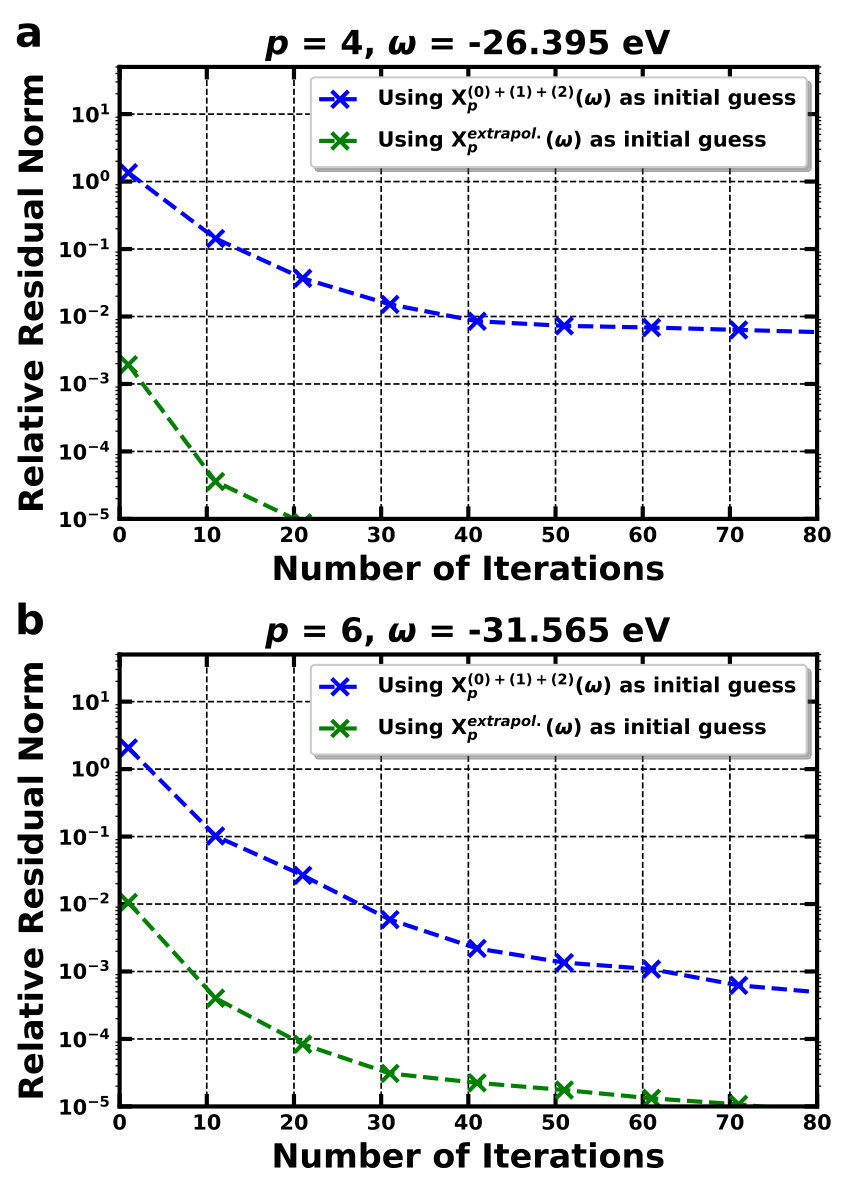

Improved convergence rates with high-quality initial guesses

Abstract

The Green's function coupled cluster (GFCC) method is a powerful many-body tool for computing the electronic structure of molecular and periodic systems, especially when electrons of the system are strongly correlated. However, for the GFCC to be routinely used in the electronic structure calculations, robust numerical techniques and approximations must be employed to reduce its high computational overhead. In our recent studies, we demonstrated that the GFCC equations can be solved directly in the frequency domain using iterative linear solvers, which can be easily distributed in a massively parallel environment. In the present work, we demonstrate a successful application of model-order-reduction (MOR) techniques in the GFCC framework. Briefly, for a frequency regime which requires high resolution spectral function, instead of solving GFCC linear equation of full dimension for every single frequency point, an efficiently-solvable linear system model of a reduced dimension may be built upon projecting the original GFCC linear system onto a subspace. From this reduced order model is obtained a reasonable approximation to the full dimensional GFCC linear equations in both interpolative and extrapolative spectral regions. Here, we show that the subspace can be properly constructed in an iterative manner from the auxiliary vectors of the GFCC linear equations at some selected frequencies within the spectral region of interest. During the iterations, the quality of the subspace and the linear system model can be systematically improved. The method is tested in terms of the efficiency and accuracy of computing spectral functions for some typical molecular systems such as carbon monoxide, 1,3-butadiene, benzene, and adenine. As a byproduct, the obtained reduced order model may provide a high quality initial guess which improves the convergence rate for the existing iterative linear solver.

Figures

Tables

Table 1. Table 1: Vertical ionization potentials of the CO molecule, as well as associated molecular orbital ( p 𝑝 p ) and leading configurations (with associated contribution > > 0.1), obtained from the GFCCSD-MOR calculations shown in Figs. 1 and 2 . The cc-pVDZ basis is used in all the calculations. The unit of all frequencies is eV.

3-freq. model in [-43.54, -10.88]						9-freq. model in [-43.54, -10.88]						20-freq. model in [-43.54, -10.88]
$\omega$		$p$		Leading Conf.		$\omega$		$p$		Leading Conf.		$\omega$		$p$		Leading Conf.
-13.825		7		$5{\sigma }^{-1}$		-13.797		7		$5{\sigma }^{-1}$		-13.797		7		$5{\sigma }^{-1}$
-16.873		5,6		$1{\pi }^{-1}$		-16.737		5,6		$1{\pi }^{-1}$		-16.737		5,6		$1{\pi }^{-1}$
-19.512		4		$4{\sigma }^{-1}$		-19.458		4		$4{\sigma }^{-1}$		-19.458		4		$4{\sigma }^{-1}$
-26.289		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-26.370		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-26.370		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$
$-$		$-$		$-$		-31.759		5,6		$5{\sigma }^{-2}1{\pi }^{\ast }$		-31.704		5,6		$5{\sigma }^{-2}1{\pi }^{\ast }$
$-$		$-$		$-$		-33.446		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-33.419		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$
-36.439		3		$3{\sigma }^{-1}$		-36.249		3		$3{\sigma }^{-1}$		-36.249		3		$3{\sigma }^{-1}$
-40.685		3		$3{\sigma }^{-1}$, $5{\sigma }^{-2}1{\sigma }^{\ast }$		-38.725		3		$5{\sigma }^{-2}1{\sigma }^{\ast }$		-38.725		3		$5{\sigma }^{-2}1{\sigma }^{\ast }$
-42.535		3		$5{\sigma }^{-2}1{\sigma }^{\ast }$, $1{\pi }^{-1}4{\sigma }^{-1}1{\pi }^{\ast }$,		-40.576		3		$3{\sigma }^{-1}$, $1{\pi }^{-1}4{\sigma }^{-1}1{\pi }^{\ast }$		-40.576		3		$3{\sigma }^{-1}$, $1{\pi }^{-1}4{\sigma }^{-1}1{\pi }^{\ast }$
				$1{\pi }^{-1}5{\sigma }^{-1}1{\pi }^{\ast }$, $3{\sigma }^{-1}$
5-freq. model in [-16.33, -10.88]						8-freq. model in [-21.77, -10.88]						7-freq. model in [-27.21, -10.88]
$\omega$		$p$		Leading Conf.		$\omega$		$p$		Leading Conf.		$\omega$		$p$		Leading Conf.
-13.797		7		$5{\sigma }^{-1}$		-13.797		7		$5{\sigma }^{-1}$		-13.797		7		$5{\sigma }^{-1}$
-16.737		5,6		$1{\pi }^{-1}$		-16.737		5,6		$1{\pi }^{-1}$		-16.737		5,6		$1{\pi }^{-1}$
-19.458		4		$4{\sigma }^{-1}$		-19.458		4		$4{\sigma }^{-1}$		-19.458		4		$4{\sigma }^{-1}$
-26.397		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-26.370		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-26.370		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$
$-$		$-$		$-$		-31.895		5,6		$5{\sigma }^{-2}1{\pi }^{\ast }$		-31.759		5,6		$5{\sigma }^{-2}1{\pi }^{\ast }$
-33.800		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-33.419		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$		-33.446		3,4,7		$5{\sigma }^{-1}1{\pi }^{-1}1{\pi }^{\ast }$
-36.331		3		$3{\sigma }^{-1}$		-36.249		3		$3{\sigma }^{-1}$		-36.249		3		$3{\sigma }^{-1}$
-39.270		3		$5{\sigma }^{-2}1{\sigma }^{\ast }$, $3{\sigma }^{-1}$		-38.834		3		$5{\sigma }^{-2}1{\sigma }^{\ast }$		-38.853		3		$5{\sigma }^{-2}1{\sigma }^{\ast }$
-40.875		3		$3{\sigma }^{-1}$, $1{\pi }^{-1}4{\sigma }^{-1}1{\pi }^{\ast }$		-40.630		3		$3{\sigma }^{-1}$, $1{\pi }^{-1}4{\sigma }^{-1}1{\pi }^{\ast }$		-40.651		3		$3{\sigma }^{-1}$, $1{\pi }^{-1}4{\sigma }^{-1}1{\pi }^{\ast }$

Equations

$$G_{pq}^R(\omega )=$$

$$X_p(\omega )$$

$$(\omega +{\bar{H}}_N-\text{i}\eta )X_p(\omega )|\Phi ⟩={\bar{a}}_p|\Phi ⟩.$$

$$G_{pq}^R(\omega )=⟨\Phi |(1+\Lambda )\overline{a_q^{†}}{X}_p(\omega )|\Phi ⟩,$$

$$G_{pq}(\omega )$$

$$A(\omega )=-\frac{1}{\pi }\text{Tr}\left[\Im \left({\mathbf{G}}^{\text{R}}(\omega )\right)\right]=-\frac{1}{\pi }\sum _p\Im \left(G_{pp}^{\text{R}}(\omega )\right).$$

$$\displaystyle\mathbf{\Theta}(\omega)=\left\{\begin{array}[]{ccl}(\omega-\text{i}\eta+\bar{\textbf{H}}_{N})\textbf{X}(\omega)&=&\textbf{b},\\ \mathbf{G}^{\text{R}}(\omega)&=&\textbf{c}^{\text{T}}\textbf{X}(\omega).\end{array}\right.$$

$$\gamma (\omega )={\mathbf{c}}^{\mathrm{T}}{\left(\omega -\text{i}\eta +{\bar{\text{H}}}_N\right)}^{-1}\mathbf{b}$$

$$\displaystyle\hat{\mathbf{\Theta}}(\omega)=\left\{\begin{array}[]{ccl}(\omega-\text{i}\eta+\hat{\bar{\textbf{H}}}_{N})\hat{\textbf{X}}(\omega)&=&\hat{\textbf{b}},\\ \hat{\mathbf{G}}^{\text{R}}(\omega)&=&\hat{\mathbf{c}}^{\text{T}}\hat{\textbf{X}}(\omega),\end{array}\right.$$

$${\hat{\mathbf{G}}}^{\mathrm{R}}({\omega }_k)={\mathbf{G}}^{\mathrm{R}}({\omega }_k)$$

Full text

I Introduction

Green’s function formalismsPaldus and Čížek (1974, 1975); Mattuck (2012); Abrikosov et al. (2012); Fetter and Walecka (2012); Migdal (1967) are a powerful tool for describing excitation and correlation phenomena associated with molecules, clusters, nano-structures, and solids. Numerous approximations and methods in the Green’s function framework have been developed over the years. Typical developments include the outer valence Green’s function (OVGF) methodCederbaum (1975); von Niessen et al. (1984); Ortiz (1997, 2013), the diagonal Green’s function approximationsZakrzewski et al. (2010), the non-diagonal renormalized second-order methodOrtiz (1998), the generalized perturbative methodsHirata et al. (2015, 2017), the two-hole-one-particle Tamm-Dancoff approximation (2h-p TDA)von Niessen et al. (1977), the third-order quasiparticle methodOrtiz (1996), the algebraic-diagrammatic construction (ADC) methodsSchirmer (1982); von Niessen et al. (1984); Dreuw and Wormit (2015), the $GW$-related methodsHedin (1965); Rehr and Albers (2000); van Schilfgaarde et al. (2006); Samsonidze et al. (2011); Kas et al. (2014); Reining (2018), and the Green’s function coupled cluster (GFCC) methodNooijen and Snijders (1992, 1993, 1995). There are also efforts motivated by the development of various embedding methods, such as dynamical mean field theories (DMFT)Georges et al. (1996); Kotliar et al. (2006); Vollhardt (2012); Werner and Millis (2006); Werner et al. (2006); Zgid and Chan (2011); Zgid et al. (2012) and self-energy embedding theory (SEET)Kananenka et al. (2015); Lan et al. (2015); Rusakov and Zgid (2016); Lan and Zgid (2017), to develop efficient ways to include higher-order correlation in the Green’s function calculation of larger systems. Many applications of these methods have been reported in the literature of several research areas of computational physics, chemistry, and materialsOnida et al. (2002); Faleev et al. (2004); Neaton et al. (2006).

In scenarios where the accurate description of many-body effects is required, only a limited subset of the aforementioned developments may be reliably employed. One such choice which has drawn some attention recently is the GFCC method. In essence, the GFCC method belongs to a larger class of methods based on intermediate-state representations (ISRs)Mertins and Schirmer (1996); Mertins et al. (1996). Similar to the linear response coupled cluster (LRCC)Monkhorst (1977); Koch and Jørgensen (1990) and equation-of-motion coupled cluster (EOM-CC)Geertsen et al. (1989); Comeau and Bartlett (1993); Stanton and Bartlett (1993) methods, the GFCC method employs the bi-orthogonal formalismSchirmer and Mertins (2010); Helgaker et al. (2014) of the coupled cluster (CC) theory to express Green’s function matrix in terms of the cluster operator and the so-called $\Lambda$ operator. Practically, there are two primary methods to numerically evaluate the CC Green’s function. The most straightforward way is to directly diagonalize the non-Hermitian EOM-CC Hamiltonian matrix in the ($N\pm 1$)-particle space (i.e. ionization potential and electron attachment EOM-CC method, or IP/EA-EOM-CC) to obtain all the eigenpairs needed to construct the sum-over-states representation of the CC Green’s function (see Ref. 51 for more details). As the dimension of the EOM-CC Hamiltonian matrix grows polynomially with the number of orbitals used to describe the system, direct diagonalization via methods such as those provided by LAPACK and ScaLAPACK quickly become infeasible. If the spectral region of interest is in the extreme ends of the spectrum of the EOM-CC Hamiltonian, one may utilize standard iterative Krylov subspace methods, such as Arnoldi’s method and variantsArnoldi (1951); Bai et al. (2000), to obtain the eigenpairs of interest. The power of methods based on Krylov subspace iterations is in that they are matrix-free, i.e. one need only knowledge of the matrix-vector product to perform the partial diagonalization. However, if the spectral region of interest is in the spectral interior of the EOM-CC Hamiltonian, the standard Arnoldi method exhibits poor convergence for these embedded states, and one should employ spectral transformations to achieve proper convergence behaviorBai et al. (2000).

A typical workaround to obtain these embedded states is to introduce approximations such as core-valence separation (CVS)Cederbaum et al. (1980). In the CVS, one neglects the coupling between core- and valence-excited states such that the dimension of the effective Hamiltonian for the problem of interest may be reduced and the convergence to the target states may be accelerated. There have been studies reporting the success of the CVS approximation in relation to the ADC, CC2, CCSD, CC3, and CCSDR(3) methods (see Ref. 55 for a recent review). For example, in the ADC calculations of the K-shell ionization spectra of small and medium-size moleculesAngonoa et al. (1987); Wenzel et al. (2014); Trofimov et al. (2000), main ionic states, as well as some satellite states, may be efficiently obtained with reasonable accuracy (0.4$\sim$1.0 eV) when the CVS is employed. However, if smaller errors and higher resolution of the spectra are required for the system of interest, the use of CVS may not be sufficient. In the context of the EOM-CC calculations, recent years have also seen several developments in the robust application of Krylov subspace methods to obtain embedded electronic states through methods such as asymmetric Lanczos-chain-driven subspace algorithmCoriani et al. (2012), energy-specific Davidson algorithmPeng et al. (2015), and Generalized Preconditioned Locally Harmonic Residual (GPLHR) methodZuev et al. (2014).

Alternatively, the CC Green’s function matrix may be obtained directly in its analytic formNooijen and Snijders (1992, 1993, 1995) through the evaluation of a shifted set of linear systems involving the IP/EA-EOM-CC Hamiltonian at a frequency of interestKowalski et al. (2014); Bhaskaran-Nair et al. (2016); Peng and Kowalski (2016, 2018a, 2018b, 2018c). In the treatment of the GFCC method as a linear system, one is able to bypass the need for the evaluation of the eigenstates of the IP/EA-EOM-CC Hamiltonian explicitly, and in principle efficiently resolve the entire spectrum of the IP/EA-EOM-CC Hamiltonian. Furthermore, due to its algebraic structure, the solution of the linear systems posed by the GFCC method may be executed in a highly scalable manner which is well suited for massively distributed computing architecturesPeng and Kowalski (2018b). Using a similar method for solving the GFCC linear systems as employed in this work, there have been studies recently reported for the computation of the spectral function of, for example, uniform electron gas,McClain et al. (2016) light atoms,Nishi et al. (2018) heavy metal atoms,Kosugi et al. (2018) and simple 1-D periodic systems.Furukawa et al. (2018) In addition, the application of the GFCC method to more complicated 3-D periodic systems seems imminent in that the relevant EOM-CC formalism has been recently developedMcClain et al. (2016, 2017).

Nevertheless, solving the GFCC linear system may be computationally demanding. In particular, if a much higher frequency resolution is necessary to explore some detailed information (for example the state of interest with weak intensity) or a much broad frequency domain needs to be explored, the number of frequency points will become a very large computational overhead of the GFCC method which prohibits its larger scale applications. Fortunately, it seems there exists some interpolation techniques that can be utilized to cleverly address this problem. One such choice is the model-order-reduction (MOR) technique. The MOR technique is originally introduced in the field of systems and control to reduce the computational complexity of mathematical models in numerical simulations. The main motivation for using MOR techniques comes from limited computational, accuracy, or storage capabilities. After applying MOR, the reduced and simplified model, which still captures the main features of the original large model, can be used in place of the original one at a much lower cost (see Ref. 72 for an overview of MOR techniques for linear dynamical systems).

In the present study, we examine the potential to reduce the computational overhead of the GFCC method by applying MOR techniques to interpolate and extrapolate the evaluation of the CC Green’s function. This work has been inspired, in part, by the recent application of MOR techniques by Van Beeumen, et al.Van Beeumen et al. (2017) to obtain accurate approximations of the X-Ray absorption spectrum within the time-dependent Hartree-Fock approximation for water clusters with reduced computational complexity. In this work, we project the full dimensional GFCC linear system onto a subspace which serves as approximation to exact CC Green’s function for a broad spectral range of interest. The quality and efficiency of the proposed method for a series of representative molecular systems, such as carbon monoxide, 1,3-butadiene, benzene, and adenine, will be assessed in terms of the reduction of computational overhead and its comparison to other theoretical and experimental results.

II Methodology

For a brief review of the GFCC method employed in this work, we refer the readers to Refs. 62; 51; 63; 64; 65; 66. For the purposes of this work, it is sufficient to consider the matrix element of the retarded part of the analytical frequency dependent CC Green’s function of an $N$-electron system,

[TABLE]

where $H$ is the electronic Hamiltonian of the $N$-electron system, $|\Psi\rangle$ is the normalized ground-state wave function of the system, $E_{0}$ is the ground state energy, and the $a_{p}$ ($a_{p}^{\dagger}$) operator is the annihilation (creation) operator for electron in the $p$-th spin-orbital. Besides, $\omega$ is the frequency, $\eta$ is the broadening factor, and $p,q,r,s,\ldots$ refers to general spin-orbital indices (we also use $i,j,k,l,\ldots$ to label occupied spin-orbital indices, and $a,b,c,d,\ldots$ to label virtual spin-orbital indices). By introducing bi-orthogonal CC formalism, the CC Green’s function can then be expressed as

[TABLE]

where $|\Phi\rangle$ is the reference function, and the normal product form of similarity transformed Hamiltonian $\bar{H}_{N}$ is defined as $\bar{H}-E_{0}$. The similarity transformed operators $\bar{A}$ ($A=H,a_{p},a_{q}^{\dagger}$) are defined as $\bar{A}=e^{-T}A~{}e^{T}$. The cluster operator $T$ and the de-excitation operator $\Lambda$ are obtained from solving the conventional CC equations. Now we can introduce an $\omega$-dependent IP-EOM-CC type operators $X_{p}(\omega)$ mapping the $N$-electron Hilbert space onto an (N$$-1)-electron Hilbert space

[TABLE]

that satisfies

[TABLE]

Substituting this expression into Eq. (2), we end up with a compact expression for the matrix element of the retarded CC Green’s function

[TABLE]

which becomes

[TABLE]

in the GFCCSD approximation (GFCC with singles and doubles) with $X_{p,1}$/$\Lambda_{1}$ and $X_{p,2}$/$\Lambda_{2}$ being one- and two-body component of $X_{p}$/$\Lambda$ operators, respectively. The spectral function is then given by the trace of the imaginary part of the retarded GFCCSD matrix,

[TABLE]

As discusseded in our previous work on this subjectKowalski et al. (2014); Bhaskaran-Nair et al. (2016); Peng and Kowalski (2016, 2018a, 2018b, 2018c), the practical calculation of GFCCSD matrix employing the above method involves the solution of the conventional CCSD calculations (to get converged $T$ and $\Lambda$ cluster amplitudes), solving linear systems of the form of Eq. (4) for all the orbitals ($p$’s) and frequencies of interest ($\omega$’s), and performing Eq. (6). The key step is to solve Eq. (4) for $X_{p}(\omega)$ for given orbital $p$ and frequency $\omega$, and the overall computational cost approximately scales as $\mathcal{O}(N_{\omega}N^{6})$ with the $N_{\omega}$ being the number of frequencies in the designated frequency regime. Therefore, if a finer or broader frequency range needs to be computed, $N_{\omega}$ would constitute a sizable pre-factor, and dramatically increase the computational cost.

To address this issue, in the context of high performance computing, one can divide the full computational task posed by the GFCC method into several smaller tasks according to the number of orbitals and frequencies desired. In so doing, one can distribute these smaller tasks over the available processors to execute them concurrently. In this way, the overall computational cost remains the same, but the time-to-solution can be significantly reduced. In order to reduce the formal computational cost of the GFCC method, we must further introduce some approximations in our calculations from the perspective of the linear system solution method. Here, inspired by a similar application in the context of the time-dependent Hartree-Fock methodVan Beeumen et al. (2017), we experiment the MOR technique in the context of the GFCC method.

We can first represent Eqs. (4) and (6) as a linear multiple-input multiple-output (MIMO) system $\mathbf{\Theta}$,

[TABLE]

Here, the dimension of $\bar{\textbf{H}}_{N}$ is $D$ (For the GFCCSD method, $D$ scales as $\mathcal{O}$($N_{o}^{2}N_{v}$) with $N_{o}$ being the total number of occupied spin-orbitals and $N_{v}$ being the total number of virtual spin-orbitals). The columns of b corresponding to free terms, and the rows of c corresponding to $\langle\Phi|(1+\Lambda)\bar{a^{\dagger}_{q}}$. The transfer function of the linear system $\mathbf{\Theta}$,

[TABLE]

describes the relation between the input and output of $\mathbf{\Theta}$, and is equal to its output $\mathbf{G}^{\mathrm{R}}(\omega)$ for (10).

To apply the interpolation based MOR technique for $\mathbf{\Theta}$, we need to construct an orthonormal subspace $\textbf{S}=\{\textbf{v}_{1},\textbf{v}_{2},\cdots,\textbf{v}_{m}\}$ with $m\ll D$ and $\langle\textbf{v}_{i}|\textbf{v}_{j}\rangle=\delta_{ij}$, such that the original linear system (10) can be projected into to form a model system $\hat{\mathbf{\Theta}}$,

[TABLE]

where $\hat{\bar{\textbf{H}}}_{N}=\textbf{S}^{\text{T}}\bar{\textbf{H}}_{N}\textbf{S}$, $\hat{\textbf{X}}(\omega)=\textbf{S}^{\text{T}}\textbf{X}(\omega)$, $\hat{\textbf{b}}=\textbf{S}^{\text{T}}\textbf{b}$, and $\hat{\mathbf{c}}^{\text{T}}=\mathbf{c}^{\text{T}}\textbf{S}$. With the proper construction of the subspace S, we expect $\hat{\mathbf{\Theta}}(\omega)\approx\mathbf{\Theta}(\omega)$ for designated frequency regime.

In practice, the subspace S is composed of the orthonormalized auxiliary vectors, $\textbf{X}_{p}$, converged at selected frequencies $\omega_{k}$ in a given frequency regime, [$\omega_{\text{min}}$, $\omega_{\text{max}}$]. Hence, the transfer function of the reduced model $\hat{\mathbf{\Theta}}$ interpolates the original model $\mathbf{\Theta}$ at these selected frequencies, i.e.,

[TABLE]

for $k=1,\ldots,m$. The sampling of the selected frequencies in the regime follows the adaptive refinement strategy described in Ref. Van Beeumen et al. (2017). Basically, one can start with a uniformly sampled frequencies in the regime to construct a preliminary level reduced order model. Then, based on the error estimates of the computed spectral function between adjacent frequencies over the entire regime, one can decide whether the corresponding midpoints between these adjacent frequencies need to be added to refine the sampling. This refinement process continues until the maximal error estimate of the computed spectral function at the entire frequency window is below the threshold or when the refined model order exceeds a prescribed upper bound.

III results and discussion

In the following, we discuss the interpolated and/or extrapolated results from our GFCC method employing model order reduction technique (GFCC-MOR). The corresponding accuracy and efficiency tests are focused on the computed spectral functions of the carbon monoxide, *s-trans-*1,3-butadiene, benzene, and adenine molecules, and their comparisons to those computed by the original GFCC method and to other theoretical and experimental results. We used an experimental geometryHerzberg (2013) for the carbon monoxide molecule, and the geometries of *s-trans-*1,3-butadiene, benzene, and adenine are obtained from Ref. 75, 76, and 77, respectively. For each molecular system, conventional ($\Lambda$-)CCSD calculations were performed by using the Tensor Contraction Engine (TCE) module implemented in NWChem suite of quantum chemical codes.Valiev et al. (2010) The converged $T$ and $\Lambda$ amplitudes, as well as the two-electron integral tensor, are then used to compute the auxiliary vectors, $\textbf{X}_{p}$, and the GFCC matrix elements (and thereby the spectral functions).

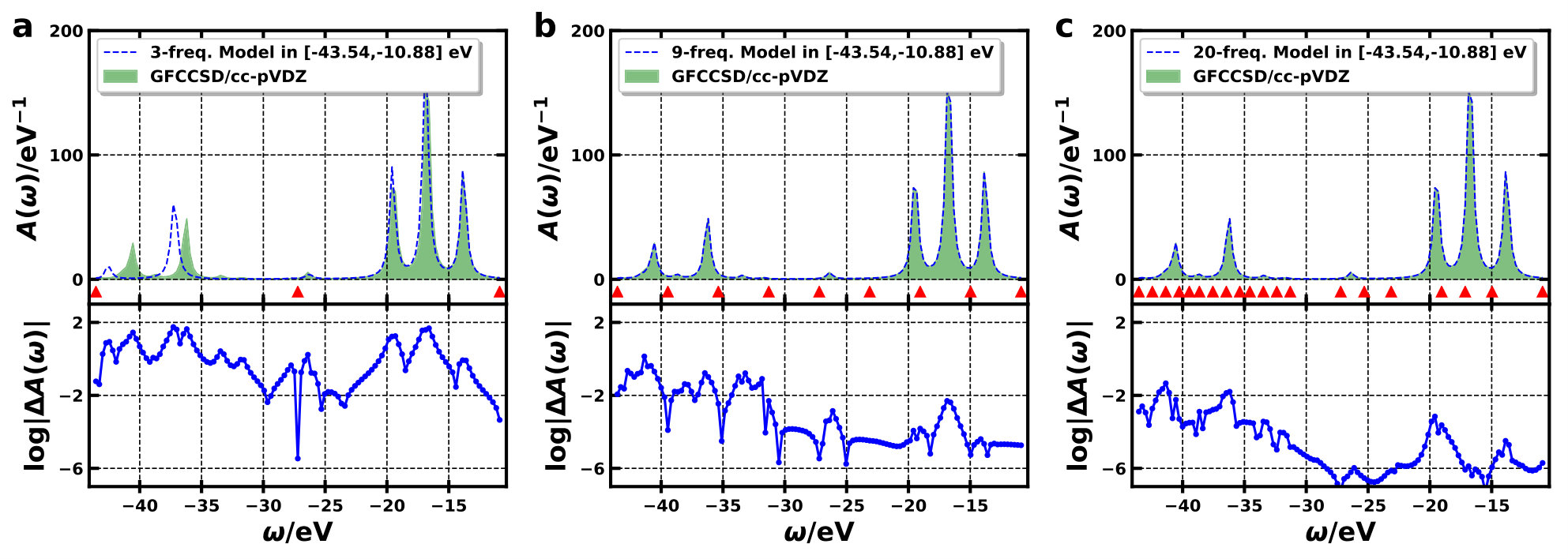

Fig. 1 demonstrates how the expansion of the subspace improves the interpolated spectral function computed by the GFCCSD-MOR method for the carbon monoxide molecule. The calculation starts by solving the full-dimensional GFCC linear equations for the auxiliary vectors, $\textbf{X}_{p}$, at three frequencies evenly distributed over [-43.54, -10.88] eV. The converged $\textbf{X}_{p}$’s are then orthonormalized to construct the subspace S, upon which a reduced order model (denoted as a three-frequency model) is built via the manner depicted in Eq. (14). The blue dashed line in Fig. 1a shows the interpolated spectral function obtained from the three-frequency model, in which the reduced order model is solved for every single frequency point on a discretization of [-43.54, -10.88] eV ($\Delta\omega\leq$0.027 eV). The corresponding peak positions and the associated leading configurations at the peak positions are given in Tab. 1. Apparently, the interpolated results obtained from the three-frequency model is not able to reproduce the GFCCSD spectral function to a sufficient accuracy. In the regime of [-25, -10] eV, even though the positions of three main peaks roughly fit the full dimensional GFCCSD results, the average deviation of the spectral function in this regime with respect to the original GFCCSD result is above 0.1 eV*-1*. For the regime below -25 eV, in comparison to the GFCCSD results, two satellites in [-35.00, -30.00] eV are missing from the result of the three-frequency model. For the remaining peaks, larger offsets and different leading configurations with respect to the original GFCCSD results can be observed (see Fig. 1 and Tab. 1). For example, a $>$1 eV shift can be observed for the peak below -40 eV, and its associated leading configurations includes more contributions from $5\sigma^{-2}1\sigma^{\ast}$ and $1\pi^{-1}5\sigma^{-1}1\sigma^{\ast}$ two-electron processes which were barely found for the peaks in this regime in the original GFCCSD calculation.Peng and Kowalski (2018b)

The reduced order model may be improved by expanding the span of the subspace S, i.e. including more orthonormalized $\textbf{X}_{p}$’s converged at some other frequencies picked by the aforementioned adaptive refinement strategy. As can be seen from Fig. 1b and Tab. 1, a nine-frequency model already shows a sizable improvement in comparison with the three-frequency model. In terms of the number of peaks, peak positions, and leading configurations relating to the peak, the nine-frequency model in Fig. 1b brings back the two missing peaks in [-35.00, -30.00] eV mentioned above, and produces negligible shifts and almost the same leading configurations for all the peaks within [-43.54, -10.88] eV with respect to original GFCCSD result. As for the peak height (i.e. the magnitude of the spectral function), for the outer valence regime ($>$25 eV) and the inner valence regime ($<$25 eV), the average deviations of the interpolated spectral function obtained from the nine-frequency model with respect to the original GFCCSD result are below 0.01 eV*-1* and 0.1 eV*-1*, respectively. Of course, one can continue to refine the aforementioned adaptive refinement strategy to further improve the model. For example, a 20-frequency model (Fig. 1c and Tab. 1) with more frequencies in the inner valence regime being picked produces same peak number, and almost same peak positions and their associated leading configurations, but significantly suppresses the maximum deviation of the spectral function in the inner valence regime from $\sim$1 eV*-1* (at $\sim$-41 eV in Fig. 1b) towards 0.01 eV*-1*.

In addition to interpolation, the reduced order model can also be utilized to produces extrapolated results over an extended frequency window. To assess the accuracy of this model extrapolation, some demonstrative tests have been performed using the carbon monoxide system previously discussed. The results of this assessment are outlined in Fig. 2 and Tab. 1. In this example, approximate spectral functions were produced on the domain [-43.54, -10.88] eV using three different reduced order models built from different subsets of the original frequency regime (namely, [-16.33, -10.88] eV, [-21.77, -10.88] eV, and [-27.21,-10.88] eV), and are compared with the original GFCCSD spectral function. As is apparent, two of the three models (excluding the five-frequency model in [-16.33, -10.88] eV) produce the same number of peaks as the GFCCSD results. In the result from the five-frequency model in [-16.33, -10.88] eV, a low magnitude satellite is missing at $\sim$-32 eV. As for peak positions and the associated leading configurations, except for the missing peak just discussed, all three models give consistent results with the original GFCCSD results. The largest deviation ($\sim$0.55 eV) occurs for the satellite peak (at -39.27 eV) obtained from the extrapolation of the five-frequency model in [-16.33, -10.88] eV. Further, the leading configurations of that peak also show an increased contribution from $3\sigma^{-1}$ ionization process which was found to be trivial in the original GFCCSD calculation.Peng and Kowalski (2018b) Nevertheless, when the model covers wider frequency regime (as can be seen from Fig. 2b,c and Tab. 1), the extrapolated spectral functions give almost the same peak positions and leading configurations as the original GFCCSD results, and the deviation of the corresponding spectral functions also gradually decreases.

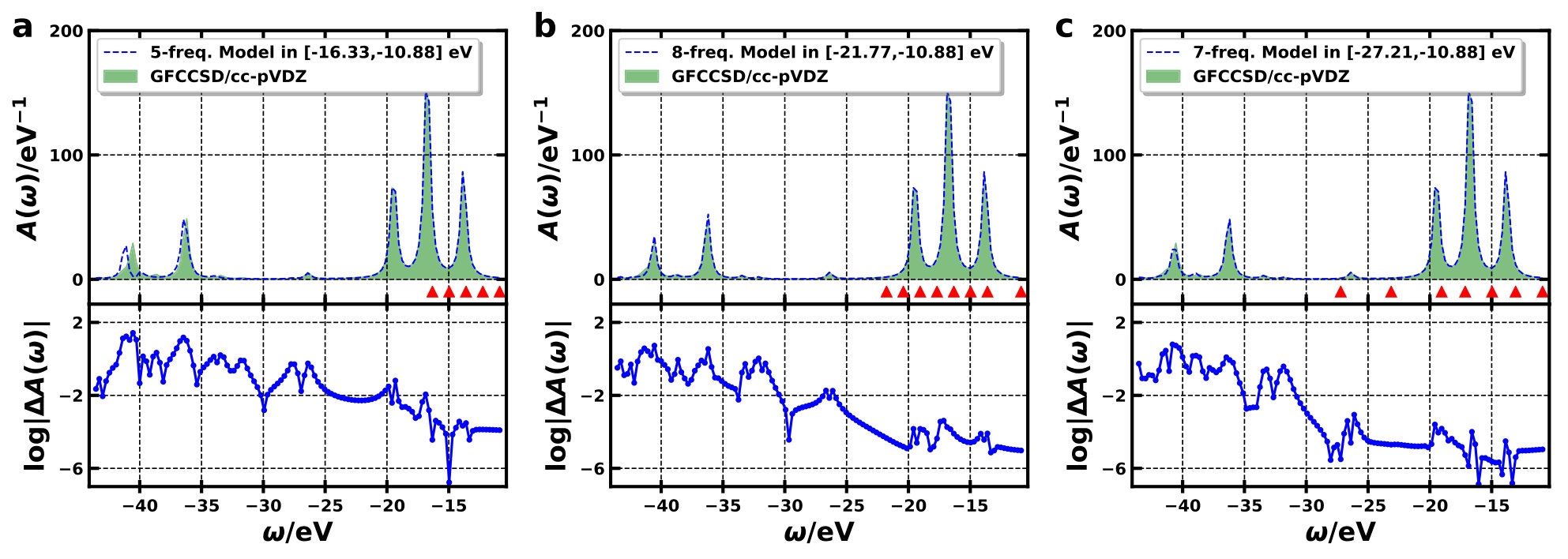

Given the more or less same number of frequencies (and thereby the number of $\textbf{X}_{p}$’s for constructing the subspace), it is instructive to compare the models shown in Figs. 1b and 2b. Both models successfully reproduce the original GFCCSD peak multiplicity and positions, and qualitatively reproduce the spectral function in the studied frequency regime. However, there is a major difference between the two models in terms of the frequency points distribution, i.e. the model in Fig. 1b requires five frequency points in the inner valence regime of [-45.00, -25.00] eV, while all the frequency points required by the model in Fig. 2b are located in the outer valence regime ($>$-25 eV). Note that, due to stronger many-body effect in the inner valence regime, it usually requires much more effort for the linear solver to converge the GFCC linear system for the $\textbf{X}_{p}$’s in that domain than it does for the $\textbf{X}_{p}$’s in the outer valence regime.Peng and Kowalski (2018b, c) Therefore, in comparison to the model in Fig. 1b, the model in Fig. 2b in general requires much less effort to be built, while still being able to achieve the same level of accuracy for the studied frequency regime.

Remarkably, if higher accuracy for the extended frequency regime is desired, the results given by extrapolating the model from a narrower frequency window may still be useful as they can often be used as an effective initial guess to aid in the convergence of the iterative linear solver used to solve the GFCC equations. Further, as the reduced order linear systems may be solved directly, the use of these approximate solutions as initial guesses for the full dimensional iterative solver can be of particular use in cases where convergence of these solutions proves difficult. Typical examples of this state of affairs are shown in Fig. 3, where convergence profiles (i.e. the residual norm of the linear equation going along with the iterations) resulting from using different initial guesses in the same iterative linear solver are compared at two frequencies in the inner valence regime (namely at -31.565 eV and -26.395 eV, respectively). In this regime, there are two satellites dominated by the $5\sigma^{-2}1\pi^{\ast}$ and $5\sigma^{-1}1\pi^{-1}1\pi^{\ast}$ two-electron processes, respectively. In the blue curves depicted in Fig. 3, the linear solver employs up to the second order perturbative terms of the $\textbf{X}_{p}$’s as the initial guess of the solution (the analytic perturbative terms of the $\textbf{X}_{p}$’s were given in Ref. 63), while in the green curve the linear solver employs the extrapolated results (from the eight-frequency model in Fig. 2b) as the initial guess of the solution. As can be seen, in comparison with using the low-order perturbative terms of the $\textbf{X}_{p}$’s, using the extrapolated results as the initial guess for the iterative solver can drastically improve the convergence profile for the solutions of interest. For example, after the first iteration, the relative residual norms shown in the green curves are at least two orders of magnitude smaller than the ones in the blue curves for both cases. As iterations progress, the blue curves fail to converge (i.e. relative residual norm being $<10^{-5}$) within 80 steps in both case (indicating that a larger number of micro-iterations iterates and more iterations may be needed in the DIIS linear solver used in this study). In contrast, using the MOR extrapolated results as an initial guess for the linear solver convergence is achieved within 80 iterations in both of the cases examined. It is worth mentioning that the convergence would generally be expected to be improved if higher order terms are included in the initial guess. However, this can be time-consuming in practice since the computational complexity of computing the third and higher order terms of $\textbf{X}_{p}$’sPeng and Kowalski (2016) would become similar to that of solving the GFCC linear equation itself.

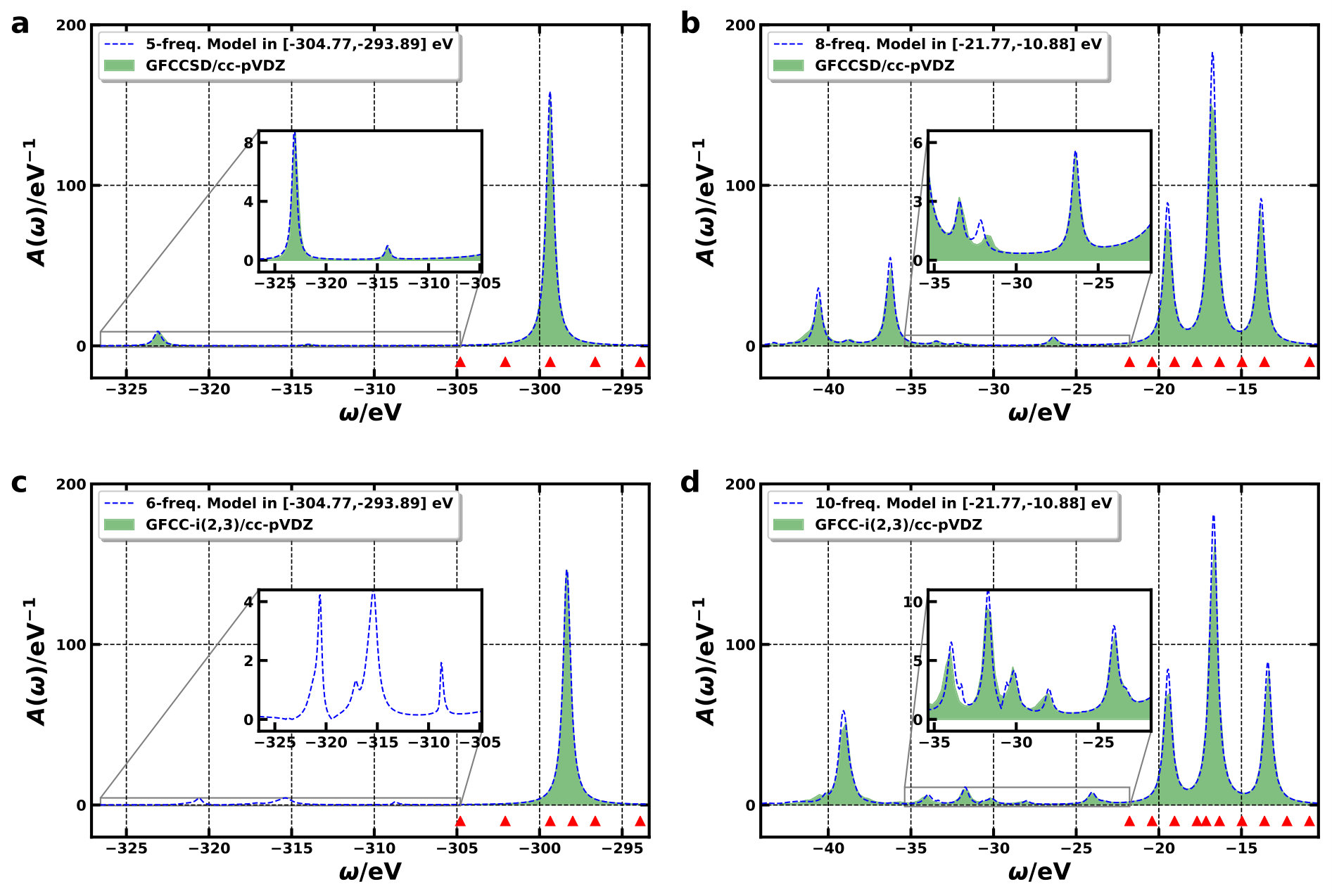

In the following, we examine the interpolative and extrapolative capabilities of the proposed GFCC-MOR method in differing frequency regimes than the ones previously discussed and in relation to different GFCC methods. Fig. 4 shows the spectral functions of the carbon monoxide molecule in both core and valence regimes computed by the conventional GFCC methods (including GFCCSD and GFCC-i(2,3)Peng and Kowalski (2018c)) and the corresponding GFCC-MOR methods. Note that in comparison with the GFCCSD method, the GFCC-i(2,3) method includes the treatment of inner triples, which was demonstrated in our previous work being able to improve the many-body description of both main ionic states and satellites. In the core regime, the reduced order models are constructed in the regime of [-304.77, -293.89] eV, and the resulting interpolatory and extrapolatory features are examined in the broader regime of [-326.57, -293.91] eV. In the valence regime, the models are constructed in the regime of [-21.77, -10.88] eV, and interpolated and extrapolated to the broader regime of [-43.54, -10.88] eV. As can be seen, the profiles of the spectral functions obtained from the GFCC-MOR calculations approximate the available original GFCC results relatively well in both core and valence regimes. Tiny differences are only detected in the middle valence regime, where, in comparison to the GFCCSD results, the eight-frequency model in [-21.77, -10.88] eV blue-shifts the satellite located at $\sim$-32.00 eV by $\sim$0.55 eV (see the inset of Fig. 4b), and in comparison to the GFCC-i(2,3) results, the result from the ten-frequency model in [-21.77, -10.88] eV exhibits some tiny shoulder peaks located in [-35.00, -30.00] eV (see the inset of Fig. 4d).

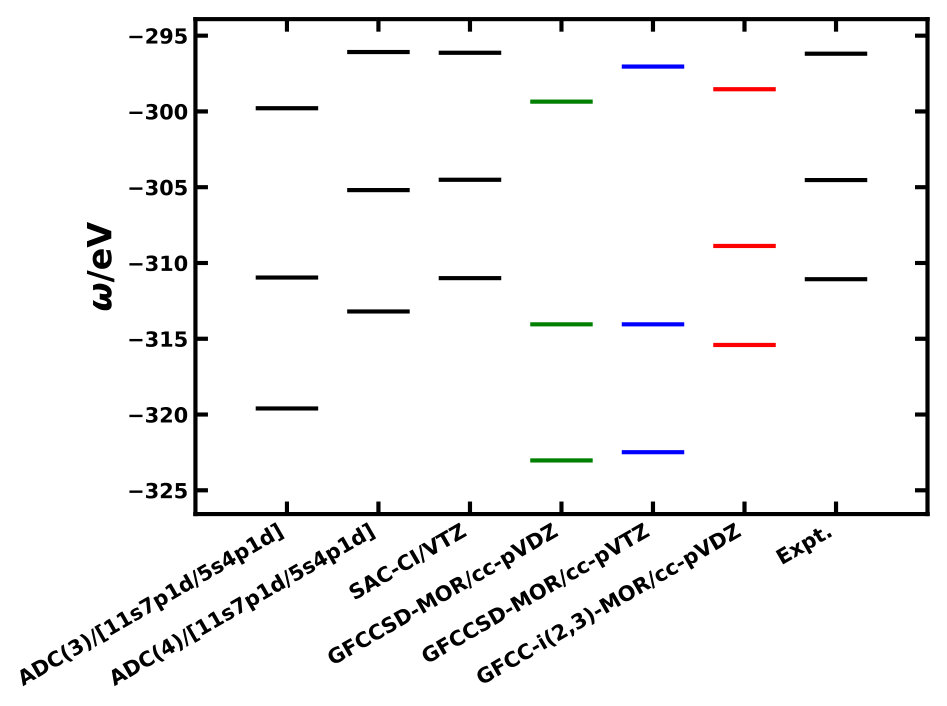

Note that, in Fig. 4c (and its inset), by extrapolating the six-frequency model from the regime of [-304.77, -293.89] eV to [-326.57, -293.89] eV, three significant satellites, which were not reported in the previous GFCC-i(2,3) calculations,Peng and Kowalski (2018c) are identified at -320.85, -315.41, and -308.88 eV, respectively (a weaker shoulder peak can also be seen at $\sim$-316.77 eV). The configuration analysis shows that these satellites are mainly attributed to the $1\pi^{-1}2\sigma^{-1}1\pi^{\ast}$ two-electron process (classified as the so-called direct shake-up states), and are consistent with the configuration analysis of the satellites obtained from GFCCSD/GFCCSD-MOR calculations in the regime of [-326.57, -293.91] eV (see the inset of Fig. 4a), as well as other theoretical analysis.Ehara et al. (2006); Schirmer et al. (1987) To further confirm the accuracy of the core level results obtained from the GFCC-MOR calculations, we compare the positions of the main peak and two rightmost satellites observed in Fig. 4a,c with the available ionization potentials computed from other theories, as well as the corresponding experimental values. As can be seen from Fig. 5, similar to the difference between ADC(4) and ADC(3) results, since higher-order excitations (e.g. ionic triple excitations) are taken into account in the schemes,Peng and Kowalski (2018c) the GFCC-i(2,3)-MOR results show significant improvement over the GFCCSD-MOR results, especially the positions of the two satellites are red-shifted by $\sim$5.0 eV and $\sim$8.0 eV, respectively. Even though the GFCC-i(2,3)-MOR results still underestimate the experimental values by 1$\sim$2 eV, the relative positions of the three peaks are very close to the experimental values and SAC-CI results. In particular, the spacing between the two satellites ($\sim$6.5 eV) in the GFCC-i(2,3)-MOR results is almost same as what are observed from the experiment and the SAC-CI calculation, and is better than the ADC(4) results ($\sim$8.0 eV).

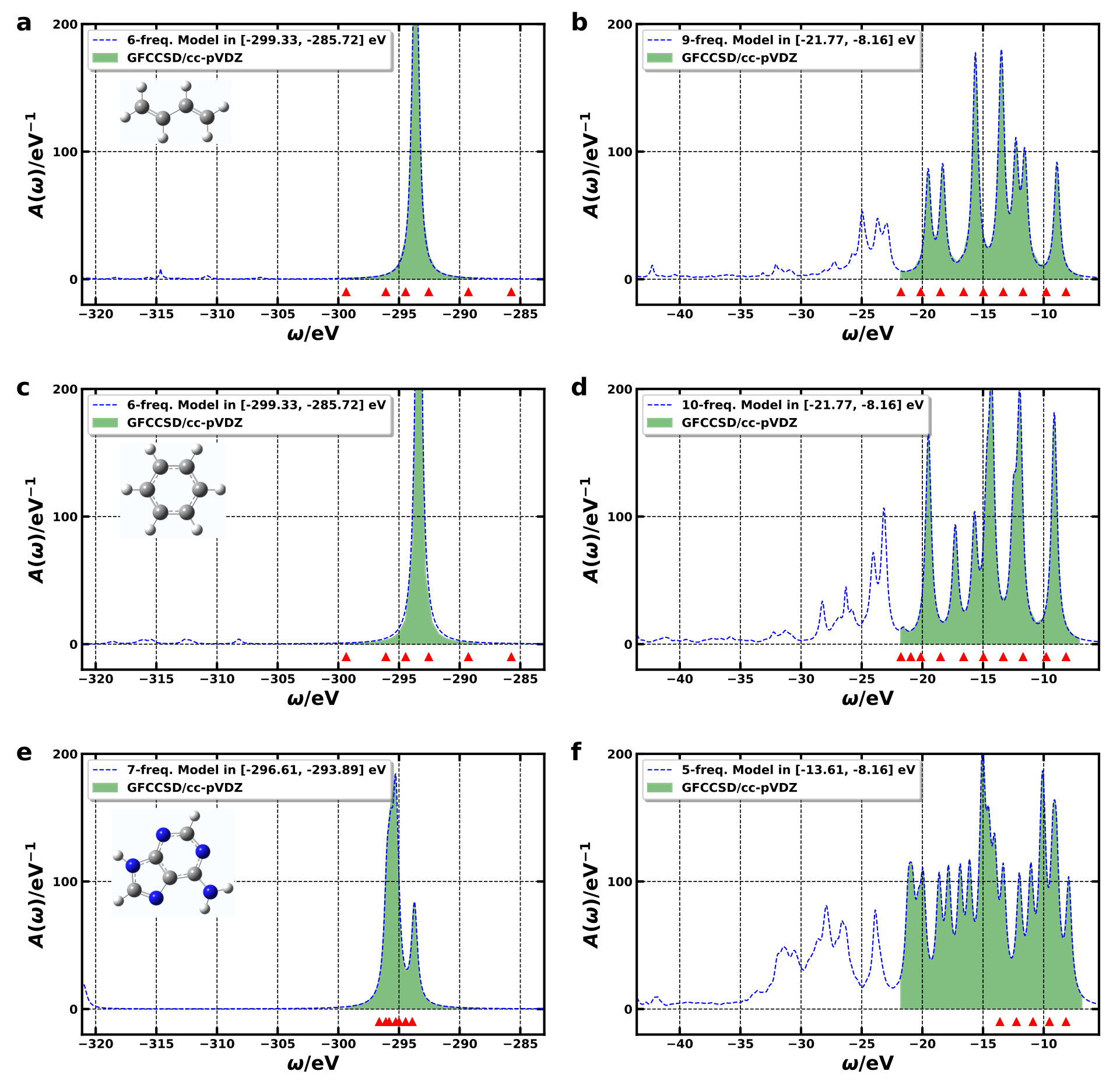

To further test the efficiency of the proposed GFCC-MOR method, we examine its application to some larger systems. In Fig. 6, the spectral functions of the 1,3-butadiene, benzene, and adenine molecules over broad core and valence energy regimes computed by the GFCCSD-MOR methods (blue dashed line) are exhibited and compared with the reported GFCCSD results (green shadow). The reported GFCCSD results are shown between -300.00 eV and -285.00 eV for the core regime (Fig. 6a,c,e), and between -19.00 eV and -7.00 eV for the valence regime (Fig. 6b,d,f). For 1,3-butadiene and benzene, the auxiliary vectors used for the model construction are collected from the frequency window of [-299.33, -285.72] eV in the core regime and the frequency window of [-21.77, -8.16] eV in the valence regime, respectively. For the larger system, the adenine molecule, the auxiliary vectors are collected from the frequency windows of [-296.61, -293.89] eV in the core regime and [-13.61, -8.16] eV in the valence regime, respectively, due to the fact that more peak features are exposed in these narrower frequency windows. As can be seen, the spectral functions obtained from the combination of the interpolated and extrapolated results of the reduced order model fit the original GFCCSD results pretty well in the designated frequency windows spread over both core and valence regimes. In particular, the five-frequency model from the frequency window of [-13.61, -8.16] eV is able to well reproduce the original GFCCSD peak features between -21.77 eV and -8.00 eV. We further compare the reduced order model results with available theoretical results from other Green’s function methods and experimental photoelectron spectra (PES). For example, in Fig. 7, the extrapolated spectral function of adenine molecule in this work is compared with the reported ADC result and the photoelectron spectrum (PES). As can be seen, in comparison to the ADC(3) results, the GFCCSD-MOR calculation gives almost same results in terms of peak positions and heights. In comparison with the experimental spectrum, the GFCCSD-MOR spectral function gives almost same peak positions and peak profile as the PES in [-12.00, -4.00] eV.

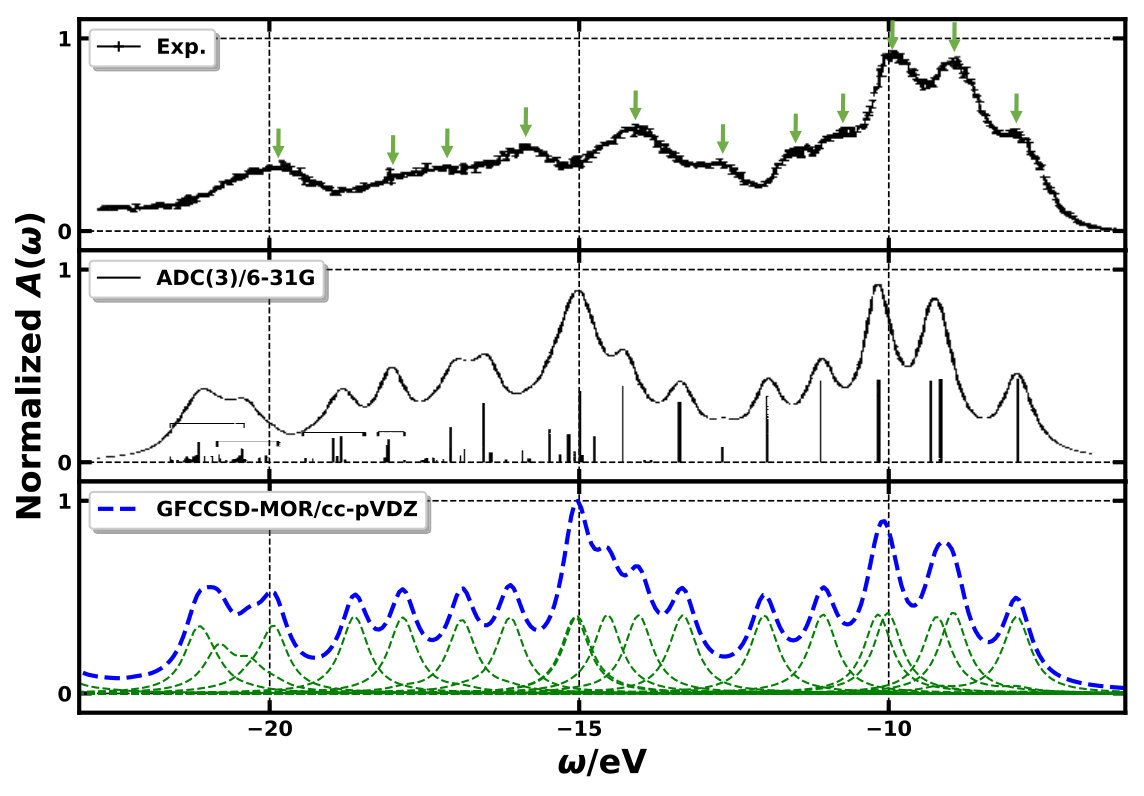

As we discussed in our previous work,Peng and Kowalski (2018c) special attention should be paid when comparing the spectral function profile with the PES results. In principle, the spectral function (or the pole strength) is computed through the overlap integrals between the initial states and their final ionic states. The relative peak intensities in the PES requires not only the calculation of the overlap integrals, but also the dipole integrals describing the dipole interactions between the initial states and their corresponding final ionic state manifolds. Therefore, the relative intensities exhibited in the PES are expected to be different from those observed from the calculated spectral functions, except that when the photon energy is much higher than the ionization potentials in the PES measurement, and there are no appreciable initial state correlation effects for the system. From this perspective, the reason why the GFCCSD-MOR spectral function gives almost same peak positions and peak profile as the PES in [-12.00, -4.00] eV can be attributed to the following observations, (i) the photon energy used to record the PES (i.e. 80 eV) is much higher than the energy regime, and (ii) the effects of electron correlation in this energy regime are weak such that even the results from the single-particle theory (e.g. outer-valence Green’s function method) fits the PES very well (see Fig. 10 in Ref. 81). When going beyond this regime, since the aforementioned two conditions are gradually violated as witnessed by the appearance of more and more satellite states that requires the treatment of many-body effects, the comparison between the computed spectral function and the PES should only be in the peak positions. Here, for the regime below -12 eV, both the ADC(3) and GFCCSD-MOR peak positions are systematically blue-shifted by $\sim$1 eV with respect to the PES peaks, but the relative positions of these peaks still fit the PES very well.

It is important to emphasize that while the conventional GFCC and proposed GFCC-MOR methods presented in this work yield similar quality results, the latter is significantly more efficient than the former. For the spectral function calculation in the frequency regime of [-43.54, -10.88] eV, the conventional GFCC calculations requires the solution of the full dimensional GFCC linear equation at every single frequency point in a 1200 points discretization (if $\Delta\omega\leq$0.027 eV), while the GFCC-MOR calculations only requires the solution of the full dimensional GFCC linear equation at 5$\sim$10 frequency points. Due to this large disparity between the number of the solutions of the full dimensional linear equation required between the two methods, the computational cost of constructing the reduced order model from the small set of solutions required by the GFCC-MOR method is negligible in contrast to the cost of solving the linear systems themselves. As such, the overall computational cost of the GFCC-MOR method presented in this work is roughly two orders of magnitude less than that of the conventional GFCC method.

IV Conclusion and outlook

In this work, we demonstrated the efficacy of the application of model order reduction to the GFCC method (the GFCC-MOR method) in efforts to reduce the computational cost of evaluating the CC Green’s function in specific spectral regimes. In the conventional GFCC method, one must solve the full dimensional GFCC linear system at every frequency point in some discretization of a spectral region of interest to evaluate the CC Green’s function. In contrast, the GFCC-MOR method reduces the computational cost of evaluating the CC Green’s function by selecting only a few points in the spectral region of interest to solve the full dimensional linear systems, and then projects this problem onto a model basis of reduced order which is constructed from the full dimensional auxiliary vectors at these frequencies. The dimension reduction in the reduced order model allows for rapid evaluation of an approximate CC Green’s function in a (possibly fine) discretization of the spectral region of interest. Relevant accuracy comparisons have been performed for computing the spectral functions of the carbon monoxide, 1,3-butadiene, benzene, and adenine molecules in both the core and valence regimes. The GFCC-MOR results show excellent agreement with the full dimensional GFCC results. By extrapolation, the GFCC-MOR method may also be utilized to either predict the results in some energy regimes where the original GFCC results are unavailable, or provide a reasonable initial guess to aid in the convergence of the full dimensional GFCC linear equation in that regime. Moreover, the GFCC-MOR method has been shown to be very efficient, and the associated cost of approximating the GFCC spectral functions for the molecules studied in this work was found to be roughly two orders of magnitude smaller than the original GFCC method. Therefore, the MOR technique has shown a great capability to offload a large computational overhead from the original GFCC method, and a great potential to broaden the large-scale applications of this method.

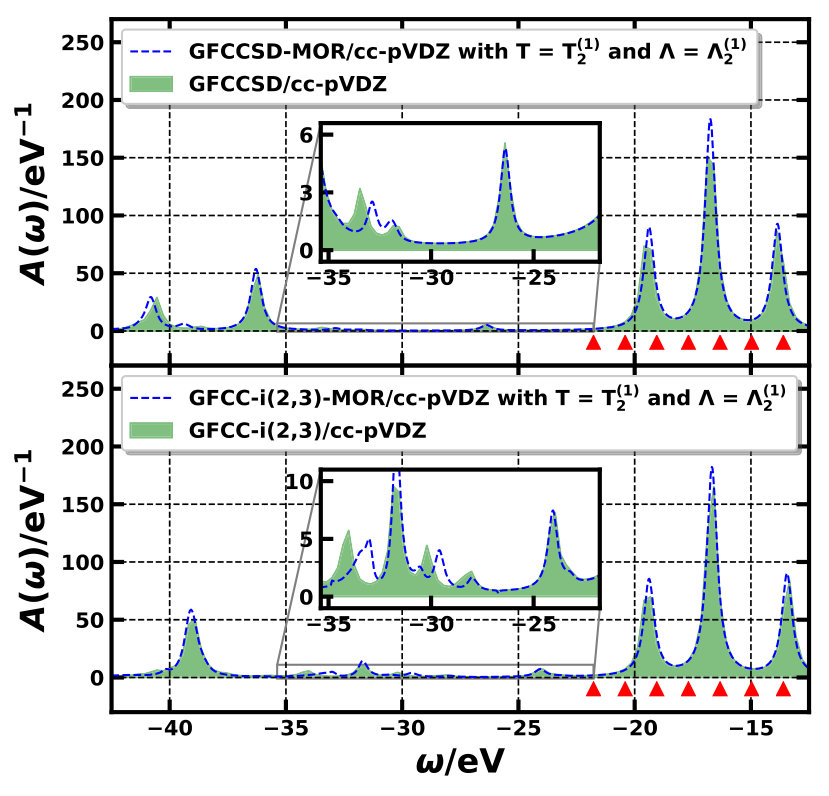

To further reduce the computational cost of the GFCC-MOR method, the MOR technique may be applied to the GFCC method in a different way. For example, one can build separate reduced order models for every single diagonal Green’s function curve directly (and the sum of these curves then gives the approximate spectral function). Besides, one can also consider employing the perturbative cluster amplitudes in the GFCC-MOR method. For example, as discussed in the earlier GFCC work of Nooijen and Snijders,Nooijen and Snijders (1995), the cluster amplitudes used in the GFCC-MOR method may be further replaced by their first-order perturbative terms. Apparently, this approximation further accelerate the calculations by skipping the expensive CC ground state calculations, and does not affect the connectedness of the GFCC diagrams. As can be seen from some preliminary results for the carbon monoxide (see Fig. 8), even though some small deviations ($<$1 eV) for the satellites are observed in the inner valence regime, this approximation works relatively well for reproducing the entire spectral function profile over the designated regime computed by the conventional GFCC method. The subspace construction and utilization in these directions are currently under intensive development, and more tests and discussions will be presented in our future papers.

V acknowledgement

This work was supported by the Center for Scalable, Predictive methods for Excitation and Correlated phenomena (SPEC), which is funded by the U.S. Department of Energy (DOE), Office of Science, Office of Basic Energy Sciences, the Division of Chemical Sciences, Geosciences, and Biosciences. All calculations have been performed using the Molecular Science Computing Facility (MSCF) in the Environmental Molecular Sciences Laboratory (EMSL) at the Pacific Northwest National Laboratory (PNNL). EMSL is funded by the Office of Biological and Environmental Research in the U.S. Department of Energy. PNNL is operated for the U.S. Department of Energy by the Battelle Memorial Institute under Contract DE-AC06-76RLO-1830. B. P. acknowledges the Linus Pauling Postdoctoral Fellowship from PNNL.
