Probabilistic Relational Agent-based Models

TL;DR

PRAM introduces a probabilistic framework for agent-based models, enabling integration with probabilistic models, supporting dynamic simulation, and offering potential efficiency improvements over traditional agent-based simulation methods.

Contribution

It extends probabilistic relational models and lifted inference to dynamic agent-based modeling, providing a sound probabilistic foundation and efficiency benefits.

Findings

Enables integration of agent-based and probabilistic models.

Supports dynamic simulation within a probabilistic framework.

Potentially more efficient than traditional agent-based simulation.

Abstract

PRAM puts agent-based models on a sound probabilistic footing as a basis for integrating agent-based and probabilistic models. It extends the themes of probabilistic relational models and lifted inference to incorporate dynamical models and simulation. It can also be much more efficient than agent-based simulation.

Figures

Tables

Table 1. Table 1: Groups and counts at a specific time in a pram simulation.

has_school	flu_status	has_location	Count
Adams	s	Adams	697
Adams	s	Home	3
Adams	e	Adams	20
Adams	e	Home	80
Adams	r	Adams	180
Adams	r	Home	20
Berry	s	Berry	575
Berry	s	Home	0
Berry	e	Berry	330
Berry	e	Home	10
Berry	r	Berry	115
Berry	r	Home	0

Full text

1 Introduction

In agent-based models (ABMs, e.g., [4, 3]) agents probabilistically change state. State can be represented as attribute values such as health status, monthly income, age, political orientation, location and so on. A population of agents has a joint state that is typically a joint distribution; for example, a population has a joint distribution over income levels and political beliefs. ABMs are a popular method for exploring the dynamics of joint states, which can be hard to estimate when attribute values depend on each other, and populations are heterogeneous in the sense that not everyone has the same distribution of attribute values, and the principal mechanism for changing attribute values is interactions between agents. For example, suppose all agents have a flu status attribute that changes conditionally – given other attributes such as age, income, and vaccination status – when agents interact. The dynamics of flu – how it moves through heterogeneous populations – can be difficult or impossible to solve, but ABMs can simulate the interactions of agents, and the flu status of these agents can be tracked over time.

ABMs are no doubt engines of probabilistic inference, but it is difficult to say anything about the models that underlie the inference. This paper presents pram – Probabilistic Relational Agent-based Models – a new kind of ABM with design influences from compartmental models (e.g., [1]) and probabilistic relational models (PRMs; e.g., [2]). pram seeks to clarify the probabilistic inference done by agent-based simulations as a first step toward integrating probabilistic and agent-based methods, enabling new capabilities such as automatic compilation of probabilistic models from simulation specifications, replacing or approximating expensive simulations with inexpensive probabilistic inference, and unifying ABMs with important methods such as causal inference.

2 An Example

Consider the spread of influenza in a population of students at two schools, Adams and Berry. To simplify the example, assume that flu spreads only at school. Many students at Adams have parental care during the day, so when they get sick they tend to recover at home. Most students at Berry lack parental care during the day, so sick students go to school. Students may be susceptible, exposed or recovered.

Several groups are entailed by this example, each of which has a count. For example, at a point in time early in the flu season, the groups might look like those in Table 1. Each school has 1000 students, but they are distributed differently: Compared with Adams, there are more exposed students at Berry and fewer of them are at home. At a later time, some exposed students will be recovered, some recovered students will again be susceptible, some home-bound students will be back at school, and in general the counts of groups will change.

The central problem solved by pram is to calculate how counts of groups change over time given the actions of rules that probabilistically change features and relations. For example, a rule might say: If group g has daytime parental care and is exposed to flu, then change the location of g to g’s home with probability $0.8$ and to g’s school with probability $0.2$.

The connection between pram models and probabilistic models is that counts are proportional to posterior probabilities conditioned on attributes such as $\mathtt{has\_school}$ and $\mathtt{flu\_status}$ and on the actions of rules that change attributes. pram applies rules repeatedly to groups, creating novel groups and merging identical groups, thereby simulating the dynamics of groups’ counts.

3 Elements of PRAM Models

pram entities have two kinds of attributes. They have features, ${\cal F}$, which are unary predicates such as $\mathtt{flu\_status}$ or $\mathtt{income}$; and they have relations, ${\cal R}$, between entities, such as $\mathtt{has\_school}$. Currently, pram entities are groups and sites, and all forward relations relate one group to one site. Inverse relations relate one site to a set of groups. Thus, if $\mathtt{g_{1}.has\_school=Adams}$ and $\mathtt{g_{2}.has\_school=Adams}$, the inverse relation $\mathtt{Adams.school\_of}$ returns $\mathtt{\{g_{1},g_{2}\}}$. Inverse relations are important for answering queries such as “which groups attend $\mathtt{g_{1}}$’s school?” Formally this would be $\mathtt{g_{1}.has\_school.school\_of}$, which would return $\mathtt{\{g_{1},g_{2}\}}$. By mapping over entities it is easy to answer queries such as “what is the proportion of students at $\mathtt{g_{1}}$’s school that has been exposed to flu?” In effect, pram implements a simple relational database.

Besides entities, pram models have rules that apply to groups. All rules have mutually exclusive conditions, and each condition is associated with a probability distribution over mutually exclusive and exhaustive conjunctive actions. Thus, a rule will return exactly one distribution of conjunctive actions or nothing at all if no condition is true. For an illustration, look at the mutually exclusive clauses of $\mathtt{rule\_flu\_progression}$ in Figure 1, and particularly at the middle clause: It tests whether the group’s $\mathtt{flu\_status==e}$ (exposed to flu) and it specifies a distribution over three conjunctive actions. The first, which has probability $0.2$, is that the group recovers and becomes happy (i.e., change $\mathtt{flu\_status}$ to r and change $\mathtt{mood}$ to happy). The remaining probability mass is divided between remaining exposed and becoming bored, with probability $0.5$, and remaining exposed and becoming annoyed, with probability $0.3$.

Next, consider the preamble of $\mathtt{rule\_flu\_progression}$, which queries the group’s flu status, then finds the group’s location, and then calls the method $\mathtt{proportion\_located\_here}$ to calculate the proportion of flu cases at the location. ($\mathtt{Proportion\_located\_here}$ sums the counts of groups at the location that have flu, then divides by the sum of the counts of all the groups at the location.) In the rule’s first clause, this proportion serves as a probability of infection. It is evaluated anew whenever the rule is applied to a group. In this way, rules can test conditions that change over time. Finally, the third clause of the rule represents the transition from $\mathtt{flu\_status=r}$ back to $\mathtt{flu\_status=s}$, whereupon re-exposure becomes possible.

In addition to changing groups’ features, rules can also change relations such as has_location. The second rule in Figure 1 says, if a group is exposed to flu and is low-income then change the group’s location from its current $\mathtt{location}$ to $\mathtt{home}$ with probability $0.1$ and stay at $\mathtt{location}$ with probability $0.9$. If, however, the group is exposed and is middle-income, then it will go home with probability $0.6$ and stay put with probability $0.4$. And if the group has recovered from flu, whatever its income level, then it will go back to school with probability $0.8$.

4 The PRAM Engine: Redistributing Group Counts

The primary function of the pram engine is to redistribute group counts among groups, as directed by rules, merging and creating groups as needed, in a probabilistically sound way.

pram groups are defined by their features and relations in the following sense: Let ${\cal F}$ and ${\cal R}$ be features and relations of group g, and let $n$ be the count of g. For groups $\mathtt{g_{i}}$ and $\mathtt{g_{j}}$, if {\cal F}$${}_{i}= ${\cal F}$j and {\cal R}$${}_{i}= ${\cal R}$j, then pram will merge $\mathtt{g_{i}}$ with $\mathtt{g_{j}}$ and give the result a count of $n_{i}+n_{j}$. Conversely, if a rule specifies a distribution of $k$ changes to ${\cal F}$i (or ${\cal R}$i) that have probabilities $p_{1},p_{2},...,p_{k}$, then pram will create $k$ new groups with the specified changes to ${\cal F}$i (or ${\cal R}$i) and give them counts equal to $(p_{1}\cdot n_{i}),(p_{2}\cdot n_{i}),...,(p_{k}\cdot n_{i})$.

Redistribution Step 1: Potential Groups

To illustrate the details of how pram redistributes counts, suppose in its initial conditions a pram model contains just two extant groups:

[TABLE]

When rule_flu_progression is applied to $\mathtt{g_{1}}$ it calculates the $\mathtt{infection\_probability}$ at $\mathtt{Adams}$ to be $100/(100+900)=.1$. $\mathtt{g_{1}}$ triggers the first clause in the rule because $\mathtt{g_{1}}$’s $\mathtt{flu\_status==s}$. So the rule specifies that the $\mathtt{flu\_status}$ of $\mathtt{g_{1}}$ changes to e with probability $0.1$ and changes to s with probability $0.9$. pram then creates two potential groups:

[TABLE]

These potential groups specify a redistribution of $n_{1}$, the count of $\mathtt{g_{1}}$. We will see how pram processes redistributions, shortly.

Of the two rules described earlier, rule_flu_location does not apply to $\mathtt{g_{1}}$, but both apply to group $\mathtt{g_{2}}$. When multiple rules apply to a group, pram creates the cartesian product of their distributions of actions and multiplies the associated probabilities accordingly, thereby enforcing the principle that rules’ effects are independent. (If one wants dependent effects they should be specified within rules.) To illustrate, rule_flu_progression specifies a distribution of three actions for groups like $\mathtt{g_{2}}$ that have $\mathtt{flu\_status=e}$, with associated probabilities $0.2,0.5,0.3$; while rule_flu_location specifies two locations for groups that have $\mathtt{flu\_status=e}$ and $\mathtt{flu\_status=m}$, with probabilities $0.6$ and $0.4$. Thus, for $\mathtt{g_{2}}$, there are six joint actions of these two rules, thus six potential groups:

[TABLE]

These groups redistribute the count of $\mathtt{g_{2}}$ (which is 100) by multiplying it by the product of probabilities associated with each action.

Redistribution Step 2: The Redistribution Method

pram applies all rules to all groups, collecting potential groups as it goes along. Only then does it redistribute counts, as follows:

Extant groups that spawn potential groups have their counts set to zero; 2. 2.

Potential groups that match extant groups (i.e., have identical ${\cal F}$s and ${\cal R}$s) contribute their counts to the extant groups and are discarded; 3. 3.

Potential groups that don’t match extant groups become extant groups with their given counts.

So: Extant groups $\mathtt{g_{1}}$ and $\mathtt{g_{2}}$ have their counts set to zero. Potential group $\mathtt{g_{1\_2}}$ has the same features and relations as $\mathtt{g_{1}}$ so it contributes its count, 810, to $\mathtt{g_{1}}$ and is discarded. Likewise, potential group $\mathtt{g_{1\_1}}$ matches $\mathtt{g_{2}}$ so it contributes 90 to $\mathtt{g_{2}}$ and is discarded. Potential group $\mathtt{g_{2\_6}}$ also matches $\mathtt{g_{2}}$, so it contributes 12 to $\mathtt{g_{2}}$ and is discarded, bringing $\mathtt{g_{2}}$’s total to 102. Potential groups $\mathtt{g_{2\_1}}$, $\mathtt{g_{2\_2}}$, $\mathtt{g_{2\_3}}$, $\mathtt{g_{2\_4}}$, and $\mathtt{g_{2\_5}}$ do not match any extant group, so they become extant groups. The final redistribution of extant groups $\mathtt{g_{1}}$ and $\mathtt{g_{2}}$ is:

[TABLE]

Redistribution Step 3: Iterate

pram is designed to explore the dynamics of group counts, so it generally will run iteratively. At the end of each iteration, all non-discarded groups are marked as extant and the preceding steps are repeated: All rules are applied to all extant groups, all potential groups are collected, potential groups that match extant groups are merged with them, and new extant groups are created. A second iteration produces one such new group when the third clause of rule_flu_progression is applied to $\mathtt{g_{2\_1}}$:

[TABLE]

The reader is invited to calculate the full redistribution resulting from a second iteration (it is surprisingly difficult to do by hand).111The second iteration produces $n_{1}=706.632,~{}~{}n_{2}=119.768,~{}~{}n_{2\_1}=26.4,~{}~{}n_{2\_1\_1}=0.24,~{}~{}n_{2\_2}=25.6,~{}~{}n_{2\_3}=60.6,~{}~{}n_{2\_4}=24.4,~{}~{}n_{2\_5}=36.36$.

5 Exploring Population Dynamics with pram

Extending an earlier example, suppose the schools Adams and Berry each enroll 1000 students, of whom 900 are susceptible and 100 are exposed, evenly divided between males and females. All Adams students are middle-income and all Berry students are low-income. No students are pregnant, but we add a rule that creates pregnancies in groups of females with probability $0.01$. The initial eight extant groups are:

[TABLE]

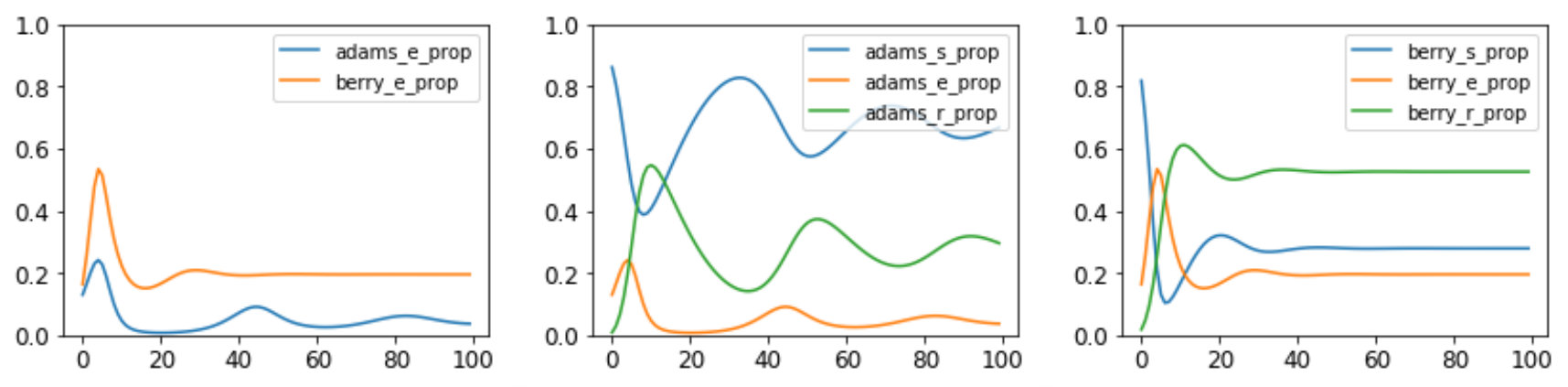

The dynamics of $\mathtt{flu\_status=e}$ at the two schools is presented in Figure 2. The leftmost panel shows the proportion of students exposed to flu at each school. Berry experiences a strong epidemic, with more than half the students exposed, whereas Adams has a more attenuated epidemic because its students are middle-income and can stay home when they are exposed, thereby reducing the infection probability at the school. Adams’ endemic level of flu is close to zero whereas Berry’s endemic level is around 20%. However, resurgent flu caused by recovered cases becoming susceptible again is more noticeable at Adams (around iteration 45). The only difference between Adams and Berry is that 60% of Adams students stay home when they get flu, whereas 10% of Berry students do, but this difference has large and persistent consequences.

6 Discussion

pram code is available on github  [5]. It has run on much larger problems, including a simulation of daily activities in Allegheny County that involved more than 200,000 groups. pram runtimes are proportional to $\nu$ the number of groups, not the group counts, so pram can be much more efficient than agent-based simulations (ABS). Indeed, when group counts become one, pram is an ABS, but in applications where agents or groups are functionally identical pram is more efficient than ABS. (Two entities $i$ and $j$ are functionally identical if {\cal F}$${}_{i}= ${\cal F}$j and {\cal R}$${}_{i}= ${\cal R}$j after removing all features from ${\cal F}$i and ${\cal F}$j and all relations from ${\cal R}$i and ${\cal R}$j that are not mentioned in any rule.)

Because $\nu$ depends on the numbers of features and relations, and the number of discrete values each can have, pram could generate enormous numbers of groups. In practice, the growth of $\nu$ is controlled by the number of groups in the initial population and the actions of rules. Typically, $\nu$ grows very quickly to a constant, after which pram merely redistributes counts between these groups. In the preceding example, the initial $\nu=8$ groups grew to $\nu=44$ on the first iteration and $\nu=52$ on the second, after which no new groups were added.

This dependence between $\nu$ and the actions of rules suggests a simple idea for compiling populations given rules: Any feature or relation that is not mentioned in a rule need not be in groups’ ${\cal F}$ or ${\cal R}$. Said differently, the only attributes that need to be in groups’ definitions are those that condition the actions of rules. Currently we are building a compiler for pram that automatically creates an initial set of groups from two sources: A database that provides ${\cal F}$ and ${\cal R}$ for individuals and a set of rules. The compiler eliminates from ${\cal F}$ and ${\cal R}$ those attributes that aren’t queried or changed by rules, thereby collapsing a population of individuals into groups with known counts.

Attributes with continuous values obviously can result in essentially infinite numbers of groups. (Imagine one group with a single real-valued feature and one rule that adds a standard normal variate to it. Such a pram model would double the number of groups on each iteration without limit.) Rather than ban real-valued attributes from pram we are working on a method by which groups have distributions of such attributes and rules change the parameters of these distributions. We are developing efficient methods by which pram generates new potential groups and tests whether they match extant groups.

For all this talk of efficiency, the primary advantage of pram over ABS is that pram models are guaranteed to handle probabilities properly. The steps described in Section 4 ensure that group counts are consistent with the probability distributions in rules and are not influenced by the order in which rules are applied to groups, or the order in which rules’ conditions are evaluated. These guarantees are the first step toward a seamless unification of databases with probabilistic and pram models. The next steps, which we have already taken on a very small scale, are automatic compilation of probabilistic models given pram models, and automatic compilation of pram rules given probabilistic models. Probabilistic relational models, which inspired pram, integrate databases with lifted inference in Bayesian models; pram adds simulation to this productive mashup, enabling models of dynamics.

7 Acknowledgments

This work is funded by the DARPA program “Automating Scientific Knowledge Extraction (ASKE)” under Agreement HR00111990012 from the Army Research Office.
