Dynamical Quantum Phase Transition and Quasi Particle Excitation

TL;DR

This paper investigates the relationship between dynamical quantum phase transitions and equilibrium phase transitions, demonstrating through exactly solvable models that the connection is not universal and identifying conditions for DPTs to occur independently of equilibrium critical points.

Contribution

The study provides analytical evidence that dynamical phase transitions are not always linked to equilibrium phase transitions, challenging previous assumptions and clarifying conditions for their occurrence.

Findings

DPTs can occur without crossing equilibrium critical points.

The connection between DPTs and EPTs is not universal.

Analytical analysis of the extended XY and compass models supports these conclusions.

Abstract

Dynamical phase transitions (DPTs) are signaled by the non-analytical time evolution of the dynamical free energy after quenching some global parameters in quantum systems. The dynamical free energy is calculated from the overlap between the initial and the time evolved states (Loschmidt amplitude). In a recent study it was suggested that DPTs are related to the equilibrium phase transitions (EPTs) (M. Heyl et al., Phys. Rev. Lett. \textbf{110}, 135704 (2013)). We here study an exactly solvable model, the extended $XY$ model, the Loschmidt amplitude of which provides a counterexample. We show analytically that the connection between the DPTs and the EPTs does not hold generally. Analysing also the general compass model as a second example, assists us to propound the physical condition under which the DPT occurs without crossing the equilibrium critical point, and also no DPT by crossing the equilibrium critical point.

Figures

Equations

$$\displaystyle{\cal H}=-\frac{1}{2}\sum_{n=1}^{N}\Big{[}\frac{J}{2}(\sigma_{n}^{x}\sigma_{n+1}^{x}+\sigma_{n}^{y}\sigma_{n+1}^{y})+\frac{J_{3}}{4}(\sigma_{n}^{x}\sigma_{n+2}^{x}+\sigma_{n}^{y}\sigma_{n+2}^{y})\sigma_{n+1}^{z}+(-1)^{n}h_{s}\sigma_{n}^{z}\Big{]},$$

$$\displaystyle H(k)=\left(\begin{array}[]{cc}\frac{J_{3}}{2}\cos(k)+h_{s}&-J\cos(k/2)\\ \\ -J\cos(k/2)&\frac{J_{3}}{2}\cos(k)-h_{s}\\ \end{array}\right),$$

$$c_k^q=\cos (\frac{{\theta }_k(h_s)}{2}){\alpha }_k+\sin (\frac{{\theta }_k(h_s)}{2}){\beta }_k,\text{leavevmode}\text{leavevmode}{c}_k^p=-\sin (\frac{{\theta }_k(h_s)}{2}){\alpha }_k+\cos (\frac{{\theta }_k(h_s)}{2}){\beta }_k,$$

$$\tan ({\theta }_k(h_s))=-J\cos (k/2)/h_s,$$

$${\epsilon }_k^{\alpha }(h_s)=(J_3/2)\cos (k)-\sqrt{(h_s{)}^2+J^2{\cos }^2(k/2)},\text{leavevmode}\text{leavevmode}{\epsilon }_k^{\beta }(h_s)=(J_3/2)\cos (k)+\sqrt{(h_s{)}^2+J^2{\cos }^2(k/2)},$$

$${\alpha }_k^{†}|0{⟩}_k=\cos (\frac{{\theta }_k(h_s)}{2})c_k^{q†}|0{⟩}_k-\sin (\frac{{\theta }_k(h_s)}{2})c_k^{p†}|0{⟩}_k,\text{leavevmode}\text{leavevmode}{\beta }_k^{†}|0{⟩}_k=\sin (\frac{{\theta }_k(h_s)}{2})c_k^{q†}|0{⟩}_k+\cos (\frac{{\theta }_k(h_s)}{2})c_k^{p†}|0{⟩}_k,$$

$$\displaystyle Z(z)=\prod_{k}e^{-z\varepsilon^{\alpha}_{k}(h_{s}^{(2)})}\Big{[}\cos^{2}(\eta_{k})+\sin^{2}(\eta_{k})e^{-z\Delta\varepsilon_{k}(h_{s}^{(2)})}\Big{]},$$

$$|\mathcal{L}(t){|}^2=\prod _k{\mathcal{L}}_k(t)=\prod _k[1-A_k{\sin }^2(\frac{\Delta {\epsilon }_{k}t}{2})],$$

$$\displaystyle z_{n}(k)=\frac{1}{\Delta\varepsilon_{k}}\Big{[}i\pi(2n+1)+\ln(\tan^{2}(\eta_{k}))\Big{]},$$

$${\cos }^2(\frac{k^{\ast }}{2})=-h_s^{(1)}{h}_s^{(2)},$$

$$t_n=t^{\ast }(n+\frac{1}{2}),\text{leavevmode}\text{leavevmode}{t}^{\ast }=\frac{2\pi }{\Delta {\epsilon }_{k^{\ast }}},$$

$$\displaystyle{\cal H}=\!\!\sum_{n=1}^{N^{\prime}}\Big{[}J_{o}\tilde{\sigma}_{2n-1}^{(+)}\tilde{\sigma}_{2n}^{(+)}+J_{e}\tilde{\sigma}_{2n}^{(-)}\tilde{\sigma}_{2n+1}^{(-)}\Big{]}.$$

$$Z(z)$$

$$\mathcal{L}(t)$$

$$H_k=J_k{c}_k^{A†}{c}_{-k}^{B†}+L_k{c}_k^{A†}{c}_k^B+J_{-k}{c}_{-k}^{A†}{c}_k^{B†}+L_{-k}{c}_{-k}^{A†}{c}_{-k}^B+\text{mbox}H.c,$$

$$|{\phi }_{1,k}⟩$$

$$|{\phi }_{4,k}⟩$$

$$|{\phi }_{7,k}⟩$$

$$A_{0,k}$$

$$B_{0,k}$$

$$A_{1,k}$$

$$B_{1,k}$$

$$C_k$$

$$D_k$$

Full text

Introduction

Recently, the study of non-equilibrium properties of quantum systems have been attracting a lot of attention [1, 2, 3, 4, 5]. One of the ongoing interest is to understand the notion of universality for a system away from equilibrium. Recent advancement in the studies of ultra-cold atoms trapped in optical lattices provide a novel framework to prob the non-equilibrium dynamics of quantum critical phenomena [6, 7, 8, 9]. Specifically, by considering a quantum quench, where a system is prepared in a well defined initial state and then suddenly changing the external parameters in the Hamiltonian controls the unitary evolution of the system [10, 11, 12]. The non-equilibrium dynamics of the quenched quantum system can be probed in many different ways, borrowing ideas from equilibrium statistical mechanics. In a recent work the notion of dynamical phase transitions (DPTs) has been introduced probing the non-analyticities in the dynamical free energy in the complex time plane [13]. The idea originates from the resemblance between the canonical partition function of an equilibrium system $Z(\beta)=Tre^{-\beta{\cal H}}$ and that of the quantum boundary partition function $Z(z)=\langle\psi_{0}|e^{-z{\cal H}}|\psi_{0}\rangle$ [14, 15] which corresponds to the Loschmidt amplitude (LA) for $z=it$. The LA ($L(t)=\langle\psi_{0}(h^{(1)})|e^{-i{\cal H}(h^{(2)})t}|\psi_{0}(h^{(1)})\rangle$) is the overlap amplitude of the initial quantum state $|\psi_{0}(h^{(1)})\rangle$ with its time evolved state under the post-quenched Hamiltonian ${\cal H}(h^{(2)})$. In the complex time ($z$) plane, the dynamical free energy density is defined as $f(z)=-\lim_{N\rightarrow\infty}\ln Z(z)/N$ where $N$ is the number of degrees of freedom [13, 16, 17, 18]. In a spirit similar to the classical case, one then looks for the non-analyticities of $f(z)$ or zeros of the $Z(z)$, known as Fisher zeros where interpreted as a dynamical phase transition [13, 16, 17, 19]. Additionally, these DPTs are presented in sharp nonanalyticities in the rate function of the return probability (Loschmidt echo) defined as $l(t)=-\lim_{N\rightarrow\infty}\ln|L(t)|^{2}/N$ [20, 13, 17, 21, 22, 23, 24, 25, 26].

A similar observation was first made by M. E. Fisher [27], who pointed out that the phase transition in a thermodynamic system is signaled by the non-analyticities in the free-energy density of an equilibrium system whose information can be acquired by analyzing the zeros of the partition function in a complex temperature plane. These zeros of the partition function cutting the real axis in the thermodynamic limit and integrate into a line in complex temperature plane [28]. These crossings mark the non-analyticities in the free-energy density. A similar observation was reported earlier for a complex magnetic plane by Lee-Yang [29].

An initial analytical result for the dynamical phase transition in the one-dimensional transverse Ising model [13] was verified in several subsequent studies for both integrable [19, 30] and non-integrable models [16, 31, 32, 33, 34, 17, 21, 19, 30] which established that the DPTs occur only if the sudden quench crosses the equilibrium quantum critical point. These works have been extended to the higher dimensional systems [35, 36], the dynamical topological order parameter [37], the role of topology [35], and slow quench scopes [38, 18]. Further studies, however, reveal that DPTs can occur following a sudden quench even within the same phase (i.e., not crossing the QCP) for both non-integrable [21, 17, 19] as well as integrable models [16]. This distinct property can be emanated from a kinetic constraint. The kinetic constraint is a $U(1)$ symmetry due to magnetization (particle) conservation which does not allow to dynamically enter the magnetization sectors (particle number) where the system adopts in the equilibrium case [17, 19].

To the best of our knowledge, there has been no general principle to connect the DPTs to the QPTs. The purpose of this paper is to highlights the physical conditions under which the quantum system may show DPT. To this aim, we serve two models as examples, the extended $XY$ chain in a staggered magnetic field and the general compass model, to show that generally DPTs can occur in quenches crossing the point where the quasiparticles are massless. Such quasiparticles may indeed be expected to appear at the quantum phase transition point, but as our case studies of the extended XY model and extended quantum compass chain (EQCC) reveal, this is not necessarily so.

The extended XY model

The extended $XY$ model dictated by the following Hamiltonian

[TABLE]

where, $N$ is the system size, $h_{s}$ represents the staggered transverse field, $J$ and $J_{3}$ are exchange couplings between the spins on the nearest-neighbor and the next-nearest-neighbor sites respectively. Performing the Jordan-Wigner fermionization and introducing the Nambu spinor $\Gamma^{\dagger}=(c^{q\dagger}_{k},c^{p\dagger}_{k})$, the Fourier transformed Hamiltonian can be expressed in Bogoliubov-de Gennes (BdG) form [39, 40], $H=-\sum_{k\geq 0}\Gamma^{\dagger}H(k)\Gamma$, with

[TABLE]

where $k=4\pi n/N$ with $-N/4<n<N/4$ for periodic boundary conditions [40]. Using the standard Bogoliubov transformation

[TABLE]

where

[TABLE]

we finally can write the Hamiltonian in the diagonalized form as ${\cal H}\!=\!\sum_{k}[\varepsilon^{\alpha}_{k}(h_{s})\alpha^{\dagger}_{k}\alpha_{k}+\varepsilon^{\beta}_{k}(h_{s})\beta^{\dagger}_{k}\beta_{k}]$, where

[TABLE]

with corresponding quasiparticle eigenstates

[TABLE]

where $|0\rangle_{k}$ is vacuum states of fermions.

This model reveals three phases, long-range ordered anti-ferromagnetic phase, in addition to two different spin liquid phases, spin liquid (I) and spin liquid (II). The phase transition between anti-ferromagnetic phase and spin liquid (I) is the gapped to gapless phase transition which occurs at $h_{s}^{c1}=\pm J_{3}/2$ (for simplicity we take $J=1$). The system is the antiferromagnet for $|h_{s}|\geq J_{3}/2$ where $\varepsilon^{\alpha}_{k}(h_{s})\leqslant 0$ and $\varepsilon^{\beta}_{k}(h_{s})>0$ for all $k$ mode, and therefore the ground state for each mode is $\alpha_{k}^{\dagger}|0\rangle_{k}$ with the total ground state energy $E_{g}=\sum_{k}\varepsilon^{\alpha}_{k}(h_{s})$. For $\sqrt{J_{3}^{2}/4-1}<|h_{s}|<J_{3}/2$ system enters into the spin liquid (I) phase where $\varepsilon^{\alpha}_{k}(h_{s})\leqslant 0$ for all modes in addition to $\varepsilon^{\beta}_{k}(h_{s})$ which is negative for some of the $k$ mode. So, for a given mode where both $\varepsilon^{\alpha}_{k}(h_{s})$ and $\varepsilon^{\beta}_{k}(h_{s})$ are negative the ground state is given by $\alpha^{\dagger}_{k}\beta^{\dagger}_{k}|0\rangle_{k}$ whereas for a mode where only $\varepsilon^{\alpha}_{k}(h_{s})$ is negative, $\alpha^{\dagger}_{k}|V\rangle_{k}$ is the ground state of the system. The gapless-gapless phase transition takes place between spin liquid (I) and spin liquid (II) at $h_{s}^{c2}=\pm\sqrt{J_{3}^{2}/4-1}$ where the topology of the Fermi surface changes [40]. In the spin liquid (II) phase ($|h_{s}|\leq\sqrt{J_{3}^{2}/4-1}$) both $\varepsilon^{\alpha}_{k}(0)$ and $\varepsilon^{\beta}_{k}(h_{s})$ have both positive and negative branches resulting to four Fermi points, two from each branch. Consequently, there are three possible ground states for a given $k$ mode depending on the sign of the energies $\varepsilon^{\alpha,\beta}_{k}(h_{s})$ given by $|0\rangle_{k}$, $\alpha^{\dagger}_{k}|0\rangle_{k}$, and $\alpha^{\dagger}_{k}\beta^{\dagger}_{k}|0\rangle_{k}$ and the ground state energy is the sum over all the modes with negative energies of each branch. In what follows we will assume the system is prepared in the ground state of Hamiltonian Eq.1 corresponding to $h^{(1)}_{s}$. At time $t=0$, we quench the staggered field strength $h^{(1)}_{s}\longrightarrow h^{(2)}_{s}$ and we evolve the initial state according to the new Hamiltonian ${\cal H}(h^{(2)}_{s})$.

It is straightforward to show that the Loschmidt amplitude (LA) and the return probability (RP) of the extended $XY$ model are given by

[TABLE]

and

[TABLE]

respectively, where, $2\eta_{k}=\theta_{k}(h^{(1)}_{s})-\theta_{k}(h^{(2)}_{s})$, $A_{k}=\sin^{2}(2\eta_{k})$, and $\Delta\varepsilon_{k}=\varepsilon^{\beta}_{k}(h^{(2)}_{s})-\varepsilon^{\alpha}_{k}(h^{(2)}_{s})$. In the thermodynamic limit the zeroes of the Loschmidt amplitude in the complex plane coalesce to a family of lines labeled by a number $n\in\mathbb{Z}$

[TABLE]

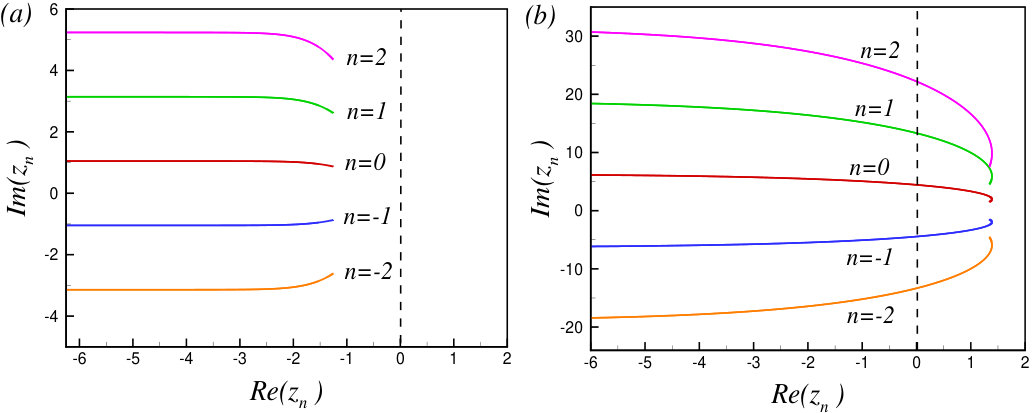

The sketches of lines of Fisher zeros are shown in Figs. 1(a) and 1(b) for quenching the system across the equilibrium quantum critical point ($h_{s}=2$) and the non-critical line ($h_{s}=0$), respectively. As seen in Fig. 1 (a), the lines of Fisher zeroes do not cut the imaginary axis for a quench crossing the quantum critical point. While the imaginary axis is crossed by Fisher zeros lines if the system quenched through the non-critical line ($h_{s}=0$) in Fig. 1(b).

The main quantity that controls the dynamical free energy is $\tan^{2}(\eta_{k})$, which depends on the parameters of pre-quenched and post-quenched Hamiltonian. The Fisher zeroes lines in the complex plane cross the imaginary axis only when there is a mode $k^{\ast}$ that satisfies $\tan^{2}(\eta_{k^{\ast}})=1$ ($\eta_{k^{\ast}}=\pi/4$). Using the expression $2\eta_{k}=\theta_{k}(h^{(1)}_{s})-\theta_{k}(h^{(2)}_{s})$ and Eq. (6) this condition can be solved for $k^{\ast}$ analytically

[TABLE]

It is easily seen that, the above equation can only be fulfilled provided $h^{(2)}_{s}h^{(1)}_{s}$ becomes negative. In other words, the non-analyticities in the Loschmidt amplitude can only exist when the system is suddenly quenched through the the non-critical line $h_{s}=0$ and $\sqrt{|h^{(2)}_{s}h^{(1)}_{s}|}\leq 1$. As a consequence of this analytical analysis the Loschmidt amplitude shows a periodic sequence of real-time non-analyticities in the case of quenching across the non-critical line $h_{s}=0$ at times

[TABLE]

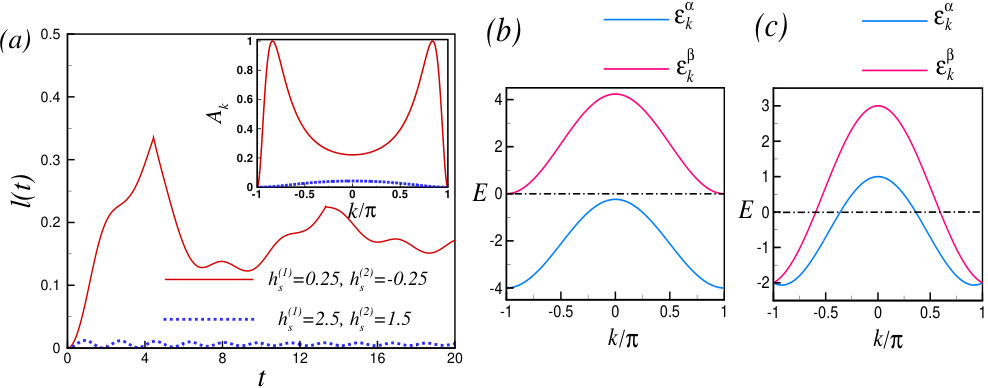

which numerically verified as shown in Fig. 2(a). We should mention that, the momentum $k$ changes from $-\pi$ to $\pi$, and for both the quenched cases $\lim_{k\rightarrow\pm\pi}Re[z_{n}(k)]=\pm\infty$, so each line of Fisher zeros consists of two overlapping half lines. Then, the Fisher zeros lines in Fig. 1(b) cross the imaginary axis twice which means there are two timescales in the dynamical free energy. Due to symmetric spectrum around $k=0$, i.e., $\varepsilon_{-k}^{\alpha,\beta}=\varepsilon_{k}^{\alpha,\beta}$ two timescales are equal.

To find out why the LA shows nontrivial behaviour for the quench crossing the phase boundary and also crossing the non-critical line let us to take a detailed look at the LE in Eq. (9). First note that, the real time instances at which the LA is zero is exactly equivalent to the time instances at which the return probability (RP) is zero. It requires that one factor becomes zero in Eq. (9), i.e., ${\cal L}_{k^{*}}(t)=0$ provided that the oscillating part of a $k^{\ast}$ mode becomes one.

An analysis shows that the oscillation amplitude $A_{k}$ is small for a quench across the critical point while it takes its maximum possible value ($A_{k}=1$) when quench performed across the line $h_{s}=0$ at $\pm k^{\ast}$ (inset Fig. 2(a)). It results that the corresponding modes can contribute destructively to the RP only at $k^{\ast}$ mode at time instances at which its oscillation term is one i.e., $A_{k^{\ast}}\sin^{2}(\Delta\varepsilon_{k^{\ast}}t/2)=1$. Then, the equation results $t_{n}=(2n+1)\pi/\Delta\varepsilon_{k^{\ast}}=t^{\ast}(n+1/2)$ which is exactly equivalent to Eq. (12).

In other words, if the maximum possible value of the oscillation amplitude is less than $1$, no DPT can appear even when the system is quenched across the QCPs. It is instructive to show that the amplitude of oscillation is connected to the occupation of the excited state. Defining excited state occupancy [11] $n_{k}=1-|\langle\psi_{0}(h^{(1)})|\psi_{0}(h^{(2)})\rangle|^{2}$ , where $n_{k}$ is the expectation value of the quasiparticle occupation number in the post-quench Hamiltonian and is conserved under the time evolution, results $\sin^{2}(2\eta_{k})=4n_{k}(1-n_{k})$. The maximum possible value of the oscillation amplitude and thus DPTs can occur whenever, $n_{k}=1/2$. The DPT cannot occur, even the quench is performed through an equilibrium QCPs, if the value of $n_{k}$ is not equal to $1/2$,. Since the oscillation amplitudes can be interpreted as measuring the probabilities of quasiparticle excitations, much larger amplitudes is expected at or near the gap-closing point. Therefore, small oscillation amplitude and consequently the absence of DPTs for a quench crossing the antiferromagnetic-spin liquid phase transition line $h_{s}=\pm J_{3}/2$ can be attributed to the fact that the quasiparticles which control the LA remain fully gapped as the QPT points crossed during the quench (Fig. 2(b)). On the contrary, the occurrences of DPTs for a quench within the same phase (crossing the line $h_{s}=0$) are associated with large oscillation amplitude, which is yielded from massless quasiparticle (Fig. 2(c)).

The extended compass model

To confirm the condition we have obtained from the study of the extended $XY$ model, under which the dynamical phase transition occurs, we investigate the extended quantum compass model (EQCM) as a second example. The Hamiltonian of the spin $1/2$ extended quantum compass model (EQCM) is characterized by [41, 42]

[TABLE]

In this representation, on dimensional (1d) EQCM is constructed by antiferromagnetic order of $X$ and $Y$ pseudo-spin components on odd and even bonds at which the pseudo-spin operators are constructed as linear combinations of the Pauli matrices $(\sigma^{\alpha=x,y,z})$: $\tilde{\sigma}_{2n}^{(\pm)}=\tilde{\sigma}_{n}(\pm\theta)=\cos\theta\sigma^{x}_{n}\pm\sin\theta\sigma^{y}_{n}$. Here $\theta$ ($-\theta$) is arbitrary angle relative to $\sigma^{x}$ for even (odd) bounds. $J_{e}$ and $J_{o}$ characterise the even and odd bound couplings respectively, and $N=2N^{\prime}$ is the number of spins. The 1d-EQCM is exactly solvable with the Jordan-Wigner transformation [43], which in momentum space leads to ${\cal H}_{E}=\sum_{m=1}^{4}\sum_{k}\varepsilon^{m}_{k}\gamma_{k}^{m{\dagger}}\gamma_{k}^{m}$, where $\gamma_{k}^{m{\dagger}}(\gamma_{k}^{m})$ denote independent quasiparticle creation (annihilation) operators. For states with even fermions, $\varepsilon^{1}_{k}=-\varepsilon^{4}_{k}=\sqrt{a+\sqrt{b}}$ and $\varepsilon^{2}_{k}=-\varepsilon^{3}_{k}=\sqrt{a-\sqrt{b}}$, with $a_{k}\!=\!|J_{k}|^{2}+|L_{k}|^{2}+|J_{-k}|^{2}+|L_{-k}|^{2}$ and b_{k}=4\Big{[}|L_{k}|^{4}+J_{k}^{2}J_{-k}^{2}-J_{k}^{\ast}J_{-k}L_{k}^{2}-J_{k}J_{-k}^{\ast}L_{-k}^{2}\Big{]}, where the parameters $L_{k}$ and $J_{k}$ are defined by $L_{k}=(J_{o}+J_{e}e^{{\rm i}k})$, and $J_{k}(\theta)=(J_{o}e^{{\rm i}\theta}-J_{e}e^{{\rm i}(k-\theta)})$. We concentrate on an idiosyncratic case of $\theta_{c}=\pi/2$ where the 1d-EQCC is critical for arbitrary $J_{e}/J_{o}$ [42, 44]. QPT takes place between two different disordered phases where the model exhibits highest possible frustration of interactions [42, 44].

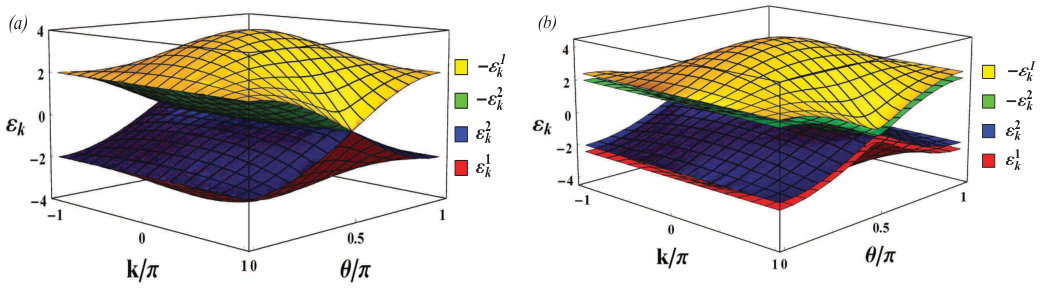

The BdG quasiparticle spectrum of the EQCC is plotted in Fig. 3(a)-(b) at the isotropic point (IP) $J_{o}=J_{e}$ and at the anisotropic point $J_{o}\neq J_{e}$ respectively. The many-particle groundstate of the EQCC is obtained by filling the two lowest bands, $\varepsilon_{k}^{1}$ and $\varepsilon_{k}^{2}$. As seen, at the IP the energy gap between the $\varepsilon_{k}^{1}$ and $\varepsilon_{k}^{4}=-\varepsilon_{k}^{1}$ bands closes at $\theta=\pi/2,k=\pi$ (Fig. 3(a)) while it is nonzero away from the IP (Fig. 3(b)). In contrast, and as required for the existence of the quantum critical line $\theta_{c}=\pi/2$, the energy gap between the $\varepsilon_{k}^{2}$ and $\varepsilon_{k}^{3}=-\varepsilon_{k}^{2}$ bands is closed for all $k$ at $\theta=\pi/2$ for arbitrary values of $J_{e}/J_{o}$. One verifies that the groundstate has a $2^{N/2}$-fold degeneracy at the critical line $\theta=\pi/2$ off the IP, with an enlarged degeneracy $2\times 2^{N/2}$ right at the IP.

By a rather lengthy calculation one can obtain the complete set of eigenstates $|\psi_{m,k}(\theta)\rangle,(m=0,...,7)$ of the model (for details, see the Appendix 1.1), yielding an exact expression for the LA and RP by sudden quench of $\theta$ $(\theta_{1}\longrightarrow\theta_{2})$ [45, 46]

[TABLE]

[TABLE]

where, $A_{0,k},B_{0,k},A_{1,k},B_{1,k},C_{k}$, and $D_{k}$ are function of overlaps between $k$ modes of the initial ground state and eigenstates of the postquenched Hamiltonian $\alpha_{m,k}=|\langle\psi_{m,k}(\theta_{2})|\psi_{0,k}(\theta_{1})\rangle|^{2}$ $(m=0,...,7)$ (for details, see the Appendix 1.2). The rate function of the RP following the quench from $\theta_{1}=0.49\pi$ to $\theta_{2}=0.51\pi$ is shown in Fig. 4 (a) for the IP and away from the IP for system size $N=120$. Cusps in $l(t)$ are clearly visible as an indicator of DPTs for the quench across the critical point $\theta_{c}=\pi/2$ at the IP while nonanalyticities wiped out for the same quench away from the IP which reflects no DPT. As seen in Eq. (14), the LA is not a simple function of $z$ variable and then we can not obtain the zeros of LA analytically. So, to obtain the real time nonanalyticities in the rate function of RP we have to investigate Eq. (The extended compass model) directly. As discussed, the nonanalyticities in the rate function of the RP occur when the oscillation amplitude, in the mode decomposition of the RP in Eq. (The extended compass model), takes its maximum possible value. The oscillation amplitudes have been plotted in Fig. 4(b) for a small size quench from $\theta_{1}=0.49\pi$ to $\theta_{2}=0.51\pi$ for both the IP ($J_{o}=J_{e}=1$) and away from the IP ($J_{o}=1,J_{e}=2$). As seen, $A_{0,k}$ and $B_{0,k}$ is nonzero at the IP and $A_{0,k}$ takes its maximum possible value at $k^{\ast}$ mode ($A_{0,k^{\ast}}=1$), while the oscillations amplitude are zero or very small away from the IP (inset, Fig. 4(b)). Therefore, there is no mode where its contribution becomes zero in the product in Eq. (The extended compass model) for resulting nonanalyticities in the $l(t)$ away from the IP. As oscillation amplitudes are function of the probability of quasiparticle excitation, the different behaviours of $l(t)$, for a small size quench across the critical point, at the IP and away from the IP, originates from the difference between excited states occupancies at the IP and away from the IP.

As mentioned, the energy gap between the $\varepsilon^{2}_{k}$ and $\varepsilon^{3}_{k}$ bands, which control the phase transition, is closed for all $k$ mode at $\theta_{c}=\pi/2$ for arbitrary values of $J_{e}/J_{o}$. While the energy gap between the $\varepsilon^{1}_{k}$ and $\varepsilon^{4}_{k}=-\varepsilon^{1}_{k}$ bands closes at $k=\pi$, $\theta_{c}=\pi/2$ and it is nonzero away from the IP.

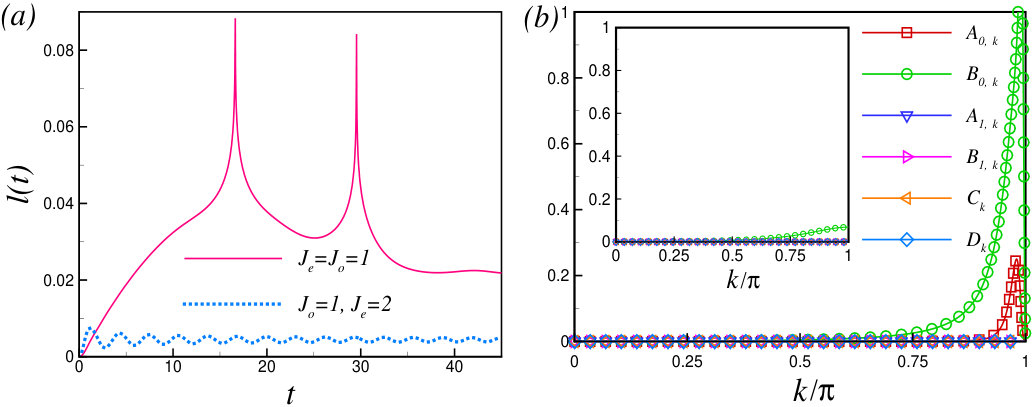

Since, a sudden quench generally leads to particle-hole type excitations, it is expected that a small quenches, which puts a small amount of energy into the system, yields a large oscillation amplitude at the IP due to dispersionless quasiparticle band at $k=\pi$, $\theta_{c}=\pi/2$. However, we expect a small oscillation amplitude away from the IP due to gapped quasiparticle band at $k=\pi$, $\theta_{c}=\pi/2$. The contribution of the $k^{\ast}$ mode in Eq. (The extended compass model) becomes zero at time instances at which $A_{0,k^{\ast}}\sin^{2}[(\varepsilon^{1}_{k^{\ast}}(\theta_{2}))t]=1$. Then, the real time nonanalyticities for a small quench across the critical line is given by $t_{n}=t^{\ast}(n+\frac{1}{2})$, where $t^{\ast}\simeq\pi/\varepsilon^{1}_{k^{\ast}}$. It should be noted that, the oscillation function correspond to $B_{0,k^{\ast}}$ ($\sin^{2}[(\varepsilon^{1}_{k^{\ast}}(\theta_{2}))t/2]$) is zero at time $t_{n}$.

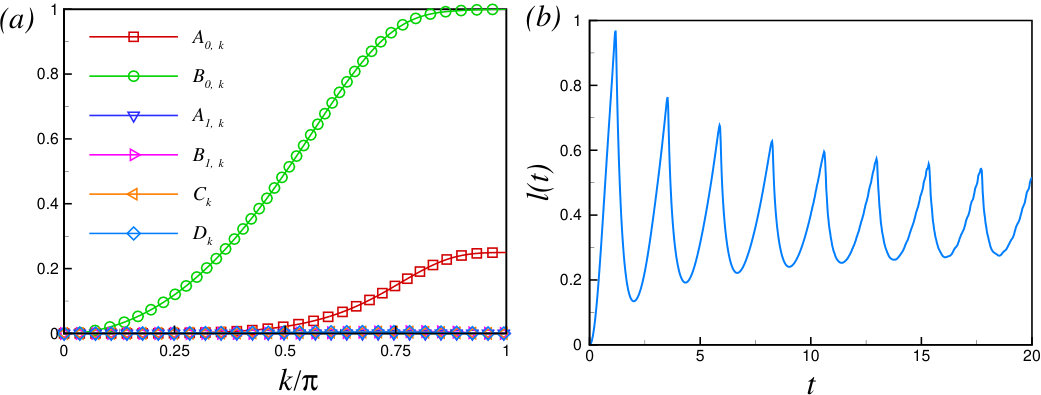

However, for a large size quench which imposes a large amount of energy into the system, and in turn increases the probability of quasiparticle excitation, we expect a large oscillation amplitudes and consequently nonanalyticities in $l(t)$ even away from the IP where the quasiparticle energy is gapfull. The oscillations amplitude have been plotted in Fig. 5(a) for a large size quench from $\theta_{1}=0.4\pi$ to $\theta_{2}=0.6\pi$ away from the IP ($J_{o}=1,J_{e}=2$). As expected, the oscillation amplitude $A_{0,k}$ reaches its maximum possible value at $k^{\ast}$ which results nonanalyticities in $l(t)$ (Fig. 5(b)). The real time nonanalyticities for a large quench crossing the critical line is given by $t_{n}=t^{\ast}(n+\frac{1}{2})$, where $t^{\ast}=\pi/(\varepsilon^{1}_{k^{\ast}}+\varepsilon^{2}_{k^{\ast}})$.

We should stress that, the most pronounced revivals in the RP happen when the system satisfies two circumstances, large oscillation amplitude (maximum possible value is not necessary) and the zero energy mode [45, 47, 48], while occurrence of the DPTs only needs large oscillation amplitude with maximum possible value $1$.

Summary and conclusions

We have shown that the presence of quantum phase transition point is neither a sufficient nor a necessary condition for observing a dynamical quantum phase transition after a global quantum quench. By examining how the eigenstates of the models imprint the return probability, we find that what does matter is the availability of propagating quasiparticles as signaled by their having an impact on the rate function of the return probability. Searching the dynamical phase transition in the extended XY model, provides an example that a stable massless phase can act as a source of dynamical phase transition. While a quantum phase transition generically supports massless excitations, our case study of the extended quantum compass model reveals that these excitations may not necessarily couple to the quantum phase transition.

We should point out that, in Ref. [17] it has been reported that in a transfer matrix approach, nonanalyticities in rate function of the return probability are a consequence of crossing of the leading eigenvalue with the next leading eigenvalue of the Hamiltonian for a quench within the same phase. However, it also shown that, for a quench across the quantum phase transition point, any quench starting in the ferromagnetic phase and any quench where only the uniform magnetic field is changed, leads to zero rate function of the return probability [17]. The zero values of rate function of the return probability in the former case originates from the fact that the ferromagnetic state is an eigenstate of both the pre-quenched and the post-quenched Hamiltonians [17, 19].In the latter case the conservation of the total magnetization results zero rate function of the return probability. In this paper the quench has not been done by changing the magnetic field and the initial state in both the extended $XY$ model and the extended compass model is not the eigenstate of the post-quenched Hamiltonian [17, 19]. So, our findings may call for a revisit of earlier studies on dynamical phase transition and quantum criticality, and can shed new light on the bridge between dynamical phase transition and quantum phase transitions.

Acknowledgements

The author would like to thank Henrik Johannesson, Alireza Akbari and Utkarsh Mishra for reading the manuscript and valuable comments.

1 Appendix

1.1 General Compass model

The EQCC ground state $|\psi_{0}\rangle$ is realized by filling up the negative-energy quasiparticle states, $|\psi_{0}\rangle=\prod_{k}\gamma_{k}^{(1){\dagger}}\gamma_{k}^{(2){\dagger}}|0\rangle$, where $|0\rangle$ is the Bogoliubov vacuum annihilated by the $\gamma_{k}$:s [46]. While excited states can be similarly obtained, their construction becomes quite cumbersome within the Bogoliubov-de Gennes formalism. An alternative approach was pioneered by Sun [49]. One here takes off from the observation that the QCC Hamiltonian can be written as a sum of commuting Hamiltonians $H_{k}$,

[TABLE]

Since $H_{k}$ conserves the number parity (even or odd number of electrons), it is sufficient to consider the even-parity subspace of the Hilbert space, spanned by

[TABLE]

Given this basis, the eigenstates $|\psi_{m,k}\rangle$ of $H_{k}$ can be written as $|\psi_{m,k}\rangle=\sum_{j=1}^{8}v_{m,k}^{(j)}|\varphi_{j,k}\rangle,$

1.2 Loschmidt echo

The amplitudes in the mode decomposition of the RP, Eq. (12), depend on the state overlaps $\alpha_{m,k}=|\langle\psi_{m,k}(\theta_{2})|\psi_{0,k}(\theta_{1})\rangle|^{2}$ $(m=0,...,7)$ as

[TABLE]

Additional information

Contributions: All parts of this paper have been done by R. Jafari.

Competing interest: The author declare no competing interests.
