Determination of quantum defect for the Rydberg P series of Ca II

TL;DR

This paper experimentally investigates the Rydberg 23 P$_{1/2}$ state of laser-cooled Ca$^+$ ions, precisely characterizes electric fields, and determines the quantum defect and ionization energy, confirming existing values.

Contribution

It provides a new precise measurement of the quantum defect and ionization energy for Ca II Rydberg P states using advanced spectroscopic techniques.

Findings

Ionization energy of 95,751.916(32) cm$^{-1}$ was determined.

Quantum defect for n P$_{1/2}$ states was measured.

Electric field effects on Rydberg transitions were minimized.

Abstract

We present an experimental investigation of the Rydberg 23 P$_{1/2}$ state of laser-cooled $^{40}$Ca$^+$ ions in a radiofrequency ion trap. Using micromotion sideband spectroscopy on a narrow quadrupole transition, the oscillating electric field at the ion position was precisely characterised, and the modulation of the Rydberg transition due to this field was minimised. From a correlated fit to this P line and previously measured P and F level energies of Ca II, we have determined the ionization energy of 95 751.916(32) $\rm {cm}^{-1}$, in agreement with the accepted value, and the quantum defect for the $n$ P$_{1/2}$ states.

Figures

Tables

Table 1. Table 1: Summary of the contributions to the overall uncertainty in the determination of the center frequency of the 3 D → 3 / 2 {}_{3/2}\rightarrow  23 P 1/2 transition.

Source of error	Resulting uncertainty [MHz]
Stabilisation of the VUV beam
Calibration of the wavelength meter	$11$$10$
Thermal shift due to the polarisability of the state	$\approx 2$
Natural linewidth of the transition	$11$$0.01$
ac Stark shift due to the trapping field
Light shift	$\approx 0.33$
Overall uncertainty	$11$$12$

Table 2. Table 2: Relevant Rydberg levels of Ca II and their energies that were used in the correlated fit to the P and F series, see text for details. For the last five terms marked with asterisks, the 3D 5/2 and 3D 5/2 energies from references  (Chwalla  et al. , 2009 ; Yamazaki  et al. , 2008 ) were used.

Rydberg level energy	wave number [cm-1]	uncertainty [cm-1]	reference(s)
5 P1/2	60 533.03	0.01	(Kramida et al., 2018)
6 P1/2	74 484.94	0.01	(Kramida et al., 2018)
5 F5/2	78 034.39	0.01	(Kramida et al., 2018)
6 F5/2	83 458.08	0.01	(Kramida et al., 2018)
7 F5/2	86 727.06	0.01	(Kramida et al., 2018)
8 F5/2	88 847.31	0.01	(Kramida et al., 2018)
9 F5/2	90 300.00	0.01	(Kramida et al., 2018)
10 F5/2	91 338.00	0.01	(Kramida et al., 2018)
∗23 P1/2	94 807.798 8	0.0004	This work
∗22 F5/2	94 842.764	0.003	(Bachor et al., 2016)
∗52 F5/2	95 589.257	0.003	(Feldker et al., 2015)
∗53 F5/2	95 595.656	0.003	(Feldker et al., 2015)
∗66 F5/2	95 650.901	0.034	(Feldker et al., 2015)

Table 3. Table 3: Quantum defect expansion coefficients as described in equation ( 4 ) for the n 𝑛 n  P 1/2 states of Ca II. We extracted the values from fits to measured transitions in the given references. The uncertainties are the statistical standard deviations (one sigma) obtained from fits. The 7 P and 8 P terms marked with asterisks are calculated values from reference  (Safronova and Safronova, 2011 ) . Our result, which are obtained from a correlated fit, is presented in the last row, see text for details.

Investigated range of $n$	${\mu }^0$	$\partial \mu /\partial E$ [$R^{\ast -1}$]	${\mu }^1$
$32$ to $95$ (Xu et al., 1998)	$1.43\left(4\right)$	$-$$0.3\left(1.8\right)$	$33\left(18\right)$
$5$, $6$, $7^{\ast }$, $8^{\ast }$ (Kramida et al., 2018; Safronova and Safronova, 2011)	$1.438\left(2\right)$	$-0.10\left(3\right)$	$-$$1.5\left(0.4\right)$
$5$, $6$, $23$ (this work)	$1.43690\left(3\right)$	$-0.1036\left(4\right)$	$-$$1.438\left(4\right)$

Table 4. Table 4: Quantum defect expansion coefficients as described in equation ( 4 ) for the n 𝑛 n  F 5/2 states of Ca II. The uncertainties are the statistical standard deviations (one sigma) from fits.

Investigated range of $n$	${\mu }^0$	$\partial \mu /\partial E$ [$R^{\ast -1}$]	${\mu }^1$
$5$ to $10$ (Kramida et al., 2018)	$0.02930\left(8\right)$	$0.040\left(2\right)$	$0.14\left(7\right)$
$5$ to $10$, $22$, $52$, $53$, $66$ (this work)	$0.02902\left(2\right)$	$0.0332\left(4\right)$	$0.46\left(2\right)$

Table 5. Table 5: Ionization energy of Ca II and applied measurement methods in chronological order over the last 100 years. In each row, the original reference appears without asterisk, whereas further classical references which referred to that original work are marked with asterisks.

Year	$I^{++}$ [cm-1]	Method	reference(s)
1925	$95$ $748.0$	Absorption spectroscopy (Hilger apparatus)	(Saunders and Russell, 1925), (Moore, 1949)∗
1956	$95$ $751.87\left(3\right)$	Analysis of Rydberg G series ($n=5$ to $9$)	(Edlén and Risberg, 1956), (Sugar and Corliss, 1985)∗
1985	$95$ $751.9$	Analysis of low-lying lines (3 D to 5 P)	(Radzig and Smirnov, 1985)
1998	$95$ $748.0\left(.4\right)$	Analysis of Rydberg P series ($n=32$ to $95$)	(Xu et al., 1998)
1999	$95$ $751.88\left(1\right)$	Analysis of collective data, improvement by 4$p^2$Po levels measurement	(Kramida et al., 2018), (Morton, 2003)∗, (Sansonetti and Martin, 2005)∗
2018	$95$ $751.916\left(32\right)$	Analysis of Rydberg P ($n=5$, $6$, $23$) and F ($n=5$ to $10$, and $22$, $52$, $53$, $66$) levels	This work

Equations

$$\nu (t)={\nu }_0+(\mathbf{k}\cdot {\mathbf{x}}_{\mathrm{mm}}{\mathrm{\Omega }}_{\mathrm{RF}}\sin {\mathrm{\Omega }}_{\mathrm{RF}}t-\frac{\mathcal{P}{\mathbf{E}}_{\mathrm{res}}^2}{2}{\cos }^2{\mathrm{\Omega }}_{\mathrm{RF}}t)/2\pi .$$

$$E_{\mathrm{laser}}(t)\propto$$

$$\times \sum _n{J}_n({\beta }_{\mathrm{mm}})e^{in({\mathrm{\Omega }}_{\mathrm{RF}}\mathrm{t}+\pi /2)}$$

$$\times \sum _m{J}_m({\beta }_{\mathcal{P}})e^{2im({\mathrm{\Omega }}_{\mathrm{RF}}\mathrm{t})},$$

$$E_{n,l,j}=$$

$$\displaystyle\frac{Z^{4}\alpha^{2}R^{*}}{(n-\mu(E))^{3}}{\Big{[}}\frac{3}{4(n-\mu(E))}-\frac{1}{(j+1/2)}{\Big{]}}.$$

$$\mu (E_{n,l,j})=$$

$$\frac{{\partial }^2\mu }{\partial E_{n,l,j}^2}(E_{n,l,j}-I^{++}{)}^2+O[(E_{n,l,j}-I^{++}{)}^3]$$

$$\approx {\mu }_{l,j}^0(I^{++})-\frac{\partial \mu }{\partial E_{n,l,j}}\frac{R^{\ast }}{(n-{\mu }_{l,j}^1{)}^2},$$

Full text

I Introduction

Spectroscopy of ionic Rydberg states yields experimental data that are essential for determining various properties of Rydberg ions. The necessity of such data stems from the fact that quantum defect theory (Seaton, 1983a) (which provides a theoretical basis for predicting properties of high-lying states for any charge of a core) does not describe the nontrivial behaviour of core-penetrating Rydberg states with low angular momentum $l<4$ for hydrogen-like atoms and ions. For many applications, modifications to the purely Coulomb part of the interaction can be represented by a single, weakly energy-dependent phase shift called quantum defect that has to be experimentally determined (Gallagher, 2005).

Rydberg states of atoms, exhibit remarkable properties, such as high sensitivity to external electric and magnetic fields. The key advantage is the largely enhanced polarisability, which make these systems ideal for fundamental cavity quantum electrodynamics experiments (Raimond et al., 2001; Brune et al., 1996) and for precise measurements as a quantum sensor of electric fields with unmatched sensitivity (Facon et al., 2016; Brune et al., 1994). For trapped Rydberg ions, strong dipole-dipole interactions can be achieved by microwave dressing fields (Müller et al., 2008). Another exciting feature of Rydberg ions confined in a trap is the coupling between their external and internal degrees of freedom owing to their large polarisabilities. Therefore they are excellent platforms for exploring non-equilibrium dynamics in the quantum regime in an extremely controllable fashion (Li and Lesanovsky, 2012; Silvi et al., 2016) as well as for extending quantum simulation techniques from Rydberg atoms (Saffman et al., 2010) to ionic species.

Experimental investigations of Rydberg states of trapped ions, inspired by reference (Müller et al., 2008), have been commenced with the first realisation of Rydberg F states of Ca*+* ions (Feldker et al., 2015). Further development have been recently made in a seminal experiment for coherent control of a single trapped Sr*+* ion in Rydberg S states (Higgins et al., 2017a). However trapped ions have been widely explored over the past three decades for exciting applications, such as quantum information processing (Häffner et al., 2008), their Rydberg properties are not well understood. An important development is envisioned by implementing fast quantum gates using Rydberg ions (Li and Lesanovsky, 2014; Vogel et al., 2019).

Rydberg-state spectroscopy in combination with Rydberg-series extrapolation presents the most precise method for determining the ionization energy (Herzberg and Ch. Jungen, 1972; Rydberg, 1890; Ritz, 1908), which is an important quantity for experimental studies and serves as a reference data for testing ab initio calculations. Despite the ubiquitous use of Ca*+* ions in quantum technology experiments, up to date, there is no precise measurement of its ionization energy.

Here, we report on Rydberg excitation of single, laser-cooled Ca*+* ions in a radiofrequency (RF) ion trap from the metastable 3 D3/2 state to the 23 P1/2 state. Measurements of the oscillating electric field at the ion position and its influence on the Rydberg line shape are discussed (sections II and III). This observation in combination with previously measured data on the P and F levels of Ca*+* (Kramida et al., 2018; Feldker et al., 2015) enabled us to determine the quantum defect of the P and F levels as well as the ionization energy of Ca II (section IV).

II Experimental setup for Rydberg excitation of cold trapped ions

To confine ions, we employed a linear RF ion trap, consisting of four gold-coated, blade electrodes and two titanium endcaps. This blade trap features 750 $\mu$m ion-electrode distance and 500 $\mu$m wide segmented electrodes in the proximity of the experimental zone. Two endcaps were arranged at a distance of about 10 mm and feature 1 mm through holes which allow optical access for the Rydberg excitation beam. The RF signal for trapping, generated by an amplified output of a signal generator, was impedance matched to the trap using a helical resonator (Siverns et al., 2012). RF frequency ${\rm\Omega}_{\rm RF}=2\pi\times$14.56 MHz ($2\pi\times$5.98 MHz) and RF amplitude $V_{\rm{0-peak}}=250$–300 V ($V_{\rm{0-peak}}=150$–200 V) were used. Typical secular trapping frequencies were $\{\omega_{r1},\omega_{r2},\omega_{z}\}=2\pi\times\{1830,1140,560\}$ kHz.

To load the trap, an atomic beam of neutral calcium was produced by evaporation from a resistively heated stainless steel tube aligned towards the loading zone. The Ca beam passed through a slit to reach the trapping region where 40Ca+ ions were produced by resonant photoionization using two diode laser beams near 423 nm and 375 nm. All measurements were done using single trapped ions. Fast loading of ions has been enabled by transporting them from a separate loading zone, which was used as an ion reservoir. In this way, we mitigate parasitic electric field shifts due to surface contaminations of trap electrodes near the loading region. Doppler cooling of Ca*+* ions was carried out using three diode laser beams at 397, 866 and 854 nm pumping on the $(4s)^{2}$S${}_{1/2}\rightarrow(4p)^{2}$P1/2, $(3d)^{2}$D${}_{3/2}\rightarrow(4p)^{2}$P1/2 and $(3d)^{2}$D${}_{5/2}\rightarrow(4p)^{2}$P3/2 transitions, respectively. Sideband cooling and high-precision spectroscopy of motional modes were achieved using an ultra-stable Titanium-Sapphire laser at 729 nm that drives the $(4s)^{2}$S${}_{1/2}\rightarrow(3d)^{2}$D5/2 narrow quadrupole transition (figure 1(a)).

Laser excitation of ions into Rydberg states is carried out using continuous-wave vacuum ultra-violet (VUV) coherent light at 122–123 nm which drives certain $n$ P and $n$ F transitions of the Ca+ ion from the metastable 3 D3/2 or 3 D5/2 states with lifetimes in the order of 1 s (Schmidt-Kaler et al., 2011), see figure 1(a). The VUV beam enters the trap through endcap holes and passes along the trap symmetry axis. VUV laser radiation was generated based on a four-wave frequency mixing technique, in which three light fields at 254, 408 and 580 (555) nm were tuned close to the 61S$\rightarrow$63P, 63P$\rightarrow$71S and 71S$\rightarrow$101P (111P) transitions in mercury to enhance the efficiency of the non-linear process (Eikema et al., 1999; Kolbe et al., 2012; Bachor et al., 2016; Feldker, 2016; Schmidt-Kaler et al., 2011; Bachor, 2018). Having the three fundamental beams locked to a reference cavity using the Pound-Drever-Hall technique (Drever et al., 1983), we estimated the VUV laser bandwidth of 850(130) kHz (Bachor, 2018). The wavelength of the fundamental beams were monitored by a wavelength meter (High Finesse WSU-10), which is calibrated to the 4 S${}_{1/2}\rightarrow$ 3 D5/2 quadrupole transition of 40Ca+, and is accurate to about 10 MHz at the sum frequency. The VUV beam was collimated and focused to the trap experimental zone in an ultra-high vacuum chamber (at pressure $<5\times 10^{-10}$ mbar) and the beam intensity is monitored by a photomultiplier tube. The efficiency of the four-wave-mixing process and thus the beam intensity is a sensitive function of the wavelength generated (Schmidt-Kaler et al., 2011). For the presented measurements, the laser intensity is about $3.3\times 10^{3}$ W/m2 at 123.217 nm near the trap centre. We estimate a VUV beam waist of about 12 $\mu$m and power of 1.5 $\mu$W at the position of ions.

A successful excitation to a Rydberg state is detected from an electron shelving signal (Feldker et al., 2015) resulting in either the ion transferred into the 3 D5/2 state, thus no-fluorescence, or the ion undergoing fluorescence cycles on the 4 S1/2 to 4 P1/2 transitions when exposed to laser light near 397 nm and 866 nm. The fluorescence light near 397 nm was collected, and spatially resolved by a microscope (numerical aperture $=0.27$) and was imaged onto an electron-multiplying charge-coupled device (EMCCD) camera.

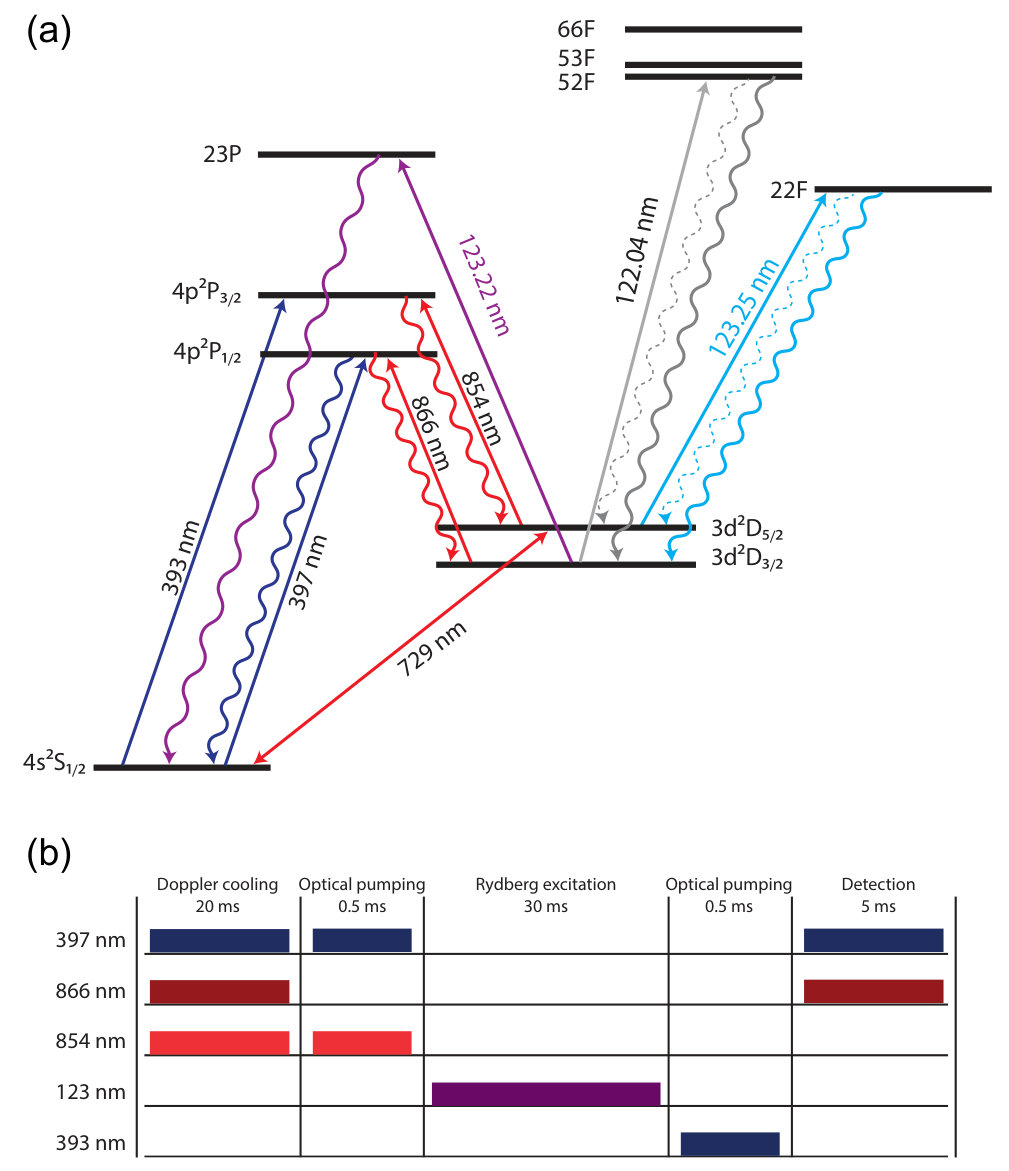

The laser pulse scheme used for the excitation and detection of the 23 P1/2 line is shown in figure 1(b). A single, Doppler-cooled ion was optically pumped to the 3 D3/2 state from which it was excited to the 23 P1/2 state. The population of the 23 P1/2 state decays to the 4 S1/2 state in multiple steps with the predicted lifetime of about 18 $\mu$s (Glukhov et al., 2013). Subsequently, the ground-state population was transferred to the 3 D5/2 state using the 393 nm laser beam via the short-lived 4 P3/2 state. Alternatively, $\pi$-pulses of the 729 nm beam that address the Zeeman manifold of the 3 D5/2 level can be employed. Successful Rydberg excitation events were therefore counted as dark ions in this case.

III Rydberg 23 P1/2 line shape and electric-field compensation

Effects of the trapping fields on Rydberg ions in a linear Paul trap can be classified into two cases; RF and static fields minima overlapped, i.e. no “excess” micromotion is experienced by ions, and non-overlapped fields minima, i.e. ions “excess” micromotion is significant (Berkeland et al., 1998). Due to the large polarisability of Rydberg ions, “excess” micromotion may lead to strong driving of phonon-number-changing transitions, and to resonance frequency shifts (Higgins, 2018), and hence, it is always preferred to work in the former regime. Minimising the axial residual RF field, which is along the Rydberg excitation beam, is of particular importance in our experiment.

Resolved sideband spectroscopy on the $(4s)^{2}$S${}_{1/2}(m_{j}=-1/2)\rightarrow(3d)^{2}$D${}_{5/2}(m_{j}=-5/2)$ transition enabled us to precisely determine the RF electric field amplitude $|\boldsymbol{E}_{\rm res}|$ at the ion position. If the ion is exposed to an oscillating electric field, this narrow quadrupole transition acquires sidebands. We measured the excitation strength as a Rabi frequency of the carrier and the first micromotion sidebands from which the modulation index due to the micromotion, and hence, the electric field amplitude were determined (Roos, 2000). Figure 2(a) shows the result of this measurement, where a single ion was moved to characterise the electric field along the line of the RF node. At each position, when moving the ion along the RF node, we minimised micromotion in the transversal plane perpendicular to the trap axis by applying compensation voltages on trap electrodes. To detect such radial micromotion, we observe the micromotion-induced modulation of the fluorescence intensity from the 4 S1/2 to 4 P1/2 transition (Berkeland et al., 1998). For the radial field compensation, we estimated that the method is accurate to about 4 to 8 V/m for different trapping frequencies, and hence, we estimate a slightly better sensitivity for the field compensation in the radial directions as compared to the axial one. Our measurement shown in figure 2(a) indicates that the axial component of the micromotion is minimised at about 1000 $\mu$m from the trap geometry centre. We conjecture that this effect might arise due to imperfections of the trap geometry. All further spectroscopic measurements for the transition frequency have been carried out at this position, using a single ion while stray electric fields along radial and axial directions were compensated.

From a Gaussian fit to the Rydberg excitation probabilities that have been measured as a function of the frequency of the 123 nm beam, we have determined the 3 D${}_{3/2}\rightarrow$ 23 P1/2 absolute, measured frequency at 2 433 043 773(12) MHz. Systematic frequency shifts of Rydberg transitions of trapped ions can be caused by the ac Stark shift (Higgins et al., 2017b). This shift quadratically depends on the polarisability of Rydberg states, which scales with $n^{7}$ for hydrogen-like ions, where $n$ is the principal quantum number (Kamenski and Ovsiannikov, 2014). Using the predicted polarisability of about $\mathcal{P}_{23\rm P}\approx-1.2\times 10^{-32}$ C${}^{2}\cdot$m${}^{2}\cdot$J*-1* for the 23 P1/2 state (Kamenski and Ovsiannikov, 2014), we estimated less than $-1.4$ kHz frequency shift at 10 V/m, a conservative value for the residual electric field at the ion position. The ac Stark shift for the line shown in Fig 2(b), where the ion is subjected to $|\boldsymbol{E}_{\rm res}|=160$ V/m is about $-22$ kHz.

A second systematic shift arises from the ion thermal oscillation. The large polarisability of Rydberg states leads to the quadratic ac Stark shift that modifies motional frequencies of the ion in a harmonic trap. Therefore, the energy for Rydberg excitation is shifted depending on the phonon numbers in normal modes of oscillation. Since such a trap frequency alternation is two orders of magnitude larger for radial modes as compared to an axial mode in a typical experiment, the shift of the Rydberg line transition is mainly affected by radial phonon distributions. This shift depends on the sign of the polarisability of Rydberg states, e.g., shifts towards larger frequencies for $n$ P states of Ca+ with negative polarisabilities (see measured shifts towards smaller frequencies for Rydberg S states of Sr*+* with positive polarisabilities  (Higgins, 2018)). Doppler cooling limit in this case is estimated to be about 5 mK. For our typical operation conditions and a Doppler-cooled ion, we estimated about 2 MHz frequency shift.

The observed linewidth is about 12 MHz (FWHM). The natural linewidth of the Rydberg levels, which scales with $n^{-3}$ (Kamenski and Ovsiannikov, 2014), is less than 10 kHz for the 23 P line of Ca II. The ac Stark broadening is negligible in this case because of low susceptibility of this P line. For the 3 D${}_{3/2}\rightarrow$ 23 P1/2 transition, we calculated a Rabi frequency of $2\pi\times 53$ kHz using the 123 nm beam parameters given in section II, and the light shift of about $330$ kHz. Finally, the bandwidth of the excitation laser is $<1$ MHz (section II). Table 1 summarizes an overview of the sources of systematic errors that are considered in our experiment.

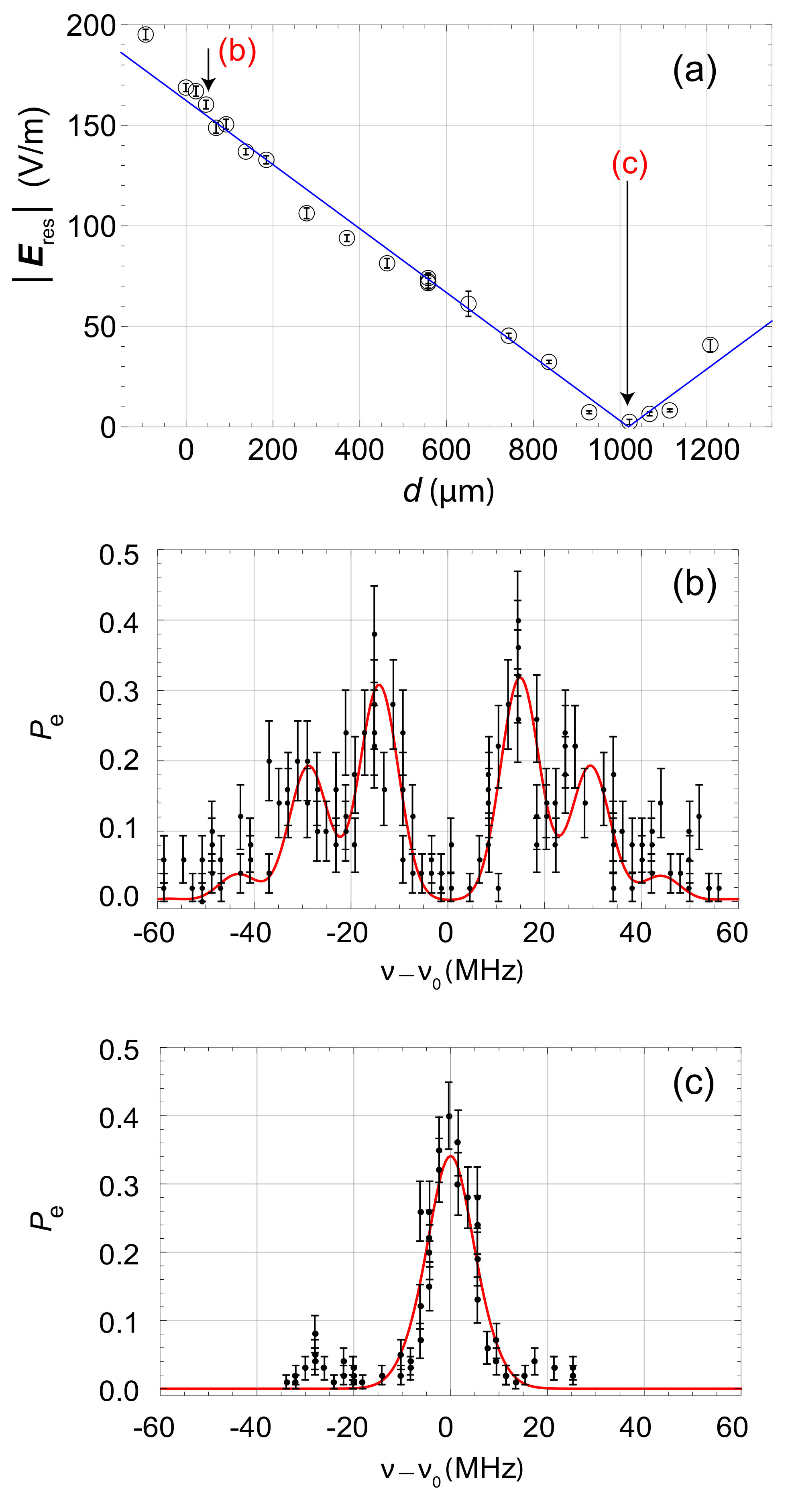

Figures 2(b) and 2(c) show the excitation probabilities of the 23 P1/2 line measured at $|\boldsymbol{E}_{\rm res}|=160$ V/m and $|\boldsymbol{E}_{\rm res}|<$10 V/m, respectively. These results are in good agreement with our calculations for the line shapes in which the ac Stark shift and Doppler effect have been taken into account. The modified resonance frequency of the transition is given by (Feldker et al., 2015):

[TABLE]

Here, $\nu_{0}$ is the unaffected resonance frequency, $k$ is the wave vector of the VUV laser, ${x}_{\rm mm}$ is the ion micromotion amplitude, and $\mathcal{P}$ is the polarisability of the Rydberg state. From this equation, the alternation of the laser field seen by the ion can be derived:

[TABLE]

where, $\beta$ is defined as the modulation index of the Bessel function $J_{n}(\beta)$, and is given by $\beta_{\rm mm}=\boldsymbol{k}\cdot\boldsymbol{x}_{\rm mm}$ for the micromotion along the excitation beam and $\beta_{\mathcal{P}}=\mathcal{P}{\boldsymbol{E}_{\rm res}^{2}}/8\rm\Omega_{\rm RF}$. The sidebands caused by micromotion appear at $n\times\rm\Omega_{\rm RF}$, whereas the sidebands due to the ac Stark effect occur at $2n\times\rm\Omega_{\rm RF}$. After compensation of the oscillating field, more than 5-fold reduction of the micromotion modulation index of these sidebands was observed.

IV Determination of quantum defects and ionization energy

The level energy of the Rydberg 23 P state investigated in this work and those of P and F states from previous measurements listed in table 2 were fitted to the extended Ritz formula (Ritz, 1908)

[TABLE]

Here, $Z$ ($=+2$) is the charge of the Ca*+* ionic core, $I^{++}$ and $\mu(E)$ denote the double ionization limit and the quantum defect, respectively. Using the recommended fundamental constants (Kramida et al., 2018) and the 40Ca*+* ion mass (IUP, 2015), we calculated the reduced Rydberg constant $R^{*}=109$ $735.824$ $472$ $7(6)$ cm*-1*. Note that the third term in equation (3), representing the fine-structure splitting, is significant for near-ground-state levels that are taken from reference (Kramida et al., 2018) as well as for the low-lying 23 P1/2 and 22 F5/2 states. In these calculations, we used the 3D5/2 level energy from reference (Chwalla et al., 2009) and the fine-structure splitting between the 3D3/2 and 3D5/2 states from reference (Yamazaki et al., 2008), which lead to uncertainties about 6 to 7 orders of magnitude smaller than those of the Rydberg states that are used in the calculations. The energy dependence of the quantum defect $\mu(E)$ can be approximated by a truncated Taylor expansion

[TABLE]

where $\mu^{0}_{l,j}$, $\mu^{1}_{l,j}$, $I^{++}$ and ${\partial\mu}/{\partial E_{n,l,j}}$ were treated as adjustable parameters in the fitting routine. All energy values $E_{n,l,j}$ were weighted by the their statistical uncertainties. A correlated fit was constructed based on a nonlinear least squares model with 7 free parameters, while the ionization energy is used as the common fit parameter between the two series. To justify the fit results, we compared the fit residuals for fits to different data sets that are differentiated by adding or subtracting data points. For instance, we verified that fit residuals for the 5-, 6-, and 23 P states remain small regardless to using 7 and 8 P states or other F states listed in table 2 in the fitting process.

The model compiled from equation (3) and (4) is usually simplified by replacing $\mu^{1}$ by $\mu^{0}$. This form may lead to adequately good fit results, see for instance reference (Deiglmayr et al., 2016) for $np$ series of Cs I, reference (Li et al., 2003) for $ns,np,nd$ series of Rb I, and reference (Lange et al., 1991) for $ns,nd,nf,ng$ series of Sr II, in which identical results for the two cases of $\mu^{1}=\mu^{0}$ and $\mu^{1}\neq\mu^{0}$ are verified. This simplification however spoils the meaning of the quantum defect as discussed by Drake and Swainson (Drake and Swainson, 1991), and can ultimately limit the accuracy of the quantum defect method for precision measurements. In our calculations for Ca II, we observed that the use of $\mu^{1}\neq\mu^{0}$ in the fitting procedure improved the fit “chi-squared” value, while fit residuals were reduced by about one order of magnitude. This might imply that effects arising from the core penetration by the Rydberg electron (Drake and Swainson, 1991) needs to be more thoroughly investigated, for instance, the excitation of the inner-shell electrons due to the Rydberg electron can be explicitly used in multi-configuration Hartree-Fock calculations (Seaton, 1983b).

Table 3 and 4 present the results for quantum defects of the P and F states of Ca II. Also listed are the values that we extracted from fits to the most precise measured data prior to the present work. For the P-series quantum defect, we have compared our results to the experimental data reported in reference (Xu et al., 1998). In this case, we calculated the P-series quantum defect for the centre of gravity of the $n$ P1/2 and $n$ P3/2 states, since the fine-structure splitting was not resolved in that measurement. We exclude the values of reference (Xu et al., 1998) for the following reason. If we take the ionization energy from reference (Xu et al., 1998) and the quantum defect from the correlated fit to our experimental data, we would get 120 GHz deviations of the predicted Rydberg energies from the measured values of the P and F states in this work and in references (Feldker et al., 2015; Bachor et al., 2016). This deviation is about two orders of magnitude larger than the uncertainties reported. For the F quantum defect, we compared our results with those extracted from solely the term energies from reference (Kramida et al., 2018). A theoretical prediction of the values given in Tables 3 and 4 can be found in reference (Djerad, 1991).

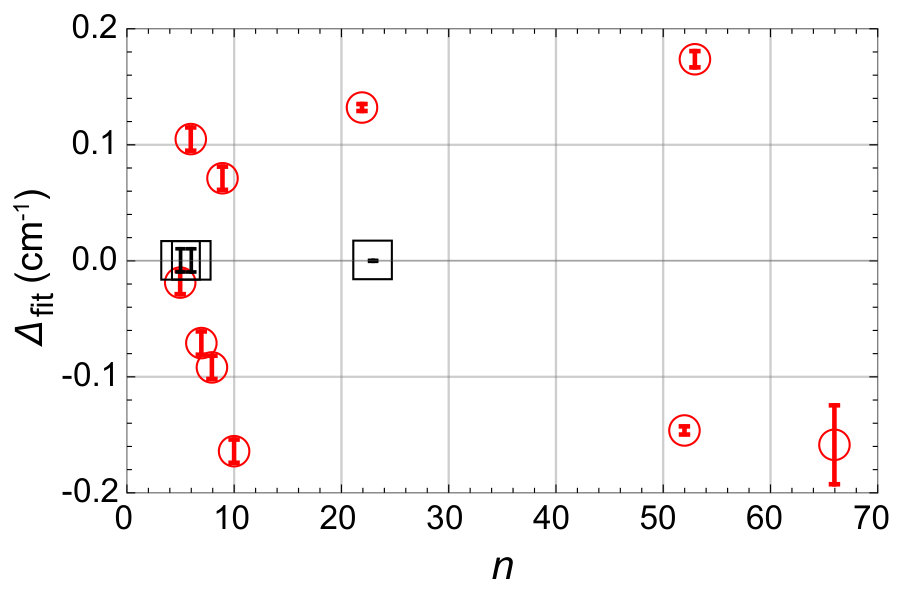

Figure 3 shows the residuals of the correlated fit. The residuals for the P states agree all with zero, however, there is a discrepancy for the F states that were taken from three references (Feldker et al., 2015; Bachor et al., 2016; Kramida et al., 2018). For the F states, we conjecture that the scattered data in case of excitation to F states stems from unknown systematic errors for these separate sets of measurements. The apparent regularity for the P-level quantum defect could possibly signal overfitting. A full set of consistent measurements in future will allow a more accurate determination of quantum defect parameters.

The ionization energy for the 40Ca*+* ion obtained from the correlated fit is $95$ $751.916(32)$ cm*-1*. The quoted uncertainty was calculated by adding the statistical standard deviation from the fit and the systematic errors described in section III.

A comparison between the ionization limits of Ca II that have been reported since 1925 is presented in table 5. Our value for this quantity is consistent with the accepted value since 1999, by Litzén et al. (Kramida et al., 2018).

V Summary

We have studied the excitation of Doppler-cooled Ca*+* ions in a RF trap the 23 P1/2 state using VUV radiation near 123.217 nm. The modulation of this transition due to the residual RF trapping field was understood and this effect was minimised. The measured term energy was used to determine the quantum defect for the $n$ P1/2 states. Using this result for the P-series quantum defect, one can narrow down the frequency range for searching the excitation energies to other P levels. The ionization energy was determined to be 95751.916(32) cm*-1*, which is in agreement with the accepted value (Kramida et al., 2018).

A. M. acknowledges the funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement No. 796866 (Rydion). We acknowledge additional funding from DFG SPP 1929 “Giant interactions in Ryd-berg Systems” (GiRyd) as well as the ERA-Net QuantERA for the project ERyQSenS.
