Effective dynamics of a conditioned generalized linear Glauber model

TL;DR

This paper investigates the effective dynamics of a generalized linear Glauber model conditioned on a specific current, revealing constraints on transition rates and deriving constants of motion for the model.

Contribution

It introduces a generalized linear Glauber model conditioned on a current and analyzes its effective dynamics, including constraints on transition rates and constants of motion.

Findings

Effective process contains local interactions with rescaled transition rates.

Constraints on microscopic transition rates for local interactions.

Constants of motion are identified for the generalized model.

Abstract

In order to study the stochastic Markov processes conditioned on a specific value of a time-integrated observable, the concept of ensembles of trajectories has been recently used extensively. In this paper, we consider a generic reaction-diffusion process consisting of classical particles with nearest-neighbor interactions on a one-dimensional lattice with periodic boundary conditions. By introducing a time-integrated current as a physical observable, we have found certain constraints on the microscopic transition rates of the process under which the effective process contains local interactions; however, with rescaled transition rates comparing to the original process. A generalization of the linear Glauber model is then introduced and studied in detail as an example. Associated effective dynamics of this model is investigated and constants of motion are obtained.

Figures

Equations

$$\frac{d}{dt}|P(t)⟩=\hat{\mathcal{H}}|P(t)⟩.$$

$$⟨c|\hat{\mathcal{H}}|c^{\prime }⟩=w_{c^{\prime }\to c}-{\delta }_{c{c}^{\prime }}\sum _{c^{\prime \prime }\ne c}{w}_{c\to c^{\prime \prime }}$$

$$Z(s,t)=\sum _{c}p(c,s,t)=\sum _c⟨c|p_s(t)⟩.$$

$$\frac{d}{dt}|p_s(t)⟩=\hat{\mathcal{H}}(s)|p_s(t)⟩.$$

$$⟨c|\hat{\mathcal{H}}(s)|c^{\prime }⟩=w_{c^{\prime }\to c}{e}^{-s{\theta }_{c^{\prime }\to c}}-{\delta }_{c{c}^{\prime }}\sum _{c^{\prime \prime }\ne c}{w}_{c\to c^{\prime \prime }}$$

$$Z(s,t)=\sum _{c}p(c,s,t)=\sum _c⟨c|e^{t\hat{\mathcal{H}}(s)}|p_s(0)⟩.$$

$$Z(s,t)=\int e^{-stj}p(j,t)dj=⟨e^{-sJ}⟩$$

$$Z(s,t)\sim \int e^{-t(sj+I(j))}dj\sim e^{-t\underset{j}{\min }\{sj+I(j)\}}$$

$$\begin{array}[]{ccc}\emptyset\emptyset\overset{w_{21}}{\longrightarrow}\emptyset A\;,&\emptyset\emptyset\overset{w_{31}}{\longrightarrow}A\emptyset\;,&\emptyset\emptyset\overset{w_{41}}{\longrightarrow}AA\;,\\ \emptyset A\overset{w_{12}}{\longrightarrow}\emptyset\emptyset\;,&\emptyset A\overset{w_{32}}{\longrightarrow}A\emptyset\;,&\emptyset A\overset{w_{42}}{\longrightarrow}AA\;,\\ A\emptyset\overset{w_{13}}{\longrightarrow}\emptyset\emptyset\;,&A\emptyset\overset{w_{23}}{\longrightarrow}\emptyset A\;,&A\emptyset\overset{w_{43}}{\longrightarrow}AA\;,\\ AA\overset{w_{14}}{\longrightarrow}\emptyset\emptyset\;,&AA\overset{w_{24}}{\longrightarrow}\emptyset A\;,&AA\overset{w_{34}}{\longrightarrow}A\emptyset\end{array}$$

$$\begin{array}[]{ll}\theta_{\emptyset\emptyset\longrightarrow\emptyset A}=+1,\ \ \ \ \ \ \theta_{AA\longrightarrow\emptyset A}=+1,\\ \theta_{\emptyset\emptyset\longrightarrow A\emptyset}=-1,\ \ \ \ \ \ \theta_{AA\longrightarrow A\emptyset}=-1,\\ \theta_{\emptyset A\longrightarrow\emptyset\emptyset}=-1,\ \ \ \ \ \ \theta_{A\emptyset\longrightarrow\emptyset\emptyset}=+1,\\ \theta_{\emptyset A\longrightarrow A\emptyset}=-1,\ \ \ \ \ \theta_{A\emptyset\longrightarrow\emptyset A}=+1,\\ \theta_{\emptyset A\longrightarrow AA}=-1,\ \ \ \ \theta_{A\emptyset\longrightarrow AA}=+1.\\ \end{array}$$

$${\hat{\mathcal{H}}}_{eff}(s)=\hat{V}\hat{\mathcal{H}}(s){\hat{V}}^{-1}-{\Lambda }^{\ast }(s)$$

$$w_{c\to c^{\prime }}^{eff}(s)=w_{c\to c^{\prime }}{e}^{-s{\theta }_{c\to c^{\prime }}}\frac{⟨{\tilde{\Lambda }}^{\ast }(s)|c⟩}{⟨{\tilde{\Lambda }}^{\ast }(s)|c^{\prime }⟩}.$$

$$s^{\ast }=\ln [\frac{-2w_{34}+w_{12}+w_{32}+w_{42}}{-2w_{24}+w_{13}+w_{23}+w_{43}}].$$

$${\Lambda }^{\ast }(s^{\ast })=L(w_{11}+w_{21}{e}^{s^{\ast }}+w_{31}{e}^{-s^{\ast }}+w_{41}).$$

$$w_i^{LGM}(\sigma )=\frac{\alpha }{2}(1-\frac{\gamma }{2d}{\sigma }_i\sum _{\delta }{\sigma }_{i+\delta }).$$

$$w_i^{LGM}(\sigma )=\frac{\alpha }{2}(1-\frac{\gamma }{2}{\sigma }_i({\sigma }_{i-1}+{\sigma }_{i+1})).$$

$$\begin{array}[]{ccc}\emptyset A{\longrightarrow}\emptyset\emptyset\;,&\emptyset A{\longrightarrow}AA\;,\\ A\emptyset{\longrightarrow}\emptyset\emptyset\;,&A\emptyset{\longrightarrow}AA\;.\\ \end{array}$$

$$\begin{array}[]{ccc}\emptyset A\overset{w_{12}}{\longrightarrow}\emptyset\emptyset\;,&\emptyset A\overset{w_{42}}{\longrightarrow}AA\;,\\ A\emptyset\overset{w_{13}}{\longrightarrow}\emptyset\emptyset\;,&A\emptyset\overset{w_{43}}{\longrightarrow}AA\;,\\ \end{array}$$

$$\hat{\mathcal{H}}(s)$$

$$\hat{\mathcal{H}}(\varphi ,\overline{\varphi },s)=(1-\varphi \overline{\varphi })\varphi (D_a-\overline{\varphi }{g}_a)+\varphi \overline{\varphi }(D_c\overline{\varphi }-g_c)$$

$$\left\{\begin{array}[]{l}(D_{a}-\overline{\phi}g_{a})(1-2\phi\overline{\phi})+(\overline{\phi}D_{c}-g_{c})\overline{\phi}=0\;,\\ \\ \phi(\overline{\phi}D_{c}-g_{a})-\phi^{2}(D_{a}-2\overline{\phi}g_{a})+\phi(\overline{\phi}D_{c}-g_{c})=0\;.\\ \end{array}\right.$$

$$\left\{\begin{array}[]{ll}\Lambda^{*}(s)=0\quad\mbox{for}\qquad s_{-}(\infty)\leq s\leq s_{+}(\infty)\;,\\ \\ \Lambda^{*}(s)\neq 0\quad\mbox{for}\qquad s<s_{-}(\infty)\quad\mbox{and}\quad s>s_{+}(\infty)\\ \end{array}\right.$$

$$\begin{array}[]{lll}s_{\pm}(\infty)=\frac{1}{2}[\ln(\frac{1}{8w_{13}w_{43}}(\delta^{\prime}\pm\sqrt{(\delta^{\prime})^{2}-(\gamma^{\prime})^{2}})]\\ \end{array}$$

$$\cdots \varnothing \varnothing \varnothing \stackrel{k}{\overbrace{AA\cdots AA}}\varnothing \varnothing \cdots \varnothing \stackrel{k^{{}^{\prime }}}{\overbrace{AA\cdots AA}}\varnothing \varnothing \cdots .$$

$$\begin{array}[]{lll}\hat{\cal H}(s)|1\rangle=D_{c}|2\rangle-g|1\rangle\;,\\ \hat{\cal H}(s)|k\rangle=D_{a}|k-1\rangle+D_{c}|k+1\rangle-g|k\rangle\;,\\ \hat{\cal H}(s)|L-1\rangle=D_{a}|L-2\rangle-g|L-1\rangle\;,\end{array}$$

$$|\Lambda (s)⟩=\sum _{k=1}^{L-1}{C}_k(s)|k⟩.$$

$$\Lambda (s)C_1(s)=D_a{C}_2(s)-g{C}_1(s),$$

$$\Lambda (s)C_k(s)=D_c{C}_{k-1}(s)+D_a{C}_{k+1}(s)-g{C}_k(s),$$

$$\Lambda (s)C_{L-1}(s)=D_c{C}_{L-2}(s)-g{C}_{L-1}(s).$$

$$C_k(s)=\alpha z_1^k+\beta z_2^k.$$

$${\Lambda }^{\ast }(s)=2\sqrt{D_a{D}_c}\cos (\frac{\pi }{L})-g.$$

Full text

non-equilibrium systems, stochastic dynamics, driven dynamics, current fluctuations, large deviations

I Introduction

It is known that statistical mechanics provides us with a toolbox to study rare-events or fluctuations of time-integrated observables AF01 ; PF ; WWV05 ; S . In order to probe the fluctuations of a dynamical observable, one can model the physical system by a stochastic Markov jump process. The time-average of such observable far from its typical value can then be studied using the concept of biased ensembles of trajectories associated with large deviations of that observable in equilibrium or non-equilibrium systems. Focusing on ensembles of trajectories, instead of ensembles of configurations, allows us to investigate dynamical behavior of the system. This can actually be achieved by considering the Ruelle’s thermodynamic formalism for dynamical systems Ru01 ; LRW . This is analogous to the thermodynamic ensemble method for configurations or micro-states of standard equilibrium statistical mechanics LP ; DC ; RKP .

In order to study the fluctuations of a dynamical observable one has to take into account those trajectories along which the value of the observable is atypical up to an observation time which is assumed to be large. Hence, we are dealing with a type of conditioning on the generator of a stochastic Markovian system to have a specific value of the dynamical time-integrated observable over the dynamical trajectories. As a result, there is a need for a sort of weighting procedure. This weighting procedure is analogous to the canonical ensemble in equilibrium statistical mechanics which is just a modification of micro-canonical ensemble using Boltzmann weight.

From the non-equilibrium point of view, a micro-canonical path ensemble consists of specific trajectories with certain values of an observable along each trajectory. In a canonical path ensemble, by introducing a conjugated quantity to the observable, sometimes called the $s$ field, we can restrict the average value of the observable to the desired value. In this $s$-ensemble of trajectories the evolution generator of the corresponding dynamics is called the tilted (biased) generator for which the conservation of probability is violated HJG ; BTG ; GJLPDW .

Now the question is whether the dynamics of the system which results in a specific value of a fluctuation in the steady state can be described by a non-conditioned stochastic Markov process. The answer is positive and it has been shown that it is possible to construct a non-conditioned Markov process called the driven (effective) process JS ; TJ . In a long-time limit and during a Time Translational Invariant (TTI) regime, the atypical value of the observable in the unconditioned process is equal to the typical value of the observable in the steady-state of the driven stochastic process CT1 ; E04 . In other words, the driven stochastic process is a copy of the original process with some modified interactions so that the atypical values of the observable in the original process are typical in the driven process.

In order to construct the driven stochastic generator some basic assumptions have to be considered. Firstly, the value of the conditioned observable has to satisfy the large deviation principle with a convex rate function and secondly the tilted generator has to have a spectral gap. In this case, we can construct a driven process via a generalized Doob’s h-transform CT1 ; GV . Considering the ensemble-equivalence between micro-canonical and canonical ensembles T15 ; T11 ; T03 ; CMT , equivalence of the path ensembles has also recently been studied SE . This reveals that the driven process is a non-conditioned Markov process equivalent to the conditioned process with an atypical value of the observable.

It has been shown that the effective generator of a driven Markov process might consist of non-local interactions JS . In a recent paper it has been shown that for the time-integrated currents larger than their typical values, non-local interactions quite generically lead to a conformally invariant effective dynamics KS . Now the question is whether there exist some constraints on the transition rates under which the transitions of the corresponding effective stochastic process are local. In other words, the main goal is to find those values of fluctuations for which the dynamics of the system is not modified and only the transition rates are rescaled. In TJ , this question is investigated for a family of stochastic Markov processes on a one-dimensional lattice with open boundaries. It has also been shown that local interactions appear generically in conditioned Zero Range Processes HMS .

In this paper, we firstly aim to answer the above mentioned question for a generic reaction-diffusion model defined on a ring geometry. By defining a reaction current as a proper observable, we study its fluctuations in a generalized linear Glauber model with two absorbing states. We have looked for the largest eigenvalue of the tilted generator and it turns out that for certain values of the conjugated field $s$ the largest eigenvalue of the tilted generator can be calculated analytically using a plane-wave method. The left eigenvector associated with this largest eigenvalue has been also obtained. Using these quantities we have been able to calculate the current probability distribution in certain regions of the conjugated field $s$. The constants of motion have also been calculated.

In comparison to the previous works KJ -TJ2 the following remarks have to be mentioned. In KJ the authors have studied effective dynamics of generic reaction-diffusion processes defined on a one-dimensional open lattice. They have been specifically considered those cases for which the effective interactions are local but site-dependent without referring to any specific observable. However, a variant of the zero temperature Glauber model defined on an open lattice with the dynamical rules $A\emptyset\to\emptyset\emptyset$ and $A\emptyset\to AA$ where $A$ and $\emptyset$ represent a particle and an vacant receptively, is briefly studied as an example. In MTJ the authors have consider a variant of the Glauber model (with the dynamical rules as mentioned above) defined on a one-dimensional lattice with open boundaries. In this paper, by considering the particle current as a dynamical observable, the dynamical phase transitions and the large deviation functions are studied but not the effective dynamics associated with atypical values of the observable. The effective dynamics associated with an atypical reaction-diffusion current in generic reaction-diffusion processes, defined on one-dimensional open lattices, is studied in TJ1 . The authors have specifically looked for the cases where the effective interactions are the same as those of the original process (local and site-independent). Different examples are provided but not the Glauber model which will be considered in the present paper. In TJ2 , which is a continuation of MTJ , the Glauber model (with the dynamical rules mentioned above) is defined on an open lattice and the dynamical activity is considered as the observable. The conditional probabilities and the dynamical phase transitions are studied in detail. However, the paper is not dealing with the effective interactions.

This paper is organized as follows: In section (II) we start with the mathematical preliminaries. By considering a generic reaction-diffusion process consisting of classical particles with nearest-neighbor interactions on a one-dimensional lattice with periodic boundary conditions, we introduce a reaction-diffusion current as the physical observable in our study. In section (III) the effective transition rates are obtained for the case where the effective dynamics associated with the original process is local. We will introduce a generalized Glauber model in section (IV). The dynamical behavior of this model is discussed in (V) where we calculate the largest eigenvalue, the right and the left eigenvectors of the associated tilted generator for certain values of the conjugated field $s$. In section (VI) the large deviation function for the current in this model is obtained. In (VII) we will go back to the effective dynamics of the model. The constants of motion under the effective dynamics are obtained in (VIII). In (IX) we will bring the outlook.

II Dynamical observable and tilted generator

Consider a classical continuous-time stochastic Markov jump process for which $P(c,t)$ represents the probability of being in configuration $c$ at time $t$. The probability distribution vector can be written as $|P(t)\rangle\equiv$ \displaystyle\sum_{c}$$P(c,t)$$|c\rangle, where $\{|c\rangle\}$ is a complete basis vector. The master equation which describes the time evolution of this vector is given by

[TABLE]

The stochastic generator ${\cal\hat{H}}$ has the following matrix elements

[TABLE]

where $w_{c^{\prime}\rightarrow c}$ is the transition rate from configuration $c^{\prime}$ to $c$ with $w_{c\rightarrow c}=0$.

As we have already mentioned, we are going to investigate the dynamical properties of reaction-diffusion systems of interacting classical particles defined on a lattice of length $L$ with periodic boundary conditions by considering the statistics of a time-integrated observable. The dynamical observable considered here is the global reaction-diffusion current of particles which will be defined in the following. Let us introduce $J$ as a counter which is related to this current during the observation time $t$. Since this quantity is extensive with respect to $t$, the value of the total reaction-diffusion current at the end of each trajectory is $j=\frac{J}{t}$. In the long-time limit, $j$ might differ from its value in the steady-state $j^{*}$ and the probability of the emergence of atypical values $p(j,t)$ becomes exponentially small. Assuming that the large deviation principle is valid then $p(j,t)\sim e^{-tI(j)}$ where $I(j)$ is called the Large Deviation Function (LDF).

Let us define $p(c,J,t)$ as the probability of being in the configuration $c$ at time $t$ and the specific value of the counter $J$ is obtained. The Laplace transform of this quantity would be $p(c,s,t)=\sum_{J}e^{-sJ}p(c,J,t)$. Hence, by defining the Laplace transform of $p(c,J,t)$ as $p(c,s,t)\equiv\langle c|p_{s}(t)\rangle$, the dynamical partition function becomes

[TABLE]

The master equation for the time evolution of $|p_{s}(t)\rangle$ is given by

[TABLE]

The operator ${\cal\hat{H}}(s)$ is called non-conservative tilted generator and its matrix elements are defined as

[TABLE]

in which $\theta_{c^{\prime}\rightarrow c}$ is the increment of the current when the system jumps from $c^{\prime}$ to $c$. Using (3)-(5) one finds

[TABLE]

Assuming that ${\cal\hat{H}}(s)$ has a spectral gap, in the long-time limit we find $Z(s,t)\sim e^{t\Lambda^{*}(s)}$ where $\Lambda^{*}(s)$ is the largest eigenvalue of ${\cal\hat{H}}(s)$ GJLPDW and that it is the dynamical analogue to the free-energy and predicts the phase transitions of the system. At $s=0$, $\Lambda^{*}(s)$ goes to zero and ${\cal\hat{H}}(s)$ goes back to its stochastic form. On the other hand, at $s=0$ we are dealing with the typical value of $j$ in the steady-state while the positive or negative values of $s$ correspond to atypical values of current higher or lower than the typical value respectively.

It is worth to mention that the Scaled Cumulant Generating Function (SCGF) of the current is the dynamical analogue of the partition function in the canonical Boltzmann-Gibbs approach

[TABLE]

where the intensive field $s$, which is conjugated to the current, plays a role similar to the inverse temperature $\beta$ in the Boltzmann-Gibbs approach. Using $p(j,t)\sim e^{-tI(j)}$ one finds

[TABLE]

in which $\Lambda^{*}(s)=\max\limits_{j}\{sj+I(j)\}$. This means that $\Lambda^{*}(s)$ and $I(j)$ are the Legendre-Fenchel transform of each other T15 ; LRW . One should note that the Legendre-Fenchel transform of $I(j)$ yields $\Lambda^{*}(s)$ whether $I(j)$ is convex or not; however, If $I(j)$ is nonconvex, then the Legendre-Fenchel transform of $\Lambda^{*}(s)$ does not yield $I(j)$; rather, it yields the convex envelope of $I(j)$.

The reaction-diffusion systems studied in this paper are modeled using stochastic Markov processes. The stochastic generator of these processes consists of nearest-neighbor interactions. The classical particles interact with each other on a one-dimensional lattice with periodic boundary conditions according to the following rules:

[TABLE]

in which $w_{ij}$s’ are the rates at which the reactions occur. For our later convenience we also define $w_{ii}=-\Sigma_{j\neq i}w_{ji}$.

Following TJ , the increments of the reaction-diffusion current, which will be considered as a proper dynamical observable throughout this paper, are defined as follows

[TABLE]

III Effective interactions

As we have mentioned before, there exists a Time Translational Invariant regime (TTI), during which the mean value of our observable over the biased ensemble of trajectories is identical to the corresponding value in the steady-state of a non-conditioned driven (effective) process. In this section, we focus on constructing the effective Hamiltonian for reaction-diffusion systems explained in previous section. Let us call $\langle\tilde{\Lambda}^{*}(s)|$ and $|{\Lambda}^{*}(s)\rangle$ as the left and right eigenvectors of ${\cal\hat{H}}(s)$ and $\Lambda^{*}(s)$ as its largest eigenvalue corresponding to those vectors. According to the Doob’s h-transform CT1 , we can write the effective Hamiltonian as

[TABLE]

in which $\hat{V}$ is a diagonal matrix with $\langle c|\hat{V}|c\rangle=\langle\tilde{\Lambda}^{*}(s)|c\rangle$. Now the effective rates can be deduced from (11)

[TABLE]

It is clear that an effective process associated with a process with two-site interactions do not necessarily contain the same local interactions. In other words, there might be long-range interactions in the driven process. In this paper, we are looking for those values of $s$ for which the effective interactions are local and the transition rates are simply rescaled values of those of the original process. One of the most straightforward approaches is to consider $\langle S|\hat{\cal H}(s^{\ast})=0$ where $\langle S|=(1\ 1\ 1\ ....1)$  TJ . This equation determines the value(s) of the conjugated field $s^{\ast}$ for which the effective interactions are local given that the interactions in the original process are local. This way of determining $s^{\ast}$ is not unique i.e. there might be other approaches using which one can find those values of $s^{\ast}$ for which the locality of effective interactions is fulfilled. We will come back to this point in section VII. It turns out that for the models considered here $s^{*}$ is

[TABLE]

provided that the fraction in the right hand side of the above equation is positive. The corresponding largest eigenvalue is

[TABLE]

In what follows, we investigate a generalization of the zero-temperature Glauber model on a ring geometry which consists of non-zero reaction rates $w_{12}$, $w_{24}$, $w_{31}$ and $w_{43}$. As we mentioned in section I, the specific variant of the Glauber model which has already been studied in KJ ; MTJ ; TJ2 consist of only $w_{13}$ and $w_{43}$.

IV A generalized Glauber model

The Linear Glauber Model (LGM) is a spin system with three-site interactions in $d$-dimension with the following one-spin-flip rate O

[TABLE]

in which the sum runs over the nearest neighbors with $\sigma_{i}=\pm 1$. In (15) $\alpha$ defines the time scale, $\gamma=\tanh(2\beta E)$ with $E$ being the energy to create a domain wall in a domain of uniform magnetization and $\beta$ is the inverse of temperature. For $d=1$ we have

[TABLE]

At zero temperature this model can then be mapped onto a two-site reaction-diffusion model by considering an up-spin as a particle and a down-spin as a vacancy with the following dynamical rules that all take place with the same rate SHZ

[TABLE]

As a generalization to this model we consider a model with the following dynamical rules

[TABLE]

where the reaction rates are not necessarily equal. In the following sections we consider this generalized Glauber model on a one-dimensional lattice with periodic boundary conditions and the reaction current, whose increments are defined by (10), as the observable. This current can be explained as follows: Let us consider a single patch of consecutive particles on the ring, for instance a configuration similar to $\cdots\emptyset\emptyset AAAAAA\emptyset\emptyset\cdots$. According to the dynamical rules this patch can only be increased or decreased in size from its both ends. Any creation or annihilation of particle that takes place at the head of this patch (let us say the right end) will increase the current. In contrast, any creation or annihilation of particle that takes place at the tail of this patch (let us say the left end) will decrease the current. The dynamical rules does not allow any kind of reaction in the middle of the patch; therefore, the total current can be interpreted as a net activity of each patch which will be decreased by the reactions at the tail and increased by the reactions at the head of each patch. In what follows we will use the term current for this observable.

V Dynamical behavior of the model

V.1 Mean-field approximation

As it was mentioned, $\Lambda^{*}(s)$ plays the role of the dynamical free-energy of the system and its singularities determine the dynamical phase transitions of the system. In order to have a preliminary insight, let us find $\Lambda^{*}(s)$ in the mean-field approximation. Using the Doi-Peliti formalism DP , ${\cal\hat{H}}(s)$ can be rewritten in terms of the bosonic creation and annihilation operators $a_{i}$ and $a_{i}^{\dagger}$ as follows

[TABLE]

where $n_{i}=a_{i}a_{i}^{\dagger}$ is the number operator. Replacing the operators by constant fields as $a_{i}\to\langle a_{i}\rangle\equiv\phi$ and $a_{i}^{\dagger}\to\langle a_{i}^{\dagger}\rangle\equiv\overline{\phi}$ in (V.1) one finds

[TABLE]

where $g_{a}=w_{12}+w_{13}$, $g_{c}=w_{42}+w_{43}$, $D_{a}=w_{12}e^{-s}+w_{13}e^{s}$ and $D_{c}=w_{42}e^{-s}+w_{43}e^{s}$. The largest value of (18) can be obtained by calculating its first derivative with respect to $\phi$ and $\overline{\phi}$

[TABLE]

Substituting the solution of these equations into (18) gives $\Lambda^{*}(s)$. It turns out that $\Lambda^{*}(s)$ is a two-criterion function as $s$ varies

[TABLE]

in which $s_{\pm}(\infty)$ are given by

[TABLE]

where $\delta^{\prime}=g^{2}-4(w_{12}\ w_{43}+w_{42}\ w_{13})$ and $\gamma^{\prime}=8\sqrt{w_{12}\ w_{42}\ w_{13}\ w_{43}}$. It is easy to check that two first-order phase transitions take place at $s_{\pm}(\infty)$ since the first derivative of $\Lambda^{*}(s)$ changes discontinuously at these points (see FIG.1).

V.2 Plane-wave method

Assuming that the model contains classical particles which evolve in time under the dynamical rules of the generalized Glauber model, in this section, we aim to diagonalize the tilted generator associated with the current defined in (10) and find its largest eigenvalue corresponding to each value of $s$.

It turns out that the configuration space of our model has a hierarchical structure with two absorbing states. This means that the configuration space is not ergodic. The eigenvectors of $\hat{\cal H}(s)$ corresponding to these states will be denoted by $|L\rangle$ and $|0\rangle$ respectively so that $\hat{\cal H}(s)|0\rangle=\hat{\cal H}(s)|L\rangle=0$. The largest eigenvalue of the tilted generator is zero in a certain values of $s$ whose domain of validity will be clear later. The next sub-space of the configuration space consists of the states containing $k$ consecutive particles (or a single patch of length $k$) on the ring. The dynamical rules do not let a single patch of $k$ consecutive particles to be divided into smaller patches. Instead, a single patch can either merge into an empty lattice or grow until the lattice is fully occupied by the particles. Therefore, if one starts from a state of $k$ consecutive particles, which will be denoted by $|k\rangle$ with $1\leq k\leq L-1$, it evolves under the dynamical rules in this $(L-1)$-dimensional sub-space of the configuration space until it traps into one of the absorbing states. There is also a sub-space of the configuration space which consists of the configurations with two blocks of consecutive particles which are at least one particle apart. A member of this sub-space, which will be denoted by $|k,k^{{}^{\prime}}\rangle$ with $1\leq k,k^{\prime}\leq L-3$ and $k+k^{\prime}\leq L-2$, can be schematically shown as

[TABLE]

A member of the sub-space $\{|k,k^{\prime}\rangle\}$ can evolve in time until it drops into the sub-space $\{|k\rangle\}$. The reader can easily see that the last sub-space of the configuration space, considering this type of grouping of states, has only one member and it is the state of $\cdots\emptyset A\emptyset A\emptyset A\cdots$.

Let us first diagonalize $\hat{\cal H}(s)$ in $\{|k\rangle\}$ with $1\leq k\leq L-1$. It can easily be seen that

[TABLE]

in which $2\leq k\leq L-2$ and $g=g_{a}+g_{c}$. The right eigenvector of $\hat{\cal H}(s)$ in this sub-space can be written as

[TABLE]

Considering $\hat{\cal H}(s)|\Lambda(s)\rangle=\Lambda(s)|\Lambda(s)\rangle$ we find the equations governing $C_{k}(s)$’s as follows

[TABLE]

According to the plane-wave method we assume that $C_{k}(s)$’s have the following form SHZ

[TABLE]

After some straightforward calculations (see SZ for instance) we finally find the largest eigenvalues of $\hat{\cal H}(s)$ in this sub-space

[TABLE]

It is clear that (24), which comes from diagonalizing $\hat{\cal H}(s)$ in the above mentioned sub-space covers only a certain region of $s$. This region is shown in FIG.1 which starts from $s_{-}(L)$ to $s^{{}^{\prime}}_{-}(L)$ (whose value comes from diagonalizing $\hat{\cal H}(s)$ in the sub-space $\{|k,k^{{}^{\prime}}\rangle\}$) for which $j<0$ and from $s_{+}(L)$ to $s^{{}^{\prime}}_{+}(L)$ (whose value comes from diagonalizing $\hat{\cal H}(s)$ in the sub-space $\{|k,k^{{}^{\prime}}\rangle\}$) for which $j>0$. Solving $\Lambda^{\ast}(s)=0$ one can find $s_{\pm}(L)$. Defining

[TABLE]

and

[TABLE]

it turns out that

[TABLE]

It can be seen that as $L\to\infty$ the exact results approach to those obtained from the mean-field approximation. Finding $s^{{}^{\prime}}_{+}(L)$ and $s^{{}^{\prime}}_{-}(L)$ analytically is more complicated. They can be found by diagonalizing $\hat{\cal H}(s)$ in a sub-space spanned by $\{|k,k^{\prime}\rangle\}$. In FIG.2, numerically obtained $\Lambda^{*}(s)$ has been plotted. Diagonalizing $\hat{\cal H}(s)$ in $\{|k,k^{\prime}\rangle\}$ gives the largest eigenvalue of the tilted generator only between $s^{{}^{\prime}}_{\pm}(L)$ and some $s^{{}^{\prime\prime}}_{\pm}(L)$ (not plotted here) which has to be obtained separately. Note that the largest eigenvalue of the tilted generator in the region $s_{-}(L)\leq s\leq s_{+}(L)$ is zero.

As we mentioned the discontinuities of the first derivative of $\Lambda^{*}(s)$ are associated with the first-order dynamical phase transitions. In FIG.1 the first derivative of $\Lambda^{*}(s)$ is plotted. It can be seen $\Lambda^{*^{\prime}}(s)$ is discontinuous at the transition points. Between $s_{-}(L)$ and $s_{+}(L)$ the average current is zero. At $s_{+}(L)$ ($s_{-}(L)$) the average current jumps from zero to some finite positive (finite negative) value. As a matter of fact, a hierarchy of first-order dynamical phase transitions occur whenever one goes from one sub-space to another sub-space.

VI Large deviation function

In this section we calculate the large deviation function $I(j)$ in the regions where $\Lambda^{*}(s)$ has been obtained from analytical diagonalization of tilted generator. The large deviation function has to be calculated from the Legendre-Fenchel transform of $\Lambda^{*}(s)$ given by (24) T03 . We note that the first derivative of $\Lambda^{*}(s)$ is not continuous at $s_{-}(L)$ and $s_{+}(L)$. Since the slope of the line which connects these two points is equal to zero; therefore, the minimum of the large deviation function is at $j=0$. On the other hand, because of that discontinuity, the large deviation function will have two linear parts. For $0\leq j\leq j_{+}$ the large deviation function is given by

[TABLE]

while for $j_{-}\leq j\leq 0$ it is given by

[TABLE]

in which $s_{\pm}(L)$ comes from (25) and that

[TABLE]

For $j_{+}\leq j\leq j_{+}^{{}^{\prime}}$ ($j_{-}^{{}^{\prime}}\leq j\leq j_{-}$) the large deviation has to be calculated from the Legendre-Fenchel transform of (24) in $s_{+}(L)\leq s\leq s_{+}^{{}^{\prime}}(L)$ ($s_{-}^{{}^{\prime}}(L)\leq s\leq s_{-}(L)$) for which we have

[TABLE]

Now, similar to the previous case, since the first derivative of largest eigenvalue of the tilted generator is not continuous at $s_{\pm}^{{}^{\prime}}(L)$ (because it comes from different sub-spaces of the configuration space), the large deviation function will have two linear parts between $j^{\prime}_{+}\leq j\leq j^{\prime\prime}_{+}$ and $j^{\prime\prime}_{-}\leq j\leq j^{\prime}_{-}$. This scenario will be repeated as $s$ increases (decreases) toward $+\infty$ ($-\infty$).

VII effective dynamics revisited

As we mentioned, the point at which the effective dynamics of the model is local and that the effective transition rates are rescaled values of those of the original process can be obtained from (13)

[TABLE]

with $\Lambda^{*}(s^{*})=0$. Note that for the case $w_{12}=w_{13}$ and $w_{42}=w_{43}$, $s^{\ast}$ disappears and a stochastic process with the above mentioned properties does not exist. However, $s^{\ast}$ is generally non-zero in our model.

Let us now consider the following left eigenvalue of ${\cal\hat{H}}(s)$

[TABLE]

with zero eigenvalue so that $\langle X|{\cal\hat{H}}(s)=0$. After some calculations one finds that $x$ can take two values $x_{\pm}(s)$ given by

[TABLE]

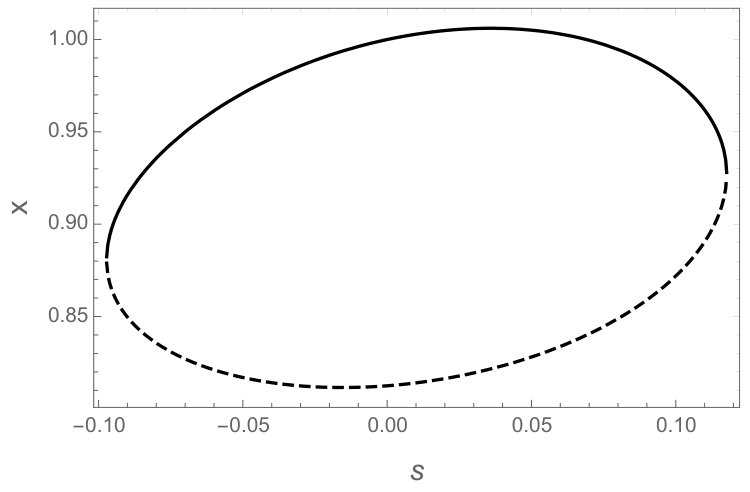

These solutions are valid as long as $s$ takes real values. In FIG. 3 we have plotted $x_{\pm}(s)$ as function of $s$ for certain values of the parameters. The domain of validity of the obtained solutions is $s_{-}(\infty)\leq s\leq s_{+}(\infty)$. These values of $x$ introduce two effective dynamics for each given $s$ in the mentioned domain.

Using (11) one can see that in the effective process the creation rates of the biased process are multiplied by $x$ and the annihilation rates are multiplied by $1/x$. As a result, the dynamical rules of the effective dynamics will be

[TABLE]

This means that the interactions are still local and the original transition rates are only rescaled.

At $s=0$ (note that $s=0$ is always in $[s_{-}(\infty),s_{+}(\infty)]$) we find out that one of the $x$’s is equal to unity which reflects the fact that the original generator of the process is stochastic (see FIG. 3). Assuming that at $s=0$ we have $D_{a}<D_{c}$ then $x_{+}(0)=1$ and that $x_{-}(0)=D_{a}/D_{c}$ for which we find the constant of motion given by

[TABLE]

If $p_{n}(t)$ is defined as the probability of existing exactly $n$ particles ($0\leq n\leq L$) on the lattice at the time $t$ then the constant of motion is given by

[TABLE]

VIII Constants of motion in the effective dynamics

In order to find the constants of motion for the effective process where the average current is zero, the left eigenvectors of the effective stochastic Hamiltonian with the zero eigenvalue have to be calculated. Similar to the previous section, we consider a left eigenvector for the effective process as follows

[TABLE]

in which $\langle X_{eff}|\equiv(1\;\;y)^{\otimes L}$. It turns out that $y$ can take three values of $1$, $D_{a}/D_{c}$ and $D_{c}/D_{a}$. Similar to the previous section, let us write the probability vector at any time as

[TABLE]

where $p_{n}(t)$ has the above mentioned definition and that $|p_{n}\rangle$ is a basis vector. The time evolution of (32) is governed by the master equation for the effective process

[TABLE]

The constants of motion are now given by $\langle X_{eff}|P_{eff}(t)\rangle$. Using the above results we find two constants of motion

[TABLE]

If $D_{a}=D_{c}$ the constants of motion are equal to unity which expresses the conservation of probability.

IX Summery and Outlook

In this paper, the fluctuations of a current in a stochastic Markovian system of classical particles with two-site interactions under periodic boundary conditions has been studied. An effective model has been built by modifying a stochastic Markov process conditioned on an atypical value of the current. The resulting process might have non-local interactions. We have obtained some constraints under which the interactions in the driven process is local. In other words, we have found at least one specific effective stochastic process that obeys exactly the same dynamical rules as the original process but with rescaled reaction rates. To verify our approach, a generalized Glauber model has been considered and its effective stochastic generator has been obtained under certain conditions. We have investigate the dynamical phase transitions in this model. Moreover, constants of motion in the effective processes are calculated.

The problem of finding the effective dynamics associated with a rare event is an ongoing and active field of research. The effective interactions between classical particles hopping on a homogeneous ring has already been studied PSS . It would be interesting to consider the models consisting of diffusive particles on a ring in the presence of both particle and/or lattice-site defects and investigate the effective interactions between the particles in these cases.
