Shear jamming and fragility in dense suspensions

TL;DR

This paper investigates shear jamming in dense suspensions, revealing that shear-induced jammed states are fragile and depend on flow history, with simulations showing distinct microstructural signatures.

Contribution

It provides the first detailed simulation-based analysis of fragile shear-jammed states and their microstructural characteristics in dense suspensions.

Findings

Shear-jammed states are fragile and unstable under incompatible stresses.

Flow-induced microstructures determine the stress response.

Simulations distinguish shear-jammed states from isotropic jammed states.

Abstract

The phenomenon of shear-induced jamming is a factor in the complex rheological behavior of dense suspensions. Such shear-jammed states are fragile, i.e., they are not stable against applied stresses that are incompatible with the stress imposed to create them. This peculiar flow-history dependence of the stress response is due to flow-induced microstructures. To examine jammed states realized under constant shear stress, we perform dynamic simulations of non-Brownian particles with frictional contact forces and hydrodynamic lubrication forces. We find clear signatures that distinguish these fragile states from the more conventional isotropic jammed states.

Figures

Equations

$${\mathbf{F}}_{\mathrm{h}}(\mathbf{U})+{\mathbf{F}}_{\mathrm{nh}}=0,$$

$${\mathbf{F}}_{\mathrm{h}}(\mathbf{U})=-{\mathsf{R}}_{\mathrm{FU}}\cdot (\mathbf{U}-\mathbf{u})+{\mathsf{R}}_{\mathrm{FD}}:\mathsf{D},$$

$$\mathbf{\sigma }=\dot{\gamma }{\hat{\mathbf{\sigma }}}_{\mathrm{D}}+{\mathbf{\sigma }}_{\mathrm{nh}},$$

$$\hat{\bm{\sigma}}_{\mathrm{D}}=\frac{1}{V}\sum_{i}\bigl{(}\boldsymbol{\mathsf{R}}_{\mathrm{SD}}:\hat{\boldsymbol{\mathsf{D}}}+\boldsymbol{\mathsf{R}}_{\mathrm{SU}}\cdot\hat{\bm{U}}_{\mathrm{D}}\bigr{)}^{(i)},$$

$$\bm{\sigma}_{\mathrm{nh}}=\frac{1}{V}\biggl{\{}\sum_{i>j}(\bm{r}_{i}-\bm{r}_{j})\bm{F}^{(ij)}_{\mathrm{nh}}-\sum_{i}(\boldsymbol{\mathsf{R}}_{\mathrm{SU}}\cdot\bm{U}_{\mathrm{nh}})^{(i)}\biggr{\}},$$

$$\dot{\gamma }=\frac{{\sigma }^{xy}-{\sigma }_{\mathrm{nh}}^{xy}}{{\hat{\sigma }}_{\mathrm{D}}^{xy}}.$$

Full text

1 Introduction

Suspensions, in which solid particles are dispersed in a viscous liquid, are a class of complex fluids found frequently in nature, industry, and consumer applications Guazzelli_2018 ; Denn_2018 . To predict flows of suspensions with arbitrary macroscopic boundary conditions, it is necessary to develop continuum models based on particle-scale physics; it is too expensive to simulate individual motions of particles and interstitial flows for macroscopic problems. Dilute suspensions, in which the solid volume fractions $\phi$ are less than about 5%, are well described with the Newtonian constitutive model with a modified viscosity Einstein_1906 ; Einstein_1911 . However, constitutive models for denser suspensions exhibiting more complex rheological properties are still not available Denn_2014 ; Goddard_2006 .

Suspensions are always liquid-like fluids below a certain volume fraction, i.e., there is no possibility to realize states exhibiting rigidity by any protocols. Conversely, it is possible to induce rigidity in suspensions above a certain solid volume fraction. Shear jamming is the phenomenon when shear strains yield such a rigidity Bertrand_2002 ; Peters_2016 ; Singh_2018 .

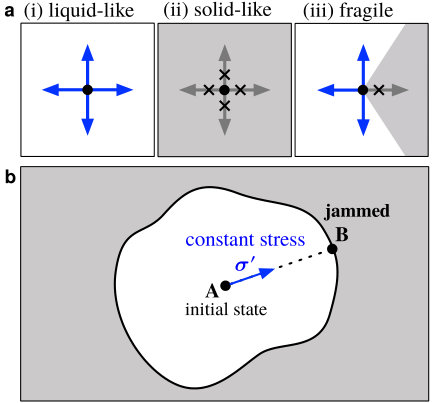

Fragile matter as a constitutive class of complex fluids was introduced to describe emergence of rigidity in flowing suspensions Cates_1998a ; Cates_2000a . First, it is helpful to emphasize that there are only three possible states in non-Brownian suspensions of rigid particles regarding mechanical responses (see Figure 1 a):

1. (i)

liquid-like state, that cannot statically bear any shear stress. 2. (ii)

solid-like state, that can statically bear stresses in all directions. 3. (iii)

fragile state, that can statically bear stresses only within a certain range of directions.

We assume sufficiently weak stresses (or infinitely rigid particles) in these classifications to exclude yielding. The unjammed states are liquid-like, and isotropically jammed states are solid-like. A number of processes may lead to these two states. On the other hand, fragile states are usually associated with particular processes leading to fragile configurations. Let us consider an idealized system of rigid-particle suspensions. If we randomly pick a relaxed state (i.e., without flow-induced microstructure) below the isotropic jamming point, it should be liquid-like and flow under arbitrary shear stress $\bm{\sigma}^{\prime}$. In the schematic configuration space shown in Figure 1 b, such an initial state is expressed as a point $\mathbf{A}$. The trajectory (dashed line) indicates the shearing process due to $\bm{\sigma}^{\prime}$, which passes through different particle configurations. The flow induces some microstructure to resist the applied stress, which slows down the flow eventually bringing it to a stop; i.e., the system reaches a jammed state, $\mathbf{B}$. This jammed state statically supports the stress $\bm{\sigma}^{\prime}$, like an elastic or rigid solid; unlike deformed elastic materials, however, it is able to maintain the strain even after the stress is no longer applied. This jammed state is unstable against a change in the applied stress. Since we reached the jammed state $\mathbf{B}$ with the stress $\bm{\sigma}^{\prime}$, we may reverse the deformation with the opposite stress $-\bm{\sigma}^{\prime}$, at least to some extent. Thus, jammed states encountered in shearing processes under constant stresses seem to always be fragile. (In general, such jammed states may be able to support stress reoriented at a small angle of shear direction Ness_2018 or stress with the principal axes rotated in a small angle. However, the existence of one incompatible stress is enough to judge fragility; thus, we consider only shear stress reversal here.) If a different stress were to be applied to the initial state $\mathbf{A}$ from the beginning, the system would reach another jammed state. Such jammed states from $\mathbf{A}$ with different applied stresses form a surface, beyond which configurations are unreachable from $\mathbf{A}$.

A shear-jammed state is one which is reached by shear but is then able to statically bear the shear stress (or ‘load’). As this state is not statically stable for applied stresses incompatible with the jammed state, it is termed fragile in the terminology of Cates et al. Cates_1998a , and we follow that terminology here; Figure 1 a (iii) illustrates the concept. Upon reversal of the shear stress from a fragile shear-jammed state, the suspension will flow, i.e., undergo some finite strain, before possibly reaching a jammed state in the new direction.

The occurrence of shear jamming under quasi-statically imposed strain was experimentally elucidated in frictional grains by Bi et al. Bi_2011 , and its connection to Reynolds dilatancy was elaborated in Ren et al. Ren_2013 . Two types of shear-jammed states were identified at a given $\phi$: states created at lower strains, which could not sustain shear reversal, and states at strains higher than a characteristic value, which could. In Bi_2011 , the former were referred to as fragile and the latter as shear-jammed. Sarkar et al. Sarkar_2013 ; Sarkar_2015 ; Sarkar_2016 developed a theoretical framework to describe the transition between the two types of jammed states identified in Bi_2011 . Recent numerical work by Otsuki and Hayakawa Otsuki_2018 showed that this transition could be detected through imposition of oscillatory shear. It should be noted that those previous studies on shear jamming were performed with strain-controlled protocols, in which deformation is forced regardless of whether jammed or not. In contrast, we investigate shear jamming with a stress-controlled protocol; once a system is jammed, no further deformation occurs in the same direction. This stress-controlled approach seems, in this way, more natural to capture shear jamming than the previous works. (Very recently, Srivastava et al. Srivastava_2019 also investigated “shear-arrested states” using constant-stress discrete element simulations.) In this article, we examine fragility of shear jammed states by performing particle dynamics simulations with idealized conditions: inertialess, non-Brownian, and monolayer systems.

2 Simulation model

We consider suspended particles in a viscous liquid. The particles are sufficiently small for all inertial effects to be negligible, i.e., the Stokes number $\mathit{St}\equiv\rho a^{2}\dot{\gamma}/\eta_{0}$ (with $\rho$ and $a$ being the density and radius of particles, respectively, $\dot{\gamma}$ being the shear rate, and $\eta_{0}$ being the viscosity of the suspending fluid) is vanishingly small. We also omit Brownian motions, which are relevant for smaller particles. Stokesian Dynamics (SD) is an efficient method to reproduce particle dynamics in this Stokes regime Brady_1988 . The viscosity divergence predicted by the original SD is a dynamic effect due to the singularity of hydrodynamic lubrication Melrose_1995 ; Morris_2018 . Recently, the SD approach (with only hydrodynamic lubrication) was extended to be coupled with frictional contact mechanics to reproduce discontinuous shear thickening Seto_2013a . In this work, we employ an algorithm to mimic stress-controlled rheology Mari_2015 . The viscosity divergence under a constant shear stress is just a consequence of a static force balance of the contact forces. In contrast to the original SD, the hydrodynamic contributions vanish at the viscosity divergence. Therefore, the results shown in this article would share some common features with dry granular systems in the quasi-static limit.

Stress-controlled quasi-static dynamics

Particles with negligible inertia suspended in a viscous liquid obey the force and torque balance equations of hydrodynamic and non-hydrodynamic interactions,

[TABLE]

where $\bm{U}$ is the many-body linear and angular velocities of particles. In the zero-Reynolds number limit, the hydrodynamic interactions can be expressed as a linear resistance, $\bm{F}_{\mathrm{h}}(\bm{U})=-\boldsymbol{\mathsf{R}}_{\mathrm{FU}}\cdot\bm{U}$, where $\boldsymbol{\mathsf{R}}_{\mathrm{FU}}$ is the resistance matrix Brady_1988 . Thus, particles are moved with $\bm{U}=\boldsymbol{\mathsf{R}}_{\mathrm{FU}}^{-1}\bm{F}_{\mathrm{nh}}$. For the case of very dense suspensions, $\boldsymbol{\mathsf{R}}_{\mathrm{FU}}$ can be approximately constructed with the pair-wise hydrodynamic lubrication Ball_1997 ; Jeffrey_1984 . The lubrication coefficients are known to diverge when two spherical particles approach, but we regularize these interactions with a cutoff length Wilson_2002 .

With a background flow gradient of $\nabla\bm{u}$, the hydrodynamic interactions are modified to the sum of the linear resistances to the particle velocity deviations $\bm{U}-\bm{u}$ and to the rate-of-deformation tensor $\boldsymbol{\mathsf{D}}\equiv(\nabla\bm{u}+\nabla\bm{u}^{\mathsf{T}})/2$,

[TABLE]

where $\boldsymbol{\mathsf{R}}_{\mathrm{FD}}$ is also a resistance matrix Mari_2014 . Furthermore, the simulation cell with periodic boundary conditions needs to be deformed according to $\nabla\bm{u}$ (for more details see Seto_2017 ).

As a consequence of the linearity of the governing equations, particle velocities $\bm{U}$ and the flow rate of a fixed flow type can be simultaneously determined under a given shear stress $\sigma^{xy}$. Here, we fix the flow type to simple shear flows, $\bm{u}(\bm{r})=\dot{\gamma}y\bm{e}_{x}$, with shear rate $\dot{\gamma}$, which is the only degree of freedom to be determined in $\nabla\bm{u}$. The stress tensor can be expressed as the sum of the deformation contribution and contributions by non-hydrodynamic interactions,

[TABLE]

in which the unknown shear rate $\dot{\gamma}$ is explicitly factored out from the first term. The rest is independent of $\dot{\gamma}$,

[TABLE]

with $\hat{\bm{U}}_{\mathrm{D}}=\boldsymbol{\mathsf{R}}_{\mathrm{FU}}^{-1}\cdot\boldsymbol{\mathsf{R}}_{\mathrm{FD}}:\hat{\boldsymbol{\mathsf{D}}}$ and the normalized rate-of-deformation tensor $\hat{\boldsymbol{\mathsf{D}}}\equiv\boldsymbol{\mathsf{D}}/\dot{\gamma}$. The non-hydrodynamic contribution,

[TABLE]

is also independent of $\dot{\gamma}$, where $\bm{U}_{\mathrm{nh}}=\boldsymbol{\mathsf{R}}_{\mathrm{FU}}^{-1}\cdot\bm{F}_{\mathrm{nh}}$. From the $xy$ component of (3), we can determine $\dot{\gamma}$ for the given shear stress $\sigma^{xy}$,

[TABLE]

Now, we can also determine the particle velocities with the obtained $\dot{\gamma}$: $\bm{U}=\dot{\gamma}\hat{\bm{U}}_{\mathrm{D}}+\bm{U}_{\mathrm{nh}}$.

Contact force model

In many stable suspensions used in practice, some repulsive forces act between non-contacting particles, preventing flocculation due to short-range van der Waals attractions. However, in this article, we focus on a simple model system in which the non-hydrodynamic interaction consists only of contact forces: $\bm{F}_{\mathrm{nh}}=\bm{F}_{\mathrm{c}}$.

To model $\bm{F}_{\mathrm{c}}$, we employ a soft-constraint approach. The first geometrical constraint is the volume excluding force of solid particles. Hard-sphere particles will have zero overlap. To mimic this, we introduce a harmonic penalty function $(k_{\mathrm{n}}/2)(a_{i}+a_{j}-r_{ij})^{2}$, which generates a force along the normal direction. Here, $a_{i}$ and $a_{j}$ are radii of particles $i$ and $j$, and $r_{ij}$ the distance between them.

When rough or bumpy solid surfaces are in contact, their sliding displacements are also restricted by friction or interlocking; here, we introduce another harmonic penalty function $(k_{\mathrm{t}}/2)\bm{\xi}^{2}$ of the relative sliding displacement $\bm{\xi}$, which is determined with translations and rotations of contacting particles Luding_2008 . This generates tangential forces acting at the contact point. Regarding the maximum tangential force, we employ a simple Coulomb friction law, where the upper bound is proportional to the normal force with a proportionality coefficient $\mu$. In this work, we mainly study an infinite friction coefficient, implying that sliding displacements are constrained as long as the particles are pushed inward.

This soft-constraint approach is fundamentally different from hard-sphere algorithms, which impose strict geometrical constraints. To make the constraints stricter, we need to set sufficiently large values for the penalty parameters $k_{\mathrm{n}}$ and $k_{\mathrm{t}}$. The values which we selected keep the maximum overlap and tangential displacement less than 2% of the particle radius below the isotropic jamming point.

3 Results and discussion

We study monolayer bidisperse systems of 1000 spherical particles, with a size ratio of $1.4$ and a volume ratio of approximately $1$. To generate initial configurations, we used Brownian simulations to relax randomly placed particle configurations.

Shear reversal test

We start by confirming the concept of fragile matter with our simulation model for dense suspensions. To understand the roles of shear-induced structure, Gadala-Maria and Acrivos GadalaMaria_1980 performed shear reversal tests using a rate-controlled setup. Here, we simulate a stress-controlled shear reversal test.

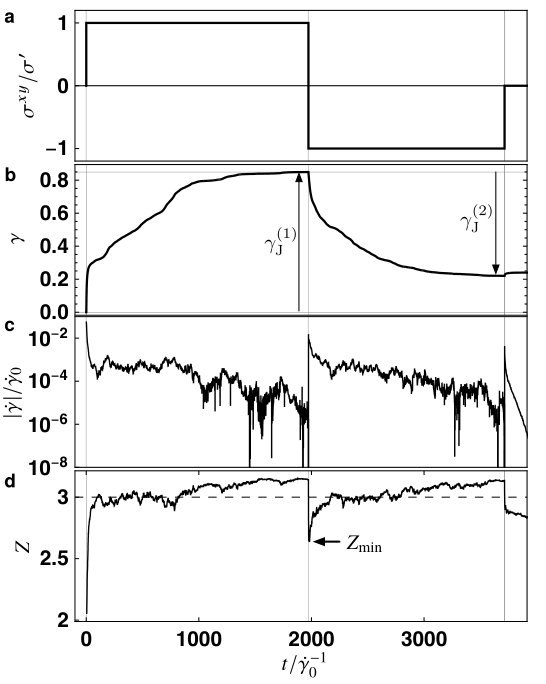

We apply a constant stress $\sigma^{xy}=\sigma^{\prime}$ to an equilibrated suspension of $\phi=0.77$ (Figure 2 a). The strain evolution is relatively fast at the beginning of the simulation and eventually slows down (Figure 2 b). The slowly flowing state, say $|\dot{\gamma}|>10^{-4}\dot{\gamma}_{0}$, lasts for a while. Fluctuation of $\dot{\gamma}$ in the flowing state indicates some restructuring of the stress-bearing contact network (Figure 2 c).

The system is shear-jammed when all particles are in static force balance $\bm{F}_{\mathrm{C}}^{(i)}=0$ and a contact network to support all stress is formed such that $\sigma^{xy}_{\mathrm{C}}=\sigma^{xy}$. According to (1) and (6), these conditions lead to $\bm{U}^{(i)}=0$ and $\dot{\gamma}=0$. We consider states to be jammed with the following criteria: $\max|\bm{V}^{(i)}|<10^{-3}a\dot{\gamma}_{0}$ and $|\dot{\gamma}|<10^{-8}\dot{\gamma}_{0}$; the characteristic shear rate $\dot{\gamma}_{0}\equiv\sigma^{\prime}/\eta_{0}$ is used. Here, $\bm{V}^{(i)}\equiv\bm{U}^{(i)}-\bm{u}(\bm{r}^{(i)})$ are non-affine particle velocities. $\gamma_{\mathrm{J}}^{(1)}$ denotes the total strain to the shear-jammed (SJ) states from the relaxed initial configuration. Jamming occurs above the isostatic condition $Z>Z_{\mathrm{iso}}^{\mu=\infty}=3$ Henkes_2010 , where $Z$ is the average contact number with non-rattlers. Particles that have fewer than two contacts with non-rattlers are called rattlers, and thus we need some iteration to determine them. As seen in Figure 2 d, the isostatic condition does not immediately lead to the SJ state.

Now, we reverse the shear stress to $\sigma^{xy}=-\sigma^{\prime}$, corresponding to a rotation of the principal stress axes by $\pi/2$. Since the previously formed contact network cannot support this new stress, the suspension unjams. The contact number drops to a value $Z_{\mathrm{min}}$, being below the isostatic condition (Figure 2 d). Thus, the stress-reversal simulation confirms that the SJ state is fragile. We continue the simulation with $-\sigma^{\prime}$. The particle dynamics is not reversible, and the state does not return to the initial configuration; rather, it reaches another SJ state after strain $\gamma_{\mathrm{J}}^{(2)}$.

After reaching the second jammed state, we stop applying the stress $\sigma^{xy}=0$ to confirm the smallness of the elastic recovery strain (Figure 2 b). This small recovery is due to the finite values of the penalty parameters $k_{\mathrm{n}}$ and $k_{\mathrm{t}}$ in the soft-constraint contact model. In the ideal hard-sphere limit, the recovery strain will be zero. If stress is applied in the same direction again, the system will not flow because the contact network remains.

Features of shear-jammed states

The SJ state is realized due to formation of a stress-bearing contact network. The particle movements obey the force and torque balance equations (1), and rearrangements continue until static balances are globally achieved. The structural evolution to reach the global balance is not monotonic. As seen in the movie in Supplementary Material, static force balance, which is roughly indicated by vanishing velocities (dark colors), is locally achieved in advance of other parts, but the local stress axes may change due to rearrangements of other parts. Thus, the local domains, which achieved force balance once, need to be restructured again (cf. “micro-fragility” in Cates_2000a ).

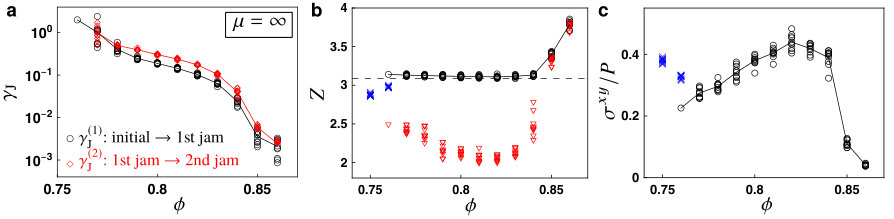

The strain $\gamma_{\mathrm{J}}$ to reach a SJ state reflects the difficulty in realizing the global force balance. Figure 3 a shows the area fraction dependence of $\gamma_{\mathrm{J}}^{(1)}$ from relaxed initial configurations to the first jammed states, and $\gamma_{\mathrm{J}}^{(2)}$ from the first to the second jammed states. Particle contacts to build a network are more accessible at higher area fractions, and shear jamming accordingly occurs at smaller strain. All simulations for $\phi\geq 0.77$ indeed end up in jammed states, but require larger $\gamma_{\mathrm{J}}$ for lower $\phi$. Only one of ten simulations at $\phi=0.76$, and none at $\phi=0.75$, were jammed within the given maximum strain $\gamma_{\mathrm{max}}=5$. Thus, the threshold area fraction $\phi_{\mathrm{SJ}}$ to realize SJ states is expected to be in the range $0.75<\phi_{\mathrm{SJ}}<0.76$, although based on the results available we cannot rule out the possibility of eventual shear jamming at $\phi=0.75$ or even lower.

Though the isostatic condition $Z=Z_{\mathrm{iso}}$ ($=3$ for $\mu=\infty$) alone does not determine whether or not shear jamming occurs, shear jamming was realized at slightly larger $Z\approx 3.1$ in all of our simulations for $\phi\leq 0.84$ (Figure 3 b). If we were to run more simulations with larger $\gamma_{\mathrm{max}}$, the minimum line of $Z$ might approach the isostatic condition. (The SJ state at the lowest possible $\phi$ may be close to random loose packing Onoda_1990 ; Ciamarra_2008 , but is anisotropic owing to the shearing by which it is accessed.) We can confirm fragility with the minimum value ($\triangledown$) of $Z$ after the stress reversal. If $Z$ goes below $Z_{\mathrm{iso}}$, the system must experience liquid-like states no matter how short their duration.

Isotropic jamming

Strains to achieve jammed states become progressively lower at higher area fractions (Figure 3 a). The strains $\gamma_{\mathrm{J}}^{(1)}$ are less than 0.01 at $\phi\geq 0.85$, and higher penalty parameters for the contact model, $k_{\mathrm{n}}$ and $k_{\mathrm{t}}$, can make them even lower (data are not shown). The vanishing value of $\gamma_{\mathrm{J}}^{(2)}$ suggests that the state does not flow in any direction, i.e., the jammed state is solid-like. As seen in Figure 3 c, the stresses of these states indeed become more isotropic (The ratio $\sigma^{xy}/P$ is one way to represent the stress anisotropy, where $P$ is the particle pressure Giusteri_2018 ). We can also see the sudden increase in $Z$ above $\phi=0.85$ (Figure 3 b). These observations suggest that the solid-like jammed states are obviously distinguishable from the SJ state, but similar to the conventional isotropically jammed state despite the presence of friction. The transition point $\phi_{\mathrm{IJ}}$ seems to be in the range $0.84<\phi_{\mathrm{IJ}}<0.85$, which agrees with the known value (about $0.84$) for frictionless 2D systems Behringer_2019 .

Stress-bearing structure

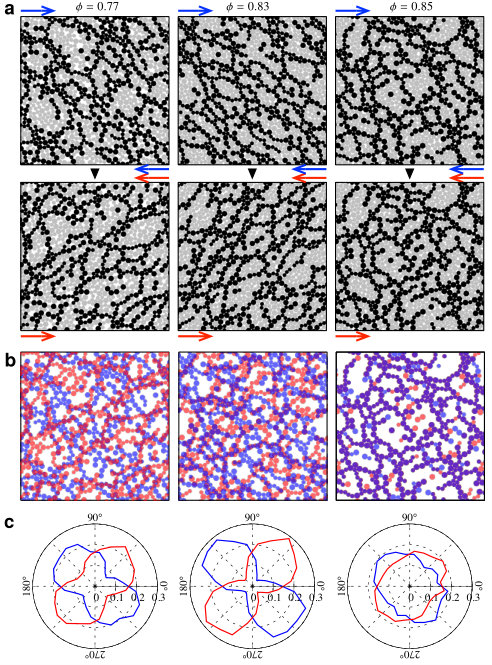

Figure 4 a shows stress transmission patterns bearing $\sigma^{\prime}$ in the first jammed states (upper) and $-\sigma^{\prime}$ in the second jammed states (lower), respectively. The superposition of stressed particles in the first and second jammed states (Figure 4 b) displays how stress bearing structures are different at $\phi=0.77$ and $0.83$ but more similar at $\phi=0.85$. The anisotropy, which may be noticed at $\phi=0.77$ and $0.83$ in Figure 4 a, is confirmed with the angular distributions for the orientation of contacting stressed particles (Figure 4 c). In this way, fragile SJ states require some compatible anisotropic structures; thus they are renewed to adapt to the opposite direction of the applied stress.

Friction

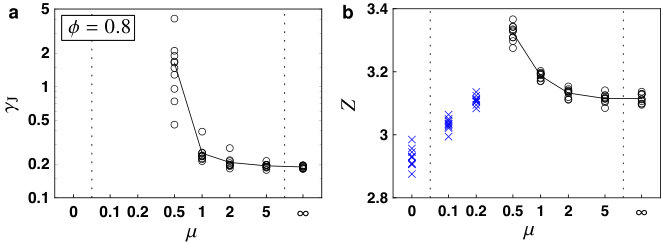

So far we have focused on the theoretical limit of frictional systems with $\mu=\infty$. We briefly discuss the $\mu$ dependence of our results. As seen in Figure 5 a, the shear jamming was achieved only when $\mu\geq 0.5$ at $\phi=0.8$, which indicates that $\phi_{\mathrm{SJ}}$ shifts to higher values with a weaker friction $\mu$, as expected. The strain $\gamma_{\mathrm{J}}$ to reach SJ states increases with smaller $\mu$. More contacts $Z$ are required to realize jamming (Figure 5 b). We also notice that the contact number $Z$ of unjammed states increases with $\mu$; particles tend to contact in frustrated flows due to friction.

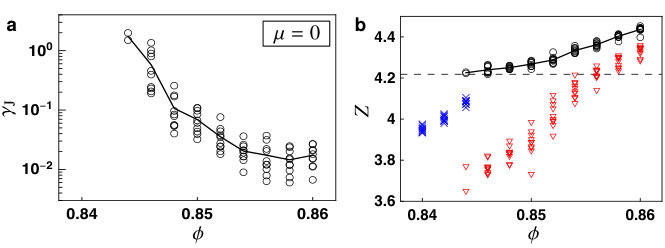

Even when friction is completely absent ($\mu=0$), we obtained a similar shear-jamming phenomenology; the systems are shear-jammed after some flow (Figure 6 a), and the contact numbers $Z$ of jammed states drop to below the isostatic condition ($Z_{\mathrm{iso}}^{\mu=0}=2d$) after the stress reversal (Figure 6 b). However, this occurs in a narrow range just below the isotropic jamming. Our particles seem too soft to see a clear transition from the shear jamming to the isotropic jamming. As discussed elsewhere Baity-Jesi_2017 , the shear jamming observed in frictionless particles can be just due to a finite size effect. Thus, our current simulation cannot confirm the existence of shear jamming without friction.

4 Conclusions

We confirmed that dense suspensions with frictional interactions between particles can behave as fragile matter. In a flowing dense suspension under stress, a contact network is formed. The suspension becomes jammed when the shear-induced contact network statically supports the entire stress. However, this jammed state is not stable; a change of stress axes makes it flow. This fragile instability is the most important feature of shear jamming to be distinguished from the solid-like isotropic jamming. Furthermore, we found various signatures to distinguish the two different states in the average contact number $Z$, the drop of $Z$ after the stress reversal, and the stress anisotropy $\sigma^{xy}/P$. It is also worth noting that SJ states near the lower bound are truly “fragile.” We need to set a sufficiently short time-step to capture such SJ states in simulations with the soft-constraint contact model.

In this article, we did not investigate the dependence on the strength $|\sigma^{xy}|$ of the shear stress. Ideal inertialess hard-sphere suspensions do not possess any internal force scale; thus, the states must be independent of the stress scale. Therefore, in the phase diagram with stress and area fraction, shear jamming lies in the vertical boundaries: $\phi_{\mathrm{SJ}}<\phi<\phi_{\mathrm{IJ}}$. If some interparticle repulsive forces or Brownian forces act on particles, they tend to hinder the formation of a contact network. This competition introduces a stress dependence. Deformability of particles also causes a similar stress dependence; contact deformation can enhance tangential constraints restricting sliding and rolling degrees of freedom Cates_1998a . It is worth noting the distinction between shear thickening and Reynolds dilatancy here Barnes_1989 . Shear thickening does require such an internal force scale besides tangential constraints; this makes the rheology of suspensions rate dependent Seto_2013a . Shear jamming is relevant to shear thickening but is a more basic phenomenon; it can occur just due to shear strain without the internal force scale, as demonstrated in this article. Since the volume of a suspension is constrained, shear jamming of dense suspensions can be considered as a confined Reynolds dilatancy Reynolds_1885 .
