CIV Black Hole Mass Measurements with the Australian Dark Energy Survey (OzDES)

TL;DR

This paper reports two new high-redshift supermassive black hole mass measurements using reverberation mapping with data from the OzDES survey, advancing understanding of black hole growth and the CIV radius-luminosity relation.

Contribution

It provides the first reverberation mapping measurements of supermassive black holes at redshifts above 2, improving the CIV radius-luminosity relationship for high-luminosity quasars.

Findings

Measured black hole masses of 4.4 and 3.3 billion solar masses.

Determined reverberation lags of approximately 358 and 343 days.

Extended the CIV radius-luminosity relationship to higher redshifts.

Abstract

Black hole mass measurements outside the local universe are critically important to derive the growth of supermassive black holes over cosmic time, and to study the interplay between black hole growth and galaxy evolution. In this paper we present two measurements of supermassive black hole masses from reverberation mapping (RM) of the broad CIV emission line. These measurements are based on multi-year photometry and spectroscopy from the Dark Energy Survey Supernova Program (DES-SN) and the Australian Dark Energy Survey (OzDES), which together constitute the OzDES RM Program. The observed reverberation lag between the DES continuum photometry and the OzDES emission-line fluxes is measured to be $358^{+126}_{-123}$ and $343^{+58}_{-84}$ days for two quasars at redshifts of $1.905$ and $2.593$ respectively. The corresponding masses of the two supermassive black holes are $4.4 \times 10^{9}$ and $3.3 \times 10^{9}$ M$_\odot$, which are among the highest-redshift and highest-mass black holes measured to date with RM studies. We use these new measurements to better determine the CIV radius$-$luminosity relationship for high-luminosity quasars, which is fundamental to many quasar black hole mass estimates and demographic studies.

Figures

Tables

Table 1. Table 1: Light curve properties for the two AGN in this study including mean cadence and % error, and number of epochs during the baseline of observation.

		C iv				g-Band
AGN	$z$	epochs	cadence [days]	% error	$F_{\mathrm{var}}$	epochs	cadence [days]	% error	$F_{\mathrm{var}}$
DES J0228-04	1.905	14	31	3.5	0.04	107	7	0.7	0.11
DES J0033-42	2.593	15	31	7.7	0.13	121	6	0.9	0.07

Table 2. Table 2: C  iv and photometric light curves for the two AGN in this study. Flux densities are in units of 10 − 17 superscript 10 17 10^{-17} ergs s -1 cm -2 Å -1 . Full light curves for both AGN are available online as machine-readable tables.

	C iv		g-Band		r-Band		i-Band
AGN	MJD	Flux	MJD	Flux	MJD	Flux	MJD	Flux
DESJ0228-04	56919.14	13.80 $\pm$ 0.39	56245.12	29.78 $\pm$ 0.20	56245.12	16.87 $\pm$ 0.10	56253.07	14.73 $\pm$ 0.08
	56958.57	13.06 $\pm$ 0.34	56246.07	29.20 $\pm$ 0.20	56246.07	16.69 $\pm$ 0.10	56254.11	14.51 $\pm$ 0.08
	56983.13	13.53 $\pm$ 0.57	56266.16	29.27 $\pm$ 0.20	56266.17	16.87 $\pm$ 0.10	56265.16	14.28 $\pm$ 0.08
	57014.27	12.58 $\pm$ 0.33	56271.13	28.83 $\pm$ 0.20	56271.14	16.44 $\pm$ 0.09	56271.16	14.39 $\pm$ 0.08
	57243.76	12.26 $\pm$ 0.47	56277.16	28.41 $\pm$ 0.19	56277.17	16.30 $\pm$ 0.09	56277.14	14.34 $\pm$ 0.08
	57283.58	11.72 $\pm$ 0.47	56290.16	28.48 $\pm$ 0.20	56285.15	16.48 $\pm$ 0.10	56285.16	14.23 $\pm$ 0.08
	57305.58	12.67 $\pm$ 0.30	56297.10	28.62 $\pm$ 0.19	56290.17	15.89 $\pm$ 0.10	56290.19	14.27 $\pm$ 0.08
	57340.50	12.53 $\pm$ 0.65	56308.06	28.73 $\pm$ 0.20	56297.11	16.49 $\pm$ 0.09	56291.08	14.10 $\pm$ 0.07
	57368.53	11.59 $\pm$ 0.54	56536.21	28.50 $\pm$ 0.19	56306.10	16.41 $\pm$ 0.09	56297.13	14.45 $\pm$ 0.08
	57627.76	11.54 $\pm$ 0.49	56543.23	28.65 $\pm$ 0.19	56538.26	16.92 $\pm$ 0.10	56310.05	13.96 $\pm$ 0.07

Table 3. Table 3: Parameters of the two AGN in this study.

AGN	$z$	${\tau }_{\mathrm{obs}}$ [days]	${\tau }_{\mathrm{RF}}$ [days]	$\log \lambda L_{\lambda }$ [ergs s-1]	${\sigma }_{\mathrm{RMS}}$ [km s-1]	MBH [109 M$\odot$]	MVP [109 M$\odot$]
DES J0228-04	1.905	${358}_{-123}^{+126}$	${123}_{-42}^{+43}$	46.43 $\pm$ 0.04	6365 $\pm$ 66	${4.4}_{-1.9}^{+2.0}$	${1.0}_{-0.3}^{+0.3}$
DES J0033-42	2.593	${343}_{-84}^{+58}$	${95}_{-23}^{+16}$	46.51 $\pm$ 0.02	6250 $\pm$ 64	${3.3}_{-1.2}^{+1.1}$	${0.7}_{-0.2}^{+0.1}$

Table 4. Table 4: Rest frame time lags and 1350 Å luminosities for all C  iv lags used to derive the R − L 𝑅 𝐿 R-L relationship.

AGN	$\log \lambda L_{\lambda }$ [ergs s-1]	${\tau }_{\mathrm{RF}}$ [days]	Ref.
DES J0228-04	46.43 $\pm$ 0.04	${123}_{-42}^{+43}$	1
DES J0033-42	46.51 $\pm$ 0.02	${95}_{-23}^{+16}$	1
NGC 4395 Visit 2	39.57 $\pm$ 0.06	${0.033}_{-0.013}^{+0.017}$	2
NGC 4395 Visit 3	40.10 $\pm$ 0.03	${0.046}_{-0.013}^{+0.017}$	2
NGC 3783	43.59 $\pm$ 0.09	${4.0}_{-1.5}^{+1.0}$	2
NGC 5548 Year 1	43.66 $\pm$ 0.14	${9.8}_{-1.5}^{+1.9}$	2
NGC 5548 Year 5	43.58 $\pm$ 0.06	${6.7}_{-1.0}^{+0.9}$	2
NGC 7469	43.78 $\pm$ 0.07	${2.5}_{-0.2}^{+0.3}$	2
3C 390.3	44.07 $\pm$ 0.21	${35.7}_{-14.6}^{+11.4}$	2
S5 0836+71	47.05 $\pm$ 0.06	${188}_{-37}^{+27}$	3
PG 1247+267	47.47 $\pm$ 0.003	${142}_{-25}^{+26}$	4
CT286	47.05 $\pm$ 0.12	${459}_{-92}^{+71}$	5
CT406	46.91 $\pm$ 0.05	${115}_{-86}^{+64}$	5
J214355	46.96 $\pm$ 0.07	${128}_{-82}^{+91}$	5
J221516	47.16 $\pm$ 0.12	${165}_{-13}^{+98}$	5

Equations

$$M_{\mathrm{BH}}=f\frac{R_{\mathrm{BLR}}\Delta V^2}{G}.$$

$$\log R(\mathrm{lt}-\mathrm{days})=(0.82\pm 0.08)+(0.49\pm 0.02)\log \left(\frac{\lambda L_{\lambda }(1350\text{A˚})}{10^{44}{\text{ergs s}}^{-1}}\right),$$

Full text

††pubyear: 2019††pagerange: CIV Black Hole Mass Measurements with the Australian Dark Energy Survey (OzDES)–CIV Black Hole Mass Measurements with the Australian Dark Energy Survey (OzDES)

1 Introduction

The masses of the supermassive black holes at the centres of galaxies are fundamental measurements for studies of galaxy evolution, active galactic nuclei (AGN), and the interaction between black hole and galaxy growth over cosmic time. Mass measurements in the local universe are most often obtained with high-spatial resolution spectroscopy that can resolve the sphere of influence of the black hole (Kormendy & Richstone, 1995; Richstone et al., 1998; Ferrarese & Ford, 2005; Kormendy & Ho, 2013), yet even the largest telescopes lack sufficient angular resolution for such measurements at significant distances.

Fortunately such measurements are possible for AGN with broad emission lines, irrespective of distance, through intensive time-domain spectrophotometry. The technique of reverberation mapping (RM) resolves very small scales with measurement of the time lag between variations in the continuum and the broad line region (Blandford & McKee, 1982; Peterson, 1993). This provides a measurement of the distance of the broad emission-line region (BLR) from the supermassive black hole because the continuum variations originate in the accretion disks on scales of only a few Schwarzschild radii, while the BLR is approximately an order of magnitude or more further away. The time lag, $\tau$, between the continuum variation and when the BLR reverberates in response is consequently a measurement of the size of the BLR: $R_{\mathrm{BLR}}=c\tau$. This measurement is combined with a measurement of the characteristic velocity, $\Delta V$, of the BLR as measured by spectral line widths to determine the black hole mass through an application of the virial theorem:

[TABLE]

The quantity $f$ is a dimensionless factor that accounts for the geometry, orientation, and kinematics of the BLR.

The factor $f$ has been measured with reverberation-based black hole mass measurements for many nearby galaxies that also have black hole mass estimates from the correlation between black hole mass and the stellar velocity dispersion of the host galaxy spheroid known as the $M_{\mathrm{\rm{BH}}}-\sigma_{*}$ relationship (Ferrarese & Merritt, 2000; Gebhardt et al., 2000a). This relationship has been measured for large numbers of nearby quiescent (Tremaine et al., 2002; McConnell & Ma, 2013) and active galaxies (Gebhardt et al., 2000b; Woo et al., 2010; Grier et al., 2013; Grier et al., 2017a). The ensemble average value of $f$ is $\langle f\rangle=4.47\pm 1.25$ based on about 30 AGN with both $\sigma_{*}$ and $M_{\mathrm{\rm{BH}}}$ measurements from reverberation mapping (Woo et al., 2015). This average value for $f$ is also consistent with measurements of two nearby galaxies that both have reverberation-based masses and measurements from spatially-resolved kinematics (Davies et al., 2006; Hicks & Malkan, 2008; Onken et al., 2014) and sophisticated dynamical models of the BLR (Pancoast et al., 2014; Williams et al., 2018).

Most reverberation mapping campaigns have targeted variable AGN in the local universe ($z<0.3$) to measure the response of the prominent H$\beta$ line (Kaspi et al., 2000; Peterson & Horne, 2004; Bentz et al., 2009; Denney et al., 2010; Grier et al., 2012). These measurements showed that there is a tight relationship between $R_{\mathrm{BLR}}$ and the AGN luminosity, the $R-L$ relationship (Bentz et al., 2009). The power-law slope of the relationship is $\alpha=0.533^{+0.035}_{-0.033}$, which is consistent with the value of $0.5$ expected from simple photoionization arguments, and the scatter around this slope is only $0.13\pm 0.02$ dex for the best subset of the data (Bentz et al., 2013). The $R-L$ relationship is extraordinarily useful because it provides a way to estimate the black hole mass of an AGN with a single spectroscopic measurement of the H$\beta$ region, rather than the many tens to even a hundred epochs required to measure a reverberation-based mass for a single object (Wandel et al., 1999; Vestergaard, 2002; Vestergaard & Peterson, 2006). The small scatter also led to the suggestion that the $R-L$ could be used to treat AGN as standard candles (Watson et al., 2011). The visibility of luminous AGN out to higher redshifts than type Ia supernovae make them attractive probes of some dark energy models (King et al., 2014).

At higher redshifts, it is either not possible or much more challenging to measure the H$\beta$ emission line. Various studies have consequently used spectroscopic observations of select samples of quasars to produce empirical methods to estimate black hole masses with other broad emission lines, most notably the prominent Mg ii and C iv lines (McLure & Jarvis, 2002; Vestergaard & Peterson, 2006; Wang et al., 2009). These methods typically require extrapolations to higher-redshift and higher-luminosity AGN, and are also more uncertain due to differences in the geometry and kinematics of the Mg ii and C iv line regions relative to H$\beta$. This has consequently inspired efforts to directly measure reverberation masses for high-redshift AGN with these emission lines. These studies have measured masses for 19 AGN with the C iv line (Peterson et al., 2004, 2005; Metzroth et al., 2006; Kaspi et al., 2007; Trevese et al., 2014; Lira et al., 2018) and 10 with the Mg ii line (Clavel et al., 1991; Reichert et al., 1994; Metzroth et al., 2006; Shen et al., 2015), in addition to reverberation mapping of higher-redshift AGN with the H$\beta$ line (Shen et al., 2016; Grier et al., 2017b). These measurements indicate that H$\beta$ and Mg ii emanate at the same radius with C iv originating from the inner regions of the BLR clouds (Kaspi et al., 2007; Trakhtenbrot & Netzer, 2012). However, only a few AGN currently have lags measured using multiple emission lines which are necessary to fully understand the stratification of the BLR.

In this paper we present some of the first results from the OzDES Reverberation Mapping (OzDES RM) Program (King et al., 2015), which combines spectroscopic observations from the Australian Dark Energy Survey (OzDES, see Yuan et al., 2015; Childress et al., 2017) with photometric data from the Dark Energy Survey (DES, see Flaugher, 2005; Dark Energy Survey Collaboration et al., 2016). Section 2 details the observations obtained by OzDES and the data calibration procedures. Section 3 describes our measurements of the emission line fluxes and reverberation lags, and the resultant black hole masses for two high-redshift AGN. We use these new measurements together with other measurements in the literature to calculate a new C iv $R-L$ relationship in Section 4 and discuss and summarise our results and the outlook to the future in Section 5.

2 Observations

The OzDES RM Program combines spectroscopic observations from the OzDES survey and photometric observations from DES-SN. DES is conducted with the CTIO 4m Blanco Telescope using the Dark Energy Camera (DECam Flaugher et al., 2015) in the $grizY$ bands. The DES footprint comprises 5000 square degrees at high Galactic latitude that are visible from the southern hemisphere (Diehl et al., 2016, 2018). The main science goal of DES is to study the expansion of the universe through four cosmological probes: weak gravitational lensing (Chang et al., 2018), galaxy clustering (Elvin-Poole et al., 2018), baryon acoustic oscillations (Abbott et al., 2018), and supernovae (SN). The first three cosmological probes use data from the wide-area survey. DES-SN uses approximately weekly observations of ten dedicated SN fields that together comprise approximately 27 square degrees (Kessler et al., 2015; D’Andrea et al., 2018). After Science Verification in the 2012 semester, DES began in 2013 and completed the wide-area survey in January 2019 (the supernova survey ended in 2017).

OzDES is a spectroscopic follow-up program for the 10 DES-SN fields. The survey is carried out using the AAOmega spectrograph (Smith et al., 2004) and the Two Degree Field (2dF) 400 multi object fibre positioning system (Lewis et al., 2002), which covers the wavelength range of 3700-8800Å. The primary goal of OzDES is to obtain redshifts for SN host galaxies (Yuan et al., 2015; Childress et al., 2017). OzDES was awarded 100 nights on the 3.9m Anglo-Australian Telescope (AAT) that were originally planned over five years. Twelve nights were reallocated from the fourth and fifth season into a sixth season in 2018B. The purpose of this reallocation was to allow time to measure SN host galaxy redshifts for discoveries that were made at the end of 2017B.

2.1 OzDES Reverberation Mapping Candidates

In addition to supernova host galaxies, the OzDES survey also targets AGN for the OzDES RM program, as well as a number of other ancillary target classes (Childress et al., 2017). The possible AGN targets in the DES-SN fields were selected based on colour and variability using the data from the DES Year 1 catalogues, DES Y1A1. These targets were spectroscopically confirmed by OzDES (Tie et al., 2017). The OzDES RM sample was chosen based on the presence of clear H$\beta$, Mg ii, and/or C iv lines with a median signal to noise ratio (SNR) in the line greater than 10 as measured from spectra of a larger sample of AGN that were observed during the first two years of OzDES. To enhance the science output, a lower SNR$>5$ threshold was used for AGN at $z>3$ and/or for AGN with more than one broad emission line in the spectral bandpass (King et al., 2015). Additionally, AGN that had fewer than 10 epochs of photometric observations after the first DES season were removed from the sample. Such AGN typically were close to or in the DECam CCD gaps (Tie et al., 2017; Mudd et al., 2018). The final OzDES RM sample includes 771 AGN with $0.1<z<4.5$.

An extensive simulation study by King et al. (2015) shows that OzDES will be able to measure time lags for $30-40$% of the AGN once spectroscopic epochs are observed for all six seasons. This success rate is highly-dependent on redshift and other factors, such as SNR and the calibration uncertainty. For example, the success rate for the C iv line is expected to be closer to 20-30% (King et al., 2015). At present the first 4 years of DES photometry have been processed through the DES Data Management System and are available for analysis (Morganson et al., 2018), as well as for calibration of the OzDES spectroscopy . On average these data include about 110 photometric epochs and 15 spectroscopic epochs. Most AGN have four additional spectroscopic epochs that were obtained during the fifth year of DES, and four additional OzDES observing runs have been completed for Year 6.

2.2 Spectroscopic Calibration

The high-quality DES photometry calibration provides good measurements of the continuum flux variations of all of the AGN in our sample (Burke et al., 2018). Emission-line reverberation mapping also requires measurements of the emission-line flux variations from the OzDES spectra. These spectra are obtained with a fibre spectrograph, and consequently the amount of flux in the fibre at each epoch depends on many factors, most notably the image quality, airmass, transparency, and the accuracy of the fibre placement. Furthermore, these factors can impact not just the total flux that enters the fibre at each epoch, but also the wavelength-dependent flux calibration for each epoch. Two wavelength-dependent factors that are important are the variation in image quality (seeing) with wavelength and chromatic effects in the spectrograph optics, where the latter could depend on location in the field of view. A common practice with fibre spectroscopy is to flux-calibrate the spectra with photometric measurements in multiple, broad-band filters. For example, Hopkins et al. (2013) used SDSS photometry to flux-calibrate spectra from the AAOmega spectrograph for the Galaxy And Mass Assembly (GAMA) sample and obtained a typical flux calibration uncertainty of about 10%, although the quality degraded to somewhat poorer than 20% at the extreme ends of the wavelength range.

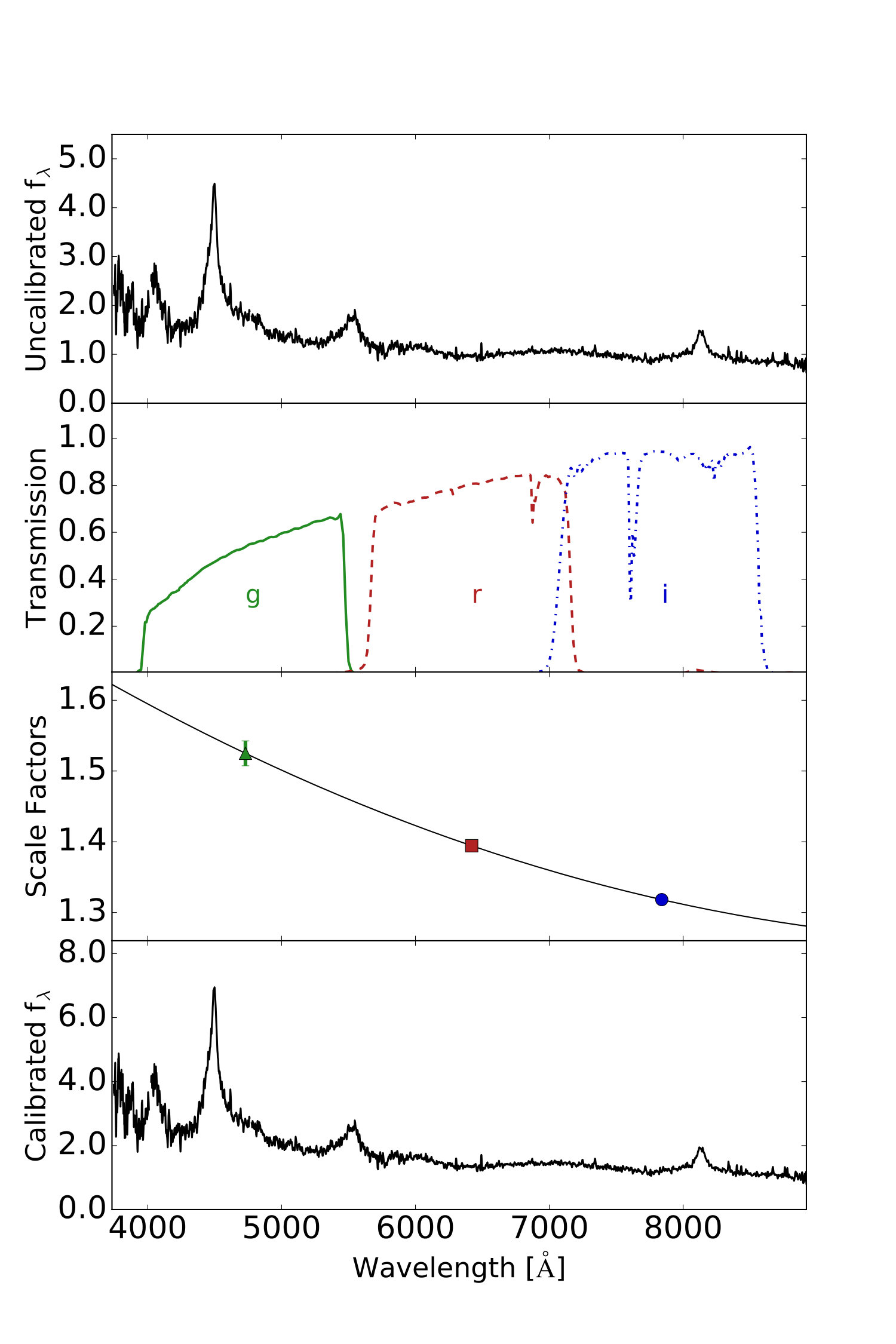

The variability of AGN precludes the use of a single photometric measurement for flux calibration. Instead we take advantage of the near-weekly cadence of the DES-SN observations, which provide DES photometric measurements in the $griz$ filters within a week of the OzDES epochs111Occasionally particularly bad or good weather has led to observations of the same fields over multiple nights in a single OzDES run. In these cases we combine the multiple nights of observations into a single OzDES epoch.. We linearly interpolate between the photometric epochs immediately before and after each spectroscopic epoch to estimate the fluxes in the $gri$ filters at our spectroscopic epoch. These three bands overlap nearly perfectly with the spectroscopic bandpass. Next, we compute instrumental fluxes in these three bands from the OzDES spectra, fit a second-order polynomial to the flux ratio at the effective wavelength of each bandpass, and use this polynomial to calibrate each OzDES epoch. Figure 1 shows an example of our approach. The top panel shows a single spectroscopic epoch which was smoothed using an exponential smoothing kernel with a decay factor of 0.9 and search window of 11 pixels. The second panel shows the $gri$ photometric bands that overlap the OzDES wavelength range, the third panel shows the ratio of the instrumental and DES flux values, as well as the polynomial fit, and the bottom panel shows the AGN spectrum after the flux calibration. Through the use of Gaussian processes use the measured uncertainties in the scale factors which were dominated by the photometric uncertainty, to determine the wavelength-dependent variance on the calibration model. This variance was added in quadrature with the other sources of uncertainty. This spectrophotometric code is publicly available. 222https://github.com/jhoormann/OzDES_calibSpec The calibration is performed on each individual observation before the data is combined. By coadding the data taken during a given observing run the noise of the spectrum is reduced Childress et al. (2017).

The quality of the spectroscopic flux calibration is critical to our emission-line reverberation mapping program. As noted in the simulation study of King et al. (2015), using the flux calibration uncertainties measured by GAMA would result in many of our emission-line light curves being limited more by flux calibration than the signal-to noise ratio of the spectroscopy. We consequently have made numerous improvements to the calibration protocols and software pipeline in order to improve the flux calibration of the OzDES spectra taken at the AAT. These include upgrades to the detectors and additional dome flat field calibrations that better account for relative wavelength-dependent transmission between fibres. These improvements are described in Yuan et al. (2015) for Year 1 of OzDES and in Childress et al. (2017) for changes through the end of Year 3.

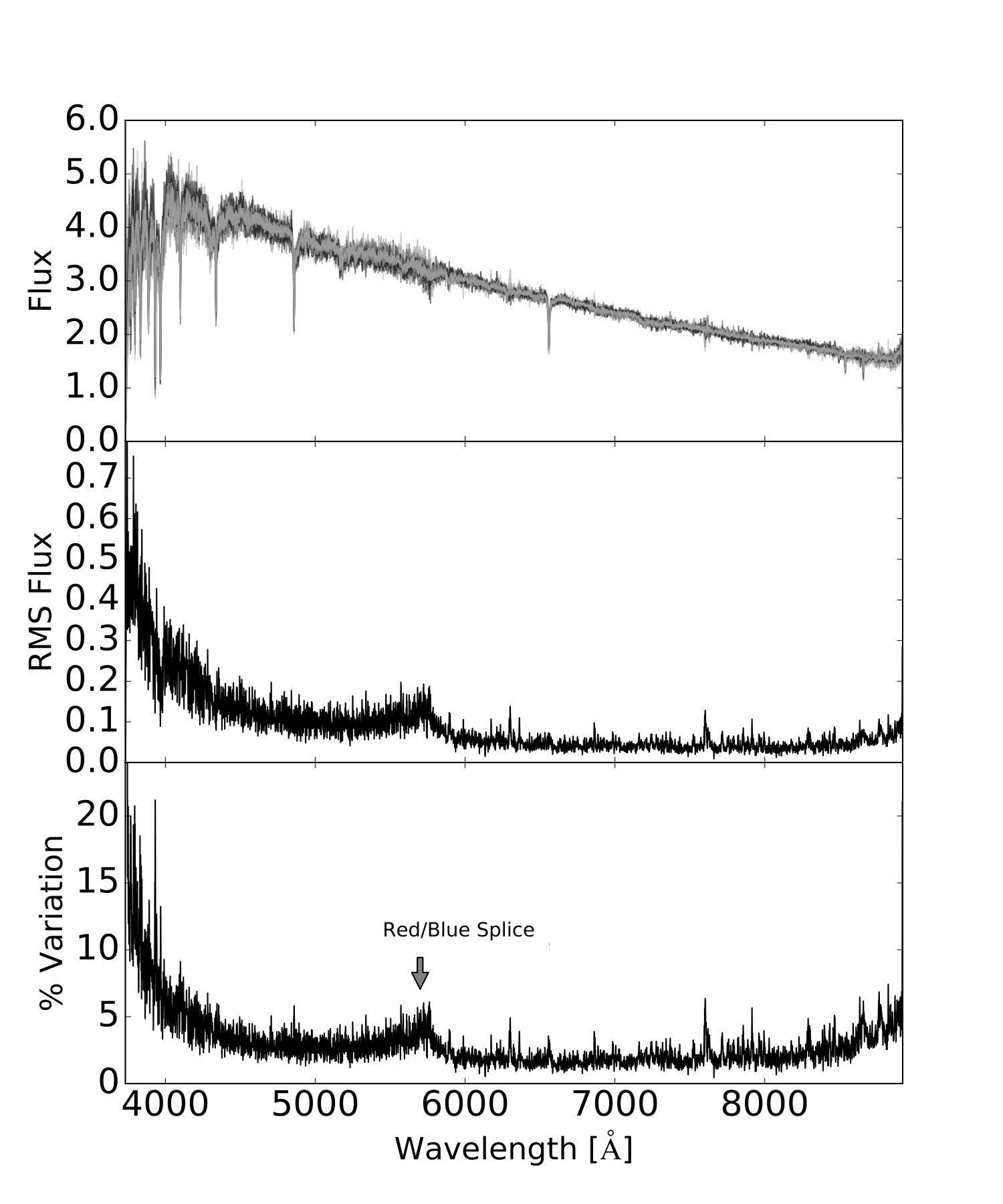

An important part of our calibration strategy is observations of tens of F stars in each field. These F star observations have provided a valuable check on improvements to the calibration and data processing procedures, as well as a convenient way to quantify the calibration uncertainties. Figure 2 demonstrates one measurement of the calibration uncertainty from the F star FSC0225$-$0444. The top panel shows 17 spectra of the star that have been individually calibrated from the DES photometry. As the F stars do not vary significantly, we use only the mean $gri$ fluxes, measured from the 2012B semester, to compute the scale factors for each epoch. The middle spectrum shows the RMS flux computed from the 17 calibrated spectra, and the bottom spectrum shows the percent variation. This variation spectrum demonstrates that the flux calibration is better than 5% over most of the observed spectral range, and only is as poor as 10% at the bluest wavelengths. This significant improvement relative to GAMA is a testament to the many improvements in the instrument, calibration procedures, and software pipeline.

3 Time Lag Measurements

Of the 771 AGN OzDES is regularly monitoring, 393 of them are at the requisite redshift for the C iv line and nearby continuum to be within the wavelength range for OzDES to observe. We only consider RM using the C iv line in this paper as contamination from Fe ii emission is not an issue in this wavelength range. We will present RM results for the Mg ii and H$\beta$ emission lines in future work. For this first study we identified a subset of these 393 AGN that were expected to have lags on the order of one year based on the $R-L$ relationship from Kaspi et al. (2007) which would be most easily observed with this partial OzDES data set. The list was further culled, primarily through visual inspection, to only include AGN with light curves that were variable and had a high cadence. The subset consisted of 23 AGN. For this preliminary study using the partial data set, we recovered C iv lags for two of the AGN in this subset. The lags were measured for DES J022828.19-040044.30 at $z$ = 1.905 and DES J003352.72-425452.60 at $z$ = 2.593 (DES J0228-04 and DES J0033-42 respectively in future). Figure 3 shows the coadded spectra for the first four years of OzDES for both sources. The spectrum for each individual epoch is shown in the left panel of Figure 4 and 5 for DES J0228-04 and DES J0033-42. The right panel isolates the continuum subtracted C iv line.

3.1 Line Flux Measurements

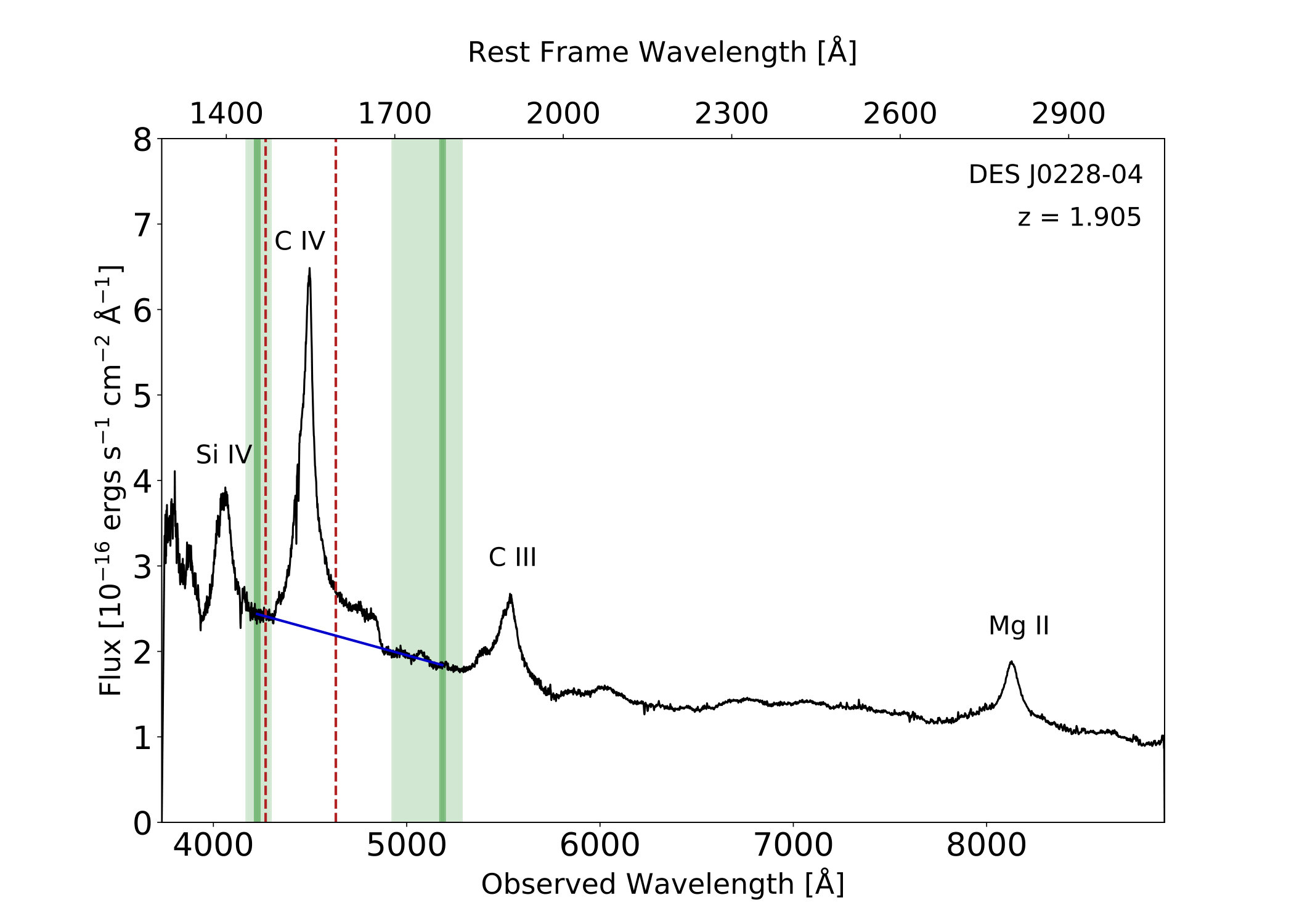

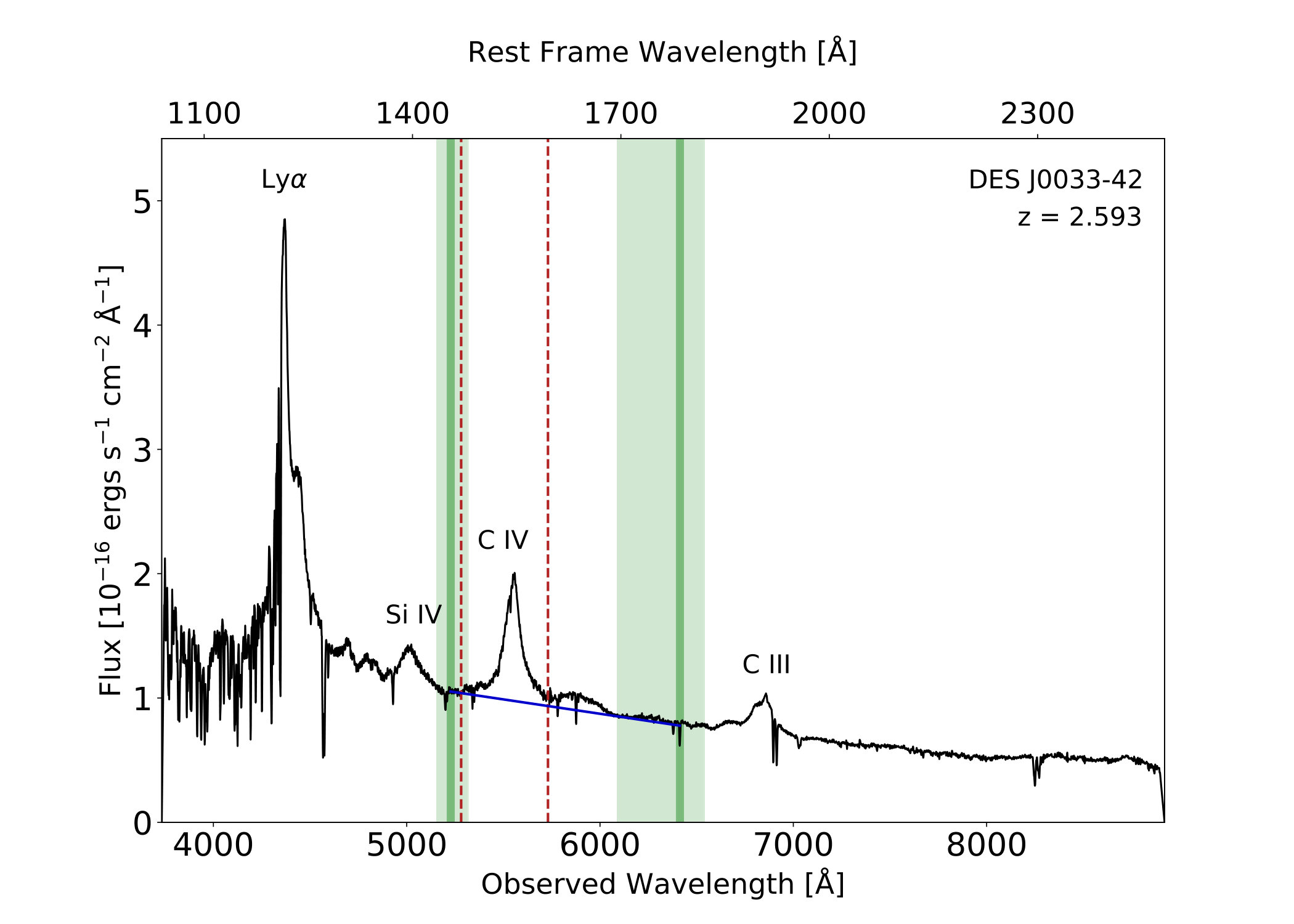

To measure line fluxes, we implemented a local continuum subtraction method to isolate the line variation from the continuum. We used two regions, located on either side of the C iv line and free of other prominent emission lines, to represent the continuum. We chose these regions, from 1450-1460Å on the blue side and 1780-1790Å on the red side in the rest frame, using the SDSS composite AGN spectrum (Vanden Berk et al., 2001). These regions are indicated in dark green in Figure 3. After calculating the mean wavelength and flux in each continuum region we performed a linear fit to the data in order to model the continuum which we subtract. The local continuum model for the coadded spectra is given by the blue lines in Figure 3.

The regions chosen to represent the continuum have the potential to significantly impact the overall line flux measurements. In order to quantify the effect the choice of continuum regions had on the resulting light curves we varied the bounds of these regions and found the resulting line flux. To do this, we first identified the regions surrounding the C iv line that could reasonably be classified as clean enough to represent the continuum, shown by the light green regions in Figure 3. We then performed a bootstrapping procedure by randomly picking subsets of these regions to represent the continuum while resampling the fluxes from a Gaussian distribution defined by their uncertainty. The uncertainty for each flux is determined by the variance spectrum corresponding to the flux spectrum which includes both observational and calibration uncertainties for all observations in the observing run. We used the standard deviation of the distribution in the resulting line fluxes to quantify the total uncertainty included that obtained through continuum subtraction. While the regions for continuum subtraction were chosen as they are relatively clean this method does allow for any unexpected features, such as absorption lines, to be taken into account in the uncertainties. The average uncertainty in emission line flux for a given epoch was $\sim$ 3.5% for DES J0228-04 and $\sim$ 7.7% for DES J0033-42. Approximately 75% of this uncertainty is due to the choice of region used to represent the continuum, as the slope of the continuum can significantly affect the line flux measurement. The remainder of the uncertainty is a result of the variance on the flux measurement due to observational and calibration uncertainties. The properties of these light curves including mean cadence, uncertainty, and excess variance (Rodríguez-Pascual et al., 1997) are shown in Table 1.

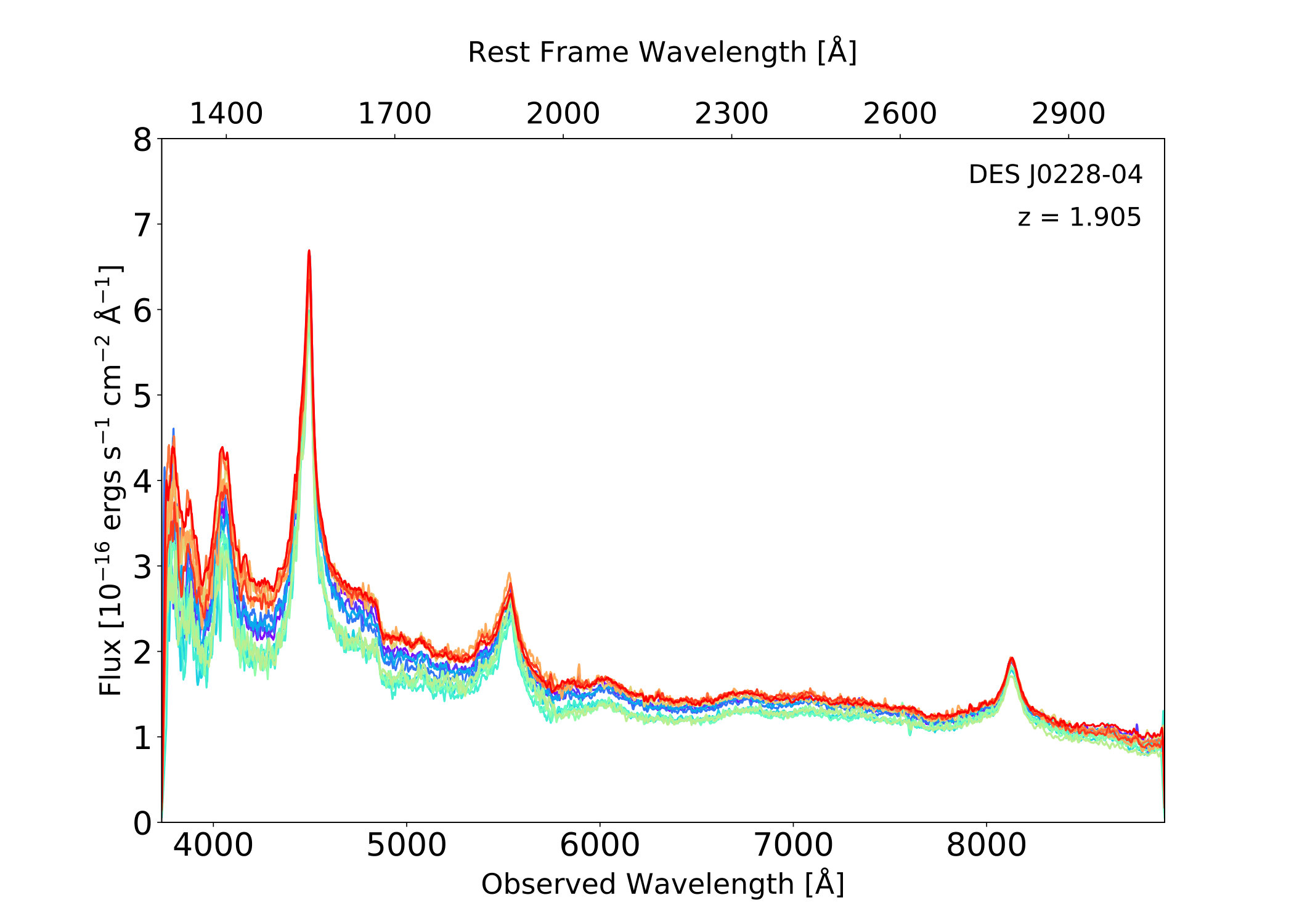

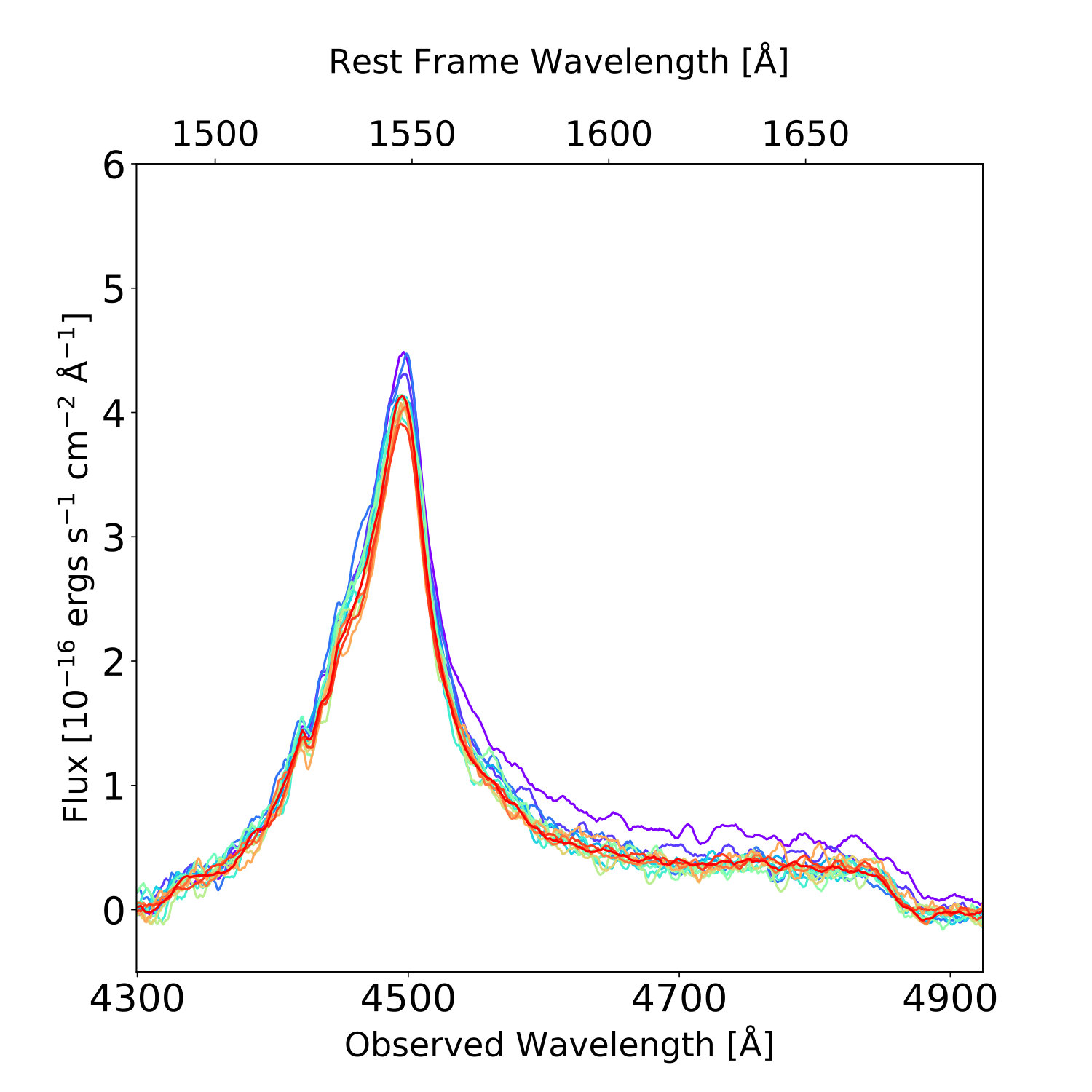

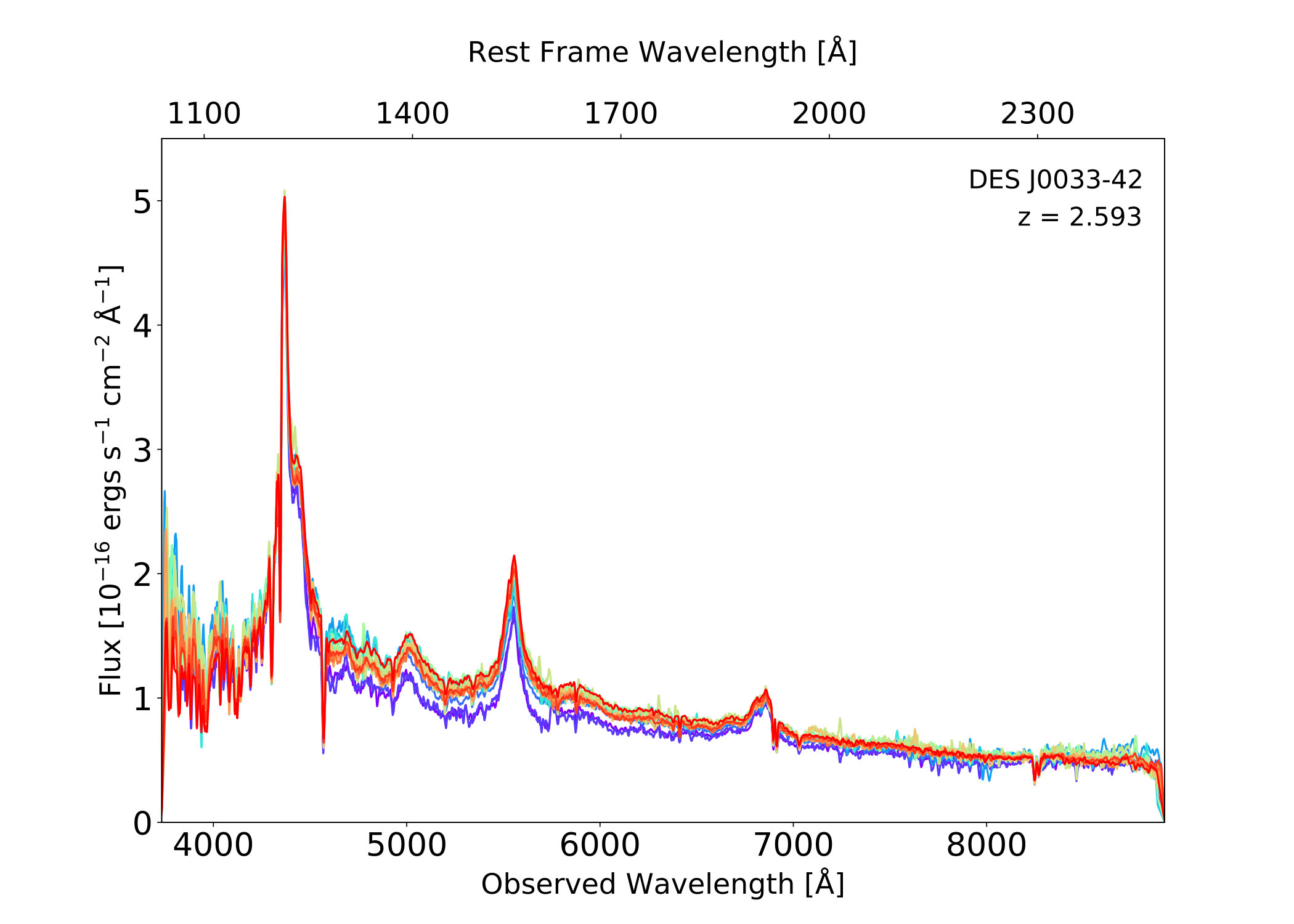

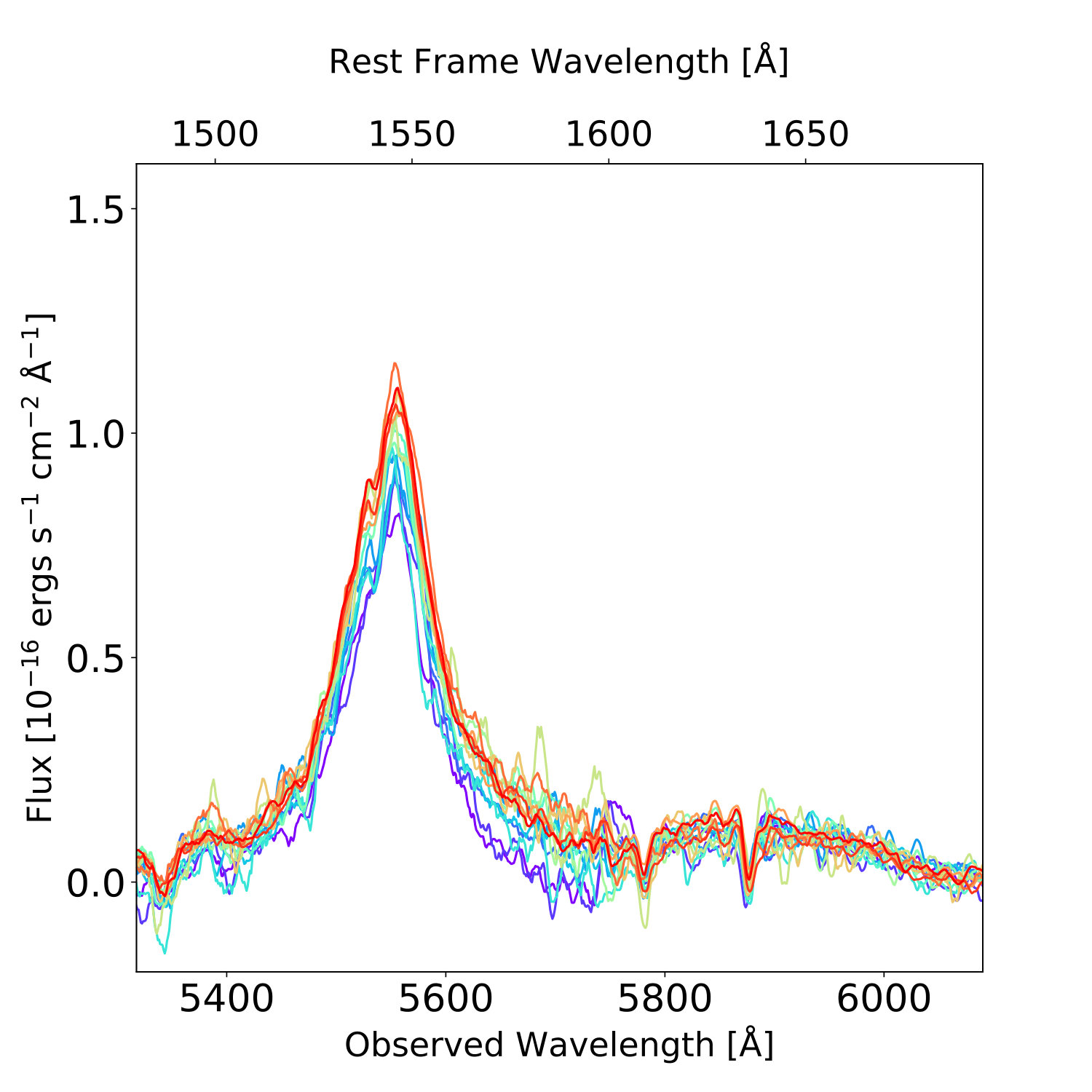

We calculated the mean flux density of the emission line directly from the continuum subtracted emission line spectrum over a wavelength range that was fixed throughout all observations of the source. We chose a baseline integration window for the C iv line of 1470-1595Å. Through visual inspection we verified that this window both fully included the emission line and excluded the red shelf, a broad plateau seen near the red wing of the C iv line caused by He ii $\lambda$1640 and O iii $\lambda$1663 and the unidentified but prominent emission at 1600Å (Fine et al., 2010; Assef et al., 2011). The integration window is indicated by the red dashed lines in Figure 3.

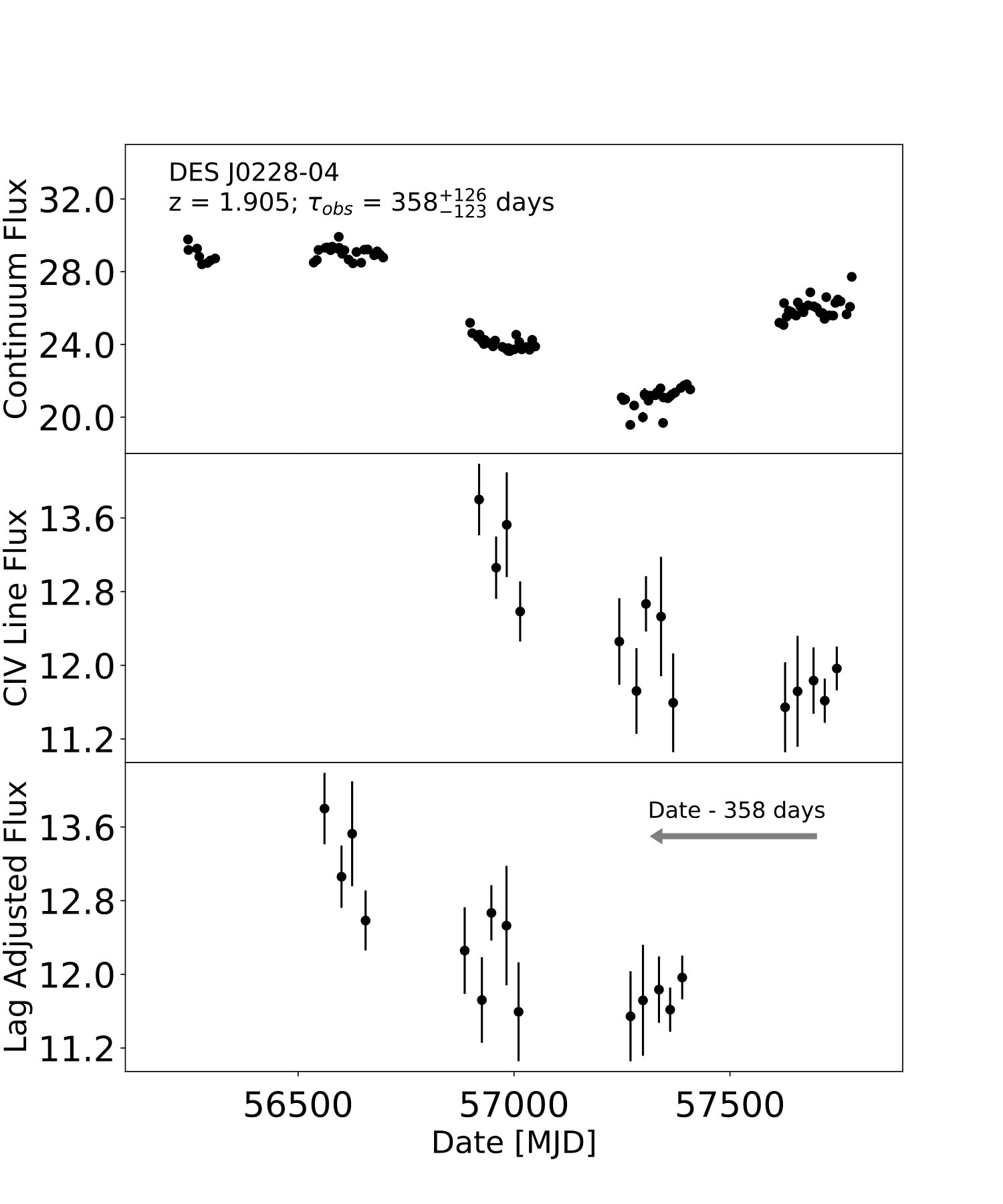

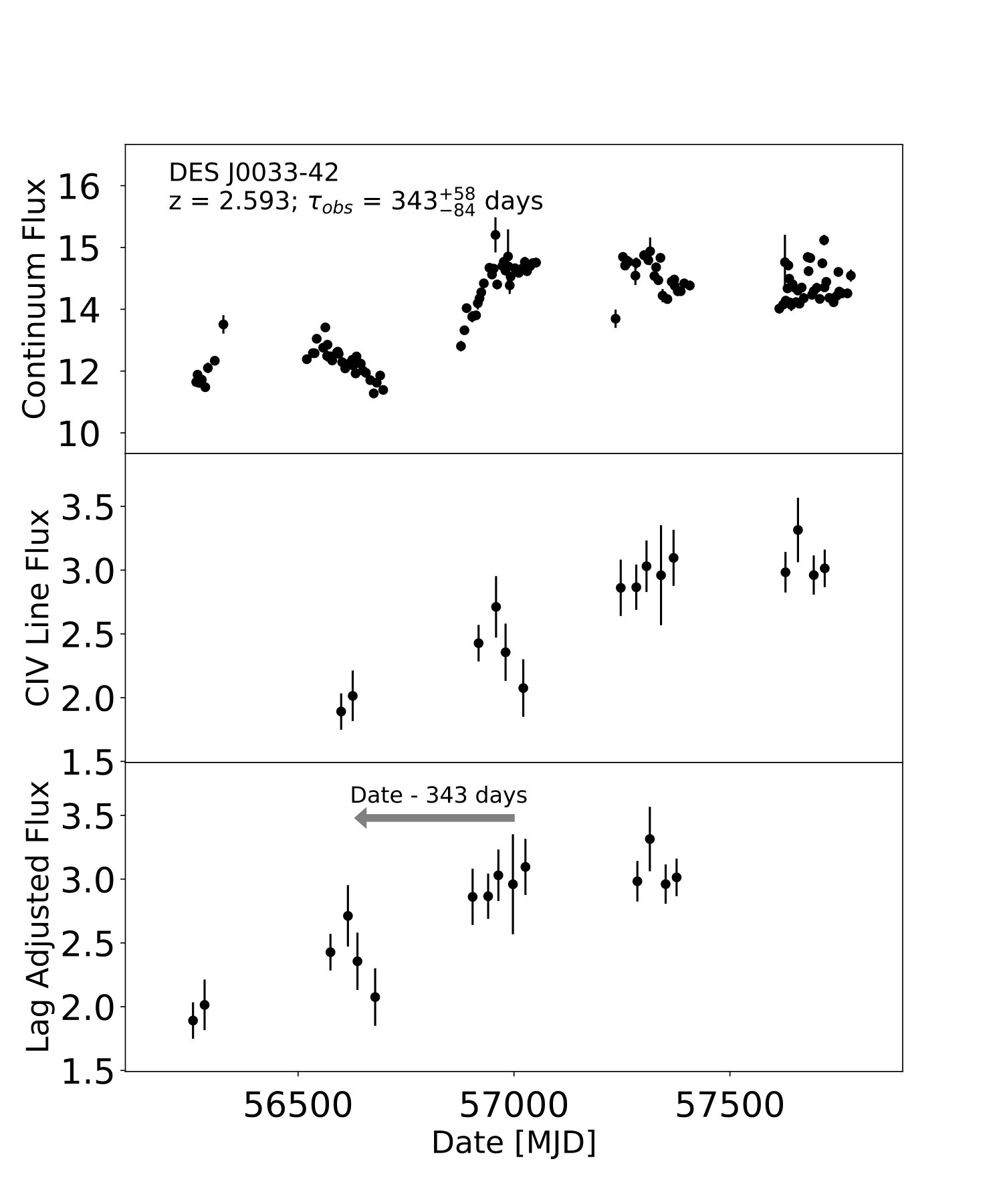

The light curves for DES J0228-04 and for DES J0033-42 are shown in Figures 6. The top panel shows the continuum emission, which is from the DES $g$-band photometry. The $g$-band photometry contains the 1350Å wavelength used to represent the luminosity for high redshift AGN in addition to some variability due to BLR features that occur within the bandpass. This includes photometry from the first four years of DES plus data from the preceeding Science Verification semester (2012). The photometric light curves were constructed from the DES Year 4 catalogue, DES Y4A1, and include the DES calibration error from Burke et al. (2018). The C iv line light curves are shown in the middle panel and the C iv line light curves shifted based on the calculated time lag are shown in the bottom panel. This includes data from the first four years of OzDES although DES J0228-04 had no data taken during Year 1. The C iv emission line and photometric light curves are presented in Table 2.

3.2 Lag Calculations

We calculated the C iv time lags using the interpolated cross correlation function python code PyCCF (Sun et al., 2018). This code follows the methodology of Peterson et al. (1998) which will be summarised as follows. The spectral line light curve is shifted by the time lag being tested and the continuum light curve is then interpolated to these adjusted time data points. The time step between tested lags we use in this analysis is three days although tests show that the results are not sensitive to the value chosen. We cross correlate the light curves and use the centroid of the cross-correlation function (CCF) to represent the measured time lag. To determine the centroid time lag we find the peak correlation coefficient, $r_{\rm{max}}$, and include all values in the CCF for which $r>0.8r_{\rm{max}}$. We chose the centroid lag measurement $\tau_{\rm{\rm{cent}}}$ to represent the time lag as opposed to the peak, $\tau_{\rm{peak}}$, given that $\tau_{\rm{cent}}$ has been shown to better encapsulate the extent of the BLR (Gaskell & Sparke, 1986; Robinson & Perez, 1990).

In order to calculate the uncertainties on the lag measurement flux we implemented flux randomisation and random subset sampling. Flux randomisation (FR) accounts for the uncertainties in the flux measurements by modifying the flux used in the cross correlation by drawing a new flux from a Gaussian distribution based on the flux and its standard deviation. To assess the impact that data sampling has on the lag measurements we also use the PyCCF code’s random subset sampling (RSS) which chooses a random subset of the data ($\sim$ 37 % smaller than the original set) on which to perform the lag calculation. In this analysis we used 10,000 realisations for the FR/RSS. We then formed a cross correlation centroid distribution (CCCD) from the lags measured from each realisation. We measure the overall time lag from the median of the CCCD and the uncertainties are the limits such that $\tau_{\rm{cent}}\pm\Delta\tau$ contains 68.27% of the data. In order for a lag measurement to be added to the CCCD the peak of the CCF must be greater than 0.5. If the peak of the CCF lies below this value the realisation is said to have failed.

3.3 OzDES Lag Measurements

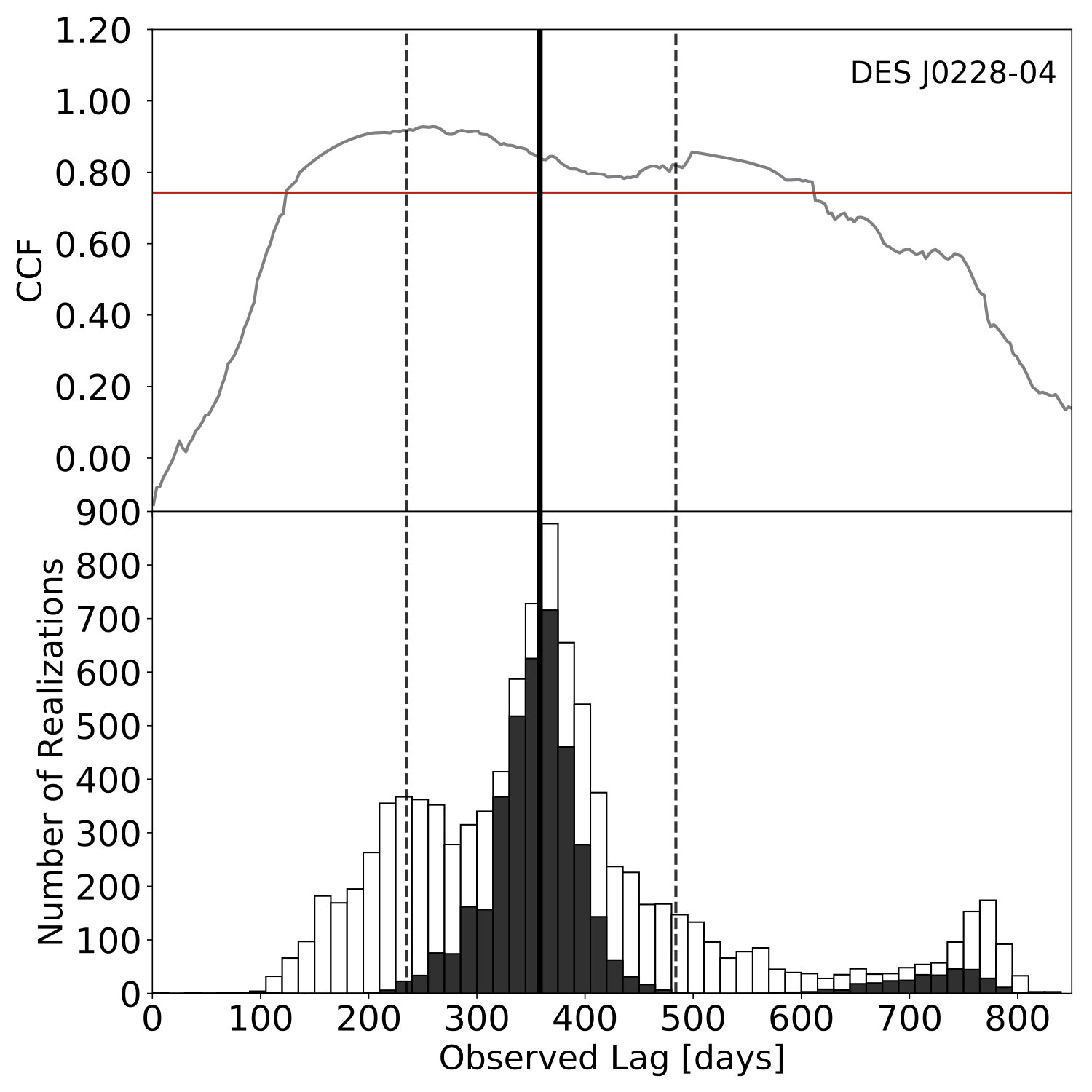

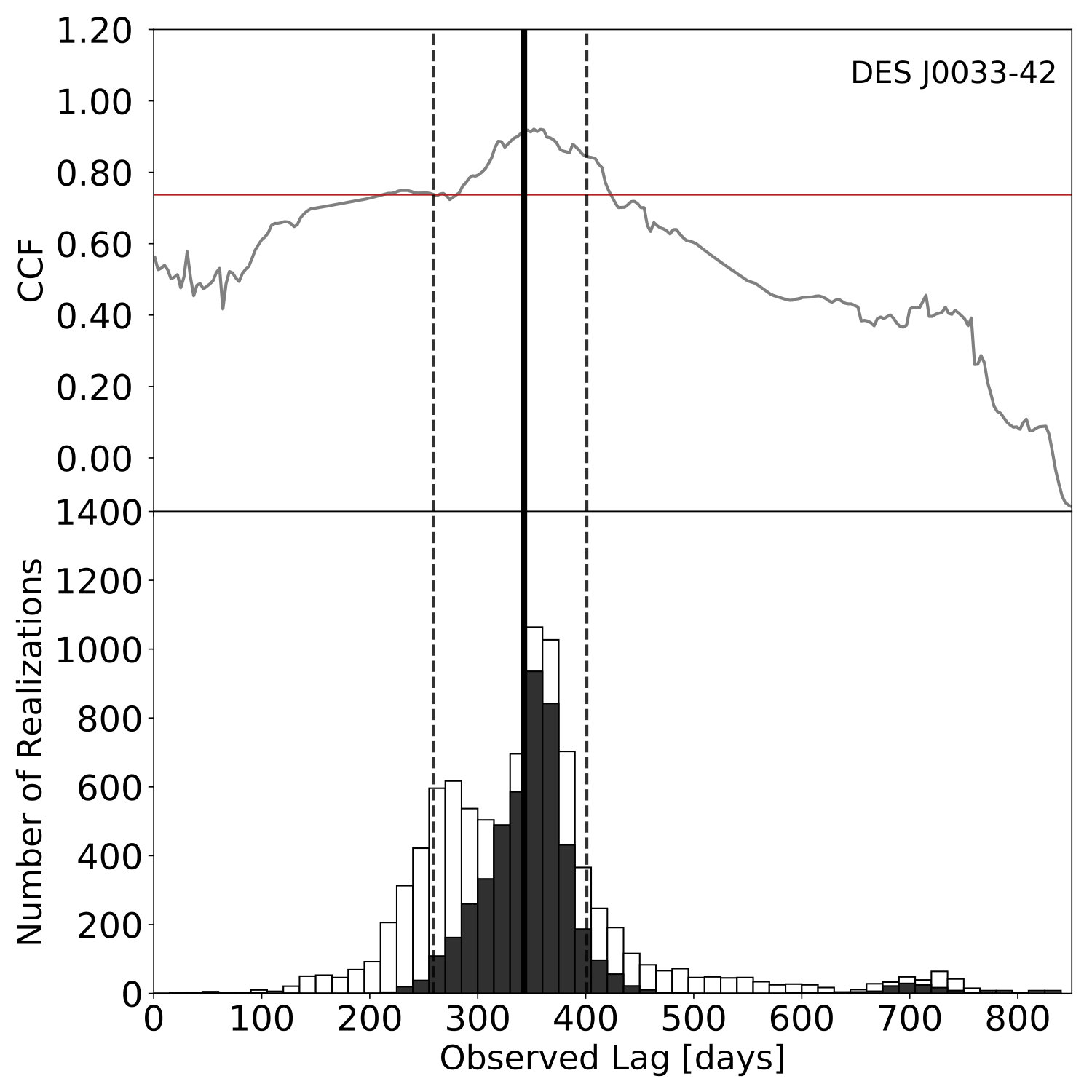

The results of PyCCF for the two OzDES AGN are shown in Figure 7. The CCF is shown in the top panel and the horizontal red line shows the $0.8r_{\rm{max}}$ value for this CCF. The centroid of the data found above this line is used to represent the time lag, $\tau_{\rm{cent}}$, for this realisation. The CCCD from the $\tau_{\rm{cent}}$ values for 10,000 realisation using FR/RSS is shown in the bottom panel. Only 0.3% of the realisations for DES J0228-04 failed to recover a lag resulting in an observed lag of $\tau_{\mathrm{\rm{obs}}}=358^{+126}_{-123}$ days. The analysis for DES J0033-42 only failed to recover a lag for 7% the realisations with a resulting time lag of $\tau_{\mathrm{\rm{obs}}}=343^{+58}_{-84}$ days. The results of this analysis are summarised in Table 3. We ran the analysis using the r and i bands and the results are consistent within error with those obtained using the g-band. Previous studies have reported lag measurements with failure rates of 17% or even higher (Kaspi et al., 2007; Lira et al., 2018). Even if we raise the correlation coefficient threshold to 0.7, less than 10% of the realisations fail for both AGN. Our two lag measurements are consequently of higher significance than some previous measurements. The bottom panel also shows the CCCD which has been down-weighted by the overlap between the light curves considering both survey length and the seasonal gaps. This procedure will be described in detail in Section 3.4.3.

3.4 Method Justification

3.4.1 Direct Integration vs Line Fitting

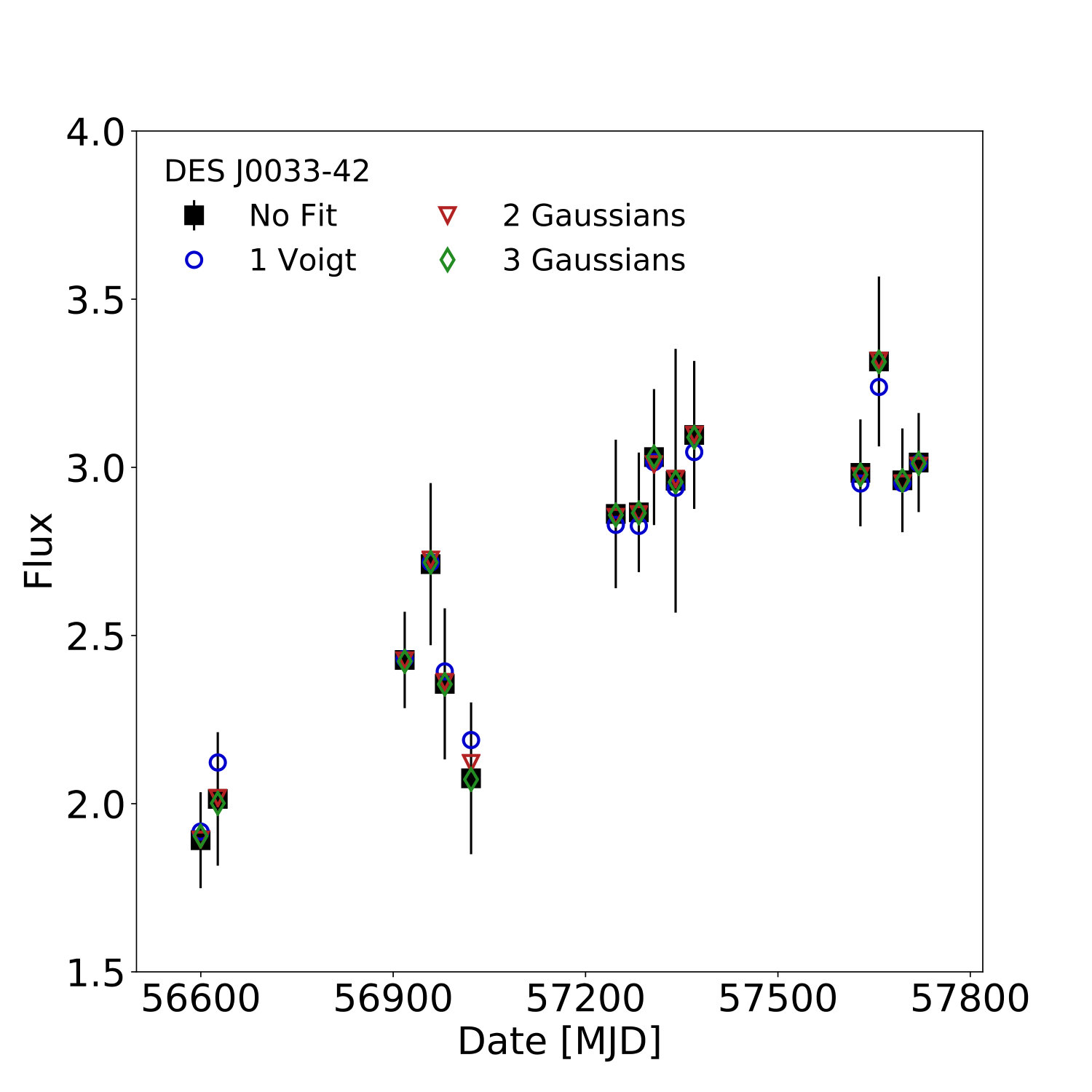

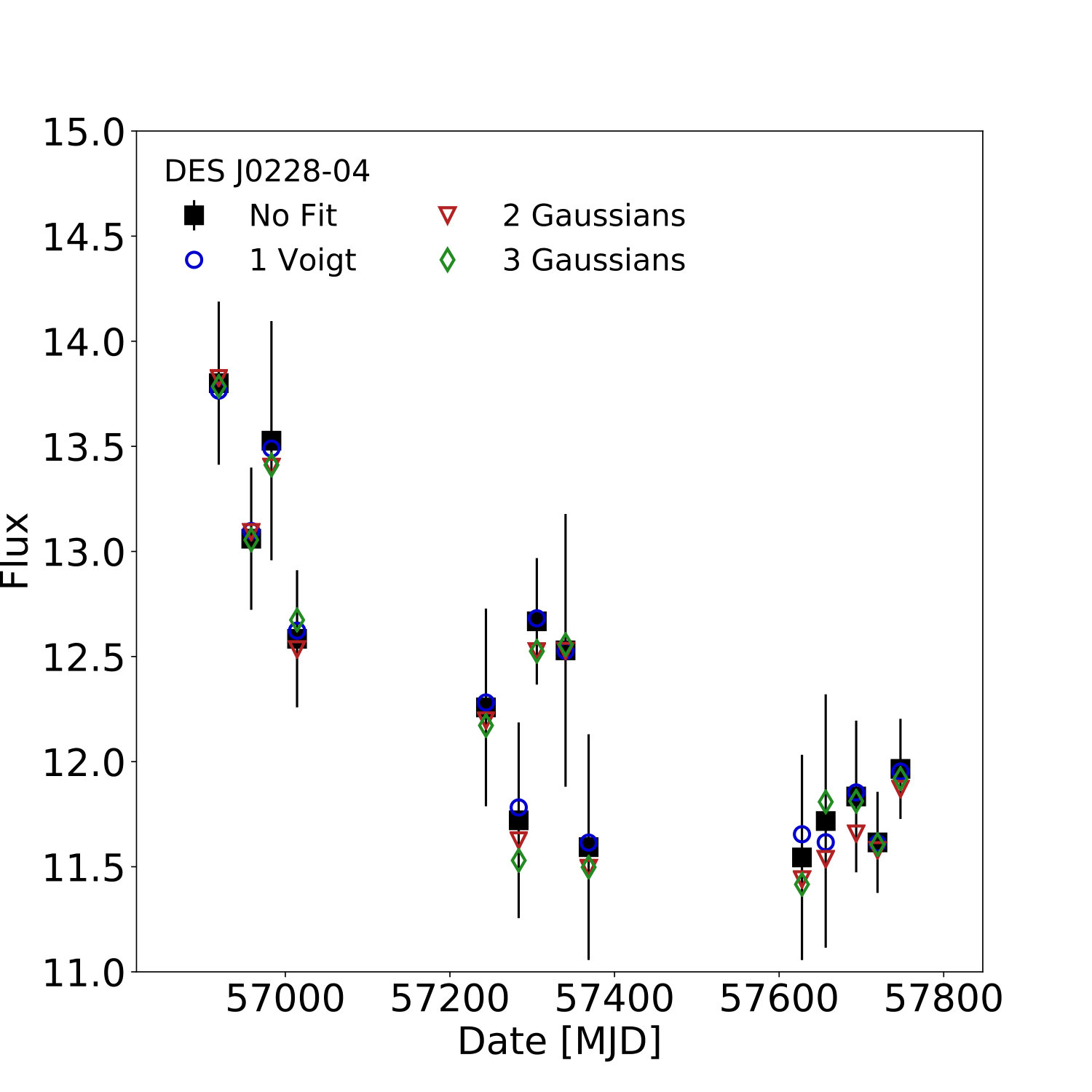

We measure the line flux density by directly integrating the spectrum within the wavelength window described in Section 3.1 (red dashed lines in Figure 3). We also experimented with parametrised fits to the emission lines. The line fitting was done after continuum subtraction and individual components of composite fits were allowed to be offset from each other in order to encapsulate any asymmetries in the wings. The effect line fitting has on the shape of the emission line light curve is shown in Figure 8. The black squares show the C iv light curve for each of the AGN used in this study and their corresponding uncertainties. The line flux measurements are also plotted after the emission line is fitted with different functions. The functions shown here are a Voigt profile (blue circles), a double Gaussian (red triangle), and a triple Gaussian (green diamond). The line fluxes calculated with these different fits lie within the error bars of the line flux calculated by directly integrating the emission line. Furthermore the resulting lag measurements using these fits differ by only a few days, well within the uncertainties of the lag measurements. This indicates that the parametrised fits to the emission line do not provide any significant benefit.

3.4.2 Line Integration Window

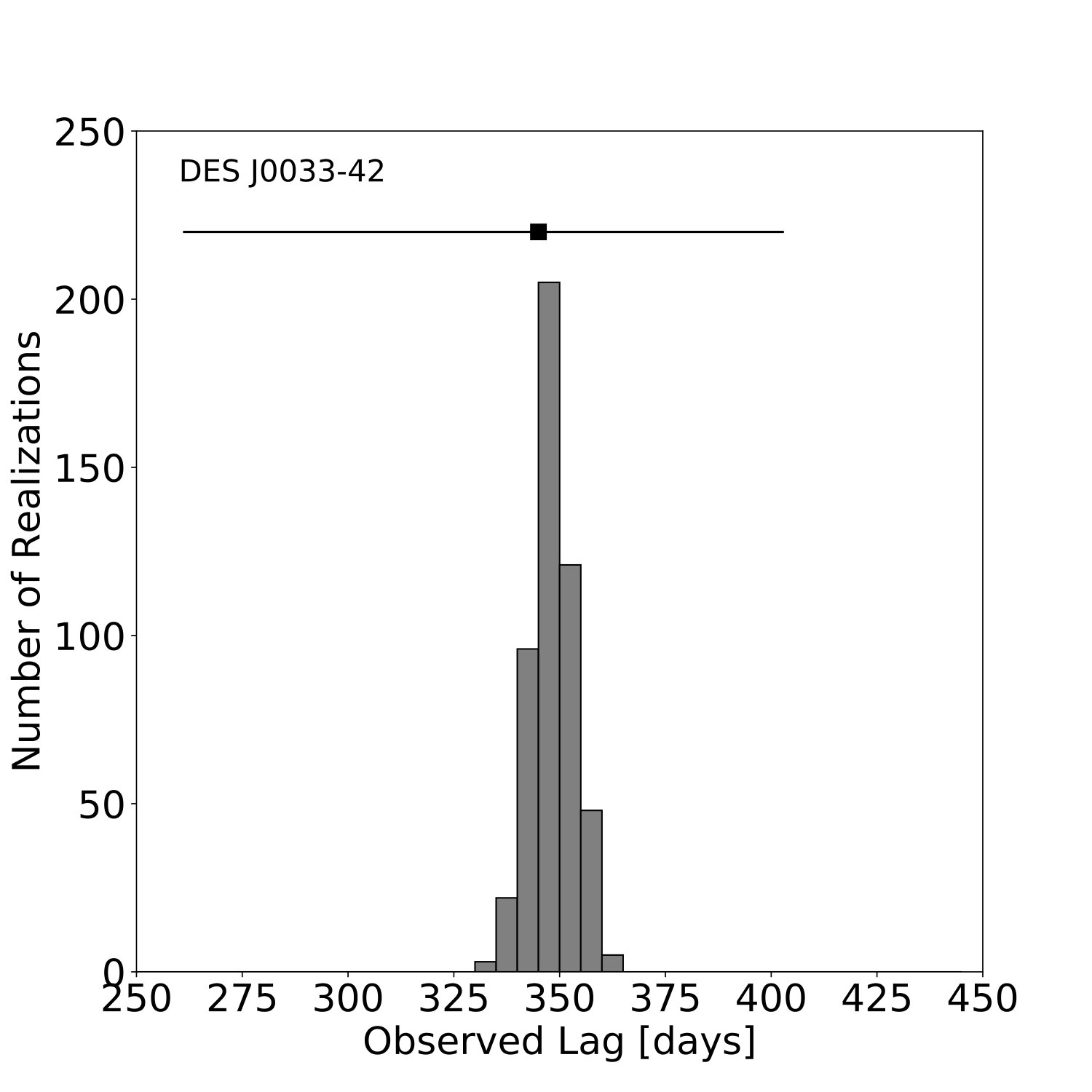

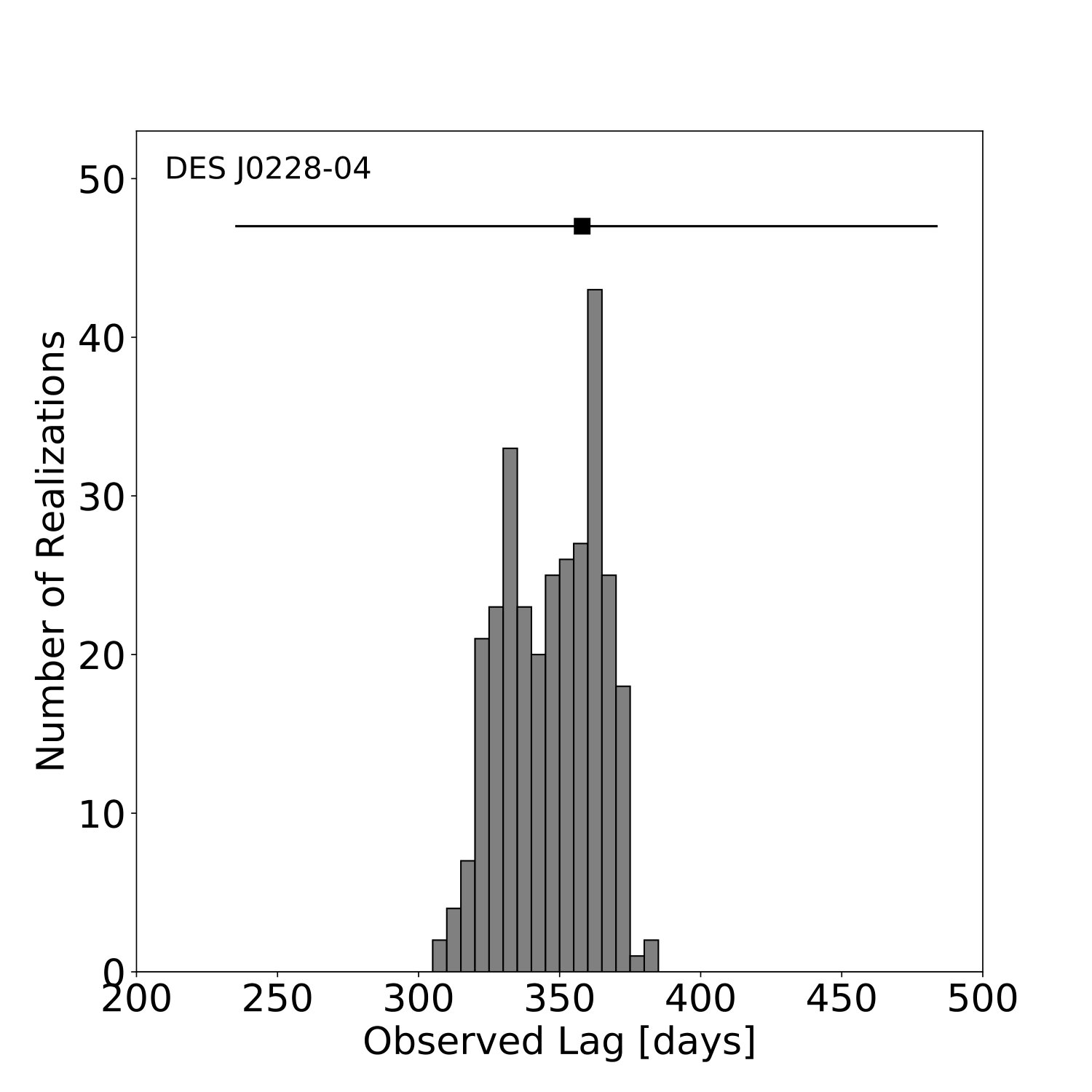

It is also important to determine the significance of the choice of line integration window on the lag measurement, particularly given the presence of the red shelf so close to the C iv line. We quantified this by randomly selecting an integration window with a left bound in the range of 1456-1506Å and a right bound in the range of 1570-1634Å. This tests the effects of introducing more continuum emission, including the red shelf, and also cutting off the wings of the emission line in order to avoid features not part of the C iv line. After randomly choosing 500 new integration windows we remade the light curves which we then used to measure the time lag, $\tau_{\rm{cent}}$. The results of this study can be seen in Figure 9. While there is some distribution in the recovered lag values, the result is always smaller than the uncertainties in the lag measurement. We therefore conclude that the choice of integration window does not significantly affect our results. As mentioned previously the OzDES spectra are made by splicing the red and blue arm of the spectrograph around $\sim$ 5700Å. During Year 1 some of the spectra show a discontinuity where the splice occurs. OzDES procedures were modified from Year 2 onward to mitigate the effect. For DES J0033-42 this splice occurs at the rest frame wavelength of 1586Å which is within the integration window. However, the results shown in Figure 9 indicate that this splicing does not significantly bias our results as the randomly selected integration windows include ones which fully exclude the splice.

3.4.3 Time Lag Prior

One assumption that can have a significant effect on the measured lag as well as the uncertainties is the prior placed on the time lag. This study assumes the time lag will fall between 0-850 days. We have tested this assumption in three ways.

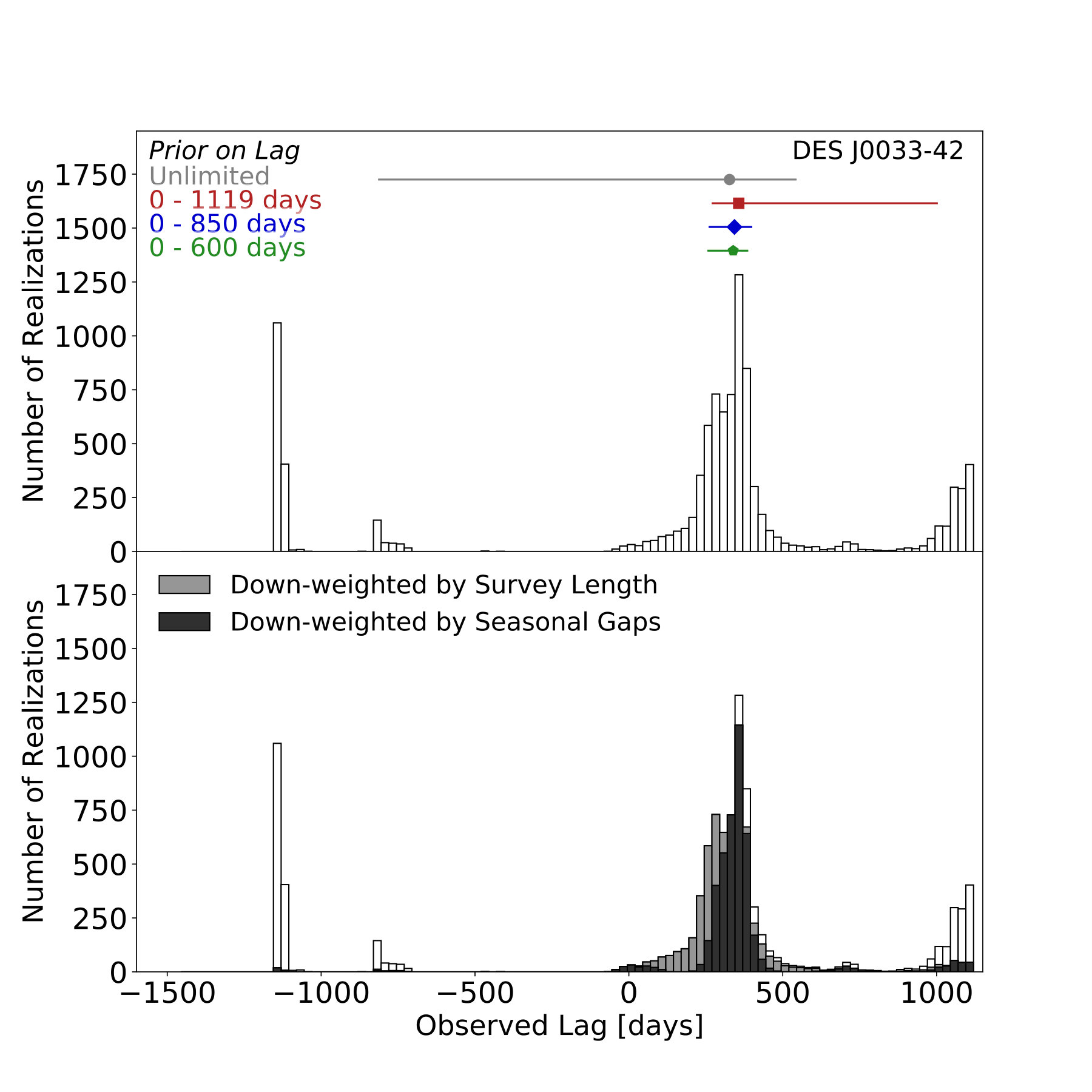

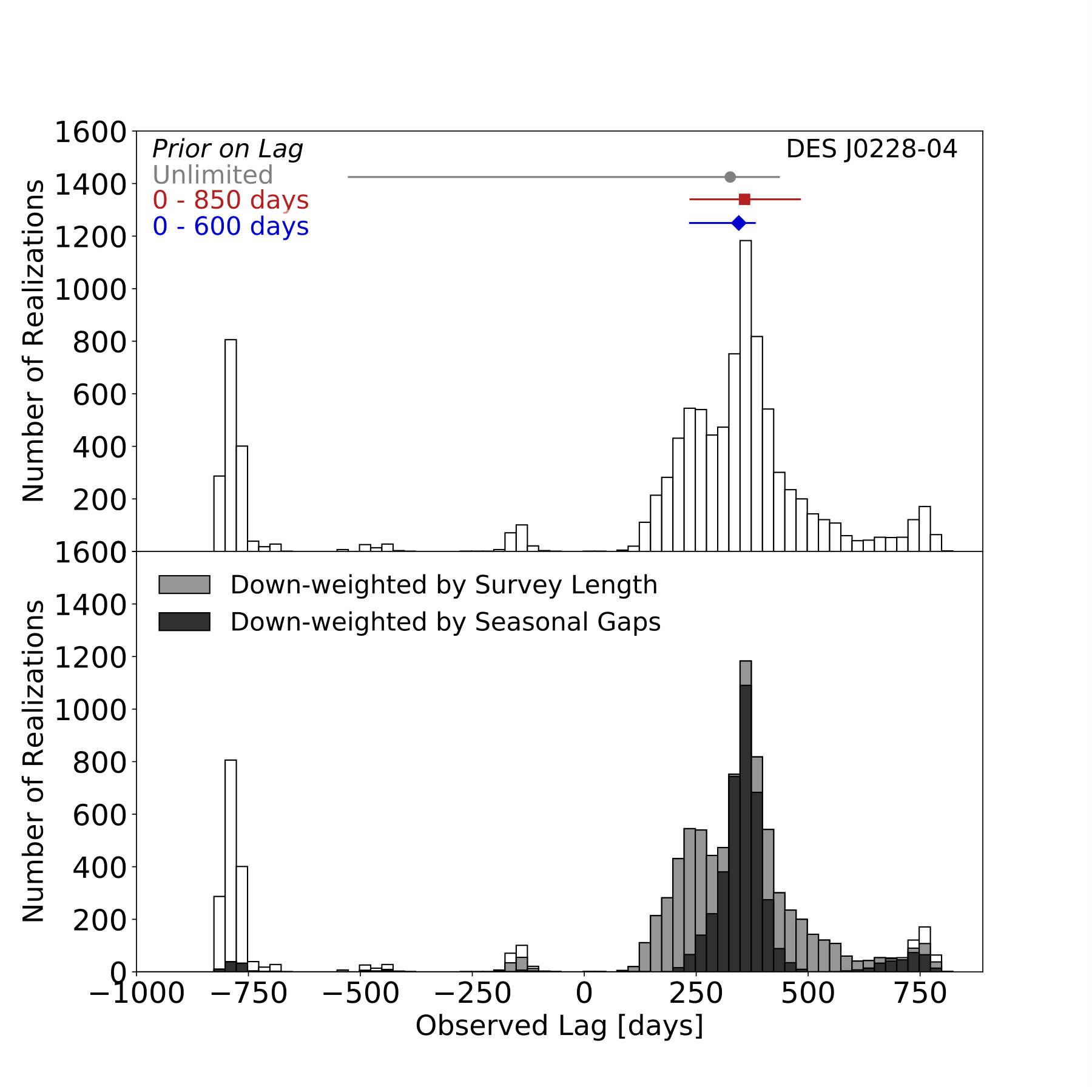

Test 1: We begin by determining the CCCD without any lag prior. This is shown by the white histogram in the top panel of Figure 10. The corresponding time lag measurements are shown by the grey data point above the CCCD. However, if we put a prior on the time lag, i.e. that the lag should be positive, the resulting time lag and uncertainties can be significantly affected. For example, for both AGN the prior enforcing the assumption of a positive lag is shown in red. The upper limit for each AGN (850 days for DES J0228-04 and 1119 days for DES J0033-42) is determined by the baseline of the observations. If the C iv line light curve is shifted by a lag value greater than this there will be no overlap between the continuum and line light curves meaning any lag measurements are primarily dependent on extrapolation, not measured data, and are therefore unreliable. We also tested smaller lag prior ranges.

For all the lag ranges shown, over 50% of the original CCCD falls within these values. This indicates that a significant amount of data is not excluded by the choice of lag prior and any resulting lag measurements are reasonable (see e.g. Lira et al., 2018). For DES J0228-04 over 70% of the original CCCD falls within the smallest lag range (0-600 days) while for DES J0033-42 65% falls within this range.

Test 2: We performed a second test to motivate our lag prior choice using a weighting scheme derived by Grier et al. (2017b) to down-weight lags that occur where there is little overlap between the two light curves after adjusting for the time lag. Following this prescription each lag in the CCCD is weighted by the function $w=(N_{\rm{lag}}/N_{0})^{2}$. The number of overlapping data points with no lag correction is given by $N_{0}$ and the number of overlapping data points after lag correction is $N_{\rm{lag}}$. Lags with a low number of overlapping data points rely heavily on the extrapolation assumed, not the real measured data points. This makes these lag values less reliable. The bottom panel of Figure 10 shows the original CCCD in white with the CCCD down-weighted using this prescription to account for the length of the survey shown by the light grey region. This eliminates much of the data at negative lags and the slight bump after 1000 days seen for DES J0033-42.

Test 3: This original weighting scheme only takes into account the baseline of the OzDES observations as this is most directly related to the prior we can place on the lag measurements. However, an important feature of the OzDES survey is the seasonal gaps of around 200 days between each observing season. In order to test the significance the seasonal gaps have on our ability to recover time lags we modified the weighting procedure to account for the case when there is no overlap between the light curves because the lag moves the line light curve into the seasonal gaps of the continuum light curves. This is shown by the dark grey histogram which significantly decreases the width of the main peak.

As a result of this analysis we choose to report our results using the lag prior of 0-850 days. This is shown by the white histogram on the lower panel of Figure 7. On Figure 7 we also plot the CCCD after down-weighting lags based on survey length and seasonal gaps (dark grey histogram). We use the unweighted CCCD for our final result in order to avoid biasing the analysis by only considering lags to which the survey is sensitive. However, the down-weighted CCCD does shed light into the importance of the cadence of the observations. Specifically, the peaks in the CCCD around 200 days are likely due to the seasonal gaps in OzDES which shows that survey cadence is an important limiting factor and source of uncertainty in lag recovery.

4 Results

4.1 Black Hole Mass

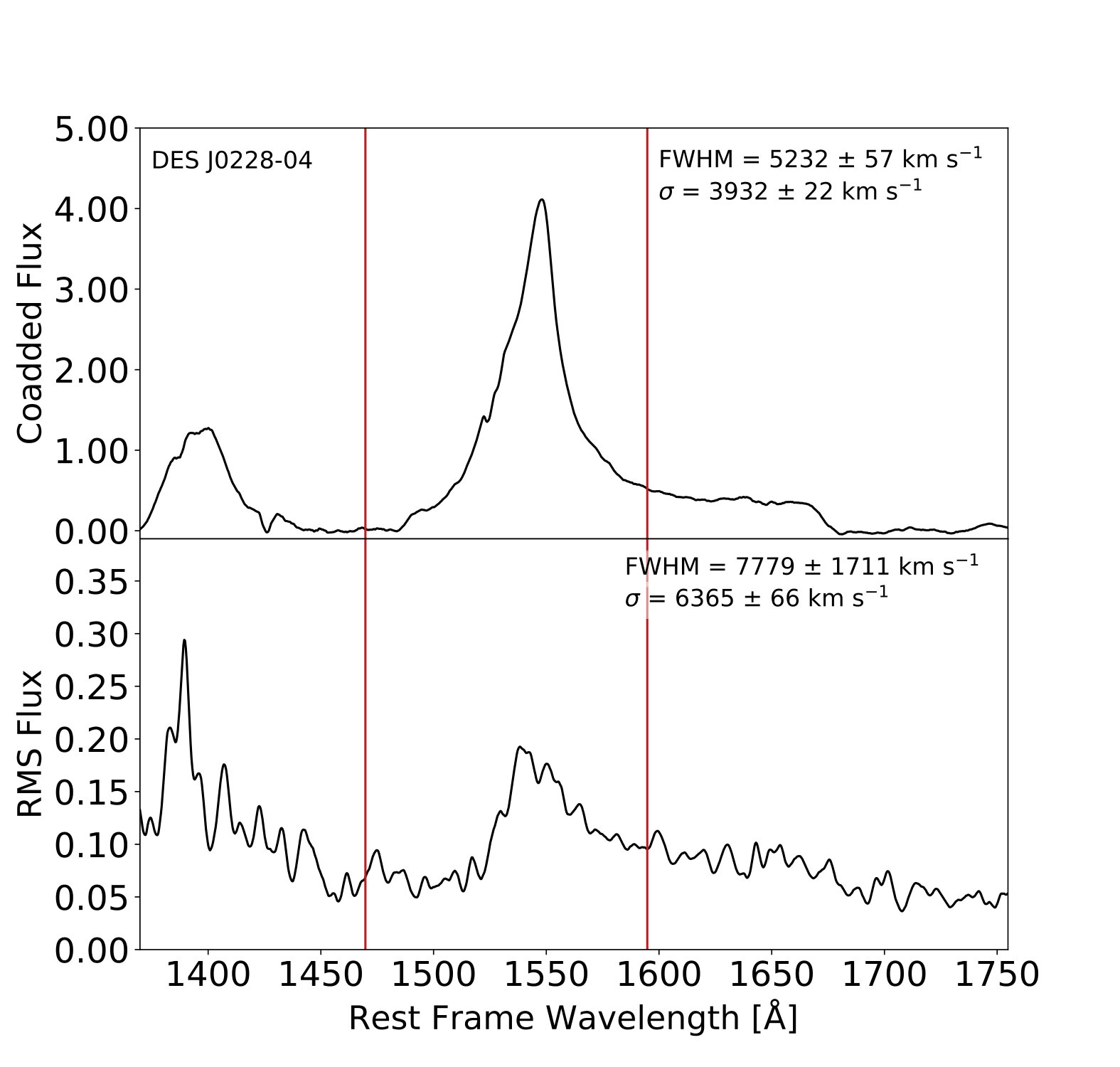

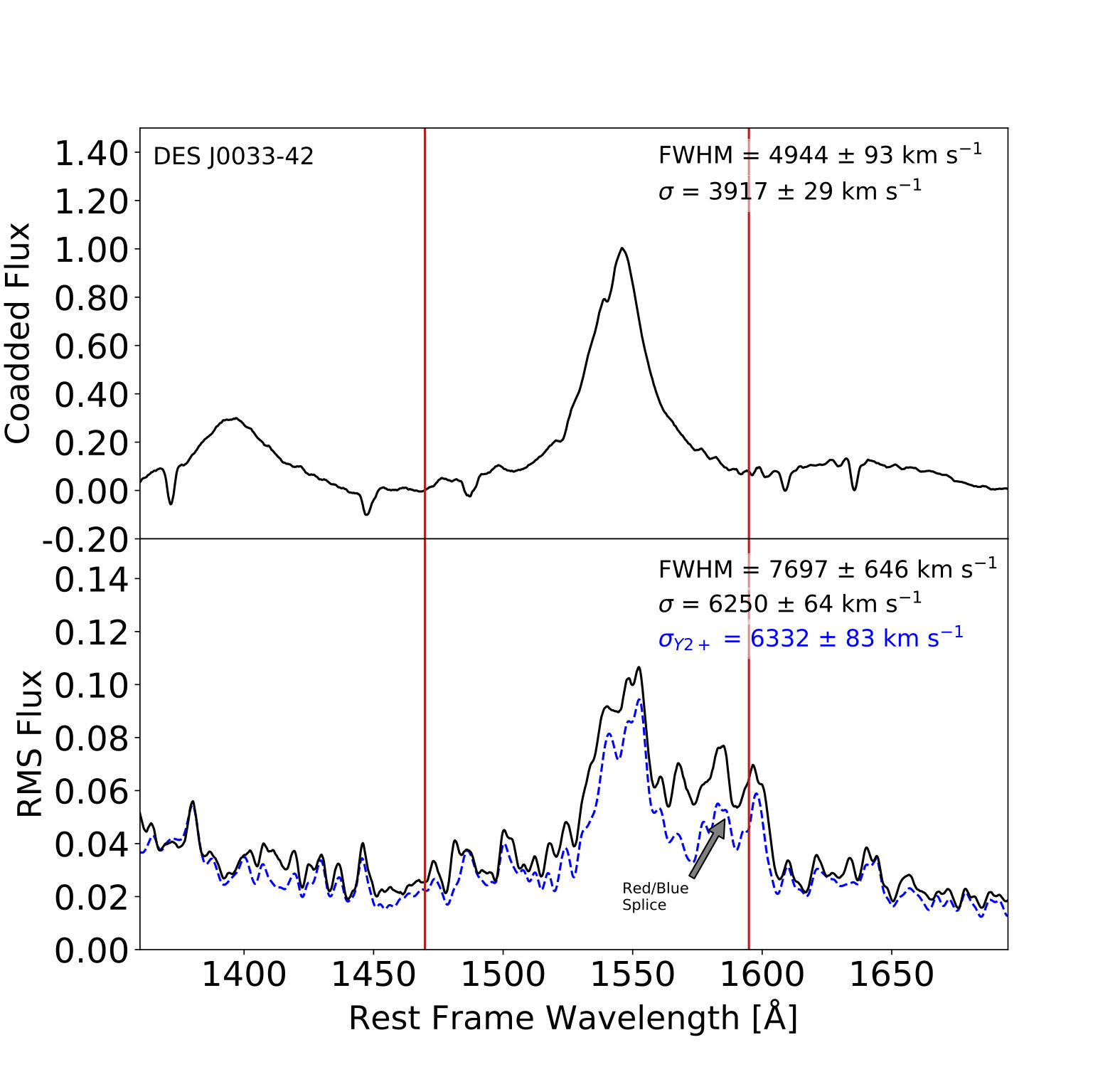

We need to know the velocity distribution of the BLR clouds in order to determine the black hole mass. The velocity can be measured from either the mean spectrum or the root mean squared (RMS) spectrum, which isolates the reverberating components of the emission line. A smoothed version of both the mean and RMS spectrum for each AGN is shown in Figure 11. The velocity can be characterised by either the velocity dispersion ($\sigma$) or the full width half maximum (FWHM). Figure 11 includes the FWHM and $\sigma$ values for each spectrum calculated within the line integration window indicated by the vertical red lines. The line widths have been corrected for the resolution of the spectrograph which is $\sim 3~{}\text{\AA}$. For our black hole mass calculations we used the line dispersion, $\sigma$, of the RMS spectrum to measure the velocity of the BLR clouds, as work by Peterson et al. (2004) concluded that the line dispersion is the best representation of the BLR velocity. We calculated the uncertainties by performing a bootstrapping procedure similar to that described above to account for the impact of continuum subtraction and uncertainties on the flux values before calculating the line width. Note that the RMS spectrum for DES J0033-42 (bottom right panel) has a distinct plateau on the red side of the line. This is due to the splicing between the red and blue arms of the spectrograph at $\sim$ 5700 Å. The plateau is less pronounced if the spectra from Year 1 are not included in the calculation of the RMS spectrum. Regardless of whether or not the Year 1 data is included the measurement of the velocity dispersion does not change significantly. This is shown by the blue line in the right panel of Figure 11. There is still some increase in flux around the splice. If the right edge of the integration window within which the line width is calculated is shifted to completely exclude the splice (1580 Å in the rest frame) the line width decreases by around 650 km s*-1* for both AGN and the resulting black hole mass is consistent with those obtained when considering the full integration window. This indicates that the effect of the red/blue arm splice is a subdominant effect here but a more rigorous analysis of the line width measurements will be done in the future.

The black hole masses are 4.4^{+2.0}_{-1.9}$$\times10{}^{9}~{}M\textsubscript{\odot} for DES J0228-04 and 3.3^{+1.1}_{-1.2}$$\times10{}^{9}~{}M\textsubscript{\odot} for DES J0033-42 (see Table 3). We calculated the masses using Equation 1 and $f=4.47~{}\pm~{}1.25$ (Woo et al., 2015).

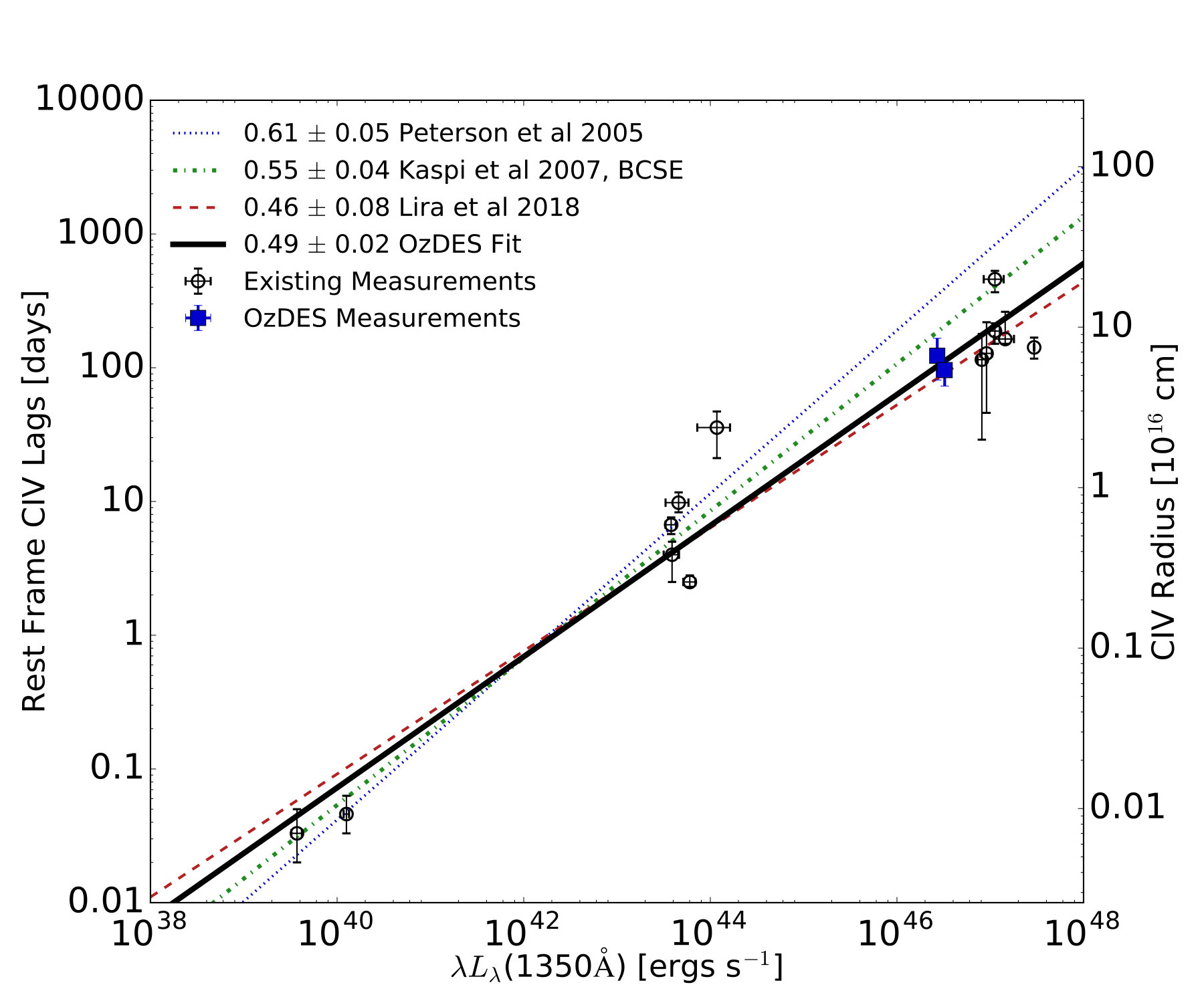

4.2 Radius-Luminosity Relationship

Previous radius-luminosity relationships using the C iv line measurements were made using the $\lambda L_{\lambda}(1350~{}\text{\AA})$ luminosity (Peterson et al., 2005; Kaspi et al., 2007; Trevese et al., 2014; Lira et al., 2018). They were generally found using the Bivariate Correlated Errors and Intrinsic Scatter (BCES) method developed by Akritas & Bershady (1996) to account for uncertainties in both luminosity and radius. For low luminosity AGN, Peterson et al. (2005) found a slope of $0.61\pm 0.05$. Including higher luminosity measurements Kaspi et al. (2007) found a slope of $0.55\pm 0.04$ and $0.52\pm 0.04$ using the FITEXY method to iteratively minimise $\chi^{2}$ (Press et al., 1992) combined with the intrinsic scatter prescription of Tremaine et al. (2002). Most recently Lira et al. (2018) published a $R-L$ slope of $0.46\pm 0.08$. We have constructed a new $R-L$ relationship by adding our two OzDES lag measurements to those in Kaspi et al. (2007), Trevese et al. (2014), and the four most robust C iv lag measurements (CT286, CT406, J214355, J221516) made by Lira et al. (2018). Those four were measured at a 1$\sigma$ level with a $<60\%$ failure rate. The results we used from the literature are summarised in Table 4. We calculated the $\lambda L_{\lambda}(1350~{}\text{\AA})$ luminosity for the OzDES AGN assuming $H_{0}$ = 70 km s*-1* Mpc*-1*, $\Omega_{M}$ = 0.3, and $\Omega_{\Lambda}$ = 0.7. The resulting $R-L$ diagram can be seen in Figure 12. We find that the best-fit slope is $0.49\pm 0.02$ for the following R-L relationship:

[TABLE]

based on the public BCES code by Nemmen et al. (2012). As the BCES method does not account for asymmetry in the error bars we calculated the slope using both the upper and lower values for uncertainties in the radius. This did not affect the resulting slope, intercept, or corresponding uncertainties. Our results are also consistent with a Monte Carlo linear regression procedure which varies the data points within their asymmetrical error bars. While yielding the same slope the $R-L$ relationship using the existing data summarised in Table 3 but without including the two OzDES AGN has a larger error of $0.03$.

When comparing our measured time lags with those estimated from previous $R-L$ relationships the lags measured by Kaspi et al. (2007) are 50% and 110% larger for DES J0228-04 and DES J0033-42 respectively. The slope derived in Kaspi et al. (2007) is consistent with the high redshift relationship $R(H\beta)\propto\lambda L_{\lambda}(1350~{}\text{\AA})^{0.56}$ (Kaspi et al., 2005). However, this slope was using a data set which only included one high luminosity measurement. Our lags are consistent within the measured error bars with the lags predicted by the most recent $R-L$ relationship found by Lira et al. (2018) which included the higher luminosity AGN. Using the dispersion based single epoch mass estimate for C iv found by Vestergaard & Peterson (2006) the black hole masses are 4.2$$\times10{}^{9}~{}M\textsubscript{\odot} for DES J0228-04 and 4.5$$\times10{}^{9}~{}M\textsubscript{\odot} for DES J0033-42 which are comparable with the masses derived in this paper.

5 Conclusion

In this paper we present the first OzDES reverberation mapping black hole mass measurements using the C iv line for some of the highest quality AGN observed during the first four years of OzDES operations. The techniques tested and implemented here will now be used on the wider OzDES sample and will include an additional two year baseline once the data from Year 5 and 6 have been processed. The data obtained from OzDES is complementary to its northern hemisphere counterpart, the Sloan Digital Sky Survey Reverberation Mapping program (SDSS-RM) (Shen et al., 2015). Similar to OzDES, SDSS-RM observed 849 AGN out to $z<4.5$. The primary difference between them is that SDSS-RM has published results based on approximately 30 epochs of observations over 6 months where as OzDES has around 23 epochs over 6 years.

We measured black hole masses of $4.4\times 10^{9}$ M⊙ for DES J0228-04 and $3.3\times 10^{9}$ M⊙ for DES J0033-42. These are amongst the highest redshift AGN with the highest mass black holes measured to date with this technique. We have used these new measurements to update the C iv $R-L$ relationship and derive the slope of $\alpha=0.49\pm 0.02$. Of the 771 AGN regularly observed with OzDES, those with C iv lines range in luminosity from $10^{44.3}\text{ ergs s}^{-1}~{}\leq~{}\lambda L_{\lambda}(1350~{}\text{\AA})~{}\leq~{}10^{47.2}\text{ ergs s}^{-1}$. Based on this range in luminosities we expect to be able to fill in the gap between moderate luminosity AGN ($\sim$ 1043 ergs s*-1*) and high luminosity AGN (> 1046 ergs s*-1*) that is seen in Figure 12. This will provide an opportunity to investigate the source of the scatter seen in this relationship.

In order to study the stratification of the BLR we chose the OzDES AGN candidates to include AGN where multiple emission lines that are in the observed spectroscopic bandpass. Our data set includes 148 AGN, such as DES J0228-04, which contain both C iv and Mg ii and 27 AGN which include Mg ii and H$\beta$. Given the high redshift range of the OzDES RM candidates, $0.1<z<4.5$, we will have the opportunity to study the growth of supermassive black holes and test the theory that AGN can be used as high redshift standard candles.
