Plasma-grains interaction mediated by streaming non-Maxwellian ions

TL;DR

This paper investigates how streaming non-Maxwellian ions influence plasma-grain interactions using advanced particle-in-cell simulations, revealing nonlinear effects and limitations of linear models in complex plasma environments.

Contribution

It introduces a nonlinear approach to plasma-grain interaction modeling considering streaming non-Maxwellian ions, extending beyond linear response theories.

Findings

Nonlinear plasma response significantly alters grain interactions.

Electrostatic force between grains can be attractive or repulsive depending on conditions.

Shadow effects and ion trapping influence inter-grain forces and separation limits.

Abstract

A comprehensive parametric study of plasma-grain interaction for non-Maxwellian streaming ions in steady-state employing particle-in-cell simulations is delineated. Instead of considering the inter-grain interaction potential to be the linear sum of isolated grain potentials, we incorporate the numerical advancement developed fully for grain shielding by including nonlinear contributions from the plasma and shadowing effect. The forces acting on grains versus inter-grain distance, streaming velocity of the ions, and impact of trapped ions density (number) are characterized for non- Maxwellian ions in the presence of charge-exchange collisions. It is found that the nonlinear plasma response considerably modifies the plasma-grains interaction. Unlike the stationary plasma case, for two identical grains separated by a distance in the presence of streaming ions, the electrostatic force is neither repulsive for all grain separations nor equivalent to the force due to one isolated grain. Inadequacy of the linear response formalism in dealing with the systems having very large grain charges is also discussed. The smallest inter-grain separation for which the role of the shadow effect can be ignored is reported.

Figures

Equations

$$f_z(u_z)$$

$$\left[1+\text{erf}\left(\frac{M_{\text{th}}{u}_z-1}{\sqrt{2}{M}_{\text{th}}}\right)\right],$$

$$m_i\frac{d\mathbf{v}}{dt}=q\left[{\mathbf{E}}_{\mathrm{pl}}+{\mathbf{E}}_{\mathrm{grain}}\right],$$

Full text

I Introduction

Dusty (complex) plasma is characterized by the presence of highly-charged dust particulates with sizes ranging from tens of nanometers to hundreds of microns in addition to ions, neutrals, and highly mobile electrons Melzer and Goree (2008). These charged particulates impart features to the complex plasma physics leading to self-organization of dust particles, propagation and instabilities of low-frequency dust particle waves Ishihara and Vladimirov (1997); Barkan et al. (1995); Kaw and Sen (1998); Ramazanov et al. (2016); Bandyopadhyay et al. (2008); Kumar and Das (2018), formation of voids in experiments under micro-gravity conditions Kretschmer et al. (2005), ion-focusing and formation of dust induced wakes (Sundar et al., 2017; Ludwig et al., 2018; Sundar, 2018a, b; Morfill and Ivlev, 2009; Kodanova et al., 2015).

Wakefield drastically modifies interaction between charged particles Ludwig et al. (2018); Moldabekov et al. (2015, 2016). Dynamics of a grain in streaming plasma and wake formation is a problem of fundamental research interest and is one of the most discussed problems (e.g., see Lampe et al. (2000); Ludwig et al. (2012)) due to its importance for a variety of applications ranging from fusion-related research Winter (2004); Sharpe et al. (2002); Ratynskaia et al. (2008) to astrophysical topics (Halekas et al., 2011), operation of gas discharges (Fortov et al., 2001), understanding Langmuir probes (Hutchinson, 2008), and technological plasma applications Hartmann et al. (2009, 2010). Particularly, in radio-frequency (rf) discharge experiments, dust particulates develop near the sheath region where ions have non-zero streaming speeds due to the prevailing large-scale electric field.

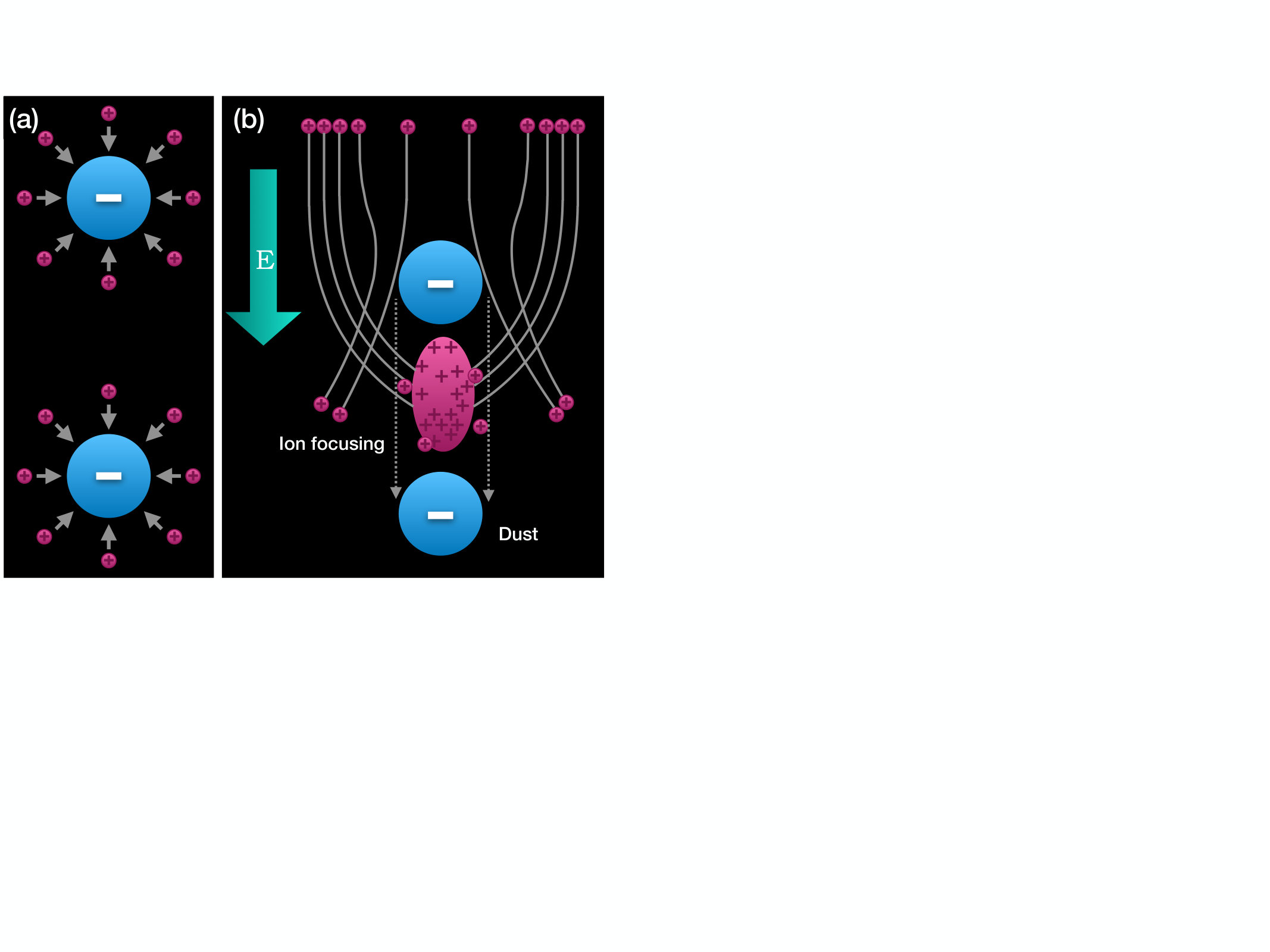

Impact of ion streaming on inter-grain interaction is illustrated here with a schematic in Fig. 1. In subplot (a) we have shown two identical stationary grains isotropically screened by ions in stationary plasma. Subplot (b) exhibits two-grains of same radii in streaming plasmas. It can be observed that the ions flowing towards the grain can be intercepted by the grains or by an excess ion density focused downstream grain which could have otherwise bombarded the second grain (notice the dashed arrow towards downstream grain). Ions interact with the grains through coulomb forces as well as direct impact. Those ions which traverse nearby grain but encounter collision and have low enough energy get focused behind the grain. On the other hand, due to wakefield, the potential profile in downstream direction has positive regions Sundar (2018a); Ludwig et al. (2018). Therefore, grains passing upstream grain can get deflected by the cloud of focused ions. From the subplots of Fig. 1, one can observe that the difference in the two cases emphasize the crucial role played by streaming of ions.

The grain-plasma system in the close proximity to the grain constitutes an open system (as illustrated in Fig. 1) Schweigert et al. (1996); Melzer et al. (1996); Schweigert et al. (1999), which disapproves the calculation of interaction force directly from the derivative of electrostatic potential Lampe and Joyce (2015). One of the important effects due to the finite size of the dust particles is a non-electrostatic force better named as ‘shadowing force’ which has mechanical origin Tsytovich et al. (1996); Ignatov (1996). This shadowing force can be understood as the net ion-bombardment force exerted on a grain towards every other grain in its vicinity due to the ions intercepted by each other. It is not a pairwise interaction force in the strict sense as it depends on the mutual alignment of the two or more grains and on their respective sizes. Work in this regard has been performed notably by Lampe et al. (Lampe and Joyce, 2015) wherein they introduced the role of nonlinearity and ‘shadowing force’ for simulating inter-grain interactions in stationary plasma and defied previous unjustified assumptions. For the case of grains in stationary plasma, Lampe et al. (Lampe and Joyce, 2015) showed that the role of trapped ions in manifesting any kind of attractive inter-grain interaction is negligible and concluded that the electrostatic force between grains is always repulsive for the Maxwellian or shifted Maxwellian distribution of ions.

In the presence of an electric field driving the ion flow and ion-atom collisions (as is the case in the sheath region), the steady state ion velocity distribution is quite different from the Maxwellian and shifted Maxwellian distribution. The balance between electric field driven force and drag due to ion-neutral charge exchange collisions (the predominant collision) determine the flow velocity and the ion flow distribution function. It has been shown using Monte-Carlo (MC) numerical scheme Lampe et al. (2012) that the resulting distribution for ions is non-Maxwellian. Under constant ion-neutral charge-exchange collision frequency assumption, an exact solution for the distribution function reads Sundar et al. (2017); Lampe et al. (2012); Ludwig et al. (2018),

[TABLE]

here $u_{z}=v_{z}/v_{\text{th}}$ denotes the velocity along the streaming direction in the units of the thermal velocity of neutrals, $v_{\text{th}}$, and $M_{\text{th}}=v_{d}/v_{\text{th}}$ stands for the thermal Mach number with $v_{d}$ being the drift velocity of ions.

For better understanding of the inter-grain interaction, the non-Maxwellian ion distribution and nonlinear plasma response to the field of grains have to be taken into account. Therefore, the purpose of the present work is to provide a consistent wide ranging numerical exploration of the forces acting on grains and plasma-grain interaction using the particle-in-cell numerical approach. For two dust particles aligned along streaming velocity (see Fig. 1), we simultaneously consider the impact of the following effects on grain-grain interactions :

• •

the non-Maxwellian velocity distribution of ions ;

• •

the trapped ions in the vicinity of the grain;

• •

the shadowing effect due to close location of grains;

• •

the non-linear response of the plasmas.

The outline of the paper is as follows. In Sec. II and III, we introduce plasma parameters and simulation scheme utilized, respectively. In Sec. IV, we present the results for dust particle charges and plasma-grain interaction. Finally, in Sec. V. we discuss the perturbation of the density distribution of ions.

II Plasma parameters

The investigation has been done at the following plasma parameters:

Electron temperature $T_{e}=3~{}{\rm eV}$, ion and neutral (Ar) temperature $T_{i}=T_{n}=0.03~{}{\rm eV}$, $T_{e}/T_{n}=100$, plasma density $n_{e}=n_{i}=1\times 10^{8}~{}{\rm cm}^{-3}$, neutrals density (pressure) $n_{n}=5\times 10^{14}~{}{\rm cm}^{-3}$ (${\rm P}=2~{}{\rm Pa}$), the Debye length due to electrons $\lambda_{De}=$1286.9\text{,}\mathrm{\SIUnitSymbolMicro m}, the Debye length due to ions $\lambda_{D}=$128.69\text{\,}\mathrm{\SIUnitSymbolMicro m}, sound speed $c_{s}=\sqrt{T_{e}/m_{i}}=2.68\times 10^{5}~{}{\rm cm/sec}$, and the ion charge number $Z_{i}=1$. 2. 2.

The molecular species is Ar and is considered to be kept at a collision frequency which is related to the collision cross-section through $\nu_{in}=\sigma_{in}n_{n}v_{th}$ where $\sigma_{in}$ is the collision cross-section. The latter has been chosen to be equal to $\sigma_{in}=3.5\times 10^{-15}~{}{\rm cm^{2}}$, correspondingly the charge-exchange ion-atom collision frequency turns out to be $\nu_{in}=4.69\times 10^{4}s^{-1}$. At considered plasma parameters, plasma frequency of ions turns out to be $\omega_{pi}=44.56~{}\nu_{in}$. 3. 3.

The dust particle has a cylindrical shape but with the diameter equal to the length. The dust particle radius $a_{d}=$5\text{,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m}$$, separation between dust particles $d/\lambda_{D}$ is varied from $2.02$ to $10.1$ with the step $1.01$ (for few cases with higher resolution) and $2.02$ (for most of the numerical simulations). Note that the grain radius is much smaller than the screening length, i.e., $\lambda_{De}/a_{d}=257.382$ and $\lambda_{D}/a_{d}=25.74$. 4. 4.

Ion streaming velocity considered herein encompasses the subsonic, sonic as well as supersonic regimes. The thermal Mach number $M_{\rm th}=0,5,10,15$ is in the range from 0 to 15. The corresponding Mach number defined by the sound speed $M=M_{\rm th}\sqrt{T_{n}/T_{e}}$ varies in the range from 0 to 1.5.

III Numerical Details

We consider a homogeneous plasma with ion flow driven by uniform ambient electric field, $E_{0}$ (as indicated in Fig. 1). Balance of the electric field and ion-neutral charge-exchange collisions, $\nu_{in}$, determine the ambient velocity distribution of ions, Eq. (I). The driving electric field is related to the charge-exchange collision frequency through the relation $qE_{\rm drift}=m_{i}\nu_{in}v_{d}$, where $v_{d}$ is the drift speed of the ions, $m_{i}$ and $q=Z_{i}e$ denotes the mass and charge of the ion, respectively.

Numerical simulation has been performed with the two-dimensional (r,z) cylindrical Particle-In-Cell (PIC) code ‘DUSTrz’ Lampe and Joyce (2015), where the grains are kept stationary. In ‘DUSTrz’, the grain-grain separation and size could be varied and the dynamics of plasma is studied by following the motion of ions. Ions are PIC super-particles and electrons are taken to be thermal, i.e., the electron density is given by Boltzmann distribution $\tilde{n}_{e}=n_{e}\exp(e\phi/T_{e})$. We have followed cgs unit for all physical parameters except temperatures which are in $eV$.

The equation to delineate the dynamics of the ions in the presence of self-consistent electric fields and driving electric field is given by

[TABLE]

here $\mathbf{E_{\rm pl}}$ is the field due to plasma (both electrons and ions) and $\mathbf{E_{\rm grain}}$ is the field due to dust grains. The ions crossing the boundary of the simulation box are replaced by an ion chosen randomly in accordance with the ambient distribution. This way, the code is capable of incorporating a chosen distribution. We use non-Maxwellian distribution given by Eq.(I). Note that to avoid double counting the driving field $\mathbf{E_{\rm drift}}$ is not included explicitly in Eq. (2).

Simulation region is deliberately chosen to be very large ($10\lambda_{D}$ along radial direction and $40\lambda_{D}$ along the z-direction) to mitigate boundary effects. At the boundaries, electrostatic potential is set to zero. Plasma space charge density along with grain charge density constitutes the source term for Poisson’s equation. Poisson’s equation was solved in the given cylindrical simulation region at every ten time-steps. To facilitate the calculation of Poisson’s equation, grains are considered to have uniform charge density at all points on the grain surface and any variation in the potential on the grain surface has been ignored. Moreover, one needs to resolve the ion dynamics in the vicinity of the grain and hence, the time-step has been chosen to be small $dt<\left(a_{d}/c_{s}\right)$ accordingly.

For computation of the dust particle charge, forces acting on dust particles for the non-Maxwellian ion distribution, the system is evolved self-consistently for 3 000 000 time-steps and averaging is done over every 40000 time-steps. The weight used for simulation particles is of the order of unity and hence it is suitable for obtaining sufficient statistics of the particle motion.

The present model is advanced in the sense that it does not consider the total potential for a system of two dust grains in streaming ions simply as linear sum of the potential due to two Debye spheres rather takes into account the effect of trapped ions and shadowing force simultaneously incorporating the nonlinear response of plasmas in the grain-plasma system.

Electrical force acting on each dust particle has been calculated as $Q_{1(2)}\left(\mathbf{E_{2(1)}}(z_{1(2)})+\mathbf{E_{pl}}(z_{1(2)})\right)$, where $\mathbf{E_{1(2)}}$ is the field due to grain 1 (2), $\mathbf{E_{pl}}$ is the field due to plasma. The dust particles are located along z axis (which is parallel to the drift velocity, see Fig. 1), where $z_{1}=0$ and $z_{2}=d$ (with $d$ being dust particles separation distance). In addition to the force due to grain charge and plasma, there is an additional force incorporated in the code in the same electrostatic force. This additional force which is also called ion drag, is due to the momentum deposition on the grains by ions traversing in the close proximity through Coulombic interactions. Moreover, electrostatic force here also takes care of the ions which get accelerated while passing in the neighborhood of the grain and fall into the electrostatic potential of the grain.

Plasma absorption induced force is the net rate of z-momenta deposited on the grain and is computed by depositing the momenta on to a grain whenever an ion collides with a grain. It includes the momentum transfer due to the ions whose trajectory got intercepted by the other grain as well as the ions passing nearby grain whose trajectory is focused on the other grain surface. Due to symmetry, we calculate the momentum deposition along flow direction only. In the equilibrium plasma ($M=0$), the plasma absorption induced force is referred to as the shadow force, as one dust particle shadows the plasma flux on the surface of the second dust particle. In the case of single dust particle or very large separation between dust particles, shadow force disappears. However, for the case of streaming plasmas ($M\neq 0$), there is ion drag force which has one component due to scattered ions and the second component due to absorption of ions. Former is included into the mentioned electrostatic force and latter contributes to what we call here the plasma absorption induced force. For two dust particles located close enough in streaming plasmas, the shadow force and plasma absorption related ion drag force can not be separated numerically from each other the way it is done theoretically.

We also computed the trapped and untrapped ions density (number). According to standard Classical Mechanics, an ion with energy less than the maximum of the effective potential energy profile Goree (1992) is considered trapped. However, in the present work, an approximation in calculating the trapped ions has been utilized. An ion is considered a trapped ion in the present simulation whenever its total energy is negative. Number of untrapped ions is counted by integrating the difference between the average ion density and untrapped (with positive total charge) ions density.

IV Dust particle charges and forces

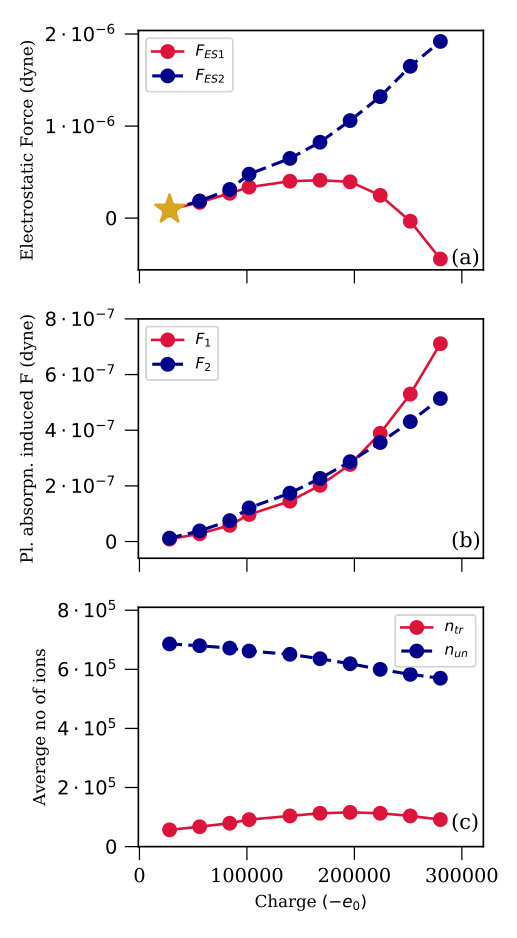

Considering different values of the dust particle charge allows to illustrate the manifestation of the shadowing effect and non-linear plasma response. We have assigned linearly increasing charges on the grain and have measured the forces acting upon grains and number of the trapped and untrapped ions. The dust particle charge, being linearly proportional to the grain size, was computed self-consistently. To inquire plasma-grain interaction for different values of the dust particle charge, the dust particle size was varied from $5\text{\,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m}$ to $50\text{\,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m}$. Dependence of inter-grain force on the charge assigned is shown in Fig. 2 for the fixed inter-grain distance of $d/\lambda_{D}=6.06$. From the subplot (a) of Fig. 2, we clearly see that with the increase of the dust particle charge from $10^{4}$ (denoted by a star) to $10^{5}$ the forces (directed downstream) acting on the dust particles increase approximately linearly. Further increase in the dust particles charge clearly shows strong non-linear dependence of the force on the dust particle charge at $Z_{d}>10^{5}$. In this strong non-linear regime, the electrostatic force acting on the downstream particle (denoted as $F_{ES2}$) continues to increase while the upstream particle (denoted as $F_{ES1}$) exhibits a non-monotonic behavior. It first increases with grain charge till it reaches its maxima where it saturates (at $a_{d}\simeq$25\text{,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m}) followed by a decreasing trend eventually changing its sign upon further increase in the grain charge (from $a_{d}>$35\text{\,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m} onwards).

The reason behind non-monotonic behavior of the upstream grain can be the negative ion drag force Vladimirov et al. (2008); Momot (2017) or Coulomb repulsion due to downstream particle. The negative ion drag force appears due to the formation of a negative charge region behind the grain (in downstream direction) resulting from strong absorption of ions on the surface of the dust particles. For equilibrium plasmas, Vladimirov et al Vladimirov et al. (2008) reported the negative ion drag force for single grain case considering an absorbing grain with small size ($a_{d}/\lambda_{D}\ll 1$) in high pressure plasma (with the ion collection by grain characterized by continuum limit $l_{i}/a_{d}\lesssim 1$). In our numerical simulations, we have $a_{d}/\lambda_{D}\simeq 0.27$ and $l_{i}/a_{d}\ll 1$. Clearly, despite lower pressure, the continuum limit for the ion collection by grain is also realized (due to large grain size). However, the electrostatic force acting on downstream particle (with the same size) does not change its sign. Therefore, we conclude that the strong Coulomb repulsion between grains with large charge ($Z_{d}>2.5\times 10^{5}$) overcomes the ion drag force acting upon upstream particle manifesting in the change of the sign of the electrostatic force.

In the subplot (b) of Fig. 2, the plasma absorption induced force is presented. With the increase in the dust particle charge, the plasma absorption induced force increases for considered values of the dust particle charge. Except the region around the grain charge value at which the electrostatic force acting on the upstream particle changes its sign, the absorption induced force is approximately smaller by one order of magnitude. In the subplot (c) of Fig. 2, the number of trapped and untrapped ions is shown. The number of trapped ions exhibit a very small variation and number of untrapped ions decreases insignificantly with increase in the dust particle charge. This may seem somewhat counter-intuitive at first glance, but easily can be understood by recalling that the excess plasma (ions and electrons) density around dust particles is strictly controlled by the plasma quasi-neutrality condition Moldabekov et al. (2018), better understanding can be gained by looking at the pattern of the plasma distribution around dust particles. The latter is discussed in Sec. VI.

The described dependence of the forces on the dust particle charge clearly illustrates its significance for the variety of the possible phenomena. In the presence of streaming ions, two grains with the same size can collect different charges depending on the inter-grain separation. We also notice the non-reciprocal behavior of forces for the two grains. Unlike the case of two identical stationary grains in stationary ions Lampe and Joyce (2015), for the streaming ions the force on one grain exerted due to the other is no longer the same as the force exerted due to the field of an isolated grain exerting on the bare charge of the other. Flow velocity of ions, inter-grain separation, and non-linearity of plasma in the vicinity of the grain has a crucial role in determining the steady state charge of the grains. Usually, in experiments the dust particle size is in the range $1$ - $10\text{\,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m}$. Therefore, we focus on the dust particles in this range and present a detailed analysis of the dust particles with size $a_{d}=$5\text{,}\rm\mathrm{\SIUnitSymbolMicro}\mathrm{m}$$ in our subsequent discussion in this paper.

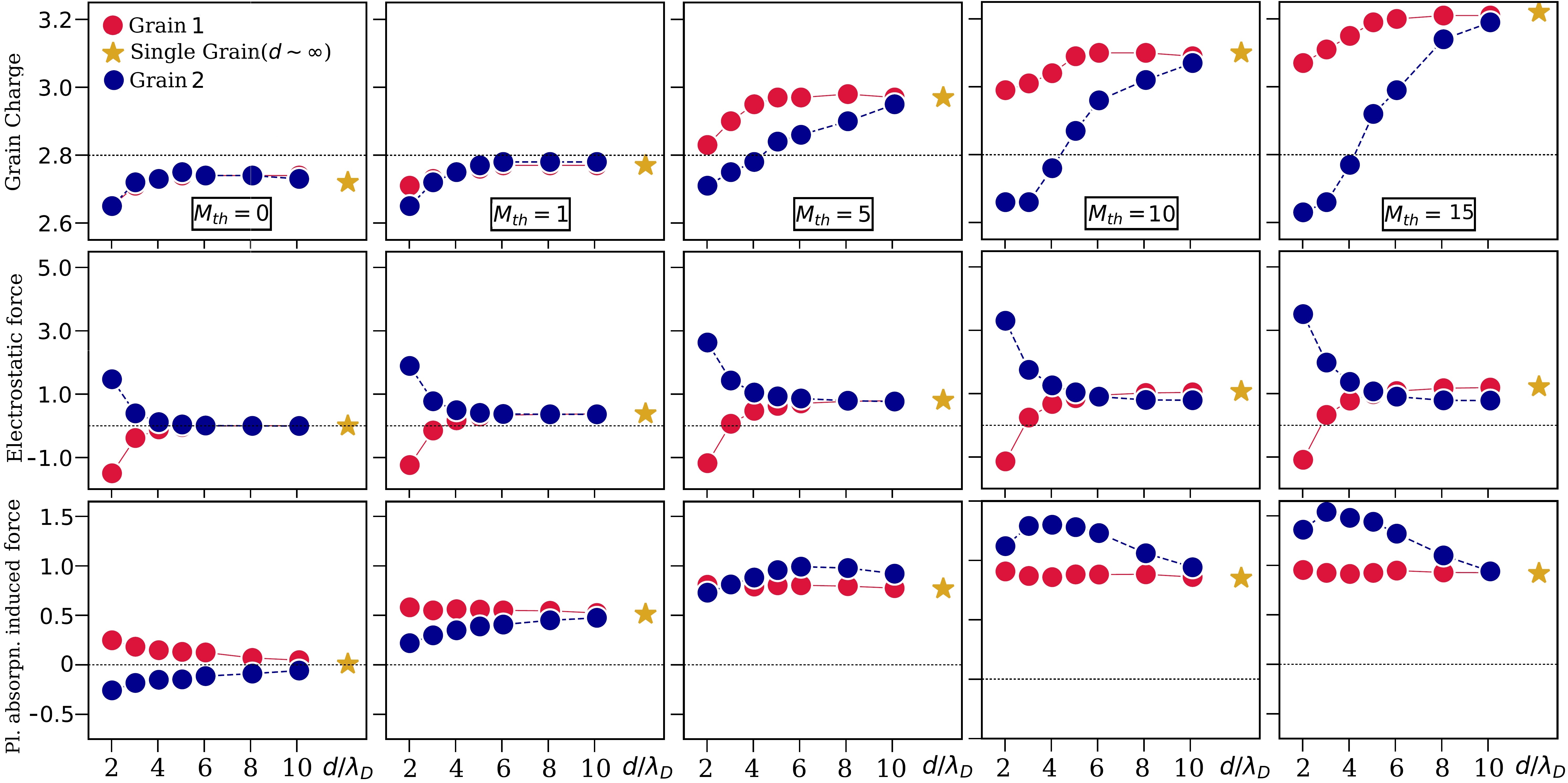

To understand the inter-grain and plasma-grain interactions, in Fig. 3 we have shown the grain charges and the forces acting on grains for various values of the streaming velocity and inter-grain separation. The top most row shows the grain charge (in units of electron charge) versus inter-grain separation distance (in units of $\lambda_{D}$) for ions with $M_{\text{th}}=0,1,5,10,15$ (from left to right) respectively. The golden colored $\star$ symbol in all the subplots of Fig. 3 denotes the single-grain data. The single grain data can also be understood as the case where two grains are completely isolated from each other (i.e. $d/\lambda_{D}\sim\infty$). The values for two grain case asymptote towards single grain case when one moves the two grains farther apart beyond $d/\lambda_{D}=10.1$. It is important to point out here that in the presence of streaming ions, action is not equal to reaction (actio$\neq$ reactio) and one can not clearly define an effective pair-interaction. It motivated us to explore the effect of different kind of forces explicitly on grain-plasma dynamics.

For $M_{\text{th}}=0$ (left column - top row), the grain charges on both the grains are equal in the steady-state for all the inter-grain separation distances. At $M_{\text{th}}=1$, the second column from left, the charge of dust particles differs at $d/\lambda_{D}<4$ and almost same at larger separation distances. In the remaining three subplots in the top row, the charge on the upstream particle (grain 1) at $d/\lambda_{D}\leq 10$ is higher in magnitude than the downstream particle (grain 2) indicating that the downstream particle charges less negatively. This is due to the fact that with streaming ions, focusing of ions occur downstream giving rise to smaller negative charge for the downstream grain. Though the charge on grain 1 is more than grain 2 at $d/\lambda_{D}\leq 10$ for streaming ions ($M_{th}\gg 1$), nevertheless, the difference between the two grain charges asymptote towards zero at very large separations (which is equivalent to the single grain case) where one expects the shadowing and focusing effects to be negligible. At smaller separations, the difference between grain charges increases with streaming ion speeds. In general, the pattern exhibited by grain-charge with respect to inter-grain separation distance is due to the synergistic role played by shadowing effect and plasma streaming.

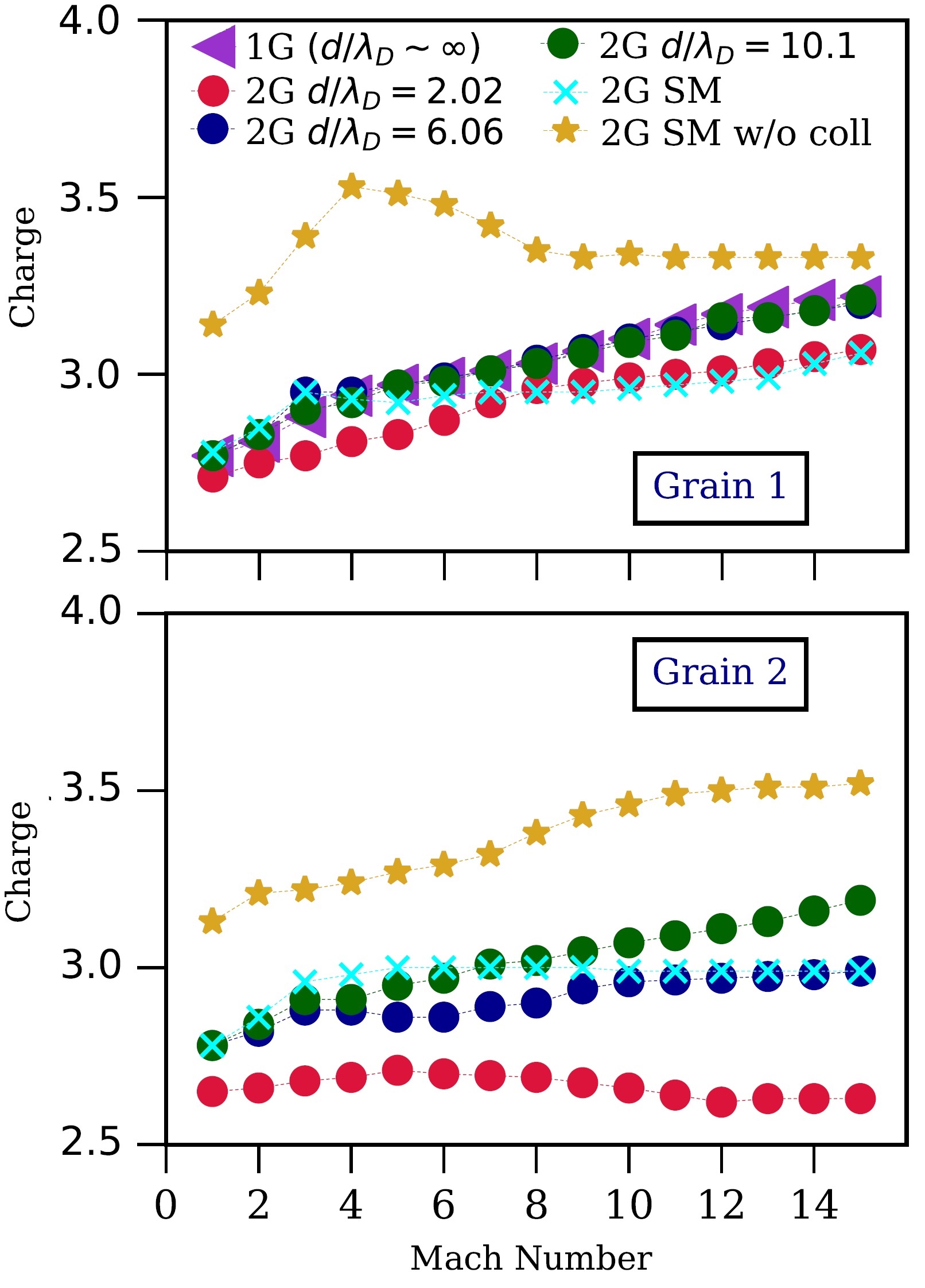

To better illustrate the grain charge-Mach number dependence, in Fig. 4, we have presented the grain charge versus streaming ion speed for (a) upstream grain as well as single grain and (b) downstream grain for varying inter-grain separation. The general trend suggests that the grain charge increases with streaming speed except for very small inter-grain separation $d/\lambda_{D}=2.02$ where the downstream grain exhibits a non-monotonic trend. The reason for such a non-monotonic behavior can be attributed to a significant overlap of the shielding clouds [see Sec. V]. The upstream grain charge exhibits a monotonically increasing behavior with streaming speed albeit with no significant variation with inter-grain separation beyond $d/\lambda_{D}=6.06$. For completeness, in Fig. 4, we compare the data for $d/\lambda_{D}=6.06$ with that of obtained using the shifted Maxwellian distribution with collisions as well as without collisions. For thermal Mach numbers $M_{th}>4$, the data computed using the shifted Maxwellian distribution with collisions shows lower values of the upstream grain charge in comparison to the non-Maxwellian case. Regarding the downstream grain charge, the non-Maxwellian character of the distribution leads to the lower charge values at $2<M_{th}<10$. The important result is that the neglect of the ion-neutral collisions leads to a significant overestimation of the charge of both upstream and downstream dust particles and, hence, to an inadequate description of the electrostatic and the plasma absorption induced forces. In fact, the ion-neutral collisions lead to the increase of the trapped ions around grains. More detailed discussion of this effect is given in Sec. V.

Electrostatic force versus grain separation is shown in the second (middle) row of Fig. 3. For $M_{th}=0$, the force acting on the upstream grain is opposite to the force acting on the downstream grain. Similarly, for $M_{th}\neq 0$ and $d/\lambda_{D}=2.02$, the electrostatic force on grain 1 is asymmetrically opposite to grain 2. In these cases the Coulombic repulsion between dust particles is stronger than the ion drag force. The total force acting on the system of two dust particles is zero in the case $M_{th}=0$ and non-zero in the case $M_{th}\neq 0$. As anticipated, electrostatic force is significant at smaller inter-grain separations and is weaker at larger separations. At $M_{th}\neq 0$ and $d/\lambda_{D}\geq 4$, the electrostatic force acting on both particles is positive and directed downstream. For $M_{th}=10$ and $M_{th}=15$, at distances $d/\lambda_{D}\geq 6$, the electrostatic force acting on upstream particle (grain 1) becomes greater than that acting on downstream particle (grain 2). It means at larger grain separations $d\geq 6.06\lambda_{D}$ electrostatic force is trying to push the upstream particle closer to the downstream particle.

In general, for $0\leq M_{th}\leq 15$, at separation distances $d/\lambda_{D}\geq 5$ the electrostatic force is approximately constant and close to that of for a single grain case. A strong deviation of the electrostatic force from the single grain case appears at $d/\lambda_{D}<5$ for all considered streaming velocities ($0\leq M_{th}\leq 15$).

Moreover, the magnitude of electrostatic force is higher than plasma absorption induced force (see bottom row) for all the grain separation distances. So, we can say that the electrostatic force is the dominant force as its magnitude is always larger than the shadow force. Note that the opposite situation may accrue at significantly larger grain charges (sizes) as it is illustrated in Fig. 2.

The plasma absorption induced force versus grain separation is shown in Fig. 3 (bottom row). For $M_{th}=0$, the plasma absorption induced force is referred to as the shadow force. In this case, the shadow force acting on grain 1 is asymmetrically opposite to the force acting on grain 2. This means shadow force tends to attract dust particles to each other. In a plasma with streaming ions, at relatively small distance between grains, the ion drag component due to plasma absorption on the surface of the dust particles can not be separated from the shadow force. However, at large enough distances between grains, the shadowing effect vanishes as the problem reduces to the two grains isolated from each other. Indeed, at $d/\lambda_{D}=10.1$, for the considered case of equal sized dust particles, the plasma absorption induced force is almost same for both upstream and downstream particles and has values close to the single grain case. In such a scenario, the plasma absorption induced force is the ion drag force component due to absorption of ions on the surface of the grain.

For $M_{th}\neq 0$, the plasma absorption induced force has positive net value for the system of two dust particles, i.e. both particles are dragged along streaming direction. Interestingly, at $M_{th}=1$ the upstream particle (grain 1) is pushed stronger (due to plasma collection) than the downstream particle giving rise to the force that is similar to the attractive shadow force in equilibrium case ($M_{th}=0$). The same behavior is seen at small separation distance $d/\lambda_{D}=2$ at $M_{th}=5$. This effect disappears with increase in the streaming velocity as one can see from the data for $5\leq M_{th}\leq 15$ in Fig. 3, i.e. the downstream particle (grain 2) is pushed stronger than upstream particle (grain 1). Therefore, at these values of streaming speed the ion drag force due to plasma collection on the grain surface is dominant over shadowing effect related force.

Remarkably, at $M_{th}\geq 1$, the plasma absorption induced force acting on upstream grain is almost independent of the separation distance from downstream grain and has the value equal to the single isolated dust particle plasma absorption induced force. In contrast, the plasma absorption induced force acting on downstream grain shows a strong variation with the separation distance from upstream grain and approaches the value of the single isolated dust particle case only at very large distance ($d/\lambda=10.1$).

V Ions perturbation by dust particles

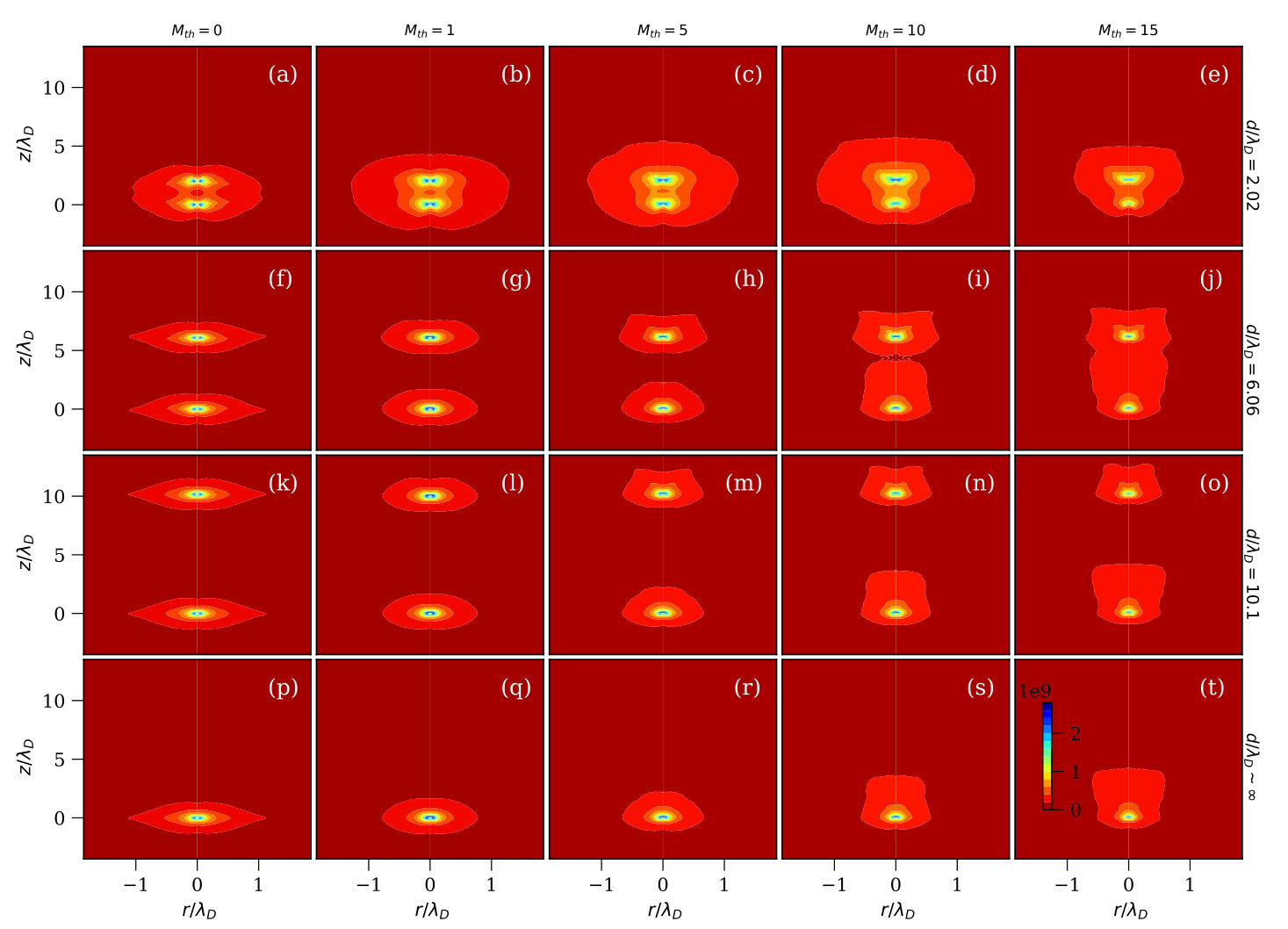

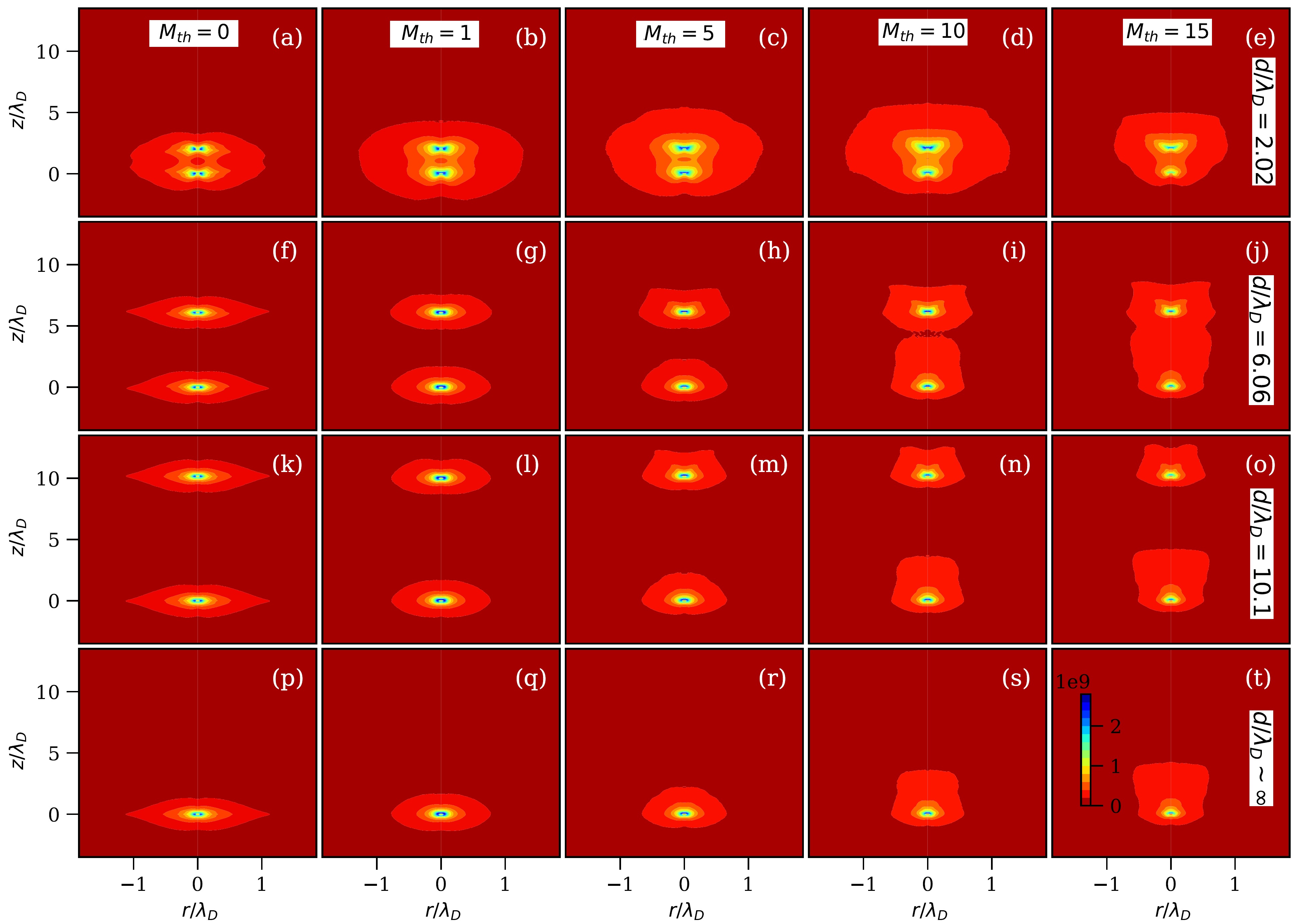

Fig. 5 shows the 2D ion induced density distribution around dust particles for (a) $M_{th}=0$ (first column), (b) $M_{th}=1$ (second column), (c) $M_{th}=5$ (third column), (d) $M_{th}=10$ (fourth column), and $M_{th}=15$ (fifth column) (from left to right column-wise) at the inter-grain separation $d/\lambda_{D}=2.02,6.06,10.1$ (top to bottom row-wise) and the case for single grain case (the bottom-most row). For the subsonic regimes $M_{th}\leq 5$, one can see well separated plasma polarization (symmetric in both r and z) around the two grains except the case for very small inter-grain separations. At $d/\lambda_{D}=2.02$, the size of overlapping ion cloud increases with increase in flow up to $M_{th}=10$ and then decreases at very high streaming speed of $M_{th}=15$ (see subplots (a)-(e)). At larger inter-grain separation distances, as one increases the ion streaming speed, the plasma polarization around grain becomes strongly anisotropic (asymmetric in z) and the shielding around the two grains start to overlap each other (last two columns from left corresponding to $M_{th}=10$ and $M_{th}=15$ ). The single-grain case depicted in the bottom-most row (subplots (p)-(t)) manifests semblance with the two-grain case for large inter-grain separations. With increase in streaming ion speed, the size of the polarized ion cloud around dust particles increases as ions become scattered to large distances (smaller angles). This observation is supported by the results in Fig. 6, where ion density (trapped as well as untrapped) versus grain separation is shown. Trapped ions are the ions collected by the grain which have a total negative energy. Subplots (a) and (b) of Fig. 6 show the trapped and untrapped density respectively for $M_{th}=5$, $10$, and $15$. The upstream dust particle (grain 1) is located at $z=0$ and the second dust particle (grain 2) is positioned at $z=d$. From Fig. 6, one can observe that the downstream excess ion density has monotonically decaying character without clearly distinct (separated) focused ion cloud. For a single dust particle, with non-Maxwellian ion distribution, such pattern was previously reported in Ref. Moldabekov et al. (2018) on the basis of the linear response approach. In the present work, we confirm this pattern for the case of two dust particles beyond linear approximation. Overall, the trapped ion density does not show strong variation with change in the streaming velocity from $M_{th}=5$ to $M_{th}=15$. Nevertheless, one can note the localized nature of trapped ions around grains and spreading of untrapped ions with streaming ion velocity downstream grain. The untrapped ion density for streaming ions shows a sharp front and a long ion density tail. Two peaks (in red color one at $z=0$ and other at $z=2.02\lambda_{D}$ and similarly for other inter-grain separations) show the density around two grains. The peak of the first grain for all grain distances overlap at $z=0$.

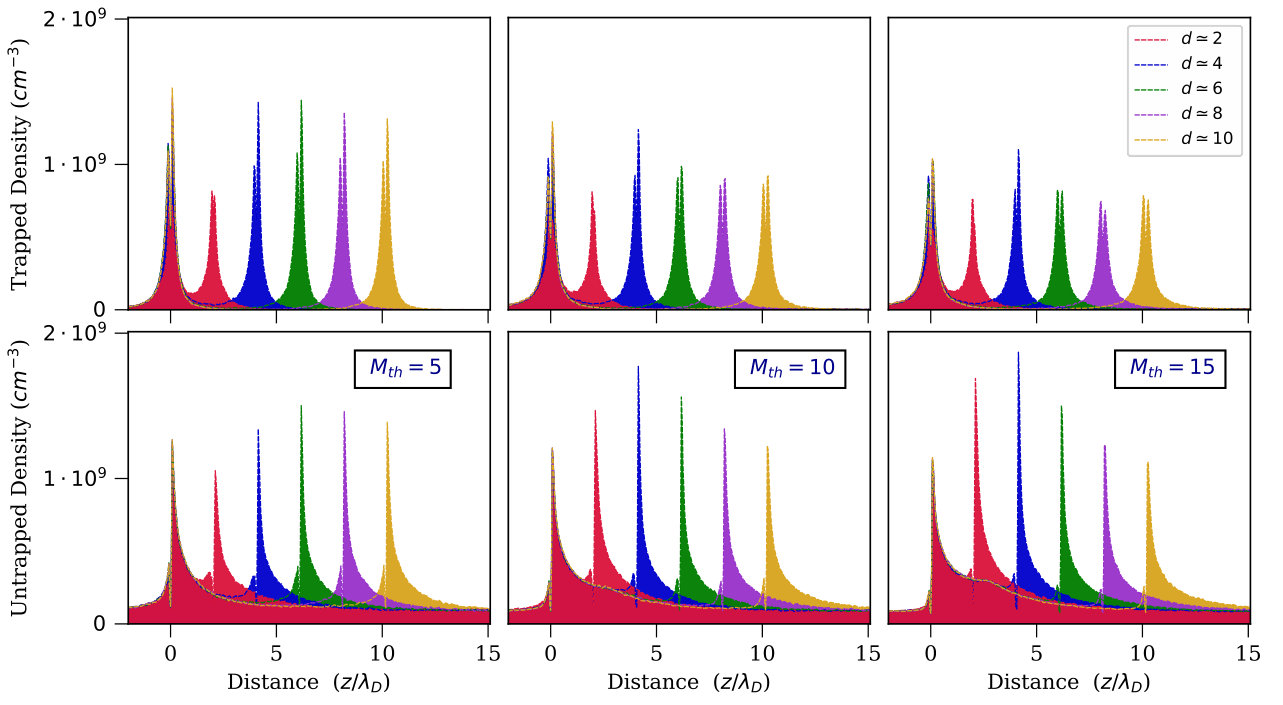

Additionally, it can be seen from Fig. 6, the trapped ion density does not show much variation with change in inter-grain separation. This is in agreement with the computed value of grains charge, which also does not change drastically with increase in Mach number and the separation distance between grains. Note that the trapped ions, having high probability to fall on the surface of dust particle, is correlated with the effective charge of the dust particles.

For $M_{th}=5$, similar to the trapped ions case, the untrapped ion density does not exhibit a significant variation with increase in inter-grain separation. However, at higher values of streaming velocity, $M_{th}=10$ and $M_{th}=15$, the untrapped ion density has its maximal values at $d/\lambda_{D}=4.04$ (see Fig. 6). One point which is noteworthy is that both trapped and untrapped ion density peaks around $d=6.06\lambda_{D}$ for subsonic flows. This peak shifts towards $d=4.04\lambda_{D}$ as we increase the flow strength.

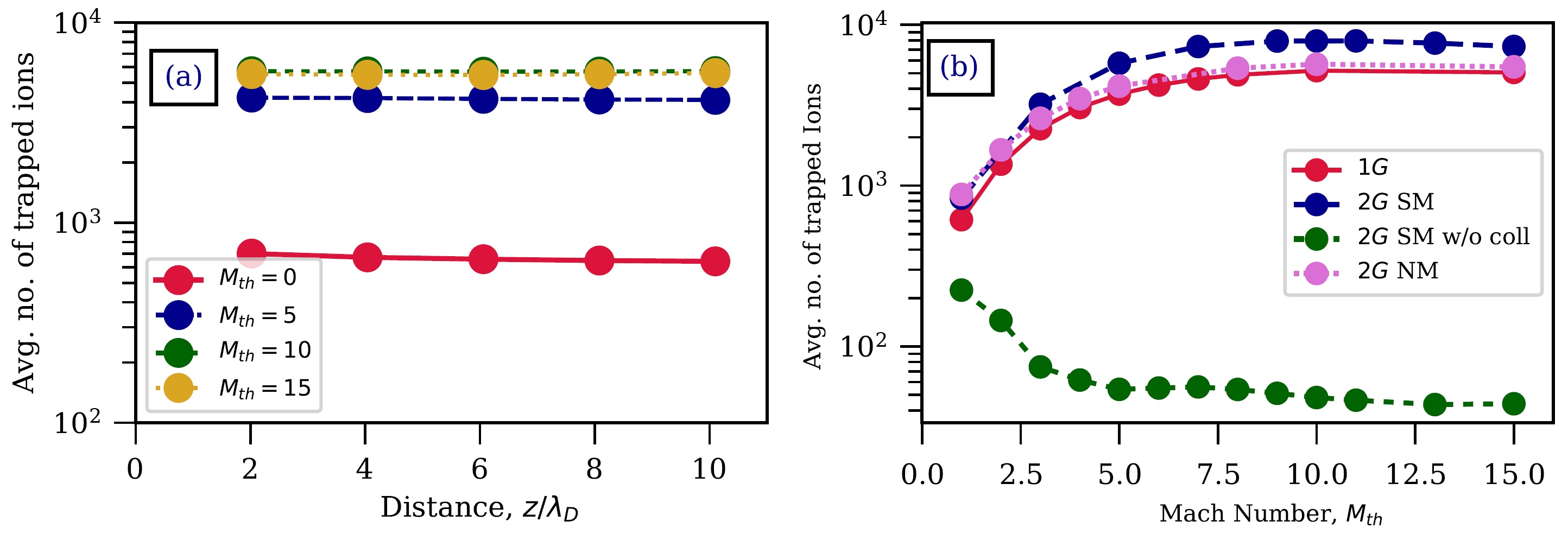

In Fig. 7 (a), for different values of Mach number, the dependence of the number of trapped ions on the inter-grain separation distance is shown. From this figure one can see that trapped number of ions is approximately constant for all values of the inter-grain separation distance. With increase in the Mach number from [math] to $10$, the number of trapped ions (i.e., ions with negative net energy) increases. Further increase in streaming speed to $M_{th}=15$ leads to slightly smaller number of trapped ions in comparison with the case $M_{th}=10$.

In Fig. 7 (b), we have shown the behavior of average number of trapped ions in the system with streaming ion speed for various ion distribution functions at $d/\lambda_{D}=6$. One can observe clearly that the number of trapped ions is slightly larger for two-grains with non-Maxwellian distribution compared to single grain case with the same distribution. The trend exhibited by trapped ions with Mach number for the non-Maxwellian case are increasing. This, at first, seems counter-intuitive, however, an analysis taking into account the impact of charge-exchange collisions reveal that it is not. To verify the cause of this peculiar behavior we have also shown alongside the plot for the cases with shifted Maxwellian with and without collision. We see that the two-grains without collisions exhibit decreasing trend with Mach number as expected. Inclusion of collisions lead to the increase in the number of trapped ions at $M_{th}\leq 10$. Indeed, the ions passing in the vicinity of the dust particles can lose their energy due to charge-exchange collision. Therefore, described non-monotonic dependence of the trapped ions number on Mach number can be understood as the competition between the effects of stronger influx of ions [losing energy due to collisions and getting trapped in the grain potential] and higher escaping ability with increase in the Mach number. We can say now with proof that collisions are the reason behind the increase in the average number of trapped ions.

The trapped and untrapped ions shed light on ionic dynamics in the vicinity of the charged dust particles. Besides, from the presented data in Secs. IV and V, we understand that the trapped ions play a crucial role in grain charging and, therefore, in the resulting plasma-grain interaction force. Moreover, in linear regime as well as in linear response approach all ions are considered to be untrapped [i.e., an ion potential energy is much less than its kinetic energy], meaning that the fraction of the trapped ions can characterize nonlinearity of plasma polarisation in the vicinity of the grain. Due to quasi-neutrality condition in plasmas, the total negative dust particles charge is compensated by the polarized positive volume charge around grains. The data for considered values of the thermal Mach number and inter-grain separation distances reveals that in the case of non-Maxwellian distribution the fraction of the trapped ions in the polarized screening cloud around dust particles increase from $1~{}\%$ to $10~{}\%$ with increase of the thermal Mach number form [math] up to $10$. In contrast, in the collisionless case, the fraction of the trapped ions decreases with the streaming speed and is always less than one percent.

VI Conclusions

We have presented here the study of grain charge and forces acting on grains at various parameters for non-Maxwellian ion flow distribution under typical experimental situations using particle-in-cell simulation scheme. As a result we observed that:

• •

With increase in the streaming speed, the difference between the charge on the two grains increases while with increase in the inter-dust particle distance the difference between the charge on the two grains decreases.

• •

The plasma absorption induced force is not affected by the shadowing effect at $d/\lambda_{D}\geq 10$ and $M_{th}\leq 15$. At smaller inter-dust distances, the shadowing effects can not be neglected if the plasma absorption induced force is considered. For upstream grain, at $M_{th}\geq 1$ and $d>2\lambda_{D}$, the plasma absorption induced force is approximately equal to an isolated dust particle plasma induced absorption force. For downstream grain, the plasma absorption induced force approaches the value of the single isolated grain case at $d/\lambda_{D}>10$.

• •

For the electrostatic force with streaming speeds in the range $0\leq M_{th}\leq 15$, the results obtained for the single grain case do not provide accurate description for $d/\lambda_{D}<5$. In the case $M_{th}=10$ and $M_{th}=15$, unlike the case of stationary Maxwellian ions Lampe and Joyce (2015), the total electrostatic force pushes the upstream and downstream grains towards each other at $d/\lambda_{D}\geq 6$. Therefore, the electrostatic force for the identical grain-pair in streaming ions with $10\leq M_{th}\leq 15$ is no longer repulsive for grain separations $d/\lambda_{D}\geq 6$. It gives an indication of the attractive force for the grain-pair and the possibility for the existence of a bound pair of grains as envisaged in the previous experiments Usachev et al. (2009).

• •

The ion density perturbation due to two dust particles has a monotonically decreasing tail in downstream direction. The number of trapped ions [i.e., the ions with negative total energy] remains approximately constant with increase in the inter-dust particle distance from $d/\lambda_{D}=2.02$ to $d/\lambda_{D}=10.1$. In the collisional case the fraction of the trapped ions in the screening of the dust particles varies in the range from $1~{}\%$ to $10~{}\%$ and increases with the streaming speed at $M_{th}\leq 10$, while in the collisionless case the opposite trend with streaming speed is realized with the fraction of trapped ions in the screening cloud always less than $1~{}\%$.
