The Ubiquitous Imprint of Radiative Acceleration in the Mean Absorption Spectrum of Quasar Outflows

TL;DR

This study constructs composite spectra of quasar outflows revealing that radiative acceleration, evidenced by line locking, is a common mechanism driving these outflows, confirmed across various quasar parameters.

Contribution

First detection of line locking in BAL composite spectra, demonstrating the widespread role of radiation pressure in quasar outflow acceleration.

Findings

Line locking detected in all composite spectra, including BALs.

Broad absorption features are superpositions of narrow absorbers.

Radiation pressure is confirmed as a prevalent acceleration mechanism.

Abstract

Observational evidence revealing the main mechanisms that accelerate quasar outflows has proven difficult to obtain, due to the complexity of the absorption features that this gas produces in the spectra of the emission sources. We build 36 composite outflow spectra, covering a large range of outflow and quasar parameters, by stacking broad ($>450\,{\rm km\,s^{-1}}$) absorption line systems in the spectra of SDSS-III/BOSS DR12 quasars. The two lines of the atomic doublet of CIV, with a separation of $\approx 497\,{\rm km\,s^{-1}}$, as well as those of other species appear well resolved in most of our composites. This agrees with broad outflow troughs consisting in the superposition of narrow absorbers. We also report on the ubiquitous detection of the radiative-acceleration signature known as line locking in all our composite outflow spectra, including one spectrum strictly built from broad absorption line (BAL) systems. This is the first line-locking detection in BAL composite spectra. Line locking is driven by the CIV atomic doublet, and is visible on the blue side of most strong absorption transitions. Similar effects from the doublets of OVI, SiIV, or NV, however, seem to not be present. Our results confirm that radiation pressure is a prevalent mechanism for accelerating outflows in quasars.

Figures

Tables

Table 1. Table 1 *

Atomic Data
Transition	$\lambda \left(\AA \right)$	$f$	Reference
Oiii $\lambda 507$	$507.3910$	$0.18500$	$1$
Nii $\lambda 533$	$533.5099$	$0.29899$	$1$
Oii $\lambda 539$	$539.0855$	$0.06520$	$1$
Neiv $\lambda 541$	$541.1270$	$0.03900$	$1$
Neiv $\lambda 542$	$542.0730$	$0.07789$	$1$
Cii $\lambda 543$	$543.2570$	$0.03489$	$1$
Neiv $\lambda 543$	$543.8910$	$0.11599$	$1$
Oiv $\lambda 553$	$553.3300$	$0.11200$	$1$
Oiv $\lambda 554$	$554.0750$	$0.22400$	$1$
Nevi $\lambda 558$	$558.5900$	$0.09070$	$1$
Nevi $\lambda 558$	$558.5900$	$0.09070$	$1$
Cii $\lambda 560$	$560.2394$	$0.05710$	$1$
Nev $\lambda 568$	$568.4200$	$0.09279$	$1$
Hei $\lambda 584$	$584.3300$	$0.27625$	$2$
Cii $\lambda 594$	$594.8000$	$0.11699$	$1$
Oiv $\lambda 608$	$608.3980$	$0.06700$	$1$
Mgx $\lambda 609$	$609.7900$	$0.08420$	$1$
Mgx $\lambda 624$	$624.9500$	$0.04100$	$1$
Oiv $\lambda 625$	$625.0000$	$0.12500$	$2$
Ov $\lambda 629$	$629.7300$	$0.51499$	$1$
Sii $\lambda 641$	$641.7670$	$0.25999$	$1$
Siv $\lambda 657$	$657.3280$	$1.13000$	$2$
Siv $\lambda 661$	$661.4430$	$1.02000$	$2$
Siii $\lambda 680$	$680.6800$	$1.38000$	$2$
Siii $\lambda 681$	$681.4700$	$0.06830$	$1$
Siii $\lambda 683$	$683.5860$	$1.34000$	$2$
Niii $\lambda 684$	$684.9960$	$0.13500$	$1$
Niii $\lambda 685$	$685.8200$	$0.32000$	$2$
Siii $\lambda 698$	$698.7310$	$0.78299$	$1$
Oiii $\lambda 702$	$702.3320$	$0.13699$	$1$
Siii $\lambda 724$	$724.2890$	$0.35199$	$1$
Siv $\lambda 744$	$744.9070$	$0.25099$	$1$
Siv $\lambda 748$	$748.4000$	$0.50000$	$1$
Niii $\lambda 763$	$763.3400$	$0.08200$	$1$
Sii $\lambda 763$	$763.6570$	$0.39800$	$1$
Sii $\lambda 764$	$764.4200$	$0.79500$	$1$
Niv $\lambda 765$	$765.1480$	$0.61599$	$1$
Sii $\lambda 765$	$765.6930$	$1.19000$	$1$
Neviii $\lambda 770$	$770.4090$	$0.10300$	$1$
Neviii $\lambda 780$	$780.3240$	$0.05050$	$1$
Sv $\lambda 786$	$786.4700$	$1.36000$	$2$
Oiv $\lambda 787$	$787.7110$	$0.11100$	$1$
Oi $\lambda 791$	$791.9732$	$0.04639$	$1$
Siv $\lambda 809$	$809.6680$	$0.10400$	$1$
Siv $\lambda 815$	$815.9450$	$0.08500$	$2$
Oii $\lambda 832$	$832.7572$	$0.04439$	$1$
Oiii $\lambda 832$	$832.9270$	$0.10700$	$1$
Oii $\lambda 833$	$833.3294$	$0.08860$	$1$
Oii $\lambda 834$	$834.4655$	$0.13199$	$1$
Feiii $\lambda 844$	$844.2880$	$0.06840$	$1$
Cii $\lambda 858$	$858.0918$	$0.01300$	$1$
Feiii $\lambda 859$	$859.7230$	$0.11500$	$1$
Oi $\lambda 877a$	$877.7983$	$0.01970$	$1$
Oi $\lambda 877b$	$877.8787$	$0.05889$	$1$
Siii $\lambda 889$	$889.7228$	$0.04340$	$1$
Sii $\lambda 906$	$906.8850$	$0.21000$	$1$
Piii $\lambda 913$	$913.9683$	$0.20300$	$1$
Nii $\lambda 915$	$915.6131$	$0.15900$	$1$
Piii $\lambda 917$	$917.1178$	$0.40400$	$1$
Svi $\lambda 933$	$933.3780$	$0.43700$	$1$
Hi $\lambda 937$	$937.8034$	$0.00780$	$1$
Svi $\lambda 944$	$944.5230$	$0.21500$	$1$
Ci $\lambda 945$	$945.1910$	$0.15200$	$1$
Oi $\lambda 948$	$948.6855$	$0.00631$	$1$
Hi $\lambda 949$	$949.7430$	$0.01395$	$1$
Piv $\lambda 950$	$950.6600$	$1.60000$	$2$
Ni $\lambda 963$	$963.9903$	$0.01240$	$1$
Ni $\lambda 964$	$964.6256$	$0.00790$	$1$
Hi $\lambda 972$	$972.5367$	$0.02901$	$1$
Ciii $\lambda 977$	$977.0201$	$0.75700$	$1$
Oi $\lambda 988$	$988.7734$	$0.04650$	$1$
Niii $\lambda 989$	$989.7990$	$0.12300$	$1$
Siii $\lambda 989$	$989.8731$	$0.17100$	$1$
Siii $\lambda 1012$	$1012.495$	$0.04380$	$1$
Siii $\lambda 1020$	$1020.698$	$0.01680$	$1$
Hi $\lambda 1025$	$1025.722$	$0.07914$	$1$
Oi $\lambda 1027$	$1027.431$	$0.01962$	$2$
Oi $\lambda 1028$	$1028.157$	$0.02010$	$2$
Ovi $\lambda 1031$	$1031.926$	$0.13250$	$1$
Cii $\lambda 1036$	$1036.336$	$0.11800$	$1$
Cii $\lambda 1037$	$1037.018$	$0.11800$	$2$
Ovi $\lambda 1037$	$1037.616$	$0.06580$	$1$
Oi $\lambda 1039$	$1039.230$	$0.00907$	$1$
Feii $\lambda 1055$	$1055.261$	$0.00750$	$1$
Siv $\lambda 1062$	$1062.664$	$0.04940$	$1$
Siv* $\lambda 1073$	$1072.962$	$0.04200$	$2$
Feii $\lambda 1081$	$1081.874$	$0.01260$	$1$
Nii $\lambda 1083$	$1083.993$	$0.11100$	$1$
Feii $\lambda 1096$	$1096.876$	$0.03200$	$1$
Feii $\lambda 1112$	$1112.048$	$0.00620$	$1$
Ci $\lambda 1112$	$1112.269$	$0.01610$	$1$
Pv $\lambda 1117$	$1117.977$	$0.47200$	$1$
Feii $\lambda 1121$	$1121.974$	$0.02020$	$1$
Ci $\lambda 1122$	$1122.437$	$0.00511$	$1$
Feiii $\lambda 1122$	$1122.524$	$0.05440$	$1$
Feii $\lambda 1125$	$1125.447$	$0.01600$	$1$
Pv $\lambda 1128$	$1128.007$	$0.23300$	$1$
Ci $\lambda 1129$	$1129.195$	$0.00771$	$1$
Feii $\lambda 1133$	$1133.665$	$0.00550$	$1$
Ni $\lambda 1134a$	$1134.165$	$0.01460$	$1$
Ni $\lambda 1134b$	$1134.414$	$0.02870$	$1$
Ni $\lambda 1134c$	$1134.980$	$0.04160$	$1$
Feii $\lambda 1143$	$1143.226$	$0.01920$	$1$
Feii $\lambda 1144$	$1144.937$	$0.08300$	$1$
Ci $\lambda 1158$	$1158.324$	$0.00655$	$1$
Ciii* $\lambda 1175$	$1175.260$	$0.27240$	$2$
Siii $\lambda 1190$	$1190.203$	$0.02370$	$1$
Siii $\lambda 1190$	$1190.415$	$0.29200$	$1$
Ci $\lambda 1193$	$1193.030$	$0.04090$	$1$
Siii $\lambda 1193$	$1193.289$	$0.58200$	$1$
Siii $\lambda 1194$	$1194.500$	$0.73700$	$2$
Mnii $\lambda 1197$ .	$1197.184$	$0.21700$	$1$
Mnii $\lambda 1199$ . . .	$1199.391$	$0.16900$	$1$
Ni $\lambda 1199$	$1199.549$	$0.13200$	$1$
Ni $\lambda 1200$	$1200.223$	$0.08690$	$1$
Ni $\lambda 1200b$	$1200.709$	$0.04320$	$1$
Siiii $\lambda 1206$	$1206.500$	$1.63000$	$1$
Hi $\lambda 1215$	$1215.670$	$0.41640$	$1$
Nv $\lambda 1238$	$1238.821$	$0.15600$	$1$
Nv $\lambda 1242$	$1242.804$	$0.07770$	$1$
Sii $\lambda 1250$	$1250.578$	$0.00543$	$1$
Sii $\lambda 1253$	$1253.805$	$0.01090$	$1$
Siii $\lambda 1260$	$1260.422$	$1.18000$	$1$
Siii $\lambda 1264$	$1264.730$	$1.09000$	$2$
Ci $\lambda 1276$	$1276.482$	$0.00589$	$1$
Ci $\lambda 1277$	$1277.245$	$0.08530$	$1$
Oi $\lambda 1302$	$1302.168$	$0.04800$	$1$
Siii $\lambda 1304$	$1304.370$	$0.08630$	$1$
Niii $\lambda 1317$	$1317.217$	$0.14599$	$1$
Ci $\lambda 1328$	$1328.833$	$0.07580$	$1$
Cii $\lambda 1334$	$1334.532$	$0.12800$	$1$
Cii $\lambda 1335$	$1335.708$	$0.11500$	$2$
Niii $\lambda 1370$	$1370.132$	$0.07690$	$1$
Siiv $\lambda 1393$	$1393.755$	$0.52399$	$1$
Siiv $\lambda 1402$	$1402.770$	$0.25999$	$1$
Niii $\lambda 1454$	$1454.842$	$0.03230$	$1$
Siii $\lambda 1526$	$1526.707$	$0.12700$	$1$
Civ $\lambda 1548$	$1548.204$	$0.18999$	$1$
Civ $\lambda 1550$	$1550.770$	$0.09520$	$1$
Ci $\lambda 1560$	$1560.309$	$0.07740$	$1$
Sii $\lambda 1589$	$1589.174$	$0.05040$	$1$
Feii $\lambda 1608$	$1608.451$	$0.05770$	$1$
Ci $\lambda 1656$	$1656.928$	$0.14900$	$1$
Alii $\lambda 1670$	$1670.788$	$1.74000$	$1$
Niii $\lambda 1703$	$1703.411$	$0.00600$	$1$
Niii $\lambda 1709$	$1709.604$	$0.03240$	$1$
Niii $\lambda 1741$	$1741.553$	$0.04270$	$1$
Niii $\lambda 1751$	$1751.915$	$0.02770$	$1$
Niii $\lambda 1773$	$1773.949$	$0.00621$	$1$
Niii $\lambda 1804$	$1804.473$	$0.00716$	$1$
Mgi $\lambda 1827$	$1827.935$	$0.02420$	$1$
Aliii $\lambda 1854$	$1854.716$	$0.57499$	$1$
Aliii $\lambda 1862$	$1862.789$	$0.28600$	$1$
Znii $\lambda 2026$	$2026.137$	$0.50100$	$1$
Crii $\lambda 2056$	$2056.256$	$0.10300$	$1$
Crii $\lambda 2062$	$2062.234$	$0.10499$	$1$
Znii $\lambda 2062$	$2062.664$	$0.25299$	$1$
Crii $\lambda 2066$	$2066.161$	$0.06979$	$1$
Feii $\lambda 2344$	$2344.213$	$0.11400$	$1$
Feii $\lambda 2374$	$2374.461$	$0.03130$	$1$
Feii $\lambda 2382$	$2382.765$	$0.32000$	$1$
Mnii $\lambda 2576$	$2576.877$	$0.36100$	$1$
Feii $\lambda 2586$	$2586.650$	$0.06910$	$1$
Mnii $\lambda 2594$	$2594.499$	$0.28000$	$1$
Feii $\lambda 2600$	$2600.172$	$0.23900$	$1$
Mnii $\lambda 2606$	$2606.462$	$0.19800$	$1$
Mgii $\lambda 2796$	$2796.354$	$0.61550$	$1$
Mgii $\lambda 2803$	$2803.531$	$0.30580$	$1$
Mgi $\lambda 2852$	$2852.964$	$1.73000$	$1$
\insertTableNotes

Table 2. Table 2 Outflow samples

Selection criteria	Mean	$n\left(\AA \right)$ ($1$)	No. troughs
all		$0.437\pm 0.029$	$\mathrm{59\hspace{0.17em}872}$
Outflow velocity ($\mathrm{km}{s}^{-1}$)
	$139$	$0.335\pm 0.064$	$185$
	$264$	$0.331\pm 0.045$	$\mathrm{3\hspace{0.17em}167}$
	$315$	$0.254\pm 0.040$	$\mathrm{4\hspace{0.17em}355}$
	$452$	$0.278\pm 0.038$	$\mathrm{1\hspace{0.17em}188}$
	$\mathrm{1\hspace{0.17em}122}$	$0.291\pm 0.037$	$\mathrm{2\hspace{0.17em}278}$
	$\mathrm{2\hspace{0.17em}233}$	$0.387\pm 0.081$	$\mathrm{6\hspace{0.17em}706}$
	$\mathrm{3\hspace{0.17em}980}$	$0.444\pm 0.095$	$\mathrm{7\hspace{0.17em}727}$
	$\mathrm{6\hspace{0.17em}426}$	$0.462\pm 0.031$	$\mathrm{10\hspace{0.17em}183}$
	$\mathrm{10\hspace{0.17em}330}$	$0.439\pm 0.050$	$\mathrm{12\hspace{0.17em}488}$
	$\mathrm{15\hspace{0.17em}208}$	$0.354\pm 0.078$	$\mathrm{9\hspace{0.17em}075}$
$v\ge \mathrm{17\hspace{0.17em}500}$	$\mathrm{20\hspace{0.17em}867}$	$0.302\pm 0.138$	$\mathrm{10\hspace{0.17em}737}$
Trough width ($\mathrm{km}{s}^{-1}$)
	$508$	$0.227\pm 0.045$	$\mathrm{11\hspace{0.17em}250}$
	$629$	$0.264\pm 0.094$	$\mathrm{8\hspace{0.17em}420}$
	$951$	$0.305\pm 0.149$	$\mathrm{13\hspace{0.17em}488}$
	$\mathrm{1\hspace{0.17em}704}$	$0.381\pm 0.057$	$\mathrm{10\hspace{0.17em}266}$
$v\ge \mathrm{2\hspace{0.17em}240}$	$\mathrm{5\hspace{0.17em}179}$	$0.560\pm 0.056$	$\mathrm{20\hspace{0.17em}125}$
Trough min. velocity ($\mathrm{km}{s}^{-1}$)
	$128$	$0.423\pm 0.048$	$\mathrm{2\hspace{0.17em}574}$
	$\mathrm{1\hspace{0.17em}236}$	$0.431\pm 0.075$	$\mathrm{10\hspace{0.17em}713}$
	$\mathrm{3\hspace{0.17em}694}$	$0.381\pm 0.132$	$\mathrm{10\hspace{0.17em}661}$
	$\mathrm{7\hspace{0.17em}113}$	$0.352\pm 0.032$	$\mathrm{10\hspace{0.17em}356}$
	$\mathrm{11\hspace{0.17em}183}$	$0.400\pm 0.082$	$\mathrm{10\hspace{0.17em}570}$
	$\mathrm{15\hspace{0.17em}953}$	$0.409\pm 0.054$	$\mathrm{10\hspace{0.17em}059}$
$v\ge \mathrm{18\hspace{0.17em}500}$	$\mathrm{21\hspace{0.17em}186}$	$0.463\pm 0.089$	$\mathrm{8\hspace{0.17em}630}$
Quasar redshift
	$1.77$	$0.449\pm 0.093$	$\mathrm{10\hspace{0.17em}580}$
	$2.09$	$0.455\pm 0.047$	$\mathrm{10\hspace{0.17em}584}$
	$2.28$	$0.455\pm 0.042$	$\mathrm{10\hspace{0.17em}812}$
	$2.48$	$0.414\pm 0.066$	$\mathrm{10\hspace{0.17em}591}$
	$2.79$	$0.452\pm 0.009$	$\mathrm{10\hspace{0.17em}880}$
$z\ge 3.00$	$3.38$	$0.461\pm 0.159$	$\mathrm{10\hspace{0.17em}098}$

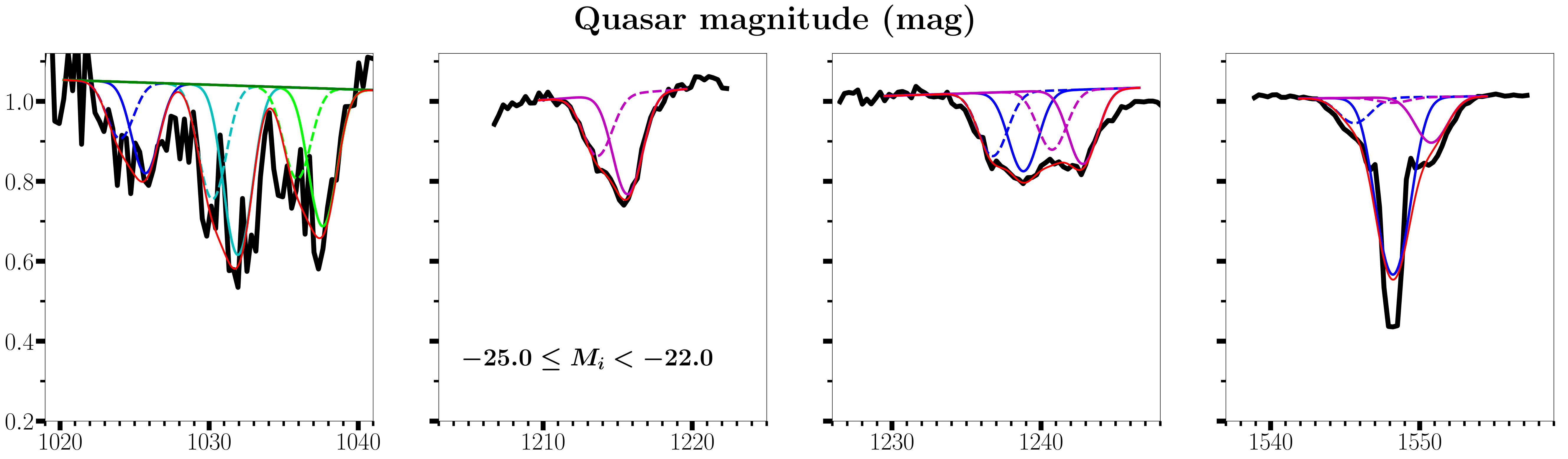

Quasar magnitude (mag)
	$-24.6$	$0.522\pm 0.191$	$\mathrm{10\hspace{0.17em}972}$
	$-25.3$	$0.482\pm 0.100$	$\mathrm{10\hspace{0.17em}912}$
	$-25.8$	$0.428\pm 0.061$	$\mathrm{12\hspace{0.17em}932}$
	$-26.2$	$0.415\pm 0.040$	$\mathrm{12\hspace{0.17em}020}$
	$-26.7$	$0.387\pm 0.037$	$\mathrm{8\hspace{0.17em}949}$
	$-27.5$	$0.383\pm 0.074$	$\mathrm{7\hspace{0.17em}749}$

Equations

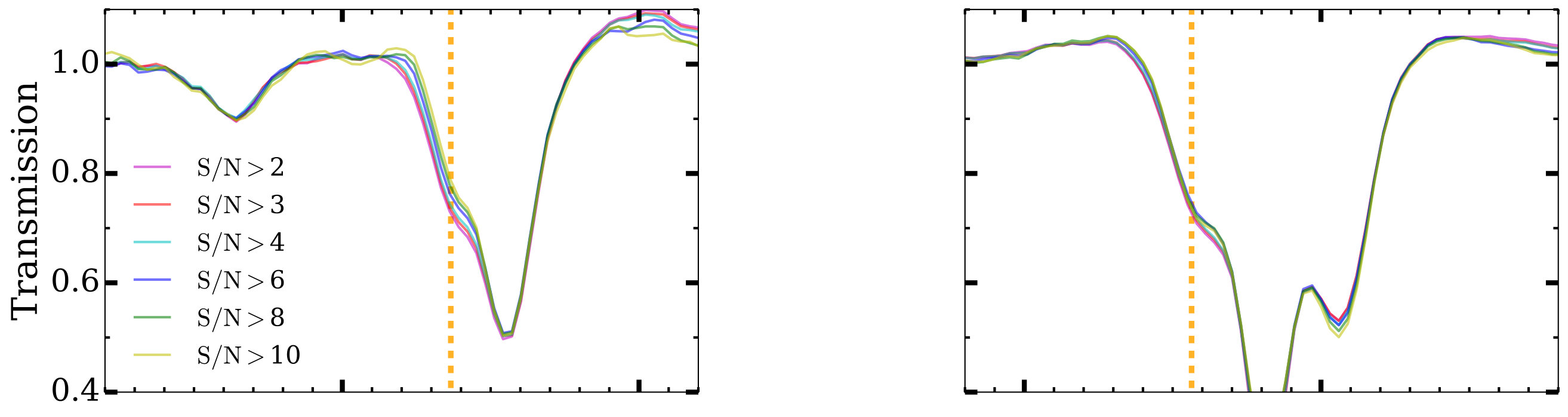

$${S/N}_j=\frac{{\sum }_i{f}_{ij}/N_j}{{\left({\sum }_i{e_{ij}}^2/N_j\right)}^{1/2}},$$

$$w_j=\frac{1}{{{S/N}_j}^{-2}+{\sigma }^2},$$

$$d_{jk}=\sqrt{\sum _i(f_{i,j}^N-f_{i,k}^N{)}^2},$$

$$\frac{v}{c}=\frac{(1+z_{\mathrm{q}}{)}^2-(1+z_{\mathrm{t}}{)}^2}{(1+z_{\mathrm{q}}{)}^2+(1+z_{\mathrm{t}}{)}^2}.$$

$$F_{\lambda }=C_{\lambda }\exp$$

$$-d\exp \left(\frac{-(\lambda -{\lambda }_{\mathrm{ll}}{)}^2}{2a^2}\right)],$$

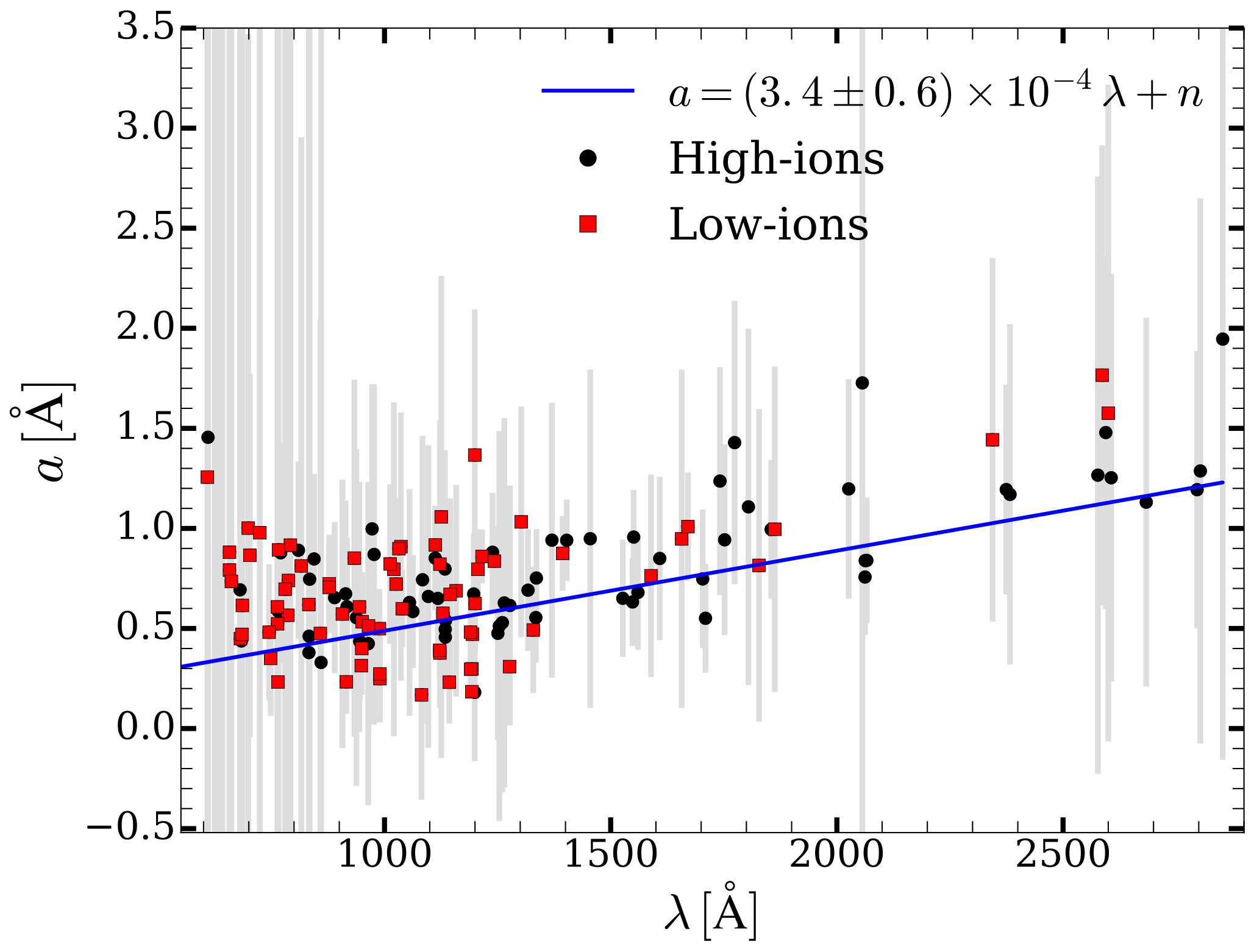

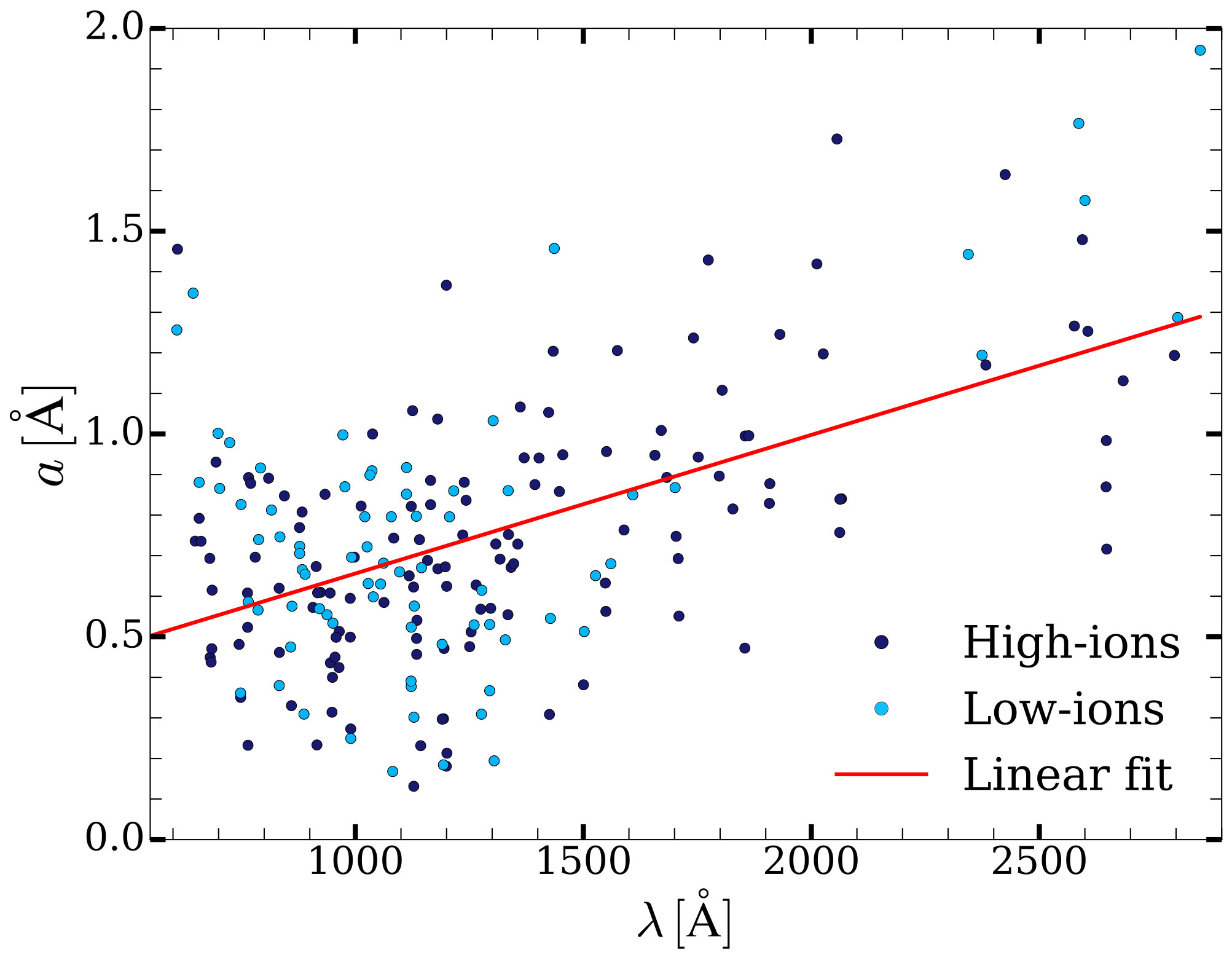

$$a=(3.4\pm 0.6)\times 10^{-4}\lambda +n,$$

Full text

1. Introduction

Supermassive black holes, with masses as large as billions of times the mass of the Sun, inhabit the center of most, if not all, massive galaxies in the Universe. Despite their small size compared to that of their hosts, these formidable objects can determine the fate of the whole galaxy (Furlanetto & Loeb, 2001; Haiman & Bryan, 2006; Scannapieco & Oh, 2004), as well as contributing to the metal enrichment of the distant intergalactic medium (Cavaliere et al., 2002; Levine & Gnedin, 2005).

When the supermassive black holes grow by undergoing episodes of gas accretion, they release large amounts of energy and become detectable as active galactic nuclei (AGNs). One of their brightest phases is represented by the so-called quasars, and the energy release, referred to as AGN or quasar feedback, results in powerful winds that can expel material out of the host galaxy (see the reviews by King & Pounds, 2015; Harrison, 2017).

The origin of quasar feedback may reside in the outflows launched from the innermost regions around the black holes, and that can reach velocities of up to a $10-20\,$% of the speed of light (Moe et al., 2009; Harrison et al., 2018). However, probing the link between fast outflows and quasar feedback is challenging because the mechanisms driving these outflows are still unclear, and simulations cannot cover the whole range of physical scales and processes involved (Ciotti et al., 2010; Hopkins & Elvis, 2010; Barnes et al., 2018). It is broadly believed that outflows can be accelerated by the pressure that radiation from the quasar exerts on the gas, but questions concerning the overionization, confinement, and stability of the outflowing gas, have been puzzling astronomers for decades (Williams, 1972; de Kool & Begelman, 1995; Murray et al., 1995; Proga et al., 2000; Proga, 2007b; Baskin et al., 2014; Proga & Waters, 2015; Matthews et al., 2016; Waters & Proga, 2016; Bianchi et al., 2019).

The theory of radiative acceleration in quasar outflows was initially developed by Mushotzky et al. (1972); Scargle (1973); Burbidge & Burbidge (1975); Braun & Milgrom (1989); Arav & Li (1994), and was inspired by that proposed for the ejection of material from massive stars by Milne (1926) and Lucy & Solomon (1970). A common feature appearing in these works is the phenomenon known as line locking, for which absorption systems in the outflow get bound to a fixed relative velocity that coincides with the velocity separation of two atomic transitions, typically the two lines of an atomic doublet. In detail, the outflow absorbs (or scatters) radiation from the quasar and thus gets accelerated. This happens for both, line and continuum quasar radiation, although the absorption of line radiation injects a larger boost than the continuum because the flux in the emission lines is the largest. Regarding now the case of an atomic doublet, a region absorbing radiation from both lines of the doublet can suffer a reduction in the acceleration if another region between the first one and the source moves at a lower (relative) speed coinciding with the doublet separation. In this scenario, the region in the middle also absorbs radiation from the two lines of the doublet in its frame and, given the relative velocity between the two regions, this means that it absorbs the flux that was previously available for the red line of the front region. Because the back region absorbs more flux and increases its speed, the flux-masking disappears and the front region can again absorb the two lines and increase its speed accordingly, thus restoring the previous relative velocity. The acceleration of the front region is thus regulated by the back region, and the two regions get eventually locked in a metastable state where the relative velocity corresponds to the doublet separation.

The observation of line-locking signatures of a given species in the spectra of quasars can therefore confirm the presence of radiative acceleration in the outflows. These observations, however, are not easy, due to the complexity of the outflow absorption features, usually broad, and also the difficulties in distinguishing line locking from randomly located absorption components (e.g., Korista et al., 1993).

Absorption features due to outflows were first identified as strong and broad absorption lines (BALs) from high-ionization species such as Civ, Siiv or Nv, blueshifted from the AGN rest-frame position (Lynds, 1967). Nowadays, outflow features are observed in a variety of widths and depths, and line locking from high-ionization species is suggested in a small number of them: Foltz et al. (1987) and Srianand et al. (2002) reported line-locking features in the spectra of one quasar each, and other tentative detections in a few quasars were presented in, e.g., Srianand (2000); Ganguly et al. (2003); Gupta et al. (2003); North et al. (2006); Lu & Lin (2018b). Furthermore, line locking was also detected by Bowler et al. (2014), who analyzed composite spectra of narrow ($\leq 200\,{\rm km\,s^{-1}}$) Civ absorption lines in the spectra of quasars. These authors analyzed narrow absorbers in quasars containing BALs, but they did not use the BALs themselves, in order to be able to resolve the Civ doublets and detect the line-locking signatures.

Although the total width of the outflow troughs can be as large as $\sim 30\,000\,{\rm km\,s^{-1}}$, they sometimes consist in the superposition of narrower features, of the order of a few hundreds of ${\rm km\,s^{-1}}$, the so-called narrow absorption lines (NALs; e.g., Gabel et al., 2006; Lu & Lin, 2018a, b). Therefore, it should be possible to obtain the narrow outflow absorption spectrum if one centers the broad troughs at a characteristic position when performing the composite spectra (Perrotta et al., 2018). Given this consideration, we conduct here a search for the line-locking signature in 36 composite spectra of broad ($>450\,{\rm km\,s^{-1}}$) Civ absorption line systems (including BALs) representing outflows, and test the prevalence of line locking for multiple properties of the outflows, the quasars, and different atomic species. We assess and present the physical properties of the outflows inferred from the analysis of the composite spectra in our companion paper, Mas-Ribas (2019).

In § 2 and § 3 we detail the data and methods, respectively, and in § 4 we analyze one of our composite outflow spectra in detail. The Civ, Ovi and Nv line-locking features are assessed in § 5. We discuss our findings in § 6, before concluding in § 7.

We assume a flat $\Lambda$CDM cosmology with the parameter values from Planck Collaboration et al. (2016).

2. Data

We detail in § 2.1 the quasar spectra used in our calculations, and present the atomic data for the analysis of the absorption lines in § 2.2.

2.1. Quasar Spectra

We use the $297\,301$ quasar spectra in the twelfth data release of the SDSS-III/BOSS (Eisenstein et al., 2011; Dawson et al., 2013) quasar catalog, DR12Q (Pâris et al., 2017). The characteristics of the SDSS telescope and camera are detailed in Gunn et al. (1998, 2006) and Ross et al. (2012), and the SDSS/BOSS spectrographs in Smee et al. (2013).

We also use the DR12QBAL catalog, which compiles the individual properties of the Civ absorption troughs with widths $>450\,{\rm km\,s^{-1}}$ detected in the spectra of the DR12Q quasars. The DR12QBAL catalog contains $63\,549$ troughs with measurements of their position, width and maximum depth. The position of each trough was set at the velocity distance from the quasar where the flux within the absorption trough is the minimum, and the trough width was defined as the velocity range in which the measured normalized quasar flux density (i.e., the flux transmission) is lower than 0.9 (Pâris et al., 2012, 2017). We remove from further analysis $3\,677$ objects ($\simeq 83\%$ of them with velocity offset from the quasar below $v\sim 400\,{\rm km\,s^{-1}}$). In the catalog, the position of the minimum flux within these troughs is quoted outside the boundaries of the troughs. The composite spectrum of these discarded troughs does not show significant absorption features, indicating that they are false positives and/or severely affected by incorrect velocity offset measurements or noise, and their inclusion in the samples would simply increase the noise at low outflow velocities. Our final sample thus consists of $59\,872$ absorption troughs.

Figure 1 shows the redshift distribution of the DR12Q quasars containing troughs, which spans the range $1.5\leq z\leq 5.5$, although only a small number of objects have values above $z\sim 3.3$. The distribution peaks at $z\sim 2.4$, similar to its mean value of $\bar{z}=2.46$, and decreases rapidly toward both lower and higher values. The upper panel in Figure 2 shows the distribution of the velocity offset of the troughs from the quasars, i.e., the outflow velocities, for the final trough sample. The distribution peaks at around $2\,000\,{\rm km\,s^{-1}}$ and decreases toward higher velocities up to $25\,000\,{\rm km\,s^{-1}}$, with a slight change of slope that flattens beyond $\sim 12\,000\,{\rm km\,s^{-1}}$. For outflow velocities smaller than that of the peak, the decrease in the number of troughs is much steeper, flattening at velocities below $\sim 1\,000\,{\rm km\,s^{-1}}$. Overall, this distribution is similar to that obtained by Nestor et al. (2008), who searched for Civ troughs in the quasar spectra of the fourth SDSS data release. The lower panel in Figure 2 displays the distribution of trough widths, which peaks at $\sim 700\,{\rm km\,s^{-1}}$ and decreases rapidly toward higher and lower values. The plot covers the interval $\simeq 300-10\,000\,{\rm km\,s^{-1}}$, although a small number of troughs have widths of up to $\sim 25\,000\,{\rm km\,s^{-1}}$.

2.2. Absorption Lines

Table LABEL:ta:lines presents vacuum atomic data in the rest frame between $500\,{\rm\AA}$ and $3\,000\,{\rm\AA}$, relevant for the analysis of outflow absorption lines. We have built this catalog by compiling data from the database linetools111https://linetools.readthedocs.io/en/latest/ (Prochaska et al., 2016), as well as that of the National Institute of Standards and Technology (NIST222https://www.nist.gov/pml/atomic-spectra-database; Kramida et al., 2018). This list includes a number of strong absorption lines from species that are typically not observed in interstellar or intergalactic gas studies, but that may arise under the extreme conditions of high temperature, density, and strong radiation fields present in quasar outflows. Many of these lines originate from excited meta-stable states above the ground level. However, this set of lines is not complete, and the interested reader is referred to NIST for the full spectroscopic data. The first column in Table LABEL:ta:lines denotes each transition, and the second one its line center in ${\rm\AA}$ngstroms (in the vacuum). The corresponding oscillator strengths are shown in the third column, and the reference source in the fourth one.

This table is publicly available in digital format at https://github.com/lluism/BALs, and the access is open for the community to contribute to its update, correction, and/or extension to make it useful for future studies.

3. Methods

We detail the calculation of the mean quasar spectrum in § 3.1, and in § 3.2 that of the outflow composite spectrum. Section § 3.3 describes the method for modeling the absorption lines.

3.1. Mean Quasar Spectrum Calculation

We calculate a weighted-mean quasar spectrum that will be used to normalize the spectra for the computation of the outflow composite spectrum, following our procedure in Mas-Ribas et al. (2017). Below, we summarize the main steps of this calculation, and refer the interested reader to the aforementioned work for details.

In our calculations, we do not consider those spectral pixels affected by the skylines reported by Palanque-Delabrouille et al. (2013). Furthermore, we always correct the flux in the Lyman-alpha forest of the quasar spectra for the redshift-dependent average absorption in this region, using the analytical formula proposed by Faucher-Giguère et al. 2008b (Eq. 7 in Mas-Ribas et al., 2017). For the computation of the mean spectrum we use all the spectra in the DR12Q catalog. This is because the coincident position of troughs in the quasar spectra yields an undesired average broad absorption feature next to the quasar emission lines if only quasars with broad troughs are considered.

The calculation of the mean quasar spectrum is performed as follows: we shift the observed spectra to the rest-frame position of the quasars, considering the visual inspection quasar redshift values in DR12Q, and rebin

{ThreePartTable}{TableNotes}

Transitions arising from excited metastable states are denoted by an asterisk.

References: (1) linetools (2) NIST.

the flux density and error into an evenly-spaced wavelength array with pixel width of $1\,{\rm\AA}$. The spectra are then normalized by dividing them by their corresponding mean flux in the wavelength windows free of emission lines $1\,300<\lambda_{\rm r}/{\rm\AA}<1\,383$ and $1\,408<\lambda_{\rm r}/{\rm\AA}<1\,500$. If more than $20\%$ of the pixels in these intervals for one spectrum are not accounted for due to skylines, this spectrum is not used. This constraint rejects less than $10\%$ of the spectra in the catalog.

A mean signal-to-noise ratio (S/N) is then calculated for each remaining spectrum $j$ as

[TABLE]

where $e_{ij}$ is the uncertainty for the flux $f_{ij}$ at the pixel $i$, and $N_{j}$ is the number of pixels within the above wavelength windows intervening in the summation. Those spectra with S/N$<1$ are discarded from further calculations. This threshold eliminates around $22\%$ of the remaining spectra from the calculations. Finally, the mean S/N values are used for assigning to each quasar spectrum a weight of the form

[TABLE]

where $\sigma=0.1$ limits the potential excessive contribution from spectra with very high S/N. In Mas-Ribas et al. 2017, we tested that small variations around this value do not alter our results, and we therefore use the same quantity. The final mean quasar spectrum is then computed as a weighted mean, using the aforementioned weight values.

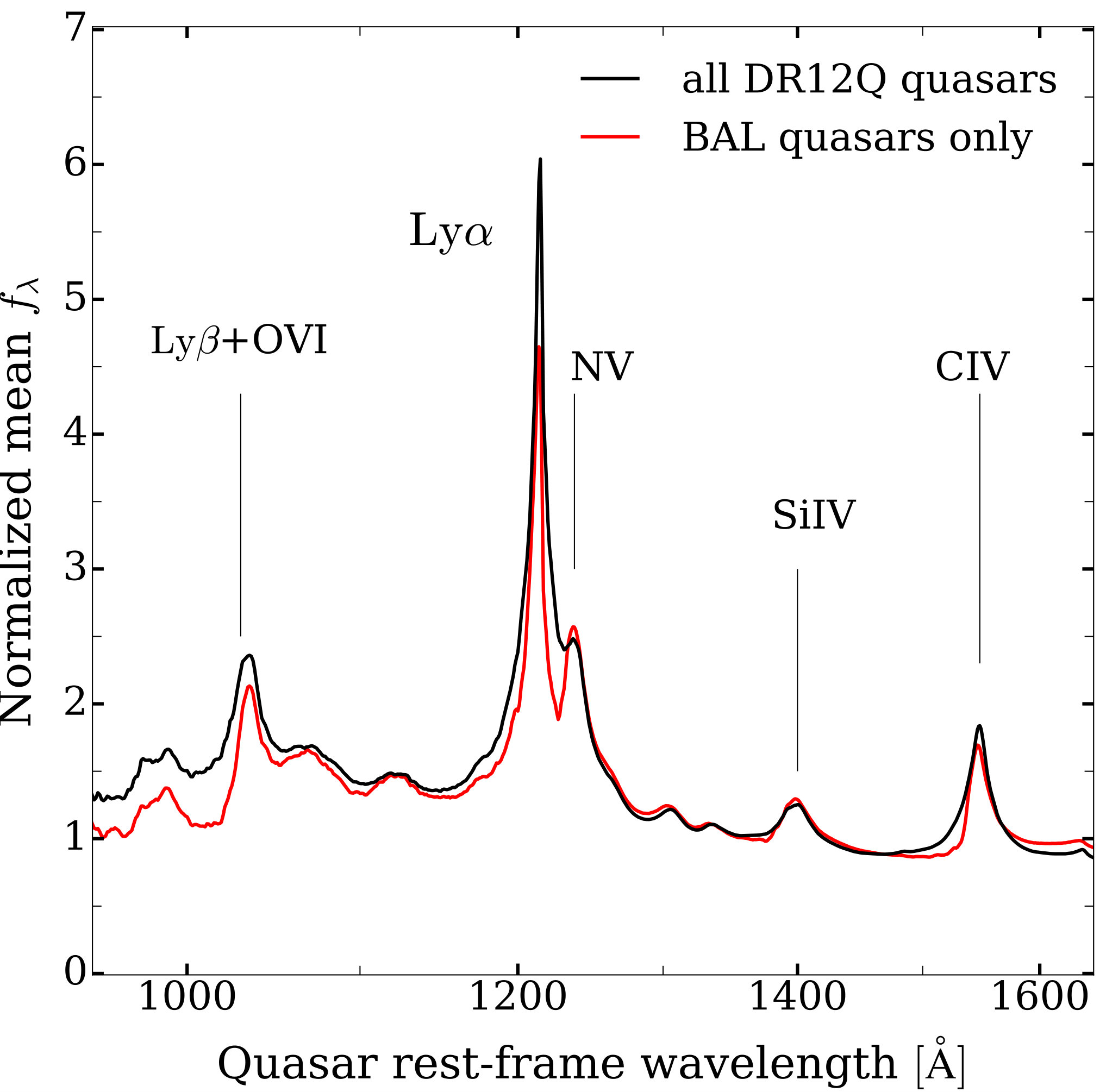

Figure 3 shows the difference between the spectrum considering all the DR12Q quasar spectra (black line), and only those containing troughs (red line). A broad absorption trough is visible to the left of the emission lines of species with the highest opacities, i.e., Civ, Nv, Ly$\alpha$ and Ovi, in the trough-only spectrum. The use of this biased mean spectrum would result in the underestimation of the true line equivalent widths. We have checked that including the quasars containing troughs to the total quasar sample for this calculation does not affect significantly the resulting mean quasar spectrum. The relative difference between the mean quasar built from the whole quasar sample and that from only quasars not containing outflow troughs, is $\lesssim 6\%$ at the peaks of the quasar emission lines. In the flatter quasar regions where the absorption troughs are found, the differences are $\lesssim 2\%$. A similar mean spectrum, except for the lack of corrections on the average absorption of the Lyman-alpha forest, is illustrated in Figure 3 of Mas-Ribas et al. (2017), and a movie showing the build up of the mean quasar spectrum with an increasing number of spectra, is publicly available at https://github.com/lluism/DLA_movies.

We have tested the impact on our results of using an individual mean spectrum for every quasar spectrum, derived from the spectra of its nearest neighbors, instead of our mean quasar calculation. In the nearest neighbor approach, the mean spectrum for each quasar containing troughs is obtained by computing the mean spectrum of its forty trough-free nearest neighbors among the entire DR12Q catalog. The proximity between the spectra is defined as the Euclidean distance in normalized flux units as

[TABLE]

where $i$ are the pixels in the quasars $j$ and $k$, and $f^{N}_{i}$ is the flux once normalized by the average flux in the wavelength windows $1\,300<\lambda_{\rm r}/{\rm\AA}<1\,383$ and $1\,408<\lambda_{\rm r}/{\rm\AA}<1\,500$. We have considered only the spectral regions above $1\,280$ Å in the quasar rest frame to avoid the impact of the strongest quasar emission lines (Davies et al., 2018). Using the mean spectra from the nearest-neighbor approach, yields outflow composite spectra slightly less noisy redward of the Civ absorption doublet, compared to using the mean of all the quasars. This is because the individual mean, i.e., from the nearest neighbors, matches the quasar spectra better than the overall mean. However, the noise for the nearest-neighbor case is significantly larger at short wavelengths, especially in the Lyman-alpha forest, since not all the spectra in the DR12Q catalog cover the region below $\sim 1\,500\,{\rm\AA}$ in the quasar rest-frame. If one considers only the spectra that cover the entire forest region ($\gtrsim 912\,{\rm\AA}$), then the number of spectra and candidate neighbors is reduced, and the resulting outflow composite does not show a significant improvement compared to using our mean spectra. We, therefore, conclude that our mean quasar spectrum method is adequate for our calculations.

3.2. Outflow Composite Spectra Calculation

We compute the composite rest-frame outflow spectrum as a weighted mean, now only using the quasar spectra that contain troughs, and centering these spectra at the position of the minimum flux within the troughs as given in DR12QBAL. Perrotta et al. (2018) recently stacked outflow absorption features in high-resolution spectra, and they found that centering the spectra at the position of the deepest (minimum flux) Civ component, yields the best alignment between Civ and the other absorption features, especially those of low-ionization species. In our case, given the low resolution of the BOSS spectra, the position of the minimum flux can be determined with higher accuracy than the limits of the troughs, or other points, which in turn results in more precise (narrower) absorption profiles. Indeed, our stacks do not resolve the two lines of the Civ doublet, and show much broader absorption features, if we center the spectra at the centroid of the troughs, or at the minimum or maximum trough limits. This test suggests that the minimum flux position mostly has a physical origin, and that the effect of noise is small. We elaborate further on the impact of choosing the minimum-flux position on our results in § 6.1.

The redshift of the troughs is computed using the velocity offset from the quasar (i.e., from the Civ quasar emission lines) given in the DR12QBAL catalog, via the expression

[TABLE]

Here, $v$ and $c$ are the trough position and the speed of light, respectively, and $z_{\rm t}$ and $z_{\rm q}$ denote the redshifts of the trough and the quasar, respectively. We then rebin each outflow spectrum into an evenly-spaced array of pixel width ${\rm d}\lambda=0.3\,{\rm\AA}$, similar to the maximum BOSS pixel resolution ($\simeq 69\,{\rm km\,s^{-1}}$ in velocity space), and normalize them with the corresponding normalization factor obtained in the mean spectrum calculation. Next, the normalized spectra are divided by the mean quasar spectrum, shifted and rebined to the new outflow wavelength array, to eliminate the quasar footprint and obtain the individual outflow absorption spectra. The final outflow composite spectrum results from computing the weighted mean of these individual outflow absorption spectra, where the weighting factors are the weights obtained for every spectrum in the mean quasar calculation. At the end of these calculations, the composite spectra present a residual offset of $\approx 200\,{\rm km\,^{-1}}$ from the theoretical position expected for the absorption lines. This is because the position of the absorption trough is measured from the peak of the Civ quasar emission line, that is generally found at a rest-frame wavelength of $\approx 1\,549.4\,{\rm\AA}$, while the minimum flux within the trough is denoted by the blue line of the Civ doublet at $\approx 1\,548.2\,{\rm\AA}$, thus separated from the emission peak by $\approx 250\,{\rm km\,^{-1}}$. This separation is consistent with the observed offset considering our flux pixel resolution of $\sim 69\,{\rm km\,s^{-1}}$. We simply correct for this offset by shifting our composite spectra to the theoretical position of the absorption lines.

We build 36 outflow composite spectra, drawn from subsamples of the overall trough catalog, all computed as described above. We divide the outflow velocity range in nine bins, and consider two additional subsamples for low velocities. The trough width range is divided in five samples, and the trough minimum velocity in seven. The quasar redshift and magnitude ranges are divided in six bins each. The choice for the subsamples and their number is performed with the aim to divide the data in enough bins to study the dependences on outflow and quasar parameters in our companion work, while containing a similar number of troughs in each bin to reach similar signal-to-noise levels. When effects are observed at specific values (i.e., at low outflow velocities), we create additional bins to study them in more detail, even though this reduces the number of troughs. Together with the stack of all troughs in the catalog, these subsamples are detailed in Table 2. The first column lists the selection criteria to build each subsample, where trough min. velocity is the minimum velocity of each trough, and the bottom group is parameterized using the absolute $i-$band magnitude at $z=2$ of the quasars, as reported in DR12Q (Pâris et al., 2017). The second column in Table 2, quotes the mean value for each selection parameter, and the third one the values of the intercept used for the calculation of the $a$ parameters in the absorption profile (Eq. 5 and § 3.3.3). The fourth column denotes the number of spectra considered for the composite of each subsample. We publicly release our composite spectra at https://github.com/lluism/BALs, and their analysis is performed in our companion paper Mas-Ribas (2019).

3.3. Line Profile fitting

We describe the wavelength ranges considered for the modeling of the absorption lines and the continua in § 3.3.1, the formula for the absorption profile fitting in § 3.3.2, and the computation of the absorption width in § 3.3.3. For the modeling of the absorption lines, we consider the set of atomic transitions listed in Table LABEL:ta:lines, although not all of them are detected in all our stacks.

3.3.1 Line Windows and Local Continua

The first step toward obtaining a reliable fit to the absorption lines is to renormalize the outflow composite spectra. This modification is required because the impact of neighboring absorption features and/or the Lyman-alpha forest, in some cases, results in absorption-free spectral regions that deviate significantly from the unity transmission value in the final spectra. We renormalize each outflow composite spectrum by dividing it by a pseudo-continuum. This is computed via smoothing the composites with a Gaussian kernel of width $\sigma_{\rm G}=10$ pixels, showing no substantial differences for other values within the range $5\leq\sigma_{\rm G}\leq 15$. For the smoothing, we disregard the wavelength ranges $-1.7\leq(\lambda-\lambda_{\rm c})/{\rm\AA}\leq 1.0$ around the absorption lines, where $\lambda_{\rm c}$ denotes the line center. The ranges are asymmetrically centered around the lines to account for the presence of the line-locked component in the low-wavelength side of each absorption feature. We note that this renormalization washes out the broad absorption wings that sometimes extend blueward of the strongest absorption transitions (most notable for Civ), and thus retains mostly the central and deep regions, where the absorption lines are well defined. In turn, the equivalent widths of some of the strongest lines may be underestimated, and should not be adopted without further considerations. Despite this re-normalization, the final absorption spectrum is still not completely flat around the absorption lines in some cases. For this reason, we will use a local continuum over the absorption lines for the profile fitting, as described below.

The absorption profiles are modeled in a wavelength window with a half width of 4 ${\rm\AA}$ on each side of the line center, plus an additional extent of $500\,{\rm km\,s^{-1}}$ on the low-wavelength limit to account for the presence of the line-locking component. This window size is large enough to cover the lines and their line-locked components in all our composite spectra. When two or more line windows overlap, we consider a single window spanning from the lowest to the highest limit of the intervening windows, and the profiles of all the lines within this range are modeled at the same time. This approach results in the simultaneous modeling and measurement of up to five absorption lines in general. In two cases we obtain a window containing ten lines, in the wavelength range around $\sim 1125$ Å , and in the one around $\sim 1195$ Å. We simply divide both ranges in two parts, containing five lines each, and treat them as separate features. Most lines in these ranges are weak, and their precise measurement does not impact our findings, so we do not attempt more complex computations.

The local continuum over each absorption feature is computed by fitting a linear regression to the flux pixels next to the absorption window. We consider the outflow transmission pixels beyond the limits of the line (lines) window, up to a distance of 9 Å on both sides from the line center (or the minimum and maximum line centers for the case of multiple lines). We require a minimum total number of 15 pixels in these ranges. This value is chosen to reduce the impact of spurious flux pixels while representing the regions near the absorption lines. If the total number of pixels in the two ranges is smaller, due to pixels not being considered because they belong to neighboring line windows or are affected by skylines, both ranges are recursively enlarged by $0.4$ Å until the minimum number is reached.

3.3.2 Profile Estimator

The modeling of the absorption lines considering a simple feature clearly does not reproduce the observed profiles. The presence of the potential line-locking component in our outflow spectra requires, for every absorption line, the joint fit of two features: the line itself and the line-locked counterpart. For clarity, we will refer to these two components as line and line-locking from here onward, and we will account for the two contributions in all our measurements.

We fix the center of the line-locking considering that $v_{\rm c}-v_{\rm ll}\equiv\Delta_{v}=-497\;{\rm km\,s^{-1}}$, where $v_{\rm c}$ and $v_{\rm ll}$ are the positions of the line and line-locking in velocity space, respectively, and the value corresponds to the separation between the two lines of the Civ${\,\lambda\lambda 1548,1550}$ doublet. We choose this value because the stacking of Civ troughs results in the enhancement of the Civ line-locking feature, while it dissipates the contribution from other doublets. We have tested that variations of $\leq 15-20\;{\rm km\,s^{-1}}$ around the nominal Civ separation value (corresponding to a $\sim 22-29\,\%$ of the pixel size) generally do not produce significant differences in the fits. We also require that the depth ratio between the line and line-locking components (i.e. $d/b$ below) remain the same when fitting lines belonging to the same atomic doublet.

We perform a least-squares fit to each line and line-locking pair assuming a profile of the form

[TABLE]

where the position of the line-locking in wavelength space is obtained with the relation $\lambda_{\rm ll}=\lambda_{\rm c}\,(1+\Delta_{v}/c)$, noting the negative sign of $\Delta_{v}$. The parameter $C_{\lambda}$ in Eq 5 represents the local continuum at a wavelength $\lambda$ in the renormalized rest-frame outflow composite spectrum, and $b$, $d$ and $a$ are free parameters. The $a$ parameter is set to be the same for the line and line-locking, which yields a substantial improvement of the fits, especially when multiple features are fitted at the same time and degeneracies between them can occur. Furthermore, we do not observe significant differences between the paired $a$ parameters when they are allowed to be different. However, the $a$ parameter is related to the width of the absorption features, which is mostly driven by the spectrograph resolution in the BOSS spectra, except for the broadest features. Because of this dependence on resolution, differences between the widths of line and line-locking, not detectable in our spectra, can exist. It is important that future (higher-resolution) analyses revisit these values as the line width carries relevant information on the kinematic properties of the media.

3.3.3 Fixing the Line Widths

In practice, we fix the value of the parameter $a$ in our calculations, taking into account its dependence on the spectrograph resolution mentioned above and the evolution of the latter with wavelength. In other words, instead of using the $a$ parameters resulting from the profile fit that show a large dispersion, we will use these fitted values to build a relation with wavelength that will yield the value of $a$ at any wavelength. This approach yields a reduction in the number of free parameters and, in turn, an improvement of the fits to the absorption profiles because the model is less sensitive to the effect of noise and other contaminants.

We first parametrize the evolution with wavelength in 34 of our outflow composite spectra to cover a broad range of trough parameter values and to assess possible dependences of the evolution on these parameters. We consider the total sample, the six spectra for the subsamples in outflow redshift, the six for the trough width, four for the low velocity limit of troughs, the six for quasar magnitudes, and the eleven for the outflow velocities, all of them detailed in Table 2. We fit all the features in Table LABEL:ta:lines for each of these spectra, with the $a$ parameter for every line and line-locking pair allowed to be free, and keep the $a$ values when the fit exists (we consider that a fit does not exist and ignore its outcome when it returns unphysical, i.e., null or negative, values for some of the parameters). An increase of the $a$ parameter with wavelength is apparent in all cases. However, a large scatter in the individual $a$ values, partially driven by degeneracies between blended absorbers and by high noise in the spectra of some stacks that especially affects the weakest features, does not enable us to constrain the wavelength dependence with accuracy in the individual stacks. Thus, we decide to parameterize the slope of the evolution with wavelength by using the mean of the $a$ values from the 34 subsamples, which is consistent with the lack of visible differences in the evolutions between subsamples or between low- and high-ionization species. We finally fit a linear regression to these mean values considering the still large error bars arising from the dispersion of values around the mean, and use its slope of $m=3.4\times 10^{-4}$ for the computation of the $a$ parameter in all the composite subsamples. This slope is similar to the one we obtained for DLAs in Mas-Ribas et al. 2017 ($2.3\times 10^{-4}$), indicating that the evolution is mostly driven by the values of the wavelength and not by physical effects specific of outflow environments.

Figure 4 displays the mean value of the $a$ parameters with wavelength, computed using the 34 composite spectra of the subsamples described above. A general increase of $a$ with wavelength is visible although with significant scatter (error bars denoted by gray lines), and there are no apparent differences between low- (red squares) and high-ionization (black dots) species. The blue line denotes the linear fit to the data, considering the uncertainty, that yields the slope value of $m=3.4\times 10^{-4}$.

With the value of the slope now fixed, we again apply a linear regression to the $a$ values of each subsample to obtain the individual best-fit value of the intercept, $n$. In this case, we only consider the $a$ parameters of the strong transitions Hi$\,\lambda 1215$, Nv$\,\lambda 1238$, Nv$\,\lambda 1242$, Siiv$\,\lambda 1393$, Siiv$\,\lambda 1402$, and Civ$\,\lambda 1548$, where the $a$ parameters are measured with the highest precision. In all cases, we visually inspect the fits to these absorption features and discard those that appear dubious or affected by contaminants. The best-fit values of the $n$ parameters for each subsample are reported in Table 2. Finally, the value of the $a$ parameter for an absorption feature at wavelength $\lambda$ can be obtained as

[TABLE]

where $n$ takes on the values in Table 2 for each spectrum, and the parameters are in units of ${\rm\AA}$ngstrom.

4. Dissection of an Outflow Composite Spectrum

Figure 5 displays the outflow composite spectrum resulting from the subsample of troughs with outflow velocities within the range $1\,500\leq v<3\,000$ ${\rm km\,s^{-1}}$. The light blue color represents the transmitted flux regions, and the dark blue highlights the absorbed ones where the transmission falls below the $1\sigma$ noise shown in orange. This noise is computed for each pixel, as the median of the variance of the flux around the unity level, and considering a region centered at the pixel with a half-window size of $25$ Å. The pixels in regions corresponding to absorption lines (§ 3.3.1) are discarded for the noise calculation. Note that the scales of the axes for each range are set independently for visualization purposes.

This spectrum was renormalized using a pseudo-continuum as described in § 3.3.1, but the local continua around the absorption features used for the calculation of the equivalent widths were not applied because they depend on each feature. Regions with transmission above the unity, visible on the right-hand side of the absorption features of Oi$\,\lambda 1039$, Hi$\,\lambda 1215$, Nv$\,\lambda 1242$ and Civ$\,\lambda 1550$, appear due to differences between the mean quasar spectrum used for the normalization of the composites and the individual quasar spectra. In general, this flux excess indicates that the mean quasar spectrum presents weaker emission lines than those in the individual quasars. However, the impact of weighting the spectra also causes this effect, because the higher S/N is typically related to the brighter quasars which, in turn, have weaker emission lines due to the Baldwin effect (Baldwin, 1977, see Figure 3 in Mas-Ribas et al. 2017 and the associated text for details). We do not apply further corrections because this effect does not impact our results concerning the line locking, and the equivalent widths of the lines are well fitted given the fix value of their widths.

We have labeled the strong atomic transitions from Table LABEL:ta:lines, a number of them identifiable deep into the Lyman-alpha forest region. The strongest features are the well-resolved doublets of the high-ionization species Svi$\,\lambda\lambda 933,944$, Ovi$\,\lambda\lambda 1031,1037$, Nv$\,\lambda\lambda 1238,1242$ and Civ$\,\lambda\lambda 1548,1550$. These ions represent the typical effect from the strong radiation field affecting the outflow in general. However, other transitions of high- and low-ionization species are clearly visible, such as the first five hydrogen Lyman series lines from Lyman-alpha down to Lyman-epsilon, i.e., Hi$\,\lambda 937$, and Ciii$\,\lambda 977$, Niii$\,\lambda 989$, Siiii$\,\lambda 1206$, and the doublets Pv$\,\lambda\lambda 1117,1128$, Siiv$\,\lambda\lambda 1393,1402$, Aliii$\,\lambda\lambda 1854,1862$ and Mgii$\,\lambda\lambda 2796,2803$. We have also labeled transitions of the low-ionization species Niii, Feii, Oi, Siii, Cii. We find no evidence for the presence of molecular ${\rm H_{2}}$ features, although the line-locking component on the left-hand side of the absorption lines may overlap and mask the molecular hydrogen signatures. We study the physical properties of the outflows, by analyzing this and the other composite spectra, in our companion paper Mas-Ribas (2019).

An absorption feature on the low-wavelength side of all lines, and blended with them, is clearly visible for the case of the strongest transitions in Figure 5. We identify this feature as the Civ line-locking component of the corresponding lines, and analyze it in more detail below.

5. Line Locking

We analyze the characteristics and nature of the line-locking components below. In § 5.1, we discuss the Civ-driven features visible in our spectra, and search for signatures of Ovi and Nv in § 5.2.

5.1. Civ Line Locking

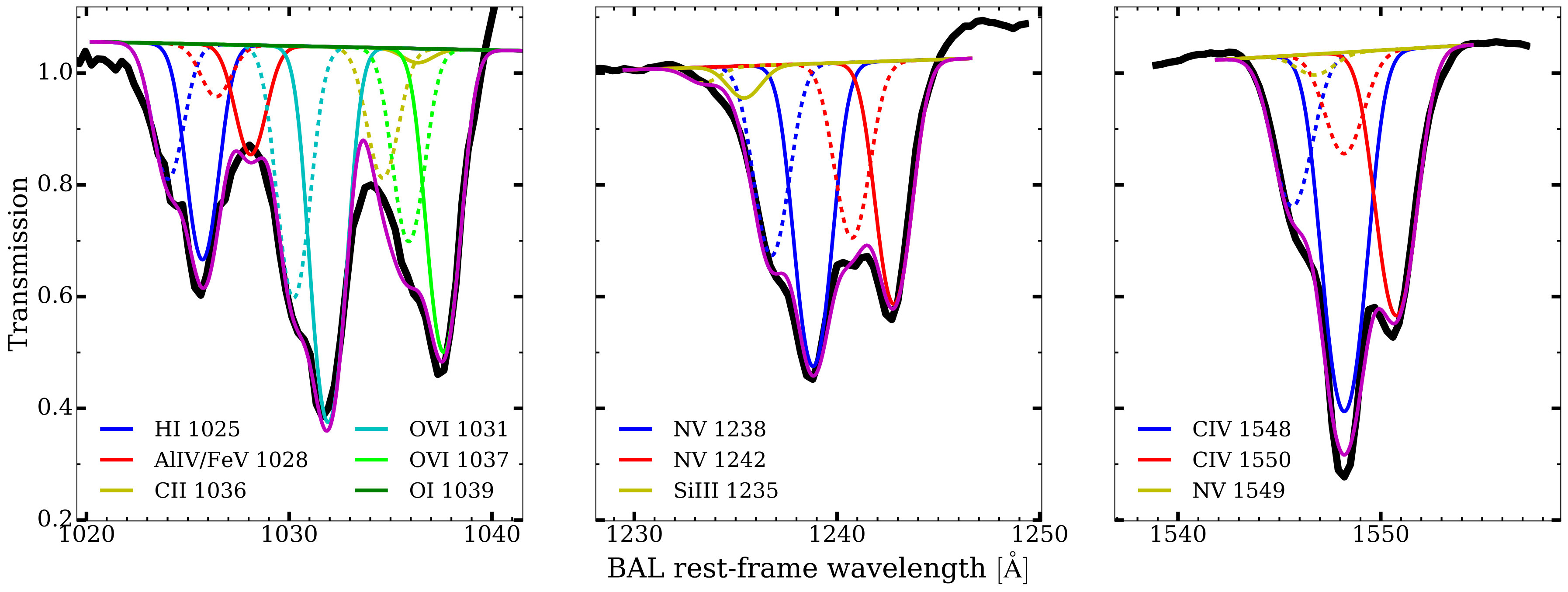

Figure 6 illustrates the fits to three of the strongest absorption features in the spectrum of Figure 5. From left to right, the panels cover the approximate wavelength ranges $1\,020-1\,040\,{\rm\AA}$, $1\,230-1\,250\,{\rm\AA}$, and $1\,540-1\,560\,{\rm\AA}$. The colored solid curves denote the fit to the individual lines, and the dashed curves are the fits to the corresponding line-lockings, following the same color code. The red curves represent the total fit in each panel, and the local continua are visible as straight lines over the features, where the colors simply result from the superposition of the individual curves and have no meaning. The Civ line-locking components at $497\,{\rm km\,s^{-1}}$ from the corresponding lines are clearly visible. This occurs for any absorption feature visible beyond the noise in all our composite spectra, regardless of the species or the ionization state, as expected from the theory of radiative acceleration in quasar outflows (e.g., Arav & Li, 1994; Arav & Begelman, 1994).

The leftmost panel in Figure 6 shows regions between the absorption lines that are not fitted by our model. This is because we have selected the strongest lines in this region to illustrate the presence of line-locking, but we have not considered a number of weaker transitions that inhabit the regions in between, and that sometimes overlap with the strongest lines. Our simple methodology does not yield reliable fits in cases of many strongly blended lines. The two strongest omitted transitions are Cii$\,\lambda 1036$ and the excited-state line Cii$\,\lambda 1037$. However, the effect of these two lines together should be small, similar to the signal observed for Cii$\,\lambda 1334$ and Cii$\,\lambda 1335$ in Figure 5 because the oscillator strengths for all these lines are almost the same (Table LABEL:ta:lines). Other Oi transitions also impact those regions, with strengths about half of that of Oi$\,\lambda 1302$ in Figure 5, according to the relation of oscillator strengths. The three strongest lines that we consider for the fit are in many of the 36 stacks enough to produce a complete fit (see Figures in § A in the Appendix).

In cases of blending or weak absorption features, the fit is sometimes better without the line-locking (or line), but we attribute this result to degeneracies between overlapping transitions or to the effect of noise, respectively, and not to physical causes. Some equivalent widths can be contaminated by these effects and yield unreliable measurements. Relevant (strong) transitions potentially affected by degeneracies are Hi$\,\lambda 949$, Hi$\,\lambda 1025$, Ovi$\,\lambda 1037$, and the Civ$\,\lambda\lambda 1548,1550$ doublet. Instead, the Lyman-alpha line, i.e., Hi$\,\lambda 1215$, and the doublets Nv$\,\lambda\lambda 1238,1242$ and Siiv$\,\lambda\lambda 1393,1402,$ are well-measured in most of our composite spectra.

The line-depth ratios between the line-locking and line features of Figure 6 vary broadly between $\sim 0.3$ and $\sim 0.8$, and the scatter increases when considering more lines. This result suggests that line locking occurs in a fraction of quasar outflows, the exact number depending on the uncertain value of the ratio, which can also be (partially) driven by differences between the optical depths of the line and the line locking. From the composite spectra of about $19\,500$ narrow ($<200\,{\rm km\,s^{-1}}$) Civ absorbers in SDSS quasars showing BALs, Bowler et al. (2014) inferred that $50-75\,\%$ of Civ systems in outflows are line locked, which broadly agrees with our ratio values.

We show in § A in the Appendix the fits to the previous three wavelength ranges, as well as that covering the Ly$\alpha$ absorption line and line-locking, for all our composites. The line-locking component is distinguishable in most cases. There are some cases where a good fit cannot be obtained due to the effects of noise or contaminants. These cases are left as blanks in the plots.

5.1.1 Line Locking in BALs

Our work aims at analyzing the quasar outflow properties based on the physical properties of the individual Civ absorption systems, and not on the nomenclature often assigned to the troughs themselves (e.g., BALs, mini-BALs, or NALs). We do so because these names may all refer to the same type of quasar outflows although accounting for different properties (Hamann et al., 2019, see also how these different terms can be accounted for considering the differences in outflow velocity and trough width in Mas-Ribas 2019). Due to the extended use of some of these terms, however, we briefly show here the presence of line-locking in an additional sample built from the strict definition of broad absorption line (BAL) systems. Specifically, BALs refer to absorption troughs blueshifted by $>3\,000\,{\rm km\,s^{-1}}$ from the respective quasar emission line, and with a full width at half minimum of $\gtrsim 2\,000\,{\rm km\,s^{-1}}$ (Weymann et al., 1991).

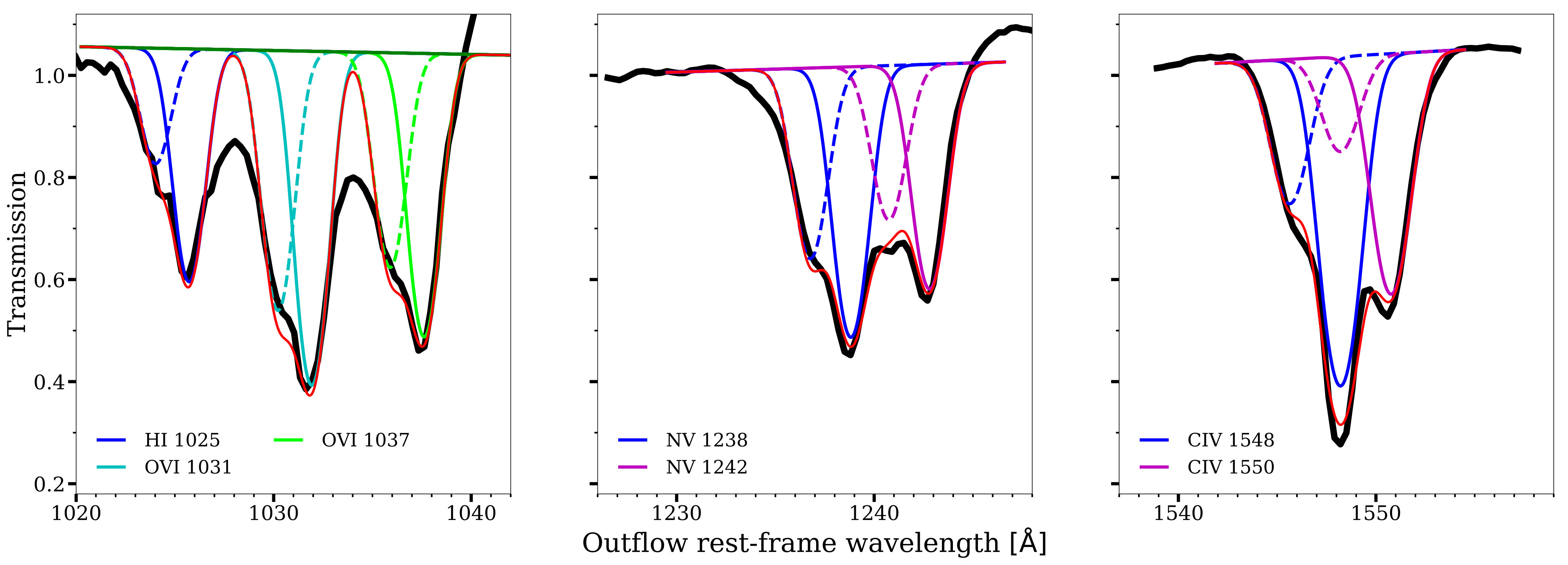

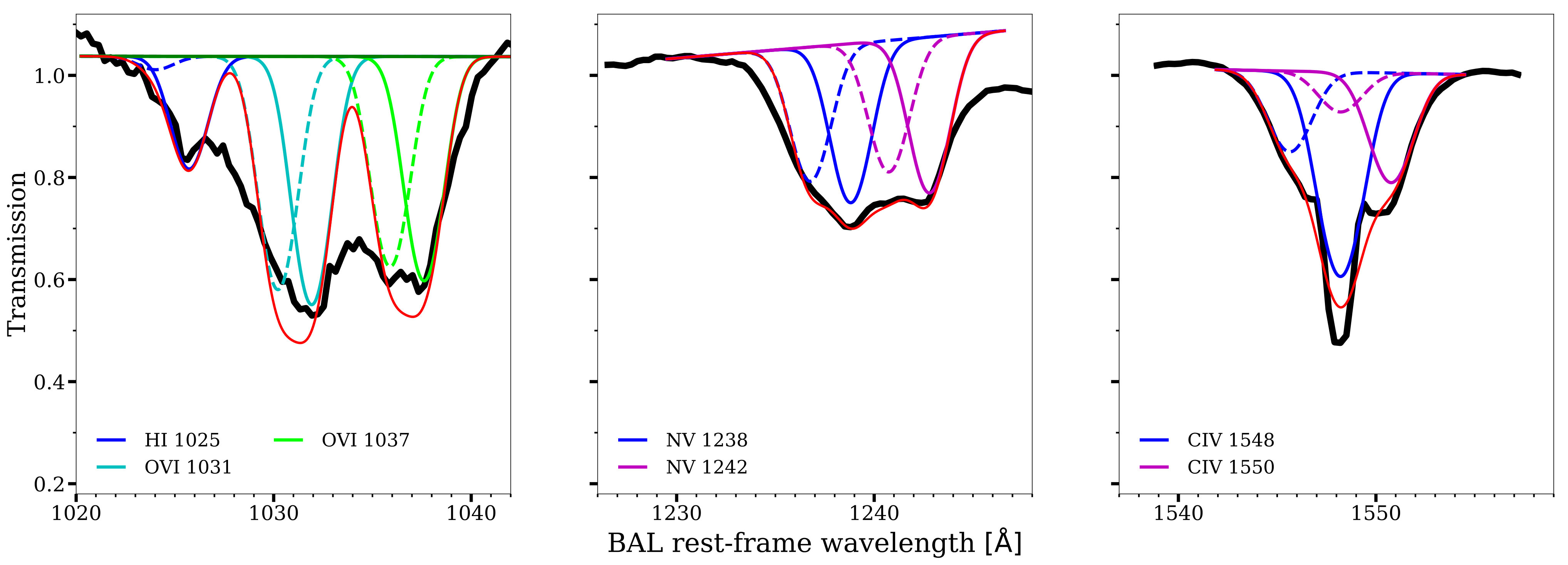

Figure 7 shows the fits to the same absorption features as in Figure 6 but for the case of BALs. The presence of the line-locking components is again required to obtain good fits to the overall absorption features.

5.2. Ovi and Nv Line Locking

We search here for line-locking signatures of the Ovi and Nv doublets, which may have been washed out in our Civ-trough composite spectra. These ions may potentially participate in the radiative acceleration process through line locking, given their high cosmic abundances and the similar strength of their absorption features compared to that of Civ (see, e.g., Figure 6 or the strong effects by these ions already suggested on the quasar spectrum of Figure 3). This argument is also supported by the results by Bowler et al. (2014), who modeled the photoionization state of quasar outflows and found that the optical depths for Ovi and Nv are similar to that of Civ (their Figure 12). Furthermore, an additional line optical-depth autocorrelation analysis by the same authors confirmed the importance of these two ions to the overall opacity, although no absorption signatures were detected in their work.

As our absorber catalog is only for Civ systems and not for other species, we cannot perform the same analysis to search for line-locking of other elements. Instead, we compute the number of pairs of Civ troughs in our catalog that are separated by a distance from 100 to $2\,500$ ${\rm km\,s^{-1}}$ in steps of 50 ${\rm km\,s^{-1}}$. If line locking from other species occurs with frequency, and its signature is strong, the number of troughs at the locking separation should be larger than at other distances. Figure 8 shows the results of this calculation, where we have allowed for different offset values from the exact position of the expected troughs. The dashed vertical lines denote the separations of the Nv, Ovi, and Siiv doublets. No excess in the number of troughs at the line-locking separations is detected in any case.

We conclude from this analysis that the Nv, Siiv and Ovi line-locking effects, if present, are not frequent and/or strong enough to produce an absorption feature detectable in the BOSS spectra.

6. Discussion

We discuss the reality of the Civ line-locking features in § 6.1, the possible causes for the non-detection of line locking from other species in § 6.2, and compare with previous work in § 6.3.

6.1. Is It Really Line Locking?

The presence of a Civ line-locking-like feature on the blue side of almost all the absorption lines is apparent in our stacks, but we found no conclusive evidence for the existence of the Ovi, Nv or other line-locking effects. We revisit here the effects of our methodology that may compromise the reality of the Civ line-locking. We use the same composite spectrum analyzed above for consistency, the subsample with outflow velocity $1\,500\leq v<3\,000$ ${\rm km\,s^{-1}}$. We do not compute the additional $\sim 400$ stacks that arise from splitting each of the 36 spectra in the subgroups detailed below for testing all the composites. The impact from noise can be different for each composite, but considering the figures in § A in the Appendix, it seems difficult that noise can drive all the observations.

In § 3.2 we checked that centering the outflow spectra at the position of the minimum flux within the absorption troughs yields the most refined (spectrally-resolved) composite spectra. This result is consistent with the findings by Perrotta et al. (2018), and suggests that the origin of the minimum-flux is mostly physical, i.e., due to the presence of the stronger absorption component among the absorption trough, and not driven by noise. In the case of one single Civ doublet, the blue (shorter wavelength) line is expected to be within one and two times stronger than the red line, the exact value set by atomic physics (i.e., by the ratio between the two oscillator strengths) and the level of saturation of the lines. In a noise-free doublet therefore, the minimum flux will always appear at the position of the blue line, except in the cases where the two lines are saturated and have the same minimum flux. Thus, although the minimum flux can be mostly governed by the lines, in cases of strong saturation these minima can be identified at the position of the red line of the doublet, with the corresponding location of the blue line at the position of the expected line-locking component. If this occurs a large number of times, a residual feature can be visible in the stacks. Furthermore, the effect of high noise levels could contribute to increase this problem.

We analyze the aforementioned potential impacts from the noise and the strength of the absorption lines below. Figure 9 shows the comparison of composite spectra drawn from the trough subsample with outflow velocity $1\,500\leq v<3\,000$ ${\rm km\,s^{-1}}$, considering different S/N thresholds (given for the whole spectrum in DR12Q; upper panel), and minimum-flux values (transmission) of the troughs (values from the DR12QBAL; lower panel). The left and right panels illustrate the regions blueward the rest-frame absorption Ly$\alpha$ line and the Civ doublet, respectively, and the dashed lines denote the position of the Civ line-locked components. The top panels show that the line-locking features remain almost constant when increasing the S/N of the spectra, reflecting the small impact of the noise on our stacks. The line-locked features are also visible for the different ranges of transmission in the bottom panels, indicating the almost negligible effect from strong saturation that could increase the fraction of minimum-flux positions derived from the red line of the doublets. More important, the ratios between the lines and line-lockings remain almost the same in all cases, highlighting the relation between the two components driven by the line-locking effect.

We conclude that the absorption features detected blueward of the absorption lines in the deepest regions of the absorption features of our composite outflow spectra are the result of the Civ line-locking effect, which demonstrates the significant contribution from radiation to the acceleration of quasar outflows.

6.2. On the Non-detection of Nv and Ovi line-locking

It is possible that physical effects do prevent line locking from Nv and Ovi to occur. Overionization of the medium inhabited by these species can suppress radiative acceleration from theses species because it results in too low opacities and optically thin media (Murray et al., 1995; Chelouche & Netzer, 2003; Leighly, 2004; Proga & Kallman, 2004; Proga, 2007a; Laor & Davis, 2014; Wang et al., 2015). However, Civ has a lower ionization potential, and typically traces cooler and denser media than the oxygen and nitrogen ions. This region could also be shielded (by the highest ions themselves) from the high-energy radiation field and thus enable radiative acceleration from Civ line locking to take place. We discuss the potential impact of the outflow properties and its structure on the presence of the Nv and Ovi absorption features in Mas-Ribas (2019).

The existence of Ovi, Nv and other line-locking signatures would be best assessed by using absorption troughs of these species directly identified in the individual quasar spectra, instead of using those of Civ. The search for Nv and Ovi troughs, however, is difficult because they are in regions of the quasar spectrum affected by the Ly$\alpha$ emission line and forest, respectively. Searching for Siiv features may be easier since a fraction of them will likely reside in the line-free region of the rest-frame quasar spectrum. However, the strength of this doublet is significantly smaller than those of Ovi, Nv and Civ (Fig. 1), and so its line-locking feature could also be weak and difficult to detect. A catalog of Siiv absorption troughs recently built by Guo & Martini (2019) will enable such a calculation. Alternatively, an autocorrelation analysis in the real BOSS spectra may reveal the characteristic distances where absorption troughs are located, although this requires obtaining the continuum for each individual quasar spectrum with precision, including the region within the Lyman-alpha forest where the continuum is difficult to obtain (Faucher-Giguère et al., 2008a). We defer these calculations to future work.

6.3. Comparison to Previous Work

A number of works have previously performed stacks of quasar spectra containing outflows (e.g., Baskin et al., 2013; Hamann et al., 2019). These works have mostly focused on the analysis of the composite absorption troughs, while our work concerns the detection of the line-locking signatures. To fit the absorption lines, we have concentrated our attention to the regions where the lines are expected; more specifically, we have disregarded broad absorption wings that can appear on the blue side of some of the strongest absorption lines, and for stacks considering the broadest troughs (§ 3.3.1). Therefore, our stacks can present, in some cases, shallower and narrower absorption lines when compared to those accounted for in previous works.

In addition, our stacking methodology enables us to identify the different components of the atomic doublets in most composites, while these appear less resolved in other works. The reason behind this effect may arise from the fact that we align the spectra for the stacks considering the position of the minimum flux within the troughs directly, without smoothing the flux to account for the impact of noise. If this is true, this might also be the reason why line-locking has not been detected in most previous works. Only Bowler et al. (2014) have found the signature of line locking in stacked spectra. These authors stacked narrow absorbers ($<200\,{\rm km\,s^{-1}}$ Civ troughs) in SDSS quasars that contain BALs. Although this implies that the quasars have outflows, they do not address the case of broad absorbers because the line and line-locking features could not be resolved. Thus, our work is the first one demonstrating the presence of line-locking in quasar outflows, from narrow to broad absorbers, and for different trough and quasar properties. It is important to mention, however, that Baskin et al. (2013) also reported tentative evidence for radiative acceleration, in their appendix B, resulting from the relation between the depth of the absorption profiles and the luminosity of the sources.

7. Conclusion

We have built 36 outflow composite spectra by stacking broad ($>450\,{\rm km\,s^{-1}}$) absorption line systems in the spectra of SDSS-III/BOSS DR12 quasars. We have computed the composites considering bins in outflow velocity, width of the troughs, degree of detachment between the troughs and the quasars, and quasar redshift and brightness. For every spectrum, we modeled the absorption profiles considering the line and line-locking components for a large number of atomic transitions. This atomic dataset and the composite outflow spectra are publicly available at https://github.com/lluism/BALs. Our results can be summarized as follows:

• •

An absorption feature is visible on the blue side of all the strong absorption lines and in all our 36 composite spectra. This feature is well fitted assuming that it is the Civ line-locking component of the respective absorption lines, at a distance of $497\,{\rm km\,s^{-1}}$ from them, corresponding to the Civ doublet separation.

• •

The detectability of the Civ line-locking feature compared to that of the line does not seem to depend on the signal-to-noise of the spectra or the depth of the troughs, suggesting that the locking feature is real.

• •

We investigate the presence of line-locking features from the doublets of Ovi, Siiv and Nv, but these seem to not be present.

• •

Our composite spectra resolve the two lines of the Civ and other doublets, although the mean width value of the troughs used in the stacks is $\approx 2\,000\,{\rm km\,s^{-1}}$. This implies that (1) the position of the minimum flux in the absorption troughs, which we use for centering our stacks, has a physical meaning (likely representing the blue line of the Civ doublet), and (2) the broad absorption troughs may consist in the superposition of narrow absorbers.

Our results indicate that radiative acceleration is a common mechanism intervening in quasar outflows, and that its presence depends weakly on the characteristics of the winds. Models and simulations assessing the connection between the outflows and AGN feedback should, therefore, incorporate radiative transfer processes that account for the coupling between radiation and the gas, especially the resonant scattering of photons. The omnipresence of line locking in different wind conditions, also suggests that radiative acceleration might be a dominant effect in other environments. These could be the outflows from gamma-ray bursts (Castro-Tirado et al., 2010), quasar jets (Gravity Collaboration et al., 2017), or Seyfert galaxies, where line locking has been suggested and tentative detections have been reported. Finally, the fact that line locking is observed for the Civ doublet but not for other species may be connected to the physical properties of a characteristic multiphase structure in the outflow, where different species trace different regions. We present and test this hypothesis in more detail in a companion paper, Mas-Ribas (2019).

acknowledgements

The initial inspiration for this work grew out of a stimulating discussion with Paul Martini during a visit supported by the Visitor Program at the Ohio State Center for Cosmology and Astroparticle Physics. We are grateful to him for valuable ideas and comments on our paper, and to the CCAP for kind hospitality. We thank the anonymous referee for a detailed revision and a constructive report that helped improving our work. We thank Stan Owocki for sharing with us his thoughts and inspiring notes on the dynamics of CIV line locking. We also thank Ainar Drews, Mattia Mina, Robert Wissing and Håvard T. Ihle for discussions on line-locking and statistical aspects, and Tzu-Ching Chang, Olivier Doré, Phil Berger, Sterl Phinney, Lee Armus, Ski Antonucci, Brice Ménard, Jordi Miralda Escudé, Sijing Shen, Johan Fynbo, Joop Schaye, Jason X. Prochaska, Bill Forman and Christine Jones for enriching conversations and suggestions. We are thankful to Signe Riemer-Sørensen for many useful discussions on quasar continua. L.M.R. is grateful to the UCSB/MPIA ENIGMA group for their kind hospitality and, together with other colleagues at JPL and Caltech, for many inspiring discussions during this work. This research was partially carried out at the Jet Propulsion Laboratory, California Institute of Technology, under a contract with the National Aeronautics and Space Administration.

Funding for SDSS-III has been provided by the Alfred P. Sloan Foundation, the Participating Institutions, the National Science Foundation, and the U.S. Department of Energy Office of Science. The SDSS-III web site is http://www.sdss3.org/. SDSS-III is managed by the Astrophysical Research Consortium for the Participating Institutions of the SDSS-III Collaboration including the University of Arizona, the Brazilian Participation Group, Brookhaven National Laboratory, Carnegie Mellon University, University of Florida, the French Participation Group, the German Participation Group, Harvard University, the Instituto de Astrofisica de Canarias, the Michigan State/Notre Dame/JINA Participation Group, Johns Hopkins University, Lawrence Berkeley National Laboratory, Max Planck Institute for Astrophysics, Max Planck Institute for Extraterrestrial Physics, New Mexico State University, New York University, Ohio State University, Pennsylvania State University, University of Portsmouth, Princeton University, the Spanish Participation Group, University of Tokyo, University of Utah, Vanderbilt University, University of Virginia, University of Washington, and Yale University.

Appendix A Fits to the Strongest Features in All the Outflow Composites

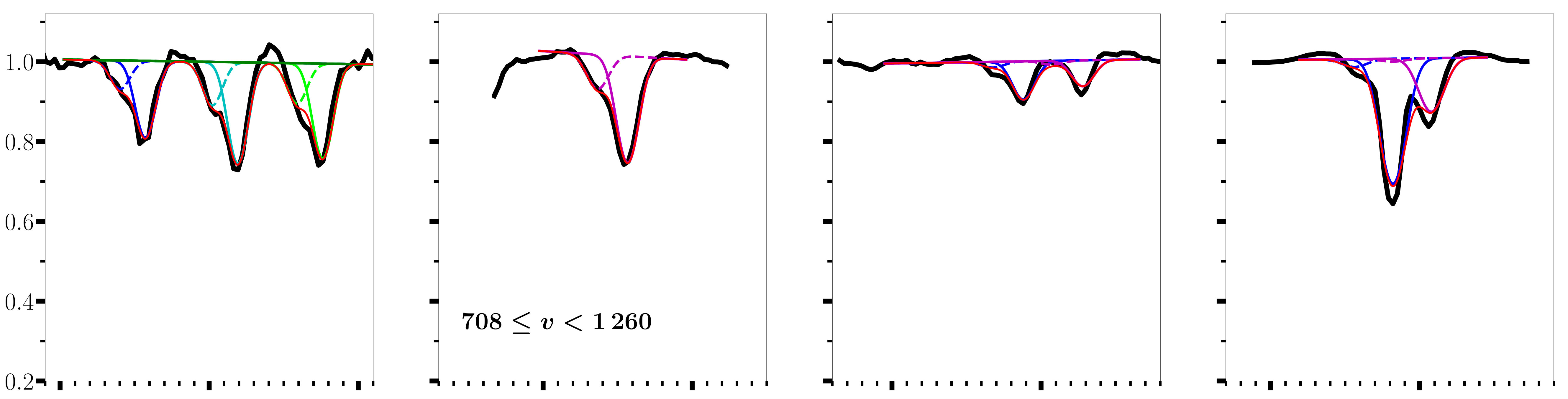

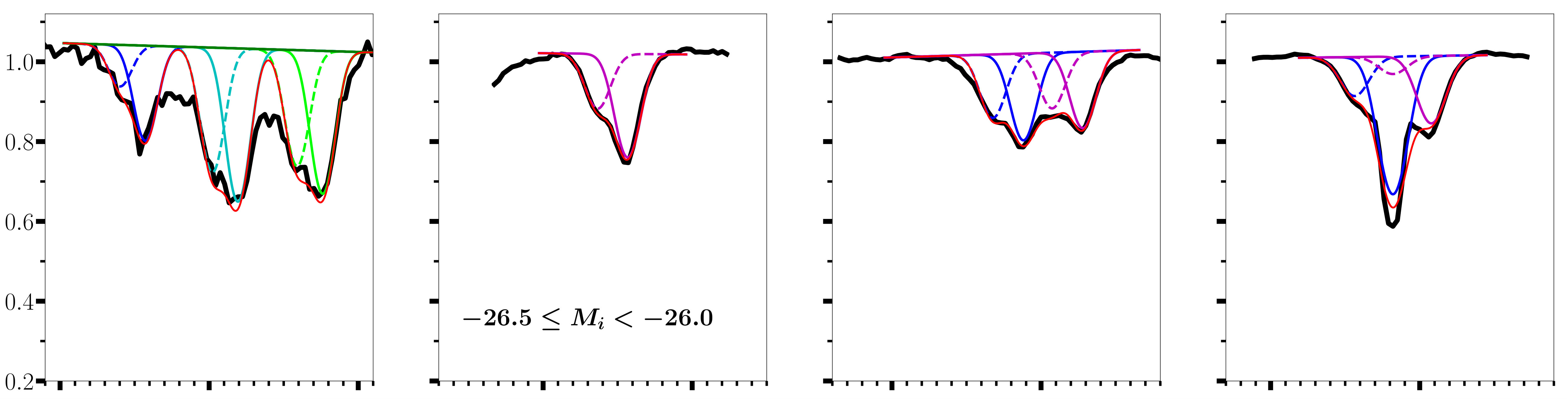

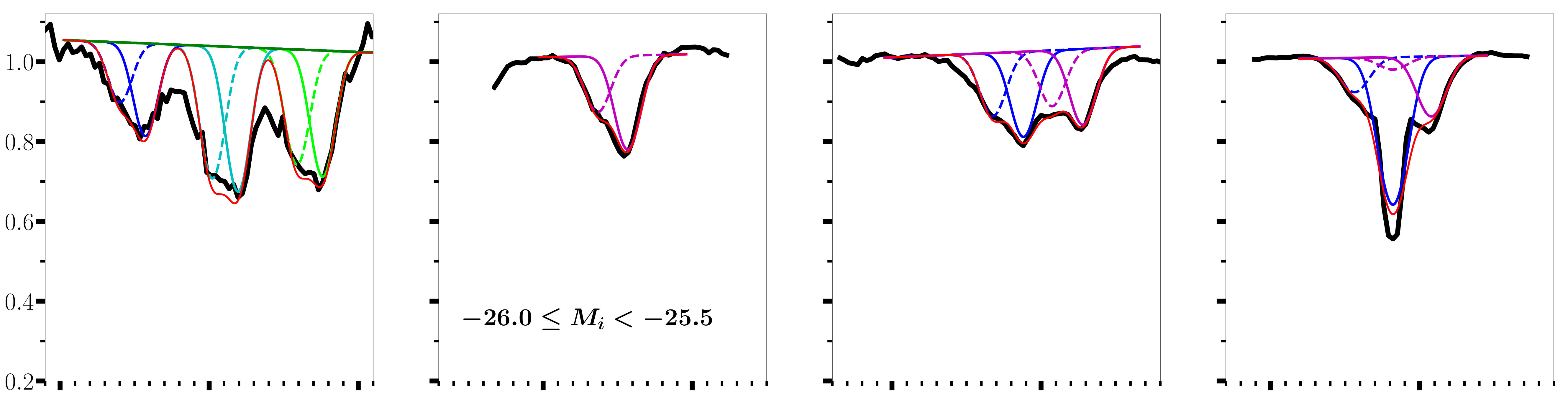

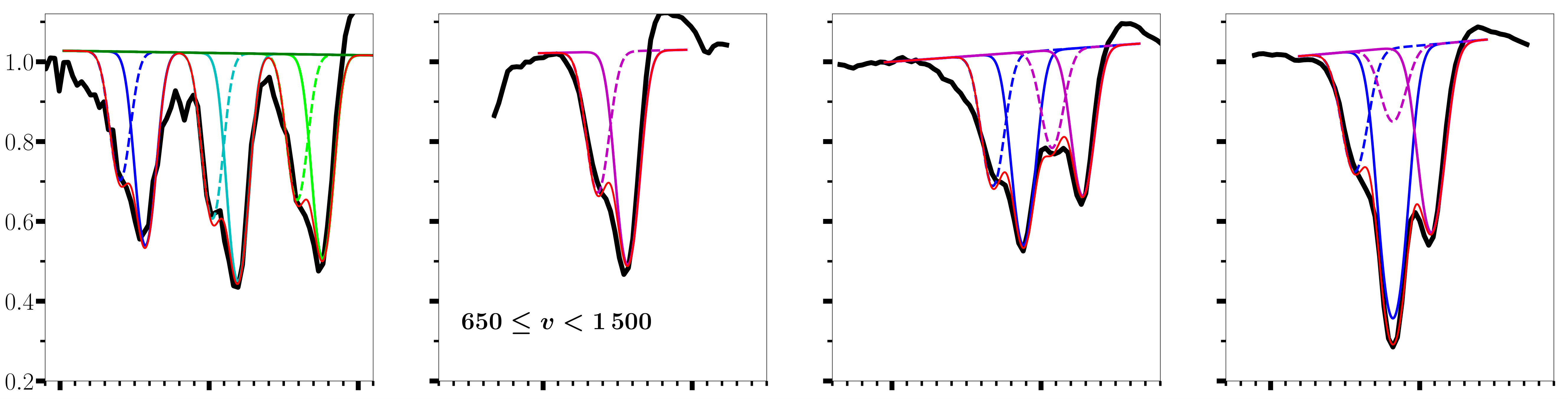

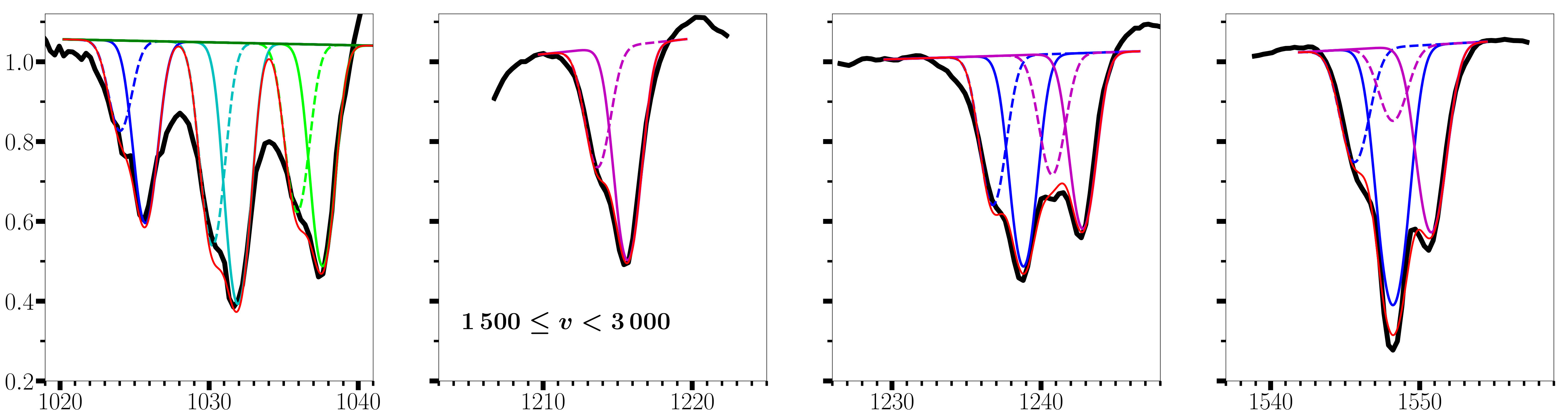

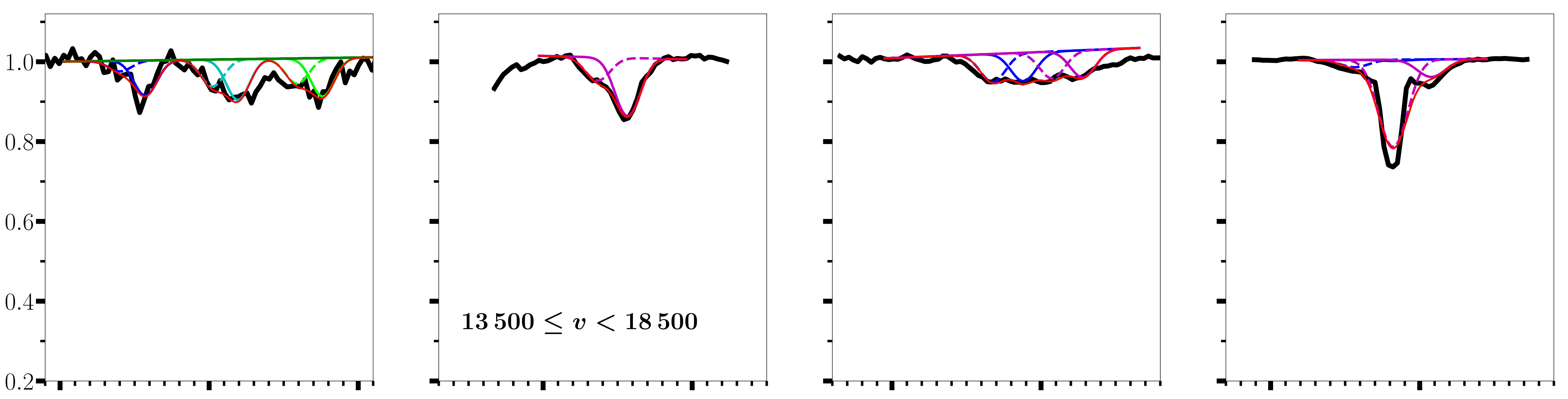

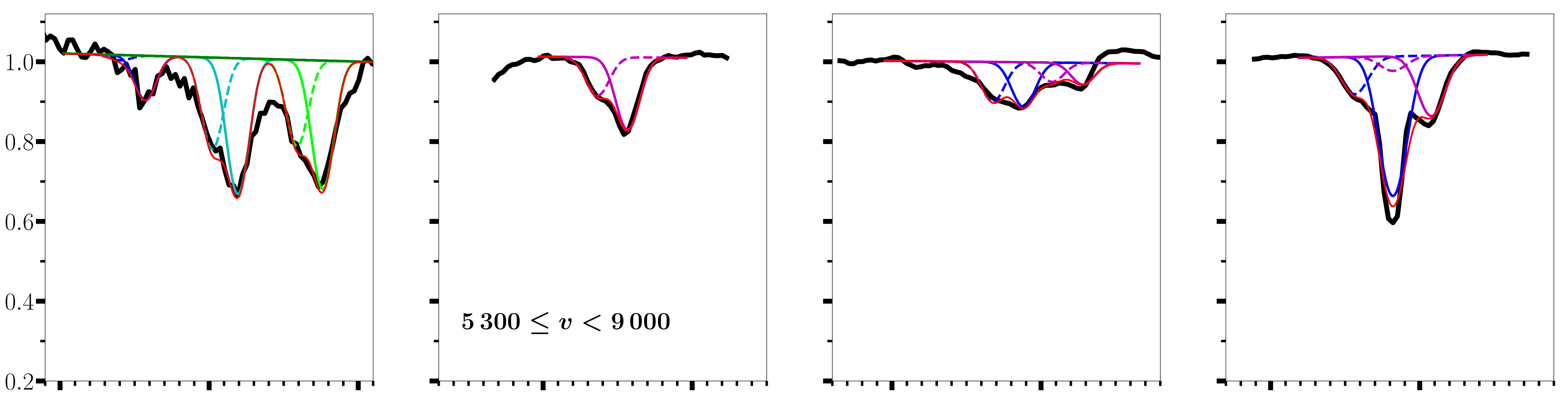

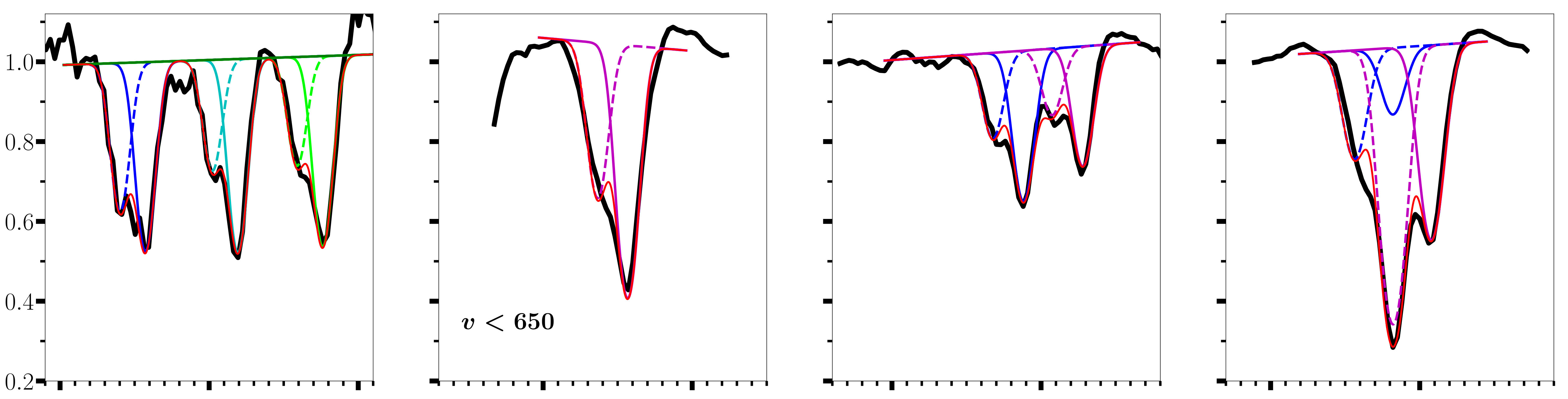

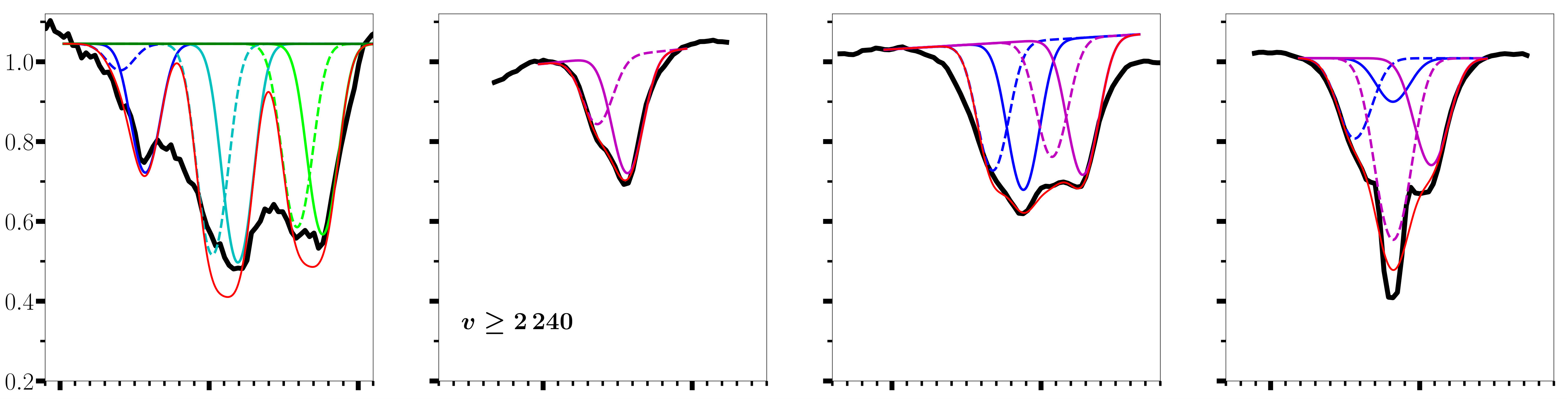

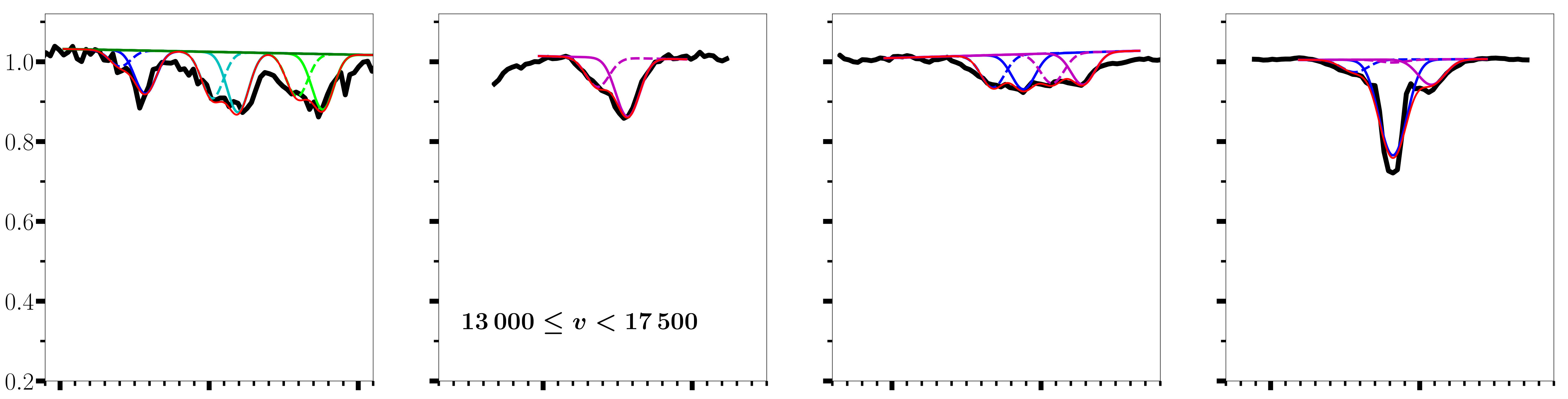

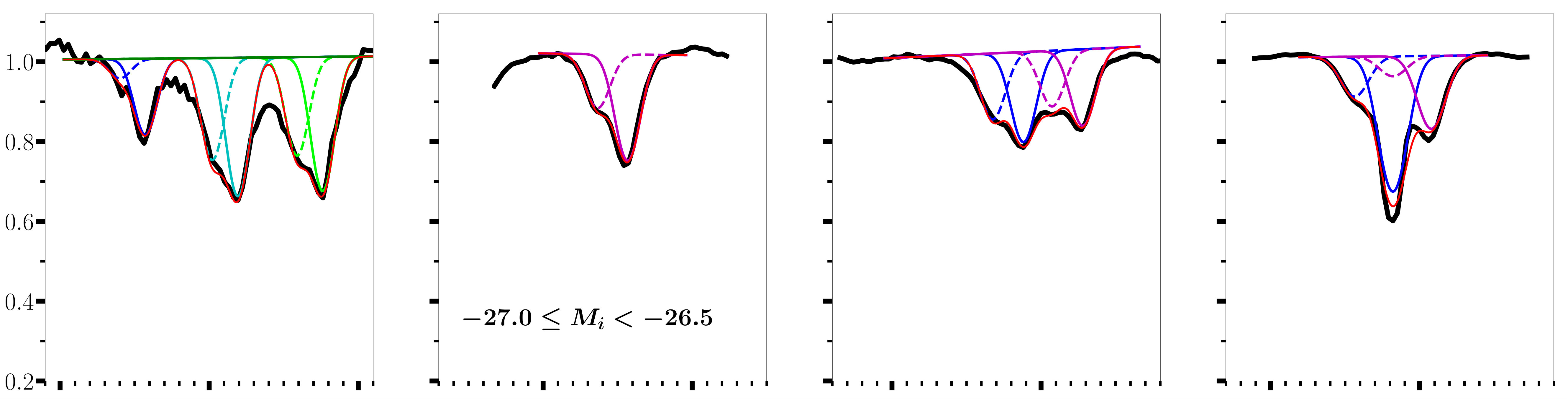

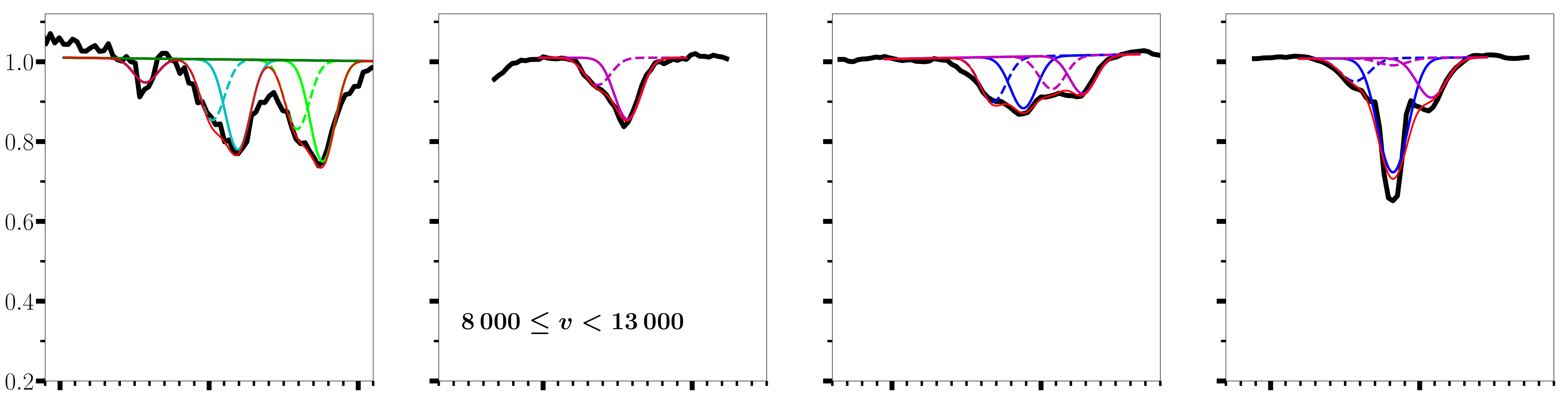

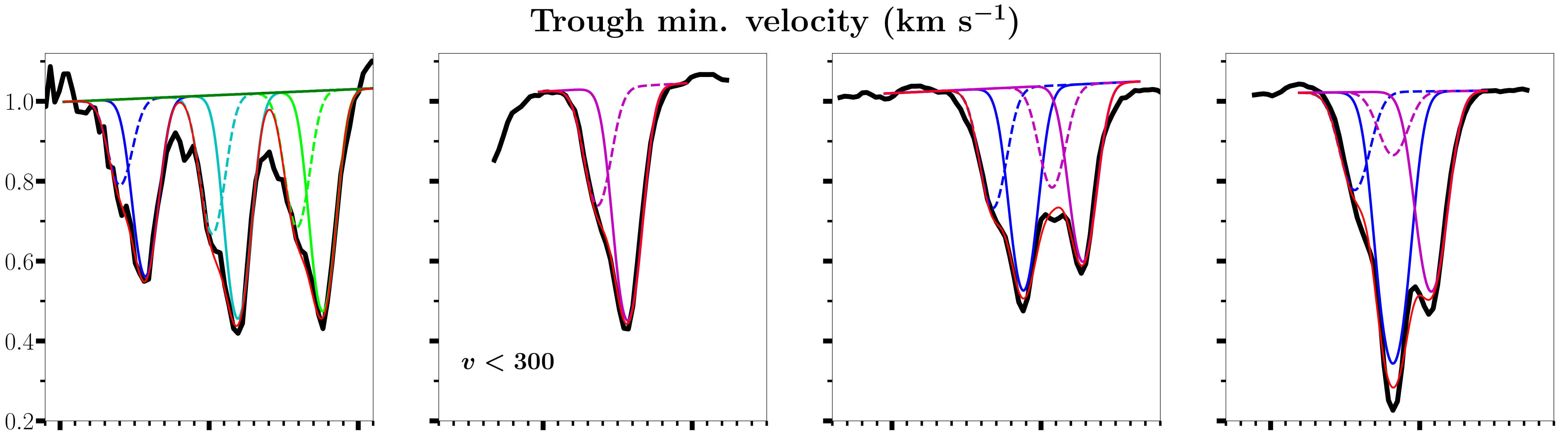

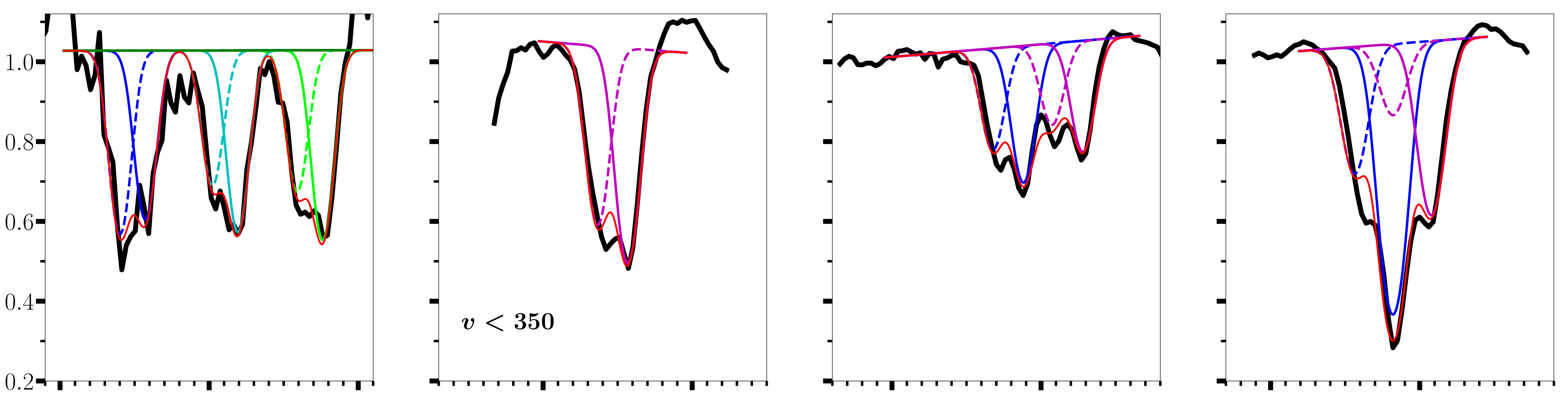

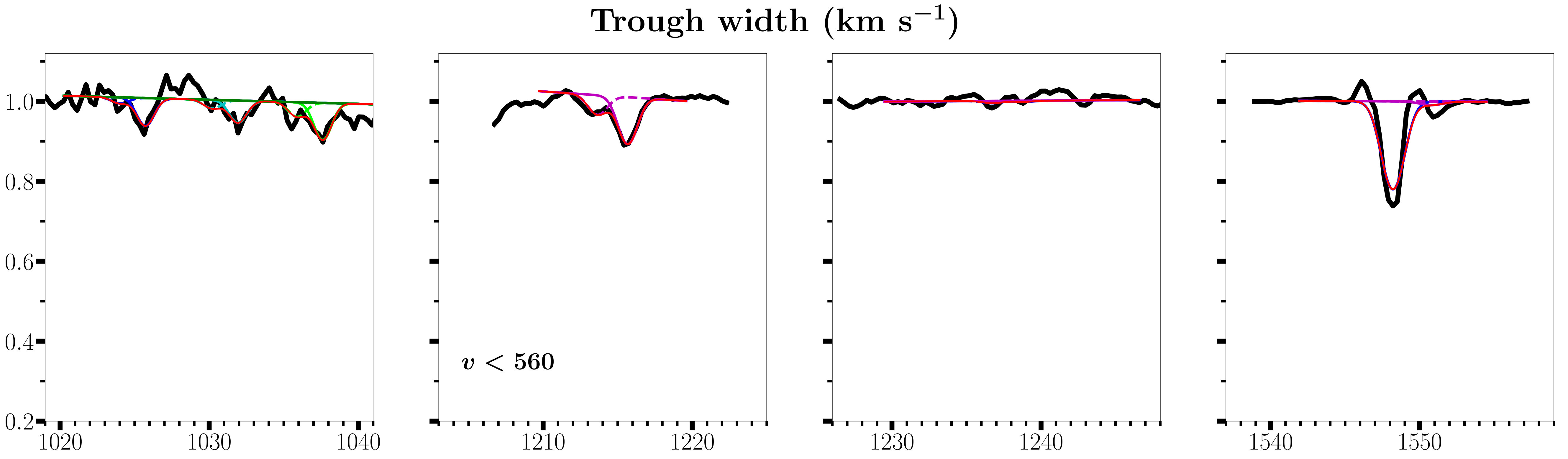

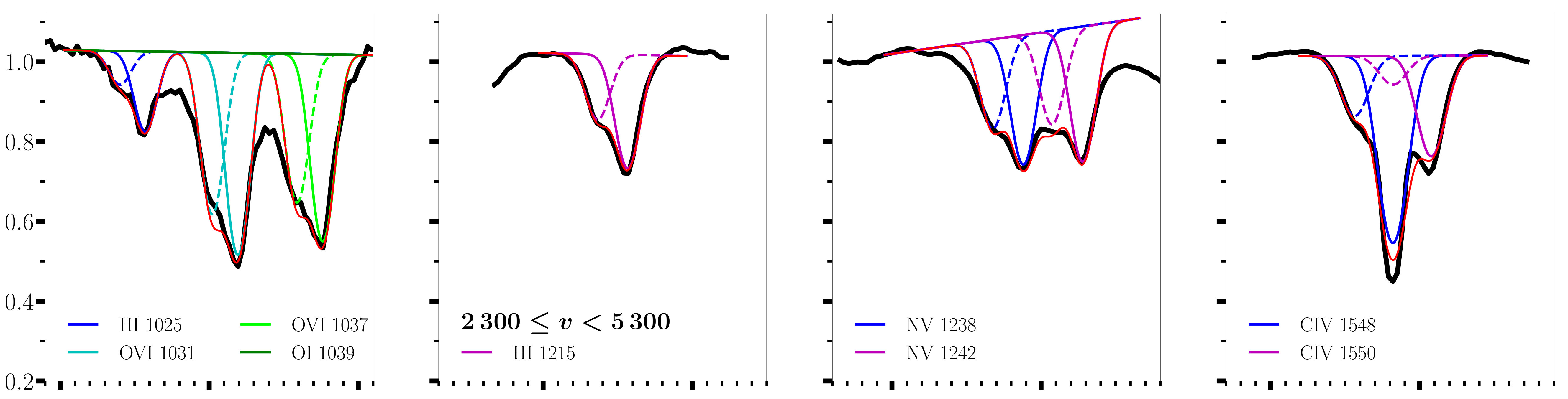

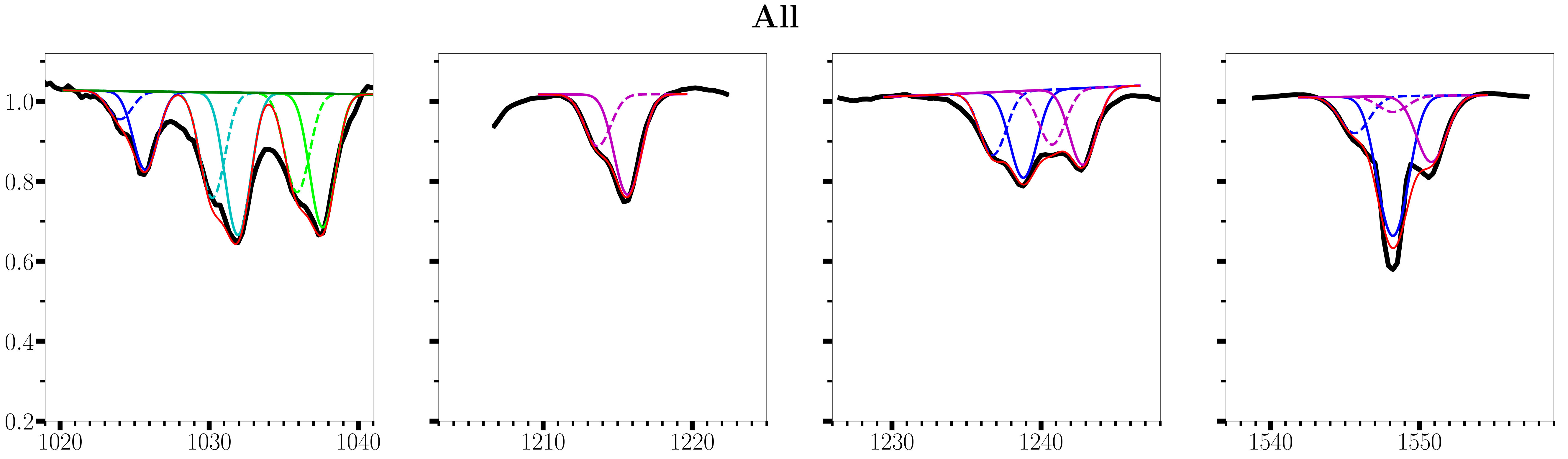

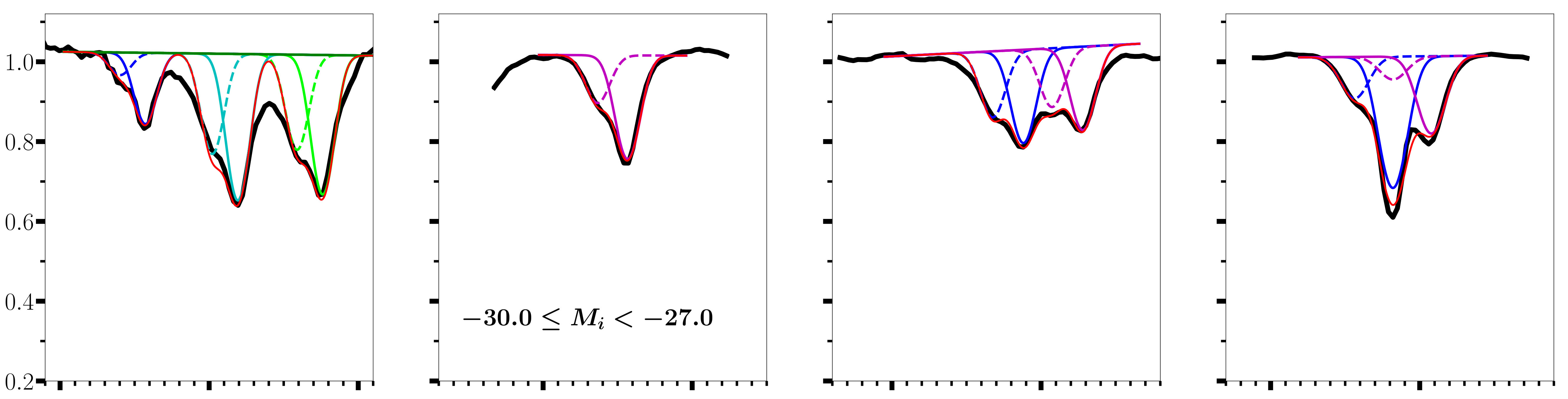

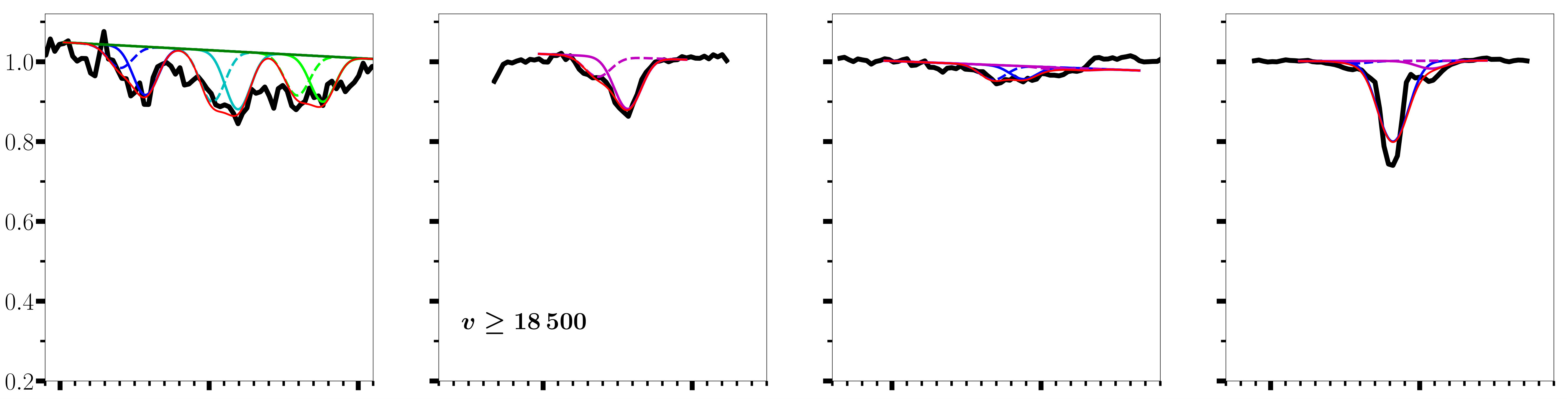

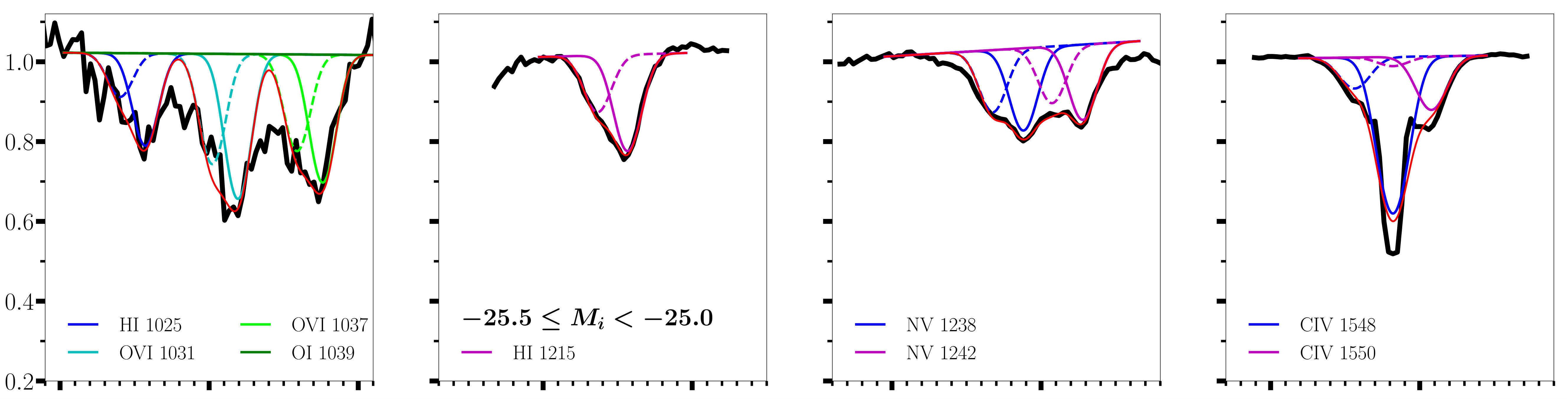

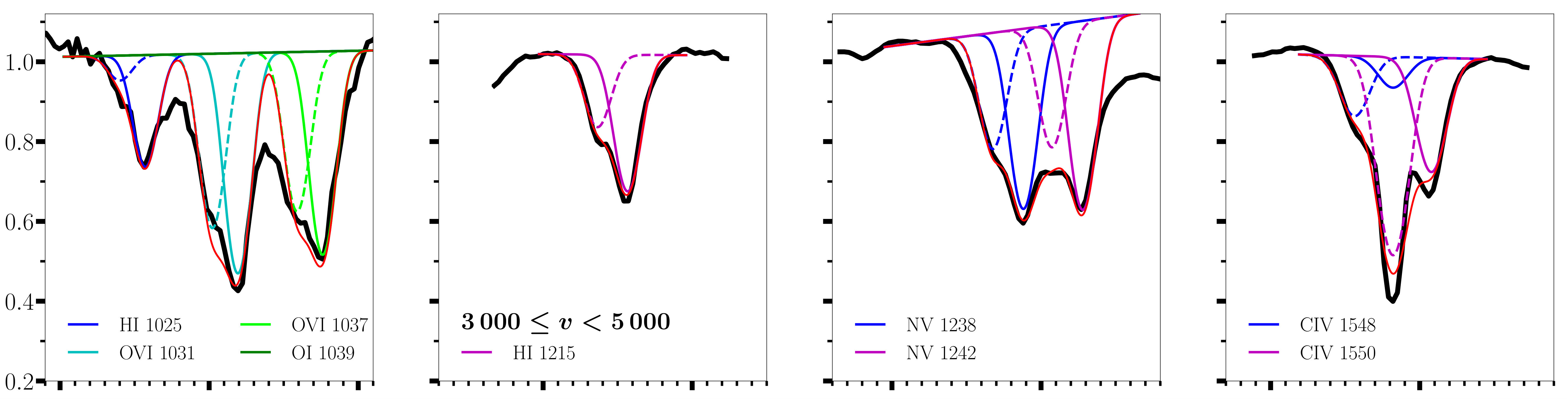

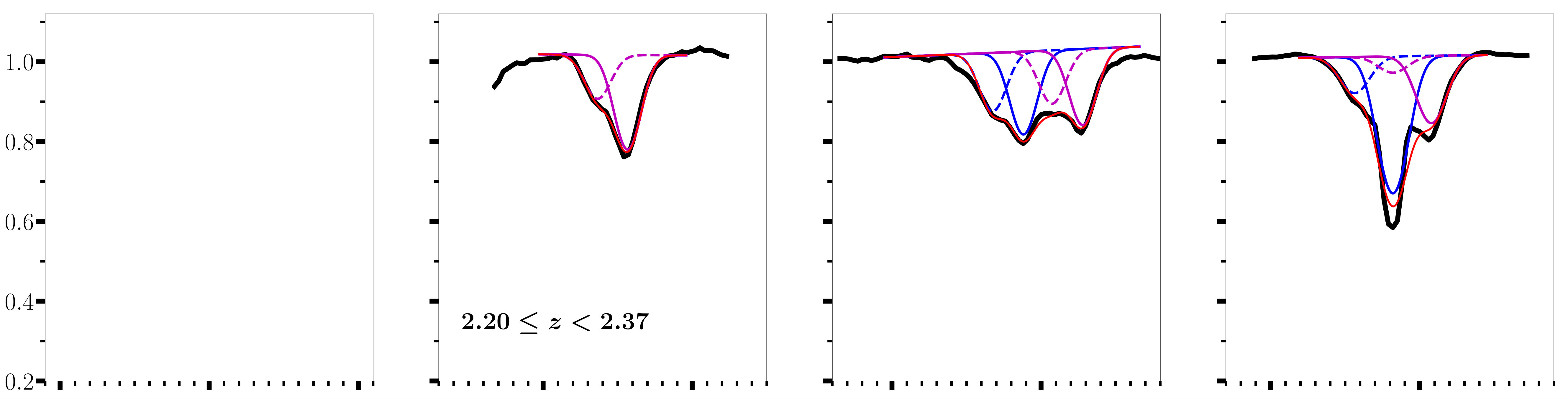

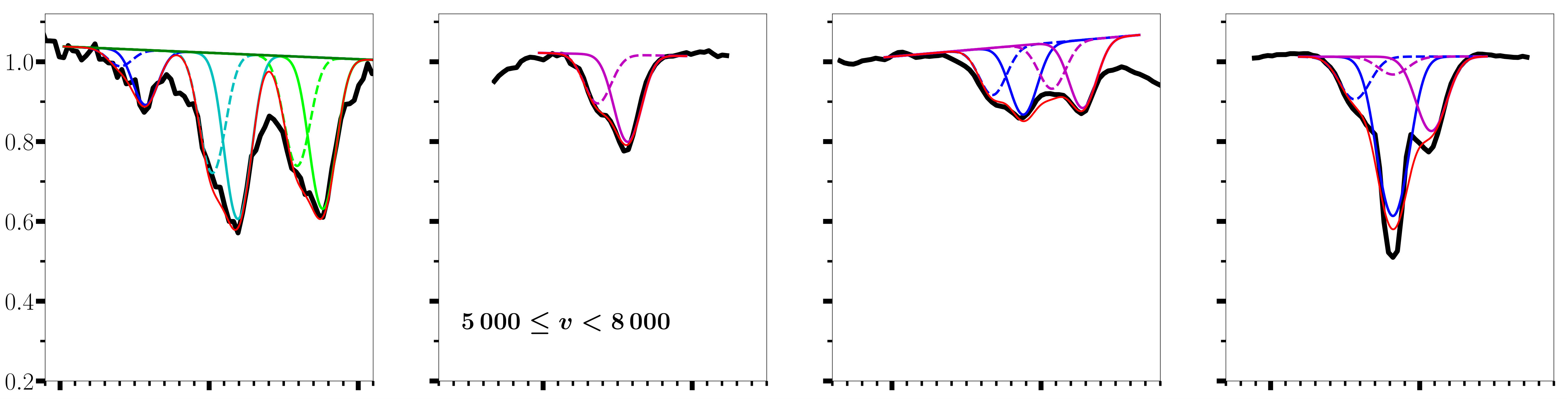

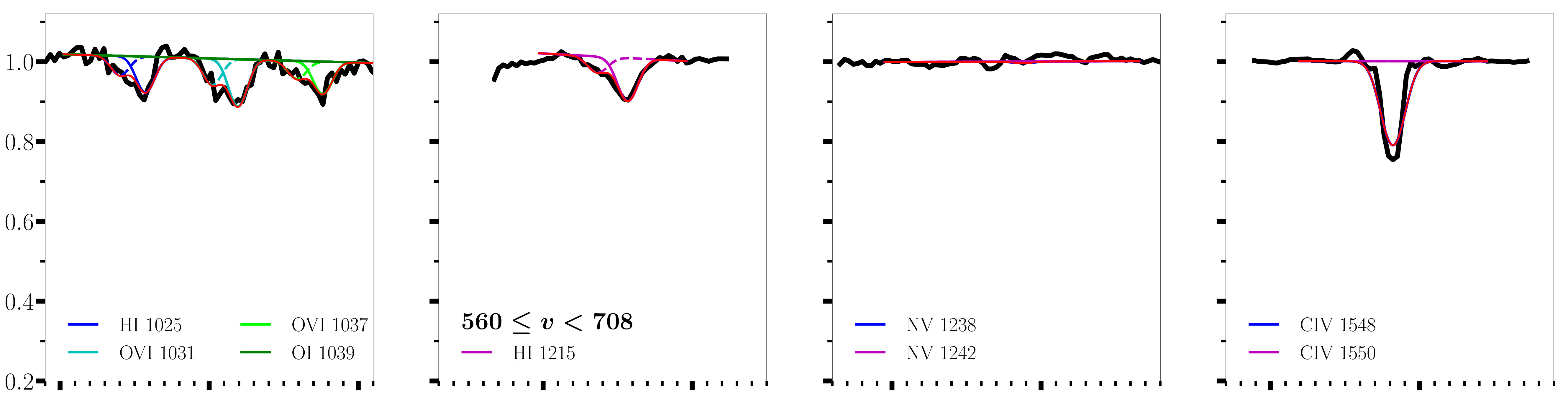

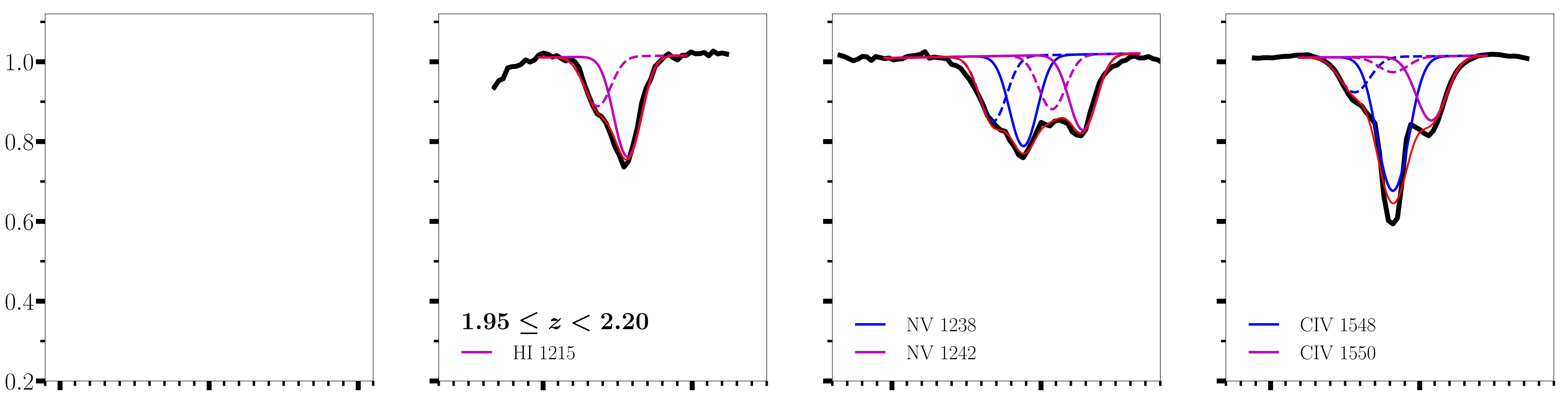

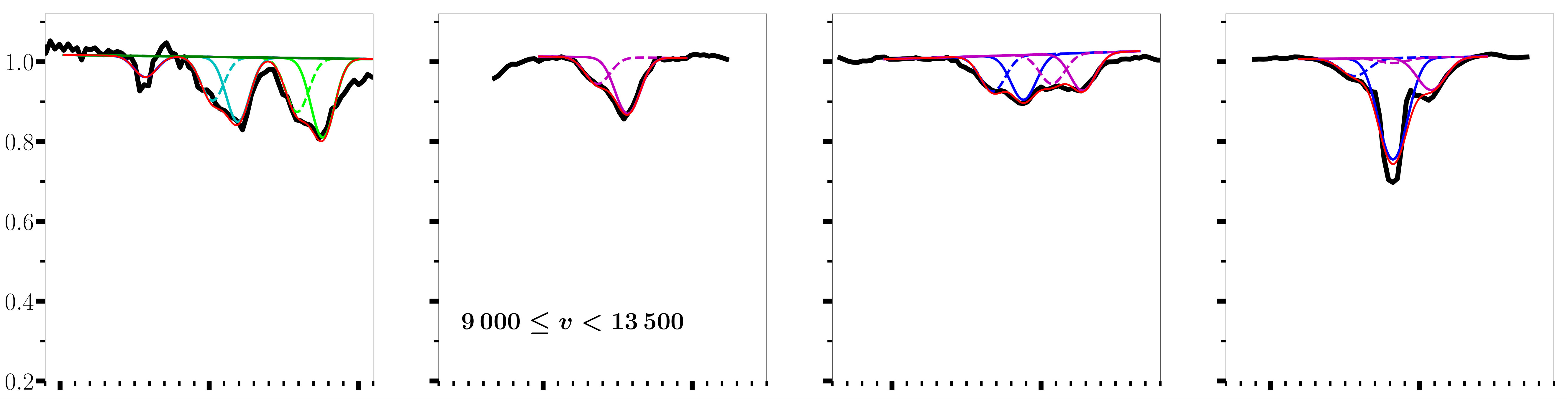

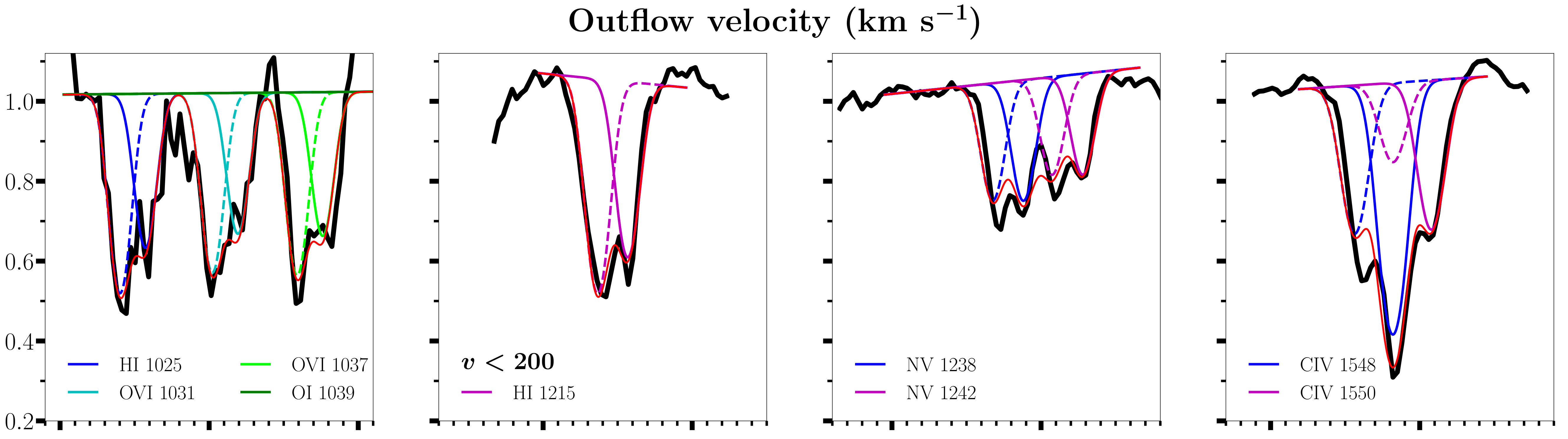

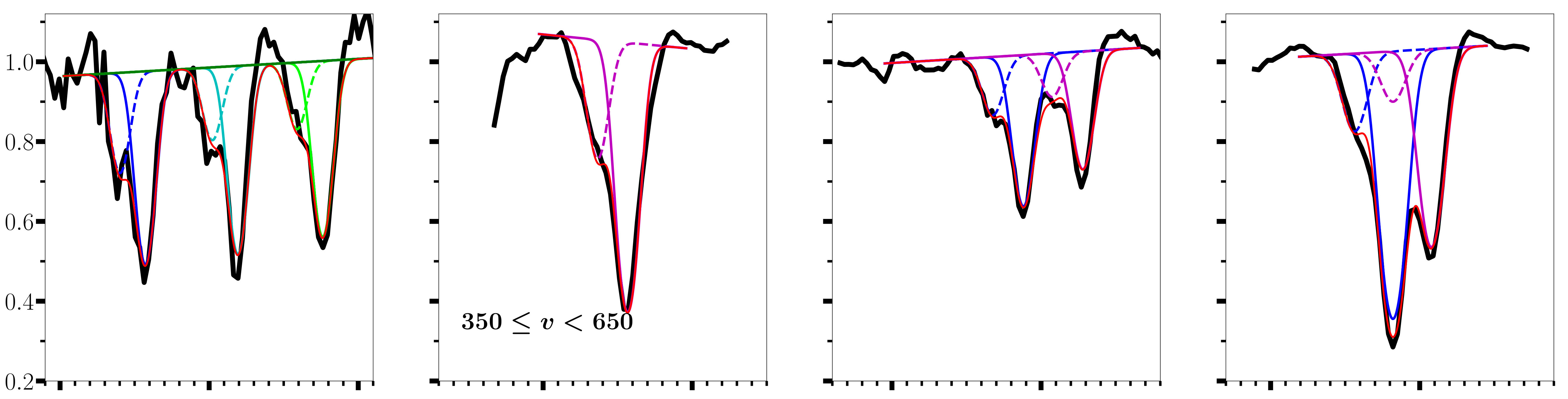

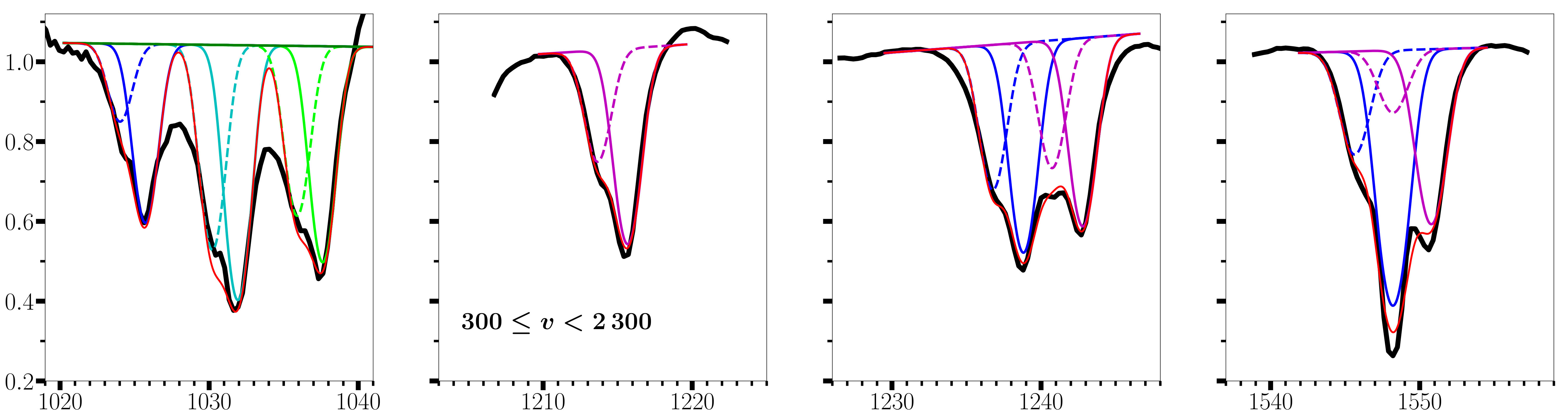

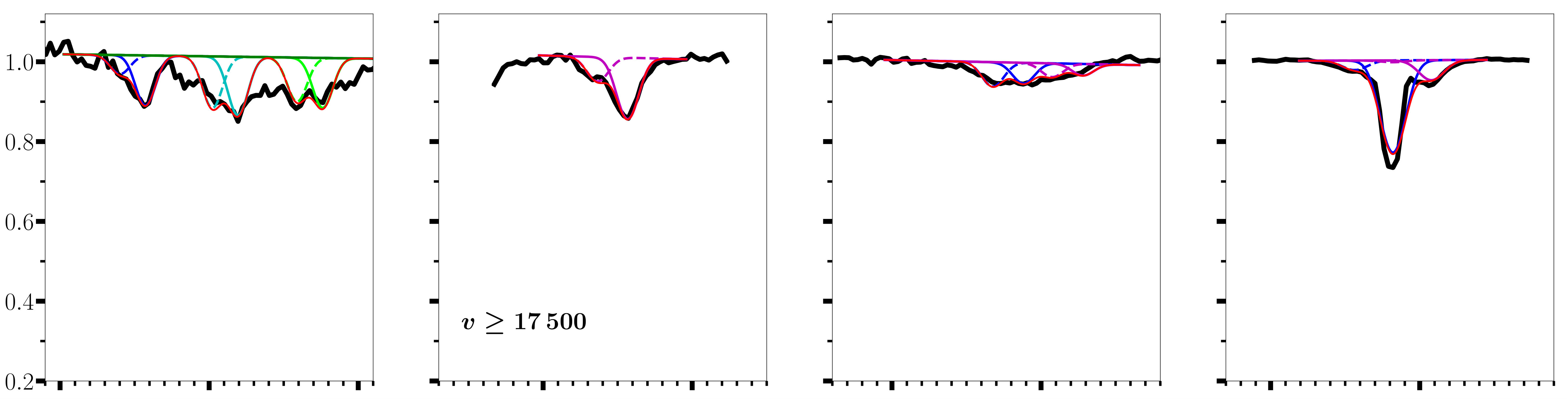

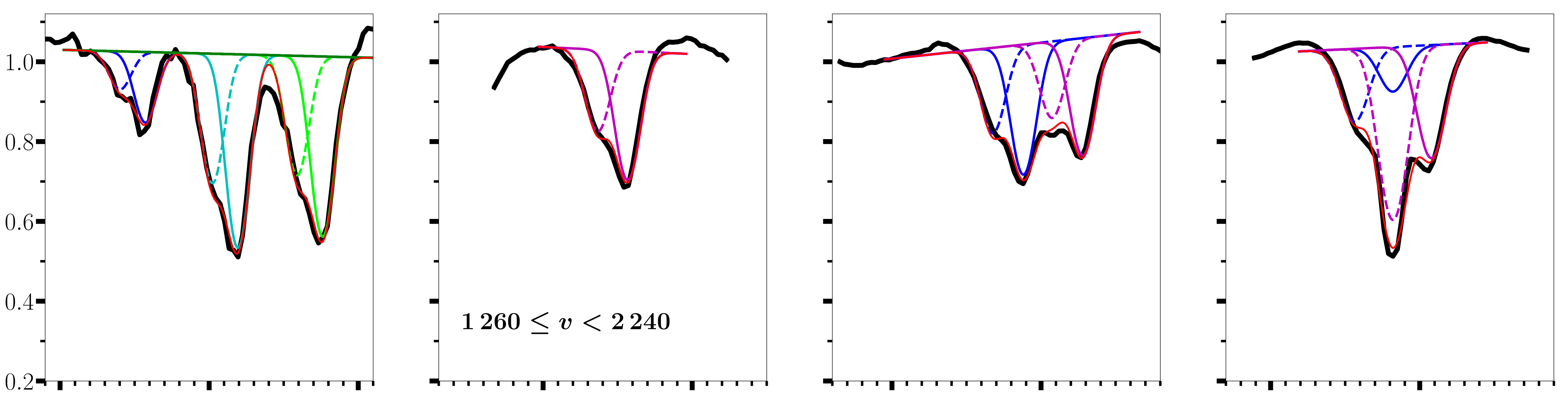

Figure 10 illustrates the fits to the four strongest absorption features in all our composite spectra. Cases for which a good fit cannot be obtained are left as blank. The color code is the same as used in Figure 6.
