Association of calcium network bright points with underneath photospheric magnetic patches

TL;DR

This study shows that bright points in the solar chromosphere's network lanes are strongly associated with underlying magnetic patches, with their brightness correlating linearly with magnetic field strength, extending our understanding of solar magnetic structures.

Contribution

It demonstrates the persistent spatial intermittency of magnetic fields from photosphere to chromosphere and establishes a quantitative correlation between bright points and magnetic field strength in polar regions.

Findings

Bright network points are correlated with magnetic patches.

Brightness of bright points linearly relates to magnetic field strength.

Magnetic field intermittency persists from photosphere to chromosphere.

Abstract

Recent dedicated Hinode polar region campaigns revealed the presence of concentrated kilogauss patches of magnetic field in the polar regions of the Sun which are also shown to be correlated with facular bright points at the photospheric level. In this work, we demonstrate that this spatial intermittency of the magnetic field persists even up to the chromospheric heights. The small-scale bright elements visible in the bright network lanes of solar network structure as seen in the Ca ii H images are termed as network bright points. We use special Hinode campaigns devoted to observe polar regions of the Sun to study the polar network bright points during the phase of last extended solar minimum. We use Ca ii H images of chromosphere observed by Solar Optical Telescope (SOT). For magnetic field information, level 2 data of spectro-polarimeter (SP) is used. We observe a considerable association between the polar network bright points and magnetic field concentrations. The intensity of such bright points is found to be correlated well with the photospheric magnetic field strength underneath with a linear relation existing between them.

Figures

Tables

Table 1. Table 1. : Summary of Ca  ii H observations from SOT. \ilabel tbl1

Data-Set	Observation Time	FOV	Pointing (Xc,Yc)	Target
a	2007-11-08	${60}^{\prime \prime }\times {40}^{\prime \prime }$	${100}^{\prime \prime },{935}^{\prime \prime }$	North Pole
	13:04 to 13:58 UT
b	2008-12-04	${40}^{\prime \prime }\times {55}^{\prime \prime }$	${45}^{\prime \prime },-{933}^{\prime \prime }$	South Pole
	18:16 to 18:59 UT
c	2008-12-05	${95}^{\prime \prime }\times {45}^{\prime \prime }$	${23}^{\prime \prime },{938}^{\prime \prime }$	North Pole
	10:01 to 10:59 UT
d	2009-04-01	${75}^{\prime \prime }\times {70}^{\prime \prime }$	$-{138}^{\prime \prime },-{885}^{\prime \prime }$	South Pole
	12:00 to 12:59 UT
e	2010-05-14	${160}^{\prime \prime }\times {40}^{\prime \prime }$	${20}^{\prime \prime },-{900}^{\prime \prime }$	South Pole
	12:02 to 12:57 UT
f	2012-03-18	${150}^{\prime \prime }\times {50}^{\prime \prime }$	$5^{\prime \prime },-{905}^{\prime \prime }$	South Pole
	13:00 to 13:59 UT

Table 2. Table 2. : Properties of network bright points. \ilabel tbl2

Data-	% area	avg. $\left|𝐁\right|$	avg. $\left|𝐁\right|$	max. $\left|𝐁\right|$
set	covered by	over	over all	within the
	bright points	full FOV	bright points	bright points
a	0.2	93 gauss	320 gauss	695 gauss
b	0.2	92 gauss	267 gauss	634 gauss
c	0.5	89 gauss	292 gauss	983 gauss
d	0.6	94 gauss	392 gauss	934 gauss
e	0.8	107 gauss	500 gauss	1210 gauss
f	0.5	122 gauss	322 gauss	686 gauss

Equations

$$I=I_0+M|B{|}^a\text{ilabel}eq1$$

Full text

\setlastpage\inarticletrue

{opening}

1 Introduction

\ilabel

sec:intro

The chromospheric network is a web-like pattern most easily seen as emission feature in the red line of hydrogen ($\mathrm{H}\alpha$) and the violet lines of calcium (Ca ii K and Ca ii H) images of Sun. This pattern or network is believed to be coincident with the boundaries of large-scale convective cells, known as the supergranules, each about 20-60 Mm in diameter (Rieutord and Rincon, 2010). Simon and Leighton (1964) found a one-to-one correlation in the position of supergranules and bright network seen on Ca ii K line spectroheliograms (also see Parker, 1978; Sheeley, Cooper, and Anderson, 2011). The supergranular convective flow across photosphere, pushes the magnetic elements towards the supergranules’ boundaries, so a network of magnetic field is formed. These elements are also buffeted by exploding granules and sometimes get annihilated or grow in size. These magnetic field clumps with several hundreds of gauss at the photospheric level leads to enhanced heating in the solar atmosphere, with a consequent increased brightening at certain wavelengths in chromospheric and coronal heights.

Frazier (1970) has shown that the downflows at the vertices, where several supergranular cells meet are much more prominent for the concentration of magnetic flux than the rest of cell boundaries. At these points the magnetic field appears comparatively enhanced, resulting in coinciding network bright points recognisable in Ca ii lines. These bright points are brighter than rest of the network structure and proposed to be associated with strong ($\sim$1000 gauss) magnetic fields, probably in the form of magnetic flux tubes emerging from below the photosphere. Figure \ireffig1 shows an example of Ca ii H observation obtained from Solar Optical Telescope (SOT) (Tsuneta et al., 2008b) aboard Hinode (Kosugi et al., 2007) which clearly marks the network bright points, and network and internetwork as distinguished features of the solar chromosphere. The nature of the network and its heating have been modeled by many authors (e.g. Gabriel, 1976; Schrijver, 2001; Wedemeyer-Böhm, Lagg, and Nordlund, 2009). For instance, in the model by Gabriel (1976), heating occurs along the field lines by magnetohydrodynamic (MHD) waves. Some oscillations may arise through the buffeting of narrow flux tubes at chromospheric altitudes by solar granulation, which leads to the propagation of MHD waves, causing the heating of chromospheric network and upper atmosphere. The heating is greatest where the field lines are most concentrated, at the common boundaries of many super-granules, in particular, network bright points. A different scenario involving magnetic dipole evolutions have also been proposed by many authors (e.g. Harvey and Martin, 1973; Harvey, 1985; Webb et al., 1993) for explaining the observed enhanced brightening in the different layers of the solar atmosphere. In this process, the change in magnetic flux due to cancellation, emergence, fragmentation, and coalescence occurring at the locations of supergranular network junctions leads to the excess chromospheric and coronal brightenings (Egamberdiev, 1983; Habbal, Withbroe, and Dowdy, 1990).

Network bright points observed in polar regions of Sun are referred as polar network bright points. They populate higher heliographic latitudes above $60\,^{\circ}$ or $70\,^{\circ}$. Using high-resolution spectro-polarimetric observations with SOT, it is found that the polar region of Sun has isolated patches of the concentrated magnetic field with strengths exceeding 1 kilogauss (see Tsuneta et al., 2008a; Ito et al., 2010 for details). Moreover, Tsuneta et al. (2008a) and Kaithakkal et al. (2013) have reported that the kilogauss patches coincide in position with polar faculae at the photosphere. We expect the spatial intermittency of the magnetic field to persist even at the chromospheric level i.e. with polar network bright points. In this paper, we investigate the association between the network bright points and magnetic patches using automated techniques. For this purpose, we have used SOT observations specifically devoted to observe polar regions of the Sun. In particular, we have used Ca ii H passband images along with co-spatial and co-temporal level 2 spectro-polarimetric data observed by SOT. We have analyzed different datasets in polar regions of the Sun, details of which are given in Section \irefsec:data. Results are discussed in Section \irefsec:result and conclusions drawn from the study are summarized in Section \irefsec:conclusion.

2 Observations and Data Analysis

\ilabel

sec:data

2.1 Details of Observations

\ilabel

sub:data1

We have analyzed six polar datasets in this study (see Table \ireftbl1). To study low chromospheric features, the Ca ii H bandpass of Broad-Band Filter Imager (BFI) of SOT, centered at 396.85 nm with a band-width of 0.3 nm is used. The SOT Ca ii H data is calibrated by using the IDL routine of fg_prep.pro available through SOT library of solarsoft. For magnetic field estimation, we used co-spatial and co-temporal level 2 data obtained by spectro-polarimeter(SP) of SOT. The SP creates high-precision Stokes polarimetric line profiles of the Fe I 6301.5 nm and 630.25 nm spectral lines. The primary product (Level 1) of the SP is Stokes IQUV spectra suitable for the derivation of vector magnetogram maps of the solar photosphere. The Level 2 data of the SP (provided at https://csac.hao.ucar.edu/sp˙data.php and http://sot.lmsal.com/data/sot/level2d/) are outputs from spectral line inversions using the HAO ”MERLIN” inversion code developed under the Community Spectro-polarimetric Analysis Center (CSAC) initiative. It performs a least-squares fitting of the Stokes profiles using the Milne-Eddington atmospheric approximation that allows for a linear variation of the source function along the line-of-sight, but holds the magnetic field vector, line strength, Doppler shift, line broadening, magnetic fill fraction (or scattered light fraction) constant along the line-of-sight. For every Ca ii H data-set mentioned in Table \ireftbl1, there exists a corresponding SP Level 2 data containing a complete set of inversion parameters. From the Level 2 data of SP, we mostly use map of magnetic field strength as our interest mainly lies in studying the relationship between the chromospheric Ca ii H intensity and the strength of magnetic field present at the corresponding locations in the photosphere. Considering that the typical lifetime of supergranular cells is approximately a day and we are interested in the long-term enhanced heating of chromosphere, we performed all the analysis over time-averaged Ca ii H images. Hence, we obtained a single average Ca ii H intensity map for each dataset mentioned in Table 1. The pixel sampling of the Ca ii H images is $0.11^{\prime\prime}$ whereas that of the maps magnetic field strength is $0.32^{\prime\prime}$ hence the pixel resolution of the Ca ii H images was degraded to $0.32^{\prime\prime}$ (spatial resolution of $\sim 0.65^{\prime\prime}$) in order to maintain the consistency between Ca ii H intensity and magnetic filed strength maps throughout the study.

2.2 Identification of Bright-Point Regions

\ilabel

sub:data2

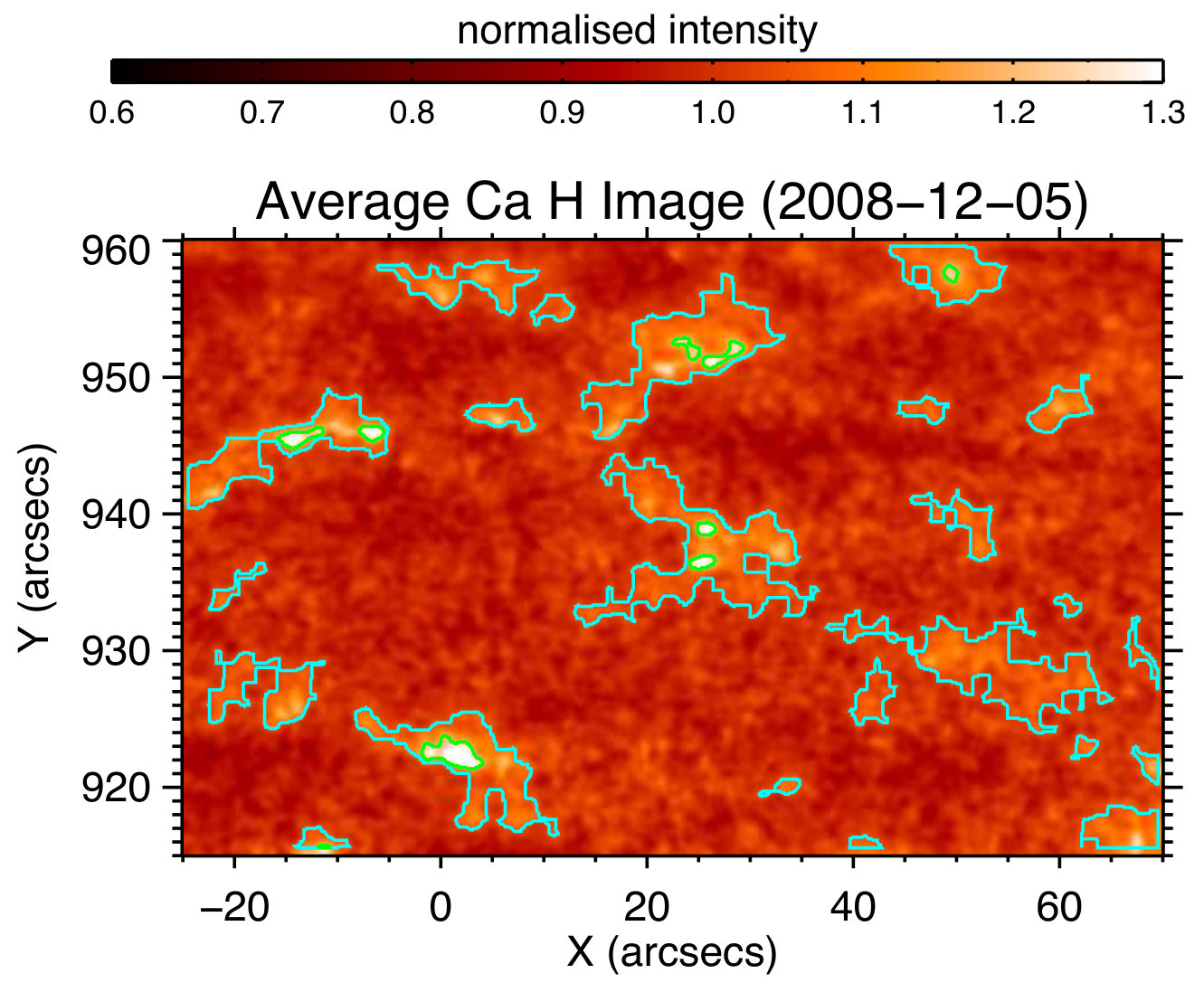

Pixels with the intensity greater than a given threshold (as discussed below) in Ca ii H intensity map are classified as belonging to network bright points. The procedure applied to every average Ca ii H image for selecting such pixels is as follows (refer to Figure \ireffig1 and \ireffig2): for every $\mu$, the mean and standard deviation($\sigma$) of the intensity over the corresponding pixels was calculated. The parameter $\mu$ is defined as the cosine of the angle between the surface normal and line of sight to the observer. It varies between 1 at disk center to 0 at the limb (Thompson, 2006). For every $\mu$, the pixels with intensity greater than 1.1$\sigma$ of the respective mean were identified as network regions. Figure \ireffig2 shows the normalized intensity as a function of $\mu$ for the average Ca ii H image of the data-set (c). The spikes in the plot are attributed to network bright points, while the smaller fluctuations about 1.0 are ascribed to network structure. The blue curve in Figure \ireffig2 indicates the threshold for network region selection. Figure \ireffig1 shows the average Ca ii H normalized intensity image for the data-set (c) which marks the identified network regions enclosed in the blue contours.

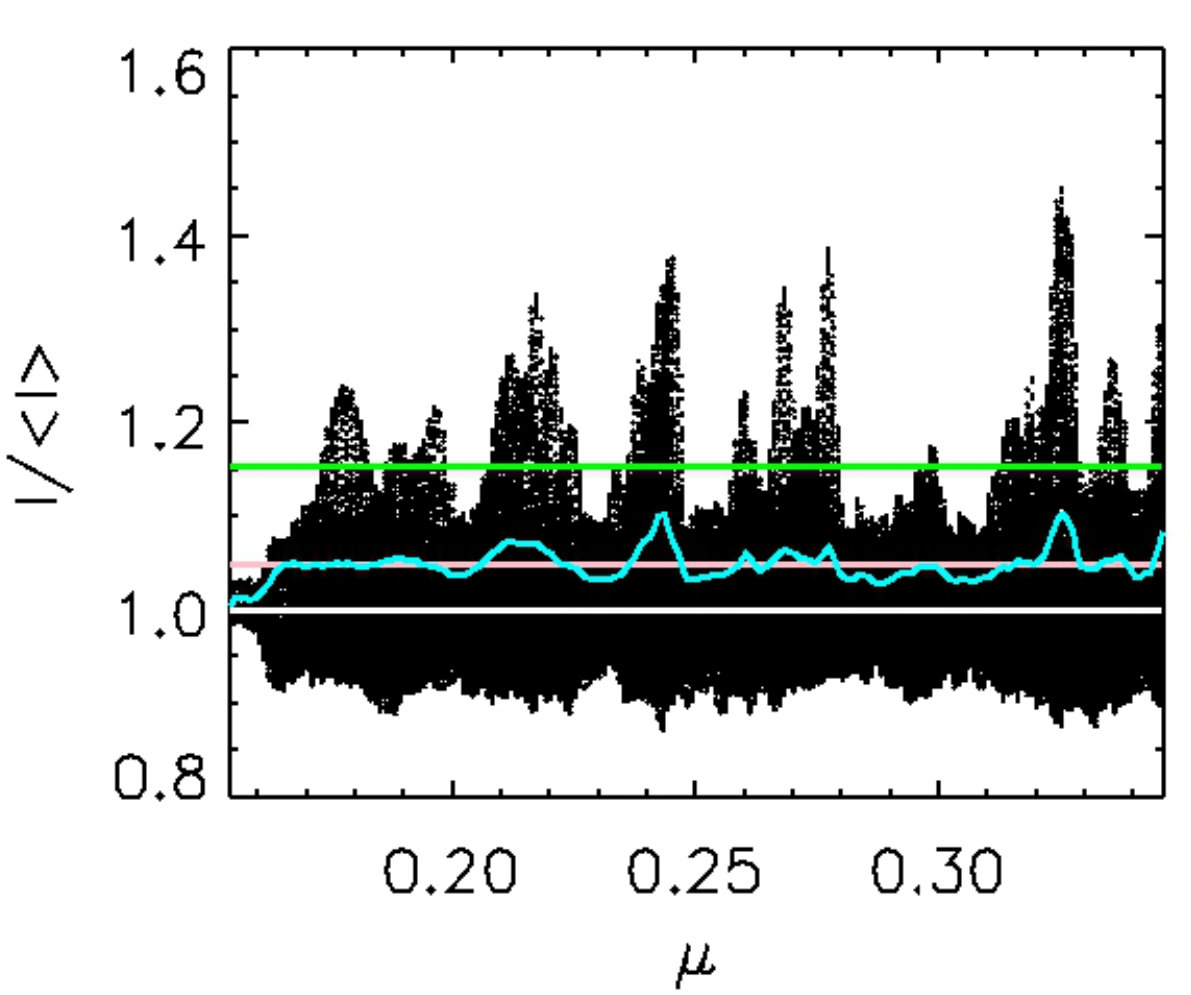

From the selected network regions, the pixels with intensity more than 1.1 of average intensity of all the network regions selected in the image were marked as the locations of network bright points. In Figure \ireffig2 the green line shows such threshold for detection of bright point pixels. The pink line marks the value of the average intensity over all the network regions detected in the image. The green line (threshold for the bright points) marks the value equals to 1.1 of the pink line. The detected bright point pixels were then clubbed into isolated bright point regions (using the IDL function label_region) with an area threshold of 50 pixels, i.e. the bright point region should have the total number of pixels to be more than 50 in order to be selected. The spatial resolution of the images is $\sim 0.65^{\prime\prime}$ and thus the area threshold for significant detection of the bright points should be more than $0.65^{\prime\prime}\times 0.65^{\prime\prime}$. Henceforth, we fixed the area-threshold of 50 pixels which roughly corresponds to $1^{\prime\prime}\times 1^{\prime\prime}$ area. Such detected regions were considered to represent the network bright point regions which are indicated by green contours in the Figure \ireffig1. Every such identified network bright point region was then aligned with the corresponding region in the respective magnetogram. Figure \ireffig3 showcases various examples of co-aligned network bright points and magnetic patches where the network (blue) contours and bright point (green) contours are plotted over normalized Ca ii H intensity and magnetic strength maps. Note that our method of identification of calcium network bright points is automated and thus is free from the involvement of human subjectivity. The limitation of our method lies in its inability to identify the bright points very close to the limb as noise becomes dominant because of low data-counts present near the limb.

3 Results and Discussions

\ilabel

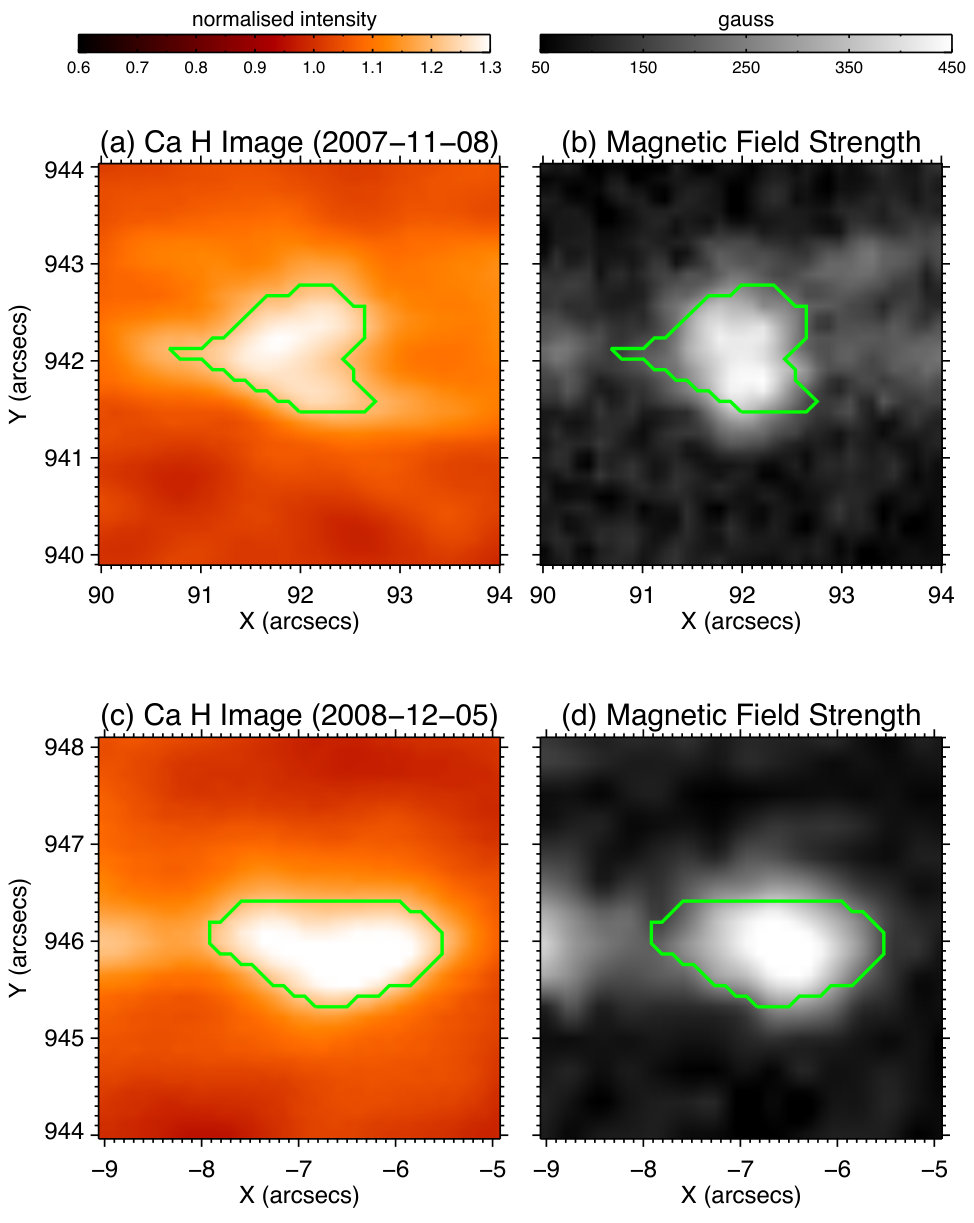

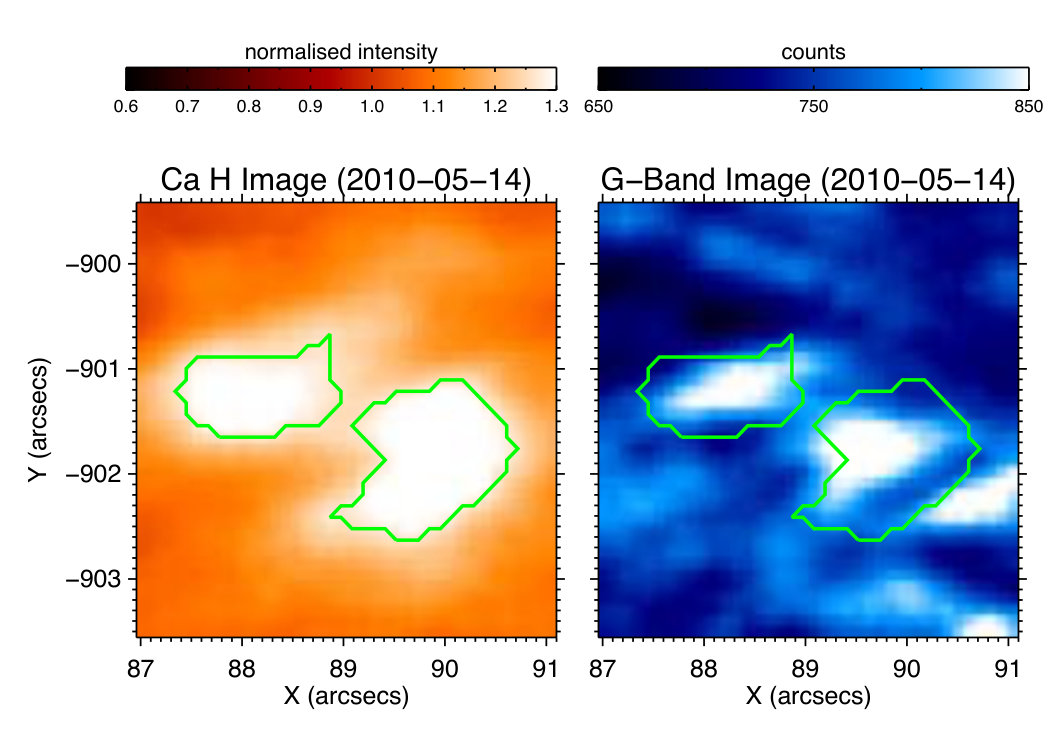

sec:result We find that the network bright points, as seen in Ca ii H images are almost always associated with the magnetic patches as seen in the photosphere (as illustrated in Figure \ireffig3). Their sizes are $\sim 1^{\prime\prime}-5^{\prime\prime}$. The lower limit of $1^{\prime\prime}$ of size of the bright-points is dictated by the minimum area-threshold applied while detecting the bright-points (mentioned in Section \irefsub:data2). As shown in a particular example in Figure \ireffig4, the Ca ii H bright-points (as defined here) seem to be co-spatial with the groups of G-band bright-points or faculae. Figure \ireffig1 and \ireffig3 clearly show that the percentage area covered by the network bright points (green contours) is considerably small. Table \ireftbl2 shows the percentage area of bright points in each data-set studied, along with average magnetic field strength over the whole field of view and only within bright points. Though the percentage area occupied is low, the magnetic field strength concentrated under the network bright points is generally high as compared to the values of the average field strength over the full FOV of SOT observations. This implies that the overall behaviour of the polar magnetic field should be governed by the magnetic fields underneath these locations on an average.

It is important to note that we do not consider all the pixels of the FOV while performing the averaging over the entire FOV. The pixels where the inversion code could not converge (reflected as NAN values) were completely discarded while taking the average. Such locations generally occur in the internetwork regions where the signal is poor to obtain any reliable fits to the Stokes profiles. The internetwork locations could possibly be having lower magnetic field strengths (Lites et al., 2008) which cannot be estimated due to observational and technical limitations in case of polar region observations. The exclusion of such locations can effect the value of the average field strength calculated over the full FOV. On the other hand, this do not effect the estimation of magnetic field strength in the bright-points as these are significantly brighter regions with considerable high signal.

Figure \ireffig4 shows that the value of the magnetic field strength can reach up to 600 gauss within the bright point regions. The maximum field strength within the bright point, which happen to be at the centre of the bright point/magnetic patch, reaches up to 1 kilogauss in many cases, as shown in Table \ireftbl2. Tsuneta et al. (2008a) and Kaithakkal et al. (2013) have also reported the values of the order of a few kilogauss in concentrated magnetic patches. More recently, Pastor Yabar, Martínez González, and Collados (2018) have also observed the presence of strong magnetic field elements of strength 600-800 gauss at the solar poles. In the past era, the low-resolution observations were unable to detect these small-scale locations of strong magnetic field strengths which is now possible with enhanced resolution data.

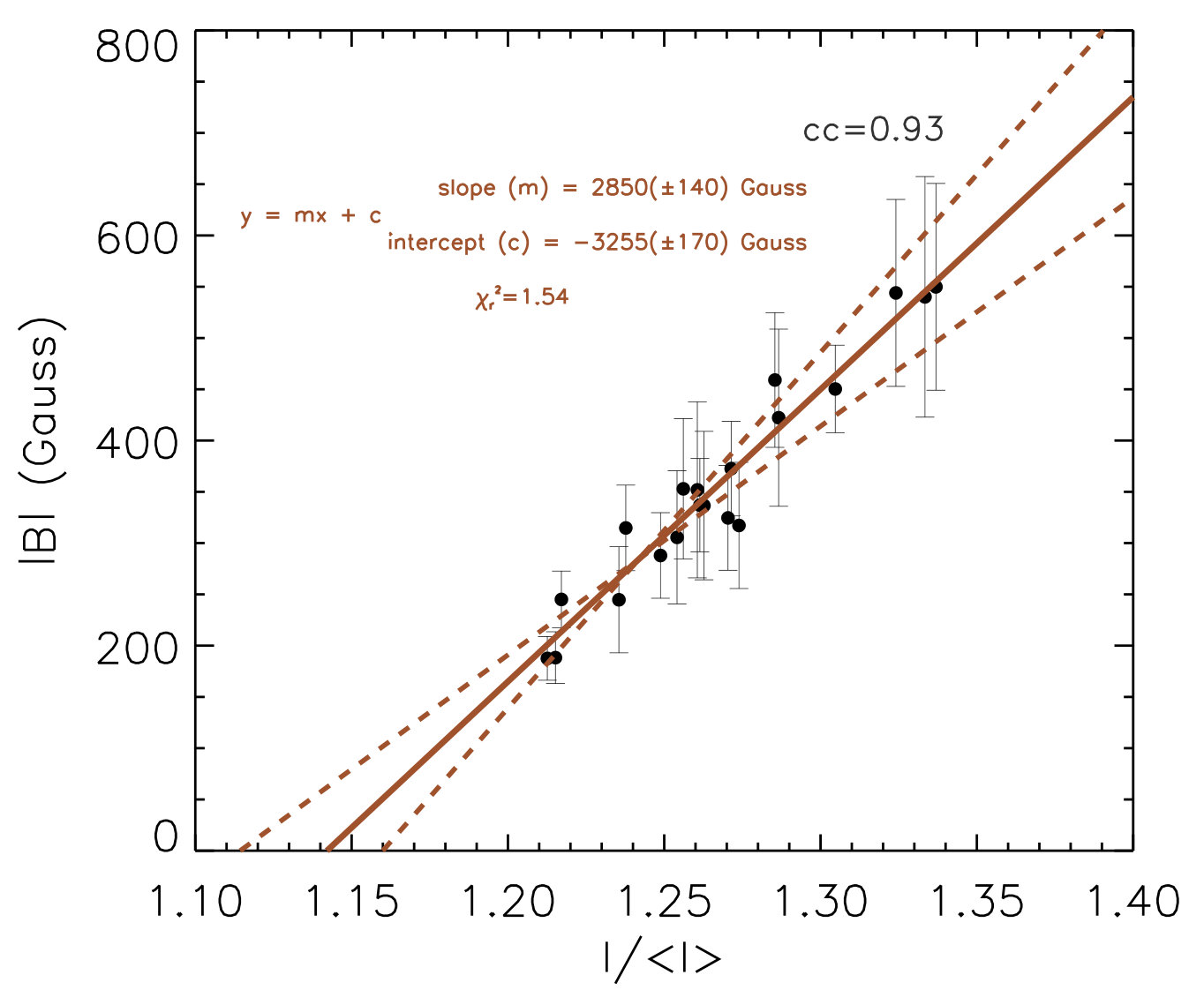

Along with considerable spatial association observed between network bright points and magnetic patches, we find that a good correlation exists between bright point intensity and magnetic field strength. Figure \ireffig5 shows the scatter plot of the normalised Ca ii H intenisty ($I~{}/<I>$) and magnetic field strength ($|B|$) for all the bright points detected in the 6 data-sets. Note the high value of correlation coefficient (cc) of 0.93. We have attempted to calibrate the normalized Ca ii H intensity with the corresponding magnetic field strength of the bright points. In Figure \ireffig5, the straight solid line shows the best fit (based on the chi-square minimization) and corresponding slope and intercept is indicated by m and c along with the respective fitting errors in the estimates. For a network bright point with the value of $I~{}/<I>$ that is greater than 1.14, the value of $|B|$ can be calculated by using this value of the slope (m=2850 gauss) and the intercept (c=–3255 gauss). For $I~{}/<I>$ less than 1.14, the deduced relation will yield a negative value of $|B|$ which is unphysical. Considering the errors in the slope and intercept, the percentage error in the deduced magnetic field strength from this linear relation turns out be 10%.

It is worthwhile to mention that the magneto-hydrodynamic (MHD) models by Schrijver, Dobson, and Radick (1989); Solanki, Steiner, and Uitenbroeck (1991) and Schrijver (1993) have predicted the presence of power-law dependence of calcium intensity over the magnetic field strength as shown in Equation \irefeq1 below:

[TABLE]

where $I$ denotes the observed calcium intensity, $I_{0}$ represents the zero or basal intensity, $|B|$ denotes magnetic field strength, $M$ is a constant multiplier and $a$ to be the power-law index. For instance, the flux tube model of Schrijver (1993) have proposed the value of the power-law index ($a$) to be $\sim 0.4$. Whereas, different observations (Schrijver et al., 1989; Harvey and White, 1999; Rezaei et al., 2007; Loukitcheva, Solanki, and White, 2009) have obtained different values of a to be ranging from 0.2 to 0.7. On the other hand, Skumanich, Smythe, and Frazier (1975) and  Nindos and Zirin (1998) have observed the linear relation (i.e. $a=1.0$), which yields similar result as obtained in the present study.

The linear relation between Ca ii H intensity and magnetic field strength indicates that the network bright-points can be considered as individual flux-tubes (Schrijver et al., 1989), well isolated from each other. The atmospheric heating over such flux-tubes is independent of the ambient magnetic topology and hence results in the linear relation between Ca ii H (or K) intensity and field strength. In addition, as pointed out by Skumanich, Smythe, and Frazier (1975), the non-linear effects appear with the inclusion of weak field ($<50$ gauss) and very strong field ($>1$ kilogauss) locations. The linear trend obtained here could be an effect of selection of the features of interest. Hence, it is important to note that the linear relation obtained here is valid generally for the network bright points i.e. for the compact brighter locations ($\sim 1^{\prime\prime}-5^{\prime\prime}$) inside the bright network regions with the values of normalised calcium intensity to be more than 1.20 and thus magnetic field strengths to be greater than 200 gauss, up to $\sim 1$ kilogauss (as depicted by Figure \ireffig5). Beyond this regime, which could map different class of features and structures, this linear relation may or may not hold good, i.e. the power-law index (a) in Equation (1) could be different than 1.0 with completely different values of other constants. Moreover, for the active region plages, which posses similar magnetic field strengths, intensity values and sizes but are embedded in a completely different magnetic environment as compared to network bright points, the relation between calcium intensity and magnetic field strength could be different (see Harvey and White, 1999 for details).

4 Conclusions

\ilabel

sec:conclusion

Recently, Tsuneta et al. (2008a) and Kaithakkal et al. (2013) have shown that the magnetic patches of strengths $\sim$1 kilogauss coincide in position with polar faculae. In the present work, we have studied six polar region observations from SOT and established that such an association between enhanced brightness and magnteic field strength persists up to the chomosphere in the polar regions of the Sun. We find that the calcium network the bright points mostly exists at the locations of concentrated magnetic field locations. We have observed a considerable spatial association between the network bright points and magnetic patches in all the data-sets. Moreover, a good correlation exists between normalized Ca ii H intensity and photospheric magnetic field strength of the network points and linear relation is present between them. Such linear trend indicates that the network bright-points can be regraded as isolated flux-tubes anchored in the photosphere, and the atmospheric heating above these locations is insensitive to the neighbouring magnetic environment. Though the percentage area covered by the network bright points is considerably small, they posses high magnetic field values and thus contribute to the global polar field majorly. These chromospheric Ca ii H bright points seems to be co-spatial with groups of G-band bright points in th photosphere. This clearly indicates that these different features are directly coupled with each other, though present in different layers of the solar atmosphere, and happen to be manifestations of the magnetic field concentrations present in the lower photosphere.

Acknowledgments

Hinode is a Japanese mission developed and launched by ISAS/JAXA, with NAOJ as domestic partner and NASA and STFC (UK) as international partners. It is operated by these agencies in cooperation with ESA and NSC (Norway). N. N. acknowledges Human Resource Development Group (HRDG) of Council of Scientific and Industrial Research (CSIR), India for awarding Senior Research Fellowship (SRF). V. P. is supported by European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme. Authors would like to thank anonymous referee for her/his detailed comments which led to the improvement of the manuscript.
