On the location of the ring around the dwarf planet Haumea

TL;DR

This study analyzes the dynamics of particles near Haumea's ring, revealing that the ring likely resides in a stable region associated with first kind periodic orbits rather than the 1:3 resonance.

Contribution

The paper identifies the stability regions around Haumea's ring and suggests the ring's location is linked to first kind periodic orbits instead of the 1:3 resonance.

Findings

The 1:3 resonance is doubled, creating a chaotic layer that reduces stable regions.

A minimum eccentricity is required for the 1:3 resonance to exist, likely too high for ring particles.

Stable regions associated with first kind periodic orbits are larger and encompass the ring area.

Abstract

The recently discovered ring around the dwarf planet (136108) Haumea is located near the 1:3 resonance between the orbital motion of the ring particles and the spin of Haumea. In the current work is studied the dynamics of individual particles in the region where is located the ring. Using the Poincar\'e Surface of Section technique, the islands of stability associated with the 1:3 resonance are identified and studied. Along all its existence this resonance showed to be doubled, producing pairs of periodic and quasi-periodic orbits. The fact of being doubled introduces a separatrix, which generates a chaotic layer that significantly reduces the size of the stable regions of the 1:3 resonance. The results also show that there is a minimum equivalent eccentricity ($e_{1:3}$) for the existence of such resonance. This value seems to be too high to keep a particle within the borders of the ring. On the other hand, the Poincar\'e Surface of Sections show the existence of much larger stable regions, but associated with a family of first kind periodic orbits. They exist with equivalent eccentricity values lower than $e_{1:3}$, and covering a large radial distance, which encompasses the region of the Haumea's ring. Therefore, this analysis suggests the Haumea's ring is in a stable region associated with a first kind periodic orbit instead of the 1:3 resonance.

Figures

Equations

$$C_{20}=(2c^2-a^2-b^2)/10{R_e}^2=-0.243$$

$$C_{22}=(a^2-b^2)/20{R_e}^2=0.049$$

$$\ddot{x}-2\omega\dot{y}=\omega^{2}x+U_{x}$ ,$$

$

$$\ddot{y}+2\omega\dot{x}=\omega^{2}y+U_{y}$ ,$$

$

$$U(x,y)=\frac{GM}{r}\left(1-{\left(\frac{R_e}{r}\right)}^2\left[\frac{C_{20}}{2}-\frac{3C_{22}}{r^2}(x^2-y^2)\right]\right),$$

$$C_j={\omega }^2(x^2+y^2)+2U(x,y)-{\dot{x}}^2-{\dot{y}}^2.$$

$${\varphi }_{1:3}={\lambda }_H-3\lambda +2\varpi ,$$

Full text

††pagerange: On the location of the ring around the dwarf planet Haumea–REFERENCES††pubyear: 2017

1 Introduction

(136108) Haumea is one of the four known dwarf planets beyond the orbit of Neptune. It has two small satellites, an elongated shape and a short spin period ($T_{\rm Haumea}=3.9155$ hours). Recently, through a multi-chord stellar occultation, Haumea was found to have a ring (Ortiz et al., 2017). Data from this occultation combined with light curves constrained Haumea’s triaxial ellipsoid shape, with values of semi-axes $a=1,161\pm 30$ km, $b=852\pm 4$ km and $c=513\pm 16$ km (Ortiz et al., 2017). The values of the ratios $a/b$ and $a/c$ are the highest found in bodies encircled by rings, rising the question on how such peculiar gravitational potencial would affect the ring particles. The orbital radius of Haumea’s ring is $r_{\rm ring}=2,287_{-45}^{+75}$ km, placing it close to the 1:3 resonance ($a_{1:3}=2,285\pm 8$ km) between the orbital motion of the ring particles and the spin of Haumea (Ortiz et al., 2017).

In the present work we explore the dynamics of individual particles in the region where is located the ring. The main goal is to identify the structure of the region in terms of location and size of the stable spots and also the reason for their existence. Of particular interest is trying to understand the dynamical structure associated with the 1:3 resonance. Considering a two-dimension system composed by the ellipsoidal Haumea and a massless particle in the equatorial plane, the Poincaré surface of section technique fits very well these objectives.

The adopted dynamical system and the Poincaré Surface of Section technique are presented in the next two sections. In Section 4 are discussed the characteristics of the resonant and non-resonant periodic orbits found in the surfaces of section. The locations and sizes of the stable regions associated with the 1:3 resonance and those associated with the first kind periodic orbits are compared to the location and size of Haumea’s ring in Section 5. Our final comments are presented in the last section.

2 Dynamical System

In the current work we study the trajectories of massless particles orbiting the ellipsoidal Haumea represented as an uniformly rotating second degree and order gravity field. The values of the gravitational potential coefficients that correspond to the oblateness ($C_{20}$) and to the ellipticity ($C_{22}$) are obtained from the ellipsoidal semi-axes using (Balmino, 1994)

[TABLE]

and

[TABLE]

where $R_{e}=(a\,b\,c)^{1/3}$ .

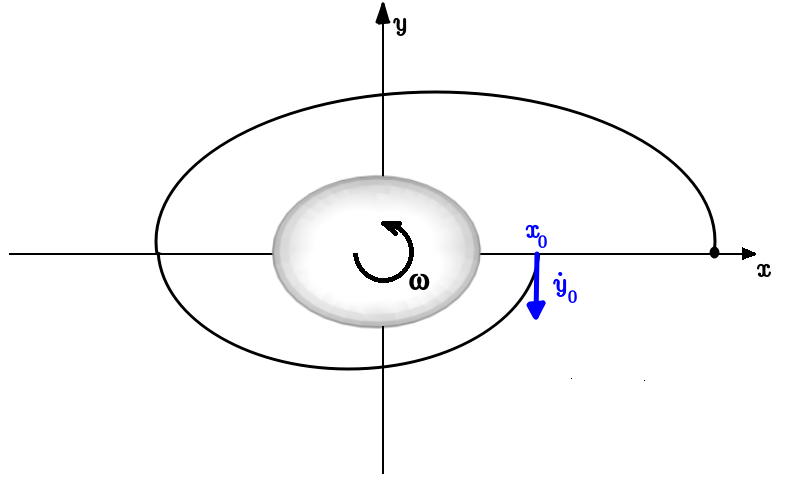

The equations of motion in the body-fixed frame (O$xy$), a frame uniformly rotating with the same period of Haumea’s spin, as shown in Figure 1, is given by (Hu & Scheeres, 2004)

[TABLE]

[TABLE]

where $\omega$ is the spin velocity of Haumea, $U_{x}$ and $U_{y}$ stand for the partial derivatives of the gravitational potential given in Equation (5).

[TABLE]

where $G$ is the gravitational constant, $M=4.006\times 10^{21}$ kg is the mass of Haumea (Ortiz et al., 2017) and $r=\sqrt{x^{2}+y^{2}}$. Conserved quantities, such as the Jacobi constant ($C_{j}$), can be useful to analyze the equations of motion. This constant is explicitly computed as (Hu & Scheeres, 2004):

[TABLE]

Adopting the masses and orbits of Namaka and Hi’iaka (Ragozzine & Brown, 2009), satellites of Haumea, we find that they have pericentre distances of about $20\times 10^{3}$ km and $47\times 10^{3}$ km, while their Hill radii are about $1\times 10^{3}$ km and $5\times 10^{3}$ km, respectively. Therefore, the gravitational influence of these satellites on particles close to the location of the ring ($r\sim 2\times 10^{3}$ km) is not significant. So, these two satellites are not taken into account in the current work.

3 Poincaré Surfaces of Section

The Poincaré surface of section technique allows the determination of the location and size of the regular and chaotic regions of low dimensional dynamical systems. It also provides information on periodic and quasi-periodic orbits, resonant or not. This technique has been broadly applied in celestial mechanics. With the development of computer machines, more than half century ago, they were used in many studies of the planar circular restricted three-body problem (Hénon 1965a,b, 1966a, b, 1969; Jefferys 1971).

On the other hand, there are a few works that adopted the Poincaré surface of section when the dynamical system in study is a two-body problem, whose central body has non-spherical distribution of mass. For example, Scheeres et al. (1996) used it in order to find periodic orbits around the asteroid 4769 Castalia. Jiang et al. (2016) showed the chaotic behaviour of trajectories around the asteroid 216 Kleopatra through a couple of surfaces of section. Borderes-Motta & Winter (2018) also adopted it to explore the region nearby the asteroid 4179 Toutatis taking into account its three-dimensional irregular shape.

In the current work we follow the same approach described in Borderes-Motta & Winter (2018). The equations of motion (Equations (1-2)) are numerically integrated via the Bulirsh-Stoer integrator (Bulirsh& Stoer, 1966). The Poincaré surfaces of section are set in the plane $y=0$ and the initial conditions are systematically distributed over the $x$ axis. In general, it was fixed $y_{0}=\dot{x}_{0}=0$, and $\dot{y}_{0}$ was computed for a fixed value of $C_{j}$ (Equation 6), taking $\dot{y}_{0}<0$ (Figure 1). During the integration, the conditions of the orbit are saved every time the trajectory crosses the section defined by $y=0$ with $\dot{y}<0$. The Newton-Raphson method is used to obtain an error of at most $10^{-13}$ from that section. The recorded points are plotted on the plane $(x,\dot{x})$ creating the Poincaré surface of section.

For a given value of $C_{j}$ is built one surface of section composed of many trajectories. In general, we considered between 20 and 30 initial conditions for each $C_{j}$. In a surface of section, periodic orbits produce a number of fixed points, while quasi-periodic orbits generate islands (closed curves) around the fixed points. On the other hand, chaotic trajectories are identified by points spread over a region, covering an area of the section.

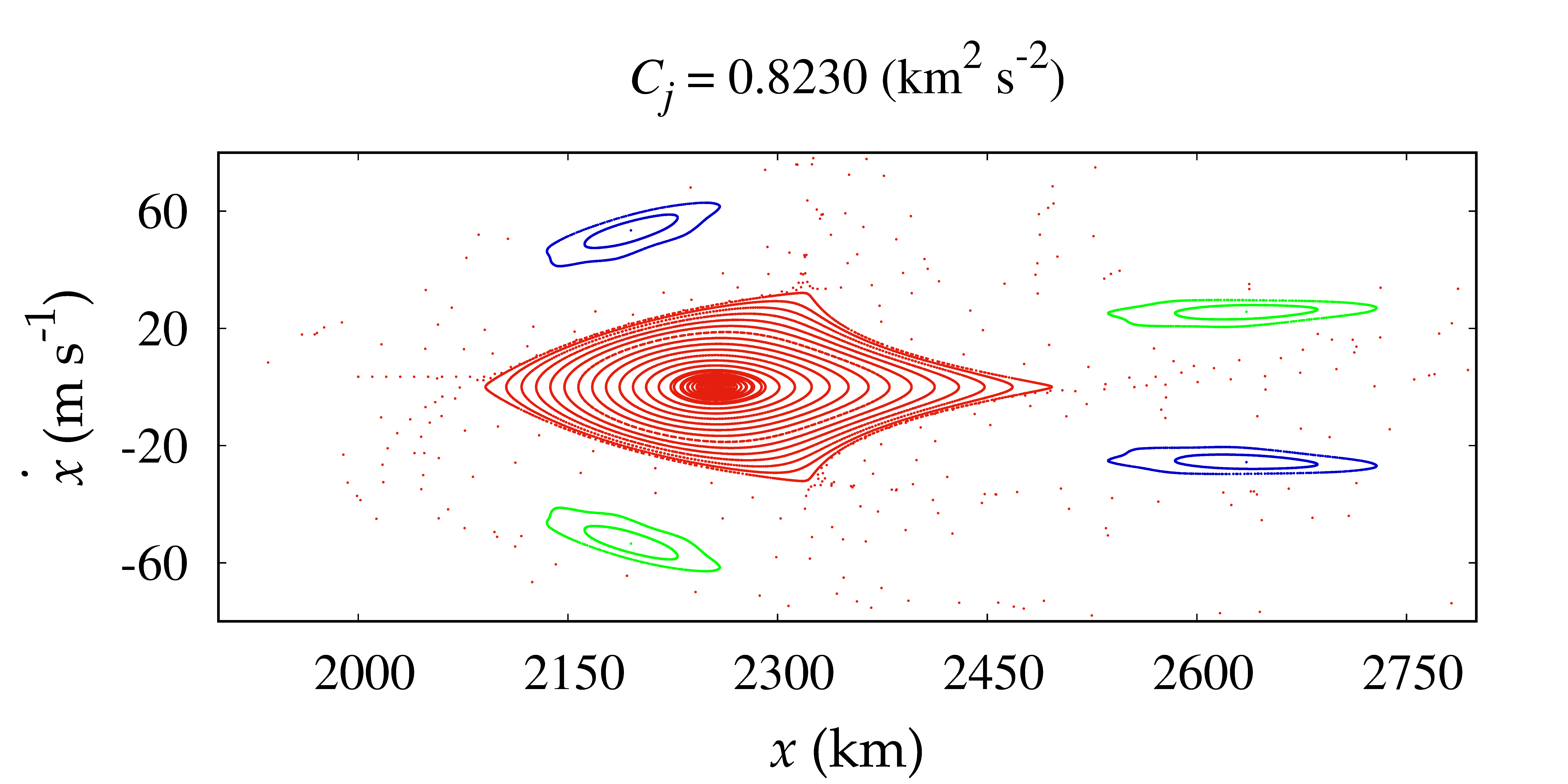

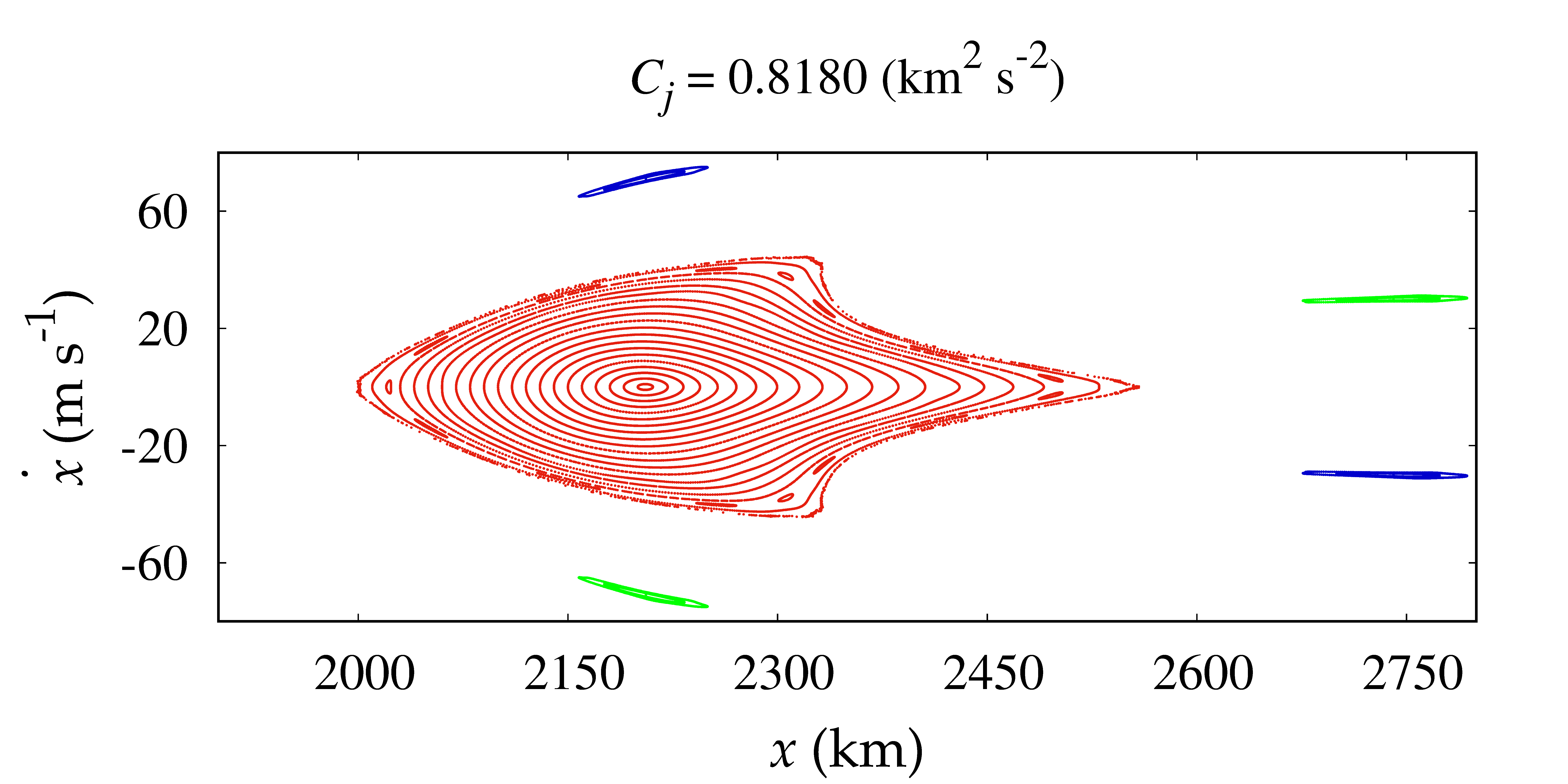

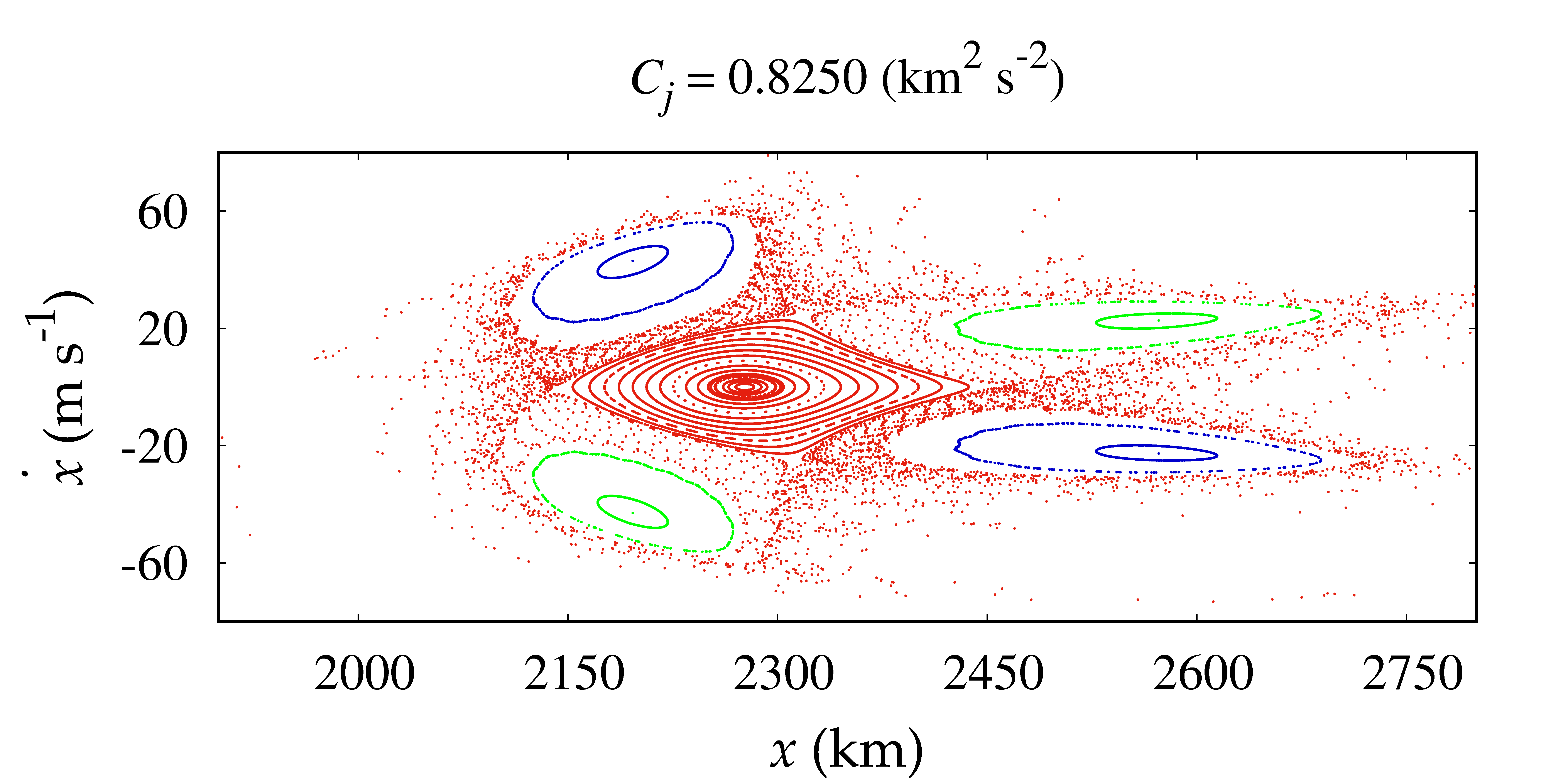

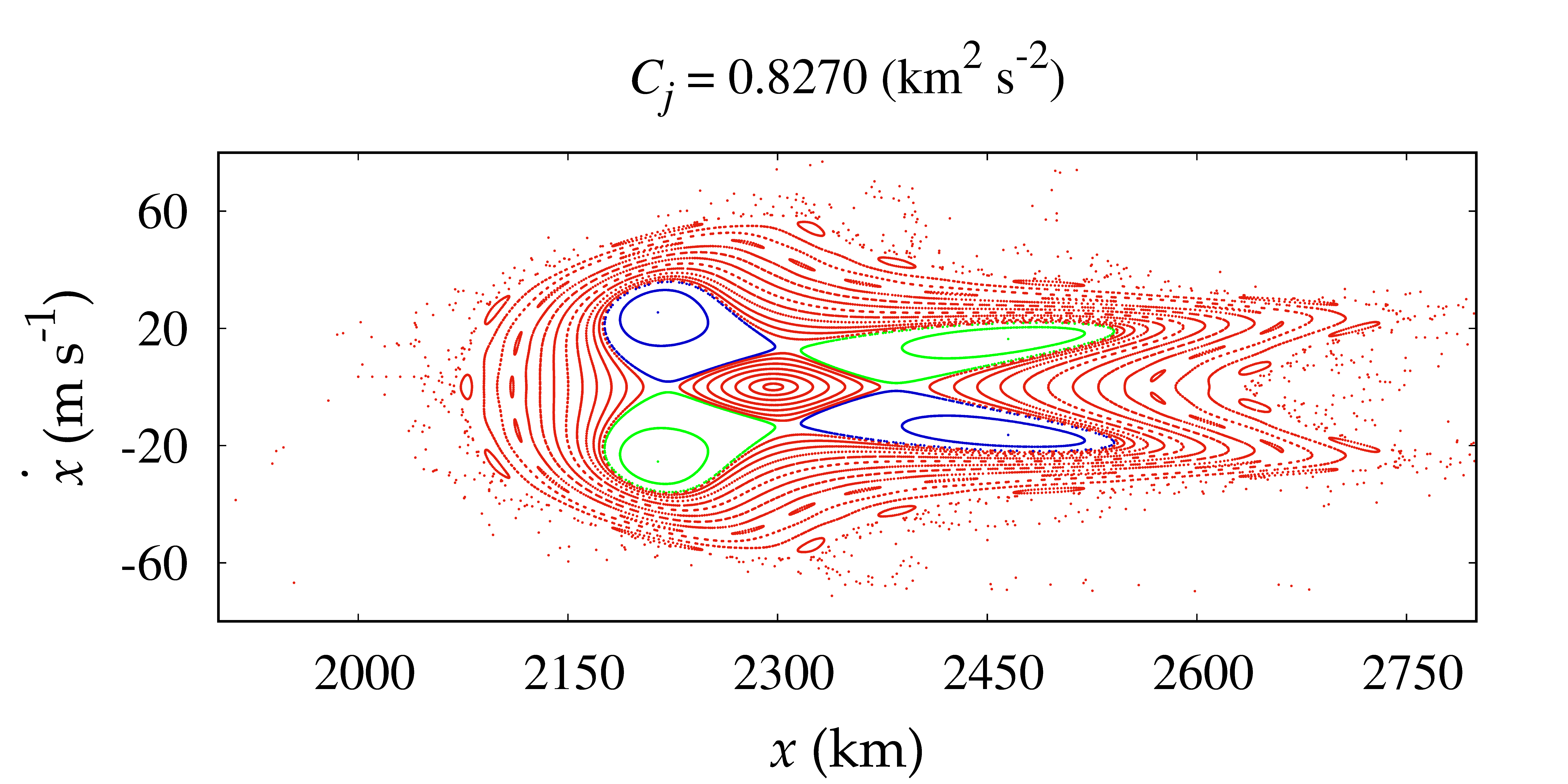

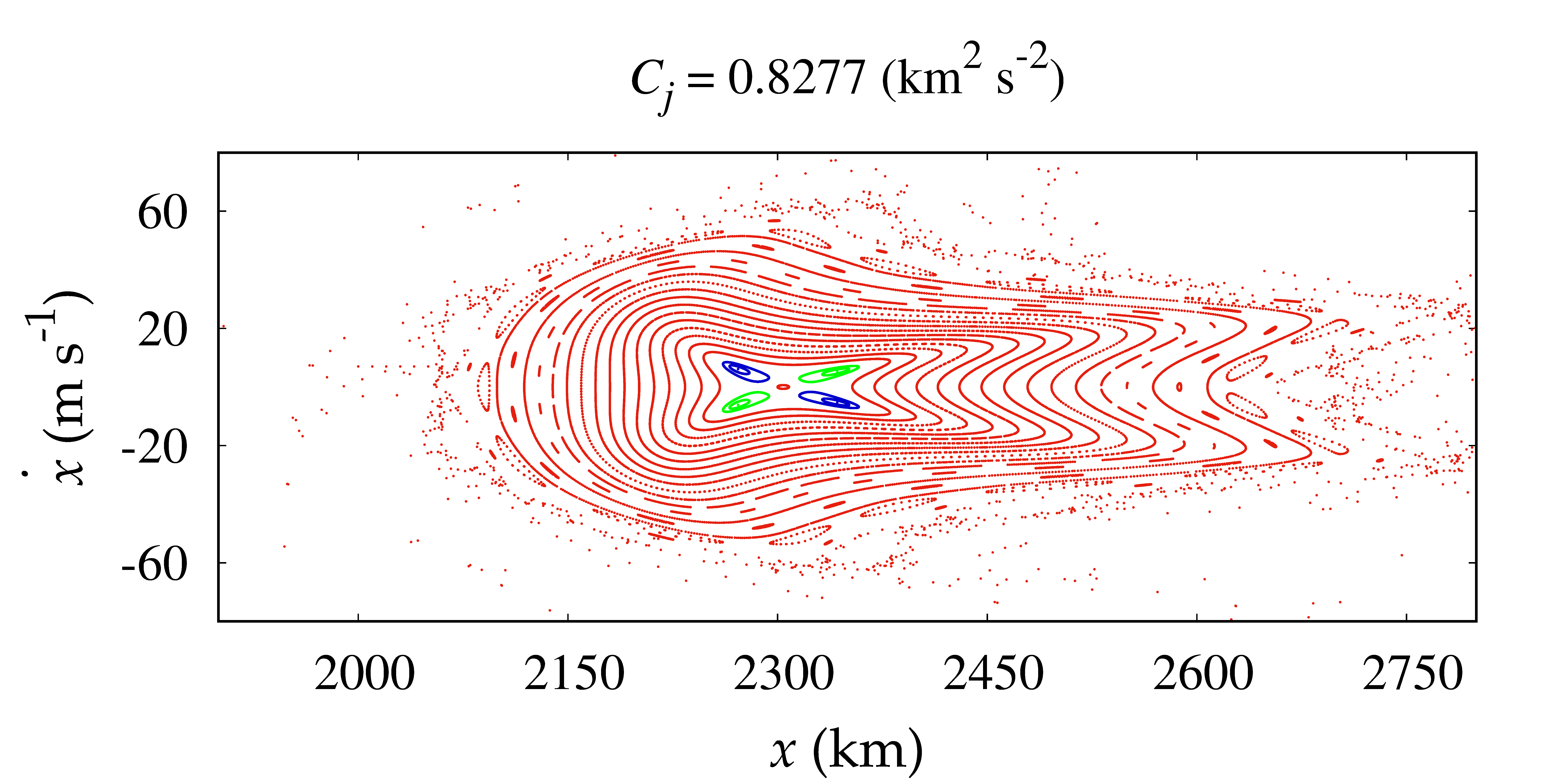

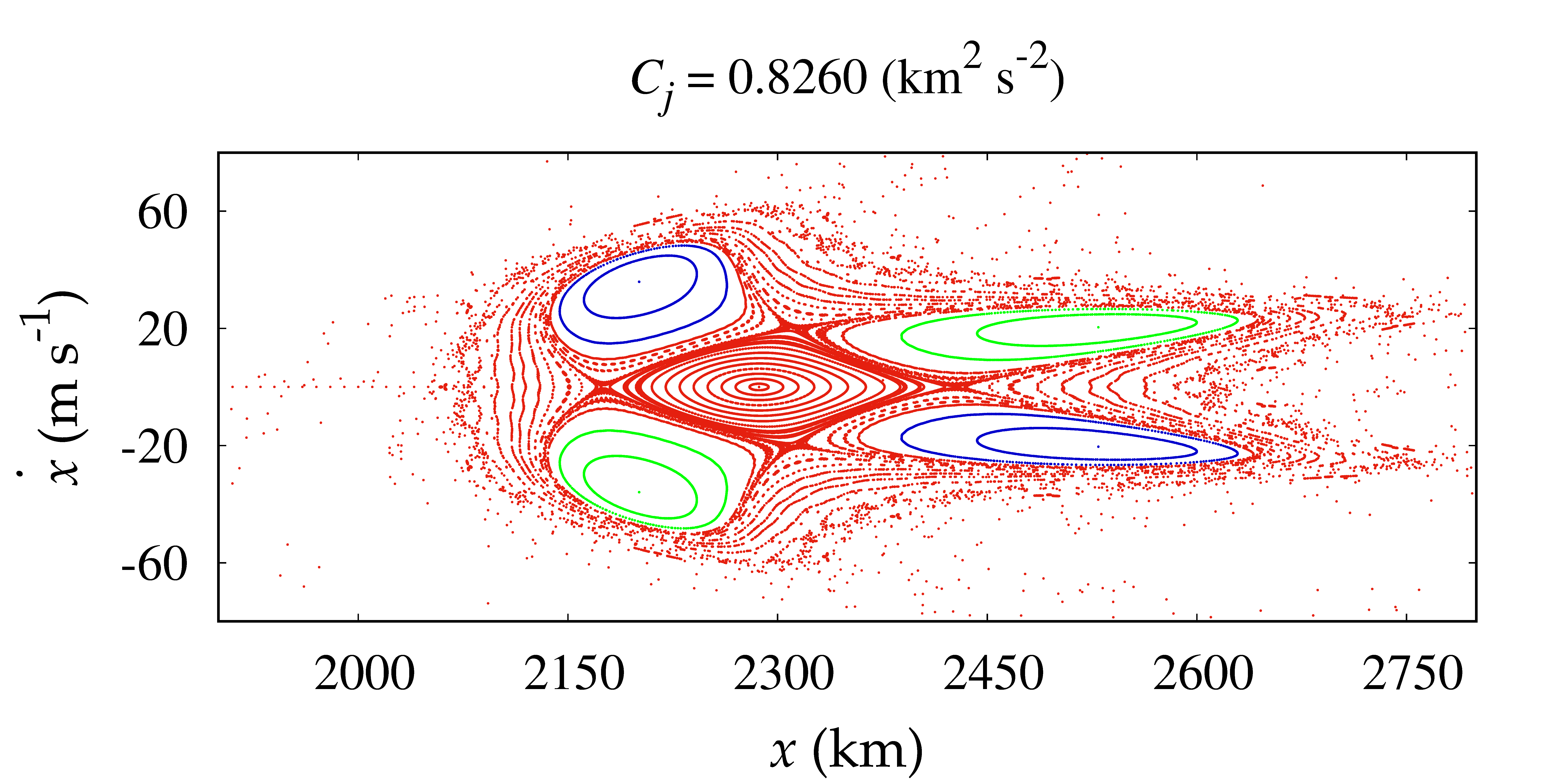

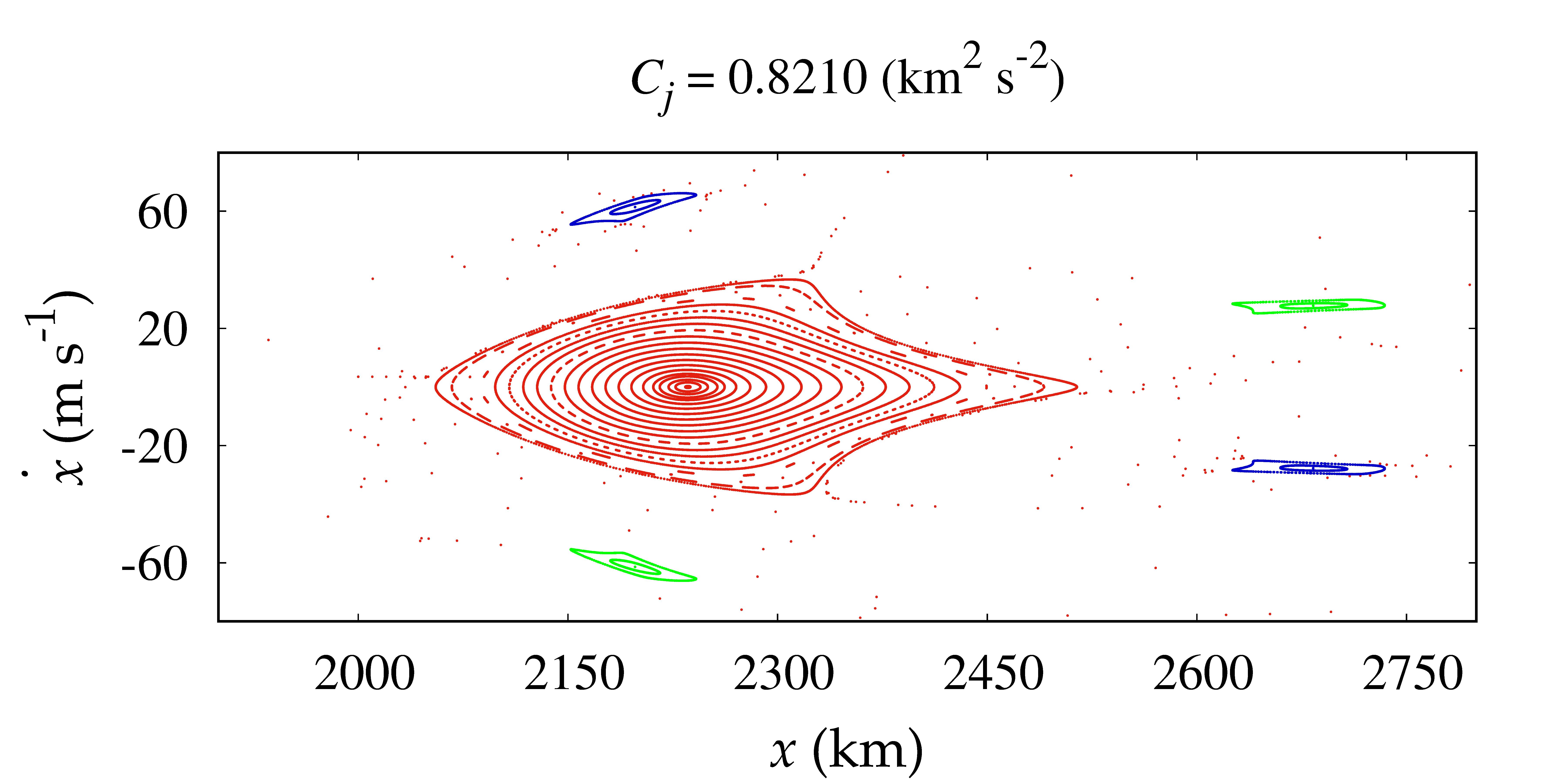

Generating surfaces of section for a wide range of $C_{j}$ values, we identified the islands associated with the 1:3 resonance. These islands exist for $0.817\,{\rm km}^{2}{\rm s}^{-2}<C_{j}<0.828\,{\rm km}^{2}{\rm s}^{-2}$. The plots in Figure 2 show the whole evolution of the 1:3 resonance (in blue and green). Since the potential (Equation 5) is invariant under a rotation of $\pi$, formally, this 1:3 resonance is in fact a fourth order 2:6 resonance (Sicardy et al., 2018), which is a doubled resonance that produces a pair of periodic orbits and their associated quasi-periodic orbits. Therefore, in the Poincaré surfaces of section we have two pairs of mirrored sets of islands (one pair in blue and other in green), since each periodic orbit generates two fixed points surrounded by islands of quasi-periodic orbits.

Due to the fact that this resonance is doubled, there is a separatrix between the two families of periodic/quasi-periodic orbits in the phase space. Consequently, there is a chaotic region generated by this separatrix, whose size changes according to the value of the Jacobi constant. The quasi periodic orbits associated with the 1:3 resonance are indicated by the pairs of islands in blue and the pairs in green (Figure 2). For $C_{j}=0.818\,{\rm km}^{2}{\rm s}^{-2}$ these islands are relatively small and far from the centre of the red islands. As the value of $C_{j}$ increases they increase in size and get closer to the centre of the red islands. The blue and green islands reach the largest size at $C_{j}\sim 0.826\,{\rm km}^{2}{\rm s}^{-2}$, when they get very close to the red islands. With the increase of the $C_{j}$ value, the islands of the 1:3 resonance start shrinking as they get closer to the centre of the red islands, while they are surrounded by red islands ($C_{j}=0.827\,{\rm km}^{2}{\rm s}^{-2}$). The evolution ends when the islands get too small and too close to the center of the red islands. The red islands are quasi-periodic orbits associated with a family of periodic orbits of the first kind (Poincaré, 1895), which will be discussed in more detail in the next section.

4 Periodic Orbits

In the planar, circular, restricted three-body problem, periodic orbits can be classified as periodic orbits of the first kind and of the second kind (Poincaré, 1895; Szebehely, 1967). The periodic orbits of the first kind are those originated from particles initially in circular orbits. Considering the Earth-Moon mass ratio, Broucke (1968) explored the stability and evolution of several families of periodic orbits of the first kind. A family of them was also studied for the Sun-Jupiter mass ratio in Winter & Murray (1997). More recently, motivated by the New Horizons mission, Giuliatti Winter et al. (2014) identified a peculiar stability region between Pluto and Charon, called Sailboat island, and showed that it was associated with a family of periodic orbits of the first kind. In the case of periodic orbits of the second kind, the particles are in eccentric orbits in a mean motion resonance, the so-called resonant periodic orbits.

Now, considering the restricted two-body problem, where the primary is a rotating non-spherical triaxial body, Borderes-Motta & Winter (2018) showed examples of both kinds of periodic orbits. Among them, they identified resonant periodic orbits as the 3:1 resonance between the mean motion of the particle and the spin of the central body, and one periodic orbit of the first kind.

As seen in the previous section, the Poincaré surfaces of section showed that the dynamical structure of the region where is located the Haumea’s ring is determined by the 1:3 resonant periodic orbits and also by a family of periodic orbits of the first kind. In order to better understand these periodic orbits we will explore some of their features.

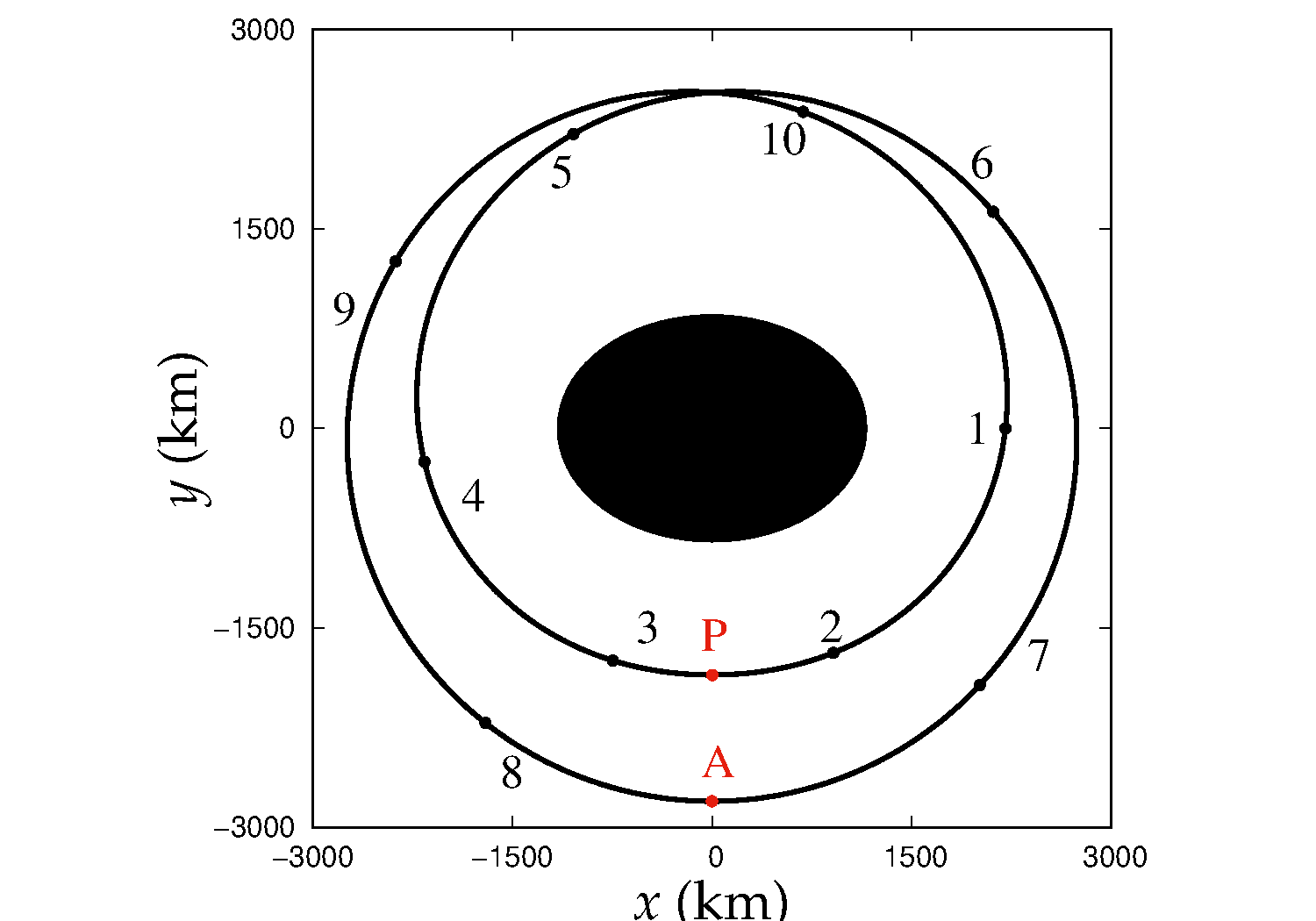

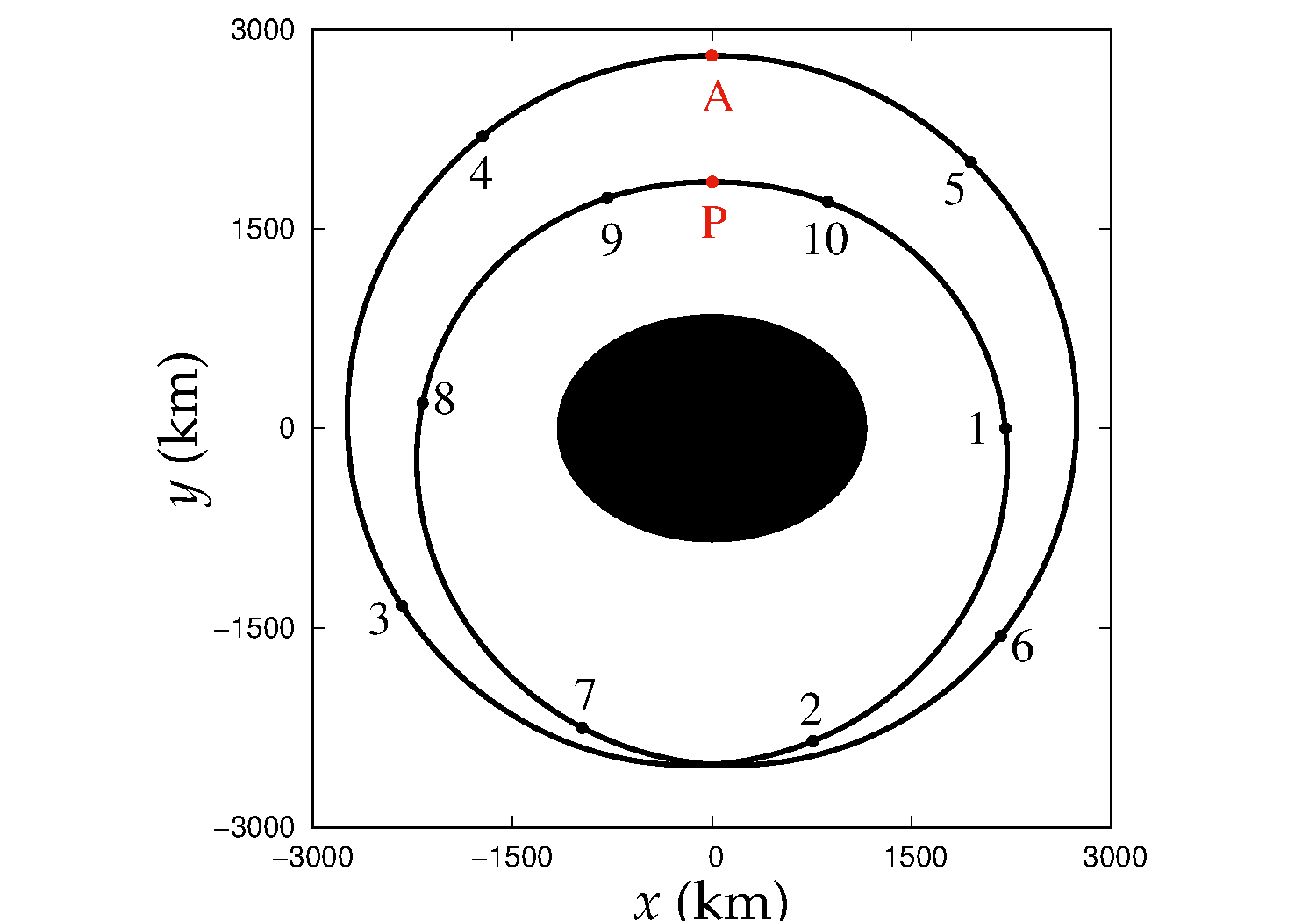

Since the 1:3 resonant periodic orbits are doubled, we selected a pair of them to study. Considering the Jacobi constant $C_{j}=0.826\,{\rm km}^{2}{\rm s}^{-2}$, Figure 3 shows the pair of 1:3 resonant periodic orbits. These are the periodic orbits shown in the Poincaré surface of section of Figure 2 (second row and second column), as the points located at the centre of the islands in blue, and those at the centre of the islands in green.

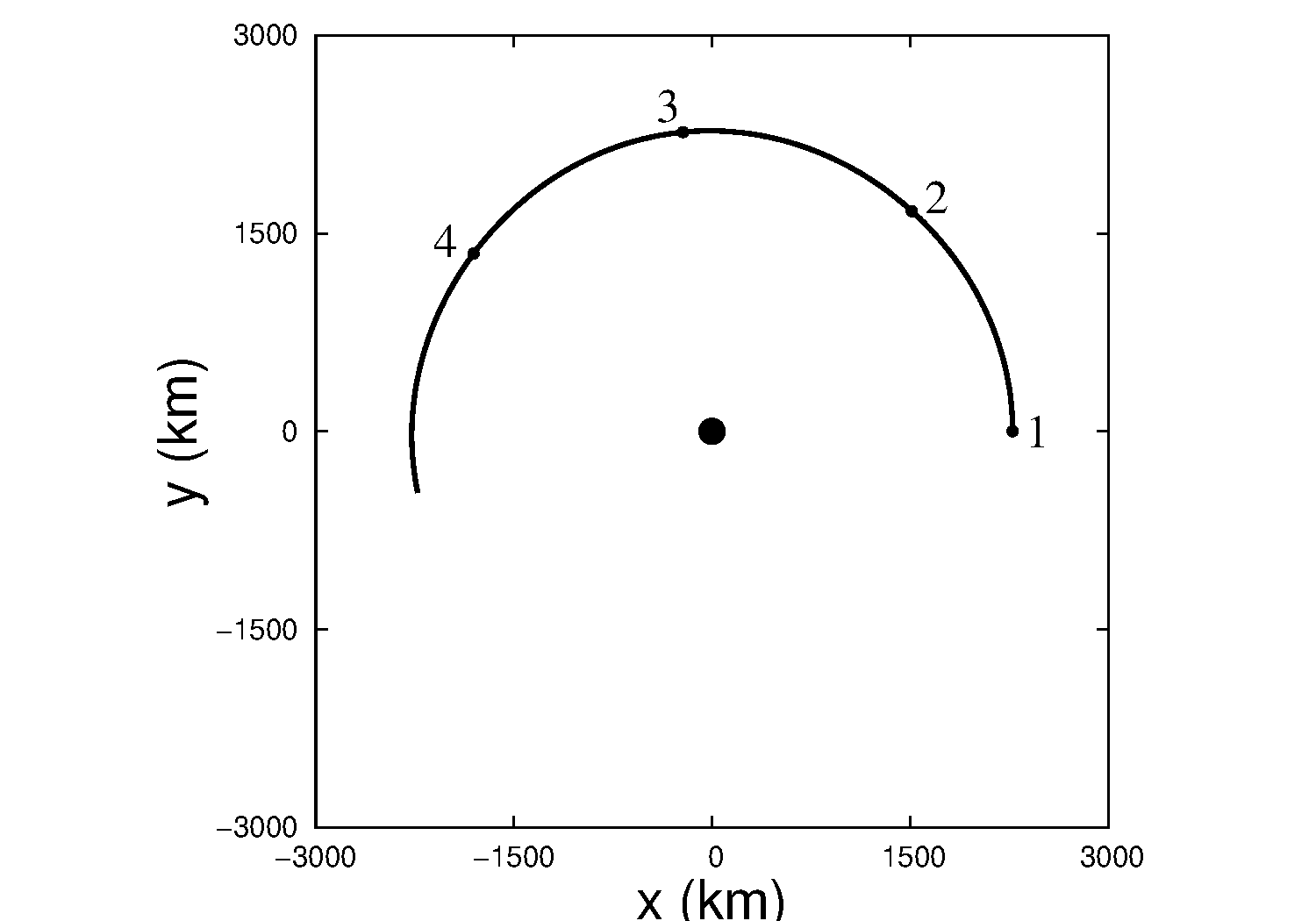

The trajectories in the rotating frame are plotted in the first row. The numbers indicate the time evolution of the trajectories and show the locations equally spaced in time. In the rotating frame both trajectories are retrograde and symmetric with respect to the line $x=0$, where are located the pericentre (P) and the apocentre (A) of each trajectory. One trajectory is a mirrored image of the other with respect to the line $y=0$. That is a natural consequence of the potential (Equation 5) being invariant under a rotation of $\pi$. The period of these periodic orbits corresponds to three periods of Haumea’s rotation. In the inertial frame, the trajectories are prograde (second row). Note that these trajectories are also periodic in the inertial frame. The temporal evolution of the orbital radii of both trajectories (last row) also helps to better visualize the trajectories shape.

The 1:3 resonant angle is given by

[TABLE]

where $\lambda$ and $\varpi$ are the mean longitude and longitude of periapse of the particle, respectively, and $\lambda_{H}$ is Haumea’s orientation angle. For all resonant trajectories shown in Figure 2, we verified that the resonant angle oscillates around $\pi$ (orbits in blue) or $-\pi$ (orbits in green).

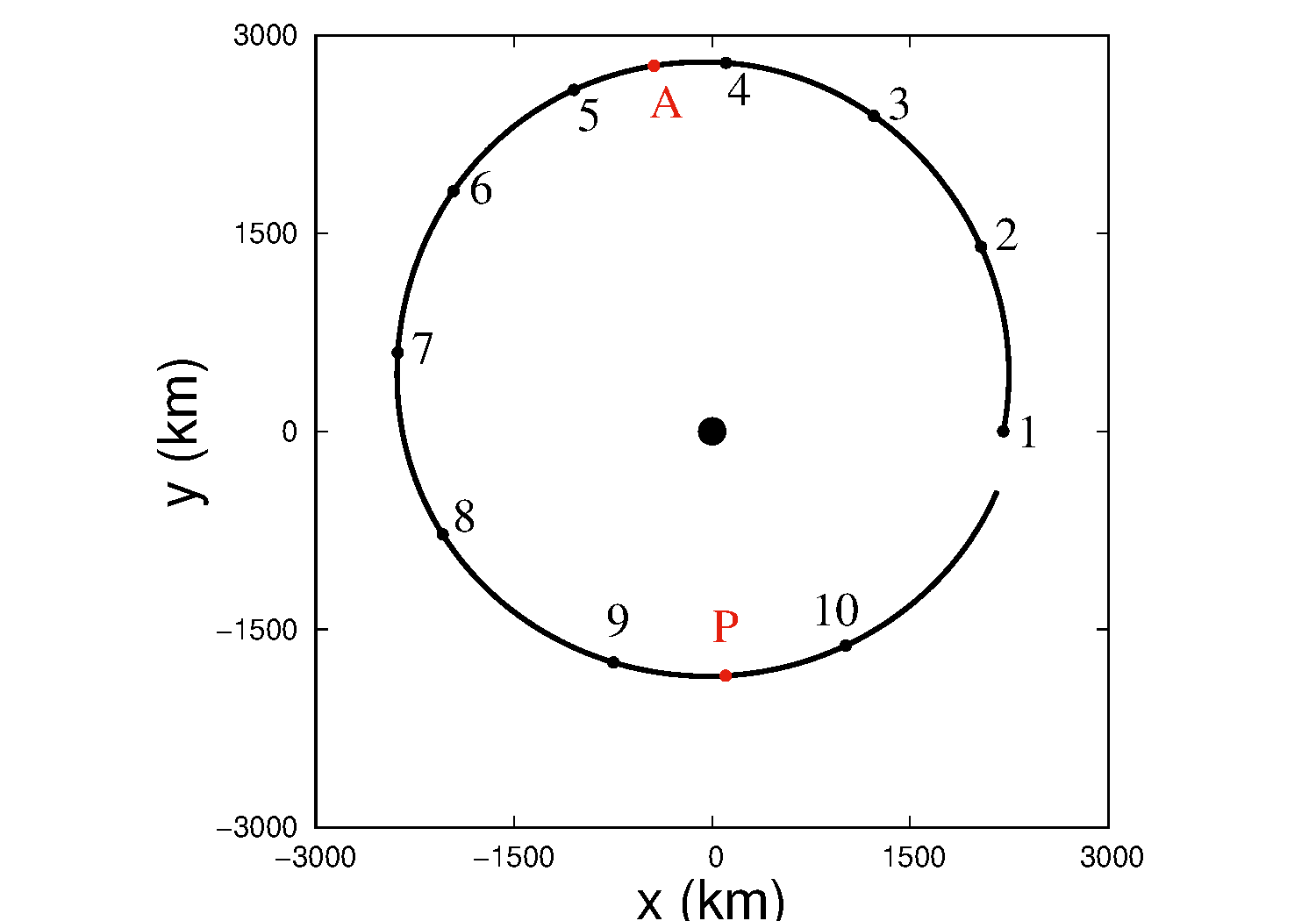

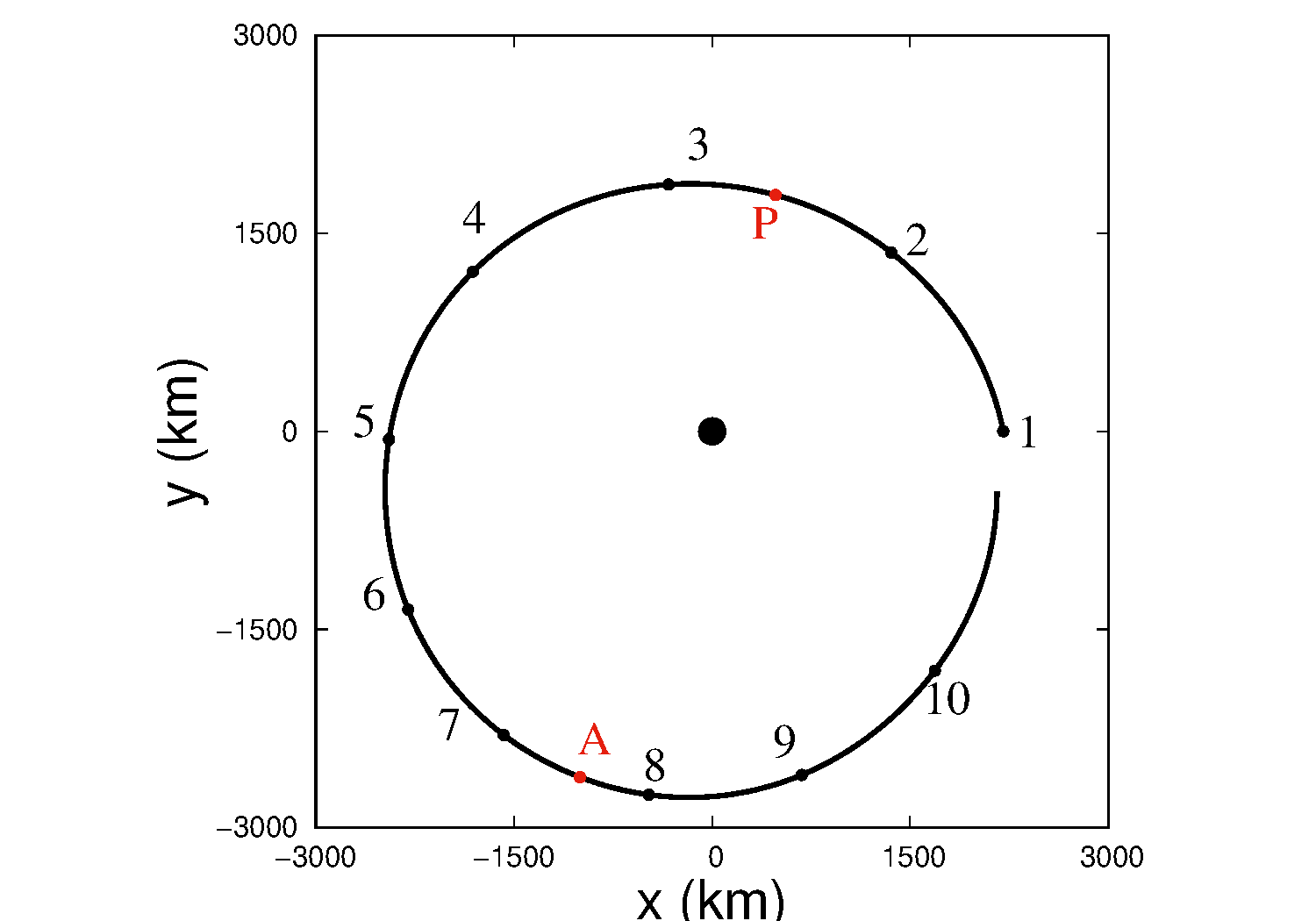

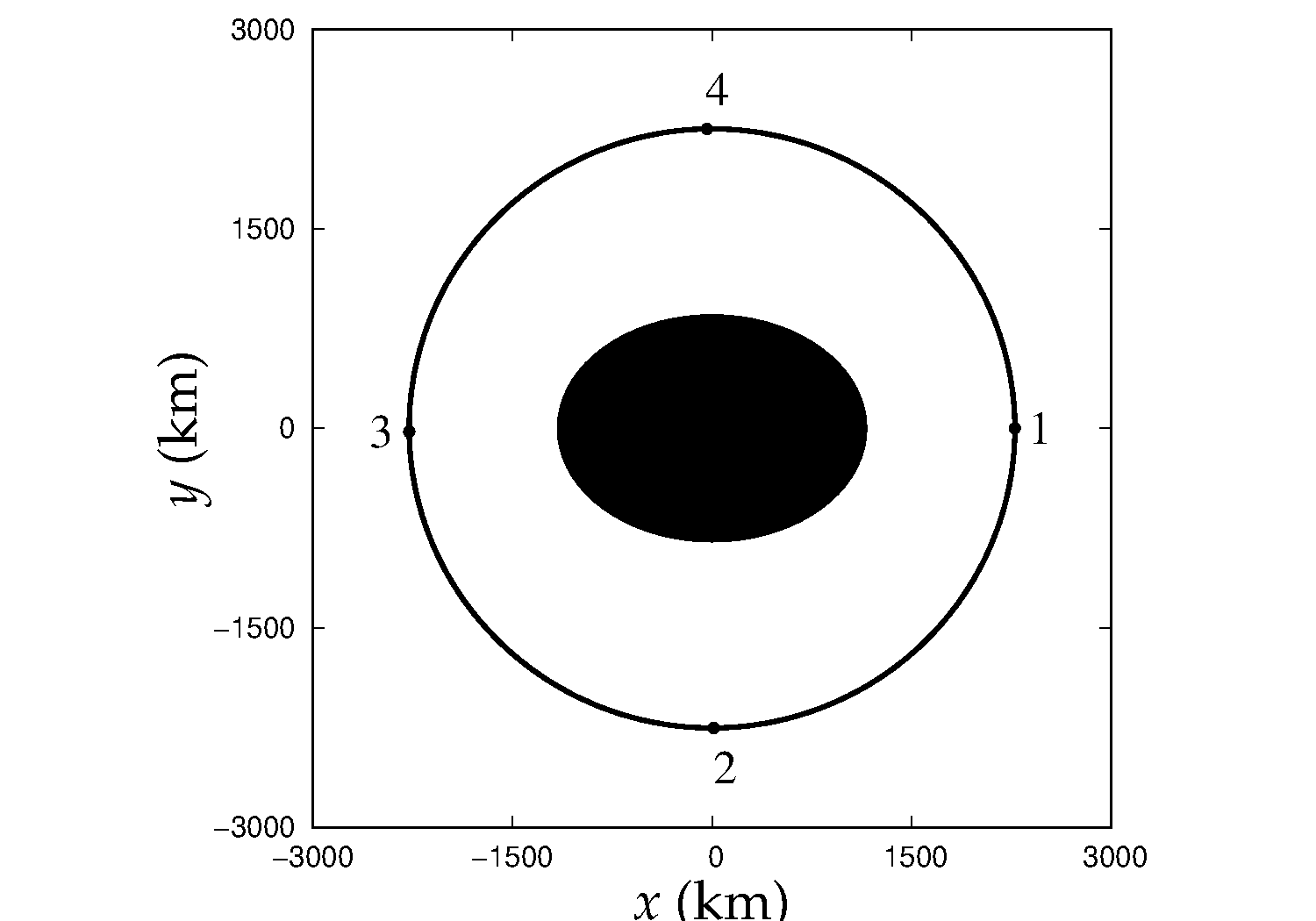

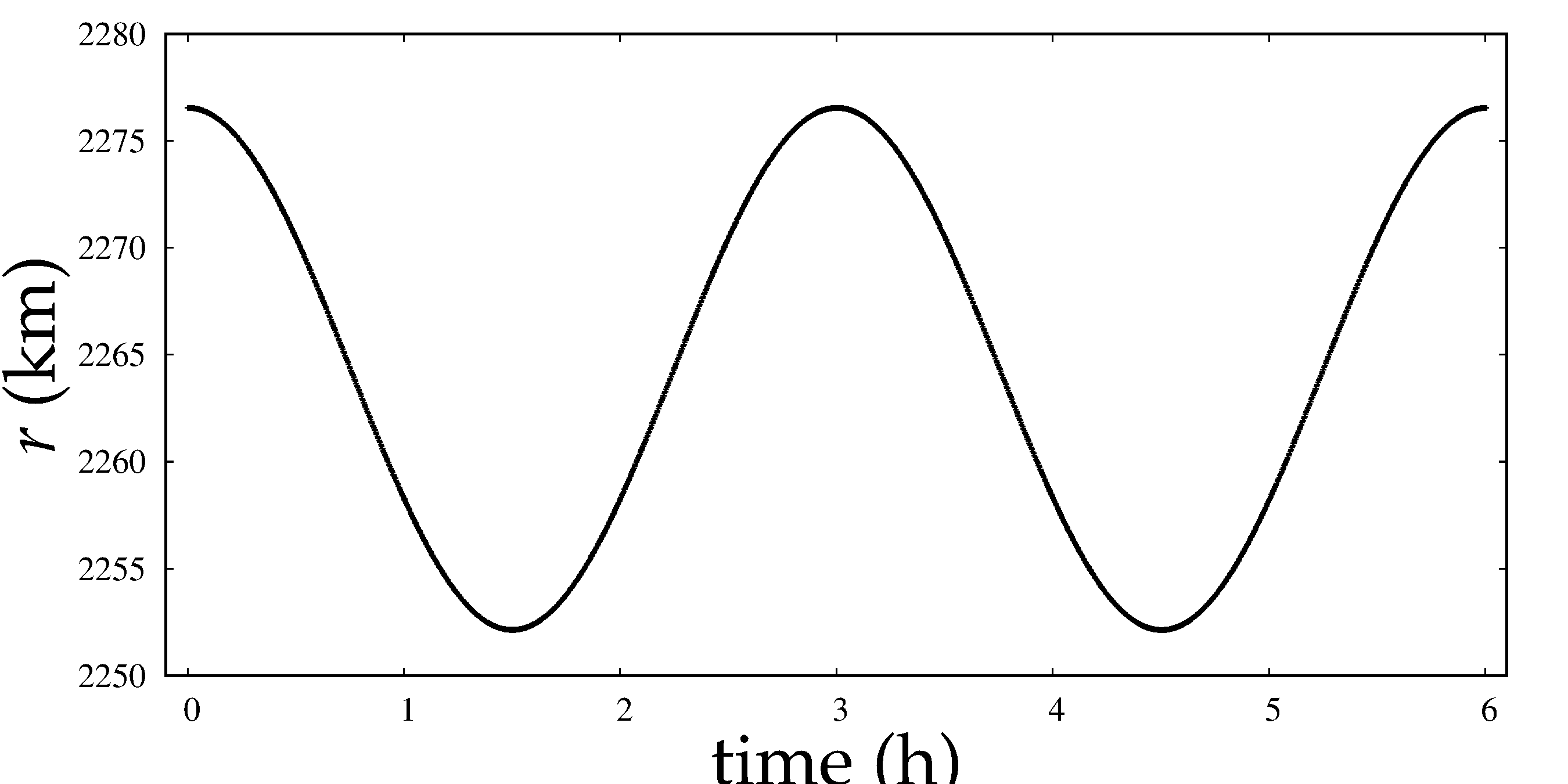

An example of a first kind periodic orbit, with $C_{j}=0.826\,{\rm km}^{2}{\rm s}^{-2}$, is presented in Figure 4. The shape of the trajectory in the rotating frame follows similarly the shape of Haumea. The furthest points of the trajectory are aligned with the long axis, while the closest points are alined with the short axis. The period of this periodic orbit is $T=5.979$ h, slightly more than 1.5 times the spin period of Haumea. Note that, at the same time this trajectory completes one period in the rotating frame, it completed only about half of its orbit around Haumea in the inertial frame. The temporal evolution of the radial distance may mislead to the conclusion that the trajectory has a pair of pericentre and a pair of apocentre. However, this trajectory is not a usual keplerian ellipse, with the central body at one of the foci. In fact, the trajectory looks like an ellipse with the central body at its centre.

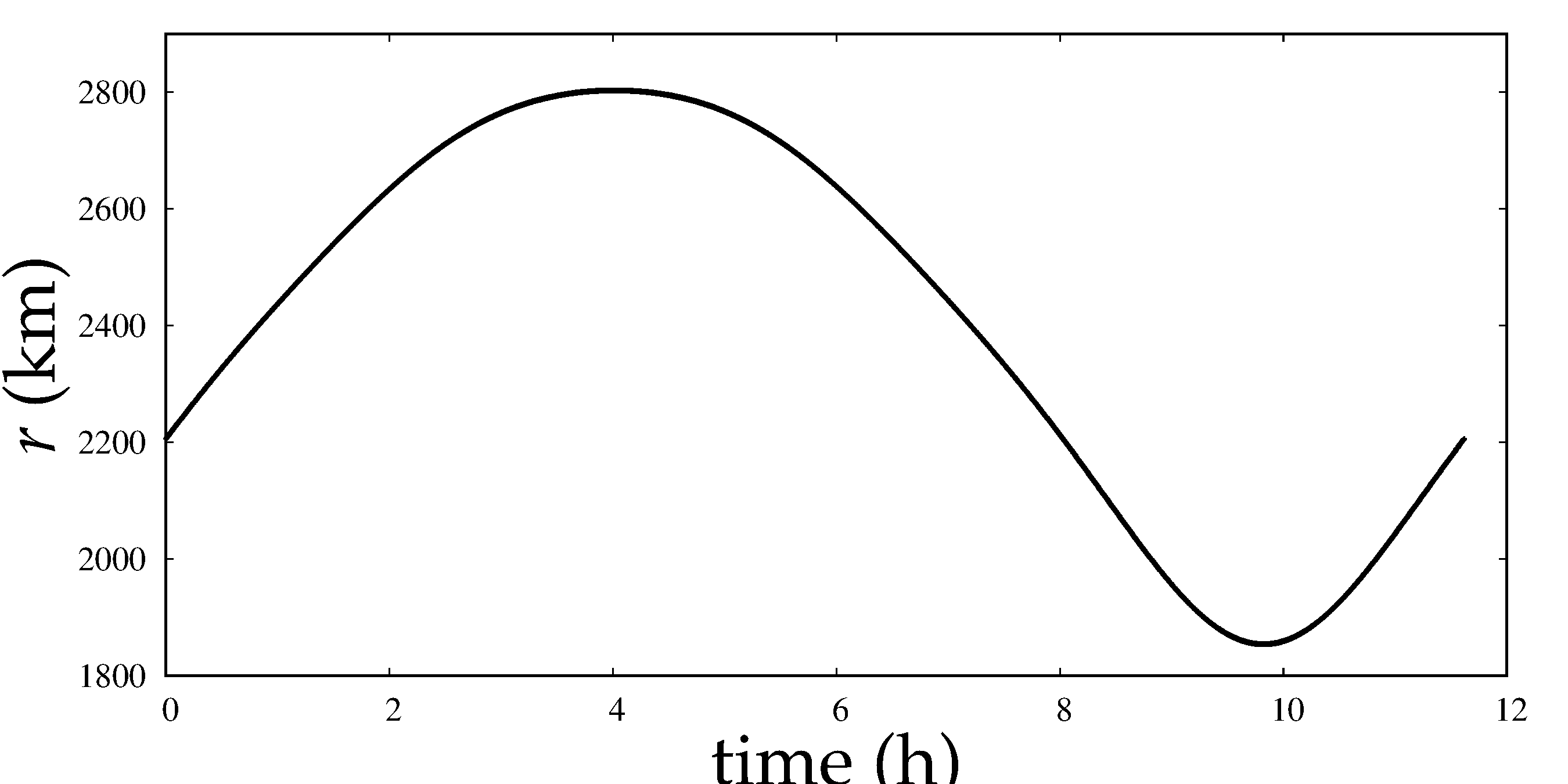

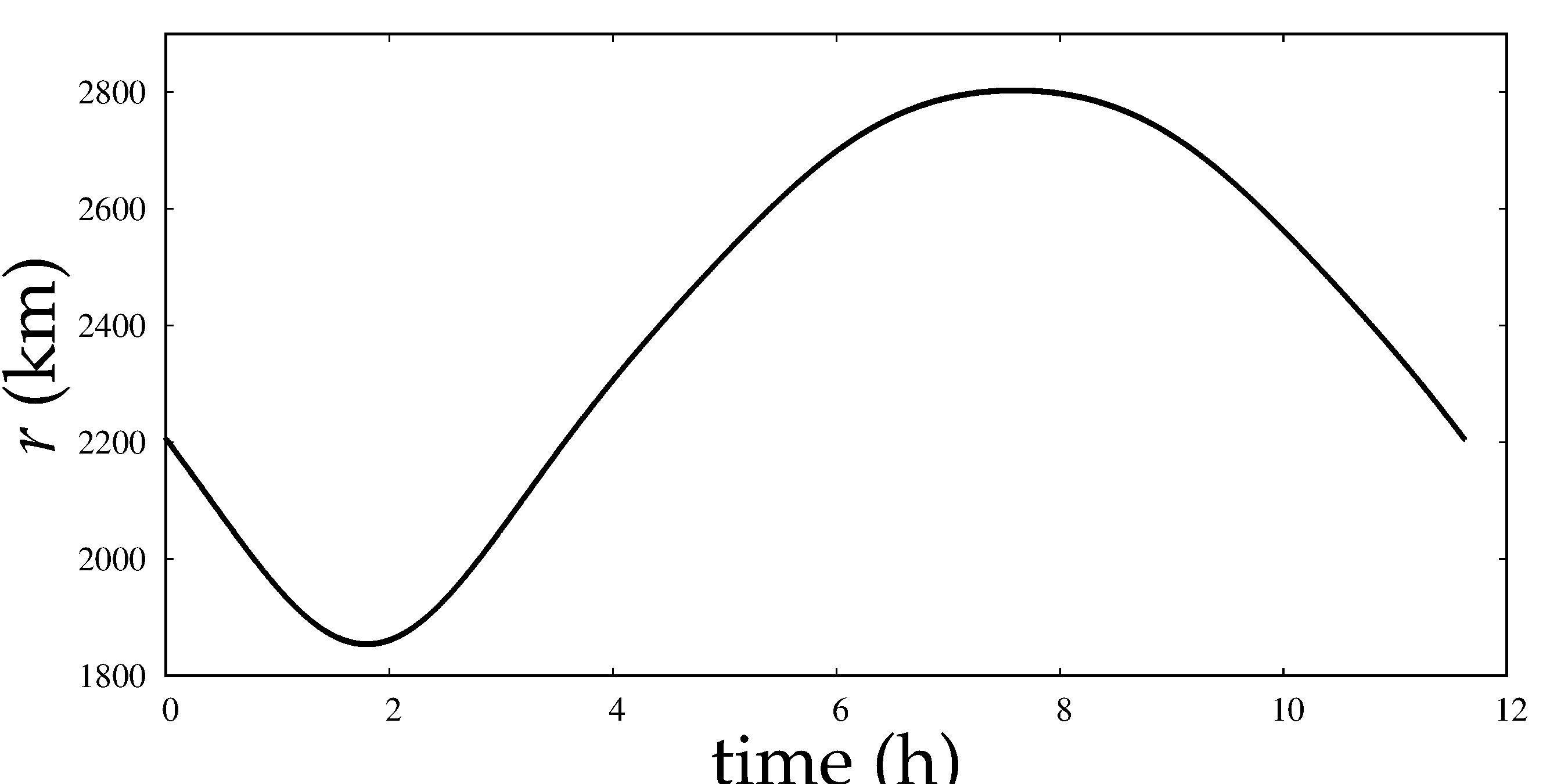

A comparison between the radial amplitudes of oscillation of this periodic orbit of the first kind and the resonant periodic orbits given in Figure 3 shows a huge difference. While the periodic orbit of the first kind oscillates less than 30 km, the resonant periodic orbit shows a radial oscillation of almost 600 km. This is a striking information that will be analysed for the whole set of periodic orbits in the next section.

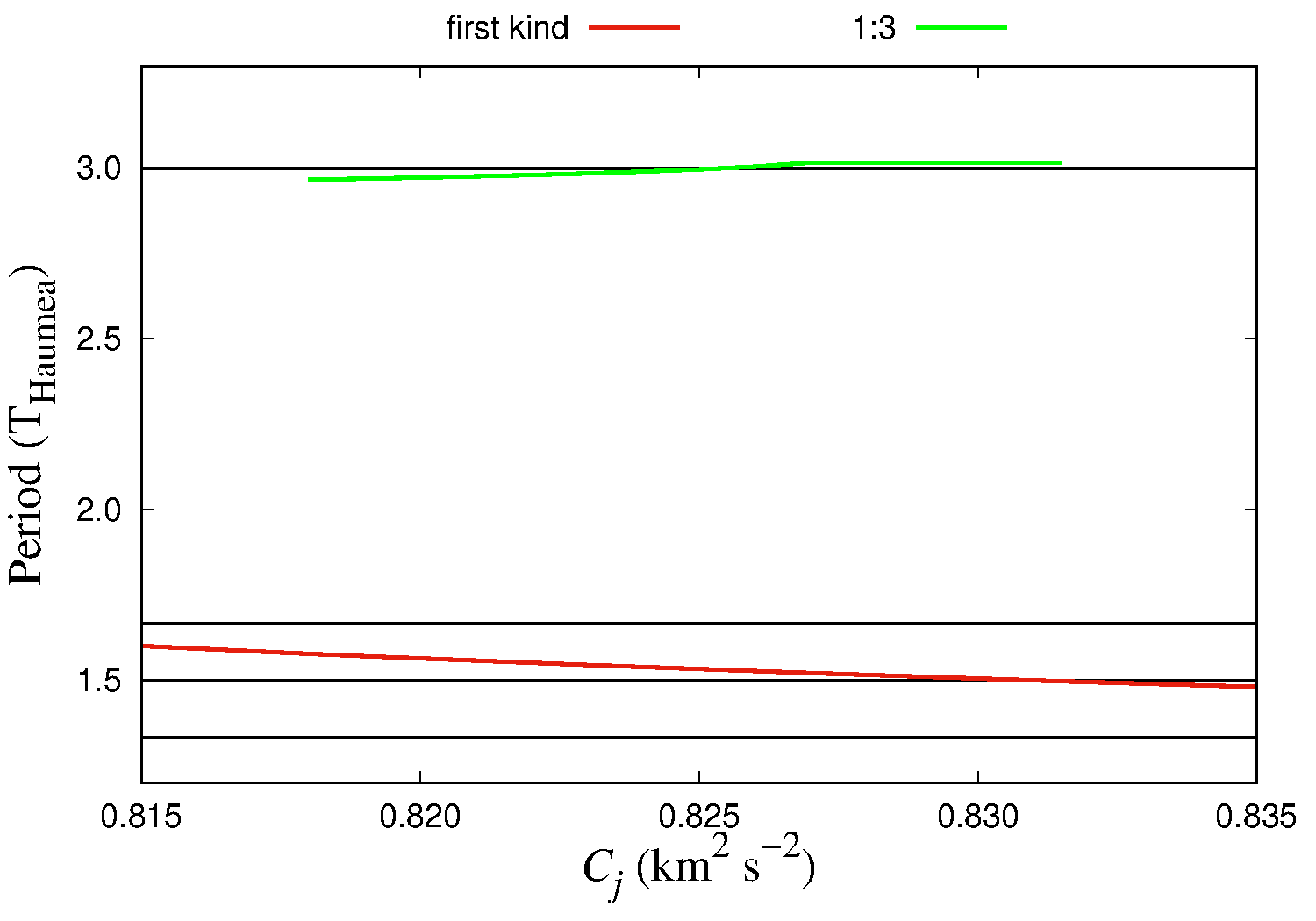

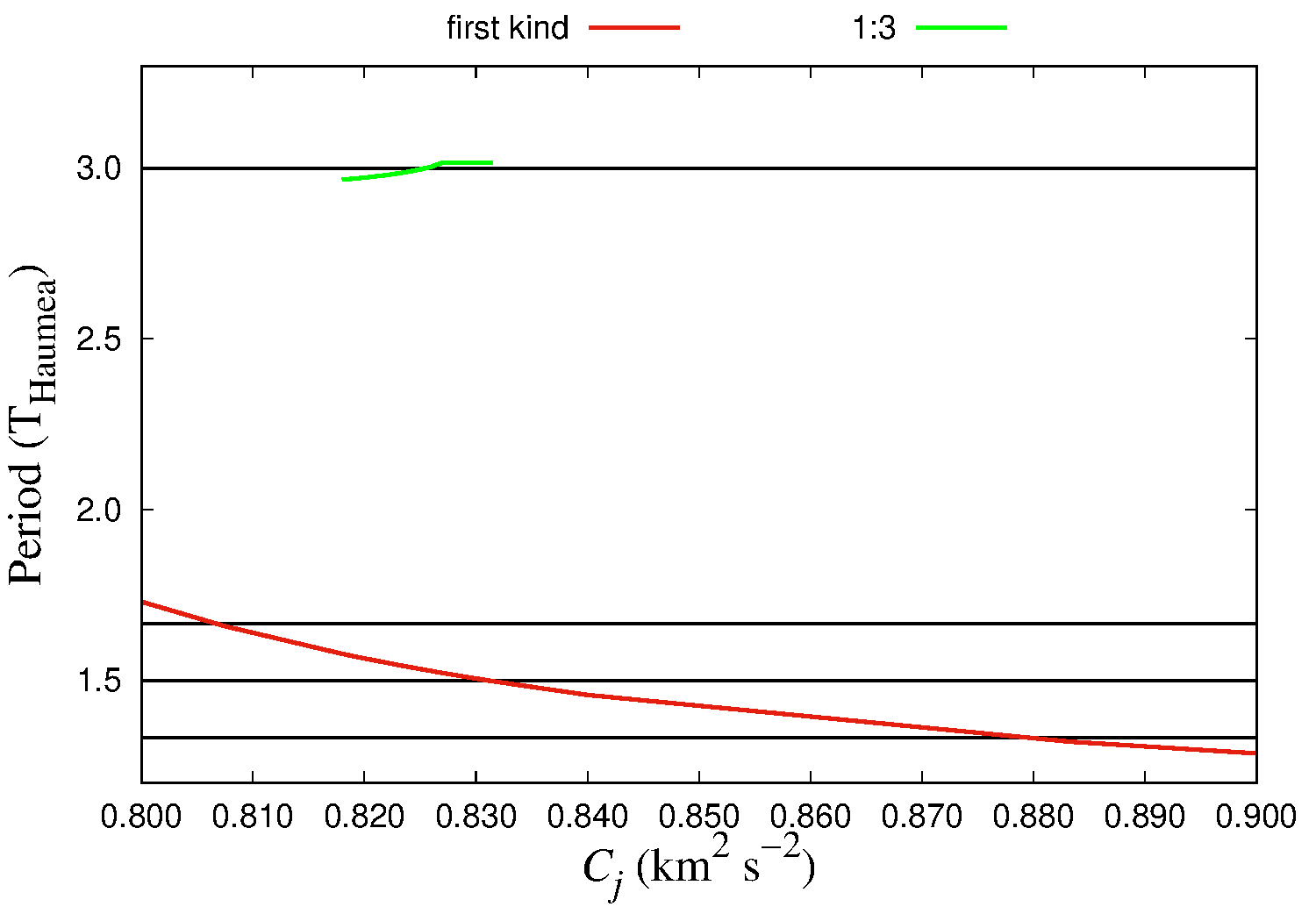

One feature that makes the difference between a resonant periodic orbit and a periodic orbit of the first kind is that the period (in the rotating frame) of a periodic orbit of the first kind varies significantly, in a range that might cross several values that are commensurable without showing a resonant behaviour. Figure 5 shows the period of the periodic orbits in the rotating frame as a function of their Jacobi constant, $C_{j}$. While the resonant periodic orbits 1:3 (green) exists only nearby the period commensurable with the spin period of Haumea, the period of the periodic orbits of the first kind cover a wide range of values (red). It passes through several periods that, in the rotating frame, are commensurable with the spin period of Haumea.

5 The Location of the Ring

In this section we work on a correlation between the locations of the stable regions associated with the periodic orbits and the location of Haumea’s ring.

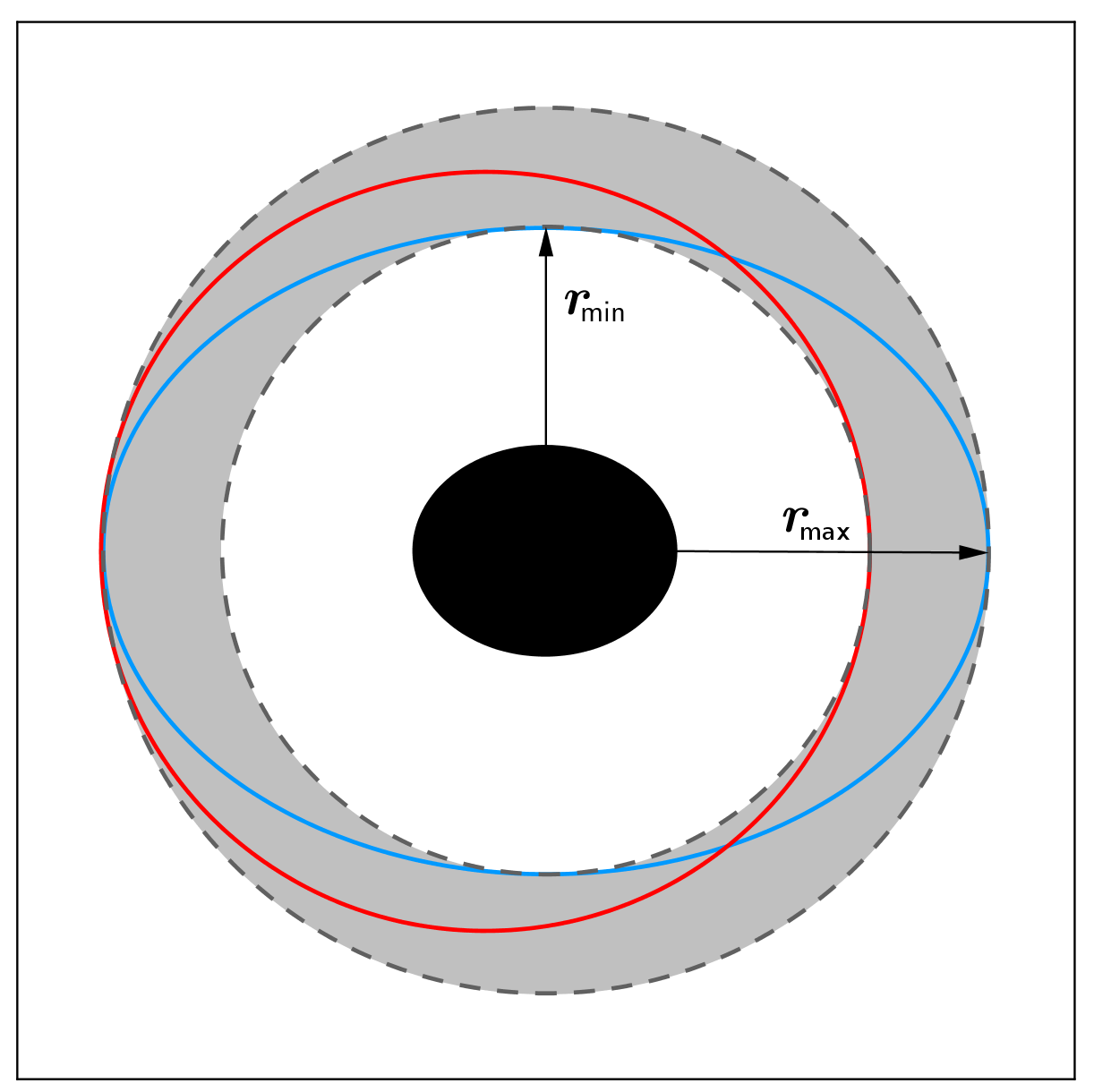

The periodic orbits of the first kind are like ellipses with Haumea at its centre (top of Figure 4), not at one of the foci as in a usual Keplerian ellipse. Therefore, we will define an equivalent semi-major axis ($a_{\rm eq}$) and an equivalent eccentricity ($e_{\rm eq}$) as the values of a keplerian ellipse whose pericentre and apocentre are the same as those of the maximum ($r_{\rm max}$) and minimum ($r_{\rm min}$) radial distances of the trajectory to Haumea, respectively (as illustrated in Figure 6). Then, an ellipse with Haumea at one of the foci and with semi-major axis $a_{\rm eq}=(r_{\rm min}+r_{\rm max})/2$ and eccentricity $e_{\rm eq}=1-(r_{\rm min}/a_{\rm eq})$ will cover the same radial distance range from Haumea as that one covered by the first kind periodic orbit. Similarly, the Haumea’s ring, whose nominal location (Ortiz et al., 2017) is given by an internal radius at 2252 km and an external radius at 2322 km, can be represented by a range of keplerian ellipses that fits such radial extent.

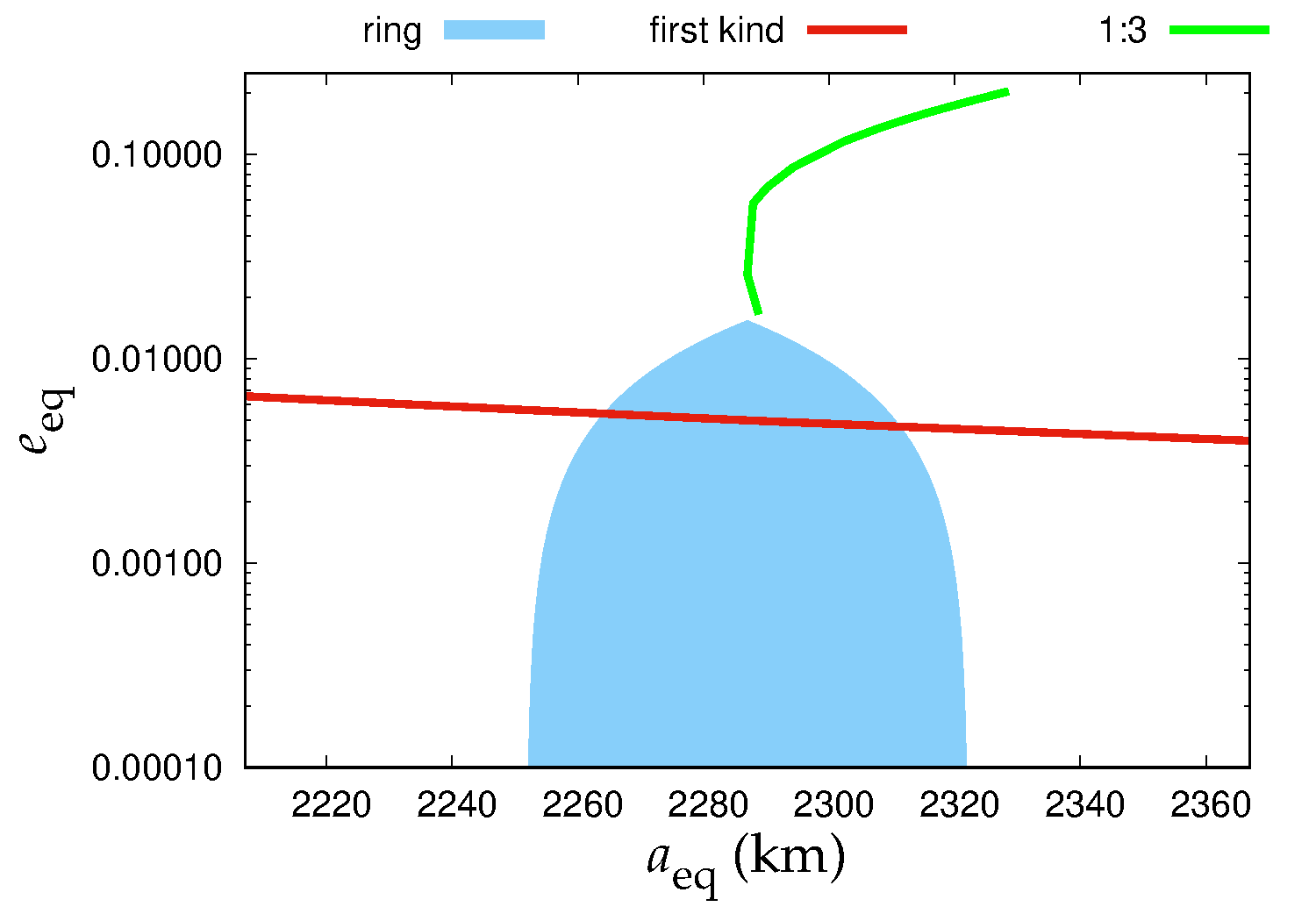

Figure 7 presents a diagram $a_{\rm eq}$ vs. $e_{\rm eq}$ showing the locations of the Haumea’s ring, the 1:3 resonant periodic orbits and the first kind periodic orbits. Note that the largest possible eccentricity for a ring particle ($e_{\rm eq}=0.0153$) is smaller than the smallest eccentricity for the 1:3 resonant periodic orbits ($e_{\rm eq}=0.0166$). This means that all periodic orbits of the 1:3 resonance show a radial variation that goes beyond the location of the Haumea’s ring. On the other hand, first kind periodic orbits cover an interval of semi-major axes and eccentricities that fits inside the ring range values. Therefore, these are indications that the first kind periodic orbits are more strongly connected to the Haumea’s ring than the 1:3 resonance.

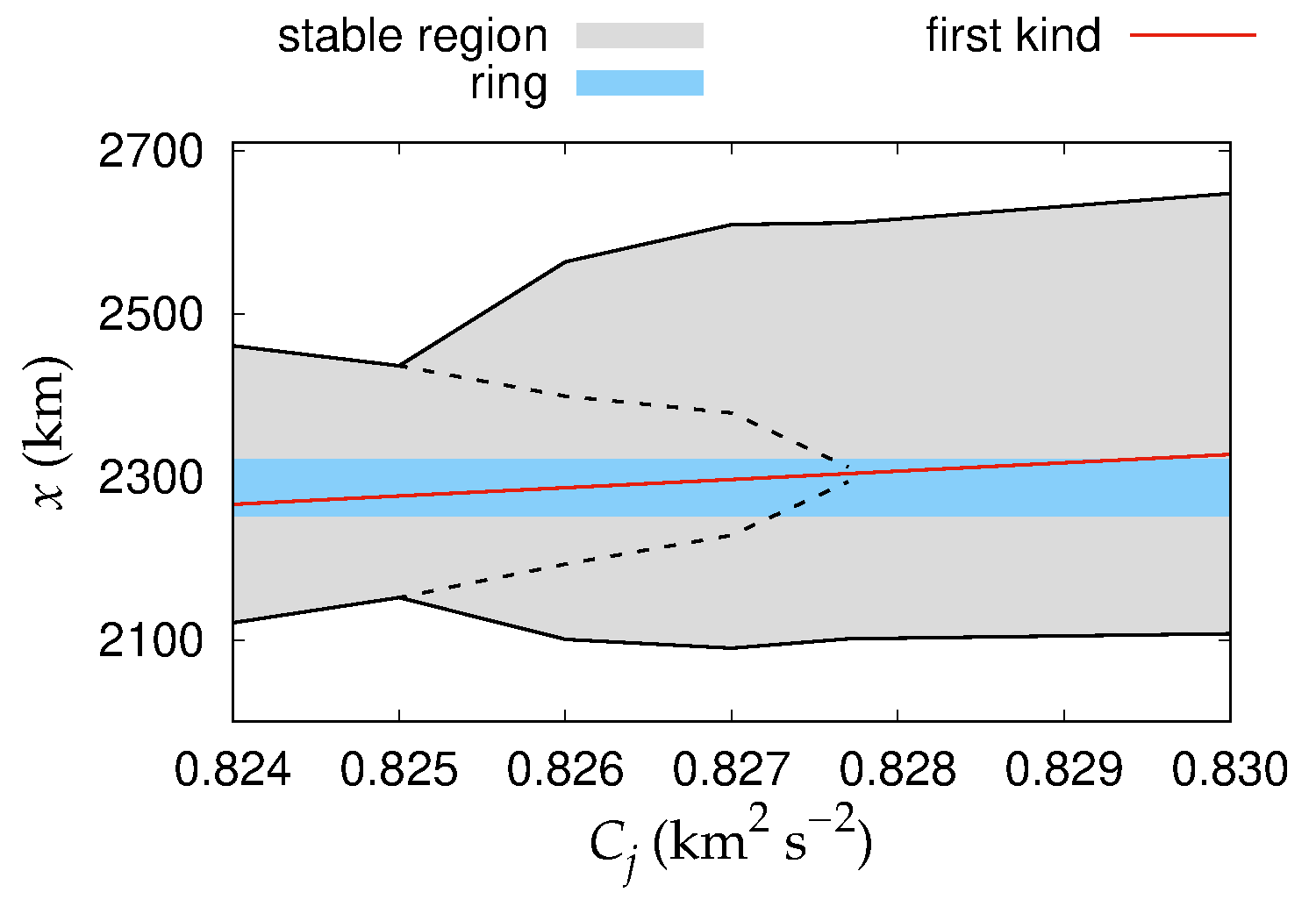

The results shown in Figure 7 consider only the periodic orbits (fixed points inside the islands in the Poincaré surfaces of section). However, the size of the stability regions around the periodic orbits is determined by the quasi-periodic orbits around them. As introduced in Winter (2000), the size and location of the stability region associated with the first kind periodic orbits can be determined from the Poincaré surfaces of section, for each Jacobi constant ($C_{j}$), by identifying the pair of $x$ values of the largest islands when $\dot{x}=0$. This approach provides the maximum libration amplitude of the quasi-periodic orbits around the family of periodic orbits. Figure 8 shows such stability region in a diagram of $C_{j}$ vs. $x$. The stability region (in gray) encompasses the nominal radial region of the Haumea’s ring (in blue) being at least 200 km larger.

Therefore, the stable region associated with the first kind periodic orbit family is at the right location, is wide enough, and presents trajectories with eccentricities low enough to fit within the borders of Haumea’s ring.

6 Final Comments

In this paper, we presented a study on the dynamical structure in the region of the Haumea’s ring. Poincaré surfaces of section revealed that the 1:3 resonance is doubled, presenting mirrored pairs of periodic orbits. The separatrix, due to the resonance be doubled, generates a layer of chaotic region that reduces the size of the stable regions produced by quasi-periodic orbits around the periodic resonant ones.

An analysis of the semi-major axes and eccentricities of the 1:3 resonant periodic orbits showed that there is a minimum value of the eccentricity for such orbits to exist. This minimum value showed to be too large for the radial location and size of the Haumea’s ring.

Local viscous and/or self-gravity effects on the ring particles were not taken into account in the current study. Having in mind that the Haumea’s ring is only about 70 km wide, it should be extremely massive in order to reduce the particle’s eccentricity produced by the 1:3 resonance.

Collisions between the ring particles were also not considered in this work. They could allow large orbital eccentricities of particles at the 1:3 resonance to be damped, and fit within the radial range of the ring. Nevertheless, particles at the ring borders would not remain confined, still needing a confining mechanism. However, independently of collisions, particles associated with the first kind periodic orbits define regions of stability that fit very well in size and location that of the Haumea’s ring. Therefore, this analysis suggests that the Haumea’s ring is in a stable region associated with a first kind periodic orbit instead of the 1:3 resonance.
