Gas infall and possible circumstellar rotation in R Leo

TL;DR

This study uses high-resolution ALMA observations to reveal complex gas dynamics, including infall and possible rotation, in the innermost envelope of the star R Leo, indicating a structured circumstellar environment.

Contribution

First high-resolution interferometric imaging of R Leo's inner envelope showing non-radial gas motions and potential circumstellar rotation.

Findings

Detection of red-shifted absorption indicating gas infall

Evidence of a torus-like structure around R Leo

Complex non-radial gas velocity distribution

Abstract

We present new interferometer molecular observations of R Leo taken at 1.2 mm with the Atacama Large Millimeter Array with an angular resolution up to ~0.026 arcsec. These observations permit us to resolve the innermost envelope of this star revealing the existence of a complex structure that involves extended continuum emission and molecular emission showing a non-radial gas velocity distribution. This molecular emission displays prominent red-shifted absorptions located right in front to the star typical of material infall and lateral gas motions compatible with the presence of a torus-like structure.

Figures

Tables

Table 1. Table 1: Observations Summary

Conf./Run	Date	Phase	PSF		W	MRS	Continuum		Gaussian Fit
			HPBW	P.A.			Peak	Integral	Peak	D. FWHM	D. P.A.
			(″$\times$″)	(deg)		(″)	(mJy beam-1)	(mJy)	(mJy beam-1)	(″$\times$″)	(deg)
C40-2	2017-Mar-22	0.80	$1.560\times {1.080}^a$	80	N	11.6	$91.16\pm 0.12$	$105.8\pm 0.6$	—	—	—
C40-5	2017-May-03	0.94	$0.387\times {0.359}^b$	45	N	4.5	$91.10\pm 0.16$	$111.6\pm 1.1$	—	—	—
C40-6	2016-Oct-01	0.25	$0.186\times {0.157}^c$	32	N	1.6	$101.0\pm 0.3$	$140.2\pm 2.1$	—	—	—
C43-9/A	2017-Sep-21	0.40	$0.096\times {0.035}^d$	45	N	0.4	$68.19\pm 0.20$	$103.1\pm 1.6$	—	—	—
			$0.071\times {0.025}^e$	32	U		$52.55\pm 0.18$	$103.3\pm 1.8$	—	—	—
C43-9/B	2017-Oct-27	0.50	$0.060\times {0.046}^f$	134	N	0.6	$45.10\pm 0.21$	$90\pm 3$	37.8	$0.042\times 0.034$	173
									7.7	$0.190\times 0.021$	50
			$0.026\times {0.026}^g$	—	U		$21.38\pm 0.16$	$85\pm 3$	16.5	$0.045\times 0.030$	155
									5.4	$0.132\times 0.022$	50

Full text

1 Introduction

R Leo is an O-rich Asymptotic Giant Branch star (AGB) located at $\simeq 70-85$ pc from Earth (De Beck et al., 2010; Ramstedt & Olofsson, 2014). It has an effective temperature of $\simeq 2500-3000$ K and an angular diameter of $\simeq 0.\!\!^{\prime\prime}025-0.\!\!^{\prime\prime}030$ in the K-band (Perrin et al., 1999; Fedele et al., 2005; Wittkowski et al., 2016). It pulsates with a period of $\simeq 310$ days ejecting processed material with a low mass-loss rate of $\simeq 1.0\times 10^{-7}$ M⊙ yr*-1* and a terminal velocity of $6-9$ km s*-1* (Bujarrabal et al., 1994; Cernicharo et al., 1997).

The continuum at different wavelengths (optical, infrared, mm) together with the thermal and maser molecular emissions coming from this star have been analysed with different observing techniques (e.g., Castelaz & Luttermoser, 1997; Pardo et al., 1998; Ryde et al., 1999; González-Delgado et al., 2003; Soria-Ruiz et al., 2007). Some of these observations suggested the existence of complex structures in the innermost envelope. Cernicharo et al. (1994) carried out lunar occultation observations of the SiO($v=1,J=2-1$) maser finding a low velocity structure within the 0$.\!\!^{\prime\prime}$5-sized region around the star that could be interpreted as a developing bipolar outflow or a rotating torus. However, the limited spatial information perpendicular to the occultation direction achieved was insufficient to properly constrain this structure. Additional asymmetries were found at larger scales by Plez & Lambert (1994) suggesting that the structure revealed by Cernicharo et al. (1994) could be part of a bigger one covering a significant fraction of the envelope.

In this Letter, we present new interferometer observations of CO and 29SiO toward the AGB star R Leo carried out with the Atacama Large Millimeter Array (ALMA) with an angular resolution of up to 0$.\!\!^{\prime\prime}$026, comparable to the size of the star.

2 Observations

We observed R Leo with ALMA during Cycle 4 and 5 under the frame of project 2016.1.01202.S. Array configurations C40-2, C40-5, C40-6, and C43-9 were used providing baselines from 15 m up to 13.9 km. These observations give a complete view of the envelope of R Leo at different scales along $\simeq 1.25$ pulsation periods. The observation details can be found in Table 1.

Four spectral windows covered the frequency ranges $212.7-216.8$ and $227.5-231.5$ GHz with a channel width of 488 kHz. The flux, bandpass, and pointing were calibrated in the usual way by observing J0854+2006 or J1058+0133. We estimate a flux error $\simeq 5\%$. The phase calibrators and check sources J1002+1216, J1008+0621, and J0946+1017 were periodically observed. R Leo was observed twice with configuration C43-9. In the first run (run A) the baseline of one spectral window was affected by strong spurious periodic spikes, the weather was worse, and the $uv$ plane coverage was limited. The data quality highly increased during the second run (run B) and run A was deprecated. The data calibration was done with the pipeline in CASA 4.7.2 (McMullin et al., 2007).

Mapping and data analysis were almost fully performed with GILDAS333https://www.iram.fr/IRAMFR/GILDAS. Imaging restoration was done adopting a robust parameter of 1.0 and 0.1 (natural and uniform weightings, hereafter). We estimate a positional uncertainty for the highest angular resolution of $\simeq 0.\!\!^{\prime\prime}005$ from the standard deviation of the emission peak position of the phase calibrator over time (Menten et al., 2006; Fonfría et al., 2014).

In this Letter, we have focused on the short scale observations to describe the stellar vicinity. The analysis of the envelope through the larger scale maps is out of the scope of this work and will be presented elsewhere (Fonfría et al., in preparation). Due to the stellar pulsation phase incoherence and the long time lag ($\simeq 1.1$ yr) the data taken with the C40-6 and C43-9 configurations have not been merged to prevent artefacts.

3 Results and discussion

3.1 The structure of the continuum emission

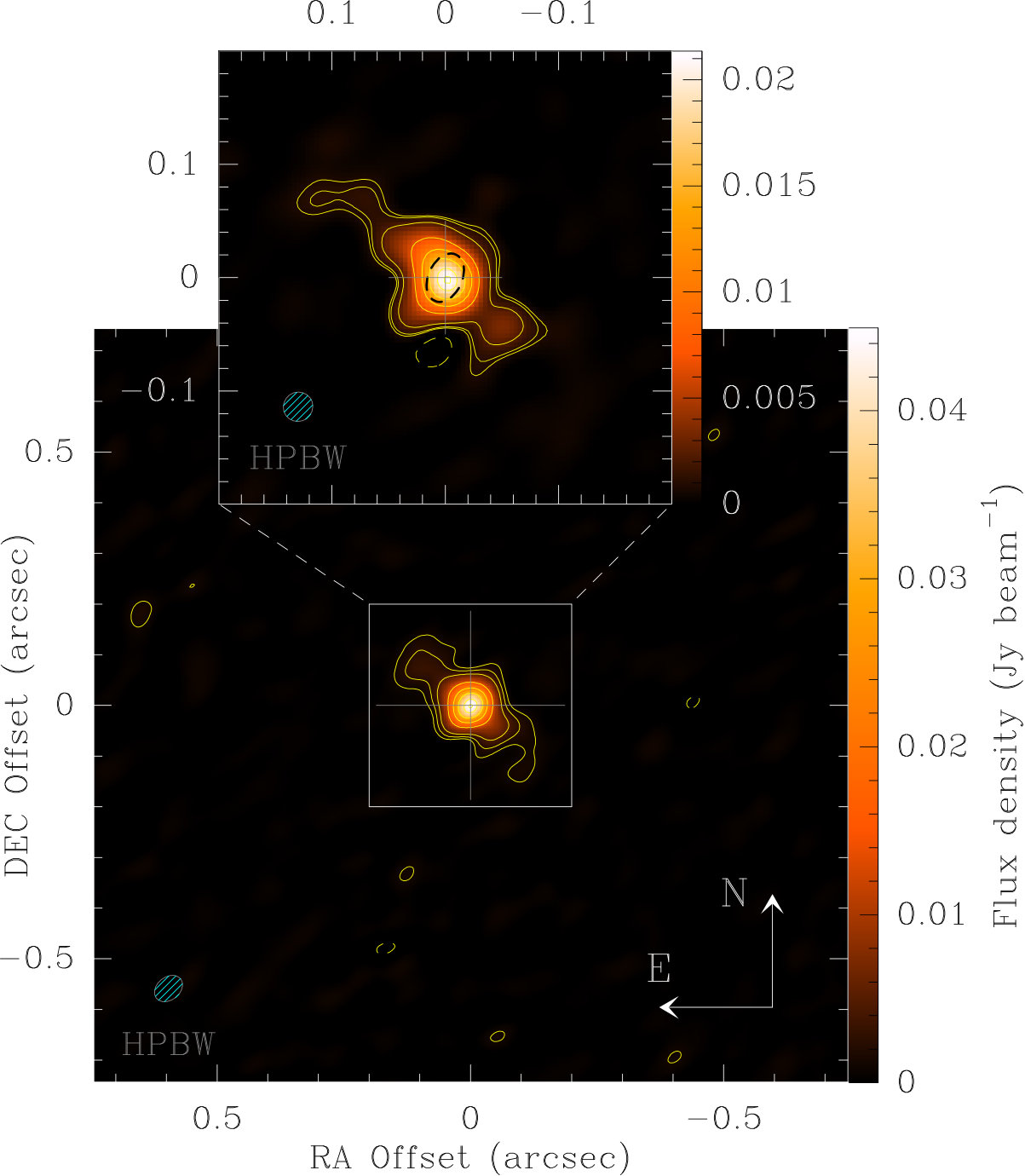

The observations show one continuum emission source in the region of the sky covered by the primary beam (Fig. 1) peaking at $(\textnormal{RA},\textnormal{DEC})=(09^{h}47^{m}33.\!\!^{s}4915\pm 0.\!\!^{s}0004,11^{\circ}25^{\prime}42.\!\!^{\prime\prime}899\pm 0.\!\!^{\prime\prime}005)$.

The highest resolution observations show a compact source surrounded by a faint extended brightness distribution elongated roughly along the Northeast-Southwest direction (Fig. 1). It is noteworthy that the Maximum Recoverable Scale (MRS; $\simeq 0.\!\!^{\prime\prime}6$) is similar to the size of the extended emission in Fig. 1, which is $\simeq 0.\!\!^{\prime\prime}35$ above the $5\sigma$ level. Thus, the array could be filtering emission, preventing us to derive reliable brightness temperatures for the star.

The continuum emission can be described by two Gaussian-like components: one compact and one extended (Table 1). We can estimate the size of the continuum source at 7 mm at the same pulsation phase as during our observations ($\simeq 0.50$) from the results by Matthews et al. (2018) assuming first an uniform disk fit, using linear interpolations, and finally scaling the result to get a Gaussian size. The result is $\simeq(0.\!\!^{\prime\prime}035\pm 0.\!\!^{\prime\prime}006)\times(0.\!\!^{\prime\prime}025\pm 0.\!\!^{\prime\prime}003)$, smaller than the size of our compact source ($0.\!\!^{\prime\prime}045\times 0.\!\!^{\prime\prime}030$). This only can occur if the star is surrounded by a continuum source that emits more at 1 mm than at 7 mm like a dusty shell (Norris et al., 2012). All this is compatible with the extended continuum component (size $\simeq 0.\!\!^{\prime\prime}05$) found by Paladini et al. (2017) in the mid-IR around the star. For simplicity, we hereby consider this compact component as the star.

The extended Gaussian-like component is elongated along the Northeast-Southwest direction. Its deconvolved size is smaller than the angular resolution provided by the C40-6 configuration ($\theta_{\textnormal{\tiny{PSF}}}\simeq 0.\!\!^{\prime\prime}17$) and it is not evident in the corresponding map. The ellipticity of this component is $e=1-\theta_{\textnormal{\tiny{min}}}/\theta_{\textnormal{\tiny{maj}}}\simeq 0.83$, where $\theta_{\textnormal{\tiny{maj}}}$ and $\theta_{\textnormal{\tiny{min}}}$ are the deconvolved major and minor axes (Table 1). Since no extended emission has been discovered at longer wavelengths (Reid & Menten, 2007; Matthews et al., 2018) the extended component would be produced by dust.

3.2 Complex molecular line profiles in the vicinity of the star

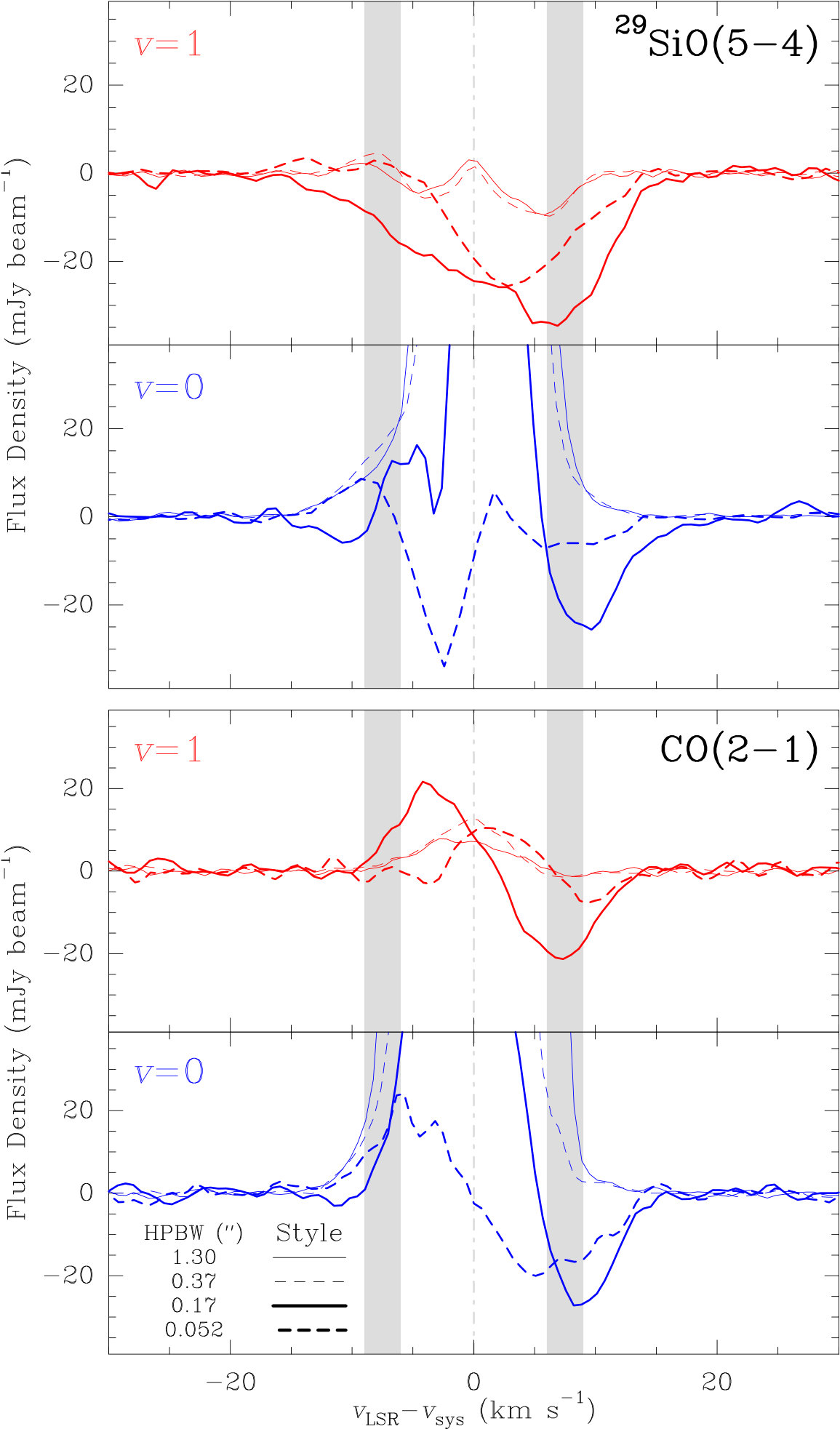

The CO and 29SiO lines at the central pixel reveal profiles with emission and absorption components, suggesting the presence of a complex structure (Fig. 2). The CO($v=0,J=2-1$) and 29SiO($v=0,J=5-4$) lines observed with an angular resolution $\theta_{\textnormal{\tiny{PSF}}}\simeq 0.\!\!^{\prime\prime}17$ (Table 1) comprise a main emission contribution roughly centred at a systemic velocity of $-0.5$ km s*-1* (Teyssier et al., 2006) and a prominent red-shifted absorption of $\simeq 25\%$ of the continuum peaking at $\simeq 8$ km s*-1*. The 29SiO line observed with $\theta_{\textnormal{\tiny{PSF}}}\simeq 0.\!\!^{\prime\prime}052$ is dominated by a strong absorption peak at $\simeq-2.5$ km s*-1* ($\simeq 70\%$ of the continuum) while the CO line shows a clear inverse P-Cygni profile. Line CO($v=1,J=2-1$) also shows a similar profile with its absorption component peaking at $\simeq 10$ km s*-1*. The 29SiO($v=1,J=5-4$) line lacks emission but shows a broad absorption peaking at $\simeq 3-6$ km s*-1*. All these absorptions extend up to velocities $\simeq 10-15$ km s*-1*, higher than the terminal expansion velocity ($\simeq 6-9$ km s*-1*; Bujarrabal et al., 1994; Cernicharo et al., 1997; De Beck et al., 2010; Ramstedt & Olofsson, 2014). No absorption is observed for all these lines with $\theta_{\textnormal{\tiny{PSF}}}\simeq 0.\!\!^{\prime\prime}37$ and 1$.\!\!^{\prime\prime}$30 except for 29SiO($v=1,J=5-4$). This line displays blue- and red-shifted absorptions and a well differentiated, narrow emission component at the systemic velocity. The large variations seen between the $v=1$ lines, expected to arise very close to the star, observed with $\theta_{\textnormal{\tiny{PSF}}}\simeq 0.\!\!^{\prime\prime}17$ and 0$.\!\!^{\prime\prime}$052 indicate substantial excitation changes throughout a single pulsation period.

All this suggest that (1) there is gas moving away from us in front of the star producing the red-shifted absorptions, (2) most of the emission comes from directions that do not enclose the star, and (3) the upper level involved in the 29SiO($v=1,J=5-4$) line might be strongly drained, considering that this line forms in shells with temperatures $\gtrsim 1500$ K where the 29SiO($v=0,J=5-4$) do show a noticeable emission. This effect could invert the populations of the levels involved in the 29SiO($v=1,J=6-5$) line, which might show maser emission (Cernicharo et al., 1991; González-Alfonso & Cernicharo, 1997).

3.3 Gas infall and hints of rotation

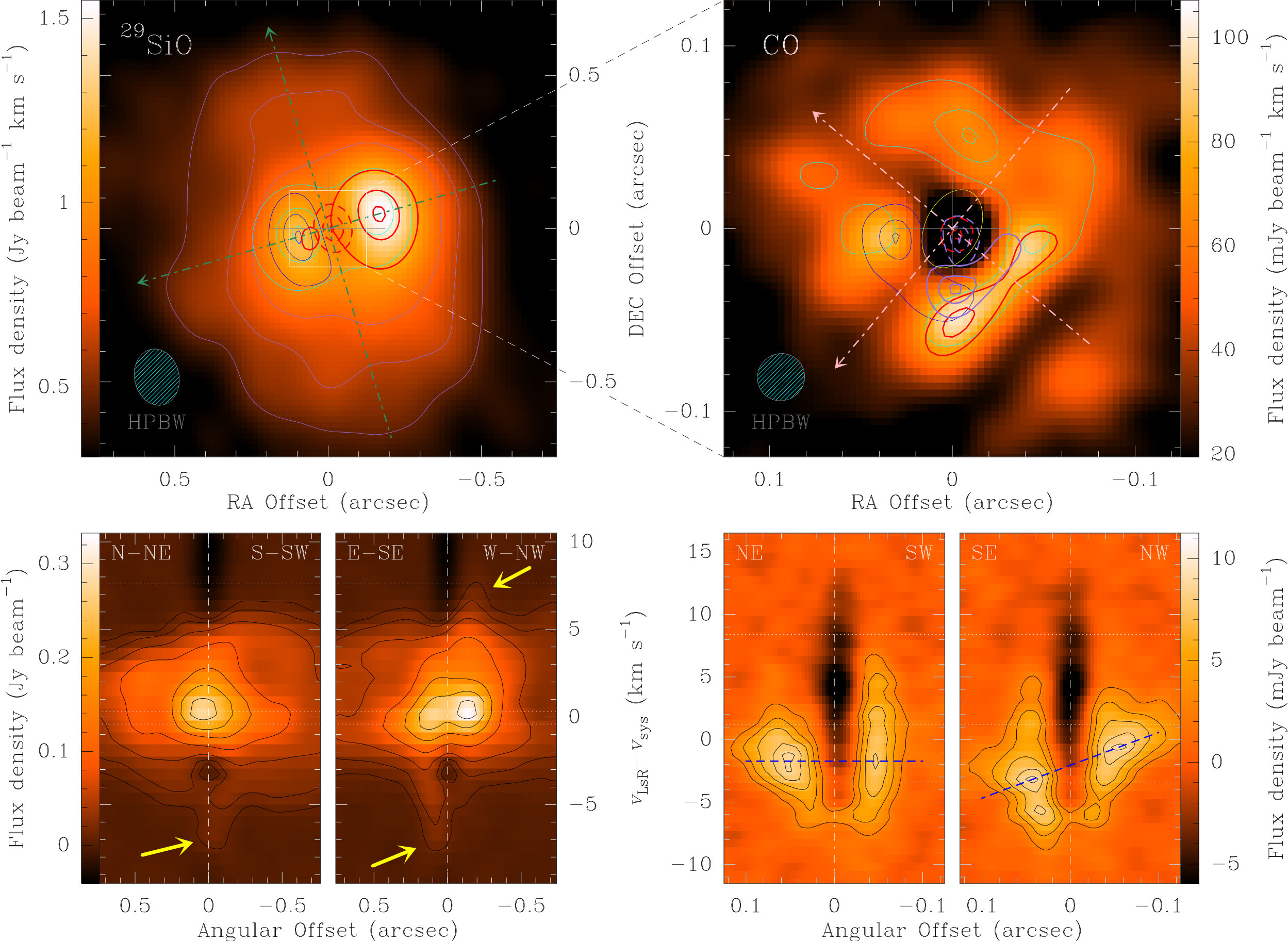

The CO and 29SiO emission distribution seen in the vicinity of the star are shown in Fig. 3. The integrated emission of line 29SiO($v=0,J=5-4$) mapped with $\theta_{\textnormal{\tiny{PSF}}}\simeq 0.\!\!^{\prime\prime}17$ (Fig. 3, upper left panel) shows a bipolar structure laying roughly along the East-West direction (P.A. $\simeq 100^{\circ}$). Lower level contours ($\simeq 30-50\%$ of the peak emission) are elongated along the perpendicular direction. The East-West structure can be separated into different contributions in the velocity range $[-15,7.6]$ km s*-1*: (1) a blue-shifted one centred at $\simeq 0.\!\!^{\prime\prime}1$ to the East of the star, (2) a red-shifted contribution centred at $\simeq 0.\!\!^{\prime\prime}2$ to the West, and (3) another contribution at the systemic velocity covering the same region of the envelope as the previous ones. In the middle of the red- and blue-shifted contributions there is an absorption in the velocity range $[7.6,15]$ km s*-1*, also seen in the 29SiO($v=1,J=5-4$) line, which matches up with the star within the positional uncertainty.

The division of the CO($v=0,J=2-1$) line into velocity intervals reveals a more complex structure (Fig. 3, upper right panel). The emission at the systemic and positive velocities of the $v=0$ and 1 lines come from the western hemisphere of the envelope. The red-shifted absorption of the $v=0$ line matches up with the star but it is slightly shifted toward the Southwest for the $v=1$ line. The blue-shifted emission of the $v=1$ line is mostly absent. The blue- and red-shifted emissions of the $v=0$ line and the emission of the $v=1$ line are overlapped to the S. There is a CO emission deficit at velocities $\gtrsim 3$ km s*-1* due Northeast. The whole picture seems to be roughly symmetric around the Northeast-Southwest direction. This main direction is compatible with that defined by the CO($v=0,J=2-1$) emission mapped with lower spatial resolutions (Fonfría et al, in preparation) and by the continuum extended emission (Fig. 1). The position-velocity diagram along the Southeast-Northwest direction (Fig. 3, lower right panel) is similar to those of the rotating disks in expansion found in several post-AGB stars except for the infalling gas (Bujarrabal et al., 2016, 2017).

The disagreement between the symmetry axes in the 29SiO and CO maps could be consequence of an inhomogeneous chemistry favoured by anisotropic physical and chemical conditions. Excitation effects cannot be ruled out considering the high number of blended lines shown by SiO and its isotopologues displaying maser emission in this and other O-rich stars (e.g., González-Alfonso & Cernicharo, 1997; Pardo et al., 1998).

Two models can reasonably explain the observations:

Gas rotating around the axis described by the extended continuum emission (Northeast-Southwest direction; P.A. $\simeq 50^{\circ}$). Part of the gas responsible of the blue-shifted emission to the Southeast would leave the main stream during its spinning movement toward the Northwest due to instabilities or interactions with the recently ejected matter, falling onto the star with a Doppler velocity relative to the systemic one up to $\simeq 10-15$ km s*-1* (Fig. 3, lower insets). The rest of the gas would keep revolving around the star at an average velocity of $\simeq 6-8$ km s*-1*. A similar Doppler shift is expected for gas orbiting a star with a mass of $\simeq 0.5-1.0\leavevmode\nobreak\ M_{\odot}$ if an orbital inclination of $\simeq 25^{\circ}-50^{\circ}$ is assumed. 2. 2.

The previous rotating structure would exist as well but there would not be any leakage resulting in gas falling onto the star. The red-shifted absorptions would be produced by radial movements of photospheric layers (or convective cells) due to the stellar pulsation (Hinkle, 1978; Hinkle & Barnes, 1979a, b).

Contrary to what Vlemmings et al. (2017) claimed to happen in the photosphere of W Hya, where there is a bright spot suggested to be caused by the collision of infalling matter onto the star, we do not find any footprint of this phenomenon in our continuum maps. However, the angular resolution of our observations is insufficient to explore the stellar photosphere and a similar bright spot could be highly diluted. In fact, Tatebe et al. (2008) found evidences of a hot spot in the southern part of R Leo that might have a counterpart in the mm range.

It can be argued that the Doppler velocities seen in our observations are related to random gas movements in the stellar photosphere or to effects of periodic shocks. Several works based on VLBI observations of SiO masers have been published for a number of AGB stars such as R Leo or TX Cam (e.g., Cotton et al., 2004; Soria-Ruiz et al., 2007; Gonidakis et al., 2013). The maser spots are supposed to live enough time to trace the gas movement very close the photosphere, if a good sampling is adopted. Those observations are constrained to the shell where the maser emission is higher, which covers the region ranging from 0$.\!\!^{\prime\prime}$030 to 0$.\!\!^{\prime\prime}$040. They thus sample a region of the envelope considerably closer to the star than the one traced by our data. Common conclusions are therefore difficult to draw. Contrary to what happens with VLBI observations, the angular resolution of our observations is insufficient to describe random gas movements, which are cancelled out during the averaging performed by the PSF and contribute to broaden line widths.

A set of several clumps ejected with significant axial velocities resulting, for instance, from ballistic trajectories, could also be suggested to comprise the detected structure. However, our observations show a highly continuous velocity field around the star difficult to explain assuming randomly ejected, discrete clumps with unconnected kinematical properties. Additionally, there exist evidences of rotating molecular torus in the envelopes of other AGB stars such as L2 Pup or R Dor (Kervella et al., 2016; Homan et al., 2018), suggesting that these structures might be more common than initially expected.

The existence of rotating gas in the surroundings of the star needs an angular momentum input, since the rotation of an AGB star is expected to be very low. This extra angular momentum could be provided by a dipolar magnetic field (Matt et al., 2000) or an additional body (Vlemmings et al., 2018). The first scenario would require a plasma or a gas of charged particles to be coupled with. No continuum emission typical of a plasma has been detected but dust grains are probably charged in the innermost envelope. A dipolar magnetic field could force the radially ejected grains to drag the gas inducing circumstellar rotation. Regarding the second scenario, no companion has been found in the optical and near-IR spectral ranges (Gatewood, 1992) but this disagreement could be solved if it is a small, cold body such as a low mass star or a Jovian planet instead. This idea was already invoked by Wiesemeyer (2009b) to explain the polarisation fluctuations detected in the SiO maser emission (Wiesemeyer et al., 2009a), that are also formed very close to the stellar photosphere. The existence of a planet orbiting an AGB star has been also suggested to be possible by Kervella et al. (2016), who claim to have discovered what could be one of them in L2 Pup.

4 Summary and Conclusions

We present new interferometer observations of the AGB star R Leo carried out with ALMA with a maximum angular resolution of $\simeq 0.\!\!^{\prime\prime}026$ and a MRS $\simeq 0.\!\!^{\prime\prime}6$.

The continuum emission can be described as a compact source surrounded by a highly collimated extended emission in the Northeast-Southwest direction. The CO maps show a 0$.\!\!^{\prime\prime}$1-sized rotating torus-like structure with its axis lying along the Northeast-Southwest direction. This structure could be explained by (1) either the action of a dipolar magnetic field on the radially expanding wind or (2) the presence of a small, cold companion (maybe a Jovian planet) that is orbiting the central star and injecting angular momentum to the gas. This seemingly rotating structure is accompanied by evident red-shifted absorptions that could be produced by infalling gas coming from it or by the regular movement of the pulsating photosphere. At larger scales 29SiO shows also a torus-like structure with its axis roughly oriented along the North-South direction unseen in the corresponding CO map. Its origin is unclear but it may be produced by anisotropic physical and chemical conditions, or unexpected excitation effects.

These observations reveal a high complexity structure in the envelope of R Leo tightly related to the changes undergone by this AGB star. They will be addressed accurately in the near future through detailed analyses of these and new larger scale data.

Acknowledgements.

We thank the European Research Council (ERC Grant 610256: NANOCOSMOS) and the Spanish MINECO/MICINN for funding support through grant AYA2016-75066-C-1-P and the ASTROMOL Consolider project CSD2009-00038. MA thanks funding support from the Ramón y Cajal program of Spanish MINECO (RyC-2014-16277). We also thank V. Bujarrabal for his valuable comments about the observations interpretation and the anonymous referee for his/her interesting comments.
