On interface conditions for flows in coupled free-porous media

TL;DR

This paper derives a comprehensive, theoretically grounded set of interface conditions for flow in coupled free-porous media, unifying existing conditions and applying broadly to various models using a virtual power principle.

Contribution

It introduces a variational approach to derive interface conditions, providing a unified framework that encompasses popular existing conditions and applies to diverse porous media models.

Findings

Derived a complete set of interface conditions using virtual power.

Unified existing conditions like Beavers-Joseph as special cases.

Established a minimum power theorem for coupled free-porous flows.

Abstract

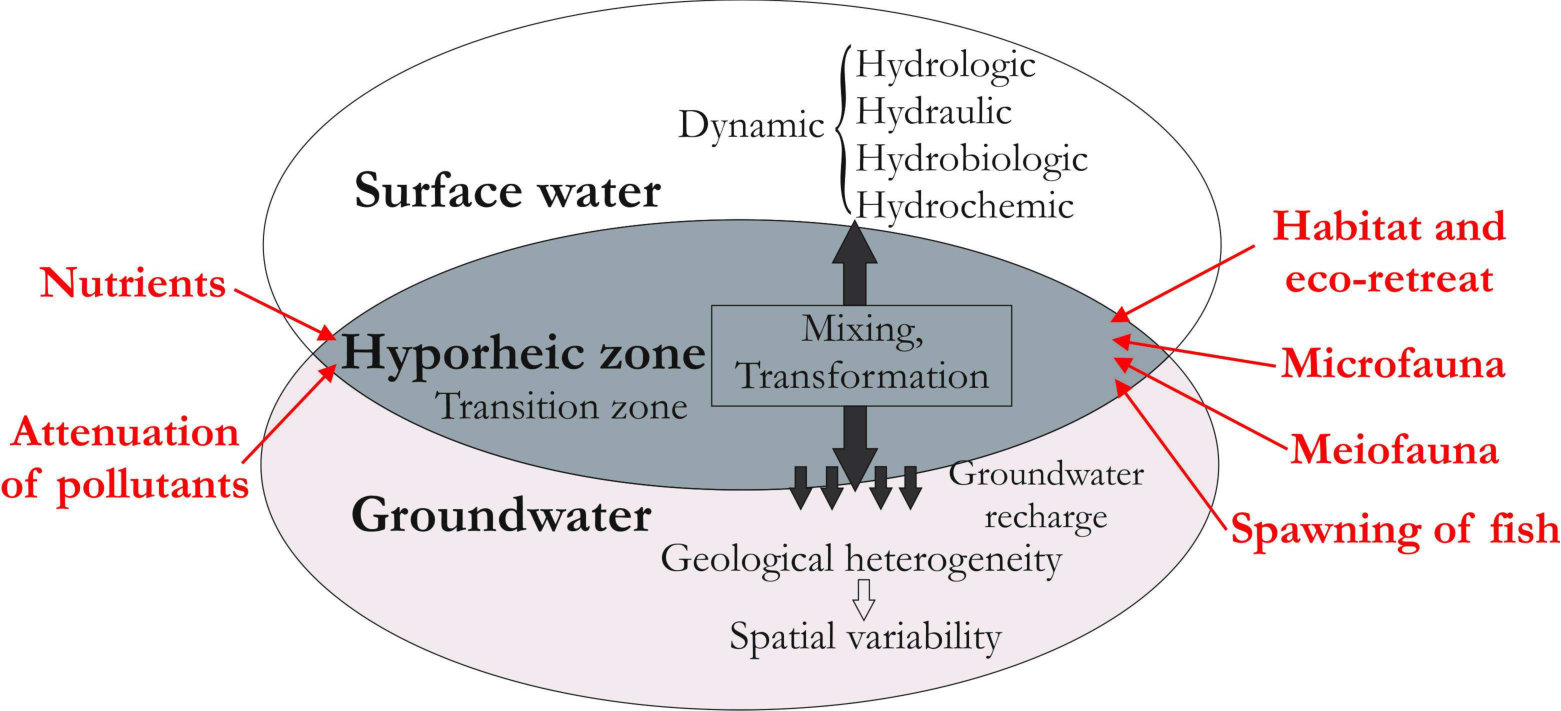

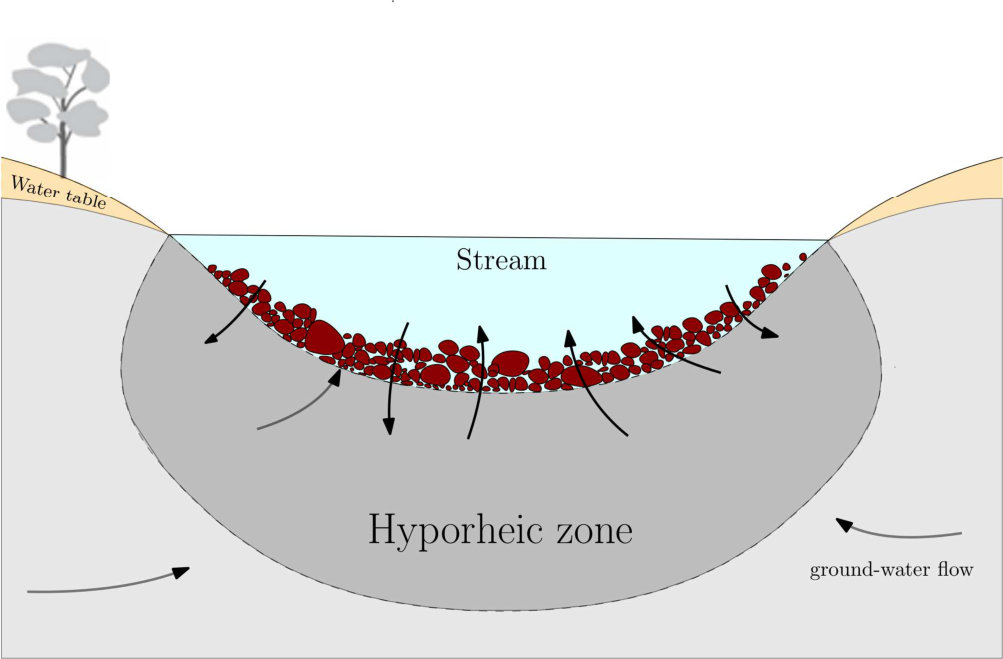

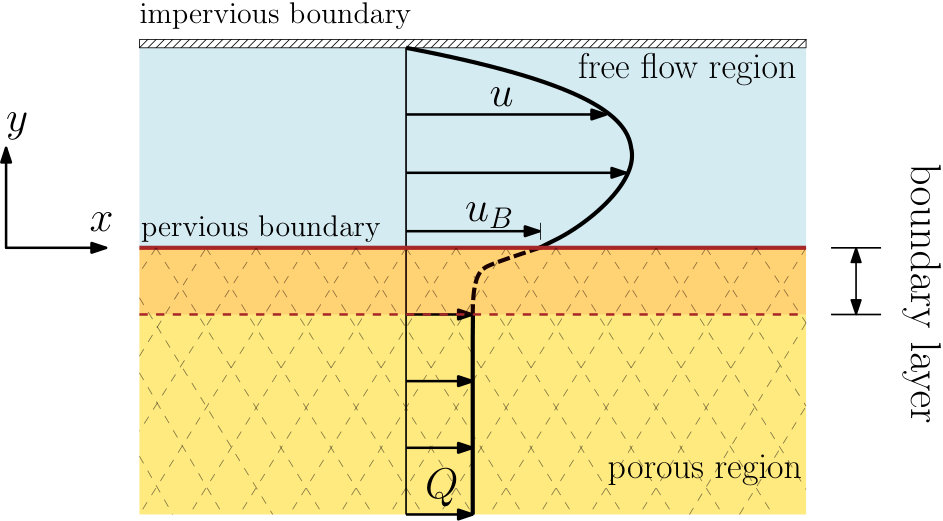

Many processes in nature (e.g., physical and biogeochemical processes in hyporheic zones, and arterial mass transport) occur near the interface of free-porous media. A firm understanding of these processes needs an accurate prescription of flow dynamics near the interface which (in turn) hinges on an appropriate description of interface conditions along the interface of free-porous media. Although the conditions for the flow dynamics at the interface of free-porous media have received considerable attention, many of these studies were empirical and lacked a firm theoretical underpinning. In this paper, we derive a complete and self-consistent set of conditions for flow dynamics at the interface of free-porous media. We first propose a principle of virtual power by incorporating the virtual power expended at the interface of free-porous media. Then by appealing to the calculus of variations, we obtain a complete set of interface conditions for flows in coupled free-porous media. A noteworthy feature of our approach is that the derived interface conditions apply to a wide variety of porous media models. We also show that the two most popular interface conditions -- the Beavers-Joseph condition and the Beavers-Joseph-Saffman condition -- are special cases of the approach presented in this paper. The proposed principle of virtual power also provides a minimum power theorem for a class of flows in coupled free-porous media, which has a similar mathematical structure as the ones enjoyed by flows in uncoupled free and porous media.

Figures
