Adjacency-constrained hierarchical clustering of a band similarity matrix with application to Genomics

TL;DR

This paper introduces an efficient adjacency-constrained hierarchical clustering method for genomic similarity matrices, enabling rapid and memory-efficient analysis of large-scale genomic data with meaningful biological insights.

Contribution

It presents a quasi-linear complexity implementation of adjacency-constrained HAC, suitable for high-resolution genomic data, with practical applications demonstrated on GWAS and Hi-C datasets.

Findings

Method highlights biologically meaningful signals

Runs on standard laptops in minutes or seconds

Assumes negligible similarity between distant objects

Abstract

Motivation: Genomic data analyses such as Genome-Wide Association Studies (GWAS) or Hi-C studies are often faced with the problem of partitioning chromosomes into successive regions based on a similarity matrix of high-resolution, locus-level measurements. An intuitive way of doing this is to perform a modified Hierarchical Agglomerative Clustering (HAC), where only adjacent clusters (according to the ordering of positions within a chromosome) are allowed to be merged. A major practical drawback of this method is its quadratic time and space complexity in the number of loci, which is typically of the order of 10^4 to 10^5 for each chromosome. Results: By assuming that the similarity between physically distant objects is negligible, we propose an implementation of this adjacency-constrained HAC with quasi-linear complexity. Our illustrations on GWAS and Hi-C datasets demonstrate the relevance of this assumption, and show that this method highlights biologically meaningful signals. Thanks to its small time and memory footprint, the method can be run on a standard laptop in minutes or even seconds. Availability and Implementation: Software and sample data are available as an R package, adjclust, that can be downloaded from the Comprehensive R Archive Network (CRAN).

Figures

Tables

Table 1. Table 1: Time complexities ( × 𝒪 ​ ( 1 ) absent 𝒪 1 \times\mathcal{O}(1) ) of the three main elementary operations required by one step of adjacency-constrained clustering (in columns), for three implementation options (in rows), for a problem of size p 𝑝 p .

	Find $\min$	Insert	Delete $\min$	Total
Unordered array	$p$	1	$p$	$p$
Min heap	1	$\log \left(p\right)$	$\log \left(p\right)$	$\log \left(p\right)$
Ordered array	1	$p$	$p$	$p$

Equations

$$\delta(C,C^{\prime})=\frac{S(C)}{\IfEqCase{a}{{a}{\left|C\right\rvert}{0}{|C\rvert}{1}{\big{|}C\big{\rvert}}{2}{\Big{|}C\Big{\rvert}}{3}{\bigg{|}C\bigg{\rvert}}{4}{\Bigg{|}C\Bigg{\rvert}}}[]}+\frac{S(C^{\prime})}{\IfEqCase{a}{{a}{\left|C^{\prime}\right\rvert}{0}{|C^{\prime}\rvert}{1}{\big{|}C^{\prime}\big{\rvert}}{2}{\Big{|}C^{\prime}\Big{\rvert}}{3}{\bigg{|}C^{\prime}\bigg{\rvert}}{4}{\Bigg{|}C^{\prime}\Bigg{\rvert}}}[]}-\frac{S(C\cup C^{\prime})}{\IfEqCase{a}{{a}{\left|C\cup C^{\prime}\right\rvert}{0}{|C\cup C^{\prime}\rvert}{1}{\big{|}C\cup C^{\prime}\big{\rvert}}{2}{\Big{|}C\cup C^{\prime}\Big{\rvert}}{3}{\bigg{|}C\cup C^{\prime}\bigg{\rvert}}{4}{\Bigg{|}C\cup C^{\prime}\Bigg{\rvert}}}[]}\,,$$

$$P(r,l)=\sum_{1\leq i,j\leq r,\IfEqCase{a}{{a}{\left|i-j\right\rvert}{0}{|i-j\rvert}{1}{\big{|}i-j\big{\rvert}}{2}{\Big{|}i-j\Big{\rvert}}{3}{\bigg{|}i-j\bigg{\rvert}}{4}{\Bigg{|}i-j\Bigg{\rvert}}}[]<l}s_{ij}$$

$$P(j,h_k)+\bar{P}(i,h_k)=S(C)+P(p,h_k),$$

Full text

Results: By assuming that the similarity between physically distant objects is negligible, we are able to propose an implementation of this adjacency-constrained HAC with quasi-linear complexity. Our illustrations on GWAS and Hi-C datasets demonstrate the relevance of this assumption, and show that this method highlights biologically meaningful signals. Thanks to its small time and memory footprint, the method can be run on a standard laptop in minutes or even seconds.

Availability and Implementation: Software and sample data are available as an R package, adjclust, that can be downloaded from the Comprehensive R Archive Network (CRAN).

Contact: pierre.neuvial@math.univ-toulouse.fr

1 Introduction

Genetic information is coded in long strings of DNA organised in chromosomes. High-throughput sequencing such as RNAseq, DNAseq, ChipSeq and Hi-C makes it possible to study biological phenomena along the entire genome at a very high resolution [Reuter et al., 2015].

In most cases, we expect neighboring positions to be statistically dependent. Using this a priori information is one way of addressing the complexity of genome-wide analyses. For instance, it is common practice to partition each chromosome into regions, because such regions hopefully correspond to biological relevant or interpretable units (such as genes or binding sites) and because statistical modelling and inference are simplified at the scale of an individual region. In simple cases, such regions are given (for example, in RNAseq analysis, only genic and intergenic regions are usually considered and differential analysis is commonly performed at the gene or transcript level). However, in more complex cases, regions of interest are unknown and need to be discovered by mining the data. This is the case in the two leading examples considered in this paper. In the context of Genome Wide Association Studies (GWAS), region-scale approaches taking haplotype blocks into account can result in substantial statistical gains [Gabriel et al., 2002]. Hi-C studies [Dixon et al., 2012] have demonstrated the existence of topological domains, which are megabase-sized local chromatin interaction domains correlating with regions of the genome that constrain the spread of heterochromatin. Hence, the problem of partitioning a chromosome into biologically relevant regions based on measures of similarity between pairs of individual loci has been extensively studied for genomic applications.

Recovering the “best” partition of $p$ loci for each possible number, $K$, of classes is equivalent to a segmentation problem (also known as “multiple changepoint problem”). In the simplest scenario where the signals to be segmented are piecewise-constant, such as in the case of DNA copy numbers in cancer studies, segmentation can be cast as a least squares minimization problem [Picard et al., 2005, Hocking et al., 2013]. More generally, kernel-based segmentation methods have been developed to perform segmentation on data described by a similarity measure [Harchaoui and Cappé, 2007, Arlot et al., 2016b]. Such segmentation problems are combinatorial in nature, as the number of possible segmentations of $p$ loci into $K$ blocks (for a given $K=1\dots p$) is ${p\choose K}=\mathcal{O}(p^{K})$. The “best” segmentation for all $K=1\dots p$ can be recovered efficiently in a quadratic time and space complexity using dynamic programming. As discussed in Celisse et al. [2017], in the case of kernel-based segmentation, this complexity cannot be improved without making additional assumptions on the kernel (or the corresponding similarity). Indeed, for a generic kernel, even computing the loss (that is, the least square error) of any given segmentation in a fixed number of segments $K$ has a computational cost of $\mathcal{O}(p^{2})$.

The goal of this paper is to develop heuristics that can be applied to genomic studies in which the number of loci is so large (typically of the order of $p=10^{4}$ to $10^{6}$) that algorithms of quadratic time and space complexity cannot be applied. This paper stems from a modification of the classical hierarchical agglomerative clustering (HAC) [Kaufman and Rousseeuw, 2009], where only adjacent clusters (in the sense of a pre-defined ordering) can be merged. This simple constraint is well suited to genomic applications, in which loci can be ordered along chromosomes provided that an assembled genome is available. The resulting method can be seen as a heuristic for segmentation; it provides not only a single partition of the original loci, but a sequence of nested partitions.

This idea of incorporating such constraints was previously mentioned by Lebart [1978] and Grimm [1987], and an R package implementing this algorithm, rioja [Juggins, 2018], has been developed111available on CRAN at https://cran.r-project.org/package=rioja, but the package is currently orphaned.. However, the algorithm remains quadratic in both time and space. Its time complexity cannot be improved because all of the $p^{2}$ similarities have to be computed to perform the clustering. To circumvent this difficulty, we assume that the similarity between physically distant loci is zero, where two loci are deemed to be “physically distant” if they are separated by more than $h$ other loci. The main contribution of this paper is to propose an adjacency-constrained clustering algorithm with quasi-linear complexity (namely, $\mathcal{O}(ph)$ in space and $\mathcal{O}(p(h+\log(p)))$ in time) under this assumption, and to demonstrate its relevance for genomic studies.

The rest of the paper is organized as follows. In Section 2 we describe the algorithm, its time and space complexity and its implementation. The resulting segmentation method is then applied on GWAS datasets (Section 3) and on Hi-C datasets (Section 4), in order to illustrate that the above assumption makes sense in such studies, and that the proposed methods can be used to recover biologically relevant signals.

2 Method

2.1 Adjacency-constrained HAC with Ward’s linkage

In its unconstrained version, HAC starts with a trivial clustering where each object is in its own cluster and iteratively merges the two most similar clusters according to a distance function $\delta$ called a linkage criterion. We focus on Ward’s linkage, which was defined for clustering objects $(x_{i})_{i}$ taking values in the Euclidean space $\mathbb{R}^{d}$. Formally, Ward’s linkage between two clusters $C$ and $C^{\prime}$ is the increase in the error sum of squares (or equivalently, the decrease in variance) when $C$ and $C^{\prime}$ are merged: $\delta(C,C^{\prime})=I(C\cup C^{\prime})-I(C)-I(C^{\prime})$, where $I(C):=\frac{1}{|C|}\sum_{i\in C}\|x_{i}-\bar{C}\|^{2}_{\mathbb{R}^{d}}$ and $\bar{C}=\frac{1}{n}\sum_{i\in C}x_{i}$. It is one of the most widely used linkages because of its natural interpretation in terms of within/between cluster variance and because HAC with Ward’s linkage can be seen as a greedy algorithm for least square minimization, similarly to the $k$-means algorithm. In this paper, the $p$ objects to be clustered are assumed to be ordered by their indices $i\in\left\{1,\dots p\right\}$. We focus on a modification of HAC where only adjacent clusters are allowed to be merged. This adjacency-constrained HAC is described in Algorithm 1.

An implementation in Fortran of this algorithm was provided by Grimm [1987]. This implementation has been integrated in the R package rioja [Juggins, 2018]. Its complexity is $\mathcal{O}(p^{2})$ (quadratic) both in time and space, which prevents the use of this implementation for large genomic data sets.

Extension to general similarities.

HAC and adjacency-constrained HAC are also frequently used when the objects to be clustered do not belong to an Euclidean space but are described by pairwise dissimilarities. This case has been formally studied in Székely and Rizzo [2005], Strauss and von Maltitz [2017], Chavent et al. [2018] and generally involves extending the linkage formula by making an analogy between the dissimilarity and the Euclidean distance (or the squared Euclidean distance in some cases). These authors have shown that the simplified update of the linkage at each step of the algorithm, known as the Lance-Williams formula, is still valid in this case and that the objective criterion can be interpreted as the minimization of a so-called “pseudo inertia”. A similar approach can be used to extend HAC to data described by an arbitrary similarity between objects, $S=(s_{ij})_{i,j=1,\ldots,p}$, using a kernel framework as in [Qin et al., 2003, Ah-Pine and Wang, 2016]. More precisely, when $S$ is positive definite, the theory of Reproducing Kernel Hilbert Spaces [Aronszajn, 1950] implies that the data can be embedded in an implicit Hilbert space. This allows to define Ward’s linkage between any two clusters in terms of the similarity using the so-called “kernel trick”: $\forall\,C,\ C^{\prime}\subset\{1,\ldots,p\}$,

[TABLE]

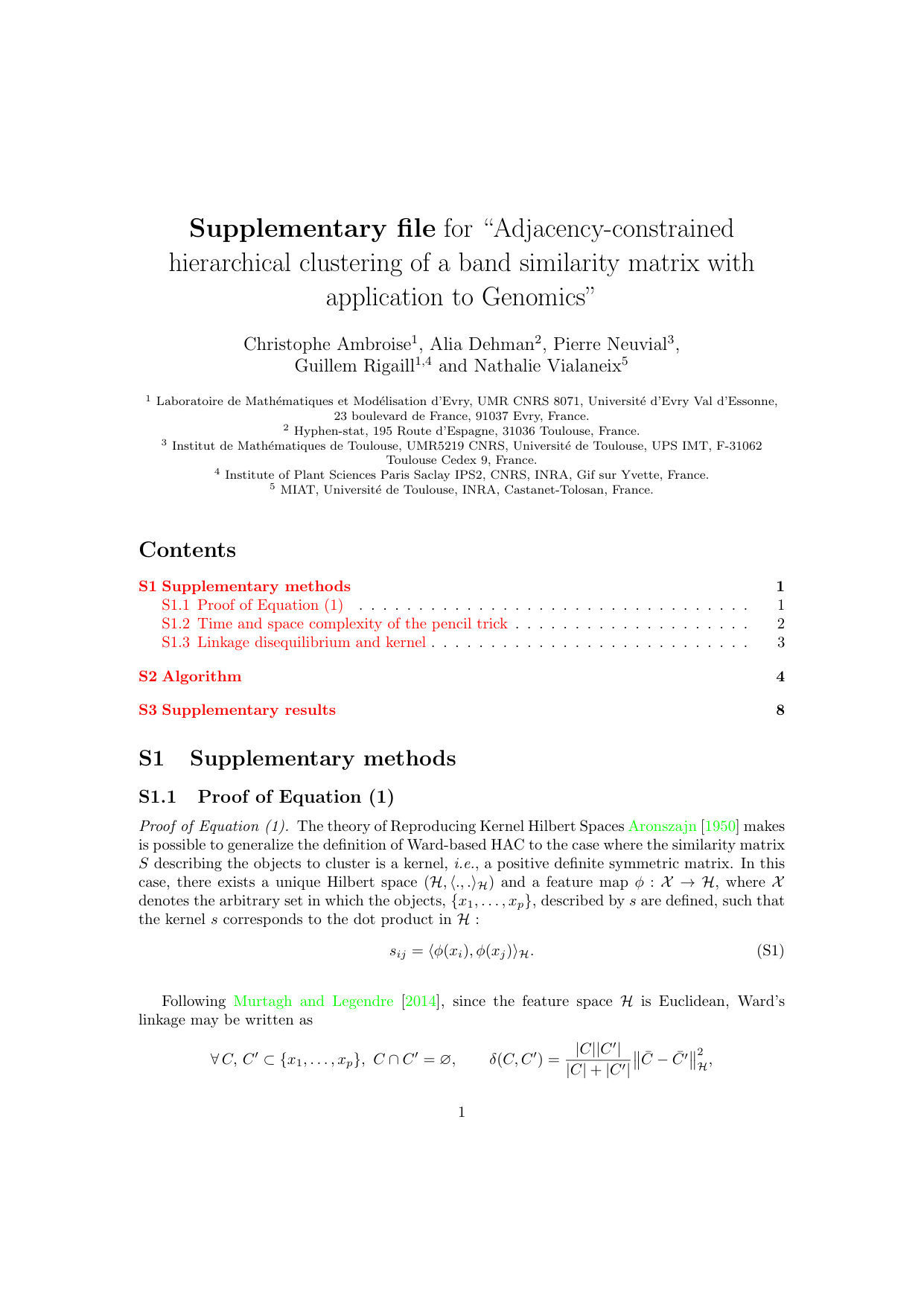

where $S(C)=\sum_{(i,j)\in C^{2}}s_{ij}$ only depends on $S$ and not on the embedding. Equation (1) is proved in Section S1.1 of Supplementary material.

Extending this approach to the case of a general (that is, possibly non-positive definite) similarity matrix has been studied in Miyamoto et al. [2015]. Noting that $(i)$ for a large enough $\lambda$, the matrix $S_{\lambda}=S+\lambda I_{p}$ is positive definite and that $(ii)$ $\delta_{S_{\lambda}}(C,C^{\prime})=\delta(C,C^{\prime})+\lambda$, Miyamoto et al. [2015, Theorem 1] concluded that applying Ward’s HAC to $S$ and $S_{\lambda}$ yields the exact same hierarchy, only shifting the linkage values by $+\lambda$. This result, which a fortiori holds for the adjacency-constrained Ward’s HAC, justifies the use of Equation (1) in the case of a general similarity matrix.

2.2 Band similarity

The implementation provided in rioja takes as an input a $p\times p$ (dense) dissimilarity matrix, making its space complexity quadratic. Algorithm 1 can be made sub-quadratic in space in situations where the similarity matrix is sparse (see Ah-Pine and Wang [2016] for similar considerations in the unconstrained case) or when the similarities can be computed on the fly, that is, at the time they are required by the algorithm, as in Dehman et al. [2015]. However, its time complexity is intrinsically quadratic in $p$ because all of the $p^{2}$ similarities are used to compute the linkages (Algorithm 1, line 3).

In applications where adjacency-constrained clustering is relevant, such as Hi-C and GWAS data analysis, this quadratic complexity is a major practical drawback because $p$ is typically of the order of $10^{4}$ to $10^{5}$ for each chromosome. Fortunately, in such applications it also makes sense to assume that the similarity between physically distant objects is small. Specifically, we assume that $S$ is a band matrix of bandwidth $h+1$, where $h\in\{1\dots p\}$: $s_{ij}=0$ for $|i-j|\geq h$. This assumption is not restrictive, as it is always fulfilled for $h=p$. However, we will be mostly interested in the case where $h\ll p$.

In the remainder of this section, we introduce an algorithm with improved time and space complexity under this band similarity assumption. This algorithm relies on $(i)$ constant-time calculation of each of the Ward’s linkages involved at line 3 of Algorithm 1 using Equation (1), and $(ii)$ storage of the candidate fusions in a min-heap. These elements are described in the next two subsections.

2.2.1 Ward’s linkage as a function of pre-calculated sums

The key point of this subsection is to show that the sums of similarities involved in Equation (1) may be expressed as a function of certain pre-calculated sums. We start by noting that the sum of all similarities in any cluster $C=\{i,\dots,j-1\}$ of size $k=j-i$ can easily be obtained from sums of elements in the first $\min(h,k)$ subdiagonals of $S$. To demonstrate that this is the case we define, for $1\leq r,l\leq p$, $P(r,l)$ as the sum of all elements of $S$ in the first $l$ subdiagonals of the upper-right $r\times r$ block of $S$. Formally,

[TABLE]

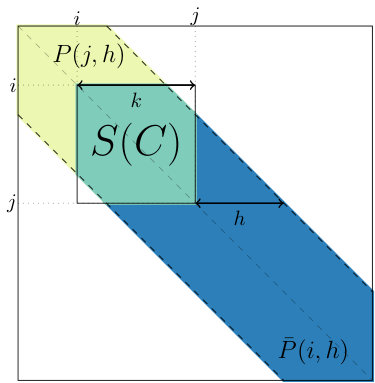

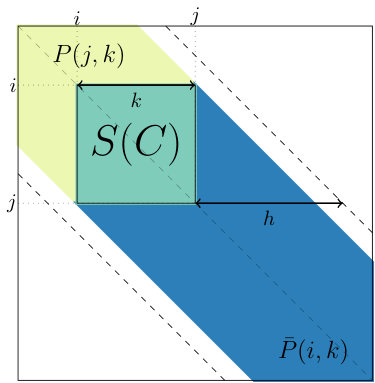

and symmetrically, $\bar{P}(r,l)=P(p+1-r,l)$. This notation is illustrated in Figure 1, with $r\in\{i,j\}$. In the left panel, $l=k\leq h$, while in the right panel, $l=h\leq k$. In both panels, $P(j,\min(h,k))$ is the sum of elements in the yellow and green regions, while $\bar{P}(i,\min(h,k))$ is the sum of elements in the green and blue regions. Because $P$ and $\bar{P}$ are sums of elements in pencil-shaped areas, we call $P(r,l)$ a forward pencil and $\bar{P}(r,l)$ a backward pencil.

Figure 1 illustrates that the sum $S_{CC}$ of all similarities in cluster $C$ can be computed from forward and backward pencils using the identity:

[TABLE]

where $h_{k}:=\min(h,k)$ and $P(p,h_{k})$ is the “full” pencil of bandwidth $h_{k}$ (which also corresponds to $\bar{P}(1,h_{k})$). The above formula makes it possible to compute $\delta(C,C^{\prime})$ in constant time from the pencil sums using Equation (1). By construction, all the bandwidths of the pencils involved are less than $h$. Therefore, only pencils $P(r,l)$ and $\bar{P}(r,l)$ with $1\leq r\leq p$ and $1\leq l\leq h$ have to be pre-computed, so that the total number of pencils to compute and store is less than $2ph$. These computations can be performed recursively in a $\mathcal{O}(ph)$ time complexity. Further details about the time and space complexity of this pencil trick are given in Section 1.2 of the Supplementary Material.

2.2.2 Storing candidate fusions in a min-heap

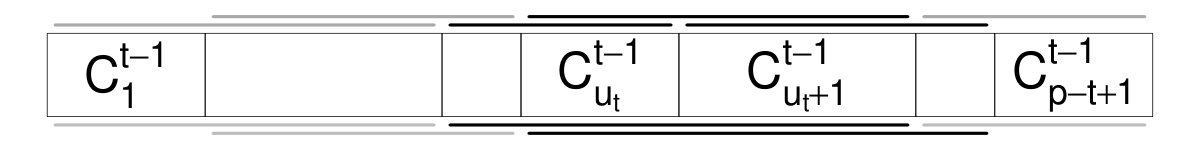

Iteration $t$ of Algorithm 1 consists in finding the minimum of $p-t$ elements, corresponding to the candidate fusions between the $p-t+1$ clusters in ${\mathcal{C}}^{t-1}$, and merging the corresponding clusters. Storing the candidate fusions in an unordered array and calculating the minimum at each step would mean a quadratic time complexity. One intuitive strategy would be to make use of the fact that all but 2 to 3 candidate fusions at step $t$ (horizontal bars above the clusters) are still candidate fusions at step $t-1$, as illustrated by Figure 2.

However, maintaining a totally-ordered list of candidate fusions is not efficient because the cost of deleting and inserting an element in an ordered list is linear in $p$, again leading to a quadratic time complexity. Instead, we propose storing the candidate fusions in a partially-ordered data structure called a min heap  [Williams, 1964]. This type of structure achieves an appropriate tradeoff between the cost of maintaining the structure and the cost of finding the minimum element at each iteration, as illustrated in Table 1 below.

A min heap is a binary tree such that the value of each node is smaller than the value of its two children. The advantage of this structure is that all the operations required in Algorithm 1 to create and maintain the list of candidate fusions can be done very efficiently. Specifically, at the beginning of the clustering, the heap is initialized with $p-1$ candidate fusions in $\mathcal{O}(p\log(p))$. Then, at each of the $p$ iterations is essentially a combination of a fixed number of elementary operations in at most $\mathcal{O}(\log(p))$:

find the best candidate fusion (root of the min heap) in $\mathcal{O}(1)$; 2. 2.

delete the root of the min heap in $\mathcal{O}(\log(p))$; 3. 3.

insert two possible fusions in the min heap in $\mathcal{O}(\log(p))$

The resulting algorithm is implemented in adjclust. It is described in details in Algorithm S2 in Section S2 of Supplementary Material, where examples of min heaps are also given.

2.2.3 Complexity of the proposed algorithm

By pre-calculating the $ph$ initial pencils recursively using cumulative sums, the time complexity of the pre-computation step is $ph$ and the time complexity of the computation of the linkage of the merged cluster with its two neighbors is $\mathcal{O}(1)$ (see Section S1.2 of Supplementary material for further details). Its total time complexity is thus $\mathcal{O}(p(h+\log(p))$, where $\mathcal{O}(ph)$ comes from the pre-computation of pencils, and $\mathcal{O}(p\log(p))$ comes from the $p$ iterations of the algorithm (to merge clusters from $p$ clusters up to 1 cluster), each of which has a complexity of $\mathcal{O}(\log(p))$. The space complexity of this algorithm is $\mathcal{O}(ph)$ because the size of the heap is $\mathcal{O}(p)$ and the space complexity of the pencil pre-computations is $\mathcal{O}(ph)$. Therefore, the method achieves a quasi-linear (linearithmic) time complexity and linear space complexity when $h\ll p$. It is our opinion that this is efficient enough for analyzing large genomic datasets.

2.3 Implementation

Our method is available in the R package adjclust, using an underlying implementation in C and available on CRAN222https://cran.r-project.org/package=adjclust. Additional features have been implemented to make the package easier to use and results easier to interpret. These include:

• •

plots to display the similarity or dissimilarity together with the dendrogram and a clustering corresponding to a given level of the hierarchy as illustrated in Supplementary Figure S6;

• •

wrappers to use the method with SNP data or Hi-C data that take data from standard bed files or outputs of the packages snpStats and HiTC respectively;

• •

a function to guide the user towards a relevant cut of the dendrogram (and thus a relevant clustering). In practice the underlying number of clusters is rarely known, and it is important to choose one based on the data. Two methods are proposed in adjclust: the first is based on a broken stick model [Bennett, 1996] for the dispersion. Starting from the root of the dendrogram, the idea is to iteratively check whether the decrease in within-cluster variance corresponding to the next split can or cannot be explained by a broken stick model and to stop if it can. To the best of our knowledge this broken stick strategy is ad hoc in the sense that it does not have a statistical justification in terms of model selection, estimation of the signal, or consistency. The second method is based on the slope heuristic that is statistically justified in the case of segmentation problems [Arlot et al., 2016b, Garreau and Arlot, 2016], for which HAC provides an approximate solution. This later approach is implemented using the capushe package [Arlot et al., 2016a], with a penalty shape of $p-1\choose K-1$.

Clustering with spatial constraints has many different applications in genomics. The next two sections illustrate the relevance of our adjacency contraint clustering approach in dealing with SNP and Hi-C data. In both cases samples are described by up to a few million variables. All simulations and figures were performed using the R package adjclust, version 0.5.7.

3 Linkage disequilibrium block inference in GWAS

Genome-Wide Association Studies (GWAS) seek to identify causal genomic variants associated with rare human diseases. The classical statistical approach for detecting these variants is based on univariate hypothesis testing, with healthy individuals being tested against affected individuals at each locus. Given that an individual’s genotype is characterized by millions of SNPs this approach yields a large multiple testing problem. Due to recombination phenomena, the hypotheses corresponding to SNPs that are close to each other along the genome are statistically dependent. A natural way to account for this dependence in the process is to reduce the number of hypotheses to be tested by grouping and aggregating SNPs [Dehman et al., 2015, Guinot et al., 2017] based on their pairwise Linkage Disequilibrium (LD). In particular, a widely used measure of LD in the context of GWAS is the $r^{2}$ coefficient, which can be estimated directly from genotypes measured by genotyping array or sequencing data using standard methods [Clayton, 2015]. The similarity $S=(r^{2}_{ij})_{i,j}$ induced by LD can be shown to be a kernel (see Section S1.3 of Supplementary material). Identifying blocks of LD may also be useful to define tag SNPs for subsequent studies, or to characterize the recombination phenomena.

Numerical experiments were performed on a SNP dataset coming from a GWA study on HIV [Dalmasso et al., 2008] based on 317k Illumina genotyping microarrays. For the evaluation we used five data sets corresponding to five chromosomes that span the typical number of SNPs per chromosome observed on this array ($p=23,304$ for chromosome 1, $p=20,811$ for chromosome 6, $p=14,644$ for chromosome 11, $p=8,965$ for chromosome 16 and $p=5,436$ for chromosome 21).

For each dataset, we computed the LD using the function ld of snpStats, either for all SNP pairs ($h=p$) or with a reduced number of SNP pairs, corresponding to a bandwidth $h\in\{100,\ 200,\ 500,\ 1000,\ 2000,\ 5000,\ 10000,\ 20000\}$. The packages rioja [Juggins, 2018] (which requires the full matrix to be given as a dist object333The time needed to compute this matrix was 50-1000 times larger than the computation of the LD matrix itself. However, we did not include this in the total computation time required by rioja because we have not tried to optimize it from a computational point of view.) and adjclust with sparse matrices of the class dgCMatrix (the default output class of ld) were then used to obtain hierarchical clusterings. All simulations were performed on a 64 bit Debian 4.9 server, with 512G of RAM, 3GHz CPU (192 processing units) and concurrent access. The available RAM was enough to perform the clustering on the full dataset ($h=p$) with rioja although we had previously noticed that rioja implementation could not handle more than $8000$ SNPs on a standard laptop because of memory issues.

3.1 Quality of the band approximation

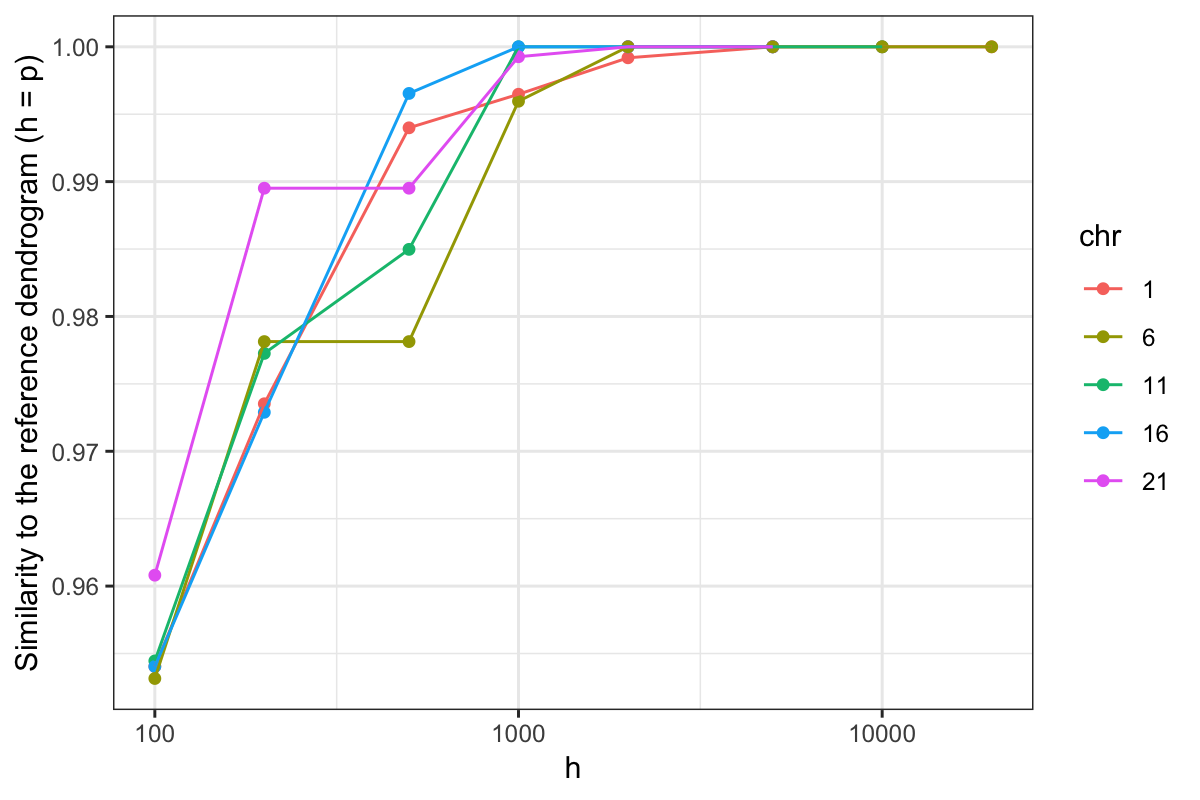

First, we evaluated the relevance of the band approximation by comparing the dendrogram obtained with $h<p$ to the reference dendrogram obtained with the full bandwidth ($h=p$). To perform this comparison we simply recorded the index $t$ of the last clustering step (among $p-1$) for which all the preceding merges in the two dendrograms are identical. The quantity $t/(p-1)$ can then be interpreted as a measure of similarity between dendrograms, ranging from 0 (the first merges are different) to 1 (the dendrograms are identical). Figure 3 displays the evolution of $t/(p-1)$ for different values of $h$ for the five chromosomes considered here.

For example, for all five chromosomes, at $h=1000$, the dendrograms differ from the reference dendrogram only in the last $0.5\%$ of the clustering step. For $h\geq 2000$ the dendrograms are exactly identical to the reference dendrogram. We also considered other criteria for evaluating the quality of the band approximation, including Baker’s Gamma correlation coefficient [Baker, 1974], which corresponds to the Spearman correlation between the ranks of fusion between all pairs of objects. The results obtained with these indices are not shown here because they were consistent with those reported in Figure 3.

One important conclusion that may be drawn from these results is that the influence of the bandwidth parameter is the same across chromosomes, that is, across values of $p$ (that range from 5000 to 23000 in this experiment). Therefore, it makes sense to assume that $h$ does not depend on $p$ and that the time and space complexity of our proposed algorithm, which depends on $h$, is indeed quasi-linear in $p$.

3.2 Scalability and computation times

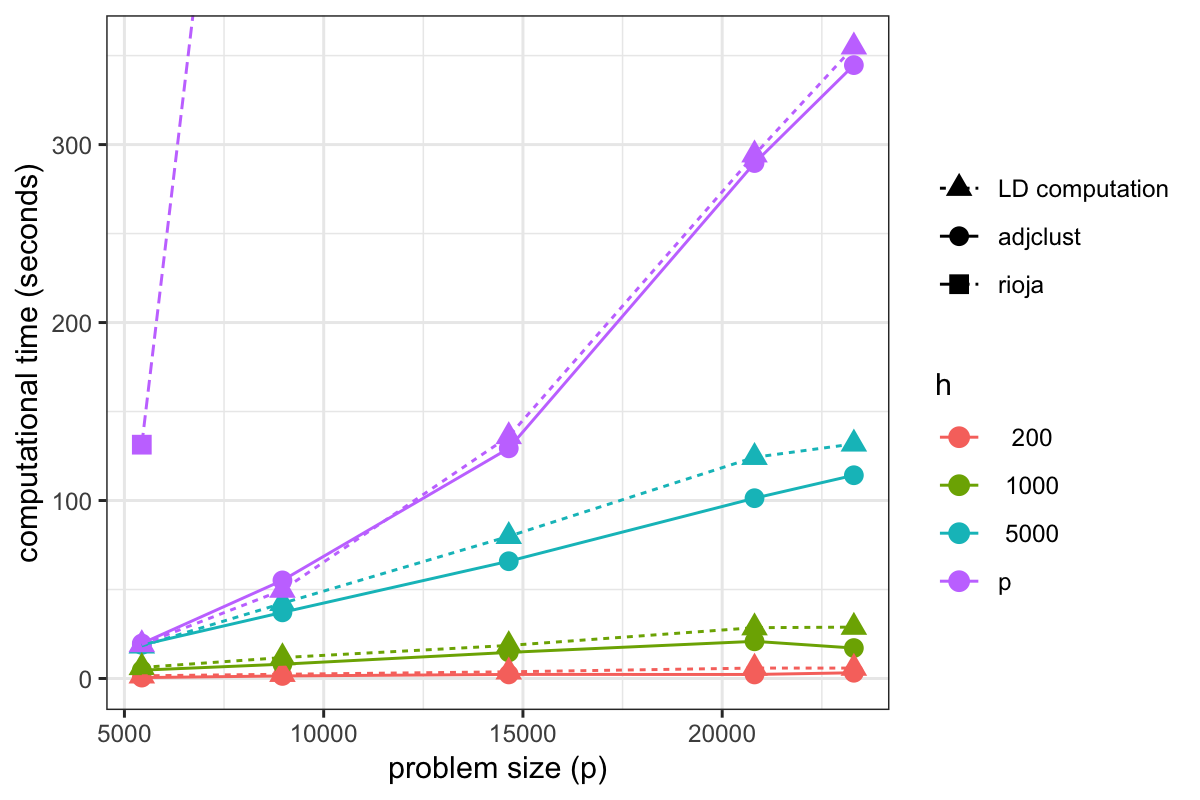

Figure 4 displays the computation time for the LD matrix (dotted lines) and for the CHAC with respect to the size of the chromosome ($x$ axis), both for rioja (dashed line) and adjclust (solid lines). As expected, the computation time for rioja did not depend on the bandwidth $h$, so we only represented $h=p$. For adjclust, the results for varying bandwidths are represented by different colors. Only the bandwidths $200$, $1000$, and $5000$ are representend in Figure 4 for clarity.

Several comments can be made from Figure 4. First, the computation times of rioja are much larger than those of adjclust, even when $h=p$ where both methods implement the exact same algorithm. For the largest chromosome considered here (chromosome 1, $p=23304$), the running time of rioja is 18900 seconds (more than five hours), compared to 345 seconds (less than 6 minutes). As expected, the complexity of adjclust with $h=p$ is quadratic in $p$, while it is essentially linear in $p$ for fixed values of $h<p$. For large values of $p$ the gain of the band approximation is substantial: for $p=23304$ (chromosome 1), the running time of adjclust for $h=1000$ (which is a relevant value in this application according to the results of the preceding section) is of the order of 20 seconds.

We also note that regardless of the value of $h$, the total time needed for the clustering is of the order of (and generally lower than) the time needed for the computation of the LD.

4 Hi-C analysis

Hi-C protocol identifies genomic loci that are located nearby in vivo. These spatial co-locations include intra-chromosomal and inter-chromosomal interactions. After bioinformatics processing (alignment, filtering, quality control…), the data are provided as a sparse square matrix with entries that give the number of reads (contacts) between any given pair of genomic locus bins at genome scale. Typical sizes of bins are $\sim$40kb, which results in more than 75,000 bins for the human genome. Constrained clustering or segmentation of intra-chromosomal maps is a tool frequently used to search for e.g., functional domains (called TADs, Topologically Associating Domains). A number of methods have been proposed for TAD calling (see Forcato et al. [2017] for a review and comparison), among which the ones proposed by Fraser et al. [2015], Haddad et al. [2017] that take advantage of a hierarchical clustering, even using a constrained version for the second reference. In the first article, the authors proceed in two steps with a segmentation of the data into TADs using a Hidden Markov Model on the directionality index of Dixon, followed by a greedy clustering on these TADs, using the mean interaction as a similarity measure between TADs. Proceeding in two steps reduces the time required for the clustering, which is $O(p^{2})$ otherwise. However, from a statistical and modeling perspective these two steps would appear redundant. Also, pipelining different procedures (each of them with their sets of parameters) makes it very difficult to control errors. Haddad et al. [2017] directly use adjacency-constrained HAC, with a specific linkage that is not equivalent to Ward’s. They do not optimize the computational time of the whole hierarchy, instead stopping the HAC when a measure of homogeneity of the cluster created by the last merge falls below a parameter. Both articles thus highlight the relevance of HAC for exploratory analysis of Hi-C data. Our proposed approach provides, in addition, a faster way to obtain an interpretable solution, using the interaction counts as a similarity and a $h$ similar to the bandwidth of the Dixon index.

4.1 Data and method

Data used to illustrate the usefulness of constrained hierarchical clustering for Hi-C data came from Dixon et al. [2012], Shen et al. [2012]. Hi-C contact maps from experiments in mouse embryonic stem cells (mESC), human ESC (hESC), mouse cortex (mCortex) and human IMR90 Fibroblast (hIMR90) were downloaded from the authors’ website at http://chromosome.sdsc.edu/mouse/hi-c/download.html (raw sequence data are published on the GEO website, accession number GSE35156.

All chromosomes were processed similarly:

• •

counts were $\log$-transformed to reduce the distribution skewness;

• •

constrained hierarchical clustering was computed on $\log$-transformed data using either the whole matrix ($h=p$) or the sparse approach with a sparse band size equal to $h=\{0.5p,0.1p\}$;

• •

model selection was finally performed using both the broken stick heuristic and the slope heuristic.

All computations were performed using the Genotoul cluster.

4.2 Influence of the bandwidth parameter

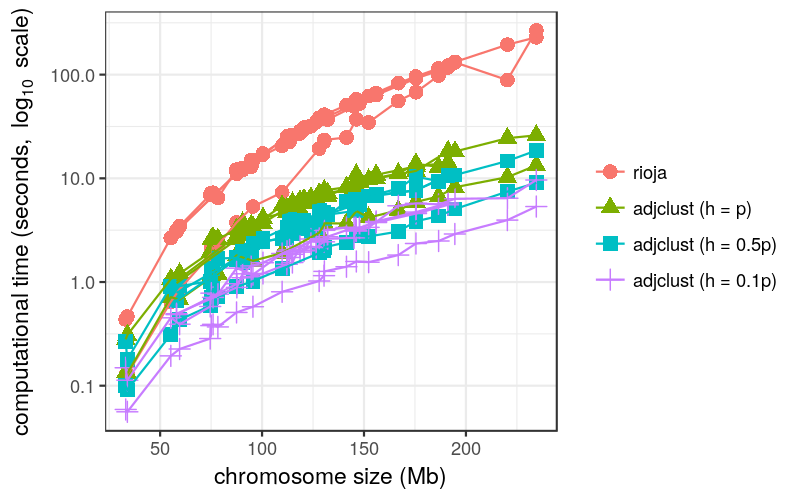

The effect of $h$ (sparse band parameter) on computational time, dendrogram organization and clustering were assessed. Figure 5 gives the computational times versus the chromosome size for the three values of $h$ together with the computational time obtained by the standard version of constrained hierarchical clustering as implemented in the R package rioja.

As expected, the computational time is substantially reduced by the sparse version (even though not linearly with respect to $h$ because of the preprocessing step that extracts the band around the diagonal), making the method suitable for dealing efficiently with a large number of chromosomes and/or a large number of Hi-C experiments. rioja, that cannot cope efficiently with the sparse band assumption, requires considerably more computational time (10 times the time needed by adjclust). In addition, the memory required by the two approaches is very different: adjclust supports sparse matrix representation (as implemented in the R package Matrix), which fits the way Hi-C matrices are typically stored (usually these matrices are given as rows with bin number pairs and associated count). For instance, the sparse version (dsCMatrix class) of the largest chromosome (chromosome 1) in the hESC data is 23 Mb, as opposed to 231 Mb for the full version. The sparse version of the smallest chromosome (chromosome 22) is 1.1 Mb, versus 5.2 Mb for the full version. The sparse version of the $h=0.1p$ band for these two chromosomes is, respectively, 13.2M and 0.4Mb respectively.

However, this gain in time and space did not impact the results of the method: the indexes of the first difference were computed between the dendrograms obtained by the full version ($h=p$) and by the two sparse versions ($h\in\{0.5p,0.1p\}$) for every chromosome. For most of the clusterings there was no difference in merge for $h=0.5p$ (with the similarity computed as in Figure 3 always larger than 0.9992, and equal to 1 in more than 3 clusterings out of 4). For $h=0.1p$, the similarity ranged from 0.9811 to 0.9983. Baker’s Gamma index and Rand indices [Hubert and Arabie, 1985] for selected clusterings (both with broken stick and slope heuristic) confirmed this conclusion (results not shown).

4.3 Results

Supplementary Figure S4 provides the average cluster size for each chromosome versus the chromosome length. It shows that the average cluster size is fairly constant among the chromosomes and does not depend on the chromosome length. Both model selection methods found typical cluster sizes of 1-2 Mb, which is in line with what is reported in Forcato et al. [2017] for some TAD callers.

Supplementary Figure S5 shows that clusters for a given chromosome (here chromosome 11 for hIMR90 and chromosome 12 for mCortex) can have different sizes and also different interpretations: some clusters exhibit a dense interaction counts (deep yellow) and are thus good TAD candidates whereas a cluster approximately located between bin 281 and bin 561 in chr12 - mCortex map has almost no interaction and can be viewed as possibly separating two dense interaction regions.

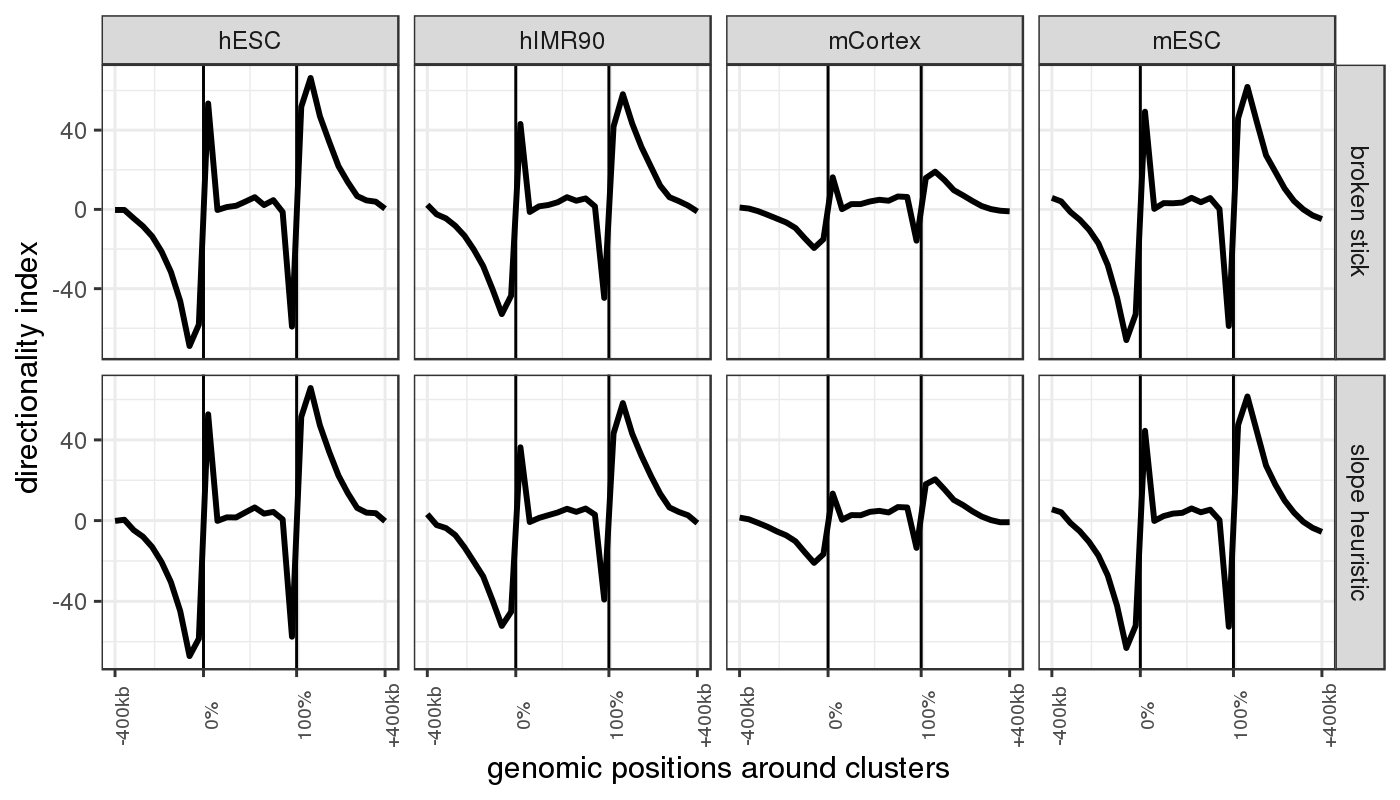

The directionality Index (DI, Dixon et al. [2012]) quantifies a directional (upstream vs downstream) bias in interaction frequencies, based on a $\chi^{2}$ statistic. DI is the original method used for TAD calling in Hi-C. Its sign is expected to change and DI values are expected to show a sharp increase at TADs boundaries. Figure 6 displays the average DI, with respect to the relative bin position within the cluster and the absolute bin position outside the cluster. The clusters found by constrained HAC show a relation with DI that is similar to what is expected for standard TADs, with slightly varying intensities.

Finally, boundaries of TADs are known to be enriched for the insulator binding protein CTCF Dixon et al. [2012]. CTCF ChIP-seq peaks were retrieved from ENCODE [ENCODE Project Consortium, 2012] and the distribution of the number of the 20% most intense peaks was computing at $\pm 400$ Kb of cluster boundaries, as obtained with the broken stick heuristic (Supplementary Figure S6). The distribution also exhibited an enrichment at cluster boundaries, which indicates that the clustering is relevant with respect to the functional structure of the chromatin.

5 Conclusion and prospects

We have proposed an efficient approach to perform constrained hierarchical clustering based on kernel (or similarity) datasets with several illustrations of its usefulness for genomic applications. The method is implemented in a package that is shown to be fast and that currently includes wrappers for genotyping and Hi-C datasets. The package also provides two possible model selection procedures to choose a relevant clustering in the hierarchy. The output of the method is a dendrogram, which can be represented graphically, and provides a natural hierarchical model for the organization of the objects.

The only tuning parameter in our algorithm is the bandwidth $h$. The numerical experiments reported in this paper suggest that at least for GWAS and Hi-C studies, there exists a range of values for $h$ such that $h\ll p$ (which implies very fast clustering) and the result of the HAC is identical or extremely close to the clustering obtained for $h=p$. While the range of relevant values of $h$ will depend on the particular application, an interesting extension of the present work would be to propose a data-driven choice of $h$ by running the algorithm on increasing (yet small) values for $h$ on a single chromosome, and deciding to stop when the dendrogram is stable enough. In addition, by construction, all groups smaller than $h$ are identical in both clusterings (with and without the $h$-band approximation).

While HAC is a tool for exploratory data analysis, an important prospect of the present work will be to make use of the low time and memory footprint of the algorithm in order to perform inference on the estimated hierarchy using stability/resampling-based methods. Such methods could be used to propose alternative model selection procedures, or to compare hierarchies corresponding to different biological conditions, which has been shown to be relevant to Hi-C studies [Fraser et al., 2015].

Funding

This work was supported by CNRS project SCALES (Mission “Osez l’interdisciplinarit ”). The work of G.R. was funded by an ATIGE from G nopole.

Acknowledgements

The authors would like to warmly thank Michel Koskas for very interesting discussions, and for proposing a very elegant alternative implementation.

The authors are grateful to the GenoToul bioinformatics platform (INRA Toulouse, http://bioinfo.genotoul.fr/) and its staff for providing computing facilities. P. N. and N. V. would like to thank Shubham Chaturvedi for his contribution to the package adjclust via the R project in google summer of code 2017.
