A Large Catalog of Accurate Distances to Local Molecular Clouds: The Gaia DR2 Edition

TL;DR

This paper provides a comprehensive catalog of accurate distances to local molecular clouds using Gaia DR2 data, improving previous estimates and revealing detailed cloud structures and gradients.

Contribution

It introduces a new methodology combining Gaia parallaxes with optical and infrared data to derive precise cloud distances and maps their internal structures.

Findings

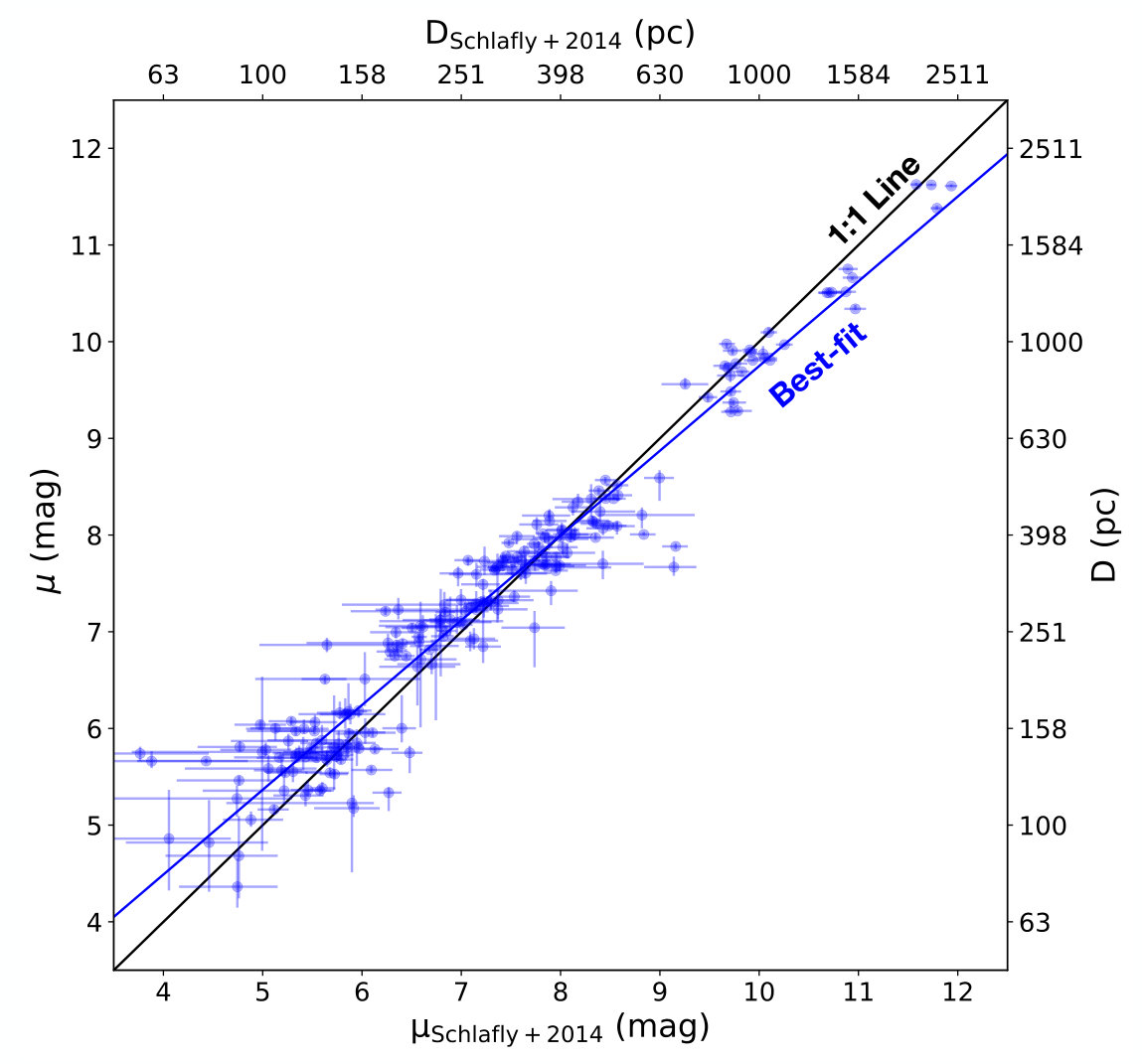

Distances agree with previous studies.

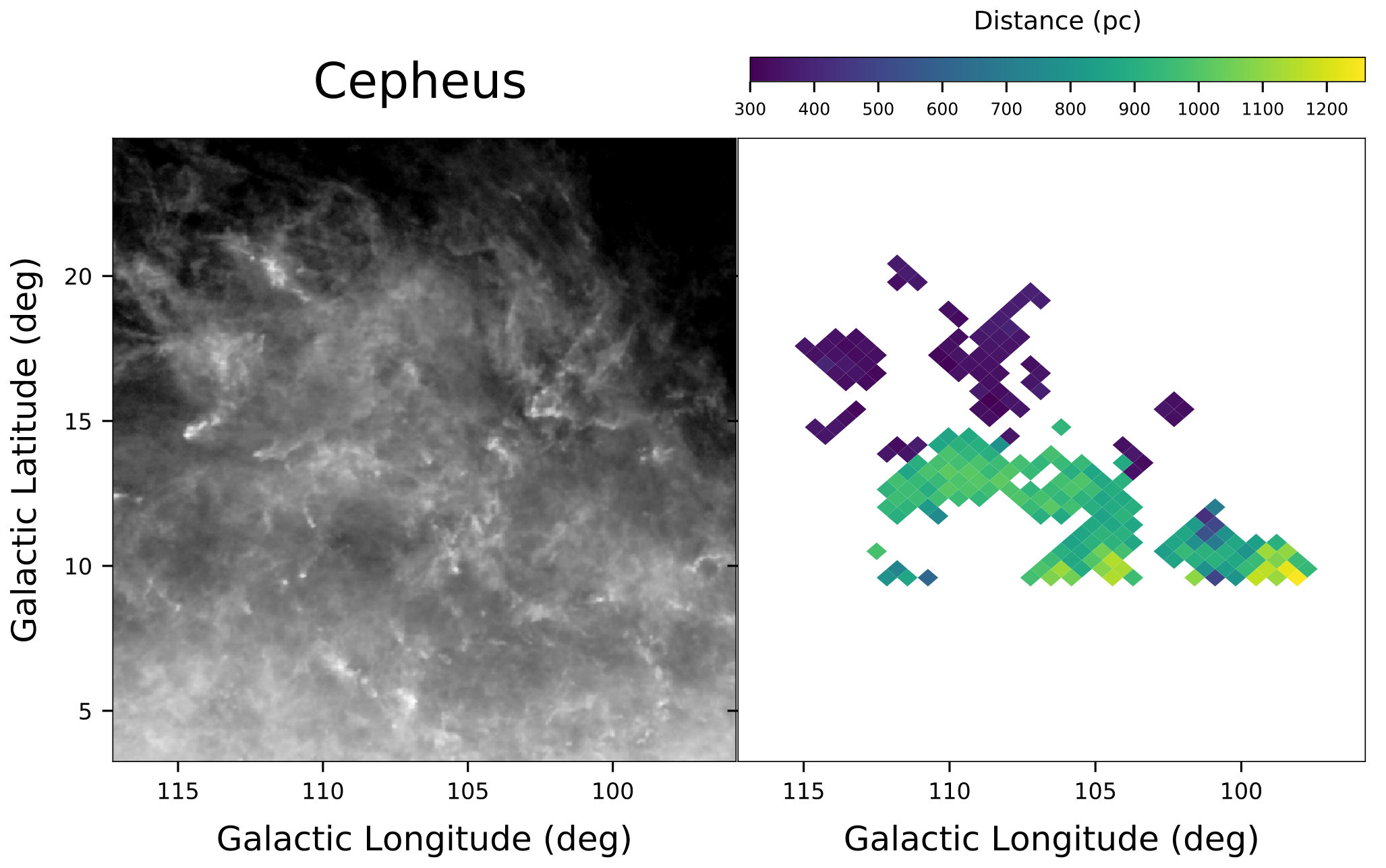

Several clouds show distance gradients or multiple components.

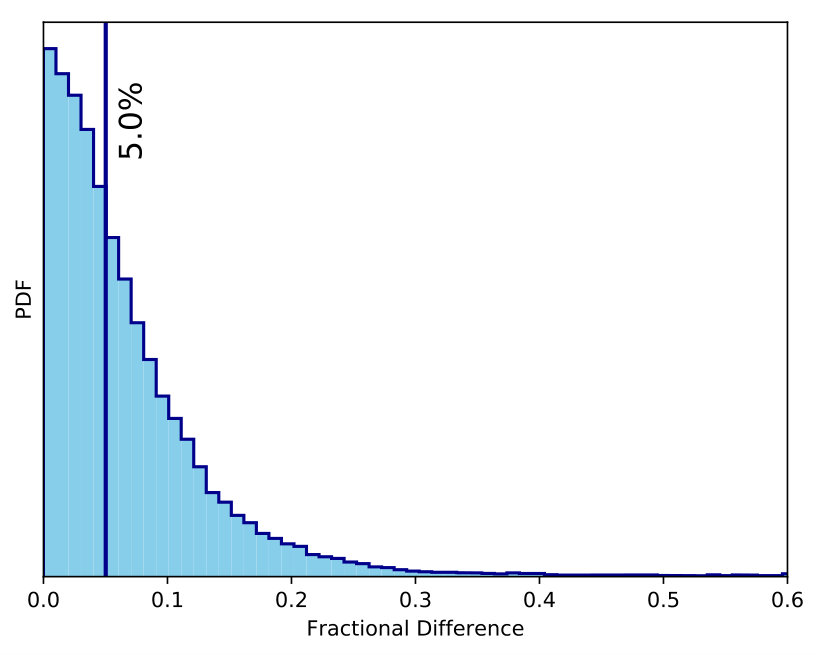

Uncertainty in distances is about 5-6%.

Abstract

We present a uniform catalog of accurate distances to local molecular clouds informed by the Gaia DR2 data release. Our methodology builds on that of Schlafly et al. (2014). First, we infer the distance and extinction to stars along sightlines towards the clouds using optical and near-infrared photometry. When available, we incorporate knowledge of the stellar distances obtained from Gaia DR2 parallax measurements. We model these per-star distance-extinction estimates as being caused by a dust screen with a 2-D morphology derived from Planck at an unknown distance, which we then fit for using a nested sampling algorithm. We provide updated distances to the Schlafly et al. (2014) sightlines towards the Dame et al. (2001) and Magnani et al. (1985) clouds, finding good agreement with the earlier work. For a subset of 27 clouds, we construct interactive pixelated distance maps to further study detailed cloud structure, and find several clouds which display clear distance gradients and/or are comprised of multiple components. We use these maps to determine robust average distances to these clouds. The characteristic combined uncertainty on our distances is approximately 5-6%, though this can be higher for clouds at farther distances, due to the limitations of our single-cloud model.

Figures

Tables

Table 1. Table 1: Average Distances to Local Molecular Clouds

(1)	(2)	(3)	(4)	(5)	(6)	(7)
Cloud	$l_{lower}$	$l_{upper}$	$b_{lower}$	$b_{upper}$	E($B-V$) Threshold	$D_{average}$
	∘	∘	∘	∘	mag	pc
Aquila S	35.0	41.0	-20.0	-14.0	0.25	$133\pm 2\pm 7$
CMa OB1	223.0	227.0	-3.0	0.0	2.0	$1209\pm 4\pm 60$
California	160.0	166.0	-10.0	-7.5	1.0	$470\pm 2\pm 24$
Cam	144.0	147.5	16.5	18.5	0.25	$213\pm 8\pm 11$
Cepheus Far	97.5	115.0	9.5	21.0	0.75	$923\pm 1\pm 46$
Cepheus Near	97.5	115.0	9.5	21.0	0.75	$352\pm 1\pm 18$
Chamaeleona	293.0	305.0	-18.0	-12.0	0.5	$183\pm 3\pm 9$
Corona Australis	-2.0	3.0	-23.0	-16.0	0.25	$151\pm 3\pm 8$
Crossbones	218.5	220.0	-11.0	-7.5	1.0	$886\pm 4\pm 44$
Gem OB1*	188.5	193.5	-1.0	2.5	2.0	$1786\pm 4\pm 89$
Hercules	42.0	47.0	7.5	10.0	0.5	$227\pm 1\pm 11$
Lacerta	94.0	97.0	-12.0	-8.0	0.5	$503\pm 5\pm 25$
Lupusb	335.0	348.0	5.0	19.0	1.0	$189\pm 9\pm 9$
Maddalena*	216.0	219.0	-3.0	1.0	2.0	$2072\pm 6\pm 104$
Mon OB1	199.0	204.0	0.0	3.0	2.0	$745\pm 3\pm 37$
Mon R2*	212.0	216.0	-14.0	-11.0	1.0	$778\pm 3\pm 39$
Ophiuchus	351.0	357.0	13.0	19.0	1.0	$144\pm 2\pm 7$
Orion A	207.0	215.0	-20.5	-18.5	1.0	$432\pm 2\pm 22$
Orion B	204.0	209.0	-17.0	-13.0	1.0	$423\pm 2\pm 21$
Orion Lam	191.5	200.0	-17.0	-7.0	0.5	$402\pm 1\pm 20$
Pegasus	85.0	96.0	-42.0	-30.0	0.25	$247\pm 4\pm 12$
Perseus	157.5	161.5	-22.0	-16.0	1.0	$294\pm 2\pm 15$
Polaris	120.0	127.0	24.0	32.0	0.25	$352\pm 1\pm 18$
Rosette*	205.0	209.0	-3.0	-1.0	2.0	$1304\pm 5\pm 65$
Serpens/AqR	28.0	32.5	2.0	6.0	3.0	$484\pm 4\pm 24$
Taurus	166.0	176.0	-19.0	-13.0	1.0	$141\pm 2\pm 7$
Ursa Major	140.0	162.0	32.0	44.0	0.15	$371\pm 3\pm 19$

Table 2. Table 2: Distances to Sightlines through Major Local Molecular Clouds

(1)	(2)	(3)	(4)	(5)	(6)	(1)	(2)	(3)	(4)	(5)	(6)
Cloud	$l$	$b$	$D$	$D_{S14}$	$D_{lit}$	Cloud	$l$	$b$	$D$	$D_{S14}$	$D_{lit}$
	∘	∘	pc	pc	pc		∘	∘	pc	pc	pc
Aquila S	37.8	-17.5	${135}_{-1}^{+1}\pm 6$	${76}_{-21}^{+16}\pm 7$		Ophiuchus	352.7	15.4	${139}_{-2}^{+2}\pm 6$	${116}_{-7}^{+7}\pm 11$	11910, 14011
Aquila S	38.9	-19.1	${123}_{-3}^{+2}\pm 6$	${89}_{-22}^{+16}\pm 8$		Ophiuchus	357.1	15.7	${118}_{-3}^{+5}\pm 5$	${123}_{-9}^{+9}\pm 12$	11910, 14011
Aquila S	36.8	-15.1	${143}_{-3}^{+3}\pm 7$	${125}_{-8}^{+7}\pm 12$		Orion	208.4	-19.6	${399}_{-7}^{+14}\pm 19$	${418}_{-34}^{+43}\pm 41$	41412, 400-47013
Aquila S	39.3	-16.8	${128}_{-2}^{+3}\pm 6$	${111}_{-9}^{+12}\pm 11$		Orion	202.0	-13.3	${481}_{-13}^{+10}\pm 24$	${519}_{-34}^{+35}\pm 51$	41412, 400-47013
CMa OB1	224.5	-0.2	${1262}_{-13}^{+6}\pm 63$	${1369}_{-56}^{+64}\pm 136$	11501	Orion	212.4	-17.3	${522}_{-54}^{+19}\pm 26$	${629}_{-43}^{+43}\pm 62$	41412, 400-47013
CMa OB1	222.9	-1.9	${1169}_{-5}^{+21}\pm 58$	${1561}_{-77}^{+79}\pm 156$	11501	Orion	201.3	-13.8	${420}_{-9}^{+6}\pm 21$	${470}_{-33}^{+49}\pm 47$	41412, 400-47013
CMa OB1	225.0	-0.2	${1266}_{-2}^{+3}\pm 63$	${1398}_{-59}^{+63}\pm 139$	11501	Orion	209.8	-19.5	${438}_{-26}^{+15}\pm 21$	${580}_{-107}^{+161}\pm 58$	41412, 400-47013
CMa OB1	225.4	0.3	${1268}_{-3}^{+1}\pm 63$	${1494}_{-66}^{+72}\pm 149$	11501	Orion	214.7	-19.0	${416}_{-5}^{+4}\pm 20$	${497}_{-36}^{+42}\pm 49$	41412, 400-47013
California	163.8	-7.9	${466}_{-9}^{+17}\pm 23$	${431}_{-31}^{+33}\pm 43$	4502	Orion	207.9	-16.8	${411}_{-13}^{+9}\pm 20$	${484}_{-35}^{+37}\pm 48$	41412, 400-47013
California	161.2	-9.0	${454}_{-17}^{+17}\pm 22$	${421}_{-34}^{+43}\pm 42$	4502	Orion	212.4	-19.9	${415}_{-16}^{+9}\pm 20$	${517}_{-38}^{+44}\pm 51$	41412, 400-47013
California	162.5	-9.5	${436}_{-6}^{+10}\pm 21$	${377}_{-44}^{+39}\pm 37$	4502	Orion	212.2	-18.6	${473}_{-6}^{+6}\pm 23$	${490}_{-27}^{+27}\pm 49$	41412, 400-47013
Cam	146.1	17.7	${235}_{-8}^{+8}\pm 11$	${134}_{-36}^{+50}\pm 13$		Orion	209.1	-19.9	${445}_{-19}^{+25}\pm 22$	${478}_{-59}^{+84}\pm 47$	41412, 400-47013
Cam	144.8	17.8	${220}_{-4}^{+11}\pm 11$	${208}_{-32}^{+37}\pm 20$		Orion	209.0	-20.1	${394}_{-9}^{+10}\pm 19$	${416}_{-36}^{+42}\pm 41$	41412, 400-47013
Cam	148.4	17.7	${365}_{-9}^{+17}\pm 18$	${410}_{-86}^{+56}\pm 41$		Orion	202.0	-14.0	${399}_{-1}^{+4}\pm 19$	${585}_{-36}^{+32}\pm 58$	41412, 400-47013
Cam	148.8	17.8	${368}_{-12}^{+10}\pm 18$	${336}_{-25}^{+22}\pm 33$		Orion	204.7	-19.2	${418}_{-18}^{+14}\pm 20$	${356}_{-27}^{+37}\pm 35$	41412, 400-47013
Cam	146.6	17.2	${215}_{-10}^{+11}\pm 10$	${218}_{-32}^{+31}\pm 21$		Orion Lam	196.7	-16.1	${426}_{-6}^{+9}\pm 21$	${461}_{-35}^{+37}\pm 46$	40014, 40015
Cepheus	106.4	17.7	${377}_{-4}^{+4}\pm 18$	${678}_{-41}^{+39}\pm 67$	2863, 800-9004	Orion Lam	194.7	-10.1	${425}_{-5}^{+24}\pm 21$	${378}_{-28}^{+31}\pm 37$	40014, 40015
Cepheus	110.7	12.6	${989}_{-22}^{+4}\pm 49$	${859}_{-30}^{+33}\pm 85$	2863, 800-9004	Orion Lam	195.5	-13.7	${399}_{-11}^{+14}\pm 19$	${425}_{-25}^{+27}\pm 42$	40014, 40015
Cepheus	108.3	12.4	${915}_{-3}^{+3}\pm 45$	${971}_{-39}^{+37}\pm 97$	2863, 800-9004	Orion Lam	194.8	-12.1	${423}_{-6}^{+11}\pm 21$	${463}_{-42}^{+38}\pm 46$	40014, 40015
Cepheus	105.9	13.8	${951}_{-11}^{+6}\pm 47$	${961}_{-34}^{+29}\pm 96$	2863, 800-9004	Orion Lam	196.9	-8.2	${394}_{-8}^{+13}\pm 19$	${397}_{-23}^{+26}\pm 39$	40014, 40015
Cepheus	107.0	9.4	${986}_{-8}^{+9}\pm 49$	${1124}_{-43}^{+43}\pm 112$	2863, 800-9004	Orion Lam	199.6	-11.9	${393}_{-4}^{+8}\pm 19$	${468}_{-38}^{+41}\pm 46$	40014, 40015
Cepheus	107.0	6.0	${901}_{-5}^{+7}\pm 45$	${897}_{-46}^{+50}\pm 89$	2863, 800-9004	Orion Lam	192.3	-8.9	${406}_{-17}^{+15}\pm 20$	${400}_{-29}^{+30}\pm 40$	40014, 40015
Cepheus	103.7	11.4	${867}_{-8}^{+4}\pm 43$	${923}_{-35}^{+33}\pm 92$	2863, 800-9004	Pegasus	104.2	-31.7	${292}_{-18}^{+15}\pm 14$	${250}_{-17}^{+17}\pm 25$
Cepheus	108.4	18.6	${332}_{-16}^{+31}\pm 16$	${338}_{-30}^{+42}\pm 33$	2863, 800-9004	Pegasus	105.6	-30.6	${256}_{-15}^{+15}\pm 12$	${210}_{-33}^{+25}\pm 21$
Cepheus	109.6	6.8	${881}_{-16}^{+14}\pm 44$	${865}_{-35}^{+39}\pm 86$	2863, 800-9004	Pegasus	92.2	-34.7	${258}_{-99}^{+31}\pm 12$	${207}_{-36}^{+34}\pm 20$
Cepheus	108.2	5.5	${891}_{-7}^{+10}\pm 44$	${853}_{-44}^{+48}\pm 85$	2863, 800-9004	Pegasus	95.3	-35.7	${257}_{-14}^{+18}\pm 12$	${228}_{-26}^{+22}\pm 22$
Cepheus	107.7	5.9	${850}_{-26}^{+15}\pm 42$	${874}_{-52}^{+58}\pm 87$	2863, 800-9004	Pegasus	88.8	-41.3	${238}_{-8}^{+10}\pm 11$	${178}_{-56}^{+31}\pm 17$
Cepheus	104.0	9.4	${1045}_{-9}^{+24}\pm 52$	${1045}_{-38}^{+40}\pm 104$	2863, 800-9004	Perseus	160.4	-17.2	${284}_{-15}^{+14}\pm 14$	${278}_{-25}^{+34}\pm 27$	23516, 29417
Cepheus	109.6	16.9	${344}_{-6}^{+5}\pm 17$	${369}_{-36}^{+36}\pm 36$	2863, 800-9004	Perseus	160.7	-16.3	${296}_{-7}^{+9}\pm 14$	${321}_{-24}^{+24}\pm 32$	23516, 29417
Cepheus	109.0	7.7	${816}_{-14}^{+24}\pm 40$	${709}_{-73}^{+80}\pm 70$	2863, 800-9004	Perseus	159.9	-18.1	${305}_{-20}^{+14}\pm 15$	${380}_{-96}^{+50}\pm 38$	23516, 29417
Cepheus	114.6	16.5	${346}_{-4}^{+3}\pm 17$	${366}_{-32}^{+34}\pm 36$	2863, 800-9004	Perseus	158.5	-22.1	${243}_{-12}^{+12}\pm 12$	${266}_{-31}^{+27}\pm 26$	23516, 29417
Cepheus	113.5	15.9	${336}_{-3}^{+3}\pm 16$	${389}_{-21}^{+22}\pm 38$	2863, 800-9004	Perseus	159.3	-20.6	${276}_{-8}^{+12}\pm 13$	${256}_{-27}^{+28}\pm 25$	23516, 29417
Cepheus	116.1	20.2	${349}_{-7}^{+8}\pm 17$	${321}_{-21}^{+21}\pm 32$	2863, 800-9004	Perseus	158.6	-19.9	${291}_{-6}^{+14}\pm 14$	${297}_{-63}^{+53}\pm 29$	23516, 29417
Cepheus	111.8	20.3	${364}_{-5}^{+6}\pm 18$	${365}_{-37}^{+45}\pm 36$	2863, 800-9004	Perseus	159.7	-19.7	${347}_{-24}^{+22}\pm 17$	${484}_{-121}^{+100}\pm 48$	23516, 29417
Cepheus	112.8	16.5	${344}_{-9}^{+6}\pm 17$	${396}_{-53}^{+51}\pm 39$	2863, 800-9004	Perseus	159.9	-18.9	${279}_{-13}^{+18}\pm 13$	${297}_{-28}^{+43}\pm 29$	23516, 29417
Cepheus	108.3	17.6	${346}_{-7}^{+11}\pm 17$	${372}_{-37}^{+44}\pm 37$	2863, 800-9004	Perseus	159.4	-21.3	${234}_{-69}^{+38}\pm 11$	${223}_{-25}^{+25}\pm 22$	23516, 29417
Cepheus	111.5	12.2	${958}_{-16}^{+11}\pm 47$	${883}_{-38}^{+39}\pm 88$	2863, 800-9004	Perseus	157.8	-22.8	${264}_{-6}^{+11}\pm 13$	${251}_{-79}^{+54}\pm 25$	23516, 29417
Cepheus	110.1	17.4	${337}_{-8}^{+9}\pm 16$	${317}_{-44}^{+42}\pm 31$	2863, 800-9004	Perseus	160.4	-16.7	${256}_{-44}^{+21}\pm 12$	${352}_{-50}^{+53}\pm 35$	23516, 29417
Cepheus	104.0	14.5	${341}_{-13}^{+17}\pm 17$	${673}_{-86}^{+74}\pm 67$	2863, 800-9004	Perseus	160.8	-18.7	${285}_{-15}^{+17}\pm 14$	${232}_{-87}^{+53}\pm 23$	23516, 29417
Cepheus	103.5	13.5	${359}_{-4}^{+4}\pm 17$	${372}_{-29}^{+36}\pm 37$	2863, 800-9004	Perseus	159.1	-21.1	${291}_{-13}^{+15}\pm 14$	${287}_{-29}^{+33}\pm 28$	23516, 29417
Cepheus	112.8	20.8	${375}_{-13}^{+10}\pm 18$	${401}_{-28}^{+29}\pm 40$	2863, 800-9004	Perseus	160.8	-17.0	${276}_{-4}^{+6}\pm 13$	${176}_{-26}^{+94}\pm 17$	23516, 29417
Cepheus	111.5	20.8	${331}_{-19}^{+10}\pm 16$	${247}_{-20}^{+25}\pm 24$	2863, 800-9004	Perseus	157.7	-21.4	${240}_{-11}^{+10}\pm 12$	${261}_{-43}^{+36}\pm 26$	23516, 29417
Cepheus	115.3	17.6	${358}_{-5}^{+6}\pm 17$	${390}_{-24}^{+25}\pm 39$	2863, 800-9004	Perseus	158.2	-20.9	${287}_{-8}^{+7}\pm 14$	${288}_{-29}^{+39}\pm 28$	23516, 29417
Cepheus	107.7	12.4	${961}_{-3}^{+6}\pm 48$	${957}_{-33}^{+34}\pm 95$	2863, 800-9004	Perseus	157.5	-17.9	${287}_{-8}^{+7}\pm 14$	${278}_{-20}^{+21}\pm 27$	23516, 29417
Draco	89.5	38.4	${481}_{-45}^{+50}\pm 24$		463-6185	Perseus	160.0	-17.6	${331}_{-10}^{+15}\pm 16$	${330}_{-36}^{+43}\pm 33$	23516, 29417
Hercules	45.1	8.9	${223}_{-2}^{+2}\pm 11$	${194}_{-7}^{+7}\pm 19$		Polaris	123.5	37.9	${472}_{-37}^{+34}\pm 23$	${458}_{-75}^{+66}\pm 45$	10018
Hercules	44.1	8.6	${223}_{-2}^{+3}\pm 11$	${184}_{-6}^{+5}\pm 18$		Polaris	129.5	17.3	${341}_{-18}^{+19}\pm 17$	${337}_{-44}^{+166}\pm 33$	10018
Hercules	42.8	7.9	${230}_{-2}^{+3}\pm 11$	${216}_{-9}^{+9}\pm 21$		Polaris	126.3	21.2	${343}_{-10}^{+5}\pm 17$	${390}_{-34}^{+34}\pm 39$	10018
Lacerta	96.1	-10.2	${504}_{-5}^{+6}\pm 25$	${517}_{-26}^{+27}\pm 51$	5206	Rosette	206.8	-1.2	${1356}_{-15}^{+6}\pm 67$	${1540}_{-67}^{+69}\pm 154$	160019
Lacerta	95.8	-11.5	${473}_{-3}^{+5}\pm 23$	${509}_{-28}^{+29}\pm 50$	5206	Rosette	207.8	-2.1	${1261}_{-12}^{+19}\pm 63$	${1383}_{-64}^{+85}\pm 138$	160019
Maddalena	217.1	0.4	${1888}_{-12}^{+22}\pm 94$	${2280}_{-66}^{+71}\pm 228$	22007	Rosette	205.2	-2.6	${1413}_{-6}^{+5}\pm 70$	${1508}_{-64}^{+70}\pm 150$	160019
Maddalena	216.5	-2.5	${2110}_{-5}^{+10}\pm 105$	${2222}_{-47}^{+48}\pm 222$	22007	Spider	134.8	40.5	${369}_{-22}^{+19}\pm 18$
Maddalena	216.8	-2.2	${2113}_{-8}^{+16}\pm 105$	${2071}_{-55}^{+59}\pm 207$	22007	Taurus	171.6	-15.8	${130}_{-7}^{+8}\pm 6$	${102}_{-32}^{+25}\pm 10$	14020, 130-16021
Maddalena	216.4	0.1	${2099}_{-9}^{+16}\pm 104$	${2437}_{-71}^{+69}\pm 243$	22007	Taurus	175.8	-12.9	${156}_{-2}^{+3}\pm 7$	${127}_{-34}^{+26}\pm 12$	14020, 130-16021
Mon OB1	200.4	0.8	${719}_{-4}^{+11}\pm 35$	${905}_{-55}^{+61}\pm 90$	9138	Taurus	172.2	-14.6	${137}_{-2}^{+4}\pm 6$	${128}_{-10}^{+9}\pm 12$	14020, 130-16021
Mon OB1	201.4	1.1	${748}_{-10}^{+9}\pm 37$	${887}_{-44}^{+53}\pm 88$	9138	Taurus	170.2	-12.3	${170}_{-5}^{+9}\pm 8$	${142}_{-14}^{+11}\pm 14$	14020, 130-16021
Mon OB1	201.2	1.0	${715}_{-7}^{+45}\pm 35$	${877}_{-38}^{+41}\pm 87$	9138	Taurus	166.2	-16.6	${138}_{-1}^{+1}\pm 6$	${107}_{-20}^{+18}\pm 10$	14020, 130-16021
Mon R2	219.2	-7.7	${943}_{-5}^{+35}\pm 47$	${1018}_{-43}^{+50}\pm 101$	9039	Taurus	171.4	-13.5	${154}_{-3}^{+4}\pm 7$	${149}_{-8}^{+8}\pm 14$	14020, 130-16021
Mon R2	215.3	-12.9	${767}_{-17}^{+12}\pm 38$	${788}_{-32}^{+34}\pm 78$	9039	Taurus	173.5	-14.2	${147}_{-15}^{+9}\pm 7$	${154}_{-21}^{+14}\pm 15$	14020, 130-16021
Mon R2	219.3	-9.5	${923}_{-14}^{+9}\pm 46$	${1026}_{-54}^{+60}\pm 102$	9039	Ursa Ma	143.4	38.5	${408}_{-4}^{+7}\pm 20$	${400}_{-27}^{+33}\pm 40$	11022
Mon R2	220.9	-8.3	${915}_{-3}^{+5}\pm 45$	${1052}_{-35}^{+35}\pm 105$	9039	Ursa Ma	158.5	35.2	${352}_{-14}^{+10}\pm 17$	${331}_{-25}^{+29}\pm 33$	11022
Mon R2	213.9	-11.9	${788}_{-15}^{+11}\pm 39$	${876}_{-41}^{+42}\pm 87$	9039	Ursa Ma	146.9	40.7	${330}_{-19}^{+18}\pm 16$	${269}_{-32}^{+52}\pm 26$	11022
Ophiuchus	355.2	16.0	${128}_{-2}^{+3}\pm 6$	${136}_{-14}^{+12}\pm 13$	11910, 14011	Ursa Ma	153.5	36.7	${352}_{-16}^{+19}\pm 17$	${353}_{-29}^{+38}\pm 35$	11022

Table 3. Table 3: Distances to Sightlines through MBM Molecular Clouds

(1)	(2)	(3)	(4)	(5)	(1)	(2)	(3)	(4)	(5)
Cloud	$l$	$b$	$D$	$D_{S14}$	Cloud	$l$	$b$	$D$	$D_{S14}$
	∘	∘	pc	pc		∘	∘	pc	pc
1	110.2	-41.2	${265}_{-62}^{+42}\pm 13$	${228}_{-37}^{+45}\pm 22$	106	176.3	-20.8	${158}_{-10}^{+27}\pm 7$	${190}_{-16}^{+12}\pm 19$
2	117.4	-52.3	${239}_{-7}^{+9}\pm 11$	${206}_{-12}^{+14}\pm 20$	107	177.7	-20.4	${141}_{-13}^{+4}\pm 7$	${197}_{-15}^{+12}\pm 19$
3	131.3	-45.7	${314}_{-7}^{+8}\pm 15$	${277}_{-26}^{+22}\pm 27$	108	178.2	-20.3	${143}_{-2}^{+2}\pm 7$	${168}_{-21}^{+19}\pm 16$
4	133.5	-45.3	${286}_{-11}^{+17}\pm 14$	${269}_{-14}^{+16}\pm 26$	109	178.9	-20.1	${155}_{-8}^{+10}\pm 7$	${160}_{-14}^{+15}\pm 16$
5	146.0	-49.1	${279}_{-12}^{+16}\pm 13$	${187}_{-18}^{+86}\pm 18$	110	207.6	-23.0	${356}_{-4}^{+2}\pm 17$	${313}_{-12}^{+14}\pm 31$
6	145.1	-39.3	${111}_{-31}^{+32}\pm 5$	${151}_{-66}^{+16}\pm 15$	111	208.6	-20.2	${400}_{-3}^{+4}\pm 20$	${366}_{-11}^{+9}\pm 36$
7	150.4	-38.1	${171}_{-7}^{+24}\pm 8$	${148}_{-11}^{+13}\pm 14$	113	337.7	23.0	${144}_{-7}^{+7}\pm 7$	${148}_{-13}^{+11}\pm 14$
8	151.8	-38.7	${255}_{-4}^{+6}\pm 12$	${199}_{-9}^{+9}\pm 19$	115	342.3	24.2	${141}_{-2}^{+2}\pm 7$	${137}_{-16}^{+12}\pm 13$
9	156.5	-44.7	${262}_{-14}^{+22}\pm 13$	${246}_{-29}^{+42}\pm 24$	116	342.7	24.5	${137}_{-1}^{+2}\pm 6$	${134}_{-11}^{+10}\pm 13$
11	158.0	-35.1	${250}_{-7}^{+5}\pm 12$	${185}_{-20}^{+21}\pm 18$	117	343.0	24.1	${138}_{-2}^{+2}\pm 6$	${140}_{-9}^{+9}\pm 14$
12	159.4	-34.3	${252}_{-6}^{+4}\pm 12$	${234}_{-10}^{+11}\pm 23$	118	344.0	24.8	${140}_{-4}^{+4}\pm 7$	${56}_{-17}^{+21}\pm 5$
13	161.6	-35.9	${237}_{-6}^{+5}\pm 11$	${191}_{-12}^{+11}\pm 19$	119	341.6	21.4	${169}_{-8}^{+8}\pm 8$	${150}_{-32}^{+26}\pm 15$
14	162.5	-31.9	${275}_{-6}^{+3}\pm 13$	${233}_{-10}^{+11}\pm 23$	120	344.2	24.2	${135}_{-4}^{+6}\pm 6$	${59}_{-23}^{+70}\pm 5$
15	191.7	-52.3	${200}_{-24}^{+27}\pm 10$	${160}_{-64}^{+47}\pm 16$	121	344.8	23.9	${140}_{-5}^{+5}\pm 7$	${118}_{-13}^{+11}\pm 11$
16	170.6	-37.3	${170}_{-1}^{+2}\pm 8$	${147}_{-9}^{+10}\pm 14$	122	344.8	23.9	${137}_{-3}^{+4}\pm 6$	${116}_{-19}^{+11}\pm 11$
17	167.5	-26.6	${130}_{-1}^{+2}\pm 6$	${165}_{-14}^{+16}\pm 16$	123	343.3	22.1	${143}_{-4}^{+5}\pm 7$	${101}_{-19}^{+12}\pm 10$
18	189.1	-36.0	${155}_{-3}^{+3}\pm 7$	${166}_{-17}^{+18}\pm 16$	124	344.0	22.7	${145}_{-3}^{+4}\pm 7$	${89}_{-16}^{+16}\pm 8$
19	186.0	-29.9	${143}_{-2}^{+5}\pm 7$	${156}_{-18}^{+18}\pm 15$	125	355.5	22.5	${129}_{-6}^{+5}\pm 6$	${115}_{-14}^{+16}\pm 11$
20	210.9	-36.6	${141}_{-2}^{+3}\pm 7$	${124}_{-14}^{+11}\pm 12$	126	355.5	21.1	${142}_{-6}^{+5}\pm 7$	${142}_{-17}^{+12}\pm 14$
21	208.4	-28.4	${234}_{-17}^{+74}\pm 11$	${277}_{-22}^{+23}\pm 27$	127	355.4	20.9	${146}_{-10}^{+4}\pm 7$	${147}_{-12}^{+12}\pm 14$
22	208.1	-27.5	${266}_{-19}^{+30}\pm 13$	${238}_{-22}^{+27}\pm 23$	128	355.6	20.6	${136}_{-4}^{+5}\pm 6$	${134}_{-11}^{+11}\pm 13$
23	171.8	26.7	${349}_{-14}^{+16}\pm 17$	${305}_{-22}^{+22}\pm 30$	129	356.2	20.8	${139}_{-4}^{+4}\pm 6$	${141}_{-11}^{+11}\pm 14$
24	172.3	27.0	${351}_{-22}^{+25}\pm 17$	${279}_{-23}^{+27}\pm 27$	130	356.8	20.3	${129}_{-3}^{+9}\pm 6$	${109}_{-13}^{+10}\pm 10$
25	173.8	31.5	${342}_{-79}^{+22}\pm 17$	${297}_{-27}^{+25}\pm 29$	131	359.2	21.8	${158}_{-8}^{+3}\pm 7$	${106}_{-11}^{+11}\pm 10$
27	141.3	34.5	${376}_{-5}^{+9}\pm 18$	${359}_{-21}^{+23}\pm 35$	132	0.8	22.6	${172}_{-5}^{+2}\pm 8$	${155}_{-10}^{+9}\pm 15$
28	141.4	35.2	${393}_{-9}^{+8}\pm 19$	${370}_{-20}^{+22}\pm 37$	133	359.2	21.4	${161}_{-3}^{+3}\pm 8$	${98}_{-11}^{+12}\pm 9$
29	142.3	36.2	${390}_{-20}^{+13}\pm 19$	${376}_{-60}^{+76}\pm 37$	134	0.1	21.8	${158}_{-3}^{+7}\pm 7$	${121}_{-28}^{+14}\pm 12$
30	142.2	38.2	${381}_{-3}^{+4}\pm 19$	${352}_{-11}^{+10}\pm 35$	135	2.7	22.0	${228}_{-4}^{+3}\pm 11$	${180}_{-10}^{+11}\pm 18$
31	146.4	39.6	${395}_{-14}^{+7}\pm 19$	${325}_{-26}^{+27}\pm 32$	136	1.3	21.0	${139}_{-10}^{+12}\pm 6$	${120}_{-12}^{+12}\pm 12$
32	147.2	40.7	${353}_{-8}^{+4}\pm 17$	${259}_{-15}^{+14}\pm 25$	137	4.5	23.0	${169}_{-11}^{+13}\pm 8$	${146}_{-16}^{+11}\pm 14$
33	359.0	36.8	${74}_{-7}^{+10}\pm 3$	${88}_{-21}^{+18}\pm 8$	138	3.1	21.8	${235}_{-7}^{+5}\pm 11$	${186}_{-8}^{+8}\pm 18$
34	2.3	35.7	${117}_{-6}^{+9}\pm 5$	${110}_{-34}^{+27}\pm 11$	139	7.6	24.9	${149}_{-6}^{+5}\pm 7$	${112}_{-26}^{+10}\pm 11$
35	6.6	38.1	${86}_{-15}^{+17}\pm 4$	${89}_{-25}^{+17}\pm 8$	140	3.2	21.7	${230}_{-5}^{+5}\pm 11$	${186}_{-9}^{+8}\pm 18$
36	4.2	35.8	${107}_{-2}^{+2}\pm 5$	${105}_{-7}^{+7}\pm 10$	141	4.8	22.6	${163}_{-6}^{+5}\pm 8$	${127}_{-14}^{+13}\pm 12$
37	6.1	36.8	${115}_{-5}^{+6}\pm 5$	${121}_{-16}^{+10}\pm 12$	142	3.6	21.0	${200}_{-4}^{+3}\pm 10$	${133}_{-13}^{+14}\pm 13$
38	8.2	36.3	${92}_{-19}^{+20}\pm 4$	${77}_{-24}^{+24}\pm 7$	143	6.0	20.2	${119}_{-2}^{+3}\pm 5$	${131}_{-6}^{+8}\pm 13$
39	11.4	36.3	${102}_{-3}^{+4}\pm 5$	${94}_{-11}^{+15}\pm 9$	144	6.6	20.6	${147}_{-3}^{+3}\pm 7$	${128}_{-9}^{+9}\pm 12$
40	37.6	44.7	${93}_{-20}^{+24}\pm 4$	${64}_{-25}^{+21}\pm 6$	145	8.5	21.8	${108}_{-4}^{+6}\pm 5$	${152}_{-25}^{+19}\pm 15$
45	9.8	-28.0	${149}_{-11}^{+11}\pm 7$	${131}_{-29}^{+21}\pm 13$	146	8.8	22.0	${116}_{-9}^{+3}\pm 5$	${179}_{-12}^{+11}\pm 17$
46	40.5	-35.5	${517}_{-8}^{+7}\pm 25$	${490}_{-23}^{+25}\pm 49$	147	5.9	20.1	${117}_{-2}^{+2}\pm 5$	${130}_{-7}^{+8}\pm 13$
47	41.0	-35.9	${491}_{-9}^{+6}\pm 24$	${475}_{-21}^{+25}\pm 47$	148	7.5	21.1	${156}_{-3}^{+3}\pm 7$	${116}_{-10}^{+10}\pm 11$
49	64.5	-26.5	${212}_{-35}^{+21}\pm 10$	${204}_{-33}^{+39}\pm 20$	149	7.9	20.3	${164}_{-2}^{+3}\pm 8$	${114}_{-11}^{+13}\pm 11$
50	70.0	-31.2	${141}_{-53}^{+61}\pm 7$	${99}_{-45}^{+43}\pm 9$	150	9.6	21.3	${144}_{-26}^{+40}\pm 7$	${139}_{-12}^{+14}\pm 13$
53	94.0	-34.1	${259}_{-3}^{+4}\pm 12$	${253}_{-11}^{+10}\pm 25$	151	21.5	20.9	${138}_{-1}^{+2}\pm 6$	${122}_{-8}^{+8}\pm 12$
54	91.6	-38.1	${245}_{-3}^{+4}\pm 12$	${231}_{-12}^{+11}\pm 23$	156	101.7	22.8	${383}_{-5}^{+5}\pm 19$	${313}_{-10}^{+12}\pm 31$
55	89.2	-40.9	${245}_{-3}^{+2}\pm 12$	${206}_{-6}^{+8}\pm 20$	157	103.2	22.7	${358}_{-3}^{+3}\pm 17$	${325}_{-9}^{+11}\pm 32$
56	103.1	-26.1	${265}_{-10}^{+8}\pm 13$	${227}_{-17}^{+17}\pm 22$	158	27.2	-20.7	${147}_{-8}^{+9}\pm 7$	${142}_{-10}^{+9}\pm 14$
57	5.1	30.8	${113}_{-9}^{+7}\pm 5$	${88}_{-39}^{+25}\pm 8$	159	27.4	-21.1	${136}_{-2}^{+6}\pm 6$	${143}_{-10}^{+8}\pm 14$
101	158.2	-21.4	${289}_{-6}^{+4}\pm 14$	${283}_{-10}^{+11}\pm 28$	161	114.6	22.5	${360}_{-3}^{+2}\pm 18$	${308}_{-8}^{+8}\pm 30$
102	158.6	-21.2	${289}_{-4}^{+8}\pm 14$	${275}_{-9}^{+9}\pm 27$	162	111.7	20.1	${352}_{-4}^{+7}\pm 17$	${304}_{-9}^{+8}\pm 30$
103	158.9	-21.6	${279}_{-1}^{+2}\pm 13$	${269}_{-9}^{+10}\pm 26$	163	115.8	20.2	${336}_{-2}^{+3}\pm 16$	${293}_{-7}^{+6}\pm 29$
104	158.4	-20.4	${281}_{-3}^{+4}\pm 14$	${262}_{-9}^{+9}\pm 26$	164	116.2	20.4	${339}_{-2}^{+2}\pm 16$	${294}_{-6}^{+6}\pm 29$
105	169.5	-20.1	${127}_{-2}^{+2}\pm 6$	${139}_{-9}^{+8}\pm 13$	165	116.2	20.3	${341}_{-1}^{+1}\pm 17$	${291}_{-7}^{+7}\pm 29$
					166	117.4	21.5	${343}_{-4}^{+5}\pm 17$	${302}_{-10}^{+10}\pm 30$

Equations

$$\mathbf{m}={\mathbf{m}}_{\mathrm{int}}(M_r,[Fe/H])+A_V(\mathbf{R}+R_V{\mathbf{R}}^{\prime })+\mu$$

$$P(\mathbf{\theta }|\hat{\mathbf{m}},\hat{\varpi })\propto \mathcal{L}(\hat{\mathbf{m}}|\mathbf{\theta })\mathcal{L}(\hat{\varpi }|\mu )\pi (\mathbf{\theta })$$

$$\mathcal{L}(\hat{\mathbf{m}}|\mathbf{\theta })=\prod _b\frac{1}{\sqrt{2\pi }{\sigma }_b}\exp \left[-\frac{1}{2}\frac{(\mathbf{m}(\mathbf{\theta })-\hat{\mathbf{m}}{)}^2}{{\sigma }_b^2}\right]$$

$$\mathcal{L}(\hat{\varpi }|\mu )=\frac{1}{\sqrt{2\pi }{\sigma }_{\varpi }}\exp \left[-\frac{1}{2}\frac{(\varpi (\mu )-\hat{\varpi }{)}^2}{{\sigma }_{\varpi }^2}\right]$$

$$\pi (M_r,[Fe/H],A_V,R_V,\mu )=\pi (A_V)\times \pi (R_V)\times \pi (M_r)\times \pi (\mu ,[Fe/H])$$

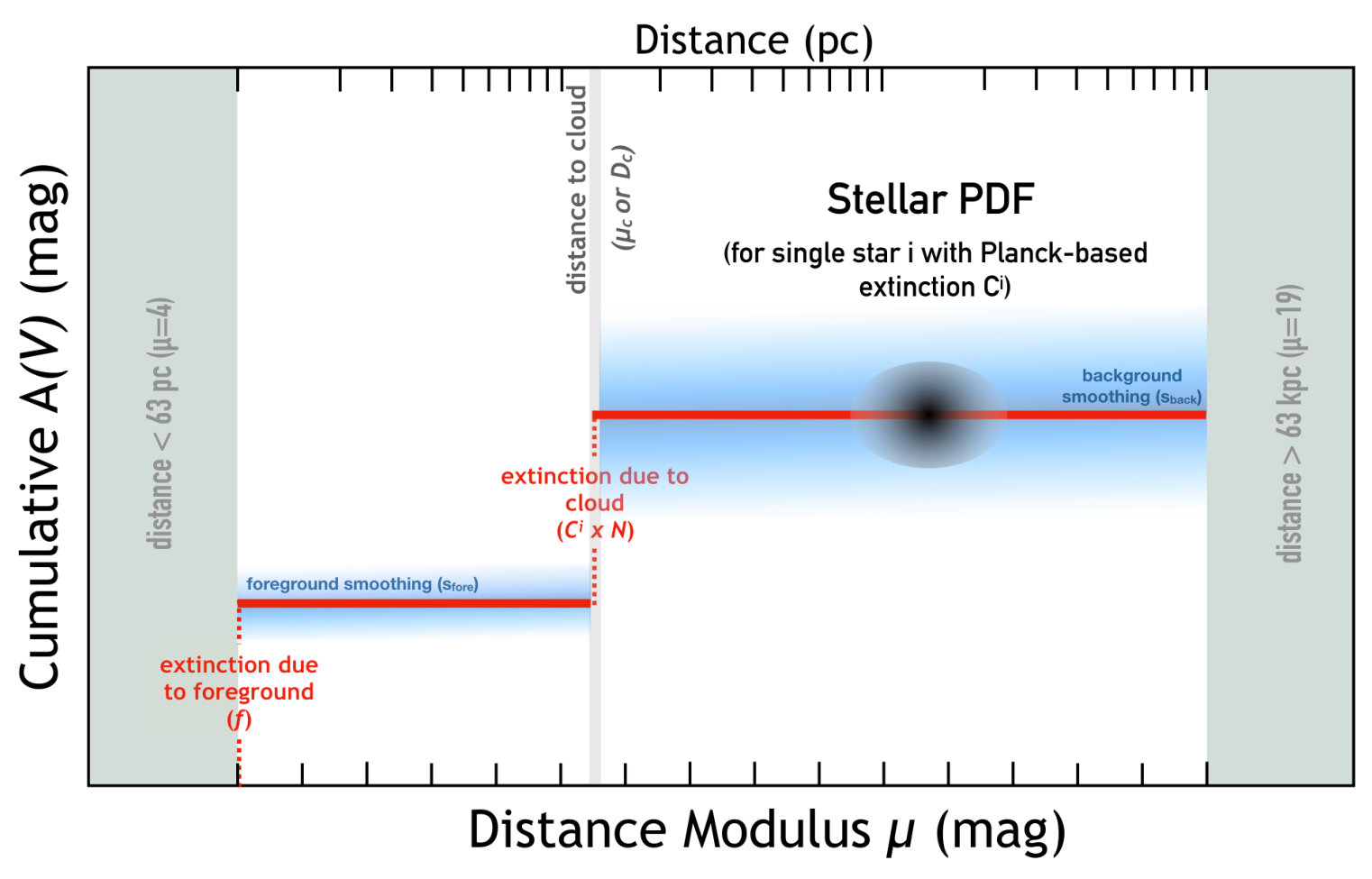

$$A_{V}(\mu)=\left\{\begin{array}[]{lr}f&\mu<\mu_{C}\\ f+N\times C^{i}&\mu\geq\mu_{C}\\ \end{array}\right.$$

$$P(\mathbf{\alpha }|\{{\mu }^i,A_V^i\})\propto \mathcal{L}(\{{\mu }^i,A_V^i\}|\mathbf{\alpha })\pi (\mathbf{\alpha })=\pi (\mathbf{\alpha })\times \prod _i\mathcal{L}({\mu }^i,A_V^i|\mathbf{\alpha })$$

$$\mathcal{L}(\mathbf{\alpha }|{\hat{\mathbf{m}}}_i)=\int P(\mathbf{\alpha }|\mu ,A_V)P(\mu ,A_V|{\hat{\mathbf{m}}}_i)d\mu d{A}_V$$

$$P(\boldsymbol{\alpha}|A_{V},\mu)=\left\{\begin{array}[]{lr}\delta(f)&\mu<\mu_{C}\\ \delta(f+N\times C^{i})&\mu\geq\mu_{C}\\ \end{array}\right.$$

$$P(\boldsymbol{\alpha}|A_{V},\mu)=\left\{\begin{array}[]{lr}\mathcal{N}(f,\sigma_{\rm fore}^{2})&\mu<\mu_{C}\\ \mathcal{N}(f+N\times C^{i},\sigma_{\rm back}^{2})&\mu\geq\mu_{C}\\ \end{array}\right.$$

$$s_{\mathrm{fore}}=\frac{1}{A_V^{\max }-A_V^{\min }}\times {\sigma }_{\mathrm{fore}}$$

$$\mathcal{L}(\mathbf{\alpha }|{\hat{\mathbf{m}}}_i)=(1-P_b){\mathcal{L}}_C(\mathbf{\alpha }|{\hat{\mathbf{m}}}_i)+P_b{\mathcal{L}}_b(\mathbf{\alpha })$$

$${\mathcal{L}}_b(\mathbf{\alpha })={\mathcal{L}}_b=\frac{1}{A_V^{\max }-A_V^{\min }}$$

$$g-\frac{A_g}{A_g-A_r}(g-r-1.2)<20$$

$$r-i-\frac{A_r-A_i}{A_g-A_r}(g-r-1.2)>0.78$$

$$P({\chi }_{n_{bands}}^2>{\chi }_{\mathrm{best}}^2)<0.01$$

$$⟨d⟩=\frac{\sum _k^{n_{pix}}⟨E_{Planck}{⟩}_k{d}_k}{\sum _k^{n_{pix}}⟨E_{Planck}{⟩}_k}$$

Full text

ISM: clouds, ISM: dust, extinction, stars: distances, methods: statistical

††software: Astropy (Astropy Collaboration et al., 2018), Dustmaps (Green, 2018), Bokeh (Bokeh Development Team, 2018), Healpy (Górski et al., 2005b), dynesty (Speagle, 2018), glue (Robitaille et al., 2017)

1 Introduction

Stars are the fundamental unit of astronomy, acting as both the hosts of planetary systems and the building blocks of galaxies. Understanding how stars form underpins our understanding of physics from planetary to galactic scales. Due to the close connection between molecular gas and star formation, molecular clouds have been targeted in an effort to understand the process by which dense molecular gas gravitationally collapses to form stars. Observations of molecular clouds in the solar neighborhood offer the best spatial resolution and facilitate both detailed studies of their physical properties and the testing of star formation theory.

Accurate estimates of cloud mass, physical size, and star formation, however, depend critically on accurate distance measurements. Although there is a long history of using star colors and magnitudes to determine cloud distances, until recently distance estimates to local molecular clouds were obtained on a cloud-by-cloud basis using a variety of techniques with different (and often large) uncertainties. Schlafly et al. (2014) took advantage of the Pan-STARRS1 survey (Chambers et al., 2016), which observed the entire sky north of a declination $\delta=-30^{\circ}$, to produce a homogeneous catalog of accurate distances to local molecular clouds. In addition to most of the clouds in the Magnani et al. (1985) catalog (hereafter MBM), Schlafly et al. (2014) provided distances to well-studied molecular clouds like Orion, $\lambda$ Orionis, Taurus, Perseus, California, Ursa Major, the Polaris Flare, the Cepheus Flare, Lacerta, Pegasus, Hercules, Camelopardis, Ophiuchus, and Monoceros R2.

Schlafly et al. (2014) determined the distances to molecular clouds in a two step process. First, they inferred the joint probability distribution function on distance and reddening for individual stars based on their optical photometry from Pan-STARRS1 following Green et al. (2014). Then, by modeling the cloud as a simple dust screen with a spatial template given by Planck (Planck Collaboration et al., 2014), they bracketed the dust screen between unreddened foreground stars and reddened background stars, thereby constraining at which distance a single “jump” in reddening occurs.

In the last few years, there have been a variety of scientific developments that offer the potential for substantially more accurate distances to local molecular clouds. First, recent astrometric results from the Gaia DR2 release (Lindegren et al., 2018) offer an unprecedented opportunity to improve the accuracy and precision of this method, since stellar parallax measurements provide an independent (and often superior) constraint on stellar distances. In addition, new results from APOGEE allow data-driven modeling of possible variation of the optical-NIR extinction curve (Schlafly et al., 2016). Finally, larger samples and improved modeling allow for more systematic exploration of the spatial structure of these clouds.

In §2 we describe the optical, near-infrared, and astrometric data on which our results are based, along with quality cuts we impose to obtain a reliable stellar sample. In §3 we describe our method for obtaining distances, including our updated framework for inferring the per-star distance extinction estimates and our line-of-sight dust model. In §4 we present an updated catalog of distances for the Schlafly et al. (2014) sightlines, a new catalog of pixelated maps systematically covering the same regions, and a collection of average distances to each cloud. In §5 we compare our findings with other results from the literature and discuss the limitations of our model. We conclude in §6.

2 Photometric and Astrometric Data

We utilize data from four surveys: the Pan-STARRS1 Survey (PS1; Chambers et al., 2016), the National Optical Astronomy Observatory (NOAO) Source Catalog (NSC; Nidever et al., 2018), the Two Micron All Sky Survey (2MASS; Skrutskie et al., 2006), and the second data release of the Gaia survey (Gaia DR2; Gaia Collaboration et al., 2018). While the PS1 survey was previously utilized in Schlafly et al. (2014), the incorporation of NSC, 2MASS, and Gaia DR2 is novel to this work.

2.1 Pan-STARRS1

The PS1 survey is a multi-epoch, deep broadband optical survey of the northern sky visible from Haleakala in Hawaii ($\delta>-30^{\circ}$). It observed in five photometric bands ($g_{\rm PS1}$, $r_{\rm PS1}$, $i_{\rm PS1}$, $z_{\rm PS1}$, $Y_{\rm PS1}$) spanning $400-1000$ nm, with a typical single epoch $5\sigma$ point-source exposure depth of 22.0, 21.8, 21.5, 20.9, and 19.7 magnitudes, respectively, in the AB system (Oke & Gunn, 1983).

The photometry we utilize is based on catalog co-adds of single epoch photometry obtained as part of the PS1 DR1 $3\pi$ Steradian Survey. Compared to Schlafly et al. (2014), this work utilizes an additional 1.5 years of data from PS1, incorporates improved photometric and astrometric calibrations (Magnier et al., 2016), and includes data from the north equatorial pole.

2.2 NOAO Source Catalog

The NOAO Source Catalog is a catalog of sources derived from most of the public data taken on the NOAO telescopes, including the Dark Energy Camera (DECam). As this includes facilities in both the north and the south, the NOAO source catalog is the only dataset available that covers several local molecular clouds in the southern sky. Although the data are collected over many individual PI-led projects, the data were reduced and measured uniformly based on the NOAO Community Pipeline. The photometry is measured to roughly 1-2% accuracy, with an astrometric accuracy of around 2 mas.

To ensure homogeneity, we only utilize NSC data taken from DECam in this analysis. These have a median 10$\sigma$ point-source exposure depth in $g_{\rm DECam}$, $r_{\rm DECam}$, $i_{\rm DECam}$, $z_{\rm DECam}$, and $Y_{\rm DECam}$ of 22.4, 22.9, 22.6, 22.4, 21.6, 20.4 magnitudes, respectively, in the AB system.

Although the data are reduced uniformly, because the number, duration, and general observing standards for exposures is heterogeneous over a given region of the sky, the overall quality of the data are worse than for PS1 (which had a uniform observing strategy across most of the main $3\pi$ survey). As a result, we only opt to use these data when no PS1 data are available, and will specifically highlight this in the remainder of the paper when relevant.

2.3 2MASS

The 2MASS survey is a near-infrared (NIR) survey of the entire sky spanning $1-2\micron$. It is shallower than PS1, achieving a typical $10\sigma$ point-source exposure depth in the $J_{\rm 2MASS}$, $H_{\rm 2MASS}$, and $K_{\rm 2MASS}$ bands of 15.8, 15.1, and 14.3 magnitudes, respectively, in the Vega system. We utilize data from the 2MASS “high-reliability” catalog111Described at https://old.ipac.caltech.edu/2mass/releases/allsky/doc/sec2_2.html., which minimizes contamination and confusion caused by neighboring point and/or extended sources.

2.4 Gaia DR2

Gaia DR2 is the second data release of the Gaia mission (Gaia Collaboration et al., 2016). It provides proper motion and parallax measurements for roughly 1.3 billion stars, along with photometric data in the $G$, $G_{RP}$ and $G_{BP}$ bands. The astrometric catalog we use (Lindegren et al., 2018) has a limiting magnitude for 99.875% (i.e. $3\sigma$) of sources around $G\approx 21$ mag and a bright limit of $G\approx 3$ mag (see Gaia Collaboration et al. (2018) for additional details). The typical astrometric uncertainty is around $0.7$ mas for the faintest stars and $0.04$ mas in the bright limit.

In this work, we only incorporate Gaia parallax measurements and their uncertainties. Incorporating Gaia photometric data is deferred to future work.

2.5 Assembling a Final Catalog

For our northern clouds ($\delta>-30^{\circ}$), we cross-match all sources in PS1, 2MASS, and Gaia DR2 within a radius of 1 arcsec, with the closest source being selected if there are multiple matches. To limit ourselves to stars for which our distance estimates will likely be most accurate, we adopt the procedure of Schlafly et al. (2014) and require that the star be detected in the $g_{\rm PS1}$ band as well as at least three of the four other PS1 bands. For our M-dwarf only sightlines towards very nearby clouds (see §3.5), we require that the star be detected in $g_{PS1}$, $r_{PS1}$, and $i_{PS1}$ in order to select a reliable sample of M-dwarf stars. To reduce contamination from galaxies, we require that the aperture magnitude of the star be $<0.1$ mag brighter than the PSF magnitude in at least three PS1 bands. This is a rather loose cut, but at the Galactic latitudes explored in this work, stars greatly outnumber galaxies in the magnitude range of interest and so we do not expect residual contamination to be a major issue.

For our southern clouds ($\delta<-30^{\circ}$), we cross-match all sources in NSC, 2MASS, and Gaia DR2 within a radius of 1 arcsec, with the closest source being selected if there are multiple matches. All of our southern clouds are nearby, so like our northern “Mdwarf-only” clouds, we require that the star be detected in $g_{\rm DECam}$, $r_{\rm DECam}$, and $i_{\rm DECam}$. Unlike PS1, the NSC catalog does not provide complete coverage in all five optical bands. Thus, we adopt a slightly weaker cut, requiring that the star be detected in at least four bands total, and allow the fourth band to be any DECam or 2MASS band. To reduce contamination from galaxies, we impose the criterion that the NSC’s class_star field be greater than 0.8, indicating that the source has at least an 80% probability of being a star.

For both our northern and southern clouds, a Gaia parallax measurement is not required for inclusion into our catalog. However, if a parallax measurement is available for a star, we impose the same quality cuts recommended in Lindegren et al. (2018) (see their Equation 11). That is, the star must have a mean $G$ magnitude $\leq 21.0$, at least six visibility_periods_used and an astrometric_sigma5d_max $\leq(1.2{\rm mas})\times\gamma(G)$, where $\gamma(G)={\rm max}[1,10^{0.2(G-18)}]$.

To account for systematic errors in the photometry and possible limitations of our stellar models (see §3.1), we add a 2% (0.02 mag) systematic uncertainty in quadrature with the reported errors on the observed magnitudes in all bands. For Gaia parallax measurements, we add in a systematic uncertainty of $0.04$ mas in quadrature with the reported parallax errors.

3 Methods

Our technique for inferring the clouds distances builds on that of Schlafly et al. (2014). Here we summarize our procedure for inferring the per-star distance-extinction estimates and the line-of-sight dust distribution, along with the modifications we make to the Schlafly et al. (2014) model.

3.1 Obtaining Per-Star Distance-Extinction Estimates

While our per-star inference pipeline is very similar to those used in past work (Schlafly et al., 2014; Green et al., 2014, 2015, 2018), we want to highlight the following changes:

Unlike Green et al., we measure in units of extinction, $A(V)$, rather than reddening, $E(B-V)$. 2. 2.

We accommodate variations in the extinction curve by allowing $R(V)$ (the optical total-to-selective extinction ratio) to float on a star-by-star basis, substantially improving the flexibility of our stellar modeling. 3. 3.

We incorporate Gaia DR2 parallax measurements as an independent constraint on the distance, tightening the distance constraints to a significant fraction of nearby sources. 4. 4.

We use brute-force methods (rather than Markov Chain Monte Carlo, or MCMC) to derive stellar posteriors, enabling better modeling of distance and extinction estimates for stars displaying significantly extended and/or multi-modal behavior.

These are described in more detail below.

We model each star as having observed magnitudes $\mathbf{m}=\{m_{g_{\rm PS1}},\dots,m_{K_{\rm 2MASS}}\}$ as a function of intrinsic stellar type, extinction, and distance, in a manner following Green et al. (2014, 2015, 2018). This gives predicted magnitudes for each source as

[TABLE]

where $\mu$ is the distance modulus and $\mathbf{m}_{\rm int}$ is the set of intrinsic magnitudes for the star.

Following Green et al. (2014), we use an empirical set of models, which we will refer to as the “Bayestar” models, calibrated on empirical observations of the stellar locus in low-reddening regions of the sky. These are functions of the absolute $r$-band magnitude in PS1 ($M_{r}$) and a vector designed to roughly track the impact of metallicity ([Fe/H]). For PS1 and 2MASS, these models are identical to those used in Green et al. (2018). For DECam data from NSC, we have fit a new stellar locus to stars inside the Dark Energy Survey footprint (DES; Abbott et al., 2018); see Appendix B for details.

The extinction is determined by the integrated amount of dust along the line of sight and the shape of the attenuation curve. The overall amount of dust is parameterized by $A_{V}\equiv A(V)$, which measures the total attenuation in magnitudes in the $V$ band. The shape of the dust curve is taken to be a function of one parameter $R_{V}\equiv R(V)\equiv A(V)/E(B-V)$, which measures the attenuation in the $V$ band $A(V)$ relative to the color excess in the $B$ and $V$ bands $E(B-V)$. This serves as a rough proxy for the blueward slope of the attenuation curve, and has been shown to be a reasonable way to parameterize the shape of the attenuation curve in the optical and NIR (Fitzpatrick, 1999; Schlafly et al., 2016). The particular values for $\mathbf{R}$ and $\mathbf{R}^{\prime}$, which parameterize the mean shape and $R_{V}$-dependence of the extinction vector for our photometry, are derived using the interpolated curve from Schlafly et al. (2016) over the PS1, DECam, and 2MASS bands assuming the same K-giant model with $T_{\rm eff}=4500$, ${\rm[Fe/H]}=0$, and $\log g=2.5$.222Technically this curve is not parameterized explicitly as a function of $R(V)$, but the two parameterizations are so similar that the differences are negligible for our purposes.

Based on our model, the posterior probability that a set of observed magnitudes $\hat{\mathbf{m}}$ is consistent with our predicted photometry $\mathbf{m}(\boldsymbol{\theta})\equiv\mathbf{m}(M_{r},{\rm[Fe/H]},A_{V},R_{V},\mu)$ and a measured parallax from Gaia DR2 $\hat{\varpi}$ can be computed following Bayes’ Rule:

[TABLE]

We assume our likelihood is independent and roughly Gaussian in the measured magnitude in each band $b$ such that

[TABLE]

where the product over $b$ is taken over all observed bands. Likewise, we assume that the likelihood for the parallax is Gaussian:

[TABLE]

Our prior is comprised of a few separate components that can be factored as

[TABLE]

Since we plan to fit for the extinction along a given sightline (see §3.2), we take the prior on $A_{V}$ to be mostly uninformative and flat between $A_{V}=0$ mag and $A_{V}=12$ mag. Our prior for $R_{V}$ is Normal with a mean of $\langle R_{V}\rangle=3.32$ and a standard deviation of $\sigma(R_{V})=0.18$ based on observations from Schlafly et al. (2016). The prior over $M_{r}$ is based on measurements from PS1 following Green et al. (2014). Finally, the joint prior on distance $\mu$ and metallicity [Fe/H] is derived from a 3-D Galactic model following Green et al. (2014), derived from prior knowledge of the number density, metallicity, and luminosity of stars throughout the Galaxy (Ivezić et al., 2008; Jurić et al., 2008; Bressan et al., 2012).

To derive the posteriors for each source, we use the public code brutus333https://github.com/joshspeagle/brutus (Speagle et al. 2019b, in prep.). Similar to the method outlined in Schlafly et al. (2014), brutus uses a combination of brute-force and linear optimization methods to compute posteriors over a grid in $M_{r}$ and [Fe/H]. This avoids convergence and sampling issues associated with Markov Chain Monte Carlo (MCMC) methods used in Green et al. (2014) and better characterization of extended, multi-modal posteriors. A set of $n=2000$ random samples $\{\boldsymbol{\theta}_{1},\dots,\boldsymbol{\theta}_{n}\}$ are then drawn from the results and saved. These are then used to marginalize over [Fe/H], $M_{r}$, and $R_{V}$ to compute the 2-D posteriors $P(\mu,A_{V})$ used in §3.2.

The Gaia DR2 astrometric data has two significant effects on our stellar posteriors. These are illustrated in Figure 1, which shows a set of stellar 2-D distance-extinction posteriors for stars towards the Perseus molecular cloud before and after adding in the additional parallax constraints.

First, for nearby stars, Gaia DR2 parallaxes are often observed at such high signal-to-noise that they are able to constrain the distance modulus $\mu$ to within a few hundredths of a magnitude. Second, even when Gaia DR2 parallaxes are only observed at moderate signal-to-noise, they can still be significantly informative by breaking the degeneracy between nearby “dwarfs” and faraway “giants”. This degeneracy manifests as a bimodality in our stellar posteriors; the inclusion of the Gaia parallaxes is usually able to discriminate between the two modes by suppressing the disfavored mode significantly.

To summarize, our model involves five parameters for each star: the PS1 $r$-band absolute magnitude $M_{r}$, metallicity [Fe/H], overall extinction $A_{V}$, attenuation curve shape $R_{V}$, and distance modulus $\mu$. We derive distance and extinction estimates by comparing the predicted magnitudes $\mathbf{m}(\boldsymbol{\theta})$ and distance modulus $\mu$ to the observed magnitudes $\hat{\mathbf{m}}$ and parallaxes $\hat{\varpi}$ with a set of reasonably-informed priors. Random samples from the posterior are then saved to construct marginalized 2-D posteriors in $\mu$ and $A_{V}$.

3.2 Modeling the Line-of-Sight Extinction

3.2.1 Basic Model

Our basic line-of-sight dust model is very similar to that of Schlafly et al. (2014). First, we model the line-of-sight extinction towards each cloud as being dominated by a single thin dust screen at the cloud distance modulus $\mu_{C}$. The total extinction through the screen towards a single star $i$ in the sightline is parameterized as $N\times C^{i}$, where $C^{i}$ is the amplitude of the reddening given by Planck at 353 GHz (Planck Collaboration et al., 2014) towards star $i$ multiplied by its typical $R_{V}^{i}$ (see §3.1) and $N$ is a normalization factor that corrects for the overall scale difference between the Planck-derived extinction and our per-star “Bayestar” derived extinction (see §3.1).444This is a very simplistic parameterization of the extinction, given that Planck actually measures the long-wavelength emissivity of dust, rather than the extinction in optical bands. The Planck team derives $\tau_{353}$ by modeling the dust emission with a modified blackbody and then converts $\tau_{353}$ to $E(B-V)$ using the correlation between the reddening of quasars and dust optical depth along the same line of sight. We have built in our normalization factor N to account for small errors in our extinction templates, so we expect this will have no effect on our derived distances

In addition to the bulk of the extinction associated with the cloud, we also account for possible foreground extinction by parameterizing it as a constant $f$. Together these three terms parameterize the line-of-sight extinction profile $A_{V}(\mu)$ for individual stars through each sightline:

[TABLE]

where, again, $C^{i}$ is the Planck-based extinction towards each star $i$.

If the extinction profile $A_{V}(\mu)$ is parameterized by $\boldsymbol{\alpha}=\{\mu_{C},f,N\}$ and we had measured the distance modulus $\mu^{i}$ and extinction $A_{V}^{i}$ to each source, then the posterior distribution of $\boldsymbol{\alpha}$ would be given by:

[TABLE]

assuming our measurements for each star $i$ are independent and some prior $\pi(\boldsymbol{\alpha})$ over the cloud parameters. Unfortunately, we do not have an exact measurement of $\mu^{i}$ and $A_{V}^{i}$ for each star, but rather a posterior estimate $P(\mu,A_{V}|\hat{\mathbf{m}}^{i},\hat{\varpi}^{i})$. We thus do not know precisely what distance or extinction that star actually has, complicating this comparison.

Ideally, we would like to model the joint distribution of our line-of-sight parameters $\boldsymbol{\alpha}$ along with the individual parameters $\boldsymbol{\theta}^{i}$ for each star. We defer this to future work. Instead, we will simply integrate over each per-star posterior to try and marginalize over this uncertainty. Our likelihood $\mathcal{L}(\mu^{i},A_{V}^{i}|\boldsymbol{\alpha})$ then becomes:

[TABLE]

where $P(\mu,A_{V}|\hat{\mathbf{m}}_{i})$ is the per-star posterior and $P(\boldsymbol{\alpha}|\mu,A_{V})$ implements the line-of-sight model for $A_{V}(\mu)$ outlined above:

[TABLE]

where $\delta(\cdot)$ is the Dirac delta function.

To summarize, our basic model assumes that a given cloud is at some distance modulus $\mu_{C}$ and functions as a thin dust screen with amplitude $N$ relative to Planck. In front of each cloud is a small amount of foreground extinction $f$. Because we do not know the exact distance and extinction of each star, we marginalize over them by integrating over the 2-D distance-extinction posterior for each star (from §3.1) relative to our line-of-sight model.

3.2.2 Modifications

We build on the basic formalism described above in three main ways:

We allow some dispersion in the foreground extinction to account for possible variation in a given spatial region. 2. 2.

We allow for variation within each cloud (i.e. the “background”) to account for patchiness in cloud geometry relative to the Planck-based dust screen model. 3. 3.

We account for possible outliers in the stars used to model the cloud that can arise due to mis-estimated posteriors or more complex 3-D dust geometry.

We describe these each in turn. See Figure 2 for a schematic illustration of this model.

As discussed in §3.2.1, our basic model assumes that there is only a single possible extinction for the foreground or the background. However, it is likely that there is some variation within a given spatial region. We account for this by assuming our model actually has some dispersion such that the probability becomes:

[TABLE]

where $\mathcal{N}(\cdot,\cdot)$ indicates a normal distribution with the listed mean and variance, respectively. Here, we define the relevant standard deviations with respect to a “smoothing parameter” $s$, which is parameterized as a fraction of the total $A_{V}$ range explored by the model, i.e.

[TABLE]

and likewise for $s_{\rm back}$.

Alternately, we can interpret $s_{\rm fore}$ and $s_{\rm back}$ as adaptively smoothing the per-star posteriors along the extinction axis with respect to a given model $\boldsymbol{\alpha}$ for the cloud. The portion of the star’s 2-D distance-extinction posterior in front of the cloud ($\mu<\mu_{C}$) is smoothed with a Gaussian kernel with $\sigma_{\rm fore}$, while the portion behind the cloud ($\mu\geq\mu_{C}$) is smoothed with a Gaussian kernel with $\sigma_{\rm back}$.

It is also necessary to consider the effect of outlying stars on this likelihood. Schlafly et al. (2014) reduced the effect of outliers by adding a small fixed constant to every stellar posterior, where the constant was chosen so that some fraction of stars in the sightline was considered to be drawn from a flat outlier distribution in $\mu$ and $E(B-V)$. We adopt a similar approach, except we explicitly seek to model this term.

Specifically, we introduce a final parameter $P_{b}$, which models our individual likelihoods as a mixture model following Hogg et al. (2010). This model assumes that a given star $i$ is associated with our given cloud model $\boldsymbol{\alpha}$ with probability $1-P_{b}$, and is associated with a particular outlier model with probability $P_{b}$. Broadly speaking, it quantifies the fraction of “bad” stars that are inconsistent with our model.

Our mixture model modifies our likelihood to be:

[TABLE]

where $\mathcal{L}_{C}(\boldsymbol{\alpha}|\hat{\mathbf{m}}_{i})$ is the original cloud-based likelihood defined in Equation 8 and $\mathcal{L}_{b}(\boldsymbol{\alpha})$ is the likelihood under our assumed outlier model. We take this to be uniform over distance modulus $\mu$ and extinction $A_{V}$ within the bounds of our priors, which gives a constant value of

[TABLE]

3.3 Priors

Our Bayesian approach requires that we adopt priors on our model parameters $\boldsymbol{\alpha}$ for the cloud. These now include six parameters:

• •

the cloud distance modulus ($\mu_{C}$),

• •

the foreground extinction ($f$),

• •

the normalization factor ($N$),

• •

the foreground smoothing ($s_{\rm fore}$),

• •

the background smoothing ($s_{\rm back}$), and

• •

the outlier fraction ($P_{b}$).

We impose a flat prior on both the cloud distance modulus $\mu_{C}$ and the normalization factor $N$, such that $4<\mu_{C}<14$ mag and $0.2<N<2$. We also impose a conditional flat prior on the foreground extinction, requiring that it be less than 25% of the median projected extinction towards the stars determined by the Planck extinction and each star’s $R_{V}$. We impose a truncated Log-Normal prior over the range 0 to 1 on both smoothing parameters $s_{\rm fore}$ and $s_{\rm back}$, with a mean of 0.05 and a standard deviation equivalent to a factor of 1.35. Finally, we impose a truncated Log-Normal prior on our $P_{b}$ parameter over the range 0 to 1, with a mean of 0.03 and a standard deviation equivalent to a factor of 1.35.

3.4 Sampling

We sample for our set of model parameters ($\mu_{C}$, $f$, $N$, $s_{\rm fore}$, $s_{\rm back}$, $P_{b}$) using the public nested sampling code dynesty555https://github.com/joshspeagle/dynesty (Speagle, 2019). The cloud distance $D(\mu_{C})$ is our primary free parameter of interest; we consider all other parameters, as well as the individual stellar posteriors, as nuisance parameters to be marginalized over, although we report them for completeness. See Appendix C for more information on the sampling routine we implement.

3.5 Sample Selection

Because the target clouds lie at a range of distances (from $<100$ pc to $>2$ kpc), we adopt two slightly different techniques for distance determination following Schlafly et al. (2014). For clouds which are “far away” ($D_{C}\gtrsim 200$ pc), stars of all stellar types are used. For clouds which are “nearby” ($D_{C}\lesssim 200$ pc, covering Aquila S., Ophiuchus, Taurus, Hercules, and all the MBM clouds with the exception of MBM 46-47), only M-dwarf-like stars are used. Limiting our analysis to only M-dwarfs for very nearby clouds prevents the small number of foreground stars from being overwhelmed by the large number of background stars when trying to pinpoint where a step in extinction occurs (see §3.2).

We select for M-dwarfs by imposing the following cuts based on Schlafly et al. (2014):

[TABLE]

[TABLE]

where the extinction coefficients $A_{x}$ are taken from Table 1 of Green et al. (2018). Both of these equations impose color and magnitude cuts along the reddening vector. Equation 14 primarily selects bright blue stars (as faint as $g_{P1}$=20 mag), which have a typical unreddened $g_{P1}-r_{P1}=1.2$. Equation 15 selects M-dwarfs in color-color space. As argued in Schlafly et al. (2014), the application of both cuts produces a clean, reddening-independent sample of nearby M-dwarfs ideal for the “near” analysis. Compared to Schlafly et al. (2014) we make one minor revision to Equation 15, by fixing the intercept of the cut to 0.78; this ensures that we intersect the $g_{P1}-r_{P1}$ vs. $r_{P1}-i_{P1}$ color-color diagram at the same location as Schlafly et al. (2014) for a $g_{P1}-r_{P1}=1.2$, despite the adoption of the updated reddening vector.

In addition to the above cuts, we also follow Schlafly et al. (2014) by masking out all stars with Plank-based $E(B-V)<0.15$ mag, independent of $R(V)$. Similar to the M-dwarf cut, limiting our sample to stars with at least $0.15$ mag of reddening (assuming they are in the background) ensures that only stars capable of informing where a jump in reddening occurs are used in the fit.

Finally, we remove stars from our analysis with poor best-fit chi-square values $\chi^{2}_{\rm best}$, which indicate these stars are likely inconsistent with our stellar models and therefore likely have unreliable distance-extinction estimates. Since the expected $\chi^{2}$ for any particular source depends on the number of bands observed, we opt to remove all stars with

[TABLE]

where $n_{bands}$ is the number of bands observed. This is roughly equivalent to removing outliers at approximately the $2\sigma-3\sigma$ level. We note that this chi-squared cut will likely remove many of the stars embedded in the clouds themselves. This is because most of the embedded stars are likely to be young, and our stellar templates only robustly model older, main sequence stars. Since our method leverages bracketing the cloud between foreground and background stars in the context of a thin dust screen model, we expect any young stars embedded in the clouds themselves (with unreliable distance-extinction measurements) will have a negligible effect on our results.

3.6 Uncertainties

Our Bayesian approach enables a robust determination of statistical uncertainties through our posterior samples (see §3.4). However, there are additional systematic uncertainties in our approach that need to be considered. These stem from three main factors:

Errors in the stellar models: Our empirical stellar models are derived from fits to the observed stellar locus in PS1, 2MASS, and NSC DECam data. These likely contain some amount of residual noise, possible residual reddening, and extrapolated metallicity dependence. Slight differences between our models and the intrinsic colors of stars could result in systematic extinction/distance offsets for each star. 2. 2.

Errors in the extinction vector: Although we have based our extinction vector and its variation on empirical results from Schlafly et al. (2016), it is possible that the mean vector and/or $R(V)$ dependence is slightly off. This mismatch could result in systematic extinction/distance offsets for each star. 3. 3.

Errors in the line-of-sight cloud model: Our cloud model (see §3.2) is quite simplistic, assuming that the majority of the cloud is located at a single distance (modulus) $\mu_{C}$, that any foreground stars only have a single, uniform extinction $f$, and that neighboring regions of the sky are completely independent from each other. Any more complex behavior that violates these assumptions can systematically bias $\mu_{C}$.

Compared to the analysis presented in Schlafly et al. (2014), we are much less impacted by systematic uncertainties arising from our per-star modeling. All of the stellar models, extinction vectors, and $R(V)$ dependencies used here are significantly improved from that work, and have been tested rigorously in other detailed analyses (Schlafly et al., 2016; Green et al., 2015, 2018). In addition, in many cases the Gaia DR2 parallaxes significantly constrain the distance to nearby stars, further limiting the impact of systematic offsets. Internal testing based on Gaia DR2 data lead us to estimate the impact of any systematics arising from our per-star modeling to be $\lesssim 2\%$.

Instead, the dominant source of systematic uncertainty stems from the simplicity of our line-of-sight dust model. Based on our results in §4.3, we find that these assumptions lead to $5\%$ systematic uncertainty in distance, which we adopt for all our reported values. Since the characteristic statistical uncertainty on the sightlines is often $2-3\%$, the total estimated uncertainty is often dominated by this term.

4 Results

We present two separate collections of distances to regions of local molecular clouds. For consistency with past work, in §4.1 we first apply our analysis to the same sightlines used in Schlafly et al. (2014) to determine an updated catalog of distances. After investigating any relevant changes, in §4.2 we instead apply our analysis over a larger area of the cloud by systematically subdividing each cloud using a pixelization scheme and independently fitting distances to each pixel. This second technique is then applied to derive 2-D spatial maps to many molecular clouds in the Dame et al. (2001) CO survey. These results are then used to compute robust average distances to these regions in §4.3, which are reported in Table 1.

4.1 Schlafly et al. (2014) Sightlines

Schlafly et al. (2014) presented a catalog of distances motivated by a combination of the Magnani et al. (1985) (MBM) molecular cloud catalog and the Dame et al. (2001) CO survey. Clouds in the MBM catalog were associated with an explicit list of sightlines from that work, and Schlafly et al. (2014) adopted the same sightlines to remain consistent. Clouds from the Dame et al. (2001) CO survey, however, did not have an explicit set of sightlines associated with them. As a result, Schlafly et al. (2014) instead chose a representative set of sightlines that was well-suited to the basic method outlined in §3 but not intended to provide complete areal coverage of these clouds.

In total, Schlafly et al. (2014) included all clouds in the Dame et al. (2001) CO survey and Magnani et al. (1985) catalog which fell inside the PS1 footprint ($\delta>-30^{\circ}$), possessed an adequate number of stars with Planck-based $E(B-V)>0.15$ mag, and were far enough from the Galactic plane to avoid possible multi-cloud confusion. In this work, we provide distance tables to the Schlafly et al. (2014) sightlines for completeness in Appendix A, but refer readers to §4.2 and 4.3 for the main data products of this paper.

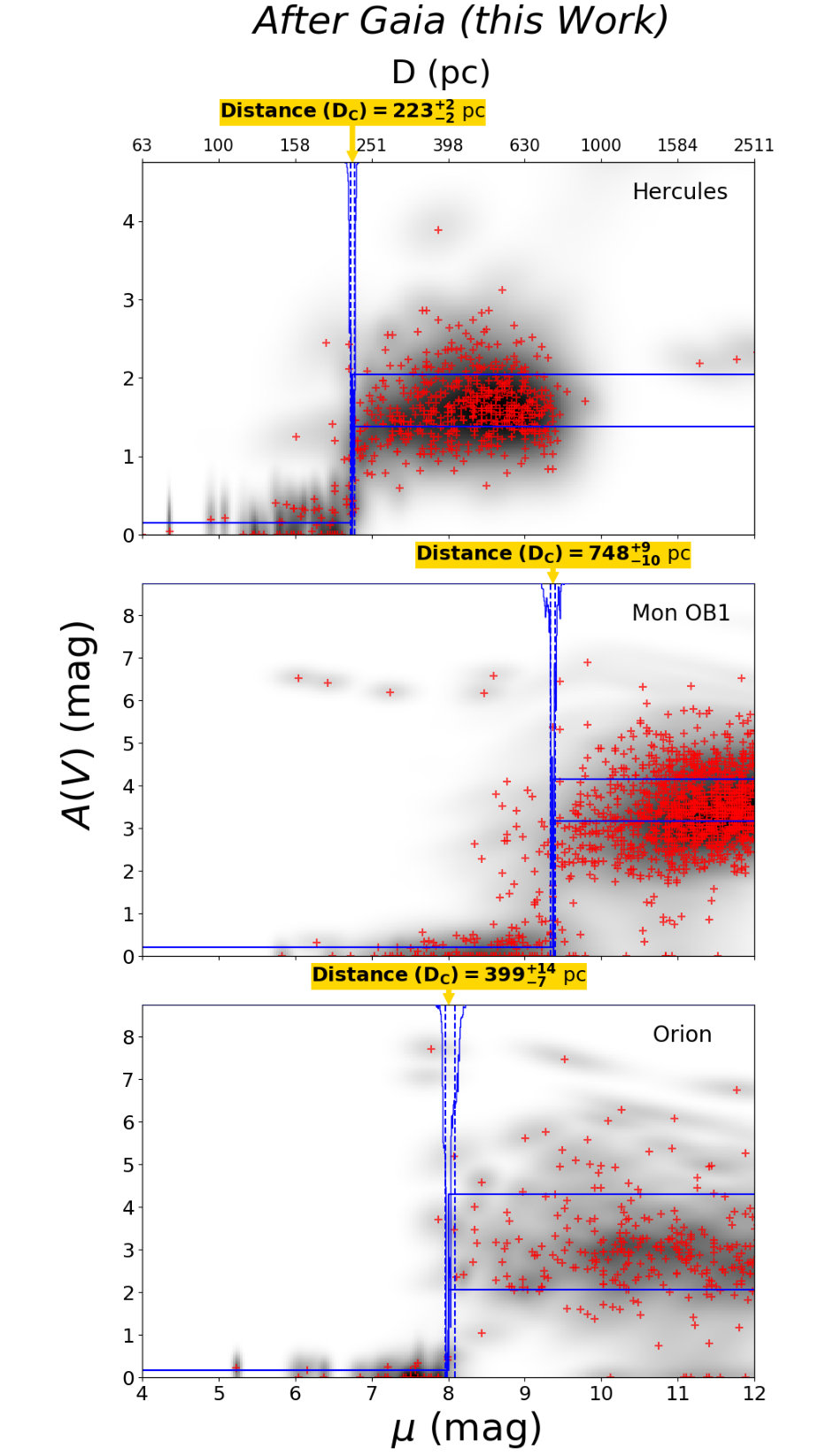

In Figure 3, we show the results of our fitting procedure for three different sightlines, in Hercules ($l=45.1^{\circ},b=8.9^{\circ}$), Mon OB1 ($l=201.4^{\circ},b=1.1^{\circ}$), and Orion ($l=208.4^{\circ},b=-19.6^{\circ}$). Although these span a wide range in distance and extinction, we find our model provides an excellent fit to the data, with a well-constrained distance modulus $\mu_{C}$, small outlier fraction $P_{b}$, and low foreground extinction $f$ for each sightline. As expected, the majority of the distance constraint comes from a collection of highly-extincted stars at the same distance, with the outlier model suppressing the impact of isolated foreground stars with anomalously high extinction. We also find that our model prefers significant amounts of variation in background star extinction (via $s_{\rm back}$) but not the foreground (via $s_{\rm fore}$), illustrating the importance of explicitly modeling this intra-cloud variation.

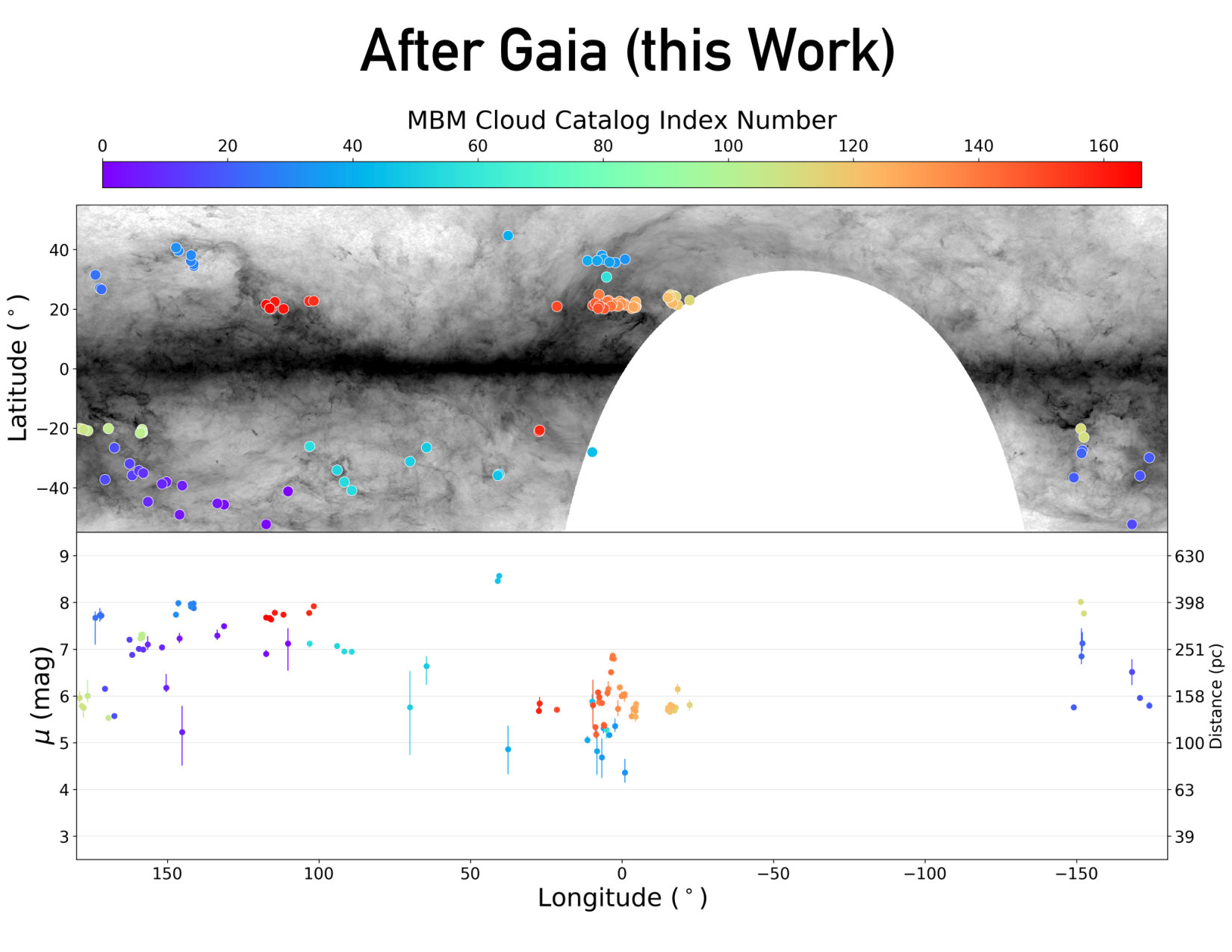

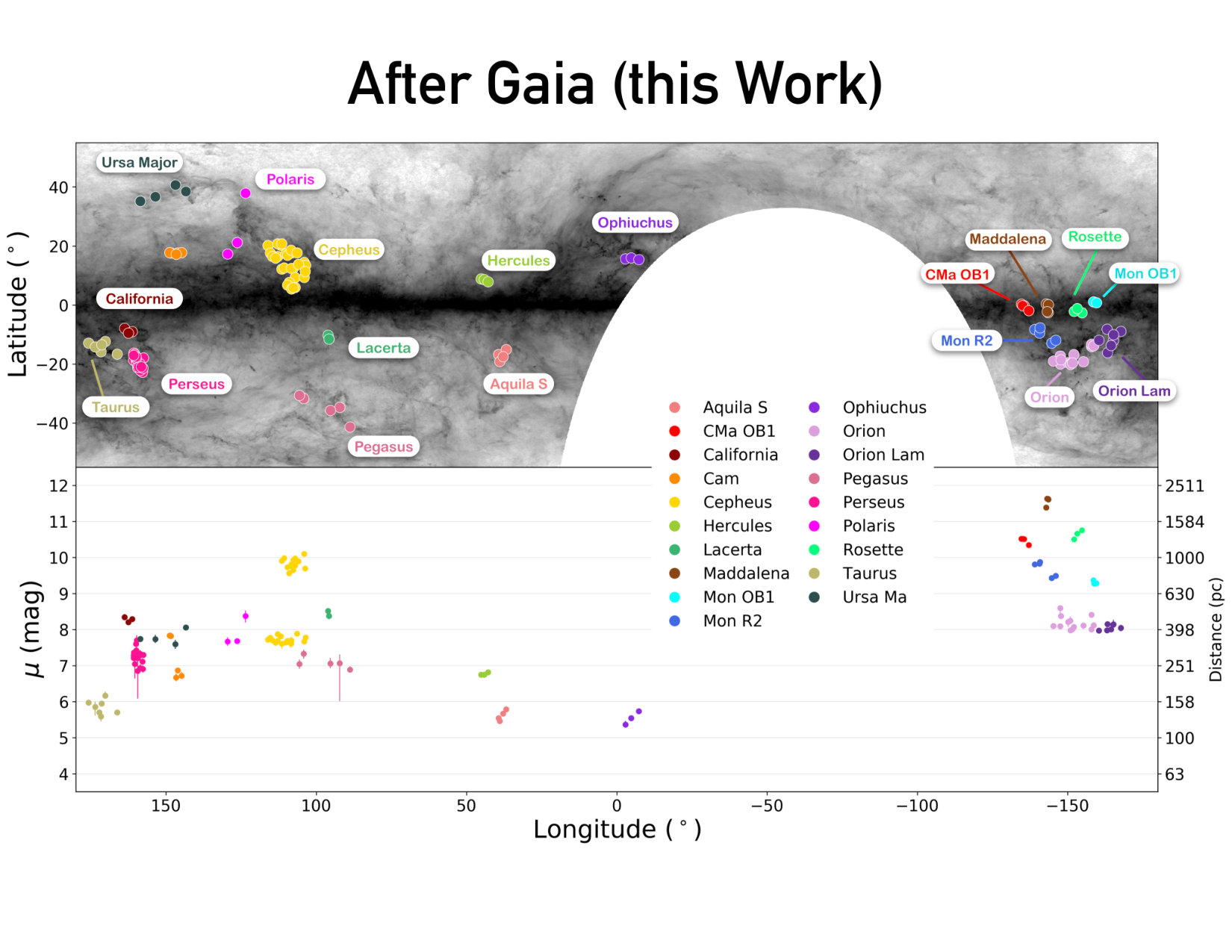

In Figures 4 and 5, we visualize the distance results for every sightline from Schlafly et al. (2014) (see §A in the Appendix), which includes many major molecular clouds from the Dame et al. (2001) CO survey and Magnani et al. (1985), respectively. Overall, we see that the statistical uncertainties decreases dramatically for most sightlines compared to Schlafly et al. (2014), with the dispersion between many clouds “tightening” substantially, as expected if they are part of a localized structure at a single distance.

One interesting feature we observe is that the distances appear to systematically shift depending on a sightline’s position relative to the galactic center, with most of the distances to the right of the galactic center (which are also further away) decreasing while those on the left (which are also more nearby) increasing. In both cases, the fractional difference between the Schlafly et al. (2014) distances and our new Gaia-informed distances is $\lesssim 15\%$, which was the magnitude of the systematic uncertainty estimated in Schlafly et al. (2014). This effect is seen more clearly in Figure 6, where we plot the distances to all Schlafly et al. (2014) sightlines (based on both Dame et al. (2001) and Magnani et al. (1985)) on the x-axis, versus the distances we obtain to the same sightlines post-Gaia on the y-axis. The errorbars shown only include the statistical uncertainties (computed the same way for both Schlafly et al. (2014) and this work) and do not include any systematic uncertainty, which is $\approx 10\%$ for Schlafly et al. (2014) and $\approx 5\%$ for this work. As seen in Figure 6 we tend to infer closer distances than Schlafly et al. (2014) for sightlines with $\mu>9$ mag, while we tend to infer farther distances with respect to Schlafly et al. (2014) for sightlines with $\mu<9$ mag. When modeling the statistical errors on both x and y, the best-fit line is parameterized by: $y=0.88(\pm 0.02)x+0.98(\pm 0.11)$, as computed using orthogonal distance regression.

4.2 Detailed Maps of Cloud Structure

To complement the Schlafly et al. (2014) technique, we also adopt an alternative approach to provide more uniform detailed maps of cloud structure. Guided by previous studies of these clouds in the literature, we start by defining rectangular boundaries (in Galactic longitude and latitude) around each region (see Table 1). We then subdivide each area into healpix pixels (Górski et al., 2005a) of either nside=64 or nside=128, corresponding to pixel areas of 0.84 deg2 and 0.21 deg2, respectively. The larger nside=64 pixels are used for all “nearby” M-dwarf only sightlines, while the smaller nside=128 pixels are used for all “faraway” sightlines (see §3.5).

After replacing the circular beams from the sightlines presented in §4.1 with these healpix pixels, we need to ensure that the only pixels included in our modeling are those that actually trace the cloud, rather than a lower density component along the line-of-sight. To do this, we impose Planck $E(B-V)$ thresholds on the pixels for each cloud and only consider pixels with appreciable amounts of extinction. These thresholds, outlined in Table 1, vary from 0.15 mag for very diffuse clouds at high latitudes (e.g. Ursa Major) to 3 mag for clouds in the Galactic plane and oriented towards the Galactic center (e.g. Serpens/AqR).

Once we have a set of pixels within each longitude-latitude box that satisfy this $E(B-V)$ threshold, we apply the exact same procedure as before to estimate the distances to extinction jumps within each pixel.666The one exception is we limit the maximum number of stars per pixel to 2000 before we apply our chi-squared cut for computational expediency. This procedure then results in a grid of distance estimates to different parts of each cloud. We are able to provide complete coverage above each cloud’s reddening threshold for a vast majority of clouds. The exceptions are the southern clouds Chamaeleon and Lupus, whose pixel coverage is sparse due to the lack of available broadband photometry in the $g$, $r$, and $i$ bands. For Lupus, while we targeted pixels over the entire longitude range $335^{\circ}<l<348^{\circ}$, only pixels with $l>338^{\circ}$ had enough stars with multi-band optical photometry to reliably fit a distance. Thus, our average distance for Lupus is drawn from pixels in the vicinity of Lupus 1, 3, 5, 6, and 9, and excludes 2, 4, 7, and 8. For Chamaeleon, we provide complete coverage of Chamaeleon I and II, but no coverage of Chamaeleon III. Finally, in a very small fraction of cases ($\approx 1\%$ of sightlines), we have removed pixels from our maps which contain no foreground stars, leading to very uncertain distance estimates.

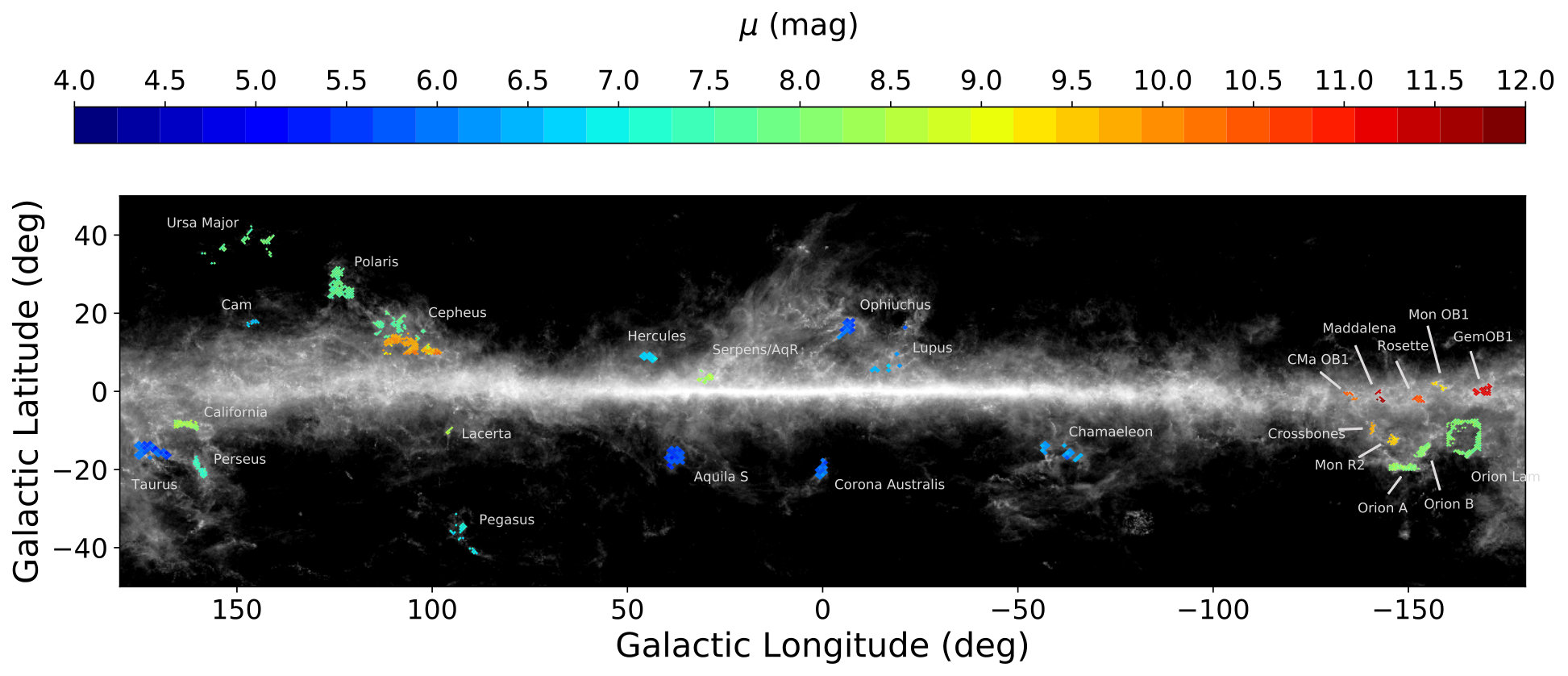

An example of the distance map produced for a particular cloud (Cepheus) is shown in Figure 7. A summary of our results across all pixels is shown in Figure 8. Detailed results (including coordinates, distances, etc. for each pixel) for every cloud are available online on the Dataverse (doi:10.7910/DVN/74Y5KU). As apparent in Figure 7, Cepheus is composed of two components, with the near component around a distance of 350 pc, and the far component at a distance of 920 pc. We have known this for decades (see, for instance Grenier et al., 1989), but never before has the distance structure of this cloud been mapped at such a high spatial resolution. The far component dominates at $b<14^{\circ}$, while the near component is seen at $b>14^{\circ}$.

4.3 Average Cloud Distances and Uncertainties

Using our new grid of distance estimates (§4.2), we use a Monte Carlo-based procedure to produce an average distance to each cloud. We first start by considering the full set of posterior samples (the “chain” returned from dynesty) for every pixel in the cloud boundaries which meet the minimum reddening threshold for the cloud listed in Table 1 and described in §4.2. Samples are then drawn at random from “noisy” realization of each pixel’s chain in order to incorporate sources of uncertainty within our posterior samples (Speagle, 2019).777This is performed via the dynesty package’s simulate_run function. See the dynesty documentation on characterizing statistical and sampling errors at https://dynesty.readthedocs.io/en/latest/errors.html#combined-uncertainties. The random samples from each pixel are then used to compute a reddening-weighted average distance via:

[TABLE]

where $d_{k}$ is the randomly-sampled “noisy” distance to an individual pixel and $\langle E_{\it{Planck}}\rangle_{k}$ is the average Planck-based reddening for the pixel.

To characterize the statistical uncertainty in our measurements, we calculate $n=500$ realizations of $\langle d\rangle$ for each cloud. The mean and standard deviation of these five hundred average distances are then reported as the average cloud distance and its statistical uncertainty in Table 1.

As discussed in §3.6, this method does not take into account possible systematic uncertainties in the model stemming from the simplicity of our single-cloud dust model. In order to estimate the magnitude of these systematic uncertainties, we start by assuming that neighboring pixels are probing dust at the same distance. Then, for every pixel targeted in §4.2, we find each of its neighbors. For every target-neighbor pair, we draw ten random samples from both the target chain and the neighbor chain, and calculate the fractional differences between them relative to the target pixel. We then repeat this for every pixel in each cloud.

The results from these target-neighbor pixel comparisons are shown in Figure 9. The distribution peaks near zero, with has a median difference of $\approx 5\%$. Based on this observed variation in neighboring pixels, we can conservatively conclude that our distance estimates are subject to a 5% systematic uncertainty. These should be added in quadrature with our statistical uncertainty, and generally dominate the error budget. We adopt the same systematic error for all distance estimates reported in this work, but caution that the systematics could be higher for clouds at farther distances (see §5.2).

5 Discussion

5.1 Comparison with Distance Estimates from the Literature

We have utilized a combination of optical-NIR photometry and Gaia astrometry to produce a uniform catalog of accurate distances to local molecular clouds. While other papers have used Gaia data to determine distances to molecular clouds, we argue that ours is the most comprehensive, covering a large number of clouds and taking into account larger angular areas than previous studies.

Previous approaches to estimate distances to local molecular clouds have mostly relied on constraining the distances to young stellar objects (YSOs) associated with a particular cloud, either using Gaia parallax measurements (Großschedl et al., 2018; Dzib et al., 2018; Ortiz-León et al., 2018a; Kounkel et al., 2018) or using VLBA trigonometric parallax measurements (Ortiz-León et al., 2017a, b, 2018a; Galli et al., 2018). As YSOs are not included in the stellar models used to determine the distance and extinction to individual stars (see §3.1), they are generally poorly-fit and largely excluded from our sample following the cuts outlined in §3.5. This means that the distance estimates obtained using YSOs provide an independent comparison to the distance estimates we present here.

Overall, we find good agreement between our distances and these YSO-derived distances. Ortiz-León et al. (2017a) obtains VLBA parallax measurements towards two dark clouds in the Ophiuchus complex, L1688 and L1689, finding distances of $137.3\pm 1.2$ pc and $147\pm 3.4$ pc, respectively. In our measurements of Ophiuchus, including L1688 and L1689, and the rest of the streamer extending down to $b=14^{\circ}$, we find an average distance of $144\pm 7$ pc, in good agreement with their results.

We find a similar agreement for previous measurements of the Taurus molecular cloud. Galli et al. (2018) obtains VLBA parallax measurements towards L1495 and the B216 clump, finding distances of $129.5\pm 0.3$ pc and $158.1\pm 1.2$ pc, respectively. Our distance map for Taurus exhibit a similar bimodality, with the sightlines towards L1495 and B216 at distances of roughly $133$ pc and $152$ pc, respectively. Considering the sightlines from all pixels in Taurus, we find an average distance of $141\pm 7$ pc, which is consistent with portions of the cloud being at the nearer distance of $\approx 130$ pc and parts of the cloud being at the farther distance of $\approx 150$ pc.

In other regions, like the Serpens/AqR region, we find less agreement, but we attribute this in part to having targeted a more comprehensive area of the cloud compared to previous VLBA observations of YSOs. For instance, Ortiz-León et al. (2017b) find distances and proper motions to seven stars in the Serpens Main and Serpens South/W40 region, and report a mean distance of $436\pm 9.2$ pc. By contrast, we consider all area in the Serpens/AqR complex above our $E(B-V)$ threshold of 3 mag (see e.g. Figure 1 in Bontemps et al., 2010), which includes Serpens Main, Serpens South, and the W40 region, along with several other dark clouds associated with the Aquila Rift complex (towards $l=32^{\circ}$ and $b=3^{\circ}$). We find this leads to a higher overall average distance of $484\pm 24$ pc. If we only consider the two sightlines towards Serpens Main, however, we find a lower distance of around $420$ pc, which agrees with Ortiz-León et al. (2017b) given our quoted uncertainties. Like Ortiz-León et al. (2017b), we also find that the Serpens/AqR clouds form a single coherent complex, at a similar distance, with their dispersion along the line of sight $\lesssim 50$ pc.888We emphasize that all of our distance results are available online at the Dataverse. Interested readers can use those results to determine what distances we computed for different parts of a cloud and possibly recompute an average for a subset of the pixels if they desire.

The results discussed above were obtained using VLBA observations of YSOs in the pre-Gaia DR2 era, but we find similar agreement if we consider those works which use the Gaia DR2 parallax measurements. For instance, Großschedl et al. (2018) considered Gaia parallax measurements towards 700 YSOs in Orion A, and find a distance gradient across the cloud of $\approx 90$ pc, with the head of Orion A (towards the Orion Nebula Cluster) at a distance of around $390$ pc and the tail (towards L1647) at a distance of around $470$ pc. We find a similar trend in our data, with pixels towards the head of the cloud at a distance of $\approx 400$ pc and pixels at the tail of the cloud at distances $\approx$ 450 pc. We find an average distance to the Orion A cloud of $\approx 432\pm 22$ pc.

Finally, our distance estimates towards Perseus are consistent with Ortiz-León et al. (2018a), which utilized Gaia parallax observations towards the IC348 and NGC1333 star forming regions to derive distances of $320\pm 26$ pc and $293\pm 22$ pc, respectively. We find a mean distance to Perseus of $294\pm 15$ pc, which is also in strong agreement with the Gaia-informed results of Zucker et al. (2018) ($294\pm 17$ pc). This is is expected, as Zucker et al. (2018) employed the same Bayesian inference framework that we do, but with a more complex line-of-sight dust model, utilizing CO velocity slices (instead of the Planck dust map) as dust templates.

Overall, our results are in excellent agreement with previous estimates from the literature derived from independent measurements. This provides strong support for our distances, especially those we obtain for other clouds which do not have other published Gaia-informed distances, or any other distance estimates from the literature outside of Schlafly et al. (2014).

5.2 Limitations of our Model

The results presented here are based on a very simple line-of-sight dust model, characterized by a single, well-behaved foreground cloud and a single, infinitesimally-thin jump in extinction at the distance to the cloud of interest. This technique works remarkably well for a large fraction of the sample, and we believe the 5% systematic uncertainty we quote in §4 is the characteristic systematic uncertainty across most of the full catalog of distances presented in §4.

Unfortunately, however, there are a few clouds where the dust possesses a more complex distribution along the line-of-sight, severely violating our model assumptions and systematically shifting the estimated distances to the clouds. This primarily affects the most distant clouds in our sample (Rosette, Maddalena, and Gemini OB1) as well as Monoceros R2. The foreground extinction towards these clouds manifests not as a discrete cloud at low extinction, but rather a steady “ramp” up in extinction, increasing in extinction by a few magnitudes over several hundred parsecs leading up to the cloud of interest.

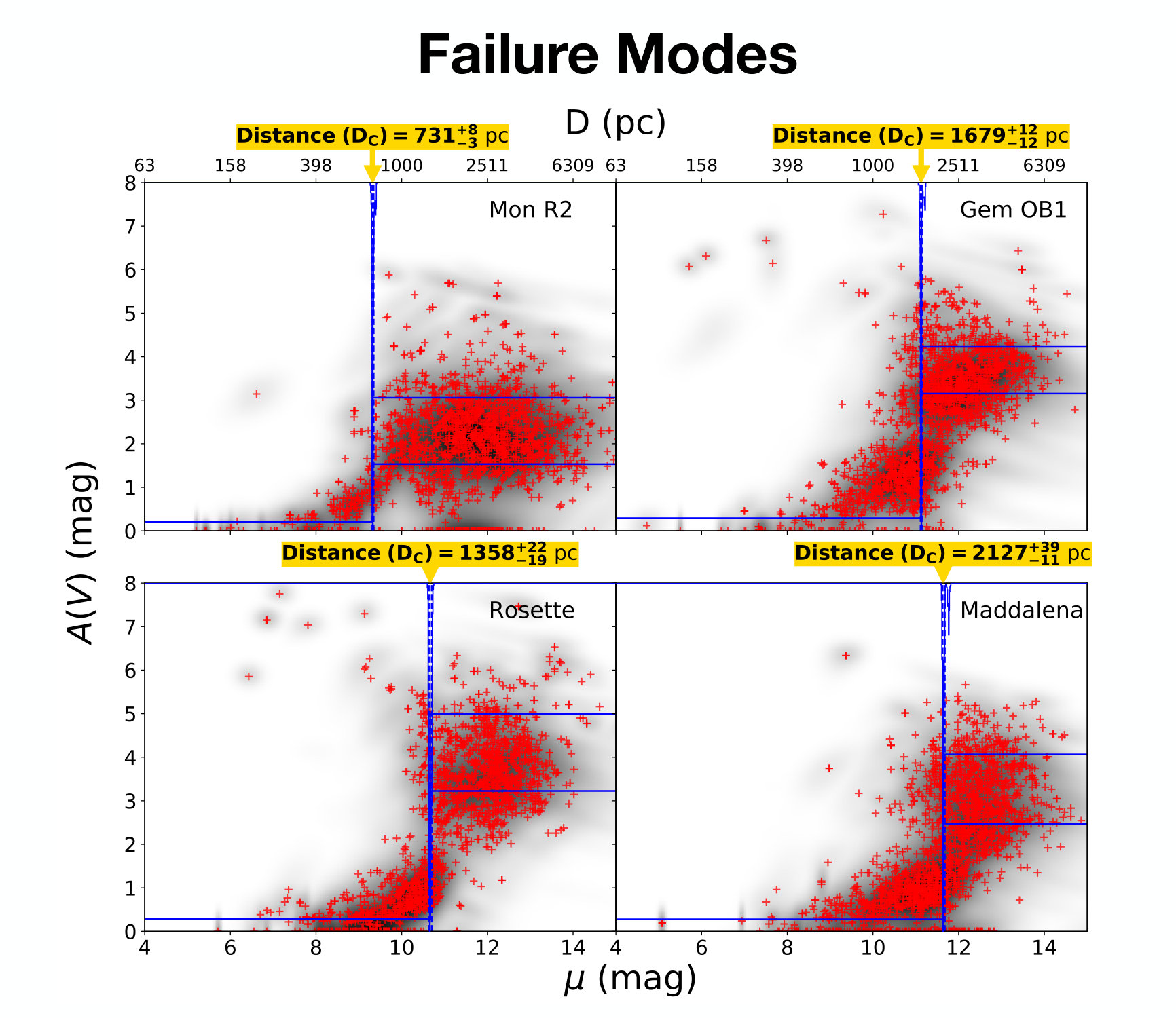

This behavior is highlighted in Figure 10, where we show four sightlines towards the Monoceros R2, Rosette, Maddalena, and Gemini OB1 clouds taken from our pixelated maps in §4.2. Because the foreground is poorly modeled in these sightlines, the default behavior is to assign low extinction to the foreground cloud ($f\approx 0.2-0.3$ mag) in combination with higher foreground smoothing ($s_{\rm fore}$). As a result, our fits accommodate the steady ramp up in extinction by aggressively smoothing all the individual stellar posteriors prior to the cloud distance, with typical values of $s_{fore}\approx 0.1$ ($\approx 1.2$ magnitudes of $A(V)$). This tends to result in cloud distances that are underestimated, with at least part of the posteriors one would associate with the ramp “by eye” being designated as background stars. Given this behavior, we recommend that a conservative $10\%$ systematic uncertainty be adopted for Monoceros R2, Rosette, Maddalena, and Gemini OB1, with the values provided in Tables 1 and 2 as probable lower limits on the distance.

6 Conclusion

We determine distances to dozens of molecular clouds within 2 kpc from the sun using a combination of optical and near-infrared photometry and Gaia DR2 parallax measurements. Based on the broadband photometry and Gaia astrometry, we infer the distances and extinctions to tens of thousands of stars towards these clouds. We then fit these per-star distance-extinction measurements with a thin dust screen model to determine the distance to the jump in extinction corresponding to the cloud. Given the low fractional distance errors on the Gaia parallax measurements, our statistical uncertainties are small, on the order of $\approx 2-3\%$. By examining the distance correlation between line-of-sight fits towards neighboring pixels, we are able to probe the systematic uncertainty on our distances, and find that it is typically $5\%$, though it can be higher towards certain clouds due to the limitations of our very simple line-of-sight dust model. In addition to targeting over 100 sightlines towards the Magnani et al. (1985) high-latitude clouds, we provide Gaia-informed averages distances to most of the major named clouds in the Dame et al. (2001) CO survey, including Perseus, Orion A, Taurus, Ophiuchus, California, and Cepheus. For a subset of these clouds, we fit a grid of pixels independently over their area. This provides more detailed insight into cloud distance structure, and also provides a more comprehensive average distance determination in comparison to VLBA-based methods, which typically only target a small number of stars towards a few sightlines through each cloud. Our technique is versatile, and can be applied to almost any high-latitude sightline with an appreciable amount of extinction and an adequate number of stars. In the future we plan to incorporate deeper near-infrared data (e.g., UKIDSS, WISE) in combination with a more sophisticated line-of-sight dust model in order to probe deeper into dust-enshrouded regions and produce 3D volumetric maps of dust optimized for resolving the structure of local molecular clouds.

This work took part under the program Milky-Way-Gaia of the PSI2 project funded by the IDEX Paris-Saclay, ANR-11-IDEX-0003-02. D.F. acknowledges support by NSF grant AST-1614941, “Exploring the Galaxy: 3-Dimensional Structure and Stellar Streams.” This material is based upon work supported by the National Science Foundation Graduate Research Fellowship under Grant No. 1650114. JSS is grateful to Rebecca Bleich for her patience and support and Daniel Eisenstein for his longstanding mentorship. The Pan-STARRS1 Surveys (PS1) and the PS1 public science archive have been made possible through contributions by the Institute for Astronomy, the University of Hawaii, the Pan-STARRS Project Office, the Max-Planck Society and its participating institutes, the Max Planck Institute for Astronomy, Heidelberg and the Max Planck Institute for Extraterrestrial Physics, Garching, The Johns Hopkins University, Durham University, the University of Edinburgh, the Queen’s University Belfast, the Harvard-Smithsonian Center for Astrophysics, the Las Cumbres Observatory Global Telescope Network Incorporated, the National Central University of Taiwan, the Space Telescope Science Institute, the National Aeronautics and Space Administration under Grant No. NNX08AR22G issued through the Planetary Science Division of the NASA Science Mission Directorate, the National Science Foundation Grant No. AST-1238877, the University of Maryland, Eotvos Lorand University (ELTE), the Los Alamos National Laboratory, and the Gordon and Betty Moore Foundation. This publication makes use of data products from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center/California Institute of Technology, funded by the National Aeronautics and Space Administration and the National Science Foundation. NOAO is operated by the Association of Universities for Research in Astronomy (AURA) under a cooperative agreement with the National Science Foundation. Database access and other data services are provided by the NOAO Data Lab. This project used data obtained with the Dark Energy Camera (DECam), which was constructed by the Dark Energy Survey (DES) collaboration. Funding for the DES Projects has been provided by the U.S. Department of Energy, the U.S. National Science Foundation, the Ministry of Science and Education of Spain, the Science and Technology Facilities Council of the United Kingdom, the Higher Education Funding Council for England, the National Center for Supercomputing Applications at the University of Illinois at Urbana-Champaign, the Kavli Institute of Cosmological Physics at the University of Chicago, Center for Cosmology and Astro-Particle Physics at the Ohio State University, the Mitchell Institute for Fundamental Physics and Astronomy at Texas A&M University, Financiadora de Estudos e Projetos, Fundação Carlos Chagas Filho de Amparo, Financiadora de Estudos e Projetos, Fundação Carlos Chagas Filho de Amparo à Pesquisa do Estado do Rio de Janeiro, Conselho Nacional de Desenvolvimento Científico e Tecnológico and the Ministério da Ciência, Tecnologia e Inovação, the Deutsche Forschungsgemeinschaft and the Collaborating Institutions in the Dark Energy Survey. The Collaborating Institutions are Argonne National Laboratory, the University of California at Santa Cruz, the University of Cambridge, Centro de Investigaciones Enérgeticas, Medioambientales y Tecnológicas–Madrid, the University of Chicago, University College London, the DES-Brazil Consortium, the University of Edinburgh, the Eidgenössische Technische Hochschule (ETH) Zürich, Fermi National Accelerator Laboratory, the University of Illinois at Urbana-Champaign, the Institut de Ciències de l’Espai (IEEC/CSIC), the Institut de Física d’Altes Energies, Lawrence Berkeley National Laboratory, the Ludwig-Maximilians Universität München and the associated Excellence Cluster Universe, the University of Michigan, the National Optical Astronomy Observatory, the University of Nottingham, the Ohio State University, the University of Pennsylvania, the University of Portsmouth, SLAC National Accelerator Laboratory, Stanford University, the University of Sussex, and Texas A&M University. This work has made use of data from the European Space Agency (ESA) mission Gaia (https://www.cosmos.esa.int/gaia), processed by the Gaia Data Processing and Analysis Consortium (DPAC, https://www.cosmos.esa.int/web/gaia/dpac/consortium). Funding for the DPAC has been provided by national institutions, in particular the institutions participating in the Gaia Multilateral Agreement.

Appendix A Distances to Sightlines from Schlafly et al. (2014)

In Tables 2 and 3 we provide updated distances to the Schlafly et al. (2014) sightlines towards major clouds in the Dame et al. (2001) CO survey and in the Magnani et al. (1985) catalog, respectively.999We exclude one sightline from Schlafly et al. (2014) in Table 2 towards the Lacerta Molecular Cloud ($l=98.7^{\circ},b=-14.7^{\circ}$) due to the lack of foreground stars after the incorporation of the Gaia DR2 parallax measurements In Table 2, we also include two additional sightlines towards the diffuse high latitude clouds Draco and the Spider, which were not targeted in Schlafly et al. (2014). These clouds have too low reddening to allow for the pixelated distance maps presented in §4.2, but targeting the most highly reddened sightlines through these clouds produces well-constrained distances to both regions. The line-of-sight extinction profiles (akin to Figure 3) and the corner plots of the model parameters for all sightlines in Tables 2 and 3 are available on the Dataverse.

\startlongtable

\startlongtable

Appendix B New NSC-2MASS Stellar Locus

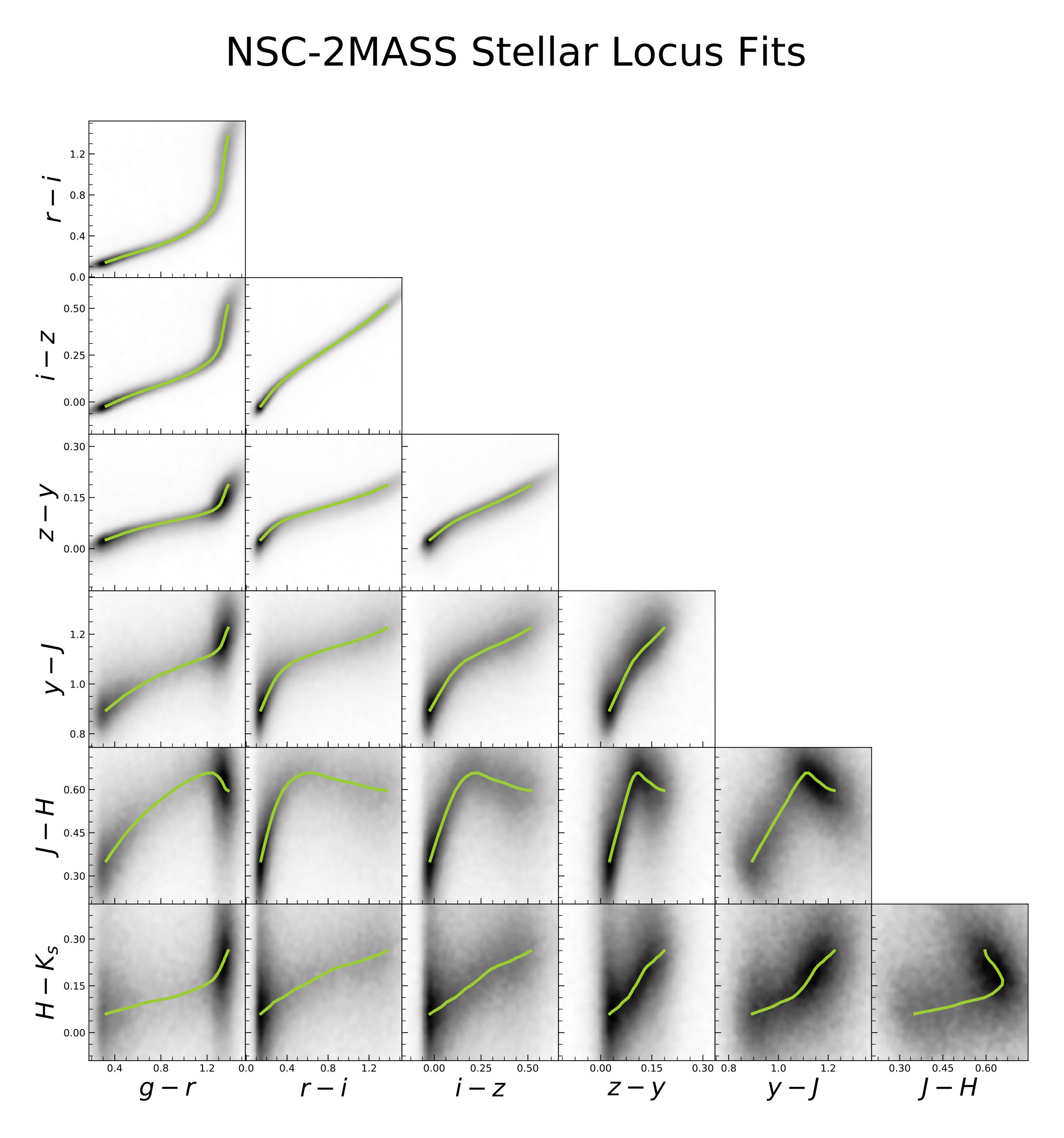

To incorporate stellar modeling of the southern clouds, we derive joint NSC-2MASS stellar templates following the procedure outlined in Appendix A of Green et al. (2015), which describes the creation of their PS1-2MASS stellar templates. We start by querying all stars within a radial beam of $15^{\circ}$ centered on $(\alpha,\delta)=(356^{\circ},-45^{\circ}$). This region was chosen due its low reddening, with a typical $E(B-V)\approx 0.01$ mag. We require that the stars have detections in all NSC-2MASS bands ($grizYJHK$), with photometric errors $<0.5$ mag in all passbands. We exclude galaxies from our sample by requiring that the source has a $>80\%$ probability of being a star (based on the NSC’s class_star field) and is not flagged as an extended source in 2MASS (based on the ext_key field).

This results in a sample size of $\approx 200,000$ stars. After dereddening the photometry following Green et al. (2015), we fit a stellar locus to this sample in seven-dimensional color space following the procedure outlined in Newberg & Yanny (1997). Our resulting stellar locus is shown in Figure 11. We then associate each position along the locus with an absolute $r$ band magnitude $M_{r}$ and metallicity following the relations from Ivezić et al. (2008), which uses observations of cluster from SDSS to determine the absolute magnitudes of stars as a function of their intrinsic colors and metallicities. We finally correct for small differences in the derived $M_{r}^{\rm DECam}$ values from DECam and the expected $M_{r}^{\rm PS1}$ values from PS1 using the color corrections derived from Schlafly et al. (2018).

We supplement these new intrinsic NSC-2MASS stellar templates with a new reddening vector ($\mathbf{R}$) and $R(V)$ dependencies ($\mathbf{R}^{\prime}$) using the procedure outlined in the Appendix of Schlafly et al. (2016). In brief, we integrate the dust curve provided there over the MARCS (Gustafsson et al., 2008) spectrum of a 4500 K, $[Fe/H]=0$, $\log g=2.5$ star in the DECam $grizY$ bands. We then simultaneously set the gray component and normalization such that $A(H)/A(K)=1.55$ in the 2MASS bands and $A(V)=1$ in the Landolt $V$ band (i.e. so our reddening is in $A(V)$ units).

Appendix C Sampling for Our Model Parameters Using dynesty

We sample for our set of model parameters towards each sightline ($N$, $f$, $\mu_{C}$, $s_{fore}$, $s_{back}$, and $P_{b}$) using the nested sampling code dynesty (Speage 2019a, in prep). Nested sampling is similar to traditional Markov Chain Monte Carlo sampling in the sense that it can be used to generate samples from a posterior distribution. Some of the benefits of nested sampling include its “built-in” stopping criterion as well as its ability to estimate statistical and sampling uncertainties in a single run.

We adopt the following dynesty setup:

⬇

sampler = dynesty.NestedSampler(log_likelihood, prior_transform, ndim,

                                bound=‘multi’, sample=‘rwalk’,

                                update_interval=5.0, nlive=500, walks=25)

sampler.run_nested(dlogz=0.01)

The log_likelihood argument is the log-likelihood function described in §3.2. The prior_transform argument is a function which transforms our samples from the unit cube to the target prior (a feature of the nested sampling algorithm). See §3.3 for our adopted priors. The ndim argument is the number of sampled parameters, equal to six. We set dlogz to 0.01, which acts as our stopping criterion.
