Gauge phonon dominated resistivity in twisted bilayer graphene near magic angle

TL;DR

This paper demonstrates that in twisted bilayer graphene near the magic angle, resistivity is primarily influenced by charged impurities at low temperatures and gauge phonons at higher temperatures, explaining various experimental observations.

Contribution

It introduces a comprehensive model showing gauge phonons and charged impurities as dominant scattering mechanisms in tBG near the magic angle, explaining temperature and density-dependent resistivity behaviors.

Findings

Resistivity decreases monotonically with carrier density at low temperature due to impurities.

Gauge phonons dominate resistivity at higher temperatures, causing weak density dependence.

Non-monotonic temperature dependence near charge neutrality is predicted and testable.

Abstract

Recent experiments on twisted bilayer graphene (tBG) close to magic angle show that a small relative rotation in a van der Waals heterostructure greatly alters its electronic properties. We consider various scattering mechanisms and show that the carrier transport in tBG is dominated by a combination of charged impurities and acoustic gauge phonons. Charged impurities still dominate at low temperature and densities because of the inability of Dirac fermions to screen long-range Coulomb potentials at charge neutrality; however, the gauge phonons dominate for most of the experimental regime because although they couple to current, they do not induce charge and are therefore unscreened by the large density of states close to magic angle. We show that the resistivity has a strong monotonically decreasing carrier density dependence at low temperature due to charged impurity scattering, and weak density dependence at high temperature due to gauge phonons. Away from charge neutrality, the resistivity increases with temperature, while it does the opposite close to the Dirac point. A non-monotonic temperature dependence observed only at low temperature and carrier density is a signature of our theory that can be tested in experimentally available samples.

Figures

Tables

Table 1. Table 1: Relevant scattering mechanisms and the dependence of resistivity on Fermi velocity ρ ​ ( v ∗ ) 𝜌 superscript 𝑣 \rho(v^{*}) . Only the β A subscript 𝛽 𝐴 \beta_{A} gauge phonons grow in importance as v ∗ → 0 → superscript 𝑣 0 v^{*}\rightarrow 0 when θ → θ M → 𝜃 subscript 𝜃 𝑀 \theta\rightarrow\theta_{M} .

Mechanism	Unscreened	Screening $ϵ{\left(q\right)}^{-2}$	Net effect
Charged imp.	$v^{\ast -2}$	$v^{\ast 2}$	constant
Phonons ($D_A$)	$v^{\ast -2}$	$v^{\ast 2}$	constant
Phonons (${\beta }_A$)	$v^{\ast -2}$	No screening	$1/v^{\ast 2}$
Viscous friction	$v^{\ast -2}$	$v^{\ast 2}$	constant
Puddles	$v^{\ast -2}$	$v^{\ast 2}$	constant

Equations

$$\varphi$$

$$\mathbf{A}$$

$${\beta }_A{\sigma }_x\stackrel{\mathrm{RPA}}{⟶}{\beta }_A{\sigma }_x+\frac{{\beta }_A{V}_q{\Pi }_g}{1-V_q{\Pi }_C}\text{mathbbm}{1}_2.$$

$$\frac{1}{{\tau }_{\mathrm{e}-\mathrm{imp}}(\epsilon )}=\frac{n_i|\epsilon |}{2\pi v^{\ast 2}}{\int }_0^{\pi }d\theta {\left|\frac{V_{ei}(q)}{ϵ(q)}\right|}^2(1-{\cos }^2\theta ),$$

$$\frac{1}{{\rho }_{\mathrm{e}-\mathrm{imp}}}=e^2\int d\epsilon N_D(\epsilon )\frac{v^{\ast 2}}{2}{\tau }_{\mathrm{e}-\mathrm{imp}}(\epsilon )\frac{-\partial n_F(\epsilon -\mu )}{\partial \epsilon }.$$

$${\rho }_{{\beta }_A}^{\mathrm{e}-\mathrm{ph}}=\frac{16{\tilde{\beta }}_A^2{k}_F}{e^2{\mu }_s{v}_A{\left(v^{\star }\right)}^2}F\left(\frac{T_{\mathrm{BG}}}{T}\right),$$

Full text

The remarkable observations of superconductivity and insulating behaviour near magic angle in twisted bilayer graphene (tBG) Cao et al. (2018a, b); Yankowitz et al. (2019) have underlined the importance of twist angle as an additional control knob in van der Waals heterostructures. The band structure of tBG can be significantly altered with just small variations in the twist angle Laksono et al. (2018). Special cases emerge near the so called “magic angles” when the lowest energy bands become almost flat Bistritzer and MacDonald (2011), providing a platform for exotic physics arising from strong correlations. These recent experiments have inspired a large body of theoretical work which aim to understand both the origin of this strongly correlated phase Xu and Balents (2018); Roy and Juricic (2018); Po et al. (2018); Koshino et al. (2018); Kang and Vafek (2018); Padhi et al. (2018); Guo et al. (2018); Liu et al. (2018); Isobe et al. (2018); You and Vishwanath (2018); González and Stauber (2019); Xie and MacDonald (2018) and phonon-driven superconductivity in tBG Lian et al. (2018); Wu et al. (2018a); Choi and Choi (2018). More recent experimental work has focused on electron transport Cao et al. (2019); Sharpe et al. (2019). A striking characteristic of transport in tBG close to magic angle is its extremely high and $T$-linear resistivity at high temperatures Cao et al. (2018a); Yankowitz et al. (2019). Understanding the physics of these transport features could provide the insights necessary to understand the observed strongly correlated phases.

Carrier transport in monolayer and bilayer graphene has been studied extensively over the past decade, both in theory and in experiment Das Sarma et al. (2011). Traditionally, charged impurities dominate the electronic carrier transport at low temperature for both graphene monolayers and bilayers, and these also induce fluctuations in the carrier density close to the Dirac point. Acoustic phonons become relevant at intermediate temperatures ($T\gtrsim 100\leavevmode\nobreak\ \rm{K}$) and give rise to a characteristic linear in $T$ resistivity. At still higher temperatures ($T\gtrsim 250\leavevmode\nobreak\ \rm{K}$) optical phonons take over as the dominant scattering mechanisms. While the linear-in-T resistivity in tBG has been previously attributed to phonons Wu et al. (2018b), the magnitude of the deformation potential extracted from experiment and the relevant temperature scales do not match what we know from our extensive studies on graphene Das Sarma et al. (2011).

In this Letter, we present a complete theory for transport in tBG at low densities near magic angle tBG ($\theta_{M}$), identifying all the relevant scattering mechanisms responsible at various temperatures probed experimentally. We find that for tBG close to magic angle, there is a crossover from charged-impurity limited transport to phonon-limited transport. Usually, phonon-dominated resistivity is modeled by the deformation potential. However, we show that the deformation potential contribution becomes irrelevant due to screening, and instead the phonon contributions arise from a gauge-field term Sohier et al. (2014). The dominance of these gauge phonons arise due to the immunity of these particular phonons to the enhanced screening from the flat bands in tBG.

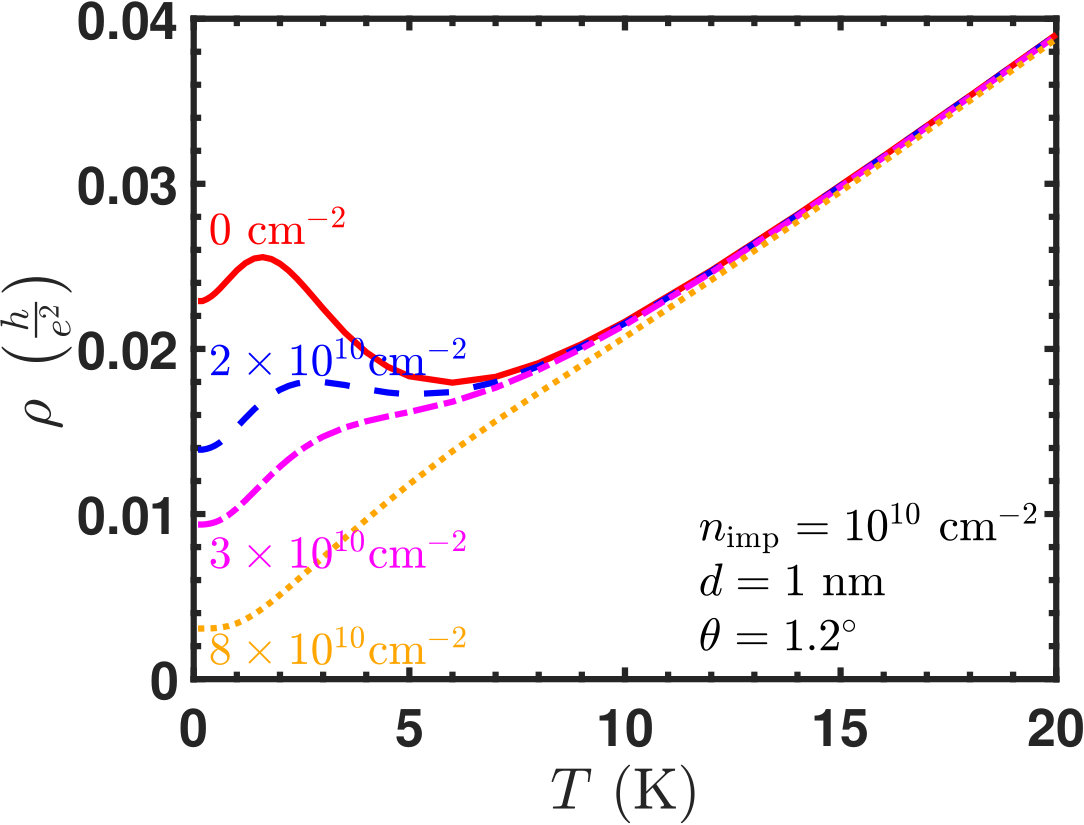

The enhanced screening reduces the importance of all other scattering mechanisms including that of charged impurities and deformation potential phonons. Our theory shows that away from charge neutrality, the resistivity increases linearly with temperature with weak dependence on both carrier density and impurity density (and therefore shows little sample-to-sample variations). However, close to the Dirac point at sufficiently low temperature, a non-monotonic in temperature and strong density dependence reveals the role of charged impurities.

As shown in Fig. 1, acoustic phonons in graphene can be classified as either deformation potential modes $D_{A}$ that change the area of the Brillouin zone, or gauge field modes $\beta_{A}$ that do not. The $D_{A}$ contribution comes from the longitudinal acoustic phonons and causes charge separation that is susceptible to electronic screening. However, we show below that the gauge field term, which comes from both the longitudinal and transverse phonons, is unaffected by screening because although they couple to the current, they do not couple to charge. These modes remain unscreened even as the Fermi velocity vanishes. Charged impurity scattering that has dominated the transport properties of 2D materials are screened by the enhanced density of states. As explained below, this weaker electron-impurity interaction is compensated by a lower velocity (see Table 1), so in the end, the qualitative behavior of electron-impurity resistivity is the same as in monolayer graphene. Due to the vanishing density of states of Dirac fermions as $n\rightarrow 0$ and $T\rightarrow 0$, charged impurity scattering still dominates the transport properties for sufficiently low carrier density and temperature.

To qualitatively illustrate the role of screening in tBG, we consider in Table 1 the Thomas-Fermi screening model where the polarizability is given by the density of states $N_{D}$. Within a Dirac model (justified below), as $\theta\rightarrow\theta_{M}$, the linear bands become flat, $v^{*}\rightarrow 0$ and the static dielectric function diverges as $\epsilon(q)\sim v^{*-1}$. For most mechanisms, screening gives a $v^{*2}$ contribution, that is compensated by the usual $v^{*-2}$ dependence of resistivity on carrier velocity. The inability of Dirac fermions to screen the gauge phonons dramatically increases their importance for the transport close to magic angle. In particular, the crossover temperature for which gauge phonons dominate over charged impurities drops from $T_{\rm cross}\sim 500\leavevmode\nobreak\ {\rm K}$ for monolayer graphene to $T_{\rm cross}\leavevmode\nobreak\ \sim 5\leavevmode\nobreak\ {\rm K}$ for tBG. It is remarkable that phonons which were traditionally neglected all the way until room temperature, now become important at such low temperatures.

The electron-phonon (e-ph) interaction for monolayer graphene within a single-valley Dirac model contains both scalar and vector potential components Sohier et al. (2014) and is given by $V_{e-ph}=\Phi I+\boldsymbol{\sigma}\cdot\mathbf{A}$, where

[TABLE]

where $D_{A}$ and $\beta_{A}$ are bare (unscreened) coupling constants. The electron-phonon vertex therefore has a two-dimensional matrix structure, and its diagonal (off-diagonal) part comes from the scalar (vector) potential. While the diagonal component constitutes a scalar deformation potential, the off-diagonal component corresponds to distortions which do not induce any variation in the unit cell area, but rather induce bond length modulations which are often represented by a synthetic gauge field von Oppen et al. (2009). The random phase approximation (RPA) screening of the e-ph vertex by Coulomb interactions can be calculated from the polarizability bubble shown in Fig. 1(b). After including higher-order bubbles, the screening of a general vertex $g$ is given by the Dyson equation $g\rightarrow g+IV_{q}\Pi_{g}+IV_{q}\Pi_{C}V_{q}\Pi_{g}+\cdots$, where $I$ is the identity matrix, $V_{q}$ is the Fourier transform of the Coulomb interaction, $\Pi_{C}$ is the polarizability bubble, while $\Pi_{g}$ is the polarizability bubble with the vertex $g$ at the right end as shown in Fig. 1(b). The RPA series is summed giving the screened vertex as

[TABLE]

The key result is that the off-diagonal component is unaffected by RPA screening i.e. the gauge phonons remain unscreened by the large density of states (these phonon modes could also be germane to the observed superconductivity). We neglect the scalar component both because it is screened by $\Pi_{C}$ (similar to the $D_{A}$ phonons), and because $\Pi_{g}$ vanishes at charged neutrality.

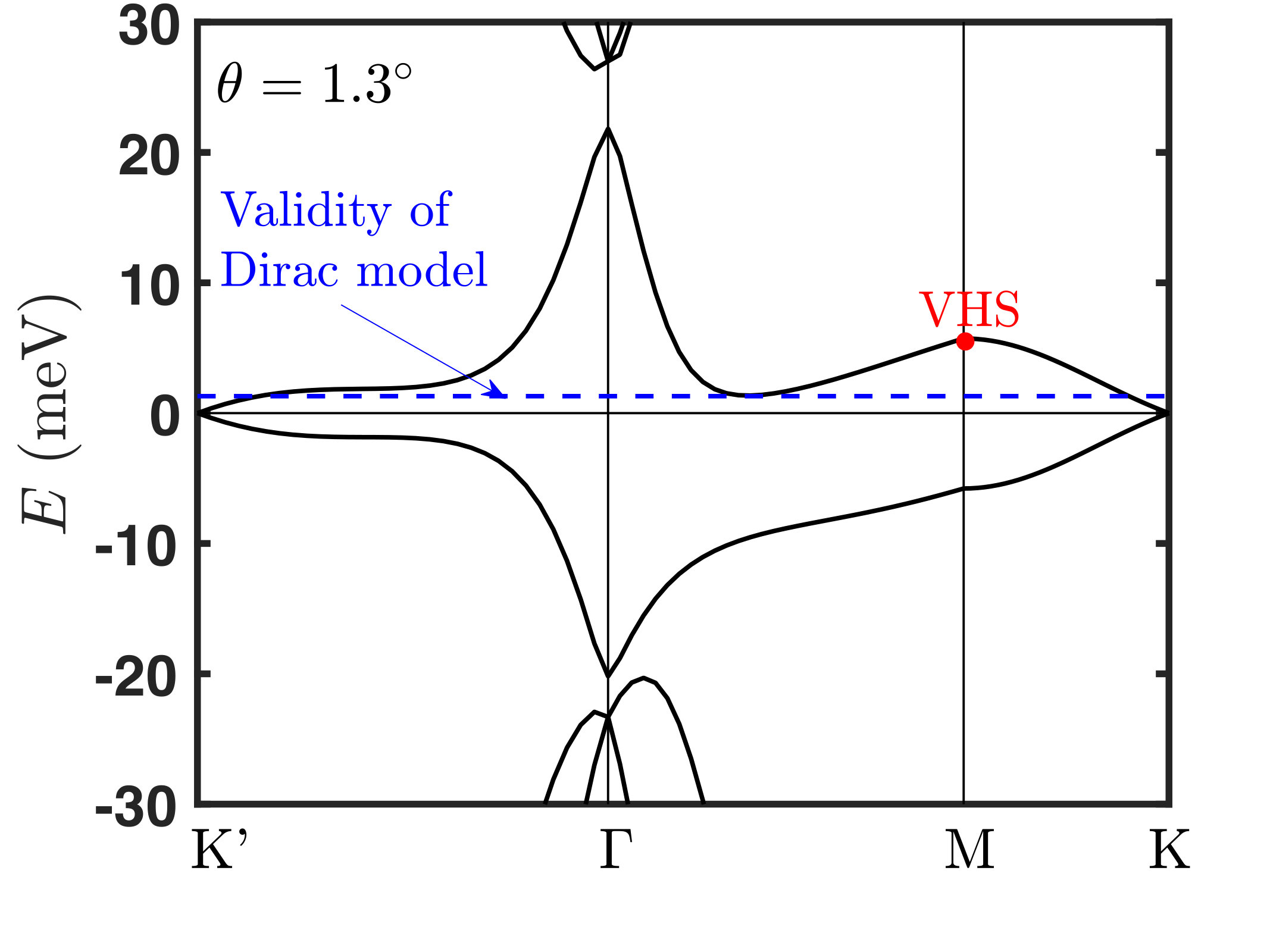

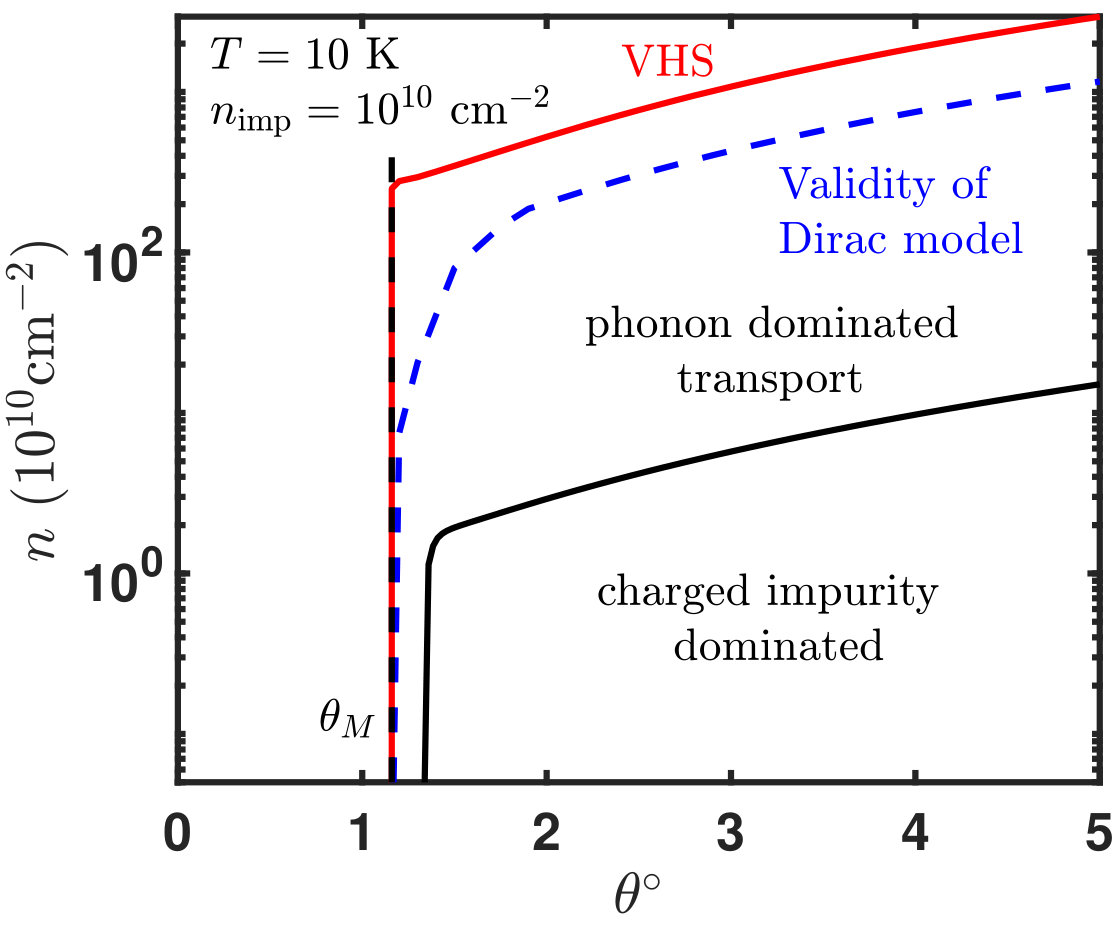

To test the validity of the Dirac model, in Fig. 2 we plot the lowest energy bands for the continuum model Laksono et al. (2018) at $\theta=1.3^{\circ}$. The linear regime breaks down due to the emergence of Fermi pockets close to the $\Gamma$ point. To stay within the regime of validity of the Dirac model, we limit our considerations to carrier densities $\lesssim 8\times 10^{10}$ cm*-2* (although we expect our results to hold qualitatively for even higher densities). In Fig. 2 we show that the crossover from charged impurity limited scattering to gauge phonon limited scattering occurs well within the regime where the Dirac Hamiltonian is valid.

The Boltzmann transport theory for charged impurity scattering is now well-established, and we refer the reader to Ref. Das Sarma et al. (2011) for details. The scattering time is given by

[TABLE]

where $n_{i}$ is the impurity concentration and $V_{ei}(q)$ is the Coulomb impurity matrix element. The $v^{*}$ dependent prefactor outside the integral comes from the enhanced $N_{D}$, while the dielectric function $\epsilon(q)$ is also enhanced by $v^{*-2}$. As a result $1/\tau_{e-imp}$ scales roughly as $v^{*}$ and is suppressed near magic angle. Throughout this work we use the RPA dielectric function $\epsilon(q,T)=1-V_{q}(q)\Pi_{\mathrm{RPA}}(q,T)$, where $V_{q}(q)=2\pi e^{2}/(\kappa q)$ is the Coulomb potential, $\kappa$ is the background dielectric constant and $\Pi_{\mathrm{RPA}}(q,T)$ is static RPA polarizability Hwang and Das Sarma (2007). The resistivity ($\rho_{\mathrm{e-imp}}$) is obtained from $\tau_{\mathrm{e-imp}}$ by the usual energy average

[TABLE]

By contrast, the e-ph interaction in TBG is drastically different from that of monolayer graphene due to the emergence of hybrid folded phonon branches Cocemasov et al. (2013). These hybrid phonons depend very sensitively on twist angle. For the temperature range we consider, the lowest acoustic phonon branch (which is the same as monolayer graphene) dominates. The gauge phonon contribution to the resistivity is Hwang and Das Sarma (2008); Sohier et al. (2014)

[TABLE]

where $T_{\mathrm{BG}}$ is the Bloch-Gruneisen temperature ($k_{B}T_{\mathrm{BG}}=2\hbar v_{A}k_{F}$), $\mu_{s}$ is the mass density of graphene, $k_{F}$ is the Fermi wave-vector and $v_{A}$ is the effective acoustic phonon velocity. Here $F(x)=\int_{0}^{1}dy[xy^{4}\sqrt{1-y^{2}}e^{xy}]/\left(e^{xy}-1\right)^{2}$. The effective coupling constant $\tilde{\beta}_{A}$ is proportional to strain, and therefore $\tilde{\beta}_{A}\approx\beta_{A}(v^{*}/v_{F})/[2\tan(\theta/2)]$ and $\beta_{A}=3.6\mathrm{eV}$ is the value obtained for monolayer graphene from DFPT and tight-binding calculations Lian et al. (2018); Sohier et al. (2014). The $D_{A}$ deformation potential phonons have a similar form to Eq. 8. However, since they are heavily screened, this contribution becomes irrelevant in the temperature and density regimes we considered.

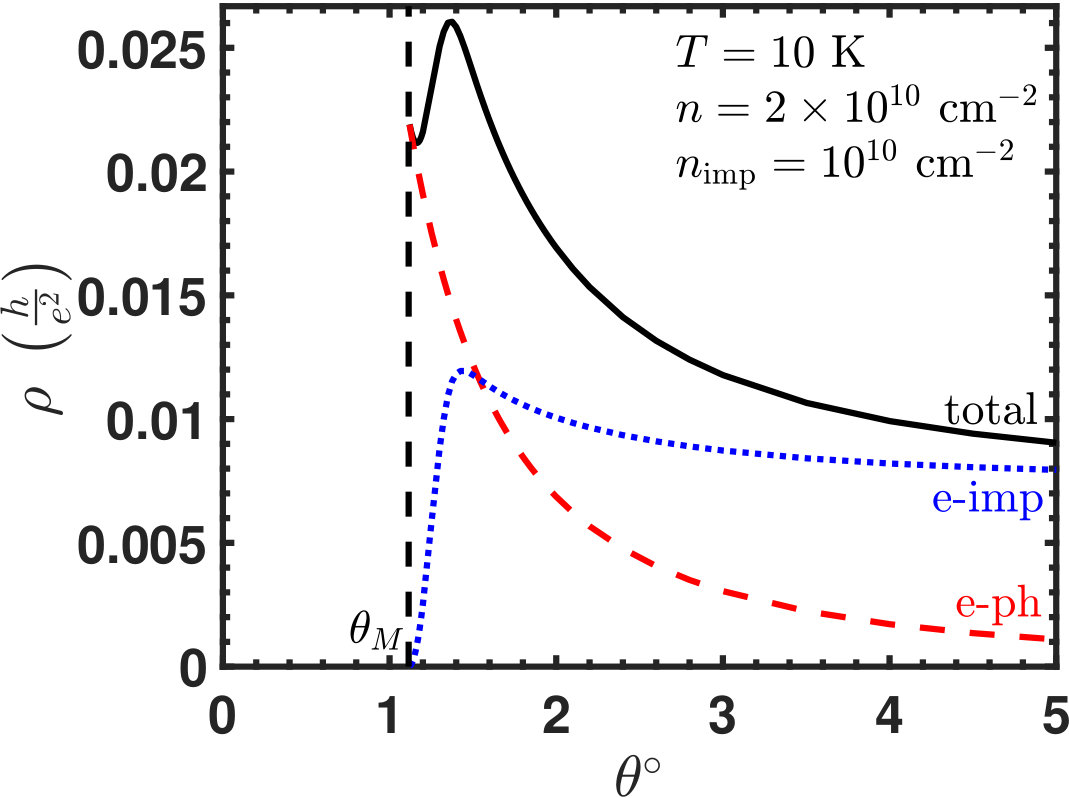

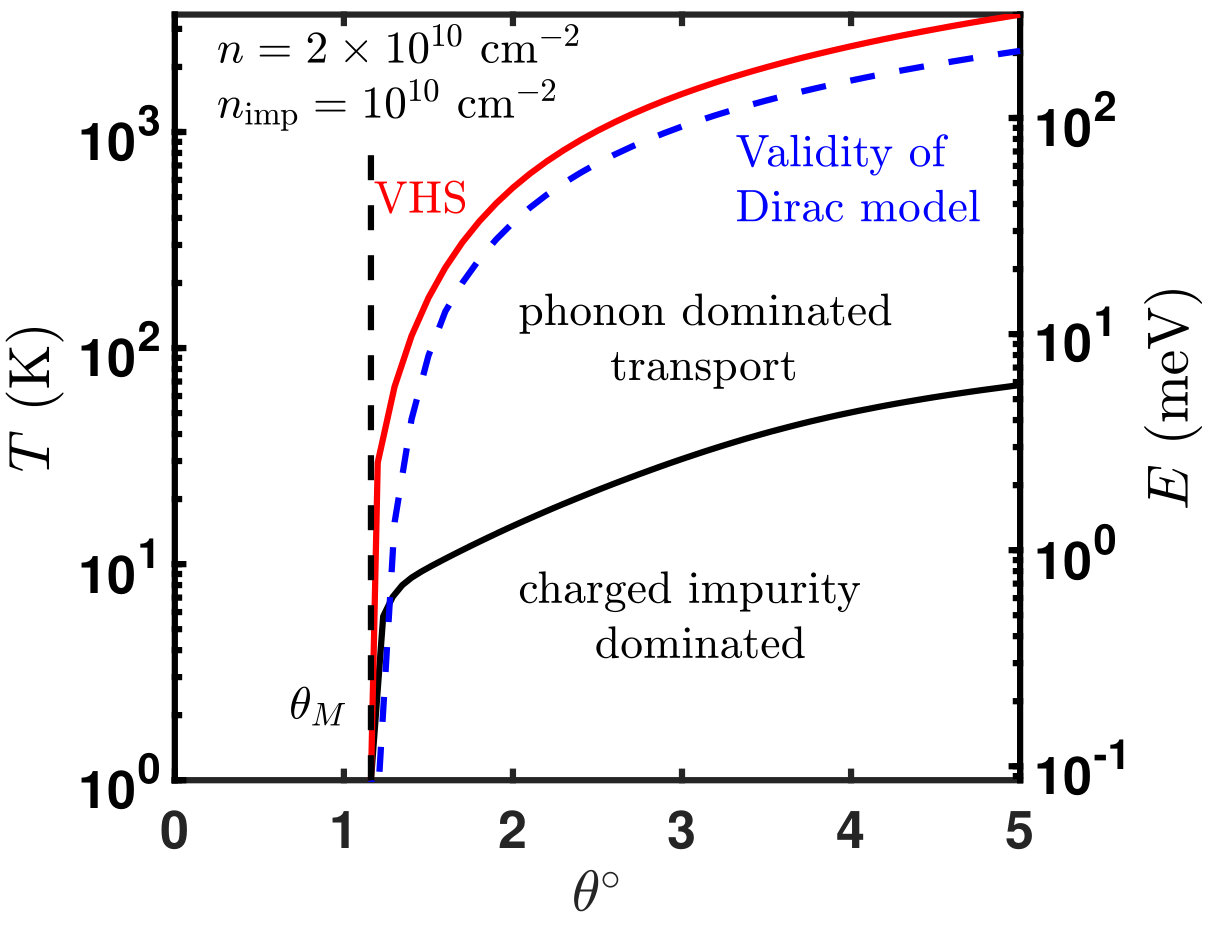

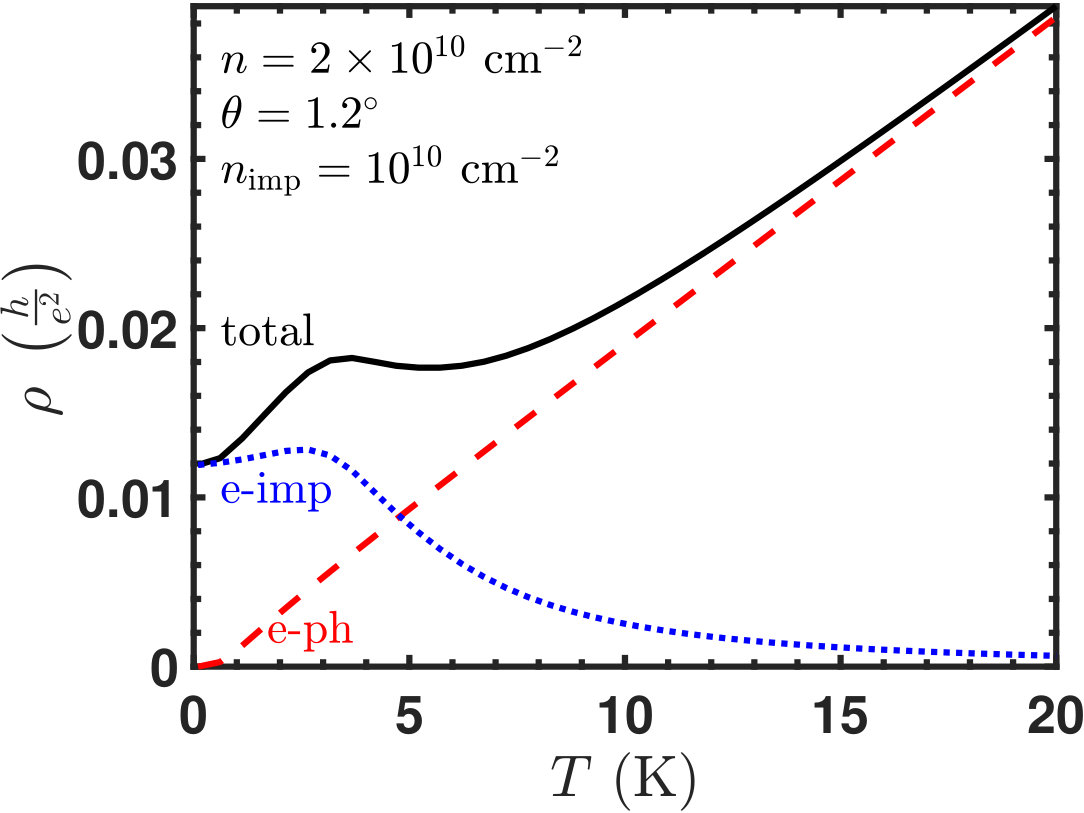

Figure 3 shows our results for the transport properties of tBG including both charged impurities and gauge phonons. Gauge phonons dominate for $T>T_{\rm cross}$ and as $\theta\rightarrow\theta_{M}$. The dependence of the crossover temperature and carrier density as a function of twist angle is shown in Fig. 2 and we observe that the phonon-dominated regime becomes more prominent as one approaches the magic angle. For example, we find that the crossover temperature $T_{\mathrm{cross}}$ from impurity-dominated to phonon-dominated resistivity is $5$K at $n=2\times 10^{10}\leavevmode\nobreak\ \mathrm{cm}^{-2}$ and twist angle $\theta=1.2^{o}$. We identify three distinct transport regimes: (i) For $T>T_{\rm cross}$, the resistivity is dominated by gauge phonons and is linear in temperature as one would expect from acoustic phonons; (ii) For intermediate temperatures $k_{B}^{-1}\varepsilon_{F}<T<T_{\rm{cross}}$, the resistivity decreases with increasing temperature. This is understood as the non-degenerate Fermi liquid scattering off charged impurities, where both the effects of screening and energy averaging reduce the resistivity as $\rho_{e-\mathrm{imp}}\propto(\varepsilon_{F}/k_{B}T)^{2}$; (iii) For $T<k_{B}^{-1}\varepsilon_{F},T_{\rm cross}$, we have the degenerate Fermi liquid scattering theory of charged impurities where energy averaging has little effect on the resistivity and screening increases resistivity as $\delta\rho_{e-\mathrm{imp}}\propto(k_{B}T/\varepsilon_{F})^{2}$. This non-monotonic bump in the total resistivity $\rho(T)$ for $T\lesssim T_{\rm cross}$, and linear-in-T for $T>T_{\rm cross}$ are the main predictions of this work.

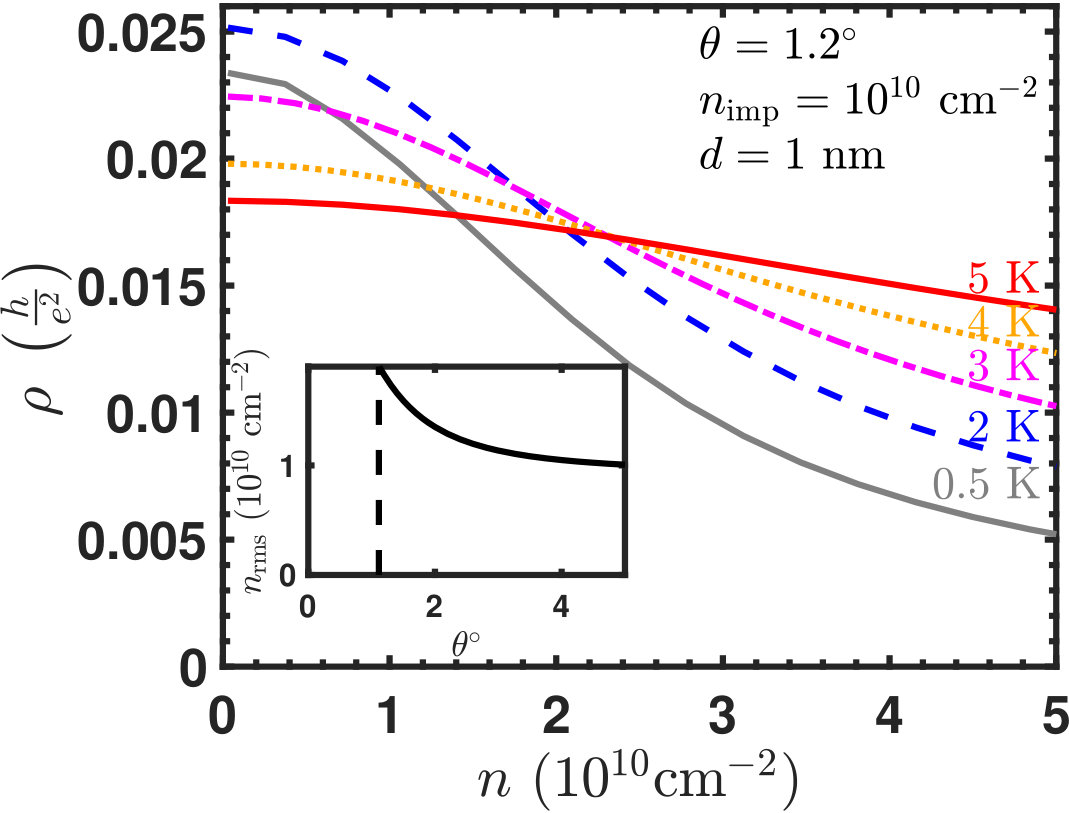

For a theory with homogeneous carrier density, the charged impurity limited resistivity diverges as $n\rightarrow 0$. However, we know that these same charged impurities that dominate transport give rise to carrier density inhomogeneities that cure this divergence Adam et al. (2007). In Fig. 4 we show that the magnitude of the density inhomogeneity is weakly affected by the enhanced screening close to magic angle. We use the well-established effective medium theory Rossi et al. (2009) to average over these density inhomogeneities close to the Dirac point. Our results for the resistivity as a function of temperature and carrier density for $\theta=1.2^{\circ}$ are shown in Fig. 4. There is a strong carrier density dependence at low temperature (dominated by charged impurities) and a weak density dependence at higher temperature (dominated by gauge phonons). Our theory also predicts a temperature and density regime where resistivity decreases with increasing temperature causing an inversion in the temperature dependence at low and high density e.g. in Fig. 4b, close to charge neutrality, resistivity decreases with increasing temperature, while at $4\times 10^{10}{\rm cm}^{-2}$ resistivity increases with increasing temperature. (The curve for $T=0.5$K is strongly influenced by the carrier density inhomogeniety and doesn’t follow this general trend).

Finally, in our analysis we considered other possible relevant mechanisms for transport in tBG and found them to be negligible. For example, Umklapp scattering Wallbank et al. (2019) is irrelevant for the densities we consider because only a small area of the moiré Brillouin zone is occupied and the hydrodynamic electron-hole scattering Ho et al. (2018) contribution to resistivity remains weaker than impurity scattering for $T<100\leavevmode\nobreak\ {\rm K}$. We conclude that for the experimentally relevant temperatures and densities the resistivity is determined only by the interplay between charged impurities and gauge phonons.

Acknowledgement: We acknowledge the Singapore Ministry of Education AcRF Tier 2 grant MOE2017-T2-2-140, the National University of Singapore Young Investigator Award (R-607-000-094-133) and use of the dedicated research computing resources at CA2DM.
