Quantum thermodynamics of complex ferrimagnets

TL;DR

This paper uses a quantum thermostat in atomistic spin dynamics to accurately compute thermodynamic properties of complex ferrimagnet YIG across temperatures, revealing significant deviations from classical models but aligning with experiments.

Contribution

It introduces a quantum thermostat approach to simulate thermodynamics of complex ferrimagnets like YIG, improving accuracy over classical models.

Findings

Computed magnon power spectrum and specific heat of YIG across temperatures.

Results show significant differences from classical models.

Findings agree with experimental data.

Abstract

High-quality magnets such as yttrium iron garnet (YIG) are electrically insulating and very complex. By implementing a quantum thermostat into atomistic spin dynamics we compute YIG's key thermodynamic properties, viz. the magnon power spectrum and specific heat, for a large temperature range. The results differ (sometimes spectacularly) from simple models and classical statistics, but agree with available experimental data.

Figures

Equations

$$\frac{\partial {\mathrm{S}}_i}{\partial t}=-|\gamma |\left({\mathrm{S}}_i\times {\mathrm{H}}_i+\eta {\mathrm{S}}_i\times ({\mathrm{S}}_i\times {\mathrm{H}}_i)\right),$$

$$\phi (\omega ,T)=\sum _k\frac{\hslash {\omega }_k}{\exp \left(\hslash {\omega }_k/k_{B}T\right)-1},$$

$${\xi }_{i\alpha }(t)=k_{B}T\sqrt{\frac{2\eta {\mu }_{s,i}}{\gamma \hslash }}{\Phi }_{i\alpha }(t).$$

$$1-m_z(T)=v_{\mathrm{ws}}\frac{1}{\mathcal{S}}\frac{\Gamma \left(\frac{3}{2}\right)\zeta \left(\frac{3}{2}\right)}{2{\pi }^2}{\left(\frac{k_{B}T}{\mathcal{D}}\right)}^{3/2}$$

$$C_m(T)=\frac{1}{V}\frac{5}{8}\frac{\Gamma \left(\frac{5}{2}\right)\zeta \left(\frac{5}{2}\right)}{{\pi }^2}{k}_B{\left(\frac{k_{B}T}{\mathcal{D}}\right)}^{3/2},$$

Full text

Introduction

The spin dynamics of electrically insulating magnets often has high quality because the dissipation channel by conduction electron scattering is absent. With few exceptions, they are complex ferrimagnets. Yttrium iron garnet (YIG) with 80 atoms in the unit cell rules with a record low Gilbert damping of long wavelength spin wave excitations or magnons, even at room temperature Cherepanov et al. (1993); Wu and Hoffmann (2013). The implied exceptionally low disorder and weak coupling with phonons remains a mystery, however. Recently, magnon heat and spin transport were measured in YIG thin films in a non-local spin injection and detection configuration with Pt contacts by means of the spin Hall effect Cornelissen et al. (2015) and modelled by spin diffusion Cornelissen et al. (2016). Key parameters of this model are linked to the thermodynamics of the magnetic order, such as the magnon heat capacity, which is difficult to measure because it is orders of magnitude smaller than the phonon heat capacity—at 10 K the magnon and phonon heat capacities are $C_{m}~{}\approx 0.009$ J kg*-1* K*-1* and $C_{p}\approx 0.270$ J kg*-1* K*-1* Boona and Heremans (2014). They can be separated by magnetic freeze-out of the magnon contribution at temperatures up to a few Kelvin Douglass (1963); Boona and Heremans (2014). The magnon heat capacity at higher temperatures has been estimated by extrapolating models that agree with experimental low-temperature results Rezende and López Ortiz (2015); Cornelissen et al. (2016). YIG is often treated as a single-mode ferromagnet with quadratic $\omega\propto\mathcal{D}k^{2}$ (or isotropic cosine function) dispersion, thereby ignoring higher frequency acoustic and optical modes and temperature dependence of the exchange stiffness $\mathcal{D}$. Furthermore, magnon-magnon interactions are also commonly neglected or treated in a mean field approximation. Statistical approaches also have issues, such as the use of classical (Johnson-Nyquist) thermal noise at low temperatures Oitmaa and Falk (2009).

In this Letter we introduce a numerical method that avoids all of these shortcomings. It allows us to carry out material-dependent thermodynamic calculations that are quantitatively accurate with a small number of parameters that can be determined independently. The crucial ingredient is a thermostat for Planck quantum (rather than Rayleigh–Jeans classical) statistics in an atomistic spin dynamics framework Barker and Bauer (2016).

With the inclusion of quantum thermal statistics we find quantitative agreement for YIG with available experiments at low temperatures. The computed spin wave dispersion as a function of temperature agree well with results from neutron scattering. This low temperature quantitative benchmarking imbues trust in the technique for calculating thermodynamic functions and allows access to quantities such as the magnon heat capacity at room temperature that turns out to be an order of magnitude larger than previous estimates.

Method

We address the thermodynamics by computing the atomistic spin dynamics in the long (ergodic) time limit to generate canonical ensembles of spins. The magnetic moments (‘spins’) in this model are treated as classical unit vectors ${\bm{\mathrm{S}}}$, an excellent approximation for the half-filled 3d-shell of the iron cations in YIG with $\mathcal{S}=5/2$ and magnetic moment $\mu_{s}=g\mu_{B}\mathcal{S}$, where $g\approx 2$ is the electron $g$-factor and $\mu_{B}$ the Bohr magneton.

The Heisenberg Hamiltonian $\mathscr{H}=-\frac{1}{2}\sum_{ij}J_{ij}{\bm{\mathrm{S}}}_{i}\cdot{\bm{\mathrm{S}}}_{j}$ contains the (super)-exchange parameters $J_{ij}$ between spins on sites $i$ and $j$, which are determined by fits to inelastic neutron scattering data Plant (1977). Recently, the magnon dispersions were measured again with higher resolution Princep et al. (2017), allowing an improved parameterization of the six nearest-neighbors exchange constants, which we adopt in the following. We add a Zeeman term $\mathscr{H}=-\sum_{i}\mu_{s,i}{\bm{\mathrm{H}}}_{\mathrm{ext}}\cdot{\bm{\mathrm{S}}}_{i}$ with ${\bm{\mathrm{H}}}_{\mathrm{ext}}=H_{z}=0.1~{}\mathrm{T}$, to fix the quantization axis. On each lattice site ‘$i$’ the spin dynamics obey the Landau-Lifshitz equation of motion 111We prefer the Landau-Lifshitz rather than the Gilbert damping, because latter affects the frequencies (here governed exclusively by the exchange parameters) by a factor $1/(1+\eta^{2})$.:

[TABLE]

where $\gamma=g\mu_{B}/\hbar$ is the gyromagnetic ratio and $\eta$ is a damping constant. Each spin feels an effective magnetic field ${\bm{\mathrm{H}}}_{i}={\bm{\mathrm{\xi}}}_{i}-(1/\mu_{s,i})\partial\mathscr{H}/{\partial{\bm{\mathrm{S}}}_{i},}$ where ${\bm{\mathrm{\xi}}}_{i}$ are stochastic processes controlled by the thermostat at temperature $T$. $\langle\xi_{i\alpha}\rangle=0$ and the correlation function in frequency space is governed by the fluctuation-dissipation theorem (FDT) $\langle\xi_{i\alpha}\xi_{j\beta}\rangle_{\omega}=2\eta\delta_{ij}\delta_{\alpha\beta}\varphi(\omega,T)/\mu_{s,i},$ where the Kronecker $\delta^{\prime}$s reflect the assumption that the fluctuations between lattice sites $i,j$ and Cartesian coordinates $\alpha,\beta$ are uncorrelated. $\varphi(\omega,T)$ describes the temperature dependence of the noise power and is chosen such that the steady-state distribution functions obey equilibrium thermal statistics. By not approximating the spin Hamiltonian by a truncated Holstein-Primakoff expansion, our approach includes magnon-magnon interactions to all orders Kittel (1963).

Atomistic spin dynamics methods generally assume the classical limit of the FDT with frequency independent (white) noise $\varphi(\omega,T)=k_{B}T$, i.e. all magnons are stimulated. The energy equipartition of the coupled system results in the Rayleigh-Jeans magnon distribution. However, this is only valid when the thermal energy is much larger than that of the magnon mode $k$ under consideration, i.e. when $k_{B}T\gg\hbar\omega_{k}$, while the energies of the YIG magnon spectrum–and that of most room temperature magnets–extend up to $\hbar\omega_{{\bm{\mathrm{k}}}}/k_{B}\approx 1000$ K Cherepanov et al. (1993). A classical thermostat therefore generates too many high energy magnons, which, for example, overestimates the broadening by magnon scattering and leads to other predictions that can be very wrong.

In the proper quantum FDT Landau and Lifshitz (1980)

[TABLE]

which means that equipartition is replaced by Planck statistics of the magnons at temperature $T$. Quantum statistics in classical spin systems can partially be mimicked through a post-process rescaling of the temperature Evans et al. (2015) or by using temperature-dependent frequencies that rely on analytic expressions for the low temperature spectrum Woo et al. (2015). These approaches cannot be used to evaluate all thermodynamic properties and are not suitable to treat complex magnets such as YIG. We therefore adopt here the ‘quantum thermostat’ as introduced earlier in molecular dynamics Dammak et al. (2009); Savin et al. (2012), i.e., a correlated noise source that obeys the quantum FDT. This is a “colored” noise, but very different from the one used to describe classical memory effects in the heat bath Atxitia et al. (2009); Rückriegel and Kopietz (2015).

We implement the quantum statistics by generating correlated fluctuating fields ${\bm{\mathrm{\xi}}}_{i}\left(t\right)$ numerically in time that obey the FDT in the frequency domain. Savin et al. Savin et al. (2012) employ a set of stochastic differential equations that produce the required distribution function. We adjust this method for the spin dynamics problem, but can refer the reader to Ref. Savin et al. (2012) for the technical details. The solution provides a dimensionless stochastic process $\Phi_{i\alpha}(t)$ with the spectrum of Eq. (2). The dimensionful noise in the spin dynamics reads

[TABLE]

When we agitate the model of classical spins with these stochastic fields, the excitations of the ground state (magnons) obey quantum statistics, quite analogous to quantized phonons in a classical ball-spring lattice. This approach may loosely be called a ‘semi-quantum’ method which should work very well for the large Fe3+ spin in YIG with $\mathcal{S}=5/2$, but requires more scrutiny for spin $\mathcal{S}=1/2$.

We integrate equation (1) using the Heun method with time step $\Delta t=0.1$ fs. The stochastic differential equations of the thermostat are integrated using the fourth-order Runge-Kutta method with the same time step.

Magnon spectrum

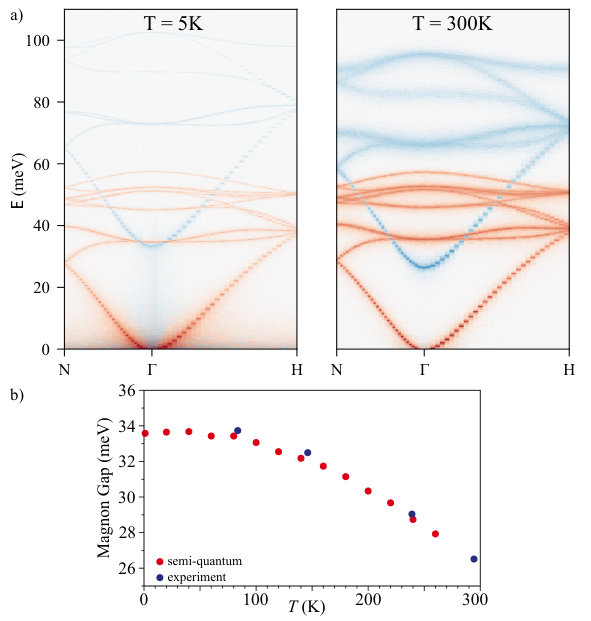

We compare now the magnon spectrum computed with the quantum thermostat with our previous work with classical statistics (and older exchange constants from Ref. Cherepanov et al. (1993)) Barker and Bauer (2016). Results for low ($5$ K) and room ($300$ K) temperature are shown in Fig. 1a. The classical thermostat overestimated the number of high-energy magnons and therefore the broadening of the optical modes at higher temperatures. With quantum statistics, the high-energy optical modes are well resolved at room temperature and should be observable by inelastic neutron scattering with large frequency transfer. The agreement between the calculated and measured Plant (1977) temperature dependence of the exchange gap between optical and acoustic modes at the $\Gamma$ point, shown in Fig. 1b, is improved, especially in the low temperature regime.

Magnetization

The magnetization at low temperatures $m_{z}=1-\tfrac{1}{\mathcal{S}}\sum_{{\bm{\mathrm{k}}}\nu}\langle n_{{\bm{\mathrm{k}}}\nu}\rangle_{T},$ where $\langle n_{{\bm{\mathrm{k}}}\nu}\rangle_{T}$ is the distribution of magnons with wave vector ${\bm{\mathrm{k}}}$ and band index $\nu$ in the first Brillouin zone, cannot be calculated correctly with classical statistics Kuz’min (2005) (at higher temperatures the expression does not hold since magnon-magnon interactions are important). This is obvious already for the single parabolic band, non-interacting magnon gas model for which

[TABLE]

where $\omega_{k}=\mathcal{D}k^{2},$ spin-wave stiffness $\mathcal{D}=2\mathcal{S}\mathcal{J}a^{2},$ lattice constant $a,$ $v_{\mathrm{ws}}$ volume of the Wigner-Seitz cell, while $\Gamma(x)$ and $\zeta(x)$ are the gamma and Riemann zeta functions. The $T^{3/2}$ dependence is known as Bloch’s law Bloch (1930).

In the ferrimagnet YIG the total magnetization is made up by two oppositely aligned sublattices with slightly different temperature dependent magnetizations. At low temperatures they are rigidly locked to an antiparallel configuration by the strong nearest neighbor exchange. At energies $\hbar\omega_{{\bm{\mathrm{k}}}}/k_{B}\lessapprox 30~{}\mathrm{K}$ YIG’s magnon dispersion is known to be quadratic and its magnetization obeys Bloch’s $T^{3/2}$ law Srivastava and Aiyar (1987). The expected deviations at higher temperatures can be assessed by our method. We calculate the magnetization at temperature $T$ as an average $\langle\cdots\rangle_{T}$ over the spin configurations at many times over a 1 ns trajectory ${\bm{\mathrm{m}}}(T)=\langle N^{-1}\sum_{i}^{N}\mu_{s,i}{\bm{\mathrm{S}}}_{i}\rangle_{T}/\langle N^{-1}\sum_{i}^{N}\mu_{s,i}{\bm{\mathrm{S}}}_{i}\rangle_{T=0}$, where $N=655,360$ is the total number of spins in the simulation.

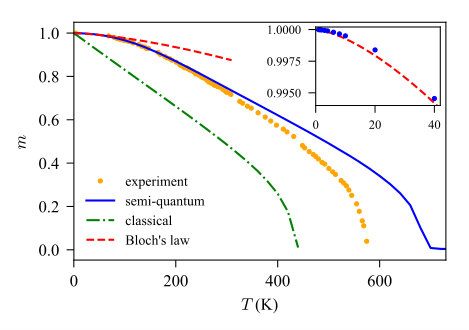

Fig. 2 exposes the obvious problem of classical statistics to compute magnetizations at low temperatures: The magnetization decreases much more rapidly with temperature than Bloch’s law (and as observed in experiments). The results with the quantum thermostat, on the other hand, adhere to Bloch’s law for $T<30$ K (see inset) but also agree well with experiments that signal a breakdown of $T^{3/2}$ scaling, at least until $\sim 300$ K.

The Curie temperatures for the classical ($T_{C}=420$ K) and quantum thermostated systems ($T_{C}=680$ K) are quite different, while the observed $T_{C}=550$ K lies between the theoretical values. In contrast to classical results that obey equipartition, the Curie temperature of quantum approaches depend on $S$ and we find this also in our semi-quantum approach. For a simple ferromagnetic BCC lattice our computed Curie temperatures (not shown) agree well with those obtained by semi-analytic approaches Oitmaa and Zheng (2004) for a large range of $\mathcal{S}$. The overestimation of $T_{C}$ compared to the experiment might be caused by exchange parameters that are slightly too large since the neutron scattering data are fitted only up to $90$ meV which does not cover the magnon modes with highest energy. Also, the choice of $\mathcal{S}=5/2$ ($\mu_{s}=5\mu_{B}$) in extracting the exchange parameters does not fully agree with with measured values of $\mu_{s,a}=4.11\mu_{B}$ and $\mu_{s,d}=5.37\mu_{B}$ for the octahedral and tetrahedral sites Rodic et al. (1999). Hence, a more accurate set of parameters, fitted to neutron scattering data for large energy transfers or calculated from first principles, should solve this discrepancy.

Heat Capacity

The magnon heat capacity per unit volume $C_{m}=V^{-1}(\partial U_{m}/\partial T)_{V}$ is the change in the internal magnetic energy $U_{m}$ with temperature at constant volume $V$. It can be calculated from the magnon spectrum as $C_{m}=V^{-1}(\partial/\partial T)\sum_{{\bm{\mathrm{k}}}\nu}\hbar\omega_{{\bm{\mathrm{k}}}\nu}\langle n_{{\bm{\mathrm{k}}}\nu}\rangle$, where $\langle n_{{\bm{\mathrm{k}}}\nu}\rangle$ is the Planck distribution. In the low temperature limit magnons occupy only states close to $k=0$, where the magnon dispersion of ferromagnets is parabolic. For a single parabolic magnon band Kittel (1963)

[TABLE]

where $\Gamma(x)$ and $\zeta(x)$ are the Gamma and Riemann zeta functions.

The proportionality $C_{m}\propto T^{3/2}$ should hold for YIG up to energies of $\hbar\omega_{{\bm{\mathrm{k}}}}/k_{B}\lessapprox 30~{}\mathrm{K}$. Rezende and López Ortiz Rezende and López Ortiz (2015) calculated the heat capacity for acoustic magnons with finite band-width, but neglected optical magnons that contribute to the heat capacity at elevated temperatures. They found that $C_{m}$ saturates at $150$ K, i.e. when the magnon occupation reaches the upper band edge.

Here we calculate the heat capacity including all magnon modes and their interactions. We calculate $C_{m}$ from the energy fluctuations in the canonical ensemble $\langle U_{m}\rangle_{T}=(1/Z_{m})\sum_{{\bm{\mathrm{k}}}\nu}\hbar\omega_{{\bm{\mathrm{k}}}\nu}\mathrm{exp}(-\hbar\omega_{{\bm{\mathrm{k}}}\nu}/k_{B}T),$ where $Z_{m}=\sum_{{\bm{\mathrm{k}}}\nu}\mathrm{exp}(-\hbar\omega_{{\bm{\mathrm{k}}}\nu}/k_{B}T)$ is the partition function. Then $C_{m}=\left(\langle U_{m}^{2}\rangle_{T}-\langle U_{m}\rangle_{T}^{2}\right)/(Vk_{B}T^{2})$, where in a simulation $\langle\cdots\rangle_{T}$ is an average over a large time interval at a constant temperature and $V$ is the volume of the system.

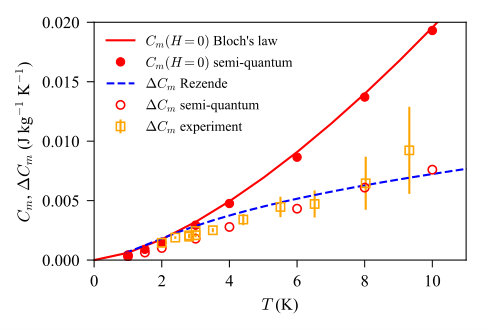

Figure 3 shows the low temperature region where the magnon dispersion is, to a good approximation, parabolic and $C_{m}\propto T^{3/2}$. Calculations using quantum statistics give an excellent agreement with Bloch’s law. The experimental data in Figure 3 have been collected in the range $T=2-9$ K Boona and Heremans (2014), high enough that dipolar field effects can be disregarded. The measurements were made by freezing the magnons in a 7 Tesla field. Even this large field however does not completely remove the magnon contribution to the heat capacity, especially at the higher end of the temperature range Rezende and López Ortiz (2015). To make a proper comparison we repeat the experimental procedure in our simulation by computing the difference $\Delta C_{m}=C_{m}(H=0\mathrm{T})-C_{m}(H=7\mathrm{T})$. Our calculations agree well with the observations as well as the single magnon-band model.

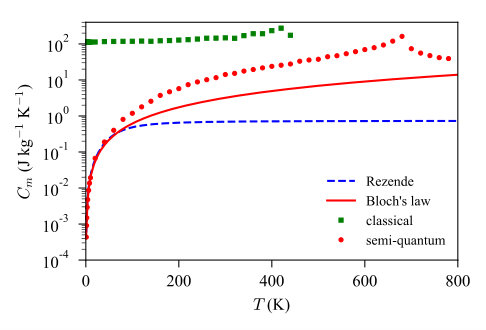

Figure 4 illustrates a pronounced difference between the classical and semi-quantum models: classical statistics overestimate the heat capacity by 5 orders of magnitude at low temperatures, and do not depend on temperature in contrast to the quantum statistical result which approaches zero like $T^{3/2}$. In spite of this spectacular (and rather obvious) failure, classical statistics have traditionally been used (and still are) in both Monte-Carlo and atomistic spin dynamics.

At $T>30$ K non-parabolicities begin and $C_{m}\propto T^{p}$ with power $p>3/2$. At room temperatures Fig. 4 reveals differences between the approaches of two orders of magnitude. The finite-width magnon band model Rezende and López Ortiz (2015) (dashed line on figure 4) saturates prematurely with increasing $T$ because optical and higher acoustic modes become significantly occupied when approaching room temperature Barker and Bauer (2016). The parabolic band model without high-momentum cut-off (Bloch’s law) also strongly underestimates $C_{m}$ because YIG’s magnon density of states is strongly enhanced by the flat bands observed in Fig. 1. The semi-quantum calculation is an order of magnitude larger than both of these heavily approximated approaches, benefiting from the complete description of the magnon spectrum as well as magnon-magnon interactions, while the classical statistics strongly overestimates the heat capacity up to the Curie temperature.

Conclusions

By enforcing Planck statistics for the magnons in the complex ferrimagnet YIG, we obtain excellent agreement with available inelastic neutron scattering and magnon heat capacity experiments. Our results prove that fundamental thermodynamic equilibrium properties can be predicted with confidence when experimental data are not available, but only when quantum statistics and the full spin wave spectrum is taken into account. The method is not limited to YIG or ordered magnets, but can be directly applied to other complex materials with local magnetic moments such as spin glasses or paramagnets. Our results are a necessary first step to compute non-equilibrium properties such as magnon conductivities and spin Seebeck coefficients, which are essential parameters for future applications of magnonic devices.

I Acknowledgements

This work was supported by JSPS KAKENHI Grant No. 26103006, the Graduate Program in Spintronics (GP-Spin), Tohoku University and DAAD project ‘MaHoJeRo’. The authors thank Jiang Xiao, Yaroslav Tserkovnyak, Rembert Duine and Jerome Jackson for valuable discussion.
