Ready functions for calculating the Martian radiation environment

TL;DR

This paper develops ready-to-use functions based on Monte Carlo simulations to quickly estimate Martian surface radiation doses from various space radiation spectra, aiding future human missions.

Contribution

It introduces new functions derived from GEANT4 simulations that enable rapid conversion of radiation spectra to dose estimates on Mars surface and subsurface.

Findings

Functions accurately convert SEP and GCR spectra to radiation doses

Implementation in the RADMAREE tool enhances accessibility for mission planning

Supports forecasting of radiation hazards during extreme solar events

Abstract

It is extremely important to understand and model the Martian radiation environment in preparation for future human missions to Mars, especially during extreme and elevated conditions such as an intense solar energetic particle (SEP) event. Such events may enhance the radiation level drastically and should be forecasted as soon as possible to prevent severe damage to humans and equipment. Besides, the omnipresent galactic cosmic rays (GCRs) also contribute significantly to the radiation in space and on the surface of Mars and may cause long-term damages to current and future missions. Based on GEANT4 Monte Carlo simulations with the Martian atmospheric and regolith environment setup, we have calculated and obtained some ready-to-go functions which can be used to quickly convert any given SEP or GCR proton/helium ion spectra to the radiation dose on the surface of Mars and also at different depth of the atmosphere. We implement these functions to the RADMAREE tool under the Europlanet project which can be easily accessed by the public.

Figures

Equations

$$F_{i,j}^{\sigma -dn}(E)=\underset{E_0}{\int }{\bar{\mathrm{A}}}_{ij}^{\sigma -dn}(E_0,E)f_i(E_0)d{E}_0;$$

$$F_{i,j}^{\sigma -up}(E)=\underset{E_0}{\int }{\bar{\mathrm{A}}}_{ij}^{\sigma -up}(E_0,E)f_i(E_0)d{E}_0.$$

$$D_i^{\sigma -dn}(E_0)$$

$$D_i^{\sigma -up}(E_0)$$

Full text

1 Introduction

The energetic particle environment on the Martian surface is different from that in deep space due to the presence of the Martian atmosphere despite of its rather thin column depth ($\sim$ 20 $\pm$ 5 g/cm2). Primary particles passing through the Martian atmosphere may undergo inelastic interactions with the ambient atomic nuclei losing their energies and also creating secondary particles via spallation and fragmentation processes. These secondary particles may further interact with the atmosphere as they propagate downwards and even with the Martian regolith and finally result in very complex spectra including both primaries and secondaries at the surface of Mars (e.g., Saganti et al., 2002). Much work has been done for calculating the surface exposure rates under different galactic cosmic ray (GCR) conditions and solar energetic particle (SEP) events. Several models combining particle transport codes with different GCR and/or SEP spectra have been developed and applied for estimating the radiation exposure on the surface of Mars (e.g., Keating et al., 2005; De Angelis et al., 2006; McKenna-Lawlor et al., 2012; Ehresmann et al., 2011). Saganti et al. (2004) have mapped the modeled radiation exposure on the Martian surface from GCRs. Simonsen et al. (1990) and Simonsen and Nealy (1993) have calculated the surface dose exposures from both GCRs during solar minimum and maximum conditions as well as some significant SEP events. Townsend et al. (2011) considered the transport of possible Carrington-type SEP events through the Martian atmosphere and also through various hemispherical configurations of aluminum shielding to estimate the resulting organ doses and effective doses of such extreme events. Norman et al. (2014) have investigated the influence of dust loading on atmospheric ionizing radiation during solar quiet and SEP events. Dartnell et al. (2007) have also estimated the effect of surface radiation on the likelihood of survival of microbial life in the Martian soil.

Recently, the radiation assessment detector (RAD, Hassler et al., 2012) on board the Curiosity rover which is part of the Mars Science Laboratory (MSL, Grotzinger et al., 2012) has been providing the first in situ detection of the radiation environment on the surface of Mars since the landing of MSL on 2012 August 6 (Hassler et al., 2014). These first measurements provide evaluations of the GCR-induced radiation level inside Gale Crater (with an average column depth of about 22 g/cm2 $\pm$ 25%) and energetic particle spectra for both charged (Ehresmann et al., 2014, 2017) and neutral (Köhler et al., 2014; Guo et al., 2017b) particles. The background GCR radiation is not constant and its variation is concurrently driven by the change of the Martian atmosphere as well as the heliospheric activities. The radiation dose rate is anti-correlated with the surface pressure which changes both daily and seasonally (Rafkin et al., 2014; Guo et al., 2015, 2017a). Meantime it is also modulated by the varying heliopsheric activities both in the long term (Guo et al., 2015) and in the short term (Guo et al., 2018b) via e.g., solar coronal mass ejections (CMEs) and their associated shocks.

During the past six years of measurement, RAD has detected only a few SEP events at the Martian surface and most of them are rather insignificant apart from the 2017 September 10th event (Zeitlin et al., 2018; Ehresmann et al., 2018; Guo et al., 2018a) which was the first ground level enhancement (GLE) detected at the surface of two different planets: Earth and Mars. SEP events are sporadic, often rather impulsive and could be extremely hazardous especially when the observer is magnetically connected to the acceleration region and injection site at the Sun. Therefore it is important to reliably model them in order to give immediate and precise alerts for future human missions at Mars. To do so, it is essential to well understand the atmospheric effect on incoming particles. There are various particle transport codes such as HZETRN (Slaba et al., 2016; Wilson et al., 2016), PHITS (Sato et al., 2013) and GEANT4/PLANETOCOSMICS (Desorgher, 2005) which can be employed for studying the particle spectra and radiation through the Martian atmosphere. We also refer the readers to articles collected in a special issue at Life Sciences in Space Research (Hassler et al., 2017) for more recent studies where several models have been applied to calculate the radiation environment at Mars and the modeled results are compared with data from MSL/RAD. When modeling the proton and Helium ion spectra, the GEANT4 model has been shown to be rather reliably matching the measurement (Matthiä et al., 2017).

In particular, Guo et al. (2018c) have developed a generalized approach based on the GEANT4/PLANETOCOSMICS transport code to quickly model the Martian surface radiation level of any given incoming proton/helium ion spectra. They have applied it to more than 30 large solar events (measured in situ at Earth) thus providing insights into the possible variety of surface radiation environments that may be induced during large SEP events. Depending on the intensity and shape of the original solar particle spectra as well as the distribution of particle types, different SEP events may induce entirely different radiation effects on the surface of Mars. Primary particles with small energies do not have sufficient energy to reach the ground while the exact atmospheric cutoff energy is a strong function of elevation on Mars. Therefore, an intense SEP spectra with moderate high-energy component could be well within biological tolerance seen on the surface of Mars, particularly in low-lying places such as Gale Crater, Hellas Planitia, Valles Marineris, etc., where atmospheric shielding is substantially greater than the global average. In the current study, we have further developed this approach and calculated ready-to-go functions which can be folded with any given SEP or GCR proton/helium ion spectra to obtain the induced radiation dose on the surface of Mars and also at different depth of the atmosphere.

2 Model implementation

2.1 The PLANETOCOSMICS model

GEANT4 (Version g4.10 has been used in this study) is a Monte Carlo approach widely used for simulating the interactions of particles as they traverse matter (Agostinelli et al., 2003). PLANETOCOSMICS is based on GEANT4 with a specific application purpose to simulate particles going through and interacting with planetary atmospheres and magnetic fields (Desorgher, 2005). Different settings and features of the planetary enviroment, e.g. the composition and depth of the atmosphere and the soil, can be used in the simulations. Modeling the radiation environment on the surface of Mars using PLANETOCOSMICS has been carried out in various studies (e.g., Dartnell et al., 2007; Gronoff et al., 2015; Matthiä et al., 2016; Ehresmann et al., 2011) and has been validated (Matthiä et al., 2016) when compared to energetic charged and neutral particle spectra on the surface of Mars measured by MSL/RAD.

GEANT4 offers a wide variety of models for handling physical processes of particle interactions at different energy ranges (Geant4_Collaboration, 2017). The current study employs the emstandar_opt4 model for electromagnetic interactions and the QGSP_BIC_HP model where QGS stands for the Quark Gluon String model for particles with energy larger than tens of GeV, P represents the Precompound model used for de-excitation process for nucleon-induced reactions below 1-2 MeV and HP switches on the high precision neutron elastic and inelastic scattering model for neutrons below 20 MeV. Indeed different physics lists could have been utilized here. However, Matthiä et al. (2016) have compared different physics models applied to the Martian environment and the predictions of surface GCR dose rate are agreeing with each other within $\sim$ 10 percent of uncertainty which is generally not larger than the uncertainty of the input particle spectra.

2.2 The implementation of the Mars Climate Database

The Mars Climate Database (MCD, http://www-mars.lmd.jussieu.fr) offers the possibility to access Martian atmospheric properties, such as temperature, density and composition, for different altitudes, seasons and even the time of the day on Mars. MCD has been developed using different Martian atmospheric circulation models which are further compared and modified by the observation results from past and current Mars missions (Lewis et al., 1999). Therefore it provides an atmospheric environment sufficiently realistic for the purpose of simulating atmospheric interactions with high energetic particles as the column depth is the most relevant factor here. In our atmospheric setup for the PLANETOCOSMICS runs, we use the composition, density and temperature profiles from MCD between altitudes of 250 and 0 km, in steps of 100 m, above the ground at the location of Gale Crater (coordinate: 4.5∘S, 137.4∘E,) which is the landing site of MSL’s rover Curiosity. The soil is represented by a 100-meter layer of SiO2 with a density of 1.7 g/cm3.

2.3 The PLANETOMATRIX approach

A full PLANETOCOSMICS simulation can be highly time-consuming and in principle needs to be run for each different input spectra. To reduce the computational burden, we have developed an alternative approach which we refer to as the PLANETOMATRIX method (Guo et al., 2018c). Such a matrix $\rm{\bar{A}_{ij}(E_{0},E)}$ represents the ”response function” of the Martian atmosphere and it is a statistical description of all interaction process of a particle (of type i) entering the Martian atmosphere with energy $E_{0}$ resulting in a particle (of type j) with energy $E$ on the Martian surface. Although the construction of each matrix is time-consuming, the multiplication of different input spectra $f_{i}(E_{0})$ with such a matrix to generate different surface spectra ${F_{j}(E)}$ is very much simplified as shown in Eq. 2.3. Specifically speaking, we used 50 million protons simulated with PLANETOCOSMICS which needed approximately 2000 CPU hours. And the time needed for simulating the same number of heavier ions can be much longer due to the production of secondaries. PLANETOMATRIX, on the other hand, only needs linear algebra operation folding the matrix with a given spectra to generate the output spectra and this can be done within a second.

For input primary particles (particles arriving at the top the Martian atmosphere), we have considered protons and 4He ions. And we included the dominant secondaries such as protons, 4He and 3He ions, deuterons, tritons, neutrons, gammas, electrons and positrons as output particles on the surface of Mars.

As particles could also interact with the Martian atmosphere and regolith and produce albedo particles contributing to the upward fluxes, we have also considered the generation of such upward particles in our simulations. Since the energy spectra of upward- and downward-traveling particles are dissimilar, we have separately constructed the upward and downward directed matrices for each primary-secondary case as $\rm{\bar{A}}_{ij}^{\sigma-{up}}$ and $\rm{\bar{A}}_{ij}^{\sigma-{dn}}$ respectively. The resulting downward and upward spectra of particle type j generated by primary particle type i at the depth of $\sigma$ are respectively (Guo et al., 2018c):

[TABLE]

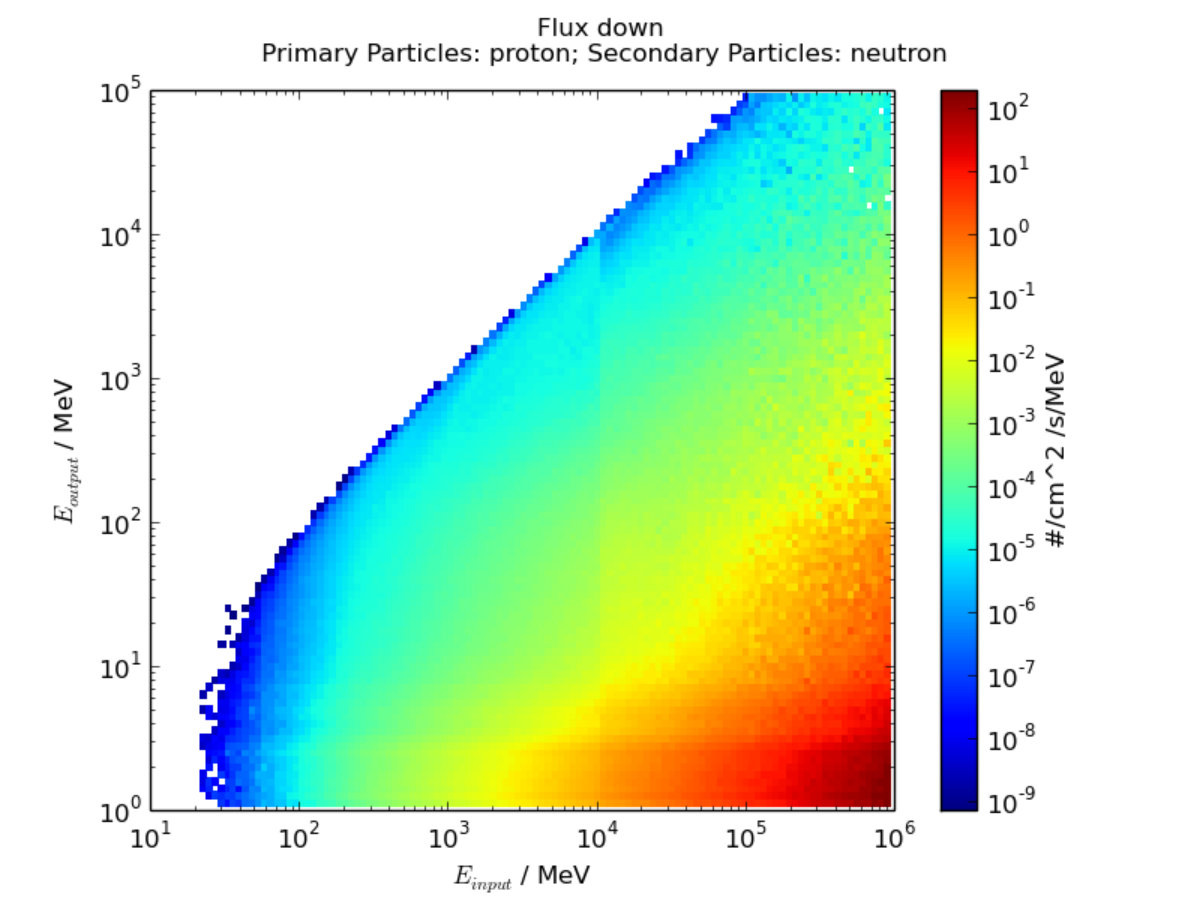

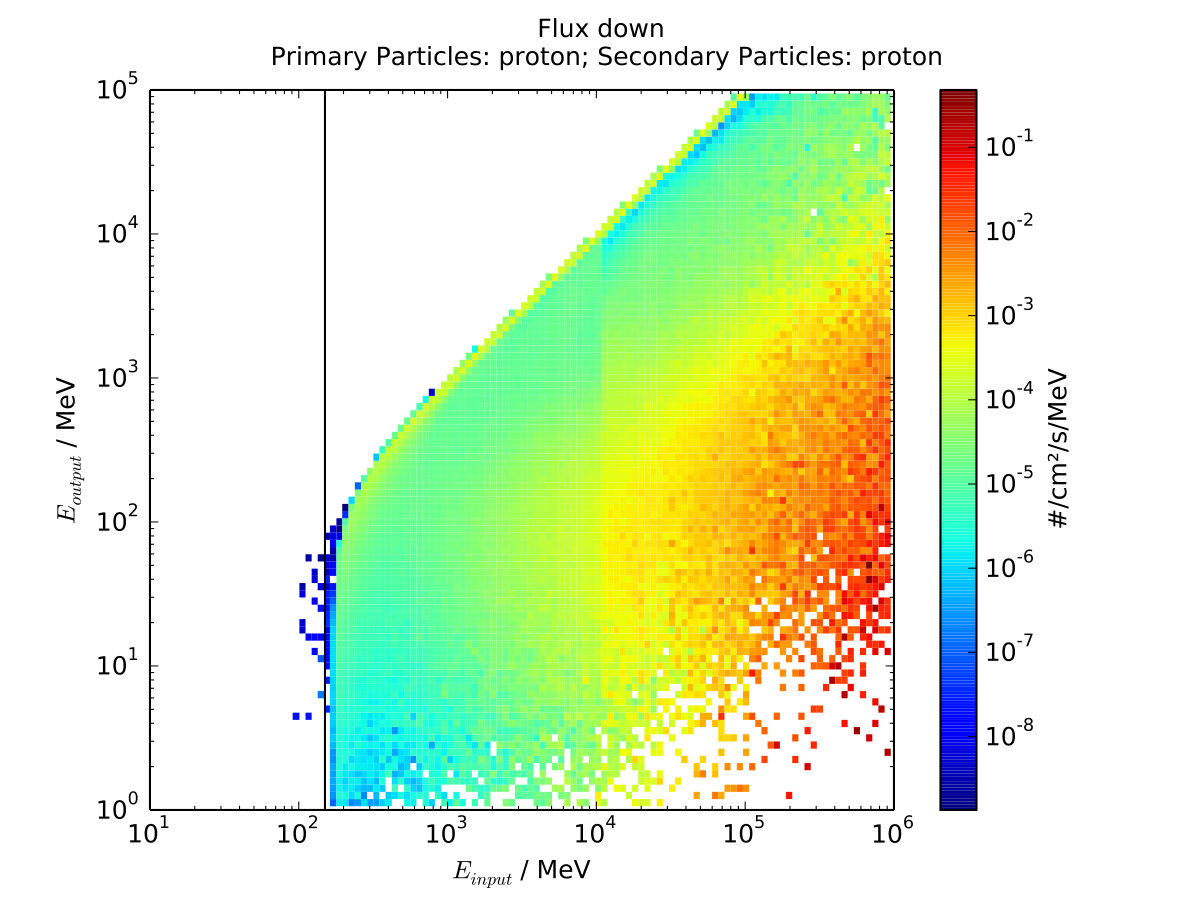

Panels (a) and (b) of Figure 1 (adapted from and explained in more detail in Guo et al. (2018c)) show the matrices of primary protons generating downward protons and neutrons respectively. The atmospheric depth in this case is about 20 g/cm2. It is shown that primary protons with energies less than about 150 MeV, indicated by a vertical line in (a), lack sufficient energy to reach the surface. However, these particles could still generate other secondaries such as neutrons which are detected near the surface as shown in Figure 1b.

2.4 The ready-to-go functions for the Martian radiation level

Radiation dose rate and dose equivalent rate (or gray-equivalent rate for SEPs) are the key quantity for evaluating the energetic particle environment and their potential biological effects for future crewed missions to deep space and to Mars. Both charged and neutral particles deposit energy while going through target materials such as skin, bones and internal organs. Dose is defined as the energy deposited by radiation per unit mass of the material with a unit of J/kg (or Gy). The material throughout this study is considered to be water as it is a good representative for tissue. For a better understanding of the concepts of radiation dose and how to calculate it, please refer to the Appendix of this article.

The radiation dose rate for either the downward- or the upward-directed particles (of different types j) induced by certain primary particle (of type i) can be calculated following the logic:

[TABLE]

and

[TABLE]

where $f_{i}(E_{0})$ is the primary particle (type i) spectrum (e.g., in the unit of counts/MeV/sec/cm2/sr) and $F_{i,j}^{\sigma-{dn}}(E)$ and $F_{i,j}^{\sigma-{up}}(E)$ are the induced secondary particle spectrum (type j) at certain atmospheric depth $\sigma$ in downward and upward directions respectively. $E_{min}$ and $E_{max}$ are the minimum and maximum energies of particles used for the dose calculations. They are set to be 1 and $10^{6}$ MeV respectively as they are the lower and upper limits of energy bins used for storing output particle histograms. $\rho$ is the mass density of the target material.

The energy transfer process of particles in material is expressed as a yield factor $\lambda_{j}(E)$ which represents the deposited energy per unit length $d\epsilon/dx$ (also called the linear energy transfer (LET)) as a function of incoming particle energy $E$. $\lambda_{j}(E)$ depends on particle species $j$ and the target material. It can be readily estimated using either the Bethe-Bloch equation (Bethe, 1932) (for charged particle ionization energy loss in an infinite volume) or with more sophisticated Monte Carlo models such as GEANT4 (Matthiä et al., 2016) accounting for the probability distribution of $\epsilon$ in finite volumes as used in this study. Dose is then the energy loss per unit mass of the material which is calculated as LET divided by the material mass density: $d\epsilon/dx/\rho$.

The resulting $D^{\sigma-{dn}}(E_{0})$ and $D^{\sigma-{up}}(E_{0})$ in Equations 2 and 3 are the corresponding dose integrated over the downward or upward directions ($2\pi$ solid angle in each case) respectively. For given primary spectra $f_{i}(E_{0})$, dose is summed over all the secondary particle species generated by the primary particles. Taken into account of the flux variation rate in time, dose rate can also be estimated and is often converted to µGy/day for the radiation level in space. Similarly, dose equivalent rate, in µSv/day, can be calculated as explained later. The final dose rate at certain atmospheric depth $\sigma$ induced by primary particle flux $f_{i}$ at energy $E_{0}$ (with an energy interval of $\Delta E_{0}$) is simply the sum of the upward and downward dose rates.

As described in Section 2.3, we have constructed the upward and downward directed matrices for each primary-secondary pair in the setup of the Martian atmospheric and regolith environment. Therefore the dose rate in the above equations 2 and 3 is purely dependent on $f_{i}(E_{0})$ which is the primary particle spectra as a function of energy $E_{0}$. Therefore we have further developed the PLANETOMATRIX approach and calculated the resulting integrated dose rate described in equations 2 and 3 induced by a primary particle flux of [1 particle/MeV/sr/cm2/s] in the energy interval from $E_{0}-\Delta E_{0}/2$ to $E_{0}+\Delta E_{0}/2$ where $\Delta E_{0}$ is the bin width of the input particle energy in ${\rm{\bar{A}}}_{ij}(E_{0},E)$. Such calculations have been repeated for each primary energy bin of the matrices in the range of 20 to 105 MeV. The resulting dose functions depend on the primary particle energy (either protons or helium ions) and are plotted in Figs. 2 and 3. The shown downward and upward functions have been normalized to the input spectra and thus have units of [µGy/day]/[particles/sr/cm2sec]. They are mathematically described as $D^{\sigma-{dn}}(E_{0})/(f(E_{0})\cdot\Delta E_{0})$ and $D^{\sigma-{up}}(E_{0})/(f(E_{0})\cdot\Delta E_{0})$. These ready-to-go functions can be folded with any given SEP or GCR proton/helium ion spectra $f(E_{0})$ to obtain the induced radiation dose rate (upward, downward and all) on the surface of Mars and also at different depth of the atmosphere.

In terms of biological effectiveness associated with radiation exposures on human beings, the dose equivalent (in units of Sv) is often more referred to for evaluating the deep space exploration risks (Sievert, 1960). It depends on a quality factor $\rm{Q}$ (Mountford and Temperton, 1992) which is a function of LET. Folding $\lambda_{j}(E)$ with $\rm{Q}(LET)$ into Eqs. 2 and 3, one can calculate dose equivalent rate similar to dose rate. Therefore we have also obtained the ready-to-go functions for the dose equivalent rate as a function of primary particle energy as shown in Figure 4.

3 Results and discussions

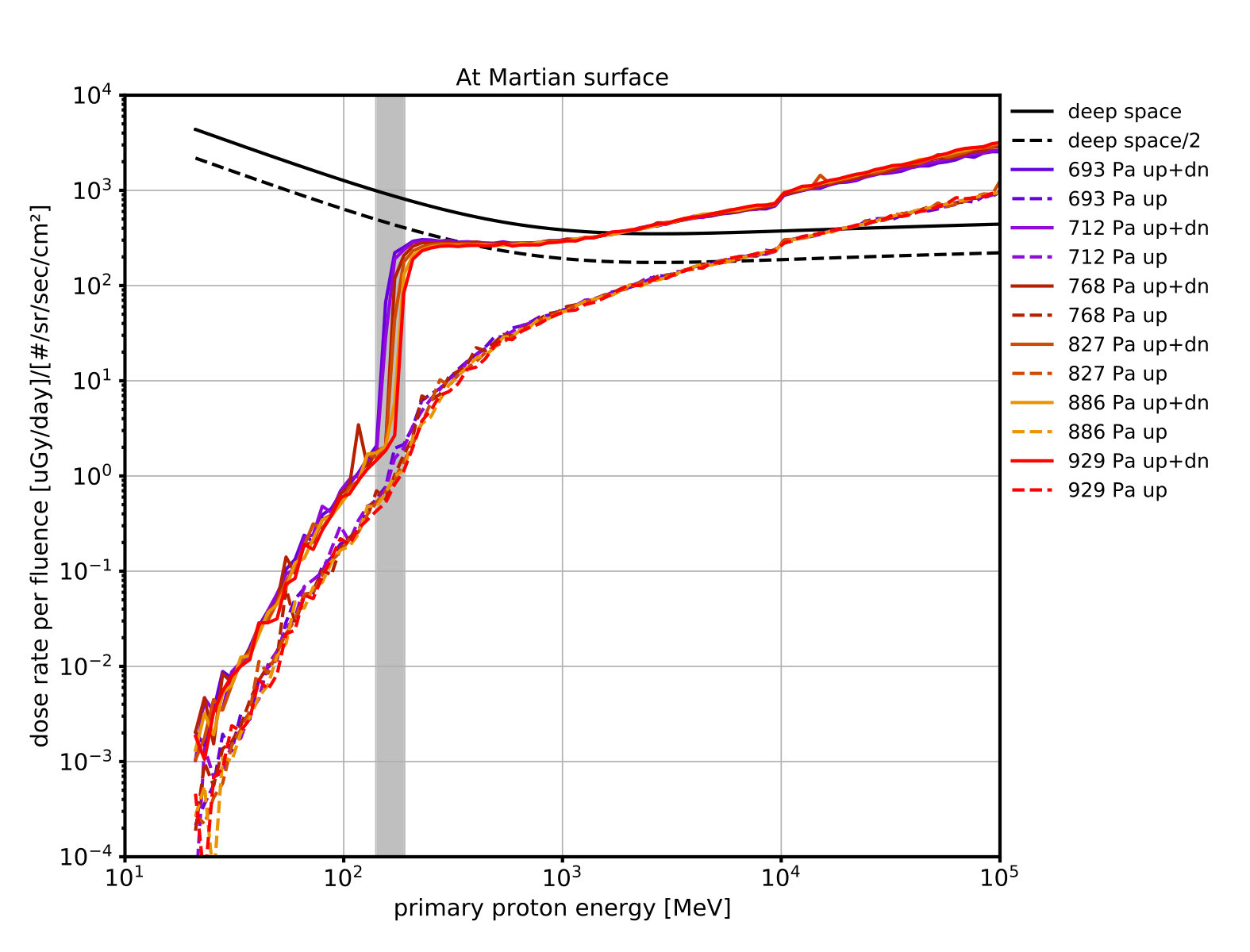

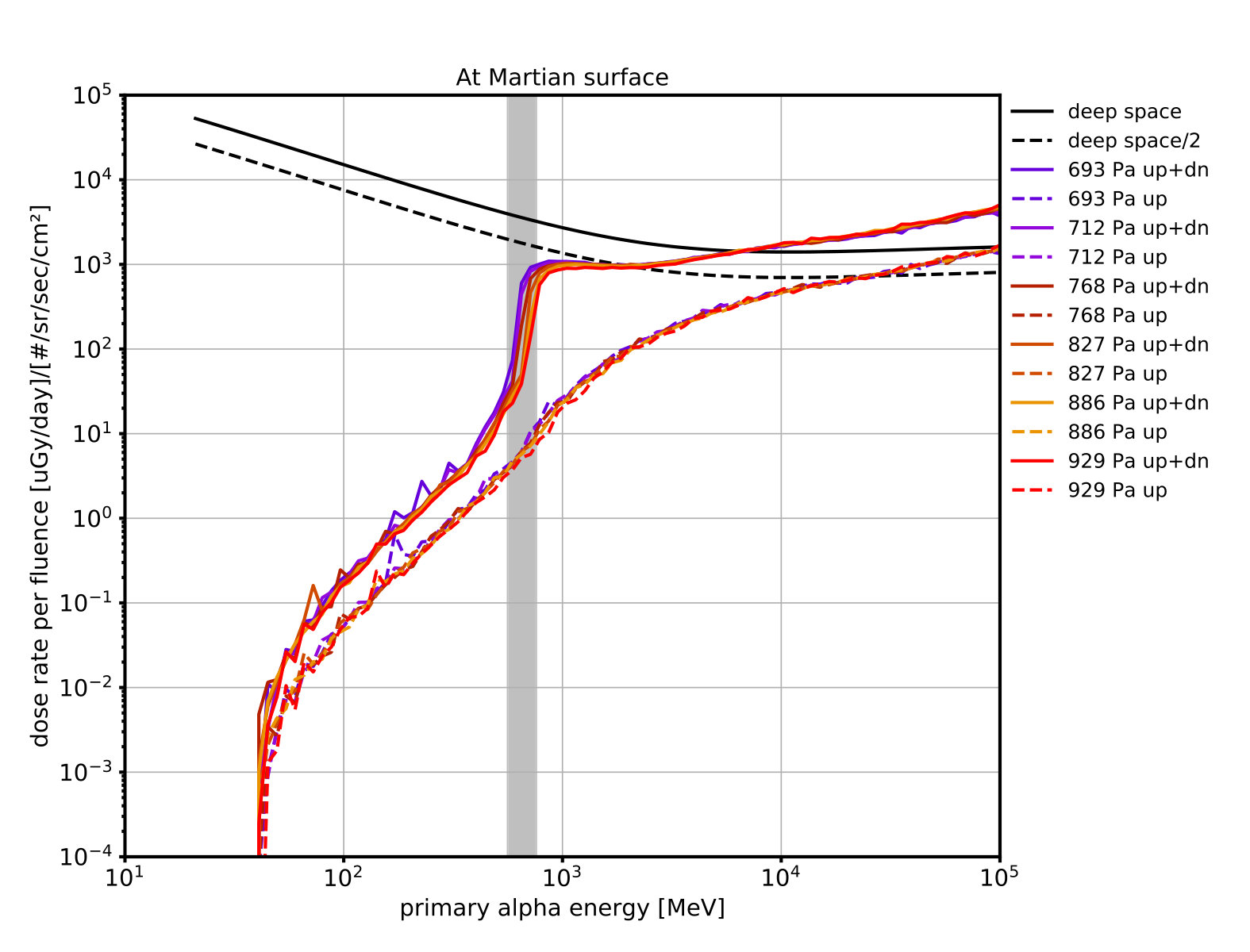

On the surface of Mars, we calculated the dose rate per primary flux function for both primary protons and helium ions as shown in Figure 2. For different surface pressure conditions which are different seasonal pressures measured at Gale Crater (Guo et al., 2015), these are ready-to-go dose functions versus the energy of primary particles reaching the top of the Martian atmosphere.

As shown in the figure, there is a sharp decrease of surface dose contribution from primary protons with energies below the gray shaded area which is from 140 to 190 MeV/nuc. This ’cutoff’ energy $E_{c}$ is equivalent to the energy required for a proton to penetrate through the total Martian atmospheric depth as shown in the proton-proton matrix in Figure 1a. Contribution to the surface dose below this primary energy is mainly from proton generated secondaries such as electrons, gammas, and neutrons such as illustrated in Figure 1b.

It is also shown that this cutoff energy depends on the surface pressure (proportional to the total atmospheric depth): higher surface pressure corresponds to a slightly larger cutoff energy as it is more difficult for particles to penetrate through the whole atmosphere. This is supported by observations (Rafkin et al., 2014) that the surface dose rate seen by MSL/RAD is anti-correlated with the surface pressure measured by the Rover Environmental Monitoring Station (REMS, Gómez-Elvira et al., 2012) on board MSL.

The primary spectra used to fold with these functions are free space GCR or SEP spectra in units of particles/sr/cm2/sec/MeV (which are first scaled by the energy bin width used for calculating these functions before the folding). And the total induced dose rate (in units of µGy/day) by certain given spectra is the integrated sum of the free space spectra multiplying the dose function. We also calculated and plotted the dose rate function induced by the primary protons and 4He ions in deep space with no planet or atmosphere shielding present and the full geometric angle is 4 $\pi$ as shown in the black solid lines in Figure 2. The black dashed lines illustrate the scenario when only half of the full geometry should be considered such as near a planet or a large spacecraft which blocks about half of the isotropic free space flux (while no albedo secondaries are neglected). As shown, the dose function in deep space is rather similar to the ionization energy loss (e.g., the Bethe-Bloch function) process and it increases significantly for low-energy particles and flattens for relativistic high-energy ones.

Colored dashed lines in Figure 2 represent the contribution to dose by upward albedo secondaries. The contribution ratio is rather small, $<10\%$, especially at energies slightly above $E_{c}$ as the primary particles just had sufficient energy to make down to the surface and not sufficient remaining energy to knock out target nucleus in the regolith. As primary particles have higher energies and thus higher remaining energies on the surface, they induce more spallation interactions with regolith to generate albedo secondaries and the upward dose contribution is slightly bigger. At energies below the cutoff energy both downward and upward contributions to dose are very small and are from secondaries generated in the atmosphere (as few primaries could reach the ground) and the upward dose ratio is roughly constant at $\sim 20\%$.

In general, the upward dose, mostly produced in the Martian regolith, is much lower than the downward dose, this suggests the effectiveness of shielding using the Martian regolith (e.g., inside a lava tube, near a cliff or underground) for potential human habitat on Mars. We also note that the generation of albedo particles may depend on the regolith composition. For instance, water content in the soil may thermalize fast neutrons (Boynton et al., 2012) and change the albedo neutron spectra which will affect the upward dose. Although we do not expect any significant modifications of the total dose, detailed simulations with better knowledge of the Martian soil would be helpful for better quantifying the impact of the regolith composition on dose.

We also note that there are some statistical uncertainties causing spikes in the functions especially at low energies where the statistics of secondaries generated in the atmosphere is relatively poor. Since their contribution to the total integrated dose is orders of magnitude lower than higher primary energies, this does not affect the calculations of the total dose. However, in the following Figures 3 and 4 where more functions are present, we smooth the dose curves to better illustrate the function dependence on atmospheric depth.

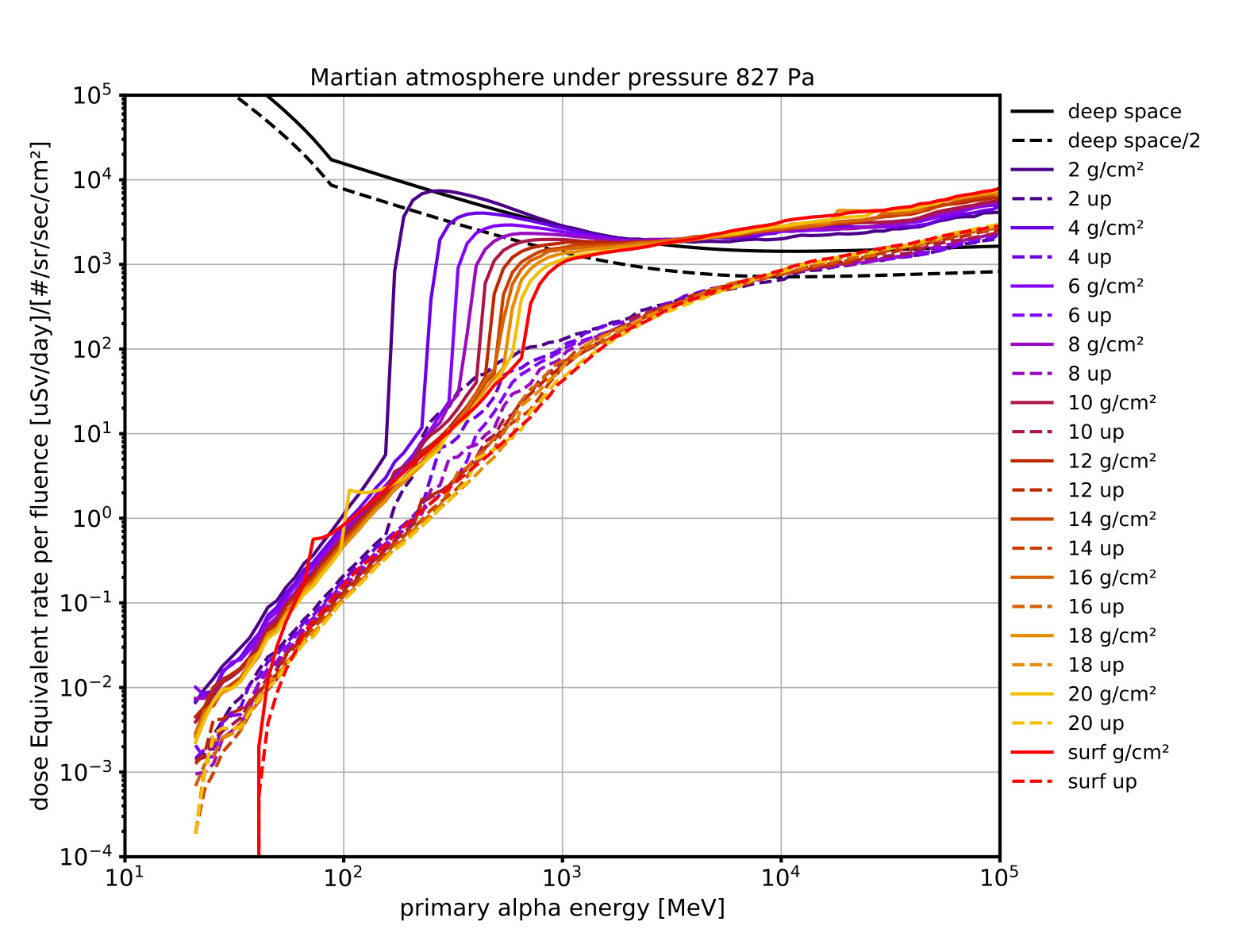

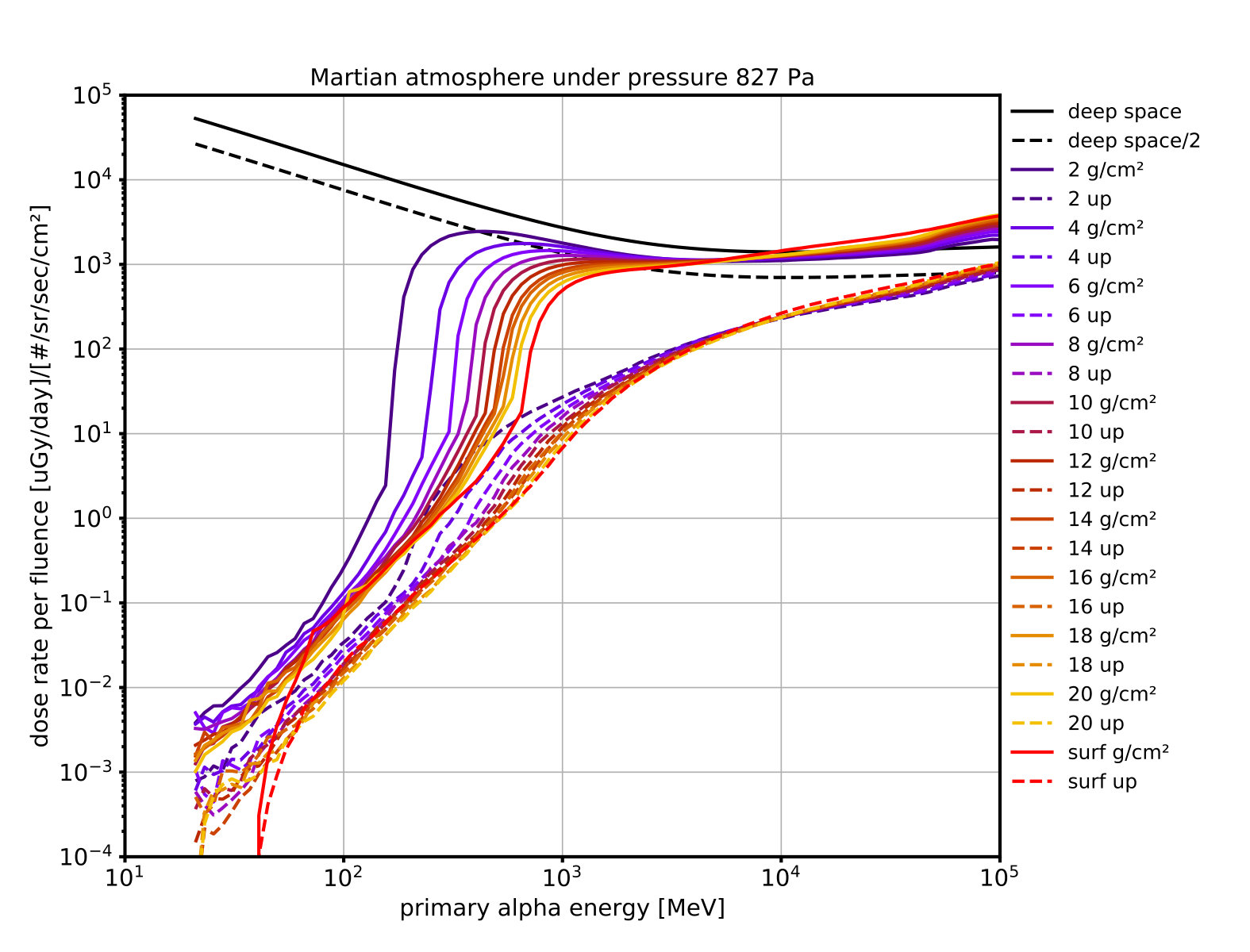

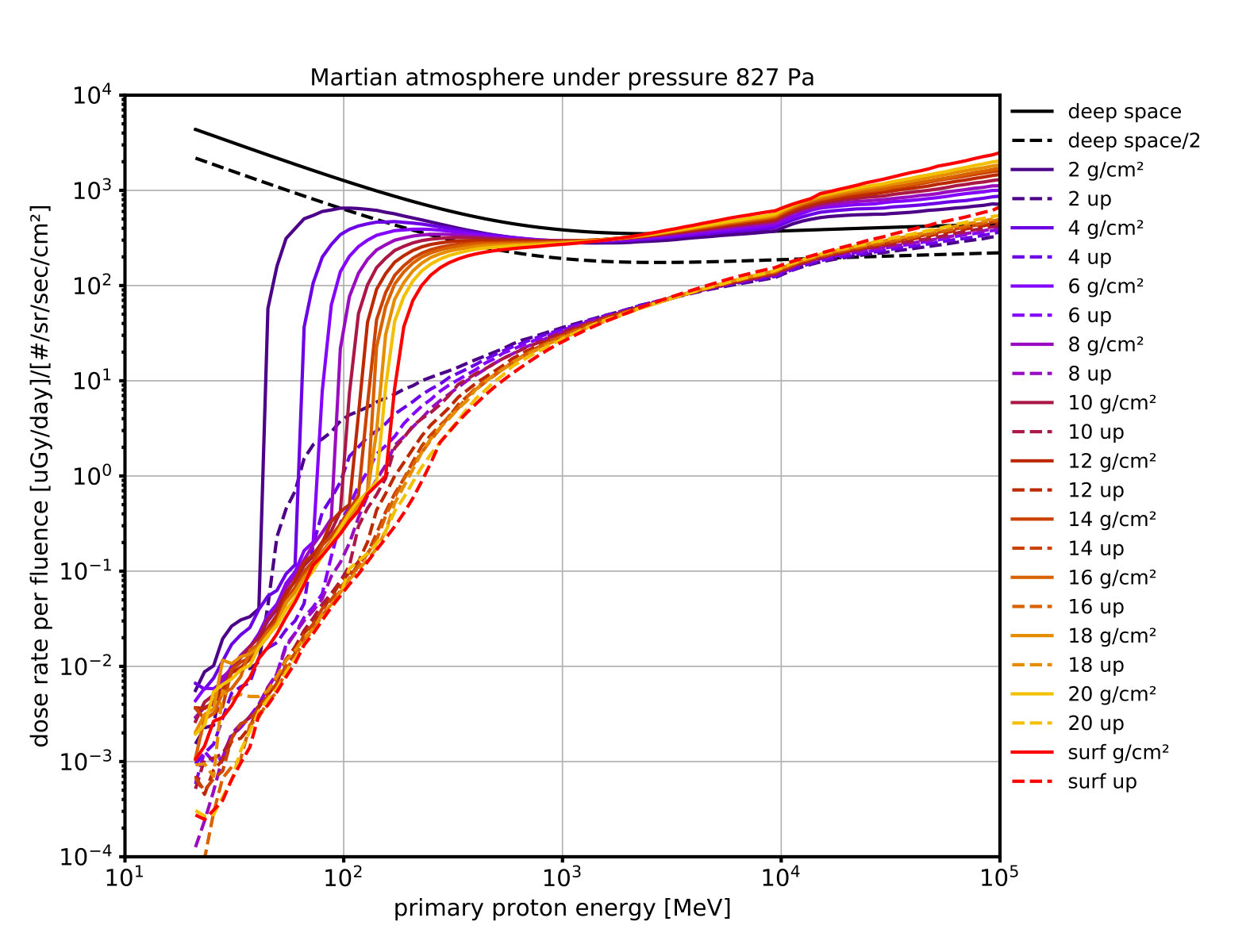

Figure 3 shows the same functions as in Figure 2 but for different atmospheric depth of 2,4,6…20 g/cm2 down to the surface with a fixed surface pressure of 827 Pascals. The surface pressure is equivalent to a total column depth of about 23 g/cm2. As clearly shown, at lower energies $<\sim 1$ GeV/nuc, the dose function per primary flux decreases as the atmospheric depth increases due to primary particles loosing energy as they transverse deeper in the atmosphere. For the same reason, the cutoff energy increases from $\sim$ 40 MeV at 2 g/cm2 to $\sim$ 180 MeV at the surface. At energies higher than a few GeV, secondary generations are more frequent due to particle fragmentation and spallation interactions with the atmosphere and the dose is enhanced as the atmospheric is thicker. The upward dose also shows similar dependence on the atmospheric depth. At energies smaller than a few GeV, the atmospheric shielding effect against primary particles dominates and dose decreases as atmosphere is thicker. At higher energies, the upward dose is mainly contributed by secondaries generated in the regolith. It is higher at the surface and slightly decreases as the atmospheric altitude increases since upward particles loose their energies in the atmosphere as they transverse upwards.

At high energies, the enhanced dose at thicker atmospheric depth is similar to the enhanced particle fluxes above the Pfortzer maximum on Earth (Pfotzer, 1936). Since Earth has a global magnetosphere to efficiently shield against lower energy particles, this effect is also pronounced in the integrated dose/flux. At Mars which does not have a global magnetosphere, the atmospheric shielding against lower energy primaries is more dominating, especially during solar minimum when low-energy particles ($<$ GeV) are more abundant, and thus observations show an anti-correlation of the integrated surface dose rate versus the thickness of the atmosphere (Rafkin et al., 2014; Guo et al., 2017a).

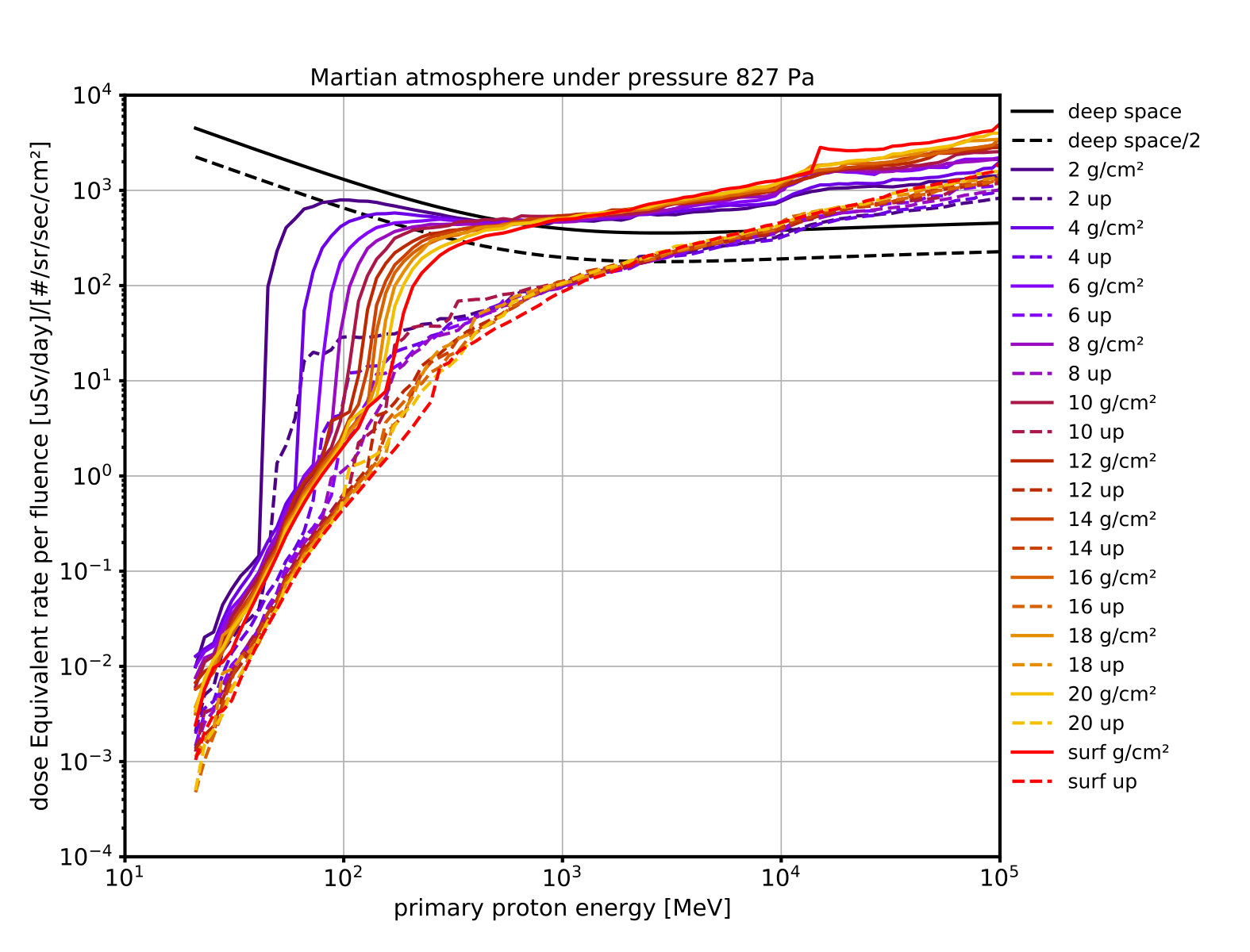

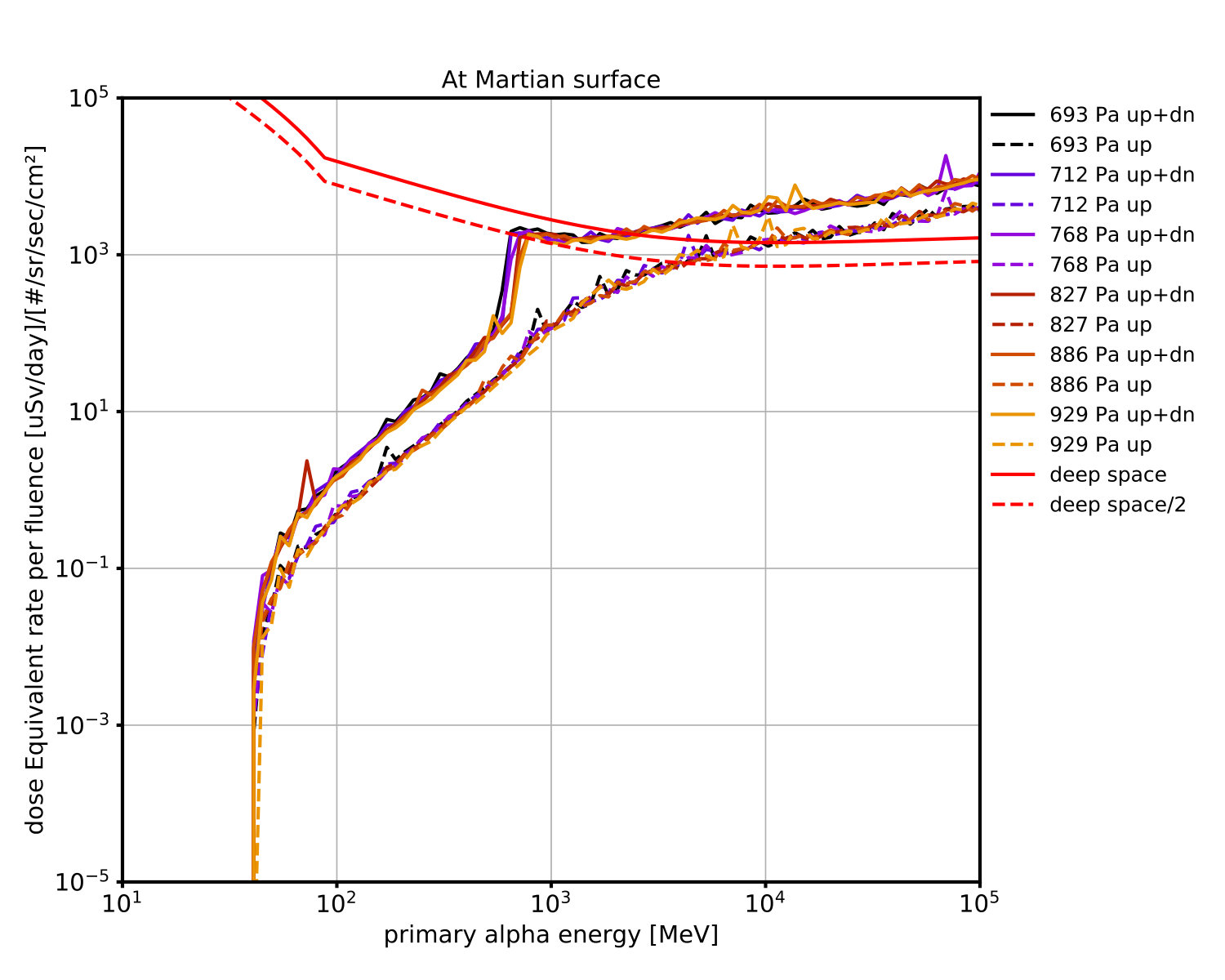

As explained in Section 2.4, we have also considered the dose equivalent rate functions which is an important factor and the results are shown in Figure 4. The features of their dependence on energy and atmospheric depth are very similar to the dose functions. As 4He ions have higher charge and larger LET, their contribution to dose equivalent rate relative to the proton contribution is enhanced in comparison to the case of dose rate.

It is important to note that the functions calculated and provided in this study should be used with the awareness of their assumptions and limitations. First, the physics list used in the GEANT4 simulations are emstandard_opt4 and QGSP_BIC_HP as described in Section 2.1 and Guo et al. (2018c). Recently, we have compared four different physics lists in GEANT4 when applied to the Martian environment (Guo et al., 2019) and found that spallation processes can be more efficient in the Liége Intra-nuclear Cascade (INCL) model than the Binary or Bertini cascade models. Thus the production of deuterium, tritium and 3He particles by primary protons and 4He particles could be better described by INCL in the energy range of $\sim$ 1-20 GeV. However, in the Martian environment, the contribution to dose and dose equivalent by such particles are significantly smaller than that by primary protons and 4He ions and other secondaries such as electrons and neutrons. Therefore the predictions of surface dose by different physics models are agreeing with each other reasonably well as shown by Matthiä et al. (2016).

Moreover, only surface particles of proton, electron, position, 4He, 3He, deuteron, triton, neutron and gamma above 1 MeV are considered in the calculations of dose and dose equivalent. We did notice a slight increase in dose at lower primary energies ($<\sim$ 100 MeV) and high primary energies (larger than a few GeVs) when including more secondaries and having a lower energy cutoff in calculating dose. For instance, when including particles $<$ 1 MeV, the dose function increases by about 50% at 25 MeV primary proton energy and about 15% at 6400 MeV, mostly due to contributions by electrons, followed by positions. At 6400 MeV, the dose contributions from pions and muons have been estimated to about 5% which are not considered in the current dose functions. But the resulting total dose induced by an SEP or GCR spectra is not altered much. Based on a typical power-law SEP spectra with the energy-dependent flux of I(E)=I0*(E/E0)-γ where E0 is 500 MeV, I0 is 0.1/MeV/sec/sr/cm2, and $\gamma$ is 2.5, we estimated the total dose rate also including secondary pions and muons and particles below 1 MeV. The total dose rate is about 5% larger than the results based on the dose functions provided here. For GCR particles which have a much bigger high energy component, this difference is slightly bigger, that is, 15% for dose rate and 25% for dose equivalent rate. Besides, it is worth noting that when considering the full range of GCR particles, the proton and 4He ion combined contribution to the total dose (including also heavier GCR ions) is about 90% and about 80% to the total dose equivalent (Matthiä et al., 2016).

4 The RADMAREE Implementation

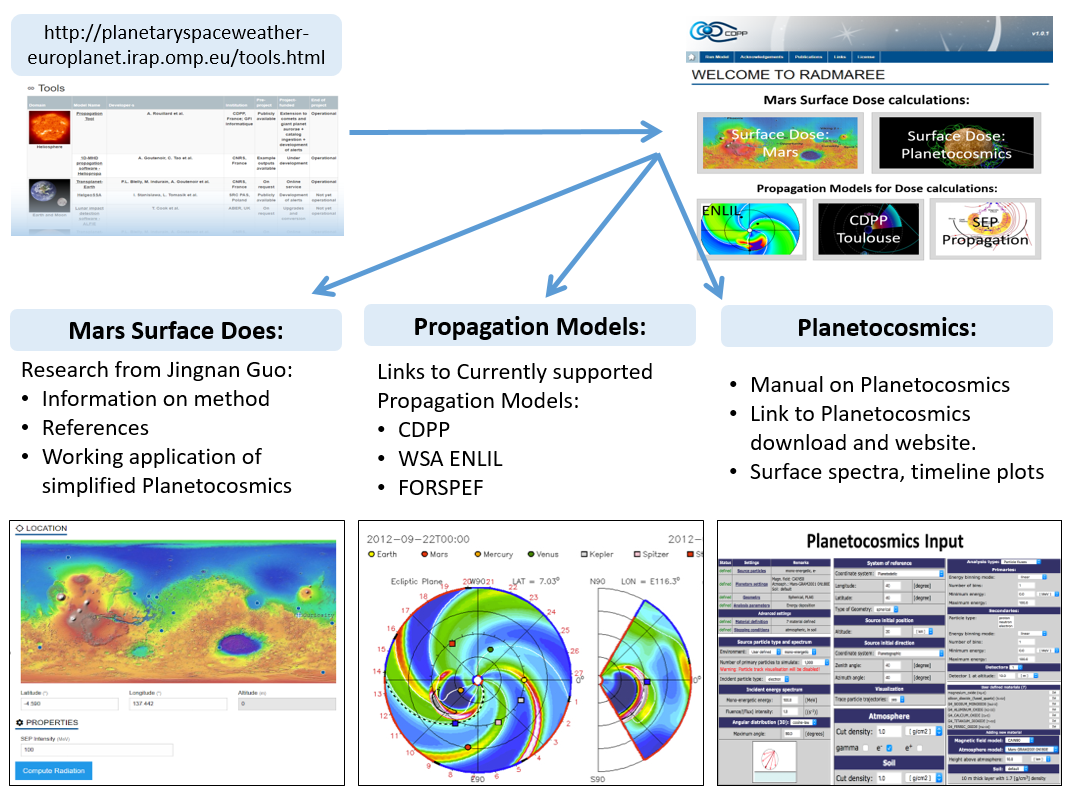

RADMAREE (RADiation MArtian Environment) is a simple to use application providing a quick and relatively accurate estimation of the radiation dose on the Martian surface. It is a facility supplied by CDPP and hosted at IRAP as supported by Europlanet RI at http://radmaree.irap.omp.eu/. As shown in Figure 5, RADMAREE is part of an integrated suite of tools developed under the Europlanet RI PSWS activity (http://planetaryspaceweather-europlanet.irap.omp.eu/tools.html ) where a number of other tools relevant for understanding and predicting the Martian space weather environment are also provided.

At the moment of writing this article, the service predicts the surface radiation dose due to a given SEP spectra with a power-law shape in the energy range of $\sim$ 100-800 MeV. This is based on the empirical linear correlation of the SEP intensity and surface dose as obtained by Guo et al. (2018c) shown in Figure 7. With the implementation of the ready functions obtained in this work, a more accurate calculation of the surface dose can be achieved without requiring the energy range and shape of the input SEP spectra. In fact, these ready-to-go functions can be used to fold with any given SEP or GCR proton and helium ion spectra for obtaining the radiation dose on the surface of Mars and also at different depth of the atmosphere which may be relevant for different Martian seasons or different locations on the planet.

5 Summary and Conclusions

In order to prepare for future manned and robotic missions to Mars, especially during extreme and elevated conditions such as an SEP event, we have carried out detailed GEANT4 Monte Carlo simulations of particle interactions within the Martian atmospheric and regolith environment. We have calculated and obtained some ready-to-go functions which can be used to quickly convert any given SEP or GCR proton and helium ion spectra to the radiation dose on the surface of Mars and also at different depth of the atmosphere. These functions will be soon integrated into the RADMAREE under the Europlanet project which can be easily accessed by the public as explained in Section 4.

The dependence of these functions on the primary particle energy and the Martian atmospheric depth also reveals interesting physics of the particle interaction process with the Martian atmosphere and regolith. Lower energy primary particles undergo strong shielding effect by the atmosphere while higher energy particles have more spallation and fragmentation interactions generating secondaries in the atmosphere at the surface. Therefore with the Martian atmosphere, the radiation dose resulted from all secondaries induced by such a high energy primary particle may exceed the deep space dose of this primary particle. This highlights the importance of better detecting and modeling the high energy component (larger than $\sim$ GeV/nuc) in the GCR and SEP spectra for mitigating the Martian surface radiation environment with optimized shielding in the future exploration missions.

Acknowledgements.

The work is supported by DLR and DLR’s Space Administration grant numbers 50QM0501, 50QM1201 and 50QM1701 to the Christian Albrechts University, Kiel. M.G., D.M. and Z.L.P. are supported by Europlanet RI which also supported some travel for J.G. R.F.W.S., J.G. and M.G. acknowledge the International Space Science Institute, which made part of the collaborations in this paper through the ISSI International Team 353 “Radiation Interactions at Planetary Bodies”. The authors and the editor thank Fabiana Da Pieve and an anonymous referee for their assistance in evaluating this paper.
