Evidence for a merger induced shock wave in ZwCl\,0008.8+5215 with {\it Chandra} and {\it Suzaku}

TL;DR

This study provides X-ray evidence for a merger-induced shock wave in galaxy cluster ZwCl 0008.8+5215, correlating with radio relics and revealing complex shock and plasma re-acceleration phenomena.

Contribution

First detailed X-ray analysis confirming a shock wave associated with a radio relic in ZwCl 0008.8+5215, linking radio and X-ray observations of merger shocks.

Findings

Detected a shock at the western relic with Mach number ~1.5 from density jump.

Measured Mach numbers from temperature jumps consistent with radio estimates.

Identified a merger cold front behind the western shock.

Abstract

We present the results from new deep {\it Chandra} ($\sim410$~ks) and {\it Suzaku} ($\sim180$ ks) observations of the merging galaxy cluster ZwCl\,0008.8+5215 ($z=0.104$). Previous radio observations revealed the presence of a double radio relic located diametrically west and east of the cluster center. Using our new {\it Chandra} data, we find evidence for the presence of a shock at the location of the western relic, RW, with a Mach number $\mathcal{M}_{S_X}=1.48^{+0.50}_{-0.32}$ from the density jump. We also measure $\mathcal{M}_{T_X}=2.35^{+0.74}_{-0.55}$ and $\mathcal{M}_{T_X}=2.02^{+0.74}_{-0.47}$ from the temperature jump, with {\it Chandra} and {\it Suzaku} respectively. These values are consistent with the Mach number estimate from a previous study of the radio spectral index, under the assumption of diffusive shock acceleration ($\mathcal{M}_{\rm RW}=2.4^{+0.4}_{-0.2}$). Interestingly, the western radio relic does not entirely trace the X-ray shock. A possible explanation is that the relic traces fossil plasma from nearby radio galaxies which is re-accelerated at the shock. For the eastern relic we do not detect an X-ray surface brightness discontinuity, despite the fact that radio observations suggest a shock with $\mathcal{M}_{\rm RE}=2.2^{+0.2}_{-0.1}$. The low surface brightness and reduced integration time for this region might have prevented the detection. {\it Chandra} surface brightness profile suggests $\mathcal{M}\lesssim1.5$, while {\it Suzaku} temperature measurements found $\mathcal{M}_{T_X}=1.54^{+0.65}_{-0.47}$. Finally, we also detect a merger induced cold front on the western side of the cluster, behind the shock that traces the western relic.

Figures

Tables

Table 1. Table 1: Chandra ObsIDs list.

ObsID	Obs. Date	CCD on	Exp. Time	Filtered Exp. Time
	[yyyy-mm-dd]		[ks]	[ks]
15318	2013-06-10	0, 1, 2, 3, 6	29.0	28.9
17204	2015-03-27	0, 1, 2, 3, 6, 7	6.4	5.6
17205	2015-03-17	0,1, 2, 3, 6, 7	6.4	5.9
18242	2016-11-04	0, 1, 2, 3	84.3	83.9
18243	2016-10-26	0, 1, 2, 3, 6, 7	30.6	30.2
18244	2016-10-22	0, 1, 2, 3, 6	31.7	31.2
19901	2016-10-17	0, 1, 2, 3, 6	31.8	31.5
19902	2016-10-19	0, 1, 2, 3, 6	65.7	65.2
19905	2016-10-29	0, 1, 2, 3, 6, 7	37.8	37.6
19916	2016-11-05	0, 1, 2, 3	90.2	90.1

Table 2. Table 2: Suzaku observations and exposure times.

Sequence ID	Obs. Date	Exp. Time	Filtered Exp. Time
	[yyyy-mm-dd]	[ks]	[ks]
809118010	2014-07-06	119.8	98.6
809117010	2014-07-09	102.3	84.6

Table 3. Table 3: Wedges information (columns 1 to 4) and best-fit parameters (columns 5 to 8) from the surface brightness profiles shown in Figures 5 , 6 and 7 . A broken power-law model has been assumed (see Eq.  2 ) for each sector.

Sector	$\Delta \theta$	Min. count per bin	$e$	${\alpha }_1$	${\alpha }_2$	$r_{\mathrm{edge}}$	$𝒞$
	[degree]					[arcmin]
West	98	70	1.14	${2.20}_{-0.10}^{+0.10}$	${3.11}_{-1.75}^{+2.40}$	${6.88}_{-0.26}^{+0.15}$	${1.70}_{-0.65}^{+0.91}$
above RW†	36	50	1.14	${0.91}_{-0.56}^{+0.37}$	${2.96}_{-1.35}^{+0.22}$	${6.35}_{-0.47}^{+0.66}$	${1.44}_{-0.36}^{+0.97}$
on RW†	30	25	1.14	${2.38}_{-0.25}^{+0.25}$	${2.50}_{-1.09}^{+0.64}$	${6.89}_{-0.16}^{+0.17}$	${2.99}_{-0.86}^{+0.90}$
below RW†	32	30	1.14	${1.44}_{-0.33}^{+0.27}$	${2.82}_{-1.37}^{+0.37}$	${6.53}_{-1.09}^{+0.25}$	${1.96}_{-0.94}^{+1.30}$
East‡	107	70	1.14	–	–	7.8	$\lesssim 1.7$
Bullet	60	40	1.42	$-{0.24}_{-0.29}^{+0.23}$	${1.17}_{-0.07}^{+0.06}$	${0.99}_{-0.02}^{+0.02}$	${2.06}_{-0.19}^{+0.24}$

Table 4. Table 4: Best-fit temperature profiles for the X-ray discontinuities. A phabs*APEC model with fixed N H = 0.311 × 10 22 subscript 𝑁 H 0.311 superscript 10 22 N_{\rm H}=0.311\times 10^{22} cm -2 and A = 0.3 𝐴 0.3 A=0.3 Z ⊙ has been assumed for the analysis.

Sector	Instrument	$kT$		${}_{}{}^{\mathrm{stat}}/_{\mathrm{dof}}^{}$		$ℛ$	${ℳ}_{T_X}$	${ℳ}_{S_X}^{\diamond }$
		[keV]
$R_{500}$	Chandra	$4.83\pm 0.06$		${}_{}{}^{4214.75}/_{3785}^{}$		–	–	–
West	Chandra	${8.55}_{-1.14}^{+1.35\left(a\right)}$	${3.01}_{-0.70}^{+1.12\left(b\right)}$	${}_{}{}^{3643.65}/_{3964}^{}$(a)	${}_{}{}^{1182.10}/_{1258}^{}$ (b)	${2.61}_{-0.69}^{+1.03}$	${2.35}_{-0.55}^{+0.74}$	${1.48}_{-0.32}^{+0.50}$
	Suzaku	${4.67}_{-0.78}^{+1.13\left(a\right)}$	${2.38}_{-0.21}^{+0.23\left(b\right)}$	${}_{}{}^{47.39}/_{54}^{}$(a)	${}_{}{}^{208.61}/_{228}^{}$(b)	${2.05}_{-0.43}^{+0.77}$	${2.02}_{-0.43}^{+0.74}$	–
above RW	Chandra	–	–	–	–	–	–	${1.30}_{-0.17}^{+0.46}$
on RW	Chandra	–	–	–	–	–	–	${2.98}_{-0.85}^{+2.62}$
below RW	Chandra	–	–	–	–	–	–	${1.70}_{-0.55}^{+0.79}$
East	Chandra	–	–	–	–	–	–	$\lesssim {1.5}^{‡}$
on RE	Suzaku	${3.71}_{-0.28}^{+0.30}$(a)	${2.30}_{-0.30}^{+0.41}$(b)	${}_{}{}^{309.86}/_{337}^{}$(a)	${}_{}{}^{171.82}/_{162}^{}$(b)	${1.54}_{-0.26}^{+0.39}$	${1.54}_{-0.47}^{+0.65}$	–
Bullet	Chandra	${4.61}_{-0.33}^{+0.34\left(a\right)}$	${8.99}_{-1.37}^{+2.17\left(b\right)}$	${}_{}{}^{1250.23}/_{1602}^{}$(a)	${}_{}{}^{1059.42}/_{1309}^{}$ (b)	${0.56}_{-0.09}^{+0.10}$	–	–

Equations

$$\displaystyle n(r)=\begin{cases}\mathcal{C}n_{0}\bigg{(}\dfrac{r}{r_{\rm edge}}\bigg{)}^{-\alpha_{1}}\,,\quad&r\leq r_{\rm edge}\\[12.0pt] n_{0}\bigg{(}\dfrac{r}{r_{\rm edge}}\bigg{)}^{-\alpha_{2}}\,,\quad&r>r_{\rm edge}\,.\end{cases}$$

$${\mathcal{M}}_{S_X}=\sqrt{\frac{2\mathcal{C}}{\gamma +1-\mathcal{C}(\gamma -1)}}+sys{t}_{S_X},$$

$${\mathcal{M}}_{T_X}=\sqrt{\frac{(8\mathcal{R}-7)+\sqrt{(8\mathcal{R}-7{)}^2+15}}{5}}+sys{t}_{T_X},$$

$${\mathcal{M}}_{\mathrm{radio}}=\sqrt{\frac{2{\alpha }_{\mathrm{inj}}+3}{2{\alpha }_{\mathrm{inj}}-1}}.$$

$$\eta ={\left[\frac{1}{2}{\rho }_2{v}_{\mathrm{shock}}^3\left(1-\frac{1}{{\mathcal{C}}^2}\right)\frac{B^2}{B^2+B_{\mathrm{CMB}}^2}S\right]}^{-1}\Psi (\mathcal{M})L_{\mathrm{sync}},$$

Full text

galaxies: clusters: individual (ZwCl 0008.8+5215) – galaxies: clusters: intra-cluster medium – large-scale structure of Universe – X-ray: galaxies: clusters

1 Introduction

Galaxy clusters grow via mergers of less massive systems in a hierarchical process governed by gravity (e.g. Press & Schechter, 1974; Springel et al., 2006). Evidence of energetic ($\sim 10^{64}$ erg) merger events has been revealed, thanks to the Chandra’s high-angular resolution (i.e. $0.5^{\prime\prime}$), in the form of sharp X-ray surface brightness edges, namely shocks and cold fronts (for a review see Markevitch & Vikhlinin, 2007). Both shocks and cold fronts are contact discontinuities, but differ because of the sign of the temperature jump and because the pressure profile is continuous across a cold front. Moreover, while large-scale shocks are detected only in merging systems (e.g. Markevitch et al., 2002, 2005; Markevitch, 2006; Russell et al., 2010; Macario et al., 2011; Ogrean et al., 2016; van Weeren et al., 2017a), cold fronts have been commonly detected also in cool-core clusters (e.g. Mazzotta et al., 2001; Markevitch et al., 2001, 2003; Sanders et al., 2005; Ghizzardi et al., 2010). Shocks are generally located in the cluster outskirts, where the thermal intracluster medium (ICM) emission is faint. Hence they are difficult to detect. Constraints on the shock properties, i.e., the temperature jump, can be provided by the Suzaku satellite due to its very low background (though its angular resolution is limited, i.e. 2 arcmin; e.g. Akamatsu et al., 2015). Other complications arise when shocks and cold fronts are not seen edge-on, i.e., the merger axis is not perfectly located in the plane of the sky. In such a case, projection effects reduce the surface brightness jumps, potentially hiding the discontinuity.

Merger events can also be revealed in the radio band, via non-thermal synchrotron emission from diffuse sources not directly related to cluster galaxies. Indeed, part of the energy released by a cluster merger may be used to amplify the magnetic field and to accelerate relativistic particles. Results of such phenomena are the so-called radio relics and halos, depending on their position in the cluster and on their morphological, spectral and polarization properties (for reviews see Feretti et al., 2012; Brunetti & Jones, 2014).

ZwCl 0008.8+5215 (hereafter ZwCl 0008, $z=0.104$, Golovich et al., 2017) is an example of galaxy cluster whose merging state was firstly observed in the radio band. Giant Meterwave Radio Telescope (GMRT) at 240 and 610 MHz and the Westerbrook Synthesis Radio Telescope (WSRT) observations in the 1.4 GHz band revealed the presence of a double radio relic, towards the east and the west of the cluster center (van Weeren et al., 2011b). The radio analysis, based on the spectral index, suggests a weak shock, with Mach numbers $\mathcal{M}\sim 2$. Interestingly, no radio halo has been detected so far in the cluster, despite its disturbed dynamical state (Bonafede et al., 2017). A recent optical analysis with the Keck and Subaru telescopes showed a very well defined bimodal galaxy distribution, confirming the hypothesis of a binary merger event (Golovich et al., 2017). This analysis, in combination with polarization studies at 3.0 GHz (Golovich et al., 2017), 4.85 and 8.35 GHz (Kierdorf et al., 2017), and simulations (Kang et al., 2012), sets an upper limit to the merger axis of $38^{\circ}$ with the respect to the plane of the sky. The masses of the two sub-clusters, obtained via weak lensing analysis, are $M_{200,1}=5.73^{+2.75}_{-1.81}\times 10^{14}$ M⊙ and $M_{200,2}=1.21^{+1.43}_{-0.63}\times 10^{14}$ M⊙, corresponding to a mass ratio of about 5. N-body/hydrodynamical simulations by Molnar & Broadhurst (2017) suggested that the cluster is currently in the outgoing phase, with the first-core crossing occurred less then 0.5 Gyr ago.

The detection of radio relics strongly suggests the presence of shock fronts (e.g. Giacintucci et al., 2008; van Weeren et al., 2010, 2011a; de Gasperin et al., 2015; Pearce et al., 2017). A previous shallow (42 ks) Chandra observation revealed the disturbed morphology of the ICM, but could not unambiguously confirm the presence of shocks (Golovich et al., 2017). In this paper, we present results from deep Chandra observations, totaling $\sim 410$ ks, of the galaxy cluster. We also complement the analysis with Suzaku observations, totaling $\sim 183$ ks.

The paper is organized as follows: in Sect. 2 we describe the Chandra and Suzaku observations and data reduction; a description of the X-ray morphology and temperature map of the cluster, based on the Chandra observations, are provided in Sect. 3; X-ray surface brightness profiles and temperature measurements are presented in Sect. 4. We end with a discussion and a summary in Sects. 5 and 6. Throughout the paper, we assume a standard $\Lambda$CDM cosmology, with $H_{0}=70$ km s*-1* Mpc*-1*, $\Omega_{m}=0.3$ and $\Omega_{\Lambda}=0.7$. This translates to a luminosity distance of $D_{\rm L}=483.3$ Mpc, and a scale of 1.85 $\rm{kpc}/^{\prime\prime}$ at the cluster redshift, $z=0.104$. All errors are given as $1\sigma$.

2 Observations and data reduction

2.1 Chandra observations

We observed ZwCl 0008 with the Advanced CCD Imaging Spectrometer (ACIS) on Chandra between 2013 and 2016 for a total time of 413.7 ks. The observation was split into ten single exposures (see the ObsIDs list in Table 1). The data were reduced using the chav software package111http://hea-www.harvard.edu/~alexey/CHAV/ with CIAO v4.6 (Fruscione et al., 2006), following the processing described in Vikhlinin et al. (2005) and applying the CALDB v4.7.6 calibration files. This processing includes the application of gain maps to calibrate photon energies, filtering out counts with ASCA grade 1, 5, or 7 and bad pixels, and a correction for the position-dependent charge transfer inefficiency (CTI). Periods with count rates with a factor of 1.2 above and 0.8 below the mean count rate in the 6–12 keV band were also removed. Standard blank-sky files were used for background subtraction. The resulting filtered exposure time is 410.1 ks (i.e. 3.6 ks were discarded).

The final exposure corrected image was made in the 0.5–2.0 keV band by combining all the ObsIDs and using a pixel binning of a factor of four, i.e. $2^{\prime\prime}$. Compact sources were detected in the 0.5–7.0 keV band with the CIAO task wavdetect using scales of 1, 2, 4, 8 pixels and cutting at the $3\sigma$ level. Those compact sources were removed from our spectral and spatial analysis.

2.2 Suzaku observations

Suzaku observations of ZwCl 0008 were taken on 6 and 9 July 2014, with two different pointings, to the east to the west of the cluster center (IDs: 809118010 and 809117010, respectively; see Table 2). Standard data reduction has been performed: data-screening and cosmic-ray cut-off ri gidity (COR2 $>$ 6 GV to suppress the detector background have been applied (see Akamatsu et al., 2015, 2017; Urdampilleta et al., 2018, for a detailed description of the strategy). We made use of the high-resolution Chandra observation for the point source identification. The final cleaned exposure times are 99 and 85 ks (on the east and west pointing, respectively).

3 Results

3.1 Global properties

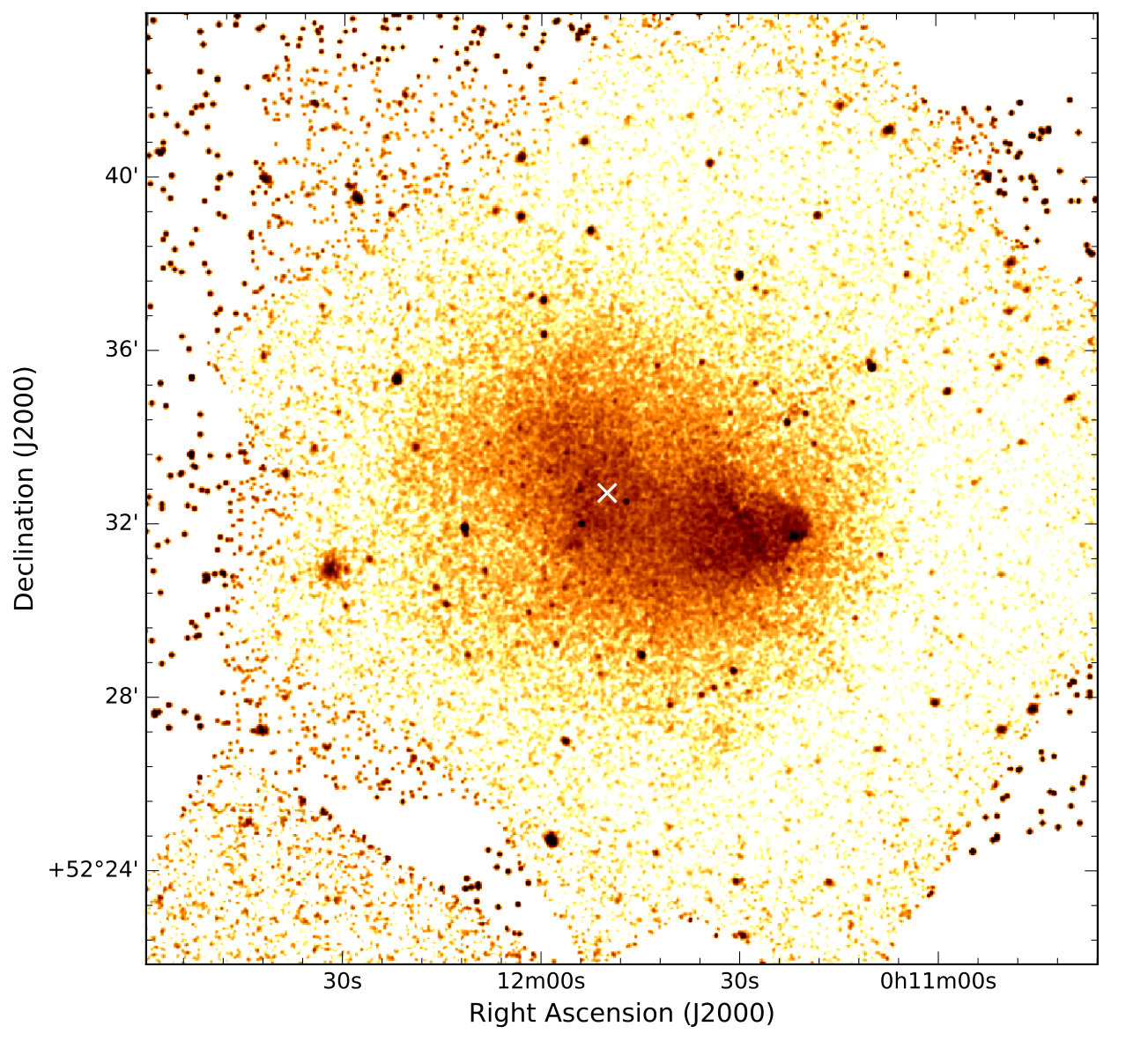

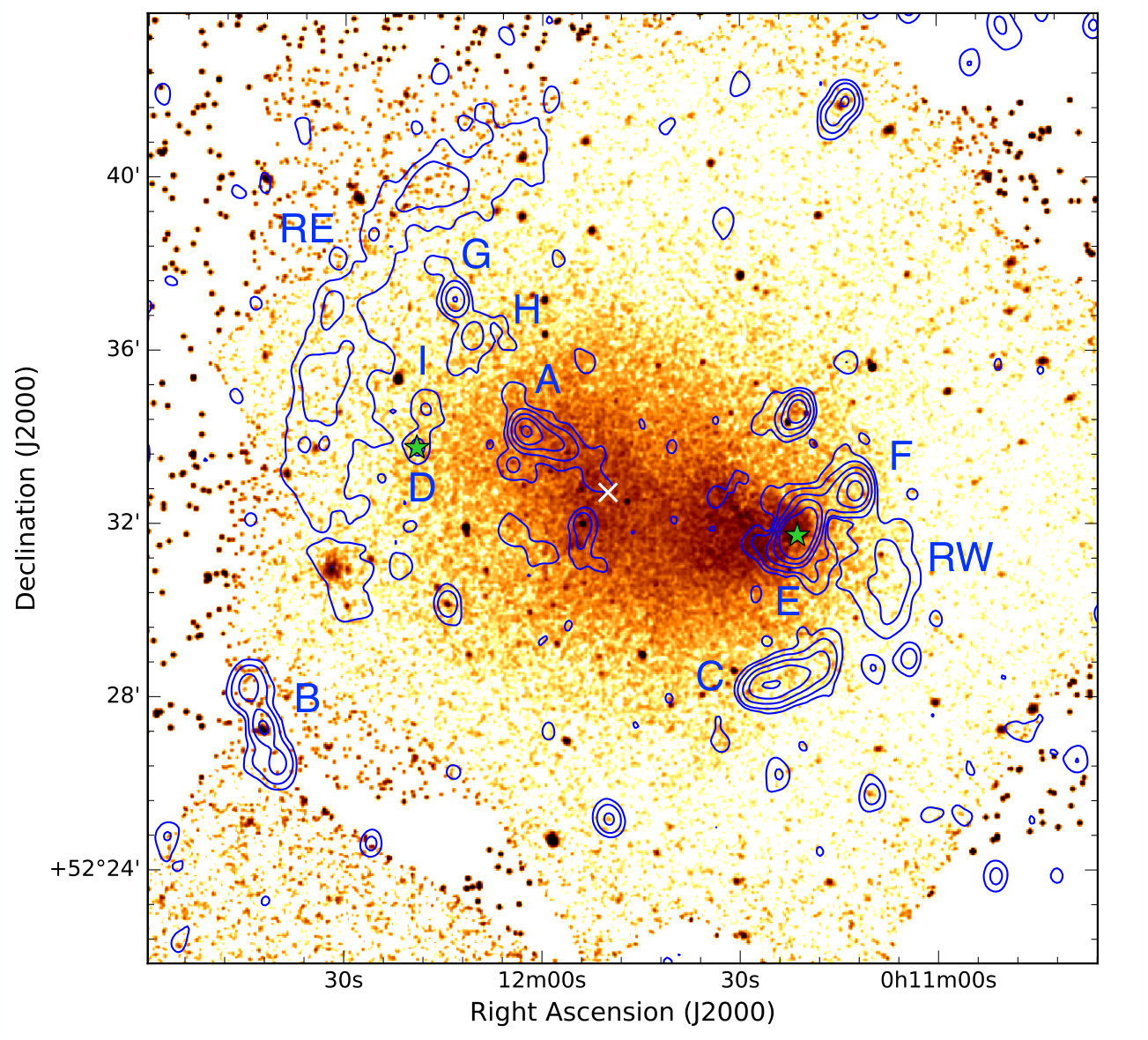

In the left panel in Fig. 1, we present the background-subtracted, vignetting- and exposure-corrected 0.5–2.0 keV Chandra image of ZwCl 0008.

The X-ray emission shows a particularly disturbed morphology: it is elongated from east to west, confirming the merger scenario proposed in the previous studies (e.g. van Weeren et al., 2011b; Golovich et al., 2017; Molnar & Broadhurst, 2017). The bright, dense remnant core originally associated with the wester BCG lies westward from the cluster center222The cluster center is taken to be equidistant between the two BCGs, i.e. ${\rm RA=0^{h}11^{m}50^{s}.024}$ and ${\rm DEC=+52^{\circ}32^{\prime}37^{\prime\prime}.98}$, J2000 (see white cross in Fig. 1).. It has been partly stripped of its material forming a tail of gas towards the north-east. It appears to have substantially disrupted the ICM of the eastern sub-cluster and shows a sharp, bullet-like surface brightness edge, similarly to the one found in the Bullet Cluster (Markevitch et al., 2002; Markevitch, 2006) and in Abell 2126 (Russell et al., 2010, 2012). As was also pointed out by Golovich et al. (2017), the remnant core is also coincident with the BCG of the western sub-cluster (marked by a green star symbol in the right panel of Fig. 1). This is not the case for the eastern sub-cluster’s BCG, which is clearly offset from the X-ray peak (green star in the east in the right panel in Fig. 1). A surface brightness discontinuity, extending about 1 Mpc, is seen in the western part of the cluster (left panel in Fig. 1). The location of the western edge is coincident with one of the two radio relics previously detected. However, this relic (hereafter RW, van Weeren et al., 2011b) appears to have a much smaller extent than the X-ray discontinuity. To the east, the other radio relic (hereafter RE, van Weeren et al., 2011b) is located, symmetrically to RW with respect to the cluster center. This relic is $\sim 1.4$ Mpc long, but no clear association with an X-ray discontinuity has been found (see right panel in Fig. 1).

We determined the X-ray properties of the whole cluster by extracting the spectrum from a circular region with a radius of 0.9 Mpc (approximately $R_{500}$, see Golovich et al., 2017) centered between the two BCGs (see the black dashed circle in the right panel in Fig. 3). The cluster spectrum was fitted in the 0.7–7.0 keV energy band with XSPEC v12.9.1u (Arnaud, 1996). We used a phabsAPEC model, i.e. a single temperature (Smith et al., 2001) plus the absorption from the hydrogen column density ($N_{\rm H}$) of our Galaxy. We fixed the abundance to $A=0.3$ Z⊙ (abundance table of Lodders et al., 2009) and $N_{\rm H}=0.311\times 10^{22}$ cm-2*333Calculation from http://www.swift.ac.uk/analysis/nhtot/. The value of Galactic absorption takes the total, i.e. atomic (HI) and molecular (H2), hydrogen column density into account (Willingale et al., 2013). Due to the large number of counts in the cluster, the spectrum was grouped to have a minimum of 50 counts per bin, and the $\chi^{2}$ statistic was adopted. Standard blank-sky background was used and subtracted from the spectrum of each ObsID.

We found a global cluster temperature and an unabsorbed luminosity444Since we are fitting simultaneously different ObsID observations, we use the longest exposure ObsID (i.e. 19916, see Table 1) to obtain the cluster luminosity. of $kT_{500}=4.83\pm 0.06$ keV and $L_{\rm[0.1-2.4~{}keV],500}=1.12\pm 0.09\times 10^{44}$ erg s*-1*, respectively. We also repeated the fit, leaving $N_{\rm H}$ free to vary (while the abundance was kept fixed). A resulting temperature of $kT_{500}=4.50\pm 0.10$ keV and column density of $N_{\rm H}=0.342\pm 0.007\times 10^{22}$ cm*-2* were found, consistent with the previous results. Our analysis also agree with the results by Golovich et al. (2017)555Golovich et al. (2017) found $kT_{500}=4.9\pm 0.13$ keV, using $A=0.3$ Z⊙ and $N_{\rm H}=0.201\times 10^{22}$ cm*-2* fixed, with $N_{\rm H}$ the weighted average value from the Leiden/Argentine/Bonn (LAB) survey (Kalberla et al., 2005)..

3.2 Temperature map

We used CONTBIN (Sanders, 2006) to create the temperature map of ZwCl 0008. We divided the cluster into individual regions with a signal-to-noise ratio (S/N) of 40. As for the calculation of the global temperature, we removed the contribution of the compact sources, and performed the fit with XSPEC12.9.1u in the 0.7–7.0 keV energy band. The same parameters as in Sect. 3.1 were used (i.e. $A=0.3$ Z⊙ and $N_{\rm H}=0.311\times 10^{22}$ cm*-2*), and we assumed $\chi^{2}$ statistics. The resulting temperature map, and the corresponding uncertainties, are displayed in Fig. 2 (left and right panel, respectively).

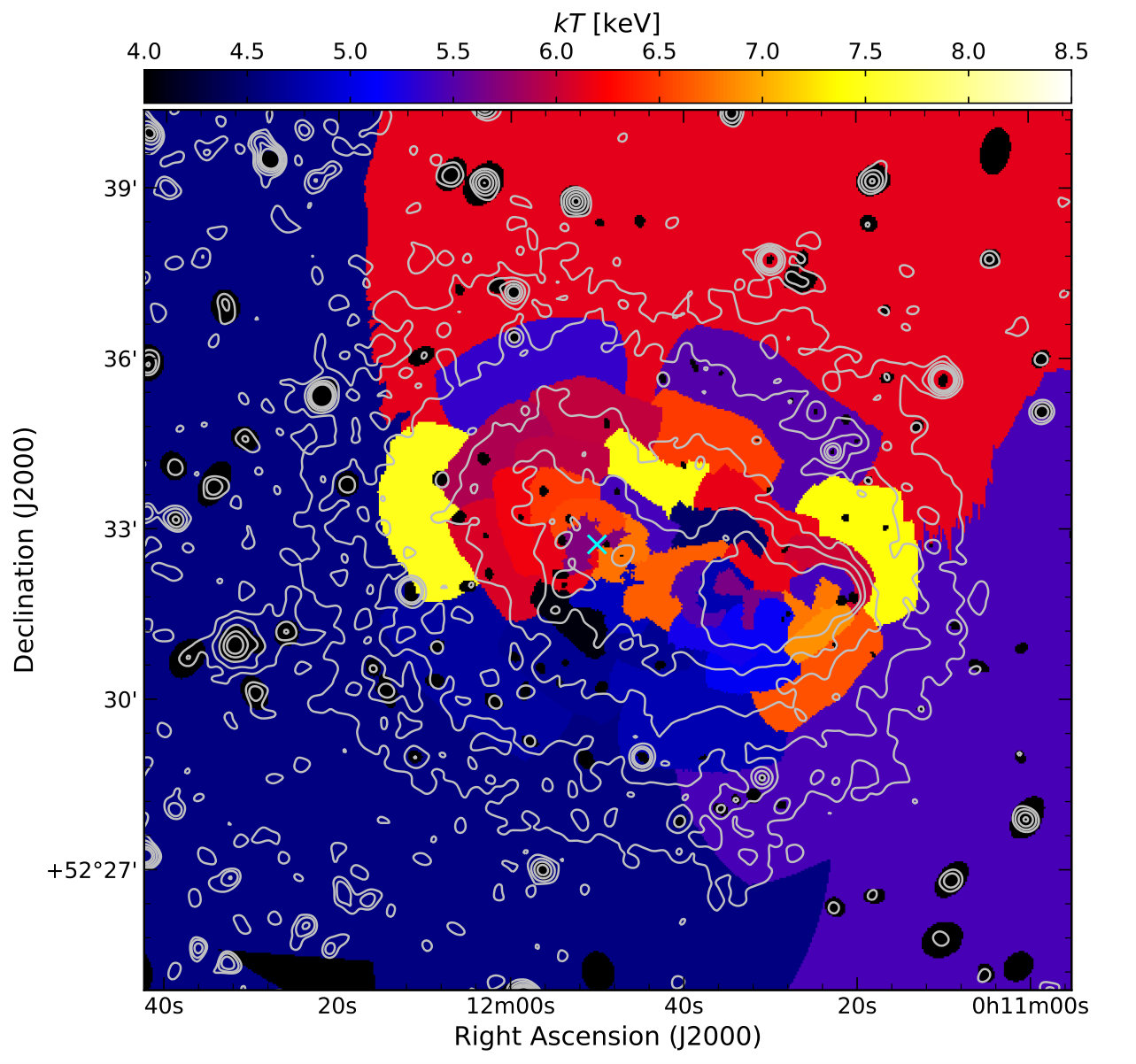

The disturbed morphology of the cluster is highlighted by the temperature variation in the different regions. Overall, we found that the southeastern part of the cluster appears to have lower temperatures than the northwestern one ($kT_{\rm SE}\sim 4.5$ keV and $kT_{\rm NW}\sim 6.5$ keV). We measure a region of cold gas ($kT\sim 5.5$ keV), in coincidence with the bullet, and a hot region ($kT\sim 7.0$ keV) ahead of it, westward in the cluster outskirts. This signature is suggestive of the presence of a cold front. Unfortunately, the S/N required for the temperature map is too high for the identification of any discontinuity at the location of the western outermost edge we see in Fig. 1. Additional hot regions ($kT\sim 7.5$ keV) are found eastward and northwestward of the cluster center.

4 A search for shocks and cold front

4.1 Characterization of the discontinuities

The X-ray signatures described in Section 3.1, and displayed in Fig. 1, are characteristic of a cluster merger event. To confirm the presence of surface brightness discontinuities, we analyzed the surface brightness profile in sectors around the relics. We assume that the X-ray emissivity is only proportional to the density squared ($S_{X}\propto n^{2}$), and that the underlying density profile is modeled by a broken power-law model (Markevitch & Vikhlinin, 2007, and references therein):

[TABLE]

Here, $\mathcal{C}\equiv n_{1}/n_{2}$ is the compression factor at the jump position (i.e. $r_{\rm edge}$), $n_{0}$ the density immediately ahead of the putative outward-moving shock front, and $\alpha_{1}$ and $\alpha_{2}$ the slopes of the power-law fits. Throughout this paper, the subscripts 1 and 2 are referred to the region behind and ahead the discontinuity (see the right panel in Fig. 3), namely the down- and up-stream regions, respectively. All parameters are left free to vary in the fit. The model is then integrated along the line of sight, assuming spherical geometry and with the instrumental and sky background subtracted. The areas covered by compact sources were excluded from the fitting (see Sect. 2). The strongest requirement for the surface brightness analysis is the alignment of the sectors to match the curvature of the surface brightness discontinuities. For this purpose, elliptical sectors666The “ellipticity” of the sector, $e$, is defined as the ratio of the maximum and minimum radius (see Table 3). with different aperture angles have been chosen (see the left panel in Fig. 3). The adopted minimum number of required counts per bin are listed in Table 3.

According to this model, a surface brightness discontinuity is detected when $\mathcal{C}>1$, meaning that in the downstream region, i.e. $r\leq r_{\rm edge}$, the gas has been compressed. In the case of a shock, there is a relation between the compression factor $\mathcal{C}$ and the Mach number ($\mathcal{M}=v_{\rm shock}/c_{s}$, where $v_{\rm shock}$ is the velocity of the pre-shock gas and $c_{s}$ the sound velocity in the medium777$c_{s}=\sqrt{\dfrac{\gamma kT_{2}}{\mu m_{\rm H}}}$, where $k$ is the Boltzmann constant, $\gamma$ the adiabatic index, $\mu=0.6$ the mean molecular weight and $m_{\rm H}$ the proton mass. $kT_{2}$ is the pre-shock, i.e. unperturbed medium, temperature.), via the Rankine-Hugoniot relation (Landau & Lifshitz, 1959):

[TABLE]

where $\gamma$ is the adiabatic index of the gas, and is assumed to be $5/3$ (i.e. a monoatomic gas). The parameter $syst_{S_{X}}$ takes all the unknown uncertainties into account, e.g. projection effects, curvature of the sector, background estimation, etc. Unfortunately, all these parameters are not easily quantified, so they are embedded in the assumption of our model.

The surface brightness analysis has been performed with PyXel888https://github.com/gogrean/PyXel (Ogrean, 2017), and the uncertainties on the best-fitting parameters are determined using a Markov chain Monte Carlo (MCMC) method (Foreman-Mackey et al., 2013).

The nature of the confirmed X-ray surface discontinuities is determined by the analysis of the temperature ratio of the down- and up-stream regions, in correspondence of the edge. Shocks and cold fronts are defined to have $T_{1}/T_{2}>1$ and $T_{1}/T_{2}<1$, respectively (Markevitch & Vikhlinin, 2007). For a cold front, the jump in temperature has similar, but inverse, amplitude to the density compression. Hence, they are also characterized by pressure equilibrium across the discontinuity (i.e. $P_{1}/P_{2}=1$999$P=kn_{\rm e}T$, with $k$ the Boltzmann constant and $n_{\rm e}$ the electron density.). In case of shock front, the Rankine-Hugoniot jump conditions relate the temperature jump, $\mathcal{R}\equiv T_{1}/T_{2}$, to the Mach number (e.g. Landau & Lifshitz, 1959):

[TABLE]

where $\gamma=5/3$ has been used, as for Eq. 2. Again, $syst_{T_{X}}$ takes all the unknown temperature-related uncertainties into account, such as the variation of the metal abundance ($A$) and the Galactic absorption ($N_{\rm H}$) towards the cluster outskirts, background subtraction, etc. (for a more extensive description of the possible systematic uncertainties see Akamatsu et al., 2017).

Sectors for the radial temperature measurements have been chosen similarly to the ones used for the surface brightness analysis (see the right panel in Fig. 3), which also provides the accurate position of the edges. As for the global cluster analysis (see Sect. 3.1), we fit each spectrum with a single temperature, taking into account the Galactic absorption (phabsapec). Both the abundance and hydrogen column density were fixed, at $A=0.3$ Z⊙ and $N_{\rm H}=0.311\times 10^{22}$ cm-2*, respectively. Since the number of counts in cluster outskirts are usually low, the spectrum was grouped to have a minimum of 1 count per bin, and the Cash statistic (Cash, 1979) was adopted. The ACIS readout artifacts were not subtracted in our analysis. This does not affect the analysis, since the cluster is relatively faint and no bright compact source is contaminating the observations.

The spatial and spectral analysis results are shown in Sects. 4.2, 4.3 and 4.4 and the best-fit values reported in Tabs. 3 and 4. The corresponding MCMC “corner plots” for the distribution of the uncertainties in the fitted parameters of the surface brightness analysis are shown in Appendix A. We used the distribution on the compression factor to obtain the uncertainties on $\mathcal{M}_{S_{X}}$, while the uncertainties on $\mathcal{M}_{T_{X}}$ have been calculating with 2,000 Monte Carlo realizations of Eq. 3.

4.2 The western sector

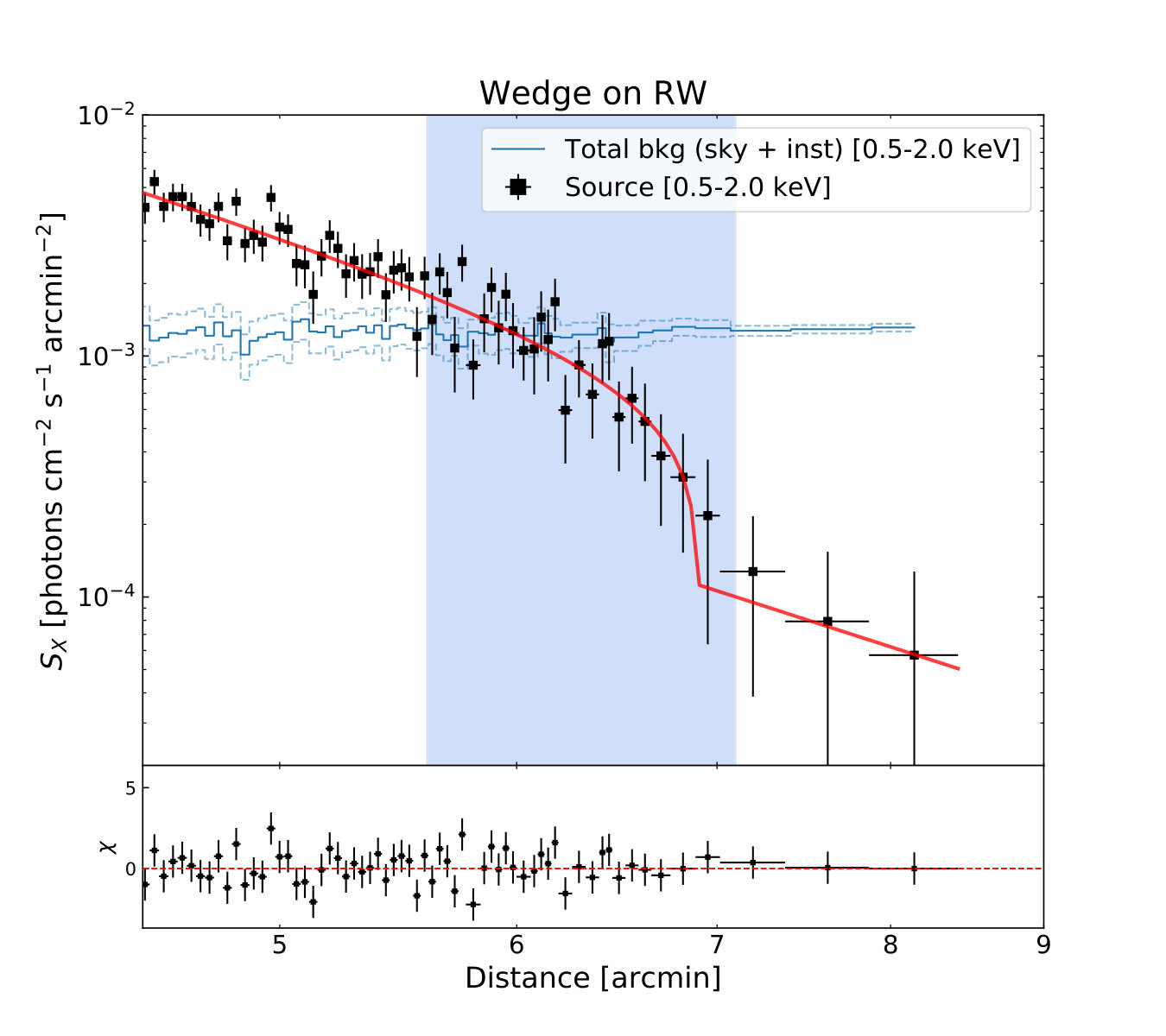

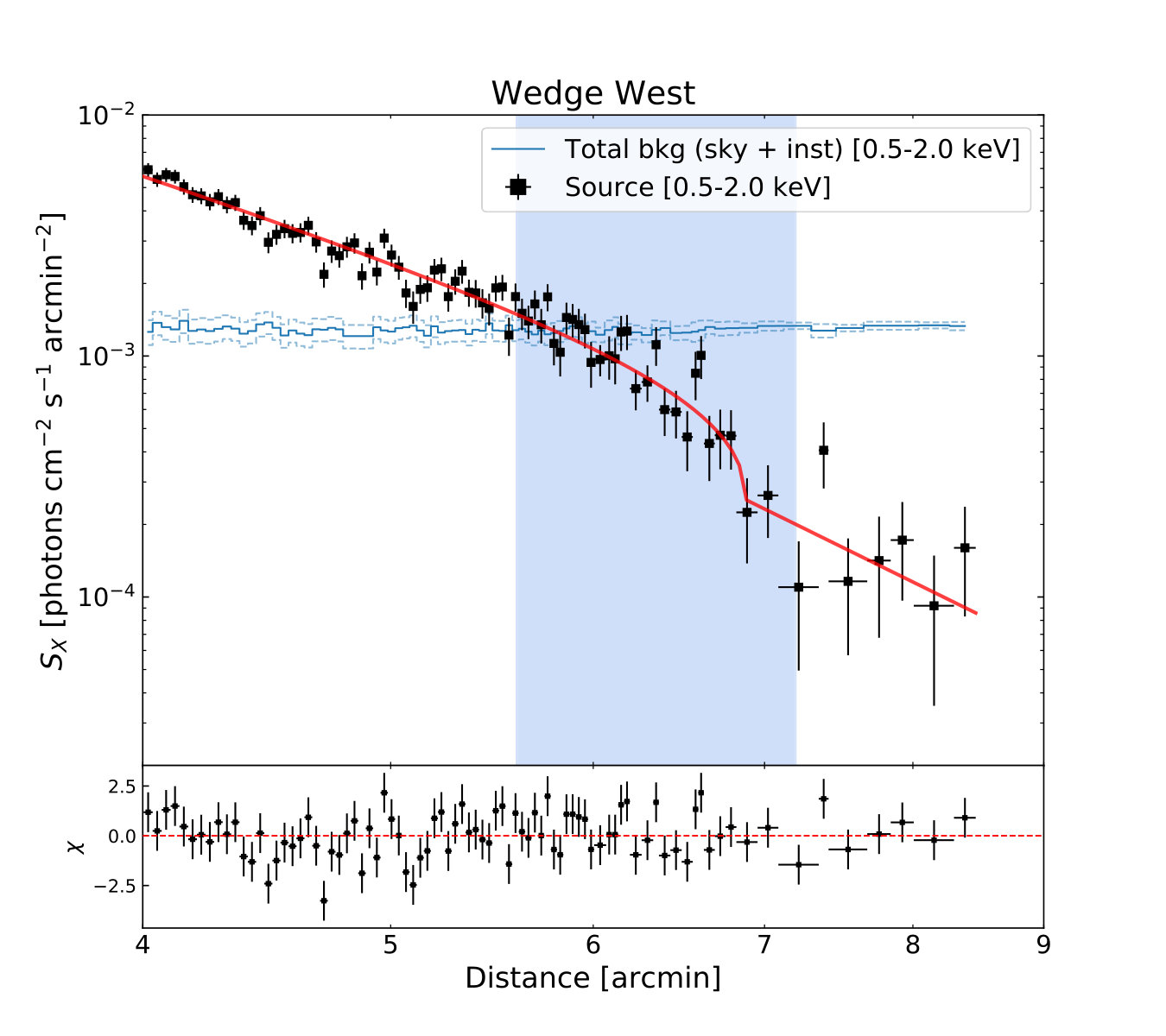

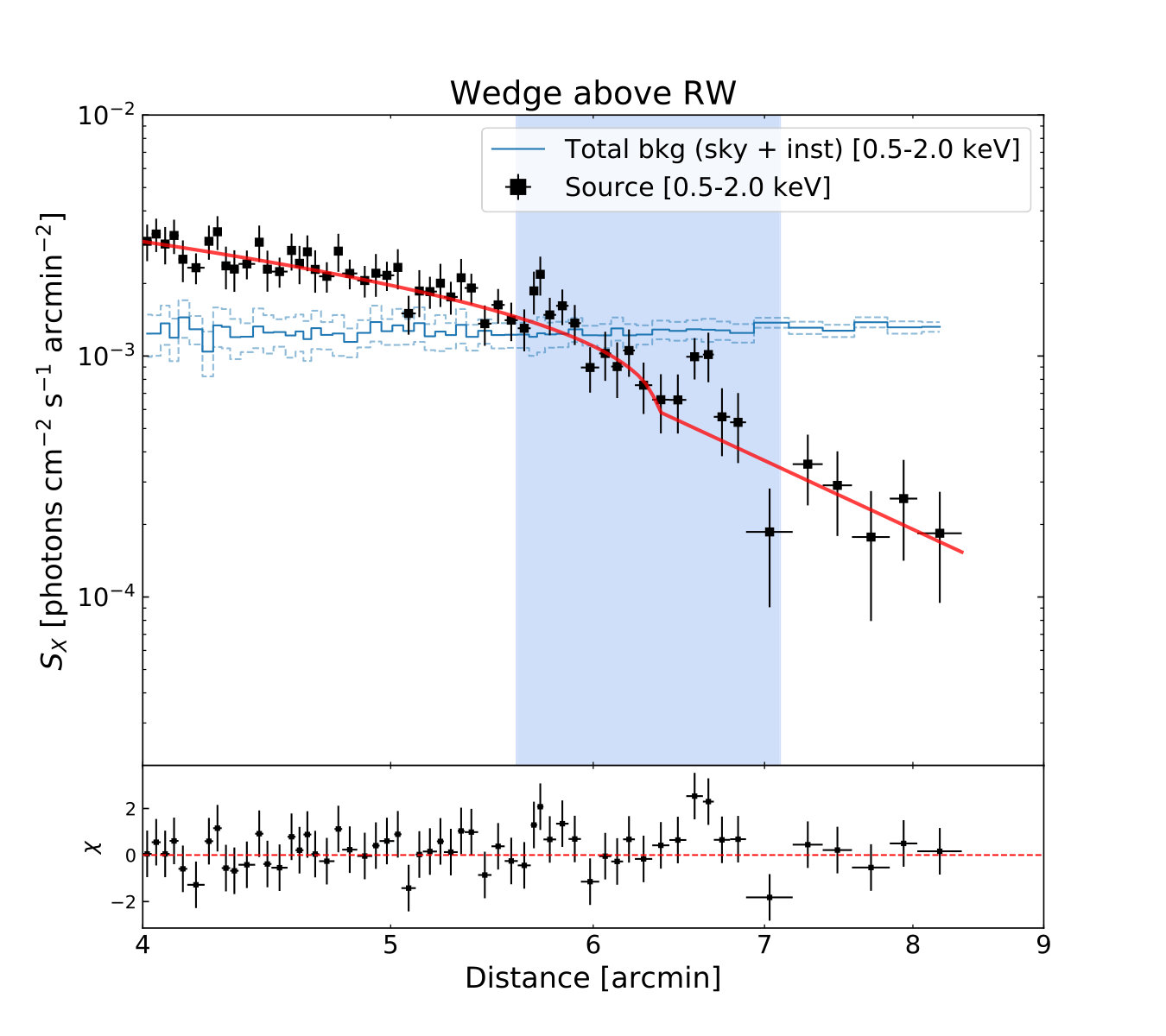

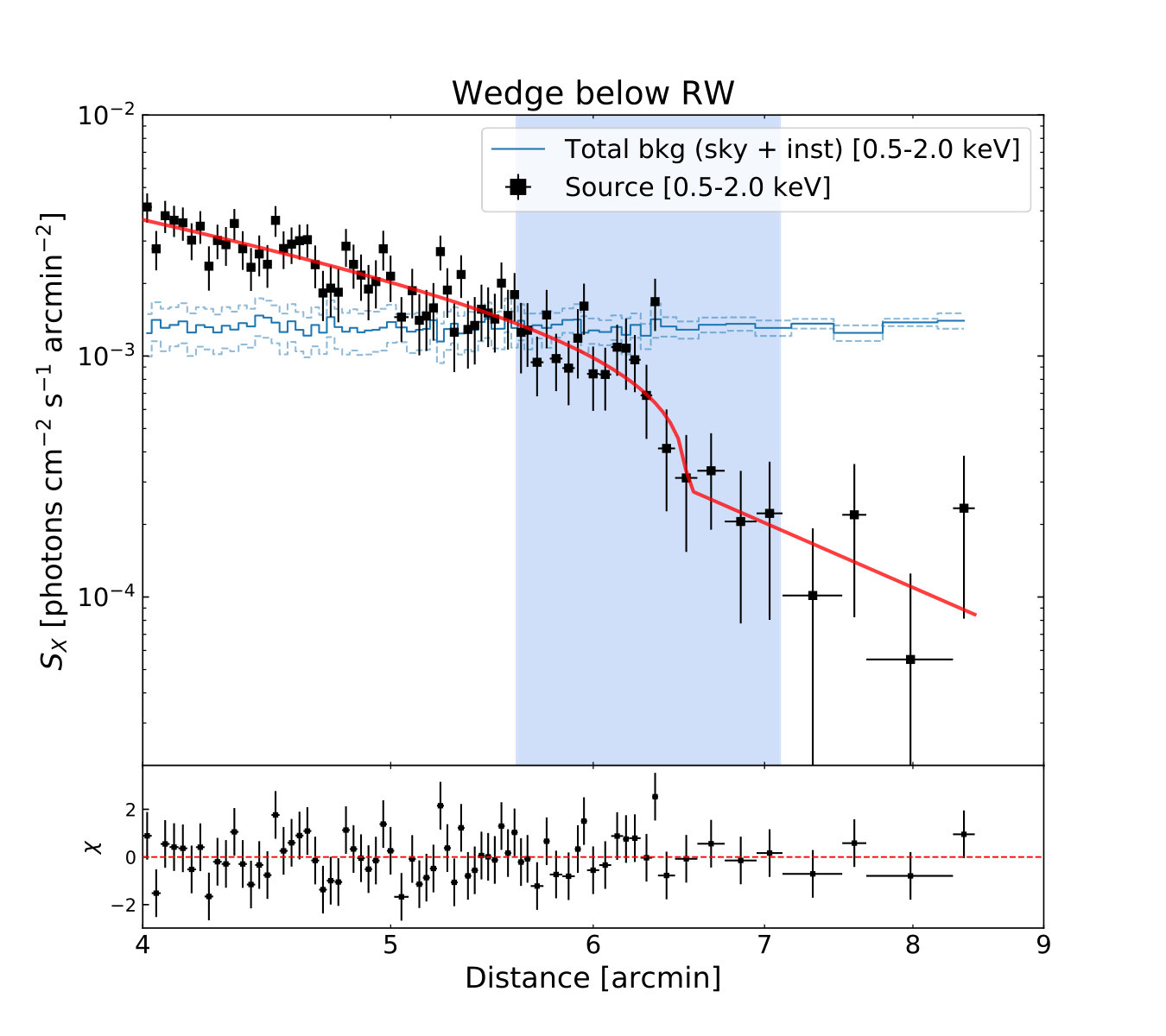

The best-fitting double power-law model finds the presence of a density jump with $\mathcal{C}=1.70_{-0.64}^{+1.04}$ located at $r=6.88_{-0.27}^{+0.15}$ arcmin (i.e. $\sim 700$ kpc, at the ZwCl 0008 redshift) from the cluster center (top left panel in Fig. 5). Assuming the Rankine-Hugoniot density jump condition, this results in a Mach number for the western edge of $\mathcal{M}_{S_{X}}=1.48_{-0.32}^{+0.50}$ (Eq. 2), which shows a shock detection at the $\sim 90\%$ confidence level. No significant differences have been found by varying the background level by $\pm 5\%$ (i.e., three times the residual fluctuation in the 9–12 keV band). The same region was also fitted with a simple power-law model, representative of the surface brightness profile at the cluster outskirts in the absence of shock discontinuities. We compared the results of the two models performing the Bayesian Information Criterion (BIC, see Kass & Raftery, 1995) analysis, for which the model with the lower score is favored. We obtain BIC=195 ($\chi^{2}=186.35$) and the BIC=126 ($\chi^{2}=104.30$) for the power-law and the broken power-law model respectively, again pointing to the presence of a discontinuity at the western relic position.

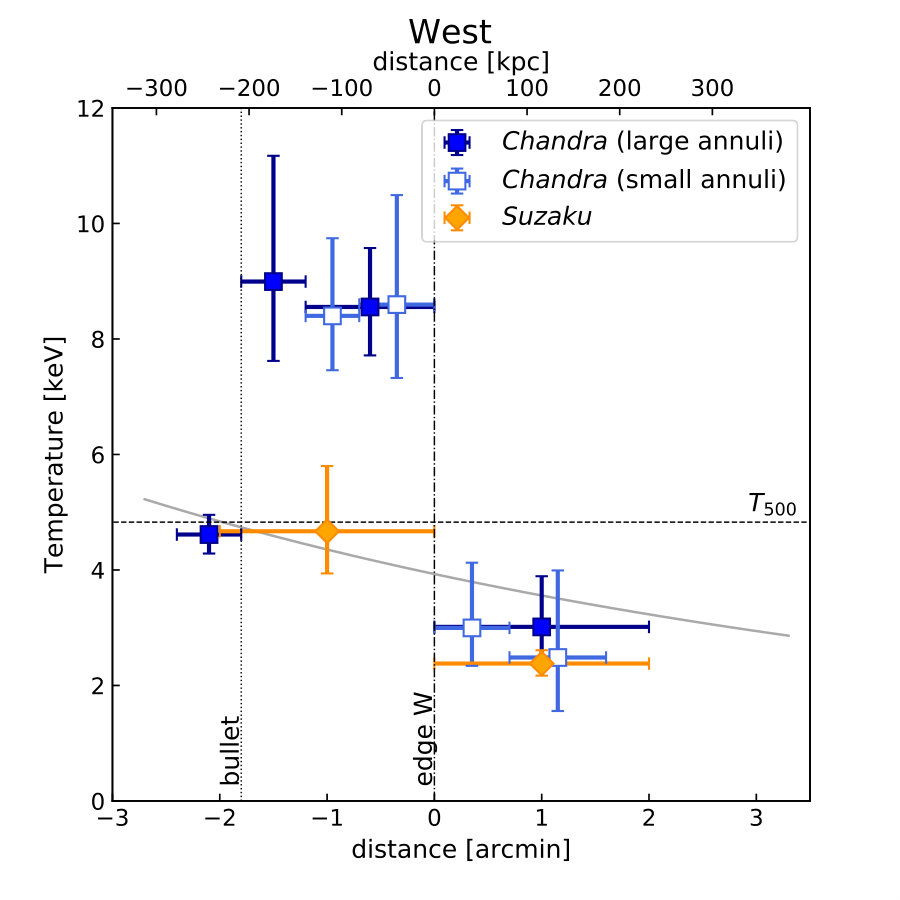

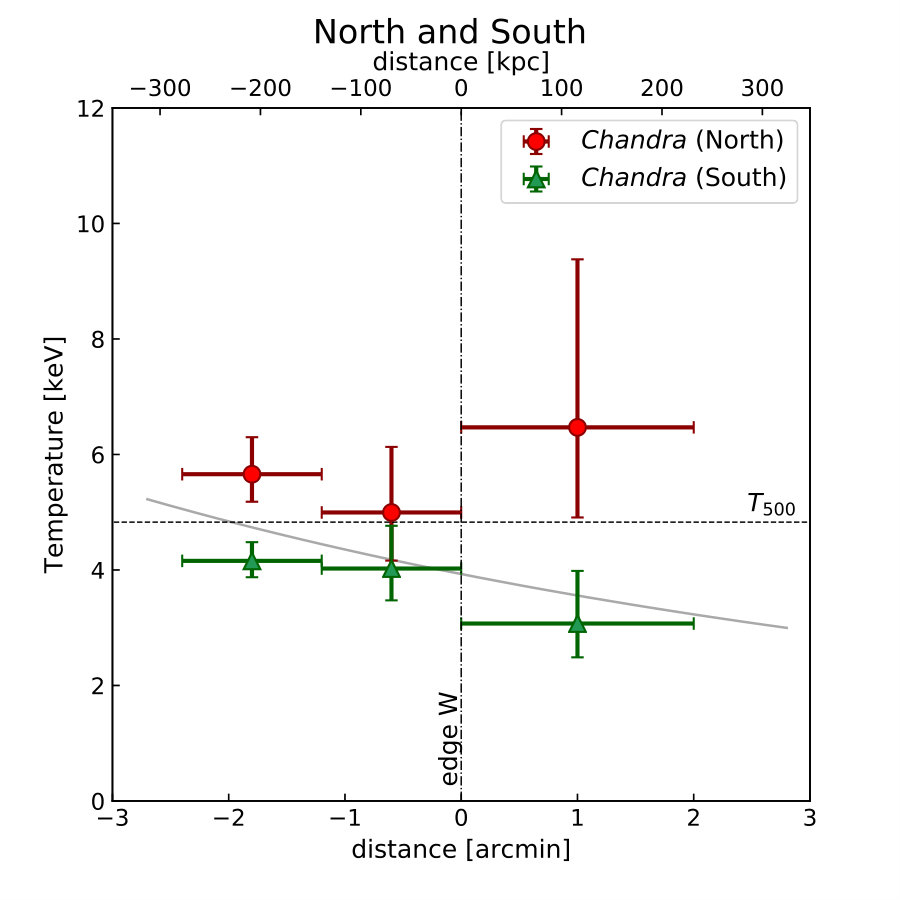

The temperature profile, derived across this discontinuity, shows the presence of heated gas behind the edge and colder gas ahead of it ($kT_{1}=8.55^{+1.35}_{-1.14}$ and $kT_{2}=3.01^{+1.12}_{-0.70}$ keV, respectively, see filled blue squares in the left panel in Fig. 8). When obtained consistent result when we decrease the sector width by a factor of two (see empty blue squares in the left panel in Fig. 8). In principle, the temperature jump at the shock is also affected by the intrinsic temperature gradient of the cluster, before the shock passage (Vikhlinin et al., 2006). Following Burns et al. (2010), the expected temperature variation in our temperature bin is about 0.7 keV (see solid line in the right panel in Fig 8). We add this variation as a systematic uncertainty in the temperature estimation. Additional support for the presence of heated gas behind the detected edge is that we do not find significant variation of temperature in the north and south directions (see the red and green sectors in the right panel in Fig. 3 and temperature profile in the central panel in Fig. 8), where indeed there is no evidence of shocks. We also investigated possible systematic uncertainties associated with Galactic abundance ($N_{\rm H}$) variations across the cluster, using the ${\rm E(B-V)}$ reddening map at 100 $\mu$m from the NASA/IPAC Infrared Science Archive (IRSA) 101010https://irsa.ipac.caltech.edu/cgi-bin/bgTools/nph-bgExec (Schlegel et al., 1998) and assuming $N_{\rm H}\propto{\rm E(B-V)}$. We found a mild $N_{\rm H}$ variation (e.g. $\sim 9\%$) in the west with respect to the cluster center value. The fit was then repeated, adding/subtracting this fluctuation and keeping $N_{\rm H}$ fixed, showing an increase of the temperature uncertainties of about ${}^{+0.9}_{-0.5}$ and ${}^{+0.2}_{-0.1}$ in the post- and pre-shock regions, respectively. We use the drop in the temperature at the western edge, i.e. $\mathcal{R}=2.61^{+1.03}_{-0.69}$, to obtain the Mach number of the shock, i.e., $\mathcal{M}_{T_{X}}=2.35^{+0.74}_{-0.55}$ (see Eq. 3).

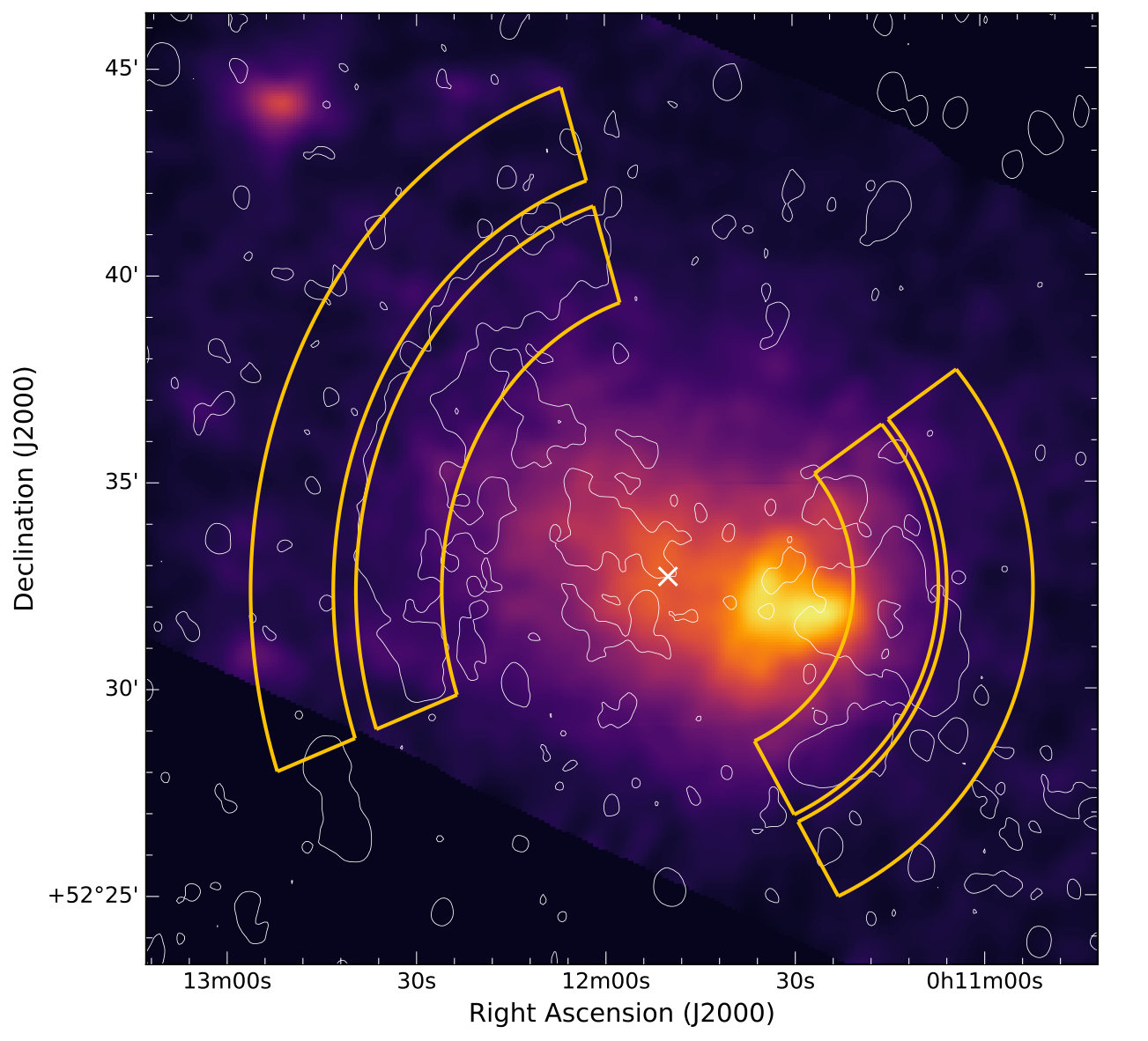

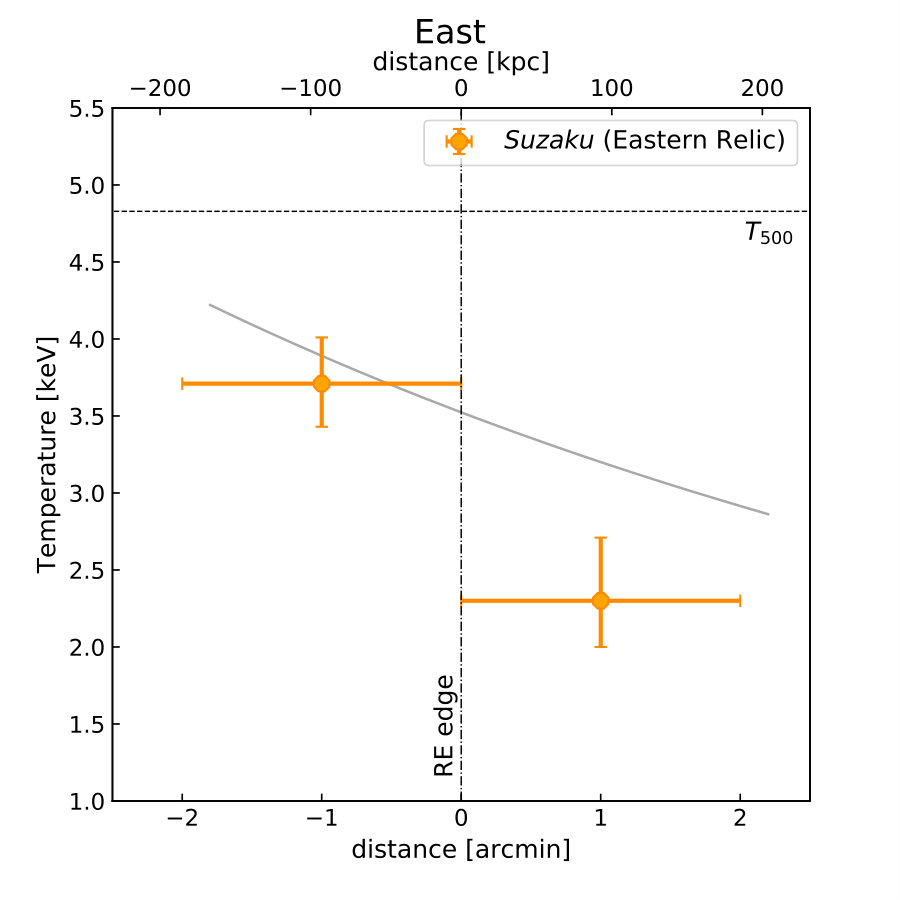

Additional temperatures were derived in the relic sectors from the Suzaku observations (see orange sectors in Fig. 4). The abundance and Galactic absorption have been fixed at the same values as the Chandra observations, assuming a phabs*apec model and adopting the Lodders et al. (2009) abundance table. The sky background was estimated using the ROSAT background tool, with the intensity of the cosmic X-ray background (CXB) allowed to change by $\pm 10\%$ to explain cosmic variance. Given the high sensitivity of Suzaku, the spectra were grouped to have a minimum of 20 counts per bin, and the $\chi^{2}$ statistic was used. The temperature estimated in the post-shock region with Suzaku is $kT_{1}=4.67^{+1.13}_{-0.78}$, which is lower than the one obtained with Chandra at the $>90\%$ confidence level (see orange diamonds in the left panel in Fig. 8). We looked for possible temperature contamination from the cold front in the post-shock region, due to the limited Suzaku spatial resolution (i.e. $\sim 2$ arcmin), by reducing the width of the post-shock region to $30^{\prime\prime}$: no significantly different temperature has been found. The difference in temperature in the post-shock region between Chandra and Suzaku might be explained by different instrumental calibrations. Cross-correlation studies of XMM-Newton/Suzaku (Kettula et al., 2013) and XMM-Newton/Chandra (Schellenberger et al., 2015) have shown that Chandra finds systematically higher temperatures, up to 20–25% for cluster temperatures of 8 keV, compared with XMM-Newton (Schellenberger et al., 2015). On the contrary, differences between Suzaku and XMM-Newton result to be negligible (Kettula et al., 2013). On the other hand, the pre-shock temperature from Suzaku agrees well with the Chandra measurement (i.e. $kT_{2}=2.38^{+0.23}_{-0.21}$ and $kT_{2}=3.01^{+1.12}_{-0.70}$ keV, respectively), suggesting that standard blank sky field and background modelling give consistent results. Including also the systematic uncertainties (i.e. global temperature profile and instrumental calibrations), we found $\mathcal{M}_{T_{X}}=2.02^{+0.74}_{-0.43}$ with Suzaku, which is within the $1\sigma$ confidence level with the Chandra result.

The pressure jump across the edge is $4.45^{+2.00}_{-1.47}$. Using the Chandra pre-shock temperature $kT_{2}=3.01^{+1.12}_{-0.70}$ keV and the Mach number given by the Chandra temperature profile, we obtain a shock velocity of $v_{\rm shock,W}=1989^{+509}_{-468}$ km s*-1*. Given the distance of the edge from the cluster center ($\sim 7$ arcmin, i.e. $\sim 780$ kpc) and the shock velocity, we estimated the time since the first core passage being $\sim 0.3-0.5$ Gyr, older than the time found for the Bullet Cluster Markevitch (2006) and for Abell 2146 (Russell et al., 2010), i.e. $\sim 0.2$ Gyr. The time we found is consistent with the one found by Golovich et al. (2017) assuming an “outbound” scenario, i.e. $0.49-1.0$ Gyr.

The most remarkable aspect of ZwCl 0008 is that the western radio relic traces only part of the shock front ($\rm LLS_{RW}\approx 290~{}kpc$, while $\rm LLS_{edge,W}\approx 1~{}Mpc$). A possible explanation is that the Mach number of the shock varies along the length of the edge and the relic forms only where $\mathcal{M}$ is high enough to accelerate electrons. To investigate this, we divided the western edge into three sub-sectors, tracing the shock above, below, and on RW (see left panel in Fig. 3 and Table 3). The corresponding surface brightness profiles are displayed in the top right, bottom right, and bottom left panels in Fig. 5. Due to the low S/N in the upstream region, for these sectors we additionally constrained the slope $a_{2}$ to be in the range $1<a_{2}<3.2$. Those values have been chosen to match the slopes of the surface brightness profiles, at $R_{500}$, of the full cluster sample in the Chandra–Planck Legacy Program for Massive Clusters of Galaxies111111hea-www.cfa.harvard.edu/CHANDRA_PLANCK_CLUSTERS/ (PI: C. Jones; Andrade-Santos et al., 2017, Andrade-Santos et al., in prep.). Under these assumptions, we obtain $\mathcal{M}_{\rm RW}^{\rm above}=1.30_{-0.17}^{+0.46}$, $\mathcal{M}_{\rm RW}^{\rm on}=2.98_{-0.85}^{+2.62}$ and $\mathcal{M}_{\rm RW}^{\rm below}=1.70_{-0.55}^{+0.79}$ for the sub-sector above, on, and below the western relic, respectively. They are consistent to each other within the error bars, hence we cannot assert whether the Mach number is varying along the western X-ray discontinuity. Given the few counts in the pre- and post-shock regions, we were not able to perform a temperature analysis for the three separate sub-sectors.

4.3 The eastern sector

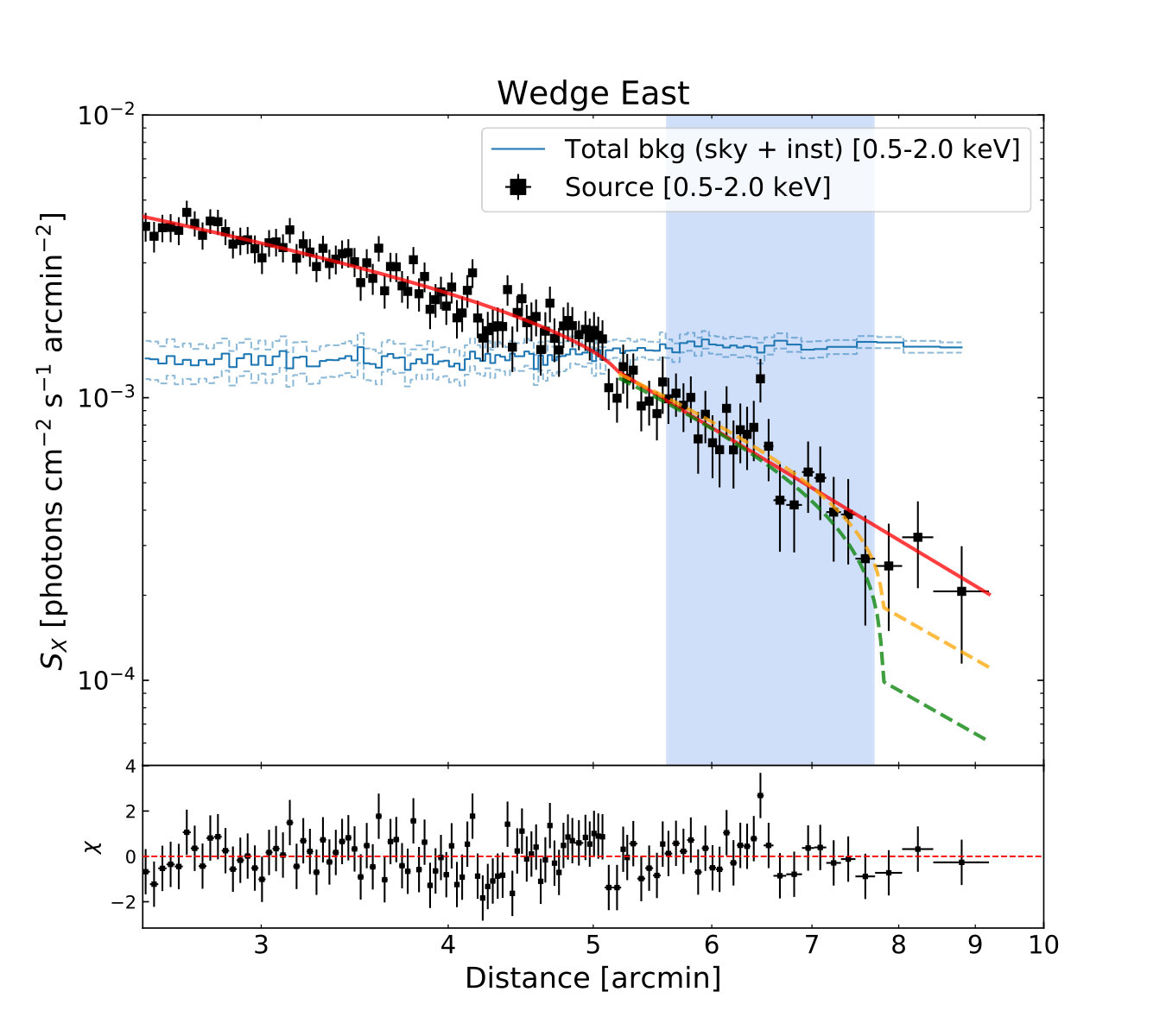

No clear discontinuity is detected in the east. Assuming the broken power-law model, as suggested by the presence of the radio relic (RE), we found a mild jump in density (Fig. 6) of $\mathcal{C}=1.09_{-0.08}^{+0.11}$ at $5.16_{-0.23}^{+0.26}$ arcmin (i.e. $\sim 550$ kpc from the cluster center), suggesting simply a change of slope at this location (i.e. a King profile, see King, 1972). However, BIC scores slightly disfavor a $\beta$-model (see Cavaliere & Fusco-Femiano, 1976), rather than the broken power-law model (BIC=108 against BIC=100, respectively). Interestingly, the location of this putative X-ray discontinuity is displaced from the edge of the eastern relic (i.e. $r\sim 7.8$ arcmin) toward the cluster center. No drop has been detected at the relic location, either from the X-ray image and surface brightness profiles (Figs. 3 and 6). However, we note that this relic is located far from the cluster center, i.e. $\sim 5.6-7.8$ arcmin, or $\sim 610-900$ kpc, at the edge of the field of view (FOV) of our observation (see the right panel in Fig. 1). Hence, not all the ObsIDs cover the area ahead the eastern relic, i.e. the pre-shock region. In Fig. 6 we also overlay models of a density jump of $\mathcal{C}=1.7$ (i.e. $\mathcal{M}=1.5$, see orange dashed line) and $\mathcal{C}=2.3$ (i.e. $\mathcal{M}=2.0$, see green dashed line), in the region $5\lesssim r\lesssim 9$ arcmin121212In this way, we avoid the change of slope at $r\sim 5$ arcmin., with $r_{\rm break}$ fixed at the outermost edge of the eastern relic (i.e. $r_{\rm RE}=7.8$ arcmin). It is clear that a density jump of $\mathcal{C}=2.3$ is ruled out by our data. On the other hand, a density jump of $\mathcal{C}=1.7$ is still consistent with our observations. Hence, we conclude that, if present, a shock front at the location of the eastern relic should be quite weak (i.e. $\mathcal{M}\lesssim 1.5$). In agreement with this result, we obtain a temperature based Mach number from Suzaku of $\mathcal{M}=1.54^{+0.65}_{-0.47}$ at the relic position (see orange sectors Fig. 4).

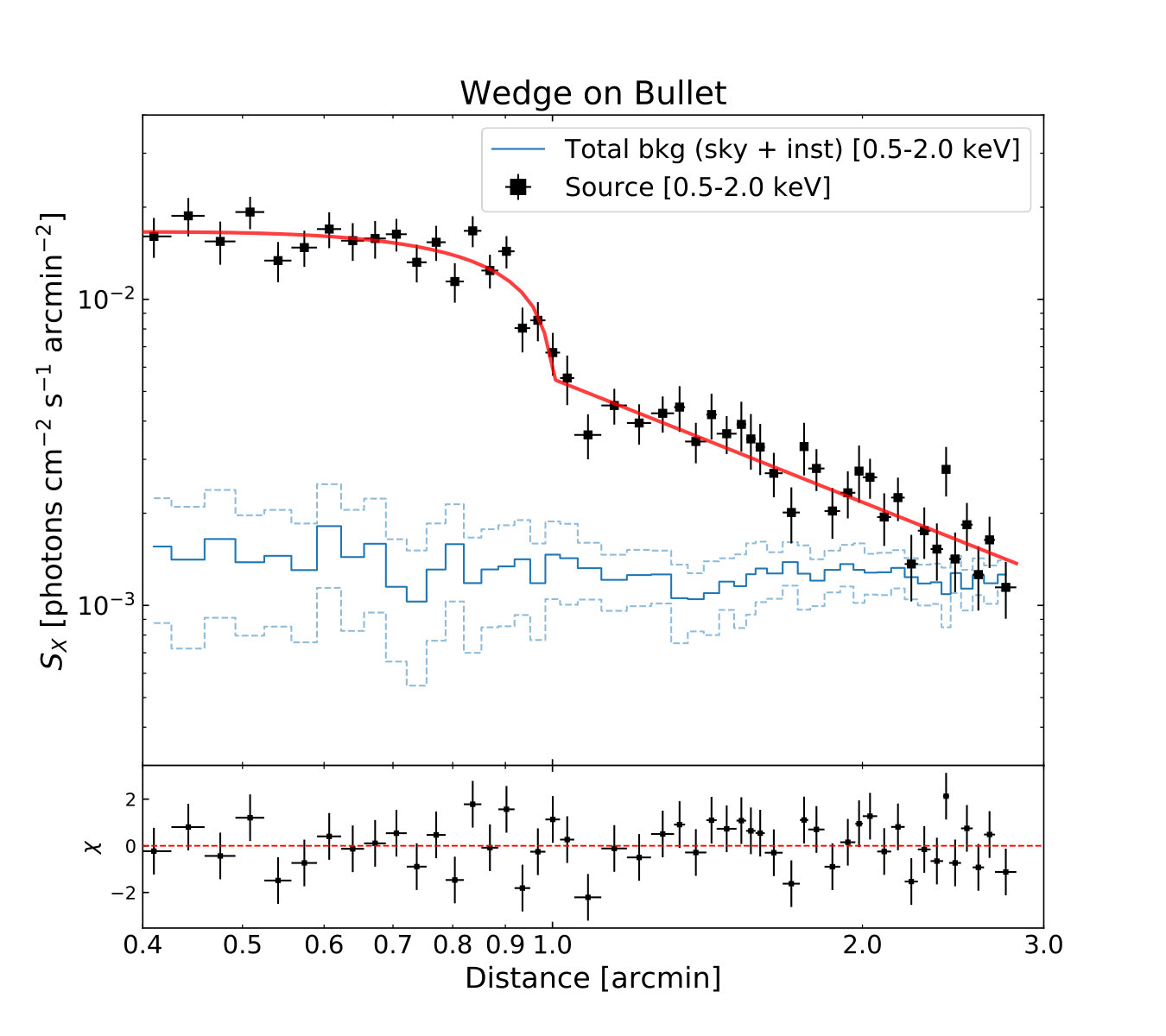

4.4 The bullet sector

In order to match the curvature of the bullet, we chose an elliptical sector displaced from the cluster center by $\sim 3.5^{\prime}$ (${\rm RA=0^{h}11^{m}25^{s}.976}$ and ${\rm DEC=+52^{\circ}31^{\prime}58^{\prime\prime}.49}$, J2000). The best-fit of the surface brightness profile analysis (Fig. 7) results in a density jump $\mathcal{C}=2.06_{-0.19}^{+0.24}$ at $r=0.99\pm 0.02$ arcmin from the sector center (i.e. $\sim 490$ kpc from the cluster center, at the cluster redshift). At this location, we measure a temperature jump of $T_{1}/T_{2}=0.56^{+0.10}_{-0.09}$ (see Fig. 8). By combining the temperature and the electron density jumps, we obtain $P_{1}/P_{2}=1.15^{+0.25}_{-0.20}$, consistent with a constant pressure across the edge, confirming that the discontinuity is a cold front.

5 Discussion

At the location of a shock front, particles are thought to be accelerated via first-order Fermi acceleration, e.g. diffusive shock acceleration (DSA, Drury, 1983; Blandford & Eichler, 1987) and shock drift acceleration (SDA, Wu, 1984; Krauss-Varban & Wu, 1989) mechanisms. In particular, the SDA process has been recently invoked to solve the so-called “electron injection problem”, which is particularly important in the low-$\mathcal{M}$ regime (i.e., $\mathcal{M}\lesssim 2$), giving the necessary pre-acceleration to the electron population to facilitate the DSA process (Guo et al., 2014a, b; Caprioli & Spitkovsky, 2014). The interaction between these accelerated particles and the amplified magnetic field in merging clusters produces synchrotron emission in the form of radio relics. According to the DSA theory, there is a relation between the spectral index measured at the shock location, the so-called injection spectral index $\alpha_{\rm inj}$, and the Mach number $\mathcal{M}$ of the shock (e.g. Giacintucci et al., 2008):

[TABLE]

Thus for DSA, the Mach number estimated in this way is expected to agree with the one obtained from the X-ray observations. This is not always the case: a number of radio relics have been found to have higher radio Mach numbers than the one obtained via X-ray observations (e.g. Macario et al., 2011; van Weeren et al., 2016; Pearce et al., 2017). Another problem is that in some cases no radio relics have been found even in the presence of clear X-ray discontinuities (e.g. Shimwell et al., 2014). Furthermore, it is still unclear whether the DSA mechanism of thermal electrons, in case of low-$\mathcal{M}$ shocks, can efficiently accelerate particles to justify the presence of giant radio relic (e.g. Brunetti & Jones, 2014; Vazza & Brüggen, 2014; van Weeren et al., 2016; Hoang et al., 2017).

Several arguments have been proposed to address the issues described above. One possibility is that the assumption of spherical symmetry, which is at the basis of Eq. 2 and 3, is not strictly correct, and that projection effects can hide the surface brightness and temperature discontinuity, leading to smaller $\mathcal{M}$ from the X-ray compared to the one obtained from the radio analysis. Also, the Mach number might be not constant across the shock front, as it is suggested by numerical simulations (e.g. Skillman et al., 2013), and synchrotron emission is biased to the measurement of high Mach number shocks (Hoeft & Brüggen, 2007). An alternative explanation is given by invoking the re-acceleration mechanism (e.g. Markevitch et al., 2005; Macario et al., 2011; Bonafede et al., 2014; Shimwell et al., 2015; Botteon et al., 2016a; Kang et al., 2017; van Weeren et al., 2017a). Indeed, several very recent observations (van Weeren et al., 2017a, b; de Gasperin et al., 2017; Di Gennaro et al., 2018) revealed that if a shock wave passes through fossil (i.e. already accelerated) plasma, such as the lobes of a radio galaxy, it could re-accelerate or re-energize the electrons and produce diffuse radio emission.

In order to best investigate the properties of shocks in ZwCl 0008, in the following sections we will discuss the comparison between our new Chandra observations and the previous radio analysis by van Weeren et al. (2011b).

5.1 Radio/X-ray comparison for the western relic

The previous radio analysis of ZwCl 0008 was performed at 241, 610, 1328 and 1714 MHz with the GMRT and the WSRT (van Weeren et al., 2011b). This work revealed the presence of two symmetrically located radio relics (see also right panel of Fig. 1). In the proximity of the western relic our Chandra observations indicate the presence of a shock. From the spectral index analysis131313$\alpha_{\rm inj}$ was calculated either directly from the map, and from the volume-integrated spectral index $\alpha_{\rm int}$ (i.e. $\alpha_{\rm inj}=\alpha_{\rm int}+0.5$, Blandford & Eichler, 1987). The two values are consistent with each other. of RW, van Weeren et al. estimated $\alpha_{\rm inj}=-1.0\pm 0.15$, with a spectral index steepening towards the cluster center (i.e. in the shock downstream region) due to synchrotron and Inverse Compton energy losses, as expected from an edge-on merger event (see Fig. 8 in van Weeren et al., 2011b). Given the injection spectral indices and Eq. 4, van Weeren et al. estimated a radio Mach numbers of $\mathcal{M}_{\rm RW}=2.4^{+0.4}_{-0.2}$. This value is consistent within the uncertainties with our X-ray analysis ($\mathcal{M}_{S_{X}}=1.48^{+0.50}_{-0.32}$ and $\mathcal{M}_{T_{X}}=2.35^{+0.74}_{-0.55}$), consistent with the DSA scenario for the western relic’s origin.

An interesting complication to this picture comes by the fact that the western relic only partly traces the shock front. Total or partial absence of relic emission in presence of clear X-ray discontinuities could be explained by having a shock strength which drops below a certain threshold, depending on the plasma beta parameter ($\beta\equiv P_{\rm gas}/P_{B}$) at the shock (Guo et al., 2014a, b). Unfortunately, the net count statistics in those sectors are very poor and our estimated Mach numbers in the three sub-sectors are characterized by large error bars (see Table 4). Hence, we cannot assert whether $\mathcal{M}$ variations are present and justify the smaller size of RW compared to the X-ray shock extent (however, see Sect. 5.4). Another appealing explanation for the origin of the western relic is suggested by the proximity of three different radio galaxies (i.e. sources C, E and F in the right panel in Fig. 1) which can provide the fossil electrons for the synchrotron emission, according to the re-acceleration mechanism. In this case, the absence of diffuse radio emission associated to the relic, above and below RW, can be simply explained by the absence of underlying fossil plasma to be re-accelerated by the crossing shock wave. For the case of ZwCl 0008, there is no clear connection between the radio galaxies and RW, which is the strongest requirement to invoke the re-acceleration mechanism, together with the detection of the shock. However, such fossil plasma can be faint and characterized by a very steep spectral index, meaning that it is best detected with sensitive low- frequency observations.

5.2 The puzzle of the eastern radio relic

Similarly to RW, the eastern relic also displays spectral steepening towards the cluster center (see Fig. 8 in van Weeren et al., 2011b). The measured injection spectral index is $\alpha_{\rm inj}=-1.2\pm 0.2$, which corresponds to a Mach number of $\mathcal{M}=2.2^{+0.2}_{-0.1}$, under the assumption of DSA of thermal electrons (Eq. 4 and van Weeren et al., 2011a). A surface brightness discontinuity is therefore expected in the eastward outskirts of ZwCl 0008, tracing the shape of RE. Nonetheless, no discontinuity has been detected at the relic position in our Chandra observations.

A complication that should be taken into account is projection effects, which can hide, or at least smooth, X-ray discontinuities. Polarization analysis (Golovich et al., 2017) and numerical simulations (Kang et al., 2012) of the eastern relic showed that the merger angle in ZwCl 0008 ranges between $25$ and $30^{\circ}$, being $0^{\circ}$ the angle associated to a perfectly edge-on collision. This possible non-negligible inclination angle might, in principle, contribute in hiding X-ray discontinuities. Despite that, our observations suggest that, if present, the shock front in the eastern side of the cluster is rather weak, i.e. $\mathcal{M}\lesssim 1.5$, which is lower than the one found by the radio spectral index analysis. Further studies, focused on this side of the cluster, are necessary to give better constraints on the strength of the putative shock front.

5.3 Shock location and comparison with numerical simulations

The distribution of the ICM and the exact location of the shock fronts are essential to put constraints on the characterization of the dynamical model of the merger event. Two previous studies have been performed for ZwCl 0008, using weak lensing (Golovich et al., 2017) and N-body/hydrodynamical (Molnar & Broadhurst, 2017) simulations. Despite qualitative agreements (e.g. the identification of the most massive sub-cluster, the small impact parameter and offset of the main cluster from the dark matter peak), different sub-cluster mass ratio and time after the first core passage have been found in two works. It is worthy to note, though, that analysis performed by Molnar & Broadhurst (2017) was based on the position of the putative shock fronts, given by the previous shallow (42 ks) X-ray observations. These were supposed to be located, in the east, at the position of the well-defined radio relic, and, in the west, further in the cluster outskirts (see Fig. 1 in Molnar & Broadhurst, 2017). Such positions led to an extremely high shock velocities (i.e $\sim 4000$ and $5000$ km s*-1*, respectively for the western and eastern shock). This interpretation, however, does not agree with our new, deeper (410 ks), X-ray observations. We indeed detect a shock front at the western relic position, while no clear confirmation has been found at the eastern relic one (see right panel in Fig. 1, top left panel in Fig. 5 and Fig. 6). We can then conclude that, in cases of merging clusters with the presence of radio relics, the position of shock discontinuity cannot be arbitrary, but needs to match the position of the radio source. This information is particularly suitable for double radio relics, which describe merger events very close to the plane of the sky.

5.4 Shock acceleration efficiency

As described above, one of the open questions related to the DSA mechanism is whether the particles from the thermal pool can be efficiently accelerated by a low-$\mathcal{M}$ shock (e.g. $\mathcal{M}\lesssim 2$).

The acceleration efficiency, $\eta$, is defined as the amount of kinetic energy flux available at the shock that is converted into the supra-thermal and relativistic electrons, and it relates to the synchrotron luminosity $L_{\rm sync}$ of the radio relic according to (Brunetti & Jones, 2014):

[TABLE]

where $\rho_{\rm 2}$ is the total density in the up-stream region, $v_{\rm shock}$ the shock speed, $\mathcal{C}$ the compression factor at the shock, $B$ the magnetic field, $B_{\rm CMB}=3.25(1+z)^{2}~{}\mu$G the magnetic field equivalent for the Cosmic Microwave Background radiation, and $S$ the shock surface area. Here, $\Psi(\mathcal{M})$ is a dimensionless function which takes the ratio of the energy flux injected in “all” the particles and those visible in the radio band (see Eq. 5 in Botteon et al., 2016b, for the exact mathematical description of $\Psi(\mathcal{M})$) into account.

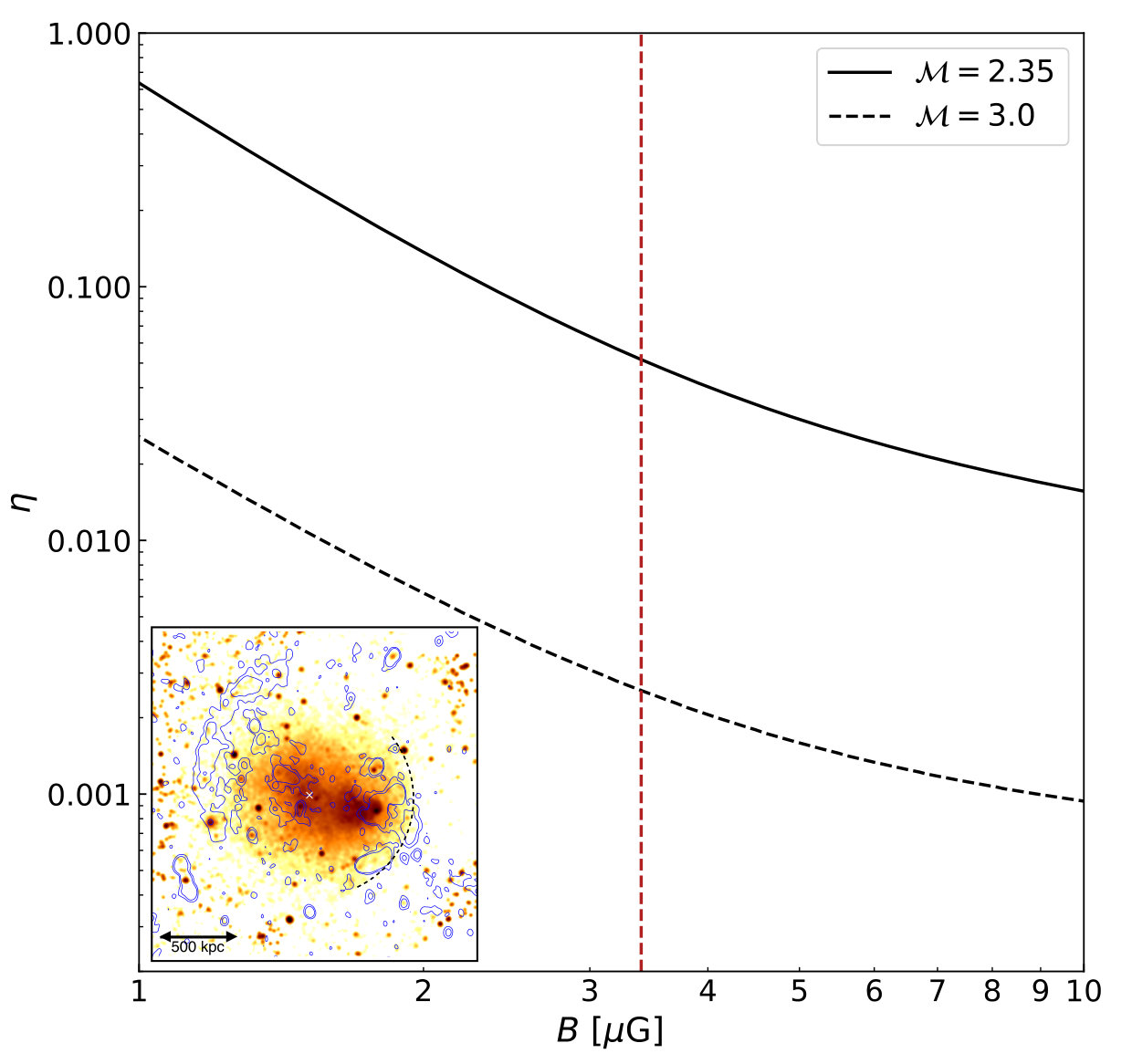

In Fig. 9 we report the electron acceleration efficiency analysis for the western radio relic, for which we have the strongest evidence of the X-ray shock, as a function of the magnetic field. We assume $S=\pi\times 290^{2}$ kpc2, $P_{\rm 1.4~{}GHz}=0.37\times 10^{24}$ W Hz*-1* (see van Weeren et al., 2011b), a total pre-shock numerical density141414$\rho=\mu m_{\rm H}n$ $n_{\rm 2}=1.8\times 10^{-4}$ cm*-3*, and a shock Mach number of $\mathcal{M}=2.35$, according to the Chandra measurement. Given the estimation of magnetic field of $3.4~{}\mu$G (under the assumption of equipartition, see van Weeren et al., 2011b), the efficiency required for the electron acceleration due to the shock is $\eta\sim 0.05$. This would disfavor the standard DSA scenario, since efficiencies $\lesssim 10^{-3}$ are expected for weak shocks (e.g. Brunetti & Jones, 2014; Caprioli & Spitkovsky, 2014; Hong et al., 2014; Ha et al., 2018). Given the high uncertainties on our Mach number estimation, we also repeated the analysis assuming $\mathcal{M}=3.0$ (i.e., the upper limit of our Chandra temperature measurement and the value we found for the sector on the western relic (onRW), see Tab. 4). In this case we obtain $\eta\sim 3\times 10^{-3}$, still consistent with the DSA framework. Future deeper X-ray observations are therefore required to reduce the uncertainties on the Mach number, and give better constraints on this point.

Finally, the radio luminosity expected for a $\mathcal{M}=1.7$ shock151515the upper limit of the Mach number we measured in the sector aboveRW, where no radio emission has been observed, using our most optimistic acceleration efficiency ( $\eta=0.05$), is $P_{\rm 1.4~{}GHz}\sim 10^{18}$ W Hz*-1*. This radio power is far below our detection limit. Hence, the lack of radio emission in this sector is still consistent with a DSA scenario.

6 Summary

In this paper we presented deep Chandra (410 ks) and $\it Suzaku$ (180 ks) observations of ZwCl 0008.8+5215 ($z=0.104$). This galaxy cluster was previously classified as a merging system by means of radio-optical analysis (van Weeren et al., 2011b; Golovich et al., 2017) and numerical simulations (Kang et al., 2012; Molnar & Broadhurst, 2017). The previous radio observations revealed the presence of a double radio relic in the east and in the west of the cluster (van Weeren et al., 2011b).

With the new Chandra observations, we find evidence for the presence of a cold front in the west part of the cluster and, about $2^{\prime}$ further in the cluster outskirts, a shock. For this shock, we estimate $\mathcal{M}_{S_{X}}=1.48_{-0.32}^{+0.50}$ and $\mathcal{M}_{T_{X}}=2.35_{-0.55}^{+0.74}$, from the surface brightness and radial temperature analysis respectively. Additionally, ${\it Suzaku}$ temperature profile suggests a Mach number of $\mathcal{M}_{T_{X}}=2.02^{+0.74}_{-0.43}$. Given these values, we estimate the shock velocity of $v_{\rm shock,W}=1989^{+509}_{-468}$ km s*-1*, and a consequent time since core passage of $\sim 0.3-0.5$ Gyr. The Mach number found with X-ray observations agrees with the one obtained by the radio analysis, assuming diffusive shock acceleration of thermal electrons (i.e. $\mathcal{M}_{\rm RW}=2.4^{+0.4}_{-0.2}$, van Weeren et al., 2011b). However, given the large uncertainties on the Mach number, we cannot assert whether this is the leading mechanism for the generation of the relic. Also, it remains an open question why the radio relic does not fully trace the full extent of the X-ray shock: we measure ${\rm LLS_{edge,W}\sim 1~{}Mpc}$ and ${\rm LLS_{RW}\sim 290~{}kpc}$ from the X-ray and radio images, respectively. We propose that three radio galaxies, located in the proximity of the relic, might have provided the fossil plasma which has subsequently been re-accelerated. However, no clear connection between the relic and the radio galaxies has been found with the previous radio observation. Further deep and low-frequency observations will be needed to reveal, if present, diffuse and faint radio emission connecting the radio galaxies with the relic (as seen in van Weeren et al., 2017a, for the merging cluster Abell 34311-3412).

In the eastern side of the cluster, where another, longer (i.e. ${\rm LLS_{RE}\sim 1.4~{}Mpc}$), radio relic is observed, we do not find evidence for a shock. We suggest a possible combination of projection effects and position of the relic at the edge of the FOV to explain this. Form the surface brightness profile with $\it Chandra$ we could rule out the presence of shock front with $\mathcal{M}>1.5$, and $\it Suzaku$ temperature measure in the post- and pre-shock regions found $\mathcal{M}_{T_{X}}=1.54^{+0.65}_{-0.47}$. Both this results disagree with the radio analysis, for which a shock with $\mathcal{M}=2.2^{+0.2}_{-0.1}$ was derived. Further studies, focused on this radio relic, are necessary to better understand its formation scenario.

Acknowledgements: GDG, RJvW and HJAR acknowledge support from the ERC Advanced Investigator programme NewClusters 321271. RJvW acknowledges support of the VIDI research programme with project number 639.042.729, which is financed by the Netherlands Organisation for Scientific Research (NWO). HA acknowledges the support of NWO via a Veni grant. SRON is supported financially by NWO, the Netherlands Organization for Scientific Research. Support for this work was provided by the National Aeronautics and Space Administration through Chandra Award Numbers GO6-17113X and GO5-14130X issued by the Chandra X-ray Observatory Center, which is operated by the Smithsonian Astrophysical Observatory for and on behalf of the National Aeronautics Space Administration under contract NAS8-03060. This work was performed under the auspices of the U.S. Department of Energy by Lawrence Livermore National Laboratory under Contract DE-AC52-07NA27344. This research has made use of software provided by the Chandra X-ray Center (CXC) in the application packages CIAO, ChIPS, and Sherpa. The scientific results reported in this article are based on observations made by the Chandra X-ray Observatory. This research has made use of data obtained from the Suzaku satellite, a collaborative mission between the space agencies of Japan (JAXA) and the USA (NASA). This research made use of APLpy, an open-source plotting package for Python (Robitaille & Bressert, 2012).

Appendix A MCMC corner plots

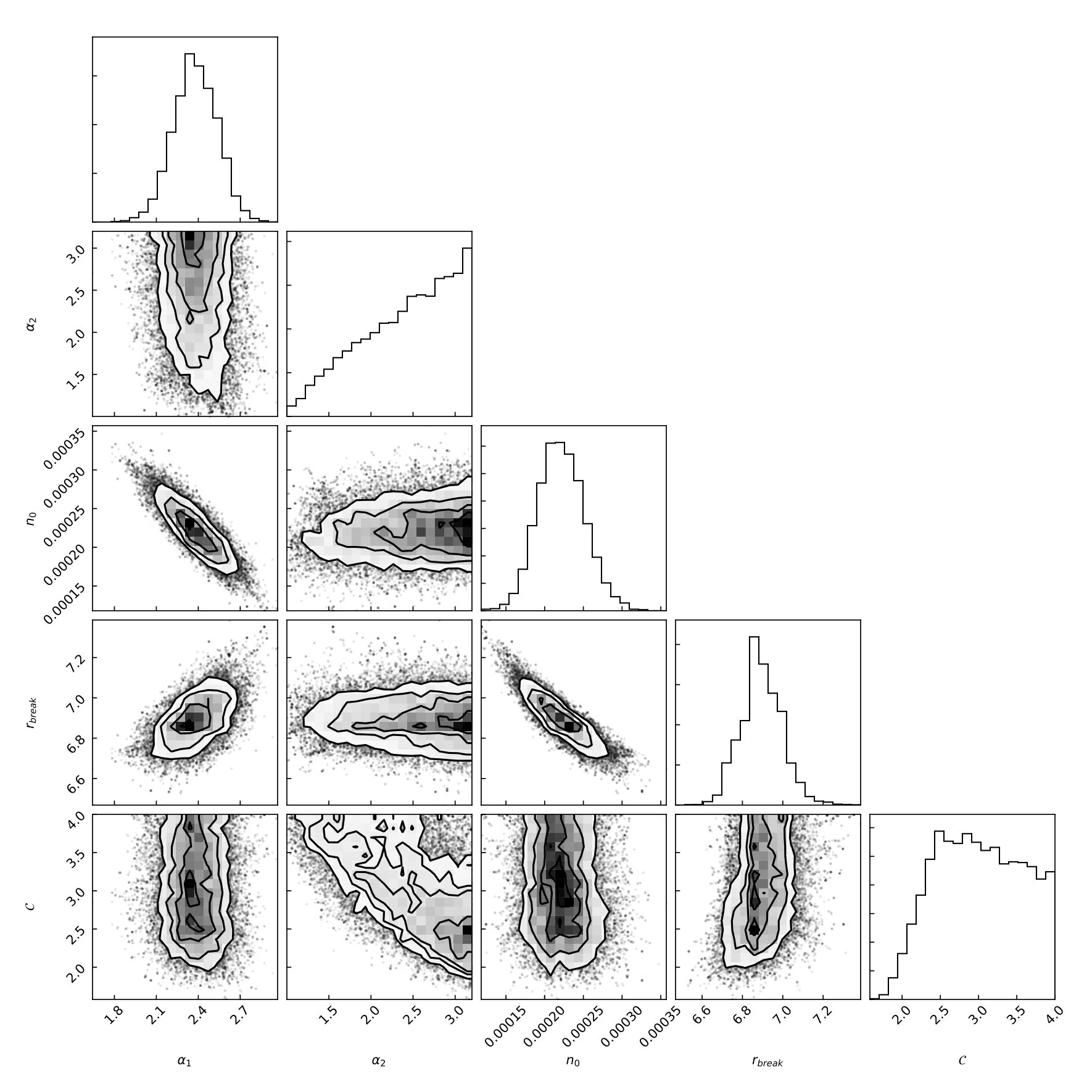

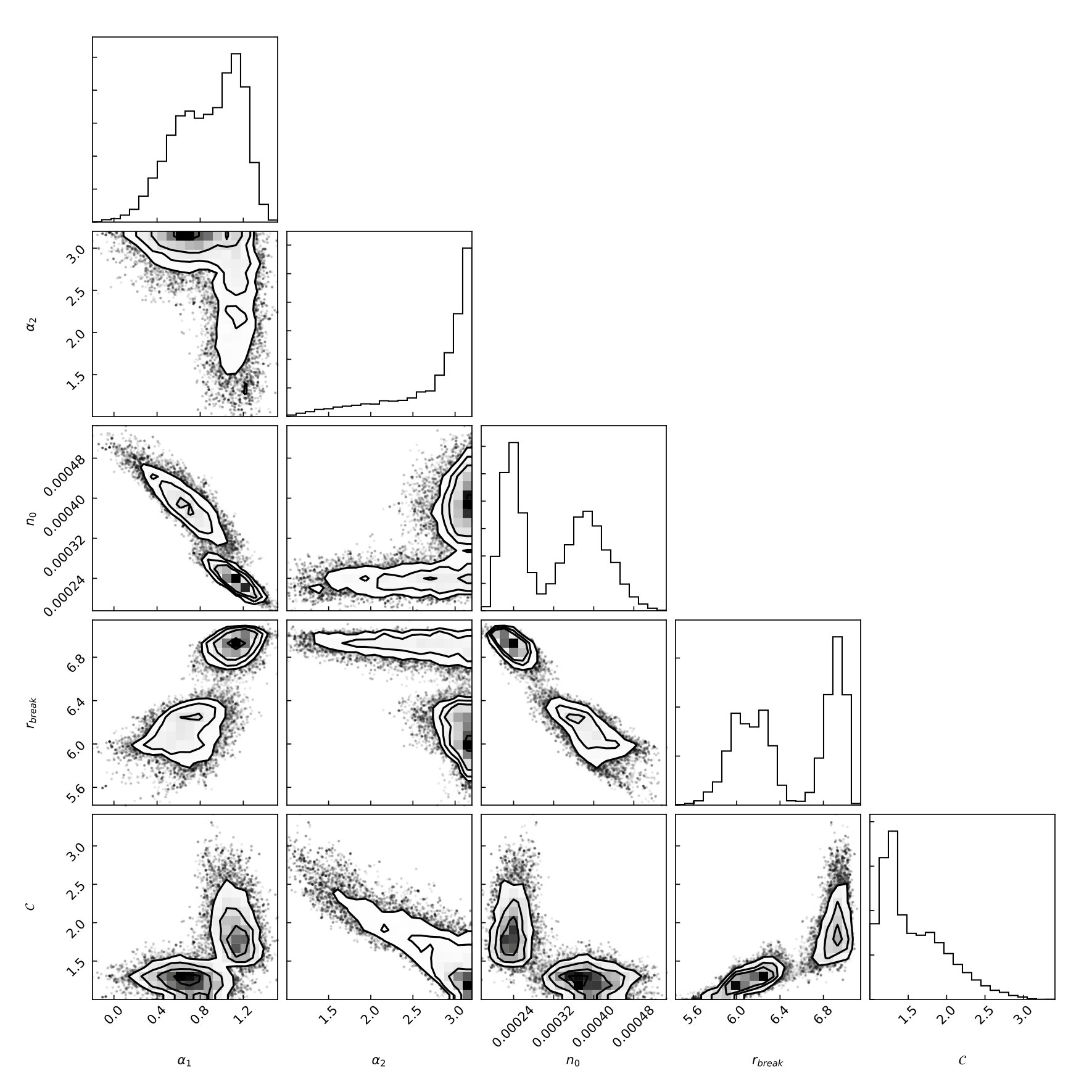

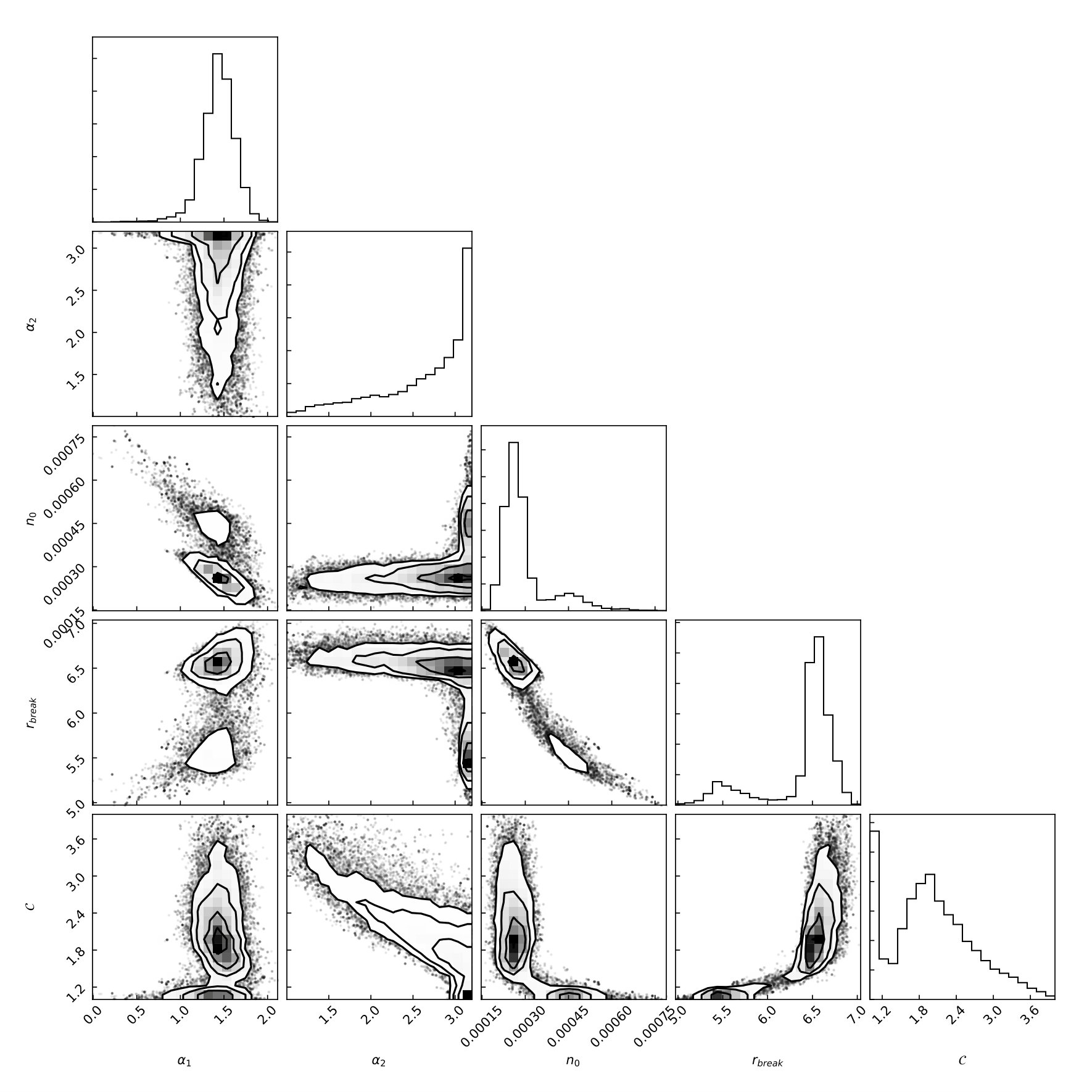

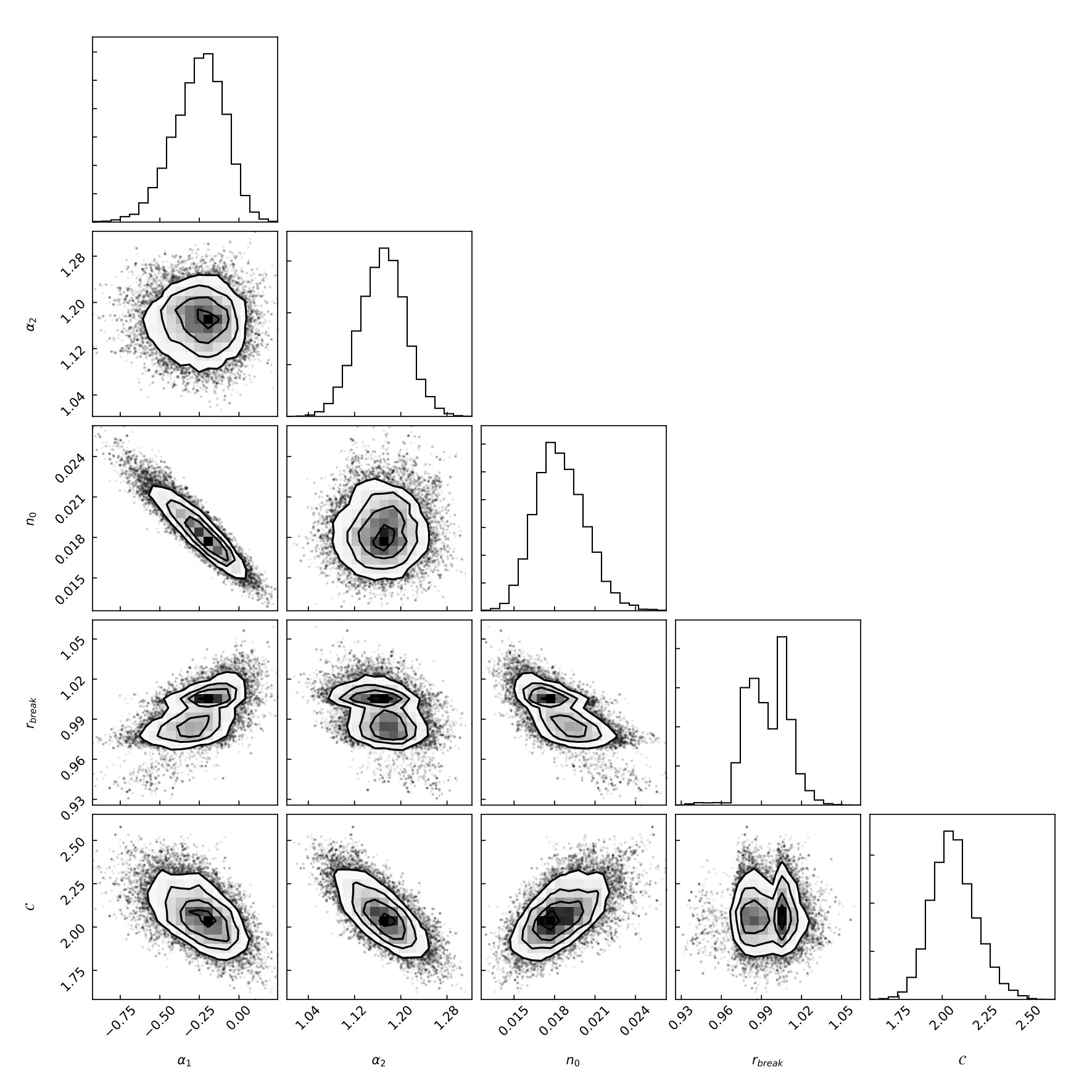

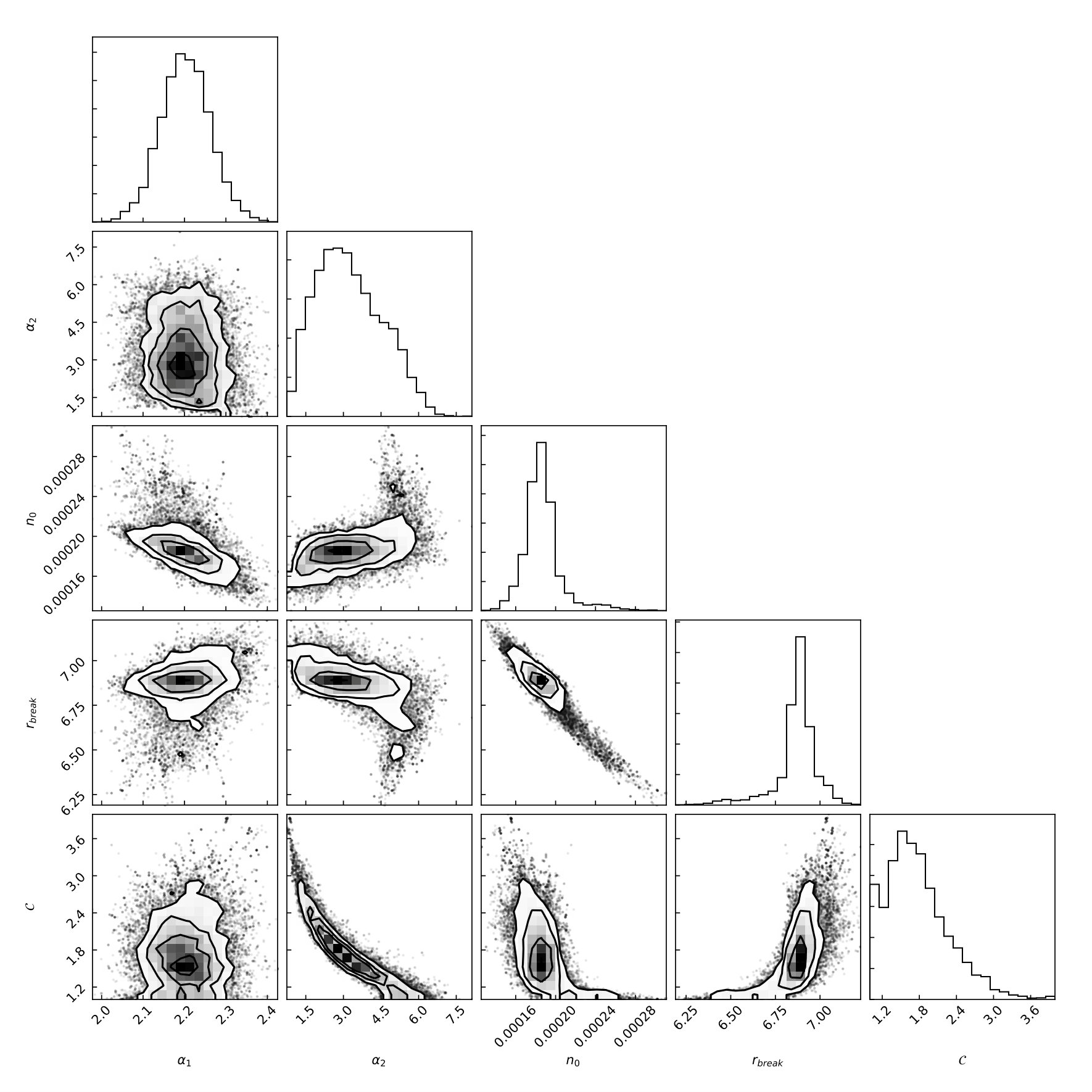

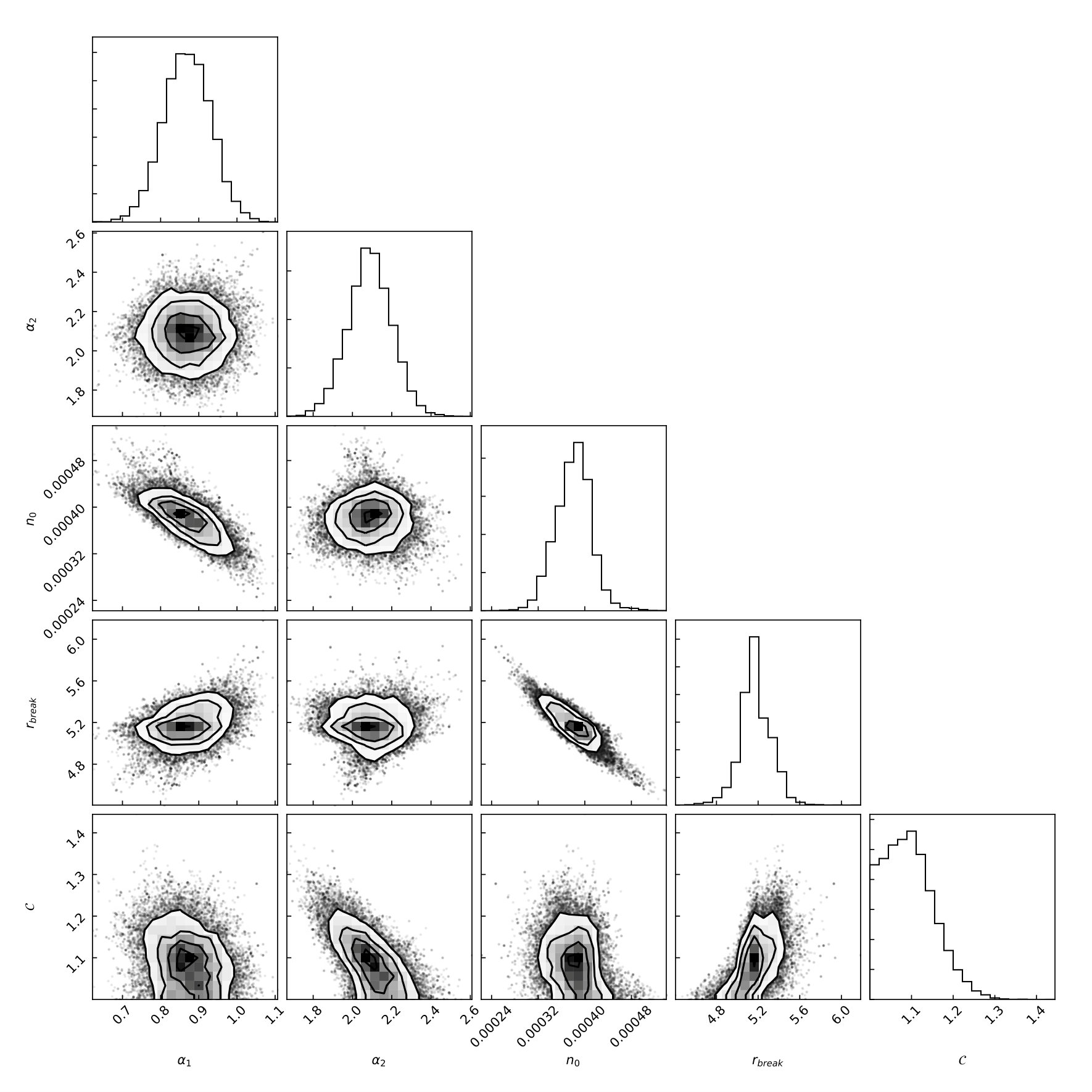

In this section we present the MCMC “corner plot” (Foreman-Mackey, 2016, 2017) for the distribution of the uncertainties in the fitted parameters for the X-ray surface brightness profile across the wedges presented in Figs. 5, 6 and 7. For all corner plots, contour levels are drawn at $[0.5,1.0,1.5,2.0]\sigma$.
