Polariton Laser in the Bardeen-Cooper-Schrieffer Regime

TL;DR

This paper demonstrates the existence of a polaritonic Bardeen-Cooper-Schrieffer (BCS) state in microcavity exciton polariton systems, revealing a fermionic gain mechanism through experimental and theoretical analysis.

Contribution

It provides the first direct experimental evidence and theoretical modeling of a polariton BCS state at intermediate densities.

Findings

Revealed fermionic gain mechanism in polariton lasing

Identified polariton BCS state as an intermediate density phase

Linked experimental observations with many-particle theory

Abstract

Microcavity exciton polariton systems can have a wide range of macroscopic quantum effects that may be turned into better photonic technologies. Polariton Bose-Einstein condensation and photon lasing have been widely accepted in the limits of low and high carrier densities, but identification of the expected Bardeen-Cooper-Schrieffer (BCS) state at intermediate densities remains elusive, as the optical-gain mechanism cannot be directly inferred from existing experiments. Here, using a microcavity with strong polarization selectivity, we gain direct experimental access to the reservoir absorption in the presence of polariton condensation and lasing, which reveals a fermionic gain mechanism underlying the polariton laser. A microscopic many-particle theory shows that this polariton lasing state is consistent with an open-dissipative-pumped system analog of a polaritonic BCS state.

Figures

Equations

$$P_x(\mathbf{k})$$

$$P_y(\mathbf{k})$$

$$i\hslash \frac{\partial }{\partial t}{P}_{\ell }(\mathbf{k})=\left[{\epsilon }_{\mathrm{tot}}(\mathbf{k})-\hslash {\omega }_0-i\gamma \right]P_{\ell }(\mathbf{k})-\left[1-2f(\mathbf{k})\right]{\Omega }_{\mathrm{eff}}^{\ell }(\mathbf{k})+{i\hslash \frac{\partial }{\partial t}{P}_{\ell }(\mathbf{k})|}_{\mathrm{corr}},$$

$${\epsilon }_{\mathrm{tot}}(\mathbf{k})=\frac{{\hslash }^2{k}^2}{2m_r}+E_g+2{\Sigma }^{\mathrm{HF}}(\mathbf{k}),$$

$${\Sigma }^{\mathrm{HF}}(\mathbf{k})=-\frac{1}{A}\sum _{{\mathbf{k}}^{\prime }}{V}_{{\mathbf{k}-\mathbf{k}}^{\prime }}^{c}f({\mathbf{k}}^{\prime }),$$

$$V_q^c=\frac{2\pi e^2}{{\epsilon }_{b}q},$$

$${i\hslash \frac{\partial }{\partial t}{P}_{\ell }(\mathbf{k})|}_{\mathrm{corr}}=\left[{\Sigma }_e^{\mathrm{corr}}(\mathbf{k})+{\Sigma }_h^{\mathrm{corr}}(\mathbf{k})\right]P_{\ell }(\mathbf{k})+{i\hslash \frac{\partial }{\partial t}{P}_{\ell }(\mathbf{k})|}_{\mathrm{corr}}^{\mathrm{vertex}}.$$

$${\Sigma }_a^{\mathrm{corr}}(\mathbf{k})=\frac{1}{A}\sum _{{\mathbf{k}}^{\prime }}\underset{-\infty }{\overset{\infty }{\int }}\frac{d\hslash \omega }{\pi }\frac{[g_B(-\omega )+f({\mathbf{k}}^{\prime })]\mathrm{Im}{V}^{\mathrm{scr}}({\mathbf{k}-\mathbf{k}}^{\prime },\omega )}{{\epsilon }_a(\mathbf{k})-{\epsilon }_a({\mathbf{k}}^{\prime })-\hslash \omega +i{\gamma }_{\mathrm{pl}}}.$$

$$g_B(\omega )=\frac{1}{e^{\hslash \omega /k_{B}T}-1}.$$

$$V^{\mathrm{scr}}(\mathbf{q},\omega )={\epsilon }_{\mathrm{pl}}^{-1}(\mathbf{q},\omega )V_{\mathbf{q}}^c.$$

$${\epsilon }_{\mathrm{pl}}^{-1}(q,\omega )={\epsilon }_b^{-1}\left(1+\frac{{\omega }_{\mathrm{pl}}^2}{2{\omega }_q}\left[\frac{1}{\omega +i\delta -{\omega }_q}-\frac{1}{\omega +i\delta +{\omega }_q}\right]\right),$$

$${\hslash }^2{\omega }_q^2={\hslash }^2{\omega }_{\mathrm{pl}}^2\left(1+\frac{q}{\kappa }\right)+C_{\mathrm{pl}}{\left(\frac{{\hslash }^2{q}^2}{2m_r}\right)}^2,$$

$${\omega }_{\mathrm{pl}}^2={\omega }_{\mathrm{pl}}^2(q)=\frac{2\pi e^{2}q}{{\epsilon }_b}\left(\frac{n^e}{m_e}+\frac{n^h}{m_h}\right).$$

$$n^a=2\int \frac{d^{2}k}{(2\pi {)}^2}{f}^a(\mathbf{k}),$$

$${\kappa }_a=\frac{2m_a{e}^2}{{\epsilon }_b{\hslash }^2}{f}^a(k=0).$$

$${i\hslash \frac{\partial }{\partial t}{P}_{\ell }(\mathbf{k})|}_{\mathrm{corr}}^{\mathrm{vertex}}=\frac{1}{A}\sum _{{\mathbf{k}}^{\prime }}\Delta W_{{\mathbf{k},\mathbf{k}}^{\prime }}{P}_{\ell }({\mathbf{k}}^{\prime }),$$

$$\Delta W_{{\mathbf{k},\mathbf{k}}^{\prime }}=2\underset{-\infty }{\overset{\infty }{\int }}\frac{d\hslash \omega }{\pi }\frac{[g_B(-\omega )+f({\mathbf{k}}^{\prime })]\mathrm{Im}{V}^{\mathrm{scr}}({\mathbf{k}-\mathbf{k}}^{\prime },\omega )}{{\epsilon }_a({\mathbf{k}}^{\prime })-{\epsilon }_a(\mathbf{k})-\hslash \omega +i{\gamma }_{\mathrm{pl}}}.$$

$${\Omega }_{\mathrm{eff}}^{\ell }(\mathbf{k})=\left(a_{\mathbf{k}}^c{E}_{\ell }+\frac{1}{A}\sum _{{\mathbf{k}}^{\prime }}{V}_{{\mathbf{k}-\mathbf{k}}^{\prime }}^c{P}_{\ell }({\mathbf{k}}^{\prime })\right).$$

$$a_{\mathbf{k}}^c=\frac{1}{2}{d}_{\text{cv}}(\mathbf{k}){\Psi }_{\mathrm{cav}}(z_{\mathrm{QW}})\sqrt{(8\pi \hslash {\omega }_{\mathrm{cav}})/{\epsilon }_b},$$

$${\Phi }_{1s}(\mathbf{k})=\frac{\sqrt{2\pi }{a}_B}{{\left[1+{\left(\frac{k{a}_B}{2}\right)}^2\right]}^{3/2}},$$

$$\Omega =\sqrt{N_{\mathrm{QW}}}{a}^{c\ast }{\Phi }_{1s}(\mathbf{r}=0),$$

$$\hslash \frac{\partial }{\partial t}f(\mathbf{k})=\mathrm{Im}\left[{\Omega }_{\mathrm{eff}}^x(\mathbf{k}{)}^{\ast }{P}_x(\mathbf{k})+{\Omega }_{\mathrm{eff}}^y(\mathbf{k}{)}^{\ast }{P}_y(\mathbf{k})\right]+\hslash {\frac{\partial }{\partial t}f(\mathbf{k})|}_{\mathrm{relax}}+\hslash {\frac{\partial }{\partial t}f(\mathbf{k})|}_{\mathrm{pump}},$$

$$\hslash {\frac{\partial }{\partial t}f(\mathbf{k})|}_{\mathrm{relax}}=-{\gamma }_F\left[f(\mathbf{k})-f_F(\mathbf{k})\right]-{\gamma }_{\mathrm{nr}}f(\mathbf{k}),$$

$$f_F(\mathbf{k})=\frac{1}{e^{[{\epsilon }_a({\mathbf{k})-\mu }_a]/k_{B}T}+1},$$

$$\hslash {\frac{\partial }{\partial t}f(\mathbf{k})|}_{\mathrm{pump}}=-{\gamma }_p\left[f(\mathbf{k})-f_p(\mathbf{k})\right],$$

$$n_p=2\int \frac{d^{2}k}{(2\pi {)}^2}{f}_p(\mathbf{k}).$$

$$i\hslash \frac{\partial }{\partial t}{E}_x=\left(\hslash {\omega }_{\mathrm{cav}}-\hslash {\omega }_0-i{\gamma }_{\mathrm{cav}}\right)E_x-\frac{N_{\mathrm{QW}}}{A}\sum _{\mathbf{k}}{a}_{\mathbf{k}}^{c\ast }{P}_x(\mathbf{k}),$$

$$R_{\mathrm{TE}}(E)=b-\sum _i{c}_i{L}_i(E,E_{0i},{\Gamma }_i),$$

$$L_i(E,E_{0i},{\Gamma }_i)=\frac{({\Gamma }_i/2{)}^2}{(E-E_{0i}{)}^2+({\Gamma }_i/2{)}^2},$$

$$I_{\mathrm{TE}}(E)=\sum _i{c}_i{f}_i(E,E_{0i},{\Gamma }_i),$$

$$f_i=\frac{({\Gamma }_i/2{)}^2}{(E-E_{0i}{)}^2+({\Gamma }_i/2{)}^2},$$

Full text

I Introduction

Collective quantum effects, formed through spontaneous symmetry breaking, have been intensively studied in a variety of physical system, such as Bose-Einstein condensation (BEC) [1, 2] in ultracold atomic gasses and the Bardeen-Cooper-Schrieffer (BCS) state in superconductors [3]. While the original concepts of such quantum phases were developed for closed systems in thermal equilibrium, generalization to open quantum systems has been a fruitful path for studying a wider range of effects in physical systems. One such generalization is quantum phases induced by an external driving field, such as light-induced superconductivity [4] and, in the context of semiconductors, an early prediction where the coherence of an external light field results in electron-hole ($e$-$h$) pairs exhibiting features similar to Cooper pairs in BCS states [5]. Another generalization is the concept of quasithermal equilibrium. For example, excitons (bound electron-hole pairs) in semiconductors do not exist in thermal equilibrium, but after creation might live long enough to assume quasithermal equilibrium and during that time exhibit exciton BEC [6] or BCS [7], similar to BEC or BCS in closed systems. When the excitons are strongly coupled to a cavity photon mode, polaritons are formed, which is the focus of this publication. Polaritons have been discussed to exhibit a range of many-body phases that bridge phenomena of both matter and light systems and involve both fermionic and bosonic quantum statistics [8, 9]. Two of the most studied phase transitions in the polariton system include, below the Mott density, the transitions from a thermal gas to a polariton BEC, accompanied by the emission of coherent light, or polariton lasing [10] [Fig. 1(b)], and, far above the Mott density, a conventional photon laser transition [11] [Fig. 1(d)]. In between the two, a transition to a BCS-like polariton laser has been postulated theoretically [12, 13, 14] [Fig. 1(c)], with only a few previous experimental attempts at demonstrating a polariton BCS state [15]. As we illustrate in Fig. 1, while all three lead to coherent emission, they have distinct microscopic characteristics such as gain mechanism, quasiparticle type, and $e$-$h$ distribution functions.

Exciton-polariton BEC takes place at carrier densities $n$ much below the Mott transition density $n_{\mathrm{Mott}}$, $n\ll n_{\mathrm{Mott}}$, where electron-hole pairs are tightly bound by the Coulomb interaction to form excitons, which satisfy bosonic commutation properties [Fig. 1(b)] [16]. The electronic distribution functions are far below Fermi degeneracy, i.e. their value is far below 1 (unity), and correspond to the exciton wave function. Coherence is formed via bosonic final state stimulation into the polariton ground state. In contrast, conventional photon lasing takes place in the limit of high densities $n\gg n_{\mathrm{Mott}}$, where Coulomb interaction is screened, leading to uncorrelated, fermionic electron and hole plasmas. The electronic distributions are Fermi degenerate. Coherence is formed via stimulated scattering into a cavity mode when fermionic gain is provided by population inversion between the conduction and valence bands. In between the polariton BEC and photon laser regimes, $n$ is high enough to disallow tightly bound exciton states, but low enough to allow sufficient electron-hole Coulomb correlations to form overlapping Cooper-pair like $e$-$h$ pairs. In this intermediate regime, absent a cavity, an excitonic BCS state, with a coherent population of degenerate and weakly Coulomb-bound e-h pairs, has been predicted since the 1960s [6, 7, 17, 18, 19], though not yet demonstrated. In a strongly coupled microcavity, different types of polariton BCS states have been proposed, with Coulomb or photon-induced electron-hole pairing [8, 13, 14].

Despite the distinct microscopic characteristics of the three phases, there is no additional symmetry breaking between them 111It has recently been shown that non-hermitian phase transitions can occur in a system with broken U(1) symmetry [51], but a robust relation between those phase transitions and existing polariton condensation experiments has not yet been established.. This poses a challenge to identify the different phases experimentally. Polariton condensation or lasing has been identified when the emitted light transforms from thermal to coherent [21, 22] while maintaining a polaritonic dispersion with nonlinear interactions; the nonlinear interactions manifest themselves in frequency shift [23] and coherence properties [24] of the emission, thereby distinguishing the state from a photon laser. Whether such a polariton laser originates from a BEC- or BCS-like state, however, is unclear—both a polariton BEC and a polariton BCS-like state would emit coherent light and show strong nonlinearities. The essential difference lies in the electronic media, which have been difficult to access experimentally, except for the exciton component of a polariton BEC [25].

In this work, we gain direct access to the electronic component in the presence of lasing, by using an unconventional polarization-selective cavity and a special measurement technique, combining off-resonant continuous wave pump with a resonant probe in time-resolved spectroscopy. Through measurement of both the absorption and emission spectra of both the polariton lasing mode and its electronic reservoir, we identify fermionic gain above the Mott transition in the polariton laser, which distinguishes it from a polariton BEC. At the same time, bound electronic states persist, characteristic of a polaritonic BCS state but different from a conventional photon laser. To clarify the nature of the observed polariton laser, we developed a microscopic many-particle theory for the Coulomb correlated electron, hole and photon system. The theory correctly predicts the experimentally observed emission frequency and absorption spectra, and reveals distribution functions and interband polarizations resembling those of an ideal ($T=0\,\mathrm{K}$) polariton BCS state [14, 13], but modified by cavity dissipation and thermal dephasing.

II Experimental method

To access the electronic media in the presence of polariton lasing, we use a cavity that simultaneously supports weakly and strongly coupled modes which, importantly, are in orthogonal linear polarizations. As shown schematically in Fig. 1(a) and detailed in Appendix A, the top mirror of the $\lambda/2$ cavity is made of an $\mathrm{Al_{0.15}Ga_{0.85}As}$ high-contrast subwavelength grating. The grating has very high reflectivity for transverse-electric- (TE) polarized light, but low for transverse-magnetic- (TM) polarized light [26]. As a result, TE polaritons are formed while TM excitons remain in the weak-coupling regime [27] . Using such a cavity, we can access the reservoir (or bath) of the TE modes through the TM modes if they share a common electron and hole reservoir. This is readily achieved under nonresonant pumping. The observation of equal TE and TM emission outside the grating independent of the pump polarization confirms efficient scattering between exciton modes of different polarization [26]. Moreover, within the grating area, the weakly and strongly coupled modes differ only over a small range of in-plane wave vector $q_{\parallel}$ near $q_{\parallel}=0$ compared to the large range of $q_{\parallel}$ occupied by all excitons or polaritons. This ensures that the large-$q_{\parallel}$ modes, unmodified by strong coupling, do not have a significant difference of population between TE and TM polarizations despite very different dispersions and decay rates of the TE and TM modes near $q_{\parallel}=0$. The large-$q_{\parallel}$ modes account for most of the total carrier population, as the TE ground state polariton density is estimated to be $3.6\times 10^{-5}$ of the total carrier density below threshold and $1.2\times 10^{-3}$ even at the highest power used. Hence, the TE and TM modes share the same electron and hole reservoir, and via polarization-resolved spectroscopy, we can access simultaneously the optical properties of the polariton system and its underlying electronic media.

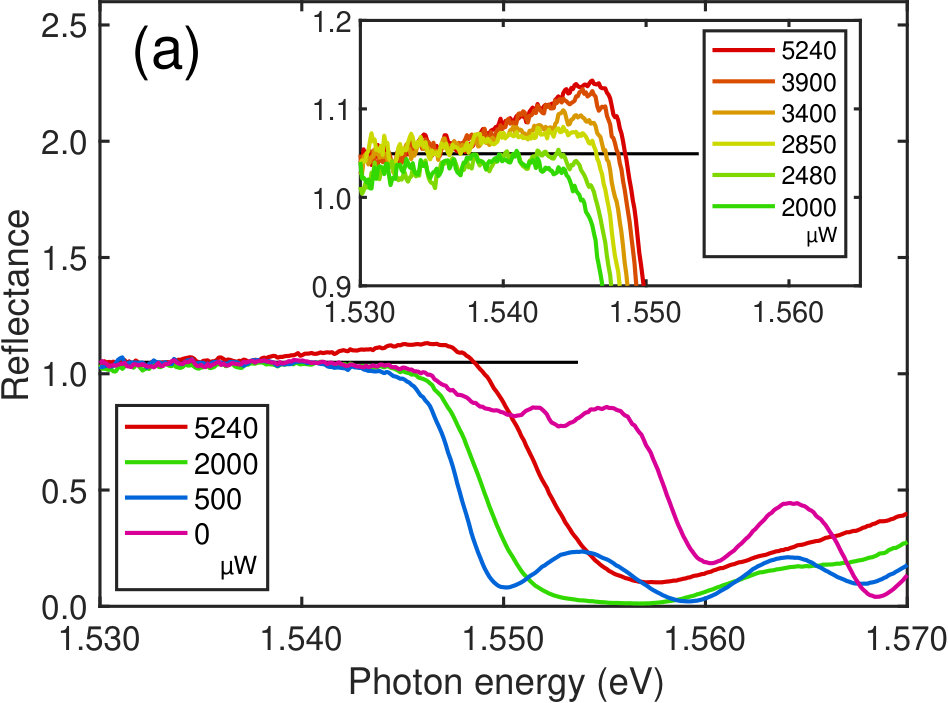

To identify the gain mechanism in the TE-mode lasing regime, we monitor the TM-mode absorption spectrum of the system via a separate, weak probe laser. To cleanly separate the photoluminescence (PL) and absorption, we use a two-color time-resolved spectroscopy. A continuous-wave pump is used, at 784 nm, about 30 meV above the exciton resonance, focused to a Gaussian spot of about $3~{}\mathrm{\mu m}$ in diameter at the center of the square grating. A resonant pulsed laser of about 150 fs pulse width is used as a probe, overlapping with the pump spatially. We first measure the PL without the probe using spectrally resolved real-space and Fourier space imaging through a $4f$ confocal relay into a spectrometer. We then measure, in the presence of the PL, the probe absorption, using a streak camera. The reflected probe appears as a resolution-limited sharp peak in time in the streak image whereas the PL, produced under cw pumping, has uniform intensity in time. Hence, the PL is readily subtracted from the reflection 222We integrate over the whole pulse to obtain the total intensity of reflected pulse, which is then divided by the reflection spectra from a reference gold mirror to produce the reflection spectra of the microcavity system..

III Polariton lasing versus photon lasing

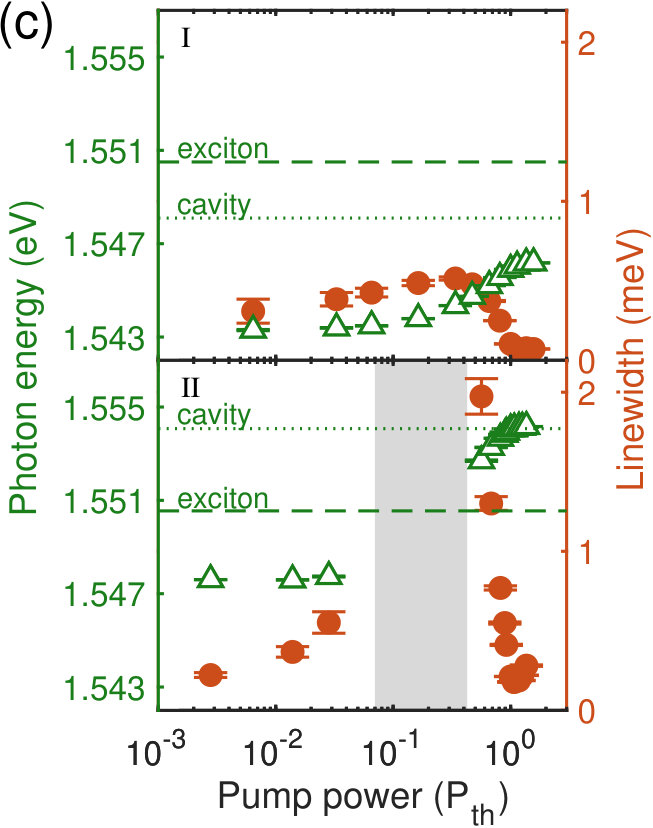

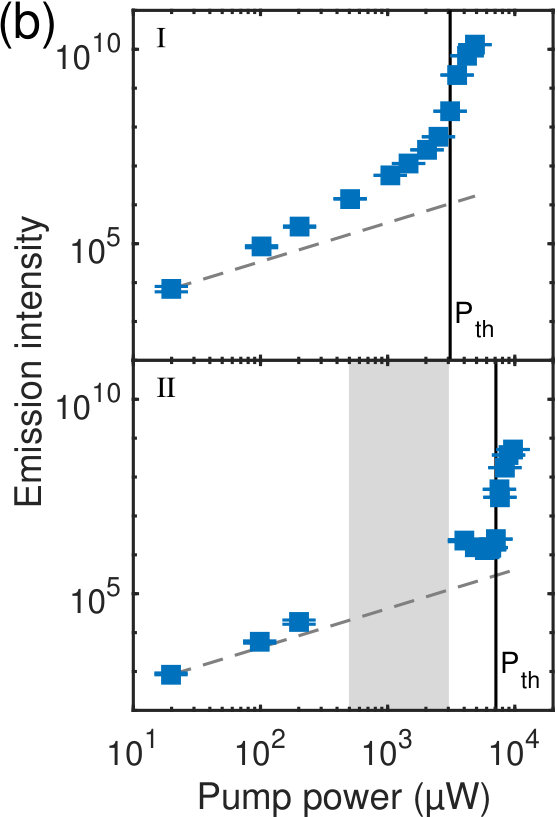

We measure two distinct types of lasing transition for the TE-polarized modes in devices with different cavity-exciton detunings. In devices with negative to small positive detunings, polariton lasing was measured with typical features that have been so far identified with those of a polariton BEC. In more blue-detuned devices, we observe clear features of a photon laser. We show an example of each type in the top row and bottom row of Fig. 2, respectively. Additional examples of other detunings are shown in Ref. [26]. The corresponding TM spectra and animations of detailed evolution of the spectra with power for the polariton and photon lasers are shown in Ref. [26].

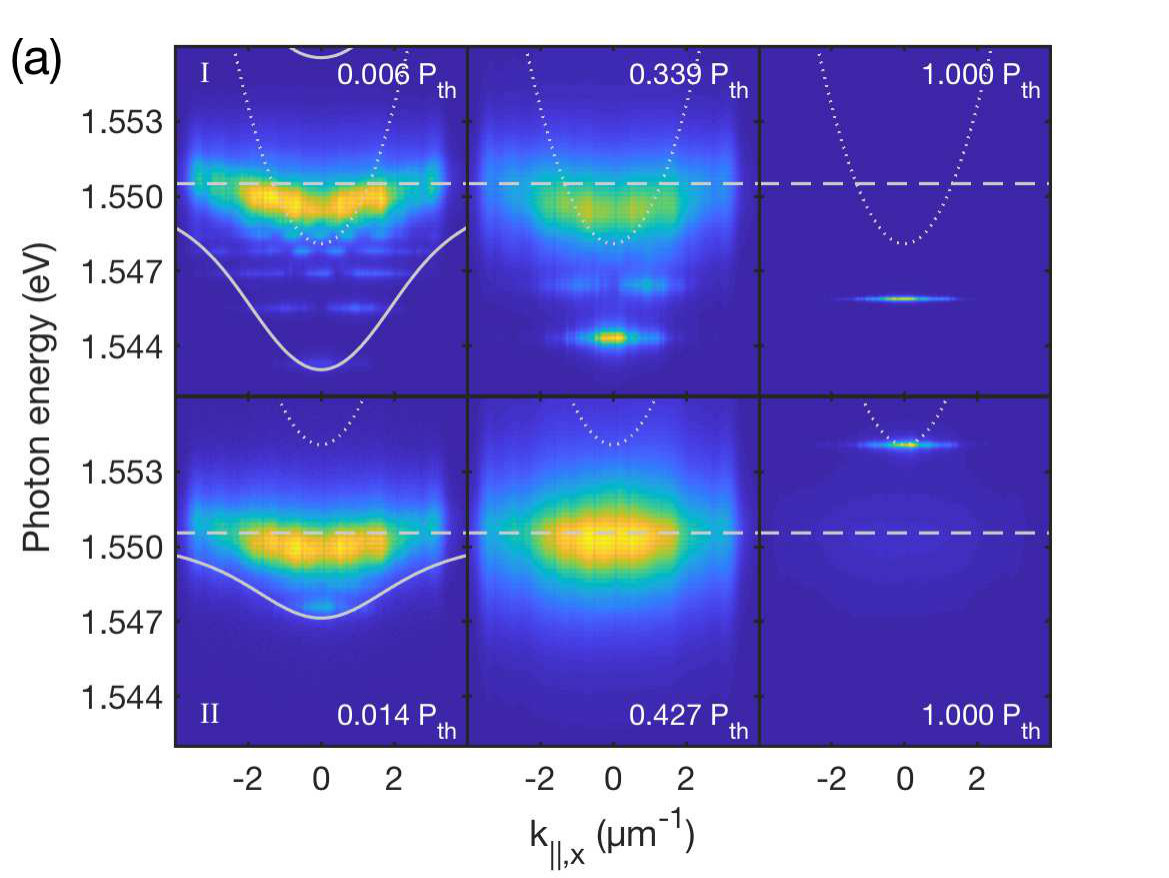

In a polariton laser [top row in Fig. 2], the ground state remains distinct throughout the measured densities, with only slight line broadening below threshold and resolution-limited linewidth above threshold. Its frequency blueshifts continuously with power and remains well below the cavity or exciton resonances [Figs. 2(a) and 2(c), top). These features suggest the ground state remains as a coupled state between electron-hole pair and photon; they are the same as widely reported for polariton BECs in the literature [21, 22, 29].

In stark contrast, in a photon laser [bottom row in Fig. 2], the lower polariton modes can no longer be discerned as the pumping density increases [Fig. 2(a), bottom middle panel; also see real-space spectra in Ref. [26]]. A mode with a rather broad linewidth emerges near the cavity resonance frequency near the threshold and becomes pinned at the cavity frequency above threshold [Fig. 2(c), bottom]. These features are fully consistent with the dissociation of bound states, both tightly bound exciton and $e$-$h$ pairs at the many-body level, before transition to photon lasing. The result suggests that electron-hole plasma is formed before a phase transition threshold is reached. This may be because of both a heavier effective mass of the lower polaritons that leads to a higher threshold density and a larger exciton fraction that leads to stronger scattering-induced dephasing.

Similar photon lasing transitions in polariton cavities have also been studied in earlier works [30, 23, 31]. Like in our observations, the photon lasing transitions were accompanied by significant linewidth broadening, many times more than that of a polariton lasing transition [23, 31], as is consistent with the disappearance (retaining) of a bound state for photon (polariton) lasing transition. In some of these works, the photon lasing frequency was reported to be below the original cavity resonance when the detuning is within about $\pm 10$ meV, which was attributed to a redshift of the cavity resonance at high carrier densities [30, 31]. However no quantitative models were given to explain such a shift; and the carrier densities are likely much higher than that used in this study. The detuning of our polariton and photon lasing devices are similar in magnitude, –2.4 meV and +3.5 meV, respectively, for the examples shown in Fig. 2. The photon lasing we observed takes place close to the original cavity resonance despite a higher threshold density than that of polariton lasing. This confirms that there is negligible shift of the cavity resonance in our devices at the carrier densities we used.

IV Gain mechanism of the polariton laser

While the observed polariton laser shows spectral features distinct from a photon laser and similar to a polariton BEC, the absorption spectra of the electronic media reveal a many-body phase different from BEC. As described above, with linear polarization selectivity of the cavity, we are able to probe the electronic gain of the strongly coupled TE mode via the weakly coupled TM mode using time-resolved reflectance of a pulsed probe laser. We show examples of the TM reflection spectra of a polariton laser in Fig. 3(a). Without pump, we measure TM absorption at the exciton resonance below the band continuum and above the TE polariton energy. With increasing pump power the exciton absorption becomes stronger. At even higher pump power but still below threshold, the discrete exciton resonance is no longer resolvable and the spectra have the shape of an absorption edge of the band continuum. This implies that there is strong screening and band gap renormalization to lower energies, and that the carrier density is already near the Mott density. Close to threshold, a peak above unity emerges; its height and width increase with further increase of the pump power [Fig. 3(a), inset]. This shows optical gain due to population inversion. Corresponding TE emission and reflection spectra are provided in Appendix C.

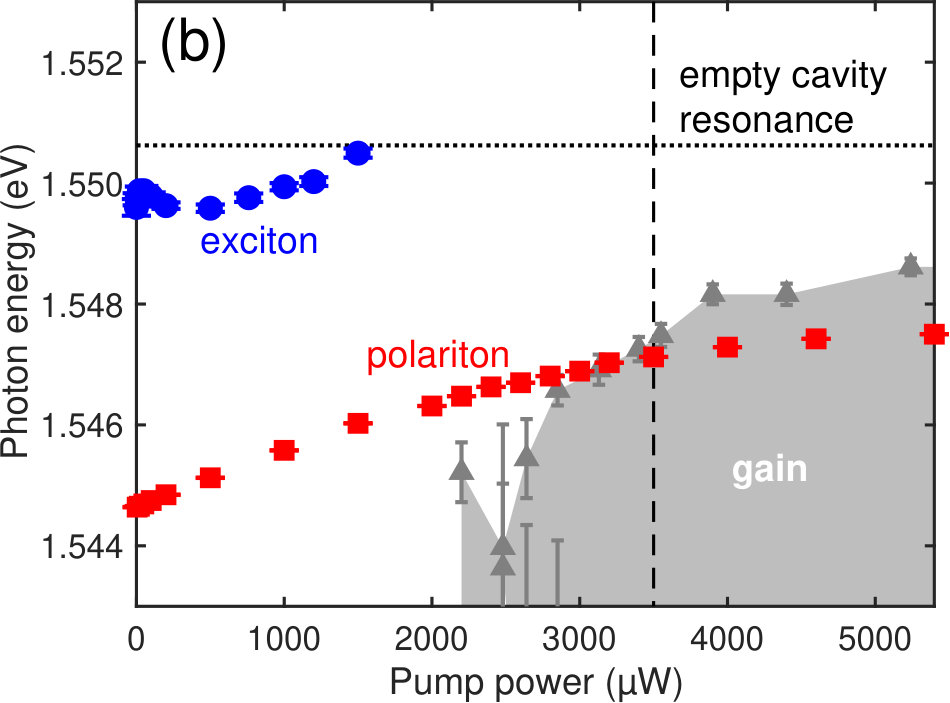

A condensed version of the experimental data, including the evolution of the resonances and gain with the pump power, is shown in Fig. 3(b). The TM exciton resonance blueshifts with increasing pump power but quickly broadens and becomes nonresolvable, corresponding to the Mott transition at moderate pump power well below threshold. In contrast, the discrete TE resonance continues to exist despite the Mott transition and the presence of gain in TM; it blueshifts continuously with increasing carrier density throughout the pump powers used. Lasing takes place as the polariton ground state frequency enters the gain region and the frequency stays within the gain region at higher pump power, showing clearly a lasing transition driven by fermionic population inversion.

The total carrier density per quantum well (QW) at threshold is estimated to be $n_{\mathrm{th}}\sim 4\times 10^{11}~{}\mathrm{cm}^{-2}>n_{\mathrm{Mott}}$ (see Appendix E for details), consistent with the onset of population inversion and fermionic gain. We note that density estimates in polariton systems typically carry large uncertainties; therefore they should be used not for identification of the many-body phases but rather as a consistency check. In our experiment, regardless of the exact value of the density, the carrier reservoir that screens the electron-hole interaction in the TM exciton also screens the electron-hole interaction in the TE polariton; hence the direct observation of the Mott transition in TM confirms the fermionic nature of the gain medium.

We summarize our experimental observations as follows. The spontaneous phase transition is evidenced in the characteristic superlinear increase of the emission intensity at zero in-plane wave number, accompanied by sharp linewidth narrowing [Figs. 2(b) and 2(c)]. These are common for the formation of all three possible phases in the system. However, distinct from a photon laser, we observe a well-defined single mode across the transition threshold, with an emission linewidth that remains narrow and emission frequency well below the cavity or exciton resonance frequencies without sudden shifts [Figs. 2(a) and 2(c)]. This shows the emission originates from a bound state of electron, hole and photon. Furthermore, we distinguish our system from a BEC-like state by measurement of fermionic gain in its electronic reservoir due to population inversion, at a carrier density above the Mott density [Figs. 3(a) and 3(b)]. Therefore, these observations are suggesting the possibility of a polariton BCS state: we highlight in the table in Fig. 1 the properties consistent with polariton BCS, and outline with thick green and blue borders which of these properties distinguish it from a polariton BEC in the low-density regime or a photon laser in the high-density regime, respectively.

While we have observed a BCS-like polariton laser and a photon laser in our devices, a transition in the BEC regime was not observed, possibly due to limited polariton lifetime. The transition from the BCS regime to photon lasing is expected with increasing excitation. However, we presently can only increase the power to about twice the BCS threshold before sample deformation takes place. Within twice the BCS threshold, we did not observe a large shift of the lasing mode, which suggests the system remains in the BCS regime.

V Theoretical model of the system

To analyze the microscopic picture underlying the experimental observation, we develop a theory based on a nonequilibrium Green’s function approach to treat self-consistently the entire fermionic system as an open dissipative and pumped system. The theory needs to correctly predict both the frequency shift due to density-dependent Coulomb interaction effects and the onset of fermionic gain even at the presence of Coulomb interactions. The highest degree of agreement between theoretical results and experimental data is obtained if low-frequency artifacts in the gain spectra [32, 33] are avoided, which we achieve by including electronic correlations due to screening and the resulting partial cancellation of self-energy and $e$-$h$ vertex contributions (cf. Ref. [34]). Early theories that laid the foundation of the concept of polariton BCS states used localized two-level states represented as fermions to model the electronic system [12]. Later work considered a realistic electronic band structure and two-dimensional Coulomb interaction in the Hartree-Fock approximation [14, 13], but was limited to a closed, quasiequilibrium, $T=0\,\mathrm{K}$ polariton system, which we call an “ideal polariton BCS state.” A more recent work considered an open, dissipative and pumped system, but utilized a contact potential rather than a two-dimensional Coulomb potential [35]. Since BCS states are characterized by strong correlations among electrons and holes widely distributed in the configuration space, we use in our theory the two-dimensional Coulomb potential and electronic correlations and thereby extend the description of the electronic system in Refs. [14, 13, 35] beyond the Hartree-Fock approximation. We also treat the two bright linear-polarization components (TE and TM) together with the carrier distributions functions fully self-consistently 333In the anisotropic cavity, the role of dark coherences differs from that in isotropic systems [58] and are neglected. . The incoherent pump is parametrized by the pump density $n_{p}$.

In the following, we summarize our theory, which is based on a nonequilibrium Green’s function approach to treat self-consistently the entire fermionic system as an open dissipative and pumped system. In this section we present the equations of motion that we use in the numerical simulation.

Since all two-time Green’s functions entering the dynamically screened Hartree-Fock theory are evaluated in the equal-time limit, our theoretical approach can be viewed as an extended version of the semiconductor Bloch equations [37, 38] for the interband polarizations with zero center-of-mass wave vector and as a function of the relative electron-hole wave vector $\mathbf{k}$. Given in terms of electron and hole annihilation operators, we have $P_{\pm}(\mathbf{k})=\langle a_{h,\pm 3/2,-\mathbf{k}}a_{e,\mp 1/2,\mathbf{k}}\rangle e^{i\omega_{0}t}$ where the subscripts $+$ ($-$) refer to circularly polarized bright interband transitions in the spin basis from the 3/2 (–3/2) heavy-hole (hh) band to the –1/2 (1/2) conduction band, where $\hbar\omega_{0}\simeq E_{g}$ , with $E_{g}$  denoting the band gap energy, to make $P(\mathbf{k})$ slowly varying in time. The Coulomb interactions entering the semiconductor Bloch equations are diagrammatically shown in Fig. 1(a) of Ref. [39]. We omit electron-hole exchange effects, since in GaAs the exchange splitting is on the order of $\mu$eV [40], while all effects that we are observing are on the order of meV.

Since our cavity has a linear-polarization anisotropy, we transform the interband polarizations from the spin basis to the linear polarization basis:

[TABLE]

The optical selection rules are shown in Fig. 4. We assume the effective electron $e$ and hole $h$ masses to be equal, $m_{e}=m_{h}$ (an approximation that is reasonable for heavy-hole states in GaAs quantum wells). As indicated in the figure, both $x$- and $y$-polarized light fields induce optical transitions and interband polarizations, $P_{x}$ and $P_{y}$, respectively (red dashed lines) that provide equal amounts of population (or recombination in case of population inversion) in the two spin states ($\pm 1/2$ for electrons and $\pm 3/2$ for holes). This is the reason why, in the Hartree-Fock approximation, both excitonic interband polarizations, $P_{x}$ and $P_{y}$, are affected by a shared electron reservoir (in other words, both $P_{x}$ and $P_{y}$ experience the same phase-space filling from charge carrier populations in both spin states).

We assume that there is no spontaneously formed dark interband coherence or dark condensate, e.g. $P^{(2)}(\mathbf{k})=\langle a_{h,3/2,-\mathbf{k}}a_{e,1/2,\mathbf{k}}\rangle$, shown as dashed gray line in Fig. 4, where the superscript “2” refers to the angular momentum transfer (in units of $\hbar$) required for the transitions (dipole allowed transitions have angular momentum transfer of $\pm 1$). A coupling between $P_{x}$ and $P_{y}$ due to phase-space filling requires nonzero electron-spin (or hole-spin) coherences or spin imbalances (optically induced magnetism). We neglect electron-spin coherences such as $f_{e}^{-1/2,1/2}(\mathbf{k})=\langle a^{{\dagger}}_{e,1/2,\mathbf{k}}a_{e,-1/2,\mathbf{k}}\rangle$ and hole-spin coherences such as $f_{h}^{-3/2,3/2}(\mathbf{k})=\langle a^{{\dagger}}_{h,3/2,\mathbf{k}}a_{h,-3/2,\mathbf{k}}\rangle$, since the optical creation of these spin coherences requires a combination of bright and dark interband coherences. Finally, we neglect spin imbalance, being defined, e.g., for the conduction band as $\Delta f_{e}(\mathbf{k})=\langle a^{{\dagger}}_{e,1/2,\mathbf{k}}a_{e,1/2,\mathbf{k}}\rangle-\langle a^{{\dagger}}_{e,-1/2,\mathbf{k}}a_{e,-1/2,\mathbf{k}}\rangle$, since the optical generation of spin imbalance cannot be achieved by a linearly polarized light field. Only a superposition of cross-linearly polarized fields could optically generate a spin imbalance; however in our case the pump beam is linearly polarized and above threshold we also have only linearly polarized ($x$-polarized) lasing light. We further clarify potential sources for spin coherences and spin imbalances at the end of this section.

In the $x$-$y$ basis the polarization equation in the screened Hartree-Fock approximation reads [compare, for example, Eqs. (12.19) and (15.2)-(15.4) in [38]]

[TABLE]

where $\ell=x,y$, $\gamma$ is a phenomenological dephasing constant, the band-to-band renormalized transition energy

[TABLE]

where $m_{r}$ is the reduced $e$-$h$ mass, $m_{r}^{-1}=m_{e}^{-1}+m_{h}^{-1}$, and $\Sigma^{\mathrm{HF}}(\mathbf{k})$ is the unscreened Hartree-Fock self-energy

[TABLE]

where $V_{\mathbf{k-k}^{\prime}}^{c}$ is the unscreened two-dimension Coulomb potential

[TABLE]

with $e$ being the free-electron charge, $\varepsilon_{b}$ the background dielectric constant, and $A$ the cross-sectional area of the system. The correlation term in Eq. (3) consists of the electron and hole correlation self-energies and the electron-hole vertex contribution,

[TABLE]

The correlation self-energy is

[TABLE]

Here, $\gamma_{\mathrm{pl}}$ is an effective damping constant (subscript pl for plasma), which, for simplicity, is taken as a parameter instead of calculating it self-consistently with the self-energy, $\varepsilon_{a}(\mathbf{k)}=\frac{\hbar^{2}k^{2}}{2m_{a}}$ are the unrenormalized band energies ($a=e,h$), and $g_{B}(\omega)$ the Bose function:

[TABLE]

This form of $\Sigma_{a}^{\mathrm{corr}}(\mathbf{k)}$ is strictly valid in quasithermal equilibrium. If the system is not in quasithermal equilibrium, the present form is an approximation that assumes the plasmons to be in quasithermal equilibrium, described by the Bose function, while the carrier distributions $f(\mathbf{k})$ can be arbitrary, i.e. not restricted to quasithermal equilibrium. We call this the equilibrium plasmon approximation.

The dynamically screened Coulomb potential is given in terms of the inverse plasma dielectric function

[TABLE]

We use a plasmon-pole model for the screening (see, for example [41]),

[TABLE]

where $\delta$ is an infinitesimally small positive constant, the two-component effective plasmon pole dispersion is given by

[TABLE]

and the $q$-dependent squared plasma frequency is

[TABLE]

Here, $n^{a}$ ($a=e,h$) denotes the density of the electrons and holes,

[TABLE]

and, as mentioned above, we assume equal masses, $m_{e}=m_{h}\equiv m$, and thus $n^{e}=n^{h}\equiv n$. The screening wave vector is $\kappa=\kappa_{e}+\kappa_{h}$ with

[TABLE]

The $e$-$h$ vertex contribution is taken to be the one derived in Ref. [34], with the additional simplification of making an effective quasiparticle approximation that replaces the frequency dependence by unrenormalized energy differences, thus neglecting quantum memory effects,

[TABLE]

with

[TABLE]

Furthermore, in Eq. (3) the effective Rabi frequency is

[TABLE]

The coupling coefficient,

[TABLE]

is given in terms of the interband dipole matrix element between the conduction band (subscript c) and the valence band (subscript v) $d_{\text{cv}}(\mathbf{k})$, or more precisely, a matrix element of the $k$-gradient operator (for more details about interband matrix elements in semiconductor models with periodic boundary conditions, see Ref. [42]), the light mode function $\Psi_{\mathrm{cav}}(z_{\mathrm{QW}})$ evaluated at the position of the quantum well, and the background dielectric function $\varepsilon_{b}$. We assume $d_{\text{cv}}(\mathbf{k})$ to be independent of $\mathbf{k}$ up to a certain cutoff value $k_{max}$; in other words, $a_{\mathbf{k}}^{c}=a^{c}$ for $|\mathbf{k}|<k_{\mathrm{max}}$ , and zero for $|\mathbf{k}|>k_{\mathrm{max}}$. In the low-density limit, the coupling coefficient can be related to the conventional polariton splitting $2\Omega$ when the polarization is written as $P(\mathbf{k,t})=\Phi(\mathbf{k})p(t)$ with a normalized wave function $\Phi(\mathbf{k})$, which in the low-density limit is the 1$s$ exciton wave function

[TABLE]

via

[TABLE]

where $N_{\mathrm{QW}}$ is the number of quantum wells in the cavity.

The equation for the distribution function reads

[TABLE]

with a relaxation term

[TABLE]

where $f_{F}(\mathbf{k})$ is the Fermi function

[TABLE]

$\gamma_{F}$ an effective intraband relaxation rate and $\gamma_{\mathrm{nr}}$ the nonradiative decay rate. At each time instance, the Fermi function is normalized to the same density as $f(\mathbf{k})$. We model the pump process by assuming the relaxation into a Fermi function to be sufficiently fast so that the pump term can be taken as

[TABLE]

where $f_{p}(\mathbf{k})$ is taken to be a Fermi function normalized as

[TABLE]

We use the pump density $n_{p}$ as an input parameter to our theory. For simplicity we assume here that all thermal functions entering our model, including the bath distribution function $f_{p}(\mathbf{k})$, are at the same effective temperature $T$. This temperature can generally be different from the lattice temperature, since it accounts for the dynamical equilibrium between the creation of carriers high in the bands and the electron-hole recombination (and other loss) processes.

For comparison with a system without $e$-$h$ interaction, we omit the Coulomb interaction in Eq. (18) and the $e$-$h$ correlation (16). A complete omission of the Coulomb interaction, however, would imply that there is no band gap reduction and hence the system cannot lase at the cavity frequency, which in our case is below the band gap. Therefore, we do not completely omit the self-energy. However, the $e$-$h$ correlation (16) effectively cancels that large imaginary part of the correlation self-energy (8). Hence, for the purpose of this study we omit both the correlation self-energy (8) and $e$-$h$ correlation (16), and keep only the Hartree-Fock self-energy (5).

Finally, the light field amplitudes are determined as follows. For the $y$-polarization (TM) we take $E_{y}$ to be a weak external perturbation field, $E_{y}=E_{\mathrm{pert}}$ , for example a spectrally wide short femtosecond pulse. To model the TE field, for which we have a high-$Q$ cavity, we use the quasimode equation

[TABLE]

where $\gamma_{\mathrm{cav}}$ is the cavity decay rate.

The numerical values for the parameters used in the calculations are given in the Supplemental Material [26].

To briefly summarize, we solve numerically the equations for the wave-vector-dependent $X$ and $Y$ interband polarizations, Eq. (3), the wave-vector-dependent carrier distribution, Eq. (22), and the light field amplitude at the position of the quantum wells, Eq. (27), fully self-consistently as time-differential equations until the steady state is reached. The solution of these equations yields the theoretical results shown below, notably, the spectral position of the polariton emission, cf. Fig. 3(c), and the $\mathbf{k}$-dependent distribution and interband polarization functions, cf. Figs. 5(a) and 5(b) We limit ourselves to $s$-wave solutions, meaning that all $\mathbf{k}$-dependent functions depend only on the magnitude of the wave vector, $k=|\mathbf{k}|$, and $k$ ranges between 0 and $k_{\max}.$ After numerically Fourier transforming the results to frequency, we find the TE emission frequency from the maximum of the spectral intensity of the TE light field, $|E_{x}(\omega)|^{2}$. Examples of these spectra, for the parameters used in Fig. 3(c), are shown in the Supplemental Material [26]. To obtain the TM exciton resonance and gain spectra, we add a small ultrafast (femtosecond) external light field $E_{\mathrm{pert}}$ to probe the system. Specifically, we replace $E_{y}$ by $E_{\mathrm{pert}}$ in Eqs. (3) and (22). The TM spectra are then given by the susceptibility $\chi(\omega)=\delta P_{y}^{\mathrm{tot}}(\omega)/E_{\mathrm{pert}}(\omega)$ where $\delta P_{y}^{\mathrm{tot}}(\omega)$ is the perturbation-field-induced total TM polarization. For the interpretation of the experimental results, we use only exciton frequency and the spectral location of the gain, not the gain line shape. However, figures of the gain line shape, together with additional details of the theory and parameter values used in the calculations, are given in Ref. [26]. The gain lineshape that we obtain is free of the artificial absorption below the gain, which one obtains in an unscreened Hartree-Fock theory, as was discussed, e.g., in Refs. [32, 33]. It is important to note, however, that we verified that none of our qualitative conclusions would change if we would use an unscreened Hartree-Fock theory. Only the quantitative agreement between theory and experiment shown below [cf. Figs. 3(b) and 3(c)] would be slightly less good.

Before presenting our numerical results, we want to briefly come back to the issue of spin coherences and spin imbalances mentioned above. Within the screened Hartree-Fock theory and the Coulomb interactions shown in Fig. 1(a) of Ref. [39], all source terms for spin coherence $f_{e}^{-1/2,1/2}(\mathbf{k})$ involve polarization with angular momentum transfer 2, for example, $\frac{1}{A}\sum\limits_{\mathbf{k}^{\prime}}V_{\mathbf{k-k}^{\prime}}^{c}P^{\ast}_{+}(\mathbf{k}^{\prime})P^{(2)}(\mathbf{k})$. Hence, unless we would find experimental indications of a spontaneous dark coherence such as $P^{(2)}(\mathbf{k})$, which does not couple directly to the cavity mode and therefore does not exhibit polariton effects similar to $P_{x}$, and which would still need to be strong enough to give observable effects on the meV scale, we do not expect, and hence neglect, optically induced spontaneous spin coherence. The reason to neglect optically induced spontaneous spin imbalance, e.g., $\Delta f_{e}(\mathbf{k})$, lies in the fact that its source term is proportional to products of TE and TM fields, such as $\Omega_{\mathrm{eff}}^{x}(\mathbf{k})^{\ast}P_{y}(\mathbf{k})$. Since in steady state there is no TM field (a small TM field exists only transiently when we probe the system’s TM response), these source terms are negligible in our experimental configuration.

VI Theoretical results and discussion

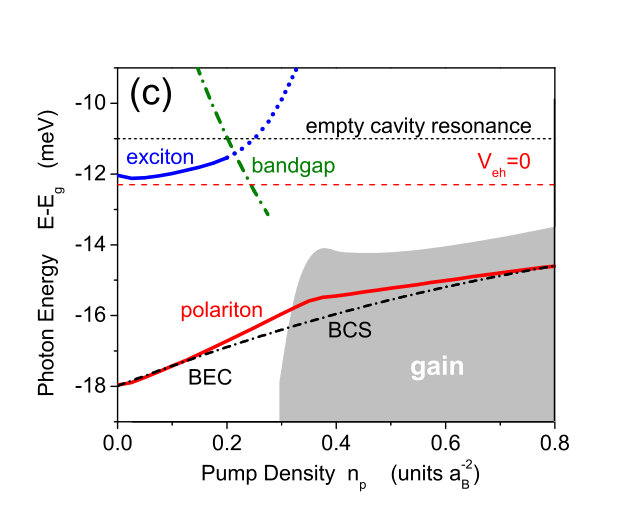

Figure 3(c) shows a representative theoretical result, with parameters chosen to correspond to the experiment (cavity-exciton detuning 1 meV, cavity decay rate 0.2 meV, exciton binding energy 12 meV, normal-mode splitting 12 meV). We use a pump-dependent effective electron temperature to account for pump-induced heating, $T[{\rm K}]=40+50n_{p}a_{B}^{2}$ ($T$ models the dynamic equilibrium between high-energy pump and $e$-$h$ pair recombination). The results are rather insensitive to the exact input parameters; qualitatively similar results for fixed temperature are shown in Ref. [26].

The results reproduce all observed experimental features with excellent agreement. For the TM exciton, we obtain a blueshift accompanied by strong band gap renormalization. At $n_{p}\sim 0.1n_{\mathrm{Mott}}$, the exciton merges with the renormalized band gap and dissociates, which corresponds well to the observed disappearance of the exciton resonance into band-edge absorption. Further increasing density, we obtain gain due to population inversion, in agreement with the measured gain in TM field.

Gain in the TM field implies direct gain in the TE field. This is because the equations for the TE and TM interband polarization differ only in that they contain different light field amplitudes. The Coulomb interaction terms as well as the distribution functions that enter the equations, for example as the inversion or Pauli blocking factor, are the same. Therefore, TE lasing is expected as the polariton resonance enters the gain region, as is observed experimentally [Fig. 3(b)].

The Mott transition and fermionic gain reproduced by the theory confirm that the observed lasing transition is not an exciton-polariton BEC. At the same time, Coulomb effects continue to play a substantial role in the laser, rendering characteristics distinct from the photon laser but similar to the ideal polariton BCS state. A first manifestation is the spectral shift of the lasing state. As shown in Fig. 3(c) and in agreement with experimental results, the lower polariton (LP) experiences a blueshift of about 2meV before the TE laser threshold is reached, at which point it levels off (i.e., its slope decreases), and across the threshold the blue-shift is continuous, remaining significantly below that of the photon laser but tracking closely the ideal BCS state. In comparison, with Coulomb interactions turned off, we obtain photon lasing near the cavity frequency similar to the observed photon lasing.

With the theory reproducing the spectral properties measured in the experiment, we furthermore use the theory to examine the reciprocal-space carrier distribution functions $f(k)$ and the electron-hole interband polarization $|P(k)|$, which characterize the microscopic mechanism of the lasing transition. As shown in Fig. 5, both $f(k)$ and $|P(k)|$ of the polariton laser are qualitatively similar to those of an ideal BCS state but different from those of a photon laser.

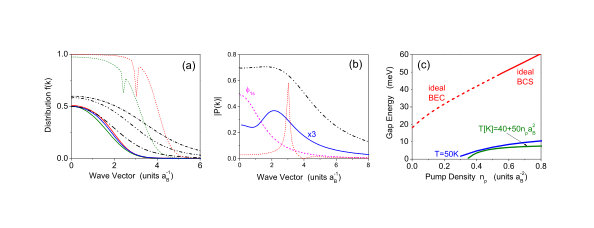

As seen in Fig. 5(a), $f(k)$ of both the ideal BCS state and the polariton laser saturate only slightly above 0.5 (the minimum value required for fermionic gain), for example the value of the red solid line close to $k=0$ is approximately 0.51, and in additional calculations using the unscreened HF approximation (not shown), the corresponding value is about 0.56, while $f(k)$ of the photon laser approaches unity above threshold. Sharp kinetic holes can develop in the distribution functions of the photon laser, shown here with a small dephasing of 0.15 meV for clarity, but not in the polariton laser or the ideal BCS state. These results for the polariton laser and the ideal BCS state are largely insensitive to the value of the dephasing.

Equally important is the interband polarizations $|P(k)|$, corresponding to the order parameter [Fig. 5(b)]. For a photon laser, it is sharply peaked below—and zero at—the transparency wave vector, which corresponds to the quasichemical potential. In contrast, $|P(k)|$ of both the BCS polariton laser and the BCS state (cf. Ref. [14]) do not vanish at the transparency wave vector and are instead broadly distributed in the reciprocal space, indicating bound states even at densities $n$ where the mean distance between polaritons becomes comparable to the Bohr radius $a_{B}$, i.e., $na^{2}_{B}\approx 1$. The magnitude of $|P(k)|$ in our polariton laser is smaller than that of the ideal BCS due to cavity dissipation and dephasing.

Lastly, we estimate the BCS gap corresponding to the minimum pair-breaking excitation (superscript xc) energy $2\min_{k}E^{\mathrm{xc}}(\mathbf{k})$, which is discussed in detail in the Supplemental Material [26]. The phenomenological estimate uses the same formal expression of the excitation energies of electrons and hole in BEC/BCS state $E^{\mathrm{xc}}(\mathbf{k})$ and a minimization with respect to $\mathbf{k}$. As shown in Fig. 5(c), the pair gap opens at a density corresponding to the BCS regime [see Fig. 3(c)] and increases to about 7 meV at twice threshold. From Fig. 5(c) we see that the gap is substantially smaller than that in the ideal system, which is expected due to cavity dissipation and dephasing and is consistent with the reduced order parameter $|P(k)|$. Such a reduction of the gap due to losses was predicted in Ref. [11]. Further discussion and results for the dependence of our phenomenological gap estimate on the dephasing rate are given in Ref. [26].

Our theory correctly reproduces not only the shift of the TE emission, including the size of the overall shift between zero pumping and threshold, and the leveling off of the shift above threshold, but also the behavior (shift and vanishing) of the TM exciton and the occurrence of TM gain, which sets in at a pump density (or pump power) at which the TE threshold occurs. The concurrence of these various theory-experiment agreements with our presently used theory is an important indication that the agreement is not coincidental or an artifact of fitting parameters. In addition to the theory presented here, we have developed several other theories that did not reproduce the various agreements just mentioned, in spite of the fact that some of those theories had fitting parameters with substantial effect on the predicted polariton shift.

VII Conclusion

In conclusion, we demonstrate a system that exhibits spontaneous symmetry breaking (polariton condensate or laser) which, although having spectral features commonly identified in a polariton BEC, is shown to take place above the Mott transition, with physical characteristics consistent with an open-dissipative-pumped system analog of a polaritonic BCS state [43].

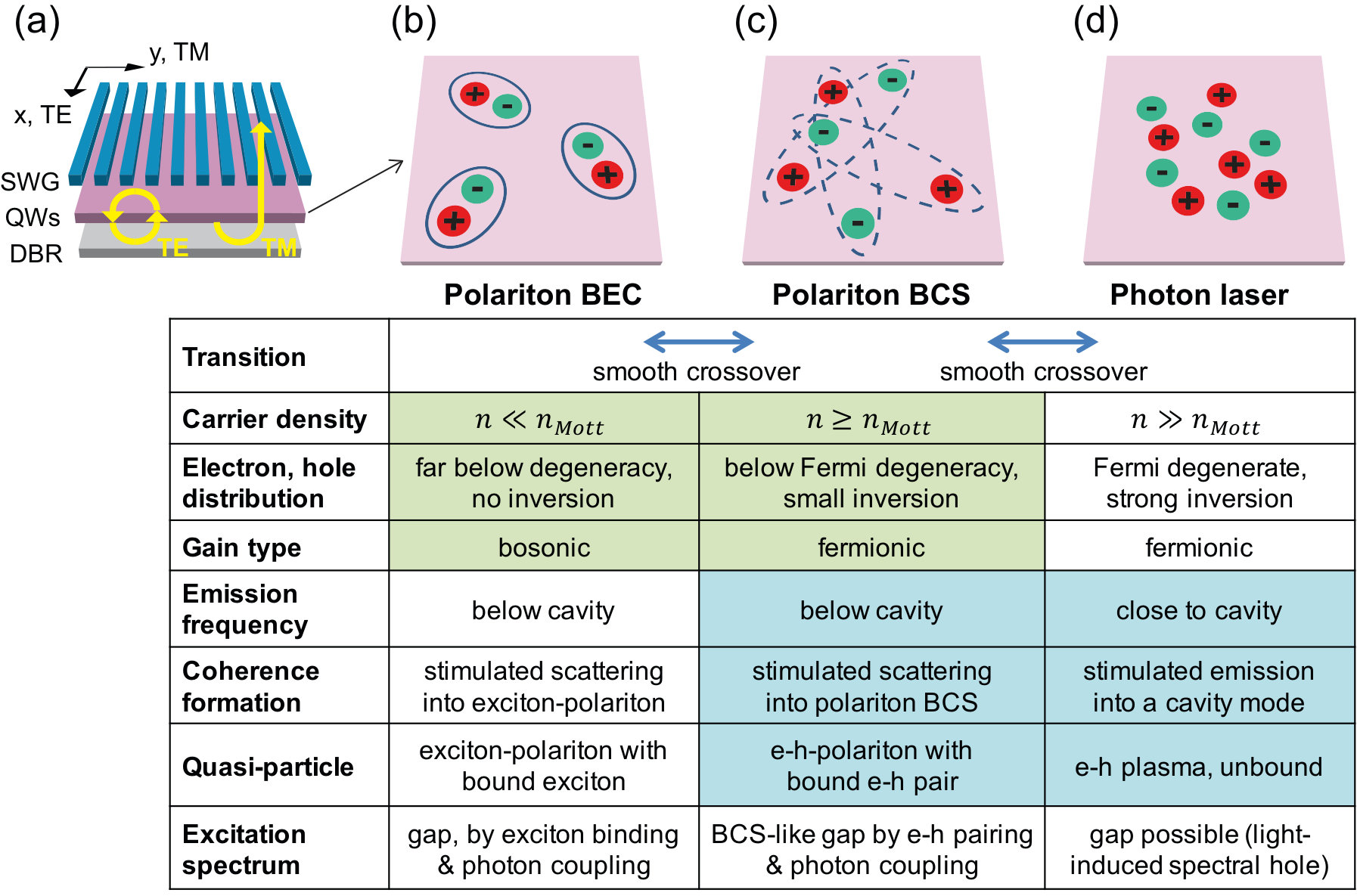

We summarize our results in the table in Fig. 1, where we highlight in green the properties we used to distinguish our polariton state from a polariton BEC in the low-density regime, and in blue from a photon laser in the high-density regime. Distinct from a photon laser, our polariton laser is formed by a bound state of electron, hole, and photon, manifested in spectral features including an emission linewidth that remains narrow and emission frequency well below the cavity or exciton resonance frequencies without sudden shifts. These spectral features closely resemble a polariton BEC. However, we show that spectral features of the laser emission alone is insufficient for identifying it to be in the BEC or BCS regime. Fermionic gain in the electronic reservoir was measured in our system, suggesting a BCS-like state.

The experimental observations are described by a fermionic many-particle theory that extends the ideal BCS theory to an open, pumped and dissipative system at nonzero temperature. The theory, validated by the experiments, furthermore reveals at the microscopic level that our polariton laser crucially involves the electron-hole interactions typical for the formation of a polaritonic BCS state, and has electron distributions and interband coherences that are qualitatively similar to the zero-temperature polariton BCS states. The pair-breaking excitation gap, which can neither be ruled out nor confirmed with our present experimental setup, is found to be substantially reduced from that of an ideal polariton BCS state due to the elevated electron temperature, dephasing, and cavity dissipation.

Future theoretical work may include extensions of the theory that would account for bosonic effects within a fermionic theory. For example, the theory should account for (bosonic) populations of normal-state TE polaritons and TM excitons, i.e., incoherent polaritons and excitons that form a bath. One possible way to achieve this could be the extension of the self-energy to the level of the $T$-matrix approximation where sidebands in the single-particle spectral function can be associated with excitonic populations [44, 45, 46, 47, 48], but now generalized to include polariton effects in the TM channel. Furthermore, the treatment of screening should be improved by accounting for excitonic screening in the low-density regime. This could be achieved through a generalization of the screening function developed in Ref. [49]. A further extension would account, at a microscopic level and ideally without phenomenological parameters, for bosonic scattering in the fermionic framework in order to describe consistently an open and pumped system with bosonic gain via polariton scattering from an incoherent bath and fermionic gain.

Future experiments to directly probe the BCS gap using intraband terahertz spectroscopy [25] could yield important information [50]. It will be interesting to examine the possibility of a crossovers among polariton BEC, polariton BCS, and photon lasing state, determine whether a non-Hermitian phase transition may take place [51], and explore conditions to realize other possible phases of the electron-hole-photon coupled system.

Appendix A Microcavity sample

The samples have three sets of four 12-nm-wide GaAs quantum wells with 4 nm AlAs barriers embedded at the three central antinodes of a $\lambda/2$ $\mathrm{AlAs}$ cavity. The bottom mirror is a distributed Bragg reflector (DBR) with 30 pairs of $\mathrm{Al_{0.15}Ga_{0.85}As/AlAs}$ layers. The top mirror consists of 2.5 pairs of DBR and an $\mathrm{Al_{0.15}Ga_{0.85}As}$ subwavelength grating suspending over the DBR. The grating is about 80 nm thick, with a 40% duty cycle and a grating period of 520 nm. The lower polariton (LP) and upper polariton (UP) resonances of each device are measured by reflection and low-power photoluminescence spectroscopy [see examples in Fig. 2(a) and Appendix C]. The exciton resonances are measured from the unetched part next to the device. Using the measured LP, UP and exciton resonances, we estimate the cavity resonance frequency, detuning, and normal-mode splitting for each grating device. The size of the gratings is $7.5\times 7.5~{}\mathrm{\mu m^{2}}$. The different reflectance under the grating and outside the grating leads to laterally confined, fully discrete TE-cavity and TE-polariton modes as evident from Fig. 2(a). The sample is kept at $10~{}\mathrm{K}$ in a Janis ST-500 or Montana CR-509 cryostat for all the measurements.

Appendix B Measuring the bandwidth of the optical gain

To determine the gain bandwidth requires measurement of the absolute reflectivity, which we obtain by a two-step calibration process. We first calibrate the reflectivity by normalizing the reflected pulse laser intensity on the sample to that on a gold mirror mounted in the cryostat next to the sample. There is still error due to imperfect reflection from the gold mirror as well as laser fluctuation and slight changes in the optical path when moving between the sample and the mirror. We then estimate and correct for the error using a spectral regime well below any cavity resonances but still inside the DBR stop band, where the reflectivity should be unity at no or low pump powers. As shown in Fig. 3(a), such a spectra region corresponds to $1.53-1.54~{}\mathrm{eV}$, where the reflectivity is close to 1 and varies within about $2.4\%$. Hence we use the mean of the reflectivity in this spectral region between [math] and $500~{}\mathrm{\mu W}$ pump power as a reference of unity. This allows us to accurately determine deviation from unity in the reflection spectra.

Gain is identified where a local maximum of the reflectivity between $1.54$ and $1.55~{}\mathrm{eV}$ is above unity as determined from above. The uncertainty of the gain boundary is estimated by dividing the standard deviation $\sigma$ of the reference reflectivity by the local slope at the boundary.

Appendix C Angle-integrated TE spectra of a BCS-like polariton laser

In Fig. 6 we show the TE-polarized reflection and emission spectra of the device shown in Figs. 3(a) and 3(b) of the main text at different pump laser powers integrated over $q$. LP and UP resonances are clearly seen in the reflection spectra at low pump powers. The multiple discrete LP modes due to the finite in-plane size of the grating are also clearly resolved at low pump powers. As the pump power increases, the emission intensity from LP ground state increases sharply, much faster than other modes, signaling lasing. At the highest power, the oscillations near the lasing peak in the reflection spectra are artifacts due to the subtraction of the strong lasing emission, as discussed in the main text. To get the energies of LP and UP modes at zero pump, we do curve fitting for TE reflection spectra with the model,

[TABLE]

where $b$, $c_{i}$, $E_{0i}$, and $\Gamma_{i}$ are the fitting parameters. $L_{i}(E,E_{0i},\Gamma_{i})$ represent the resonances with energies $E_{0i}$ and FWHM $\Gamma_{i}$. The number of resonances used in the model depends on the number of resonances visible in the spectra. We use the energy of the lowest one in the LP (UP) regions as LP (UP) ground state energy. In all our data, the emission frequencies of the lowest polariton or photon mode are obtained from TE emission spectra by curve fitting with the model

[TABLE]

where $c_{i}$, $E_{0i}$, and $\Gamma_{i}$ are the fitting parameters. Each of the peaks $f_{i}(E,E_{0i},\Gamma_{i})$ is either Lorentzian

[TABLE]

typically at low pump power, or Gaussian,

[TABLE]

typically at high pump power, depending on which model returns a smaller mean squared error.

Appendix D Examples of exciton energy estimate

We fit the TM reflection spectra to estimate the exciton energy at low pump powers, with the model

[TABLE]

The four peaks $f_{i}(E,E_{0i},\Gamma_{i})$ used in the fitting are, from high energy to low energy, a broad TM cavity mode, light-hole exciton, and two heavy-hole exciton peaks possibly due to the inhomogeneity among the quantum wells. The energy of the lowest peak is used as the exciton energy. The line shapes of each peak are either Lorentzian or Gaussian [see Eqs. 31 and 32] depending on which combination gives the smallest mean squared error. We show the complete series of data used for Fig. 3(b) of the main text in Fig. 7 and examples of curve fitting at two different pump powers in Fig. 8. At even higher pump powers we expect a redshift of the band gap and observe that the discrete peaks are no longer resolvable [see Figs. 3(a) and 3(b) of the main text] and therefore this energy estimation is not applied to those pump powers.

Appendix E Estimating the carrier density in the experiments

We estimate an experimental pump density, corresponding to the pump density $n_{p}$ in the theory, based on the absorption of the pump laser and the PL decay time of the TM-polarized emission:

[TABLE]

Here $\Phi_{\mathrm{pump}}$ is the population of carriers excited by the pump in unit time. $P$ is the pump laser power measured before the objective lens. $\eta=0.7$ is the transmission of the objective lens, $\alpha$ is the total absorption of the pump, ${hc}/{\lambda}$ is the photon energy at the excitation wavelength, and $\tau$ is the average lifetime of carriers. $A$ is the diffusion area of the carriers measured from real-space PL (example and pump power dependence given in the Supplemental Material [26], and $N_{\mathrm{QW}}$ is the number of QWs in the cavity. To determine $\alpha$, we measure independently the reflectivity of a TM-polarized laser at the excitation wavelength of $784~{}\mathrm{nm}$. At this wavelength, the top mirror has low reflectivity; the bottom mirror has very high reflectivity and there is negligible transmission through the bottom mirror and therefore negligible absorption in the substrate. The materials of the DBR and grating layers also have larger band gap than the QWs and their absorption should be very small and is ignored. We assume the pump laser is either reflected or absorbed by the QWs, and obtain $\alpha=1-R$. $\alpha$ and $A$ vary among different devices. For the device shown in Figs. 3(a) and 3(b) of the main text, $\alpha\sim 0.3$ and $A\sim 32~{}\mathrm{\mu m^{2}}$. We determine $\tau$ from the decay time of TM emission, measured by time-resolved PL of the TM emission with a pulsed excitation laser centered at the same wavelength as the cw pump laser used in the main measurement. It is found to be around $600~{}\mathrm{ps}$ with the excitation power ranging from $1$ to $300~{}\mathrm{\mu W}$. Nonradiative processes are ignored.

Below threshold, in the linear regime, the steady-state carrier density $n_{\mathrm{carrier}}$ is equal to the pump density $n_{\mathrm{pump}}$. Above threshold, it is necessary to account for the strong, superlinear emission from the lasing mode. We assume that all decay processes other than the laser emission are still linear and proportional to the carrier density. Therefore, we subtract the emission rate of the laser $\Phi_{\mathrm{laser}}$ from the pump to get an estimate of the carrier density:

[TABLE]

Here $N_{c}$ is the collected photon count from the emission of the lasing mode, $\eta_{\mathrm{col}}=2.85\times 10^{-3}$ is the independently calibrated total collection efficiency, and ${A_{q_{\mathrm{mode}}}}/{A_{q_{\mathrm{col}}}}\sim 7.5$ is the ratio of the area of the lasing mode to the area of collection in Fourier space, which also varies among devices.

To estimate ground state polariton density, we use

[TABLE]

where $\Phi_{\mathrm{LP}}$ is the emission rate of the polariton ground state, calculated similarly as $\Phi_{\mathrm{laser}}$ but with the emission photon count and the mode area of the polariton ground state. Above threshold, the lasing state (BCS-like polariton lasing or photon lasing) is used in this estimation, $\Phi_{\mathrm{LP}}=\Phi_{\mathrm{laser}}$. $\tau_{\mathrm{LP}}=1.5~{}\mathrm{ps}$ is the polariton lifetime and $A_{\mathrm{LP}}\sim 5.3~{}\mathrm{\mu m^{2}}$ is the real-space area of the polariton mode.

In this density estimation, quantities $P$, $\lambda$, $N_{\mathrm{QW}}$, $\eta$, $\eta_{\mathrm{col}}$, $R$, $\tau$, and $N_{c}$ are directly measured. $\alpha$ is estimated from $R$. $A$, $A_{q_{\mathrm{mode}}}$, $A_{q_{\mathrm{col}}}$, and $A_{\mathrm{LP}}$ are estimated based on measured 1D spatial profiles of the emission along $x$ and $y$ directions. $\tau_{\mathrm{LP}}$ is estimated from measured emission linewidth. This density estimation aims to provide an upper bound of density but should be within small uncertainty.

Appendix F Summary of alternative theoretical approaches

In this appendix, we briefly summarize important features of alternative theories that we developed and that failed to explain the experimental data. Common to the alternative models we tried, is the use of spin-dependent exciton-exciton interactions accounting for fermionic exchange that are commonly used in bosonic models, and that we quantitatively developed in a nonperturbative (in the Coulomb interaction) fashion leading to spin-dependent $T$ matrices; see Ref. [52]. Using the excitonic $T$ matrices, it is straightforward to calculate the resulting polariton shift as a function of polariton density [53]. In order to understand the fact that the shift, as a function of density, levels off at a certain density (or pump power in the experiment), we extended the first version of the theory and included spin-dependent (fermionic) phase-space filling. However, the effect of phase-space filling on the polariton shift is opposite to the observation: the shift increase nonlinearly as a function of density, rather than leveling off as in the experimental observation.

We further refined the model, accounting for each polarization (TE and TM) to have both coherent (zero center-of-mass momentum) and incoherent (nonzero center-of-mass momentum) exciton densities, as well as an electron-hole plasma reservoir, given by an adjustable ionization ratio (fitting parameter, in practice not chosen to be the same as the conventional Saha equation predicts). The condensation fraction, i.e., the fraction of the excitons in the TE zero center-of-mass momentum state, is also a fitting parameter. The model also accounts for interactions (Coulomb and phase-space filling) between bright and dark excitons, and the dark exciton fraction is a fitting parameter. The screening of the excitonic $T$-matrix interactions due to the plasma reservoir is included in the model. The model ensures, in a phenomenological fashion, that the single-particle distribution function, which is a sum of exciton contributions (proportional to the squared 1$s$-exciton wave functions) and steplike (Fermi function) contributions, does not exceed unity.

Within this model, the only way we found to obtain the experimental feature of the LP shift leveling off at threshold was to adjust the condensation fraction as a function of density. This is reasonable, because we know that the condensation fraction is zero below threshold, and nonzero above. Increasing the condensation fraction above threshold yields indeed the leveling-off of the LP shift. However, we found that the condensation fraction required to yield an appreciable effect (similar to the experiment) was unrealistically large. Only if the condensate density was comparable to or larger than the reservoir density did we obtain the leveling-off in a way similar to the experiment. Analyzing our experiment clearly excludes the possibility that the condensate density is as large as the reservoir density. Hence, the earlier model was unsuccessful in modeling our experiment. In contrast, the present model reproduces all salient features of the experiment shown Figs. 3(b) and 3(c).
