Properties of minimal charts and their applications V: charts of type $(3,2,2)$

TL;DR

This paper proves that minimal charts of type (3,2,2), characterized by specific intersection properties of their labels and vertices, do not exist, advancing the understanding of chart properties in topological studies.

Contribution

It establishes the non-existence of minimal charts of type (3,2,2), providing new insights into the structure of such charts in topological graph theory.

Findings

No minimal chart of type (3,2,2) exists.

The intersection properties constrain chart configurations.

Results contribute to classification of minimal charts.

Abstract

Let $\Gamma$ be a chart, and we denote by $\Gamma_m$ the union of all the edges of label $m$. A chart $\Gamma$ is of type $(3,2,2)$ if there exists a label $m$ such that $w(\Gamma)=7$, $w(\Gamma_m\cap\Gamma_{m+1})=3$, $w(\Gamma_{m+1}\cap\Gamma_{m+2})=2$, and $w(\Gamma_{m+2}\cap\Gamma_{m+3})=2$ where $w(G)$ is the number of white vertices in $G$. In this paper, we prove that there is no minimal chart of type $(3,2,2)$.

Figures

Equations

$$w(X)=\text{the number of white vertices in X.}$$

$$|(e_1\cup e_2)\cap {\Gamma }_{k-\delta }|\ge |(e_1\cup e_2)\cap (a_{44}\cup b_{44})|=|(e_1\cup e_2)\cap \partial E|\ge 2.$$

$$|(e_1\cup e_2)\cap {\tilde{\Gamma }}_{k-\delta }|<|(e_1\cup e_2)\cap {\Gamma }_{k-\delta }|.$$

$$3=w(\Gamma \cap \mathrm{Int}F)\ge w(\Gamma \cap \partial D)+w(\Gamma \cap \mathrm{Int}D)=2+w(\Gamma \cap \mathrm{Int}D).$$

$$\begin{array}[]{rl}w(\Gamma\cap(S^{2}-F))&=w(\Gamma\cap(S^{2}-(F\cup D)))+w(\Gamma\cap D)\\ &\geq w(\Gamma\cap(S^{2}-(F\cup D)))+w(\Gamma\cap\partial D)\\ &=w(\Gamma\cap(S^{2}-(F\cup D)))+2.\end{array}$$

$$\begin{array}[]{rl}7=w(\Gamma)&=w(\Gamma\cap{\rm Int}F)+w(\Gamma\cap\partial F)+w(\Gamma\cap(S^{2}-F))\\ &\geq w(\Gamma\cap{\rm Int}F)+3+w(\Gamma\cap(S^{2}-(F\cup D)))+2.\end{array}$$

Full text

Properties of minimal charts and their applications V: charts of type $(3,2,2)$

Teruo NAGASE and Akiko SHIMA

2010 Mathematics Subject Classification. Primary 57Q45; Secondary 57Q35.

Key Words and Phrases. surface link, chart, white vertex.

1 Introduction

Charts are oriented labeled graphs in a disk (see [1],[5], and see Section 2 for the precise definition of charts). From a chart, we can construct an oriented closed surface embedded in 4-space ${\mathbb{R}}^{4}$ (see [5, Chapter 14, Chapter 18 and Chapter 23]). A C-move is a local modification between two charts in a disk (see Section 2 for C-moves). A C-move between two charts induces an ambient isotopy between oriented closed surfaces corresponding to the two charts.

We will work in the PL category or smooth category. All submanifolds are assumed to be locally flat. In [14], we showed that there is no minimal chart with exactly five vertices (see Section 2 for the precise definition of minimal charts). Hasegawa proved that there exists a minimal chart with exactly six white vertices [2]. This chart represents a 2-twist spun trefoil. In [3] and [13], we investigated minimal charts with exactly four white vertices. In this paper, we investigate properties of minimal charts and need to prove that there is no minimal chart with exactly seven white vertices (see [6],[7], [8],[9], [10]).

Let $\Gamma$ be a chart. For each label $m$, we denote by $\Gamma_{m}$ the union of all the edges of label $m$.

Now we define a type of a chart: Let $\Gamma$ be a chart, and $n_{1},n_{2},\dots,n_{p}$ integers. The chart $\Gamma$ is of type $(n_{1},n_{2},\dots,n_{k})$ if there exists a label $m$ of $\Gamma$ satisfying the following three conditions:

1. (i)

For each $i=1,2,\dots,k$, the chart $\Gamma$ contains exactly $n_{i}$ white vertices in $\Gamma_{m+i-1}\cap\Gamma_{m+i}$. 2. (ii)

If $i<0$ or $i>k$, then $\Gamma_{m+i}$ does not contain any white vertices. 3. (iii)

Both of the two subgraphs $\Gamma_{m}$ and $\Gamma_{m+k}$ contain at least one white vertex.

If we want to emphasize the label $m$, then we say that $\Gamma$ is of type $(m;n_{1},n_{2},\dots,n_{k})$. Note that $n_{1}\geq 1$ and $n_{k}\geq 1$ by the condition (iii).

We proved in [7, Theorem 1.1] that if there exists a minimal $n$-chart $\Gamma$ with exactly seven white vertices, then $\Gamma$ is a chart of type $(7),(5,2),(4,3),(3,2,2)$ or $(2,3,2)$ (if necessary we change the label $i$ by $n-i$ for all label $i$). The following is the main result in this paper.

Theorem 1.1

There is no minimal chart of type $(3,2,2)$.

The paper is organized as follows. In Section 2, we define charts and minimal charts. In Section 3, we investigate connected components of $\Gamma_{m}$ with at most three white vertices for a minimal chart $\Gamma$. In Section 4, we review a $k$-angled disk, a disk whose boundary consists of edges of label $m$ and contains exactly $k$ white vertices. In Section 5, we investigate a disk $D$ with exactly two white vertices of $\Gamma_{m}$ such that $\Gamma_{m}\cap\partial D$ consists of at most one point. In Section 6, we investigate a $2$-angled disk whose interior contains exactly three white vertices, and we shall show a key lemma (Lemma 6.3) for Theorem 1.1. In Section 7, we review IO-Calculation (a property of numbers of inward arcs of label $k$ and outward arcs of label $k$ in a closed domain $F$ with $\partial F\subset\Gamma_{k-1}\cup\Gamma_{k}\cup\Gamma_{k+1}$ for some label $k$). In Section 8, we introduce useful lemmata. In Section 9, we prove Theorem 1.1.

2 Preliminaries

In this section, we introduce the definition of charts and its related words.

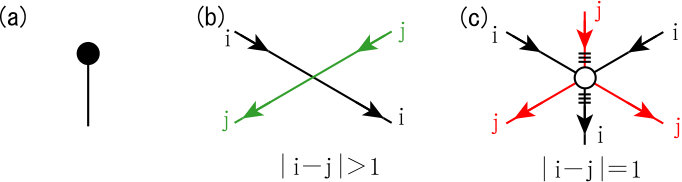

Let $n$ be a positive integer. An $n$-chart (a braid chart of degree $n$ [1] or a surface braid chart of degree $n$ [5]) is an oriented labeled graph in the interior of a disk, which may be empty or have closed edges without vertices satisfying the following four conditions (see Fig. 1):

1. (i)

Every vertex has degree $1$, $4$, or $6$. 2. (ii)

The labels of edges are in $\{1,2,\dots,n-1\}$. 3. (iii)

In a small neighborhood of each vertex of degree $6$, there are six short arcs, three consecutive arcs are oriented inward and the other three are outward, and these six are labeled $i$ and $i+1$ alternately for some $i$, where the orientation and label of each arc are inherited from the edge containing the arc. 4. (iv)

For each vertex of degree $4$, diagonal edges have the same label and are oriented coherently, and the labels $i$ and $j$ of the diagonals satisfy $|i-j|>1$.

We call a vertex of degree $1$ a black vertex, a vertex of degree $4$ a crossing, and a vertex of degree $6$ a white vertex respectively. Among six short arcs in a small neighborhood of a white vertex, a central arc of each three consecutive arcs oriented inward (resp. outward) is called a middle arc at the white vertex (see Fig. 1(c)). For each white vertex $v$, there are two middle arcs at $v$ in a small neighborhood of $v$.

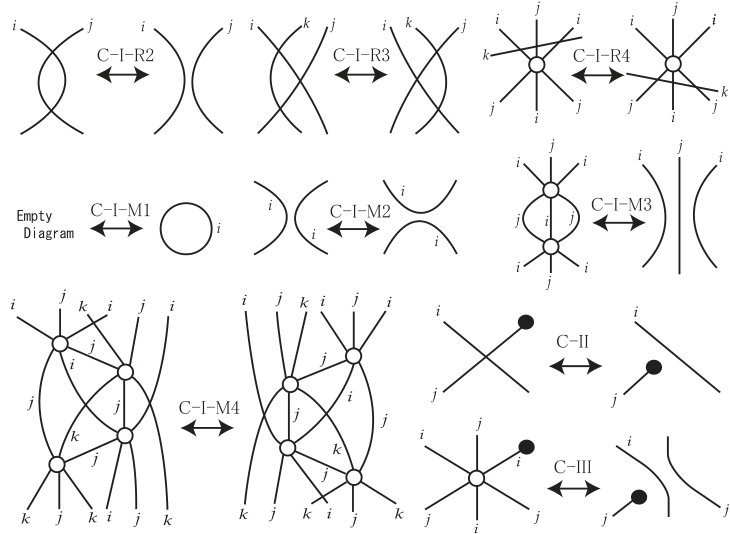

Now C-moves are local modifications of charts as shown in Fig. 2 (cf. [1], [5] and [15]). Two charts are said to be C-move equivalent if there exists a finite sequence of C-moves which modifies one of the two charts to the other.

An edge in a chart is called a free edge if it has two black vertices.

For each chart $\Gamma$, let $w(\Gamma)$ and $f(\Gamma)$ be the number of white vertices, and the number of free edges respectively. The pair $(w(\Gamma),-f(\Gamma))$ is called a complexity of the chart (see [4]). A chart $\Gamma$ is called a minimal chart if its complexity is minimal among the charts C-move equivalent to the chart $\Gamma$ with respect to the lexicographic order of pairs of integers.

We showed the difference of a chart in a disk and in a 2-sphere (see [6, Lemma 2.1]). This lemma follows from that there exists a natural one-to-one correspondence between $\{$charts in $S^{2}\}/$C-moves and $\{$charts in $D^{2}\}/$C-moves, conjugations ([5, Chapter 23 and Chapter 25]). To make the argument simple, we assume that the charts lie on the 2-sphere instead of the disk.

Assumption 1

In this paper, all charts are contained in the $2$-sphere $S^{2}$.

We have the special point in the 2-sphere $S^{2}$, called the point at infinity, denoted by $\infty$. In this paper, all charts are contained in a disk such that the disk does not contain the point at infinity $\infty$.

An edge in a chart is called a terminal edge if it has a white vertex and a black vertex.

Let $\Gamma$ be a chart, and $m$ a label of $\Gamma$. A hoop is a closed edge of $\Gamma$ without vertices (hence without crossings, neither). A ring is a simple closed curve in $\Gamma_{m}$ containing a crossing but not containing any white vertices. A hoop is said to be simple if one of the two complementary domains of the hoop does not contain any white vertices.

We can assume that all minimal charts $\Gamma$ satisfy the following four conditions (see [6],[7],[8], [12]):

Assumption 2

If an edge of $\Gamma$ contains a black vertex, then the edge is a free edge or a terminal edge. Moreover any terminal edge contains a middle arc.

Assumption 3

All free edges and simple hoops in $\Gamma$ are moved into a small neighborhood $U_{\infty}$ of the point at infinity $\infty$. Hence we assume that $\Gamma$ does not contain free edges nor simple hoops, otherwise mentioned.

Assumption 4

Each complementary domain of any ring and hoop must contain at least one white vertex.

Assumption 5

The point at infinity $\infty$ is moved in any complementary domain of $\Gamma$.

In this paper for a set $X$ in a space we denote the interior of $X$, the boundary of $X$ and the closure of $X$ by Int$X$, $\partial X$ and $Cl(X)$ respectively.

3 Connected components of $\Gamma_{m}$

In this section, we investigate connected components of $\Gamma_{m}$ with at most three white vertices for a minimal chart $\Gamma$.

In our argument we often construct a chart $\Gamma$. On the construction of a chart $\Gamma$, for a white vertex $w\in\Gamma_{m}$ for some label $m$, among the three edges of $\Gamma_{m}$ containing $w$, if one of the three edges is a terminal edge (see Fig. 3(a) and (b)), then we remove the terminal edge and put a black dot at the center of the white vertex as shown in Fig. 3(c). Namely Fig. 3(c) means Fig. 3(a) or Fig. 3(b). We call the vertex in Fig. 3(c) a BW-vertex.

Lemma 3.1

In a minimal chart, two edges containing the same BW-vertex are oriented inward or outward at the BW-vertex simultaneously $($see Fig. 3$($d$)$ and $($e$))$.

Proof. By Assumption 2, each terminal edge of label $m$ contains a middle arc at a white vertex. Thus the other two edges of label $m$ are oriented inward or outward at the BW-vertex simultaneously. Hence we have the result. $\square$

Let $\Gamma$ be a chart, and $m$ a label of $\Gamma$. A loop is a simple closed curve in $\Gamma_{m}$ with exactly one white vertex (possibly with crossings).

Let $X$ be a set in a chart $\Gamma$. Let

[TABLE]

The following lemma is easily shown. Thus we omit the proof.

Lemma 3.2

Let $\Gamma$ be a minimal chart, and $m$ a label of $\Gamma$. Let $G$ be a connected component of $\Gamma_{m}$. Then we have the following.

1. $(1)$

If $1\leq w(G)$, then $2\leq w(G)$. 2. $(2)$

If $1\leq w(G)\leq 3$ and $G$ does not contain any loop, then $G$ is one of three graphs as shown in Fig. 4. $\square$

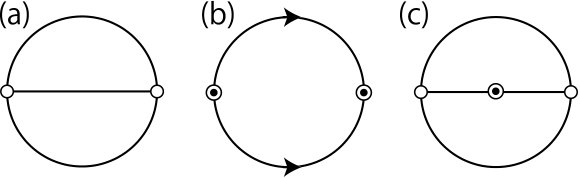

By Lemma 3.1, we have an orientation of the graph as in Fig. 4(b).

4 $k$-angled disks

In this section we review properties of $k$-angled disks.

Let $\Gamma$ be a chart, $m$ a label of $\Gamma$, $D$ a disk with $\partial D\subset\Gamma_{m}$, and $k$ a positive integer. If $\partial D$ contains exactly $k$ white vertices, then $D$ is called a $k$-angled disk of $\Gamma_{m}$. Note that the boundary $\partial D$ may contain crossings.

Let $\Gamma$ be a chart, and $m$ a label of $\Gamma$. An edge of label $m$ is called a feeler of a $k$-angled disk $D$ of $\Gamma_{m}$ if the edge intersects $N-\partial D$ where $N$ is a regular neighborhood of $\partial D$ in $D$.

Let $\Gamma$ be a chart. Suppose that an object consists of some edges of $\Gamma$, arcs in edges of $\Gamma$ and arcs around white vertices. Then the object is called a pseudo chart.

Lemma 4.1

([7, Corollary 6.2])* Let $\Gamma$ be a minimal chart. Let $D$ be a $2$-angled disk of $\Gamma_{m}$ with at most one feeler. If $w(\Gamma\cap{\rm Int}D)=0$, then a regular neighborhood of $D$ contains one of two pseudo charts as shown in Fig. 5.*

Let $D$ be a 2-angled disk of $\Gamma_{m}$ with exactly one feeler, and $e$ an edge of label $m$ containing a white vertex $w_{1}$ in $\partial D$ but not contained in $D$. If necessary we take the reflection of the chart $\Gamma$ or change the orientations of all of the edges, we have the following three 2-angled disks as shown in Fig. 6.

Lemma 4.2

([7, Lemma 6.1])*

Let $\Gamma$ be a minimal chart. Let $D$ be a $2$-angled disk of $\Gamma_{m}$ as shown in Fig. 6$($a$)$. Then $w(\Gamma\cap{\rm Int}D)\geq 1$. If $w(\Gamma\cap{\rm Int}D)=1$, then a regular neighborhood of $D$ contains the pseudo chart as shown in Fig. 7.*

Lemma 4.3

([7, Lemma 6.2])*

Let $\Gamma$ be a minimal chart. Let $D$ be a $2$-angled disk of $\Gamma_{m}$ as shown in Fig. 6$($b$)$ or $($c$)$. Then $w(\Gamma\cap{\rm Int}D)\geq 3$.*

Let $\Gamma$ be a chart, $D$ a $k$-angled disk of $\Gamma_{m}$, and $G$ a pseudo chart with $\partial D\subset G$. Let $r:D\to D$ be a reflection of $D$, and $G^{*}$ the pseudo chart obtained from $G$ by changing the orientations of all of the edges. Then the set $\{G,G^{*},r(G),r(G^{*})\}$ is called the RO-family of the pseudo chart $G$.

By Lemma 4.2 and Lemma 4.3, we have the following lemma.

Lemma 4.4

Let $\Gamma$ be a minimal chart, and $m$ a label of $\Gamma$. Let $D$ be a $2$-angled disk of $\Gamma_{m}$ with exactly one feeler. Then we have the following:

1. $(1)$

$w(\Gamma\cap{\rm Int}D)\geq 1$. 2. $(2)$

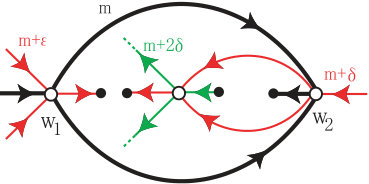

If $w(\Gamma\cap{\rm Int}D)=1$, then a regular neighborhood of $D$ contains one of the RO-family of the pseudo chart as shown in Fig. 7.

5 A disk with exactly two white vertices

In this section for a minimal chart $\Gamma$ we investigate a disk $D$ with exactly two white vertices of $\Gamma_{m}$ such that $\Gamma_{m}\cap\partial D$ consists of at most one point.

Let $\Gamma$ be a chart, and $m$ a label of $\Gamma$. Let $L$ be the closure of a connected component of the set obtained by taking out all the white vertices from $\Gamma_{m}$. If $L$ contains at least one white vertex but does not contain any black vertex, then $L$ is called an internal edge of label $m$. Note that an internal edge may contain a crossing of $\Gamma$.

Let $\Gamma$ be a chart. Let $D$ be a disk such that

1. (1)

$\partial D$ consists of an internal edge $e_{1}$ of label $m$ and an internal edge $e_{2}$ of label ${m+1}$, and 2. (2)

any edge containing a white vertex in $e_{1}$ does not intersect the open disk Int$D$.

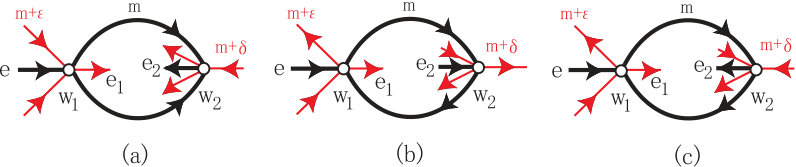

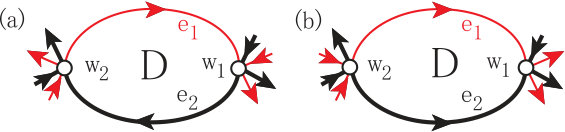

Note that $\partial D$ may contain crossings. Let $w_{1}$ and $w_{2}$ be the white vertices in $e_{1}$. If the disk $D$ satisfies one of the following conditions, then $D$ is called a lens of type $(m,m+1)$ (see Fig. 8):

1. (i)

Neither $e_{1}$ nor $e_{2}$ contains a middle arc. 2. (ii)

One of the two edges $e_{1}$ and $e_{2}$ contains middle arcs at both white vertices $w_{1}$ and $w_{2}$ simultaneously.

Lemma 5.1

([6, Theorem 1.1] and [7, Corollary 1.1])**

1. $(1)$

There exist at least three white vertices in the interior of a lens for any minimal chart. 2. $(2)$

There is no lens in any minimal chart with at most seven white vertices.

In our argument, we often need a name for an unnamed edge by using a given edge and a given white vertex. For the convenience, we use the following naming: Let $e^{\prime},e_{i},e^{\prime\prime}$ be three consecutive edges containing a white vertex $w_{j}$. Here, the two edges $e^{\prime}$ and $e^{\prime\prime}$ are unnamed edges. There are six arcs in a neighborhood $U$ of the white vertex $w_{j}$. If the three arcs $e^{\prime}\cap U$, $e_{i}\cap U$, $e^{\prime\prime}\cap U$ lie anticlockwise around the white vertex $w_{j}$ in this order, then $e^{\prime}$ and $e^{\prime\prime}$ are denoted by $a_{ij}$ and $b_{ij}$ respectively (see Fig. 9). There is a possibility $a_{ij}=b_{ij}$ if they are contained in a loop.

Lemma 5.2

Let $\Gamma$ be a minimal chart, and $m$ a label of $\Gamma$. Let $D$ be a $2$-angled disk of $\Gamma_{m}$. Then we have the following:

1. $(1)$

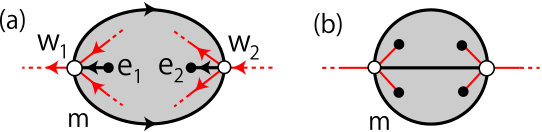

If there exist two feelers of $D$ each of which is a terminal edge, then $w(\Gamma\cap{\rm Int}D)\geq 1$. 2. $(2)$

If $w(\Gamma\cap{\rm Int}D)=0$, then $D$ has at most one feeler.

Proof. We show Statement (1). Let $e_{1},e_{2}$ be feelers of $D$. By the condition of this lemma, the edges $e_{1},e_{2}$ are terminal edges (see Fig. 10(a)). Let $w_{1},w_{2}$ be the white vertices in $e_{1},e_{2}$ respectively. Without loss of generality we can assume that $e_{1}$ is oriented inward at $w_{1}$. Since the terminal edge $e_{1}$ contains a middle arc at $w_{1}$ by Assumption 2, we have orientation of the other edges as shown in Fig. 10(a).

Suppose $w(\Gamma\cap{\rm Int}D)=0$. Let $a_{11},b_{11}$ be internal edges (possibly terminal edges) of label $m+\varepsilon$ in $D$ with $w_{1}\in a_{11}\cap b_{11}$, here $\varepsilon\in\{+1,-1\}$. Since neither $a_{11}$ nor $b_{11}$ contains a middle arc at $w_{1}$, by Assumption 2 neither $a_{11}$ nor $b_{11}$ is a terminal edge. Hence both of $a_{11}$ and $b_{11}$ contain the white vertex $w_{2}$. Thus $w(\Gamma\cap{\rm Int}D)=0$ implies that there are two lenses of type $(m,m+\varepsilon)$ in $D$ whose interiors do not contain any white vertices. This contradicts Lemma 5.1(1). Hence $w(\Gamma\cap{\rm Int}D)\geq 1$.

We show Statement (2). Suppose that $D$ has two feelers $e_{1},e_{2}$. Since $w(\Gamma\cap{\rm Int}D)=0$, we have that $e_{1}=e_{2}$ or both of $e_{1},e_{2}$ are terminal edges.

If $e_{1}=e_{2}$, i.e. the set $e_{1}\cup\partial D$ is a connected component of $\Gamma_{m}$ as in Fig. 4(a), then the disk $D$ separates into two $2$-angled disks of $\Gamma_{m}$ without feelers. By Lemma 4.1, each $2$-angled disk contains one of two pseudo charts as in Fig. 5 (see Fig. 10(b)). Thus at each white vertex in $D$ there exist at least two terminal edges each of whose label is different from $m$. Namely, at each white vertex in $D$ there exist at least two terminal edges of the same label. One of the two terminal edges does not contain a middle arc. This contradicts Assumption 2.

If both of $e_{1},e_{2}$ are terminal edges, then by Lemma 5.2(1) we have $w(\Gamma\cap{\rm Int}D)\geq 1$. This is a contradiction. Hence $D$ has at most one feeler. $\square$

Lemma 5.3

Let $\Gamma$ be a minimal chart without loops, and $m$ a label of $\Gamma$. Let $D$ be a disk such that if an edge intersects $\partial D$, then the edge intersects $\partial D$ transversely. Suppose that $D$ contains exactly two white vertices $w_{1},w_{2}$ and $\Gamma_{m}\cap\partial D$ is at most one point. Then we have the following:

1. $(1)$

If $w_{1},w_{2}\in\Gamma_{m}$, then the disk $D$ contains one of the two pseudo charts as shown in Fig. 11. 2. $(2)$

If there exists a number $\varepsilon\in\{+1,-1\}$ such that $w_{1},w_{2}\in\Gamma_{m}\cap\Gamma_{m+\varepsilon}$ and if $S^{2}-D$ does not contain any white vertices in $\Gamma_{m+\varepsilon}$, then there exist two lenses of type $(m,m+\varepsilon)$.

Proof. We shall show Statement (1). Let $G$ be a connected component of $\Gamma_{m}\cap D$ with $w(G)\geq 1$.

Case (i). $G\cap\partial D=\emptyset$.

Since $D$ contains exactly two white vertices, we have $w(G)\leq 2$. By Lemma 3.2(2), the graph $G$ is one of the two graphs as in Fig. 4(a),(b).

If $G$ is the graph as in Fig. 4(a), then the disk $D$ contains two $2$-angled disk of $\Gamma_{m}$ without feelers. By Lemma 4.1, each $2$-angled disk contains one of two pseudo charts as in Fig. 5 (see Fig. 10(b)). By a similar way to the proof of Lemma 5.2(2), we have a contradiction.

If $G$ is the graph as in Fig. 4(b), then there is a $2$-angled disk $D^{\prime}$ of $\Gamma_{m}$ in $D$. Now $w(\Gamma\cap D)=2$ implies that ${\rm Int}D^{\prime}$ does not contain any white vertices. Thus by Lemma 5.2(2), the 2-angled disk $D^{\prime}$ has at most one feeler. Hence by Lemma 4.1 the 2-angled disk $D^{\prime}$ contains one of two pseudo charts as in Fig. 5. Thus $D$ contains the pseudo chart as in Fig. 11(a).

Case (ii). $G\cap\partial D\not=\emptyset$.

Let $e$ be the internal edge (possibly terminal edge) containing the point $G\cap\partial D$, and $v$ the endpoint of $e$ with $v\not\in D$.

If $v$ is a black vertex, then we can show that the disk $D$ contains the pseudo chart as in Fig. 11(a) by a similar way to Case (i). If $v$ is a white vertex, then the disk $D$ contains a $2$-angled disk $D^{\prime}$ of $\Gamma_{m}$, because $\Gamma$ has no loop. Since $e$ is not a feeler of $D^{\prime}$, the disk $D^{\prime}$ has at most one feeler. Hence by the similar way as the one of Case (i), we can show that the 2-angled disk $D^{\prime}$ contains one of two pseudo charts as in Fig. 5. Thus $D$ contains the pseudo chart as in Fig. 11(b).

We shall show Statement (2). By Statement (1), the disk $D$ contains one of the two pseudo charts as in Fig. 11.

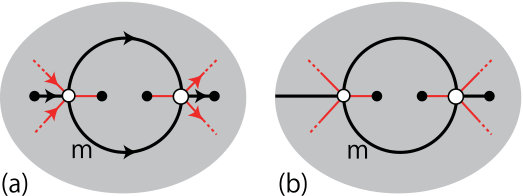

If $D$ contains the pseudo chart as in Fig. 11(a), then the disk $D$ contains a $2$-angled disk $D^{\prime}$ of $\Gamma_{m}$ without feelers. Thus $Cl(S^{2}-D^{\prime})$ is a $2$-angled disk with two feelers each of which is a terminal edge. Since $S^{2}-D$ does not contain any white vertices in $\Gamma_{m+\varepsilon}$, the set $S^{2}-D^{\prime}$ does not contain any white vertex of $\Gamma_{m+\varepsilon}$. By a similar way to the proof of Lemma 5.2(1), we can show that there exist two lenses of type $(m,m+\varepsilon)$.

If $D$ contains the pseudo chart as in Fig. 11(b), then similarly we can show that there exist two lenses of type $(m,m+\varepsilon)$. $\square$

6 2-angled disks of $\Gamma_{k}$

whose interiors contain exactly three white vertices

In this section, we investigate a 2-angled disk of $\Gamma_{k}$ whose interior contains exactly three white vertices, and we shall show a key lemma (Lemma 6.3) for Theorem 1.1.

Let $\Gamma$ and $\Gamma^{\prime}$ be C-move equivalent charts. Suppose that a pseudo chart $X$ of $\Gamma$ is also a pseudo chart of $\Gamma^{\prime}$. Then we say that $\Gamma$ is modified to $\Gamma^{\prime}$ by C-moves keeping $X$ fixed. In Fig. 12, we give examples of C-moves keeping pseudo charts fixed.

Let $\alpha$ be a simple arc, and $p,q$ the endpoints of $\alpha$. We denote $\partial\alpha=\{p,q\}$ and ${\rm Int}\alpha=\alpha-\partial\alpha$.

Let $\Gamma$ be a chart, and $D$ a disk. Let $\alpha$ be a simple arc in $\partial D$, and $\gamma$ a simple arc in an internal edge of label $k$. The simple arc $\gamma$ is called a $(D,\alpha)$-arc of label $k$ provided that $\partial\gamma\subset$Int$\alpha$ and Int$\gamma\subset$Int$D$. If there is no $(D,\alpha)$-arc in $\Gamma$, then the chart $\Gamma$ is said to be $(D,\alpha)$-arc free.

The following lemma will be used in the proof of Lemma 6.3.

Lemma 6.1

$($*New Disk Lemma$)$ ([11, Lemma 7.1], cf. [6, Lemma 3.2])

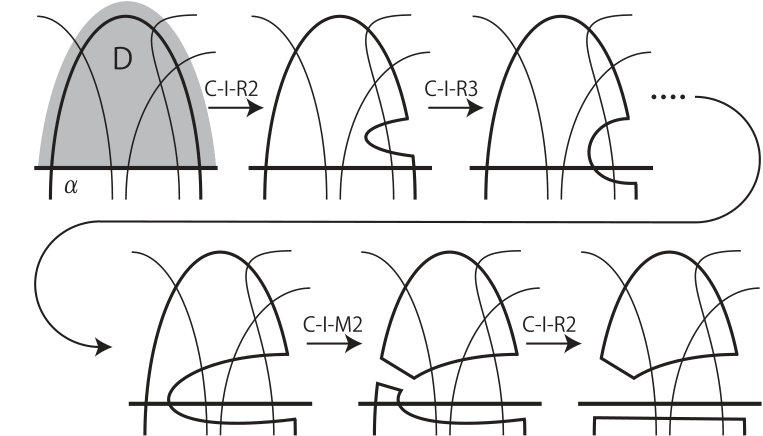

Let $\Gamma$ be a chart and $D$ a disk whose interior does not contain a white vertex nor a black vertex of $\Gamma$. Let $\alpha$ be a simple arc in $\partial D$ such that ${\rm Int}\alpha$ does not contain a white vertex nor a black vertex of $\Gamma$. Let $V$ be a regular neighborhood of $\alpha$. Suppose that the arc $\alpha$ is contained in an internal edge of some label $k$ of $\Gamma$. Then by applying C-I-M2 moves, C-I-R2 moves, and C-I-R3 moves in $V$, there exists a $(D,\alpha)$-arc free chart $\Gamma^{\prime}$ obtained from the chart $\Gamma$ keeping $\alpha$ fixed $($see Fig. 13$)$.*

The following lemma will be used in the proof of Lemma 6.5.

Lemma 6.2

$($[8, Lemma 6.1]$)$*

Let $\Gamma$ be a minimal chart. Let $C$ be a ring or a non simple hoop, and $D$ a disk with $\partial D=C$. If $w(\Gamma\cap D)=1$, then $\Gamma$ is C-move equivalent to the minimal chart $Cl(\Gamma-C)$.*

From now on throughout this section, we may assume that

1. (i)

$\Gamma$ is a minimal chart, 2. (ii)

$F$ is a $2$-angled disk of $\Gamma_{k}$ without feelers with $w(\Gamma\cap{\rm Int}F)=3$ such that a regular neighborhood of $F$ contains the pseudo chart as shown in Fig. 14$($a$)$ where

1. (a)

$v_{1},v_{2},v_{3},v_{4}$ are white vertices in $F$ with $v_{1},v_{2}\in\partial F$, $v_{1},v_{2},v_{3}\in\Gamma_{k}\cap\Gamma_{k+\delta}$, and $v_{4}\in\Gamma_{k}\cap\Gamma_{k-\delta}$ here $\delta\in\{+1,-1\}$, 3. (iii)

$v_{5}$ is the white vertex in ${\rm Int}F$ different from $v_{3},v_{4}$ with $v_{5}\in\Gamma_{k-\delta}\cap\Gamma_{k-2\delta}$.

Let $\alpha$ be a simple arc, and $p,q$ points in $\alpha$. We denote by $\alpha[p,q]$ the subarc of $\alpha$ whose endpoints are $p$ and $q$.

Let $D$ be a compact surface. A simple arc $\alpha$ in $D$ is a proper arc of $D$ if $\alpha\cap\partial D=\partial\alpha$.

Lemma 6.3

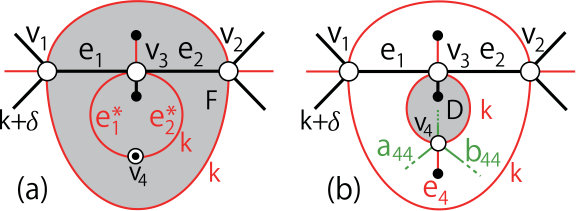

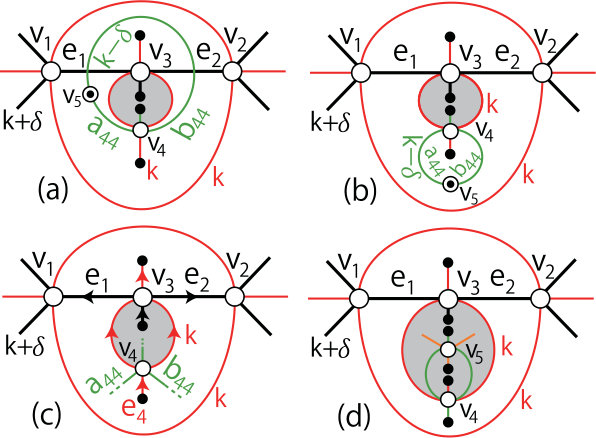

Let $\Gamma,F,v_{1},\cdots,v_{5}$ be as above. Let $D$ be the $2$-angled disk of $\Gamma_{k}$ in $F$ with $v_{3},v_{4}\in\partial D$, and $e_{4}$ the terminal edge at $v_{4}$ of label $k$. If $e_{4}\not\subset D$ $($see Fig. 14$($b$))$, then $\Gamma$ can be modified to a minimal chart containing one of two pseudo charts as shown in Fig. 15$($a$)$ and $($b$)$ by C-moves in $F$ keeping $\Gamma_{k}\cup\Gamma_{k+\delta}$ fixed.

Proof. We can assume that $e_{4}$ is oriented inward at $v_{4}$. Since $e_{4}$ contains a middle arc at $v_{4}$ by Assumption 2, we have orientation of edges as shown in Fig. 15(c).

Let $a_{44},b_{44}$ be the internal edges (possibly terminal edges) of label $k-\delta$ oriented inward at $v_{4}$ such that $a_{44},e_{4},b_{44}$ lie anticlockwise around the vertex $v_{4}$ in this order. Since neither $a_{44}$ nor $b_{44}$ contains a middle arc at $v_{4}$, neither $a_{44}$ nor $b_{44}$ is a terminal edge by Assumption 2. Hence ${\rm Int}F\ni v_{3},v_{4},v_{5}$ and $w(\Gamma\cap{\rm Int}F)=3$ imply $a_{44}\cap b_{44}\ni v_{5}$.

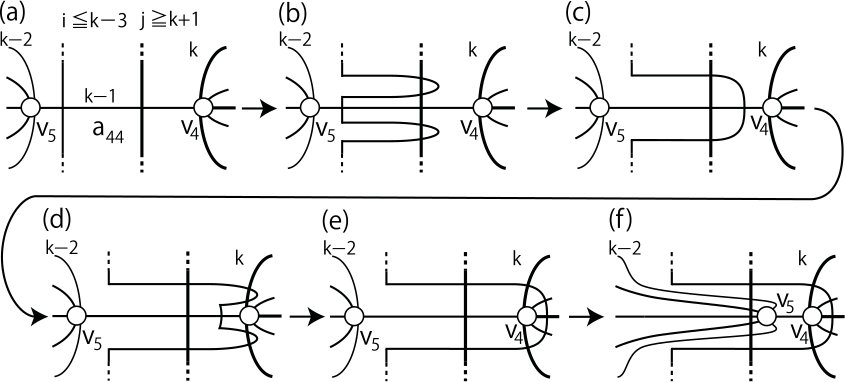

Claim 1. We can assume that the edge $a_{44}$ does not contain any crossings by applying C-moves in $F$ keeping $\Gamma_{k}\cup\Gamma_{k+\delta}$ fixed.

Proof of Claim $1$. We can assume $\delta=+1$ (for the case $\delta=-1$, we can show the claim similarly).

Since the edge $a_{44}$ is of label $k-1$, the set ${\rm Int}(a_{44})$ does not intersect edges of label $k,k-1,k-2$. Let $x$ be a point in $a_{44}$ such that $a_{44}[x,v_{4}]$ does not contain any crossings. By C-I-R2 moves and C-I-R3 moves keeping $a_{44}\cup(\cup_{j\geq k+1}\Gamma_{j})$ fixed, we can move each crossing in $a_{44}\cap(\cup_{i\leq k-3}\Gamma_{i})$ into $a_{44}[x,v_{4}]$ one by one (see Fig. 16(a),(b),(c)). Here we use the notation $\Gamma$ for the modified chart. By C-I-R2 moves and C-I-R4 moves, we can move out all the crossings on $a_{44}[x,v_{4}]$ by passing through the vertex $v_{4}$ (see Fig. 16(d),(e)). Here we use the notation $\Gamma$ for the modified chart. Thus each crossing in $a_{44}$ is contained in $a_{44}[v_{5},x]\cap(\cup_{j\geq k+1}\Gamma_{j})$.

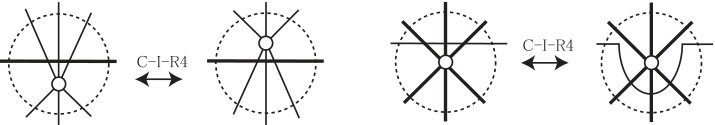

Finally we shorten the edge $a_{44}$ to $a_{44}[x,v_{4}]$ by C-I-R2 moves and C-I-R4 moves. We abuse the notation $a_{44}$ for the shortened edge. Then we obtain the edge $a_{44}$ without crossings (see Fig. 16(f)). Therefore Claim $1$ holds.

Now the edge $b_{44}$ elongates as the edge $a_{44}$ shortens. We also abuse the notation $b_{44}$ for the elongated edge.

The disk $D$ is the 2-angled disk of $\Gamma_{k}$ with $D\subset F$ and $v_{3},v_{4}\in\partial D$ (see Fig. 15(c)). Let $N(a_{44})$ be a regular neighborhood of $a_{44}$ in $F$. Let ${\mathbb{S}}$ be the set of all minimal charts each of which is modified from $\Gamma$ by C-moves in $F-D\cup N(a_{44})$ keeping $\Gamma_{k}\cup\Gamma_{k+\delta}$ fixed. We can assume that $\Gamma$ is a minimal chart in ${\mathbb{S}}$ with

1. (1)

$|(e_{1}\cup e_{2})\cap\Gamma_{k-\delta}|={\rm min}\{\ |(e_{1}\cup e_{2})\cap\Gamma_{k-\delta}^{\prime}|\ :\ \Gamma^{\prime}\in{\mathbb{S}}\}$

where $|X|$ is the number of points in a set $X$. Let $E$ be a disk in $F$ bounded by $a_{44}\cup b_{44}$. Since $D\not\supset a_{44}$ and $\partial D\cap\partial E=v_{4}$, there are two cases: (i) $E\supset D$, (ii) $E\cap D=v_{4}$.

Case (i). Since $v_{3}\in{\rm Int}E$ and $v_{1},v_{2}\not\in E$, we have $|e_{1}\cap\partial E|\geq 1$ and $|e_{2}\cap\partial E|\geq 1$. Thus

[TABLE]

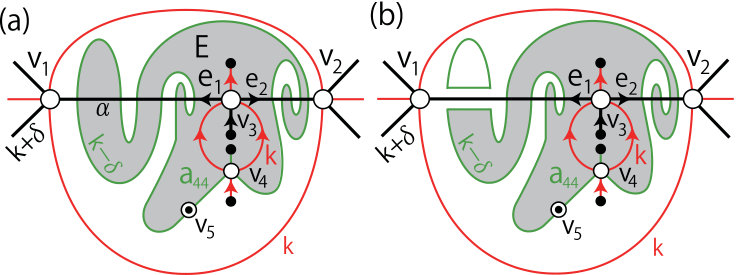

Now we show $|(e_{1}\cup e_{2})\cap(a_{44}\cup b_{44})|=2$. Suppose that $|(e_{1}\cup e_{2})\cap(a_{44}\cup b_{44})|>2$. Since $\partial E=a_{44}\cup b_{44}$, we have $|(e_{1}\cup e_{2})\cap\partial E|>2$. The vertices $v_{1},v_{2}$ are the endpoints of the arc $e_{1}\cup e_{2}$. Since $v_{1}$ and $v_{2}$ are outside the disk $E$, the set $(e_{1}\cup e_{2})\cap E$ consists of proper arcs of $E$. Let $G$ be the proper arc containing $v_{3}$, and $\alpha$ a proper arc different from $G$ (see Fig. 17(a)). The arc $\alpha$ divides the disk $E$ into two disks. One of the two disks does not intersect $G$, say $E^{\prime}$.

Claim 2. $w(\Gamma\cap E^{\prime})=0$.

Proof of Claim $2$. By Claim $1$, we have $(e_{1}\cup e_{2})\cap a_{44}=\emptyset$. Hence $(e_{1}\cup e_{2})\cap(D\cup a_{44})=v_{3}$. Thus $\alpha\cap(D\cup a_{44}\cup G)=\emptyset$. Since $D\cup a_{44}\cup G$ is connected and since $E^{\prime}$ does not intersect $G$, we have $E^{\prime}\cap(D\cup a_{44}\cup G)=\emptyset$. Thus $v_{3},v_{4},v_{5}\in D\cup a_{44}\cup G$ implies $w(\Gamma\cap E^{\prime})=0$. Hence Claim $2$ holds.

Let $N(E^{\prime})$ be a regular neighborhood of $E^{\prime}$ in $F$. Then the disk $N(E^{\prime})$ contains a proper arc $\widetilde{\alpha}$ of label $k+\delta$ containing $\alpha$. Let $\widetilde{E}$ be the disk divided by $\widetilde{\alpha}$ from $N(E^{\prime})$ with $\widetilde{E}\supset E^{\prime}$. Applying New Disk Lemma (Lemma 6.1) for the disk $\widetilde{E}$, we obtain a $(\widetilde{E},\widetilde{\alpha})$-arc free minimal chart $\widetilde{\Gamma}$ (see Fig. 17(b)). Thus

[TABLE]

This contradicts Condition (1). Hence $|(e_{1}\cup e_{2})\cap(a_{44}\cup b_{44})|=2$. Hence a regular neighborhood of $F$ contains the pseudo chart as in Fig. 15(a).

Case (ii). Similarly we can show $(e_{1}\cup e_{2})\cap(a_{44}\cup b_{44})=\emptyset$ by modifying the chart $\Gamma$ by C-moves. Thus a regular neighborhood of $F$ contains the pseudo chart as in Fig. 15(b). $\square$

Lemma 6.4

Let $\Gamma,F,v_{1},\cdots,v_{5}$ be as above. If $\Gamma$ contains the pseudo chart as shown in Fig. 14$($a$)$, then the chart $\Gamma$ can be modified to a minimal chart containing one of three pseudo charts as shown in Fig. 15$($a$),($b$),($d$)$ by C-moves in $F$ keeping $\Gamma_{k}\cup\Gamma_{k+\delta}$ fixed.

Proof. Let $D$ be the 2-angled disk of $\Gamma_{k}$ with $D\subset{\rm Int}F$ and $v_{3},v_{4}\in\partial D$. Since $w(\Gamma\cap{\rm Int}F)=3$, we have

[TABLE]

Hence

1. (1)

$w(\Gamma\cap{\rm Int}D)\leq 1$.

Let $e_{4}$ be the terminal edge of label $k$ at $v_{4}$. There are two cases: $e_{4}\subset D$ or $e_{4}\not\subset D$.

If $e_{4}\not\subset D$, then by Lemma 6.3 the chart $\Gamma$ can be modified to a minimal chart containing one of the two pseudo charts as in Fig. 15(a),(b) by C-moves in $F$ keeping $\Gamma_{k}\cup\Gamma_{k+\delta}$ fixed.

If $e_{4}\subset D$, then by (1) and Lemma 4.4(1) we have $w(\Gamma\cap{\rm Int}D)=1$. Thus by Lemma 4.4(2) a regular neighborhood of $D$ contains the pseudo chart as in Fig. 7. Hence $\Gamma$ contains the pseudo chart as shown in Fig. 15(d). $\square$

Lemma 6.5

Let $\Gamma,F,v_{1},\cdots,v_{5}$ be as above. Let $G$ be the union of all the internal edges of label $k-\delta,k,k+\delta$ in $F$. Suppose that a regular neighborhood of $F$ contains one of the three pseudo charts as shown in Fig. 15$($a$),($b$),($d$)$. Then the chart $\Gamma$ can be modified to a minimal chart by C-moves keeping $G$ fixed so that there is no ring of label $k-\delta,k,k+\delta$ in $F$.

Proof. By the condition of this lemma,

1. (1)

a regular neighborhood of $F$ contains one of three pseudo charts as in Fig. 15(a),(b),(d).

Hence a regular neighborhood of $F$ contains the pseudo chart as in Fig. 14(a). We use the notations as in Fig. 14(a) where $e_{1},e_{2}$ are internal edges of label $k+\delta$, and $e_{1}^{*},e_{2}^{*}$ are internal edges of label $k$. Let $e_{4}$ be the terminal edge of label $k$ at $v_{4}$. Let $a_{44},b_{44}$ be internal edges of label $k-\delta$ containing $v_{4}$ such that $a_{44},e_{4},b_{44}$ lie anticlockwise around $v_{4}$ in this order. By (1), the six edges $e_{1},e_{2},e_{1}^{*},e_{2}^{*},a_{44},b_{44}$ and two internal edges in $\partial F$ are all of internal edges of label $k-\delta,k,k+\delta$ in $F$. Thus $G=e_{1}\cup e_{2}\cup e_{1}^{*}\cup e_{2}^{*}\cup a_{44}\cup b_{44}\cup\partial F$.

Suppose that there exists a ring of label $k$ or $k+\delta$ in $F$. This ring bounds a disk $E$ in $F$. Now $v_{1},v_{2},v_{3},v_{4},v_{5}$ are all the white vertices in $F$, and $v_{1},v_{2},v_{3},v_{4}$ are contained in the connected set $e_{1}\cup e_{2}\cup e_{1}^{*}\cup e_{2}^{*}\cup\partial F$ in $(\Gamma_{k}\cup\Gamma_{k+\delta})\cap F$ containing $\partial F$. Hence the disk $E$ contains at most one white vertex $v_{5}$. Thus by Assumption 4, the disk $E$ contains the white vertex $v_{5}$. Hence by Lemma 6.2, we can modify the chart $\Gamma$ so that there is no ring of label $k$ nor $k+\delta$ in $F$.

Suppose that there exists a ring of label $k-\delta$ in $F$. This ring bounds a disk $E$ in $F$. By Assumption 4,

1. (2)

the disk $E$ contains one of $v_{3},v_{4},v_{5}$.

By (1), the three white vertices $v_{3},v_{4},v_{5}$ are contained in the connected set $e_{1}^{*}\cup e_{2}^{*}\cup a_{44}\cup b_{44}$ in $\Gamma_{k}\cup\Gamma_{k-\delta}$. Hence by (2) we have that all of $v_{3},v_{4},v_{5}$ are contained in the disk $E$ bounded by the ring of label $k-\delta$. Thus

1. (3)

$v_{3},v_{4},v_{5}\in E$.

Let $G^{\prime}$ be the connected component of $\Gamma_{k-2\delta}$ containing $v_{5}$. By Lemma 3.2(1), we have $w(G^{\prime})\geq 2$. Thus there exists a white vertex $v_{6}$ in $\Gamma_{k-2\delta}$ different from $v_{5}$ with $v_{6}\in G^{\prime}$. By (1), the vertex $v_{6}$ in $\Gamma_{k-2\delta}$ is different from $v_{1},v_{2},v_{3},v_{4}$. Since $v_{1},v_{2},v_{3},v_{4},v_{5}$ are all the white vertices in $F$, we have $v_{6}\not\in F$. Hence $E\subset F$ implies $v_{6}\not\in E$. Since $v_{5}\in E$ by (3) and since $v_{6}\not\in E$, the graph $G^{\prime}$ in $\Gamma_{k-2\delta}$ intersects the ring $\partial E$ of label $k-\delta$. This contradicts Condition (iv) of the definition of charts. Hence there is no ring of label $k-\delta$ in $F$. $\square$

7 IO-Calculation

Let $\Gamma$ be a chart, and $v$ a vertex. Let $\alpha$ be a short arc of $\Gamma$ in a small neighborhood of $v$ with $v\in\partial\alpha$. If the arc $\alpha$ is oriented to $v$, then $\alpha$ is called an inward arc, and otherwise $\alpha$ is called an outward arc.

Let $\Gamma$ be an $n$-chart. Let $F$ be a closed domain with $\partial F\subset\Gamma_{k-1}\cup\Gamma_{k}\cup\Gamma_{k+1}$ for some label $k$ of $\Gamma$, where $\Gamma_{0}=\emptyset$ and $\Gamma_{n}=\emptyset$. By Condition (iii) for charts, in a small neighborhood of each white vertex, there are three inward arcs and three outward arcs. Also in a small neighborhood of each black vertex, there exists only one inward arc or one outward arc. We often use the following fact, when we fix (inward or outward) arcs near white vertices and black vertices:

1. $(*)$

*The number of inward arcs contained in $F\cap\Gamma_{k}$ is equal to the number of outward arcs in $F\cap\Gamma_{k}$. *

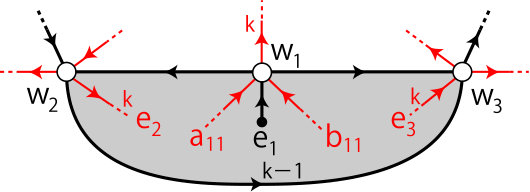

When we use this fact, we say that we use IO-Calculation with respect to $\Gamma_{k}$ in $F$. For example, in a minimal chart $\Gamma$, consider the pseudo chart as shown in Fig. 18 where

1. (1)

$F$ is a $3$-angled disk of $\Gamma_{k-1}$, 2. (2)

$w_{1},w_{2},w_{3}$ are white vertices in $\partial F$ with $w_{1},w_{2},w_{3}\in\Gamma_{k-1}\cap\Gamma_{k}$, 3. (3)

$e_{1}$ is a terminal edge of label $k-1$ containing $w_{1}$, 4. (4)

for $i=2,3$ the edge $e_{i}$ is of label $k$ with $w_{i}\in e_{i}\subset F$, 5. (5)

none of the three edges $a_{11},b_{11},e_{2}$ contains a middle arc at $w_{1}$ nor $w_{2}$ (by Assumption 2 none of them is a terminal edge).

Then we can show that $w(\Gamma_{k}\cap{\rm Int}F)\geq 1$. Suppose $w(\Gamma_{k}\cap{\rm Int}F)=0$. If $e_{3}$ is a terminal edge of label $k$, then by (5) the number of inward arcs in $F\cap\Gamma_{k}$ is three, but the number of outward arcs in $F\cap\Gamma_{k}$ is two. This contradicts the fact $(*)$. Similarly if $e_{3}$ is not a terminal edge of label $k$, then we have the same contradiction. Thus $w(\Gamma_{k}\cap{\rm Int}F)\geq 1$. Instead of the above argument, we just say that

1. we have $w(\Gamma_{k}\cap{\rm Int}F)\geq 1$ by IO-Calculation with respect to $\Gamma_{k}$ in $F$.

8 Useful Lemmata

In this section, we review useful lemmata.

Lemma 8.1

$($[9, Theorem 1.1]$)$*

There is no loop in any minimal chart with exactly seven white vertices.*

The following lemma will be used in Case (i-1) of the proof of Lemma 9.1.

Lemma 8.2

$($*Triangle Lemma$)$ ([9, Lemma 8.3(2)])

For a minimal chart $\Gamma$, if there exists a $3$-angled disk $D_{1}$ of $\Gamma_{m}$ without feelers in a disk $D$ as shown in Fig. 19, then $w(\Gamma\cap$Int$D_{1})\geq 1$.*

We call the graph in Fig. 4(b) an oval.

Let $\Gamma$ be a chart and $m$ a label. An oval $G$ of $\Gamma_{m+1}$ is said to be special, if there exists a 2-angled disk $D$ of $\Gamma_{m+1}$ without feelers such that $\partial D\subset G$, $w(\Gamma\cap{\rm Int}D)=0$, the disk $D$ contains a terminal edge of label $m$ and a terminal edge of label $m+2$, but $D$ does not contain any free edges, hoops nor crossings (see Fig. 20(a)).

The following lemma will be used in Case (ii) of the proof of Lemma 9.1.

Lemma 8.3

([3, Lemma 6.1 and Lemma 6.3])*

Let $\Gamma$ be a chart. Let $G$ be an oval of $\Gamma_{m+1}$ and $D$ a $2$-angled disk of $\Gamma_{m+1}$ without feelers such that $\partial D\subset G$ and $w(\Gamma\cap{\rm Int}D)=0$.*

1. $(1)$

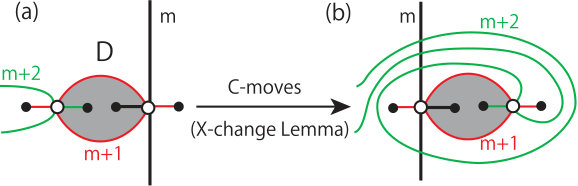

$($X-change Lemma$)$* If $G$ is a special oval in a minimal chart $\Gamma$, then the chart $\Gamma$ is C-move equivalent to the chart obtained from $\Gamma$ by replacing a regular neighborhood of $D$ with the pseudo chart as shown in Fig. 20$($b$)$.* 2. $(2)$

If $D$ contains a terminal edge of label $m$ and a terminal edge of label $m+2$, then $G$ can be modified to a special oval by C-moves in a regular neighborhood of $D$ keeping $G\cup\Gamma_{m}\cup\Gamma_{m+2}$ fixed.

9 There is no minimal chart of type $(3,2,2)$

In this section, we shall show that there is no minimal chart of type $(3,2,2)$.

The following two lemmata will be used in the proof of Theorem 1.1.

Lemma 9.1

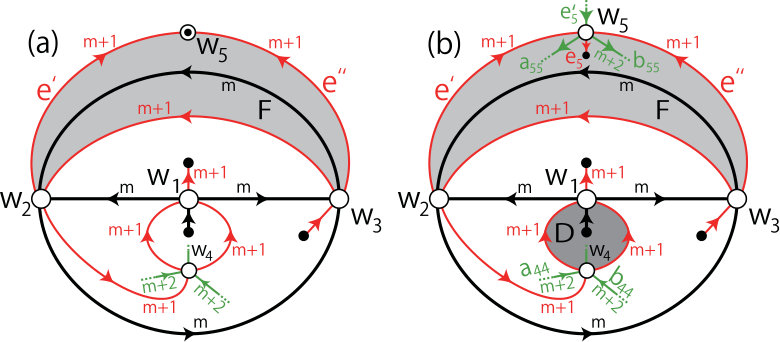

If a chart $\Gamma$ of type $(m;3,2,2)$ contains the pseudo chart as shown in Fig. 21$($a$)$, then the chart $\Gamma$ is not minimal.

Proof. Suppose that $\Gamma$ is minimal. We use the notations as in Fig. 21(a). Here

1. (1)

$w_{1},w_{2},w_{3}\in\Gamma_{m}\cap\Gamma_{m+1}$, $w_{4},w_{5}\in\Gamma_{m+1}$.

Since $\Gamma$ is of type $(m;3,2,2)$, we have

1. (2)

$w(\Gamma)=7$, 2. (3)

$w(\Gamma_{m}\cap\Gamma_{m+1})=3$, $w(\Gamma_{m+1}\cap\Gamma_{m+2})=2$, and $w(\Gamma_{m+2}\cap\Gamma_{m+3})=2$, 3. (4)

$w(\Gamma_{m+3})=2$.

Thus by (1)

1. (5)

$\Gamma_{m}\cap\Gamma_{m+1}=\{w_{1},w_{2},w_{3}\}$, $\Gamma_{m+1}\cap\Gamma_{m+2}=\{w_{4},w_{5}\}$.

Let $F$ be the 3-angled disk of $\Gamma_{m+1}$ with $w_{2},w_{3},w_{5}\in\partial F$ and $w_{1}\not\in F$. Since $w(\Gamma)=7$ by (2), we have

1. (6)

$w(\Gamma\cap$Int$F)\leq 2$.

Let $e_{5}$ be the terminal edge at $w_{5}$ of label $m+1$. Then there are two cases: (i) $e_{5}\not\subset F$, (ii) $e_{5}\subset F$.

Case (i). Let $e_{5}^{\prime}$ be an internal edge (possibly terminal edge) of label $m+2$ in $F$ with $w_{5}\in e_{5}^{\prime}$. By (6), there are three cases: (i-1) $w(\Gamma\cap$Int$F)=0$, (i-2) $w(\Gamma\cap$Int$F)=1$, (i-3) $w(\Gamma\cap$Int$F)=2$.

Case (i-1). The edge $e_{5}^{\prime}$ must be a terminal edge. This contradicts Triangle Lemma (Lemma 8.2).

Case (i-2). There exists a white vertex in ${\rm Int}F$, say $w_{6}$. Thus (3) and (5) imply $w_{6}\in\Gamma_{m+2}\cap\Gamma_{m+3}$. Around the white vertex $w_{6}$, there are three internal edges (possibly terminal edges) of label $m+2$ containing $w_{6}$. By the definition of charts, only one of the three edges contains a middle arc at $w_{6}$. Hence the other two edges, say $e_{6},e_{6}^{\prime}$, do not contain middle arcs at $w_{6}$. By Assumption 2, neither $e_{6}$ nor $e_{6}^{\prime}$ is a terminal edge. Thus $w(\Gamma\cap$Int$F)=1$ implies that one of $e_{6},e_{6}^{\prime}$ contains the white vertex $w_{5}$ and the other is a loop. This contradicts Lemma 8.1.

Case (i-3). There exist two white vertices in ${\rm Int}F$, say $w_{6},w_{7}$. Thus (3) and (5) imply $w_{6},w_{7}\in\Gamma_{m+2}\cap\Gamma_{m+3}$. Hence by (4) we have

1. (7)

$S^{2}-F$ does not contain any white vertices in $\Gamma_{m+3}$.

Let $N$ be a regular neighborhood of $\partial F$ in $F$. Let $E=Cl(F-N)$. Then

1. (8)

$w(\Gamma\cap{\rm Int}E)=2$ and $w_{6},w_{7}\in\Gamma_{m+2}\cap\Gamma_{m+3}\cap E$, 2. (9)

$\Gamma_{m+2}\cap\partial E=e_{5}^{\prime}\cap\partial E=$ one point.

Thus applying Lemma 5.3(2) for the disk $E$, there exist two lenses of type $(m+2,m+3)$. This contradicts Lemma 5.1(2). Hence Case (i) does not occur.

Case (ii). We show $w(\Gamma_{m+2}\cap{\rm Int}F)\geq 1$. Since $e_{5}\subset F$ by the condition of Case (ii), there are two internal edges $a_{55},b_{55}$ of label $m+2$ in $F$ with $w_{5}\in a_{55}\cap b_{55}$ (see Fig. 21(b)). Since the terminal edge $e_{5}$ contains a middle arc at $w_{5}$ by Assumption 2, neither $a_{55}$ nor $b_{55}$ contains a middle arc at $w_{5}$. Hence by Assumption 2,

1. (10)

neither $a_{55}$ nor $b_{55}$ is a terminal edge.

Let $e^{\prime},e^{\prime\prime}$ be internal edges of label $m+1$ with $\partial e^{\prime}=\{w_{2},w_{5}\}$ and $\partial e^{\prime\prime}=\{w_{3},w_{5}\}$. Since the three edges $e^{\prime},e^{\prime\prime},e_{5}$ of label $m+1$ contain the white vertex $w_{5}$ and since $e^{\prime},e^{\prime\prime}$ are oriented inward at $w_{5}$, we have that $e_{5}$ is oriented outward at $w_{5}$ (see Fig. 21(b)). Hence

1. (11)

the three consecutive edges $a_{55},e_{5},b_{55}$ are oriented outward at $w_{5}$.

Thus we have $w(\Gamma_{m+2}\cap{\rm Int}F)\geq 1$ by IO-Calculation with respect to $\Gamma_{m+2}$ in $F$.

Let $D$ be the 2-angled disk of $\Gamma_{m+1}$ in $S^{2}-F$ with $w_{1},w_{4}\in\partial D$ (see Fig. 21(b)). Next we shall show that $w(\Gamma\cap(S^{2}-(F\cup D)))\geq 1$. Let $a_{44},b_{44}$ be internal edges (possibly terminal edges) of label $m+2$ in $Cl(S^{2}-D)$ with $w_{4}\in a_{44}\cap b_{44}$. Then

1. (12)

$a_{44}$ and $b_{44}$ is oriented inward at $w_{4}$.

Since neither $a_{44}$ nor $b_{44}$ contain a middle arc at $w_{4}$, by Assumption 2

1. (13)

neither $a_{44}$ nor $b_{44}$ is a terminal edge.

Let $e_{5}^{\prime}$ be the internal edge (possibly terminal edge) of label $m+2$ at $w_{5}$ with $e_{5}^{\prime}\not\subset F$. By (11),

1. (14)

$e_{5}^{\prime}$ is oriented inward at $w_{5}$.

Hence by (12) and (13), we have $w(\Gamma\cap(S^{2}-(F\cup D)))\geq 1$ by IO-Calculation with respect to $\Gamma_{m+2}$ in $Cl(S^{2}-(F\cup D))$.

Next we shall show that $w(\Gamma\cap{\rm Int}F)=1$ and $w(\Gamma\cap(S^{2}-(F\cup D)))=1$. Since $D\subset S^{2}-F$, we have

[TABLE]

Hence by (2), we have

[TABLE]

Thus $w(\Gamma\cap{\rm Int}F)+w(\Gamma\cap(S^{2}-(F\cup D)))\leq 2$. Since $w(\Gamma\cap{\rm Int}F)\geq 1$ and $w(\Gamma\cap(S^{2}-(F\cup D)))\geq 1$, we have

1. (15)

$w(\Gamma\cap{\rm Int}F)=1$ and $w(\Gamma\cap(S^{2}-(F\cup D)))=1$.

Next we shall show that $e_{5}^{\prime}$ is a terminal edge. Suppose that $e_{5}^{\prime}$ is not a terminal edge. Then $e_{5}^{\prime}$ contains a white vertex different from $w_{5}$, say $w_{6}$. By (12), we have $e_{5}\not\ni w_{4}$. Hence $w_{6}\not=w_{4}$. Thus (13) and $w(\Gamma\cap(S^{2}-(F\cup D)))=1$ imply that the two edges $a_{44}$ and $b_{44}$ contain the white vertex $w_{6}$. Hence by (12) and (14), the three edges $a_{44},b_{44},e_{5}^{\prime}$ of label $m+2$ are oriented outward at $w_{6}$. This contradicts Condition (iii) of the definition of charts. Thus $e_{5}^{\prime}$ is a terminal edge.

Finally we shall show that there exists an oval of label $m+2$ containing $a_{55},b_{55}$. Since $w(\Gamma\cap{\rm Int}F)=1$ by (15), the two conditions (10) and (11) imply that the set $a_{55}\cap b_{55}$ contains a white vertex $w_{7}$ different from $w_{5}$ and there exists a terminal edge at $w_{7}$ of label $m+2$. Hence there exists an oval $G$ of label $m+2$ with $a_{55}\cup b_{55}\subset G$.

Let $E$ be the 2-angled disk of $\Gamma_{m+2}$ in $F$ with $\partial E=a_{55}\cup b_{55}$. Since $w(\Gamma\cap{\rm Int}F)=1$ by (15), we have

1. (16)

$w(\Gamma\cap{\rm Int}E)=0$.

By (3) and (5), we have

1. (17)

$w_{7}\in\Gamma_{m+2}\cap\Gamma_{m+3}$.

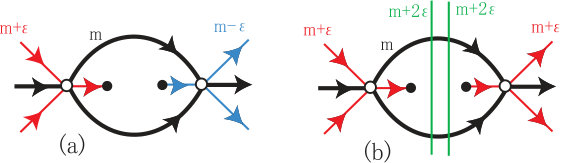

By (16) and Lemma 4.1, the disk $E$ contains one of the two pseudo charts as in Fig. 5. Thus by (5) and (17) the disk $E$ contains a terminal edge of label $m+1$ and a terminal edge of label $m+3$. Hence by Lemma 8.3(2) the oval $G$ can be modified to a special oval. Thus by X-change Lemma (Lemma 8.3(1)), the chart $\Gamma$ is C-move equivalent to a minimal chart by replacing a regular neighborhood of $E$ with the pseudo chart as in Fig. 20(b). Hence the chart $\Gamma$ changes a minimal chart satisfying the condition of Case (i) (i.e. the terminal edge $e_{5}$ is not contained in $F$). By a similar way to Case (i) we have a contradiction. Hence Case (ii) does not occur.

Therefore $\Gamma$ is not minimal. $\square$

Lemma 9.2

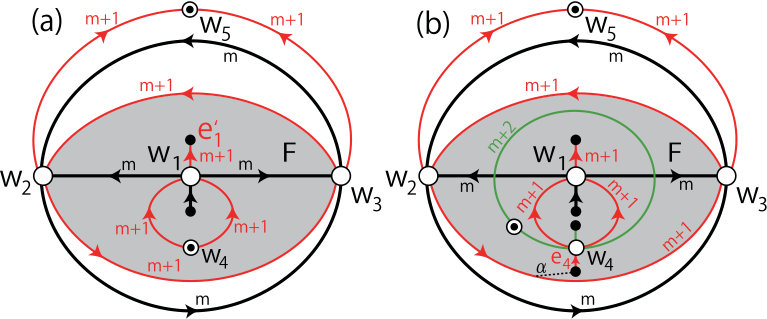

If a chart $\Gamma$ of type $(m;3,2,2)$ contains the pseudo chart as shown in Fig. 22$($a$)$, then the chart $\Gamma$ is not minimal.

Proof. Suppose that $\Gamma$ is minimal. We use the notations as in Fig. 22(a). Here

1. (1)

$w_{1},w_{2},w_{3}\in\Gamma_{m}\cap\Gamma_{m+1}$, $w_{4},w_{5}\in\Gamma_{m+1}$.

Since $\Gamma$ is of type $(m;3,2,2)$, we have

1. (2)

$w(\Gamma)=7$, 2. (3)

$w(\Gamma_{m}\cap\Gamma_{m+1})=3$, $w(\Gamma_{m+1}\cap\Gamma_{m+2})=2$, $w(\Gamma_{m+2}\cap\Gamma_{m+3})=2$.

Thus by $(1)$, we have

1. (4)

$\Gamma_{m}\cap\Gamma_{m+1}=\{w_{1},w_{2},w_{3}\}$, $\Gamma_{m+1}\cap\Gamma_{m+2}=\{w_{4},w_{5}\}$.

Let $F$ be the $2$-angled disk of $\Gamma_{m+1}$ with $w_{2},w_{3}\in\partial F$ and $w_{1}\in{\rm Int}F$. Then

1. (5)

$w_{1},w_{4}\in{\rm Int}F$ and $w_{5}\in S^{2}-F$.

Since $w_{2},w_{3}\in\Gamma_{m}$ by $(1)$, we have

1. (6)

$\Gamma_{m+2}\cap\partial F=\emptyset$.

By $(4)$, we have $w_{4}\in\Gamma_{m+2}$. Let $G$ be a connected component of $\Gamma_{m+2}$ containing $w_{4}$. Then by Lemma 3.2(1), the graph $G$ contains a white vertex $w_{6}$ of $\Gamma_{m+2}$ different from $w_{4}$. Hence by (5), we have $G\cap{\rm Int}F\ni w_{4}$. Thus (6) implies $G\subset{\rm Int}F$. Hence $w_{6}\in{\rm Int}F$. Thus by $(5)$, we have $w_{6}\not=w_{5}$. Since $w_{6}\not=w_{4}$, we have $w_{6}\not\in\Gamma_{m+1}\cap\Gamma_{m+2}$ by $(4)$. Hence $w_{6}\in\Gamma_{m+2}\cap\Gamma_{m+3}$. Similarly we can show that the open disk $S^{2}-F$ contains a white vertex $w_{7}$ of $\Gamma_{m+2}$ different from $w_{5}$ with $w_{7}\in\Gamma_{m+2}\cap\Gamma_{m+3}$. Thus we have

1. (7)

$w_{6}\in{\rm Int}F$ and $w_{7}\in S^{2}-F$.

Now by (3) and (4), we have

1. (8)

$\Gamma_{m+2}\cap\Gamma_{m+3}=\{w_{6},w_{7}\}$.

Since $w_{2},w_{3}\in\partial F$ and since $w_{5},w_{7}\in S^{2}-F$ by (5) and (7), we have that none of $w_{2},w_{3},w_{5},w_{7}$ are in ${\rm Int}F$. Hence by $(2)$, we have $w(\Gamma\cap{\rm Int}F)\leq 3$. Since $w_{1},w_{4},w_{6}\in{\rm Int}F$ by (5) and (7), we have

1. (9)

$w(\Gamma\cap{\rm Int}F)=3$.

Considering as $k=m+1,\delta=-1$, a regular neighborhood of the disk $F$ contains the pseudo chart as in Fig. 14(a). Since $w_{6}\in\Gamma_{m+2}\cap\Gamma_{m+3}$ by (8), Lemma 6.4 and (9) imply that we can assume that a regular neighborhood of $F$ contains one of the three pseudo charts as in Fig. 15(a),(b), (d). Moreover by Lemma 6.5, the chart $\Gamma$ can be modified by C-moves keeping $G^{\prime}$ fixed so that

1. (10)

there is no ring of label $m,m+1,m+2$ in $F$

where $G^{\prime}$ is the union of internal edges of label $m,m+1,m+2$ in $F$.

Case (i). Suppose that a regular neighborhood of $F$ contains the pseudo chart Fig. 15(a) (see Fig. 22(b)). Let $e_{4}$ be the terminal edge at $w_{4}$ of label $m+1$. Let $\alpha$ be an arc in $F$ connecting the black vertex in $e_{4}$ and a point in $\partial F$ with $G^{\prime}\cap{\rm Int}\alpha=\emptyset$. Since there is no ring of label $m,m+1,m+2$ in $F$ by (10), we can assume $(\Gamma_{m}\cup\Gamma_{m+1}\cup\Gamma_{m+2})\cap{\rm Int}\alpha=\emptyset$. Apply C-II moves along the arc $\alpha$, we move the black vertex in $e_{4}$ near $\partial F$. And we apply a C-I-M2 move between $e_{4}$ and $\partial F$, then we obtain a new terminal edge at $w_{3}$ of label $m+1$. Hence $\Gamma$ contains the pseudo chart as in Fig. 21(a). By Lemma 9.1, the chart $\Gamma$ is not minimal. This contradicts the fact that $\Gamma$ is minimal. Hence Case (i) does not occur.

Case (ii). Suppose that a regular neighborhood of $F$ contains the pseudo chart Fig. 15(b). Let $e_{1}^{\prime}$ be the terminal edge at $w_{1}$ of label $m+1$ (see Fig. 22(a)). Similarly we can apply C-II moves so that the black vertex in $e_{1}^{\prime}$ is moved near $\partial F$. We apply a C-I-M2 move between $e_{1}^{\prime}$ and $\partial F$, and then we obtain a new terminal edge of label $m+1$ containing $w_{3}$. The terminal edge does not contain a middle arc at $w_{3}$. This contradicts Assumption 2. Hence Case (ii) does not occur.

Case (iii). Suppose that a regular neighborhood of $F$ contains the pseudo chart Fig. 15(d). By a similar way to Case (ii), we obtain a new terminal edge of label $m+1$ containing $w_{3}$, and we have a contradiction. Hence Case (iii) does not occur.

Therefore $\Gamma$ is not minimal. $\square$

Proof of Theorem 1.1. Suppose there exists a minimal chart $\Gamma$ of type $(m;3,2,2)$. Then $w(\Gamma_{m-1})=0$, $w(\Gamma_{m}\cap\Gamma_{m+1})=3$, and $w(\Gamma_{m+1}\cap\Gamma_{m+2})=2$, Thus

1. (1)

$w(\Gamma_{m})=3$, $w(\Gamma_{m+1})=5$.

By Lemma 8.1, the chart $\Gamma$ does not contain any loop. By Lemma 3.2(2), the set $\Gamma_{m}$ contains the graph as in Fig. 4(c).

Let $e_{1}$ be the terminal edge of label $m$, and $w_{1}$ the white vertex in $e_{1}$. We can assume that $e_{1}$ is oriented inward at $w_{1}$ (If $e_{1}$ is oriented outward at $w_{1}$, then we obtain a contradiction similarly). Let $G$ be the connected component of $\Gamma_{m}$ with $w(G)=3$. Then $G$ divides $S^{2}$ into three disks. Two of them are 3-angled disks. Let $D_{1}$ be the 3-angled disk with $e_{1}\subset D_{1}$, $D_{2}$ the other 3-angled disk, and $D_{3}$ the last disk (see Fig. 23(a)). Let $w_{2},w_{3}$ be the white vertices in $\partial D_{3}$ such that the internal edge $D_{1}\cap D_{3}$ is oriented from $w_{2}$ to $w_{3}$. Considering orientation of edges around $w_{3}$, the internal edge $D_{2}\cap D_{3}$ is oriented from $w_{3}$ to $w_{2}$. Let $e_{2},e_{3}$ be internal edges (possibly terminal edges) of label $m+1$ with $w_{2}\in e_{2}\subset D_{1}$ and $w_{3}\in e_{3}\subset D_{2}$, and $e^{\prime},e^{\prime\prime}$ internal edges (possibly terminal edges) of label $m+1$ in $D_{3}$ containing $w_{2},w_{3}$ respectively. Let $a_{11},b_{11}$ be internal edges of label $m+1$ oriented inward at $w_{1}$ such that $a_{11},e_{1},b_{11}$ lie anticlockwise around $w_{1}$ in this order. If necessary we reflect the chart $\Gamma$, we can assume that the chart $\Gamma$ contains the pseudo chart as in Fig. 23(a).

Considering as $F=D_{1}$ and $k=m+1$ in the example of IO-Calculation in Section 7, we have $w(\Gamma_{m+1}\cap{\rm Int}D_{1})\geq 1$ by IO-Calculation with respect to $\Gamma_{m+1}$ in $D_{1}$. Since neither $e^{\prime}$ nor $e^{\prime\prime}$ contains a middle arc $w_{2}$ nor $w_{3}$, neither $e^{\prime}$ nor $e^{\prime\prime}$ is a terminal edge by Assumption 2. Thus by IO-Calculation with respect to $\Gamma_{m+1}$ in $D_{3}$, we have $w(\Gamma_{m+1}\cap{\rm Int}D_{3})\geq 1$. Since $w_{1},w_{2},w_{3}\in\Gamma_{m+1}$ and since $w(\Gamma_{m+1})=5$ by $(1)$, we have

1. (2)

$w(\Gamma_{m+1}\cap{\rm Int}D_{1})=1$, $w(\Gamma_{m+1}\cap{\rm Int}D_{2})=0$ and $w(\Gamma_{m+1}\cap{\rm Int}D_{3})=1$.

Let $w_{4}$ be the white vertex in $\Gamma_{m+1}\cap{\rm Int}D_{1}$, and $w_{5}$ the white vertex in $\Gamma_{m+1}\cap{\rm Int}D_{3}$.

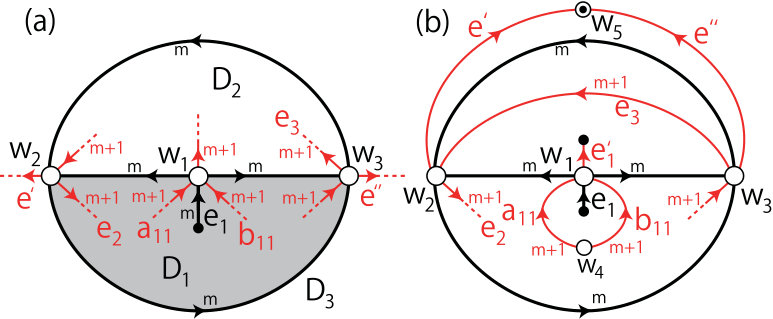

Next we show that $\Gamma$ contains the pseudo chart as in Fig. 23(b). First look at the edge $e_{3}$ in the disk $D_{2}$. Since the edge $e_{3}$ does not contain a middle arc at $w_{3}$, the edge $e_{3}$ is not a terminal edge by Assumption 2. Since $w(\Gamma_{m+1}\cap{\rm Int}D_{2})=0$, we have $e_{3}\ni w_{2}$ and there exists a terminal edge $e_{1}^{\prime}$ at $w_{1}$ of label $m+1$ in $D_{2}$.

Second look at the disk $D_{3}$. Since neither $e^{\prime}$ nor $e^{\prime\prime}$ is a terminal edge and since $w(\Gamma\cap{\rm Int}D_{3})=1$, both of $e^{\prime},e^{\prime\prime}$ contain the white vertex $w_{5}$. And there exists a terminal edge at $w_{5}$ of label $m+1$ in $D_{3}$.

Finally look at the disk $D_{1}$. We show that $a_{11}\ni w_{4}$. Since $a_{11}$ is not a terminal edge, we have $a_{11}\ni w_{2}$ or $a_{11}\ni w_{4}$. If $a_{11}\ni w_{2}$ (i.e. $a_{11}=e_{2}$), then there exists a lens of type $(m,m+1)$. This contradicts Lemma 5.1(2). Hence $a_{11}\ni w_{4}$. We show that $b_{11}\ni w_{4}$. Since $b_{11}$ is not a terminal edge, we have $b_{11}\ni w_{2}$ or $b_{11}\ni w_{4}$. If $b_{11}\ni w_{2}$ (i.e. $b_{11}=e_{2}$), then there exists a loop containing $w_{4}$. This contradicts Lemma 8.1. Hence $b_{11}\ni w_{4}$. Thus $\Gamma$ contains the pseudo chart as in Fig. 23(b).

Since $e_{2}$ does not contain a middle arc at $w_{2}$, there are two cases: $e_{2}\ni w_{3}$, or $e_{2}\ni w_{4}$.

If $e_{2}\ni w_{3}$, then there exists a terminal edge at $w_{4}$ of label $m+1$. Thus $\Gamma$ contains the pseudo chart as in Fig. 22(a). This contradicts Lemma 9.2.

If $e_{2}\ni w_{4}$, then there exists a terminal edge at $w_{3}$ of label $m+1$ in $D_{1}$. Thus $\Gamma$ contains the pseudo chart as in Fig. 21(a). This contradicts Lemma 9.1.

Therefore there is no minimal chart of type $(3,2,2)$. $\square$
