Knot quandle decompositions

TL;DR

This paper introduces a functorial approach to fundamental quandles in knot theory, enabling the decomposition of complex links into simpler tangles and deriving presentations for various classes of knots.

Contribution

It establishes a functor from the tangle category to a quandle category and uses it to decompose and analyze the fundamental quandle of complex links.

Findings

Fundamental quandle defines a functor from tangle category to quandle category.

Decomposition of link quandles from tangle quandles.

Derived presentations for periodic, composite, and satellite knots.

Abstract

We show that the fundamental quandle defines a functor from the oriented tangle category to a suitably defined quandle category. Given a tangle decomposition of a link $L$, the fundamental quandle of $L$ may be obtained from the fundamental quandles of tangles. We apply this result to derive a presentation of the fundamental quandle of periodic links, composite knots and satellite knots.

Figures

Equations

$$\sum _{i=1}^m\psi (p_i)(p_i,1)-\sum _{i=1}^n\varphi (p_i)(p_i,0),$$

$$F_1\stackrel{i_1}{\to }{Q}_1{\ast }_{(F,i,j)}{Q}_2\stackrel{j_2}{\leftarrow }{F}_2,$$

$${\Gamma }_L=\{\text{homotopy classes of paths in EL from a point on ∂NL to a basepoint}\};$$

$$a▹b:=[\alpha \cdot \overline{\beta }\cdot m_{\beta (0)}\cdot \beta ],$$

$$Q(P_n^{\varphi })\stackrel{i_{{\tau }_1}^{-}}{\to }Q({\tau }_1){\ast }_{(Q(P_m^{\psi }),i_{{\tau }_1}^{+},i_{{\tau }_2}^{-})}Q({\tau }_2)\stackrel{i_{{\tau }_2}^{+}}{\leftarrow }Q(P_p^{\rho }).$$

$$Q(P_{n_1+n_2}^{({\varphi }_1,{\varphi }_2)})\stackrel{i_{{\tau }_1}^{-}\ast i_{{\tau }_2}^{-}}{⟶}Q({\tau }_1)\ast Q({\tau }_2)\stackrel{i_{{\tau }_1}^{+}\ast i_{{\tau }_2}^{+}}{⟵}Q(P_{m_1+m_2}^{({\psi }_1,{\psi }_2)}),$$

$$Q({\tau }_1{\tau }_2)=⟨X_1\cup X_2\mid R_1\cup R_2\cup \{i_{{\tau }_1}^{+}(a_j)=i_{{\tau }_2}^{-}(a_j),j=1,\dots m\}⟩,$$

$$Q(\tau )=⟨x_1,\dots ,x_n\mid r_1,\dots ,r_m⟩,$$

$$r_j:x_i=x_h▹x_l$$

$$BQ(\hat{\tau }):Q({\lambda }_k^{\eta }){\ast }_{(Q(P_{2k}^{\eta }),i_k^{+},i_{\tau }^{-}\ast {\text{id}}_{Q(P_k^{\psi })})}(Q(\tau )\ast Q(T_k^{\psi })){\ast }_{(Q(P_{2k}^{\eta }),i_{\tau }^{+}\ast {\text{id}}_{Q(P_k^{\psi })},i_k^{+})}Q(\overline{{\lambda }_k^{\eta }}),$$

$$Q(\hat{\tau })=⟨$$

$$Q(\hat{\tau })=⟨Y\mid R\cup \{i_{\tau }^{-}(a_h)=i_{\tau }^{+}(a_h),h=1,\dots ,k\}⟩.$$

$$BQ(\tilde{\tau }):Q({\mu }_n^{\varphi }){\ast }_{(Q(P_{2n}^{\varphi }),j_n^{+},i_{\tau }^{-})}Q(\tau ){\ast }_{(Q(P_{2m}^{\psi }),i_{\tau }^{+},j_m^{+})}Q(\overline{{\mu }_m^{\overline{\psi }}}),$$

$$Q(\tilde{\tau })=⟨$$

$$i_{\tau }^{+}(b_{2j-1})={\overline{x}}_h=i_{\tau }^{+}(b_{2j}),h=1,\dots ,n,j=1,\dots ,m\}⟩,$$

$$Q(\tilde{\tau })=⟨$$

$$⟨y_{i,z}\mid$$

$$z=1,\dots ,p,h=1,\dots ,k⟩,$$

$$⟨y_{i,z}\mid$$

$$y_{5,z}=y_{2,z+1},z=1,2,3,i=1,\dots ,5⟩,$$

$$⟨y_{1,z},y_{2,z}\mid (y_{2,z+1}▹y_{2,z})▹y_{1,z+1}=y_{1,z},y_{1,z+1}▹(y_{2,z+1}▹y_{2,z})=y_{2,z},z=1,2,3⟩,$$

$$Q(K_1)=$$

$$Q(K_2)=$$

$$Q(K_1♯K_2)=⟨$$

$$Q(3_1)=⟨x_1,x_2,x_3,X|x_3▹x_1=x_2,x_2▹x_3=x_1,X▹x_2=x_3,x_1=X⟩,$$

$$Q(3_1^{\ast })=⟨y_1,y_2,y_3,Y|y_3▹y_1=y_2,Y▹y_2=y_3,y_2▹y_3=y_1,y_1=Y⟩.$$

$$⟨$$

$$Y▹y_2=y_3,y_2▹y_3=y_1,y_1=x_1,X=Y⟩,$$

$$⟨$$

$$x_2▹x_3=y_2▹y_3⟩.$$

$$|T||Co{l}_T(K_1♯K_2)|=|Co{l}_T(K_1)||Co{l}_T(K_2)|.$$

$$\bigcup _{a\in T}\left(Co{l}_{(T,a)}(D_{K_1},x_1)\times Co{l}_{(T,a)}(D_{K_2},y_1)\right)\to Co{l}_T(K_1♯K_2),$$

$$Q(K)=Q({\lambda }_k^{\eta }){\ast }_{(Q(P_{2k}^{\eta }),i_k^{+},i_{{\tau }_E}^{-}\ast i_{k{\tau }_C}^{-})}(Q({\tau }_E)\ast Q(k{\tau }_C)){\ast }_{(Q(P_{2k}^{\eta }),i_{{\tau }_E}^{+}\ast i_{k{\tau }_C}^{+},i_k^{+})}Q(\overline{{\lambda }_k^{\eta }}),$$

$$Q(\overrightarrow{ϵ}\tau )=⟨\{x_{ij},i=1,\dots ,r,j=1,\dots ,N\}\mid \{r_{kj},k=1,\dots ,s,j=1,\dots ,N\}⟩,$$

Full text

The first author was supported by the “National Group for Algebraic and Geometric Structures, and their Applications” (GNSAGA-INdAM) and University of Bologna, funds for selected research topics. The second author was supported by the Slovenian Research Agency grant N1-0083.

1. Introduction

A quandle is an algebraic structure whose axioms express invariance under the three Reidemeister moves. The idea of studying knots using quandles arose in the 1980’s by Joyce [8] and Matveev [12]. In this century, quandle-type invariants were extensively developed and successfully used in the theory of classical and virtual links. Most of these invariants are based on the fundamental quandle, which can be defined for any codimension 2 submanifold [7].

The fundamental quandle of a link generalizes the link group and, for prime knots, is a classifying invariant. Nevertheless, it is quite hard to compute and its topological meaning, as well as its connection to other link invariants, is not completely understood. For example, its relation with the Alexander polynomial is well known, but no connection with the Jones polynomial has been described (see [7]).

In this paper we present a categorical approach to the fundamental quandle of knots and links. Namely, we look at links as morphisms in the tangle category, and use the fundamental quandle to construct a functor from the oriented tangle category to a new category we introduce: the bordered quandle category. The objects of this category are free quandles and a morphism between two objects $F_{1}$ and $F_{2}$ is given by a quandle $Q$, together with two quandle homomorphisms $F_{1}\stackrel{{\scriptstyle i_{1}}}{{\rightarrow}}Q\stackrel{{\scriptstyle i_{2}}}{{\leftarrow}}F_{2}$.

Fundamental quandles of tangles were previously used to study, for example, tangle embeddings [1], [14] and composite knots [6]. Nevertheless, no categorical approach was introduced. On the contrary, in [2] a categorical approach is introduced to study quantum invariants of links. However, the category analyzed there is different from ours: the morphisms are $Q$-colored tangles; these are couples $(\Gamma,\rho)$, where $\Gamma$ is a tangle and $\rho$ is quandle morphism from the fundamental quandle of $\Gamma$ to a fixed quandle $Q$.

Our approach, besides giving a theoretical background to some of the previously mentioned results, reveals to be very flexible and effective in computing the fundamental quandle of knots and links. Indeed, using our functor, the fundamental quandle of any link may be decomposed into simpler quandles that correspond to fundamental quandles of tangles constituting the link. As we show in the paper, this decomposition is useful when dealing with classes of links admitting special tangle decompositions as periodic links, composite knots or satellite knots. Moreover, it becomes a necessary tool when studying large links with many crossings, whose crossing information is too complicated to compute the quandle invariants in one piece. Finally, our approach may reveal a new way of investigating the relationship between the fundamental quandle of a link and other link invariants that admit a description involving the tangle category, such as the Jones polynomial.

The paper is organized as follows. In Section 2, we introduce the source and the target category of the fundamental quandle functor. In Subsection 2.1, we recall the oriented tangle category and introduce some basic notions that we will need. Subsection 2.2 contains the definition of the bordered quandle category. In Section 3, we recall the definition of the fundamental quandle of a codimension 2 submanifold and prove that the fundamental quandle defines a functor from the oriented tangle category to the bordered quandle category. Section 4 contains several applications of the fundamental quandle functor. We begin by computing the fundamental quandle of the closure of a tangle. In Subsection 4.1, we derive a presentation for the fundamental quandle of a periodic link. In Subsection 4.2, we focus on composite knots, describe a presentation of their fundamental quandle and discuss colorings of composite knots. In Subsection 4.3 we study satellite knots. Using a suitable tangle decomposition of a satellite knot, we derive a presentation of its fundamental quandle in terms of fundamental quandles of the companion and the embellishment knot and give two explicit calculations. We conclude the paper with some ideas for further research, based on our results (see Subsection 4.4).

2. The oriented tangle category and the bordered quandle category

In this Section, we recall the definition of oriented tangle category and define the bordered quandle category.

2.1. Oriented tangle category

Let $D$ be the closed unitary disk in $\mathbb{C}$. The objects of the oriented tangle category $\mathcal{T}^{+}$ are given as $P_{n}^{\phi}$, where

• •

$P_{n}$ is a (possibly empty) finite ordered sequence of points $P_{n}=(p_{1},\dots,p_{n})$ on the real interval $[-1,1]\subset D$, such that $-1<p_{1}<p_{2}<\ldots<p_{n}<1$,

• •

$\phi\colon P_{n}\to\{-1,+1\}$ is a function. If $n=0$, then $\phi\colon\emptyset\to\{-1,+1\}$ is just the trivial inclusion.

We may think of the values of $\phi$ as a decoration (a plus or minus) for each of the points in $P_{n}$. We will call $\phi(p_{i})$ the sign of $p_{i}$, and the function $\phi$ could be thought of as an orientation of $\{p_{1},\ldots,p_{n}\}$. If $\phi$ is the constant function equal to $+1$ (resp. $-1$), we set $P^{\phi}_{n}=P_{n}^{+}$ (resp. $P^{\phi}_{n}=P_{n}^{-}$).

Given two objects $P_{n}^{\phi}$ and $P_{m}^{\psi}$, a morphism from $P_{n}^{\phi}$ to $P_{m}^{\psi}$ is an oriented $(n,m)$-tangle, that is an oriented $1$-submanifold $\tau$ of $D\times I$, whose oriented boundary $\partial\tau$ equals

[TABLE]

considered up to ambient isotopy of the cylinder that keeps $D\times\partial I$ fixed. Note that a morphism from $P_{n}^{\phi}$ to $P_{m}^{\psi}$ exists if only if $\sum_{i=1}^{m}\psi(p_{i})=\sum_{i=1}^{n}\phi(p_{i})$. A morphism from $P_{n}^{\phi}$ to $P_{m}^{\psi}$ will be called a $(\phi,\psi)$-tangle or sometimes just an $(n,m)$-tangle when we don’t need to refer to orientations.

Given a $(\phi,\psi)$-tangle $\tau$, the negative (resp. positive) oriented boundary of $\tau$ is defined as $\partial^{-}\tau=\{\phi(p_{1})(p_{1},0),\dots,\phi(p_{n})(p_{n},0)\}$ (resp. $\partial^{+}\tau=\{\psi(p_{1})(p_{1},1),\dots,\psi(p_{m})(p_{m},1)\}$).

Note that with the above convention, a component of a tangle with nonempty boundary has endpoints in different boundaries if and only if the endpoints have the same sign. Moreover it is oriented upwards (with respect to the height function on the cylinder) if the sign of the endpoints is $+$, and downwards if the sign is $-$. While a component having both ends in the upper disk (resp. lower disk) goes from a $-$ point to a $+$ point (resp. from a $+$ point to a $-$ point).

Geometrically, the composition $\tau_{1}\tau_{2}$ of two tangles consists of the tangle obtained by stacking the tangle $\tau_{2}$ over $\tau_{1}$, identifying $\partial^{+}\tau_{1}$ with $\partial^{-}\tau_{2}$, and rescaling the resulting solid cylinder to $D\times I$.

Given an object $P_{n}^{\phi}$, we denote by $P_{n}^{-\phi}$ the object obtained by changing the signs of all the points. If $\tau$ is a morphism from $P_{n}^{\phi}$ to $P_{m}^{\psi}$, then $-\tau$ is a morphism from $P_{n}^{-\phi}$ to $P_{m}^{-\psi}$, where $-\tau$ is obtained from $\tau$ by changing the orientation of each component. Moreover, we denote by $\overline{\tau}$ the image of $\tau$ under the homeomorphism $D\times I\to D\times I$, defined by $(z,t)\mapsto(-z,1-t)$, that turns the solid cylinder upside down. Clearly, $\overline{\tau}$ is a morphism from $P_{m}^{\overline{\psi}}$ to $P_{n}^{\overline{\phi}}$, where $\overline{\psi}(p_{i})=-\psi(p_{m-i+1})$ for $i=1,\ldots,m$ and $\overline{\phi}(p_{j})=-\phi(p_{n-j+1})$ for $j=1,\ldots,n$. Finally, we denote by $\lambda_{k}^{\phi}$, $T_{k}^{\phi}$ and $\mu_{k}^{\phi}$ the tangles of type $(0,2k)$, $(k,k)$ and $(0,2k)$ respectively, depicted in Figures 1 and 2, and call them the cup tangle, trivial tangle and plat tangle of type ${\phi}$, respectively. Note that for each choice of $\phi$ there is a tangle $T_{k}^{\phi}$, while the tangle $\lambda_{k}^{\phi}$ (resp. $\mu_{k}^{\phi}$) exists if and only if $\phi(p_{i})=-\phi(p_{2k-i+1})$ (resp. $\phi(p_{2i})=-\phi(p_{2i-1})$) for $i=1,\ldots,k$.

The tangle category is a strict monoidal category, which means it has a tensor-like product. The tensor product of two objects $P^{\phi}_{n}\otimes P^{\psi}_{m}$ (resp. two tangles $\tau_{1}\otimes\tau_{2}$) is the sequence of $n+m$ points (resp. tangle), obtained by juxtaposing $P_{m}$ (resp. $\tau_{2}$) to the right of $P_{n}$ (resp. $\tau_{1}$), keeping the signs. This operation is associative and has the empty sequence as the (left and right) identity object.

By forgetting signs and orientation, we obtain a surjective faithful forgetful functor from $\mathcal{T}^{+}$ to $\mathcal{T}$, where $\mathcal{T}$ is the tangle category, that is the category whose objects are (possibly empty) finite ordered sequences of points and whose morphisms are tangles. We denote by $P_{n}$ the image of $P_{n}^{\phi}$ in $\mathcal{T}$, while the image of an oriented tangle $\tau$ will still be denoted by $\tau$.

Remark 2.1*.*

In the tangle category, a link in $\mathbb{R}^{3}$ or $S^{3}$ can be seen as a morphism from the empty set to itself, while braids on $k$ strands are isomorphisms of $P_{k}$. With this in mind, we can rephrase and extend the notions of classical closure and plat closure of braids to tangles as follows. Given a $(k,k)$-tangle $\tau$, the classical closure of $\tau$ is the link $\widehat{\tau}=\lambda_{k}(\tau\otimes T_{k})\overline{\lambda_{k}}$; while given a $(2n,2m)$-tangle $\tau$, the plat closure of $\tau$ is the link $\widetilde{\tau}=\mu_{n}\tau\overline{\mu_{m}}$, see Figure 3. Note that, since $\lambda_{1}=\mu_{1}$, for a $(1,1)$-tangle $\tau$ we have $\widehat{\tau}=\widetilde{\tau\otimes T_{1}}$.

Analogously, oriented links could be seen as morphisms from the empty set to itself in the oriented tangle category. An oriented version of the classical closure could be defined for each $(\phi,\phi)$-tangle as $\widehat{\tau}=\lambda^{\eta}_{k}(\tau\otimes T_{k}^{\psi})\overline{\lambda^{\eta}_{k}}$, where $\psi(p_{k-i+1})=-\phi(p_{i})$ for $i=1,\ldots,k$, while $\eta$ coincides with $\phi$ on the first $k$ points and coincides with $\psi$ on the last $k$ points. Note that $\overline{\eta}=\eta$. On the contrary, the plat closure could be defined only for $(\phi,\psi)$-tangles such that $\phi(p_{2i-1})=-\phi(p_{2i})$ and $\psi(p_{2j-1})=-\psi(p_{2j})$, for $i=1,\ldots,n$ and $j=1,\ldots,m$ as $\widetilde{\tau}=\mu_{n}^{\phi}\tau\overline{\mu^{\overline{\psi}}_{m}}$.

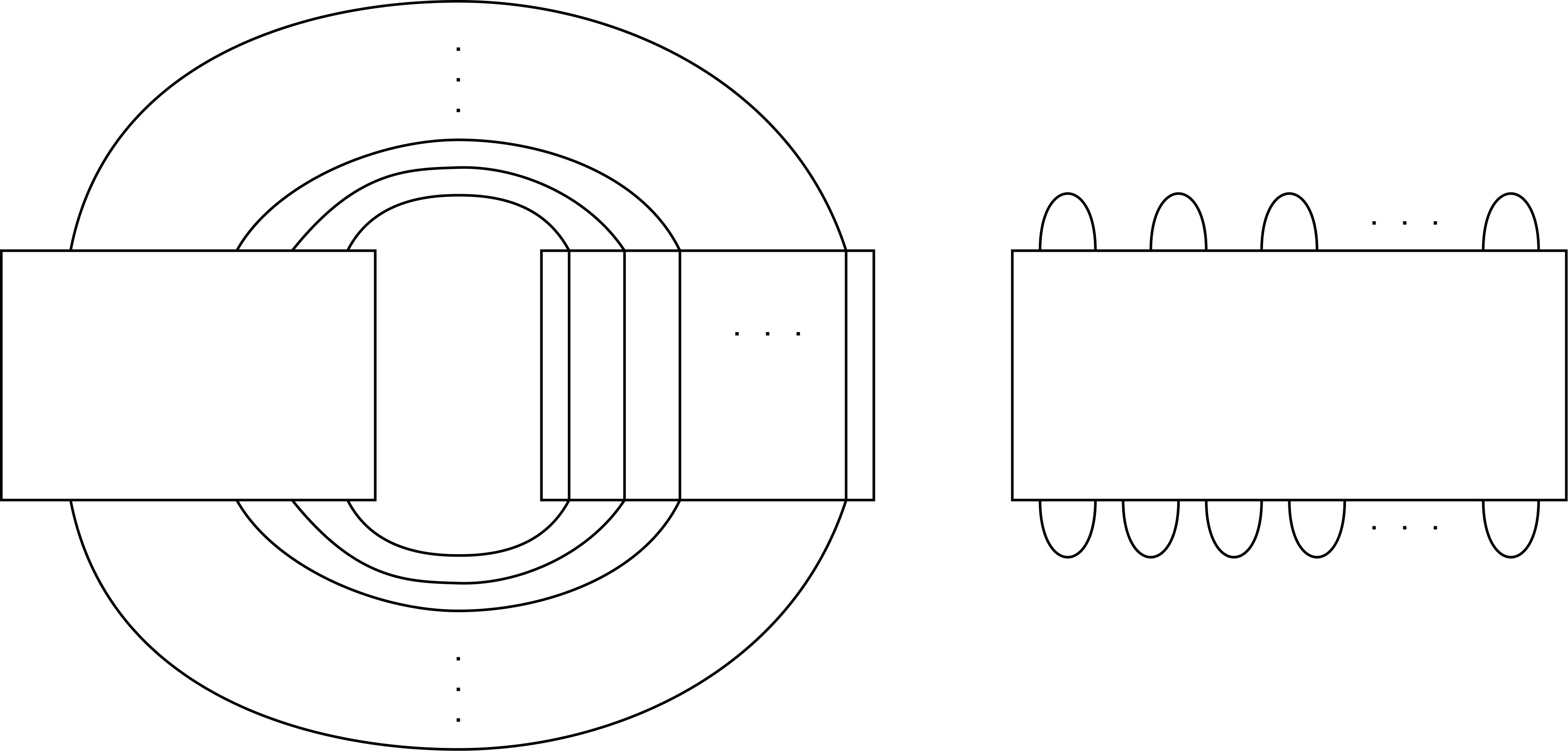

Remark 2.1 describes two different ways to “close” a tangle. On the contrary, given a link $L$ in $D\times I$, any 2-disk $D_{t}=D\times\{t\}$, intersecting the link transversely in $2n$ points, decomposes the link into two tangles $\tau_{1}$ and $\tau_{2}$, such that $\tau_{1}$ is a $(0,2n)$-tangle, $\tau_{2}$ is a $(2n,0)$-tangle and $\tau_{1}\tau_{2}=L$. In general, this decomposition depends on the disk $D_{t}$. Nevertheless, this idea of splitting can be used, for example, to describe the connected sum of knots, as is done in Subsection 4.2.

2.2. Bordered quandle category

Definition 2.2**.**

A quandle is a set $Q$ with a binary operation $\triangleright:Q\times Q\to Q$, which satisfies the following axioms:

1. (1)

$x\triangleright x=x$ for every $x\in Q$, 2. (2)

the map $\alpha_{y}\colon Q\to Q$, defined by $\alpha_{y}(x)=x\triangleright y$, is invertible for every $y\in Q$, and 3. (3)

$(x\triangleright y)\triangleright z=(x\triangleright z)\triangleright(y\triangleright z)$ for every $x,y,z\in Q$.

We set $x\triangleleft y=\alpha_{y}^{-1}(x)$. This notation implies the identities $(x\triangleright y)\triangleleft y=x=(x\triangleleft y)\triangleright y$.

Moreover, a quandle homomorphism is a function $f:(Q_{1},\triangleright_{1})\to(Q_{2},\triangleright_{2})$ that satisfies $f(x\,\triangleright_{1}y)=f(x)\triangleright_{2}f(y)$ for every $x,y\in Q_{1}$.

Example 1*.*

Any group $(G,\circ)$ is a quandle for the operation $a\triangleright b:=b^{-1}\circ a\circ b$.

The quandle category $\mathcal{Q}$ is the category whose objects are quandles and whose morphisms are quandle homomorphisms. In the remainder of this Section, we will define another category based on quandles: the bordered quandle category, whose objects will be free quandles.

Definition 2.3**.**

Given a set $X$, the free quandle on $X$ is the quandle $(X\times F_{G}(X),\triangleright)$, where $F_{G}(X)$ is the free group over $X$ and the operation is defined as $(x_{1},a)\triangleright(x_{2},b)=(x_{1},ab^{-1}x_{2}b)$. The free quandle on $X$ will be denoted by $F(X)$ and the elements of $X$ will be called the generators of the free quandle. Clearly, two free quandles $F(X_{1})$ and $F(X_{2})$ are isomorphic if and only if $X_{1}$ and $X_{2}$ have the same cardinality.

We define the bordered quandle category $\mathcal{BQ}$ as follows. The objects of $\mathcal{BQ}$ are free quandles with finitely many (possibly zero) generators. A free quandle with zero generators is simply the empty set, viewed as an empty quandle. For two objects $F_{1}$ and $F_{2}$, a morphism with source $F_{1}$ and target $F_{2}$ is given by a quandle $Q$, together with two quandle homomorphisms $F_{1}\stackrel{{\scriptstyle i_{1}}}{{\rightarrow}}Q\stackrel{{\scriptstyle i_{2}}}{{\leftarrow}}F_{2}$. Observe that if either of $F_{1}$, $F_{2}$ is the empty quandle, its inclusion into $Q$ is automatically a quandle homomorphism.

Given three objects $F_{1},F,F_{2}\in Ob(\mathcal{BQ})$ with morphisms $F_{1}\stackrel{{\scriptstyle i_{1}}}{{\rightarrow}}Q_{1}\stackrel{{\scriptstyle i}}{{\leftarrow}}F$ and $F\stackrel{{\scriptstyle j}}{{\rightarrow}}Q_{2}\stackrel{{\scriptstyle j_{2}}}{{\leftarrow}}F_{2}$, define their composition by the triple

[TABLE]

where $Q_{1}*_{(F,i,j)}Q_{2}$ denotes the amalgamated product of $Q_{1}$ and $Q_{2}$ with respect to the triple $(F,i,j)$, that is the pushout in the quandle category. It is easy to see this is indeed a category: amalgamation of quandles as a pushout is associative, while any object $F\in Ob(\mathcal{BQ})$ admits the identity morphism $F\stackrel{{\scriptstyle\textrm{id}}}{{\rightarrow}}F\stackrel{{\scriptstyle\textrm{id}}}{{\leftarrow}}F$ that satisfies the required property.

3. Fundamental quandle as a functor

In this Section, we recall the definition of the fundamental quandle of a codimension 2 submanifold of a topological manifold. Moreover, we show that by using the fundamental quandle, it is possible to define a functor from the oriented tangle category $\mathcal{T}^{+}$ to the bordered quandle category $\mathcal{BQ}$.

Definition 3.1** ([7]).**

Let $L\subset M$ be a codimension 2 submanifold of a connected manifold $M$. If $L$ is not closed, assume that $\partial L$ is contained in a connected component of $\partial M$. Also assume that $L$ is transversely oriented in $M$, denote by $N_{L}$ the normal disk bundle and by $E_{L}=cl(M-N_{L})$ its exterior. Set

[TABLE]

this will be the underlying set of the fundamental quandle. During homotopy, the basepoint is kept fixed, while the initial point of the path is free to move in $\partial N_{L}$. For any point $p\in\partial N_{L}$, denote by $m_{p}$ the loop in $\partial N_{L}$ based at $p$, which follows around the meridian in the positive direction. Let two elements $a,b\in\Gamma_{L}$ be represented by the paths $\alpha$ and $\beta$ respectively. The fundamental quandle $Q(L)$ of $L$ is the set $\Gamma_{L}$ with operation

[TABLE]

where $\overline{\beta}$ is the reverse path to $\beta$ and $\cdot$ denotes the composition of paths.

If $L_{0}\subset M$ is an empty submanifold of a connected manifold $M$, then we define its fundamental quandle $Q(L_{0})$ to be the empty quandle.

Example 2*.*

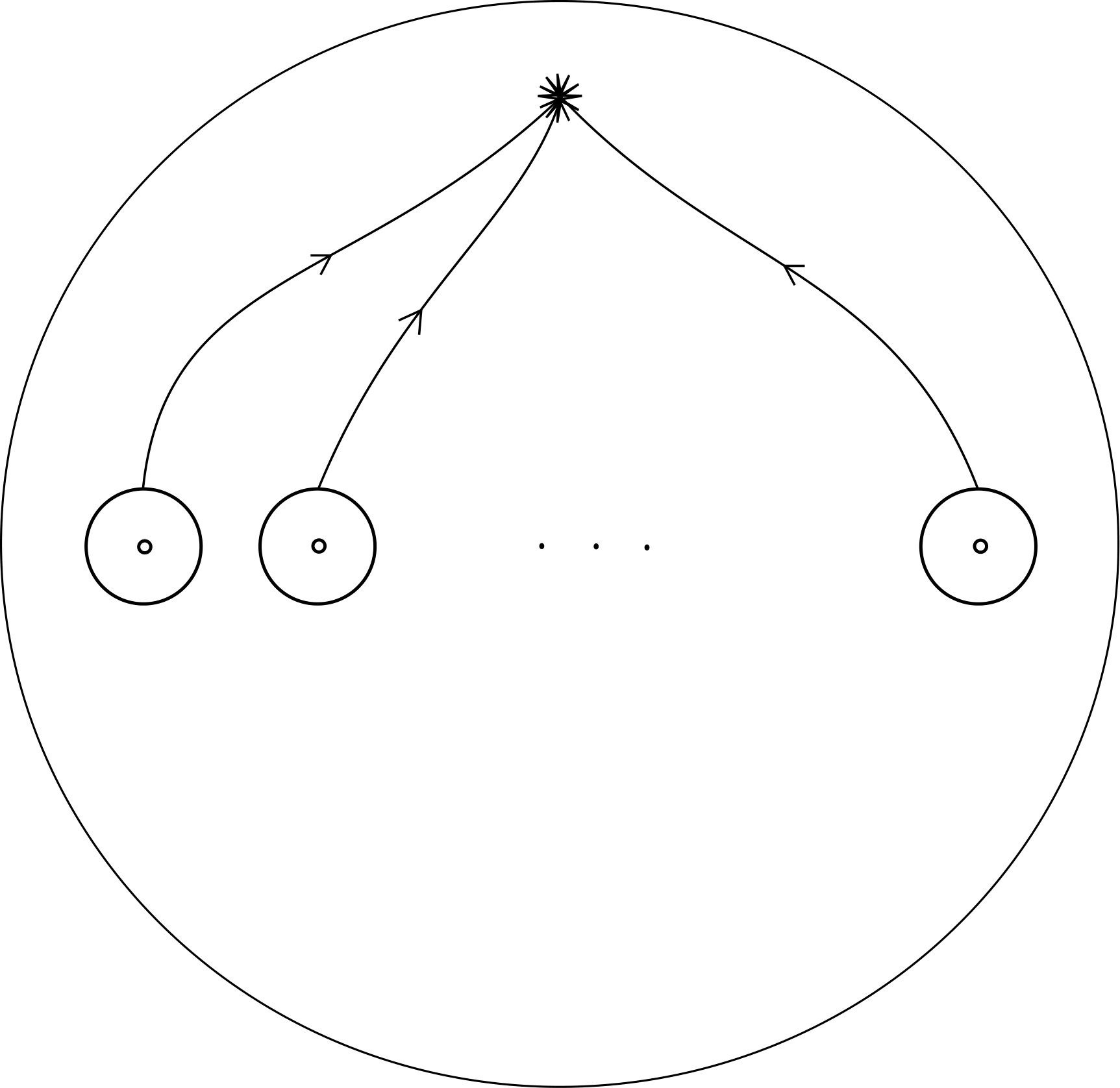

Given $P_{n}^{\phi}\in Ob(\mathcal{T}^{+})$, the underlying set $\{p_{1},\ldots,p_{n}\}$ is a codimension 2 submanifold of the disk $D$. We assume the orientation of the disk is induced by the standard orientation of $\mathbb{R}^{2}$, so that its boundary is oriented counterclockwise, and that the meridian $m_{p_{i}}$ of a point $p_{i}$ is oriented counterclockwise (resp. clockwise) if $\phi(p_{i})=+1$ (resp. $\phi(p_{i})=-1$). Let $a_{i}$ be the homotopy class of the path $\alpha_{i}$ depicted in Figure 4, and let $\mu_{i}$ be the homotopy class of $m_{p_{i}}$ for $i=1,\ldots,n$. The elements of $Q(P_{n}^{\phi})$ have the form $a_{i}w(b_{1},\ldots,b_{n})$, where $w(b_{1},\ldots,b_{n})$ is a word in the letters $b_{1},\ldots,b_{n}$ with $b_{i}=a_{i}^{-1}\mu_{i}a_{i}$. It follows that $Q(P_{n}^{\phi})=F(a_{1},\ldots,a_{n})$.

Remark 3.2*.*

If $L$ has nonempty boundary, the inclusion $\iota:\partial L\hookrightarrow L$ induces a quandle homomorphism $i:Q(\partial L)\to Q(L)$. Indeed, denoting by $\partial M_{0}$ the connected component of $\partial M$ that contains $\partial L$, any element of $Q(\partial L)$ is the homotopy class of a path in $cl(\partial M_{0}-N_{\partial L})$ from $\partial N_{\partial L}$ to the basepoint. The homotopy class of this path in $cl(M-N_{L})$ is clearly an element of $Q(L)$. The inclusion induces a homomorphism if $i(a\vartriangleright b)=[\iota(\alpha\cdot\overline{\beta}\cdot m_{\beta(0)}\cdot\beta)]$ is equal to $i(a)\vartriangleright i(b)=[\iota(\alpha)\cdot\overline{\iota(\beta)}\cdot m_{\iota(\beta(0))}\cdot\iota(\beta)]$. This holds if $\iota(m_{\beta(0)})=m_{\iota(\beta(0))}$, which means that a positive meridian in $\partial N_{\partial L}$ is still positive in $\partial N_{L}$. For this to be true, we need to assume that the orientation of $\partial L$ is induced by that of $L$ or, equivalently, that $\iota$ is orientation preserving.

Now we are ready to define a functor from the oriented tangle category to the bordered quandle category.

Definition 3.3**.**

The functor $BQ\colon\mathcal{T}^{+}\to\mathcal{BQ}$ from the oriented tangle category to the bordered quandle category is defined as follows:

For an object $P_{n}^{\phi}\in Ob(\mathcal{T}^{+})$ with $n\geq 1$, we set $BQ(P_{n}^{\phi})=Q(P_{n}^{\phi})$, which is a free quandle with $n$ generators by the Example 2. If $P_{0}\in Ob(\mathcal{T}^{+})$ is the empty object, then $BQ(P_{0})$ is the empty quandle.

Given a morphism $\tau\in Hom(P_{n}^{\phi},P_{m}^{\psi})$, the inclusions $P_{n}^{\phi}\hookrightarrow\tau$ and $P_{m}^{\psi}\hookrightarrow\tau$ induce quandle homomorphisms $i_{\tau}^{-}\colon Q(\mathcal{P}^{\phi}_{n})\to Q(\tau)$ and $i_{\tau}^{+}\colon Q(P_{m}^{\psi})\to Q(\tau)$ by Remark 3.2. We define $BQ(\tau)$ to be the morphism of $\mathcal{BQ}$, given by the triple $Q(P_{n}^{\phi})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\rightarrow}}Q(\tau)\stackrel{{\scriptstyle i_{\tau}^{+}}}{{\leftarrow}}Q(P_{m}^{\psi})$. We use the convention that if either $m$ or $n$ is equal to zero, then the corresponding homomorphism is omitted from the triple. We call $BQ$ the fundamental quandle functor.

In order to justify this definition, we need to prove that $BQ$ actually is a functor.

Theorem 3.4**.**

With the above notations, $BQ\colon\mathcal{T}^{+}\to\mathcal{BQ}$ is a functor.

Proof.

For any object $P_{n}^{\phi}\in Ob(\mathcal{T}^{+})$, its identity morphism $\textup{id}_{P_{n}^{\phi}}$ is the trivial tangle $T_{n}^{\phi}$ (see the left picture of Figure 2). It is straightforward to check that the fundamental quandle of this tangle is the free quandle with the same set of generators as $Q(P_{n}^{\phi})$ (see Example 2), so $BQ(T_{n}^{\phi})$ is given by the triple $Q(P_{n}^{\phi})\stackrel{{\scriptstyle\textrm{id}}}{{\rightarrow}}Q(T_{n}^{\phi})\stackrel{{\scriptstyle\textrm{id}}}{{\leftarrow}}Q(P_{n}^{\phi})$, thus $BQ(\textup{id}_{P_{n}^{\phi}})=\textrm{id}_{BQ(P_{n}^{\phi})}$.

Let $\tau_{1}\in Hom(P_{n}^{\phi},P_{m}^{\psi})$ be a $({\phi},{\psi})$-tangle and let $\tau_{2}\in Hom(P_{m}^{\psi},P_{p}^{\rho})$ be a $({\psi},{\rho})$-tangle such that $\partial^{+}\tau_{1}=\partial^{-}\tau_{2}$. Let $BQ(\tau_{1})$ and $BQ(\tau_{2})$ be given by triples $Q(P_{n}^{\phi})\stackrel{{\scriptstyle i_{\tau_{1}}^{-}}}{{\rightarrow}}Q(\tau_{1})\stackrel{{\scriptstyle i_{\tau_{1}}^{+}}}{{\leftarrow}}Q(P_{m}^{\psi})$ and $Q(P_{m}^{\psi})\stackrel{{\scriptstyle i_{\tau_{2}}^{-}}}{{\rightarrow}}Q(\tau_{2})\stackrel{{\scriptstyle i_{\tau_{2}}^{+}}}{{\leftarrow}}Q(P_{p}^{\rho})$. Then $BQ(\tau_{1}\tau_{2})$ is given by the triple

[TABLE]

Indeed, the composite tangle $\tau_{1}\tau_{2}$ is the $({\psi},{\rho})$-tangle, obtained by stacking the tangle $\tau_{2}$ over $\tau_{1}$ and identifying the common boundary $\partial^{+}\tau_{1}=\partial^{-}\tau_{2}$. Every element of $Q(\tau_{1}\tau_{2})$ is represented by a path from $\partial N_{\tau_{1}}$ or $\partial N_{\tau_{2}}$ inside $\partial N_{\tau_{1}\tau_{2}}$ to the basepoint. So, for $i=1,2$ we can define quandle homomorphisms $j_{i}:Q(\tau_{i})\to Q(\tau_{1}\tau_{2})$ such that $j_{1}(i_{\tau_{1}}^{+}(a))=j_{2}(i_{\tau_{2}}^{-}(a))$ for every $a\in Q(P_{m}^{\psi})$. It follows that $Q(\tau_{1}\tau_{2})=Q(\tau_{1})*_{(Q(P_{m}^{\psi}),i_{\tau_{1}}^{+},i_{\tau_{2}}^{-})}Q(\tau_{2})$ and the boundary inclusions give quandle homomorphisms $i_{\tau_{1}}^{-}\colon Q(P_{n}^{\phi})\to Q(\tau_{1})*_{(Q(P_{m}^{\psi}),i_{\tau_{1}}^{+},i_{\tau_{2}}^{-})}Q(\tau_{2})$ and $i_{\tau_{2}}^{+}\colon Q(P_{p}^{\rho})\to Q(\tau_{1})*_{(Q(P_{m}^{\psi}),i_{\tau_{1}}^{+},i_{\tau_{2}}^{-})}Q(\tau_{2})$, which concludes the proof. ∎

Example 3*.*

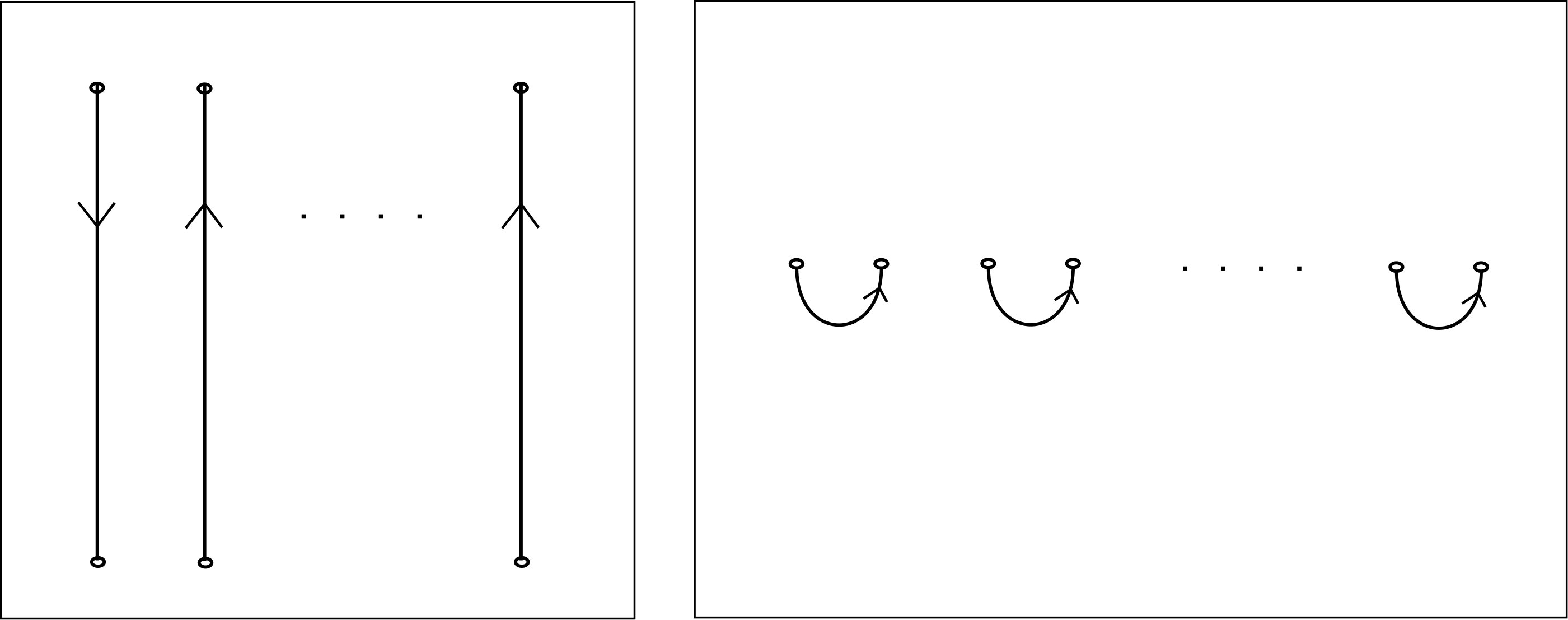

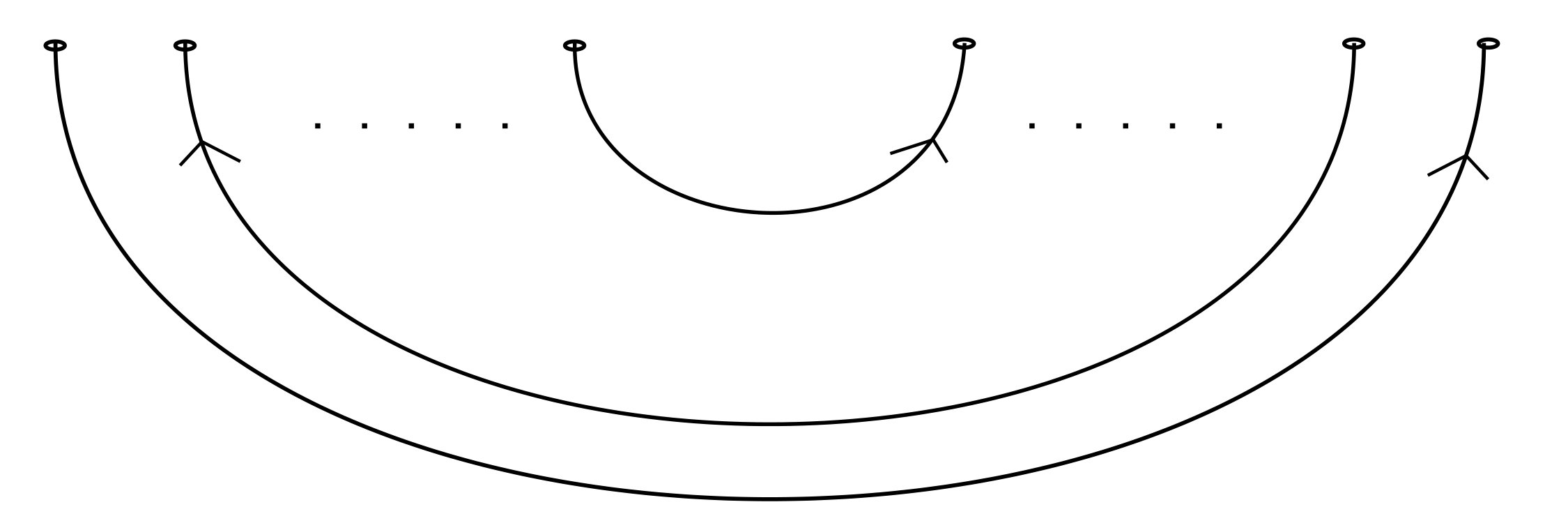

Consider the cup and plat tangles depicted in Figures 1 and 2. The fundamental quandles $Q(\lambda_{k}^{\phi})$ and $Q(\mu_{k}^{\psi})$ are both free quandles on $k$ generators $x_{1},\ldots,x_{k}$, where $x_{i}$ is the homotopy class of a path from the basepoint to the tubular neighborhood of $\chi_{i}$. Moreover, the functor $BQ$ sends:

• •

the cup tangle $\lambda_{k}^{\phi}$ into $Q(\lambda_{k}^{\phi})\stackrel{{\scriptstyle i_{k}^{+}}}{{\leftarrow}}Q(P_{2k}^{\phi})$, where $i_{k}^{+}:F(a_{1},\ldots,a_{2k})\to F(x_{1},\ldots,x_{k})$ is the homomorphism, given by $i_{k}^{+}(a_{h})=i_{k}^{+}(a_{2k-h+1})=x_{h}$ for $h=1,\ldots,k$;

• •

the plat tangle $\mu_{k}^{\psi}$ into $Q(\mu_{k}^{\psi})\stackrel{{\scriptstyle j_{k}^{+}}}{{\leftarrow}}Q(P_{2k}^{\psi})$, where $j_{k}^{+}:F(a_{1},\ldots,a_{2k})\to F(x_{1},\ldots,x_{k})$ is the homomorphism, given by $j_{k}^{+}(a_{2h-1})=j_{k}^{+}(a_{2h})=x_{h}$ for $h=1,\ldots,k$.

Remark 3.5*.*

The functor $BQ$ behaves nicely with respect to the tensor product of tangles. Given $\tau_{1}\in Hom(P_{n_{1}}^{\phi_{1}},P_{m_{1}}^{\psi_{1}})$ and $\tau_{2}\in Hom(P_{n_{2}}^{\psi_{2}},P_{m_{2}}^{\phi_{2}})$, the functor sends their product $\tau_{1}\otimes\tau_{2}$ into

[TABLE]

where $BQ(\tau_{j}):\ Q(P_{n_{j}}^{\phi_{j}})\stackrel{{\scriptstyle i_{\tau_{j}}^{-}}}{{\rightarrow}}Q(\tau_{j})\stackrel{{\scriptstyle i_{\tau_{j}}^{+}}}{{\leftarrow}}Q(P_{m_{j}}^{\psi_{j}})$ for $j=1,2$.

Moreover, if $BQ(\tau):\ Q(P_{n}^{\phi})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\rightarrow}}Q(\tau)\stackrel{{\scriptstyle i_{\tau}^{+}}}{{\leftarrow}}Q(P_{m}^{\psi})$, then $BQ(\overline{\tau}):\ Q(P_{m}^{\overline{\psi}})\stackrel{{\scriptstyle i_{\tau}^{+}}}{{\rightarrow}}Q(\overline{\tau})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\leftarrow}}Q(P_{n}^{\overline{\phi}})$ and clearly $Q(\tau)\cong Q(\overline{\tau})$.

Remark 3.6*.*

As we mentioned in Section 2, braids on $k$ strands are isomorphisms of $P_{k}$ in the tangle category. While the fundamental quandle of a braid is always free, our functor $BQ$ sends a braid $\beta$ into a triple $Q(P_{k})\stackrel{{\scriptstyle i^{-}}}{{\rightarrow}}Q(\beta)\stackrel{{\scriptstyle i^{+}}}{{\leftarrow}}Q(P_{k})$, where $i^{-}$ and $i^{+}$ are both quandle isomorphisms. Therefore the composition $(i^{+})^{-1}i^{-}=\beta_{*}\colon Q(P_{k})\to Q(P_{k})$ is an automorphism of the free quandle. In [7, pages 390–391] a similar remark was made in the category of racks (i.e. algebraic structures, satisfying properties (2) and (3) of Definition 2.2), and the authors proved that the map $\beta\mapsto\beta_{*}$ defines a faithful representation of the braid group in the automorphism group of the free rack.

As is the case with groups, every quandle admits a quandle presentation. Before recalling its definition, we need to fix some notation. Any free quandle $F(X)$ is characterized by the following universal property: for any function $f$ from $X$ to a quandle $Q$, there exists a unique quandle homomorphism $\overline{f}\colon F(X)\to Q$, such that $\overline{f}\iota=f$, where $\iota:X\to F(X)$ is the inclusion, given by $\iota(x)=(x,1)$.

Definition 3.7**.**

Let $Q$ be a quandle. A presentation $\langle X\mid R\rangle$ for $Q$ is the data of two sets $X$ and $R\subset F(X)\times F(X)$, and a function $g:X\to Q$ that satisfies:

• (a)

$\overline{g}\times\overline{g}(R)\subset\Delta_{Q}$, where $\Delta_{Q}$ is the diagonal set in $Q\times Q$, and

• (b)

for any quandle $Q^{\prime}$ and any map $f:X\to Q^{\prime}$ with $\overline{f}\times\overline{f}(R)\subset\Delta_{Q^{\prime}}$, there exists a unique quandle homomorphism $\widetilde{f}:Q\to Q^{\prime}$ such that $f=\widetilde{f}g$.

To avoid cumbersome notations, we will usually replace a relation $(r,s)\in R$ by an equality $r=s$, and denote an element $\iota(x)\in F(X)$ simply by $x$. Moreover, we will write $\langle x_{1},\ldots,x_{m}\mid r_{1},\ldots,r_{n}\rangle$ instead of $\langle\{x_{1},\ldots,x_{m}\}\mid\{r_{1},\ldots,r_{n}\}\rangle$.

Corollary 3.8**.**

*Given a $(\phi,\psi)$-tangle $\tau_{1}$ and a $(\psi,\rho)$-tangle $\tau_{2}$, let their fundamental quandles be given by presentations $Q(\tau_{1})=\langle X_{1}\mid R_{1}\rangle$ and $Q(\tau_{2})=\langle X_{2}\mid R_{2}\rangle$.

If $BQ(\tau_{1})\colon Q(P_{n}^{\phi})\stackrel{{\scriptstyle i_{\tau_{1}}^{-}}}{{\rightarrow}}Q(\tau_{1})\stackrel{{\scriptstyle i_{\tau_{1}}^{+}}}{{\leftarrow}}Q(P_{m}^{\psi})$ and $BQ(\tau_{2})\colon Q(P_{m}^{\psi})\stackrel{{\scriptstyle i_{\tau_{2}}^{-}}}{{\rightarrow}}Q(\tau_{2})\stackrel{{\scriptstyle i_{\tau_{2}}^{+}}}{{\leftarrow}}Q(P_{p}^{\rho})$, then the fundamental quandle of $\tau_{1}\tau_{2}$ is given by the presentation*

[TABLE]

where $Q(P_{m}^{\psi})=F(a_{1},\ldots,a_{m})$.

In [7] the authors describe how to find a presentation for the fundamental quandle of a link in $S^{3}$. The same procedure easily generalizes to a tangle in $D\times I$. Recall that a tangle diagram is the image of a regular projection of a tangle onto $[-1,1]\times I$, where $[-1,1]=D\cap\mathbb{R}$, together with the information about the overcrossings and undercrossings. If $D_{\tau}$ is a diagram of $\tau$, denote by $x_{1},\ldots,x_{n}$ the arcs of $D_{\tau}$, let $m$ be the number of crossing points and fix an orientation over $D_{\tau}$ (induced by that of $\tau$ if $\tau$ is oriented). A presentation for $Q(\tau)$ is then given by:

[TABLE]

where

[TABLE]

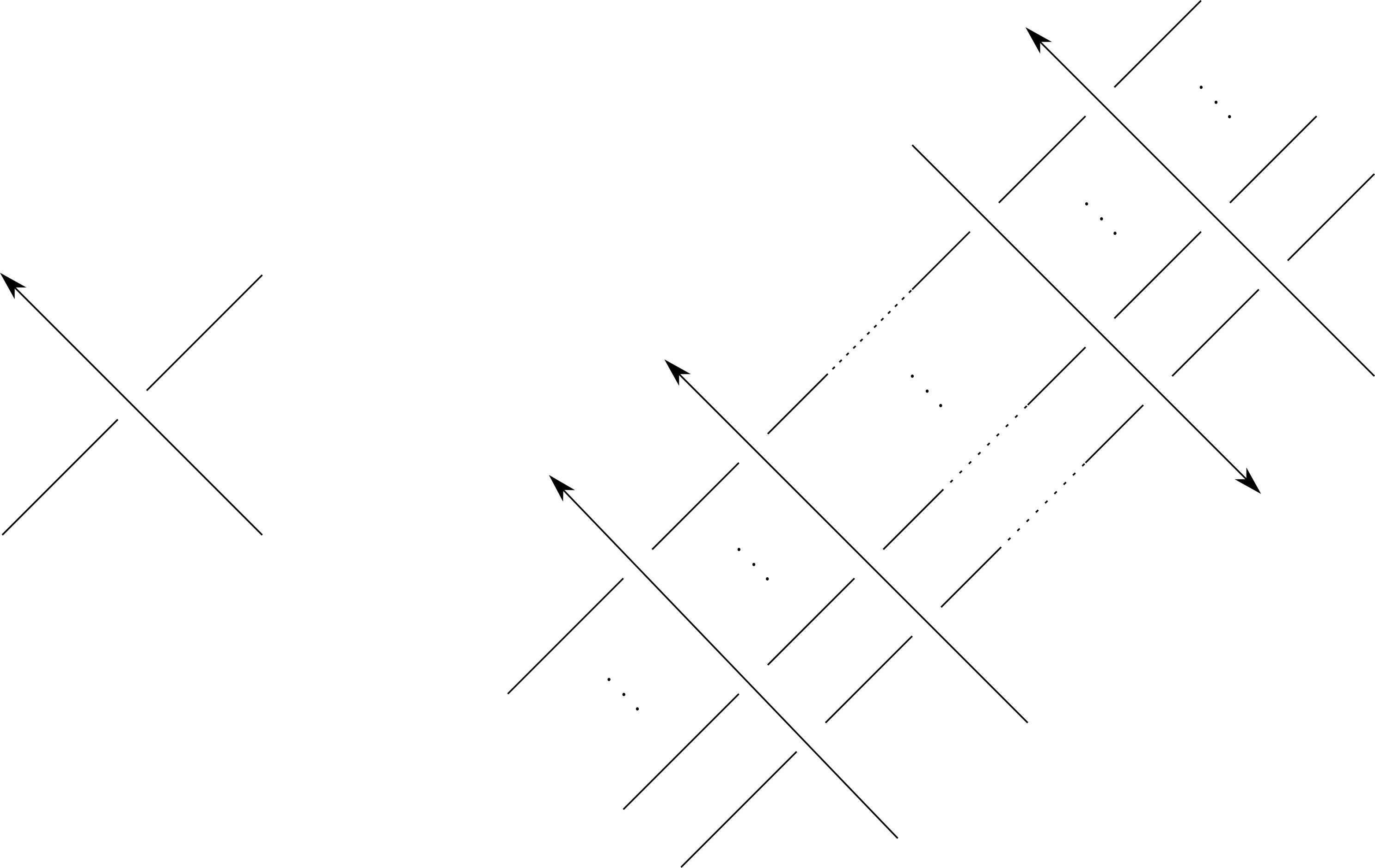

if the arcs of $D_{\tau}$ at the $j$-th crossing are labeled as depicted in the left part of Figure 10.

4. Fundamental quandle of links as closures of tangles

In this Section, we focus on the study of links. First we analyze how the functor introduced in Section 3 can be used to compute the fundamental quandle of the closure of a tangle. Then we concentrate on some particular classes of links: periodic links, composite knots and satellite knots.

Let $\tau$ be a $(\phi,\phi)$-tangle and let $BQ(\tau):\ Q(P_{k}^{\phi})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\rightarrow}}Q(\tau)\stackrel{{\scriptstyle i^{+}_{\tau}}}{{\leftarrow}}Q(P^{\phi}_{k})$. In Remark 2.1, we defined the classical closure of $\tau$ as $\widehat{\tau}=\lambda^{\eta}_{k}(\tau\otimes T_{k}^{\psi})\overline{\lambda^{\eta}_{k}}$, where $\psi(p_{k-i+1})=-\phi(p_{i})$ for $i=1,\ldots,k$ and $\eta$ coincides with $\phi$ on the first $k$ points and with $\psi$ on the last $k$ points. By Remark 3.5, we obtain

[TABLE]

where $i_{k}^{+}$ is the map described in Example 3.

Using presentations $Q(\tau)=\langle Y\mid R\rangle$, $Q(T_{k}^{\psi})=F(z_{1},\ldots,z_{k})=F(Z)$, $Q(\lambda_{k}^{\eta})=F(x_{1},\ldots,x_{k})=F(X)$, $Q(\overline{\lambda_{k}^{\eta}})=F(\overline{x}_{1},\ldots,\overline{x}_{k})=F(\overline{X})$ and applying Corollary 3.8 together with computations in Example 3, we obtain

[TABLE]

with $Q(P_{2k}^{\eta})=F(a_{1},\ldots,a_{2k})$, that easily simplifies to

[TABLE]

Now let $\tau$ be a $(\phi,\psi)$-tangle such that $\phi(p_{2i-1})=-\phi(p_{2i})$ and $\psi(p_{2j-1})=-\psi(p_{2j})$ for $i=1,\ldots,n$ and $j=1,\ldots,m$. A similar computation for the plat closure $\widetilde{\tau}=\mu_{n}^{\phi}\tau\overline{\mu^{\overline{\psi}}_{m}}$ gives

[TABLE]

where $BQ(\tau):\ Q(P_{2n}^{\phi})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\rightarrow}}Q(\tau)\stackrel{{\scriptstyle i^{+}_{\tau}}}{{\leftarrow}}Q(P_{2m}^{\psi})$ and $j_{n}^{+},j_{m}^{+}$ are the maps described in Example 3. Moreover, given presentations $Q(\tau)=\langle Y\mid R\rangle$, $Q(\mu_{n}^{\phi})=F(x_{1},\ldots,x_{n})=F(X)$ and $Q(\overline{\mu_{m}^{\overline{\psi}}})=F(\overline{x}_{1},\ldots,\overline{x}_{m})=F(\overline{X})$, we obtain

[TABLE]

where $Q(P_{2n}^{\phi})=F(a_{1},\ldots,a_{2n})$ and $Q(P_{2m}^{\psi})=F(b_{1},\ldots,b_{2m})$, that easily simplifies to

[TABLE]

In the remainder of this Section, we will apply presentations (4.1) and (4.2) to the computation of the fundamental quandle of periodic links, composite knots and satellite knots.

4.1. Periodic links

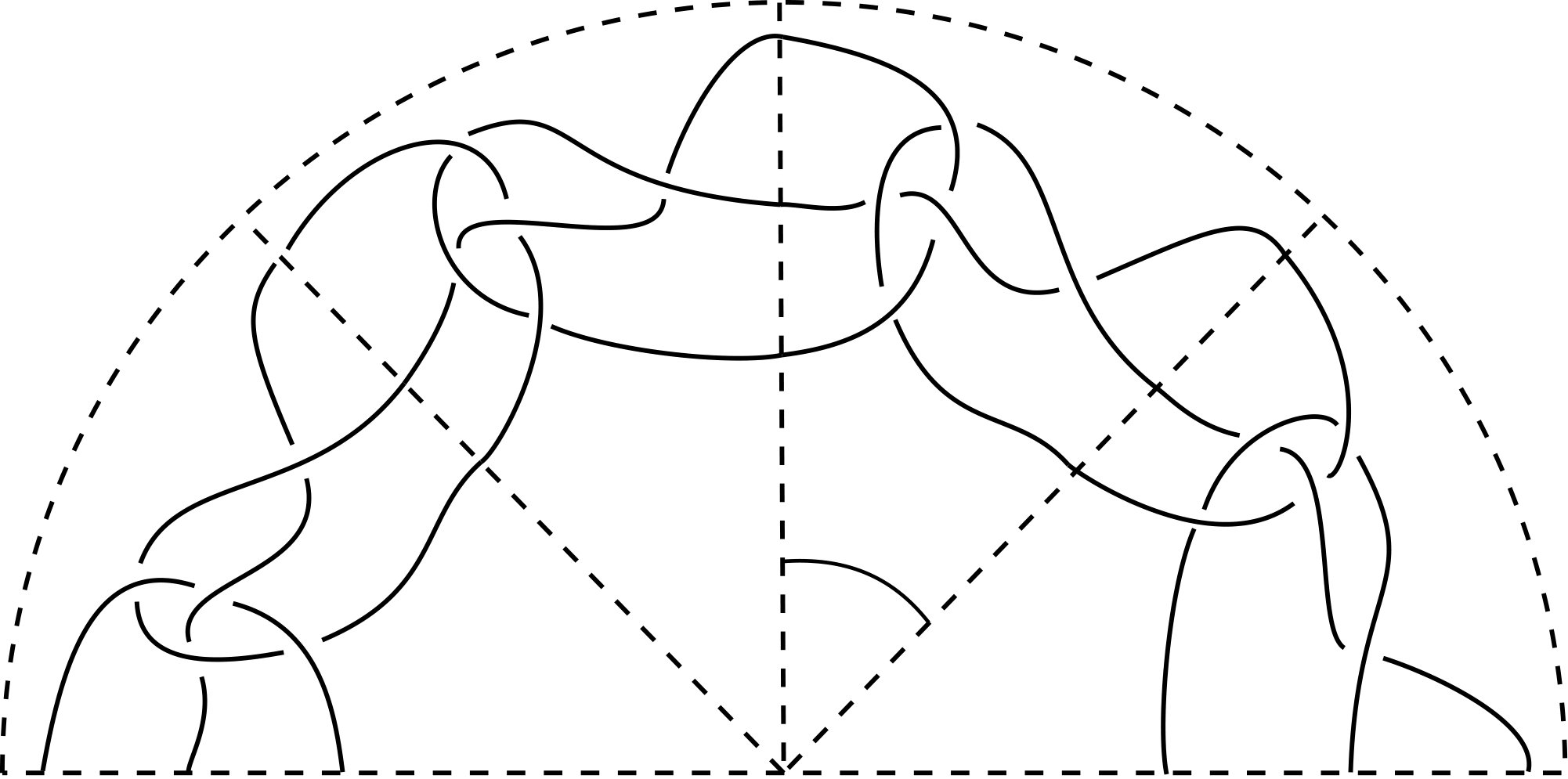

A link $L$ in $S^{3}$ is called periodic with period $p$ or $p$-periodic, if there is an orientation preserving homeomorphism $\theta_{p}:S^{3}\to S^{3}$ of order $p$ with a set of fixed points $h\cong S^{1}$ disjoint from $L$, which maps $L$ to itself. Periodic links are important for the knot theory in lens spaces, since they are lifts of links in lens spaces under the universal covering $S^{3}\to L(p,q)$ (see for example [4]).

Consider $S^{3}$ as $\mathbb{R}^{3}\cup\{\infty\}$ with $\infty\in h$. A $p$-periodic link admits a regular diagram $D_{L}$, contained in a plane $\pi\subset\mathbb{R}^{3}$ orthogonal to $h$, such that the restriction of $\theta_{p}$ to $\pi$ is a rotation of order $p$ around the point $O\in\pi\cap h$ and fixes the diagram $D_{L}$ (see [3, page 267]). Let $A$ be the convex angle, delimited by a ray $r$ exiting from $O$, and its image $\theta_{p}(r)$: the set $D_{L}\cap A$ can clearly be seen as a diagram of a $(k,k)$-tangle $\tau$, where $k$ is the cardinality of $D_{L}\cap r$. So $L$ can be expressed as $\widehat{\tau^{p}}$ (see Remark 2.1 and Figure 5). On the contrary, given any $(k,k)$-tangle $\tau$, the link $\widehat{\tau^{p}}$ is a $p$-periodic link.

If $\tau$ is a $(\phi,\phi)$-tangle with presentation $\langle y_{i,1}\mid r_{j,1}\ \ i=1,\ldots,m,\ j=1,\ldots,n\rangle$ and such that $BQ(\tau):\ Q(P_{k}^{\phi})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\rightarrow}}Q(\tau)\stackrel{{\scriptstyle i_{\tau}^{+}}}{{\leftarrow}}Q(P_{k}^{\phi})$, then it follows from Corollary 3.8 and presentation (4.1) that the fundamental quandle of the $p$-periodic link $\widehat{\tau^{p}}$ has the following presentation:

[TABLE]

where $Q(P_{k}^{\phi})=F(a_{1},\ldots,a_{k})$ and the function $\psi$ acts on a word shifting by one mod $p$ the second index of each letter appearing in the word.

Example 4* (Fundamental quandle of the pretzel knot $P(3,3,3)$).*

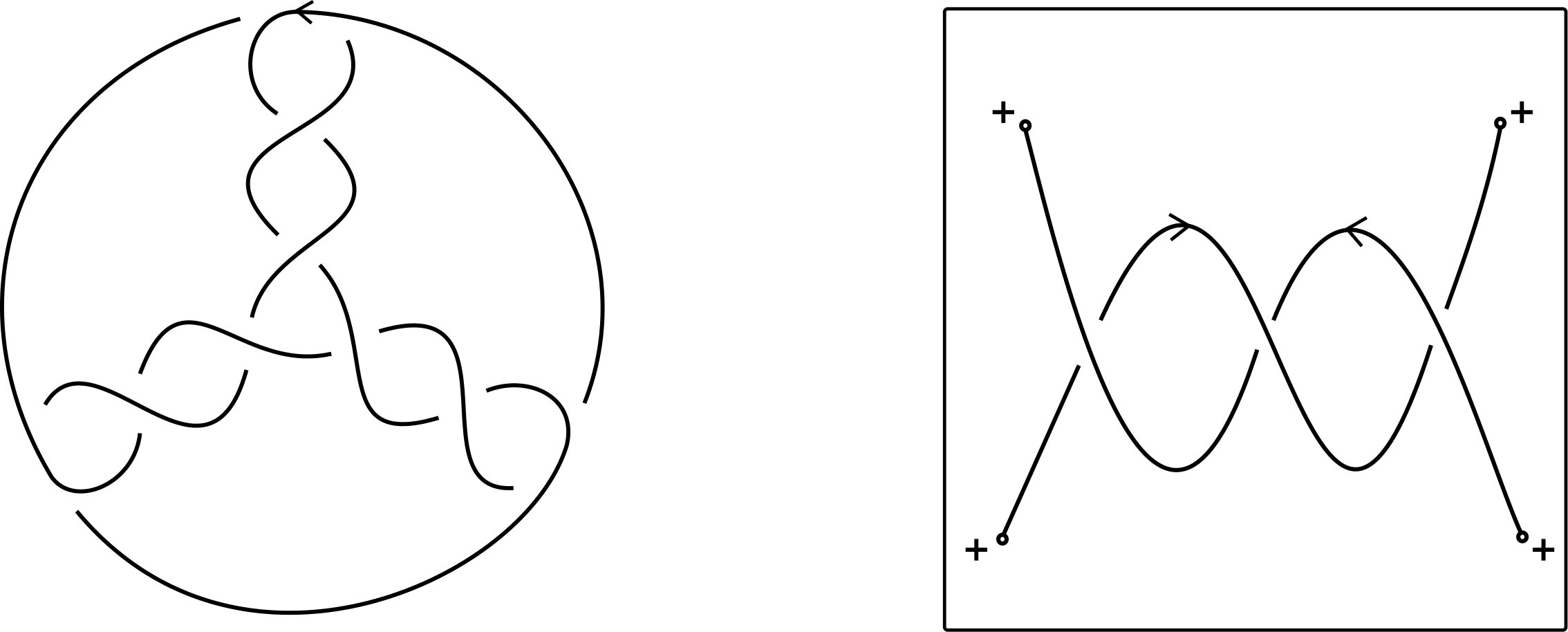

Consider the knot $9_{35}$, depicted in the left part of Figure 6, that is also known as the pretzel knot $P(3,3,3)$. As the diagram shows, it is a 3-periodic knot and can be described as $\widehat{\tau^{3}}$, where $\tau$ is the $(2,2)$-tangle depicted in the right part of the figure. Using the procedure, described on p.3.8, we can easily obtain $Q(\tau)=\langle y_{1},y_{2},y_{3},y_{4},y_{5}\,|\,y_{3}\triangleright y_{4}=y_{1},y_{4}\triangleright y_{3}=y_{2},y_{5}\triangleright y_{2}=y_{3}\rangle$. The functor $BQ$ maps $\tau$ into $BQ(\tau)\colon\quad F(a_{1},a_{2})\stackrel{{\scriptstyle i_{\tau}^{-}}}{{\rightarrow}}Q(\tau)\stackrel{{\scriptstyle i_{\tau}^{+}}}{{\leftarrow}}F(a_{1},a_{2})$, where $i_{\tau}^{-}(a_{1})=y_{1}$, $i_{\tau}^{-}(a_{2})=y_{2}$, $i_{\tau}^{+}(a_{1})=y_{4}$ and $i_{\tau}^{+}(a_{2})=y_{5}$. So the fundamental quandle of $P(3,3,3)$ has a presentation

[TABLE]

that simplifies to

[TABLE]

where all the second indices are counted mod $3$.

4.2. Composite knots

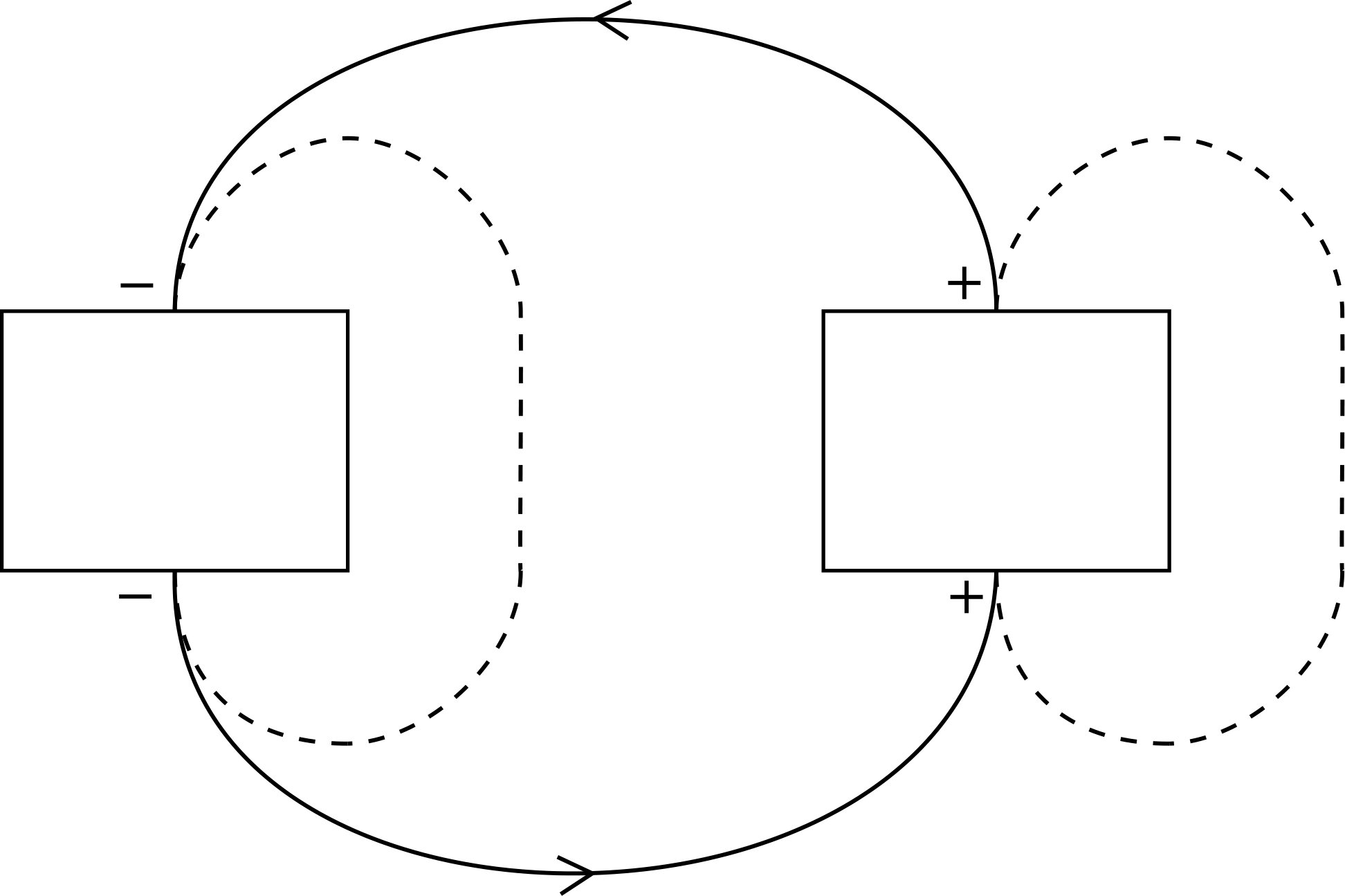

Let $K_{1}$ and $K_{2}$ be two nontrivial knots in the solid cylinder $D\times I$. Choose decompositions $K_{1}=\widehat{\tau_{1}}$ and $K_{2}=\widehat{\tau_{2}}$, where $\tau_{1},\tau_{2}$ are $(1,1)$-tangles. The connected sum $K_{1}\sharp K_{2}$ of $K_{1}$ and $K_{2}$ can be expressed as $\lambda_{1}\left(\tau_{1}\otimes\tau_{2}\right)\overline{\lambda}_{1}$. While tangles $\tau_{1}$ and $\tau_{2}$ clearly depend on the chosen decomposition, the connected sum $K_{1}\sharp K_{2}$ is uniquely defined by $K_{1}$ and $K_{2}$.

We can assume that $\tau_{1}$ is oriented from top to bottom (so both of its boundary points carry the negative sign), while $\tau_{2}$ is oriented from bottom to top (so both of its boundary points carry the positive sign). Presentation (4.1) for the fundamental quandle of the classical closure of a tangle then specializes to the following presentations:

[TABLE]

where $x_{1}=i^{+}_{\tau_{1}}(a_{1})$, $X=i^{-}_{\tau_{1}}(a_{1})$, $y_{1}=i^{+}_{\tau_{2}}(b_{1})$ and $Y=i^{-}_{\tau_{2}}(b_{1})$ are the arcs depicted in Figure 7 and $Q(P_{1}^{-})=F(a_{1}),Q(P_{1}^{+})=F(b_{1})$. Using these presentations and applying Corollary 3.8, we obtain the following presentation for the fundamental quandle of $K_{1}\sharp K_{2}$:

[TABLE]

Example 5* (Fundamental quandle of the granny knot).*

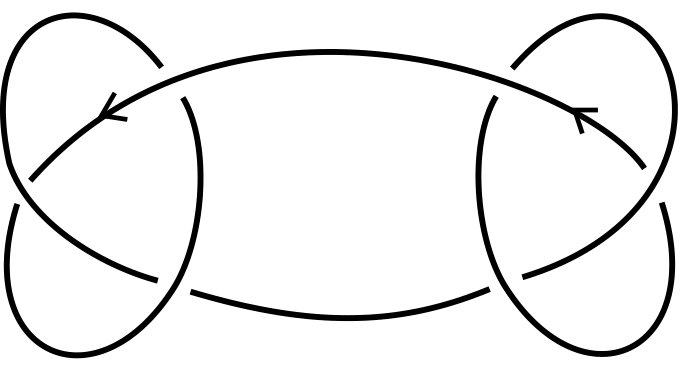

Consider the knot depicted in Figure 8: its name is the granny knot and it is obtained as a connected sum of the left-handed trefoil knot $3_{1}$ with its mirror image $3_{1}^{*}$ (the so called right-handed trefoil knot). Using the left (respectively right) part of the diagram in Figure 8, we obtain the following presentations

[TABLE]

So the fundamental quandle of the granny knot has a presentation

[TABLE]

that reduces to

[TABLE]

Using presentation (4.3), a relationship between the counting invariants of $K_{1}$, $K_{2}$ and that of $K_{1}\sharp K_{2}$ may be obtained, as it was done in [6]. We recall that a coloring of a tangle $\tau$ by a finite quandle $T$, or a $T$-coloring, is a quandle homomorphism $f\colon Q(\tau)\to T$. Denote by $Col_{T}(\tau)$ the set of all colorings of a tangle $\tau$ by a fixed quandle $T$. The number of all colorings $|Col_{T}(\tau)|$ is called the counting invariant of $\tau$ with respect to $T$. If the coloring quandle $T$ has some special properties, the counting invariant of a composite knot $K_{1}\sharp K_{2}$ may be derived from the counting invariants of $K_{1}$ and $K_{2}$.

Definition 4.1**.**

Let $Q$ be a quandle. Denote by $\alpha\colon Q\to Aut(Q)$ the map, given by $\alpha(y)=\alpha_{y}$ for every $y\in Q$ (see Definition 2.2). The quandle $Q$ is connected if $\alpha(Q)$ acts transitively on $Q$. The quandle $Q$ is called faithful if the map $\alpha$ is an injection.

A $T$-coloring of a tangle $\tau$ can be used to color its endpoints, i.e., the elements of $\partial^{+}\tau\cup\partial^{-}\tau$: given a point $(p_{i},1)$ in $\partial^{+}\tau$, the color of $(p_{i},1)$ is $f\circ i^{+}_{\tau}(a_{i})$, where $a_{i}$ is the generator of $Q(\partial^{+}\tau)$, corresponding to the point $(p_{i},1)$ ($a_{i}$ is the homotopy class of the path $\alpha_{i}$, depicted in Figure 4). An analogous definition can be given for points in $\partial^{-}\tau$ by replacing $+$ with $-$.

Lemma 4.2**.**

[15, Lemma 5.6]** Let $T$ be a finite faithful quandle. Then for any $T$-coloring of a $(1,1)$-tangle, the colors at the two endpoints of the tangle agree.

It follows from this lemma that if $T$ is a faithful quandle, every coloring of a $(1,1)$-tangle $\tau$ induces a coloring of the link $\widehat{\tau}$ and vice-versa. Applying this to tangles $\tau_{1}$ and $\tau_{2}$, such that $K_{i}=\widehat{\tau_{i}}$ for $i=1,2$, we obtain the following restatement of results [6, Lemma 3.4, Lemma 3.6]:

Lemma 4.3**.**

Let $T$ be a finite connected faithful quandle, then

[TABLE]

Proof.

Let $K$ be any knot and fix a diagram $D_{K}$ of $K$. To each arc of the diagram $D_{K}$ there corresponds an element $x$ in $Q(K)$: denote by $Col_{(T,a)}(D_{K},x)$ the set of all colorings of the diagram $D_{K}$ such that the arc labeled by $x$ receives the color $a\in T$, i.e., the elements $f$ of $Col_{T}(K)$ such that $f(x)=a$. Then we have $Col_{T}(K)=\sqcup_{a\in T}Col_{(T,a)}(D_{K},x)$. Choose any $a,b\in T$. Since $T$ is connected, there exists an element $c\in T$ such that $a\triangleright c=b$. Define a map $\phi\colon Col_{(T,a)}(D_{K},x)\to Col_{(T,b)}(D_{K},x)$ by $\phi(f)(y)=f(y)\triangleright c$ and observe that $\phi$ is a bijection. Therefore $|Col_{(T,a)}(D_{K},x)|=|Col_{(T,b)}(D_{K},x)|$ and consequently $|Col_{T}(K)|=|T||Col_{(T,a)}(D_{K},x)|$.

For two knots $K_{1}$ and $K_{2}$, let $\tau_{i}$ be a (1,1)-tangle such that $\widehat{\tau_{i}}=K_{i}$, for $i=1,2$. Then the fundamental quandle of $K_{1}\sharp K_{2}=\tau_{1}\tau_{2}$ admits the presentation (4.3) that stems from presentations $Q(\tau_{1})=\langle x_{1},\ldots,x_{k},X\mid r_{1},\ldots r_{h}\rangle$ and $Q(\tau_{2})=\langle y_{1},\ldots,y_{n},Y\mid s_{1},\ldots s_{m}\rangle$, see Figure 7. For every coloring $f\in Col_{T}(K_{1}\sharp K_{2})$, the restriction $f|_{\tau_{i}}$ for $i=1,2$ induces a coloring of the tangle $\tau_{i}$, that in turn induces a coloring of $K_{i}$ by Lemma 4.2. Both induced colorings agree at the endpoints of the $(1,1)$-tangles: $f(x_{1})=f(y_{1})=f(X)=f(Y)$. Conversely, for any two colorings $f_{1}\in Col_{T}(K_{1})$ and $f_{2}\in Col_{T}(K_{2})$ such that $f_{1}(x_{1})=f_{2}(y_{1})$, the map $f\colon Q(K_{1}\sharp K_{2})\to T$, given by $f(x)=f_{i}(x)$ for any $x\in Q(K_{i})$ with $i=1,2$, induces a coloring of the composite knot $K_{1}\sharp K_{2}$. Thus, we have a bijection

[TABLE]

where $D_{K_{i}}$ denotes the diagram of $K_{i}$ for $i=1,2$. It follows that $|T|\cdot\frac{|Col_{T}(K_{1})|}{|T|}\cdot\frac{|Col_{T}(K_{2})|}{|T|}=|Col_{T}(K_{1}\sharp K_{2})|$. ∎

4.3. Satellite knots

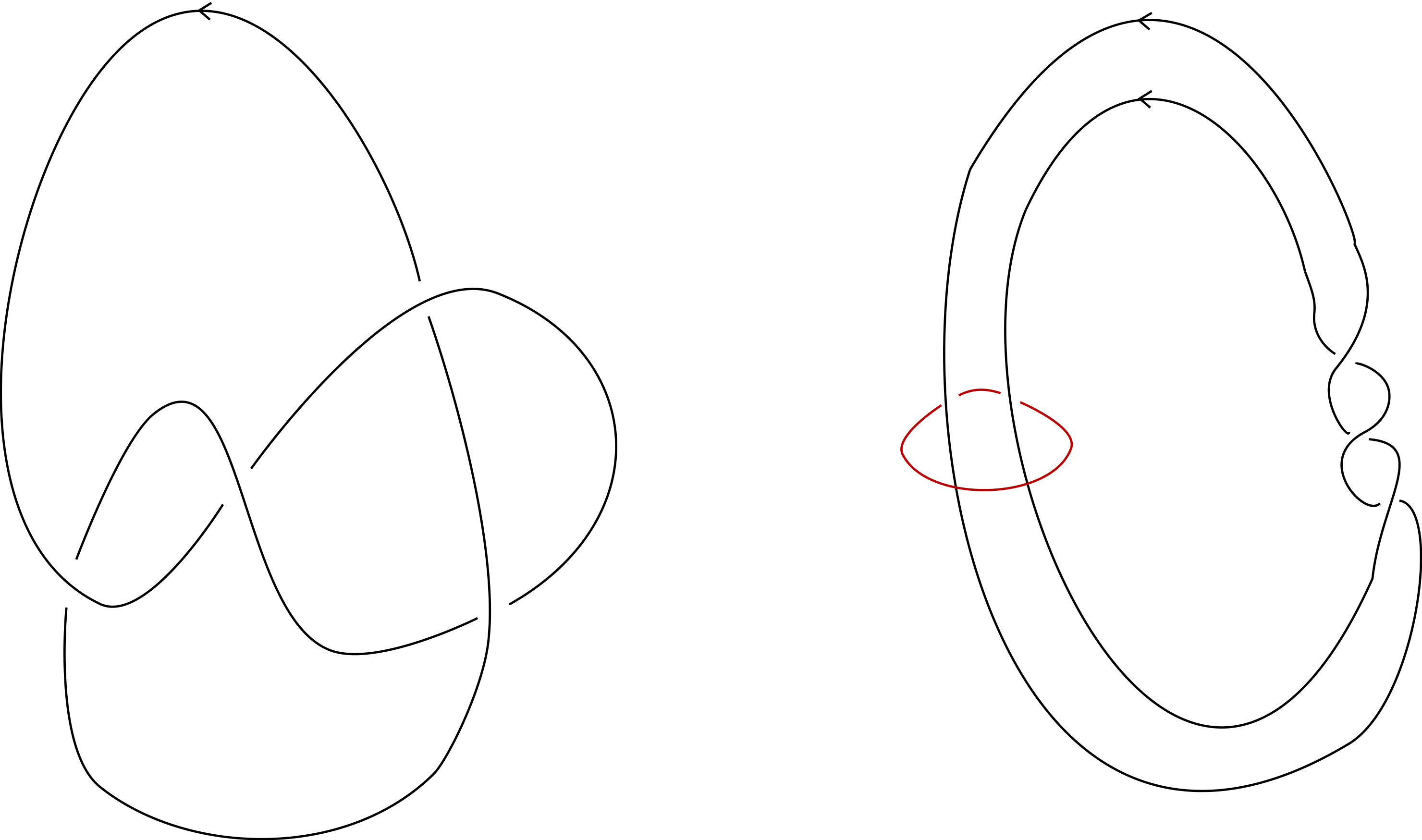

A satellite knot is a knot $K$ in $S^{3}$, whose complement contains an incompressible torus that is not parallel to the boundary of the regular neighborhood of $K$.

Given an oriented satellite knot $K$, it is possible to associate to $K$ a couple of oriented knots, the companion and the embellishment, as follows. Choose an incompressible, non boundary parallel torus $T$ in the complement of $K$. Let $V$ be the solid torus, bounded by $T$: the core of $V$ (associated with $T$) is called the companion of $K$ and is denoted by $C$. Note that $K\subset V$, and orient $C$ so that $K$ is homologous in $V$ to $wC$ with $w$ a non-negative integer number (there a choice to be made when $w=0$). The number $w$ is called the winding number of $K$. Let $U$ be an unknotted solid torus $U\subset S^{3}$ and let $f\colon V\to U\subset S^{3}$ be an orientation and longitude preserving homeomorphism: the knot $E=f(K)$ is called the embellishment of $K$.

Various invariants of $K$ may be expressed in terms of $C$ and $E$: for example in [11], the Alexander module is computed in such a way. Analogously, we would like to express the fundamental quandle of a satellite knot $K$ in terms of the fundamental quandles of its companion and embellishment. In order to do this, we need to introduce the following definition.

Definition 4.4**.**

Let $\tau$ be an $(n,m)$-tangle with $\chi$ components. For each point $(p_{i},k)$ for $k=0,1$ in $\partial\tau$, consider disjoint closed intervals $I(p_{i},k)\subset([-1,1]\times\{k\})$ having $(p_{i},k)$ as a midpoint and not containing any other point $(p_{j},k)$ for $i\neq j$. For each component $\tau_{i}$ of $\tau$ with endpoints $(p_{r},k)$, $(p_{j},h)$ with $k,h\in\{0,1\}$, consider an embedding $f_{i}:I\times I\to D\times I$ such that:

• •

$f_{i}(\{\frac{1}{2}\}\times I)=\tau_{i}$,

• •

$f_{i}(I\times\{0\})=I(p_{r},k)$ and $f_{i}(I\times\{1\})=I(p_{j},h)$,

• •

the projections of $f_{i}(\{0\}\times I)$ and $\tau_{i}$ onto $[-1,1]\times I$ do not intersect,

• •

$f_{i}(I\times I)\cap f_{j}(I\times I)=\emptyset$ for $i\neq j$.

Given a $(\phi,\psi)$-tangle $\tau$, for each natural number $N\geq 2$ we define the $N$-cable of $\tau$, denoted by $N\tau$, as the $(N\phi,N\psi)$-tangle given by $\cup_{i=1}^{\chi}f_{i}(\{t_{1},\ldots,t_{N}\}\times I)$, where $t_{1},\ldots,t_{N}$ are points in $I$ such that $0=t_{1}<t_{2}<\cdots<t_{N-1}<t_{N}=1$ (see Figure 9 for an example with $N=2$).

Note that $T_{k}=kT_{1}$ and $\lambda_{k}=k\lambda_{1}$.

Let $K$ be an oriented satellite knot and let $T$ be an incompressible, non boundary parallel torus in the complement of $K$. As above, let $V$ be the solid torus bounded by $T$, let $C$ be the companion of $K$ (associated to $T$) and let $f:V\to U$ with $f(K)=E$.

We choose a parametrization of the trivial solid torus $U=D\times S^{1}$ that satisfies the following:

1. (i)

$f(C)$ is the oriented curve $t\mapsto(0,e^{2i\pi t})\in\{0\}\times S^{1}$ for $t\in[0,1]$, 2. (ii)

there exists a $t_{1}\in(0,1)$ so that $D\times[t_{1},1]\cap E$ is a trivial tangle $T_{k}$ in the solid cylinder $D\times[t_{1},1]$ for some $k\geq 1$. 3. (iii)

the two discs $D_{0}=D\times\{1\}$ and $D_{1}=D\times\{e^{2i\pi t_{1}}\}$ intersect $E$ transversely.

It follows that $\tau_{E}=E\cap D\times[0,t_{1}]$ is a $(\phi,\phi)$-tangle, whose orientation is induced by that of $E$, and assuming that $D_{0}$ is the bottom disc of the cylinder, we have $E=\widehat{\tau_{E}}$. Note that the tangle $\tau_{f(C)}=D\times[0,t_{1}]\cap f(C)$ is $T_{1}$ and that the sum of signs of $\phi$ equals the winding number of $K$.

Consider a solid torus, standardly embedded in $S^{3}$ and containing $V$, such that $f^{-1}(D_{0})$ and $f^{-1}(D_{1})$ are contained in meridional disks and $C=\widehat{\tau_{C}}$, where $\tau_{C}$ is the $(1,1)$-tangle $f^{-1}(\tau_{f(C)})$: clearly $k\tau_{C}=f^{-1}(T_{k})$. Inside the solid cylinder, $f^{-1}(\tau_{E})$ is isotopic to $\tau_{E}$. Therefore we obtain $K=\lambda_{k}^{\eta}(\tau_{E}\otimes k\tau_{C})\overline{\lambda^{\eta}_{k}}$, where $k\tau_{C}$ is a $(\psi,\psi)$-tangle with $\psi(p_{k-i+1})=-\phi(p_{i})$ for $i=1,\ldots,k$, while $\eta$ coincides with $\phi$ on the first $k$ points and with $\psi$ on the last $k$ points. As a consequence, we have that

[TABLE]

where $i_{k}^{+}$ is the homomorphism described in Example 3, $BQ(\tau_{E})$ is $Q(P_{k}^{\phi})\stackrel{{\scriptstyle i_{\tau_{E}}^{-}}}{{\rightarrow}}Q(\tau_{E})\stackrel{{\scriptstyle i_{\tau_{E}}^{+}}}{{\leftarrow}}Q(P_{k}^{\phi})$ and $BQ(k\tau_{C})$ is $Q(P_{k}^{\psi})\stackrel{{\scriptstyle i_{k\tau_{C}}^{-}}}{{\rightarrow}}Q(k\tau_{C})\stackrel{{\scriptstyle i_{k\tau_{C}}^{+}}}{{\leftarrow}}Q(P_{k}^{\psi})$.

Remark 4.5*.*

Note that for $k=1$, we obtain $K=\lambda_{1}(\tau_{E}\otimes\tau_{C})\overline{\lambda}_{1}$ and so $K=E\sharp C$: indeed, composite knots are a particular case of satellite knots.

The following proposition describes how to obtain a presentation of $Q(k\tau)$ given a presentation of $Q(\tau)$ and a choice of signs on the boundary points.

Proposition 4.6**.**

Let $\tau$ be an oriented tangle and consider its regular diagram $D_{\tau}$ in $[-1,1]\times I$. Denote by $x_{1},\ldots,x_{r}$ the arcs (or curves) of $D_{\tau}$ and by $C_{1},\ldots,C_{s}$ its crossings. Fix $\vec{\epsilon}\in\{-1,1\}^{N}$, and let $\vec{\epsilon}\tau$ be the $N$-cable of $\tau$, oriented so that the $j$-th copy of $\tau$ has the same orientation as $\tau$ if $\epsilon_{j}=+1$ and the opposite one otherwise. Then we have:

[TABLE]

where $r_{kj}:x_{ij}=\left(\cdots\left(\left(x_{hj}\rhd^{\epsilon_{1}}x_{l1}\right)\vartriangleright^{\epsilon_{2}}x_{l2}\right)\vartriangleright^{\epsilon_{3}}\cdots\vartriangleright^{\epsilon_{N-1}}x_{l(N-1)}\right)\vartriangleright^{\epsilon_{N}}x_{lN}$ if the arcs of the crossing $C_{k}$ are labeled as depicted in the left part of Figure 10, and where $\vartriangleright^{1}=\vartriangleright$, $\vartriangleright^{-1}=\vartriangleleft$.

Proof.

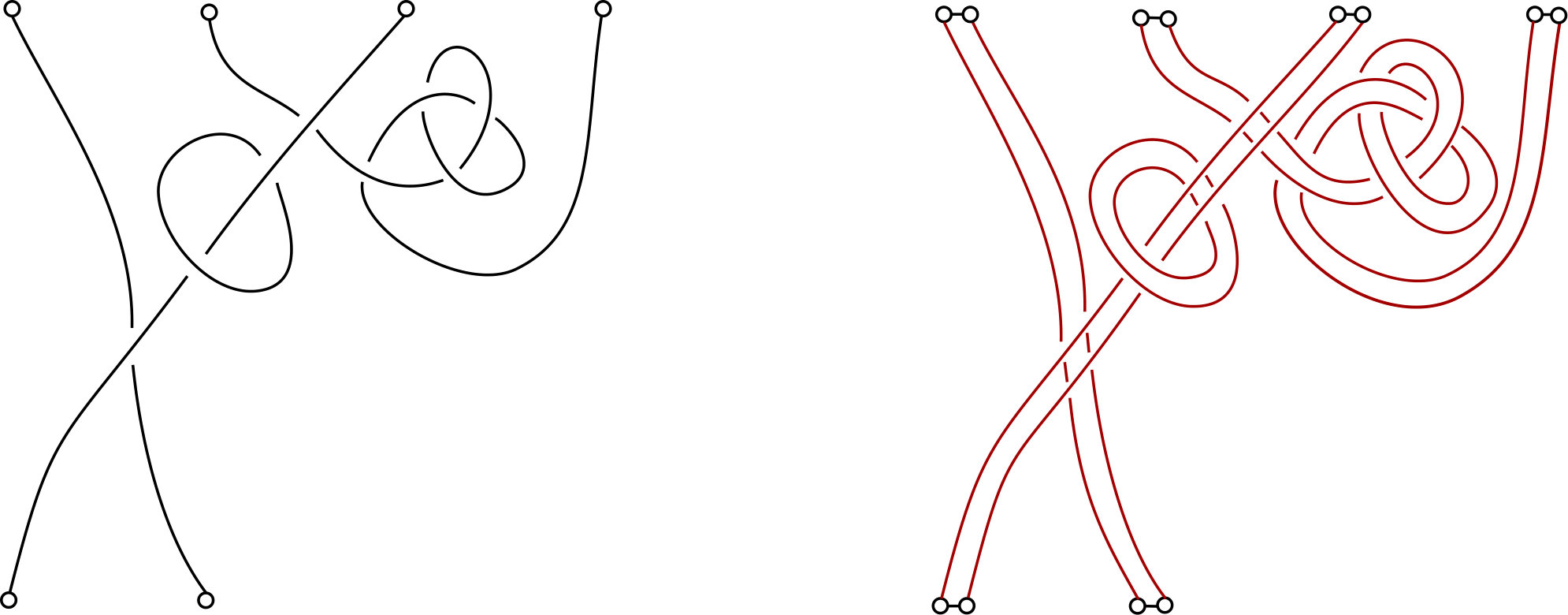

A diagram $D_{\vec{\epsilon}\tau}$ in $[-1,1]\times I$ for $\vec{\epsilon}\tau$ is obtained by replacing each arc (or circle) of $D_{\tau}$ with $N$ copies “parallel” to each other, where the $j$-th copy has the same orientation of the corresponding arc of $\tau$ if $\epsilon_{j}=1$ and the opposite one otherwise (see Figure 10). To each crossing of $D_{\tau}$ (on the left of the figure), there correspond $N^{2}$ crossings in $D_{\vec{\epsilon}\tau}$ (on the right of the figure). To each of the three arcs, say $x_{i},x_{l},x_{h}$, involved in a crossing of $D_{\tau}$, there correspond $N$ arcs in $D_{\vec{\epsilon}\tau}$: we label them by $x_{ij}$, $x_{lj}$ and $x_{hj}$ for $j=1,\ldots,N$ as denoted in the figure. Moreover, $D_{\vec{\epsilon}\tau}$ also contains $N^{2}-N$ new arcs that are labeled by $y_{kb}$ for $k=1,\ldots,N$ and $b=1,\ldots,N-1$. Using the rule (3.1), all those $N^{2}-N$ new generators could be expressed in terms of the $x_{ij}$’s via relations corresponding to the crossings in which they appear, namely: $y_{j1}=x_{hj}\vartriangleright^{\epsilon_{1}}x_{l1}$, $y_{jb}=y_{j(b-1)}\vartriangleright^{\epsilon_{b}}x_{lb}$ for $b=2,\ldots,N-1$ and $x_{ij}=y_{j(N-1)}\vartriangleright^{\epsilon_{N}}x_{lN}$ for $j=1,\ldots,N$. So the only remaining generators are the $x_{ij}$’s and the relations are $x_{ij}=\left(\cdots\left(\left(x_{hj}\rhd^{\epsilon_{1}}x_{l1}\right)\vartriangleright^{\epsilon_{2}}x_{l2}\right)\vartriangleright^{\epsilon_{3}}\cdots\vartriangleright^{\epsilon_{N-1}}x_{l(N-1)}\right)\vartriangleright^{\epsilon_{N}}x_{lN}$. As a result, we obtain the presentation of $Q(\vec{\epsilon}\tau)$ stated above. ∎

Using Proposition 4.6 together with Corollary 3.8, a presentation for the fundamental quandle of a satellite knot $K=\lambda_{k}^{\eta}(\tau_{E}\otimes k\tau_{C})\overline{\lambda^{\eta}_{k}}$ may be computed from the fundamental quandles of $\tau_{E}$ and $\tau_{C}$. In this case, the vector $\vec{\epsilon}\in\{-1,1\}^{k}$ has to be chosen so that $\vec{\epsilon}\tau_{C}$ is a $(\psi,\psi)$-tangle. We illustrate our results by two explicit calculations.

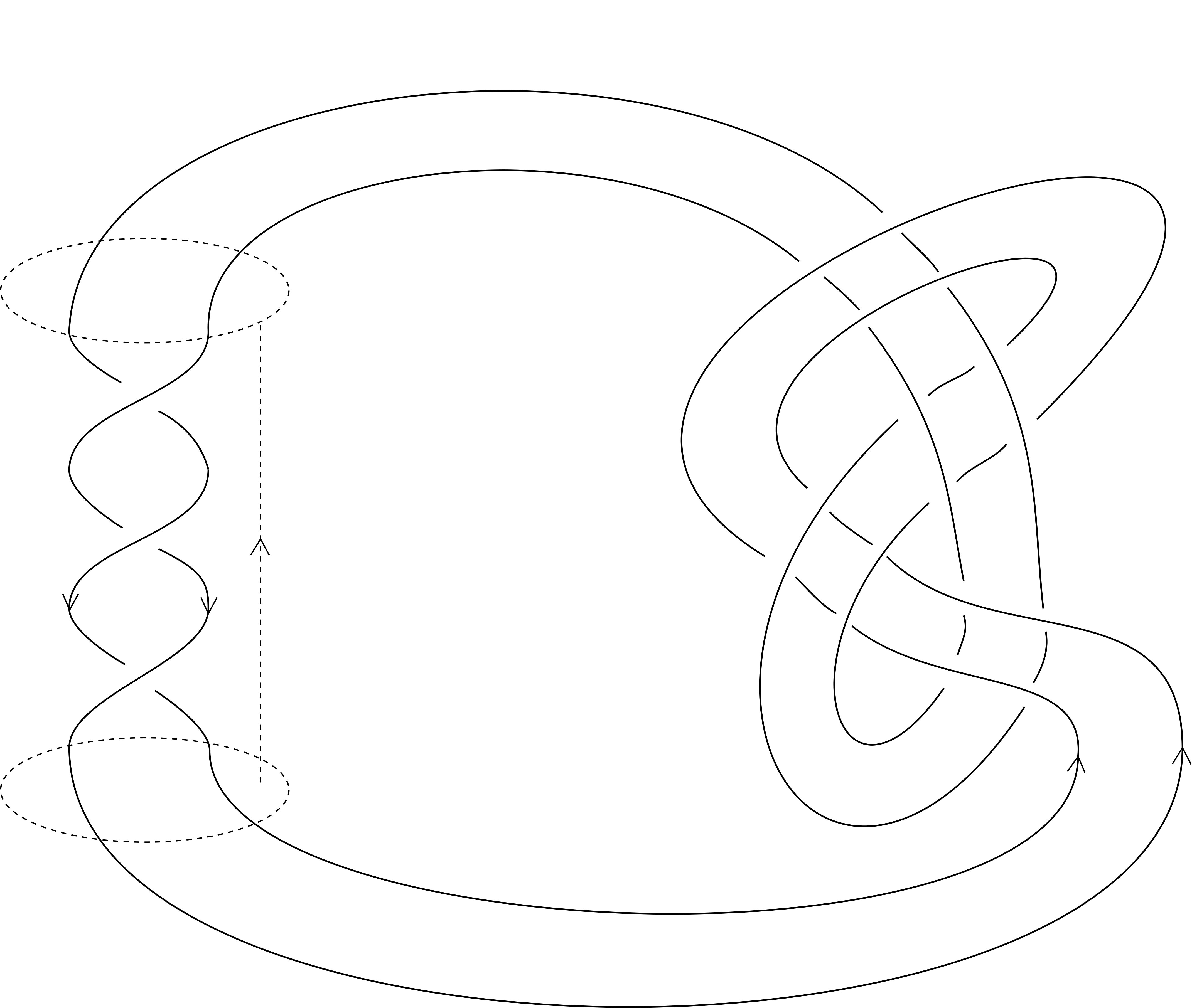

Example 6* ($(3,2)$-cable of the figure-eight knot).*

We decompose this satellite knot $K$ into tangles as $K=\lambda_{2}(\tau_{E}\otimes(1,1)\tau_{C})\overline{\lambda}_{2}$, with orientation indicated in Figure 11. The fundamental quandles of tangles $\tau_{E}$ and $(1,1)\tau_{C}$ admit presentations

[TABLE]

It follows that the fundamental quandle of the satellite $K$ is given by the presentation

[TABLE]

that reduces to

[TABLE]

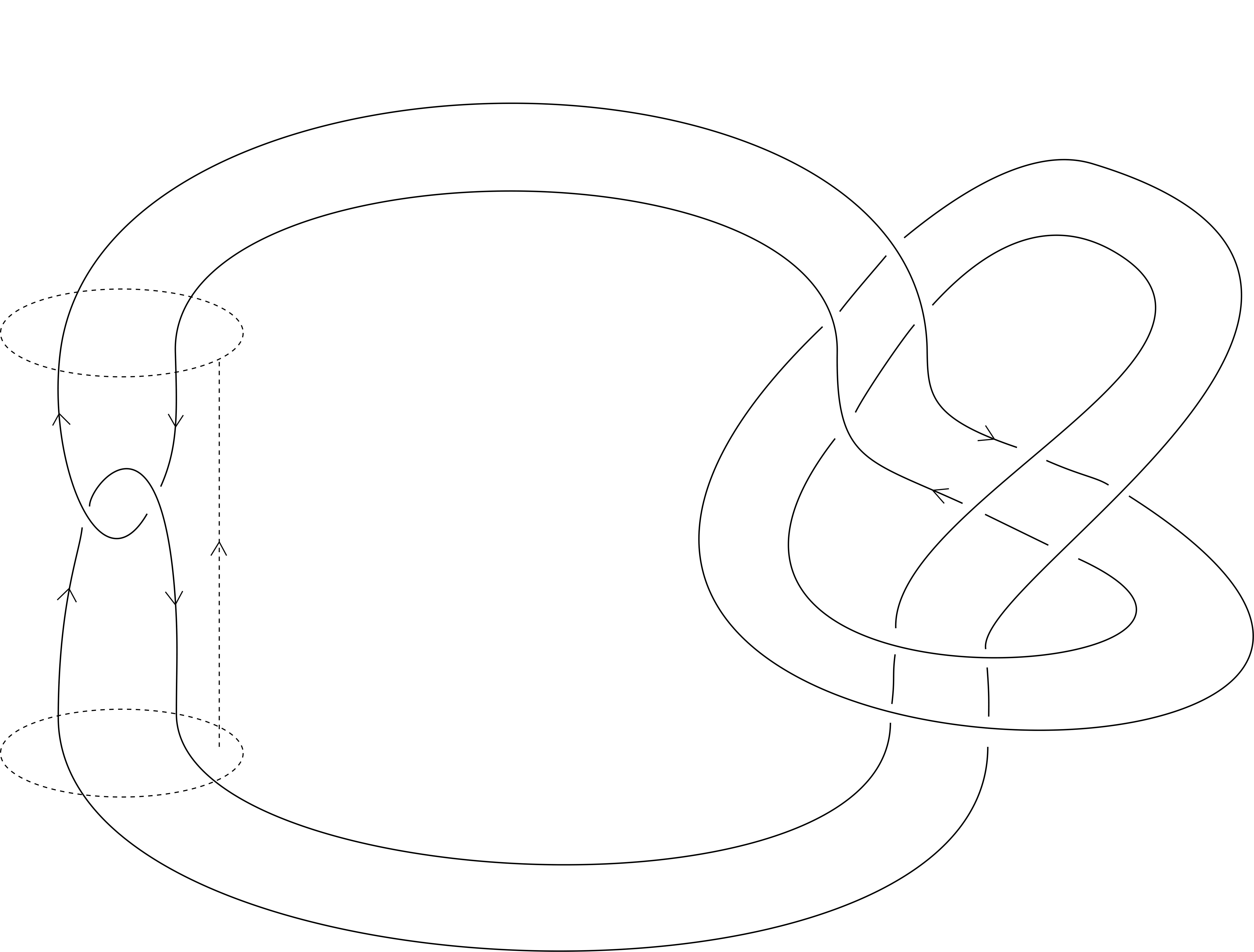

Example 7* (Double of the trefoil knot).*

The double $D$ of the trefoil knot may be decomposed into tangles as $D=\lambda_{2}(\tau_{E}\otimes(1,-1)\tau_{C})\overline{\lambda}_{2}$ with orientation indicated in Figure 12. The fundamental quandles of tangles $\tau_{E}$ and $(1,-1)\tau_{C}$ admit presentations

[TABLE]

It follows that the fundamental quandle of the satellite $D$ is given by the presentation

[TABLE]

that reduces to

[TABLE]

4.4. Conclusion

In this paper, knot quandle decompositions were introduced. We demonstrated how by such decompositions, fundamental quandles of links may be analyzed and their presentations simplified, thereby making the quandle invariants of links more useful. To conclude, we offer some ideas for further research.

1. (1)

By analyzing the fundamental quandle of links using quandle decompositions, is it possible to determine which quandles are the fundamental quandles of links? 2. (2)

In Subsection 4.2, we derived a relationship between the counting invariant of a composite knot and the counting invariants of its factor knots. What can be said about counting invariants (or other quandle invariants) of satellite knots? What about periodic links - is there a relationship between the counting invariant of a periodic link $\widehat{\tau^{p}}$ and the counting invariant of the tangle $\tau$? 3. (3)

As we mentioned in Remark 3.6, the functor $BQ$ may also be used in the study of braids. To begin with, one could try to understand the representation of the braid group $B_{k}$ in the automorphism group of the free quandle $Aut(F(P_{k}))$. Using this representation, new quandle invariants of braids may be defined. 4. (4)

The fundamental quandle is a classifying invariant for knots in $S^{3}$, so in principle every knot invariant in $S^{3}$ is somehow encoded in the fundamental quandle of the knot (see [7]). For some invariants, such as the Alexander polynomial, the relationship is well known (see [7]), while for others it is not. The fundamental quandle functor could be useful for studying those invariants that may be defined using a tangle approach, such as the Jones polynomial or the quantum invariants of links. 5. (5)

Several generalizations of the quandle structure as virtual quandles (see [13]) or biquandles (see [9, 10]), have been introduced to study classical knots and links, virtual ones or knots and links in manifolds different from $S^{3}$ (see [5]). Is it possible to extend the fundamental quandle functor in these cases?
