Spin partners $W_{bJ}$ from the line shapes of the $Z_b(10610)$ and $Z_b(10650)$

TL;DR

This paper predicts the properties of spin partner states of the $Z_b$ particles using a coupled-channel approach, highlighting how pion exchange influences whether these states are resonances or virtual states, based on experimental data.

Contribution

It extends previous analyses by predicting the pole positions and line shapes of $W_{bJ}$ states without additional parameters, clarifying the role of pion exchange in their nature.

Findings

Most advanced fit suggests $W_{bJ}$ are above-threshold resonances.

Pionless approach indicates $W_{bJ}$ are virtual states.

Experimental data can distinguish between the two scenarios.

Abstract

In a recent paper Phys.Rev. D98, 074023 (2018), the most up-to-date experimental data for all measured production and decay channels of the bottomonium-like states $Z_b(10610)$ and $Z_b(10650)$ were analysed in a field-theoretical coupled-channel approach which respects analyticity and unitarity and incorporates both the pion exchange as well as a short-ranged potential nonperturbatively. All parameters of the interaction were fixed directly from data, and pole positions for both $Z_b$ states were determined. In this work we employ the same approach to predict in a parameter-free way the pole positions and the line shapes in the elastic and inelastic channels of the (still to be discovered) spin partners of the $Z_b$ states. They are conventionally referred to as $W_{bJ}$'s with the quantum numbers $J^{PC}=J^{++}$ ($J=0,1,2$). It is demonstrated that the results of our most advanced pionful fit, which gives the best $\chi^2/{\rm d.o.f.}$ for the data in the $Z_b$ channels, are consistent with all $W_{bJ}$ states being above-threshold resonances which manifest themselves as well pronounced hump structures in the line shapes. On the contrary, in the pionless approach, all $W_{bJ}$'s are virtual states which can be seen as enhanced threshold cusps in the inelastic line shapes. Since the two above scenarios provide different imprints on the observables, the role of the one-pion exchange in the $B^{(*)}\bar{B}^{(*)}$ systems can be inferred from the once available experimental data directly.

Figures

Tables

Table 1. Table 1: HQSS-constrained coefficients ξ i ​ α Υ subscript superscript 𝜉 Υ 𝑖 𝛼 \xi^{\Upsilon}_{i\alpha} and ξ i ​ α χ subscript superscript 𝜉 𝜒 𝑖 𝛼 \xi^{\chi}_{i\alpha} in front of the coupling constants in the multiplets Υ Υ \Upsilon and χ 𝜒 \chi calculated explicitly from the traces in Eq. ( LABEL:Linel ) — see the vertices given in Eqs. ( 40 ) and ( 42 ).

Multiplet	Channel	$B{\overline{B}}^{\ast }({}_{}{}^{3}S_1^{},-)$	$B^{\ast }{\overline{B}}^{\ast }({}_{}{}^{3}S_1^{},-)$	$B\overline{B}\left({}_{}{}^{1}S_0^{}\right)$	$B^{\ast }{\overline{B}}^{\ast }\left({}_{}{}^{1}S_0^{}\right)$	$B{\overline{B}}^{\ast }({}_{}{}^{3}S_1^{},+)$	$B^{\ast }{\overline{B}}^{\ast }\left({}_{}{}^{5}S_2^{}\right)$
${\rm Y}$	$\pi {{\rm Y}}_b$	$1$	$-1$	—	—	—	—
${\rm Y}$	$\pi {\eta }_{b0}$	—	—	$-1/\sqrt{2}$	$\sqrt{3/2}$	—	—
$\chi$	$\pi h_b$	$1$	$1$	—	—	—	—
$\chi$	$\pi {\chi }_{b0}$	—	—	—	—	$\sqrt{2/3}$	—
$\chi$	$\pi {\chi }_{b1}$	—	—	$\sqrt{3/2}$	$1/\sqrt{2}$	$1/\sqrt{2}$	$1/\sqrt{2}$
$\chi$	$\pi {\chi }_{b2}$	—	—	—	—	$\sqrt{5/6}$	$\sqrt{3/2}$

Table 2. Table 2: Ratios of the coupling constants, λ α ( J + + ) subscript superscript 𝜆 superscript 𝐽 absent 𝛼 \lambda^{(J^{++})}_{\alpha} , responsible for the production of the W b ​ J subscript 𝑊 𝑏 𝐽 W_{bJ} states in the radiative decays Υ ​ ( 10860 ) → γ ​ W b ​ J → Υ 10860 𝛾 subscript 𝑊 𝑏 𝐽 \Upsilon(10860)\to\gamma W_{bJ} .

$B\overline{B}\left({}_{}{}^{1}S_0^{}\right)$	$B^{\ast }{\overline{B}}^{\ast }\left({}_{}{}^{1}S_0^{}\right)$	$B{\overline{B}}^{\ast }({}_{}{}^{3}S_1^{},+)$	$B^{\ast }{\overline{B}}^{\ast }\left({}_{}{}^{5}S_2^{}\right)$
1	$1/\sqrt{3}$	$2$	$\sqrt{20/3}$

Table 3. Table 4: The ratios of the individual widths for the elastic and inelastic channels in the Υ ​ ( 10860 ) Υ 10860 \Upsilon(10860) radiative decays via the W b ​ J subscript 𝑊 𝑏 𝐽 W_{bJ} states relative to the sum of all individual partial widths for a given J 𝐽 J (all ratios in each line add up to unity) obtained for the Pionful fit 2 (fit G in Ref.  Wang:2018jlv ).

$J^{PC}$	$B\overline{B}$	$B{\overline{B}}^{\ast }$	$B^{\ast }{\overline{B}}^{\ast }$	${\chi }_{b0}\left(1P\right)\pi$	${\chi }_{b0}\left(2P\right)\pi$	${\chi }_{b1}\left(1P\right)\pi$	${\chi }_{b1}\left(2P\right)\pi$	${\chi }_{b2}\left(1P\right)\pi$	${\chi }_{b2}\left(2P\right)\pi$	${\eta }_{b0}\left(1S\right)\pi$	${\eta }_{b0}\left(2S\right)\pi$
$2^{++}$	$0.06$	$0.07$	$0.54$	—	—	$0.03$	0.06	0.09	0.16	—	—
$1^{++}$	—	$0.76$	—	0.03	0.06	$0.02$	0.04	0.04	0.05	—	—
$0^{++}$	$0.73$	—	0.14	—	—	0.05	0.06	—	—	0.002	0.01

Table 4. Table 5: The pole positions and the residues g 2 superscript 𝑔 2 g^{2} (see the definition in Eq. ( 95 )) in various S 𝑆 S -wave B ( ∗ ) ​ B ¯ ( ∗ ) superscript 𝐵 superscript ¯ 𝐵 B^{(*)}\bar{B}^{(*)} channels for the Contact fit. The energy E pole subscript 𝐸 pole E_{\rm pole} is given relative to the nearest open-bottom threshold quoted in the third column, so that it is one of the energies E n subscript 𝐸 𝑛 E_{n} ( n = 1 , 2 , 3 𝑛 1 2 3 n=1,2,3 ) defined in Eq. ( 82 ). The Riemann Sheet (RS) is defined by the signs of the imaginary parts of the corresponding momenta (quoted in the columns 4-7); a missing sign indicates that this channel is uncoupled. Uncertainties correspond to a 1 ​ σ 1 𝜎 1\sigma deviation in the parameters allowed by the fit to the data in the channels with J P ​ C = 1 + − superscript 𝐽 𝑃 𝐶 superscript 1 absent J^{PC}=1^{+-} where the Z b ( ′ ) superscript subscript 𝑍 𝑏 ′ Z_{b}^{(\prime)} states reside Wang:2018jlv . For the estimate of the theoretical uncertainties see chapter V.3 . The poles are calculated for the cutoff Λ = 1 Λ 1 \Lambda=1 GeV.

$J^{PC}$	State	Threshold	Im $p_{\mathrm{in}}$	Im $p_{B\overline{B}}$	Im $p_{B\overline{B^{\ast }}}$	Im $p_{B^{\ast }{\overline{B}}^{\ast }}$	$E_{\mathrm{pole}}$ w.r.t. threshold [MeV]	Residue at $E_{\mathrm{pole}}$
$1^{+-}$	$Z_b$	$B{\overline{B}}^{\ast }$	$+$		$-$	$+$	$\left(-0.9\pm 0.4\right)+i\left(1.0\pm 0.3\right)$	$\left(-1.4\pm 0.2\right)+i\left(0.5\pm 0.1\right)$
$1^{+-}$	$Z_b^{\prime }$	$B^{\ast }{\overline{B}}^{\ast }$	$+$		$+$	$-$	$\left(-0.8\pm 0.5\right)+i\left(1.3\pm 0.4\right)$	$\left(-1.4\pm 0.3\right)+i\left(0.7\pm 0.1\right)$
$0^{++}$	$W_{b0}$	$B\overline{B}$	$+$	$-$		$+$	$\left(-1.0\pm 0.6\right)+i\left(1.0\pm 0.3\right)$	$\left(-1.4\pm 0.3\right)+i\left(0.5\pm 0.1\right)$
$0^{++}$	$W_{b0}^{\prime }$	$B^{\ast }{\overline{B}}^{\ast }$	$+$	$+$		$-$	$\left(-1.2\pm 0.6\right)+i\left(0.9\pm 0.3\right)$	$\left(-1.4\pm 0.3\right)+i\left(0.4\pm 0.1\right)$
$1^{++}$	$W_{b1}$	$B{\overline{B}}^{\ast }$	$+$		$-$		$\left(-0.3\pm 0.6\right)+i\left(1.6\pm 0.8\right)$	$\left(-1.3\pm 0.4\right)+i\left(0.9\pm 0.1\right)$
$2^{++}$	$W_{b2}$	$B^{\ast }{\overline{B}}^{\ast }$	$+$			$-$	$\left(0.4\pm 0.6\right)+i\left(1.9\pm 0.9\right)$	$\left(-1.2\pm 0.4\right)+i\left(1.3\pm 0.2\right)$

Equations

$$|Z_b⟩$$

$$|Z_b^{\prime }⟩$$

$$|W_{b0}⟩$$

$$|W_{b0}^{\prime }⟩$$

$$|W_{b1}⟩$$

$$|W_{b2}⟩$$

$$p_{\mathrm{typ}}=\sqrt{m\delta }\simeq 500\text{mbox}MeV,$$

$$(V_{\mathrm{eff}}{)}_{\alpha \beta }=(V_{\mathrm{eff}}^{\mathrm{CT}}{)}_{\alpha \beta }+{\left(V^{\pi }\right)}_{\alpha \beta }+{\left(V^{\eta }\right)}_{\alpha \beta },$$

$$1^{+-}:\alpha ,\beta =\{B{\bar{B}}^{\ast }({}^3{S}_1,-),B{\bar{B}}^{\ast }({}^3{D}_1,-),$$

$$B^{\ast }{\bar{B}}^{\ast }({}^3{S}_1),B^{\ast }{\bar{B}}^{\ast }({}^3{D}_1)\}$$

$$0^{++}:\alpha ,\beta =\{B\bar{B}({}^1{S}_0),B^{\ast }{\bar{B}}^{\ast }({}^1{S}_0),B^{\ast }{\bar{B}}^{\ast }({}^5{D}_0)\}$$

$$1^{++}:\alpha ,\beta =\{B{\bar{B}}^{\ast }({}^3{S}_1,+),B{\bar{B}}^{\ast }({}^3{D}_1,+),B^{\ast }{\bar{B}}^{\ast }({}^5{D}_1)\}$$

$$2^{++}:\alpha ,\beta =\{B\bar{B}({}^1{D}_2),B{\bar{B}}^{\ast }({}^3{D}_2),B^{\ast }{\bar{B}}^{\ast }({}^5{S}_2),$$

$$B^{\ast }{\bar{B}}^{\ast }({}^1{D}_2),B^{\ast }{\bar{B}}^{\ast }({}^5{D}_2),B^{\ast }{\bar{B}}^{\ast }({}^5{G}_2)\}.$$

$$|B{\bar{B}}^{\ast },\pm ⟩=\frac{1}{\sqrt{2}}(|B{\bar{B}}^{\ast }⟩\pm |\bar{B}{B}^{\ast }⟩),$$

$$\hat{C}M=\bar{M},$$

$$\displaystyle V_{\rm NLO}^{\rm CT}[1^{+-}]\left(p,p^{\prime}\right)=\left(\begin{array}[]{cccc}\mathcal{C}_{d}+\mathcal{D}_{d}(p^{2}+p^{\prime 2})&\mathcal{D}_{SD}p^{\prime 2}&\mathcal{C}_{f}+\mathcal{D}_{f}(p^{2}+p^{\prime 2})&\mathcal{D}_{SD}p^{\prime 2}\\ \mathcal{D}_{SD}p^{2}&0&\mathcal{D}_{SD}p^{2}&0\\ \mathcal{C}_{f}+\mathcal{D}_{f}(p^{2}+p^{\prime 2})&\mathcal{D}_{SD}p^{\prime 2}&\mathcal{C}_{d}+\mathcal{D}_{d}(p^{2}+p^{\prime 2})&\mathcal{D}_{SD}p^{\prime 2}\\ \mathcal{D}_{SD}p^{2}&0&\mathcal{D}_{SD}p^{2}&0\end{array}\right),$$

$$V_{\mathrm{NLO}}^{\mathrm{CT}}[0^{++}]\left(p,p^{\prime }\right)$$

$$\displaystyle\hskip 42.67912pt=\left(\begin{array}[]{ccc}\displaystyle{\cal C}_{d}+\frac{1}{2}{\cal C}_{f}+({\cal D}_{d}+\frac{1}{2}{\cal D}_{f})\left(p^{2}+{p^{\prime}}^{2}\right)&\displaystyle\frac{1}{2}\sqrt{3}\left({\cal C}_{f}+{\cal D}_{f}\left(p^{2}+{p^{\prime}}^{2}\right)\right)&-\sqrt{3}{\cal D}_{SD}{p^{\prime}}^{2}\\ \displaystyle\frac{1}{2}\sqrt{3}\left({\cal C}_{f}+{\cal D}_{f}\left(p^{2}+{p^{\prime}}^{2}\right)\right)&\displaystyle{\cal C}_{d}+\left(({\cal D}_{d}-\frac{1}{2}{\cal D}_{f})\left(p^{2}+{p^{\prime}}^{2}\right)-\frac{1}{2}{\cal C}_{f}\right)&\displaystyle-{\cal D}_{SD}{p^{\prime}}^{2}\\ -\sqrt{3}{\cal D}_{SD}p^{2}&-{\cal D}_{SD}p^{2}&0\\ \end{array}\right),$$

$$\displaystyle V_{\rm NLO}^{\rm CT}[1^{++}]\left(p,p^{\prime}\right)=\left(\begin{array}[]{ccc}{\cal C}_{d}+{\cal C}_{f}+({\cal D}_{d}+{\cal D}_{f})\left(p^{2}+{p^{\prime}}^{2}\right)&-{\cal D}_{SD}{p^{\prime}}^{2}&-\sqrt{3}{\cal D}_{SD}{p^{\prime}}^{2}\\ -{\cal D}_{SD}p^{2}&0&0\\ -\sqrt{3}{\cal D}_{SD}p^{2}&0&0\\ \end{array}\right),$$

$$V_{\mathrm{NLO}}^{\mathrm{CT}}[2^{++}]\left(p,p^{\prime }\right)$$

$$\displaystyle\hskip 42.67912pt=\left(\begin{array}[]{cccccc}0&0&\displaystyle-\sqrt{\frac{3}{5}}{\cal D}_{SD}p^{2}&0&0&0\\ 0&0&\displaystyle-\frac{3}{\sqrt{5}}{\cal D}_{SD}p^{2}&0&0&0\\ \displaystyle-\sqrt{\frac{3}{5}}{\cal D}_{SD}{p^{\prime}}^{2}&\displaystyle-\frac{3}{\sqrt{5}}{\cal D}_{SD}{p^{\prime}}^{2}&{\cal C}_{d}+{\cal C}_{f}+({\cal D}_{d}+{\cal D}_{f})\left(p^{2}+{p^{\prime}}^{2}\right)&\displaystyle-\frac{1}{\sqrt{5}}{\cal D}_{SD}{p^{\prime}}^{2}&\displaystyle\sqrt{\frac{7}{5}}{\cal D}_{SD}{p^{\prime}}^{2}&0\\ 0&0&\displaystyle-\frac{1}{\sqrt{5}}{\cal D}_{SD}p^{2}&0&0&0\\ 0&0&\displaystyle\sqrt{\frac{7}{5}}{\cal D}_{SD}p^{2}&0&0&0\\ 0&0&0&0&0&0\\ \end{array}\right),$$

$${\mathcal{L}}_{\mathrm{HH}}^{\mathrm{inel}}$$

$$H_a=P_a+V_a^i{\sigma }^i,{\bar{H}}_a={\bar{P}}_a-{\bar{V}}_a^i{\sigma }^i,$$

$${{\rm Y}}_n={\sigma }_i{{\rm Y}}^i(nS)+{\eta }_b(nS),$$

$$\displaystyle\chi^{i}_{m}=\sigma_{\ell}\Big{(}\chi_{b2}^{i\ell}(mP)+\frac{1}{\sqrt{2}}\epsilon^{i\ell n}\chi_{b1}^{n}(mP)$$

$$\displaystyle\hskip 56.9055pt+\frac{1}{\sqrt{3}}\delta^{i\ell}\chi_{b0}(mP)\Big{)}+h^{i}_{b}(mP),$$

$$u^{\mu }=-\frac{1}{f_{\pi }}{\partial }^{\mu }\Phi +\mathcal{O}({\Phi }^3),$$

$$\Phi=\left(\begin{array}[]{cc}\pi^{0}+\sqrt{\frac{1}{3}}\eta&\sqrt{2}\pi^{+}\\ \sqrt{2}\pi^{-}&-\pi^{0}+\sqrt{\frac{1}{3}}\eta\end{array}\right),$$

$$V_{\mathrm{eff}}^{\mathrm{CT}}=V_{\mathrm{NLO}}^{\mathrm{CT}}+\delta V,$$

$$\delta V_{\alpha \beta }={\mathcal{P}}_{\alpha \beta }-\frac{i}{8\pi M}\sum _{i}2m_{h_i}{v}_{i\alpha }{v}_{i\beta }{p}_i.$$

$$v_{i\alpha }^{{\rm Y}}={\xi }_{i\alpha }^{{\rm Y}}\frac{g_{{\rm Y}(nS)}}{2\sqrt{2}{f}_{\pi }}{E}_{\pi }(p_i),$$

$$p_i=\frac{1}{2M}{\lambda }^{1/2}(M^2,m_{h_i}^2,m_{\pi }^2),$$

$$v_{i\alpha }^{\chi }={\xi }_{i\alpha }^{\chi }\frac{g_{{\chi }_b(mP)}}{2\sqrt{3}{f}_{\pi }}{p}_i.$$

$${\mathcal{P}}_{\alpha \beta }=\sum _n{\mathcal{P}}_{\alpha \beta }[{{\rm Y}}_n]+\sum _m{\mathcal{P}}_{\alpha \beta }[{\chi }_m],$$

$${\mathcal{P}}_{\alpha \beta }[{{\rm Y}}_n]$$

$${\mathcal{P}}_{\alpha \beta }[{\chi }_m]$$

Full text

I Introduction

Heavy-quark spin symmetry (HQSS) is an approximate symmetry of QCD. It states that in the limit of an infinite mass of the heavy quark its spin is conserved by the strong interactions. As one departs from this limit, corrections scale as $\Lambda_{\rm QCD}/M_{Q}$, where $\Lambda_{\rm QCD}\simeq 200$ MeV denotes the intrinsic mass scale of QCD and $M_{Q}$ is the mass of the heavy quark. Stated differently, in the heavy-quark limit hadronic interactions do not depend on the heavy quark spin orientation, and hadronic states can be classified by the quantum numbers of the light degrees of freedom. This implies that, for a state with a given heavy quark spin observed experimentally, its spin partner states with different heavy quark spins but the same light quark cloud should exist as well. This pattern of spin partners is well established amongst the states with the assumed $\bar{Q}Q$ structure below the open-flavour threshold. For example, in the $b$-sector, for each radial excitation number $n$, one identifies $\eta_{b}(nS)$, with the heavy quark-antiquark spin 0, as a spin partner of the $\Upsilon(nS)$, with the heavy quark-antiquark spin 1, and $h_{b}(nP)$, with the heavy quark-antiquark spin 0, as a spin partner of the $\chi_{bJ}(nP)$ ($J=0,1,2$), with the heavy quark-antiquark spin 1. Meanwhile, the present experimental situation does not allow one to reliably identify such spin partners for the confirmed exotic states in the $b$-sector above the open-flavour threshold, namely, for the $Z_{b}(10610)$ and $Z_{b}(10650)$ states. However, the high luminosity and high statistics Belle-II experiment which has just started to operate Kou:2018nap should be able to provide us with new information on these exciting states.

This work contains a set of model-independent predictions based on HQSS for both pole parameters and line shapes of the charged $J^{PC}=J^{++}$ ($J=0,1,2$) molecular states in the spectrum of bottomonium. The parameters of the formalism were fixed in an earlier analysis of the most recent experimental information available for the $1^{+-}$ bottomonium-like states $Z_{b}^{\pm}(10610)$ and $Z_{b}^{\pm}(10650)$ (for simplicity often referred to as $Z_{b}$ and $Z_{b}^{\prime}$, respectively). They were observed by the Belle Collaboration as peaks in the invariant mass distributions of the $\Upsilon(nS)\pi^{\pm}$ ($n=1,2,3$) and $h_{b}(mP)\pi^{\pm}$ ($m=1,2$) subsystems in the dipion transitions from the vector bottomonium $\Upsilon(10860)$ Belle:2011aa and later confirmed in the elastic $B^{(*)}\bar{B}^{*}$ channels Collaboration:2011gja ; Adachi:2012cx ; Garmash:2015rfd . Being isovectors, the $Z_{b}^{\pm}(10610)$ and $Z_{b}^{\pm}(10650)$ cannot be conventional $\bar{b}b$ mesons as their minimal possible quark content is four-quark while their proximity to the $B\bar{B}^{*}$ and $B^{*}\bar{B}^{*}$ thresholds, respectively, provides a strong support for their molecular interpretation — see, for example, recent review articles Guo:2017jvc ; Bondar:2016hva . In particular, the interference pattern in their inelastic decay channels $\Upsilon(nS)\pi$ and $h_{b}(mP)\pi$ can be explained naturally in the framework of the molecular picture Bondar:2011ev . For a competing tetraquark interpretation claimed to be also compatible with the data see Refs. Ali:2011ug ; Esposito:2014rxa ; Maiani:2017kyi .

Since the mass of the $b$ quark is very large compared with the typical QCD scale, $M_{b}\gg\Lambda_{\rm QCD}$, the constraints from the heavy-quark spin symmetry should be very accurate for bottomonium-like systems, including the $Z_{b}^{\pm}(10610)$ and $Z_{b}^{\pm}(10650)$. The wave functions of the $Z_{b}$ states in the molecular picture can be written as Bondar:2011ev

[TABLE]

where $S^{P}_{q\bar{q}}$ denotes the wave function of the light $q\bar{q}$ pair with the total spin $S$ and parity $P$, and $S^{P}_{b\bar{b}}$ means the same for the $b\bar{b}$ pair. Based on this structure four additional isovector sibling states $W_{bJ}$ are predicted to exist Bondar:2011ev ; Voloshin:2011qa ; Mehen:2011yh ; Bondar:2016hva ; Baru:2017gwo with the quantum numbers $J^{PC}=J^{++}$ ($J=0,1,2$) and with the wave functions

[TABLE]

Thus, using that the low-energy interaction and the transition potentials between the elastic and inelastic channels in the $Z_{b}$’s fixed from the existing experimental data can be uniquely translated into the $W_{bJ}$ sector using HQSS constraints, the theoretical description of the spin partner states $W_{bJ}$ appears to be rather straightforward.

In Ref. Wang:2018jlv an effective field theory (EFT) approach to the $Z_{b}(10610)$ and $Z_{b}(10650)$ was developed and employed in the analysis of the experimental data on the line shapes of these states in the elastic and inelastic channels. The approach is formulated based on an effective Lagrangian consistent with both chiral and heavy-quark spin symmetry of QCD. The key features of the approach and the central findings of Ref. Wang:2018jlv can be summarised as follows (see Ref. Epelbaum:2008ga for a review of a similar chiral EFT approach in few-nucleon systems):

• •

The EFT is constructed employing the so-called Weinberg counting Weinberg:1990rz , proposed originally to treat few-nucleon systems. The potential is constructed to a given order in $Q/\Lambda_{h}$ (here $Q$ denotes the soft scales of the given problem and $\Lambda_{h}\approx 1$ GeV represents the hard scale of the chiral EFT) and then resummed nonperturbatively employing the Lippmann-Schwinger equation. Accordingly, at leading order the potential contains two momentum-independent, ${\cal O}(Q^{0})$, contact interactions and the pion exchange.

• •

Simultaneously with the chiral EFT expansion, the potential is expanded around the spin symmetry limit. At leading order in chiral EFT this calls for the inclusion of the $B^{*}$-$B$ mass difference together with all interaction vertices constructed in line with HQSS. Since $\Lambda_{\rm QCD}/M_{b}\approx 0.04\ll 1$, subleading HQSS violating contributions, which would lead to additional terms in the potential, are expected to play a minor role. This expectation was confirmed in Ref. Wang:2018jlv , where it was shown that the data in the $1^{+-}$ channel were essentially consistent with HQSS constraints imposed on the potential.

• •

The binding momenta, the pion mass and the momentum scale generated by the splitting between the $B\bar{B}^{*}$ and $B^{*}\bar{B}^{*}$ thresholds ($\delta=m_{*}-m\approx 45$ MeV with $m$ ($m^{*}$) denoting the $B$ ($B^{*}$) meson mass),

[TABLE]

are treated as soft scales of the system, generically called $Q$ above.

• •

In order to remove the strong regulator dependence caused by the high-momentum contributions from the $S$-wave-to-$D$-wave $B^{(*)}\bar{B}^{(*)}\to B^{(*)}\bar{B}^{(*)}$ transitions (in what follows, simply $S$-$D$ transitions) generated by the one-pion exchange (OPE) a promotion of the ${\cal O}(Q^{2})$ $S$-wave-to-$D$-wave counter term to leading order is required. Then, the fit to the data enforces that a large portion of the $S$-$D$ contribution from the OPE gets balanced by the $S$-$D$ contact interaction. However, the residual effect from the OPE on the line shapes is visible and results in a quantitative improvement of the fits. To check the convergence of the scheme the effect from the other contact interactions at the order ${\cal O}(Q^{2})$, namely, from two $S$-wave-to-$S$-wave terms, was also studied. However, their effect on the line shapes was shown to be numerically small in line with the assumed power counting.

• •

The effect of the inelastic channels $\Upsilon(nS)\pi$ ($n=1,2,3$) and $h_{b}(mP)\pi$ ($m=1,2$) is included by allowing them to couple to the $S$-wave $B^{(*)}$-meson pairs. Following Refs. Hanhart:2015cua ; Guo:2016bjq , transitions between inelastic channels are omitted in the potential. As a result, the effective elastic potentials acquire imaginary parts driven by unitarity while the contributions to the real parts of the elastic potentials can be absorbed to the redefinition of the momentum-independent ${\cal O}(Q^{0})$ contact interactions. The treatment of the inelastic channels used in this work is analogous to the construction of the annihilation potential in nucleon-antinucleon scattering — see, for example, Ref. Kang:2013uia .

• •

Extension of the approach to the SU(3) sector requires that all the other members of the lightest pseudoscalar Goldstone-boson octet are treated also as explicit degrees of freedom already at leading order. That is why the one-$\eta$ exchange (OEE) is also included as a part of the $B^{(*)}\bar{B}^{(*)}\to B^{(*)}\bar{B}^{(*)}$ effective potential. In the SU(2) sector, however, the effect from the explicit treatment of the $\eta$-meson appears to be negligible.

• •

All low-energy constants (the two elastic couplings, the effective couplings to the inelastic channels, as well as the $S$-$S$ and $S$-$D$ contact interactions) are fixed from a combined fit to the experimental line shapes in the decays $\Upsilon(10860)\to B\bar{B}^{*}\pi$, $B^{*}\bar{B}^{*}\pi$, $h_{b}(1P)\pi\pi$, and $h_{b}(2P)\pi\pi$ which proceed via the excitation of the $Z_{b}(10610)$ and $Z_{b}(10650)$ exotic states as well as from the total rates for the decays $\Upsilon(10860)\to\Upsilon(nS)\pi\pi$ $(n=1,2,3)$. The line shapes in the $\Upsilon(10860)\to\Upsilon(nS)\pi\pi$ channels could not be included in the analysis so far since they require a proper treatment of the two-pion final-state interaction.

In this work, we provide parameter-free predictions for the HQSS partner states of the $Z_{b}$ and $Z_{b}^{\prime}$ molecules using the framework summarised above. In particular, we exploit the fact that all the parameters of the elastic and inelastic potentials extracted from the experimental line shapes in the $J^{PC}=1^{+-}$ channel are the same in the partner channels up to spin symmetry violating corrections in the contact interactions that are expected to be small. Thus we are able to predict, for the first time, the line shapes and to extract the pole positions for the spin partner states $W_{bJ}$ with the quantum numbers $J^{++}$ ($J=0,1,2$). In particular, we discuss the impact of the one-pion exchange on the observables.

It needs to be mentioned that the same formalism for the spin partner states of the $Z_{b}^{(\prime)}$’s was employed in Ref. Baru:2017gwo . However, compared with that paper, this work marks progress in three important aspects:

• (i)

All parameters of the interaction are now fixed directly from a fit to the measured line shapes contrary to the earlier study where the masses of the $Z_{b}$ states obtained in different analyses were used as input.

• (ii)

Relevant inelastic channels are included which makes it possible to predict the line shapes in the inelastic channels, in addition to the elastic ones.

• (iii)

We investigate how the renormalisation programme works in the coupled-channel case. In particular, we are now in a position to study the effect of the $S$-$D$ counter term on the line shapes and the pole locations of the spin partner states. The need for this counter term is one of the conclusions of Ref. Wang:2018jlv .

• (iv)

The uncertainty of the EFT predictions for the pole positions, which comes from various sources, is estimated and discussed.

The paper is organised as follows. Section I contains a brief introduction to the formalism employed. In Sect. II, the effective potentials in the $Z_{b}$’s and $W_{bJ}$’s channels are discussed in detail. In Sect. III, the coupled-channel equations are provided and the expressions for the differential production rates in all elastic and inelastic channels are constructed. The resulting formulae are then employed in Sect. IV to analyse the existing experimental data in the $Z_{b}$’s channel (in line with the results of Ref. Wang:2018jlv ) and to predict the line shapes in the $W_{bJ}$’s channels with the quantum numbers $J^{++}$ ($J=0,1,2$). In addition, in Sect. V, the pole parameters (locations and residues) for the $W_{bJ}$ states are provided and an analysis of uncertainties is presented. We summarise in Sect. VI. Appendix A contains the details of the NLO Lagrangian ${\cal O}(Q^{2})$ used to build the suitable EFT, while Appendix B provides the details of the partial wave projection operators applied to the effective potential.

II Effective potentials

II.1 Some generalities and definitions

The partial-wave-projected effective potential in the elastic channels used in our calculations reads

[TABLE]

where $V^{\rm CT}_{\rm eff}$, $V^{\pi}$ and $V^{\eta}$ stand for the effective contact interaction potential (composed of the elastic, $V^{\rm CT}_{\rm NLO}$, and inelastic, $\delta V$, contributions, as discussed below), OPE, and OEE, respectively, and the indices $\alpha$ and $\beta$, which depend on the particle channel and quantum numbers ($J^{PC}$), are defined as

[TABLE]

Here the individual partial waves are labelled as ${}^{2S+1}L_{J}$ with $S$, $L$, and $J$ denoting the total spin, the angular momentum, and the total momentum of the two-meson system, respectively. Finally, the sign in the parentheses corresponds to the $B\bar{B}^{*}$ states with a given $C$-parity

[TABLE]

with a universal definition of the $C$-parity transformation employed,

[TABLE]

for any meson $M$.

II.2 Contact interactions

The ${\cal O}(Q^{0})$ short-ranged elastic (open-bottom) interaction between the states with given quantum numbers composed of the $B^{(*)}\bar{B}^{(*)}$ pairs is parameterised in terms of two contact terms $C_{10}$ and $C_{11}$ — see Refs. AlFiky:2005jd ; Nieves:2012tt and Lagrangian (99) quoted in Appendix A. This appendix also contains the momentum-dependent order $\mathcal{O}(Q^{2})$ contact interactions shown by Eq. (100) and originally derived in Ref. Wang:2018jlv . Formally, the order $\mathcal{O}(Q^{2})$ chiral Lagrangian contains also the contact terms which scale with the pion mass squared ($m_{\pi}^{2}$). However, as long as we work at a fixed light quark mass those can be absorbed into the leading order counter terms. Thus, to order $\mathcal{O}(Q^{2})$ the contact potentials in the elastic channels for various quantum numbers relevant for this study read

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where each potential is given for the basis states defined by Eq. (9) and $p$ ($p^{\prime}$) stands for the relative momentum of the initial (final) heavy meson pair. The potential given in Eq. (16) was derived and used already in Ref. Wang:2018jlv .

II.3 Inelastic channels

Since the interaction between the pion and heavy quarkonia is suppressed (see the discussion in Refs. Hanhart:2015cua ; Guo:2016bjq ), the direct transitions between the inelastic (hidden-bottom) channels can be safely neglected in the potential. Based on this assumption, in the approach employed in Refs. Hanhart:2015cua ; Guo:2016bjq ; Wang:2018jlv , the effect of the inelastic channels on observables is included through the transitions between the inelastic and elastic potentials only, while unitarity is preserved. Furthermore, it is argued in Ref. Wang:2018jlv that all inelastic channels only couple to the $S$-wave elastic ones as their couplings to the $D$-wave elastic channels are suppressed by the factor $p_{\text{typ}}^{2}/m^{2}\ll 1$. Transitions between the $S$-wave elastic and inelastic channels are described by the Lagrangian Mehen:2011yh

[TABLE]

Here the spin multiplets of the heavy-light mesons read

[TABLE]

where $\sigma_{i}$ are the Pauli matrices, $P_{a}\,(\bar{P}_{a})$ and $V^{i}_{a}\,(\bar{V}^{i}_{a})$ are the pseudoscalar $B$ ($\bar{B}$) and vector $B^{*}$ ($\bar{B}^{*}$) mesons, respectively, with $a$ and $b$ for the isospin indices. The multiplets of the heavy $(\bar{b}b)$ mesons are built as

[TABLE]

and

[TABLE]

[TABLE]

with $f_{\pi}=92.4$ MeV being the pion decay constant Tanabashi:2018oca . Since the quarkonium states ($\Upsilon$,$\eta_{b}$) and ($h_{b}$,$\chi_{b}$) form spin multiplets [see Eqs. (34) and (35)], the coupling constants fixed in the analysis of the line shapes in the $1^{+-}$ channels Wang:2018jlv can be used to account for the inelastic transitions in the spin partner channels. As long as the direct inelastic transitions are neglected, the effect of the inelastic channels on the elastic ones can be included via an additional contribution, $\delta V$, to the effective contact elastic-to-elastic transition potential Hanhart:2015cua ,

[TABLE]

where

[TABLE]

Here ${\cal P}_{\alpha\beta}$ stands for the real part of $\delta V_{\alpha\beta}$, $m_{h_{i}}$ denotes the mass of the heavy $\bar{b}b$ meson in the $i$-th inelastic channel and $M$ is the total energy of the system. Further, $v_{i\alpha}(p_{i},p)$ is the vertex function for the transitions between various heavy-meson states (9) (labelled by greek letters $\alpha$, $\beta$ and so on) and inelastic channels (labelled by latin letters $i$, $j$ and so on). The arguments $p_{i}$ and $p$ denote the on-shell momenta of the inelastic and elastic channels involved, respectively, measured in the rest frame of the system. One finds for $i=\Upsilon(nS)$, $\eta_{b}(nS)$, with $n=1,2,3$, that

[TABLE]

where $E_{\pi}(p_{i})=\sqrt{m_{\pi}^{2}+p_{i}^{2}}$ denotes the pion energy for a given inelastic momentum,

[TABLE]

with $\lambda(x,y,z)$ being the standard triangle function.

In contrast to Ref. Wang:2018jlv , we now keep the energy-dependence in the vertices $v^{\Upsilon}_{i\alpha}$ explicitly, as it comes out from the Lagrangian (LABEL:Linel). However, since the variation of the inelastic momenta with the energy is very minor near the elastic thresholds, this correction does not affect the quality of the fits and merely results in rescaling of the inelastic coupling constants compared with those used in Ref. Wang:2018jlv . For $i=h_{b}(mP)$, $\chi_{bJ}(mP)$, with $m=1,2$ and $J=0,1,2$, the expression for the vertex reads

[TABLE]

The coefficients $\xi^{\Upsilon}_{i\alpha}$ and $\xi^{\chi}_{i\alpha}$, provided explicitly in Table 1, are fixed by the HQSS and are straightforwardly calculated from the traces appearing in Eq. (LABEL:Linel). They do not depend on $n$ and $m$ although the individual coupling constants, in principle, do. We also note that the relative signs between various couplings are only relevant in the particle coupled channels (the channels with $J^{PC}=$ $1^{+-}$ and $0^{++}$ in Table 1 while for the channels $J^{PC}=$ $1^{++}$ and $2^{++}$ only the absolute values of $\xi$’s enter).

The real parts induced by the inelastic channels, ${\cal P}_{\alpha\beta}$, are divergent and need to be regularised. The scheme employed in Ref. Wang:2018jlv assumes that the whole real part of the inelastic contribution in the $J^{PC}=1^{+-}$ channel is absorbed into a redefinition of the LECs ${\cal C}_{d}$ and ${\cal C}_{f}$ — see Eq. (16). This is justified as the momentum dependence of ${\cal P}_{\alpha\beta}$ coming from remote inelastic channels is very weak and, therefore, can be neglected. To proceed we need to ensure that, in the heavy quark limit, the same approach works for the complete spin multiplet. Then we have

[TABLE]

with

[TABLE]

where

[TABLE]

These principal value integrals are factored out of the brackets in Eq. (II.3) since the masses of the members of the spin multiplets coincide in the heavy quark limit. One finds by a direct evaluation using the coefficients from Table 1 (no summation in $\alpha$ or $\beta$ is implied here):

[TABLE]

for $\alpha=B\bar{B}^{*}({}^{3}S_{1},-)$ and $\beta=B^{*}\bar{B}^{*}({}^{3}S_{1},-)$; then

[TABLE]

for $\alpha=B\bar{B}({}^{1}S_{0})$ and $\beta=B^{*}\bar{B}^{*}({}^{1}S_{0})$; and finally

[TABLE]

where $\alpha=B\bar{B}^{*}({}^{3}S_{1},+)$ and

[TABLE]

where $\alpha=B^{*}\bar{B}^{*}({}^{5}S_{2})$. For the $1^{++}$ and $2^{++}$ channels, the individual contributions from the intermediate states $\pi\chi_{bJ}$ with $J=0,1,2$, in order, are quoted explicitly on the right-hand side (r.h.s) of Eqs. (48) and (49). According to Eqs. (38), (39), (II.3) and (46) the real parts of the loops in the $1^{+-}$ channel can be absorbed into the bare LECs $\mathcal{C}_{d}$ and $\mathcal{C}_{f}$ entering the short-range interaction for the $Z_{b}$’s [see Eq. (16)] via

[TABLE]

It is also straightforward to see using Eqs. (II.3) and (47)-(49) that these redefinitions also hold for the interactions in the spin partner channels $J^{++}$ ($J=0,1,2$). This procedure is correct up to the neglected terms that violate spin symmetry and contain the energy dependence of the integrals in Eq. (LABEL:Is). Thus, in line with Ref. Wang:2018jlv , in what follows only the imaginary parts of the inelastic loops are retained in the effective contact interaction potential (38) for all spin partner states.

II.4 Pion exchange

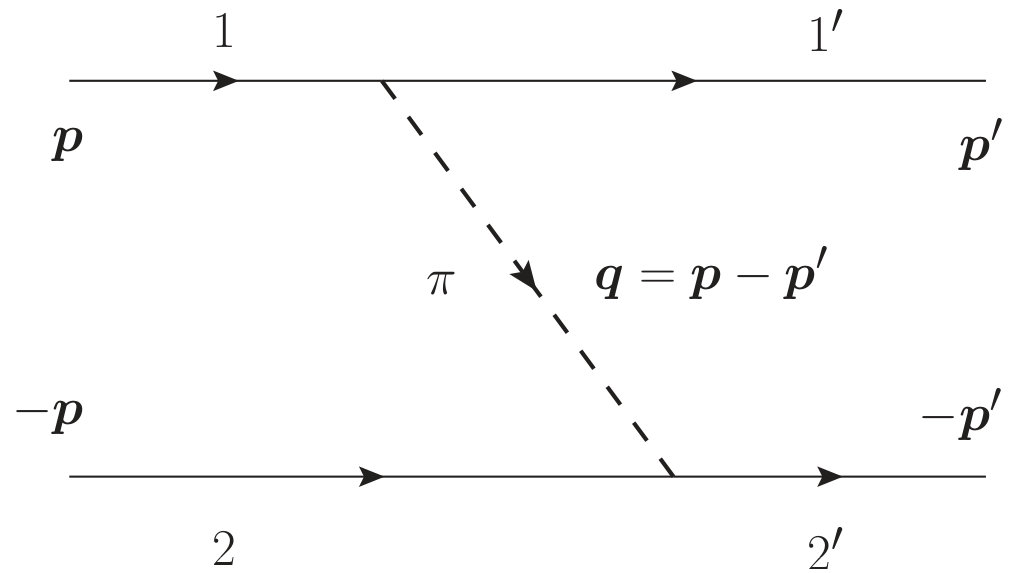

The pion exchange in the $B^{(*)}B^{*}$ system is described by the Lagrangian Fleming:2007rp ; Hu:2005gf

[TABLE]

where $u^{\mu}_{ab}$ is defined in Eq. (36) above. The $B^{(*)}B^{*}\pi$ vertices extracted from the Lagrangian (50) take the form

[TABLE]

where ${\bm{A}}=\frac{i}{\sqrt{2}}({\bm{\epsilon}}\times{{\bm{\epsilon}}^{\prime}}^{*})$, then ${{\bm{\epsilon}}}$, and ${{\bm{\epsilon}}^{\prime}}^{*}$ stand for the polarisation vectors of the initial and final $B^{*}$ mesons, and ${\bm{q}}$ is the pion momentum. These vertices agree with those used in Ref. Nieves:2011vw .

In order to determine the dimensionless coupling constant $g_{b}$ we rely on the heavy-quark flavour symmetry and set

[TABLE]

where the numerical value of the $g_{c}$ is extracted from the most recent measurement of the $D^{*+}\to D^{0}\pi^{+}$ decay width,

[TABLE]

Here $m_{D^{*c}}$ and $m_{D^{0}}$ denote the masses of the $D^{*+}$ and $D^{0}$ mesons, respectively, and the final-state momentum $q=39$ MeV Tanabashi:2018oca . The value of $g_{b}$ quoted in Eq. (53) agrees within 10% with the result of a recent lattice QCD determination of the $B^{*}B\pi$ coupling constant Bernardoni:2014kla .

The isospin factor for the OPE potential is ${\bm{\tau}}_{1}\cdot{\bm{\tau}}_{2}^{c}=-{\bm{\tau}}_{1}\cdot{\bm{\tau}}_{2}=3-2I(I+1)$ that gives ($-1$) for the isotriplet states considered in this work. Here ${\bm{\tau}}^{c}=\tau_{2}{\bm{\tau}}^{T}\tau_{2}=-{\bm{\tau}}$ is the charge-conjugated Pauli matrix used for the antifundamental representation of the isospin group.

Finally, the overall sign of the OPE potential depends on the $C$-parity of the channel. Using the definition of the $C$-parity given in Eq. (10) one finds

[TABLE]

where

[TABLE]

This additional sign from the $C$-parity for $C$-odd states is included in the integral equations explicitly, so that the potential is always defined without it.

We consider a coupled-channel system for the $B\bar{B}$, $B\bar{B}^{*}/\bar{B}{B}^{*}$ and $B^{*}\bar{B}^{*}$ channels. Using the labels

[TABLE]

one can write for the OPE potentials

[TABLE]

where the contributions from both time orderings as obtained in time-ordered perturbation theory (TOPT) are taken into account (see Figs. 2 and 2). Further, ${\bm{q}}={\bm{p}}-{\bm{p}}^{\prime}$, ${{\bm{\epsilon}}_{1}}$ and ${{\bm{\epsilon}}_{2}}$ (${{\bm{\epsilon}}_{1}^{\prime}}^{*}$ and ${{\bm{\epsilon}}_{2}^{\prime}}^{*}$) stand for the polarisation vectors of the initial (final) $B^{*}$ mesons, ${\bm{A}}_{1}=\frac{i}{\sqrt{2}}[{\bm{\epsilon}}_{1}\times{{\bm{\epsilon}}_{1}^{\prime}}^{*}]$, ${\bm{A}}_{2}=\frac{i}{\sqrt{2}}[{\bm{\epsilon}}_{2}\times{{\bm{\epsilon}}_{2}^{\prime}}^{*}]$. The denominators $D_{B^{(*)}B^{(*)}\pi}({\bm{p}},{\bm{p}}^{\prime})$ correspond to the $B^{(*)}B^{(*)}\pi$ propagators written in TOPT for the nonrelativistic $B$ and $B^{*}$ mesons,

[TABLE]

The time-reversed transition potentials $V^{\rm OPE}_{31}({\bm{p}},{\bm{p}}^{\prime})$ and $V^{\rm OPE}_{32}({\bm{p}},{\bm{p}}^{\prime})$ are trivially obtained from Eqs. (59) and (61) by interchanging the particle labels as $1\leftrightarrow 1^{\prime},2\leftrightarrow 2^{\prime}$ (see also Fig. 2).

Since our analysis covers the energy region between the $B\bar{B}$ and $B^{*}\bar{B}^{*}$ thresholds split by approximately $2\delta\approx 90$ MeV, which numerically appears to be of the order of the pion mass, a relativistic expression for the pion energy is used. It should be noted that, in the region of interest around the $B^{(*)}\bar{B}^{(*)}$ thresholds, $M<2m+m_{\pi}$, so that, unlike charmonium systems, one never hits the three-body cut in the OPE potentials defined above.

Since the pion is emitted by $B^{(*)}$ mesons in the $P$-wave — see the Lagrangian (50) and the vertices (51) and (52) — the OPE potential mixes $S$ and $D$ waves. The partial wave projection of the OPE potentials (59)-(62) can be done using the formalism of Refs. Baru:2016iwj ; Baru:2017gwo ; Baru:2017pvh that gives

[TABLE]

where $L=S$, $D$ and $G$, $\bm{n}=\bm{p}/p$ ($\bm{n}^{\prime}=\bm{p}^{\prime}/p^{\prime}$), and a complete set of relevant properly normalised projection operators $P(JLS;\bm{n})$ is given in Appendix B.

III Production rates of the $Z_{b}$’s and their spin partners $W_{bJ}$’s

III.1 Production vertex

The twin states $Z_{b}(10610)$ and $Z_{b}(10650)$ are produced in the one-pion decays of the $\Upsilon(10860)$ resonance,

[TABLE]

Because of a different $C$-parity, the spin partner states $W_{bJ}$ should be produced in radiative decays of the $\Upsilon(10860)$,

[TABLE]

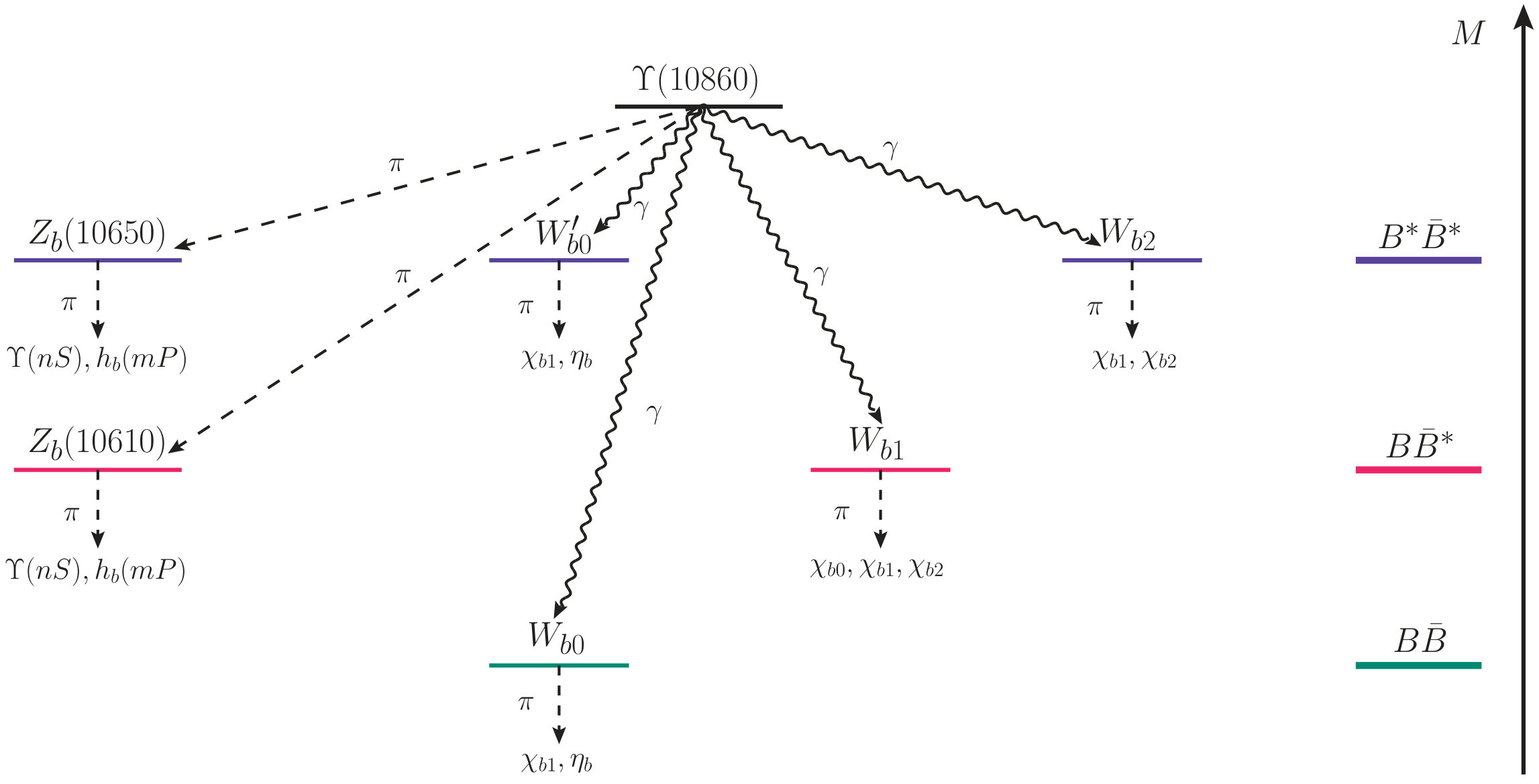

Production and decay channels for the $Z_{b}$’s and $W_{bJ}$’s taken into account in our approach are summarised in Fig. 3. In line with the discussion in Sec. II.3, since the couplings of the $\Upsilon(10860)\gamma$ source term with the $D$-wave elastic channels are suppressed, we retain only the couplings of the $\Upsilon(10860)\gamma$ source term with the elastic channels in the $S$ wave.

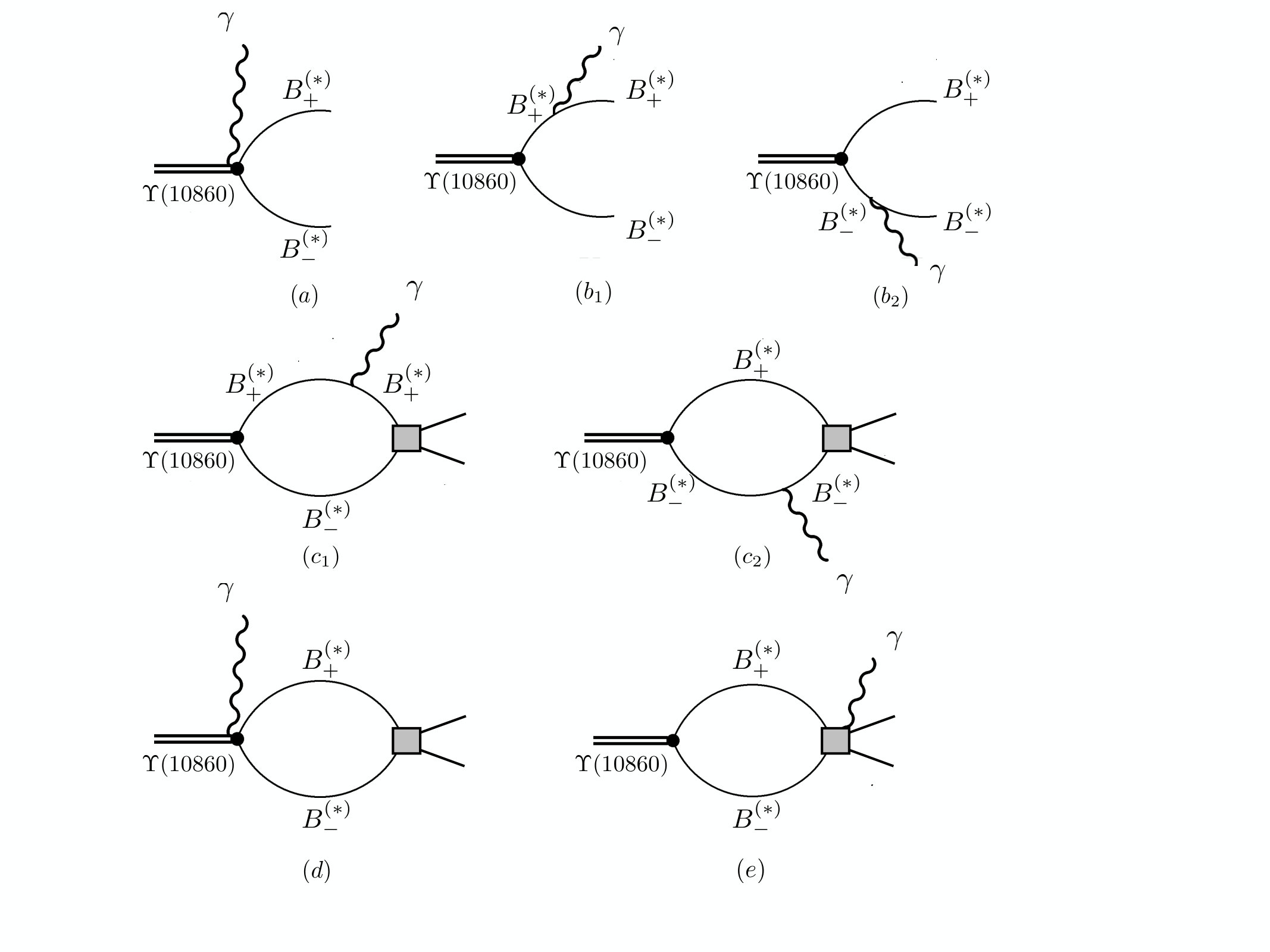

A set of diagrams which contribute to the process $\Upsilon(10860)\to\gamma B^{(*)}B^{(*)}$ and provide a gauge invariant amplitude is shown in Fig. 4, where diagrams (a), (b1) and (b2) contribute to the production operators at tree level while diagrams (c)-(e) represent contributions from the loops assuming that the intermediate particles are $B$ and $B^{*}$ mesons only. In this work, we do not aim at predicting the absolute rate of the decays $\Upsilon(10860)\to\gamma W_{bJ}$, which might involve some more sophisticated mechanisms (for example, as advocated in Ref. Wu:2018xaa ), but rather focus on the energy dependence of the line shapes with an arbitrary overall normalisation. To this end, we assume that like for the $Z_{b}$’s production also for these processes the energy dependence from the production operator is rather smooth close to thresholds and can be merely neglected as compared with rapidly varying $B$-meson amplitudes in the final state. To advocate this approximation, below we discuss the diagrams shown in Fig. 4 in more detail.

To estimate the strength and the structure of the source term we start from the effective Lagrangian connecting the $\Upsilon(10860)$ bottomonium with the heavy meson fields at leading order in the HQSS expansion Mehen:2011yh ,

[TABLE]

Gauging this Lagrangian leads to a set of contact $\Upsilon(10860)\to\gamma B^{(*)}\bar{B}^{(*)}$ vertices which contribute to diagrams (a) and (d),

[TABLE]

where, for a given $J$, index $\alpha$ runs over the relevant $S$-wave states, that is, $B\bar{B}({}^{1}S_{0})$, $B^{*}\bar{B}^{*}({}^{1}S_{0})$, $B\bar{B}^{*}({}^{3}S_{1})$, $B^{*}\bar{B}^{*}({}^{5}S_{2})$. The spin operators, normalised according to $\sum_{\lambda}\left|\hat{S}^{(J^{++})}_{\alpha}\right|^{2}=2J_{\Upsilon}+1=3$ with $\lambda$ running over the polarisations of the spin-1 particles ($\gamma,\Upsilon$ and $B^{*}$), read

[TABLE]

Here $\bm{\epsilon}^{\gamma*}$, $\bm{\epsilon}^{\Upsilon}$ and $\bm{\epsilon}_{1(2)}$ denote the polarisation vectors of the photon, $\Upsilon$ and $B^{*}$ mesons, respectively, and the explicit form of the projectors $P$ on relevant heavy meson states are given in Appendix B. Further, the partial-wave-projected vertices $v^{(J^{++})}_{\alpha}$ are defined as

[TABLE]

where $e$ is the magnitude of the electron charge and the ratios of the coupling constants, $\lambda^{(J^{++})}_{\alpha}$, related by HQSS are quoted in Table 2. It is shown in Ref. Mehen:2013mva that experimental data might call for a significant amount of spin symmetry violation in the transition $\Upsilon(10860)\to B^{(*)}\bar{B}^{(*)}$ (there is a tension of 2$\sigma$ between the spin symmetric ratio of decay widths and the experimental data). Since the same couplings also contribute to the transitions $\Upsilon(10860)\to\gamma B^{(*)}\bar{B}^{(*)}$, HQSS violation is a potential additional source of uncertainty for our results — we come back to this issue in the discussion below.

In addition to the contact diagram with the photon emission from the $\Upsilon(10860)\to\gamma B^{(*)}\bar{B}^{(*)}$ vertex, diagrams with the photon emission from the $B^{(*)}$-meson lines should be considered with the $B^{(*)}\to B^{(*)}\gamma$ vertices being of an electric or magnetic type. While the amplitudes with the magnetic photon emission vertices are gauge invariant by themselves, the additional amplitudes with the electric photon emission vertices are important to compensate for the gauge dependence of the contact $W_{bJ}\to\gamma B^{(*)}\bar{B}^{(*)}$ diagram and thus to provide an overall gauge invariance of the full amplitude. To estimate the electric contributions, we notice that in the nonrelativistic heavy meson formalism used here all momenta involved are 3-momenta and the photon momentum $\bm{k}$ fulfils the relation $\bm{\epsilon}^{\gamma}\cdot\bm{k}$=0. Then, one readily arrives at the following estimates for the tree-level diagrams (b1) and (b2) with the electric (thence superscript $e$) photon emission from the external $B^{(*)}$-meson lines relative to the contact $W_{bJ}\to\gamma B^{(*)}\bar{B}^{(*)}$ diagram,

[TABLE]

where one power of the relative $B^{(*)}$-meson momentum $p_{\alpha}$ comes from the $\Upsilon(10860)\to B^{(*)}\bar{B}^{(*)}$ vertex extracted from Eq. (67), the term $1/(m\upomega)$ is the $B^{(*)}$-meson propagator with $\upomega$ for the photon energy (here we do not distinguish between the $B$ and $B^{*}$ mass), and the second factor $p_{\alpha}$ comes from the electric photon emission vertex from the $B^{(*)}$ meson, which is derived by gauging the kinetic term in the Lagrangian (99). Further, to arrive at the very last relation in Eq. (74) we used that the energy of the $B$-meson pair relative to the threshold in the channel $\alpha$, $E_{\alpha}\approx p_{\alpha}^{2}/m$, does not exceed several dozen MeV while the photon energy $\upomega$ is an order of magnitude larger, $\upomega\approx M_{\Upsilon(10860)}-2m\approx 200$-300 MeV.

One is, therefore, led to conclude that although the diagrams (b1) and (b2) with the electric photon emission from the $B^{(*)}$-meson lines are important to guarantee gauge invariance of the amplitude, in practical calculations they provide only small corrections and that the tree-level amplitude behaves basically as a constant in the energy region of relevance.

The loop contributions from the diagrams (c)-(e) were already studied in the literature in the context of scalar mesons made of light quarks — see, for example, Refs. Close:1992ay ; Kalashnikova:2004ta . In particular, it is shown that for pseudoscalar mesons such loops form a gauge invariant subset of diagrams which yields a finite contribution to the amplitude. The arguments of Refs. Close:1992ay ; Kalashnikova:2004ta can be generalised to find that, in the HQSS limit, these conclusions hold also for all members of the heavy meson spin multiplet and for all quantum numbers $J^{++}$. Further, using the explicit results of Refs. Close:1992ay ; Kalashnikova:2004ta for the loops with a point-like interaction between the mesons in the final state one concludes that, to a good approximation, also for diagrams (c)-(e) the production operator can be treated as a constant.

To illustrate the argument, consider the resulting contribution from the diagrams shown in Fig. 4 for the uncoupled case,

[TABLE]

where the vertex and the spin structure in front of the parenthesis are from Eqs. (71)-(73), ${\cal A}^{\alpha}(p_{\alpha})$ and $ip_{\alpha}$ denote the real and imaginary parts of the pertinent loop, $f_{\rm on}^{\alpha}(p_{\alpha})$ is the on-shell $B$-meson amplitude in the final state. Unitarity forces $f_{\rm on}^{\alpha}$ to have the form

[TABLE]

where $B^{\alpha}(p_{\alpha})$ denotes the real part of the inverse scattering amplitude which is unconstrained by unitarity and is a real meromorphic function of $p_{\alpha}^{2}$ near the origin $p_{\alpha}$=0. To leading order in a momentum expansion, ${\cal B}^{\alpha}(p_{\alpha})$ is given by the inverse scattering length. Then one finds

[TABLE]

Thus, unitarity forces the production amplitude to be proportional to the scattering amplitude in the final state (a coupled-channel version of this relation is provided in Ref. Hanhart:2012wi ). In the heavy quark limit the functions ${\cal A}$ and ${\cal B}$ do not depend on the channel. Moreover, since the momentum dependence of the functions ${\cal A}(p_{\alpha})$ and ${\cal B}^{\alpha}(p_{\alpha})$ is controlled by the left-hand cuts of the production operator and the scattering amplitude, respectively, we expect that near thresholds both are well approximated by constants, which are also independent of the channel in the heavy quark limit. Based on this one can predict the ratios of the partial widths for different decay channels of the $W_{bJ}$’s, up to spin symmetry violating corrections.

It is proposed in Ref. Wu:2018xaa that the most prominent production mechanism for the $Z_{b}$ states in the $\Upsilon(10860)$ and $\Upsilon(11020)$ decays involves $B_{1}^{\prime}\bar{B}$ or $B_{0}\bar{B}$ intermediate states, with $B_{0}$ and $B_{1}^{\prime}$ being the broad members of the quadruplet of the positive $P$-parity $B$ mesons. If this proposal is correct, the decay mechanism through the $B^{(*)}\bar{B}^{(*)}$ pairs considered above will give only a small contribution. However, it should be stressed that the mechanism proposed in Ref. Wu:2018xaa should not change the line shapes but only the total rate of the production cross sections, which is not a subject of the current study.

III.2 Coupled-channel system

The set of the allowed quantum numbers for the $B^{(*)}\bar{B}^{(*)}$ system is encoded in the basis vectors quoted in Eq. (9). Inclusion of the OPE interaction enables transitions to the $D$ and even $G$ waves Baru:2016iwj .

For a given set $J^{PC}$ the system of the partial-wave-decomposed coupled-channel Lippmann-Schwinger-type equations reads

[TABLE]

where $\alpha$, $\beta$, and $\gamma$ label the basis vectors defined in Eq. (9), the effective potential is defined by Eq. (8), and the scattering amplitude $T_{\alpha\beta}$ is related with the invariant amplitude ${\cal M}_{\alpha\beta}$ as

[TABLE]

with $m_{1,\alpha}$ and $m_{2,\alpha}$ ($m_{1,\beta}$ and $m_{2,\beta}$) being the masses of the $B^{(*)}$ mesons in the channel $\alpha$ ($\beta$). The two-body propagator for the given set $J^{PC}$ takes the form

[TABLE]

where the reduced mass is

[TABLE]

It is convenient to define the energy $E_{i}$ relative to a particular threshold, namely,

[TABLE]

Finally, to render the loop integrals well defined we introduce a sharp ultraviolet cutoff $\Lambda$ which needs to be larger than all typical three-momenta related to the coupled-channel dynamics. For the results presented below we choose $\Lambda=1$ GeV but we also address the problem of the renormalisability of the resulting EFT and estimate and discuss the theoretical uncertainty from the cutoff variation.

III.3 Production rates

Since we are not interested in the absolute scale but only in the energy dependence of the line shapes, the production amplitude of the $\beta$-th elastic channel from a point-like source for some given quantum numbers $J^{PC}$ can be defined as

[TABLE]

where the relativistic normalisation factor is

[TABLE]

and the nonvanishing partial-wave-projected production vertices $v_{\alpha}$ are from Eq. (73).

Since the direct interactions between the inelastic channels are neglected in the formalism applied here, the $i$-th inelastic channel in the final state can only be reached via a transitions through the intermediate elastic channels. In particular, for a given set $J^{PC}$, the inelastic amplitude ${\cal M}_{i}$ is obtained by convolving the relevant elastic amplitude ${\cal M}_{\beta}(M,p)$ from Eq. (83) with the corresponding elastic-to-inelastic transition vertex from Eqs. (40) and (42), that is,

[TABLE]

where $N_{i}=\sqrt{(2m_{\Upsilon(10860)})(2m_{h_{i}})}$.

Finally, the differential widths in the elastic and inelastic channels read

[TABLE]

respectively, where $k$ is the three-momentum of the photon in the rest frame of the $\Upsilon(10860)$ and $p_{\beta}$ is the three-momentum in the $\beta$-th elastic channel in the rest frame of the $B^{*}\bar{B}^{(*)}$ system, namely,

[TABLE]

and the momentum in the inelastic channel $p_{i}$ is defined in Eq. (41) above.

IV Data analysis for the $Z_{b}$’s and prediction of the line shapes for the $W_{bJ}$ states

IV.1 Line shapes in the $1^{+-}$ channels

In Ref. Wang:2018jlv an analysis of the experimental line shapes corresponding to the decays of $\Upsilon(10860)\to B^{(*)}\bar{B}^{*}\pi$ and $h_{b}(mP)\pi\pi$ ($m=1,2$) channels was carried out.

In what follows, we consider three fitting strategies introduced in Ref. Wang:2018jlv :

Contact fit: purely $S$-wave momentum-independent contact interactions (analogous to fit A in Ref. Wang:2018jlv ); 2. 2.

Pionful fit 1: complete leading-order potential that involves $S$-wave contact terms plus the OPE, plus the ${\cal O}(Q^{2})$ $S$-wave-to-$D$-wave counter term promoted to LO (analogous to fit E in Ref. Wang:2018jlv ). 3. 3.

Pionful fit 2: Pionful fit 1 supplemented by the ${\cal O}(Q^{2})$ $S$-wave-to-$S$-wave contact terms at NLO and the $\eta$-meson exchange (analogous to fit G in Ref. Wang:2018jlv ).

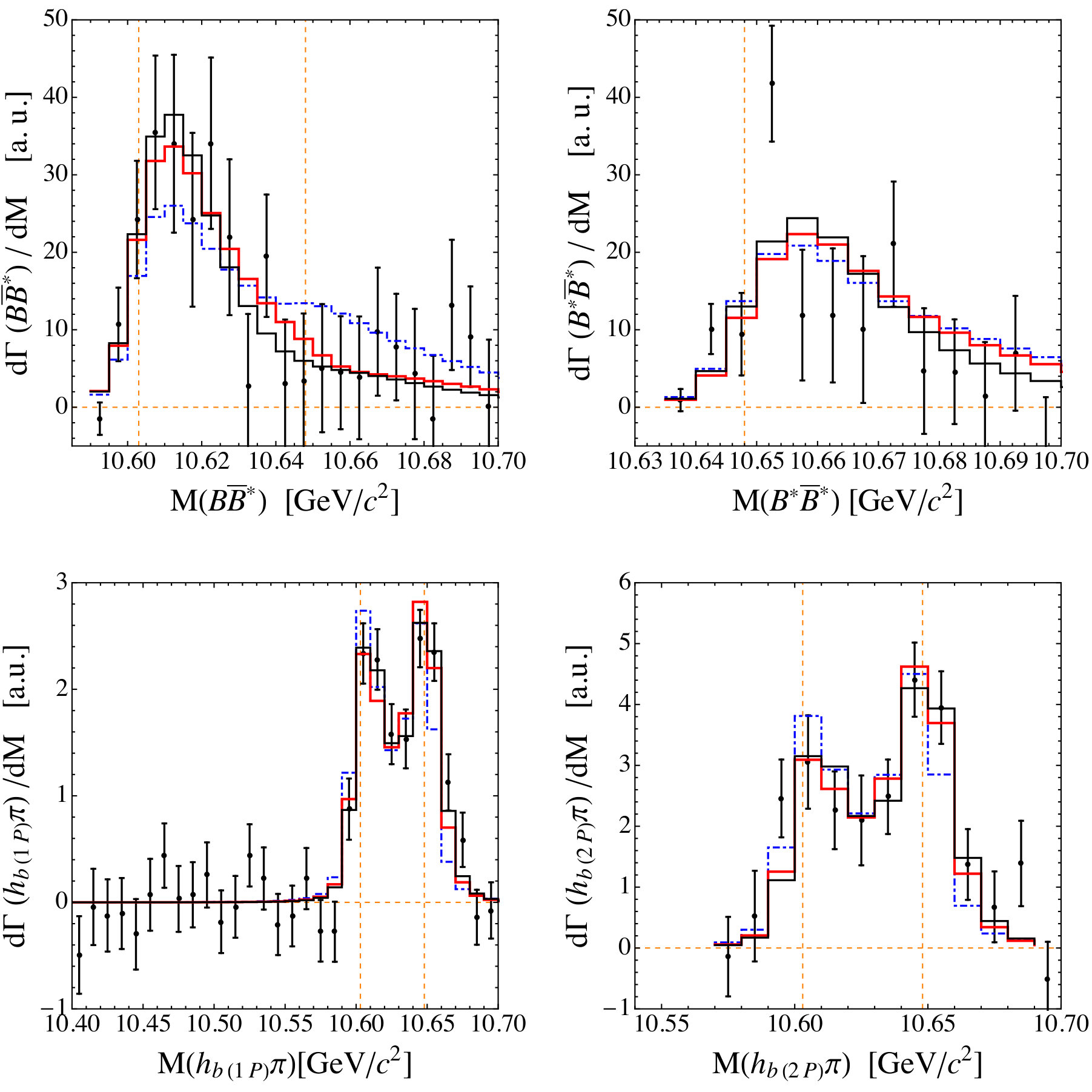

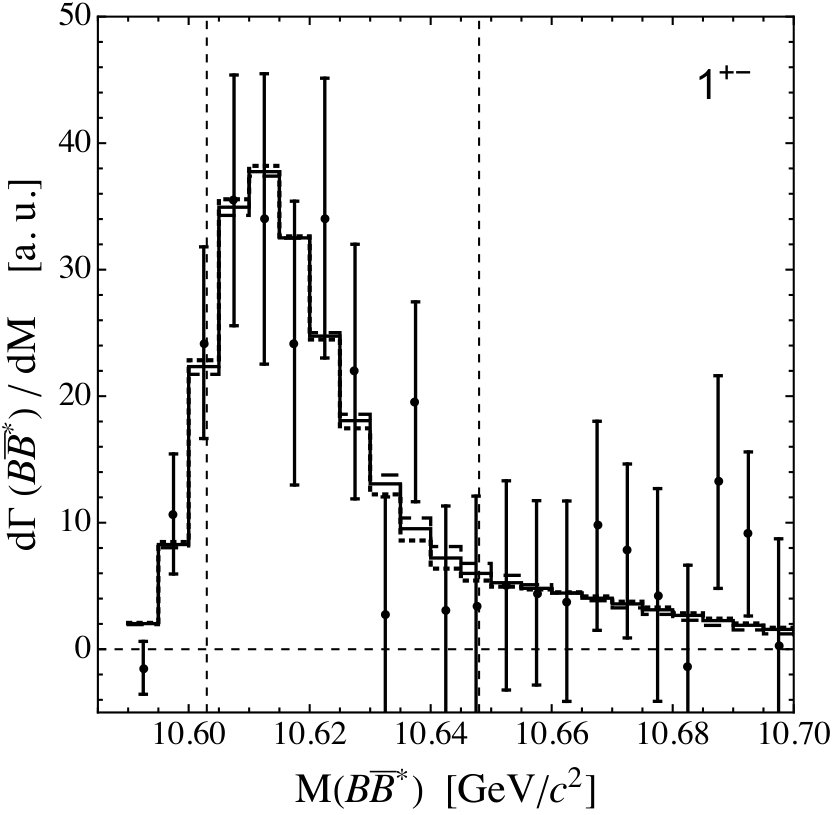

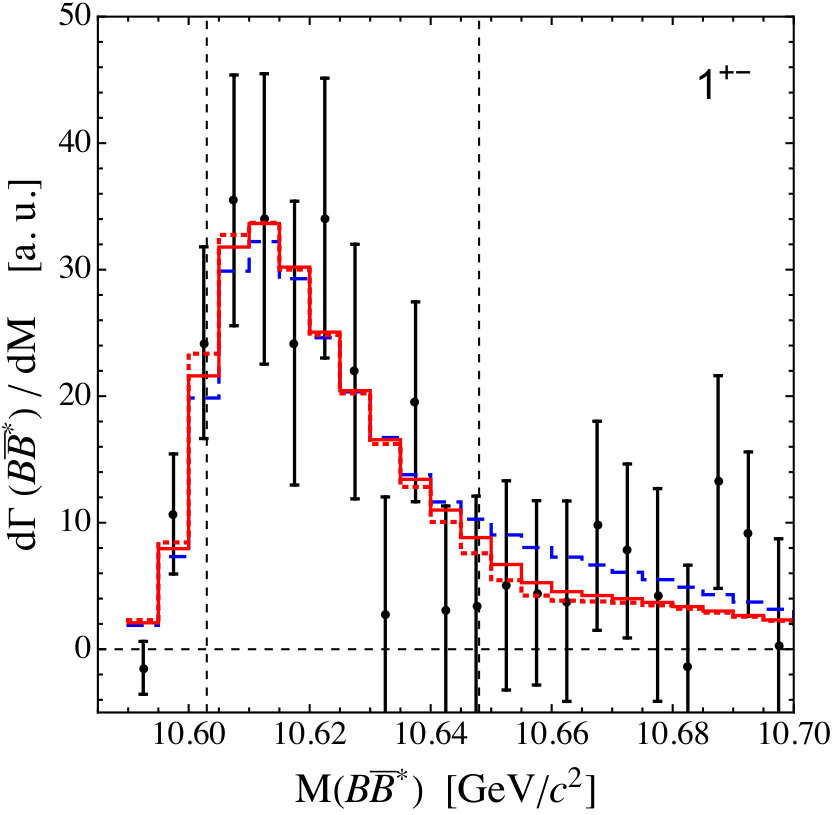

The line shapes in the $1^{+-}$ channel, where the $Z_{b}$’s states reside, corresponding to the best fits for the three schemes quoted above are compared with the experimental data in Fig. 5. The parameters extracted from these fits are collected in Table 3. One can see that the quality of the line shape description by the pionful fits is better than that by the Contact fit that is reflected in the change of the $\chi^{2}/\text{d.o.f.}$ from $1.29$ for the Contact fit to $0.95$ for the Pionful fit 1 and $0.83$ for the Pionful fit 2.

IV.2 Renormalisability of the heavy hadron EFT with pions

The use of the standard nonrelativistic approach to heavy mesons, as employed in Ref. Wang:2018jlv and also used here, leads to coupled-channel integral equations for the scattering amplitudes which, at leading order in the EFT expansion, are linearly divergent. Therefore, when the potential truncated at a given order is iterated within the integral equations an infinite number of ultraviolet (UV) divergent higher-order contributions is generated. The problem is well known in the context of nuclear chiral EFT — see, for example, Refs. Nogga:2005hy ; Epelbaum:2006pt and references therein. The standard way to cure this problem in practical calculations is to employ a finite UV cutoff of the order of a natural hard scale in the problem, so that the unwanted higher-order contributions turn out to be suppressed Lepage:1997cs ; see also a recent discussion in Ref. Epelbaum:2018zli . For an alternative approach with relativised integral equations of the Kadyshevsky type in the context of an NN and heavy-meson EFTs see Refs. Epelbaum:2012ua and Baru:2015tfa , respectively.

The logic explained above is the basis for the renormalisation programme used in Ref. Wang:2018jlv and, hence, is also employed here. It should be stressed that the formulation of an EFT for the $Z_{b}$’s and their spin partners is much more challenging than that for the NN problem because of larger soft scales involved here. Indeed, since the $B$ mesons are, roughly, by a factor of five heavier than nucleons, an EFT for the $Z_{b}(10610)$ and $Z_{b}(10650)$ states, separated by $\delta=45$ MeV, unavoidably involves the momenta of the order of $\sqrt{m\delta}\approx 500$ MeV treated as soft. Moreover, in the course of practical fits of the experimental line shapes the momenta as large as 800 MeV are included from the high-energy tail of the experimental distributions. Clearly, the influence of such high momenta on the dynamics close to the relevant thresholds is minor whereas the renormalisation of the theory (and the possible residual cutoff dependence) is severely affected by this high-momentum range.

In Ref. Wang:2018jlv it was found that the cutoff dependence generated via the iterations of the OPE in the $S$ waves can be almost completely absorbed into the momentum-independent contact terms ${\cal C}_{d}$ and ${\cal C}_{f}$ at LO. On the other hand, the cutoff dependence of the line shapes in the $1^{+-}$ channel from iterations of the $S$-wave-to-$D$-wave OPE turns out to be sizeable which calls for the promotion to leading order of the contact term ${\cal D}_{SD}$ providing the $S$-wave-to-$D$-wave transitions between heavy mesons, which naïvely would appear only at NLO. In Fig. 6, we illustrate the cutoff dependence for the elastic line shapes corresponding to the quantum numbers $1^{+-}$, $1^{++}$ and $0^{++}$ for the cutoff variation from 0.8 to 1.3 GeV. We start the discussion with the results for the quantum numbers $1^{+-}$, where the fits to the experimental data were performed (see the left plots in Fig. 6). As a general trend, the results demonstrate a mild cutoff dependence and a saturation for larger cutoffs. Meanwhile, as expected, the result for the smallest cutoff $\Lambda=0.8$ GeV for the Pionful fit 1 deviates from the other curves (cf. the blue dashed curve for $\Lambda=0.8$ GeV with the red solid and dotted curves corresponding to $\Lambda=1.0$ GeV and $\Lambda=1.2$ GeV, respectively). Indeed, in order to maintain approximate $\Lambda$-independence in the pionful calculations for smaller cutoffs, we found empirically that the magnitude of the contact term ${\cal D}_{SD}$ must be increased such that it generates an increasing $S$-wave-to-$S$-wave higher-order contribution through iterations. The latter induces a strong $\Lambda$-dependence unless an additional ${\cal O}(Q^{2})$ $S$-$S$ contact term is included in the potential. As a consequence, the results for the Pionful fit 1 still show some cutoff dependence for the observables in the $1^{+-}$ channel while the cutoff dependence for the Pionful fit 2, where the order ${\cal O}(Q^{2})$ $S$-$S$ contact term ${\cal D}_{d}$ is included, is diminished significantly. Exactly the same pattern, though somewhat enhanced, can also be seen in Fig. 6 for the spin partners. It is obvious that, for the smallest cutoff, the results for the Pionful fit 1 (blue dashed curve) possess an unwanted sizeable $S$-wave-to-$S$-wave higher-order contribution which, for the Pionful fit 2, is largely absorbed by the $S$-$S$ contact term ${\cal D}_{d}$. Still, the results for the Pionful fit 1 for the cutoffs from 1 GeV onward quickly saturate with the cutoff increase and may be regarded as reasonable predictions at leading order. In what follows, we will discuss the line shapes and extract the poles of the amplitude for both Pionful fits 1 and 2. Still, we regard the predictions obtained for the Pionful fit 2 as our main results since in this case the cutoff-related artefacts induced by the iteration of the truncated potential are significantly reduced. It should be clear that the results for the Pionful fit 2 correspond to an incomplete NLO calculation and that, in addition, there are long-range contributions from the two-pion exchange (TPE) not included in the present study. It remains to be seen whether or not their inclusion affects the predictions for the spin partner states. However, given that, numerically, the long-range part of the OPE plays a role of a correction as compared with the short-range mechanisms, the effect from the long-range TPE is expected to be small.

IV.3 Line shapes in the spin partner channels

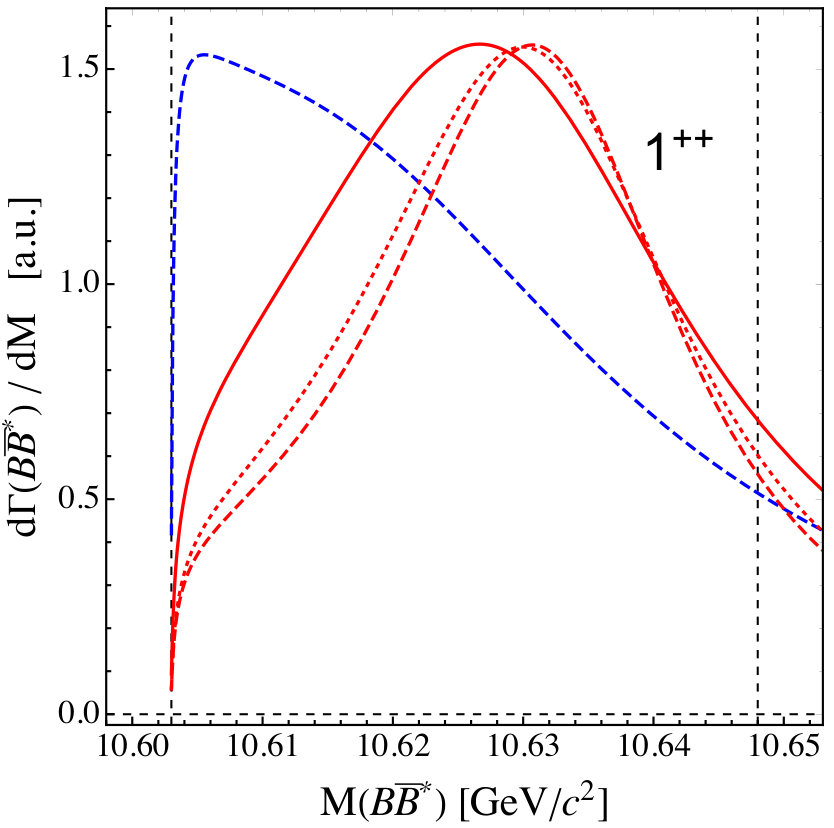

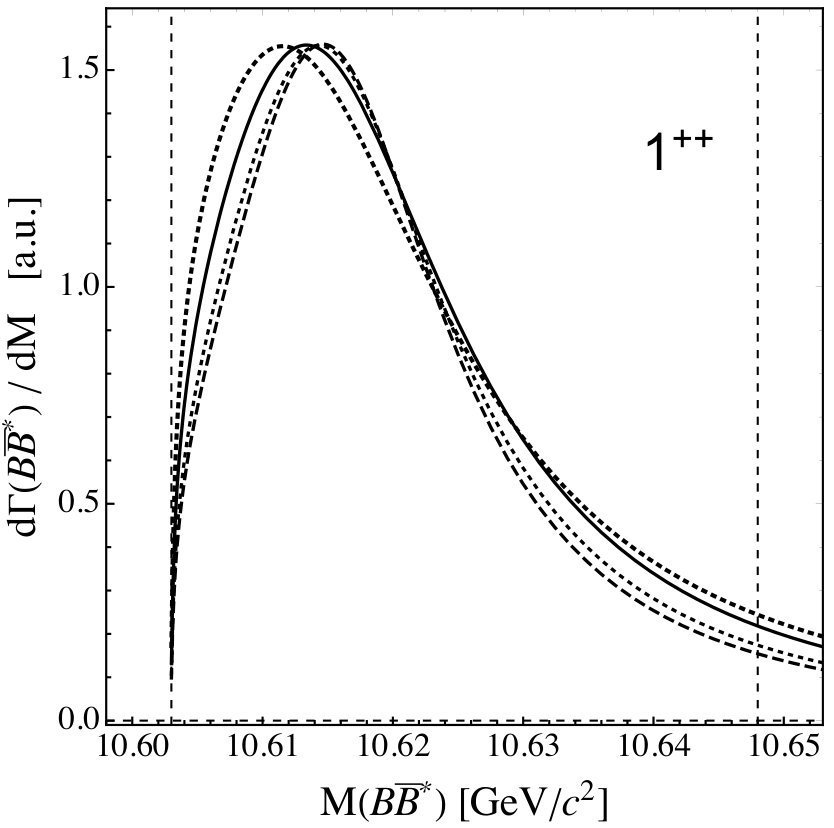

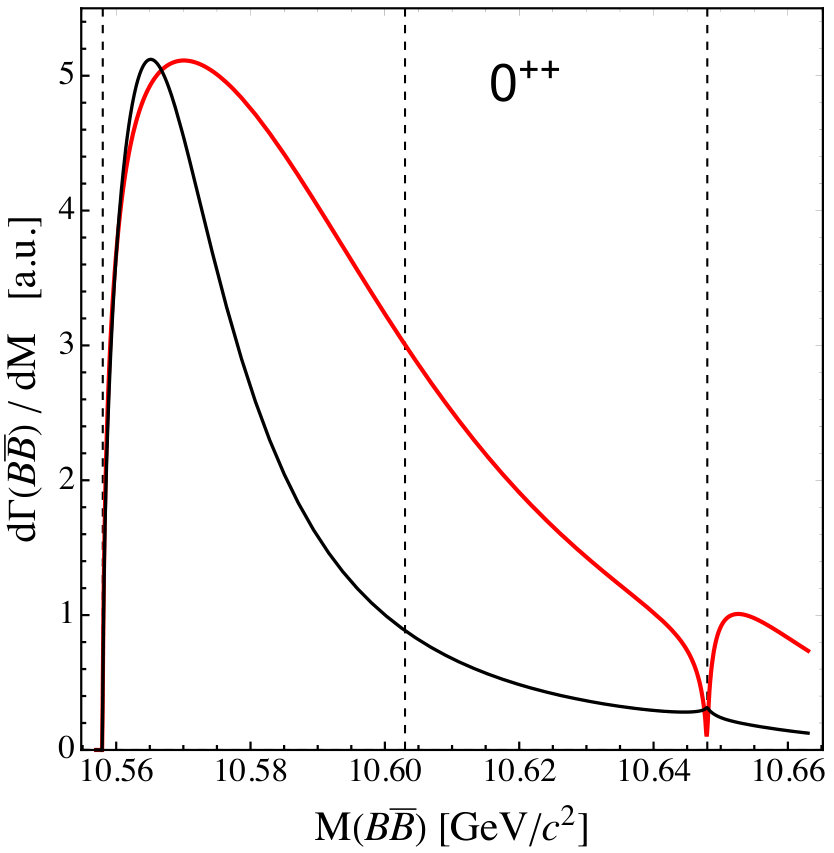

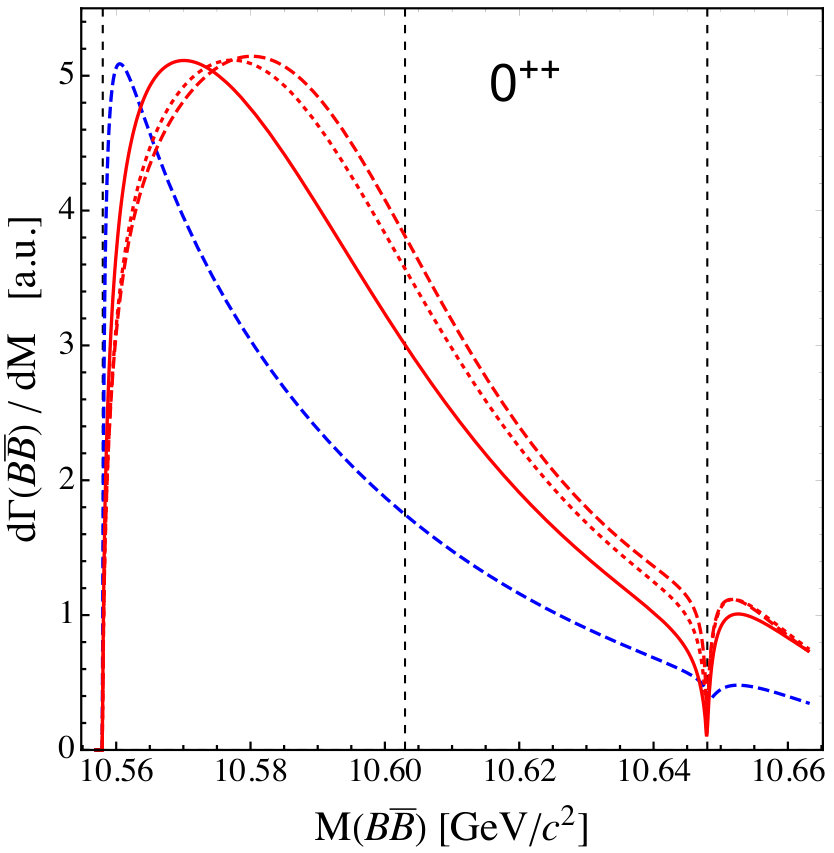

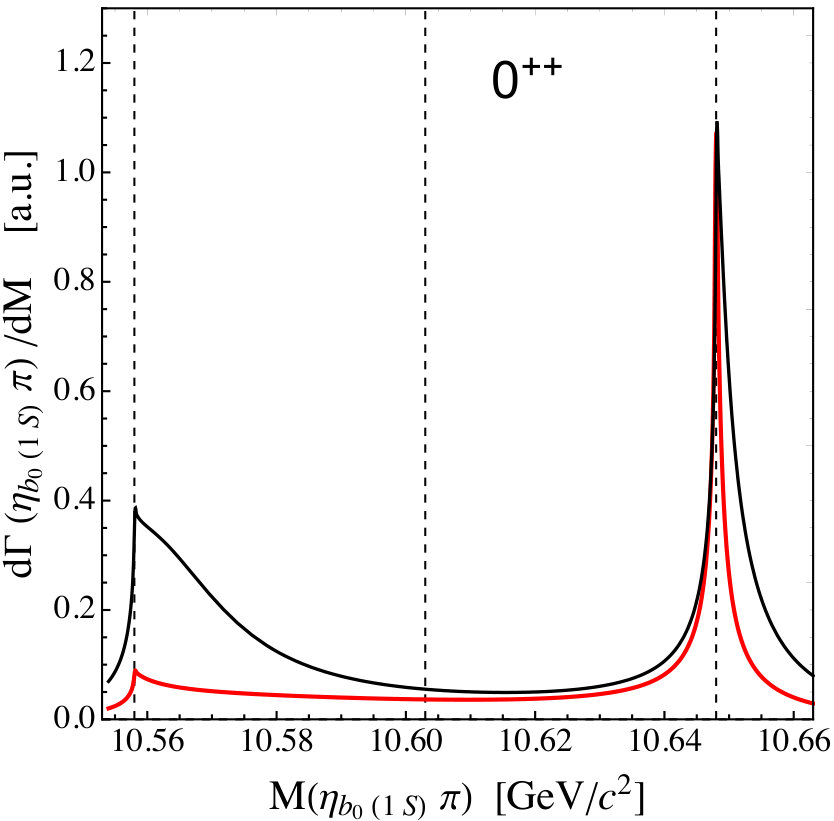

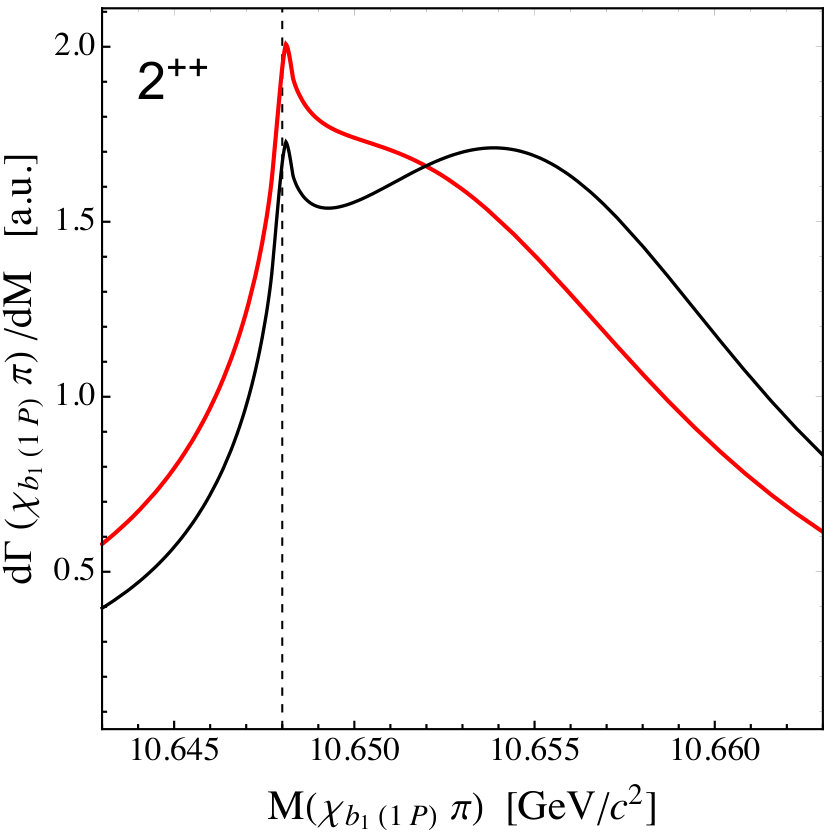

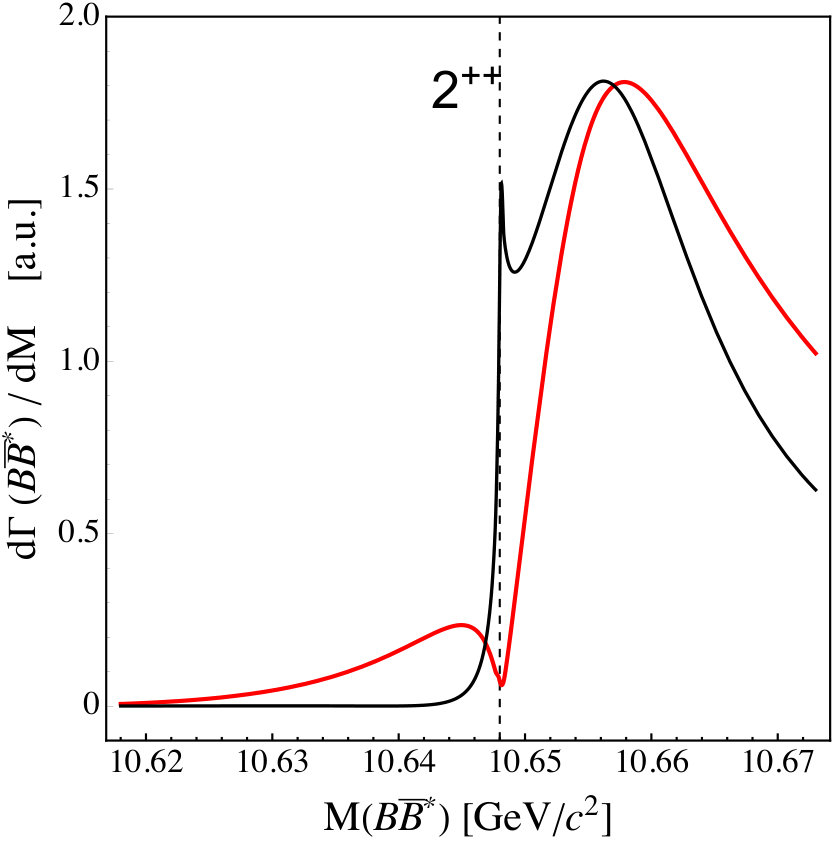

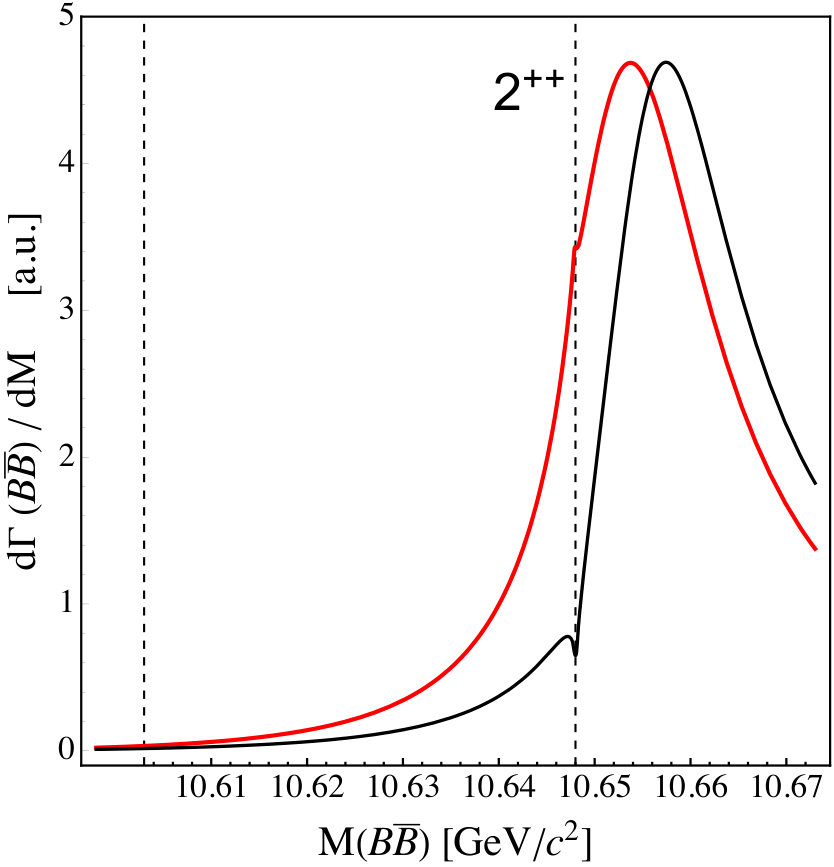

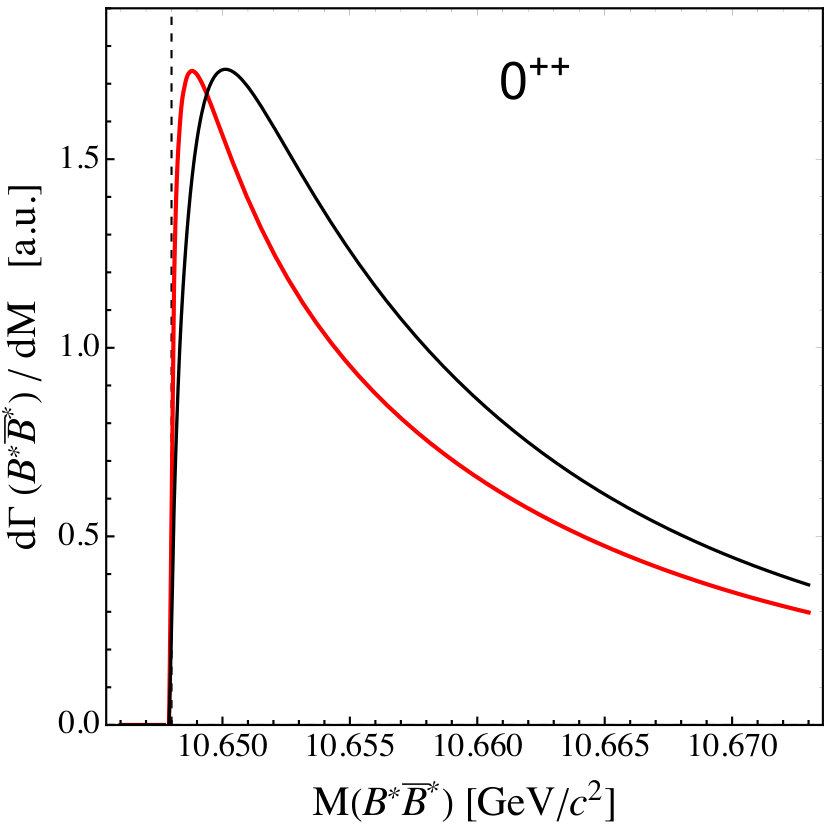

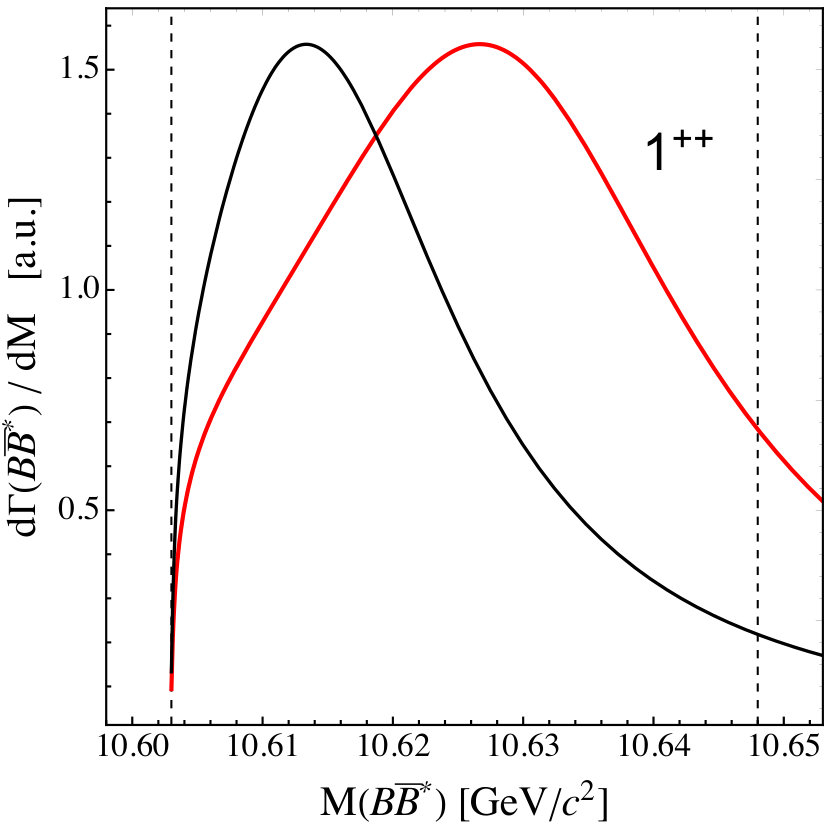

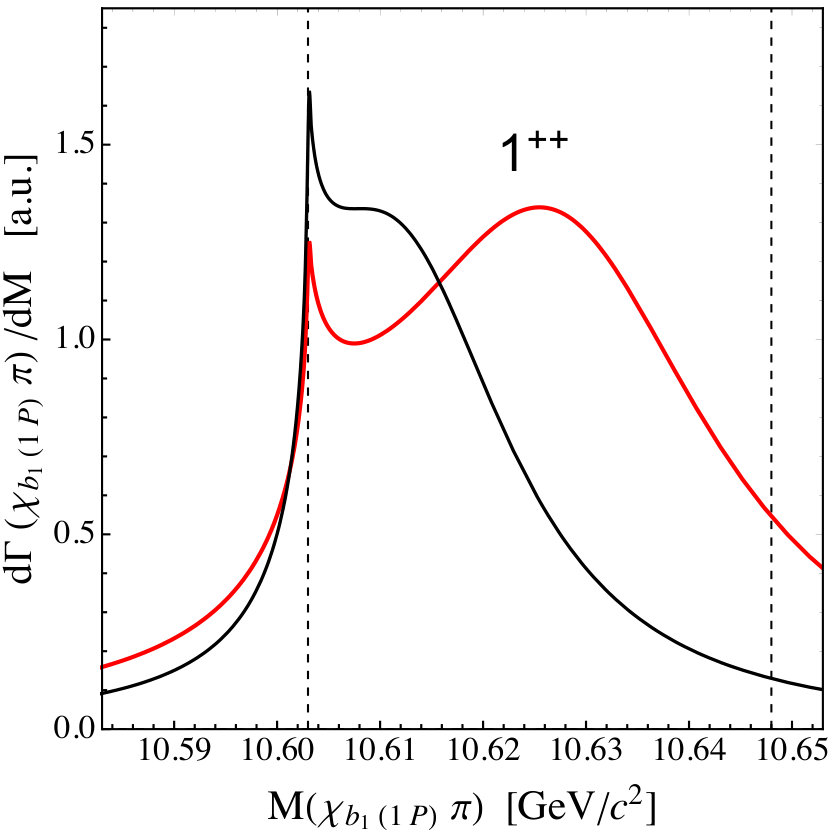

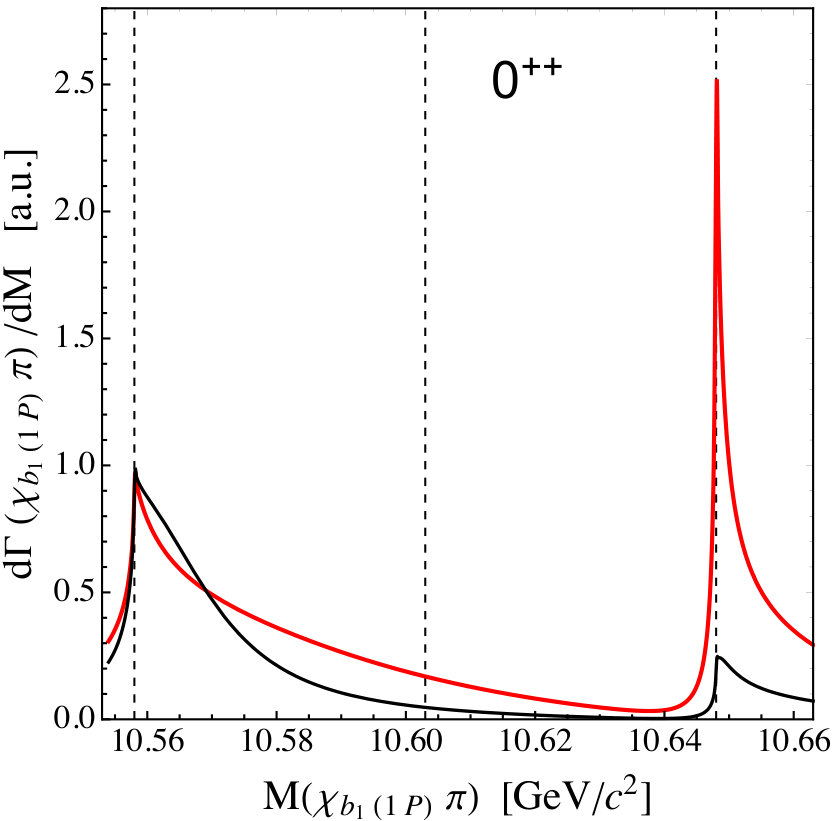

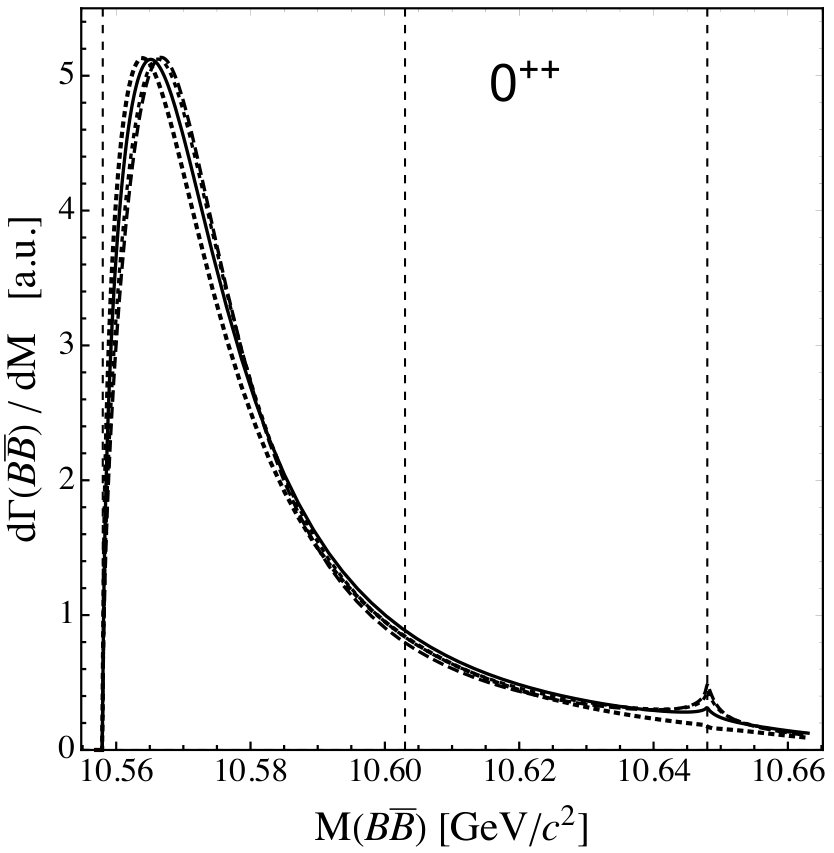

In Figs. 7-9 the line shapes in the spin partner channels with $J=0,1,2$ are shown for the two pionful fit schemes introduced above. For each scheme the line shapes are calculated employing the best-fit parameters extracted from the analysis of the data in the $1^{+-}$ channel for the cutoff 1 GeV. Specifically, in each plot we present the relevant elastic $B^{(*)}\bar{B}^{(*)}$ and inelastic differential widths (in arbitrary units) defined by Eq. (86). The relative normalisation of the curves for the Pionful fits 1 and 2 is chosen such that the two curves have the same magnitude at the resonance peak. In the case of the $0^{++}$ channel, where two states are present, the curves are normalised to have the same strength in one of the peaks. While the overall scale of the line shapes is not a subject of the current investigation, as discussed in Sec. III.1, the branching fractions defined relative to the total width for each $J$ are predicted here — see Table  4 and discussions below. For the inelastic channels, as examples, we show the distributions in the $\chi_{b1}(1P)\pi$ and $\eta_{b0}(1S)\pi$ final states. The energy behaviour of the line shapes in the other channels not shown here ($\chi_{bJ}(mP)\pi$ with $m=1,2$ and $\eta_{b0}(2S)\pi$) is completely analogous to that for the $\chi_{b1}(1P)\pi$ and $\eta_{b0}(1S)\pi$ channels, respectively, while their relative scales can be read off from Table 4. The differential rates for the pionful fits exhibit either a well-pronounced hump above the relevant threshold, as seen in Figs. 8 and 9 for the $1^{++}$ and $2^{++}$ channels, or a sizeable near-threshold distortion, as in the $0^{++}$ case — see Fig. 7. This picture is typical for a resonance which is supported by the position of the poles of the amplitude in the energy complex plane — see the discussion in Sec. V below.

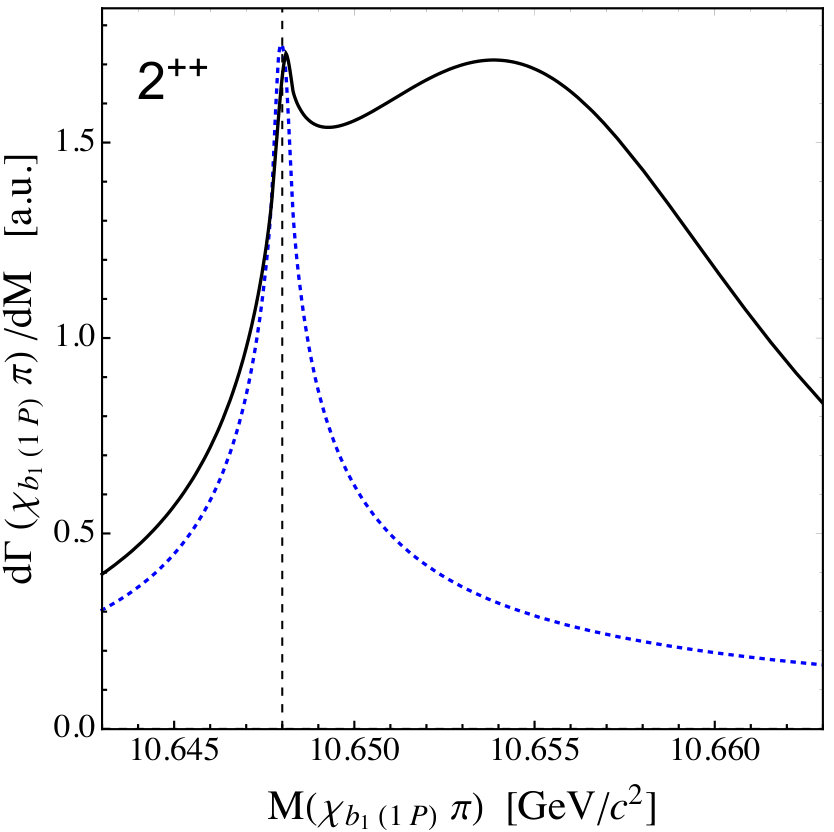

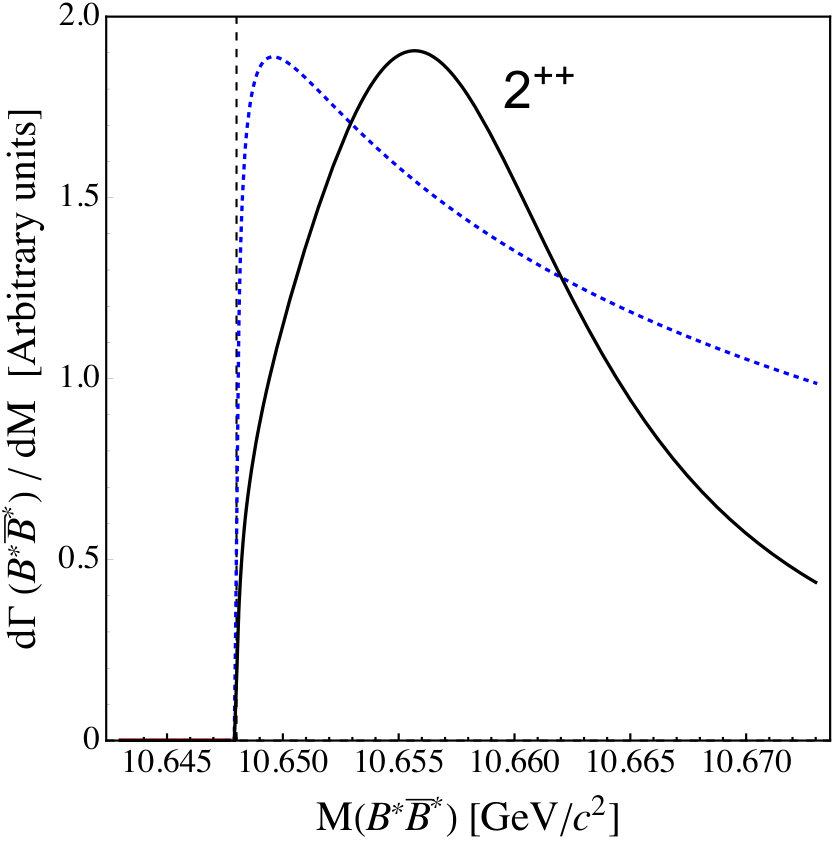

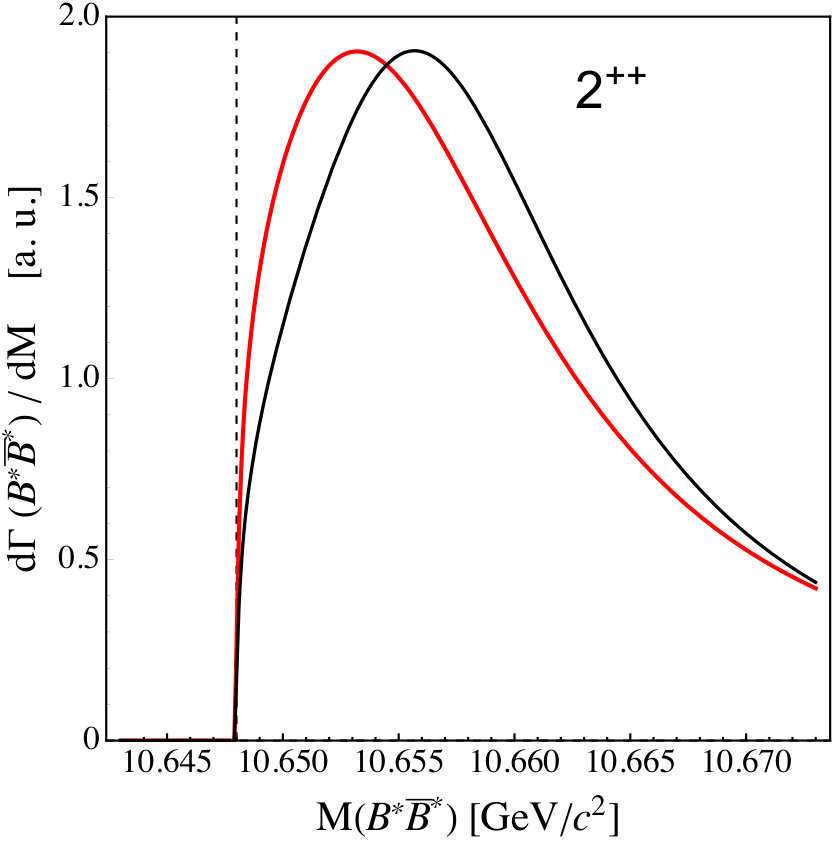

In Fig. 10, for illustrative purposes, we compare the line shapes in the $2^{++}$ channel for the Contact and Pionful fit 2 schemes. For all $J$’s, the inelastic line shapes corresponding to the Contact fit reveal only a cusp-like structure at the relevant elastic threshold enhanced by the presence of a near-threshold pole — the behaviour typical for a virtual state scenario. On the contrary, when the pions supplemented by the $O(p^{2})$ contact terms are included, the poles move to the complex plane, as will be discussed in the next section, resulting in above-threshold resonance-type structures in the line shapes.

The partial widths $\Gamma$ in all considered elastic and inelastic channels can be obtained as integrals over the entire relevant energy interval. The ratios of the individual partial widths to the sum of all contributions for a given $J$ are shown in Table 4. Such ratios do not depend on the overall scale and, therefore, can be regarded as a parameter-free prediction of our approach. In particular, for the elastic widths one finds the relations

[TABLE]

[TABLE]

Although the potential spin symmetry violation in the elastic source terms discussed in Ref. Mehen:2013mva can somewhat distort these results, the general pattern should persist.

Let us summarise the findings we arrived at.

• •

As expected in the molecular scenario, for each $W_{bJ}$ state, the decay rate to the corresponding elastic channel with the nearest threshold is the largest while the inelastic channels are strongly suppressed compared with it. The decay rates to remote elastic channels are also suppressed. For example, the contribution of the $W_{b0}^{\prime}$ state to the $B\bar{B}$ rate is quite marginal, as can be seen in Fig. 7. This is a direct consequence of the properties demonstrated by the data in the $1^{+-}$ channel — see Fig. 5: although the coupled-channel dynamics allows for such transitions, the data do not favour them.

• •

The largest rates correspond to the $\Upsilon(10860)$ decays to the $\gamma B\bar{B}^{*}$ and $\gamma B^{*}\bar{B}^{*}$ channels via the $W_{b1}$ and $W_{b2}$ partners, respectively — see Eq. (89).

• •

The ratios predicted in Eq. (89) from the measured line shapes of the $Z_{b}$ states are consistent with the estimates presented in a recent study Voloshin:2018pqn .

As to the absolute scale of the rates $\Upsilon(10860)\to\gamma W_{bJ}\to\gamma B^{(*)}\bar{B}^{(*)}$, a two order of magnitude suppression is trivially expected as compared with the rates $\Upsilon(10860)\to\pi Z_{b}^{(\prime)}\to\pi B^{(*)}\bar{B}^{*}$ because of the standard fine structure penalty for electromagnetic processes, that also agrees with the estimates made in Ref. Voloshin:2018pqn . Meanwhile, this suppression is expected to be overcome by the Belle-II experiment due to its large luminosity and, as a result, an almost two-order-of-magnitude increase of the statistics as compared with the previous-generation experiment Belle.

V The pole positions of the $Z_{b}$, $Z_{b}^{\prime}$ and $W_{bJ}$ states

V.1 Extracting the poles in a multichannel scattering problem

In this section we employ the approach developed above to predict in a parameter-free way the pole positions for the spin partners $W_{bJ}$ ($J=0,1,2$) with the quantum numbers $J^{++}$. For the pole search in the complex energy plane we follow the approach of Refs. Guo:2016bjq ; Wang:2018jlv and stick to the four-sheet Riemann surface corresponding to two elastic channels — either the $B\bar{B}$ and $B^{*}\bar{B}^{*}$ channels in case of $J^{PC}=0^{++}$ or the $B\bar{B}^{*}$ and $B^{*}\bar{B}^{*}$ ones for all other quantum numbers. All inelastic thresholds are remote and their impact on the poles of interest, which are located near the elastic thresholds, is minor — see the discussion in Ref. Wang:2018jlv . Then, for two coupled channels with the thresholds split by the mass difference $\Delta$, the four-sheeted Riemann surface can be mapped onto a single-sheeted plane of a new variable, which is traditionally denoted as $\omega$ kato ; Badalian:1981xj , via the relations111The situation in the $2^{++}$ channel is more complicated since all three elastic channels are coupled. However, also in this case, it appears to be convenient to employ the mapping onto the $\omega$-plane for the channels $B\bar{B}^{*}$ and $B^{*}\bar{B}^{*}$ while the $B\bar{B}$ channel is treated explicitly.

[TABLE]

Then, the energy defined relative to the lowest threshold of the two, $E=M-m^{(1)}_{1}-m^{(1)}_{2}=M-m^{(2)}_{1}-m^{(2)}_{2}+\Delta$, reads

[TABLE]

where $\mu_{1}$ and $\mu_{2}$ are the reduced masses in the first and second elastic channels labelled as (1) and (2), respectively. Specifically, in the $0^{++}$ channel,

[TABLE]

while in the channels $1^{++}$ and $2^{++}$ one has

[TABLE]

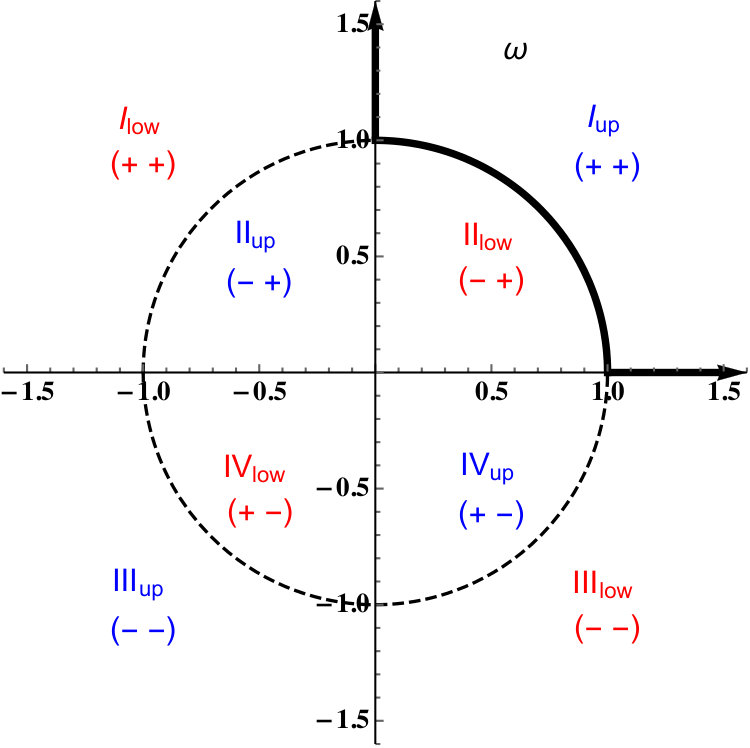

Then the one-to-one correspondence between the four Riemann sheets in the $E$-plane (denoted as RS-N, where N=I, II, III, IV) and various regions in the $\omega$-plane reads

[TABLE]

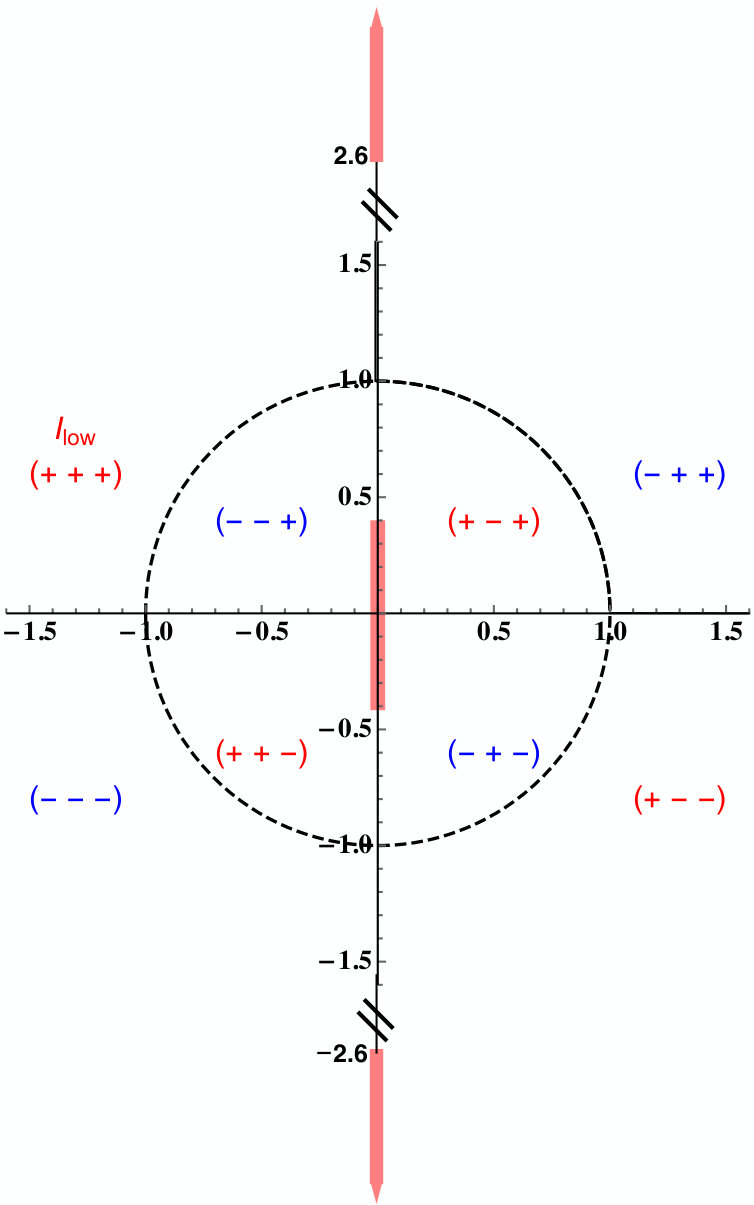

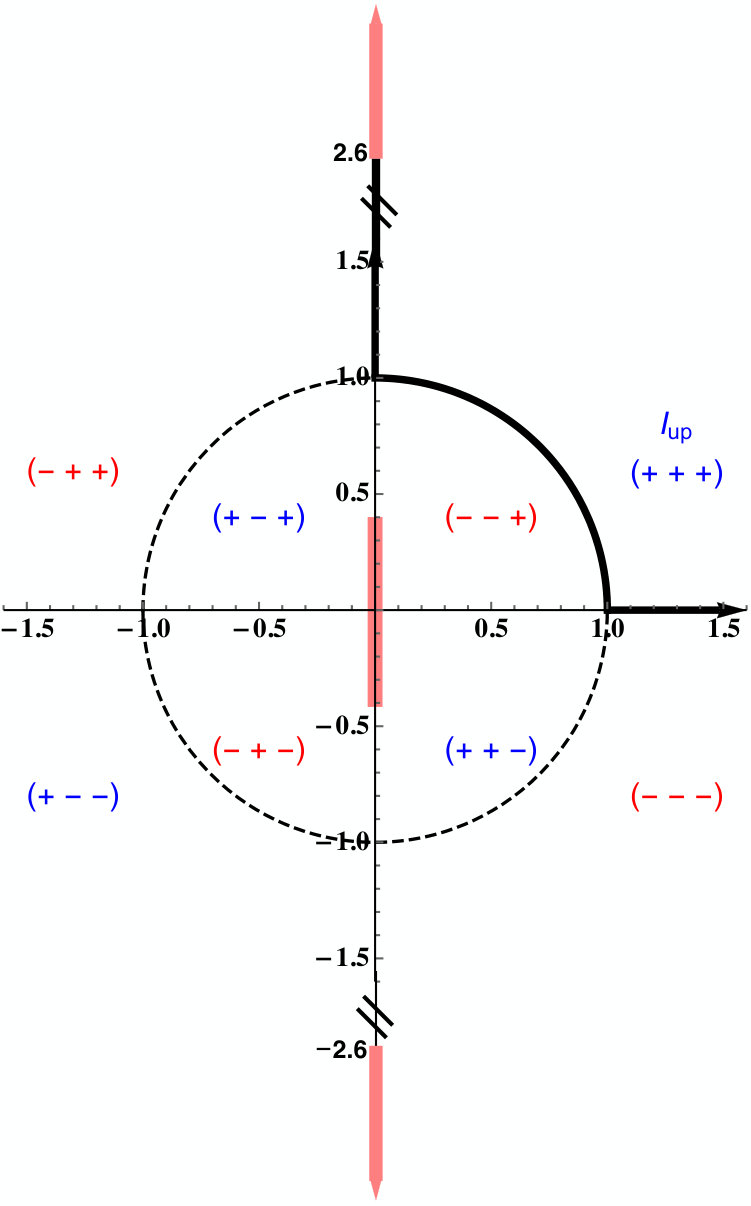

where the signs in the parentheses correspond to the signs of the imaginary parts of the momenta $k_{1}$ and $k_{2}$. These regions in the $\omega$-plane are depicted in Fig. 11. The thick solid line corresponds to the real values of the energy lying on (physical) RS-I. It is easy to see that the physical region between the two thresholds corresponds to $|\omega|=1$, with both Re$(\omega)$ and Im$(\omega)$ positive, and the thresholds at $E=0$ and $E=\Delta$ are mapped to the points $\omega=\pm i$ and $\omega=\pm 1$, respectively.

The nomenclature of the Riemann sheets as described above is relevant for a two-channel situation while in the presence of additional channels it needs to be generalised. As an illustration, consider a three-channel case with two elastic and one inelastic channel. In this case, the three-channel complex omega plane can be schematically viewed as a two-sheeted $\omega$-plane with the sheets connected by analyticity through the inelastic cut — see Fig. 12 where, in line with the two-channel case above, the sheets are labelled by the signs of the imaginary parts of the momenta in each channel.

Clearly, not all poles found on all Riemann sheets are of a physical significance. Specifically, only those poles which have a short (compared with the thresholds splitting $\Delta$) path to the real energies on the physical sheet RS-I (labelled as $I_{\rm up}$ $(+++)$ in the left $\omega$-plane — see Fig. 12) can leave their imprint on observables. It is easy to see that the poles residing in the right $\omega$-plane do not meet this criterion and, therefore, can be safely disregarded. For example, in order to reach $I_{\rm up}$ $(+++)$ starting from the lower domain of the RS-I ($I_{\rm low}$ $(+++)$ in the right $\omega$-plane — see Fig. 12) one would need to travel a long way around the inelastic branch point. Among the poles residing in the left $\omega$-plane those on the sheets $(--+)$ and $(---)$ are the most important ones since they are the closest to the physical region of the real energy (the fat black line in Fig. 12). A pole on the sheet $(--+)$ located in the vicinity of the lower elastic threshold (the point $\omega=i$) will result in a significant near-threshold distortion of the line shapes while if the pole is located deeper in the complex plane (but still on the same sheet) it will show up as a clear resonance peak. The poles residing on the sheet $(---)$ will manifest themselves in the observables in exactly the same manner but with respect to the upper threshold. Next in importance are the poles residing on the sheets $(+-+)$ and $(++-)$. They cannot generate resonance humps in the line shapes above threshold but can significantly enhance the cusp-like structure at threshold provided these poles reside not too deep in the complex plane.

It is also important to notice that imposing constraints from unitarity and analyticity on the scattering amplitude $T$ requires that

[TABLE]

This implies that if there is a pole at $\omega=\omega_{0}$ in the left (main) omega plane there must be also a pole at $-\omega_{0}^{*}$ in the right omega plane — see Fig. 12. This mirror pole, however, has no physical significance, as already explained.

Generalisation of the logic discussed above to a larger number of channels is straightforward if one bears in mind that, as before, only one $\omega$-plane sheet containing the domain of the physical energies on RS-I is relevant and that the signs of the imaginary parts for all remote inelastic channels coincide.

For the case at hand, we arrive effectively at a 3-channel (two elastic plus an effective inelastic) problem for the quantum numbers $1^{+-},1^{++}$ and $0^{++}$ while for $2^{++}$, where all three elastic channels are present, the effective problem contains 4 channels.

V.2 Poles of the $Z_{b}$’s and their spin partners

In the vicinity of a pole located at $M=M_{R_{\alpha}}$ the elastic scattering amplitude $T_{\alpha\alpha}(M,p,p^{\prime})$ given in Eq. (III.2) takes the form

[TABLE]

where the energy $M$ is defined in Eq. (82) and $g_{\alpha}^{2}$ and $M_{R_{\alpha}}$ stand for the residue and the pole position in the channel $\alpha$, respectively.

The most relevant poles for the case of the quantum numbers $J^{PC}=1^{+-}$ are collected in Tables 7-7, together with the residues at these poles. As was explained in detail above, we regard a pole as relevant if it has a short (compared with the splitting between the nearest elastic thresholds $\delta$) path to the physical RS-I and as such affects the form of the line shapes. In the pionful fits, the poles representing the $Z_{b}(10610)$ and $Z_{b}(10650)$ states inhabit the sheets $(--+)$ and $(---)$, respectively, and, according to the logic discussed above, reveal themselves in the line shapes as peaks above thresholds.

Also, in Tables 7-7, we present the relevant poles (counted relative to the nearby elastic thresholds) and the corresponding residues predicted for the spin partners in the $0^{++}$, $1^{++}$ and $2^{++}$ channels. For the Pionful fit 2 regarded here as the most reliable calculation, the poles in all channels reside on the sheets closest to the upper domain of the physical RS-I. The poles for the $Z_{b}$ and $W_{b0}^{\prime}$ are located just in the vicinity of the $B\bar{B}^{*}$ and $B^{*}\bar{B}^{*}$ threshold, respectively, and show up as near-threshold distortions in the line shapes (see the black solid lines in Figs. 5 and 7). Meanwhile, the poles representing the other states are shifted from the respective thresholds to the complex plane by about 10–15 MeV and manifest themselves as humps ($Z_{b}^{\prime}$ and $W_{b0}$) or pronounced above-threshold peaks ($W_{b1}$ and $W_{b2}$) (see the black solid lines in Figs. 7–9). The shift of the pole positions in the Pionful fit 2 as compared with the Contact fit, where all poles correspond to virtual states, appears mainly due to the pion dynamics — this effect is fully in line with the findings of Ref. Baru:2017gwo .

V.3 Uncertainty estimate

Uncertainties of the poles and residues given in Tables 7-7 correspond to a $1\sigma$ deviation in the parameters of fit from the central values shown in Table 3. The source of this uncertainty is the experimental errors in the data.

As for the theoretical uncertainty, it can be estimated as the maximum of the two errors from the truncation of the EFT expansion at a given order (for the discussion of the truncation errors in the NN sector see, for example, Ref. Epelbaum:2014efa ) and from the cutoff variation. To explain the truncation error method, let us introduce an observable quantity $X^{(\nu)}(Q)$ calculated to a given order $\nu$ in the EFT expansion in the momentum $Q$,

[TABLE]

where $Q\sim p_{\rm typ}=0.5$ GeV and $\Lambda_{h}\sim 4\pi f_{\pi}\simeq 1$ GeV with $f_{\pi}$ denoting the pion decay constant; $\{\alpha_{n}\}$ are the expansion coefficients with $\alpha_{1}=0$ since there are no operators at the order $Q$.

Then, assuming that the expansion (96) converges, the error at the given order $\nu$ is expected to come from the first neglected chiral order, that is, it should scale as $\chi^{\nu+1}$ unless the coefficient $\alpha^{\nu+1}$ vanishes. In the latter case, the uncertainty is estimated based on the nonvanishing result at the order $\chi^{\nu+2}$, and so on. For example, the observable at LO ($\nu=0$) and its truncation error read

[TABLE]

where we used that $\alpha_{1}=0$.

Although the poles are not observed directly, they manifest themselves in observable quantities such as line shapes, and thus the truncation error method is expected to work for them too. To estimate the truncation error at LO ($\nu=0$), we compare the results calculated explicitly at the orders $\nu=0$ (Pionful fit 1) and $\nu=2$ (Pionful fit 2) to find that the truncation error for the $W_{b2}$ does not exceed 5 MeV while it is only about 1 MeV for the near-threshold state $W_{b0}^{\prime}$ as well as for the $Z_{b}$ and $Z_{b}^{\prime}$ states. On the other hand, the truncation error at LO for the states $W_{b1}$ and $W_{b0}$ is of the order of 15 MeV which does not look unnatural either given the large expansion parameter of the pionful EFT. It also needs to be emphasised that the chiral expansion for the $W_{b0}$ state might converge slower than expected in this work since this state resides near the $B\bar{B}$ threshold that lies by $\delta=45$ MeV lower than the energy region used in the fits for the $Z_{b}$’s. It remains to be seen how the pole position for this state is affected by the inclusion of higher-order interactions.

The truncation error method becomes particularly useful when the results at least at several chiral orders are calculated explicitly, which is not yet feasible. Still, from the results presented above one can conclude that the partner states $W_{b2}$ and $W_{b0}^{\prime}$, both residing near the $B^{*}\bar{B}^{*}$ threshold, indicate a very good stability with respect to the inclusion of higher-order interactions. Since the truncation error estimate for the NLO results (Pionful fit 2) is not possible at present (it would require a complete N2LO calculation) we rely on naturalness to provide a rough estimate of this uncertainty which might be especially useful for the $W_{b1}$ and $W_{b0}$ states. Specifically, to be more conservative we pick the maximal value from the poles given in Tables 7–7 at NLO and multiply it by the expansion parameter to get

[TABLE]

This estimate gives roughly a twice larger uncertainty for the Pionful fit 2 than the cutoff variation.

VI Summary

In this paper we address the properties of the spin partners $W_{bJ}$ with the quantum numbers $J^{++}$ ($J=0,1,2$) of the bottomonium-like states $Z_{b}(10610)$ and $Z_{b}(10650)$. We employ the EFT approach developed previously in Ref. Wang:2018jlv and fix all unknown low-energy constants and couplings from the data on the line shapes in the elastic and inelastic channels for the negative $C$-parity states $Z_{b}$ and $Z_{b}^{\prime}$. After that, the same EFT approach consistent with requirements from unitarity, analyticity and HQSS is employed to predict in a parameter-free way the line shapes of the positive $C$-parity spin partner states $W_{bJ}$ in the corresponding elastic ($B^{(*)}\bar{B}^{(*)}$) and inelastic ($\eta_{b}(nS)\pi$ and $\chi_{bJ}(mP)\pi$) channels.

Because of the positive $C$-parity the $W_{bJ}$’s should be produced in the radiative decays of the vector bottomonium $\Upsilon(10860)$. It is argued that the production operator which involves the tree-level and one-loop contributions behaves as a smooth function of the energy in the near-threshold region of interest here. Therefore, in agreement with the Watson’s theorem, the energy dependence of the line shapes can be predicted based on the strong interaction amplitudes between the heavy mesons in the final state. These amplitudes contain the poles in the vicinity of the thresholds which are associated with the excitation of the $W_{bJ}$ states. In addition, the ratios of the partial branchings to all aforementioned elastic and inelastic decay channels of the $W_{bJ}$ partners come as predictions of our approach, since the overall normalisation constant from the production operator drops out in these ratios in the HQSS limit.

With a multi-channel amplitude at hand which possesses the correct analytic structure we extract the poles of the amplitude in the complex energy plane and its residues at these poles for all four partner states and find that our most advanced pionful analysis of the data on the $Z_{b}$’s (the Pionful fit 2) is consistent with all $W_{bJ}$’s being above-threshold resonances. In contrast to this, in the pionless approach, all $W_{bJ}$’s appear as virtual below-threshold states. Since these two scenarios reveal themselves differently in the line shapes (c.f. threshold cusp versus above threshold hump in the inelastic channels in Fig. 10), the experimental data in various channels relevant for the $W_{bJ}$’s should provide key information on the role of the pion dynamics for the system at hand.

The uncertainties in the pole positions are estimated and discussed in detail. The errors accounted for in this work come from (i) a statistical $1\sigma$ deviation in the parameters allowed by the fit to the data, (ii) truncation of the EFT expansion at a given order and (iii) the cutoff variation. Although the evaluated uncertainties appear to be of a natural size a better estimate of the truncation error would be very desirable. That would call for the inclusion of the two-pion exchange contributions to the elastic potentials at next-to-leading-order which does not involve any new parameters.

We conclude by stating that, although the electro-magnetic fine structure penalty suppresses the probability of the $W_{bJ}$’s production in radiative decays of the $\Upsilon(10860)$ by two orders of magnitude compared with the $Z_{b}^{(\prime)}$ production in the one-pion decays of the $\Upsilon(10860)$, this suppression is to be overcome by the large statistics anticipated for the Belle-II $B$-factory. We, therefore, expect the spin partners of the $Z_{b}$ states to be copiously produced in this experiment.

Acknowledgements.

This work was supported in part by the DFG (Grant No. TRR110) and the NSFC (Grant No. 11621131001) through the funds provided to the Sino-German CRC 110 “Symmetries and the Emergence of Structure in QCD”. Work of V.B. and A.N. was supported by the Russian Science Foundation (Grant No. 18-12-00226).

Appendix A Effective Lagrangians

The low-energy $B^{(*)}\bar{B}^{(*)}$ scattering at leading order ${\cal O}(Q^{0})$ is described by the Lagrangian Mehen:2011yh 222Because of a different convention for the $C$-parity transformation adopted in Ref. Nieves:2012tt , the signs of the off-diagonal terms in the leading order contact terms of the potential $V^{\rm CT}_{\rm LO}[0^{++}]$ given below differ from those in the cited work.

[TABLE]

where $a$ and $b$ are the isospin indices, $\sigma$’s and $\tau$’s are the spin and isospin Pauli matrices, respectively, and the trace is taken in the spin space. The isospin matrices are normalised as $\tau^{A}_{ab}\tau^{B}_{ba}=2\delta^{AB}$. The mass $\bar{M}$ in the kinetic terms is the spin-averaged $B$ meson mass, $\bar{M}=(3m_{*}+m)/4$, and $\delta=m_{*}-m\approx 45$ MeV.

The terms in the first line in Eq. (99) stand for the leading heavy and anti-heavy meson chiral perturbation theory Lagrangian of Refs. Wise:1992hn ; Burdman:1992gh ; Yan:1992gz , written in the two-component notation of Ref. Hu:2005gf . The terms proportional to the potentials $C_{10}$ and $C_{11}$ correspond to the ${\cal O}(Q^{0})$ $S$-wave contact interactions Mehen:2011yh ; AlFiky:2005jd . The superfields $H_{a}$ and $\bar{H}_{a}$ are defined in Eq. (33).

The effective Lagrangian at NLO derived in Ref. Wang:2018jlv reads

[TABLE]

where the contact terms proportional to the potentials $D_{10}$ and $D_{11}$ contribute to $S$-wave interactions while the term $D_{12}$ gives rise to the $S$-$D$ transitions. As explained in Ref. Wang:2018jlv , we are only interested in the $S$-$S$ and $S$-$D$ transitions for the $B^{(*)}\bar{B}^{(*)}$ scattering, so that all terms of the kind $\propto\nabla^{i}H^{\dagger}\nabla^{j}H$ contributing to $P$ waves are dropped.

Further, we define the combinations

[TABLE]

where the subindex $d$ ($f$) labels the diagonal (off-diagonal) terms. These are the parameters used in the main text.

Appendix B Partial wave projectors

A complete set of the relevant projectors $\{P(\alpha,{\bm{n}})\}$, with $\alpha$ indicating an elastic channel as given in Eq. (9), used to arrive at the partial-wave-projected potentials (66) reads (for simplicity, the unit vector ${\bm{n}}$ is omitted in the argument)

[TABLE]

[TABLE]

where

[TABLE]

[TABLE]

[TABLE]

All projectors above are normalised as

[TABLE]
