An ideal Weyl semimetal induced by magnetic exchange

TL;DR

This paper proposes EuCd$_2$As$_2$ as a magnetic Weyl semimetal with a single pair of Weyl nodes induced by magnetic exchange, confirmed through multiple experimental and theoretical methods, enabling new tests of Weyl physics.

Contribution

It introduces EuCd$_2$As$_2$ as a magnetic Weyl semimetal with a controllable Weyl node pair, advancing material realization for Weyl physics studies.

Findings

Weyl nodes are induced by magnetic exchange in EuCd$_2$As$_2$

Weyl nodes are near the Fermi level and isolated from other bands

Experimental evidence from ARPES, quantum oscillations, and Hall measurements

Abstract

Weyl semimetals exhibit exceptional quantum electronic transport due to the presence of topologically-protected band crossings called Weyl nodes. The nodes come in pairs with opposite chirality, but their number and location in momentum space is otherwise material specific. Following the initial discoveries there is now a need for better material realizations, ideally comprising a single pair of Weyl nodes located at or very close to the Fermi level and in an energy window free from other overlapping bands. Here we propose the layered intermetallic EuCd$_2$As$_2$ to be such a system. We show that Weyl nodes in EuCd$_2$As$_2$ are magnetically-induced via exchange coupling, emerging when the Eu spins are aligned by a small external magnetic field. The identification of EuCd$_2$As$_2$ as a model magnetic Weyl semimetal, evidenced here by ab initio calculations, photoemission spectroscopy, quantum oscillations and anomalous Hall transport measurements, opens the door to fundamental tests of Weyl physics.

Figures

c, and for a single pair of nodes at $E_{\rm F}$ the anomalous Hall conductivity has the universal form Burkov ([2014](#bib.bib4)),

Equations

$${\sigma }_{yx}^{\mathrm{AHE}}=\frac{e^2}{2\pi h}\Delta k.$$

Full text

††preprint: APS/123-QED

Weyl semimetals (WSMs) exhibit exceptional quantum electronic transport due to the presence of topologically-protected band crossings called Weyl nodes Armitage et al. (2018); Burkov (2016). The nodes come in pairs with opposite chirality, but their number and location in momentum space is otherwise material specific.

Weyl nodes are distinct from other topological features of electron band structures in severals respects, including (1) the bulk bands that cross at a Weyl node are non-degenerate, (2) the associated Weyl fermions have a definite chirality, and (3) the Weyl nodes are protected against perturbations that do not couple the nodes Wan et al. (2011); Armitage et al. (2018); Burkov (2016). Moreover, the individual nodes within a pair act as a source and a sink of Berry curvature, a topological property of the electronic wavefunctions which relates directly to several anomalous transport phenomena Armitage et al. (2018); Burkov (2014).

Weyl semimetal phases in crystals require either broken spatial inversion symmetry, or broken time-reversal symmetry (TRS), or both. There are a number of experimental realizations of the first type (with broken inversion symmetry only), especially in the TaAs structural family Xu et al. (2015a); Lv et al. (2015); Yang et al. (2015); Xu et al. (2015b, c), but magnetic WSMs (with broken TRS) are still rare. The few known candidates are complicated by multiple pairs of Weyl nodes and/or by extra (non-topological) Fermi surface pockets which shroud the Weyl nodes Wan et al. (2011); Suzuki et al. (2016); Liu et al. (2018); Wang et al. (2016a); Nakatsuji et al. (2015); Sakai et al. (2018). Magnetic WSMs are important for fundamental studies of Weyl fermions because it is possible for such systems to have only a single pair of Weyl nodes which, due to inversion symmetry, are guaranteed to be at the same energy and so have a vanishing density of states. By contrast, WSMs formed by breaking inversion symmetry (but with TRS) have a minimum of four nodes which are in general separated in energy.

Following the initial discoveries Xu et al. (2015a); Lv et al. (2015); Yang et al. (2015) there is now a need for better material realizations of WSMs, ideally comprising a single pair of Weyl nodes located at or very close to the Fermi level and in an energy window free from other overlapping bands. Here we propose the layered intermetallic EuCd2As2 Wang et al. (2016b); Rahn et al. (2018) to be such a system. We show that Weyl nodes in EuCd2As2 are magnetically-induced via exchange coupling, emerging when the Eu spins are aligned by a small external magnetic field applied along the $c$ axis.

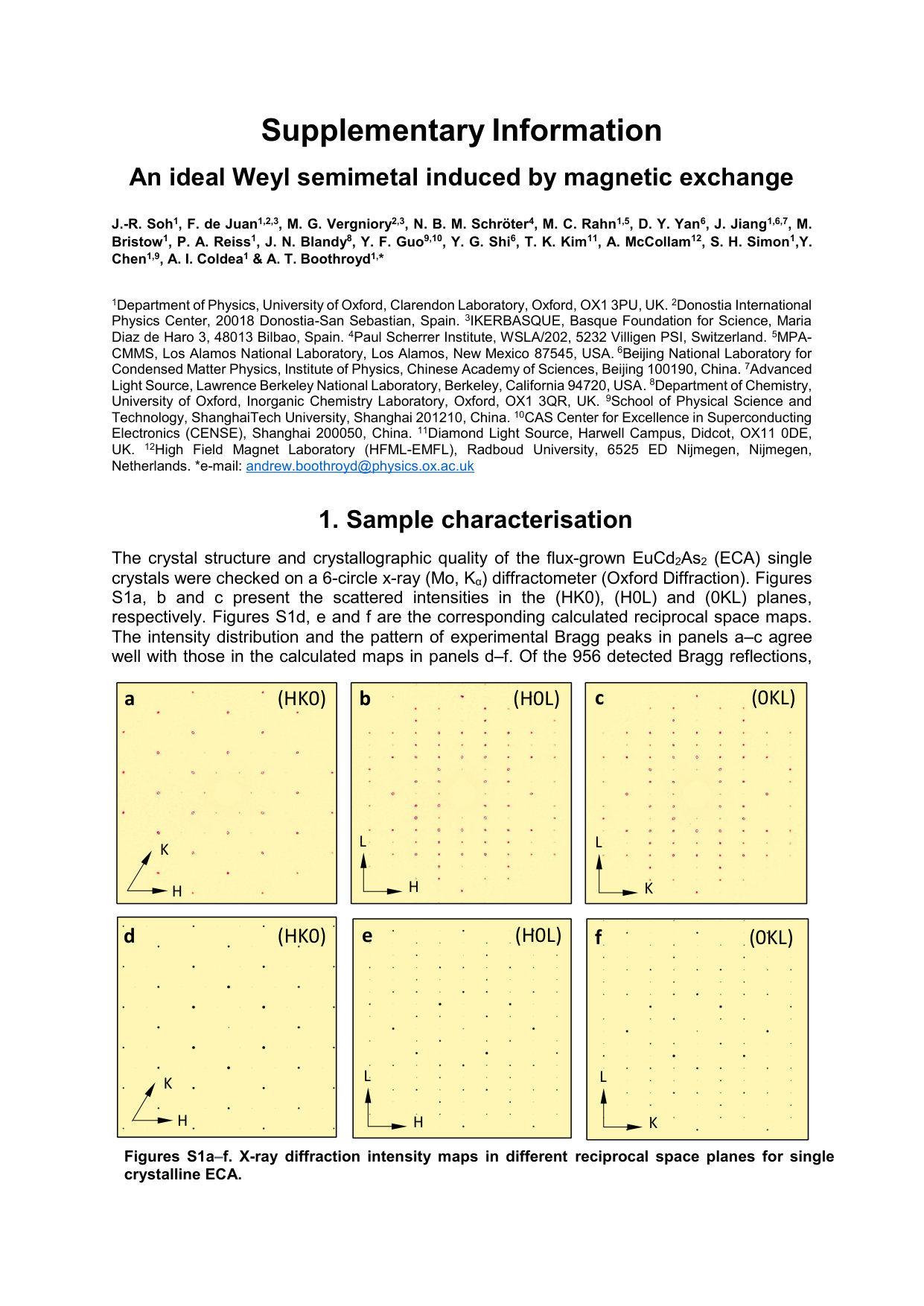

Bulk single crystals of EuCd2As2 (ECA) were grown by a NaCl/KCl flux method Schellenberg et al. (2011). The magnetic, transport and crystallographic properties of the crystals were fully consistent with earlier reports Rahn et al. (2018); Wang et al. (2016b); Schellenberg et al. (2011) (see Supplemental Material sup ). Magnetotransport measurements were performed on a Quantum Design Physical Properties Measurement System for fields $B<16$ T, and at the High Field Magnet Laboratory, Nijmegen, and the National High Magnetic Field Laboratory, Tallahassee, for fields up to 38 T and 45 T, respectively. ARPES measurements were performed at the high–resolution branch line of the beamline I05 at the Diamond Light Source, UK Hoesch et al. (2017). A Scienta R4000 analyzer was used to select a photon energy of 130 eV, which approximately corresponds to the $k_{z}=0$ measurement plane. The sample temperature was $T\sim 5$K.

To calculate the band structure we employed density functional theory (DFT) as implemented in the Vienna Ab-initio Simulation Package (VASP) Kresse and Furthmüeller (1996); Kresse and Furthmüller (1996). The exchange correlation term is described according to the Perdew-Burke-Ernzerhof (PBE) prescription together with projected augmented-wave pseudopotentials Perdew et al. (1996). For the self-consistent calculations we used a 10$\times$10$\times$5 $k$-points mesh. The kinetic energy cut-off was set to 550 eV. The spin-polarized band structures are calculated within GGA+U, with the value of U chosen to be 5 eV to match the position of the Eu 4$f$ bands in the ARPES spectrum. The lattice parameters used in the calculations were $a=b=0.443$ nm and $c=0.729$ nm (see Supplemental Material sup ).

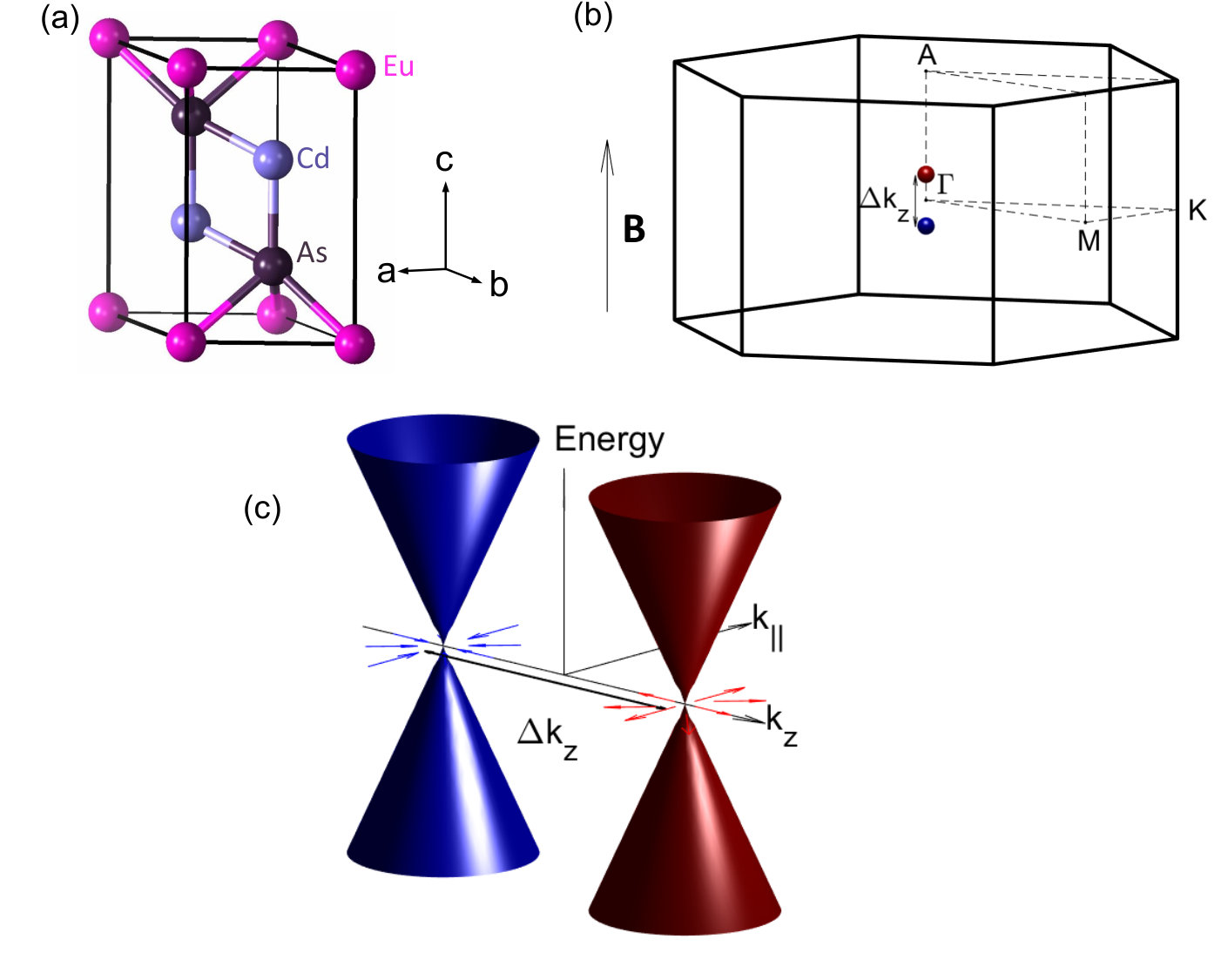

The trigonal crystal structure of ECA, shown in Fig. 1(a), contains alternating layers of Eu2+ and [Cd2As2]2- (Ref. Artmann et al. (1996)). The Eu ions carry a localized magnetic moment with spin $S=7/2$ and essentially zero orbital angular momentum. Below $T_{\rm N}=9.5$ K the spins order in an A-type antiferromagnetic (AFM) structure in which the spins form ferromagnetic layers which stack antiferromagnetically along the $c$ axis [Fig. 2(a)] Rahn et al. (2018). A relatively small magnetic field ($B_{\rm c}=1.6$ T at $T=2$ K for $B\parallel c$) can be used to coerce the Eu spins into a fully aligned state Rahn et al. (2018). ECA is metallic at temperatures down to $T\sim 80$ K, but for lower temperatures the resistivity increases to a sharp maximum at $T_{\rm N}$ before falling again at lower temperatures. This behaviour has been interpreted as due to scattering of conduction electrons by fluctuations of localized Eu magnetic moments which are exchange-coupled to the Cd and As orbitals Rahn et al. (2018); Wang et al. (2016b).

In previous ab initio electronic structure calculations, where spins in the AFM state were found to be aligned with the $c$ axis, ECA was predicted to host a band inversion of doubly-degenerate As $4p$ and Cd $5s$ states near the Fermi level ($E_{\rm F}$), producing a crossing along the $\Gamma-A$ line protected by $C_{3}$ symmetry Hua et al. (2018); Rahn et al. (2018). Experimentally Rahn et al. (2018) (and in more recent calculations Krishna et al. (2018)) the spins are in fact found to point perpendicular to the $c$ axis [Fig. 2(a)] breaking $C_{3}$ symmetry, so an avoided crossing at finite momentum would be expected.

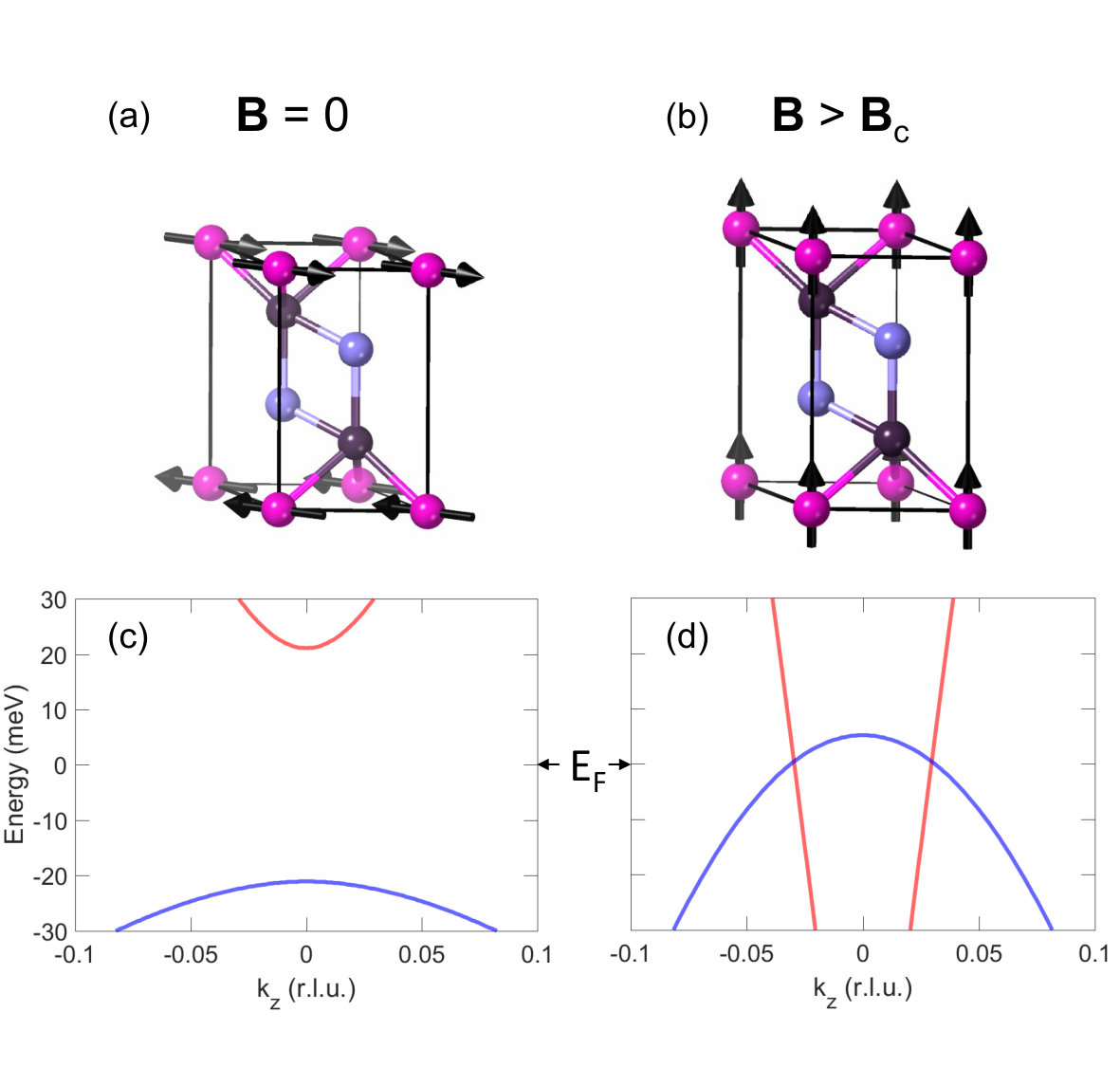

We performed new ab initio calculations of the electronic structure of ECA with the Eu spins configured (1) in the AFM state [Fig. 2(a)], and (2) in the ferromagnetic state with Eu spins fully aligned along the $c$ axis [Fig. 2(b)]. In the AFM state, the combination of time-reversal and inversion symmetry requires every band to be doubly degenerate. For a wide range of parameters, the AFM state displays a small direct gap at $\Gamma$ (Fig. 2(c) and Supplemental Material sup ) which is mostly insensitive to the orientation of the spins. When the Eu spins are fully spin-polarized along the $c$ axis the double degeneracy is lifted, and a single pair of Weyl nodes appears at $E_{\rm F}$ with no other Fermi surface pockets in the Brillouin zone (Fig. 2(d) and Supplemental Material sup ). These Weyl nodes lie along the $\Gamma-$A high symmetry line [see Fig. 1(b)] at wavevectors ${\bf k}=(0,0,\pm k_{0})$ with $k_{0}\simeq 0.03\times 2\pi/c=0.26$ nm*-1*. ECA in a small magnetic field applied along the $c$ axis, therefore, is predicted to be a Weyl semimetal with a single pair of Weyl nodes located at $E_{\rm F}$.

The band splitting in the saturated phase is found to be $\sim$100 meV, which is two orders of magnitude larger than the Zeeman splitting in the saturation field $B_{\rm c}$. From this we can conclude, first, that the calculations, which include exchange but no Zeeman interaction, are a good representation of the experimental situation in which a small magnetic field is used to align the Eu spins, and second, that the existence of the Weyl nodes is driven by exchange coupling to the Eu spins.

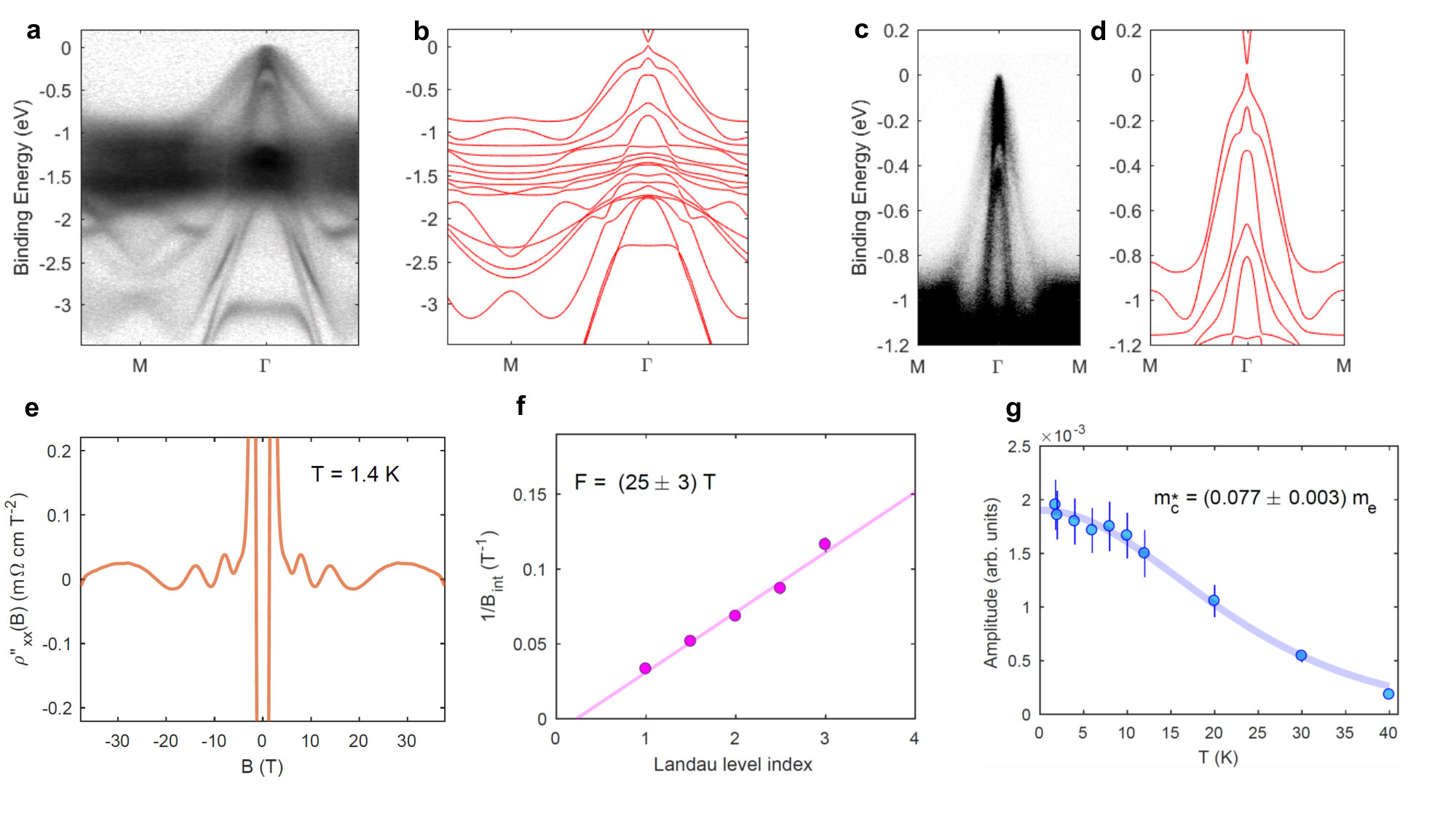

In order to validate the ab initio predictions we carried out angle-resolved photoemission spectroscopy (ARPES) and quantum oscillations measurements. ARPES data on ECA for $T<T_{\rm N}$ and zero applied magnetic field are presented in Figs. 3(a) and (c). These $k$–$E$ plots are for $k$ along the M–$\Gamma$–M path [see Fig. 1(b)] and show steeply dispersing bands approaching $E_{\rm F}$. The spectra are in good agreement with the ab initio band structure [Figs. 3(b) and (d)] calculated for the observed AFM state with spins lying in the plane. The agreement is best when $E_{\rm F}$ is shifted slightly downward by about 50 meV, which indicates that the sample is very slightly hole-doped.

Our quantum oscillations measurements are summarized in Figs. 3(e)–(g). Figure 3(e) shows the second derivative of the in-plane longitudinal resistance measured at $T=1.4$ K in magnetic fields applied parallel to the $c$ axis ($B\parallel c$) up to 37 T, well above the coercive field (see Supplemental Material sup for details of the data treatment). For $B<B_{\rm c}$ there is a very strong variation in magnetoresistance associated with the progressive canting of the spins towards the $c$ axis, shown also in Fig. 4(a), but at higher fields the curve displays clear Shubnikov–de Haas (SdH) oscillations. Only a single SdH oscillation frequency could be resolved, consistent with a single band. Moreover, we do not find any evidence for a spin-splitting of the Landau levels, in contrast to the SdH data on the structurally-related Dirac semimetal Cd3As2 (Ref. Narayanan et al. (2015)). A lack of spin splitting would be consistent with the prediction that for $B>B_{c}$ the bands are already split by a constant exchange field, implying that the observed SdH oscillations correspond to the small pockets derived from the Weyl points when $E_{\rm F}$ is shifted downwards slightly, as suggested by the ARPES measurements.

The maxima and minima of the oscillations are plotted on a Landau level index plot in Fig. 3(f), with minima in $\rho_{xx}$ assigned to the integers Ando (2013). The SdH frequency obtained from the gradient is $F=25\pm 3$ T, which converts via the Onsager relation $F=(\hbar/2\pi e)A_{\rm ext}$ to an extremal area of the Fermi surface perpendicular to the $c$ axis of $A_{\rm ext}=0.24$ nm*-2*, or $k_{\rm F}=0.28$ nm*-1* assuming a circular cross-section. This $A_{\rm ext}$ value represents approximately 0.1% of the cross-sectional area of the Brillouin zone perpendicular to the $c$ axis. Measurements at higher fields up to 45 T did not find any additional oscillation frequencies (see Supplemental Material sup ), and confirmed that the maximum centred on 30 T in Fig. 3(d) corresponds to the quantum limit (first Landau level).

Figure 3(f) shows the temperature dependence of the SdH oscillation amplitude up to 40 K. By fitting the data to the Lifshitz–Kosevich formula (amplitude $\sim X/\sinh X$, where $X=2\pi^{2}k_{\rm B}Tm_{\rm c}^{\ast}/e\hbar B$ and $m_{\rm c}^{\ast}=(\hbar^{2}/2\pi)\,{\rm d}A_{\rm ext}/{\rm d}E$) we obtain a cyclotron effective mass of about $m_{\rm c}^{\ast}=0.08m_{\rm e}$. The observation that $m_{\rm c}^{\ast}/m_{\rm e}\ll 1$ is consistent with quasiparticles near a Dirac or Weyl node. A small effective mass is also found in our ab initio calculations. Assuming $k_{\rm F}=0.28$ nm*-1*, as determined from the SdH data, and a circular Fermi surface cross-section, we obtain $m_{\rm c}^{\ast}=0.18m_{\rm e}$ from the calculated band structure. We caution, however, that the measured and calculated $m_{\rm c}^{\ast}$ are not directly comparable because the Lifshitz–Kosevich formula assumes that the Landau levels are equally-spaced and that many levels are filled, neither of which applies here.

Our quantum oscillations and ARPES results, as well as previous optical reflectivity measurements which found clear evidence for a very low carrier density Wang et al. (2016b), all point to a very small Fermi surface, and support the prediction that in the spin-polarized state of ECA there is a single pair of Weyl nodes located close to $\Gamma$ along $\Gamma-$A, in a small window of energy free from other bands. The small effective mass and Fermi surface area from the SdH data, together with $p$-type Hall transport Rahn et al. (2018), indicate that the crystals used in this study are slightly hole-doped. From the SdH measurements and ab initio in-plane dispersion we estimate that $E_{\rm F}$ is located approximately 52 meV below the Weyl node (see Supplemental Material sup ), which is consistent with the shift applied to the DFT bands in order to match the ARPES data.

In recent years, there has been a great deal of interest in measuring anomalous transport effects caused by Berry curvature in topological semimetals, especially the anomalous Hall effect (AHE) Nagaosa et al. (2010); Burkov (2014). In a Weyl semimetal, the Berry curvature is associated with the separation $\Delta k$ of the Weyl nodes in k-space, as illustrated in Fig. 1c, and for a single pair of nodes at $E_{\rm F}$ the anomalous Hall conductivity has the universal form Burkov (2014),

[TABLE]

In experiments, $\Delta k$ is typically field-dependent due to the effect of field on the band splitting. This makes it difficult to separate the anomalous and semi-classical contributions to the Hall effect, as the latter is also field-dependent. In ECA, however, $\Delta k$ is almost constant for fields above the saturation field $B_{\rm c}=1.6$ T, which makes it straightforward to isolate the anomalous part of the Hall resistivity. In principle, therefore, ECA is an ideal system for studying the AHE experimentally.

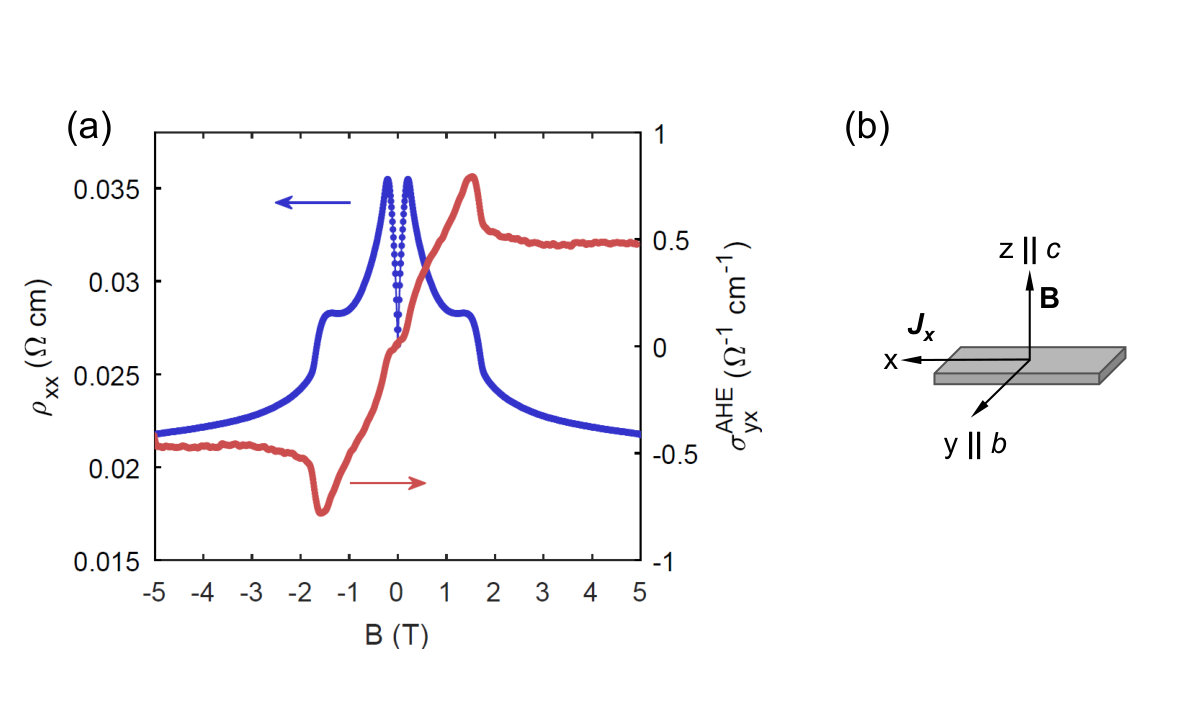

Figure 4(a) presents measurements of the longitudinal magnetoresistance $\rho_{xx}$ and the anomalous part of the transverse (Hall) conductivity $\sigma_{yx}^{\rm AHE}$ at $T=2$ K as a function of field applied parallel to the $c$ axis (the experimental geometry is shown in Fig. 4(b), and the procedure to obtain the anomalous part of $\sigma_{yx}$ is described in the Supplemental Material sup ). There are rapid changes in $\rho_{xx}$ at low field due to the reorientation of the Eu spins in the magnetic field, as noted earlier, but above the saturation field $B_{\rm c}=1.6$ T $\rho_{xx}$ decreases monotonically with field. The field range in Fig. 4(a) is below that where quantum oscillations become observable [see Fig. 3(e)]. The $\sigma_{yx}^{\rm AHE}(B)$ curve is an odd function of field, increasing rapidly for $0<B<B_{\rm c}$ and remaining constant for $B>B_{\rm c}$, consistent with a non-zero anomalous Hall conductivity.

Assuming $\Delta k\simeq 0.52$ nm*-1* from our ab initio results, equation (1) predicts the anomalous Hall conductance for ECA to be $\sigma_{yx}^{\rm AHE}\simeq 30$ $\Omega^{-1}$cm*-1*, which is significantly larger than observed. This prediction, however, applies only when the Weyl nodes lie exactly at $E_{\rm F}$. In the samples used here the nodes are slightly shifted from $E_{\rm F}$, and in this situation other factors are expected to affect the Berry phase Nagaosa et al. (2010). One such factor is disorder. We have found the AHE in ECA to be reduced by the polishing process used to shape the Hall bar samples. Although it has been argued that disorder-induced contributions to the AHE are absent when $E_{\rm F}$ is near the nodes Burkov (2014), the presence of a tilt in the dispersion makes these contributions possible in the form of skew scattering Steiner et al. (2017); Mukherjee and Carbotte (2018). The significant tilt predicted in our ab initio calculations [Fig. 2(d)] might explain why the AHE is so reduced.

The simple structure of the Weyl nodes in ECA makes it an ideal material with which to study the different contributions to the AHE. This could be achieved by tuning the position of $E_{\rm F}$ relative to the Weyl nodes by doping or application of pressure, or by controlling the level of defects by irradiation. The degrading effects of polishing could be avoided by studying transport phenomena with thin film samples.

More generally, ECA could provide the means to test predictions of other exotic physics in Weyl semimetals, such as the anomalous Nernst and thermal Hall effects Sakai et al. (2018); Ferreiros et al. (2017), non-reciprocal effects in light propagation Kotov and Lozovik (2018), the repulsive Casimir effect Wilson et al. (2015), or to probe the effects of the chiral anomaly in the optical absorption Ashby and Carbotte (2014) and non-local transport Parameswaran et al. (2014).

Note added: Very recently, Ma et al. Ma et al. (2019) reported ARPES results on EuCd2As2 which provide evidence for the existence of dynamically fluctuating Weyl points due to ferromagnetic correlations present in zero field at $T>T_{\rm N}$. The results in Ref. Ma et al., 2019 provide experimental confirmation that the DFT calculations correctly predict the effects of ferromagnetic polarization of the Eu spins on the band structure.
