Local vs. long-range infection in unidimensional epidemics

TL;DR

This paper investigates how local and long-range interactions influence the spread of epidemics in a one-dimensional lattice, revealing that long-range transmissions do not significantly change critical behavior.

Contribution

It introduces a unidimensional contact process model incorporating both local and long-range infection mechanisms, confirming earlier theoretical predictions through numerical analysis.

Findings

Long-range interactions do not significantly alter critical exponents.

Numerical results support early field-theoretic predictions.

The model captures vector-mediated transmission effects.

Abstract

We study the effects of local and distance interactions in the unidimensional contact process (CP). In the model, each site of a lattice is occupied by an individual, which can be healthy or infected. As in the standard CP, each infected individual spreads the disease to one of its first-neighbors with rate $\lambda$, and with unitary rate, it becomes healthy. However, in our model, an infected individual can transmit the disease to an individual at a distance $\ell$ apart. This step mimics a vector-mediated transmission. We observe the host-host interactions do not alter the critical exponents significantly in comparison to a process with only L\'evy-type interactions. Our results confirm, numerically, early field-theoretic predictions.

Figures

Tables

Table 1. Table 1: Critical values of the control parameter, λ v ∗ superscript subscript 𝜆 𝑣 \lambda_{v}^{*} , and critical exponent δ 𝛿 \delta as a function of λ h subscript 𝜆 ℎ \lambda_{h} for α = 0.5 , 1.0 , 1.5 𝛼 0.5 1.0 1.5 \alpha=0.5,1.0,1.5 and 2.0 2.0 2.0 .

	$\alpha$
	$0.5$		$1.0$		$1.5$		$2.0$
${\lambda }_h$	${\lambda }_v$	$\delta$	${\lambda }_v$	$\delta$	${\lambda }_v$	$\delta$	${\lambda }_v$	$\delta$
0.1	7.68415(5)	0.94(1)	13.5159(5)	0.50(1)	28.8596(5)	0.29(2)	77.98(1)	0.16(1)
0.5	1.24847(5)	0.91(1)	2.0433(1)	0.51(2)	3.4256(1)	0.28(1)	5.8545(5)	0.16(1)
1.0	0.446503(5)	0.89(1)	0.764393(5)	0.49(1)	1.2614(1)	0.29(1)	1.9832 (5)	0.16(1)
1.5	0.19355(1)	0.89(1)	0.36126(1)	0.49(1)	0.6185(1)	0.26(1)	0.9578(1)	0.16(1)
2.0	0.081827(1)	0.89(2)	0.1728(1)	0.49(2)	0.3177(1)	0.26(1)	0.4972(1)	0.16(1)
2.5	0.027251(1)	0.85(2)	0.07132(1)	0.49(2)	0.1477(1)	0.26(1)	0.2378(1)	0.16(1)
3.0	0.003903(1)	0.82(2)	0.015922(5)	0.48(2)	0.0425(1)	0.23(2)	0.07258(1)	0.16(1)

Table 2. Table 2: Critical values of the control parameter, λ v ∗ superscript subscript 𝜆 𝑣 \lambda_{v}^{*} , and critical exponent δ 𝛿 \delta as a function of λ h subscript 𝜆 ℎ \lambda_{h} for α = 0.5 , 1.0 , 1.5 𝛼 0.5 1.0 1.5 \alpha=0.5,1.0,1.5 and 2.0 2.0 2.0 .

	$\alpha$
	$0.5$		$1.0$		$1.5$		$2.0$
${\lambda }_h$	$\beta /{\nu }_{⟂}$	$z$	$\beta /{\nu }_{⟂}$	$z$	$\beta /{\nu }_{⟂}$	$z$	$\beta /{\nu }_{⟂}$	$z$
0.1	0.55(2)	0.56(1)	0.45(1)	0.84(2)	0.36(2)	1.20(3)	0.26(2)	1.60(3)
0.5	0.52(2)	0.56(1)	0.42(2)	0.82(2)	0.35(2)	1.18(4)	0.26(2)	1.53(2)
1.0	0.51(1)	0.56(1)	0.42(2)	0.82(1)	0.34(1)	1.16(4)	0.25(2)	1.56(4)
1.5	0.50(1)	0.56(1)	0.43(1)	0.80(1)	0.35(2)	1.09(3)	0.26(3)	1.60(3)
2.0	0.49(1)	0.58(1)	0.42(2)	0.82(1)	0.34(3)	1.14(3)	0.23(4)	1.67(3)
2.5	0.50(2)	0.58(2)	0.42(2)	0.83(2)	0.33(2)	1.17(3)	0.26(3)	1.53(3)
3.0	0.50(2)	0.60(2)	0.43(2)	0.83(2)	0.34(6)	1.24(3)	0.27(3)	1.52(3)

Equations

$$\ell =\frac{\sin (\alpha V)}{[\cos (V){]}^{\frac{1}{\alpha }}}{\left\{\frac{\cos [(1-\alpha )V]}{W}\right\}}^{\frac{1-\alpha }{\alpha }},$$

$$\rho (t)=t^{-\delta },$$

$${\rho }_{qs}\sim L^{-\beta /{\nu }_{\perp }}.$$

$$\tau \sim L^z,$$

Full text

Keywords: Contact process, Lévy-flights, absorbing state, nonequilibrium phase transitions, critical phenomena

I Introduction

The contact process (CP) harris-CP is a stochastic epidemics model with spatial structure durrett . In the CP, each individual inhabits a site on a $d-$dimensional lattice and can be in one of two states: healthy or infected. Each infected individual transmits the disease to one of its nearest-neighbors with rate $\lambda$, or become healthy with a unitary rate. When the transmission rate $\lambda$ is varied, the system undergoes a phase transition between disease-free and endemic phases.

Apart from its interest as an elementary spatial model of epidemic spreading, the critical behavior of the CP (and its variations) is interesting in the study of nonequilibrium universality classes. The disease-free state is an absorbing state, a frozen state with no fluctuations marro ; henkel ; odor07 ; hinrichsen ; odor04 . Nonequilibrium phase transitions into absorbing states have been a topic of much interest in recent decades. In addition to their connection with epidemics, they appear in a wide variety of problems, such as heterogeneous catalysis zgb , interface growth tang , population models and ecology scp . Recent experimental realizations in the liquid crystal electroconvection take07 , driven suspensions pine and superconducting vortices okuma have heightened interest in absorbing transitions.

It is expected that absorbing state phase transitions in models with a positive unidimensional order parameter, short-range interactions, and without additional symmetries or quenched disorder belong generically to the universality class of directed percolation (DP)janssen ; grassberger . Including long-range interactions in spreading processes can provide more realistic models, instead of short-range models as the original CP, for example, to model spreading of vector-borne diseases dengue . One of the first approaches was the model proposed by Grassberger grass86 , based on the original idea presented in mollison . In his model, the infection probability obeys a Lévy flight decaying as a power-law relation $1/r^{\alpha+d}$ with the distance $r$, where $d$ is the spatial dimension of the system and $\alpha$ is a control parameter. Simulational hinri99 ; hinri07 and field-theoretical renormalization group analysis janssen99 revealed that such anomalous directed percolation presents critical exponents varying continuously with the parameter $\alpha$.

A generalized version of the unidimensional CP where inactive (healthy) sites can be activated (infected) over long distance was introduced by Ginelli et al. ginelli05 ; ginelli06 , inspired by pinning-depinning transitions in nonequilibrium wetting phenomena. In such model, an active site infects an inactive with rate $q/\ell^{\alpha}$, where $q$ is the coordination number and $\ell$ is the distance between both sites. Depending on the value of the control parameter $\alpha$, the contact process with long-range interactions exhibits a rich phase diagram, with distinct universality classes and discontinuous phase transitions ginelli05 ; ginelli06 ; hinri07 ; fiore07 . The robustness of these discontinuous phase transitions was studied in fiore13 . More recent studies focused on the effects of quenched disorder igloi and diffusion pedro . Inspired by diseases that can spread via host-host in addition to long-distance spreading, in this work, we examine the effects of an additional local infection in the unidimensional CP with Lévy flights.

The remainder of this paper is organized as follows. In Sec. II we introduce the model and methods used in our analysis. In Sec. III we present our results. Section IV is devoted to discussion and conclusions.

II Model and methods

To begin, we modify the standard contact process to include long distance infection. An infected host, placed at a site $i$ on the lattice, is signed by a state variable $\sigma_{i}=1$. It infects one of its healthy (signed by $\sigma_{j}=0$) nearest-neighbors with rate $\lambda_{h}$, or become healthy with rate $\mu=1$. In addition, the infected host can infect a healthy individual located at some distance, with rate $\lambda_{v}$. Here, $\lambda_{v}$ and $\lambda_{h}$ are the control parameters that govern the epidemic spreading. Each flight is described by using a Lévy distribution levy1 , which is characterized by an exponent $\alpha$. These events are schematically represented in Fig. 1. Note that the evolution occurs in two independent steps, one concerning direct host-host infection, and the other, vector-mediated infection, related to the flights.

This model can be interpreted as a prototypical model for diseases which can spread via vectors which can transmit the pathogen over long distances, and also by direct host-host contact. Since the CP is a spatial lattice model, it is in a core of models used in Ecology to investigate criticality in process determined by the local structure (configuration of trees) eco . In nature, it is possible to occur long-range infections, as, for example in orchards where flying parasites contaminate the trees almost instantaneously in a widespread manner if the timescale of the flights of the parasites is much shorter than the mesoscopic timescale of the epidemic process itself janssen08 . We should remark, however that our model is not suitable for modelling the spreading of human diseases such as the Zika virus, which is transmitted by mosquitoes, and by parental or sexual contact zika1 ; zika2 ; zika3 . The length of intrinsic and extrinsic incubation periods of human vector-mediated diseases can be up to 2 weeks, and it is an essential factor that determines the transmission dynamics. In addittion, differently from trees, the human contact network is not a lattice, but instead a complex network, which also affects drastically the epidemic spreading networks1 ; networks2 ; networks3 . Both factors should be introduced in the model in a future work, if one intends modelling such diseases.

In the simulation scheme, each step is divided in two events: (i) local, where an infected individual infects one of its neighbors (chosen at random) with probability $q=\lambda_{h}/(1+\lambda_{h})$ or it becomes healthy with probability $\nu=1/(1+\lambda_{h})$; (ii) long-range, where an individual is infected with probability $q^{\prime}=\lambda_{v}/(1+\lambda_{v})$, or nothing happens with probability $v^{\prime}=1/(1+\lambda_{v})$. To improve efficiency, we maintain a list of infected individuals, and time is updated as $\Delta t=1/N_{inf}$ at each iteration (here $N_{inf}$ is the number of infected individuals).

The implementation of the vector flies consider a Lévy-distributed random variables. The strategy to obtain such random flies is based on a nonlinear transformation of Gaussian random variables Janicki . This strategy is based on the following recipe: i. First, a random variable $V$ distributed homogeneously on ($-\pi/2,\pi/2$) is generated. ii. Second, an exponential variable $W$ with unity mean is generated. iii. Finally, we compute the random variable $\ell$ levy2 , following

[TABLE]

where $\alpha$ is a control parameter of the length of the flies (this results in random flies with probability distribution function of length decaying as $\ell^{-(1+\alpha)}$) levy2 .

We have done dynamical and stationary simulations. The dynamical simulations follow the system stochastic evolution from spreading (where the system is initialized with a “seed”, i.e, only one site is infected at $t=0$), and initial decay studies ( here the system evolves from a full infected lattice). On the other hand, in the stationary simulations, we are interested in the (long-time) time independent behavior. Stationary analysis nearby the critical point of systems with transitions into absorbing states are hard to be done due to strong finite size effects. This is consequence of that, in conventional simulations, small systems quickly become trapped in the absorbing state (in this case, we can say of a quasistationary state (since the only true stationary state is the absorbing one). In order to circumvent such difficulties, we employ a simulation method that yields quasistationary (QS) properties directly qssim1 ; qssim2 . The method is based in maintaining, and gradually updating, a list of $M$ configurations visited during the evolution; when a transition to the absorbing state is imminent, the system is instead placed in one of the saved configurations. Otherwise, the evolution is exactly that of a conventional simulation. This procedure results in an unbiased sampling of the quasistationary distribution of the process, and improve the statistics.

III Results and discussion

In order to analyze the dynamical scaling of the model at criticality, we employed initial decay simulations in a unidimensional lattice of $L$ sites (with periodic boundary conditions). The initial decay studies use an initial configuration with all sites occupied. The order parameter $\rho(t)=\dfrac{1}{L}\sum\sigma_{i}$ is the density of active sites, i.e., the fraction of infected individuals. At the critical point, one expects to observe a power-law behavior of the density

[TABLE]

until it saturates at its QS value. The larger the system size, the longer the period of power-law decay, and the more precise the resulting estimate for the critical exponent $\delta$. In the initial decay studies, we have used systems with size up to $L=10^{8}$, and averages are taken over up to $10^{6}$ runs.

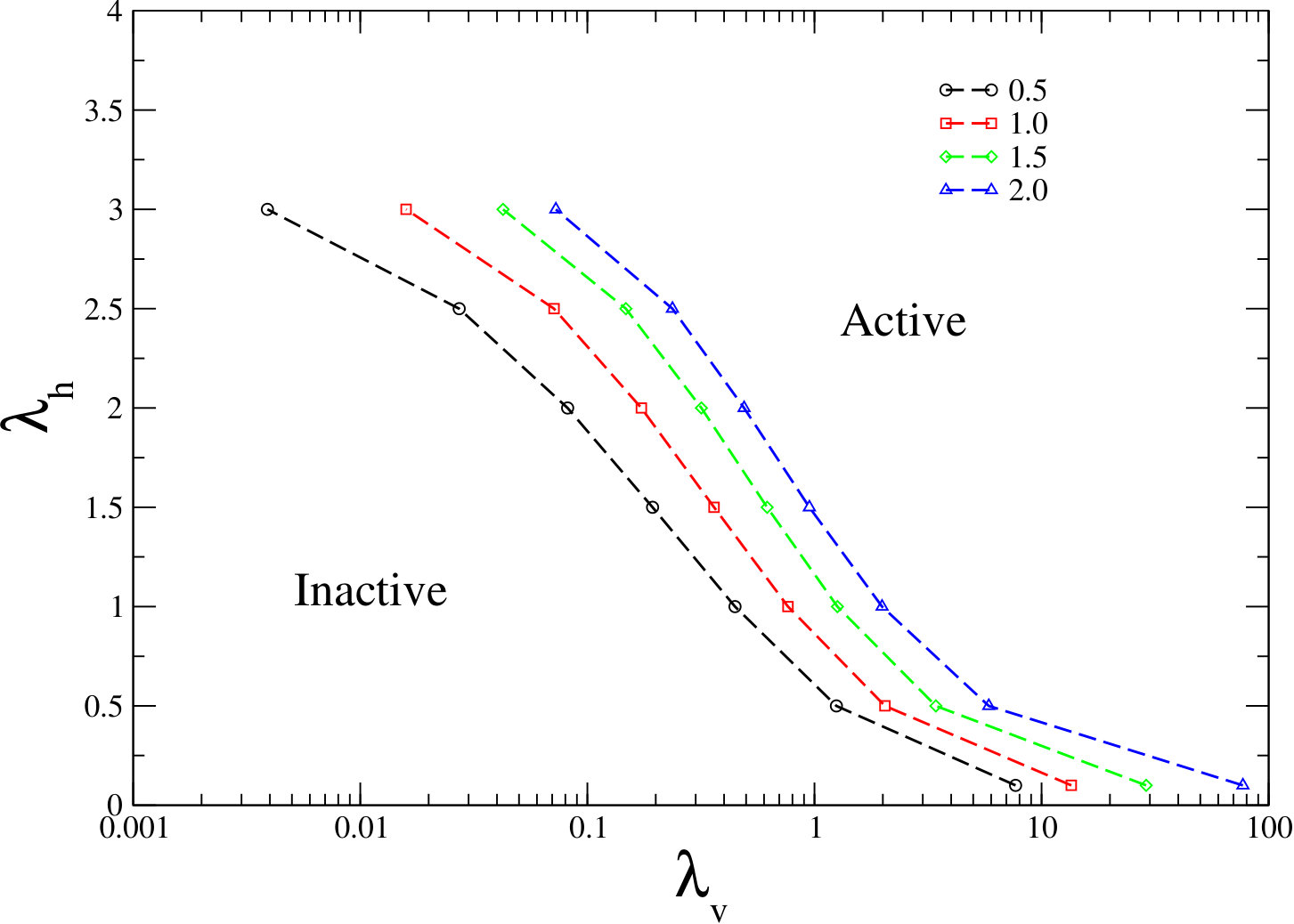

From the spreading simulations, we observe there is a critical value of ($\lambda_{h}$,$\lambda_{v}$) above which the activity survives, while for values below such critical point, the system becomes trapped in the absorbing state. The phase diagram obtained in the $\lambda_{h}\times\lambda_{v}$ plane is plotted in Fig. 2. As expected, the absorbing phase is larger when $\alpha$ increases, since small values of $\alpha$ favor the epidemic spreading.

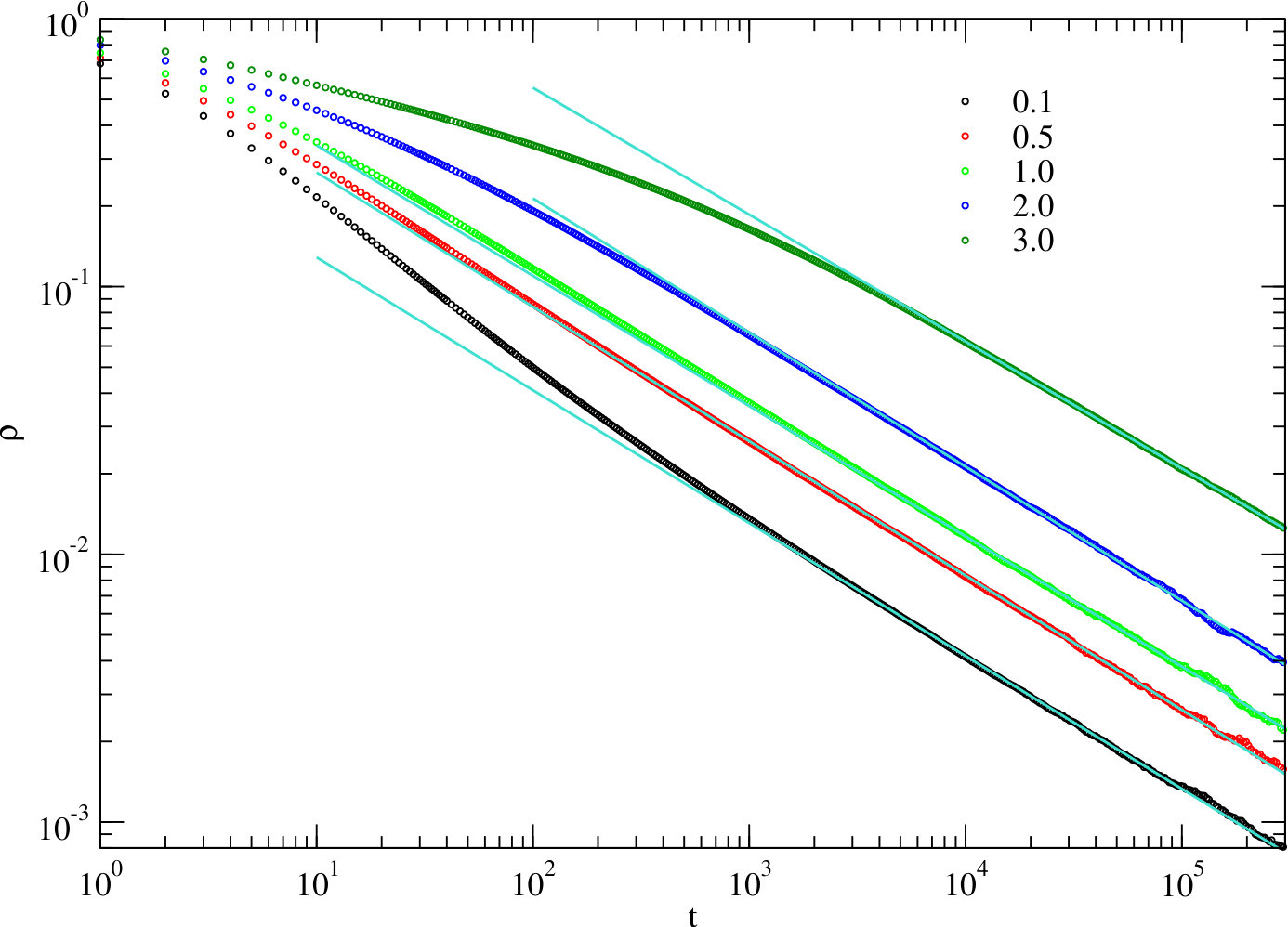

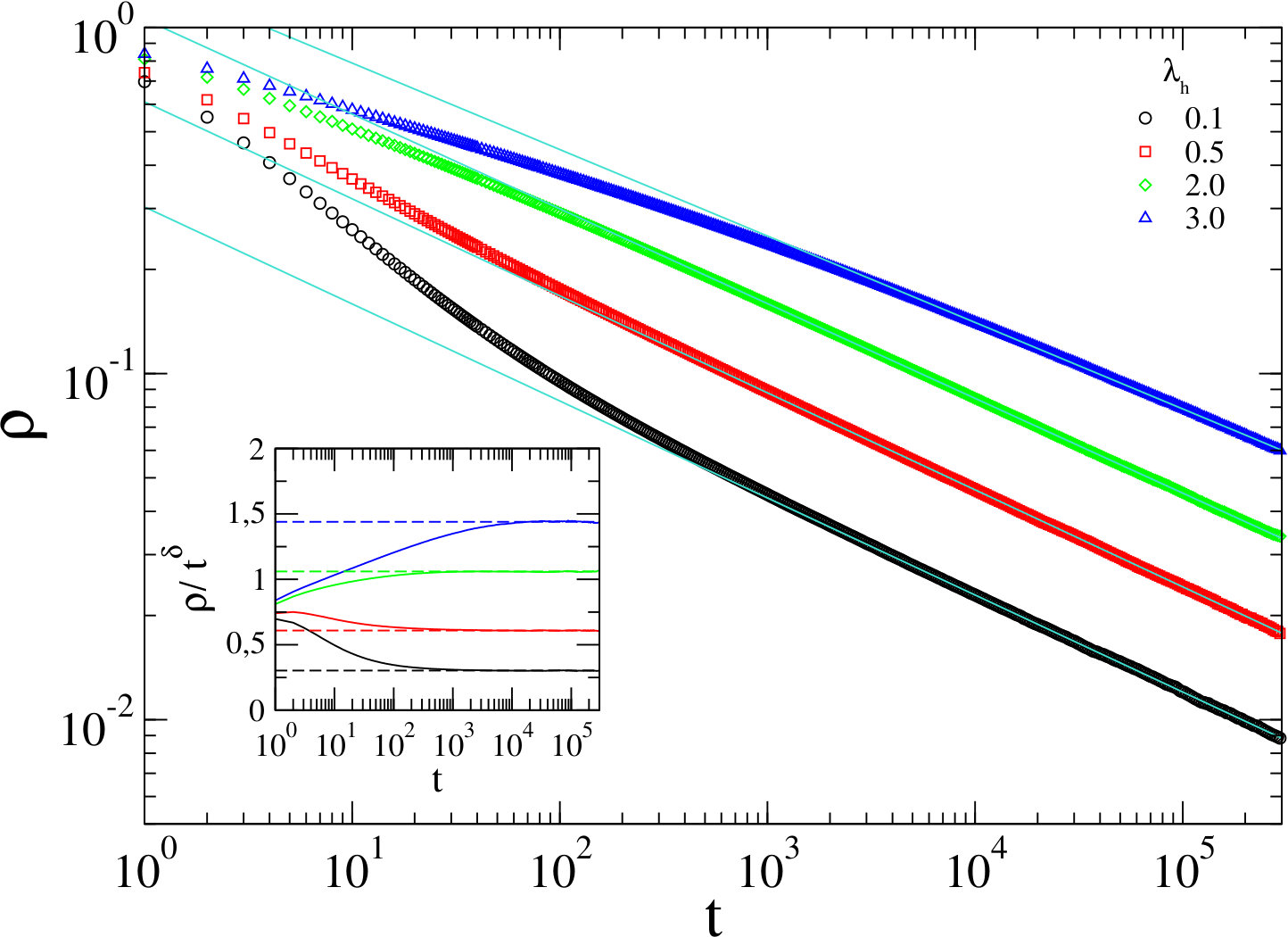

In Fig. 3, we show the critical decay of the density of active sites, for distinct values of $\lambda_{h}$ and $\alpha=1.5$. In all cases, we observe a power law decay at criticality. Analysis from the data obtained yields the values of the critical exponent ($\delta$) reported in Table I. The inset in Fig. 3 shows that $\rho/t^{\delta}$ converges to a constant value, therefore confirming the accuracy of the exponents obtained. We note the transient behavior is longer for larger values of $\lambda_{h}$. Also, the increase of $\lambda_{h}$ alters only slightly the value of the exponent $\delta$. Figure 4 shows the evolution of the average density of infected sites for distinct values of $\alpha$. Increasing $\alpha$, we observe a slower decay, as expected, since in such case, the flights are short-ranged. Increasing $\alpha$, the results become close to the original CP, with the critical exponent $\delta$ converging to the DP value, $\delta=0.159$, as shown in Table I.

From the data in Table I, we observe that higher values of $\alpha$ recover the DP critical behavior, which presents $\delta=0.15947$ marro . On the other hand, decreasing the value of $\alpha$, the exponent $\delta$ approaches the mean-field value $\delta=1$. The critical exponent $\delta$ varies continuously between these limits. We observe that the effects of $\lambda_{h}$ are more pronounced for lower values of $\alpha$, since the exponent $\delta$ varies from $0.95$ to $0.82$ when $\alpha=0.5$. We note, however, that $\alpha=0.5$ is a crossover point, where the dynamical behavior is often plagued by huge corrections to scaling. Otherwise, for higher values of $\alpha$ the exponent does not alter significantly. Finally, in comparison with the results for the CP with only Lévy-type infection (i.e, with $\lambda_{h}=0.0$) hinri99 , we observe the nonuniversal critical exponents are closer the DP values (for the same value of $\alpha$) when the host-host infection is introduced. For example, in hinri99 it was found $\delta=0.21$ for $\alpha=2.0$ and $\delta=0.94$ for $\alpha=0.5$, in contrast to $\delta=0.16$ and $\delta=0.82$, respectively, in the present work with $\lambda_{h}=3.0$.

Now, we turn to the static, long-time behavior, represented by the quasi-stationary state. In the QS simulations, we have used system sizes ranging from $L=10^{2}$ to $L=10^{5}$. Each simulation ran until $t=10^{8}$, and averages were taken over $10^{3}$ runs. We used a list of size $M=2000$. At the critical point, the finite-size theory marro implies the quasistationary order parameter $\rho_{qs}$ decays with the system size as a power law

[TABLE]

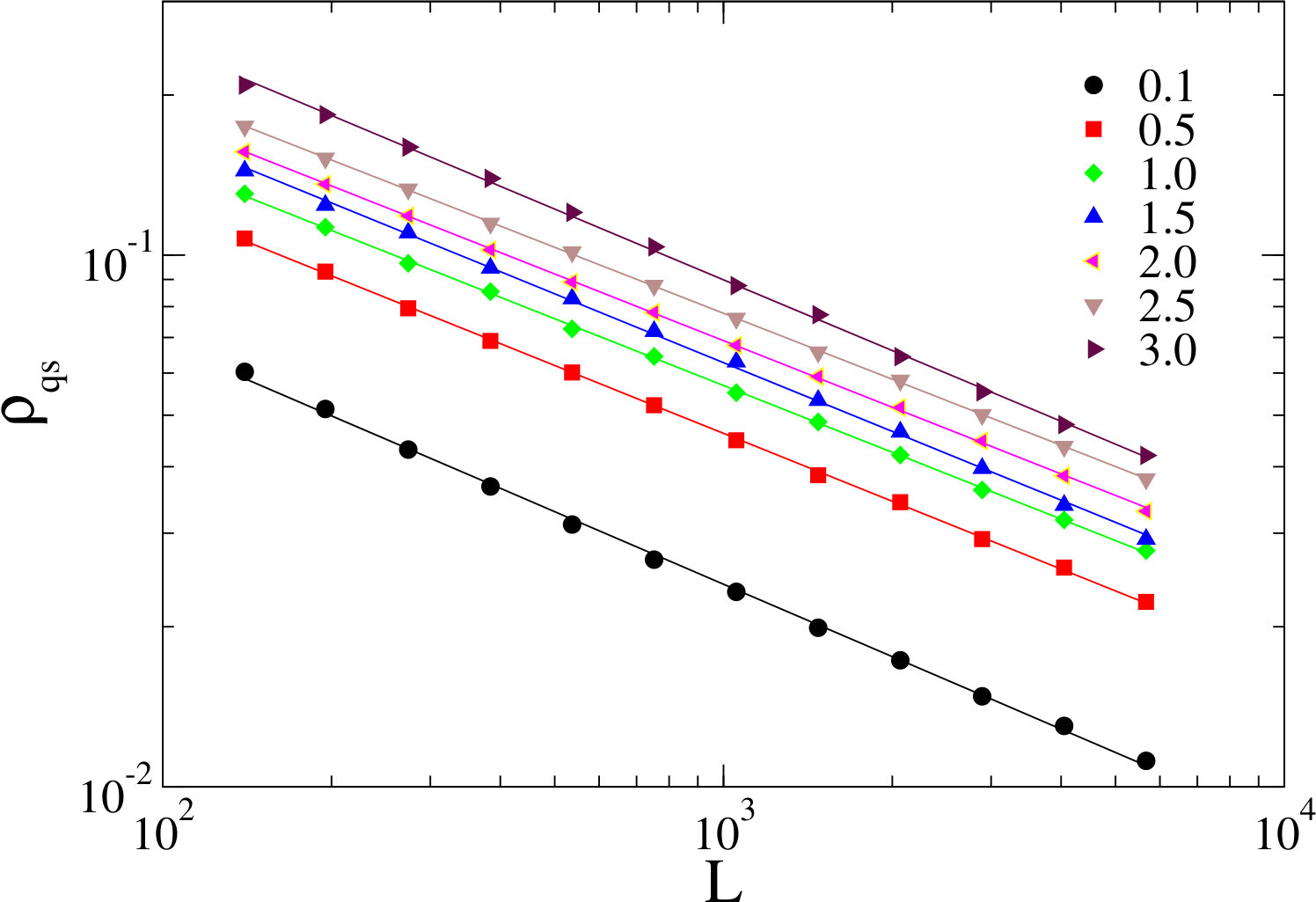

In Fig. 5, we show the QS density of infected sites ($\rho_{qs}$) as a function of the system size $L$, for $\alpha=1.5$. We observe that at criticality, $\rho_{qs}$ scales as a power law with exponent ratio $\beta/\nu_{\perp}=0.45$, $0.42$, $0.42$, $0.43$, $0.42$, $0.41$ and $0.44$ for $\lambda_{h}=0.1,~{}0.5,~{}1.0,~{}1.5,~{}2.0,~{}2.5$ and $3.0$, respectively. Hence, we can conclude that the exponent $\beta/\nu_{\perp}$ is independent of $\lambda_{h}$.

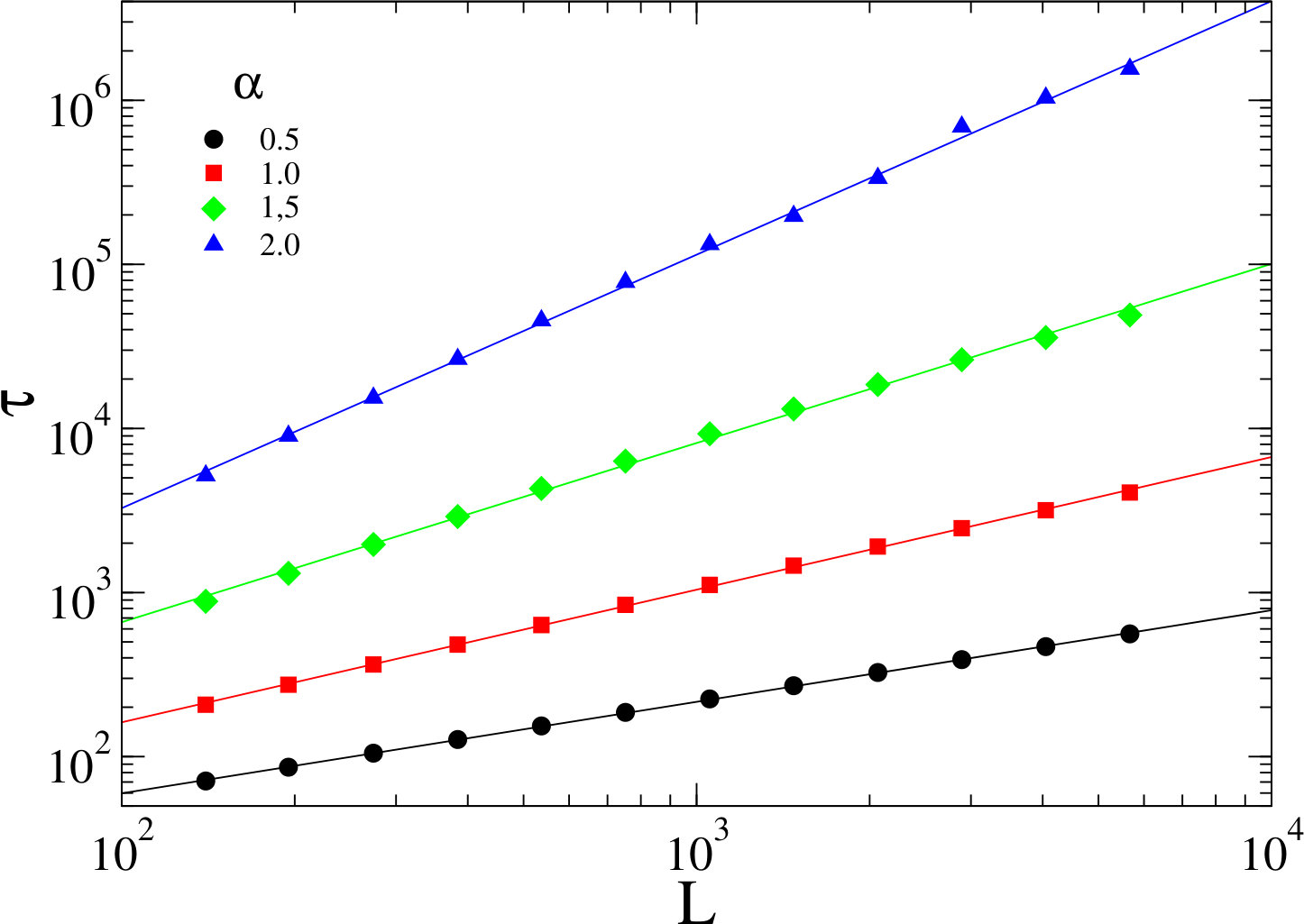

In Fig. 6, we evaluate the behavior of the lifetime $\tau$ of the QS state at the criticality, which is expected to scale as

[TABLE]

with $z=\nu_{\parallel}/\nu_{\perp}$ (here, we evaluate the lifetime as the time between two consecutive visits to the absorbing state). Analysis from the data yields $z=0.84$, $0.83$, $0.83$, $0.80$, $0.82$, $0.84$ and $0.83$ for $\lambda_{h}=0.1,~{}0.5,~{}1.0,~{}1.5,~{}2.0,~{}2.5$ and $3.0$, respectively. Therefore, this exponent also is not affected by the host-host interaction. Results of the QS simulations for distinct values of $\alpha$ are reported in Table II. We observe that in all cases the critical exponents obtained from the QS simulations are not significantly affected by the host-host infection.

In resume, we conclude that the introduction of a local host-host interaction in epidemics with Lévy-type long-range interactions does not affect the long-time critical behavior. On the other hand, we observe an anomalous spreading observed for the dynamical critical exponent for $\alpha=0.5$.

IV Conclusions

We have proposed a variation of the contact process that includes both local (host-host) and long-distance (vector-mediated) interactions. We observe the host-host interactions does not alter the static and dynamical critical exponents significantly in comparison to a process with only Lévy-type interactions. Our results are in agreement with early field-theoretic results janssen08 , which revealed that the relative strength of short-and long-range interactions do not affect the critical behavior. Our results also show an anomalous spreading, with the dynamical exponent varying continuously with the host-host infection rate, when $\alpha=0.5$. However, we should remark that at this crossover point, the dynamical behavior is affected by huge corrections to scaling, and we cannot discard that this difference could vanish for sufficient long times (note that the static simulations show the same set of exponents for all values of $\alpha$). Finally, in the limit in which the host-host infection vanishes, our model reduces to the anomalous contact process proposed in hinri99 , and our results in this limit confirm the critical behavior obtained previously in the literature.

A promising extension of the present work includes the study of the model under the influence of temporal disorder tempd ; tempd2 , that could, for example, affect only the vector-mediated infection, reflecting seasonal variations dengue . Another critical issue is the effect of local interaction in the robustness of the discontinuous phase transition exhibited by some classes of long-range models ginelli05 ; ginelli06 ; firstorder .

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Author Contributions

SGA and MMO conceived the study, PRS and SGA performed the simulations, PRS, SGA and MMO analyzed the data, PRS, SGA and MMO wrote the paper. All authors reviewed the manuscript.

Aknowledgments

This work was partially supported by Brazilian agencies CNPq and FAPEMIG.
