1 Introduction

O star $(M\gtrsim 20\,M_{\odot})$ winds input significant mechanical energy into the interstellar medium and affect the evolution of their host clusters and galaxies. Mass loss by winds also determine the ultimate fate of massive stars, and the nature of their remnants. Consequently, reliable measurements of mass loss rates due to stellar winds are essential for all of these subjects. Stellar winds are driven by radiative pressure on metal lines (Castor et al., 1975). Because the optical spectra of O stars are dominated by photospheric lines or recombination lines (which only sample the very base of the wind), much of wind research has concentrated on UV resonance lines which are formed throughout the wind.

Over the years, it has become apparent that radiatively driven winds are far more complex than the homogeneous, spherically symmetric flows envisioned by Castor et al. (1975). Instead, they have been shown to contain optically thick structures which can be quite small or very large. Until we unravel the details of these flows we cannot hope to reliably translate observational diagnostics into physical quantities such as mass loss rates. To progress, we need a firm grasp on the underlying physical mechanisms which determine the wind structures. The state of affairs can be seen in the literature, where the values of observationally derived mass loss rates have swung back and forth by factors of 10 or more (Massa et al., 2003; Puls et al., 2006; Fullerton et al., 2006; Oskinova et al., 2007; Sundqvist et al., 2011; Šurlan et al., 2012).

The presence of large structures was revealed in time series of unsaturated UV wind lines. Dynamic spectra of these lines display discrete absorption components (DACs) which indicate large, coherent structures propagating through the winds (e.g., Kaper et al., 1999; Prinja et al., 2002). Similar features are observed in LMC and SMC O stars (Massa et al., 2000) and in CSPNe (Prinja et al., 2012), suggesting they are a universal property of radiatively driven flows. Further, Prinja & Massa (2010) demonstrated that the wind lines in many OB stars have anomalous doublet ratios, indicating that the winds have optically thick structures embedded within them. Cranmer & Owocki (1996) showed how the spiral structures produced by co-rotating interaction regions, CIRs (e.g., Mullan, 1984), can explain UV wind line variability by introducing bright spots near the equator. The CIR model was applied to $\xi$ Per, O7.5 III(n)((f)) (de Jong et al., 2001), and HD 64760, B0.5 Ib (Fullerton et al., 1997; Lobel & Blomme, 2008), and its signature also appears in the dynamic spectra of most long duration time series (e.g., Prinja et al., 2002; Massa & Prinja, 2015). The CIR model predicts spiral structures with density enhancements of $\sim 2$ which, together with velocity plateaus, can increase Sobolev optical depths by factors of 10 to 100. While CIRs may have little effect on the mass loss rate, they can strongly affect the observational diagnostics used to determine it.

Another indication of wind structure is the universal presence of X-ray emission from O stars. Further, there is growing evidence that X-ray fluxes vary on time scales of days (Oskinova et al., 2001; Nazé et al., 2013; Nichols et al., 2015; Massa et al., 2014; Rauw et al., 2015; Nazé et al., 2018).

As yet, the continuous X-ray monitoring, needed to determine whether this variability is periodic, is lacking. The X-ray spectra of OB stars imply that the X-rays are produced throughout the wind, arising from the mechanical energy of impacts between different wind components. It is widely accepted that the X-rays arise from the line de-shadowing instability, LDI (e.g., Lucy & White, 1980; Owocki et al., 1988; Feldmeier et al., 1997) In LDI models, a component of the wind flow fragments into randomly distributed structures which interact with each other or the ambient wind to produce X-rays. Some LDI predictions agree with observations. For example, X-ray emission line profiles (e.g., Oskinova et al., 2006; Hervé et al., 2013; Cohen et al., 2014) imply that the hot plasma moves with the same velocity as the cool wind, and that the X-rays are attenuated by the cool gas component, as expected. The doublet anomaly can also be interpreted in terms of LDI fragments (Sundqvist et al., 2011; Šurlan et al., 2012). However, other predictions are at odds with the observations. The model predicts strong short time-scale stochastic X-ray variability (Feldmeier et al., 1997) while none is observed (Nazé et al., 2013). It also predicts that the strongest shocks (hottest plasma) should originate well out in wind, while observations indicate that the hottest plasma is very close to the photosphere (Waldron & Cassinelli, 2007). Further, the LDI model cannot explain X-ray variability on a time scale of days. From a theoretical perspective, it is not yet clear whether LDI clumping and large-scale CIR structures can co-exit (Sundqvist et al., 2018) or whether LDI models can produce the observed levels X-ray fluxes when three dimensional effects are included (Steinberg & Metzger, 2015).

CIRs provide an obvious, but untested, means for producing X-ray variability, either by creating X-rays at their interfaces with the freely flowing wind (Mullan, 1984; Ignace et al., 2013) or by modulating the ambient X-ray flux by their density enhancements. Two observational results that could enable us make progress are whether the X-ray emission varies periodically and whether it is related to the UV wind line variability. If these are the case, it would indicate a CIR – X-ray connection that could help constrain future modeling of how the CIRs and X-ray sources interact and their relative locations. These tests can be performed by selecting a normal star that is bright in X-rays and has a well documented DAC period and observing in both the X-rays and UV simultaneously for more than one period. These observations would determine whether the UV and X-ray variability are related, and they are the object of the current study.

This paper is organized as follows: § 2 gives some relevant properties of $\xi$ Per, § 3 presents the HST and XMM-Newton observations, § 4 describes our analysis, and § 5 summarizes and discusses the results.

2 $\xi$ Per– a rapidly rotating O type giant

$\xi$ Per is a normal, single O7 III(n)((f)) star with a large, but not abnormal, rotational velocity, $v\sin i=204$ km s*-1*, and a wind terminal velocity $v_{\infty}=2450$ km s*-1* (de Jong et al., 2001), which is typical for its spectral type. A detailed analysis of the STIS spectra will be presented in a forthcoming study by Hamann et al. (in prep).

$\xi$ Per has long been a favorite star for studying wind variability. It is bright and several of its UV wind lines are well developed, but unsaturated, making them ideal for examining variability. Dynamic spectra of its UV wind lines show distinct, isolated, large amplitude, repeating DACs with a well-defined 2.086 day period (de Jong et al., 2001) that persists for more than ten days. They assume that this period is roughly half of the actual rotation period and that two distinct structures, separated by 180∘, are present in the wind. Their assumption is bolstered by Ramiaramanantsoa et al. (2014), who obtained four weeks of contiguous, high-precision visual photometry of $\xi$ Per. They demonstrated that the observed variability was consistent with localized magnetic spots on a star whose rotation period is 4.18 d. Nevertheless, it is possible that 2.086 day could be the actual stellar rotation period (see the Appendix).

In addition to UV wind line variability, Massa et al. (2014) observed $\xi$ Per for 162 ks (1.88 day) with the Chandra HETGS. Their results showed that the X-ray flux clearly varied. However, the time baseline of their observations was not sufficient to determine whether the variation was periodic, as expected if the X-ray variability is associated with the same wind structures that create the DACs.

3 The Observations

This section describes the new observations. We begin with the motivation for the time sampling employed and then discuss the reductions of the HST STIS and XMM-Newton data used in the analysis.

3.1 Time sampling

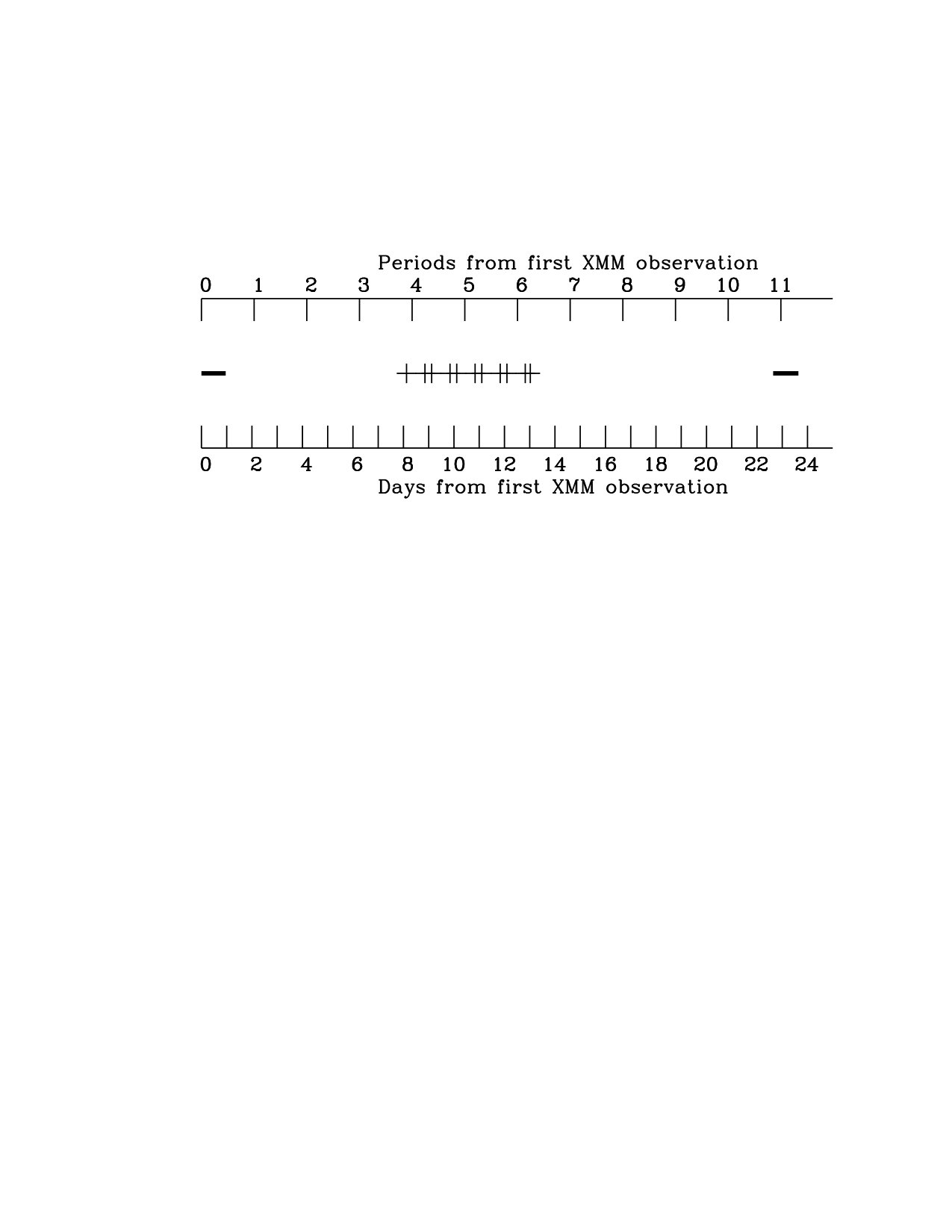

Our joint HST/XMM-Newton program requested time sampling based on the 2.086 day period. We proposed to observe $\xi$ Per 11 times with HST STIS over a time interval of roughly 100 hours ($\sim 5$ day) to capture a repeat of the DAC activity in the UV wind lines. The HST observations were to be supplemented by ten 7 ks XMM-Newton observations distributed over 245 hours and centered on the HST observations. These were to be obtained at 10 and 48 hour intervals, as allowed by the XMM-Newton orbit, and sample the 2.086 day period over 5 periods.

While the HST STIS observations were performed as requested, XMM-Newton scheduling constraints turned out to be more severe than anticipated. Instead of a more uniform sampling over the interval, we were allocated two long, (82.9 and 82.4 ks), exposures separated by 22.65 days. Although we were actually given more observing time than requested, the temporal spacing of the observations was far from optimal. The final time sampling of the observations is depicted in Figure 1. It shows that the STIS observations span 2.4 periods and that each XMM-Newton observation spans roughly 0.46 periods and the second begins 10.52 periods after the first. Consequently, although the XMM-Newton observations sample the 2.086 day period very well, none of them sample the same phase more than once.

3.2 The STIS data

The STIS observations used the $R=45,800$ E140M grating with the 0.2X0.05ND aperture, which includes a neutral density filter, necessitated because $\xi$ Per is so bright. The spectra include the important Si iv$\lambda\lambda 1400$ resonance doublet and the N iv$\lambda 1718$ excited state line.

Creation of the Si iv$\lambda 1402$ fluxes was relatively straight forward. The only complication was that the individual spectra had to be rectified to the band $1.0\leq v/v_{\infty}\leq 1.5$. This was necessary because the overall flux levels of E140M spectra obtained through the small 0.2X0.05ND aperture can vary due to differences in the positioning of the object in the aperture and variations in the image size resulting from telescope “breathing” due to orbital thermal variations (Proffitt et al., 2017).

The extraction of the N iv data was more complex. Unfortunately, the standard STScI pipeline processing of objects observed recently by the STIS E140M omits the last echelle order which contains 1718 Å (although earlier spectra include it). Consequently, we had to extract this order by hand.

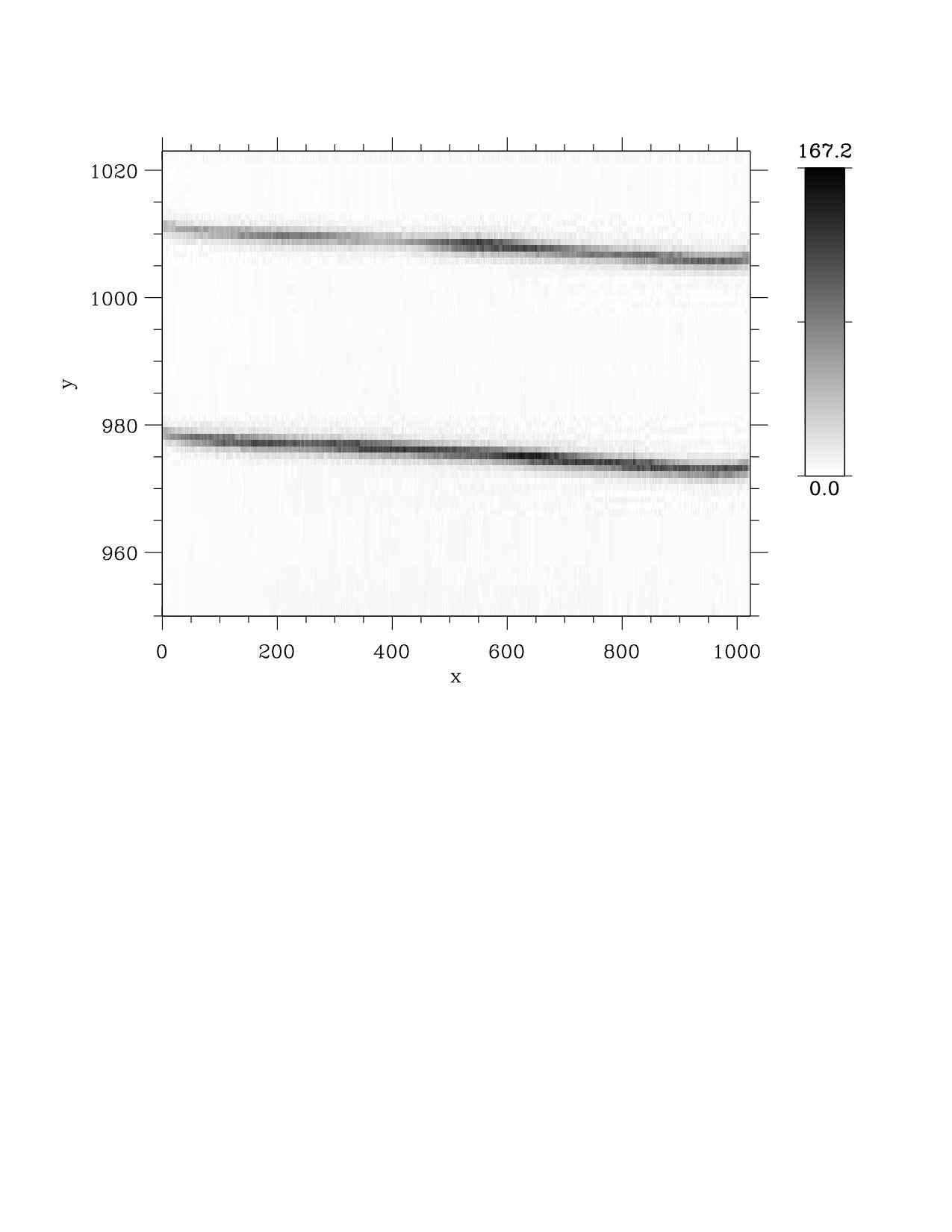

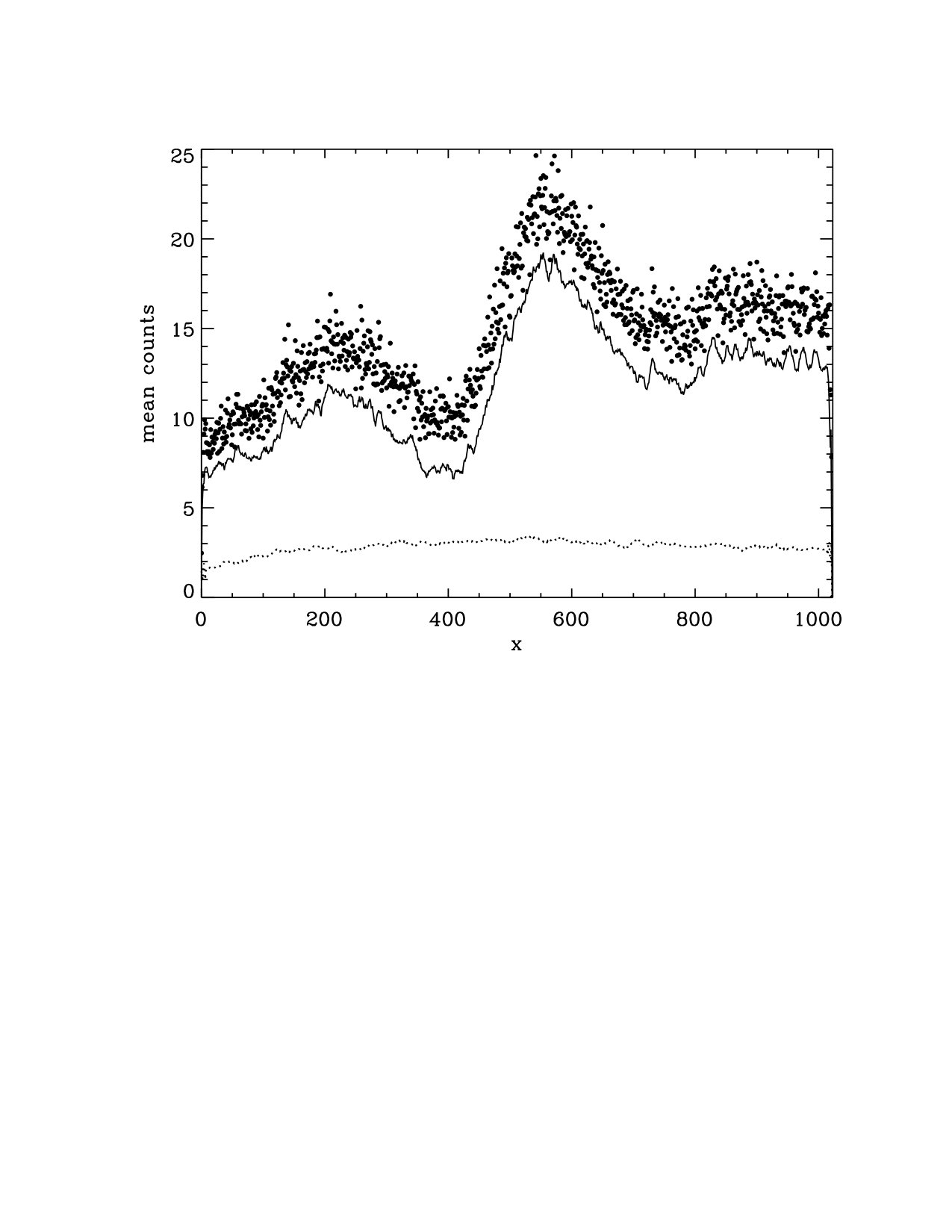

Figure 2 shows the portion of the FUV MAMA detector which includes the order containing N iv$\lambda 1718$ (the upper stripe). Spectra for this order were extracted using a simple box car. Specifically, we first determine the mean counts for $1000\leq y\leq 1015$ as a function of $x$, termed the gross spectrum. Similarly, a background spectrum was determined from the means over $985\leq y\leq 1000$. The background was then subtracted from the gross to give a set of un-flux calibrated net spectra. Figure 3 gives an example of the gross, background and net spectra.

The wavelength alignment of the net spectra appears quite good (the Helio centric velocities varied by less than 0.2 km s*-1*). The wavelength scale was determined by using the STIS dispersion relation applied to spectra which include the order containing 1718Å. This is $\lambda=0.053619x+b$ Å, where $b=1710.75\pm 0.1$ Å, depending on the location of the star and the velocity of the telescope. An uncertainty of $\pm 0.1$ Å is not important for our purposes. The wavelength scale is only used to determine the portion of the spectrum to be averaged for studying N iv$~{}\lambda 1718$ flux variations. Since an uncertainty of 0.1Å only amounts to 17 km s*-1*, or $\Delta v/v_{\infty}<1$%, it has an insignificant effect on the mean fluxes.

As mentioned above, the individual spectra had to be rectified to the same mean. In this case we used the band $800\leq x\leq 1000$, which corresponds to $1753.7\leq\lambda\leq 1764.4$, which is well away from expected wind activity. Since subsequent measurements are normalized by their means, not absolute flux calibration is needed.

3.3 The XMM-Newton data

XMM-Newton observed $\xi$ Per on two separate visits, first for a 82.9 ks exposure on 2016-02-06 (ObsID 0770990101), and again for a 82.4 ks exposure on 2016-02-28 (ObsID 0770990201) (see Fig. 1). The three XMM-Newton X-ray telescopes illuminate five instruments which operate simultaneously and independently: two reflection grating spectrometers (RGS1 and RGS2, den Herder et al., 2001), with a spectral resolution of $\sim 0.07$ Å and wavelength coverage of $5\lesssim\lambda\lesssim 38$ Å, and three focal plane instruments, forming the European Photon Imaging camera (EPIC). The EPIC camera consists of the MOS1 and MOS2 (Metal-Oxide Semiconductor) and PN (pn-CCDs) detectors. The EPIC instruments cover $1.2\lesssim\lambda\lesssim 60$Å, with a spectral resolution of ($E/\Delta E\approx 20-50$) (Turner et al., 2001; Strüder et al., 2001). During each observation, all three EPIC cameras were operated in the standard, full-frame mode with a thick UV filter and simultaneous RGS1 and RGS2 spectra were acquired. The optical monitor was not operating due to the excessive optical brightness of $\xi$ Per. The data were reduced using the most recent calibrations and the Science Analysis System (SAS) v.15.0. The spectra and light-curves were extracted using standard procedures. The background area was chosen to be nearby the star and free of X-ray sources.

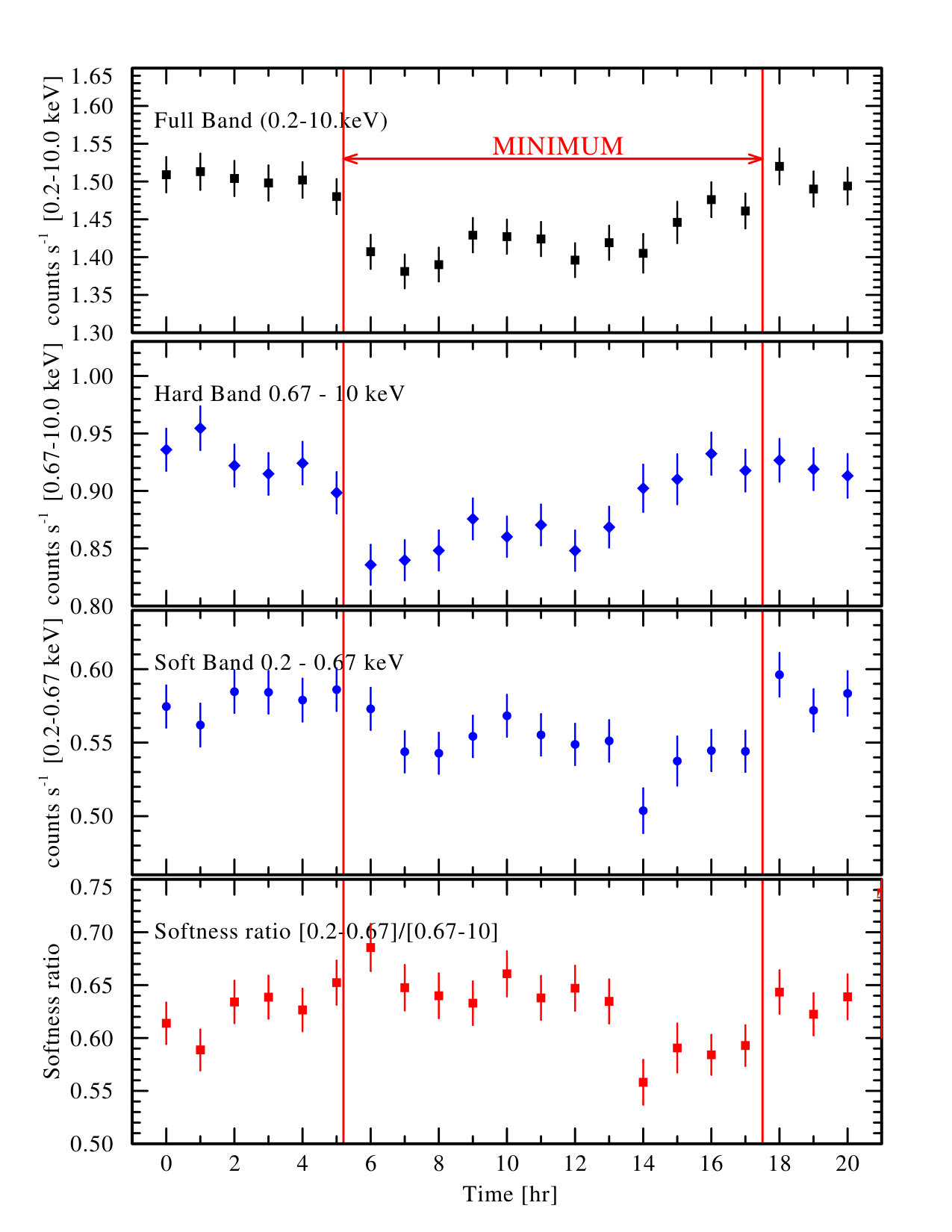

X-ray light curves were constructed from the EPIC data to examine the temporal variability. The EPIC data were binned into 1 hr (3.6 ks) time bins and three broadband wavelength bins: the “full” (0.2-10.0 keV) EPIC bandpass, the “soft” (0.2-0.67 keV) band and the “hard” (0.67- 10.0 keV) band. The X-ray light curves for these bands measured by the EPIC PN camera, as well as a “softness” ratio of the soft and hard bands are shown in Figures 4 and 5 for the first and second observations, respectively. The light curves measured by the EPIC MOS cameras are similar. All of the X-ray light curves show statistically significant variability of $\gtrsim 10$% on a time scale of hours. As pointed out in § 1, similar variability has been detected in all other sufficiently well studied O-stars.

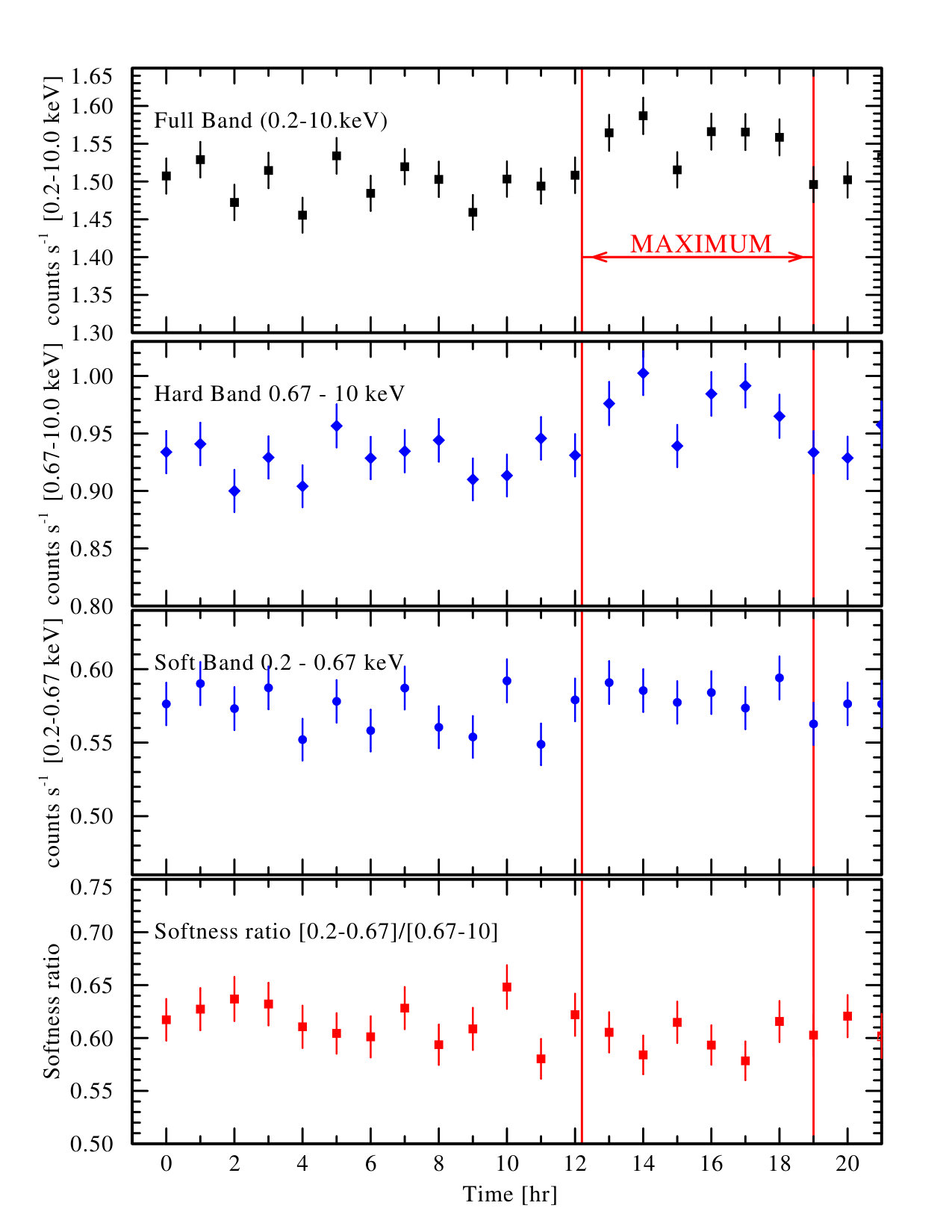

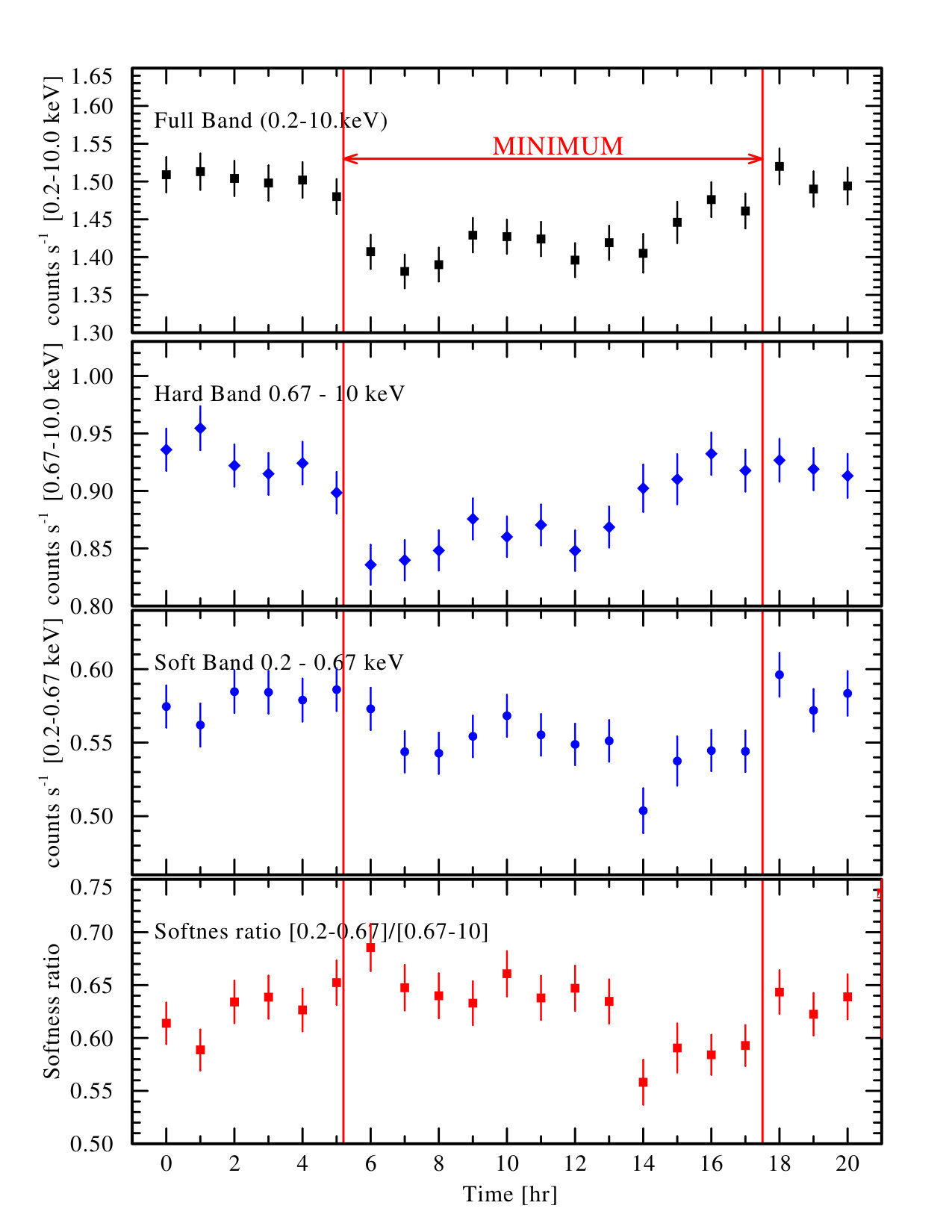

The full band light curves in Figs. 4 and 5 contain time intervals when the count rate is lower and higher than the average. We denote these time intervals as “minimum” and “maximum”. The minimum occurred during first observation and the maximum during the second observation. The lowest panels in Figs. 4 and 5 show the ratio of counts rates in soft and hard bands, termed the “softness ratio”.

Finally, Figure 6 shows the merged RGS spectrum of $\xi$ Per. Overall, its mean spectrum is not unusual for an O star of its temperature (Waldron & Cassinelli, 2007; Walborn et al., 2007; Cohen et al., 2014).

4 Analysis

4.1 Variable UV Wind Lines

Our ultimate goal is find a link between the variability seen in the UV wind lines and the X-rays. This would imply that whatever causes the UV DACs is also responsible for the X-ray variability. But first, we must demonstrate that the wind activity during our observations was similar to that expected from the earlier IUE time series. Because the new data are temporally scattered and sparsely sample the phase, we appeal to previous IUE observations for guidance. Consequently, we begin the analysis with a reexamination of existing IUE observations. First, we explain why we elect to analyze specific lines over a limited range in velocity. Next we introduce a simple model which captures the variations seen in the IUE data. We then use the model to demonstrate that the new STIS data are consistent with the previous observations and to determine the relative phases of the UV lines and the XMM-Newton light curve. Finally, we examine how the XMM-Newton spectra respond to changes in the X-ray intensity.

The available UV spectral time series include two wind lines that are well developed but unsaturated, the property required to study variations. These are the Si iv$\lambda\lambda 1400$ resonance doublet and the N iv$\lambda 1718$ excited state line. We would like to use these UV lines to extract information about the source of the DACs. This means that we want to sample the wind as close to the source as possible, at low wind velocity. At high velocity the modulation of the flux can become complex due to the evolution of the structures responsible for the DACs as they move through the turbulent wind and to the overlap of different structures in velocity (e.g., Puls et al., 1993; Cranmer & Owocki, 1996).

The N iv$~{}\lambda 1718$ excited state line is of particular importance. The lower level of this line depends on the stellar radiation field to populate it (Olson, 1981). Therefore, we can be certain that it samples the wind very close to the star (Massa & Prinja, 2015). Extracting meaningful information from the Si iv $\lambda\lambda 1400$ doublet at low velocity is problematic because the separation of the components is $w=0.8$, where $w=v/v_{\infty}$, $v=c(\lambda-\lambda_{0})/\lambda$, and $\lambda_{0}$ is the rest wavelength of the line. This means that the high speed wind absorption from the red component affects the absorption by the blue component between $-0.2\leq w\leq 0.0$. As a result, for this line it is not possible to extract an uncontaminated measure of the wind activity close to the star. In contrast, all of the absorption by the red component is affected by emission from the blue component. However, it is well known that, for P-Cygni lines, the emission originates from throughout the wind and tends to be far less variable than the blue absorption, which originates from a column between the observer and the stellar disk (e.g., Massa et al., 1995; Kaper et al., 1996). Consequently, one can expect the low speed absorption of the 1402Å component to be relatively free of variable influences due to the weak emission from the 1393Å component. Therefore, we include data from this component in our analysis.

To characterize the variations, we employ the well studied IUE time series of $\xi$ Per obtained in October 1994 (e.g., de Jong et al., 2001; Massa & Prinja, 2015). We begin by normalizing the spectra over the range $1.0\leq w\leq 1.5$. This accounts for uncertainties in the absolute flux levels of IUE high dispersion spectra. Figure 7 shows the flux variation in N iv$\lambda 1718$ averaged over the region $-0.2\leq w\leq 0.0$, where the fluxes are normalized by their mean value and plotted against phase, relative to the 2.086 day period determined by deJong et al. Points from even and odd cycles are plotted with different symbols to examine whether the variations caused by the presumably two distinct spots differ. There does not appear to be a discernible difference. The flux in the line varies by about 10%. The Si iv$\lambda 1402$ fluxes were similarly binned and normalized to obtain the light curve shown in Figure 7. It is clear that the shape and amplitude of the flux variations in N iv and Si iv are very similar.

Echelle data are subject to systematic errors which arise from placement of the object in the aperture and instantaneous telescope focus. Because these can be much larger than the statistical errors, we used a direct method to estimate the errors. First, a nearby continuum location was selected and the same number of wavelength points used to bin the line data between $-0.2\leq v/v_{\infty}\leq 0.0$ were binned in the normalized continuum region of each spectrum. Next, we calculated the sample variance of the binned points. The results were $\gtrsim 0.01$. Since the continuum points are divided by a larger mean flux than in the lines, the errors in the line data are expected to be of order 0.02.

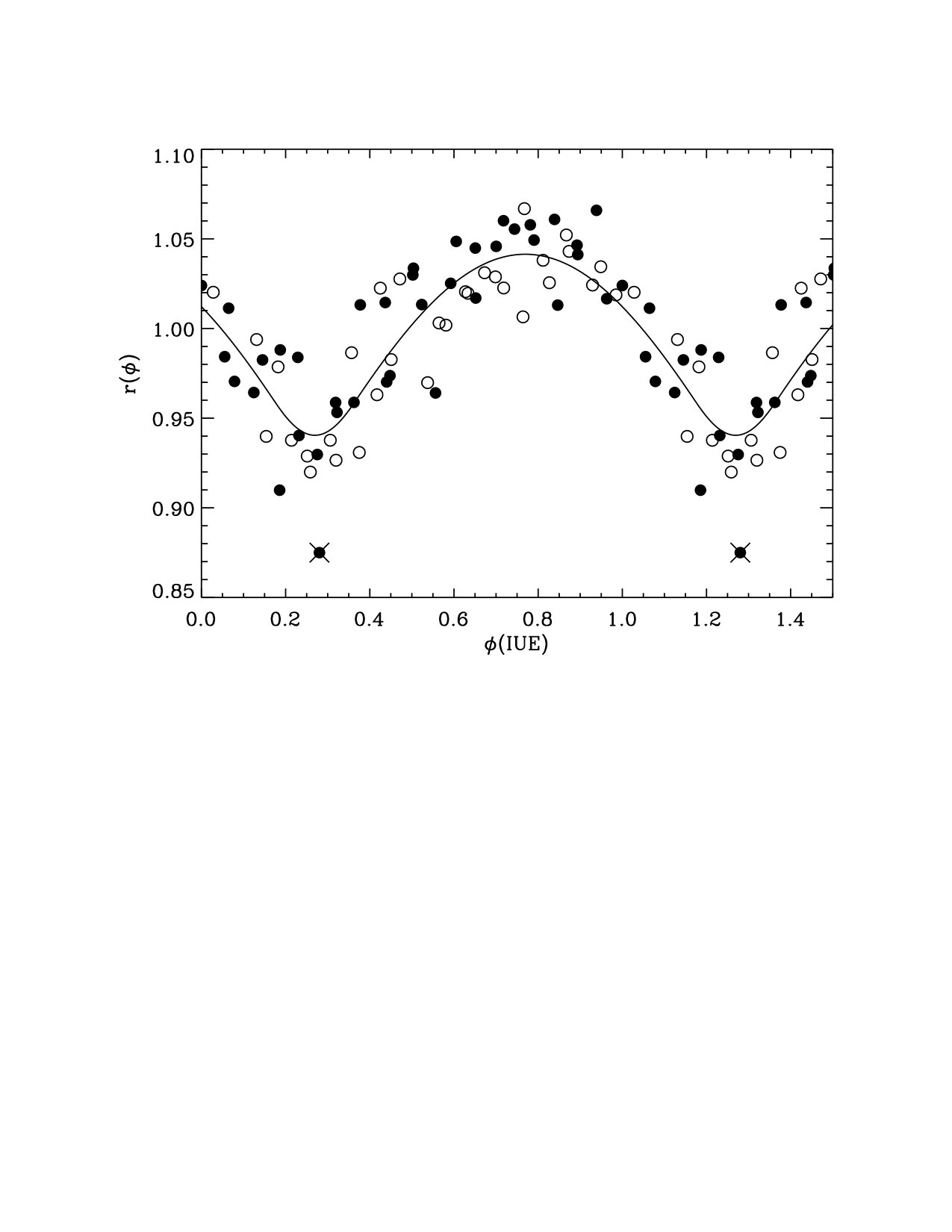

We would like to codify the shapes of the light curves shown in Figure 7 by a function which can faithfully represent them and also provide some insight into the structure of the wind. Such a function will also be useful for analyzing the sparsely sampled STIS data described below. To do this, we developed a simple model consisting of a wind whose strength differs from the global flow only in a pair of identical, uniform, equatorial, circular spots separated by 180∘. Our simple model is for two diametrically opposed spots on the equator of the star. In fact, if $\sin i\sim 1$, these diametrically opposed spots could also be at higher latitude. Similarly, if the rotation period of $\xi$ Per is 2.068 day and $i\simeq 45^{\circ}$ (see the Appendix), the light curve could be due to a single, high latitude spot. Regardless, in all cases, the major factors that determine the shapes of the model light curves are the size of the spots and the fraction of the cycle that they are occulted by the star. As we shall see, the simplest case of two equatorial spots provides an adequate fit to the data. Consequently, there is little reason for adding additional parameters to the model since they would be poorly determined. Nevertheless, we emphasize that the variability could be due to spots at higher latitude or even due to a single, high latitude spot if the rotation period is 2.086 day.

Our two spot model is described in the Appendix, where it is shown that it results in a normalized light curve, $r(\phi_{i})$, of the form

[TABLE]

In this expression, $\phi_{i}$ is the phase of the $i$-th measurement relative to the 2.086 day period, $C$ is a constant, $a(a_{0},\phi_{i}+\phi_{0})$ is the fraction of the star covered at $\phi_{i}$, $a_{0}=\pi R_{spot}^{2}/(\pi R_{\star}^{2})$ is the fractional area of the spot at $\phi=0$, and $\phi_{0}$ is the phase shift needed to align the model curve with the observations. The shape of $r(\phi)$ depends on the three parameters: $C$, $a_{0}$ and $\phi_{0}$. Some properties of the function are discussed in the Appendix. Fits to the IUE data using this function are shown in Figure 7. The fits were determined by unweighted, non-linear least squares, using the Interactive Data Language (IDL) procedure MPFIT developed by C. Markwardt333The Markwardt IDL Library is available at http://cow.physics.wisc.edu/$\sim$craigm/idl/.. The parameters derived from the fits are listed in Table 1, along with the RMS residuals of the fits, which are comparable to the observational errors. Note that there is a significant phase difference between the Si iv and N iv light curves, $\phi_{0}($Si iv$)-\phi_{0}($N iv$)=0.057\pm 0.016$.

A caution is in order concerning the mono-variate errors listed in Table 1. The error quoted for $\phi_{0}$ is quite robust, because the full error covariance matrix of the parameter errors shows that it is independent of the other variables, with correlation coefficients all less than 0.15. In contrast, the parameters $C$ and $a_{0}$ are highly correlated, for reasons given in the appendix. The correlation coefficients for these two parameters are $-0.89$ and $-0.91$ for the N iv and Si iv fits, respectively. This means that even though the derived values have small mono-variate errors, their values can be changed substantially and have little effect on the quality of the fits, as long as $a_{0}C$ is held constant.

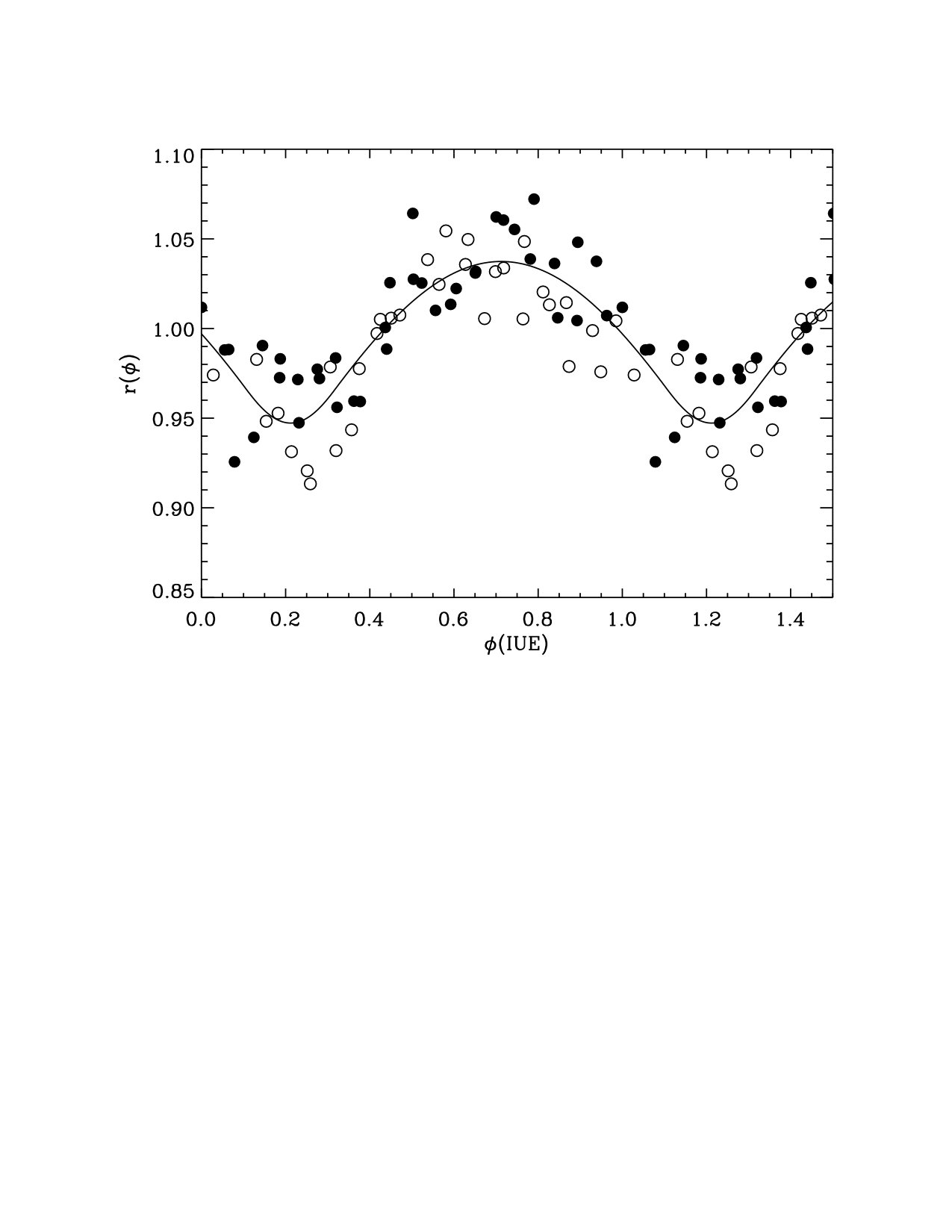

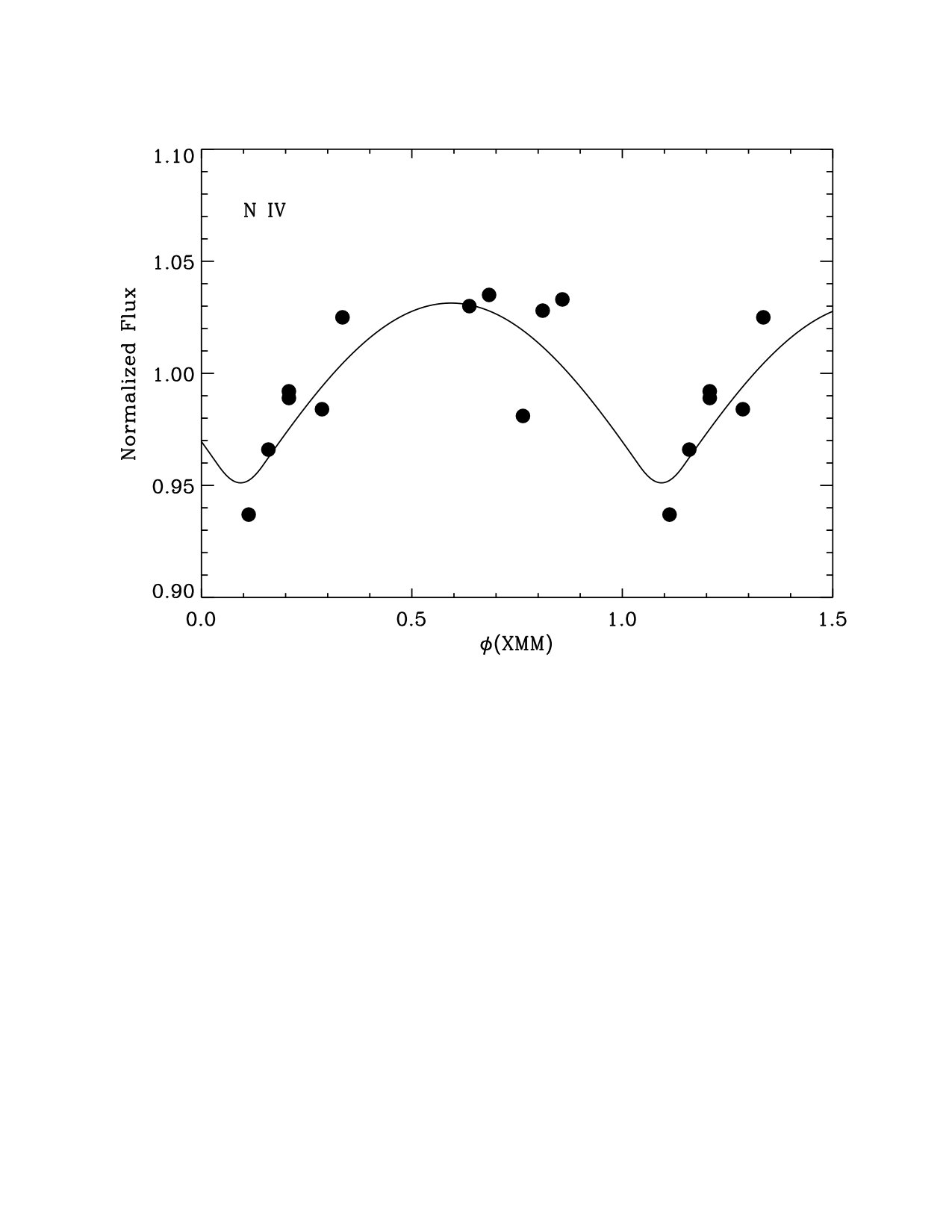

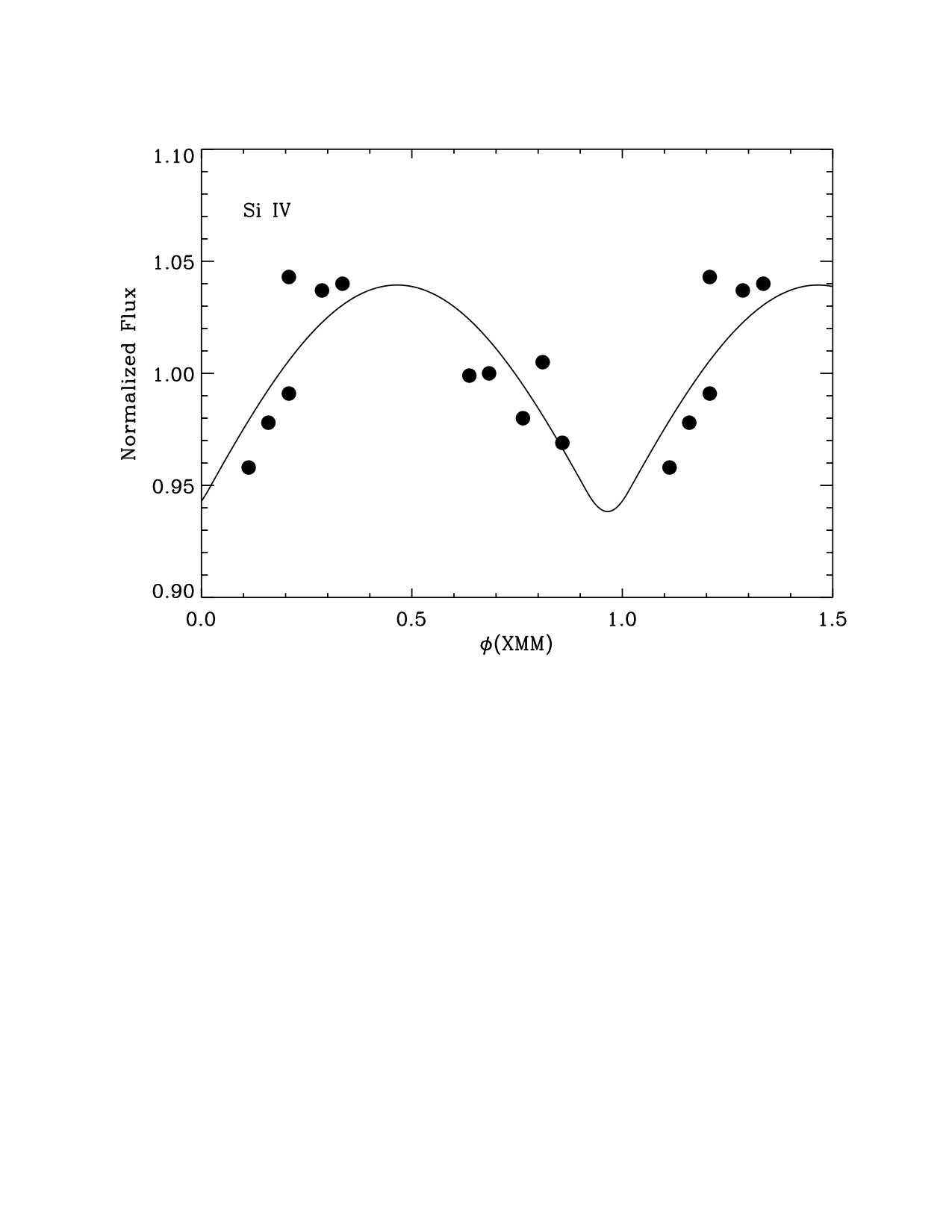

A set of STIS light curves were prepared in the same way as the IUE data. Figure 8 shows the STIS fluxes averaged over $-0.2\leq w\leq 0.0$, for both N iv$\lambda 1718$ and Si iv$\lambda 1402$. Both curves are normalized by their mean. Observational errors were determined as before and are also expected to be about 0.02 in the lines.

Although the parameters $a_{0}$ and $C$ are highly correlated, the IUE data are able to determine them reasonably well because the curves are so well sampled. This is not the case for the STIS data. To constrain the fits to the STIS data, $a_{0}$ was fixed at 0.1, which is similar to the IUE values. This does not degrade the quality of the fits compared to those with both parameters free, and it does not alter the value of $\phi_{0}$. Its only effect is that the values of $C$ determined by the fits are closer to the IUE results. Without the constraint, very different values of $a_{0}$ and $C$ result, but their product, $a_{0}C$, is nearly identical to that of the parameters listed in Table 1. The important point is that all reasonable fits result in $a_{0}C>0$. As described in the appendix, this implies that the spots are brighter than their surroundings.

The fits to the STIS data are displayed in Figure 8 and their parameters are listed in Table 1. Once again, the fits are considered excellent, with RMS residuals of $\simeq 2$%. The relative phase between the N iv and Si iv fits determined by the STIS curves is $0.127\pm 0.049$. As with the IUE data, the shift appears to be real. Although the STIS difference is larger than IUE, the difference between the two is only slightly larger than $1\sigma$, i.e., $0.070\pm 0.052$, or $1.4\sigma$. Thus, both the STIS and IUE data yield consistent amplitudes and relative phases. It is remarkable that data taken 21 years apart appear so similar.

The values in Table 1 show that $C$ is $\sim 1$ for the IUE data. We employ equation (4) in the Appendix to examine the implications of this value. First consider the case where the bright spot results from a reduction in the photospheric absorption line in the area occupied by the spot. To obtain a $C\simeq 1$, requires $f_{s}/f_{0}\simeq f_{e}/f_{0}+2$, or a weakening of the line flux by more than a factor of 2. Next, consider the case where the bright spot is a region that is free of low speed wind absorption and the surrounding wind has an optical depth of $\tau_{w}$. In this case, the same equation becomes $(f_{s}-f_{s}e^{-\tau_{w}})/(f_{s}e^{-\tau_{w}}+f_{e})$. If $\tau_{w}\simeq 1$, then for $C=1$, $f_{e}/f_{s}\simeq 0.25$. Both results are reasonable.

There are a few properties of the fits worth emphasizing. First, the RMS residuals are $\sim 2$%, which is similar to the expected errors. This is somewhat surprising, considering that the observations were obtained over several cycles and are possibly due to two distinct spots. Second, both sets of data imply that there is a significant phase difference between the Si iv and N iv light curves. Third, within the context of our simple model, the observed light curves can only be fit by curves with $C>0$, which implies the spots are brighter than their surroundings (see Appendix).

4.2 Variable X-ray Emission

The XMM-Newton data were obtained over a 23 day interval (Fig. 1) with a 21 day gap between two roughly day long exposures. Since the expected period is 2.086 day, the two observations are separated by about 10.5 cycles. This makes aligning the data very sensitive to the period assumed. Figure 10 shows the normalized XMM-Newton light curve with different symbols indicating when the observations were obtained. The curve shape is distinctly different from those of the lines, with a broad shoulder after the minimum and a sharp peak before it. The amplitude of the variation is roughly 10%. We also show a model light curve. Since the XMM-Newton light curve does not resemble those of the wind lines, we simply shifted the best model fit to the IUE N iv$~{}\lambda 1718$ data until it agreed with the flux minima. Our best estimate for the phase shift and its error are listed in Table 1. The error was also estimated by emphasizing when the minimum was clearly not aligned with the model. It is unfortunate that the observations do not overlap in phase, although the two segments of the light curve do appear to join smoothly.

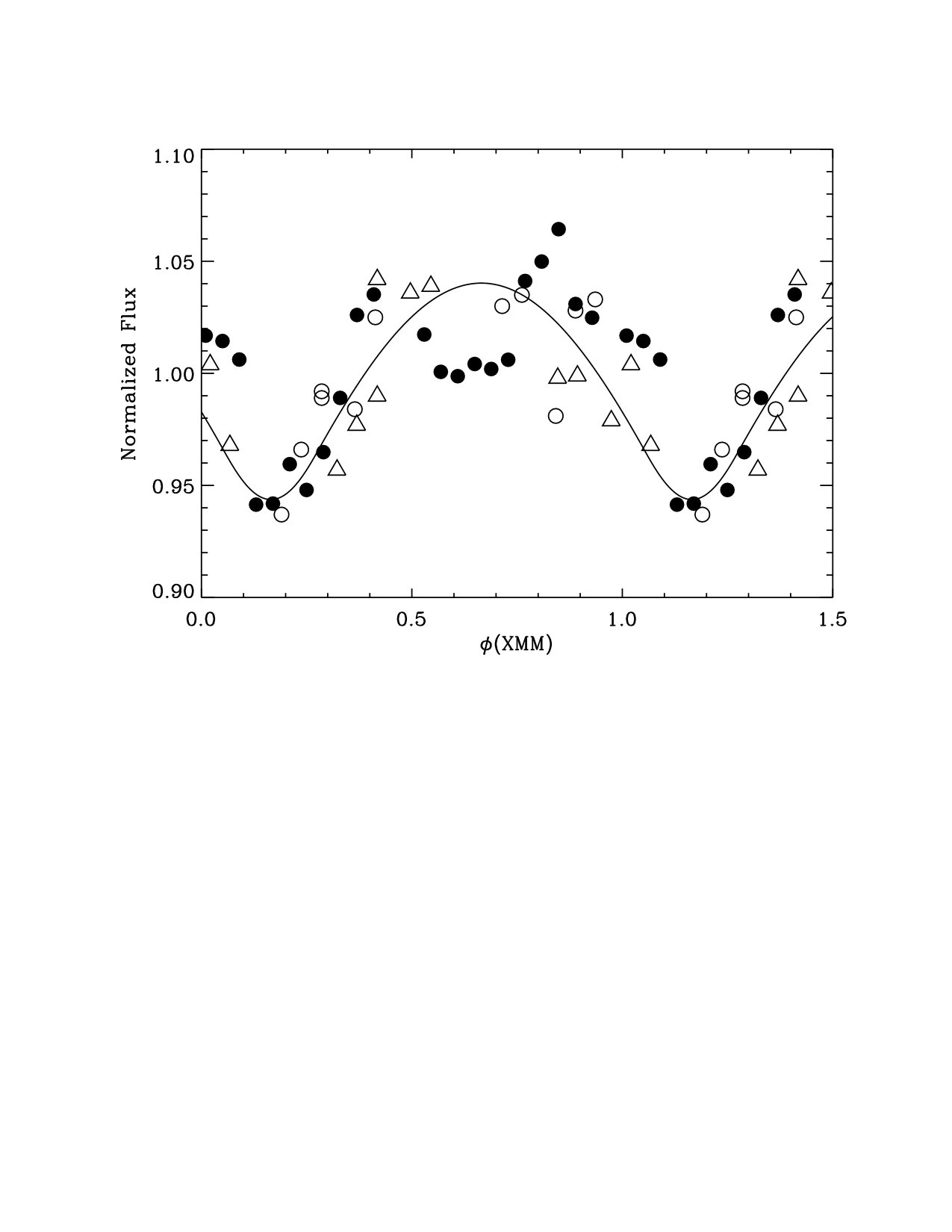

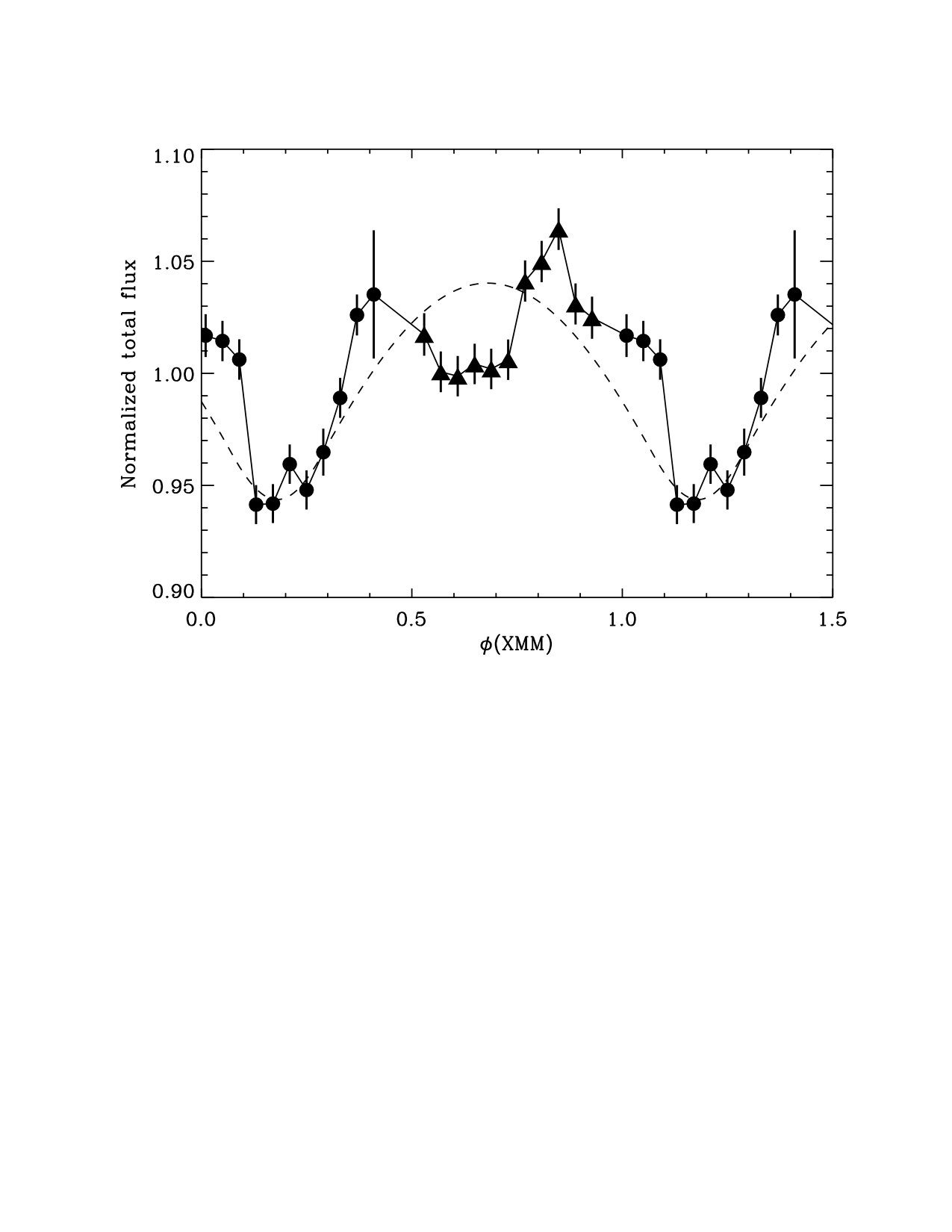

Figure 10 shows the STIS data shifted to align with the XMM-Newton fluxes to emphasize their mutual phase dependence. Using the $\phi_{0}$ values listed in Table 1, we determine the following sequence of events. First, the Si iv$~{}\lambda 1402$ absorption begins to weaken (indicating a reduction in the Si iv column density). Next, the N iv$~{}\lambda 1718$ absorption begins to weaken (indicating a reduction in the N iv column density). Finally, the XMM-Newton X-ray flux begins to increase.

To interpret these results as angular separations on the stellar surface, we must remember that the phases refer to the repeating DACs and that the stellar rotation period is probably twice as long. This means that the angular separations with respect to the star are half those inferred from the phase differences. Thus, the phase difference between Si iv and N iv translates to $10\pm 3^{\circ}$ (IUE) or $23\pm 9^{\circ}$ (STIS) and the phase difference between N iv (STIS) and the X-ray curve becomes $14\pm 8^{\circ}$.

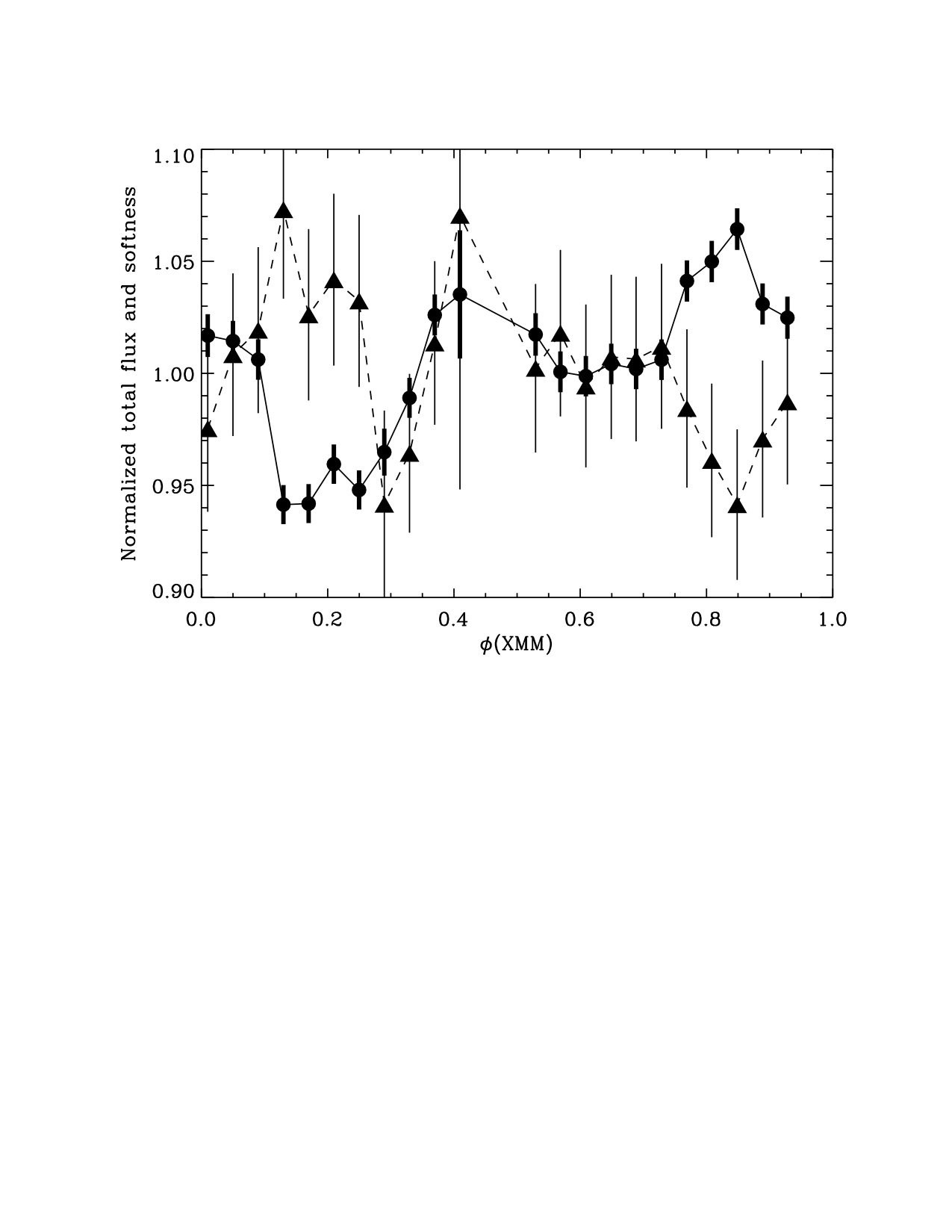

Next, we examine how the spectral properties of the X-rays behave as a function of phase. Figure 11 shows the EPIC fluxes as a function of phase (normalized by their mean) and the softness ratio defined in § 3.3 normalized by their mean. It is clear that the two quantities are anti-correlated, with the softness ratio decreasing when the X-ray flux increases and vice versa, i.e., the spectrum becomes soft when the flux is weak and hard when the flux is strong. This is at odds with expectations. It has been proposed that X-ray variability in O stars might result from additional absorption of X-rays by the material in the CIRs (e.g. Oskinova et al., 2001). In this case, one would expect a harder and more strongly absorbed X-ray spectrum during the X-ray minimum, implying that the softness ratio should drop during the X-ray minimum. Instead, Fig. 11, shows that the X-ray emission is softer at minimum than at maximum.

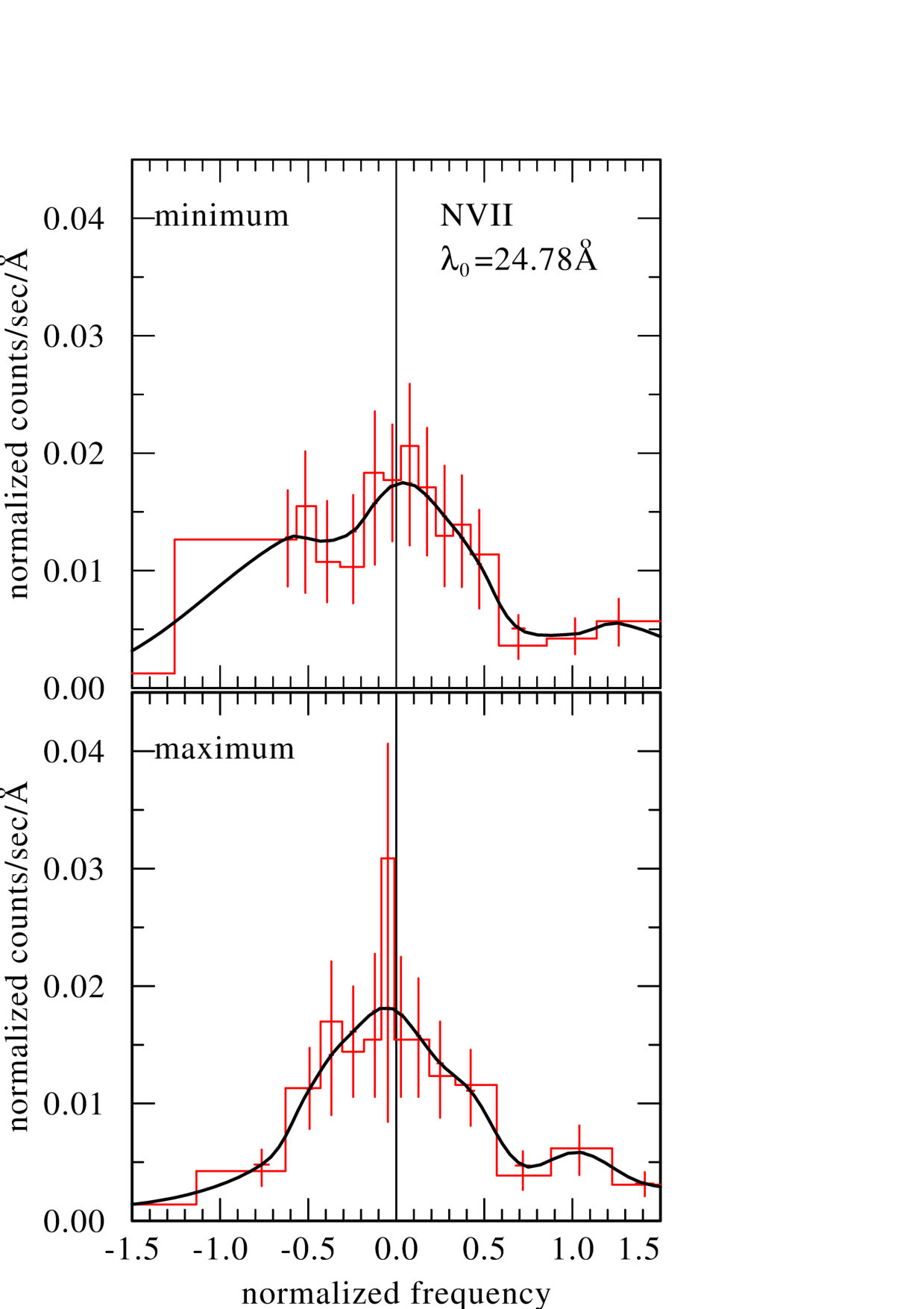

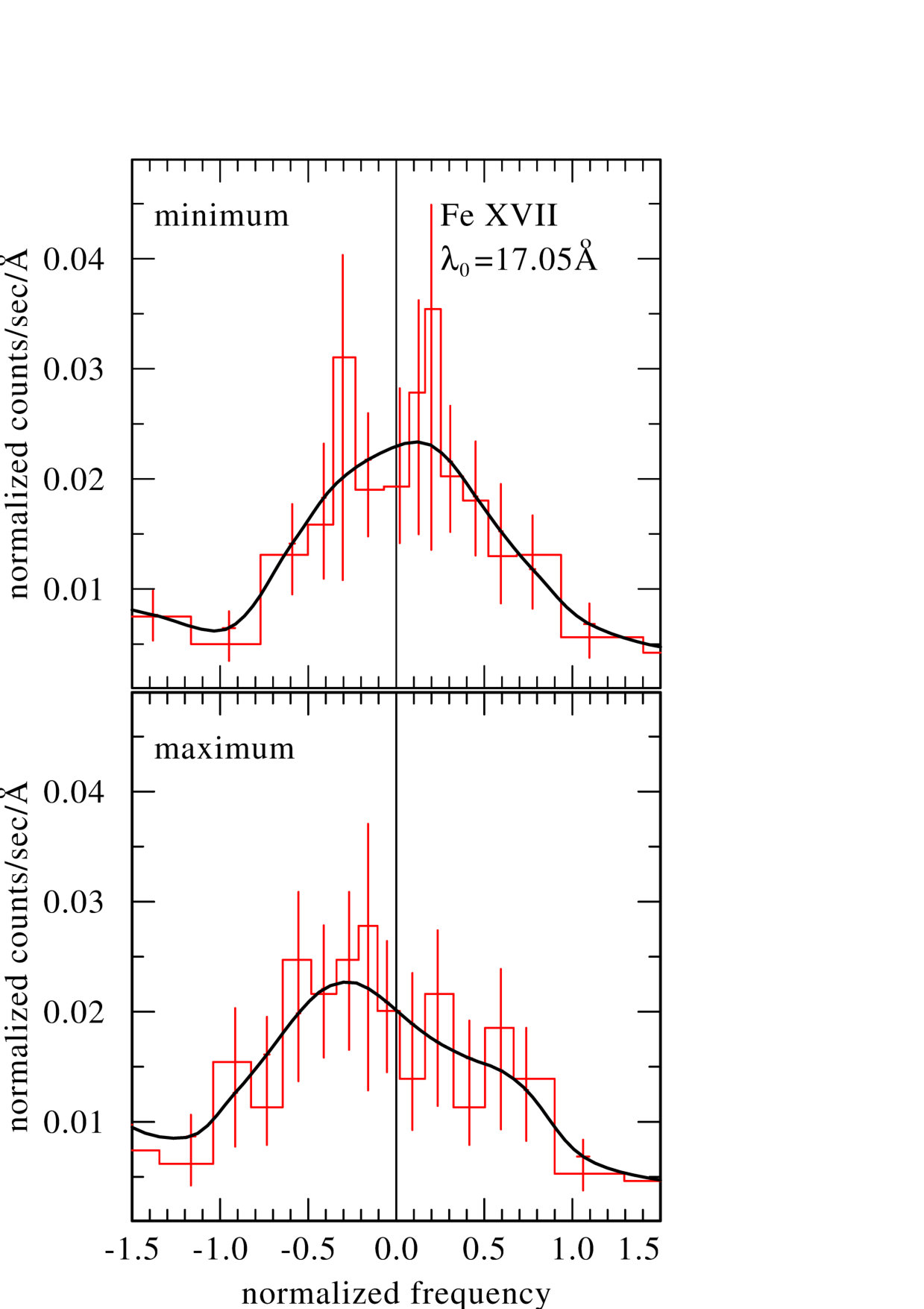

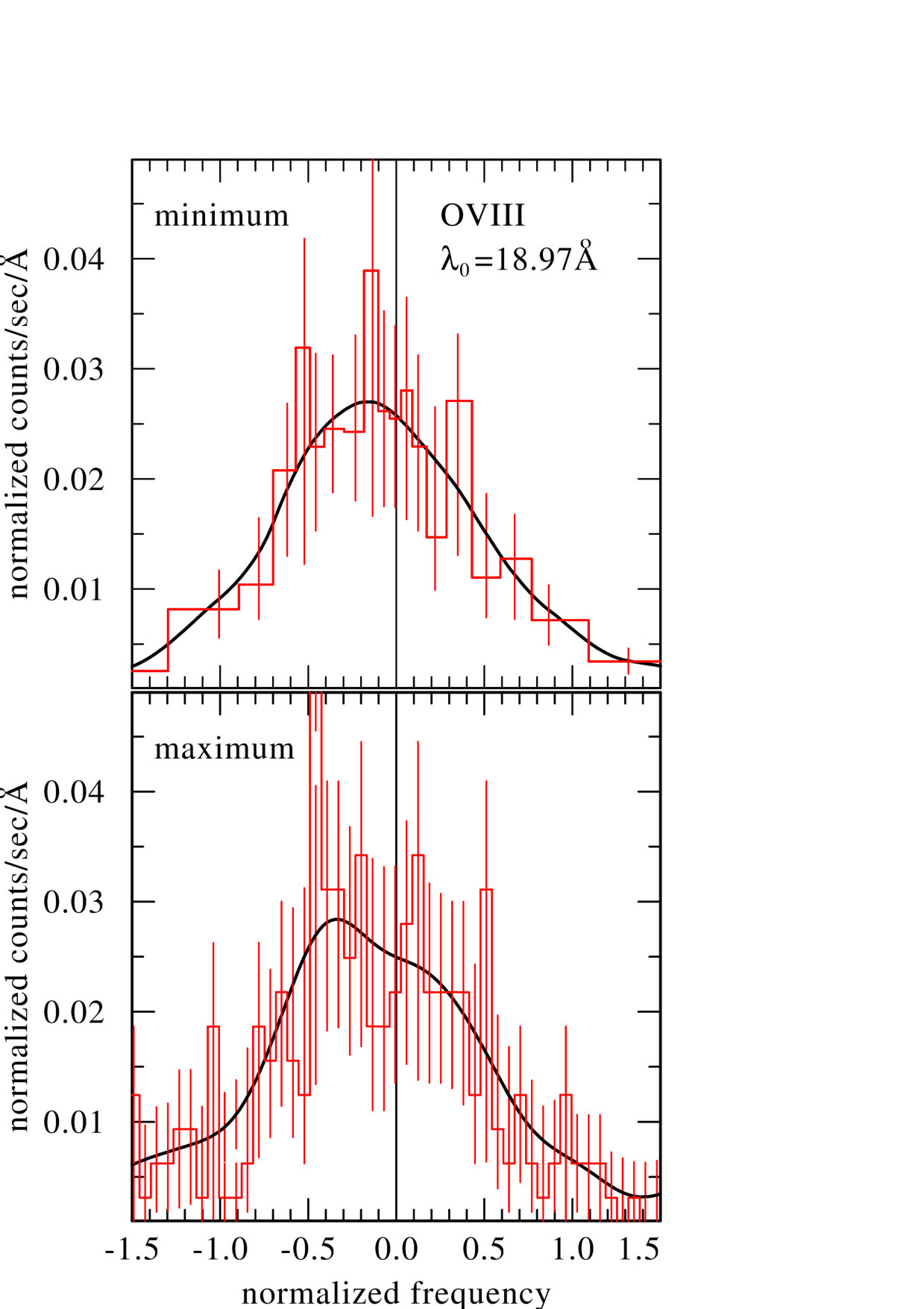

Finally, we examine the line profiles of the strongest lines in the RGS spectra. For an on-axis source, the accuracy of the RGS first order wavelength scale is $0.005$ Å. Figure 12 shows the profiles of N vii $\lambda 24.8$, O viii $\lambda 18.97$ and Fe xvii $\lambda 17.1$ whose ionization ranges cover 552 – 667, 739 – 871 and 490 – 1256 ev, respectively. Comparison of the smoothed profiles obtained at minimum and maximum reveal an important trend: the strong emission lines observed at maximum are more strongly blue-shifted than at the minimum. However, this trend is not as evident in N vii Ly$\alpha$ (discussed below), which appears centered on its rest wavelength (taking into account line blending) at both minimum and maximum. Macfarlane et al. (1991) and Ignace (2001) showed that emission lines produced by optically thin radiation suffering K-shell absorption in stellar winds are expected to be skewed and blue-shifted. Moreover the blue-shift and the line shape is sensitive to wind absorption. The higher is the stellar wind opacity, the more blue shifted are the emerging emission lines. With the advent of high-resolution X-ray spectroscopy, this formalism was extended to accelerating stellar winds (Waldron & Cassinelli, 2001b; Owocki & Cohen, 2001) and clumped stellar winds (Feldmeier et al., 2003). Hence, the stronger blue shift of X-ray emission lines during X-ray maximum is possibly due to stronger wind opacity at maximum than at minimum, but the exact details depend on the geometry of the emitting plasma. Nevertheless, the fact that the N vii $\lambda 24.78$ line does not appear to shift is consistent with this explanation. This line is a blend and its modeling is complicated, but the relative change seen in other lines is not present. One possible interpretation is that its line formation region is different from the heavier ions. For example, Waldron & Cassinelli (2007) pointed out in their analysis of high-resolution X-ray spectra of O stars that the line formation regions of heavier ions are closer to the stellar surface compared to the lines of lighter ions, again suggesting that the increase in X-ray flux is caused by a source deep in the wind.

5 Summary and Discussion

The observational results of this paper can be summarized as follows:

The IUE light curves of the low velocity absorption in the UV wind lines of $\xi$ Per vary with a period of 2.086 day and amplitudes of $\sim 10$%. 2. 2.

The periods and shapes of the new STIS light curves are consistent with IUE light curves obtained 22 years earlier. 3. 3.

Both the IUE and STIS light curves for Si iv $\lambda 1402$ and N iv  $\lambda 1718$ are shifted in phase, with the N iv curve lagging the Si iv curve by a phase of $\sim 0.06$. 4. 4.

Variations in the X-ray flux are consistent with a 2.086 day period and vary with an amplitude of $\sim 10$%, but have a distinctly different curve shape. Nevertheless, if its minimum is aligned with the minimum in the N iv line light curve, it is also shifted in phase, lagging the N iv curve by a phase of $\sim 0.08$. 5. 5.

The sequence of events is: Si iv maximum, N iv maximum, and X-ray light maximum. 6. 6.

The X-ray flux is softer at minimum than at maximum, suggesting that the X-rays are more strongly absorbed at maximum. 7. 7.

The profiles of the X-ray lines appear to become more skewed toward high velocity at X-ray maximum. Furthermore, the lines of heavier ions are more skewed at maximum than those of lighter ions. These observations are consistent with the radiation from hotter plasma suffering higher absorption at maximum. 8. 8.

While the XMM-Newton observations cover the 2.086 day period quite well, none of them sample the same phase more than once. As a result, we cannot firmly conclude that the X-ray light curve repeats.

If we interpret the observations in terms of our spot model, then we can infer the following:

Both the IUE and STIS light curves are well represented by a simple spot model with two identical, bright, surface spots located on opposite sides of the star. Each spot covers roughly 10% of the projected stellar disk, implying radii $R_{spot}\sim 0.3R_{\star}$ and an angular diameter of $\sim 37^{\circ}$. These are only representative values, as spots at different latitudes would have somewhat different areas. 2. 2.

By bright spots, we mean regions of reduced low velocity absorption. This could indicate less photospheric absorption or a smaller Sobolev optical depth at low velocity. The latter could be due to a localized increase in the wind velocity gradient, reduction in the mass loss rate or shift in the ionization state. 3. 3.

The similar flux variations in lines with very different ionization potentials, oscillator strengths and formation properties suggests that their variations are due to variable covering factors and not to varying optical depths. 4. 4.

Assuming a rotation period of $2\times 2.086$ day, the phase differences between events implies that the Si iv minimum occurs first, then the N iv minimum occurs 23∘ after that and the X-ray minimum occurs $14^{\circ}$ after that. 5. 5.

The X-ray spectrum at maximum is more absorbed than at minimum, which suggests that the source of the variable X-ray flux originates deep in the wind. 6. 6.

The X-ray line profiles are more skewed to high velocity at X-ray maximum. The interpretation of this result depends on the geometry of the emitting and absorbing regions, making it strongly model dependent. 7. 7.

The fact that the low velocity (near surface) wind line variations correlate with the X-rays together with the observation that the X-rays are more strongly absorbed at maximum suggests that both variations occur very near the stellar surface.

In addition, we note that whatever the physical mechanism that causes the X-ray and UV wind line variations must also cause less than a few hundredths of a magnitude in the photometric variability at optical wavelengths (Ramiaramanantsoa et al., 2014). Furthermore, this mechanism must be quite common, since most hot stars with well developed but unsaturated wind lines which have been observed long enough display the temporal signature of CIR-like structures. This includes WRs and CSPNs. Although bolstered by fewer examples (see §1), it is becoming clear that whenever an OB star with a strong wind is observed long enough in X-rays, variability on a time scale of order the rotation period is also revealed.

Finally, we note that the persistence of two identical, diametrically opposed starspots for decades suggests an oblique magnetic rotator, where the spots are the magnetic poles. However, strong limits on the existence of even relatively weak dipole fields in $\xi$ Per and similar stars (David-Uraz et al., 2014) appear to make this mechanism doubtful.

In closing, we point out that a major caveat in our results is that we do not have direct evidence that the X-ray light curve repeats. Although our data cover a complete cycle and appear to splice together well, we lack observations for the same phase obtained during different cycles. Such observations would conclusively prove the connection between the UV wind lines and X-rays. Furthermore, if the two spot model is correct, the two segments of our X-ray curve sample the same spot, and information on the diametrically opposed spot is totally lacking. Clearly, more X-ray data are needed. The observations that would cement the connection are repeated X-ray observations sampling the same phases of the light curve over several periods to determine whether it repeats. Nevertheless, the results of our new multi-wavelength coordinated observing campaign imply that the X-ray variability in $\xi$ Per is correlated with the UV wind line variability. This suggests that the origin of the X-rays in this star, and possibly other single O-stars, is linked to the same physical mechanisms responsible for the CIRs in stellar winds, which manifest themselves as periodic UV wind line variability.

This appendix develops a simple model for the light variations we observe at low velocity in wind lines, and examines some of its properties. We should point out that because we isolate a portion of the profile defined by velocity limits, the rotational velocity of the star will cause the geometric boundaries of the region to vary as the spot moves around the star. However, this effect is strongest as the spot clears the limb, when the projected area of the spot is smallest. In contrast, the most distinctive aspects of the light curves are determined from the spot crossing the face of the star, when the projected area is largest and the projected rotational velocity smallest. For similar reasons, limb darkening is also ignored.

In modeling the light curves, we must first decide whether the 2.086 day period seen in the DACs is the rotational period and the observed variability is due to a single spot, or if the rotation period is $2\times 2.086$ day and the variability is due to two nearly identical spots $180^{\circ}$ apart. The observed rotational velocity of $\xi$ Per is $v_{obs}=v_{eq}\sin i=204$ km s*-1*. Its rotation period, $P$, is probably one or two times the DAC period, $P_{obs}$, i.e., $P=P_{obs}n=2.086n$ day, where $n$ is 1 or 2. This consideration, along with estimates of the probable rotation velocity and stellar radius, places limits on $i$. First, we assume $v_{eq}\lesssim 300$ km s*-1*, otherwise the wind line spectrum of $\xi$ Per would probably be abnormal for its spectral type (e.g., Massa, 1995; Prinja et al., 1997). This gives $204/300\leq\sin i\leq 1$, or $43^{\circ}\leq i\leq 90^{\circ}$. Limits on the stellar radius restrict $i$ even further since $R_{\star}=v_{eq}P/(2\pi)=v_{obs}P_{obs}n/(2\pi\sin i)=8.45n/\sin i$. The Weidner & Vink (2010) tables give a radius of $\sim 14.3$ for an O7 III star. However, if $\xi$ Per is a little less luminous (class III/V), its radius could be as small as $R_{min}\simeq 11.8$. If it is a bit more luminous (class I/III), its radius could be as large as $R_{max}\simeq 17.9$. These imply $8.45\;n/R_{max}\leq\sin i\leq 8.45\;n/R_{min}$. Inserting the limiting radii gives $0.47n\leq\sin i\leq 0.72n$, or $28^{\circ}\leq i\leq 46^{\circ}$ for $n=1$, and $71^{\circ}\leq i\leq 90^{\circ}$ for $n=2$, where the $90^{\circ}$ limit for $n=2$ implies $R_{min}=16.9$. The $v\sin i$ constraint restricts $i$ to $43^{\circ}\leq i\leq 46^{\circ}$ for $n=1$, where the lower limit infers an $R_{max}=12.4$. Together, the constraints give the following relations: $43^{\circ}\leq i\leq 46^{\circ}$ and $11.8\leq R_{\star}\leq 12.4$ for $n=1$, and $71^{\circ}\leq i\leq 90^{\circ}$ and $16.9\leq R_{\star}\leq 17.9$ for $n=2$. Both situations are possible. The inclination, spot size, latitude and intensity of the spots are all free parameters, although $i$ is rather strongly constrained for each case.

In the following, we adopt a two spot model with equatorial spots for the simple reason that it is the easiest to calculate and adequately describes the light curves. However, one should keep in mind that opposing spots at higher latitudes are possible as are one spot models (if $P=2.086$ day) with the spot at high latitude444Recently, Gordon et al. (2018) derive a radius for $\xi$ Per of $\sim 11$, which favors one spot models. However, unlike the other stars in their sample, the distance used to determine the radius was not from GAIA data, but from older, marginal Hipparcos data and indirect methods..

Our model consists of two identical, circular, equatorial spots separated by 180∘. These spots can appear either brighter or darker than their surroundings, where these terms are referring to wavelengths very near the cores of strong lines. Therefore, a bright spot could be due to a region where the strength of the photospheric line is weakened or a region with weak low-velocity wind absorption. Similarly, a dark spot could be due to a region where the photospheric line has strengthened or a region with strong low velocity wind absorption.

To quantify the model, let the stellar flux be $f_{0}$, the flux from the spot be $f_{s}$, and the fraction of the star covered by the spot at rotational phase $\psi$ be $a(\psi)$. There is also a non-variable contribution to the flux that comes from the light scattered throughout the wind, $f_{e}$. With these definitions, the flux varies as

[TABLE]

The size of the spot is defined by the fraction of the disk covered when the spot is centered along the line of sight, $a_{0}\equiv a(0)$. In this case, the radius of the spot, $R_{s}$, is $R_{s}=\sqrt{a_{0}}R_{\star}$, where $R_{\star}$ is the stellar radius. Further, the angular size of the spot relative to the center of the star is $\theta_{0}=2\sin^{-1}\sqrt{a_{0}}$.

To examine the variations of a light curve sampled at $i=1,\cdots,N$ phases and normalized by its mean, $r(\psi_{i})=f(\psi_{i})/\langle f(\psi)\rangle$,we use a normalized version of the last equation, which is

[TABLE]

where

[TABLE]

is independent of phase.

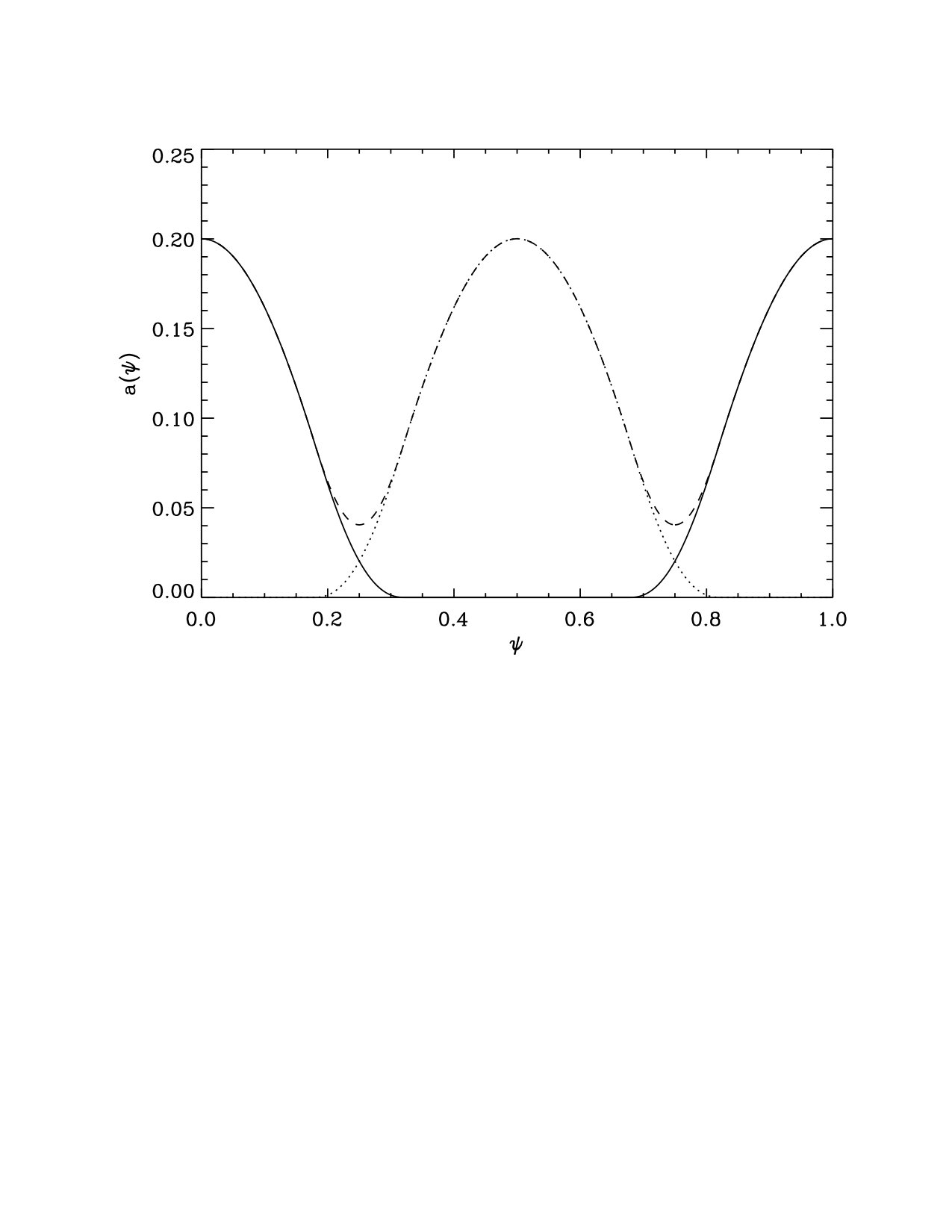

The variable component of equation (3) is the projected area of the spot. The solid curve in Figure 13 shows how the projected area of a circular, equatorial spot varies as a function of phase for a spot with $a_{0}=0.2$. At $\psi=0$, the spot is centered along the line of sight. As the star rotates, the area decreases due to projection effects until it begins to be occulted by the star. Once totally eclipsed, the spot area remains zero until it begins to emerge from behind the star. The projected area then continues to increase until the spot returns to the center of the disk. The dotted curve is the solid curve displaced in phase by 0.5. When the two are added, the result is the projected area for two identical spots on opposite sides of the star. The combined curve is shown as the dashed curve. The important feature of this curve is that the maxima are broader than the minima. This is simply because the entire spot is behind the star for an interval of $\pi-\theta_{0}$, and some part of the spot is visible for an interval of $\pi+\theta_{0}$. Note that $\theta_{0}$ can be quite large. A spot with $a_{0}=0.1$ has an $R_{s}=0.32R_{\star}$ and a $\theta_{0}=37^{\circ}$.

Equation (3) shows how the nature of the variability is determined by the quantity $f_{s}-f_{0}$ in the numerator of $C$. If $f_{s}>f_{0}$ (a bright spot), then $C>0$ and the line varies as $1+|C|a(\psi)$. If $C<0$ (a dark spot), the line varies as $1-|C|a(\psi)$. Figure 14 shows how the two families of $r(\psi)$ curves respond to spot size. In these figures, we set $C=1/a_{0}$, which effectively normalizes the curves and emphasizes their differences. The curves are similar near the broad maxima (bright spots) or minima (dark spots), since the major factor dictating the projected area is the change in the inclination angle to the line of sight, which is independent of spot size. The curves differ near the minima (bright spots) or maxima (dark spots), which are shaped by how large the spot is and, therefore, how long it is partially visible.

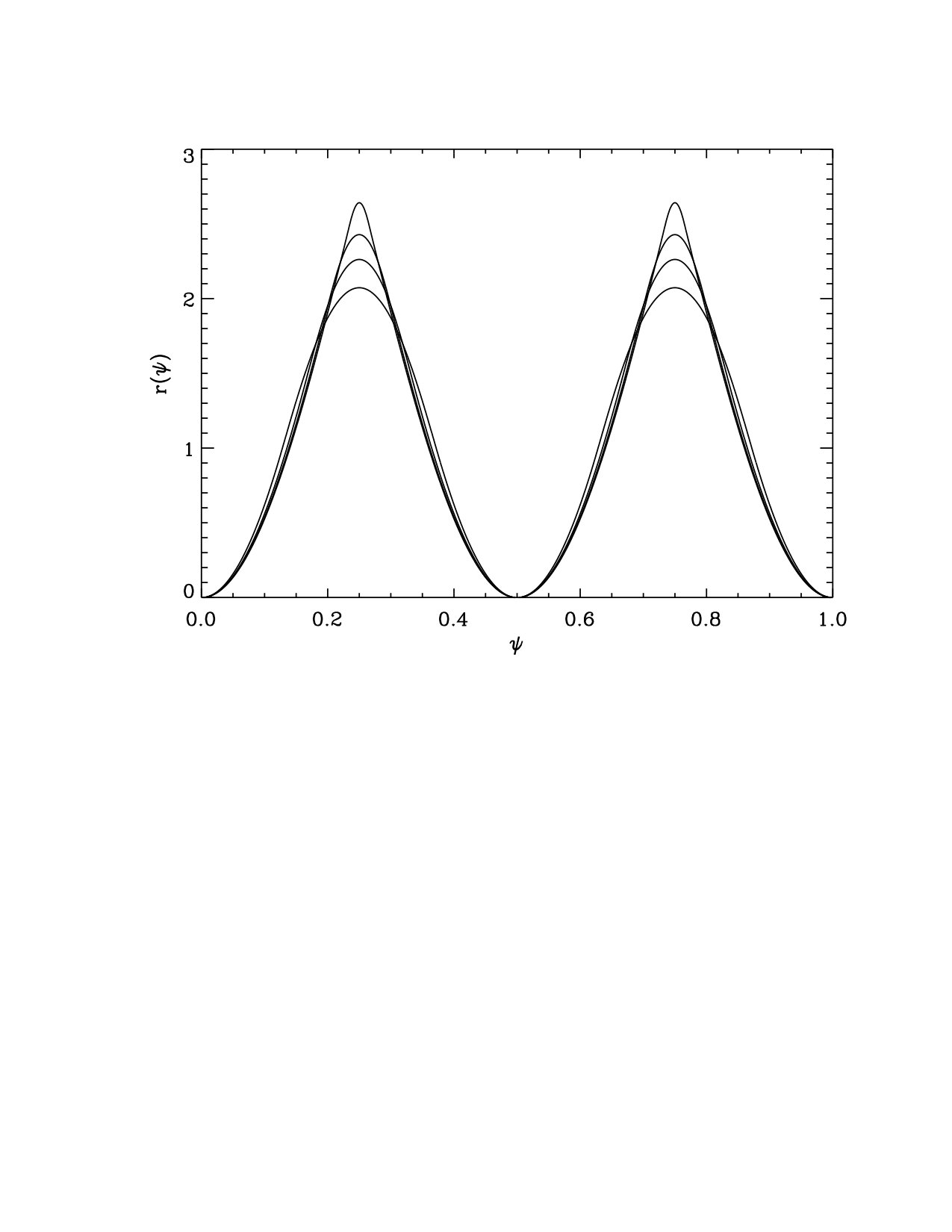

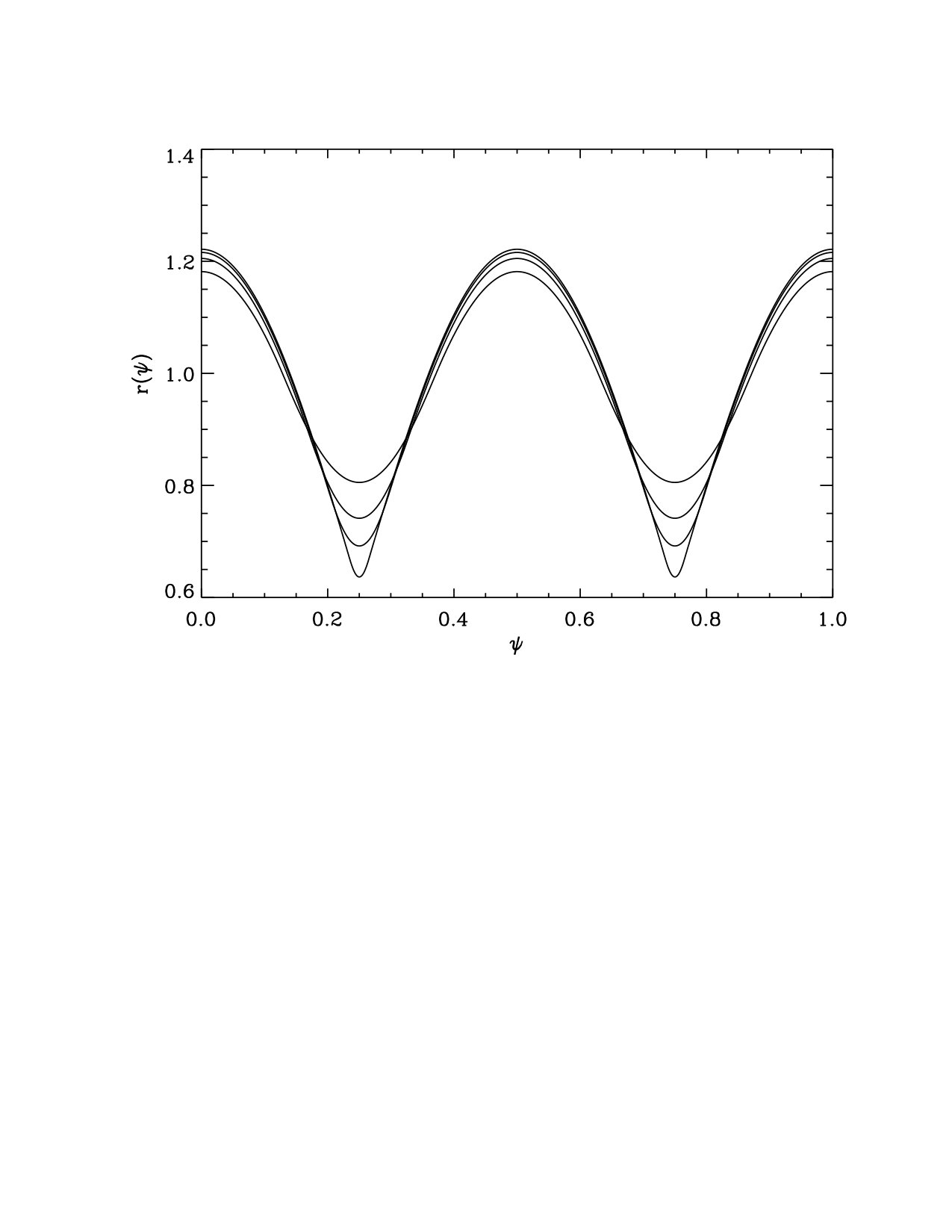

It is important to note that because curves with $C=1/a_{0}$ appear so similar (Fig. 14), it will be difficult to extract independent values of $C$ and $a_{0}$ from the observations, especially if the region of the sharp extrema are not well sampled. This means that errors in the two parameters will be strongly correlated. As a result, changing the values of $C$ and $a_{0}$ so that $a_{0}C$ is constant, will have little effect on the quality of the fits.

In the text, the fluxes are plotted against phase with respect to the 2.086 day period derived by de Jong et al. (2001). Following de Jong et al., we assume the observed period of the flux variation is half of the rotation period, so we introduce $\phi=2\psi$, where $\phi$ is the phase of the observations relative to the 2.086 day period. In this case, equation (3) suggests fitting the observed variations with a model of the form

[TABLE]

where $C$ and $a_{0}$ are the same as above and $\phi_{0}$ is the phase shift required to align the spot model with the observations. This is equation (1) in the text.

Acknowledgments

DM and RI acknowlege support Grant # HST-GO-14180 provided by NASA through a grant from the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS5-26555. LO is supported by the Deutsches Zentrum für Luft und Raumfahrt (DLR) grants FKZ 15 OR 1809, and partially by the Russian Government Program of Competitive Growth of Kazan Federal University. We also thank the referee, whose comments greatly enhanced the clarity and conciseness of our presentation.
