Quantum Chaos and Quantum Randomness - Paradigms of Entropy Production on the Smallest Scales

TL;DR

This paper explores how quantum chaos serves as a fundamental paradigm for entropy production at microscopic scales, highlighting differences from classical chaos and examining the role of measurement in generating quantum randomness.

Contribution

It introduces a quantum chaos framework that rectifies classical entropy inconsistencies and discusses how measurement-induced entropy sustains chaos in quantum systems.

Findings

Discretization of classical models mimics quantum chaos features.

Unitary evolution leads to the 'quantum death' of classical chaos.

Measurement introduces entropy, restoring chaos in quantum systems.

Abstract

Quantum chaos is presented as a paradigm of information processing by dynamical systems at the bottom of the range of phase-space scales. Starting with a brief review of classical chaos as entropy flow from micro- to macro-scales, I argue that quantum chaos came as an indispensable rectification, removing inconsistencies related to entropy in classical chaos: Bottom-up information currents require an inexhaustible entropy production and a diverging information density in phase space, reminiscent of Gibbs' paradox in Statistical Mechanics. It is shown how a mere discretization of the state space of classical models already entails phenomena similar to hallmarks of quantum chaos, and how the unitary time evolution in a closed system directly implies the ''quantum death'' of classical chaos. As complementary evidence, I discuss quantum chaos under continuous measurement. Here, the two-way exchange of information with a macroscopic apparatus opens an inexhaustible source of entropy and lifts the limitations implied by unitary quantum dynamics in closed systems. The infiltration of fresh entropy restores permanent chaotic dynamics in observed quantum systems. Could other instances of stochasticity in quantum mechanics be interpreted in a similar guise? Where observed quantum systems generate randomness, that is, produce entropy without discernible source, could it have infiltrated from the macroscopic meter? This speculation is worked out for the case of spin measurement.

Figures

Equations

$$x\mapsto x^{\prime }=2x(\mathrm{mod}1)=\{\begin{array}{ll}2x& \text{0≤x<0.5,}\\ 2x-1& \text{0.5≤x<1,}\end{array}$$

$$x^{\prime }=2\left(\sum _{n=1}^{\infty }{a}_n{2}^{-n}\right)(\mathrm{mod}1)=\sum _{n=1}^{\infty }{a}_n{2}^{-n+1}(\mathrm{mod}1)=\sum _{n=1}^{\infty }{a}_{n+1}{2}^{-n},$$

$$x^{\prime }=\sum _{n=1}^{\infty }{a}_n^{\prime }{2}^{-n},\text{with}{a}_n^{\prime }=a_{n+1}.$$

$$\begin{pmatrix}x\\ p\end{pmatrix}\mapsto\begin{pmatrix}x^{\prime}\\ p^{\prime}\end{pmatrix},\quad\begin{pmatrix}x^{\prime}\\ p^{\prime}\end{pmatrix}=\begin{pmatrix}2x\,({\rm mod}\,1)\\ \frac{1}{2}\bigl{(}p+{\rm int}(2x)\bigr{)}\end{pmatrix},$$

$$\begin{pmatrix}x^{\prime}\\ p^{\prime}\end{pmatrix}\mapsto\begin{pmatrix}x\\ p\end{pmatrix},\quad\begin{pmatrix}x\\ p\end{pmatrix}=\begin{pmatrix}\frac{1}{2}\bigl{(}x^{\prime}+{\rm int}(2p^{\prime})\bigr{)}\\ 2p\,({\rm mod}\,1)\end{pmatrix}.$$

$$p^{\prime }=\sum _{n=1}^{\infty }{b}_n^{\prime }{2}^{-n},\text{with}{b}_n^{\prime }:=\{\begin{array}{ll}{a}_1& \text{n=1,}\\ b_{n-1}& \text{n≥2.}\end{array}$$

$$\begin{pmatrix}x\\ p\end{pmatrix}\mapsto\begin{pmatrix}x^{\prime}\\ p^{\prime}\end{pmatrix}=\begin{pmatrix}x\\ ap\end{pmatrix},\quad\begin{pmatrix}x^{\prime}\\ p^{\prime}\end{pmatrix}\mapsto\begin{pmatrix}x^{\prime\prime}\\ p^{\prime\prime}\end{pmatrix}=\begin{pmatrix}2x\,({\rm mod}\,1)\\ \frac{1}{2}\bigl{(}p+{\rm int}(2x)\bigr{)}\end{pmatrix}.$$

$$D_0=\frac{\text{log(volume contraction)}}{\text{log(scale factor)}}=\frac{\ln (1/2)}{\ln (a/2)}=\frac{\ln (2)}{\ln (2)+\ln (1/a)}.$$

$$p^{\prime }=\frac{p}{2}=\frac{1}{2}\sum _{n=1}^{\infty }{b}_n^{\prime }{2}^{-n}=\sum _{n=1}^{\infty }{b}_n^{\prime }{2}^{-n-1}.$$

$$b_n^{\prime }=\{\begin{array}{ll}0& \text{n=1,}\\ b_{n-1}& \text{n≥2.}\end{array}$$

$$H(p,\theta ,t)=\frac{p^2}{2}+V(\theta )\sum _{n=-\infty }^{\infty }\delta (t-n),V(\theta )=K\cos (\theta ).$$

$$\left(\begin{array}{c}p\\ \theta \end{array}\right)\mapsto \left(\begin{array}{c}{p}^{\prime }\\ {\theta }^{\prime }\end{array}\right),\left(\begin{array}{c}{p}^{\prime }\\ {\theta }^{\prime }\end{array}\right)=\left(\begin{array}{c}p+K\sin ({\theta }^{\prime })\\ \theta +p\end{array}\right).$$

$$⟨(p_n-⟨p⟩{)}^2⟩=D(K)n$$

$$D(K)=\frac{K^2}{2}.$$

$$\rho :\mathbb{R}\otimes [0,2\pi [\to {\mathbb{R}}^{+},\mathbb{R}\otimes [0,2\pi [\ni (p,\theta )\mapsto \rho (p,\theta )\in {\mathbb{R}}^{+},{\int }_{-\infty }^{\infty }\mathrm{d}p{\int }_0^{2\pi }\mathrm{d}\theta \rho (p,\theta )=1.$$

$$\frac{\rm d}{{\rm d}t}\rho(p,\theta,t)=\bigl{\{}\rho(p,\theta,t),H(p,\theta,t)\bigr{\}}+\frac{\partial}{\partial t}\rho(p,\theta,t),$$

$${\rho }_p(p,t):={\int }_0^{2\pi }\mathrm{d}\theta \rho (p,\theta ,t),{\int }_{-\infty }^{\infty }\mathrm{d}p{\rho }_p(p,t)=1.$$

$$\frac{\partial }{\partial t}{\rho }_p(p,t)=D(K)\frac{{\partial }^2}{\partial p^2}{\rho }_p(p,t).$$

$$\rho_{p}(p,t)=\frac{1}{\sqrt{2\pi}\sigma(t)}\exp\left(-\frac{(p-p_{0})^{2}}{2\bigl{(}\sigma(t)\bigr{)}^{2}}\right),\quad\sigma(t)=D(K)t.$$

$$I(t)=-c\int_{-\infty}^{\infty}{\rm d}p\,\rho_{p}(p,t)\ln\bigl{(}d_{p}\rho_{p}(p,t)\bigr{)},$$

$$I(t)=\frac{c}{2}\left[\ln \left(\frac{2\pi D(K)t}{d_p^2}\right)+1\right],$$

$$\frac{\mathrm{d}}{\mathrm{d}t}I(t)=\frac{c}{2t}.$$

$$\left(\begin{array}{c}p\\ \theta \end{array}\right)\mapsto \left(\begin{array}{c}{p}^{\prime }\\ {\theta }^{\prime }\end{array}\right),\left(\begin{array}{c}{p}^{\prime }\\ {\theta }^{\prime }\end{array}\right)=\left(\begin{array}{c}{e}^{-\lambda }p+K\sin ({\theta }^{\prime })\\ \theta +e^{-\lambda }p\end{array}\right).$$

$$\begin{array}{rl}\dot{p}& =-\lambda p+K\sin (\theta )\sum _{n=-\infty }^{\infty }\delta (t-n),\\ \dot{\theta }& =p.\end{array}$$

$$\frac{\partial}{\partial t}\rho_{p}(p,t)=(1-\lambda)\frac{\partial}{\partial p}\rho_{p}(p,t)+\frac{\partial}{\partial p}\left(D(K)+\bigl{(}(1-\lambda)p\bigr{)}^{2}\right)\frac{\partial}{\partial p}\rho_{p}(p,t).$$

$$x_j=\frac{j-1}{J},j=1,2,3,\dots ,J,J=2^N,N\in \mathbb{N},$$

$$x=\sum _{n=1}^N{a}_n{2}^{-n}.$$

$$\mathbf{\rho }=({\rho }_1,{\rho }_2,{\rho }_3,\dots ,{\rho }_J),{\rho }_j\in {\mathbb{R}}^{+},\sum _{j=1}^N{\rho }_j=1,$$

$$\mathbf{\rho }\mapsto {\mathbf{\rho }}^{\prime }={\mathbf{B}}_J\mathbf{\rho }.$$

$${\mathbf{B}}_8=\left(\begin{array}{cccccccc}1& 0& 0& 0& 0& 0& 0& 0\\ 0& 0& 0& 0& 1& 0& 0& 0\\ 0& 1& 0& 0& 0& 0& 0& 0\\ 0& 0& 0& 0& 0& 1& 0& 0\\ 0& 0& 1& 0& 0& 0& 0& 0\\ 0& 0& 0& 0& 0& 0& 1& 0\\ 0& 0& 0& 1& 0& 0& 0& 0\\ 0& 0& 0& 0& 0& 0& 0& 1\end{array}\right).$$

Full text

\pubvolume

xx \issuenum1 \articlenumber5

\historyReceived: date; Accepted: date; Published: date

\TitleQuantum Chaos and Quantum Randomness— Paradigms of Entropy Production on the Smallest Scales

\AuthorThomas Dittrich 1\orcidA0000-0001-7416-5033 \AuthorNamesThomas Dittrich

\correstdittrich@unal.edu.co; Tel.: +57-1-3165000 ext. 10276

1 Introduction

With the advent of the first publications proposing the concept of deterministic chaos and substantiating it with a novel tool, computer simulations, more was achieved than just a major progress in fields such as weather and turbulence Lorenz (1963). They suggested a radically new view of stochastic phenomena in physics. Instead of subsuming them under a gross global category such as“chance??or “randomness”, the concept of chaos offered a detailed analysis on basis of deterministic evolution equations, thus indicating an identifiable source of stochasticity in macroscopic phenomena. A seminal insight, to be expounded in Sect. 2, that arose as a spin-off of the study of deterministic chaos, was that the entropy produced by chaotic systems emerges by amplifying structures, initially contained in the smallest scales, to macroscopic visibility Shaw (1981).

Inspired and intrigued by this idea, researchers such as Giulio Casati and Boris Chirikov saw its potential as a promising approach also towards the microscopic foundations of statistical mechanics, thus accepting the challenge to extend chaos to quantum mechanics. In the same spirit as those pioneering works on deterministic chaos, they applied standard quantization to Hamiltonian models of classical chaos and solved the corresponding Schrödinger equation numerically Casati et al. (1992), again utilizing the powerful computing equipment available at that time. What they obtained was a complete failure on first sight, but paved the way towards a deeper understanding not only of classical chaos, but also of the principles of quantum mechanics, concerning in particular the way information is processed on atomic scales: In closed quantum systems, the entropy production characteristic of classical chaos ceases after a finite time and gives way to a behaviour that is not only deterministic but even repetitive, at least in a statistical sense, hence does not generate novelty any longer. The “quantum death of classical chaos” will be illustrated in Sect. 3.1.

The present article recalls this development, drawing attention to a third decisive aspect that is able to reconcile that striking discrepancy found between quantum and classical dynamics in closed chaotic systems. To be sure, the gap separating quantum from classical physics can be bridged to a certain extent by semiclassical approximations, which interpolate between the two descriptions, albeit at the expense of conceptual consistency and transparency Ozorio de Almeida (1988); Brack and Bhaduri (1997). Also in the case of quantum chaos they provide valuable insight into the fingerprints classical chaos leaves in quantum systems. A more fundamental cause contributing to that discrepancy, however, lies in the closure of the models employed to study quantum chaos. It excludes an aspect of classicality that is essential for the phenomena we observe on the macroscopic level: No quantum system is perfectly isolated, or else we could not even know of its existence.

The rôle of being coupled to a macroscopic environment first came into sight in other areas where quantum mechanics appears incompatible with basic classical phenomena, such as in particular dissipation Feynman and Vernon Jr. (1963); Caldeira and Leggett (1981); Leggett et al. (1987). Here, even classically, irreversible behaviour can only be reconciled with time-reversal invariant microscopic equations of motion if a coupling to a reservoir with a macroscopic number of degrees of freedom (or a quasi-continuous spectrum) is assumed. Quantum mechanically, this coupling not only explains an irreversible loss of energy, it leads to a second consequence, at least as fundamental as dissipative energy loss: a loss of information, which becomes manifest as decoherence Joos and Zeh (1985); Joos et al. (2003).

In the context of quantum dissipation, decoherence could appear as secondary to the energy loss, yet it is the central issue in another context where quantum behaviour resisted a satisfactory interpretation for a long time: quantum measurement. The “collapse of the wavepacket” remained an open problem even within the framework of unitary quantum mechanics, till it could be traced back as well to the presence of a macroscopic environment, incorporated in the measurement apparatus Zurek (1981, 1982, 1984a, 1984b, 1991, 2003). As such, the collapse is not an annoying side effect but plainly indispensable, to make sure that the measurement leaves a lasting record in the apparatus, thus becoming a fact in the sense of classical physics. Since there is no dissipation involved in this case, quantum measurement became a paradigm of decoherence induced by interaction and entanglement with an environment.

The same idea, that decoherence is a constituent aspect of classicality, proves fruitful in the context of quantum chaos as well Zurek and Paz (1994). It forms an essential complement to semiclassical approximations, in that it lifts the “splendid isolation”, which inhibits a sustained increase of entropy in closed quantum systems. Section 3.2 elucidates how the coupling to an environment restores the entropy production, constituent for deterministic chaos, at least partially in classically chaotic quantum systems. Combining decoherence with dissipation, other important facets of quantum chaos come into focus: It opens the possibility to study quantum effects also in phenomena related to dissipative chaotic dynamics, notably strange attractors, which, as fractals, are incompatible with uncertainty.

The insight guiding this article is that in the context of quantum chaos, the interaction with an environment has a double-sided effect: It induces decoherence, as a loss of information, e.g., on phases of the central quantum system, but also returns entropy from the environment to the chaotic system Unruh and Zurek (1989); Zurek and Paz (1994), which then fuels its macroscopic entropy production. If indeed there is a two-way traffic, an interchange of entropy between system and environment, this principle, applied in turn to quantum measurement, has a tantalizing consequence: It suggests that besides decoherence, besides the collapse of the wavepacket, also the randomness apparent in the outcomes of quantum measurements could be traced back to the environment, could be interpreted as a manifestation of entropy that infiltrates from the macroscopic apparatus. This speculation is illustrated in Sect. 4 for the emblematic case of spin measurement. While Sections 2 to 3 largely have the character of reviews, complementing the work of various authors with some original material, Sect. 4 is a perspective, it presents a project in progress at the time of writing this report.

2 Classical chaos and information flows between micro- and macroscales

2.1 Overview

The relationship between dynamics and information flows has been pointed out by mathematical physicists, such as notably Kolmogorov, much before deterministic chaos was (re)discovered in applied science, as is evident for example in the notion of Kolmogorov-Sinai entropy Lichtenberg and Liebermann (1983). It measures the information production by a system with at least one positive Lyapunov exponent and represents a central result of research on dynamical disorder in microscopic systems, relevant primarily for statistical mechanics. For models of macroscopic chaos, typically including dissipation, an interpretation as a phenomenon that has to do with a directed information flow between scales came only much later. A seminal work in that direction is the 1980 article by Robert Shaw Shaw (1981), where, in a detailed discussion in information theoretic terms, the bottom-up information flow related to chaos is contrasted with the top-down flow underlying dissipation.

Shaw argues that the contraction of phase-space area in a dissipative system results in an increasing loss of information on its initial state, if the state of the system is observed with a given constant resolution. Conversely, later states can be determined to higher and higher accuracy from measurements of the initial state. Chaotic systems show the opposite tendency: Phase-space expansion, as consequence of exponentially diverging trajectories, allows to retrodict the initial from the present state with increasing precision, while forecasting the final state requires more and more precise measurements of the initial state as their separation in time increases.

Chaotic systems therefore produce entropy, at a rate given by their Lyapunov exponents, as is also reflected in the spreading of any initial distribution with a finite extension. The divergence of trajectories also indicates the origin of this information: The chaotic flow amplifies details of the initial distribution with an exponentially increasing magnification factor. If the state of the system is observed with constant resolution, so that the total information on the present state is bounded, the gain of information on small details is accompanied by a loss of information on the largest scale, which impedes inverting the dynamics: Chaotic systems are globally irreversible, while the irreversibility of dissipative systems is a consequence of their loosing local information into ever smaller scales.

We achieve a more complete picture already by going to Hamiltonian systems, systems with a phase space of even dimension. Their phase-space flow is symplectic, it conserves phase-space area or volume, so that every expansion in some direction of phase space must be compensated by contraction in another direction. In terms of information flows, this means that a bottom-up current from small to large scales, corresponding to chaotic dynamics, will be accompanied by an opposite current of the same magnitude, returning information to small scales. In the framework of Hamiltonian dynamics, however, the top-down current is not related to dissipation, it is not irreversible but to the contrary, complements the picture in such a way that all in all, the time evolution becomes reversible.

A direct consequence of volume conservation by Hamiltonian flows is that Hamiltonian dynamics also conserves entropy, see Appendix A. As is true for the underlying conservation of volume, this invariance proves to be even more general than energy conservation and applies, e.g., also to systems with a time-dependent external force where the total energy is not conserved. It indicates how to integrate dissipative systems in this more comprehensive framework: Dissipation and other irreversible macroscopic phenomena can be described within a Hamiltonian setting by going to models that include microscopic degrees of freedom, typically as heat baths comprising an infinite number of freedoms, on an equal footing in the equations of motion. In this way, entropy conservation extends to the entire system.

The conservation of the total entropy in systems comprising two or more degrees of freedom or subsystems cannot be broken down, however, to a global sum rule that would imply a simple exchange of information through currents among subsystems. The reason is that in the presence of correlations, there exists a positive amount of mutual information which prevents subdividing the total information content uniquely into contributions associated to subsystems or individual degrees of freedom. Notwithstanding, if the partition is not too complex, as is the case for a central system coupled to a thermal reservoir or heat bath, it is still possible to keep track of internal information flows between these two sectors. For the particular instance of dissipative chaos, a gross picture emerges that comprises three components:

• •

a “vertical” current from large to small scales in certain dimensions within the central system, representing the entropy loss that accompanies the dissipative loss of energy,

• •

an opposite vertical current, from small to large scales, induced by the chaotic dynamics in other dimensions of the central system,

• •

a “horizontal” exchange of information between the central system and the heat bath, including a redistribution of entropy within the reservoir, induced by its internal dynamics.

On balance, more entropy must be dumped by dissipation into the heat bath than is lifted by chaos into the central system, thus maintaining consistency with the Second Law. In phenomenological terms, this tendency is reflected in the overall contraction of a dissipative chaotic system onto a strange attractor. After transients have faded out, the chaotic dynamics then develops on a sub-manifold of reduced dimension of the phase space of the central system, given by the attractor. For the global information flow it is clear that in a macroscopic chaotic system, the entropy that surfaces at large scales by chaotic phase-space expansion has partially been injected into the small scales from microscopic degrees of freedom of the environment.

Processes converting macroscopic structures into microscopic entropy, such as dissipation, are the generic case. This report, however, is dedicated to the exceptional cases, notably chaotic systems, which turn microscopic noise into macroscopic randomness. The final section is intended to demonstrate that processes even belong to this category where this is far less evident, in particular quantum measurements.

2.2 Example 1: Bernoulli map and baker map

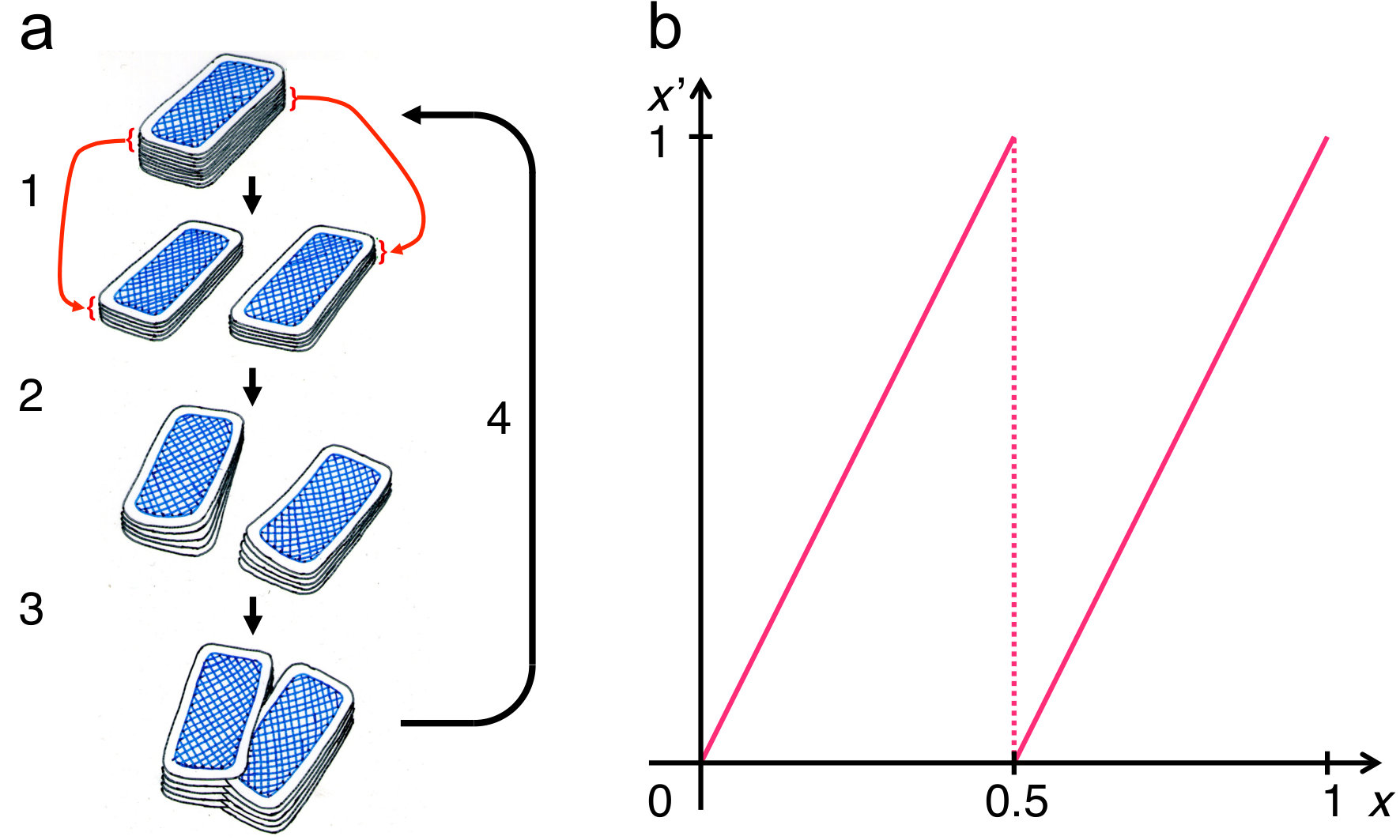

Arguably the simplest known model for classical deterministic chaos is the Bernoulli map Schuster (1984); Ott (2002), a mapping of the unit interval onto itself that deviates from linearity only by a single discontinuity. It is defined as

[TABLE]

and can be interpreted as a mathematical model of a popular card-shuffling technique (Fig. 1). The way it generates information by lifting it from scales too small to be resolved to macroscopic visibility becomes immediately apparent if the argument $x$ is represented as a binary sequence, $x=\sum_{n=1}^{\infty}a_{n}2^{-n}$, $a_{n}\in\{0,1\}$, so that map operates as

[TABLE]

that is, the image $x^{\prime}$ has the binary expansion

[TABLE]

The action of the map consists in shifting the sequence of binary coefficients rigidly by one position to the left (the “Bernoulli shift”) and discarding the most significant digit $a_{1}$. In terms of information, this operation creates exactly one bit per time step, coming from the smallest resolvable scales, and at the same time looses one bit at the largest scale (Fig. 3a), which renders the map non-invertible.

By adding another dimension, the Bernoulli map is readily complemented so as to become compatible with symplectic geometry. As the action of the map on the second coordinate, say $p$, has to compensate for the expansion by a factor 2 in $x$, this suggests modelling it as a map of the unit square onto itself, contracting $p$ by the same factor 2,

[TABLE]

known as the baker map Lichtenberg and Liebermann (1983); Ott (2002). Geometrically, it can be interpreted as a combination of stretching (by the expanding action of the Bernoulli map) and folding (corresponding to the discontinuity of the Bernoulli map) (Fig. 2). Being volume conserving, the baker map is invertible. The inverse map reads

[TABLE]

It interchanges the operations on $x$ and $p$ of the forward baker map.

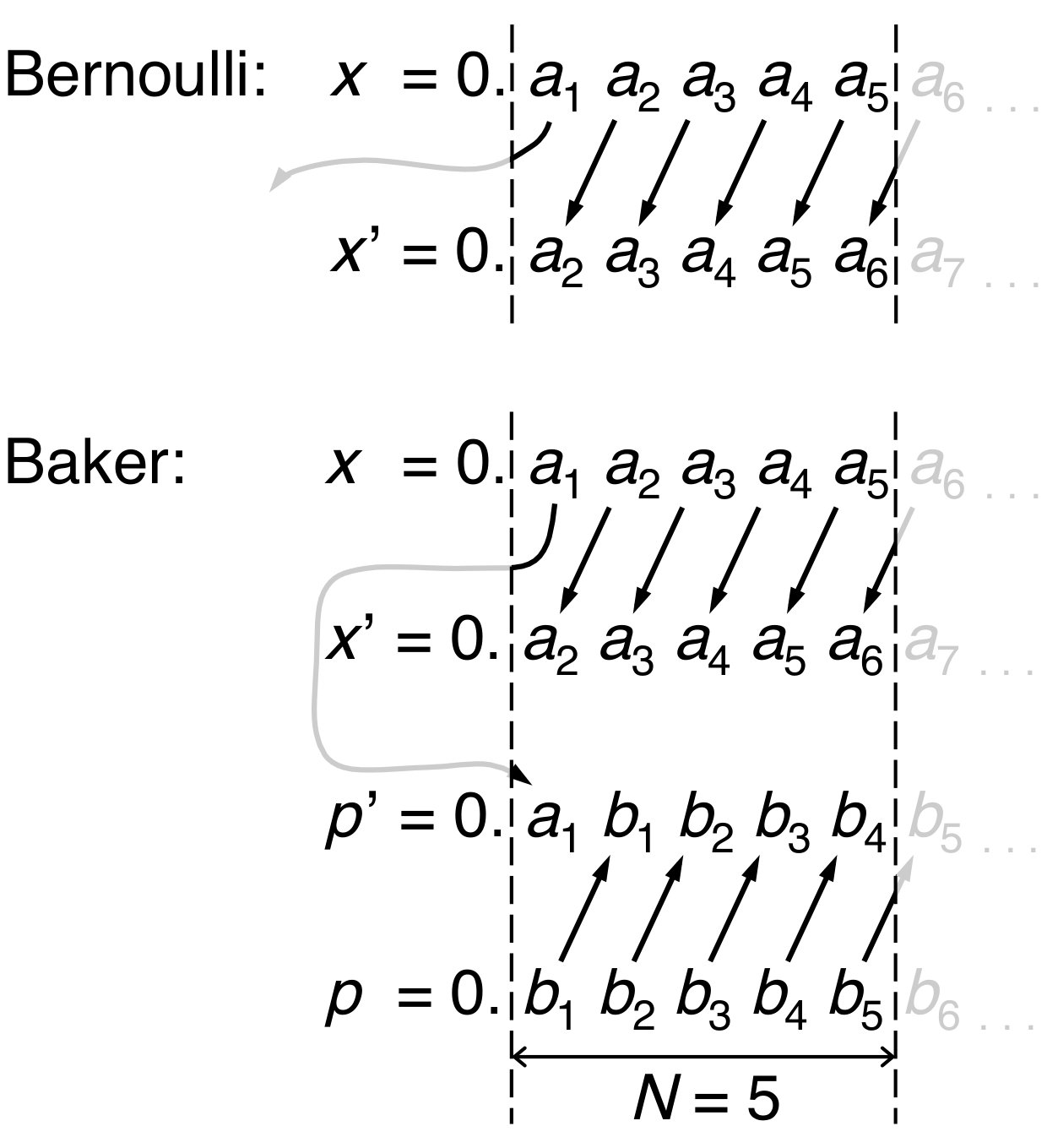

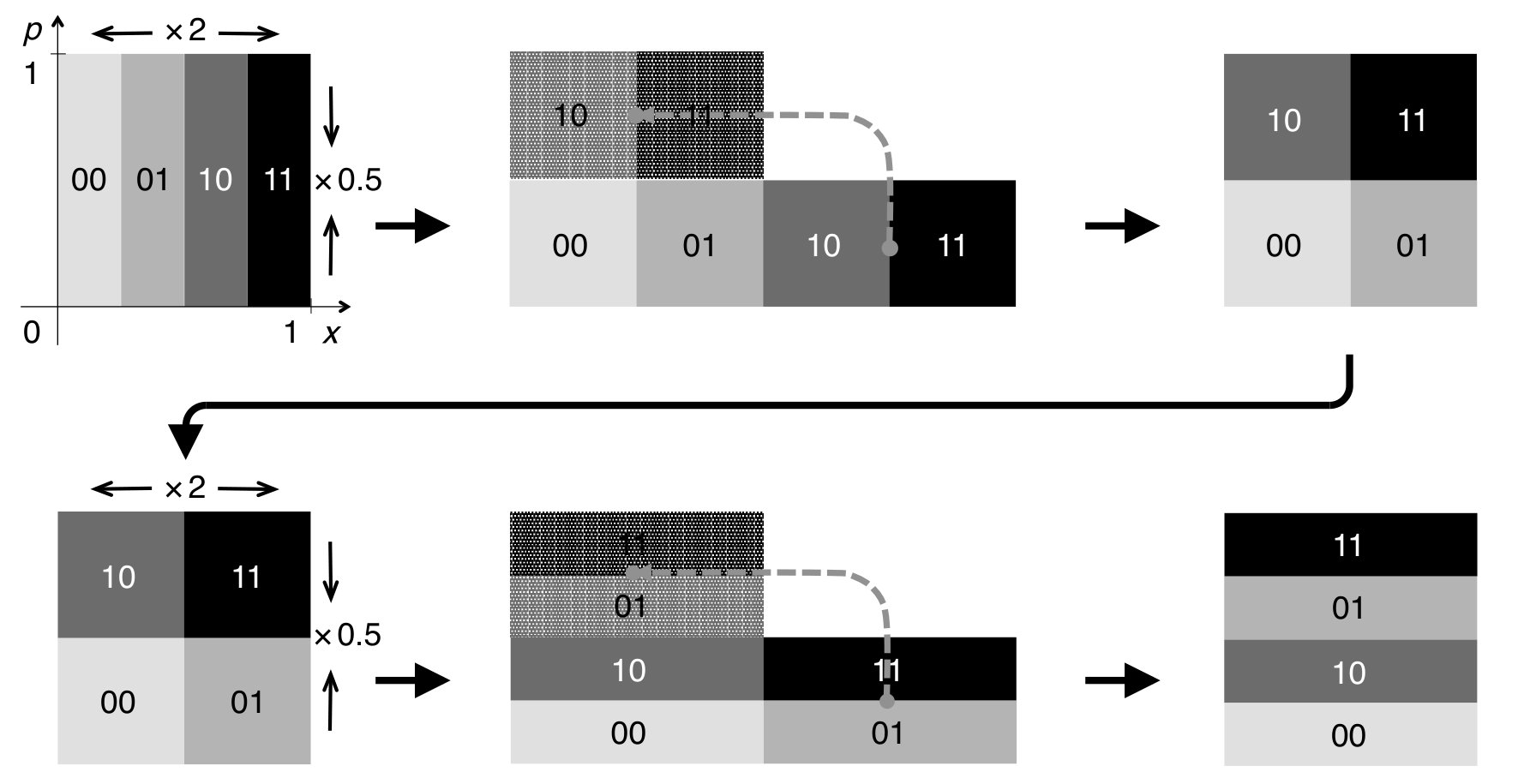

The information flows underlying the baker map are revealed by encoding also $p$ as a binary sequence, $p=\sum_{n=1}^{\infty}b_{n}2^{-n}$. The action of the map again translates to a rigid shift,

[TABLE]

However, it now moves the sequence by one step to the right, that is, from large to small scales. The most significant digit $b^{\prime}_{1}$, which is not contained in the original sequence for $p$, is transferred from the binary code for $x$, it recovers exactly the coefficient $a_{1}$ that is discarded due to the expansion in $x$. This “pasternoster mechanism” reflects the invertibility of the map. The upward information current in $x$ is turned around to become a downward current in $p$ (Fig. 3b). A full circle cannot be closed, however, as long as the “depth” from where and to which the information current reaches, remains unrestricted by some finite resolution, indicated in Fig. 3, as is manifest in the infinite upper limit of the sums in Eqs. (2,3,6).

Generalizing the baker map so as to incorporate dissipation is straightforward Schuster (1984); Ott (2002): Just insert a step that contracts phase space towards the origin in the momentum direction, for example preceding the stretching and folding operations of Eq. (4),

[TABLE]

A contraction by a factor $a$, $0<a\leq 1$, models a dissipative reduction of the momentum by the same factor. Figure 4 illustrates for the first three steps how the generalized baker map operates, starting from a homogeneous distribution over the unit square. For each step, the volume per strip reduces by $a/2$ while the number of strips doubles, so that the overall volume reduction is given by $a$. Asymptotically, a strange attractor emerges (rightmost panel in Fig. 4) with a fractal dimension, calculated as box-counting dimension Kantz and Schreiber (2004),

[TABLE]

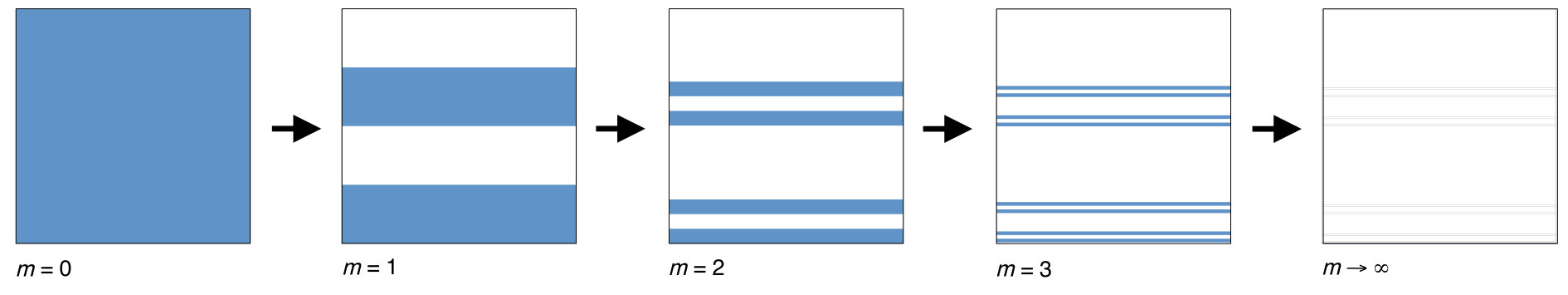

For example, for $a=0.5$, as in Fig. 4, a dimension $D_{0}=0.5$ results for the vertical cross section of the strange attractor, hence $D=1.5$ for the entire manifold.

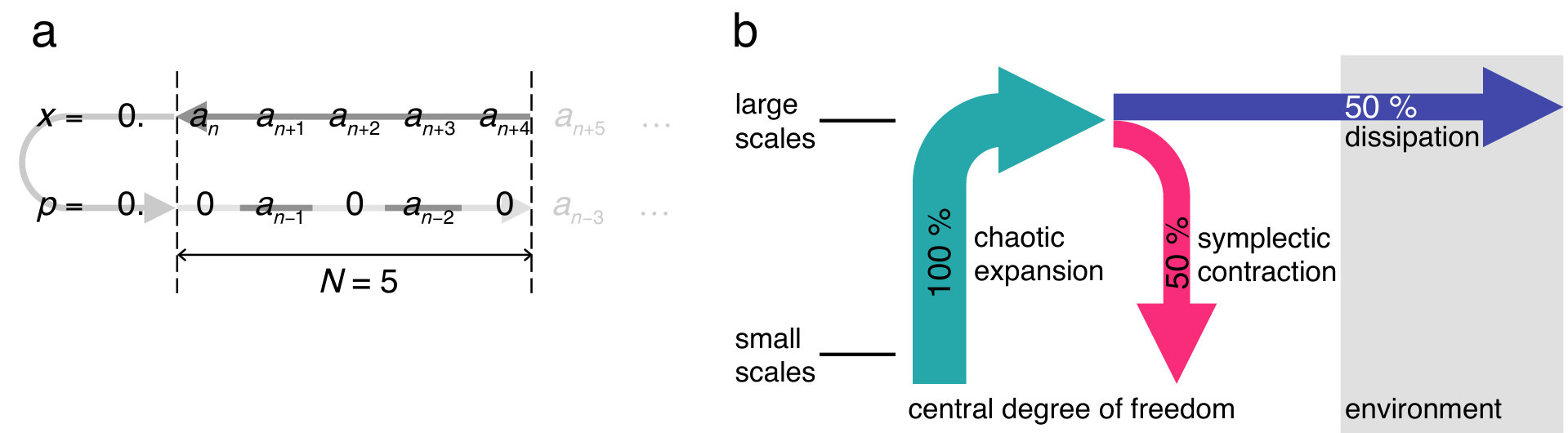

This model of dissipative chaos is simple enough to allow for a complete balance of all information currents involved. Adopting the same binary coding as in Eq. (6), a single dissipative step of the mapping, with $a=0.5$, (7) has the effect

[TABLE]

That is, if $p$ is represented as $p=0.\,b_{1}\,b_{2}\,b_{3}\,b_{4}\,\ldots$, $p^{\prime}$ as $p^{\prime}=0.\,b^{\prime}_{1}\,b^{\prime}_{2}\,b^{\prime}_{3}\,b^{\prime}_{4}\,\ldots$, the new binary coefficients are given by a rigid shift by one unit to the right, but with the leftmost digit replaced by 0,

[TABLE]

Combined with the original baker map (6), this additional step fits in one digit 0 each between every two binary digits transferred from position to momentum (Fig. 4). In terms of information currents, this means that only half of the information lifted up by chaotic expansion in $x$ is returned to small scales by the compensating contraction in $p$, the other half is diverted by dissipation (Fig. 5). This particularly simple picture of course owes itself to the special choice of $a=0.5$. Still, for other values of $a$, different from $1/2$ or an integer power thereof, the situation will be qualitatively the same. The fact that the dissipative information loss occurs here at the largest scales, along with the volume conserving chaotic contraction in $p$, not at the smallest as would be expected on physical grounds, is an artefact of the utterly simplified model.

2.3 Example 2: Kicked rotor and standard map

A model that comes much closer to an interpretation as a physical system than the Bernoulli and baker maps is the kicked rotor Chirikov (1979); Lichtenberg and Liebermann (1983); Ott (2002). It can be motivated as an example, reduced to a minimum of details, of a circle map, a discrete dynamical system conceived to describe the phase-space flow in Hamiltonian systems close to integrability. The kicked rotor, the version in continuous time of this model, can even be defined by a Hamiltonian, but allowing for a time-dependent external force,

[TABLE]

It can be interpreted as a plane rotor with angle $\theta$ and angular momentum $p$ and with unit inertia, driven by impulses that depend on the angle as a nonlinear function, a pendulum potential, and on time as a periodic chain of delta kicks. Their strength is controlled by the parameter $K$.

Reducing the continuous-time Hamiltonian (11) to a corresponding discrete-time version in the form of a map is not a unique operation but depends, for example, on the way stroboscopic time sections are inserted relative to the kicks. For instance, if they follow immediately after each delta kick, $t_{n}=\lim_{\epsilon\searrow 0^{+}}(n+\epsilon)$, $n\in\mathbb{Z}$, the map from $t_{n}$ to $t_{n+1}$ reads

[TABLE]

It is often referred to as the standard or Chirikov map Chirikov (1979); Lichtenberg and Liebermann (1983); Ott (2002).

The dynamical scenario of this model is by far richer than that of the Bernoulli and baker maps and constitutes a prototypical example of the Kolmogorov-Arnol’d-Moser (KAM) theorem Lichtenberg and Liebermann (1983). The parameter $K$ controls the deviation of the system from integrability. While for $K=0$, the kicked rotor is integrable, equivalent to an unperturbed circle map, increasing $K$ leads through a complex sequence of mixed dynamics, with regular and chaotic phase-space regions interweaving each other in an intricate fractal structure. For large values of $K$, roughly given by $K\gtrsim 1$, almost all regular structures in phase space disappear and the dynamics becomes purely chaotic. For the cylindrical phase space of the kicked rotor, $(p,\theta)\in\mathbb{R}\otimes[0,2\pi[$, this means that the angle approaches a homogeneous distribution over the circle, while the angular momentum spreads diffusively over the cylinder, a case of deterministic diffusion, here induced by the randomizing action of the kicks.

For finite values of $K$, the spreading of the angular momentum does not yet follow a simple diffusion law, owing to small non-chaotic islands in phase space Karney (1983). Asymptotically for $K\to\infty$, however, the angular momentum spreads diffusively,

[TABLE]

with a diffusion constant

[TABLE]

This regime is of particular interest in the present context, as it allows for a simple estimate of the entropy production. In the kicked rotor, information currents cannot be separated as neatly as in the baker map into a macro-micro flow in one coordinate and a micro-macro flow in the other. The complex fractal phase-space structures imply that these currents are organized differently in each point in phase space. Nevertheless, some global features, relevant for the total entropy balance, can be extracted without going to such detail.

Introduce a probability density in phase space that carries the full information available on the state of the system,

[TABLE]

This density evolves deterministically according to Liouville’s theorem Goldstein (1980); Lichtenberg and Liebermann (1983)

[TABLE]

involving the Poisson bracket with the Hamiltonian (11). In order to extract the overall entropy production from the detailed density $\rho(p,\theta,t)$, some coarse graining is required. In the case of the kicked rotor, it offers itself to integrate $\rho(p,\theta,t)$ over $\theta$, since the angular distribution rapidly approaches homogeneity, concealing microscopic information in fine details, while the diffusive spreading in $p$ contains the most relevant large-scale structure. A time-dependent probability density for the angular momentum alone is defined projecting by the full distribution along $\theta$,

[TABLE]

Its time evolution is no longer given by Eq. (93) but follows a Fokker-Planck equation,

[TABLE]

For a localized initial condition, $\rho(p,0)=\delta(p-p_{0})$, Eq. (18) it is solved for $t>0$ by a Gaussian with a width that increases linearly with time

[TABLE]

Define the total information content of the density $\rho_{p}(p,t)$ as

[TABLE]

where $c$ is a constant fixing the units of information (e.g., $c=\log_{2}(e)$ for bits and $c=k_{\rm B}$, the Boltzmann constant, for thermodynamic entropy) and $d_{p}$ denotes the resolution of angular momentum measurements. The diffusive spreading given by Eq. (19) corresponds to a total entropy growing as

[TABLE]

hence to an entropy production rate of

[TABLE]

This positive rate decays with time, but only algebraically, that is, without a definite time scale.

Even if dissipation is not the central issue here, including it to illustrate a few relevant aspects in the present context is in fact straightforward. On the level of the discrete-time map, Eq. (12), a linear reduction of the angular momentum leads to the dissipative standard map or Zaslavsky map Zaslavsky (1978); Schmidt and Wang (1985),

[TABLE]

The factor $\exp(-\lambda)$ results from integrating the equations of motion

[TABLE]

The Fokker-Planck equation (18) has to be complemented accordingly by a drift term $\sim\partial\rho_{p}(p,t)/\partial p$,

[TABLE]

In the chaotic regime $K\gtrsim 1$ of the conservative standard map, the dissipative map (23) approaches a stationary state characterized by a strange attractor, see, e.g., Refs. Zaslavsky (1978); Schmidt and Wang (1985).

2.4 Anticipating quantum chaos: classical chaos on discrete spaces

Classical chaos can be understood as the manifestation of information currents that lift microscopic details to macroscopic visibility Shaw (1981). Do they draw from an inexhaustible information supply on ever smaller scales? The question bears on the existence of an upper bound of the information density in phase space or other physically relevant state spaces, or equivalently, on a fundamental limit of distinguishability, an issue raised notably also by Gibbs’ paradox Reif (1965). Down to which minute difference between their states will two physical systems remain distinct? The question has already been answered implicitly above by keeping the number of binary digits in Eqs. (2,3,6) indefinite, in agreement with the general attitude of classical mechanics not to introduce any absolute limit of distinguishability.

A similar situation arises if chaotic maps are simulated on digital machines with finite precision and/or finite memory capacity Crutchfield and Packard (1982); Huberman and Wolff (1985); Wolff and Huberman (1986); Beck and Roepstorff (1987). In order to assess the consequences of discretizing the state space of a chaotic system, impose a finite resolution in Eqs. (2,3,6), say $d_{x}=1/J$, $J=2^{N}$ with $N\in\mathbb{N}$, so that the sums over binary digits only run up to $N$. This step is motivated, for example, by returning to the card-shuffling technique quoted as inspiration for the Bernoulli map (Fig. 1). A finite number of cards, say $J$, in the card deck, corresponding to a discretization of the coordinate $x$ into steps of size $d_{x}>0$, will substantially alter the dynamics of the model.

More precisely, specify the discrete coordinate as

[TABLE]

with a binary code

[TABLE]

A density distribution over the discrete space $(x_{1},x_{2},\ldots,x_{J})$ can now be written as a $J$-dimensional vector

[TABLE]

so that the Bernoulli map takes the form of a $(J\times J)$-permutation matrix ${\bf B}_{J}$,

[TABLE]

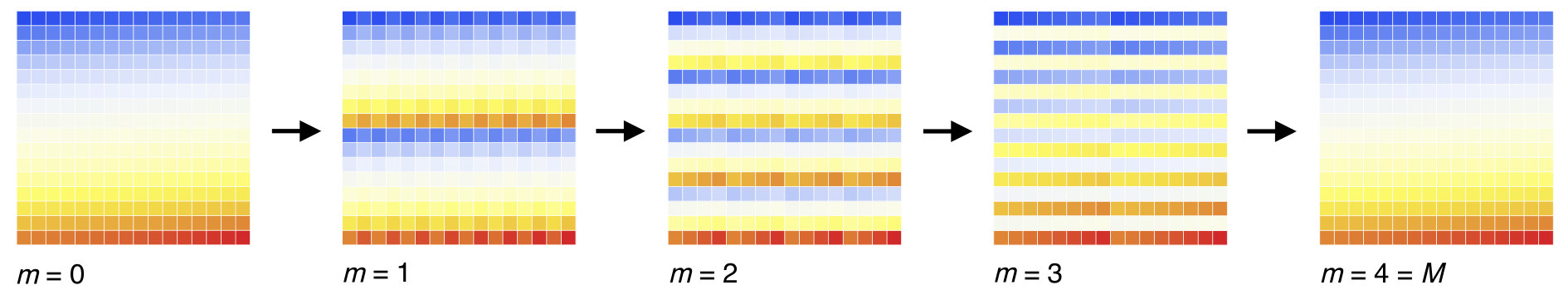

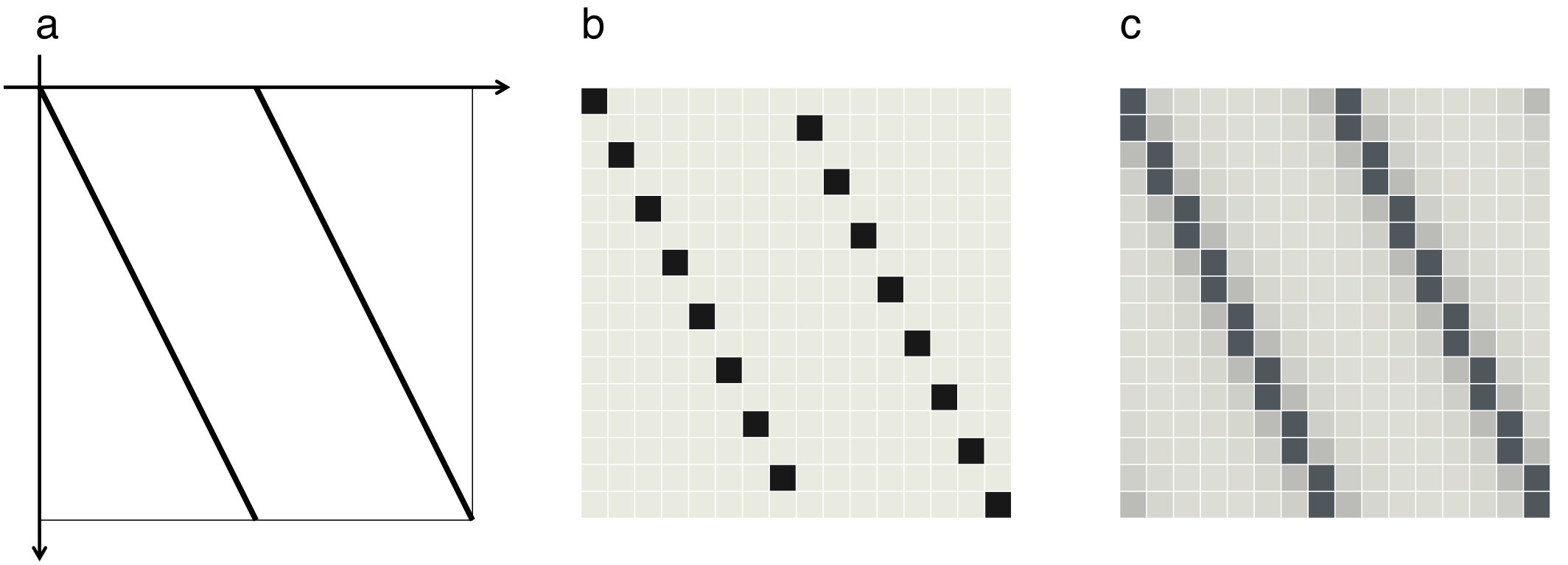

These matrices reproduce the graph of the Bernoulli map, Fig. 1, but discretized on a $(J\times J)$ square grid. Moreover, they incorporate a deterministic version of the step of interlacing two partial card decks in the shuffling procedure, in an alternating sequence resembling a zipper. For example, for $J=8$, $N=3$, the matrix reads

[TABLE]

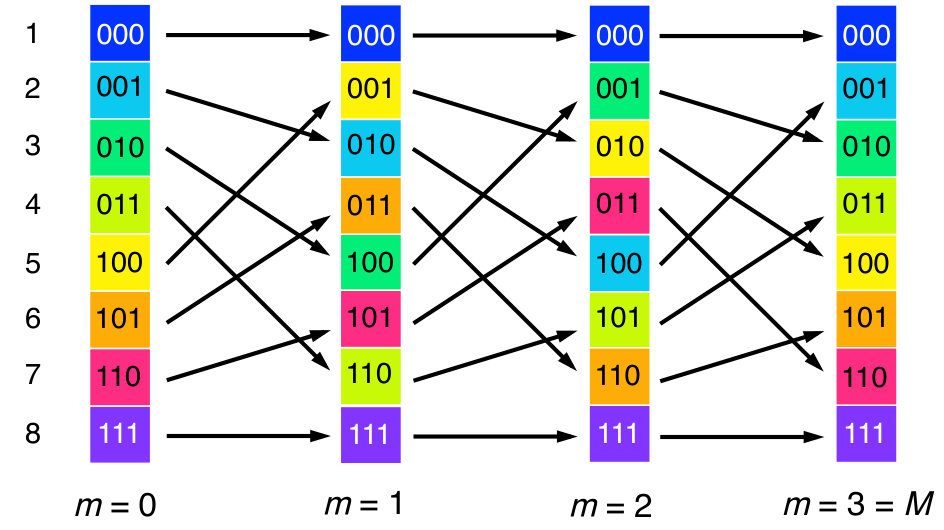

The two sets of entries $=1$ along slanted vertical lines represent the two branches of the graph in Fig. 1, as shown in Fig. 6b.

A deterministic dynamics on a discrete state space comprising a finite number of states must repeat after a finite number $M$ of steps, not larger than the total number of states. In the case of the Bernoulli map, the recursion time is easy to calculate: In binary digits, the position discretized to $2^{N}$ bins is specified by a sequence of $N$ binary coefficients $a_{n}$. The Bernoulli shift moves this entire sequence in $M=N={\rm lb}(J)$ steps, which is the period of the map. Exactly how the reshuffling of the cards leads to the full recovery of the initial state after $M$ steps is illustrated in Fig. 7. That is, the shuffling undoes itself after $M$ repetitions!

A similar, but even more striking situation occurs for the baker map, discretized in the same fashion. While the $x$-component is identical to the discrete Bernoulli map, the $p$-component is construed as inverse of the $x$-component, cf. Eq. (5). Defining a matrix of probabilities on the discrete $(J\times J)$ square grid that replaces the continuous phase space of the baker map,

[TABLE]

the discrete map takes the form of a similarity transformation,

[TABLE]

The inverse matrix ${\bf B}_{J}^{-1}$ is readily obtained as the transpose of ${\bf B}_{J}$. For example, for $N=3$, it reads

[TABLE]

As for the forward discrete map, it resembles the corresponding continuous graph (Fig. 6a), with entries 1 now aligned along two slanted horizontal lines (Fig. 6b) .

Both the upward shift of binary digits of the $x$-component and the downward shift of binary digits encoding $p$ now become periodic with period $M=N$, as for the discrete baker map. The two opposing information currents thus close to a circle, resembling a paternoster lift with a lower turning point at the least significant and an upper turning point at the most significant digit (Fig. 8).

The fate of deterministic classical chaos in systems comprising only a finite number of discrete states (of a “granular phase space”) has been studied in various systems Crutchfield and Packard (1982); Huberman and Wolff (1985); Wolff and Huberman (1986); Beck and Roepstorff (1987), with the same general conclusion that chaotic entropy production gives way to periodic behaviour with a period determined by the size of the discrete state space, that is, by the finite precision underlying its discretization. To a certain extent, this classical phenomenon anticipates the effects of quantization on chaotic dynamics, but it provides at most a caricature of quantum chaos. It takes only a single, if crucial, tenet of quantum mechanics into account, the fundamental bound uncertainty imposes on the storage density of information in phase space, leaving all other principles of quantum mechanics aside. Yet it anticipates a central feature of quantum chaos, the repetitive character it attains in closed systems, and it suggests how to interpret this phenomenon in terms of information flows.

3 Quantum death and incoherent resurrection of classical chaos

While the “poor man’s quantization” discussed in the previous section indicates qualitatively what to expect if chaos is discretized, reconstructing classically chaotic systems systematically in the framework of quantum mechanics also allows for a much more profound analysis how these systems process information. It turns out that quantum mechanics directs our view more specifically to the aspect of closure of dynamical systems. Chaotic systems provide a particularly sensitive probe, more so than systems with a regular classical mechanics, of the effects of a complete elimination of external sources of entropy, since they react even to a weak infiltration of entropy from the environment by a particularly drastic change of their dynamical behaviour.

3.1 Quantum chaos in closed systems

A straightforward strategy to study the effect first principles of quantum mechanics have on chaotic dynamics is quantizing models of classical chaos. This requires these models, however, to be furnished with a minimum of mathematical structure, required to apply basic elements of a quantum mechanical description. In essence, systems with a volume conserving flow, generated by a Hamiltonian, on an even-dimensional state space can be readily quantized. In the following, basic consequences of quantizing chaos will be exemplified applying this strategy to the baker map and the kicked rotor.

3.1.1 The quantized baker map

The baker map introduced in subsection 2.2 is an ideal model to consider quantum chaos in a minimalist setting. It already comprises a coordinate together with its canonically conjugate momentum and can be quantized in an elegant fashion Balazs and Voros (1987, 1989); Saraceno (1990). Starting from the operators $\hat{x}$ and $\hat{p}$, $\hat{p}=-{\rm i}\hbar{\rm d}/{\rm d}x$ in the position representation, with commutator $[\hat{x},\hat{p}]={\rm i}\hbar$, their eigenspaces are constructed as

[TABLE]

The finite phase space $[0,1[\otimes[0,1[\,\subset\!\mathbb{R}^{2}$ can be imposed on this pair of operators by assuming periodicity, say with period 1, both in $x$ and in $p$. Periodicity in $x$ entails quantization of $p$ and vice versa, so that together, a Hilbert space of finite dimension $J$ results, and the pair of eigenspaces (34) is replaced by

[TABLE]

that is, the transformation between the two spaces coincides with the discrete Fourier transform, given by the $(J\times J)$-matrix $F_{J}$.

This construction facilitates the quantization of the baker map enormously. If we phrase the classical map qualitatively as the sequence of operations

expand the unit square $[0,1[\,\otimes[0,1[\,$ by a factor 2 in $x$, 2. 2.

divide the expanded $x$-interval into two equal sections, $[0,1[$ and $[1,2[$, 3. 3.

shift the right one of the two rectangles (Fig. 2), $(x,p)\in[1,2[\,\otimes\,[0,1[\,$, by 1 to the left in $x$ and by 1 up in $p$, $[1,2[\,\otimes\,[0,1[\,\mapsto[0,1[\,\otimes\,[1,2[$, 4. 4.

contract by 2 in $p$,

it translates to the following operations on the Hilbert space defined in Eq. (35), assuming the Hilbert-space dimension $J$ to be even,

in the $x$-representation, divide the vector of coefficients $(a_{0},\,\ldots,\,a_{J-1})$, $|x\rangle=\sum_{j=0}^{J-1}a_{j}|j\rangle$, into two halves, $(a_{0},\,\ldots,\,a_{J/2-1})$ and $(a_{J/2},\,\ldots,\,a_{J-1})$ with indices running from 0 to $J/2-1$ and from $J/2$ to $J-1$, resp., 2. 2.

transform both partial vectors separately to the $p$-representation, applying a $(\frac{J}{2}\times\frac{J}{2})$-Fourier transform to each of them, 3. 3.

stack the Fourier transformed right half column vector on top of the Fourier transformed left half, so as to represent the upper half of the spectrum of spatial frequencies, 4. 4.

transform the combined state vector in the $J$-dimensional momentum Hilbert space back to the $x$ representation, applying an inverse $(J\times J)$-Fourier transform.

All in all, this sequence of operations combines to a single unitary transformation matrix in the position representation

[TABLE]

Like this, it already represents a very compact quantum version of the Baker map Balazs and Voros (1987, 1989). It still bears one weakness, however: The origin $(j,l)=(0,0)$ of the quantum position-momentum space, coinciding with the classical origin $(x,p)=(0,0)$ of phase space, creates an asymmetry, as the diagonally opposite corner $\frac{1}{J}(j,l)=\frac{1}{J}(J-1,J-1)=(1-\frac{1}{J},1-\frac{1}{J})$ does not coincide with $(x,p)=(1,1)$. In particular, it breaks the symmetry $x\to 1-x$, $p\to 1-p$ of the classical map. This symmetry can be recovered on the quantum side by a slight modification Saraceno (1990) of the discrete Fourier transform mediating between position and momentum representation, a shift by $\frac{1}{2}$ of the two discrete grids. It replaces $F_{J}$ by

[TABLE]

and likewise for $F_{J/2}$. The quantum baker map in position representation becomes accordingly

[TABLE]

In momentum representation, it reads

[TABLE]

The matrix $B_{J}^{(x)}$ exhibits the same basic structure as its classical counterpart, the $x$-component of the discrete baker map (30), but replaces the sharp “crests” along the graph of the original mapping by smooth maxima (Fig. 6c). Moreover, its entries are now complex. In momentum representation, the matrix $B_{J}^{(p}$ correspondingly resembles the $p$-component of the discrete baker map.

While the discretized classical baker map (32) merely permutes the elements of the classical phase-space distribution, the quantum baker map rotates complex state vectors in a Hilbert space of finite dimension $J$. We cannot expect periodic exact revivals as for the classical discretization. Instead, the quantum map is quasi-periodic, owing to phases $\epsilon_{n}$ of its unimodular eigenvalues $e^{{\rm i}\epsilon_{n}}$, which in general are not commensurate. With a spectrum comprising a finite number of discrete frequencies, the quantum baker map therefore exhibits an irregular sequence of approximate revivals. They can be visualized by recording the return probability,

[TABLE]

with the one-step unitary evolution operator $\langle j|\hat{U}|j^{\prime}\rangle=(B_{J}^{(x)})_{j,j^{\prime}}$. Figure 9a shows the return probability of the $(8\times 8)$ quantum baker map for the first 500 time steps. Several near-revivals are visible; the figure also shows the unitary transformation matrix $(B_{J}^{(x)})^{n}$ for $n=490$ where it comes close to the $(8\times 8)$ unit matrix (Fig. 9b). Even with these caveats, it is evident that there is no exponential decay of the return probability, as expected for classical chaos Schuster (1984).

3.1.2 The quantum kicked rotor

By contrast to mathematical toy models such as the baker map, the kicked rotor allows to include most of the features of a fully-fledged Hamiltonian dynamical system, also in its quantization. With the Hamiltonian (11), a unitary time-evolution operator over a single period of the driving is readily construed Casati et al. (1992); Shepelyansky (8). Placing, as for the classical map, time sections immediately after each kick, the time-evolution operator reads

[TABLE]

The parameter $k$ relates to the classical kick strength as $k=K/\hbar$. Angular momentum $\hat{p}$ and angle $\hat{\theta}$ are now operators canonically conjugate to one another, with commutator $[\hat{p},\hat{\theta}]=-{\rm i}\hbar$. The Hilbert space pertaining to this model is of infinite dimension, spanned for example by the eigenstates of $\hat{p}$,

[TABLE]

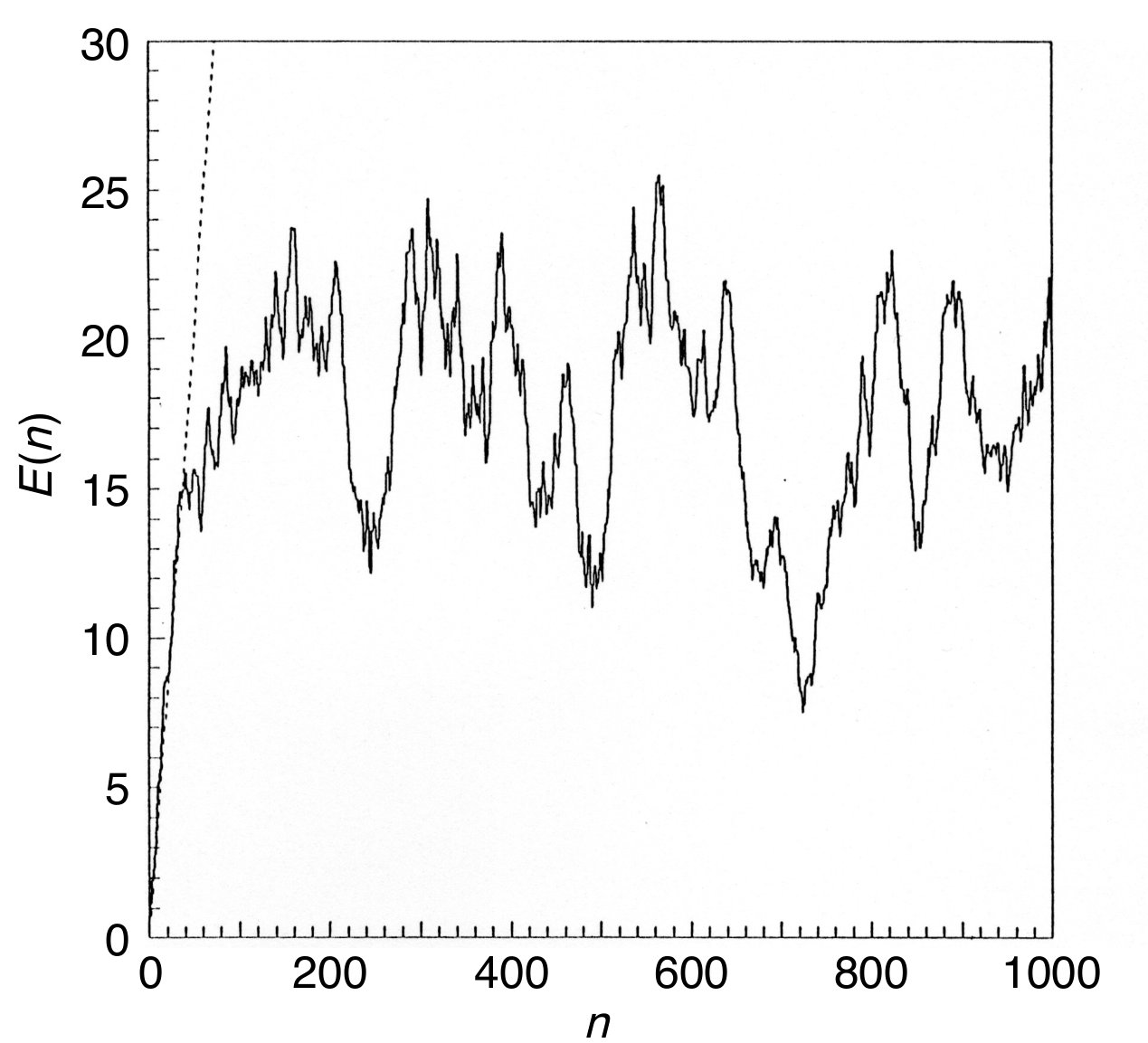

Operating on an infinite dimensional Hilbert space, the arguments explaining quasi-periodicity of the time evolution generated by the quantum baker map do not carry over immediately to the kicked rotor. On the contrary, one expects to see a similar unbounded growth of the kinetic energy as symptom of chaotic diffusion as in the classical standard map, in the regime of strong kicking. It was all the more surprising for Casati et al. Casati et al. (1992); Shepelyansky (8) that their numerical experiments proved the opposite: The linear increase of the kinetic energy ceases after a finite number of kicks and gives way to an approximately steady state, with the kinetic energy fluctuating in a quasi-periodic manner around a constantmean value (Fig. 10).

An explanation was found by analyzing the quasienergy eigenstates of the system Fishman et al. (1982, 1984); Shepelyansky (1986); Casati et al. (1986). With a time-dependent external force, the kicked rotor does not conserve energy. However, the invariance of the driving under discrete translations of time, $t\to t+1$, allows to apply Floquet theory Shirley (1965); Zel’dovich (1967). It implies the existence of eigenstates of $\hat{U}_{\rm QKR}$ with unimodular eigenvalues $\exp({\rm i}\epsilon)$, that is, determined by eigenphases $\epsilon$.

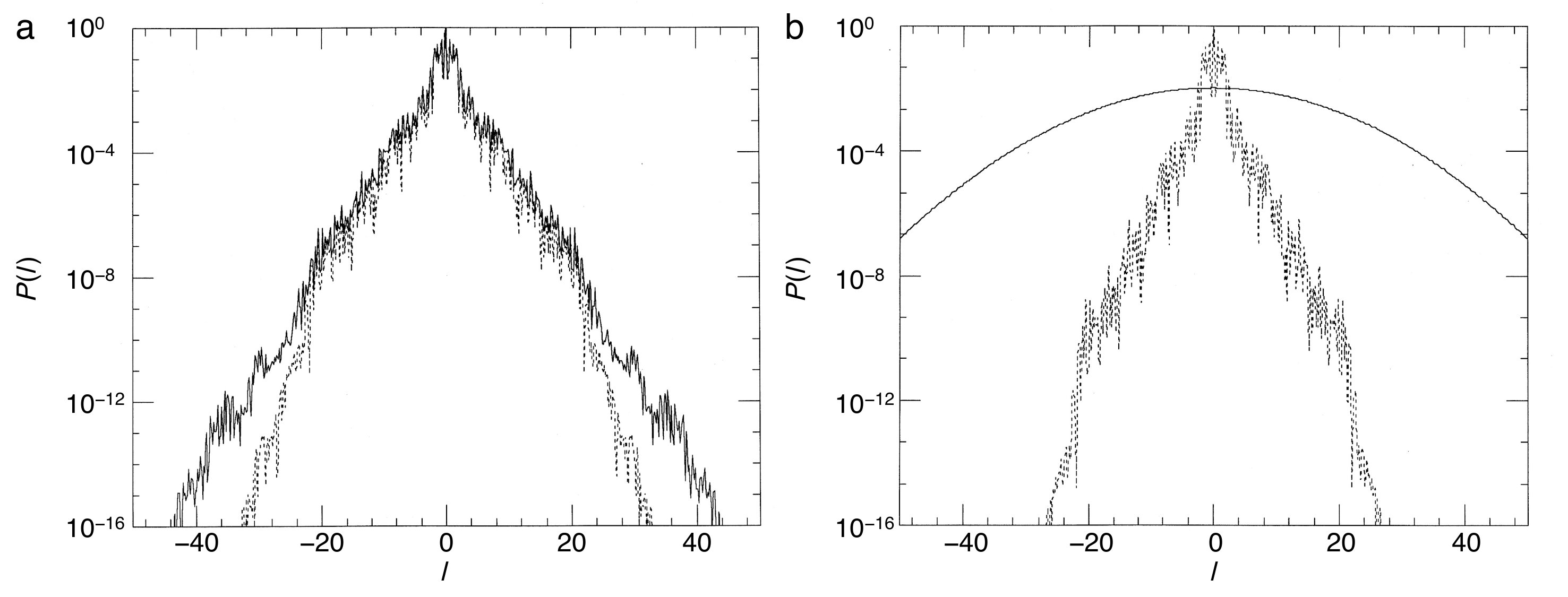

Quasienergy eigenstates can be calculated by numerical diagonalization of $\hat{U}_{\rm QKR}$. It turns out that for generic values of the parameters, they are exponentially localized: On average and superposed with strong fluctuations, eigenstates $|\phi(\epsilon)\rangle$ have an exponential envelope of width $L$ around a centre $l_{\rm c}(\epsilon)$,

[TABLE]

The localization length is approximately given by $L\approx(K/2\pi\hbar)^{2}$, hence grows linearly with the classical diffusion constant, cf. Eq. 14. Exponential localization resembles Anderson localization, a phenomenon known from solid-state physics Anderson (1958); Lee and Ramakrishnan (1985): In crystalline substances with sufficiently strong “frozen disorder” (impurities, lattice dislocations, etc.), wavefunctions scattered at nonperiodic defects superpose destructively, so that extended Bloch states compatible with the priodicity of the lattice cannot build up. In the kicked rotor, however, the disorder required to prevent extended states does not arise by any static randomness of a potential nor is it a consequence of the chaotic dynamics of the classical map. It comes about by a dynamical effect related to the nature of the sequence of phases $\hbar l^{2}({\rm mod}2\pi)$ of the factor $\hat{U}_{\rm rot}$ of the Floquet operator (41). If the parameter $\hbar/2\pi$— in the present context, it arises as a dimensionless quantity, Planck’s constant in units of a classical action—is not a rational, these phases constitute a pseudo-random sequence. In one dimension, this disorder of number theoretical origin is strong enough to localize eigenstates. Since the rationals form a dense subset of measure 0 of the real axis, an irrational value of $\hbar/2\pi$ is the generic case.

Even embedded in an infinite-dimensional Hilbert space, exponential localization reduces the effective Hilbert-space dimension to a finite number $D_{\mathcal{H}}$, determined by the number of quasienergy eigenstates that overlap appreciably with a given initial state. For a sharply localized initial state, say $|\psi(0)\rangle=|l_{0}\rangle$, it is given on average by $D_{\mathcal{H}}=2L$. This explains immediately the crossover from classical chaotic diffusion to localization described above: In the basis of localized eigenstates, a sharp initial state overlaps with approximately $2L$ quasienergy states, resulting in the same number of complex expansion coefficients. The initial “conspiration of phases”, required to construct the initial state $|\psi(0)\rangle=|l_{0}\rangle$, then disintegrates increasingly, with the envelope of the evolving state widening diffusively, until all phases of the contributing eigenstates have lost their correlation with the initial state, at a time $n^{*}\approx 2L$, in number of kicks. The evolving state has then reached an exponential envelope, similar to the shape of the eigenstates, Eq. (41) (Fig. 12, dashed lines), and its width fluctuates in a pseudo-random fashion, as implied by the superposition of the $2L$ complex coefficients involved.

This scenario might appear as an exceptional effect, arising by the coincidence of various special circumstances. Indeed, there exist a number of details and exceptions, omitted in the present discussion, that lead to different dynamical behaviour, such as accelerator modes in the classical model Karney (1983); Iomin et al. (2002) and quantum resonances for rational values of $\hbar/2\pi$ Izrailev (1990). Notwithstanding, similar studies of other models have accumulated overwhelming evidence that in quantum systems evolving as a unitary dynamics, a permanent entropy production as in classical chaos is excluded. In more abstract terms, this “quantum death of classical chaos” can be understood as the consequence of two fundamental principles: the conservation of information under unitary time evolution, cf. App. B, a conservation law closely analogous to information conservation under classical canonical transformations (App. A), and the condition that the initial state contains only a finite amount of information.

This interpretation is corroborated by the global parameters characterizing the behaviour of the quantum kicked rotor. In the presence of localization, the dimension of the Hilbert space effectively accessible by an initial condition local in angular momentum is $D_{\mathcal{H}}\approx 2L$. Even if the initial state is a pure state with vanishing von-Neumann entropy, the maximum information content it could achieve by incoherent processes or could produce by a quantum dynamics imitating classical chaos is given by a homogeneous distribution over $D_{\mathcal{H}}$ states, hence by $I(0)\approx c\ln(2L)$. Comparing this with the entropy production by chaotic diffusion, Eq. (21), the cross-over time $n^{*}$, in units of the kicking period, till the limited initial supply of quantum entropy is exhausted, can be readily estimated. By equating

[TABLE]

and setting $D(K)=K^{2}/2$, as in Eq. (14), and $d_{p}=\hbar$, the angular momentum quantum, it turns out to be

[TABLE]

It coincides exactly, as to the dependence on $K$, with similar estimates based, e.g., on the energy-time uncertainty relation, and with numerical data, which give

[TABLE]

and in order of magnitude even as to the prefactor.

3.2 Breaking the splendid isolation: quantum chaos and quantum measurement

If the absence of permanent entropy production in closed quantum systems is interpreted as a manifestation of quantum coherence, it is natural to inquire how immune this effect is to incoherent processes. They occur in a huge variety of circumstances: in quantum systems embedded in a material environment, as in molecular and solid state physics, interacting with a radiation field, as in quantum optics, in dissipative quantum systems where decoherence accompanies an irreversible energy loss, and most notably in all instances of observation, be it by measurement in a laboratory or by leaving any kind of permanent record in the environment Zurek (2004), even in the absence of a human observer.

In the present context, measurements are of particular interest, since they allow to separate neatly two distinct phenomena, the loss of energy to the environment and the exchange of entropy with it. Quantum measurement has been in the focus of quantum theory from the early pioneering years on. It provides the indispensable interface with the macroscopic world. The crucial step from quantum superpositions to alternative classical facts remained an enigma for decades. The Copenhagen interpretation includes the “collapse of the wavepacket” as an essential element Bohr (1928), but treats it as an unquestionable postulate. The first systematic analysis of quantum measurement by von Neumann von Neumann (2018) already provides a quantitative description in terms of the density operator, rendering the wavepacket collapse explicit as a reduction of the density matrix to its diagonal elements, but does not yet illuminate the physical nature of this step, manifestly incompatible with the Schrödinger equation. It was the contribution of Zurek and others Zurek (1981, 1982, 1984a, 1984b); Haake and Walls (1987) to interpret this process, in the spirit of quantum dissipation, as the consequence of the interaction with the macroscopic number of degrees of freedom of the measurement apparatus (the “meter”) and its environment, to be described in a microscopic model as a heat bath or reservoir. As one of the major implications of this picture, the collapse of the wavepacket no longer appears as an unstructured point-like event but as a continuous process that can be resolved in time Zurek (1984b).

3.2.1 Modelling continuous measurements on the quantum kicked rotor

In this subsection, basic elements of this scheme will be adopted and applied to the quantum kicked rotor in order to demonstrate how observation can thaw dynamical localization and thus restore, at least partially, an entropy production as in classical chaos. Reducing quantum measurement to the essential, a continuous observation of the kicked rotor will be assumed, which leads to an irreversible record of a suitable observable Sarkar and Satchell (1988). Following established models of quantum measurement Haake and Walls (1987); Unruh and Zurek (1989); Zurek (1981, 1982, 1984a, 1984b), these features can be incorporated in a system-meter interaction Hamiltonian Dittrich and Graham (1990a, b, 1992)

[TABLE]

where $g$ controls the coupling strength and the Heaviside function $\Theta(t)$ switches the measurement on at $t=0$. The operator $\hat{x}_{\rm M}$, acting on the Hilbert space of the meter, is the observable that indicates the measurement result (its “pointer operator” Zurek (1981, 1982, 1984a, 1984b)), and $\hat{x}_{\rm S}$ is the measured observable. In accord with the objective to study the impact of observation on localization in angular momentum space, we shall focus on measurements of the angular momentum $\hat{l}$. If the expectation $\langle l\rangle$ is observed as a global measure, this amounts to defining the measured operator as

[TABLE]

Alternatively, a simultaneous observation of the full angular-momentum distribution $P(l)$, so that the measurement affects homogeneously the entire angular momentum axis, requires assuming a separate meter component $\hat{x}_{{\rm M},l}$ for every eigenvalue of the angular momentum,

[TABLE]

Some models of quantum measurement distinguish explicitly between the meter proper, as a microscopic system interacting directly with the observed object, and a macroscopic apparatus that couples in turn to the meter Haake and Walls (1987), thus only indirectly to the object. Such a distinction is not necessary in the present context, it suffices to merge meter and environment into a single macroscopic system. Moreover, we do not conceive a detailed microscopic model of the meter as a heat bath (but see Sections 4.2, 4.3 below), starting instead directly from an evolution equation that takes the essential consequences of the meter’s macroscopic nature into account.

Specifically, the response of the meter is assumed to be Markovian, that is, to be immediate on the time-scales of the measured system, which in turn requires the spectrum of the underlying heat bath to be sufficiently smooth. In terms of the autocorrelation function of the meter operator $\hat{x}_{\rm M}$ Dittrich and Graham (1990b), that means

[TABLE]

denoting the autocorrelation time of $\hat{x}_{\rm M}$ as $T_{\rm M}$ and the variance of its fluctuations in the uncoupled meter as \bigl{\langle}\hat{x}_{\rm M}^{2}\bigr{\rangle}_{0}. For the object, coupled to the meter via Eqs. (49) or (48), this already entails an irreversible dynamics. It can be represented as the time evolution of the reduced density operator \hat{\rho}_{\rm S}(t)=\operatorname{Tr}_{\rm M}\bigl{(}\hat{\rho}(t)\bigr{)}. In the interaction picture, $\hat{\rho}_{\rm S,I}(t)=\exp({\rm i}H_{\rm S}t/\hbar)\hat{\rho}_{\rm S}(t)\exp(-{\rm i}H_{\rm S}t/\hbar)$ (transforming to a reference frame that follows the proper dynamics generated by $H_{\rm S}$, the Hamiltonian of the object), Eq. (50) implies a master equation of Lindblad type Dittrich and Graham (1990a, b, 1992)

[TABLE]

The parameter $\gamma=g^{2}T_{\rm M}\langle\hat{x}_{\rm M}^{2}\rangle_{0}$ has the meaning of a diffusion constant, as becomes evident by rewriting Eq. (51) in the representation of the operator canonically conjugate to $\hat{x}_{\rm S}=\hat{l}_{\rm S}$, that is, of $\hat{\theta}$,

[TABLE]

The full master equation for the object density operator is then Dittrich and Graham (1990a, b, 1992)

[TABLE]

now including the unitary time evolution induced by $\hat{H}_{\rm S}$ through the term $(-{\rm i}/\hbar)[\hat{H}_{\rm S},\hat{\rho}_{\rm S}]$. A quantum map for the reduced density operator $\hat{\rho}_{\rm S}$ is obtained by integrating the master equation over a single period of the driving. For the rotation phase of the time evolution, between two subsequent kicks, Eq. (53) yields in the angular-momentum representation, for the case of a global angular-momentum measurement, Eq. (48),

[TABLE]

that is, off-diagonal matrix elements (often referred to as “quantum coherences”) decay with a rate determined by their distance $l-m$ from the diagonal and the effective coupling $\gamma$. If the full distribution is measured, see Eq. (49), this step takes the form

[TABLE]

The kicks are too short to be affected by decoherence, their effect on the evolution of the density matrix results from the unitary term in Eq. (53) alone. The integration over the $\theta$-dependent kicks is conveniently performed by switching from the $l$- to the $\theta$-representation and back again, resulting in

[TABLE]

The Bessel functions $b_{n}(x)={\rm i}^{n}J_{n}(x)$ from the integration over $\theta$. The full quantum map is obtained concatenating Eqs. (54) or (55) with (56). For measurements of $\langle l\rangle$, it reads

[TABLE]

while for measurements of $P(l)$,

[TABLE]

The map alternates the unitary time evolution of the quantum kicked rotor with incoherent steps that lead to a gradual decay of the non-diagonal elements of the density matrix. In the limit of strong effective coupling to the meter, $\gamma\gg 1$, corresponding to a high-accuracy measurement of the angular momentum, the density matrix is completely diagonalized anew at each time step, and the object system leaves the measurement in an incoherent superposition of angular-momentum states, as required by the principles of quantum measurement (Figs. 11b, 12b). For a weaker coupling, the loss of coherence per step is only partial, restricting the density matrix to a diagonal band with a Gaussian profile of width $\sim\gamma^{-1}$, if $\langle l\rangle$ is measured, or reducing its off-diagonal elements homogeneously by $e^{-\gamma}$, if the full distribution is recorded (Figs. 11a, 12a). In any case, decoherence in the angular momentum representation is equivalent to a diffusive spreading of the angle $\theta$. It imitates the action of classical chaos in that it effectively destroys the autocorrelation of the angle variable.

The framework set by Eq. (53) is easily extended to include dissipation Dittrich and Graham (1986, 1987, 1990). An additional term, proportional to the friction constant $\lambda$,

[TABLE]

induces incoherent transitions between angular momentum eigenstates towards lower values of $l$, modelling Ohmic friction with a damping constant $\lambda$, as in the classical standard map with dissipation, Eqs. (23,24,25) Zaslavsky (1978); Schmidt and Wang (1985). In terms of a classical stochastic dynamics, to be detailed in the following subsection, it corresponds to a drift of the probability density in phase space towards lower angular momentum.

3.2.2 Semiclassical Langevin approximation for the measured quantum dynamics

Describing the quantum dynamics in terms of a master equation for the reduced density operator only provides a global statistical account. However, in the semiclassical regime of small $\hbar$, compared to the periodicity in $p$ of the classical phase space, it can be replaced by an approximate description as a classical Langevin equation with a noise term of quantum origin that induces diffusion in $\theta$ Dittrich and Graham (1990a, b, 1992). In this limit, the Wigner function, which represents the density operator in a quantum equivalent of classical phase space (with quantized momentum, though), evolves as a phase-space flow following classical trajectories, as does the corresponding classical phase-space density, but superposed with a random quivering. These trajectories are adequately described by a noisy standard map similar to Eq. (12) Dittrich and Graham (1990a, b, 1992),

[TABLE]

now including a random process $\xi_{n}$ with mean $\langle\xi_{n}\rangle=0$, distributed as a Gaussian with variance $\langle\xi_{n}\xi_{n}^{\prime}\rangle=\hbar^{2}\gamma\delta_{n^{\prime}-n}$ for measurements of $\langle p\rangle$, or

[TABLE]

with $\nu=1-e^{-\gamma}$, if $P(l)$ is measured. If Ohmic friction is taken into account, as in the master equation (3.2.1), the noisy map (60) acquires a damping of the angular momentum per time step by a factor $\exp(-\lambda)$,

[TABLE]

3.2.3 Numerical results

Numerical experiments performed with both, the quantum map for the density matrix, Eqs. (57,3.2.1), and its semiclassical approximation, Eqs. (60,62), give a detailed picture of the effect of continuous observation on quantum chaos Dittrich and Graham (1990a, b, 1992). Figure 11 compares the time dependence of the mean kinetic energy for the quantum kicked rotor, Eq. (41) (dashed lines), the same system under continuous measurement, Eq. (3.2.1) (solid lines), and the stochastic classical map, Eqs. (60,61) (dotted). Above all, the data shown provide clear evidence that incoherent processes induced by measurements destroy dynamical localization. Even for weak coupling to the apparatus, Figs. 11a, 12a, classical angular momentum diffusion is recovered, albeit on a time scale $n_{\rm c}\approx\nu^{-1}$, much larger than the cross-over time $n^{*}$, cf. Eq. (46), if $\nu\ll 1/2L$, and with a diffusion constant $D_{\rm qm}\approx D(K)n^{*}/n_{\rm c}$, reduced accordingly with respect to its classical value $D(K)$. For stronger coupling, the measurement-induced diffusion approaches the classical strength $D(K)$. Since it randomizes the angle variable indiscriminately, erasing all fine structure in classical phase space, it ignores deviations of $D(K)$ from the gross estimate (14), caused, e.g., by accelerator modes of the classical standard map Karney (1983); Iomin et al. (2002). In fact, measurement-induced diffusion occurs already for kick strengths $K<K_{\rm c}$, below the classical threshold to chaotic diffusion $K_{\rm c}\approx 1$, where in the exact classical map, diffusion is still blocked by regular tori extending across the full range $\theta\in[0,2\pi[$. Moreover, Fig. 13b, showing the angular momentum distribution after 512 time steps, demonstrates that at this stage, the typical $\exp(-|l|/L)$ shape indicating localization has given way to a Gaussian envelope, characteristic of diffusion.

Figure 13 compares the angular momentum reached after 512 time steps for the measured quantum system in the description by the master equation (3.2.1) (dotted lines) with that obtained for the noisy map (60) (solid lines). For sufficiently strong coupling, Fig. 13b, it is faithfully reproduced by the semiclassical Langevin equation (60), as is the overall energy growth, see Fig. 11b (dotted line).

The diffusion constant of the measurement-induced angular momentum diffusion also allows us to estimate directly the entropy produced by the measured quantum system: Replacing in Eq. (21) the classical diffusion constant $D(K)$ by the reduced quantum mechanical value $D_{\rm qm}$ yields

[TABLE]

As the production rate for diffusive spreading is independent of the diffusion constant, it is here the same as for the classical standard map, $\dot{I}(t)=c/2t$. Such a positive entropy production is not compatible with entropy conservation in closed quantum systems, App. B. The only possible explanation therefore refers to the measured quantum system not being closed, so that the entropy generated actually infiltrates from the macroscopic meter to which it is coupled. This interpretation becomes plausible also considering the fact that obviously, there must be an entropy flow from the object towards the meter—or else the measured data could not reach it: There is no reason why the information current from object to meter should not be accompanied by an opposite current, from meter to object.

The three phases of the time evolution of, in particular, the weakly (i.e., with small coupling to the meter) measured quantum kicked rotor can now be interpreted from the point of view of entropy flows: During the initial phase, $n\lesssim n^{*}$, the quantum map follows closely the classical standard map, producing entropy from its own supply provided by the initial state. Once this supply is exhausted, at $n\approx n^{*}$, entropy production stalls, the system localizes and crosses over to quasi-periodic fluctuations. Only on a much longer time-scale, for $n\gtrsim n_{\rm c}\gg n^{*}$, sufficient entropy infiltrates from the meter to become manifest again in the dynamics of the kicked rotor as diffusive angular momentum spreading.

Incorporating friction gives the opportunity to take a look also at the modifications of classical dissipative chaos with that are required by quantization, in particular of the fractal geometry of strange attractors. The master equation (3.2.1) as well as the stochastic semiclassical approximation, Eq. (62), can be solved numerically and compared with the classical dissipative standard map (23) Dittrich and Graham (1986, 1987, 1990). Fig. 14 compares the stationary states approached by these maps for $n\gg 1/\lambda$, the time scale of contraction onto the attractor. The classical strange attractor, Fig. 14a, here represented as its support in $(p,\theta)$ phase space, roughly follows a ($-\sin\theta$)-curve. The stationary state of the full quantum master equation, depicted as the Wigner function corresponding to the stationary density operator, Fig. 14c, shows a smoothed structure that eliminates the self-similarity of the classical fractal geometry. The wavy modulations visible in panel (c) are owed to the tendency of Wigner function to exhibit fringes where it takes negative values, if the support of the positive regions is strongly curved. They are absent in the stationary state of the semiclassical noisy map, panel (b).

4 Quantum measurement and quantum randomness in a unitary setting

In the examples discussed in the preceding sections, the central issue was chaotic entropy production and its suppression by coherence effects in closed quantum systems. Measurement served as a particular case of interaction with a macroscopic environment, giving rise to a two-way exchange of information. A transfer of information on the state of the object is the essence of measurement. It does not even require a human observer, the physical environment can play the rôle of the “witness” Zurek (2004). Conversely, entropy entering the measured object from the side of the apparatus imparts a stochastic component to the proper dynamics of the object Unruh and Zurek (1989). Quantum chaos is specially sensitive to this effect, as it amplifies even minuscule amounts of entropy penetrating from outside and displays them directly as a drastic change of behaviour.

The present section takes up this idea to apply it within the context of quantum measurement, to situations where inherent instabilities of the measurement process itself, instead of a sensitive dependence on initial conditions of a measured chaotic system, let us expect similar effects as in the case of quantum chaos. It is not obvious, though, where in the context of measurement instabilities should exist, of a kind even remotely comparable to chaotic dynamics. To see this, a final step has to be added to the above outline of the quantum measurement process.

4.1 Quantum randomness from quantum measurement

The collapse of the wavepacket is not only incompatible with a unitary time evolution, it also violates the conservation of entropy (App. B). If the measured system is initiated in a pure state,

[TABLE]

(assuming a discrete basis of eigenstates of the measured operator, $\hat{x}|\alpha\rangle=x_{\alpha}|\alpha\rangle$, $\alpha\in\mathbb{Z}$) a complete collapse leads to a mixed state comprising the same components,

[TABLE]

The increase in entropy from the pure initial state ($I_{\rm ini}=0$) is thus

[TABLE]

It is readily explained and can be modelled in microscopic detail as a consequence of the entanglement of the object with the macroscopic apparatus Haake and Walls (1987); Unruh and Zurek (1989); Zurek (1981, 1982, 1984a, 1984b), which in the reduced density operator of the object becomes manifest as information gain. The density operator, reduced to its diagonal, $\langle\alpha|\hat{\rho}_{\rm S,coll}|\alpha^{\prime}\rangle=p_{\alpha}\delta_{\alpha^{\prime}-\alpha}$, is interpreted as a set of probabilities $p_{\alpha}$ for the measurement resulting in the eigenvalue $x_{\alpha}$ of the measured operator $\hat{x}$.

With this step, the measurement is not yet complete. From the Copenhagen interpretation onwards Bohr (1928), all quantum measurement schemes add a crucial final transition, to the object exiting the process again in a pure state, one of the eigenstates $|\alpha\rangle$,

[TABLE]

returning the information content to its initial value, $I_{\rm fin}=I_{\rm ini}=0$. This step is sometimes referred to as “second collapse of the wavepacket”. In contrast to the “first collapse”, though, it is usually considered to be of little interest for the discussion of fundamentals of quantum mechanics, since it appears as a mere classical random process, analogous to drawing from an urn.

Indeed, on the face of it, there is not even a credit left in the information balance between initial and final states. Both are pure. However, the random process behind the phrase “with probability $p_{\alpha}$” does have a quantum mechanical side to it. This applies at least to all measurements of operators with a discrete spectrum, such as, for example, the angular momentum $\hat{l}$ featured in the context of the kicked rotor.

It becomes particularly evident in the case of operators on finite-dimensional Hilbert spaces, notably and as the simplest possible instance, two-state systems (“qbits”), say $\mathcal{H}={\rm span}\{|\!\!\downarrow\rangle,|\!\!\uparrow\rangle\}$, $\hat{x}|\!\!\downarrow\rangle=-\frac{\hbar}{2}|\!\!\downarrow\rangle$, $\hat{x}|\!\!\uparrow\rangle=\frac{\hbar}{2}|\!\!\uparrow\rangle$. If the initial state is a Schrödinger cat, neutral with respect to measurements of $\hat{x}$,

[TABLE]

the results $|\!\!\downarrow\rangle\langle\downarrow\!\!|$ and $|\!\!\uparrow\rangle\langle\uparrow\!\!|$ are expected with equal probabilities $p_{\downarrow}=p_{\uparrow}=0.5$. While each outcome is a pure state with definite eigenvalue, repeated measurements of an ensemble of systems in the same initial state result in a random binary sequence, distinguished as “quantum randomness” and considered unpredictable in a more fundamental sense than any classical stochastic process Bierhorst and et al. (2018). The von-Neumann entropy, as canonical measure of the information contained in a quantum system, is not able to capture the difference between a pure state resulting from a deterministic preparation and an element of a sequence of pure states which, as an ensemble, represent a prototypical random process.

The mere existence of a set of privileged states, the eigenstates of the measured operator (forming the “pointer basis”, a term coined by Zurek Zurek (1981, 1982, 1984a, 1984b)), of course does not imply any instability. To be sure, the conservation under unitary transformations of the overlap $\langle\phi|\psi\rangle$ as a measure of distance between two states $|\ psi\rangle$, $|\phi\rangle$ ensures that there cannot be any attractors or repellers in Hilbert space Peres (1995). This situation changes, however, as soon as the non-unitary dynamics of incoherent processes in the projective Hilbert space is concerned. In quantum measurement, in particular, the quantum Zeno effect Misra and Sudarshan (1977); Itano et al. (1990) plays a pivotal rôle Zurek (1982): If a measurement is made on a state vector that is about to rotate away from a pointer-basis state it has been prepared in, for example by a previous measurement, this subsequent measurement will project the state back to the nearest pointer basis state as indicated by Eq. (67) Zurek (1981, 1982, 1984a, 1984b), that is, the state it just departed from. The more frequently the same measurement is being repeated, the stronger will be its stabilizing effect towards the initial pointer state: it thus becomes an attractor in the projective Hilbert space of the measured object Zurek (1981, 1982).

If there is not just a single such state but a finite or even countably infinite number of attractors, it is clear that their basins of attraction in projective Hilbert space must be separated by boundaries, manifolds along which the system is unstable. For example, for a two-state system, the projective Hilbert space is the Bloch sphere, its poles representing the pointer states, hence the attractors for measurements of the vertical spin component (Fig. 16). Symmetry already implies that the boundary separating their basins of attraction, the two hemispheres, must be the equator, representing the manifold all Schrödinger-cat states as defined in Eq. (68). Of course, the attraction towards the poles is strongest in their immediate neighbourhood and vanishes for states orthogonal to the pointer states, as applies to all states along the equator.

The description in terms of an evolution equation for the density operator, such as the master equation (53), however does not allow to go beyond stating likelihoods, in this example equal probabilities for the two outcomes. Otherwise, it leaves the second collapse as a black box. A more profound analysis is possible, though, by going to a detailed microscopic account of the coupled object-meter system. Since this comprehensive system is closed as a whole, it not only permits a description in the framework of unitary time evolution. The conservation of entropy moreover opens the possibility to follow the information interchanged between the two subsystems.

4.2 Spin measurement in a unitary setting

The setup sketched in Sect. 3.2.1 is a suitable starting point for a model of measurements on a two-state system. In order to include a microscopic account of the meter, it is broken down into a set of, say, harmonic oscillators with frequencies $\omega_{n}$. The measurement object now reduces to a spin-$\frac{1}{2}$ system. Modifying the object-meter coupling, Eqs. (49,48) accordingly, it now takes the form

[TABLE]

where the measured observable is specified as $\hat{x}_{\rm S}=\hat{\sigma}_{z}$, the vertical spin component, coupled with a strength $g_{n}$ to meter operators $\hat{x}_{{\rm M},n}=\hat{a}_{n}^{\dagger}+\hat{a}_{n}$ (the position operators of the $n$th mode of the meter, up to a factor $\sqrt{2}$). Complemented by self-energies $H_{\rm S}=\frac{1}{2}\hbar\omega_{0}\hat{\sigma}_{x}$ of the object and $H_{\rm M}=\sum_{n}\hbar\omega_{n}\left(\hat{a}_{n}^{\dagger}\hat{a}_{n}+\frac{1}{2}\right)$ of the meter, a total Hamiltonian for the measurement process

[TABLE]

results. In terms of quantum optics, for instance, it can be interpreted as describing a two-level atom interacting with a microwave cavity supporting discrete modes $n$ Raimond et al. (1997).

The model is not complete without specifying the initial state of the total system. Supposing that it factorizes between object and meter von Neumann (2018); Zurek (1981, 1982); Haake and Walls (1987),

[TABLE]

the initial states of the two components can be defined separately. For the object, assume a state that is neutral with respect to measurements of $\hat{\sigma}_{z}$, as in Eq. (68). The initial state of the meter should not introduce a spatial bias of position or momentum, either, so that $\langle\hat{x}_{\rm M}\rangle=0$, $\langle\hat{p}_{\rm M}\rangle=0$, but otherwise can be an arbitrary coherent superposition of harmonic oscillator states.

A crucial issue concerning Hamiltonian and the initial condition is their symmetry under spatial reflections with respect to the direction of the vertical spin component, $z\to-z$. The total Hamiltonian as well as the initial state of the object should be invariant under this transformation, otherwise the measurement would be biased. This symmetry is equivalent to parity in the $z$-direction, effectuated by operators $\hat{\Pi}_{z,{\rm S}}=\hat{\sigma}_{x}$ for the two-state system and $\hat{\Pi}_{z,{\rm M}}=\exp\left({\rm i}\pi\sum_{n}\hat{a}_{n}^{\dagger}\hat{a}_{n}\right)$ for the meter Bruskievich (2007), so that the total system must be invariant under the transformation

[TABLE]

Indeed, it is readily verified that $\hat{\Pi}_{z,{\rm S}}^{\dagger}\hat{H}_{\rm S}\hat{\Pi}_{z,{\rm S}}=\hat{H}_{\rm S}$, $\hat{\Pi}_{z,{\rm M}}^{\dagger}\hat{H}_{\rm M}\hat{\Pi}_{z,{\rm M}}=\hat{H}_{\rm M}$, and

[TABLE]

Given this invariance, the Hilbert space of the total system decomposes into two eigensubspaces of $\hat{\Pi}_{z}$,

[TABLE]

$\mathcal{H}_{+}$ comprising symmetric, $\mathcal{H}_{-}$ antisymmetric states under $\hat{\Pi}_{z}$. As the object (two-state) as well as the meter (boson) sector of the total system can each be decomposed individually into an even and an odd subspace, the parity subspaces decompose further into

[TABLE]

At the same time, both possible measurement outcomes, $|\!\!\downarrow\rangle$ as well as $|\!\!\uparrow\rangle$, manifestly break the invariance under $z\to-z$ individually, even if on average, the balance is equilibrated. In the framework of a unitary time evolution, where the Hamiltonian as well as the initial state of the object are symmetric, the only possible explanation left is that the asymmetry is introduced by the initial state of the meter.

Reconstructing the measurement in a unitary account of the full object-meter system allows us to pursue the time evolution of the total state vector in continuous time. Yet it is desirable, in order to compare with the standard view of quantum measurement, to record diagnostics that enable assessing the progress towards a definite classical outcome. Two aspects are of particular significance for this purpose: The approach of the spin component towards a pure state can be quantified in terms of the von-Neumann entropy von Neumann (2018) of the reduced density operator

[TABLE]

or more specifically as its purity, P_{\rm S}(t)=\operatorname{Tr}_{\rm S}\bigl{[}\hat{\rho}_{\rm S}^{2}(t)\bigr{]}. Representing $\hat{\rho}_{\rm S}(t)$ as a Bloch vector ${\bf a}=(a_{x},a_{y},a_{z})$, $a_{x}:=\frac{1}{2}\operatorname{Tr}(\hat{\rho}_{\rm S}\hat{\sigma}_{x}$ etc., the purity is reflected in its length, $P_{\rm S}(t)=\frac{1}{2}(1+|{\bf a}|^{2})$. The asymmetry of the spin state with respect to $z$-parity can be expressed as its polarization,

[TABLE]

that is, as the vertical ($z$-) component of the Bloch vector.

4.3 Simulating decoherence by finite heat baths

An essential condition to achieve an irreversible loss of coherence in a system coupled to a macroscopic environment is that the spectrum of the environment, be it composed of harmonic oscillators, spins Cucchietti et al. (2005), or other suitable microscopic models, be continuous on the energy scales of the central system, or equivalently, that the number $N$ of modes the environment comprises be large, $N\gg 1$. As a general rule, based on energy-time uncertainty, recurrences occur on a time scale $1/\Delta\omega$ if the spectrum exhibits structures on the scale $\Delta\omega$. However, in the present context of a unitary model for quantum measurement, it is more appropriate to avoid the limit $N\to\infty$. Evidently, this can be achieved only if at the same time, irreversibility as a hallmark of decoherence is sacrificed.

This price appears acceptable, though, as long as a faithful description of the processes of interest is required only over a correspondingly large, but finite time scale, as is the case, for example, in computational molecular physics and in quantum optics. Numerical experiments simulating decoherence with heat baths of finite Hilbert space dimension Goletz et al. (2010); Hasegawa (2011); Galiceanu et al. (2014) provide convincing evidence that even with a surprisingly low number of bath modes, $N$ of the order of 10, most relevant features of decoherence can be satisfactorily reproduced, see Fig. 15. This suggests to restrict the dimension of the meter sector of the Hilbert space underlying the Hamiltonian (4.2) accordingly to a finite number $N$,

[TABLE]

Like this, the Hamiltonian can be considered as a model of, e.g., a two-level atom in a high-$Q$ microwave cavity Raimond et al. (1997). The mode number $N$ thus assumes the rôle of a central parameter of the model.

Concluding from the experience with similar models comprising finite baths Goletz et al. (2010); Galiceanu et al. (2014), the following scenarios appear plausible:

• •

For small values $N\gtrsim 1$, the time evolution comprises only a few, but typically incommensurate, frequencies and should appear quasi-periodic.

• •

Already for moderate numbers, say $N=O(10)$, the unitary model will exhibit some characteristic features of quantum measurement. In particular, a plausible scenario is that the object state approaches one of the pointer states and remains in its vicinity for a longer time, before it may jump to another (in the case of spin measurement, the opposite) pointer state. A similar behaviour has indeed been observed for standard models of quantum optics and solid-state physics and is known as “collapses and revivals” Raimond et al. (1997).

• •

For $N\gg 1$, the excursions of the object state away from pointer states will become smaller and the frequency of switching episodes—spin flips in the case of spin measurements—should reduce, that is, the times the object spends close to a pointer state should grow very large. In particular, as soon as the object state is sufficiently close to one of the pointer states, a behaviour reminiscent of the quantum Zeno effect should emerge Zurek (1982).

• •

With these intermediate stages, the limit $N\to\infty$ where a definite measurement result is irreversibly achieved, while out of reach of finite-bath models proper, could still be approached through of a continuous transition.

In fact, a similar scenario has been envisaged for a model in the spirit of quantum optics, representing the object by a two-state atom and meter and environment, respectively, by two microwave cavities coupled through a waveguide Raimond et al. (1997).

Of special interest is the opposite extreme, $N=1$, as it allows us to study some issues analytically that are no longer so directly accessible for higher values of $N$. The Hamiltonian

[TABLE]

also referred to as spin-boson Hamiltonian or quantum Rabi model Finney and Gea-Banacloche (1994); Irish et al. (2005), is frequently employed as the standard model for two-level atoms interacting with a bosonic field. It is often considered in a slightly simplified version: If a rotating-wave approximation is applied that excludes double excitation or de-excitation processes (generated by $\hat{\sigma}_{+}\hat{a}^{\dagger}$ or $\hat{\sigma}_{-}\hat{a}$), the interaction term reduces to $\hat{H}_{\rm SM}=g(\hat{\sigma}_{+}\hat{a}+\hat{\sigma}_{-}\hat{a}^{\dagger})$, denoting $\hat{\sigma}_{\pm}:=\frac{1}{2}(\hat{\sigma}_{x}\mp{\rm i}\hat{\sigma}_{y})$. With this modification, the spin-boson Hamiltonian is also known as Jaynes-Cummings model. The emblematic feature exhibited by spin-boson systems are Rabi oscillations, oscillations of the two-state system between its lower and its upper level with a frequency proportional to the coupling $g$. A further simplification of Eq. (79), often called semi-classical Rabi model, replaces the coupling to the boson mode with frequency $\omega_{1}$ by an external driving with the same frequency Großmann and Hänggi (1992); Braak et al. (2016), $H_{\rm scl}=\frac{1}{2}\hbar\omega_{0}\hat{\sigma}_{x}+g\hat{\sigma}_{z}\cos(\omega_{1}t)$.

With the Hamiltonian (79), it is straightforward to specify the parity eigensubspaces referred to in Eq. (75). The even eigenspace comprises states of the form

[TABLE]

the odd subspace is spanned by states of the form

[TABLE]

Numerical results for the quantum dynamics, generated both by the Jaynes-Cummings model Gea-Banacloche (1991) and by the complete spin-boson Hamiltonian Finney and Gea-Banacloche (1994); Irish et al. (2005), in a parameter regime relevant for the present modelling, in particular for strong coupling, exist already and are consistent with the expectations pointed out here. For the present application to quantum measurement, there is no obvious justification for a rotating-wave approximation. With the full Hamiltonian (79), the von-Neumann equation for the density operator, ${\rm i}\hbar\,{\rm d}\hat{\rho}/{\rm d}t=[H_{\rm sb},\hat{\rho}]$ is readily evaluated at $t=0$ (App. C). Assuming an initial state as in Eq. (71), factorizing into a Schrödinger cat for the two-state system and an arbitrary superposition of boson excitations,

[TABLE]

the evolution equation for the reduced two-state density operator at $t=0$ reads

[TABLE]

For the initial polarization $a_{z}=\frac{1}{2}\langle\hat{\sigma}_{z}\rangle$, this means

[TABLE]

That is, to leading order, the state vector starts rotating around the $z$-axis of the Bloch sphere, but does not leave the equator. However, going to the second time derivative,

[TABLE]

one finds

[TABLE]

This result indicates that to second order in time, a state prepared as a Schrödinger cat with respect to vertical spin will exhibit polarization if the initial state of the boson fulfills a specific condition. The terms in the sum over $\alpha$ in Eq. (86) only contribute if not all products $c_{\alpha+1}c_{\alpha}^{*}$ of two subsequent expansion coefficients vanish. It has an obvious interpretation in terms of symmetry: The boson components in the eigensubspaces of the parity operator $\hat{\Pi}_{z}$, Eqs. (80,81), are characterized by encompassing exclusively even or exclusively odd components of each sector, spin and boson, of the total system. The condition $c_{\alpha+1}c_{\alpha}^{*}\neq 0$ for the boson sector therefore implies that the initial state of the meter must not belong to either one of the two eigensubspaces, hence must break $z\to-z$ parity, while the initial state of the spin itself has to remain unbiased.

If this preliminary finding is combined with the quantum Zeno effect (Sect. 4.1), a scenario emerges where initial states, unbiased as to spin polarization, will tend to move away from the equator of the Bloch sphere, the attraction basin boundary between spin-up and spin-down, in a direction depending on the initial state of the meter, to become increasingly attracted by that pole of the Bloch sphere they are already approaching, see Fig. 16.

4.4 A classical analogue of spin measurement

Following a similar research program as in quantum chaos, comparing quantum dynamics to its closest classical analogue, it would be tempting to study the unitary model for spin measurement sketched above in some appropriate classical limit. For the boson sector, no approximations are even necessary, as the heat bath composed of harmonic oscillators is its own classical limit. The two-state system representing the measurement object, however, is located in the opposite, the extreme quantum regime. A classical limit in the formal sense does not exist or it. However, a model, closely analogous in many respects to a spin measurement, can be conceived that already provides relevant insights.

The fact that, in the limit of a quasi-continuous heat bath, the two opposite pointer states act as attractors in Hilbert space suggests to compare them with a bistable classical system. A paradigm for bistability is a double well potential, say a symmetric quartic double-well with a parabolic barrier (Fig. 17a), given by the Hamiltonian

[TABLE]

If the heat bath takes the same form as in Eq. (78),

[TABLE]

and the interaction is modelled, as in the quantum case, as a linear position-position coupling,

[TABLE]

the total Hamiltonian takes the form

[TABLE]

It is evidently symmetric under the parity operation $P_{x_{\rm S},{\bf x}}$: $(p_{\rm S},x_{\rm S})\to(-p_{\rm S},-x_{\rm S})$, $({\bf p},{\bf x})\to(-{\bf p},-{\bf x})$. An initial condition that comes as close as possible to Eq. (71), in particular to the Schrödinger cat state for the spin, would combine the double-well system prepared at rest in the unstable equilibrium position on top of the barrier (call it a “Buridan’s ass state”), $p_{\rm S}(0)=0$, $x_{\rm S}(0)=0$, with an arbitrary initial condition of the heat bath oscillators, ${\bf p}(0)={\bf p}_{0}$, ${\bf x}(0)={\bf x}_{0}$. Suitable metaphors for this model are an inverted pendulum or a pencil, initially balanced exactly vertically, tip down on a surface, exposed to the impinging molecules of the surrounding medium.

As in the quantum model, the number of degrees of freedom $N$ of the heat bath is a decisive parameter. Already for $N=1$, chaotic behaviour is expected for the coupled system. In the limit $N\to\infty$, it should approach an irreversible dynamics, characterized by dissipation. With a position-position coupling as in Eq. (89) and under similar conditions for the spectrum of the heat bath, it will take the form of Ohmic friction (proportional to the velocity of the damped degree of freedom). For the object, this would imply an equation of motion such as

[TABLE]

with a friction coefficient $\lambda$ that depends on the microscopic coupling $g$ and the spectrum of the heat bath. For moderate values of $\gamma$, the system will fall from the top of the barrier into one of the wells and, after oscillations within that well have faded out, remain at rest in that well. As the Hamiltonian as well as the initial state of the object are parity symmetric, it is the initial conditions of the heat bath oscillators which determine into which one of the two wells the object will fall. While the boundary between the basins of attraction of the two wells (Fig. 17b) passes exactly through the origin of phase space, that is, through the supposed initial state $p_{\rm S}(0)=0$, $x_{\rm S}(0)=0$, it becomes fuzzy in the presence of the environment and is displaced slightly towards one of the two wells, depending on the initial condition of the environment. For the inverted pendulum alluded to above this means that it will tilt over in a direction determined by the impact of the molecules of the surrounding medium.

A similar model for a classical binary “random” (but in fact deterministic) process, a coin toss, has been analyzed in all detail in Ref. Diaconis et al. (2007). Diaconis et al. construct a phase-space plot of the basin boundaries separating initial conditions of the coin that lead to either one of the two alternative final outcomes “head” and “tail”, and which shows a marked structure of alternating fine fringes corresponding to these final conditions. While in the case of coin tosses, the sensitive dependence on the initial condition of the coin itself serves as random generator, it is microscopic details of the initial state of the environment that contribute the required entropy in the above classical model of spin measurement.

4.5 Perspectives

A unitary account of quantum measurements with random outcome, as outlined in this section, is presently being worked out. Starting from the analytical framework presented here, it requires massive numerical calculations. The quantum model with finite mode number $N$ can be evaluated in numerical simulations following a similar strategy as in the cited work on finite heat baths in optics and quantum molecular dynamics. The classical model of a bistable measurement process gives rise to sets of coupled Hamiltonian equations of motion that can be integrated using symplectic solvers.

In both cases, the immediate objective is to increase the mode number as far as possible, in order to come close to an irreversible behaviour, at least on time scales larger than all characteristic times of the object. The scenario sketched above for sufficiently high values of $N$ is a plausible expectation, based on arguments involving analogies and extrapolating known results. If it proves correct, a strong point would be made in favour of an alternative view of quantum randomness. Instead of interpreting it as a fundamental element of quantum mechanics that remains out of reach of its standard formalism, it would integrate it in a similar category of in principle deterministic, but practically incalculable many-body phenomena as, e.g., classical thermal fluctuations or Brownian motion. The randomness manifest in spin measurement would be revealed as analogous to quantum vacuum state fluctuations, amplified to macroscopic observability and frozen in a lasting record.

If, on the contrary, quasi-stable measurement outcomes should not be achieved even for values $N\gg 1$, this would provide strong evidence that quantum measurement involves a class of randomness that is fundamentally different from all other known sources of stochastic behaviour and will remain an alien element in the framework of quantum mechanics. It would constitute a compelling reason to explore unprecedented ideas—after all, the general problems pointed out above, concerning the information balance and spontaneous symmetry breaking in the “second collapse”, remain pressing.

An unexpected but important consequence of this view is that it effectively merges the “first” and the “second” collapse of the wavepacket into a single unitary process. In this way, it avoids the conceptually inconvenient detour from a pure initial state (a Schrödinger cat) to a mixture, after the first collapse, and back to a pure state (a definite measurement result) and in particular complies with entropy conservation throughout the entire measurement.

Besides this central message, a unitary account of quantum measurement has various additional testable implications, which substantiate its strength and facilitate its falsification:

• •

The approach of the object state to one of the pointer states, as final result of the measurement, will never be complete. In the limit $N\to\infty$, the discrepancy is expected to become arbitrarily small, but the postulate of pure states resulting from quantum measurement cannot be accomplished literally.

• •

Owing to the unavoidable entanglement between object and meter, the initial state of the meter does not only affect the final state of the object (the result), the state of the object upon leaving the apparatus also leaves a trace in the meter, which can then be probed by the following measurement. This implies the possibility of correlations between subsequent spin measurements, otherwise incompatible with their randomness, if their separation in time is extremely short.

• •

Spin measurements on systems prepared as Schrödinger cats with respect to the measured spin component, a paradigm of quantum randomness, are in the focus of this work. Notwithstanding, also “redundant” measurements, performed on systems that are prepared already with a definite polarization in the measured direction, are of interest in this context: The existence of a back-action of the meter on the object implies that even in the case of redundant measurements, albeit with very low probability, the measurement process could alter the spin polarization—trigger a spin flip—so that the result would not coincide with the state of the spin upon entering the apparatus.

• •

The approach outlined herein emphasizes the relevance of the meter state for the measurement outcome. Besides its initial state proper, this includes also characteristic properties of the meter, such as its eigenenergy spectrum and the way it couples to the object. Unconventional features, achieved by some special design, may then be reflected in unexpected features also of the statistics of the measurement results. If, for example, the “meter” is represented by a microwave cavity, as is often the case in quantum optics, particular structures in the cavity spectrum could have an observable effect on the measurement results.

• •

In state-of-the-art laboratory experiments on quantum randomness Bierhorst and et al. (2018), photons in counter-rotating polarization states replace the spins traditionally used as qbits in this context. It appears possible and tempting to work out the theory developed here so as to apply it to photon experiments.

Random spin measurements are almost invariably discussed in a special context where indeed they play a crucial rôle: Einstein-Podolsky-Rosen (EPR) experiments Einstein et al. (1935); Bel64; Aspect et al. (1982). This issue has deliberately been avoided here, as it is charged with misleading connotations. In particular, in EPR experiments, quantum randomness is not only inextricably connected to nonlocality, it is even discussed as depending on it as on a necessary condition Bierhorst and et al. (2018). The present approach, however, is unrelated to this question, and it is not intended to contribute in any sense to the long-standing debate around nonlocality and hidden-variable approaches. The attempt to understand quantum randomness within the established framework of non-relativistic unitary quantum time evolution is intended to fill one of the last gaps where it could appear incomplete, but not to question it, let alone replace it with hypotheses reviving classical locality.

Yet it cannot be denied that it has implications also for the interpretation of EPR experiments. Should it be the case that the meter has an impact on individual spin measurements, how then can spontaneous correlations arise between simultaneous measurements on spin pairs with a space-like separation? A possible answer could lie in the assumption that the nonlocal common state of the measured spin pair is coupled to, thus gets entangled with, the initial states of both meters, in a similar way as a single spin supposedly probes the state of a single meter. The coupling to the nonlocal spin state would then indirectly also entangle the states of the two apparatuses with one another, even if they remain separated by a space-like distance. However, this question should be relegated to future research as a particularly intriguing subject, to be addressed once the basic questions raised in this proposal have been settled.

5 Conclusions

The present report spans a wide arc, from minimalist models of chaos inspired by card shuffling, through pseudo-chaotic behaviour in pixelated spaces, through the quantum death of classical chaos, through spin measurement. These diverse subjects do have a common denominator. They allow to peek, from a macroscopic observation platform, into details of information processing on the smallest scales, directing attention to a few essential aspects: fundamental limits of total information supply and storage density on these scales, “vertical” information currents interchanging entropy with large scales, “horizontal" exchange of entropy with adjacent degrees of freedom of the environment.

They are relevant in particular for an understanding of stochastic processes, collectively perceived as “randomness”, on the macroscopic level. The analysis presented here supports the view that they form windows to the microscopic world, exceptional points where information is not dumped into, but lifted up from small scales, like hot magma ascending from the Earth’s mantle that reaches the surface in volcanic eruptions. While this idea may be little more than a helpful metaphor in the context of classical chaos, it suggests surprising consequences if applied to a seemingly unrelated field, quantum measurement. The randomness generated in quantum measurement can be seen in a similar spirit as resulting from an instability of the coupled object-meter system as it evolves towards alternative measurement results. If it can be evidenced that also here, it is information exchanged with the meter that becomes manifest in the measurement result, that would suggest an interpretation of quantum randomness as amplified vacuum fluctuations, rather than an irreducible fundamental feature of quantum systems.

An interpretation and extrapolation of quantum chaos in this sense is but a single example of the fruitfulness of studying quantum phenomena in terms of information currents. This approach, originating in and inspired by the success of quantum information science applied to computing, is developing into an active research area of its own right, with applications in quantum optics, quantum many-body physics, and other areas waiting to be explored.

While entropy and information currents have proven invaluable tools to understand classical and quantum chaos, the discussion of randomness in quantum measurement reveals a significant shortcoming of quantum entropy as an analytical instrument: It is insensitive to the difference between ordered strings and random strings. Intuitively, a structural criterion for randomness should also be reflected in a suitable entropy measure for quantum processes, as it is indeed addressed on the classical level, notably in the context of algorithmic complexity Solomonoff (1964); Kolmogorov (1965); Chaitin (1966); Zurek (1989).

\funding

A research grant from Fundación para la Promoción de la Investigación y la Tecnología (FPIT) of Banco de la República de Colombia (grant number 4050) is gratefully acknowledged.

Acknowledgements.

The author enjoyed the hospitality of the Department of Physics of Complex Systems at the Weizmann Institute of Science (Rehovot, Israel) and at the Institute for Theoretical Physics at Technical University of Dresden (Dresden, Germany) during various research stays, where part of the work reported here has been performed, and gratefully acknowledges stimulating discussions with his hosts at these institutions, Uzy Smilansky and Walter Strunz, resp., as well as with Frank Großmann (TU Dresden), Roee Ozeri (Weizmann Institute), and Carlos Viviescas (Universidad Nacional de Colombia). I am indebted to Santiago Peña for preparing the plot of attraction basins of a bistable system that underlies Fig. 17b. \appendixtitlesyes \appendixsectionsmultiple

Appendix A Entropy conservation under classical canonical transformations

For a classical mechanical system comprising $f$ degrees of freedom, specify the state as a probability density function

[TABLE]

In the absence of birth and death processes, ${\rm d}\rho({\bf r},t)/{\rm d}t=0$, it evolves in time according to the Liouville equation Goldstein (1980)

[TABLE]

$\{H({\bf r},t),\rho({\bf r},t)\}$ denoting the Poisson bracket with the Hamiltonian $H({\bf r},t)$. For the evolution over finite times, say from $\rho({\bf r}^{\prime},t^{\prime})$ to $\rho({\bf r}^{\prime\prime},t^{\prime\prime})$, that means that the density is conserved along a trajectory or flow line,

[TABLE]

where the operator-valued vector function $\hat{\bf F}(t^{\prime\prime},t^{\prime})$ maps phase-space points ${\bf r}^{\prime}$ at time $t^{\prime}$ along their trajectory till $t^{\prime\prime}$. Conversely, $\hat{\bf F}^{-1}(t^{\prime\prime},t^{\prime})$ traces phase-space vectors back along their trajectory from $t^{\prime\prime}$ to $t^{\prime}$.

For a state given by a continuous probability density at time $t$, the classical information can be defined as

[TABLE]

The constant $c$ fixes the units of information, $d_{A}$ is the resolution in units of action in two-dimensional phase space, given for example by the accuracies $d_{x}$ of length and $d_{p}$ of momentum measurements, $d_{A}=d_{x}d_{p}$. In order to relate the information at time $t^{\prime\prime}$ to that at an earlier or later time $t^{\prime}$, we can refer to the evolution of the density over a finite time interval, Eq. (94),

[TABLE]

It suggests itself to change the integration variable from the “new” phase-space coordinate ${\bf r}^{\prime\prime}$ to the “old” one ${\bf r}^{\prime}$, involving the Jacobian determinant $\det(\partial{\bf r}^{\prime\prime}/\partial{\bf r}^{\prime})$. The $(2f\times 2f)$-matrix $M$, also known as stability matrix, linearizes the transformation $\hat{\bf F}$,

[TABLE]

In the framework of Hamiltonian mechanics, $\hat{\bf F}$ must be canonical, which requires that $M$ complies with the symplectic condition $M^{\rm t}JM=J$, $J$ denoting the symplectic unit matrix Goldstein (1980). For the Jacobian, it means that \bigl{(}\det(M)\bigr{)}^{2}=1. This allows to rewrite the integration in Eq. (96) as,

[TABLE]

The conservation of information in classical Hamiltonian dynamics, manifest in Eq. (98), evidently is a lemma of symplectic phase-space volume conservation under canonical transformations Goldstein (1980). It is also as general: For example, it extends unconditionally also to systems driven by a time-dependent external potential force, which typically do not conserve energy.

Appendix B Entropy conservation under quantum unitary time evolution

As the most general measure of the information content of the state of a quantum system, described by the density operator $\hat{\rho}(t)$, define the von-Neumann entropy,

[TABLE]

Based on the density operator, this definition readily covers time evolutions that include incoherent processes, such as dissipation or measurement. In the special case of a unitary time evolution, generated by a Hamiltonian $\hat{H}(t)$ (that may well depend on time), the density operator evolves according to the von-Neumann equation Cohen-Tannoudji et al. (1977)

[TABLE]

The evolution over a finite time, from $\hat{\rho}(t^{\prime})$ to $\hat{\rho}(t^{\prime\prime})$, generated by Eq. (100),

[TABLE]

is mediated by the unitary time evolution operator

[TABLE]

where the operator $\hat{\mathcal{T}}$ effectuates time ordering.

Combining Eq. (99) with (102), the von-Neumann entropy Nielsen and Chuang (2000) is found to evolve from $t^{\prime}$ to $t^{\prime\prime}$ as

[TABLE]

In order to evaluate the trace, expand the operator-valued log function in a Taylor series around the identity $\hat{I}$, $\ln(\hat{I}+\hat{x})=\sum_{n=1}^{\infty}a_{n}\hat{x}^{n}$, $a_{n}=\ln^{(n)}(1)/n!=(-1)^{n-1}/n$,

[TABLE]

Permuting factors under the trace and eliminating intermediate products $\hat{U}^{\dagger}(t^{\prime\prime},t^{\prime})U(t^{\prime\prime},t^{\prime})=\hat{I}$,

[TABLE]

the sum under the trace recomposes to

[TABLE]

The decisive argument in this derivation is evidently that unitary transformations leave the trace of transformed operators invariant, in direct analogy to the conservation of phase-space volume under canonical transformations that guarantees entropy conservation in classical Hamiltonian dynamics, cf. App. A.

Appendix C Initial time evolution for the spin-boson Hamiltonian with a single boson mode

For the spin-boson Hamiltonian with a “heat bath” comprising only a single harmonic oscillator, cf. Eq. (79),

[TABLE]

a few key quantities, such as the reduced density operator of the spin sector and its polarization, are analytically accessible at the initial time $t=0$.

Prepare the boson mode in an arbitrary superposition of eigenstates,

[TABLE]

and the spin in a Schrödinger cat state

[TABLE]

This amounts to an initial condition of the reduced density operator

[TABLE]

i.e., in the representation of the eigenstates of $\hat{\sigma}_{z}$,

[TABLE]

Evidently, it represents a pure state, \bigl{(}\hat{\rho}_{\rm S}(0)\bigr{)}^{2}=\hat{\rho}_{\rm S}(0).

Its first time derivative is obtained immediately from the von-Neumann equation,

[TABLE]

It implies, in particular, for the purity that

[TABLE]

Defining the polarization as the vertical component of the Bloch vector,

[TABLE]

its first time derivative at $t=0$ is obtained as

[TABLE]

Along the same lines as in Eq. (C), the initial second time derivative of the reduced density operator is found to be

[TABLE]

The second time derivative of the purity reads

[TABLE]

and the second time derivative of the polarization is

[TABLE]

\reftitle

References \externalbibliographyno
