Optimizing Multi-Wavelength Blazar Studies through Fermi-LAT and Swift Synergy

TL;DR

This study analyzes Fermi-LAT gamma-ray flares and Swift follow-up requests to establish criteria for effective observations, aiming to optimize multi-wavelength blazar research.

Contribution

It identifies key parameters like source activity and flux that predict successful Swift follow-ups leading to publications, improving future observation strategies.

Findings

High-photon-flux sources lead to more publications.

Active sources are more likely to produce follow-up results.

Flare duration and AGN type have little impact on publication success.

Abstract

Blazar flares seen by the Fermi Gamma-Ray Space Telescope Large Area Telescope (Fermi LAT) are often followed up by Target of Opportunity (ToO) requests to the Neil Gehrels Swift Observatory (Swift). Using flares identified in the daily light curves of Fermi LAT Monitored Sources, we investigated which follow-up Swift ToO requests resulted in refereed publications. The goal was to create criteria of what Swift should look for in following up a Fermi-LAT gamma-ray flare. Parameters tested were peak gamma-ray flux, flare duration (based on a Bayesian Block analysis), type of AGN (BL Lac or FSRQ), and pattern of activity (single flare or extensive activity). We found that historically active sources and high-photon-flux sources result in more publications, deeming these successful Swift ToOs, while flare duration and type of AGN had little or no impact on whether or not a ToO led to a publication.

Figures

Tables

Table 1. Table 1: Sources with Fermi / Swift observations without a publication - Part 1

Name of Source	Maximum daily flux	Number of flares
4C+01.02 / PKS 0106+01	3	3
CGRaBS J0211+1051	1.1	1
S3 0218+35	4	4
4C+28.07	2.2	3
PKS 0301$-$243	1.4	1
PKS 0336$-$01	2	2
PKS 0402$-$362	6	4
NRAO 190	3	3
PKS 0454$-$234	1.7	4
PKS 0458$-$02	1.9	2
PKS 0502+049	3.2	2
PKS 0507+17	4.1	2
VER 0521+211	1	1
PKS 0528+134	1.2	1
OG 050	1.6	1
B2 0619+33	1.8	1
4C 14.23	2.1	1
PKS 0727$-$11	1	1
PKS 0736+01	2.1	2
PKS 0805$-$07	1.6	2
0827+243	1.2	1
PKS B0906+015	1.5	2
S4 1030+61	1.3	1
S5 1044+71	1.3	2
1150+497	2.4	1
Ton 599	2.1	3
ON 246	1	1
GB6 B1310+4844	2.1	1
PKS 1313$-$333	1.3	1
PKS 1329$-$049	4.1	1
B3 1343+451	1.3	1
PKS 1424-41	3	5
B2 1520+31	2	2
TXS 1530$-$131	1.5	1
PKS 1622$-$253	3	2
GB6 J1700+6830	1	1
1730$-$130	1.5	1
OT 081	4	1
S5 1803+78	1.3	1
S4 1800+44	3	1

Table 2. Table 2: Sources with Fermi / Swift observations without a publication - Part 2

Name of Source	Maximum daily flux	Number of flares
PKS 1824$-$582	3.9	2
CGRaBS J1848+3219	2	2
B2 1846+32B	2.2	1
PKS 2032+107	3.2	1
PKS 2136$-$642	1.5	1
NRAO 676	4.5	3
BL Lac	2.3	4
PKS 2233$-$148	3	2
TXS 2241+406	1.5	1
B2 2308+34	1.5	2
PKS 2320$-$035	1	1

Full text

**Optimizing Multi-Wavelength Blazar Studies through Fermi-LAT and Swift Synergy

** Christina D. Moraitis (Samford University, NASA Goddard Space Flight Center), D. J. Thompson (NASA Goddard Space Flight Center)

Abstract

Blazar flares seen by the Fermi Gamma-Ray Space Telescope Large Area Telescope (*Fermi *LAT) are often followed up by Target of Opportunity (ToO) requests to the Neil Gehrels Swift Observatory (Swift). Using flares identified in the daily light curves of *Fermi * LAT Monitored Sources, we investigated which follow-up Swift ToO requests resulted in refereed publications. The goal was to create criteria of what Swift should look for in following up a Fermi-LAT gamma-ray flare. Parameters tested were peak gamma-ray flux, flare duration (based on a Bayesian Block analysis), type of AGN (BL Lac or FSRQ), and pattern of activity (single flare or extensive activity). We found that historically active sources and high-photon-flux sources result in more publications, deeming these successful Swift ToOs, while flare duration and type of AGN had little or no impact on whether or not a ToO led to a publication.

1. Introduction

The Fermi Gamma-Ray Space Telescope (Atwood et al., 2009) and the Neil Gehrels Swift Observatory (Swift) (Gehrels et al., 2004) are both key tools for studying flaring gamma-ray sources. Fermi LAT has a broad observation range, from $<$0.1-$>$300 GeV energies. Not only so, but through LAT’s unprecedented wide field of view, it has observed the entire celestial sphere regularly for over ten years of its mission. Often when a flare is detected with Fermi LAT, that source will be followed up via a Target of Opportunity (ToO) request to Swift to further study the source in X-ray, UV and optical wavelengths. Doing so will tell more about the source, what specific type of blazar it may be, and what physical processes are occurring to cause the observed flares. As more and more gamma-ray sources are observed by Fermi, more and more ToOs are sent to Swift for multi-wavelength follow up. There will be a time when Swift will not be able to follow up all of the ToO requests that it receives. Due to this potential saturation of requests, a study was conducted as a student project over the course of two months to help optimize future ToO requests to Swift with the goal of developing guidelines for when a ToO is most likely to be fruitful.

2. Method

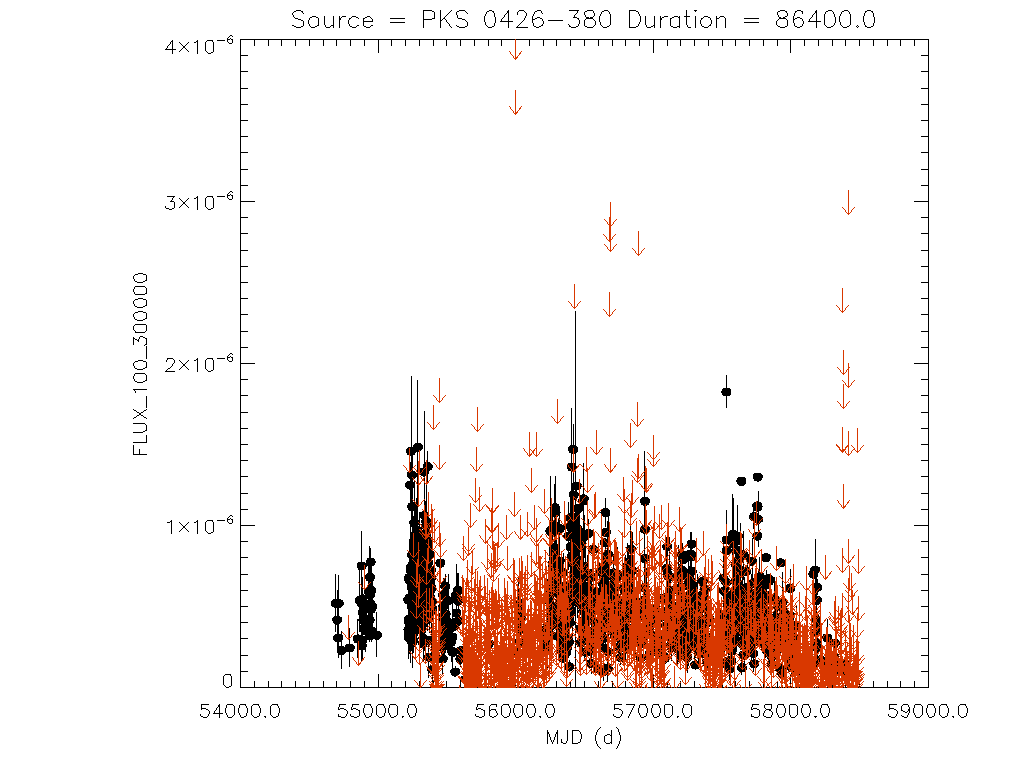

The starting point for this project was the Fermi-LAT Monitored Source List, available from the Fermi Science support Center Web site: https://fermi.gsfc.nasa.gov/ssc/data/access/lat/msl_lc/. This public data set provides daily and weekly light curves generated by an automated analysis, for all gamma-ray sources whose daily flux has ever exceeded $1\times 10^{-6}\rm{ph}~{}\rm{cm}^{-2}~{}s^{-1}$ above 100 MeV. Although these light curves do not have absolute flux calibration consistent over the life of the mission, they offer a convenient way to identify short-term flaring activity. The vast majority of the sources in this list are gamma-ray blazars. An example is shown in Fig. 1.

The analysis steps are as follows:

Sort through the Monitored Source List, picking out sources that flared prior to 2017 and had significant and visually interesting activity, such as one or more well-defined flares. We found that 110 out of 158 were of interest. We excluded later flares, because publications for those flares were unlikely to have been complete by mid-2018. 2. 2.

Determine if the Fermi sources had Swift ToO follow-ups by searching through the online Swift ToO archive at www.swift.psu.edu/secure/toop/summary.php. It was found that 91 out of 110 Fermi-LAT sources have a least one Swift observation after Fermi’s 2008 launch. 3. 3.

Search for publications using Fermi and Swift data for individual sources in this collection, using the SAO/NASA ADS system: adsabs.harvard.edu. Of the 91 sources with observations by both satellites, 32 had publications using data from both, and 21 of these explicitly mentioned the Swift ToO. A list of these references is given in Appendix A. 4. 4.

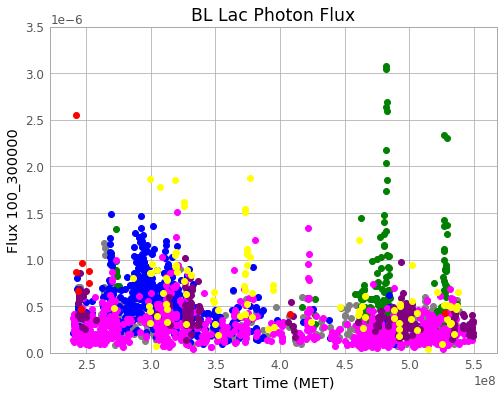

For all 110 sources of interest, download the FITS files of the gamma-ray data, then use python code to overplot light curves for similar types of sources (e.g. BL Lac objects) to look for similarities. An example is shown in Fig. 2. 5. 5.

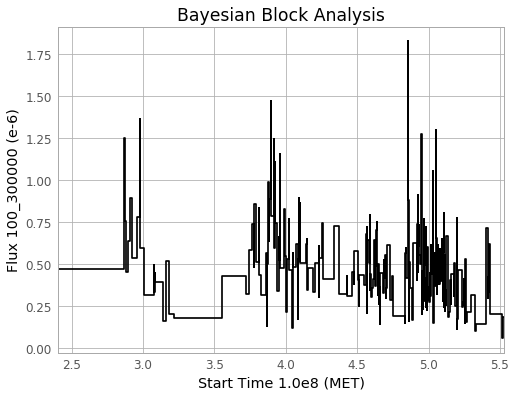

Derive a quantitative representation of the statistically significant structures (height and duration) in the light curves, using a Bayesian Block analysis (Scargle et al., 2013). The resulting light curve for PKS 0426$-$380 is shown in Fig. 3. 6. 6.

Categorize the sources: type of object, peak daily flux, duration of flares, and number of flares.

3. Results

For the characteristics of the “successful” ToOs, we concentrate on the 21 that explicitly mentioned the Swift ToO in the publication. One was a flare of the Crab Nebula. We exclude that as being a special case. Some results:

• •

Approximately 2/3 of the successful ToOs involved blazars that were historically active, showing multiple flares over an extended time range. The rest had only one or a few flares.

• •

Over half of these results involved Flat Spectrum Radio Quasars (FSRQs), with the rest divided between BL Lac objects and blazars of uncertain type. This result is not surprising, since gamma-ray FSRQs are typically more variable than BL Lac objects (Ackermann et al., 2015).

• •

Flare durations were widely scattered, ranging from 1 day to 9 months, with an average duration of $\sim$38 days.

Comparing the sources that produced publications with those that did not gives the following:

• •

Of the 8 Fermi-LAT sources with peak flare $>$ 8 $\times$ $10^{-6}\rm{ph}~{}\rm{cm}^{-2}~{}s^{-1}$ above 100 MeV, 7 resulted in publications including Swift ToO results. The one remaining case was a flare of 3C273 that occurred at a time Swift had a sun angle constraint and was not able to execute the ToO.

• •

For Fermi-LAT sources with peak flare 1–3 $\times$ $10^{-6}\rm{ph}~{}\rm{cm}^{-2}~{}s^{-1}$ above 100 MeV, 14 out of 76 cases had publications including Swift ToO results.

• •

Sources that resulted in publications had an average of 2.7 flares in the Fermi-LAT data, while those that were not published had an average of 1.7 flares.

The peak flux for these flaring sources is clearly an important parameter. Another way to express the flux dependence is: for Fermi/Swift published sources, the median flux was 2.4 $\times$ $10^{-6}\rm{ph}~{}\rm{cm}^{-2}~{}s^{-1}$ above 100 MeV; for Fermi/Swift unpublished sources, the median flux was 2.0 $\times$ $10^{-6}$ in the same units; and for sources that did not have a Swift ToO, the median flux was 1.1 $\times$ $10^{-6}$ in the same units.

4. Conclusions

Based on a study of Swift ToOs for flaring Fermi-LAT gamma-ray sources, we can draw these conclusions:

• •

Peak gamma-ray flux is the clearest indicator of which Swift ToOs are most likely to result in a publication. Very bright flares are almost always published.

• •

Historically active blazars, ones with multiple flares over the time of the Fermi mission, are more likely to result in publications than those with only a few flares.

• •

The type of source and the durations of flares have little effect on whether a source produces a publication.

While these conclusions offer guidance about Swift ToO requests, they are not the only considerations. Higher flux flares are rarer and arguably more interesting than lower flux flares. However, lower flux flares should not be ruled out every time because there are instances where lower flux flares provide groundbreaking insight, such as the indication of neutrino emission from TXS 0506+056 (IceCube Collaboration et al., 2018). Since we have more information on the historic sources, this obviously will lead to more publications. More data on a source means more to analyze, which leads to more conclusions on the source mechanisms. Again the TXS 0506+056 offers a counterexample, since it is not a particularly active gamma-ray source.

One other result from this study stands out. Our searches turned up no obvious publications using data from both satellites for a large fraction of the flaring Fermi-LAT gamma-ray sources that also have Swift data. We may, of course, have missed some references, or they could still be in preparation. Some of the sources also have publications that do not use both data sets. Nevertheless there appears to be a significant body of observational data about flaring blazars that has not yet been exploited. Information about these sources is found in Appendix B.

5. Acknowledements

We wholeheartedly acknowledge and thank the hardworking members of the Fermi-LAT Collaboration and the Swift team for providing the data for this study. We thank and recognize postdoctoral NASA fellow Sara Buson for her help in creating Bayesian Block python code used in the study for flare amount, duration, and variation analysis. We also recognize Penn State University and their documentation of Swift ToO requests, Strasbourg University for their SIMBAD astronomical database used to help classify sources, as well as the Smithsonian Astrophysical Observatory and NASA efforts in providing the Astrophysics Data System used in searching for targeted publications.
