Disorderless quasi-localization of polar gases in one-dimensional lattices

TL;DR

This paper demonstrates that one-dimensional polar gases in optical lattices can exhibit quasi-localization and self-bound droplets due to dipolar interactions, without external disorder, impacting experimental realizations with magnetic atoms and polar molecules.

Contribution

It reveals disorderless quasi-localization and droplet formation in polar gases caused by dipolar interactions, expanding understanding of constrained dynamics in optical lattices.

Findings

Quasi-localization occurs via dimer clustering at low densities.

Weak dipoles can form self-bound superfluid droplets.

Results are applicable to experiments with magnetic atoms and polar molecules.

Abstract

One-dimensional polar gases in deep optical lattices present a severely constrained dynamics due to the interplay between dipolar interactions, energy conservation, and finite bandwidth. The appearance of dynamically-bound nearest-neighbor dimers enhances the role of the $1/r^3$ dipolar tail, resulting, in the absence of external disorder, in quasi-localization via dimer clustering for very low densities and moderate dipole strengths. Furthermore, even weak dipoles allow for the formation of self-bound superfluid lattice droplets with a finite doping of mobile, but confined, holons. Our results, which can be extrapolated to other power-law interactions, are directly relevant for current and future lattice experiments with magnetic atoms and polar molecules.

Figures

Equations

$$\hat{H}=-J\sum _j\left({\hat{a}}_j^{†}{\hat{a}}_{j+1}+H.c.\right)+\frac{V}{2}\sum _{i\ne j}\frac{1}{|i-j{|}^3}{\hat{n}}_i{\hat{n}}_j,$$

$$\frac{{\hat{H}}_D}{J_D}=-\sum _l\left({\hat{D}}_l^{†}{\hat{D}}_{l+1}+H.c.\right)+\frac{V}{J_D}\sum _{l,L\ge 1}f(L){\hat{N}}_l{\hat{N}}_{l+L+2},$$

Full text

Recent years have witnessed a major interest on the dynamics of isolated many-body quantum systems Polkovnikov2011 ; DAlessio2016 ; Borgonovi2016 ; Basko2006 ; Nandkishore2015 . This interest has been largely triggered by impressive experimental developments, especially in cold gases Bloch2008 and trapped ions Blatt2012 , which realize almost perfect isolation Kinoshita2006 ; Gring2012 ; Richerme2014 ; Jurcevic2014 ; Gaerttner2017 . Particular attention has been paid to atom dynamics in deep optical lattices, as in seminal experiments on single-particle and many-body localization in the presence of disorder Billy2008 ; Roati2008 ; Deissler2010 ; Kondov2011 ; Jendrzejewski2012 ; Schreiber2015 . However, in addition to energy conservation, tight-binding dynamics in deep lattices is largely determined by the finite bandwidth. This leads to the dynamical formation of (meta)stable states. A prominent example is provided by the so-called repulsively-bound pair, a pair of particles in the same lattice site that, although thermodynamically unstable, remains dynamically bound if the interaction strength exceeds the lattice bandwidth Winkler2006 ; Strohmaier2010 . The presence of repulsively-bound pairs leads, even for weak interactions, to a strong slow-down of the lattice dynamics Schneider2012 ; Ronzheimer2013 .

Whereas experiments with contact-interacting particles realize Hubbard models with only on-site interactions, extended Hubbard models (EHMs) with inter-site interactions may be realized using particles that interact via power-law potentials. This is the case of Rydberg atoms, with strong van-der-Waals interaction at nearest-neighbors Saffman2010 ; Browaeys2016 , and of polar lattice gases with strong dipole-dipole interactions (DDI), in particular magnetic atoms and polar molecules. Inter-site spin-exchange has been observed using chromium DePaz2013 and KRb Yan2013 , whereas an EHM with nearest-neighbor interactions has been realized using erbium Baier2016 . Although EHM experiments with polar molecules remain a challenge due to inelastic losses Ospelkaus2010 ; Mayle2013 , the latter may be avoided by using fermionic molecules DeMarco2018 . In addition to leading to new ground-state physics Lahaye2009 ; Baranov2012 , strong DDI change radically the lattice dynamics. Inter-site interactions, even just between nearest-neighbors, lead to non-local repulsively-bound pairs Nguenang2009 and clusters at different sites, which significantly slow down the dynamics Barbiero2015 .

In this Letter, we show that the formation of dynamically-bound dimers leads, in absence of disorder, to quasi-localization due to dimer clustering for surprisingly low densities and moderate dipole strengths. Moreover, in-lattice expansion experiments Schneider2012 ; Ronzheimer2013 can reveal, even for weak dipoles, the formation of superfluid self-bound lattice droplets footnote-SF-Metal . Our results, which can be directly extrapolated to other power-law interactions, are directly relevant for current and future experiments on magnetic atoms and polar molecules.

Model.-

We consider polar bosons in a 1D lattice, which for simplicity are assumed as hard-core particles, i.e. the on-site interaction is so strong that maximally one boson is allowed per site. The system is described by the extended Bose-Hubbard Hamiltonian (EBHM):

[TABLE]

with $\hat{a}_{j}$ ($\hat{a}_{j}^{\dagger}$) the annihilation (creation) operator for bosons at site $j$, $\hat{n}_{j}=\hat{a}_{j}^{\dagger}\hat{a}_{j}$, $(\hat{a}_{j}^{\dagger})^{2}=0$, $J$ the hopping rate, and $V$ the DDI strength between nearest-neighbors. Our results should not change qualitatively for single-component fermions.

Dynamically-bound dimers.-

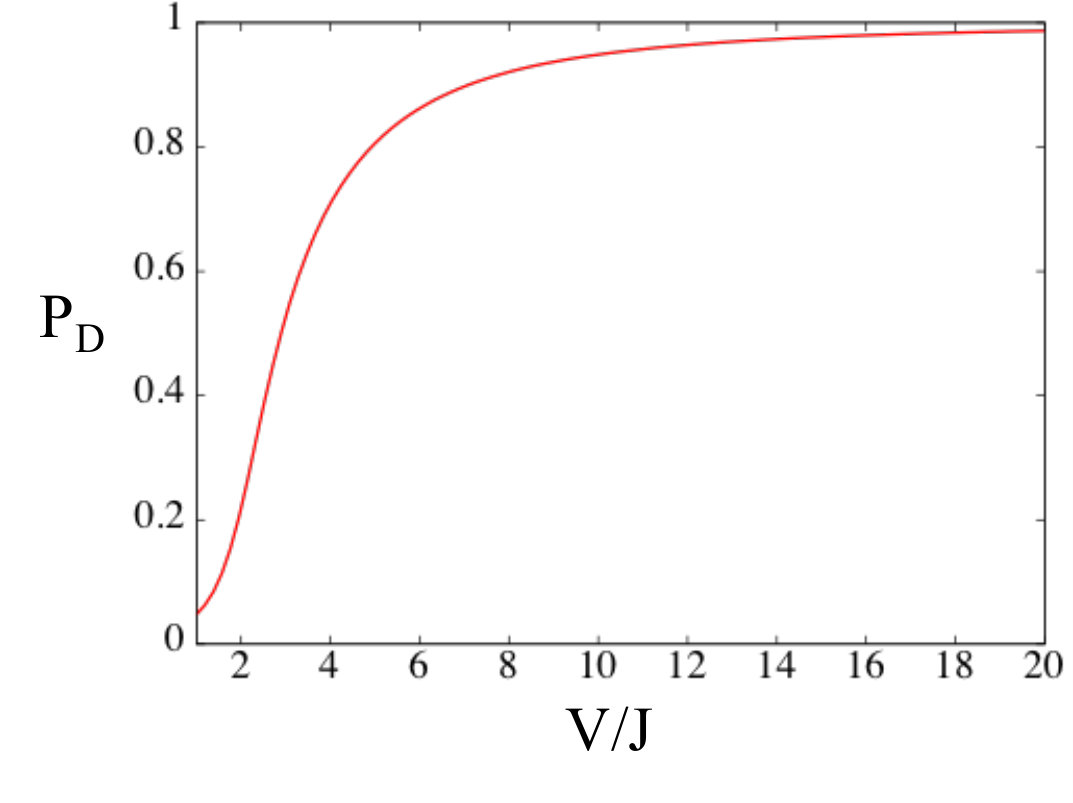

Large-enough $V/J$ leads to quasi-conservation of the number of nearest-neighbor links, resulting in dynamically-bound nearest-neighbor dimers (NNDs). For $V/J>7$, a NND can be considered an eigenstate (the tightest two-particle bound eigenstate is a NND with a probability $>90\%$ footnote-SM ). We first consider a gas formed only of NNDs, which can be prepared e.g. using superlattices Schreiber2015 . Dimers move by two consecutive hops, with effective hopping rate $J_{D}=8J^{2}/7V$. Their dynamics is approximately given by the EBHM

[TABLE]

where $\hat{D}_{l}^{\dagger}=\hat{a}_{l}^{\dagger}\hat{a}_{l+1}^{\dagger}$ creates an NND at sites $l$ and $l+1$, $\hat{N}_{l}=\hat{D}_{l}^{\dagger}\hat{D}_{l}$, and $f(L)=\left(2(L+2)^{-3}+(L+1)^{-3}+(L+3)^{-3}\right)$ characterizes the DDI between two dimers separated by $L$ sites. Using $\hat{H}_{D}$ we may determine the critical number of empty sites between the dimers, $L_{cr}$, such that if the initial inter-dimer separation $L_{0}<L_{cr}$, then at any other time $t$, this separation remains well fixed, which we quantify by imposing that the variance of the inter-dimer distance $\Delta L<\sqrt{L_{0}}$ for $J_{D}t=100$ footnote-SM . As expected from a simple inspection of $\hat{H}_{D}$, $L_{cr}\propto(V/J)^{2/3}$ (Fig. 1(a)). E.g., for $V/J=50$, two dimers $L_{0}=7$ sites apart remain at a tightly fixed relative distance, forming a dimer cluster despite their weak mutual dipolar interaction ($Vf(L_{0})\simeq 0.5J$).

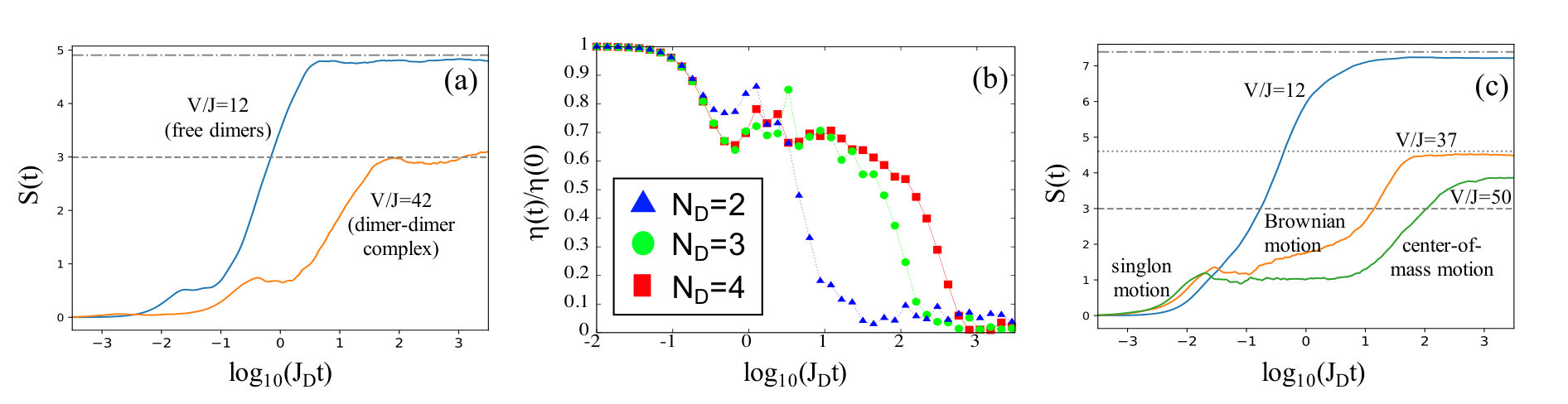

The formation of dimer clusters leads to a strongly slowed-down dynamics. This is illustrated by the evolution of the Shannon entropy $S(t)=-\sum_{\{n_{j}\}}|c(\{n_{j}\},t)|^{2}\log|c(\{n_{j}\},t)|^{2}$, obtained from the state of the system $|\psi(t)\rangle=\sum_{\{n_{j}\}}c(\{n_{j}\},t)|\{n_{j}\}\rangle$, with $|\{n_{j}\}\rangle$ the Fock states characterized by site occupations $n_{j}=0,1$. In Fig. 2(a) we depict our exact diagonalization results obtained using Eq. (1) for $N_{s}=25$ sites with periodic boundary conditions, for two NNDs initially separated by $L_{0}=5$ sites, and $V/J=12$ ($L_{0}>L_{cr}$) and $42$ ($L_{0}<L_{cr}$). For $t\ll 1/J_{D}$, $S(t)$ remains very low, since NNDs move via second-order hopping. For $t\gtrsim 1/J_{D}$, the dimer cluster quickly unravels for $L_{0}>L_{cr}$, reaching a maximal entropy $S_{max}\simeq 2\ln N_{s}$. In contrast, for $L_{0}<L_{cr}$, a stable cluster of NNDs forms. As result $S(t)$ increases much slower, and only does it for $t\gg 1/J_{D}$ due to the center-of-mass motion of the two dimers, up to a strongly reduced $S_{max}\simeq\ln N_{s}$.

For sufficiently large densities, the presence of additional NNDs results in stable clusters of more than two dimers, which largely constrains entropy growth due to center-of-mass motion. This is illustrated in Fig. 2(b), where we depict for $V/J=40$, the evolution of the inhomogeneity parameter $\eta(t)=\sum_{j}|\langle\hat{n}_{j}\rangle-N/L|^{2}$ ($\eta\simeq 0$ indicates homogeneization), obtained using exact diagonalization of $\hat{H}_{D}$ for $N_{D}=2$, $3$ and $4$ dimers initially separated by three empty sites in a lattice with $5(N_{D}+1)$ sites (particle filling $\simeq 0.3$ in all cases). Note that the homogeneization time increases by one order of magnitude with every dimer added to the cluster. Polar NNDs have hence a much stronger effect on the lattice dynamics than non-polar on-site repulsively-bound pairs Petrosyan2007 . Contrary to the latter, where the larger effective mass of the pairs just leads to a slow-down, in polar gases weak dimer hopping is out-competed by the dipolar tail even at large distances, leading to quasi-localization via clustering even for dilute dimer gases and moderate dipoles.

Brownian motion.-

The presence of singlons (i.e. isolated particles) between the NNDs radically changes the dynamics. On one hand, for weak-enough dipoles a singlon and a NND can approach at one site of distance, and then resonantly swap their positions, resulting in an effective dimer recoil. These recoils induce a Brownian-like dimer motion for $t\lesssim 1/J_{D}$. In Fig. 2(c) we depict $S(t)$ for $V/J=12$, $37$ and $50$ for the case of one singlon initially in between two NNDs separated by $7$ sites footnote-BM . For $t\lesssim 1/J$, $S(t)$ grows linearly due to singlon motion between NNDs. For $1/J\lesssim t\lesssim 1/J_{D}$, Brownian motion results in an increase of $S(t)$, distinctly visible for $V/J=37$, which is then sped up by correlated dimer hopping for $t\gtrsim 1/J_{D}$. Brownian motion is absent in the singlon-free NND gas (Fig. 2(a)), and for large $V/J=50$ (Fig. 2(c)) for which singlons and NNDs cannot approach at one site from each other.

Singlon-gluing.-

Large-enough $V/J$ results, on the other hand, in a dramatic singlon-induced enhancement of the inter-dimer binding. Due to the DDI, a singlon between two NNDs experiences a box-like potential footnote-SM , freely moving up to a distance $r_{B}$ from the dimers, with $V/r_{B}^{3}\sim J$, fully delocalizing within a time scale $1/J$ over the box length $L$ (Fig. 1(b)). Due to the singlon-dimer interaction, dimer motion changes the energy of the confined singlon. Hence the dimer dynamics is not only constrained, as above, by inter-dimer interaction, but also (and dominantly) by the change in the singlon energy. This mechanism resembles that discussed, for non-polar gases, in Refs. Grover2014 ; Schiulaz2015 , and also for polar gases in Ref. Barbiero2015 , in which the interplay between slow and fast particles (in this cases NNDs and singlons) was shown to result in quasi many-body localization. However the surprisingly strong role of the DDI tail, which plays a crucial role in this paper, was overlooked in the simplified model of Ref. Barbiero2015 , in which a cut-off of the DDI at next-to-nearest neighbors was considered.

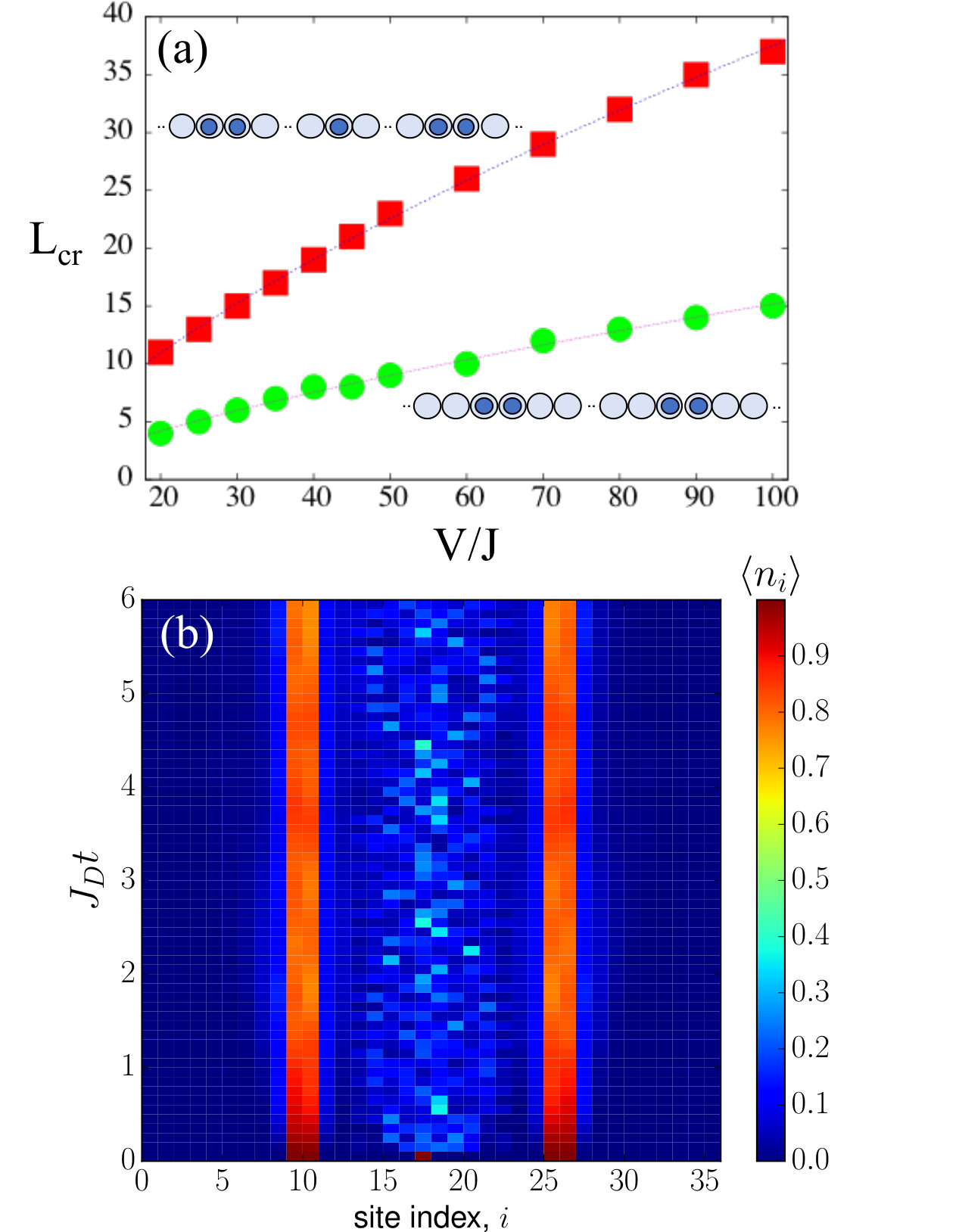

We have evaluated the gluing effect, by exactly solving a system of two NNDs with an intermediate singlon footnote-SM . Our results (Fig. 1(a)) confirm indeed that the critical inter-dimer distance $L_{cr}$ for dimer clustering, which remains proportional to $(V/J)^{2/3}$, is very significantly enhanced, i.e. intermediate singlons lead to a much more robust dimer-dimer binding. For $V/J=50$, two NNDs initially separated by $L_{0}=15$ sites remain bound at fixed distance for $J_{D}t\gg 1$ (Fig. 1(b)), despite the extremely small inter-dimer interaction $Vf(L_{0})\simeq 0.02J$.

Singlon-gluing crucially affects the lattice dynamics of even very dilute 1D polar lattice gases for moderate dipoles. A lattice gas with filling $\rho\ll 1$ is formed mainly by singlons, with an additional small density $\rho_{D}=\rho^{2}$ of NNDs footnote-NNND . Hence, for a sufficiently large $V/J$ that precludes Brownian motion, singlon-gluing leads to dimer clustering for $\rho\gtrsim\rho_{cr}$, with $\rho_{cr}^{2}\simeq 1/L_{cr}$. As for the case of the singlon-free dimer gas, larger clusters of more than two NNDs prevent the center-of-mass motion that results in the entropy growth at long times observed in Fig. 2(c). Hence even moderate DDI result for very low densities (for $V/J=50$, $\rho_{cr}\simeq 0.2$) into a quasi-localization via massive singlon-induced dimer clustering. Note that this estimation is conservative footnote-NNND , since for lower $\rho$, even in absence of massive clustering, the formation of clusters with few NNDs already severely constrains the dynamics within finite experimental lifetimes.

Lattice droplets-

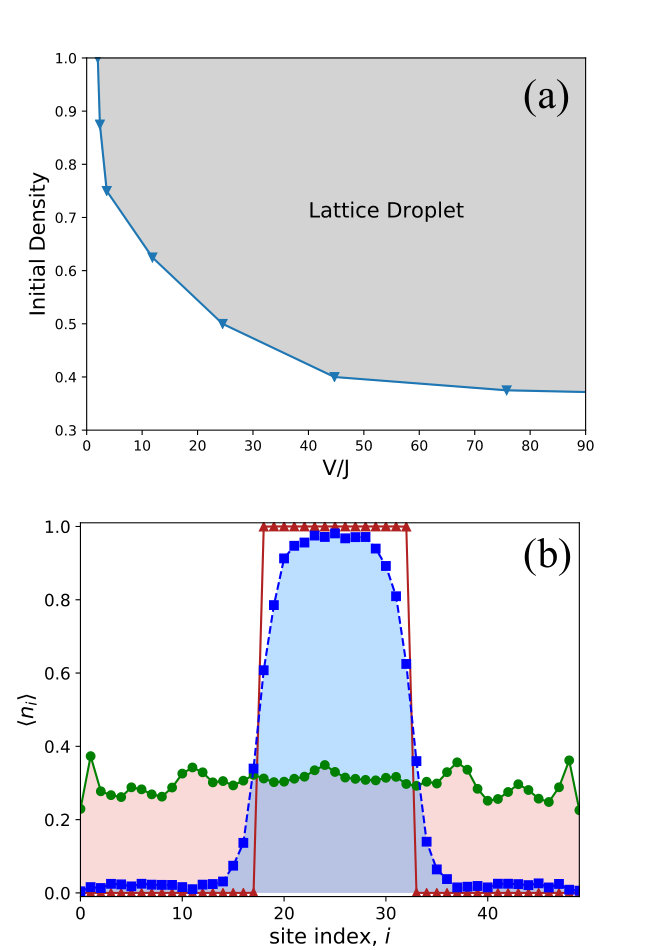

Even much weaker DDI may dramatically impact the dynamics, as illustrated by the analysis of in-lattice expansion. We consider a lattice gas of filling $\rho\leq 1$ initially prepared, with $V=0$, in the ground-state of a box-like potential footnote-box . At time $t=0$ the box trap is released and $V>0$ is applied (note that $V$ can be controlled by means of the dipole orientation). In contrast to non-polar experiments Schneider2012 ; Ronzheimer2013 , where stable or partially-stable on-site repulsively-bound pairs still allowed for an overall (slowed-down) expansion, in the polar case there is a critical ratio $(V/J)_{cr}(\rho)$ such that the initial cloud remains self-bound (Fig. 3(a)). These dynamically self-bound lattice droplets present a finite final average $\rho^{\prime}<1$ (Fig. 3(b)), i.e. holons (empty sites) remain mobile but confined within a droplet. As a result, lattice droplets remain superfluid. Note that for $\rho=1$, droplets occur already for $V/J\simeq 2.5$, which is readily available in current erbium experiments Baier2016 . For finite holon doping, $(V/J)_{cr}$ increases (Fig. 3(a)), but even rather dilute droplets may form for a moderate $V/J$.

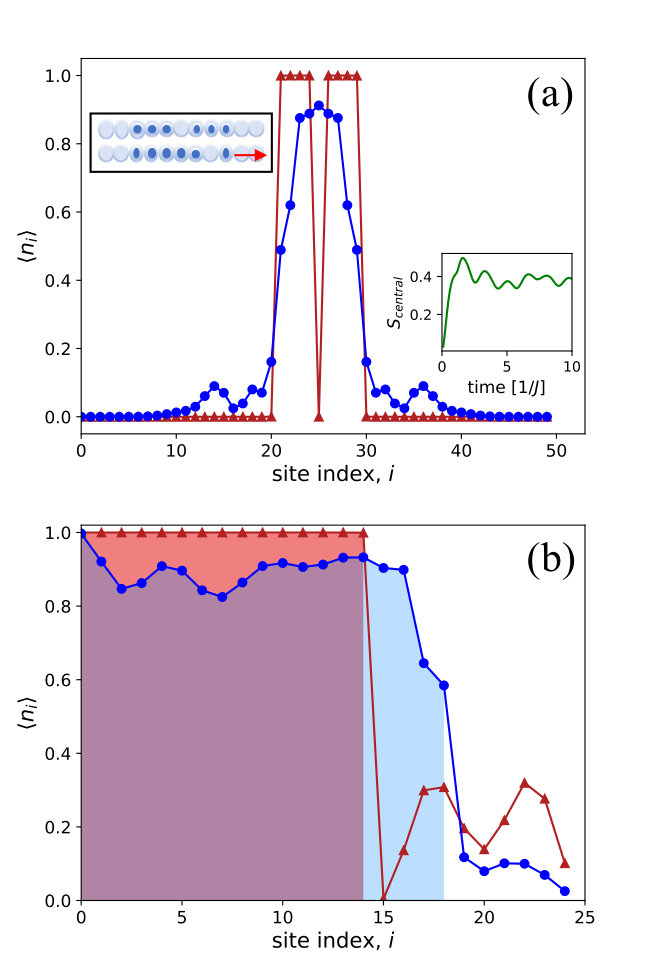

Holon confinement within a droplet results for large-enough $V/J$ from the effective trapping induced by the boundaries of the droplet through the DDI tail. For $V/J\lesssim 8$, this mechanism is insufficient, since only nearest-neighbor DDI are relevant for the holon dynamics. This is illustrated in Fig. 4(a), where we analyze a holon initially at the center of a droplet with $\rho=1$. The holon expands by resonant nearest-neighbor hops all the way to the droplet edges. When the latter occurs, the last particle of the droplet may escape without breaking any nearest-neighbor bond (left inset of Fig. 4(a)). Although this introduces a mechanism for reducing the particle-hole entropy of the droplet, holon evaporation, which only occurs at the droplet edges, becomes drastically inefficient for growing droplet sizes since the holon quickly spreads uniformly within the droplet (right inset of Fig. 4(a)). As a result, holons remain confined within the droplet. Interestingly, the converse of holon evaporation is also possible, i.e. a singlon initially outside the droplet may get attached to its edge, pushing a holon inside the droplet. Since holons remain trapped, this leads to singlon aggregation to the droplet with the consequent reduction of the droplet density (Fig. 4(b)). Evaporation and aggregation eventually equilibrate, such that for droplets placed in a singlon environment the outside singlon density equals the inside holon doping.

Conclusions.-

One-dimensional polar gases in deep lattices present a severely constrained dynamics. The formation of dynamically-bound dimers dramatically enhances the role of the $1/r^{3}$ dipolar tail, leading to quasi-localization in absence of disorder via the clustering of dynamically-bound dimers even for very small densities and moderate dipole moments. Moreover, polar lattice gases may form, even for very weak dipoles, self-bound superfluid lattice droplets with a finite doping of confined but mobile holons. Our results hint to inherent difficulties associated to particle-hole entropy removal in polar lattice gases, which must be carefully addressed for e.g. the creation of ground-state phases.

Our work is directly relevant for lanthanide experiments. For example, for 164Dy in a deep UV lattice with inter-site separation $l=180$nm, and orienting the dipoles along the lattice, $|V|/J\simeq 0.02\eta^{-3/4}e^{-2\sqrt{\eta}}$, with $\eta$ the lattice depth in recoil units. For $\eta=23$, $V/J\simeq 30$, with a hopping rate $J/\hbar\simeq 93$s*-1*. The corresponding dimer-hopping time is $1/J_{D}\simeq 280$ms, and hence the effects of dimer clustering may be readily probed in few seconds, well within typical experimental lifetimes. Our results are also applicable to future experiments with polar molecules, where even larger $V/J$ ratios may be achieved, and may be easily extrapolated to systems with other power-law interactions.

Acknowledgements.

We thank L. Chomaz, F. Ferlaino, C. Menotti, M. Mark, T. Pfau, and A. Recati for discussions. W. L., X. D. and L. S. thank the support of the DFG (SFB 1227 DQ-mat and FOR2247). L. B. acknowledges ERC Starting Grant TopoCold for financial support. K. K. thanks the support by KAKENHI (Grant No. 18K03472) from the JSPS.
