Barkhausen noise from precessional domain wall motion

TL;DR

This paper investigates Barkhausen noise caused by precessional domain wall motion in disordered ferromagnetic thin films, revealing the role of Bloch lines and internal domain wall dynamics through micromagnetic simulations.

Contribution

It provides a detailed micromagnetic simulation study of Barkhausen noise, highlighting the internal structure and topological defects within domain walls during precessional motion.

Findings

Bloch lines nucleate, propagate, and annihilate during Barkhausen jumps.

In-plane Bloch line dynamics dominate spin rotation activity.

Precessional domain wall motion produces crackling noise in disordered ferromagnets.

Abstract

The jerky dynamics of domain walls driven by applied magnetic fields in disordered ferromagnets -- the Barkhausen effect -- is a paradigmatic example of crackling noise. We study Barkhausen noise in disordered Pt/Co/Pt thin films due to precessional motion of domain walls using full micromagnetic simulations, allowing for a detailed description of the domain wall internal structure. In this regime the domain walls contain topological defects known as Bloch lines which repeatedly nucleate, propagate and annihilate within the domain wall during the Barkhausen jumps. In addition to bursts of domain wall propagation, the in-plane Bloch line dynamics within the domain wall exhibits crackling noise, and constitutes the majority of the overall spin rotation activity.

Figures

Full text

Understanding the bursty crackling noise response of elastic objects in random media – domain walls (DWs) Durin and Zapperi (2006), cracks Laurson et al. (2013), fluids fronts invading porous media Rost et al. (2007), et cetera – to slowly varying external forces is one of the main problems of statistical physics of materials. An important example is given by the magnetic field driven dynamics of DWs in disordered ferromagnets, where they respond to a slowly changing external magnetic field by exhibiting a sequence of discrete jumps with a power-law size distribution Durin and Zapperi (2006); Zapperi et al. (1998). This phenomenon, known as the Barkhausen effect Barkhausen (1919), has been studied extensively, and a fairly well-established picture of the possible universality classes of the avalanche dynamics, using the language of critical phenomena, is emerging Durin and Zapperi (2006); Zapperi et al. (1998).

Magnetic DWs constitute a unique system exhibiting crackling noise since the driving field may, in addition to pushing the wall forward, excite internal degrees of freedom within the DW Lecomte et al. (2009). This effect is well-known especially in the nanowire geometry – important for the proposed spintronics devices such as the racetrack memory Parkin et al. (2008) – where the onset of precession of the DW magnetization above a threshold field leads to an abrupt drop in the DW propagation velocity (the Walker breakdown Schryer and Walker (1974)), and hence to a non-monotonic driving field vs DW velocity relation Mougin et al. (2007); these features are well-captured by the so-called 1$d$ models Thiaville and Nakatani (2006).

In wider strips or thin films, the excitations of the DW internal magnetization accompanying the velocity drop cannot be described by precession of an individual magnetic moment. Instead, one needs to consider the nucleation, propagation and annihilation of topological defects known as Bloch lines (BLs) within the DW Herranen and Laurson (2015, 2017); Malozemoff and Slonczewski (1979). BLs, i.e., transition regions separating different chiralities of the DW, have been studied in the context of bubble materials already in the 1970’s Malozemoff and Slonczewski (1979). Their role in the physics of the Barkhausen effect needs to be studied. The typical models of Barkhausen noise, such as elastic interfaces in random media Zapperi et al. (1998); Laurson et al. (2014), scalar field models Caballero et al. (2018) or the random field Ising model (RFIM) Pérez-Reche and Vives (2004); Mughal et al. (2010); Spasojević et al. (2011), exclude BLs by construction.

Here, we focus on understanding the consequences of the presence of BLs within DWs on the jerky DW motion through a disordered thin ferromagnetic film. To this end, we study field-driven DW dynamics considering as a test system a 0.5 nm thick Co film within a Pt/Co/Pt multilayer Metaxas et al. (2007) with perpendicular magnetic anisotropy (PMA) by micromagnetic simulations, able to fully capture the DW internal structure. By tuning the strength of quenched disorder, we match the DW velocity vs applied field curve to the experimental one reported in Metaxas et al. (2007). This leads to a depinning field well above the Walker field of the corresponding disorder-free system. Hence, when applying a driving scheme corresponding to a quasistatic constant imposed DW velocity, the resulting Barkhausen jumps take place within the precessional regime.

We find that in addition to avalanches of DW propagation, also the in-plane BL magnetization dynamics within the DW exhibits crackling noise, and is responsible for the majority of the overall spin rotation activity during the Barkhausen jumps; the latter dynamics is not directly observable in typical experiments (magneto-optical imaging Kim et al. (2003), or inductive recording Papanikolaou et al. (2011)). The DW can locally move backwards, so it does not obey the Middleton no-passing theorem Middleton (1992). Functional renormalization group calculations Le Doussal et al. (2002) crucially depend on this property, but we find that in line-like DWs BLs do not change the scaling picture of avalanches if one looks at measures related to DW displacement. Remarkably, simple scaling relations applicable to short-range elastic strings in random media remain valid in the much more complex scenario we consider here.

In our micromagnetic simulations of the DW dynamics, the Landau-Lifshitz-Gilbert (LLG) equation, $\partial{\bf m}/\partial t=\gamma{\bf H}_{\text{eff}}\times{\bf m}+\alpha{\bf m}\times\partial{\bf m}/\partial t$, describing the time-evolution of the magnetization ${\bf m}={\bf M}/M_{\text{S}}$, is solved using the MuMax3 software Vansteenkiste et al. (2014). In the LLG equation, $\gamma$ is the gyromagnetic ratio, $\alpha$ the Gilbert damping parameter, and ${\bf H}_{\text{eff}}$ the effective field, with contributions due to exchange, anisotropy, Zeeman, and demagnetizing energies. The simulated magnetic material is a 0.5 nm thick Co film in a Pt/Co/Pt multilayer with PMA. Micromagnetic parameters for the material are exchange stiffness $A_{\mathrm{ex}}=1.4\times 10^{-11}\>\mathrm{J/m}$, saturation magnetization $M_{\mathrm{S}}=9.1\times 10^{5}\>\mathrm{A/m}$, uniaxial anisotropy $K_{\mathrm{u}}=8.4\times 10^{5}\>\mathrm{J/m^{3}}$ and damping parameter $\alpha=0.27$; these have been experimentally determined in Ref. Metaxas et al. (2007). The resulting DW width parameter is $\Delta_{\mathrm{DW}}=\sqrt{A_{\mathrm{ex}}/K_{0}}\approx 7$ nm, where $K_{0}=K_{\mathrm{u}}-\frac{1}{2}\mu_{0}M_{\mathrm{S}}^{2}$ is the effective anisotropy. The system size is fixed to $L_{x}=1024\>\mathrm{nm}$, $L_{y}=4096\>\mathrm{nm}$ and $L_{z}=0.5\>\mathrm{nm}$. The simulation cell dimensions are $\Delta_{x}=\Delta_{y}=2\>\mathrm{nm}$ and $\Delta_{z}=0.5\>\mathrm{nm}$. In every simulation the DW, separating domains oriented along $\pm z$, is initialized along the $+y$ direction as a Bloch wall with the DW magnetization in the $+y$ direction. Periodic boundary conditions are used in the $y$-direction to avoid boundary effects. The LLG equation is then solved using the Dormand-Prince solver (RK45) with an adaptive time step.

For thin films with thicknesses of only a few atoms, a natural source of disorder Leliaert et al. (2014) is given by thickness fluctuations of the film. Thus, for simulations of disordered films, the sample is divided into “grains” of linear size 20 nm (defining the disorder correlation length) by Voronoi tessellation, each grain having a normally distributed random thickness $t_{\mathrm{G}}=h+\mathcal{N}(0,1)rh$, with $r$ the relative magnitude of the grain-to-grain thickness variations, and $h$ the mean thickness of the sample. These thickness fluctuations are then modeled using an approach proposed in Ref. Moretti et al. (2017), by modulating the saturation magnetization and anisotropy constant according to $M_{\mathrm{S}}^{\mathrm{G}}=\frac{M_{\mathrm{S}}t_{\mathrm{G}}}{h}$ and $K_{\mathrm{u}}^{\mathrm{G}}=\frac{K_{\mathrm{u}}h}{t_{\mathrm{G}}}$.

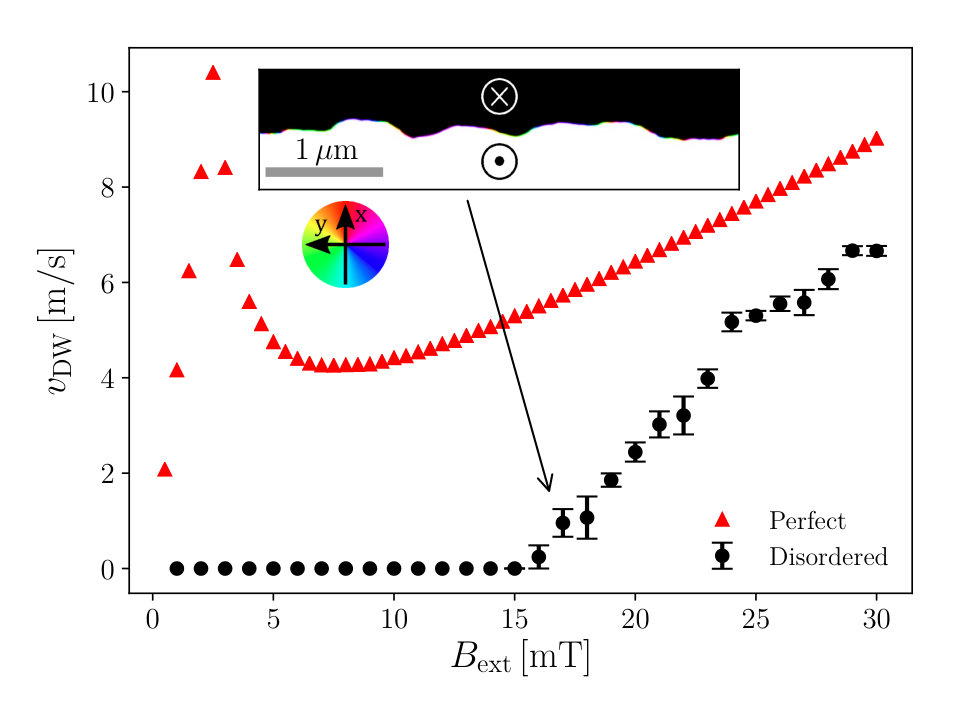

We start by considering the response of a Bloch DW to a constant $B_{\text{ext}}$ along the $+z$ direction; this leads to DW motion in the $+x$ direction. Our algorithm solves the spatially averaged DW velocity $v_{\text{DW}}$ by determining the local DW position along the DW as $X(y)=\min_{y}|m_{z}(x)|$, with $m_{z}(x)$ interpolated across the minimum. By scanning different values of the thickness fluctuations $r$, we found that $r=0.03$ produces a similar $v_{\mathrm{DW}}(B_{\mathrm{ext}})$ behavior as in the finite temperature experiments of Ref. Metaxas et al. (2007) for the 0.5 nm thick sample in the range of 0 – 30 mT. Due to thermal rounding of the depinning transition Bustingorry et al. (2007) in experiments of Ref. Metaxas et al. (2007) this value of $r$ should be interpreted as a lower limit. The resulting $v_{\mathrm{DW}}(B_{\mathrm{ext}})$ curve is shown in Fig. 1, along with the corresponding curve from the disorder-free system. The depinning field of roughly $15\>\mathrm{mT}$ due to the quenched pinning field exceeds the Walker threshold of $2.5\>\mathrm{mT}$ of the non-disordered system, thus suggesting that the experiment of Ref. Metaxas et al. (2007) is operating in the precessional regime.

We then proceed to address the main problem of this paper, i.e., how Barkhausen noise is affected by the presence of BLs. To this end, we consider the system with $r=0.03$, and a simulation protocol involving a moving simulation window where the DW center of mass is always kept within one discretization cell from the center of the simulation window, using the ext_centerWall function of MuMax3 with a modified tolerance. This minimizes effects due to demagnetizing fields that may slow down the DW during avalanches. To “re-introduce” this feature in a controllable fashion, we utilize a driving protocol analogous to the quasistatic limit of the constant velocity drive, where the driving field $B_{\text{ext}}$ is decreased during avalanches (i.e., when $v_{\text{DW}}>v_{\text{DW}}^{\text{th}}=0.1$ m/s) as $\dot{B}_{\text{ext}}=-k|v_{\mathrm{DW}}|$, with $k=0.18\,\mathrm{mT/nm}$ chosen to adjust the avalanche cutoff to be such that the lateral extent of the largest avalanches is smaller than $L_{y}$, in order to avoid finite size effects. In between avalanches (i.e., when $v_{\text{DW}}<0.1$ m/s), $B_{\text{ext}}$ is ramped up at a rate $\dot{B}_{\mathrm{ext}}=0.037\,\mathrm{mT/ns}$ until the next avalanche is triggered. The latter rate is chosen to get well-separated avalanches in time, while at the same time avoiding excessively long waiting times between avalanches. This leads to a $B_{\text{ext}}(t)$ which after an initial transient fluctuates in the vicinity of the depinning field.

To characterize the bursty DW dynamics, in addition to the “standard” DW velocity $v_{\text{DW}}$, we study different measures of the rate of spin rotation (or “activity”) associated with the DW dynamics. To study the dynamics of the internal degrees of freedom of the DW, we consider separately contributions from in-plane and out-of-plane spin rotation, defined as $A_{xy}(t)=\sum_{i\in B}\dot{\phi}_{i}\cdot|\mathbf{m}_{i,xy}|$ and $A_{z}(t)=\sum_{i\in B}\dot{\theta}_{i}$, respectively, where $\phi_{i}$ and $\theta_{i}$ are the spherical coordinate angles of the magnetization vector $\mathbf{m}_{i}$ in the $i$th discretization cell. The sums are taken over a band $B$ extending 20 discretization cells around the DW on both sides, moving with the DW. The multiplication by $|\mathbf{m}_{i,xy}|$ in $A_{xy}$ is included to consider only contributions originating from inside of the DW.

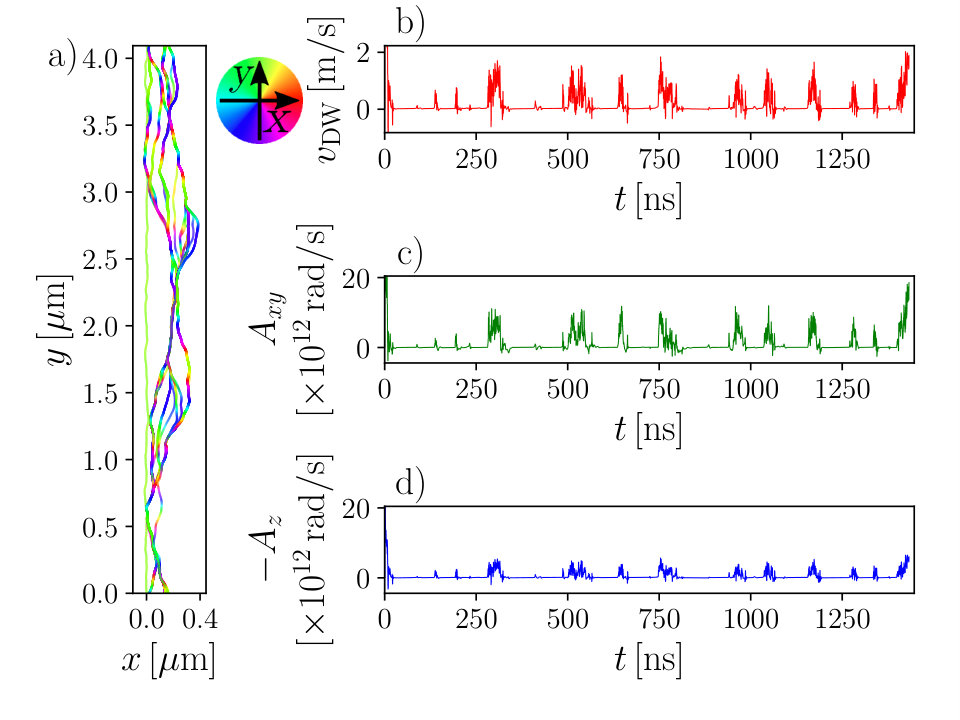

Fig. 2a) shows examples of DW magnetization configurations in between successive avalanches, defined by thresholding the $v_{\text{DW}}(t)$ signal with $v_{\text{DW}}^{\text{th}}=0.1$ m/s. To quickly reach the stationary avalanche regime, we use 15 mT as the initial field. Notice how the initially straight Bloch DW (green) is quickly transformed into a rough interface with a large number of BLs, visible in Fig. 2a) as abrupt changes of color along the DW; see also Movie 1 (Supplementary Material SM ).

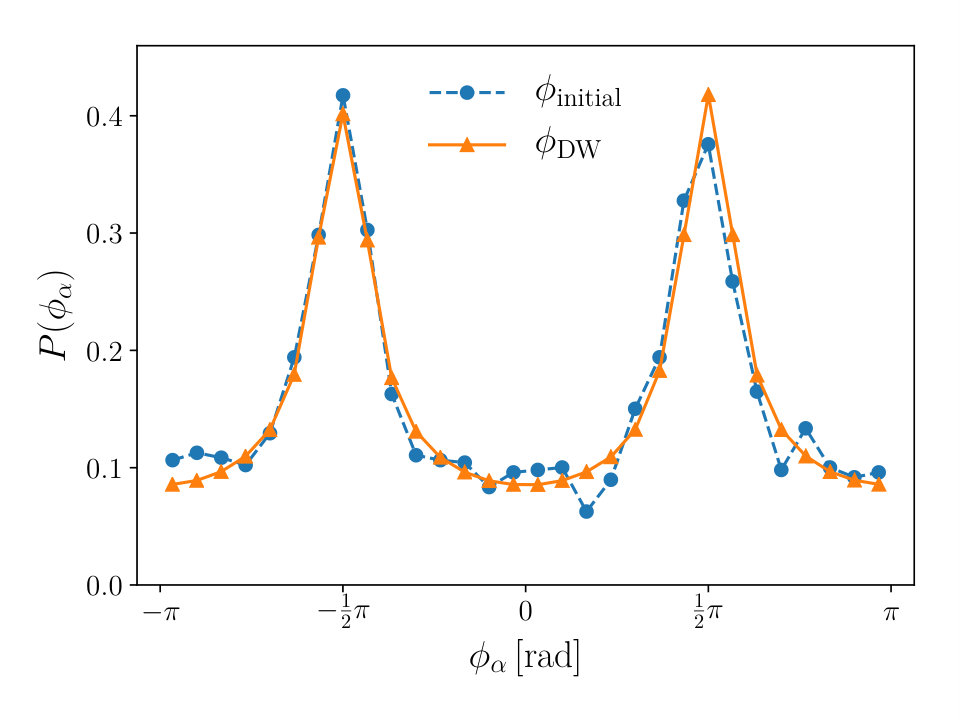

Figs. 2b), c) and d) show the corresponding $v_{\text{DW}}(t)$, $A_{xy}(t)$ and $-A_{z}(t)$ signals, respectively; notice that $A_{z}(t)$ has a minus sign to compensate for the fact that $B_{\text{ext}}$ along +$z$ tends to decrease $\theta_{i}$. In addition to the fact that all three signals exhibit the characteristic bursty appearance of a crackling noise signal, we observe two main points: (i) $v_{\text{DW}}$, as well as the two activity signals $A_{xy}(t)$ and $-A_{z}(t)$, may momentarily have negative values; this indicates that the DW center of mass is moving against the direction imposed by $B_{\text{ext}}$, and hence the DW does not respect the Middleton theorem Middleton (1992). (ii) While the appearance of the three signals is quite similar, $A_{xy}(t)$ has a significantly larger magnitude than $A_{z}(t)$: We find $\langle A_{xy}/A_{z}\rangle\approx 1.7$, showing that in relative terms the BL activity within the DW is more pronounced during avalanches than the overall propagation of the DW. Comparing the distribution $P(\phi_{\text{initial}})$ of the local in-plane magnetization angle $\phi_{\text{initial}}$ of the DW segments from which an avalanche is triggered to that of the angle $\phi_{\text{DW}}$ of all DW segments (Fig. 3) suggests that the avalanche triggering process is not affected by the local DW structure.

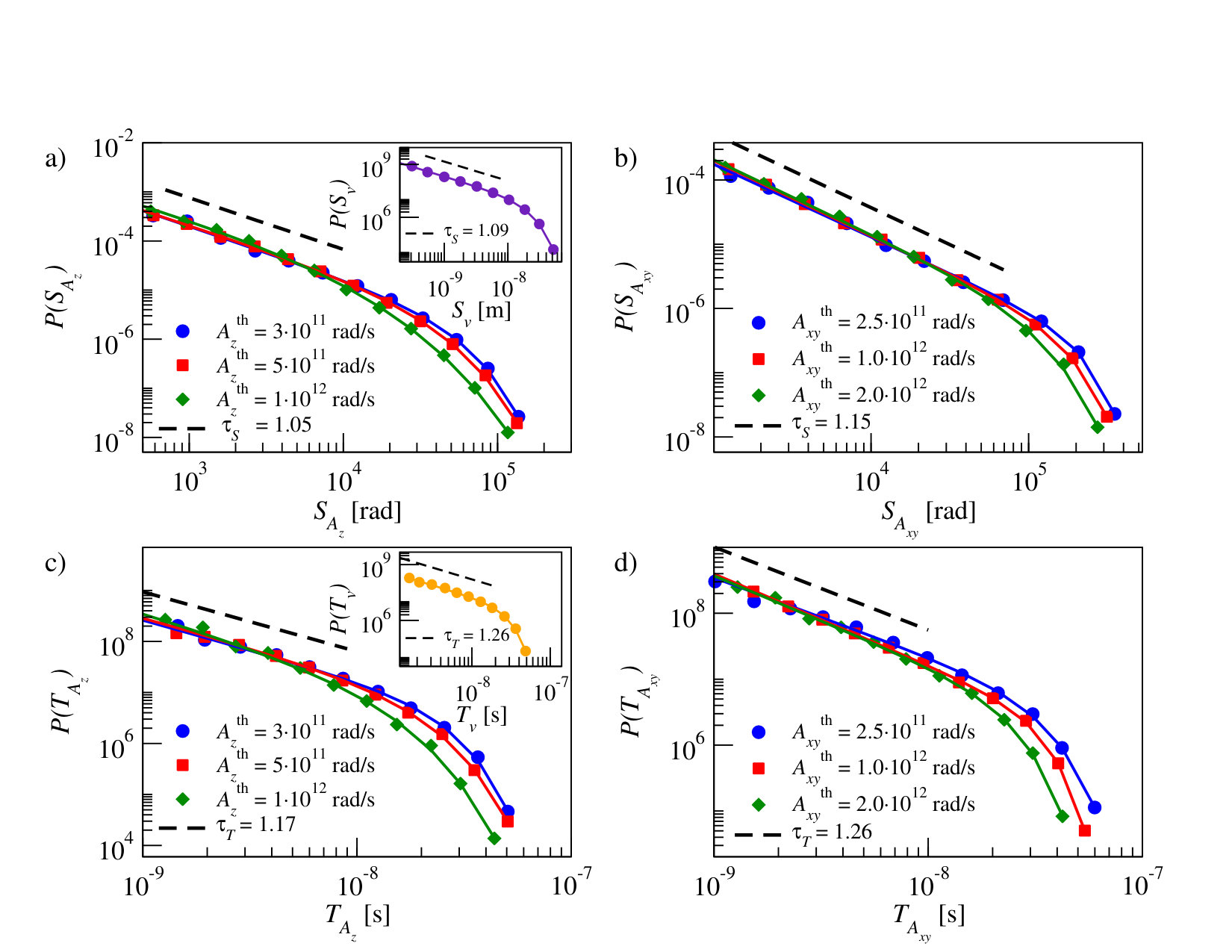

To analyze the statistical properties of the Barkhausen avalanches, we consider 200 realizations of the three signals discussed above. Denoting the signal by $V(t)$, the avalanche size is defined as $S_{V}=\int_{0}^{T}[V(t)-V^{\text{th}}]\text{d}t$, where $V^{\text{th}}$ is the threshold level used to define the avalanches; the integral is over a time interval $T$ (the avalanche duration) during which the signal stays continuously above $V^{\text{th}}$. We consider separately the three cases where $V(t)$ is $v_{\text{DW}}(t)$, $A_{z}(t)$ or $A_{xy}(t)$. Figs. 4 a) and b) show the distributions $P(S_{A_{z}})$ and $P(S_{A_{xy}})$ for different threshold values ($A_{z}^{\text{th}}$ and $A_{xy}^{\text{th}}$, respectively); The corresponding avalanche duration distributions $P(T_{A_{z}})$ and $P(T_{A_{xy}})$ are shown in Figs. 4 c) and d), respectively. Insets of Figs. 4 a) and c) show the distributions $P(S_{v})$ and $P(T_{v})$ extracted from the $v_{\text{DW}}$ signal using $v_{\text{DW}}^{\text{th}}=0.1$ m/s.

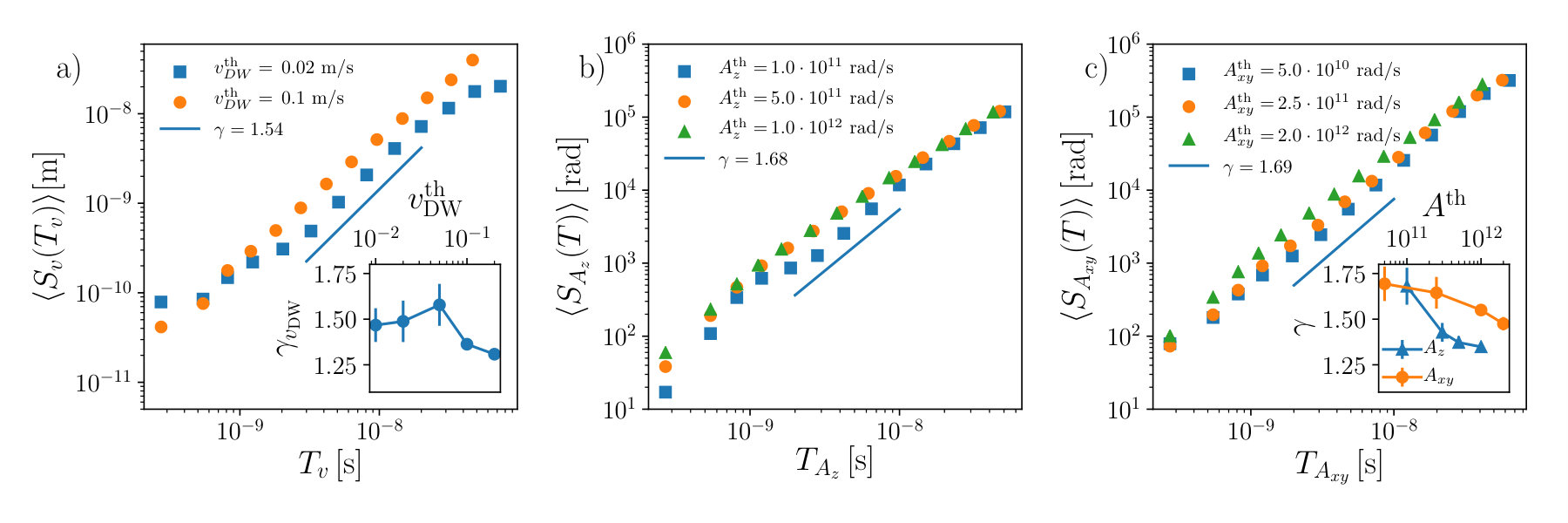

All the distributions can be well-described by a power law terminated by a large-avalanche cutoff. Solid lines in Fig 4 show fits of $P(S_{V})=S_{V}^{-\tau_{S}}\exp[-(S_{V}/S_{V}^{*})^{\beta}]$, where $\tau_{S}$ is a scaling exponent, $\beta$ parametrizes the shape of the cutoff, and $S_{V}^{*}$ a cutoff avalanche size (avalanche durations follow a similar scaling form). We find $\tau_{S}=1.1\pm 0.1$ and $\tau_{T}=1.2\pm 0.1$, respectively, i.e. close to the values expected for the quenched Edwards Wilkinson (qEW) equation, $\partial h(x,t)/\partial t=\nu\nabla^{2}h(x,t)+\eta(x,h)+F_{\text{ext}}$, describing a short-range elastic string $h(x,t)$ driven by an external force $F_{\text{ext}}$ in a quenched random medium $\eta$ Rosso et al. (2009). The value of the $\tau_{S}$ exponent is also close to that found very recently for “creep avalanches” Grassi et al. (2018), and to that describing avalanches in the central hysteresis loop in a 2D RFIM with a built-in DW Tadić (2018). The cutoff avalanche size and duration depend on the imposed threshold level, but appear to saturate to a value set by the “demagnetizing factor” $k$ in the limit of a low threshold. Fig. 5 shows the scaling of the average avalanche size as a function of duration, $\langle S_{v}(T)\rangle$ in a), $\langle S_{A_{z}}(T)\rangle$ in b) and $\langle S_{A_{xy}}(T)\rangle$ in c). The exponent $\gamma$ describing the scaling as $\langle S_{v}(T)\rangle\sim T^{\gamma}$ (and similarly for $\langle S_{A_{z}}(T)\rangle$ and $\langle S_{A_{xy}}(T)\rangle$) is found to be threshold-dependent, in analogy to recent observations for propagating crack lines Janićević et al. (2016) and the RFIM Janićević et al. (2018), with the $\gamma$-value close to 1.6 expected for the qEW equation in the limit of zero threshold Laurson et al. (2013) approximately recovered for low thresholds [insets of Fig. 5a) and c)]. Thus, our exponent values satisfy within error bars the scaling relation $\gamma=(\tau_{T}-1)/(\tau_{S}-1)$.

Hence, we have shown how DWs with a dynamical internal structure consisting of BLs generate Barkhausen noise in disordered thin films with PMA. One of the unique features of this system is the large relative magnitude of the internal, in-plane bursty spin rotation activity within the DW, which in our case actually exceeds that of the out-of-plane spin rotations contributing to DW displacement. We have demonstrated that this internal dynamics within the DW leads to a violation of the Middleton “no-passing” theorem.

It is quite remarkable that the scaling exponents describing the Barkhausen jumps cannot be distinguished from those expected for the much simpler qEW equation. The avalanche triggerings appear not to be correlated with the internal structure of the DW. Thus, commonly used simple models based on describing DWs as elastic interfaces, neglecting Bloch line dynamics by construction, seem to be capturing correctly the large-scale critical dynamics of the system. This may be rationalized by noticing that Bloch lines, being localized Néel wall -like segments within the Bloch DW, produce dipolar stray fields decaying as $1/r^{3}$ in real space. For $1d$ interfaces, such interactions are short-ranged, and hence are not expected to change the universality class of the avalanche dynamics from that of systems with purely local elasticity. In higher dimensions dipolar interactions are long-ranged, so we expect that the internal dynamics of the DWs will have important consequences; the role of Bloch lines in the case of $3d$ magnets with $2d$ DWs should be addressed in future studies. Another important future avenue of research of great current interest would be to extend the present study to thin films with Dzyaloshinskii-Moriya interactions Thiaville et al. (2012); Yoshimura et al. (2016).
