Constraining Metallicity-dependent Mixing and Extra Mixing using [C/N] in Alpha-Rich Field Giants

TL;DR

This study uses [C/N] abundances in a large sample of evolved stars to empirically constrain metallicity-dependent internal mixing processes on the giant branch, revealing new insights into how mixing varies with metallicity and evolutionary stage.

Contribution

It provides the first comprehensive empirical analysis of metallicity-dependent mixing and extra mixing in old field giants using APOGEE data, highlighting the impact of metallicity on mixing episodes.

Findings

Metallicity influences initial [C/N] ratios before dredge-up.

Extra mixing occurs at the RGB bump, stronger at lower metallicity.

Additional mixing is observed on the upper giant branch, especially in very metal-poor stars.

Abstract

Internal mixing on the giant branch is an important process which affects the evolution of stars and the chemical evolution of the galaxy. While several mechanisms have been proposed to explain this mixing, better empirical constraints are necessary. Here, we use [C/N] abundances in 26097 evolved stars from the SDSS-IV/APOGEE-2 Data Release 14 to trace mixing and extra mixing in old field giants with -1.7< [Fe/H] < 0.1. We show that the APOGEE [C/N] ratios before any dredge-up occurs are metallicity dependent, but that the change in [C/N] at the first dredge-up is metallicity independent for stars above [Fe/H] ~ -1. We identify the position of the red giant branch (RGB) bump as a function of metallicity, note that a metallicity-dependent extra mixing episode takes place for low-metallicity stars ([Fe/H] <-0.4) 0.14 dex in log g above the bump, and confirm that this extra mixing is stronger at low metallicity, reaching $\Delta$ [C/N] = 0.58 dex at [Fe/H] = -1.4. We show evidence for further extra mixing on the upper giant branch, well above the bump, among the stars with [Fe/H] < -1.0. This upper giant branch mixing is stronger in the more metal-poor stars, reaching 0.38 dex in [C/N] for each 1.0 dex in log g. The APOGEE [C/N] ratios for red clump (RC) stars are significantly higher than for stars at the tip of the RGB, suggesting additional mixing processes occur during the helium flash or that unknown abundance zero points for C and N may exist among the red clump RC sample. Finally, because of extra mixing, we note that current empirical calibrations between [C/N] ratios and ages cannot be naively extrapolated for use in low-metallicity stars specifically for those above the bump in the luminosity function.

Figures

Tables

Table 1. Table 1 Sample Data a a footnotemark:

APOGEE Name	[Fe/H]	[A/M]	log g	[C/Fe]	[C/Fe]err	[N/Fe]	[N/Fe]err	classification
2M00001653+5540107	-0.089	0.150	1.568	0.101	0.019	0.267	0.028	RGB
2M00004072+5714404	-0.248	0.180	0.966	0.375	0.021	0.697	0.030	RGB
2M00004819-1939595	-1.670	0.335	1.630	-0.518	0.094	0.529	0.152	RGB
2M00010088+1649201	-0.579	0.231	2.530	0.043	0.047	0.067	0.080	RGB
2M00010132+0031530	-0.180	0.172	2.935	0.072	0.044	0.253	0.080	RGB
2M00011390+6228585	-0.447	0.216	1.674	0.092	0.027	0.116	0.041	RGB
2M00011871+0011076	-0.616	0.298	2.821	0.105	0.069	-0.092	0.125	RGB
2M00012134+0106579	-0.164	0.185	3.171	0.054	0.038	0.165	0.067	RGB
2M00012224+1530157	-0.079	0.146	2.772	0.137	0.029	0.195	0.049	RGB
2M00012412+6427175	-0.260	0.202	1.023	0.181	0.017	0.281	0.024	RGB
2M00012523+0012037	-0.672	0.263	2.741	0.006	0.064	0.043	0.115	RGB
2M00012984+7052497	-0.238	0.190	2.359	0.157	0.042	0.129	0.076	RC

Table 2. Table 2 Summary [C/N] Results b b footnotemark:

[Fe/H]	First Dredge-up			RGB Bump	Extra Mixing		Upper RGB Mixing	Red Clump
	logg	[C/N] before	$\Delta$[C/N]	log g	log g	$\Delta$[C/N]	slope [C/N]/log g	log g	$\Delta$[C/N]aafootnotemark:
0.0	3.28 $\pm$ .01	0.02	0.19	2.54 $\pm$ .01	$\cdots$	$\cdots$	$\cdots$	2.373 $\pm$ 0.007	-0.06 $\pm$ 0.01
-0.2	3.25 $\pm$ .01	0.05	0.15	2.56 $\pm$ .01	$\cdots$	$\cdots$	$\cdots$	2.377 $\pm$ 0.002	-0.08 $\pm$ 0.01
-0.4	3.22 $\pm$ .01	0.13	0.15	2.55 $\pm$ .04	2.28 $\pm$ .08	0.06	$\cdots$	2.386 $\pm$ 0.003	-0.07 $\pm$ 0.01
-0.6	3.17 $\pm$ .01	0.17	0.14	2.52 $\pm$ .12	2.32 $\pm$ .11	0.12	$\cdots$	2.385 $\pm$ 0.005	-0.06 $\pm$ 0.01
-0.8	3.08 $\pm$ .02	0.19	0.14	2.46 $\pm$ .01	2.36 $\pm$ .11	0.21	$\cdots$	2.371 $\pm$ 0.005	-0.11 $\pm$ 0.01
-1.0	3.10 $\pm$ .03	0.27	0.18	2.30 $\pm$ .04	2.23 $\pm$ .09	0.33	0.08	2.325 $\pm$ 0.008	-0.39 $\pm$ 0.02
-1.2	$\cdots$	$\cdots$	$\cdots$	2.33 $\pm$ .05	2.14 $\pm$ .03	0.52	0.29	2.290 $\pm$ 0.010	-0.88 $\pm$ 0.04
-1.4	$\cdots$	$\cdots$	$\cdots$	2.25 $\pm$ .01	2.14 $\pm$ .03	0.58	0.25	2.266 $\pm$ 0.024	-1.28 $\pm$ 0.10
-1.6	$\cdots$	$\cdots$	$\cdots$	2.27 $\pm$ .07	$\cdots$	$\cdots$	0.38	$\cdots$	$\cdots$

Table 3. Table 3 Piecewise Spline coefficients for the fits in Figure 3

[Fe/H]	number of	[C/N]0	[C/N]1	[C/N]2	[C/N]3	[C/N]4	[C/N]5
	Coefficientsaafootnotemark:	at log g $=0.8$
0.0	5	-1.353962E-1	-1.860336E-1	-1.695335E-1	-1.657408E-1	-2.014703E-1	5.188016E-2
-0.2	5	-1.217772E-1	-1.468652E-1	-1.223153E-1	-1.263533E-1	-1.123993E-1	1.477976E-1
-0.4	5	-9.091567E-2	-1.316071E-1	-9.388625E-2	-5.450294E-2	-1.190605E-2	1.817684E-1
-0.6	3	-1.075440E-1	-1.250800E-1	3.257226E-2	1.371832E-1	$\cdots$	$\cdots$
-0.8	3	-1.897603E-1	-1.903774E-1	8.723510E-2	1.411652E-1	$\cdots$	$\cdots$
-1.0	5	-3.914100E-1	-4.053404E-1	-2.492756E-1	9.859207E-2	1.762891E-1	2.084925E-2
-1.2	4	-6.594786E-1	-5.118935E-1	-1.567431E-1	3.055076E-1	2.223962E-1	$\cdots$
-1.4	3	-8.548605E-1	-6.240508E-1	3.019876E-1	-7.778014E-2	$\cdots$	$\cdots$
-1.6	3	-1.036148E0	-6.908800E-1	6.320521E-1	2.718344E-1	$\cdots$	$\cdots$

Table 4. Table 4 Power Series coefficients for the fits in Figure 4

log g	a0	a1	a2	a3	a4	a5
1.00	-1.937697E-1	-2.100288E-1	9.714116E-1	2.788852E0	1.736428E0	3.449767E-1
1.25	-1.741251E-1	-7.799519E-2	4.096947E-1	6.844101E-1	-1.771039E-1	-1.891559E-1
1.50	-1.942679E-1	-3.682857E-1	-1.559029E-1	6.803854E-1	3.021941E-1	$\cdots$
1.75	-1.987884E-1	-5.179656E-1	-8.219533E-1	-1.982020E-1	$\cdots$	$\cdots$
2.00	-1.583757E-1	-2.714909E-1	-2.965878E-1	$\cdots$	$\cdots$	$\cdots$
2.25	-1.521781E-1	-2.070216E-1	-5.558958E-2	$\cdots$	$\cdots$	$\cdots$
2.50	-2.020961E-1	-4.839847E-1	-1.631317E-1	$\cdots$	$\cdots$	$\cdots$
2.75	-1.955374E-1	-4.411838E-1	-8.280230E-2	$\cdots$	$\cdots$	$\cdots$
3.00	-2.046856E-1	-4.153245E-1	-5.783280E-3	$\cdots$	$\cdots$	$\cdots$
3.25	-1.496861E-1	-5.919158E-1	-1.153185E-1	$\cdots$	$\cdots$	$\cdots$
3.50	-3.413932E-2	-3.697404E-1	$\cdots$	$\cdots$	$\cdots$	$\cdots$

Full text

1. Introduction

Carbon and nitrogen abundances on the surfaces of low-mass stars offer unique probes of their interiors. Hydrogen burning via the CNO bi-cycle occurs near enough to the surface of the star that the convective envelope brings burned material to the surface on the lower giant branch. The dredged-up material affects the star’s surface C/N ratio, with the magnitude of the effect depending on the mass of the star and on any interior chemical mixing present. The former effect has been exploited to derive ages for field red giants (Martig et al. 2016; Ness et al. 2016), while the latter has been used to study so-called “extra mixing” in metal-poor stars (e.g., Carbon et al. 1982; Charbonnel & Lagarde 2010). The name “extra mixing” has been used as a placeholder for an as-yet unconfirmed source of mixing in stars that is not included in standard stellar models.

In standard stellar evolution theory, the initial surface abundances of carbon and nitrogen are set by the composition of the birth cloud. While diffusion can affect their surface abundances on the main sequence (Richard et al. 1996), the deepening of the convective envelope as the star expands into a red giant efficiently brings diffused elements to the surface and homogenizes the composition of the envelope at the initial abundance. As the envelope reaches depths where CN cycling has occurred, it mixes these elements into the surface convection zone, increasing the surface nitrogen abundance of these stars. This process is referred to as the first dredge-up and occurs around a surface gravity of log g$\sim 3.5$ dex. The [C/N]111We use the standard notation: [X/Q]$=logN(X)_{*}-logN(X)_{\odot}-logN(Q)_{*}+logN(Q)_{\odot}$ ratio of stars is then predicted to be constant between the end of the first dredge-up and the tip of the giant branch as well as during the subsequent core-helium-burning phase. The [C/N] ratio after first dredge-up depends on the mass of the star (Iben 1964), both because the depth reached by the convective envelope is larger for higher masses and because these higher-mass stars have hotter cores and thus a larger equilibrium nitrogen abundance.

These simple predictions are in conflict with observations. Analysis of star clusters (e.g., Carbon et al. 1982; Kraft 1994) show that additional mixing is required to match the carbon and nitrogen abundances of stars below log g of $\sim$ 2.5. This process is strong in metal-poor stars, but minimal in solar metallicity clusters (Brown 1987). This ”non-canonical extra mixing” is present in stars regardless of environment, and has been seen in dwarf spheroidal galaxies (Shetrone et al. 2013; Kirby et al. 2015; Lardo et al. 2016) and in low-metallicity field stars (Lambert & Sneden 1977). In an influential paper, Gratton et al. (2000, hereafter G00) used a sample of 62 low-metallicity field stars to demonstrate that the [Li/H], [C/H], [N/H], and 12C/13C values changed not only at first dredge-up, but also at the luminosity of the ”red bump,” when the outwardly moving hydrogen-burning shell reaches the deepest extent of first-dredge-up. The material that participated in first dredge-up has been homogenized throughout the envelope and is therefore more hydrogen-rich than the gas previously encountered by the hydrogen-burning shell. This results in a build-up of red giants at the relevant luminosity and a bump in the luminosity function for the first-ascent red giant branch (RGB) stars. G00 also showed the core-helium-burning “red clump” (RC) stars had C, N, Li, and 12C/13C values that matched the values at the tip of the RGB. In addition, O and Na did not show any trend with log g, which limits the depth of the extra mixing to above the region of the star where $O-N$ cycling occurs.

A promising theoretical explanation was proposed by Charbonnel & Lagarde (2010) who identified thermohaline mixing as the likely culprit. This mixing occurs because of the ”salt-finger instability,” when the Ledoux criteria for stability are satisfied, but a decrease in mean molecular weight ($\mu$) with depth causes the sinking of higher density material until it dissolves. In the case of red giant stars, the burning of 3He, via 3He(3He, 2p)4He at the outer edge of the hydrogen-burning shell, reduces $\mu$. In the region where the convective envelope has never penetrated, the strong $\mu$ gradient already present from nuclear burning means that thermohaline mixing cannot begin. However, when the shell reaches the parts of the star where the penetration of the convective envelope has erased any $\mu$ gradient present, thermohaline mixing can start. Because the CNO cycle powers the hydrogen-burning shell, the shell must be hotter in metal-poor stars to provide the necessary support. Therefore the inversion of the $\mu$ gradient is deeper and hotter in metal-poor stars and the changes in C, N, and the C isotopes are much larger than for metal-rich stars. The excellent agreement between the start of extra mixing and its dependence on metallicity and the properties of thermohaline mixing means that it almost certainly plays an important role in extra mixing.

A major criticism of the idea that thermohaline mixing is solely responsible for extra mixing is the efficiency of the mixing may need to be higher than conceivably possible. Denissenkov (2010) argued, based on 2D simulations, that the efficiency of mixing could be more than 10$\times$ smaller than that used by Charbonnel & Lagarde (2010) to reproduce the observations. 3D simulations are far more appropriate (Garaud & Brummell 2015), but have been been hampered by their computational expense and the inability to reach the low Prandtl numbers found in stars. Whether 3D simulations show efficient mixing is disputed in the literature (e.g., Denissenkov & Merryfield 2011; Radko & Smith 2012; Brown et al. 2013). Denissenkov et al. (2009) suggested that magnetic buoyancy could be combined with the thermohaline instability to create sufficient mixing, building on the work of Busso et al. (2007). This effect would also start at the red giant bump.

Additional indirect arguments raised by Denissenkov et al. (2009) against thermohaline mixing as the source of extra-mixing are that it appears to be inefficient in stars that have carbon-rich material transfered to them from an asymptotic giant branch (AGB) companion and that, contrary to observations, slowly rotating red giants would be more likely to show enhanced lithium. More stringent tests of thermohaline mixing could be performed if the metallicity dependence and mass dependence could be carefully compared with models.

However, previous results have had wide metallicity bins, small samples, or contamination by other effects present in globular clusters. The stars that G00 studied were limited in number, and were analyzed as a single metallicity bin from $-2\leq$[Fe/H]$\leq-1$. While this sample could be expected to have similar mass, the small number of stars made it difficult to understand the trends with metallicity. The other option for samples of stars of very similar mass is RGB stars in clusters, and they have been very important in studies of the extra-mixing phenomenon. However, globular cluster stellar populations also have light-element anomalies, such as two populations in CN band strength (Suntzeff 1981; Carbon et al. 1982) and an anti-correlation between O and Na in the abundances in individual stars (Sneden et al. 1992; Drake et al. 1992). While these anomalies are present at the main-sequence turnoff (Gratton et al. 2001), well before first-dredge-up and are therefore primordial rather than evolutionary in nature, they complicate the interpretation of extra mixing in globular cluster stars. Open clusters do not share these anomalies, but are also not present at [Fe/H]$\leq-1$ in the Galaxy and do not have many red giants in an individual cluster. To make progress interpreting extra mixing, we would therefore desire a sample that has good carbon and nitrogen measurements, known masses, a wide range in metallicity, and made up of field stars free from the multiple abundance populations in globular clusters. These requirements are simultaneously met by the stars in the APOGEE-2 (Majewski et al. 2017; Wilson et al. 2019) survey. This analysis provides carbon and nitrogen abundances for $>$ 100,000 field red giants throughout the Galaxy.

Masseron et al. (2017) found evidence for extra mixing along the giant branch by the increased [N/Fe] ratio above the red giant bump in thin and thick disk stars throughout the entire Data Release 12 (Alam et al. 2015) APOGEE sample. However, their analysis did not extensively explore the metallicity dependence of extra mixing. In addition, the thin disk covers a wide range of ages and masses, making the interpretation of their [C/N] evolution more complex (Masseron et al. 2017). Around 2000 of the APOGEE DR12 red giants, most close to solar metallicity, have published masses (Pinsonneault et al. 2014) and evolutionary states (Elsworth et al. 2017), as a result of asteroseismic measurements. Masseron et al. (2017) used this sample to show that higher-mass RGB stars have lower [C/N] values after first dredge-up than stars with lower mass, as expected. What was not expected was that the [N/Fe] values for the core-helium-burning RC stars would be $\sim$0.2 below the [N/Fe] values of the average on the RGB. Because the red clump stars are the immediate descendants of stars at the tip of the red giant branch, they should have similar [N/Fe] values, as indeed found by G00 for more metal-poor stars. Masseron et al. (2017) proposed the dredge-up of high carbon/low nitrogen material from the helium-burning shell near the red giant tip as a possible explanation. Unfortunately, the Pinsonneault et al. (2014) sample extends only down to $\sim-0.65$ and contains relatively few stars above the RGB bump.

For this analysis, we therefore use the Data Release 14 (Abolfathi et al. 2018) APOGEE-2 spectroscopic sample of red giants, which has $\sim$100,000 more stars than DR12, to map the metallicity and gravity dependence of [C/N] depletion of the RGB. We choose to analyze only stars with high [$\alpha$/Fe] values to restrict the sample in mass, guided by our understanding of stellar populations from the APOKASC sample. We divide our sample into eight metallicity bins to examine the effect of extra mixing as a function of metallicity, updating G00 for the age of large spectroscopic surveys.

2. Observational Data

APOGEE-2 is a part of the Sloan Digital Sky Survey IV (Blanton et al. 2017) and is collecting high-resolution (R=22,500) spectra of $\sim$300,000 stars across the Milky Way (Zasowski et al. 2017) using the Sloan Foundation Telescope (Gunn et al. 2006) at Apache Point Observatory. The spectra are first run through the data reduction pipeline (Nidever et al. 2015), which includes flat-field correction, extraction of the 1D spectra, wavelength calibration, sky subtraction, and combination of spectra taken at different dither positions and on different nights. The resulting 1D spectra are then compared to a grid of synthetic spectra (Zamora et al. 2015) using the ASPCAP analysis pipeline (García Pérez et al. 2016) to determine the stellar parameters

2.1. Stellar parameter and abundance measurements

We summarize here the analysis for the parameters and elements of relevance for this study. For a more complete discussion please see Holtzman et al. (2015) and Holtzman et al. (2018). In DR14 the ASPCAP pipeline determines the best fit, as measured by the $\chi^{2}$ minimum, between the entire observed spectrum and a grid of synthetic spectra. For stars with initial classification as giants, the parameters of the grid are varied in seven dimensions: Teff, log g, [M/H], microturbulence, [$\alpha$/M], [C/M], and [N/M]. The grid is fit over the entire spectra, with weights assigned based on uncertainties in individual flux values. The [M/H] dimension refers to the overall abundance of the model atmosphere. The [C/M], [N/M] and [$\alpha$/M] dimensions allow for a deviation of individual classes of elements away from a scaled solar ratio for the elements C, N and alpha elements. The alpha elements include O, Ne, Mg, Si, S, Ar, Ca, and Ti.

The raw APOGEE surface gravities for red giants observed in the Kepler field show a systematic offset with log g determined from asteroseismology, which are accurate to 0.02 dex (Hekker et al. 2013). Using evolutionary states derived from the appearance of mixed modes in the frequency power spectrum (Bedding et al. 2011), we found that the magnitude of the offset depends on the evolutionary state. To correct the raw APOGEE gravities, we first used the seismic classifications to develop a robust method to separate RC stars from red giant stars over the range in surface gravities with both evolutionary phases using spectroscopic measurements alone. We identified the Teff, as a function of log g and [M/H], that divided the RGB and the RC. For those stars within 100 K of this Teff, the [C/N] ratios were also employed to separate out the RC from the RGB (Holtzman et al. 2015). Holtzman et al. (2018) estimate that this method has a 95% success rate for identifying the correct evolutionary state. The corrections to the surface gravity are then applied separately to the RGB and RC samples as a function of raw log g and [M/H]. In this paper, when we reference surface gravity, we will always mean this corrected APOGEE log g.

To derive abundances based on lines with negligible blending, elemental abundances are produced by fixing all but one of the stellar parameters and then comparing the spectra in small windows which are sensitive to the elemental abundance of interest. For example, for the [Fe/H] measurement we mask all but the few parts of the spectrum that are most sensitive to Fe I and search for a $\chi^{2}$ minimum only in the [M/H] axis of the synthetic spectral grid. In a similar way, the [C/Fe] abundance is determined by using CO and CN windows and searching in the [C/M] axis, and the [N/Fe] abundance is determined by using CN windows and searching in the [N/M] axis. Internal systematics are removed from [Fe/H] by assuming the [Fe/H] values should be constant at all Teff in stars in a single cluster. Because we have clusters over a range of metallicity, this gives us a correction to [Fe/H] as a function of Teff and metallicity. The internal corrections for the raw [Fe/H] values are less than 0.02 dex. In this paper, “[Fe/H]”, “[C/Fe]”, and “[N/Fe]” will always refer to this corrected DR14 abundance, not to the derived stellar parameters, [M/H], [C/M] and [N/M]. Through the rest of this work the term metallicity will refer to the corrected [Fe/H]. It is important to note that the corrected and uncorrected abundances of [C/Fe] and [N/Fe] are identical, i.e., have not had any internal corrections applied, because the abundance ratios of these elements change within a single cluster for stars at different evolutionary stages on the giant branch and RC. In this paper the derived quantity “[C/N]” will always refer to the difference in the elemental abundances $[C/Fe]-[N/Fe]$.

The elemental uncertainties adopted in this paper are those presented in DR14 for carbon and nitrogen. A more complete discussion of the uncertainties can be found in (Holtzman et al. 2015, 2018). A short summary is provided here for context. The elemental abundance scatter is determined from the APOGEE calibration cluster sample for individual visits and compared to the elemental abundances determined from the combined visits. This scattered is then fit by an expression as a function of effective temperature, metallicity, and signal-to-noise. Each element has its own expression for the uncertainty. Thus, the uncertainty we have adopted is a good measurement of precision but does not reflect any possible systematics in accuracy as a function of effective temperature, surface gravity, or metallicity.

2.2. Sample Selection

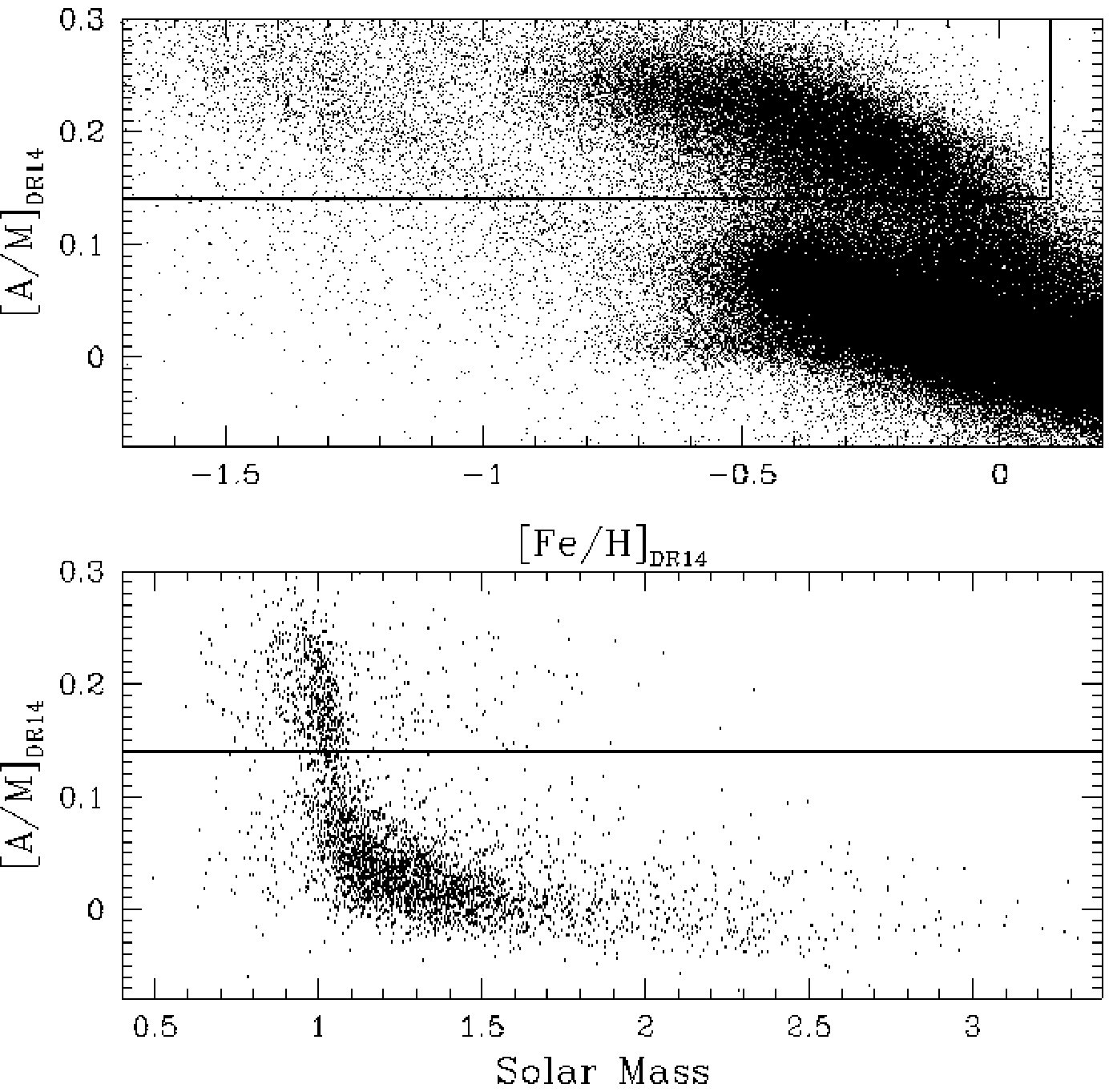

Because the [C/N] ratio on the giant branch is correlated with stellar mass, we require a sample of stars with similar mass to isolate the effects of mixing. Therefore, we chose only stars that are $\alpha$-enhanced ([$\alpha$/M]$>$ 0.14, see Figure 1). Galactic chemical evolution models predict that such stars formed before a substantial number of Type Ia supernova exploded (Tinsley 1979) and must therefore be old and low mass. Haywood et al. (2015), for example, calculated isochrone-based ages for turnoff stars in the solar neighborhood and found that red giants with [$\alpha$/Fe] $>0.1$ dex have ages older than $\sim$ 10 Gyr (masses less than $\sim$1.1 M*⊙*).

We removed all stars that were targeted as hot stars to be used for the removal of telluric absorption features (TARGFLAGS: APOGEE_TELLURIC), all stars flagged as having ”bad” or no stellar parameters (ASPCAPFLAGS: STAR_BAD, ATMOS_HOLE_BAD, BAD_PIXELS, BAD_RV_COMBINATION) and all stars targeted as candidate members of globular clusters or dwarf galaxies (TARGFLAGS: APOGEE_SCI_CLUSTER, APOGEE_SGR_DSPH, APOGEE2_DSPH_CANDIDATE). To further remove potential globular cluster contaminates we excluded any stars if they fell within two tidal radii and had velocities within 25 km/s of the cluster mean for all clusters listed in the 2003 version of the Harris catalog (Harris 1996). The DR14 APOGEE data release does not contain any upper limits but does include errors that may be so large as to represent non-detection. To avoid this problem, we eliminated points with very large [C/N] errors by propagating the errors in [C/Fe] and [N/Fe] and requiring the total error to be less than 0.3 dex. This cut in [C/N] preferentially removes stars which are some combination of warm and metal-poor. A total of 1085 RGB stars and 101 RC stars were rejected by this cut. The sample spans a range in [Fe/H] from +0.1 to –2.58 and a range in surface gravity from –0.18 to 3.88. The errors on the more metal-poor stars become very significant below a [Fe/H] of –1.7 so we limit our analysis to above this metallicity. We also limit the surface gravity range to be between 3.7 and 0.8 to avoid grid edge effects, issues with non-spherical model atmospheres, and significant AGB star contamination. Our resulting sample of alpha-enhanced stars contains 5624 RC stars and 20473 RGB stars with measured Fe/H, alpha/Fe, log g, and [C/N]. (see Table 1) We note that the median trends in [N/Fe] are below $+0.8$ dex even among the most metal-poor stars of our final sample, well contained within the [N/M] grid, which extends from –1.0 dex to +1.0 dex.

There are a few alpha-rich stars that are not low-mass (see, Chiappini et al. (2015, e.g.,) for massive migrated stars, and Jofré et al. (2016)for binary mergers). However, these higher-mass alpha-enhanced stars are fairly rare. In a DR12 APOGEE sample of RGB stars with asteroseismic masses, Martig et al. (2015) found that 6$\%$ of their alpha-rich sample had M $>$ 1.2 M*⊙*. The bottom panel of Figure 1 shows stars from the second APOKASC catalog (Pinsonneault et al. 2018). This catalog combines asteroseismology from Kepler light curves with accurate temperatures of APOGEE to determine the masses. There are 6041 stars in the lower panel of which 770 have alpha abundances greater than our 0.14 dex selection criterion. The mean mass of these 770 alpha-enhanced stars is 1.033 $\pm$0.007 ($\sigma=$0.200) solar masses. There are 83 stars, 10.8$\%$ of the sample, with masses greater than 1.233 solar masses, one sigma deviation from the mean, which is greater than one might expect from a single-valued distribution with Gaussian errors. This is more support for the conclusions of Martig et al. (2015). The level of contamination suggested by Martig et al. (2015) is small enough that, with some care, it should not bias any conclusions on the bulk properties of normal low-mass, alpha-enhanced giant evolution. To separate out the RGB from the RC stars we use the spectroscopic evolutionary classification discussed above.

3. Analysis

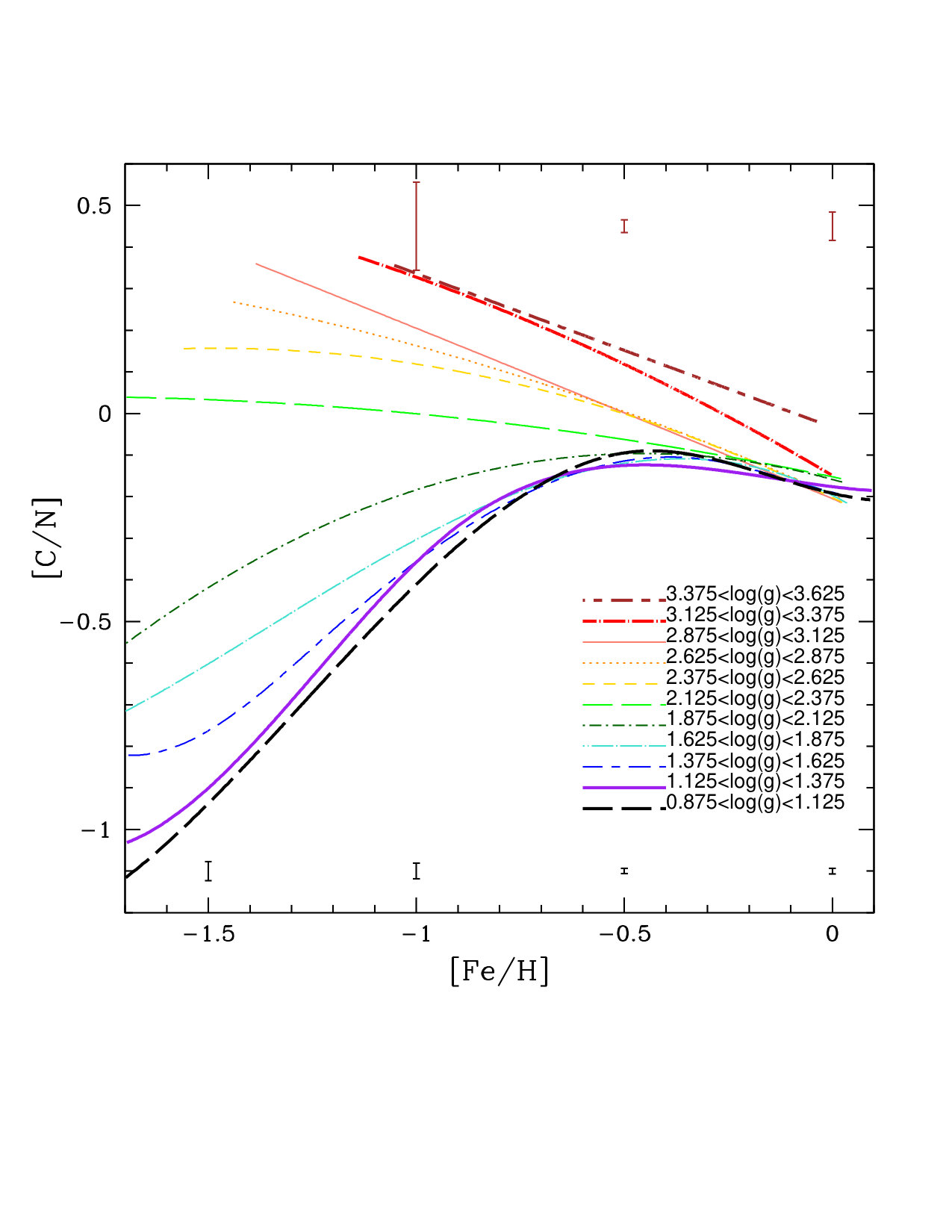

In Figure 2, we show the evolution of the [C/N] abundance ratio in our sample stars as a function of surface gravity, similar to Figure 10 of G00. No error bars are shown in this figure because of the high density of points but the sample was chosen to have no errors larger than 0.3 dex in [C/N] and the average error among the RGB sample is 0.09 ($\sigma=0.05$). The RC sample has been plotted separately to the right of the RGB sample. A prominent feature among the RGB sample is the high density of points found near log g $=2.5$ in the more metal-rich samples. We attribute this high density of points to the bump in the luminosity function. The log g of the bump in our sample along with the mean log g of the RC are listed in Table 2. To assist in the visual interpretation of Figure 2 we have added several colored lines that represent the median [C/N] value in a small range of log g as shown at the top of the figure. The blue region was selected to be below the first dredge-up region in luminosity. The magenta region was selected to be above the first dredge-up but below the bump in the luminosity function. The green line represents the median [C/N] value selected from the green region shown at the top of Figure 2 and was selected to show the [C/N] abundance after the bump and be clear of any RC contamination. The red line represents the median [C/N] value from the red region shown at the top of Figure 2 and was selected to be the most evolved, luminous RGB stars in our sample.

To determine the surface gravity at which the first dredge-up occurs, we fit fit a hyperbolic tangent function as a function for each metallicity bin over the range 2.6 $\leq$ log g $\geq$ 3.6 dex. The mid-point of the hyperbolic tangent transition, the total [C/N] transition height, and the [C/N] ratio before the drop are reported in Table 2. For the lowest metallicity bins in our sample, we lack the high-gravity stars needed to accurately measure the location of the first dredge-up and so do not report it. The lower metallicity stars, [Fe/H] $<-0.3$, exhibit an additional drop just above the luminosity bump, usually referred to as extra mixing. We fit this extra mixing with a second hyperbolic tangent function using stars with surface gravities between 1.5 and 2.9 dex and report the results that show a significant change in Table 2. However, the most metal-poor stars, [Fe/H] $<-0.9$, exhibit further decline in the [C/N] ratios after the bump. Rather than a single rapid drop in [C/N], the evolution is better approximated by a linear change in [C/N] with gravity as the star ascends the giant branch. We fit this change using linear regression for stars at surface gravities between 0.8 and 1.6 and report its slope in Table 2.

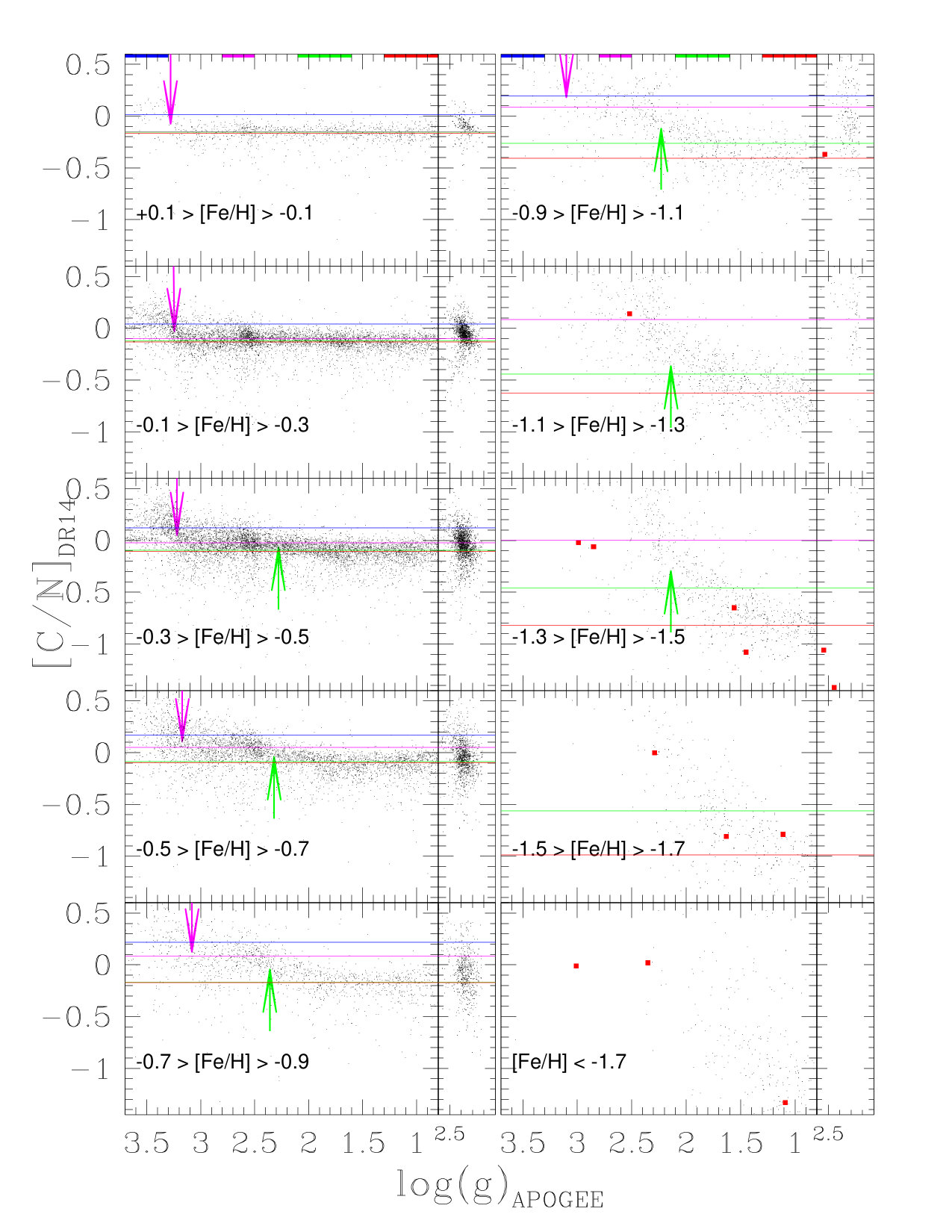

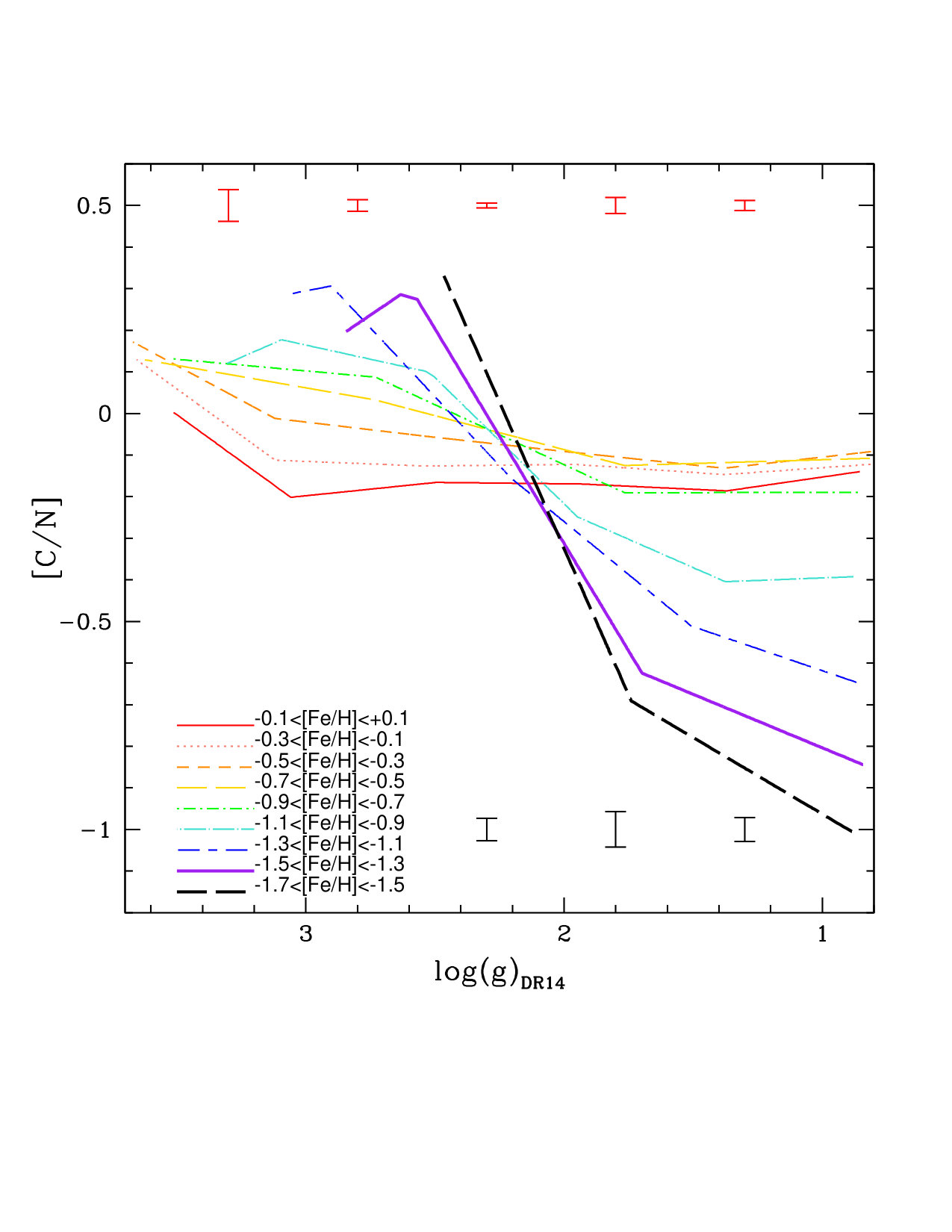

To demonstrate more clearly the log g and metallicity dependence of the mixing, we show in Figures 3 and 4 fits to the [C/N] ratio as a function of log g and metallicity for stars in a number of metallicity and gravity bins. The fits are piecewise spline and power series polynomials, of varying order depending on the degree of structure. The coefficients of these fits are listed in Tables 3 and 4. We also show the dispersion about the fits and the errors on the points, on the top and bottom of each figure, for guidance. Because the ends of the fits are poorly constrained, we have removed the first and last 20 points of the fits to avoid providing a misleading impression of the substructure. The fits in Figure 3 are directly related to the panels in Figure 2, for example the solid purple line which starts at log g = 2.0 and drops steeply can be seen to come from the middle panel on the right side of Figure 2 which has very few data points above log g $>+2.5$ but does exhibit the sharp decline in [C/N] to lower log g values. Figure 4 is a different cut through the same data set and shows fits to the same data but at fixed log g bins. To give the reader a feel for the quality of the fits we provide an error of the mean for bins 0.2 dex wide in both figures. In Figure 3 the top red error bars are errors in the mean for the $-0.1<$ [Fe/H] $<+0.1$ sample while the bottom black error bars are errors in the mean for the $-1.7<$ [Fe/H] $<-1.5$ sample. In Figure 4 the error bars represent errors in the mean for the highest and lowest surface gravity fits in bins of 0.2 dex in metallicity. Generally the error in the mean is larger at high surface gravities and at lower metallicities.

Our final sample has four stars in common with G00. This small number of stars in common combined with a lack of errors from the G00 sample make a direct star-by-star comparison nearly useless. However, the G00 sample does have eight main sequence stars, 11 RGB, and three RC stars in the metallicity range $-1.95<=$ [Fe/H] $<=-0.92$, see the red points in Figure 2. The G00 RGB stars’ CN values are consistent with our RGB star CN values. The G00 RC stars’ CN values are systematically lower than our RC CN values and are much more in-line with our upper RGB median CN values.

4. Discussion

4.1. Mapping Extra Mixing

Using the extensive APOGEE data set of stellar parameters and [C/N] measurements, we isolated a large sample of red giants with similar masses and $-1.7<$[Fe/H] $<0.1$. With this sample, we are for the first time able to trace the appearance and amount of extra mixing from metal-poor to solar-metallicity field stars. The evolution of the depth of the extra mixing with metallicity is qualitatively consistent with the results of G00. However, the precision to which we can map the metallicity and gravity dependence of the extra mixing is substantially higher than was previously possible. The change in [C/N] at the first dredge-up looks approximately constant with metallicity for stars above [Fe/H]$>-1$. In contrast, the change in [C/N] after the luminosity bump is strongly metallicity dependent and grows smoothly as metallicity decreases. For the highest-metallicity stars, we see a drop in the [C/N] ratio at the location of the first dredge-up but no significant evolution of the [C/N] ratio post-dredge-up. This is consistent with predictions and observations of clusters such as M67 (Brown 1987), although we should caution the reader that nearly all open clusters with which one might compare have solar $\alpha$-element ratios unlike our $\alpha$-enhanced sample.

4.2. Galactic Chemical Evolution of Carbon and Nitrogen

Figure 3 shows that, among the highest-gravity (least evolved) stars that have not yet undergone the first dredge-up, there is a clear trend in [C/N] with metallicity, which suggests that these elements are affected by galactic chemical evolution. This result is consistent with the results from G00 in the metallicity range $-1.1<$[Fe/H] $<-0.9$, the most metal-rich range over which G00 has main-sequence CN ratios and the most metal-poor bin for which we have a result for the lower giant branch. The average of the G00 main-sequence CN ratios in this metallicity range is super-solar, $+0.11$. This decrease in [C/N] with increasing metallicity is qualitatively similar to the predictions from Vincenzo & Kobayashi (2018) based on studies of other galaxies. However, we highlight the importance of this observation, because it implies that stellar models for modeling dredge-up and mixing should not be using a solar mixture for low-metallicity stars. This change can affect many of the predictions from stellar models, including the temperature (Beom et al. 2016), lifetime (Dotter et al. 2007), and nucleosynthesis (Marigo 2002).

Another possible source for this rise would be a metallicity-dependent bias in the DR14 calculation of the $[N/Fe]$ and/or $[C/Fe]$ abundances. Jönsson et al. (2018) explored biases in DR14 APOGEE abundances by comparing them against literature values (da Silva et al. (2015), Brewer et al. (2016), and Gaia-ESO DR3) on a star-by-star basis. Jönsson et al. (2018) found the carbon abundances to be in good agreement while there seemed to be a systematic trend among the nitrogen abundances. In top panel of Figure 6 in Jönsson et al. (2018) there is an indication that either the APOGEE DR14 nitrogen abundances are too small as the metallicity declines or the optical abundances are too large. However, the magnitude of the implied nitrogen bias from Jönsson et al. (2018) is larger than the rise in the [C/N] that we report in our analysis. The determination of the nitrogen abundances is difficult in both the optical and the $H$-band, thus it is not clear which of these scenarios is correct.

4.3. The RC

We note that the [C/N] of stars in the RC are higher than the values on the upper giant branch, suggesting that the [C/N] ratio is modified during the helium flash at the tip of the giant branch, as previously noted by Masseron et al. (2017), or that the RC stars have some hidden systematics unrecognized within the APOGEE data set. The discrepancy between the three RC stars in G00 and our results mentioned in the previous section supports the latter conclusion. We note that the RC stars have a different log g correction than the RGB stars, suggesting that there is something that is not properly modeled in the ASPCAP analysis. Possible candidates for this error include errors in the carbon isotope ratio, errors in the radius for the model atmospheres themselves, or differences in the macro-turbulence for RC compared with RGB stars at a given Teff-logg combination. Some discussion of these issues can be found in Masseron et al. (2017) but a full exploration of these effects is beyond the scope of this paper.

We also note that the [C/N] ratios of stars are used to determine the evolutionary state. This could lead to RGB stars with low [C/N] being preferentially classified as RC stars in our sample. However, [C/N] is only used in the relatively underpopulated region between the clump and the giant branch, which affects only a minor portion of our sample. Additionally, the range in [C/N] spanned by stars classified as clump and giant branch in our samples is relatively similar at fixed metallicity, suggesting it is not miss-classification driving the differences between the clump and the giant branch.

4.4. Consequences for Ages from [C/N]

Recent work by Martig et al. (2016) and Ness et al. (2016) has provided a calibration between the [C/N] ratio and the age of red giant stars. While these works appropriately account for the metallicity dependence of the initial [C/N] ratio and the depth of the dredge-up, the APOKASC (Pinsonneault et al. 2014) sample on which they are calibrated has few stars with [Fe/H] $<$ -0.65. From Figures 3 and 4, it is clear that the amount of extra mixing on the upper giant branch is extremely metallicity dependent, and significantly more important in stars below [Fe/H] $\sim-1$. These age calibrations therefore likely lack an explicit accounting for extra mixing, and we suggest caution when extrapolating such relationships to metal poor stars, especially those above the luminosity bump.

4.5. Consequences for Modeling First Dredge-up in Standard Models

To investigate the magnitude of extra mixing relative to standard expectations, we computed 1D evolutionary models of the first ascent RGB. We use the Yale Rotating Evolution Code, adopting the fiducial physical inputs and parameters from the models of Tayar et al. (2017). We computed models of 0.9$M_{\odot}$, consistent with the mean value of our APOGEE sample, and at three [Fe/H] values: 0.0, -0.6, and -1.2. These alpha-enhanced models have initial [C/N] abundances of 0.0, +0.2, and +0.4, respectively, to be consistent with the Galactic chemical evolution trends we may be seeing in our data as discussed in 4.2.

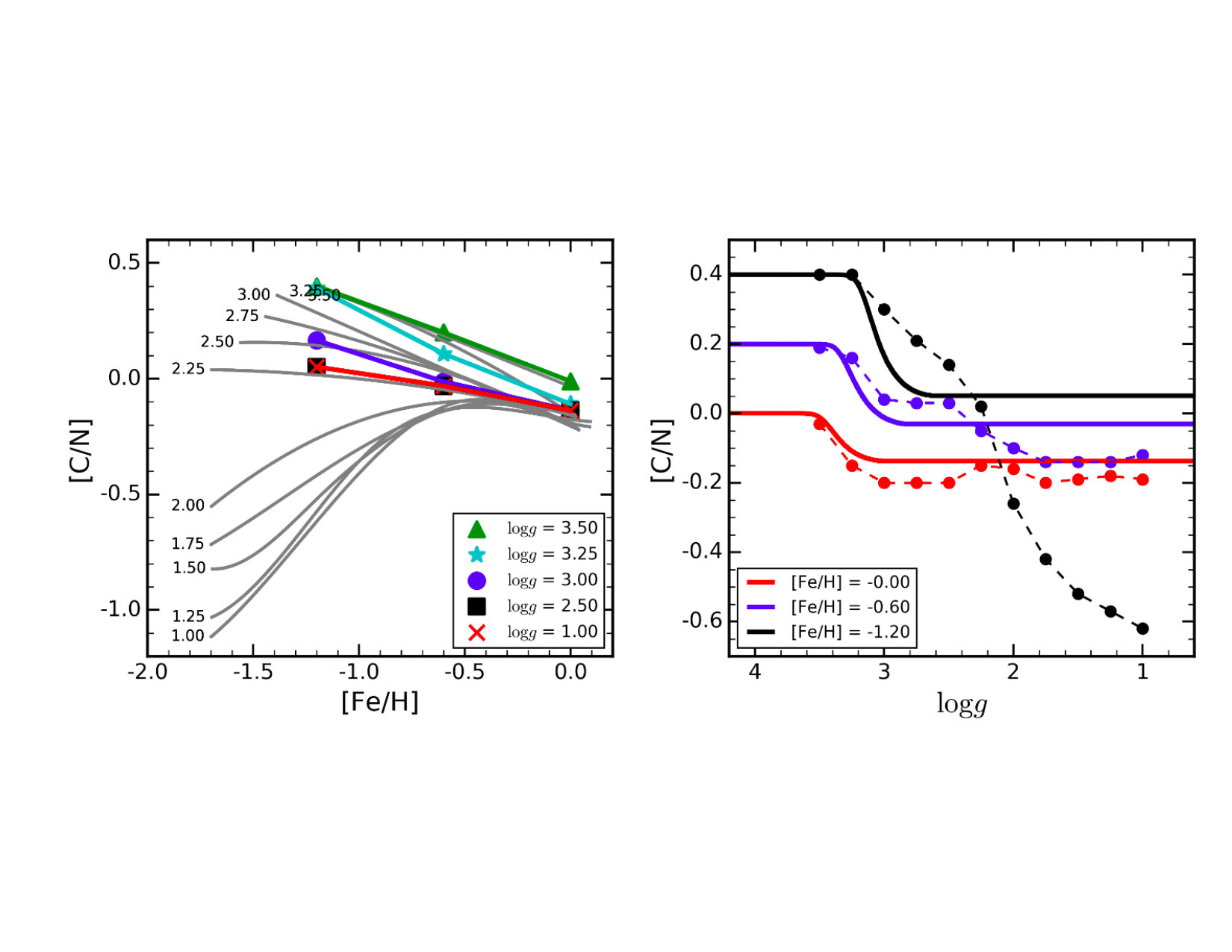

We compare these models to our data in Fig. 5. In the left panel, the gray lines show the [Fe/H] vs. [C/N] fits from Fig. 4 – the labels indicate the mid-range log g values of each fitted sample – and the colored lines show the results of our evolutionary models at several different log g intervals. In the right panel, the solid lines are the results of the model predictions for the surface [C/N] abundance ratios for the three [Fe/H] values. The dashed line and dots represent the APOGEE [C/N] values in 0.2 dex bins around these same metallicities, comparable to the fitted data in Figure 3.

4.5.1 Agreement with Standard Models

At solar metallicity, the models predict a dredge-up $\Delta$[C/N] of $\sim-0.1$ dex beginning around $\log{\it g}=3.6$ and no additional depletion below log g = 3.0, in reasonable agreement with the APOGEE data. At [Fe/H] = -0.6, the modeled first dredge-up begins at a slightly lower log g and results in a drop in the [C/N] ratio of $\sim-0.2$ dex. The APOGEE data at this metallicity show a drop of approximately the same magnitude at the predicted log g, although further drops in the [C/N] ratio are seen in the APOGEE data and discussed in the next section. For the lowest [Fe/H] model the onset of the first dredge-up, at log g $\sim 3.2$, is consistent with the APOGEE data but there are beyond this single point of agreement the model is a poor match for the data.

4.5.2 Deviations from Standard Models

Beyond the onset of first dredge-up, the standard models increasingly deviate from the observations, over-predicting the ultimate [C/N] value by 0.1 dex at [Fe/H]$=-0.6$, and by $\sim 0.7$ dex at [Fe/H]$=-1.2$. In the right panel of Figure 5 it is notable that the two metal-poor models make reasonable predictions until log g $\sim$ 2.25, around the RGB bump, but show no additional depletion thereafter while the APOGEE [C/N] ratio in the metal-poor stars continues to decrease.

In summary, the standard models appear to predict the [Fe/H]-dependent log g value when dredge-up begins and roughly predicts the magnitude of the [C/N] drop down to log g $\sim$ 2.25. The standard models do not anticipate any additional mixing after log g $\sim$ 2.25 seen among more metal-poor stars, [Fe/H] $<-0.4$.

4.5.3 Beyond the Standard Model

As an additional exercise, we considered the impact that arbitrarily deep additional mixing in our models would have on the surface abundance. We found that nuclear burning in the central regions produces enough nitrogen that the observed mixing signals could be achieved if stars were fully mixed to a few pressure scale-heights below the hydrogen-burning shells. However, these calculations do not include additional [C/N] processing that would occur in envelope material mixed down into the hydrogen-burning shell, which could serve as a non-conservative source of additional [C/N] depletion. Finally, we suggest that the morphology of the continuous reduction in [C/N] at low metallicity is qualitatively consistent with more sophisticated models of diffusive mixing (e.g. Placco et al. 2014), but we postpone quantitative comparisons to specific prescriptions of extra mixing to future work.

4.6. Comparisons with dwarf galaxies

While most analyses of dwarf galaxies exclude nitrogen or have very small sample sizes, the work of Lardo et al. (2016) on the dwarf spheroidal galaxy Sculptor does offer us some small overlap in parameter space for comparison. The bulk of the stars in Lardo et al. (2016) are more metal-poor than -1.7 where we have very few stars and the most rich stars in Sculptor have oxygen abundances (which we take as a proxy for alpha enhancement) less than our $+0.14$ limit. There are five stars which have $[Fe/H]>-1.7$, $[O/Fe]>0.14$ and log g $>0.8$ and these five stars are in excellent agreement with our mean trends for [C/N] as a function of log g. If one assumes that the dwarf galaxy stars had the same ab initio [C/N] values, then from this agreement one could infer that the extra mixing that occurs in Milky Way alpha-enhanced stars also occurs in alpha-enhanced stars in other galaxies and that the Sculptor stars are very roughly the same age as our alpha-enhanced Milky Way sample.

Another dwarf galaxy which has stars with measured carbon and nitrogen is the Sagittarius dwarf galaxy (Hasselquist et al. 2017). Unfortunately, all of the Hasselquist et al. (2017) sample has alpha abundance ratios less than our $+0.14$ limit; see their Figure 2. In Figure 4 of Hasselquist et al. (2017) the $[C/N]$ ratios are shown as open blue triangles and have roughly the same values as the Milky Way low-alpha sample (blue points) and less than the high-alpha Milky Way sample (red points). Since the comparison sample constructed by Hasselquist et al. (2017) has very similar log g values and for the metallicity of the bulk of the Sagittarius stars sampled is above that for which we see significant declines of [C/N] on the upper RGB, and if one assumes that the dwarf galaxy stars had the same ab initio [C/N] values as the Milky Way sample, then we could conclude that the Sagittarius sample is younger than the alpha-enhanced sample we have constructed in this work.

We caution the reader that nothing is known about the ab initio values of [C/N] in dwarf galaxies and this unmixed initial [C/N] could impact the mixed [C/N] along the RGB. A full analysis of possible impacts of different starting [C/N] ratios is beyond the scope of this paper.

4.7. Implications for Later Stages of Stellar Evolution

Our confirmation that extra mixing impacts stars with [Fe/H] $<-0.4$ may have implications for later stages of stellar evolution as well. When modeling a star as it evolves off the horizontal branch to become an AGB star, if the metallicity of the star is less than -0.4 dex then the extra mixing we see on the RGB should be factored into the initial abundance of those models. In addition, for stars with metallicity below -0.4 dex the extra mixing we see on the RGB may play a roll on the AGB as well. A future work could explore this with a sample of stars with different metallicities along the AGB. The impact of such extra mixing may be very different for AGB stars than for RGB stars as there may be supplies of primary carbon and nitrogen (generated from helium burning) that are tapped by the extra mixing.

If the extra mixing we see below [Fe/H] $<-0.4$ continues to play a roll in stellar evolution for AGB stars then we might also expect to see differences in the final abundance products for planetary nebulae (PNe) above and below this metallicity for the oldest systems. Metal-poor models of AGB and post-AGB evolution including extra mixing, such as diffusive mixing, could potentially elucidate our understanding of PNe abundances, and our models of galactic chemical evolution, e.g. Stanghellini & Haywood (2018).

5. Conclusions

We use the alpha-rich first ascent red giants from the APOGEE field sample to map the evolution of the [C/N] ratio as a function of gravity and metallicity in a restricted mass range. We find a discrepancy between the APOGEE [C/N] ratios for the RC stars in comparison to the tip of the giant branch [C/N] ratios. A comparison with the few RC [C/N] values in G00 suggests that the APOGEE RC C and N abundances may be in error for RC stars. The few RGB [C/N] values in G00 are in good agreement with the APOGEE [C/N] ratios so the discrepancy appears to be limited to the RC stars.

We find that the [C/N] ratio before the first dredge-up is metallicity dependent, with more metal-poor stars having higher initial [C/N] values, possibly as the result of Galactic chemical evolution. We show that standard stellar evolution models can qualitatively match the first dredge-up of the stars in our sample as a function of metallicity if an appropriate, non-solar, mixture is used.

We confirm the existence of extra mixing above the RGB bump in metal-poor stars, [Fe/H] $<-0.4$ dex, with the mid-point of this extra mixing being 0.14 dex above the bump in the luminosity function. We show that the amount of mixing is a smooth function of metallicity, with increasing mixing with decreasing metallicity up to $\Delta[C/N]=0.58$ dex at [Fe/H] $=-1.4$. This extra mixing is not present in standard stellar evolution models, and so these models fail to reproduce the measured [C/N] in low-gravity, metal-poor stars.

We find that either this extra mixing continues down to very low surface gravities at the metal poor end of our sample or that a second source of extra mixing plays a roll in the upper giant branch in stars with [Fe/H] $<-1.0$. We provide a tables of the measured [C/N] changes as well as fits to our sample of [C/N] measurements as a function of metallicity and gravity which can be compared to more sophisticated models including processes like thermohaline mixing in order to better constrain the mechanism responsible for this extra mixing.

Finally, because of this extra mixing, we caution that calibrations between [C/N] and age should not be used in the low-gravity (above the bump in the luminosity function), metal poor ([Fe/H] $<-0.4$) regime unless extra mixing has been explicitly taken into account.

We thank John Beacom for the idea of using hyperbolic tangent functions to fit the drops in [C/N]. The hospitality of the Center for Cosmology and Astroparticle Physics at The Ohio State University during the paper-writing workshop was very much appreciated. We acknowledge support from NSF grant AST-1211853. G.S. acknowledges the support of the Vanderbilt Office of the Provost through the Vanderbilt Initiative in Data-intensive Astrophysics (VIDA) fellowship. Sz.M. has been supported by the Premium Postdoctoral Research Program of the Hungarian Academy of Sciences, and by the Hungarian NKFI Grants K-119517 of the Hungarian National Research, Development and Innovation Office. D.A.G.H., T.M. and O.Z. acknowledge support provided by the Spanish Ministry of Economy and Competitiveness (MINECO) under grant AYA-2017-88254-P. H.J. acknowledges support from the Crafoord Foundation and Stiftelsen Olle Engkvist Byggmästare. The authors thank Ohio State’s Center for Cosmology and AstroParticle Physics for hosting an APOGEE workshop where substantial progress was made on this project. Support for this work was provided by NASA through the NASA Hubble Fellowship grant #51424 awarded by the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., for NASA, under contract NAS5-26555. This research made use of Astropy,222http://www.astropy.org a community-developed core Python package for Astronomy (Astropy Collaboration et al. 2013; Price-Whelan et al. 2018). Funding for the Sloan Digital Sky Survey IV has been provided by the Alfred P. Sloan Foundation, the U.S. Department of Energy Office of Science, and the Participating Institutions. SDSS-IV acknowledges support and resources from the Center for High-Performance Computing at the University of Utah. The SDSS website is www.sdss.org. SDSS-IV is managed by the Astrophysical Research Consortium for the Participating Institutions of the SDSS Collaboration including the Brazilian Participation Group, the Carnegie Institution for Science, Carnegie Mellon University, the Chilean Participation Group, the French Participation Group, Harvard-Smithsonian Center for Astrophysics, Instituto de Astrofísica de Canarias, The Johns Hopkins University, Kavli Institute for the Physics and Mathematics of the Universe (IPMU) / University of Tokyo, Lawrence Berkeley National Laboratory, Leibniz Institut für Astrophysik Potsdam (AIP), Max-Planck-Institut für Astronomie (MPIA Heidelberg), Max-Planck-Institut für Astrophysik (MPA Garching), Max-Planck-Institut für Extraterrestrische Physik (MPE), National Astronomical Observatory of China, New Mexico State University, New York University, University of Notre Dame, Observatário Nacional / MCTI, The Ohio State University, Pennsylvania State University, Shanghai Astronomical Observatory, United Kingdom Participation Group, Universidad Nacional Autónoma de México, University of Arizona, University of Colorado Boulder, University of Oxford, University of Portsmouth, University of Utah, University of Virginia, University of Washington, University of Wisconsin, Vanderbilt University, and Yale University.
