Notes on translating solitons for Mean Curvature Flow

TL;DR

This paper provides a comprehensive classification of complete translating graph solutions in three-dimensional space for the mean curvature flow, aiding understanding of their structure and properties.

Contribution

It offers a complete classification of complete translating graphs in 3, advancing the understanding of translating solitons in mean curvature flow.

Findings

Classification of all complete translating graphs in 3

Description of properties of these solitons

Insights into their geometric structure

Abstract

The purpose of these notes is to provide an introduction to those who want to learn more about translating solitons for the mean curvature flow in $\mathbb{R}^3$, particularly those which are complete graphs over domains in $\mathbb{R}^2$. In this paper we describe a full classification of complete translating graphs in $\mathbb{R}^3$.

Figures

Equations

$$\frac{\partial }{\partial t}\mathbf{x}={\Delta }_{M_t}\mathbf{x},$$

$${\Delta }_{M_t}\mathbf{x}=\vec{H},$$

$$\frac{\partial }{\partial t}\mathbf{x}(p,t)=\vec{H}(p,t).$$

$$\frac{d}{dt}\left(\mathrm{Area}(\Omega (t)\right)=-{\int }_{\Omega (t)}|\vec{H}{|}^{2}d{\mu }_t.$$

$$2n{T}_{\max }\le {\left(\text{mbox}{\mathrm{diam}}_{{\mathbf{R}}^{n+1}}(M)\right)}^2.$$

$$f:(-\pi /2,\pi /2)\to {\mathbf{R}}^2$$

$$f(x)=(x,\log \cos x).$$

$$\frac{\partial}{\partial t}|A|^{2}=\operatorname{\Delta}|A|^{2}-2\big{|}\nabla A\big{|}^{2}+2|A|^{4}.$$

$$|A{|}_{\text{max}}^2(t):=\underset{M_t}{\max }|A{|}^2(\cdot ,t).$$

$$\frac{d}{dt}|A{|}_{\max }^2(t_0)=\frac{\partial }{\partial t}|A{|}^2(p_0,t_0),$$

$$\frac{d}{dt}|A{|}_{\max }^2(t_0)$$

$$\displaystyle=\operatorname{\Delta}|A|^{2}(p_{0},t_{0})-2\big{|}\nabla A(p_{0},t_{0})\big{|}^{2}+2|A|^{4}(p_{0},t_{0}).$$

$$\frac{d}{dt}|A{|}_{\max }^2(t_0)\le 2|A{|}^4(p_0,t_0)\le 2|A{|}_{\text{max}}^4(t_0).$$

$$-\frac{d}{dt}\left(\frac{1}{|A|_{\text{max}}^{2}}\right)\leq 2\quad\mbox{\rm a.e. in $t\in[0,T)$.}$$

$$\frac{1}{|A{|}_{\text{max}}^2(t)}-\frac{1}{|A{|}_{\text{max}}^2(s)}\le 2(s-t).$$

$$|A{|}_{\text{max}}^2(s_i)\to +\infty .$$

$$\frac{1}{|A{|}_{\text{max}}^2(t)}\le 2(T-t).$$

$$|A{|}_{\text{max}}(t)\ge \frac{1}{\sqrt{2(T-t)}}$$

$$\underset{t\to T}{\lim }|A{|}_{\text{max}}(t)=+\infty .$$

$$|A{|}_{\text{max}}(t)\ge \frac{1}{\sqrt{2(T_{\text{max}}-t)}}$$

$$T_{\text{max}}\ge \frac{1}{2|A{|}_{\text{max}}^2(0)}.$$

$$|A{|}_{\text{max}}(t)\le \frac{C}{\sqrt{2(T-t)}},$$

$$\underset{t\to T}{\mathrm{limsup}}|A{|}_{\text{max}}(t)\sqrt{(T-t)}=+\infty ,$$

$$t\mapsto M-t{\mathbf{e}}_{n+1}$$

$$\vec{H}=-{\mathbf{e}}_{n+1}^{\perp }.$$

$$\mathcal{G}(x_1,\dots ,x_n)=(x_1,\dots ,x_n,-\log \cos x_1),$$

$${\mathcal{G}}_{\theta }(x_1,\dots ,x_n)=(x_1,\dots ,x_n,{\sec }^2(\theta )\log \cos (x_1\cos (\theta ))-\tan (\theta )x_n),$$

$${\mathcal{A}}_f[M]={\int }_M{e}^{-f}d\mu$$

$$H=⟨{\mathbf{e}}_{n+1},N⟩$$

$${\mathcal{A}}_f[\Omega ]={\mathrm{vol}}_f(\Omega )={\int }_{\Omega }{e}^{-f}d\mu .$$

$${\delta }^2{\mathcal{A}}_f[\Omega ]\cdot (u,u)=-{\int }_M{e}^{-f}u{L}_{f}ud\mu ,u\in C_0^{\infty }(\Omega ),$$

Full text

1 Introduction

Mean curvature flow is an exciting area of mathematical research. It is situated at the crossroads of several scientific disciplines: geometric analysis, geometric measure theory, partial differential equations, differential topology, mathematical physics, image processing, computer-aided design, among others. In these notes, we give a brief introduction to mean curvature flow and we describe recent progress on translators, an important class of solutions to mean curvature flow.

In physics, diffusion is a process which equilibrates spatial variations in concentration. If we consider a initial concentration $u_{0}$ on a domain $\Omega\subseteq\mathbf{R}^{2}$ and seek solutions of the linear heat equation $\frac{\partial}{\partial t}u-\operatorname{\Delta}u=0,$ with initial data $u_{0}$ and natural boundary conditions on $\partial\Omega$, we obtain smoothed concentrations $\{u_{t}\}_{t>0}$.

If we are interested in the smoothing of perturbed surface geometries, it make sense to use analogous strategies. The geometrical counterpart of the Euclidean Laplace operator $\operatorname{\Delta}$ on a smooth surface $M^{2}\subset\mathbf{R}^{3}$ (or more generally, a hypersurface $M^{n}\subset\mathbf{R}^{n+1}$) is the Laplace-Beltrami operator, which we will denote as $\operatorname{\Delta}_{M}$. Thus, we obtain the geometric diffusion equation

[TABLE]

for the coordinates x of the corresponding family of surfaces $\{M_{t}\}_{t\in[0,T)}.$

A classical formula (see [hildebrandt], for instance) says that, given a hypersurface in Euclidean space, one has:

[TABLE]

where $\vec{H}$ represents the mean curvature vector. This means that (1.1) can be written as:

[TABLE]

Using techniques of parabolic PDE’s it is possible to deduce the existence and uniqueness of the mean curvature flow for a small time period in the case of compact manifolds (for details see [regularityTheoryMCF], [LecturesNotesOnMCF], among others).

Theorem 1.1**.**

Given a compact, immersed hypersurface $M$ in $\mathbf{R}^{n+1}$ then there exists a unique mean curvature flow defined on an interval $[0,T)$ with initial surface $M$.

The mean curvature is known to be the first variation of the area functional $M\mapsto\int_{M}d\mu$ (see [colding-minicozzi, meeks-perez].) We will obtain for the $\operatorname{Area}(\Omega(t))$ of a relatively compact $\Omega(t)\subset M_{t}$ that

[TABLE]

In other words, we get that the mean curvature flow is the corresponding gradient flow for the area functional:

Remark 1.2**.**

The mean curvature flow is the flow of steepest descent of surface area.

Moreover, we also have a nice maximum principle for this particular diffusion equation.

Theorem 1.3** (Maximum/comparison principle).**

If two compact immersed hypersurfaces of $\mathbf{R}^{n+1}$ are initially disjoint, they remain so. Furthermore, compact embedded hypersurfaces remain embedded.

Similarly, convexity and mean convexity are preserved:

• •

If the initial hypersurface $M$ is convex (i.e., all the geodesic curvatures are positive, or equivalently $M$ bounds a convex region of $\mathbf{R}^{n+1}$), then $M_{t}$ is convex, for any $t$.

• •

If $M$ is mean convex ($H>0$), then $M_{t}$ is also mean convex, for any $t$.

Moreover, mean curvature flow has a property which is similar to the eventual simplicity for the solutions of the heat equation. This result was proved by Huisken and asserts:

Theorem 1.4** ([huisken90]).**

Convex, embedded, compact hypersurfaces converge to points $p\in\mathbf{R}^{n+1}.$ After rescaling to keep the area constant, they converge smoothly to round spheres.

As a consequence of the above theorems we have.

Corollary 1.5** **(Existence of singularities in finite time).

Let $M$ be a compact hypersurface in $\mathbf{R}^{n+1}$. If $M_{t}$ represents its evolution by the mean curvature flow, then $M_{t}$ must develop singularities in finite time. Moreover, if we denote this maximal time as $T_{\max}$, then

[TABLE]

Proof 1.6**.**

Since $M$ is compact, it is contained an open ball $B(p,\rho)$. So, $M$ must develop a singularity before the flow of $\mathbf{S}^{n}_{p}$ collapses at the point $p$, as otherwise we would contradict the previous theorem. The upper bound of $T_{\max}$ is just a consequence of the collapsing time of a sphere.

A natural question is: What can we say when $M$ is not compact? In this case, we can have long-time existence. A trivial example is the case of a complete, properly embedded minimal hypersurface $M$ in $\mathbf{R}^{n+1}$. Under the mean curvature flow, $M$ remains stationary, so the flow exists for all time. If we are looking for non-stationary examples, then we can consider the following example:

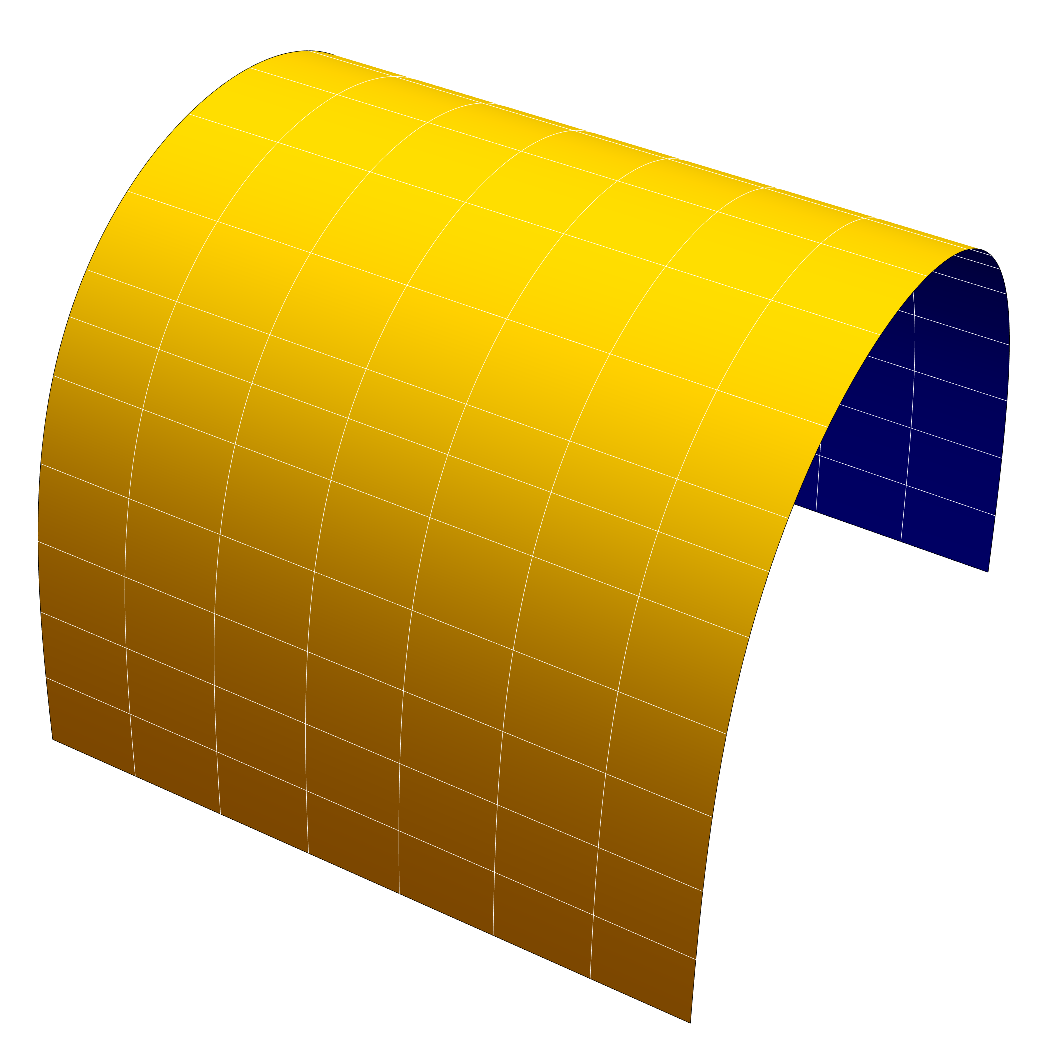

Example 1.7** **(grim reapers).

Consider the euclidean product $M=\Gamma\times\mathbf{R}^{n-1}$, where $\Gamma$ is the grim reaper in $\mathbf{R}^{2}$ represented by the immersion

[TABLE]

[TABLE]

If, ignoring parametrization, we let $M_{t}$ be the result of flowing $M$ by mean curvature flow for time $t$, then $M_{t}=M-t\,e_{n+1}$, where again $\{\operatorname{e}_{1},\ldots,\operatorname{e}_{n+1}\}$ represents the canonical basis of $\mathbf{R}^{n+1}$. In other words, $M$ moves by vertical translations. By definition, we say that $M$ is a translating soliton in the direction of $-\,\mbox{\rm e}_{n+1}$. More generally, any translator in the direction of $-\,\mbox{e}_{n+1}$ which is a Riemannian product of a planar curve and an euclidean space $\mathbf{R}^{n-1}$ can be obtained from this example by a suitable combination of a rotation and a dilation (see [himw] for further details.) We refer to these translating hypersurfaces as $n$-dimesional grim reapers*, or simply grim reapers if the $n$ is clear from the context.*

2 Some Remarks About Singularities

Throughout this section, we consider a fixed compact initial hypersurface $M$. Consider the maximal time $T=T_{M}$ such that a smooth solution of the MCF $F:M\times[0,T)\to\mathbf{R}^{n+1}$ as in Theorem 1.1 exists. Then the embedding vector $F$ is uniformly bounded according to Theorem 1.3. It follows that some spatial derivatives of the embedding $F_{t}$ have to become unbounded as $t\nearrow T$. Otherwise, we could apply Arzelà-Ascoli Theorem and obtain a smooth limit hypersurface, $M_{T}$, such that $M_{t}$ converges smoothly to $M_{T}$ as $t\nearrow T$. This is impossible because, in such a case, we could apply Theorem 1.1 to restart the flow. In this way, we could extend the flow smoothly all the way up to $T+\varepsilon$, for some $\varepsilon>0$ small enough, contradicting the maximality of $T$. In fact, Huisken [huisken84, Theorem 8.1] showed that the second spatial derivative (i.e, the norm of the second fundamental form) blows up as $t\to T.$

We would like to say more about the “blowing-up” of the norm of $A$, as $t\nearrow T.$ The evolution equation for $|A|^{2}$ is

[TABLE]

Define

[TABLE]

Using Hamilton’s trick (see [LecturesNotesOnMCF]) we deduce that $|A|^{2}_{\max}$ is locally Lipschitz and that

[TABLE]

where $p_{0}$ is any point where $|A|^{2}(\cdot,t_{0})$ reaches its maximum. Thus, using the above expression, we have

[TABLE]

It is well known that the Hessian of $|A|$ is negative semi-definite at any maximum. In particular the Laplacian of $|A|$ at these points is non-positive. Hence,

[TABLE]

Notice that $|A|_{\text{max}}^{2}$ is always positive, since otherwise at some instant $t$ we would have $|A(\cdot,t)|\equiv 0$ along $M_{t}$, which would imply that $M_{t}$ is totally geodesic and therefore a hyperplane in $\mathbf{R}^{n+1}$, contrary to the fact that the initial surface was compact.

So, one can prove that $1/|A|_{\text{max}}^{2}$ is locally Lipschitz. Then the previous inequality allows us to deduce that:

[TABLE]

Integrating (respect to time) in any sub-interval $[t,s]\subset[0,T)$ we get

[TABLE]

As $|A(\cdot,t)|$ is not bounded as to tends to $T$, there exists a time sequence $s_{i}\nearrow T$ such that

[TABLE]

Substituting $s=s_{i}$ in the above inequality and taking the limit as $i\to\infty$, we get

[TABLE]

We collect all this information in the next proposition.

Proposition 2.1**.**

Consider the mean curvature flow for a compact initial hypersurface $M$. If $T$ is the maximal time of existence, then the following lower bound holds

[TABLE]

for all $t\in[0,T)$.

In particular,

[TABLE]

Definition 2.2**.**

When this happens we say that $T$ is singular time for the mean curvature flow.

So we have the following improved version of Theorem 1.1:

Theorem 2.3**.**

*Given a compact, immersed hypersurface $M$ in $\mathbf{R}^{n+1}$ then there exists a unique mean curvature flow defined on a maximal interval $[0,T_{\text{max}})$.

Moreover, $T_{\text{max}}$ is finite and*

[TABLE]

*for each $t\in[0,T_{\text{max}})$.

Remark 2.4**.**

From the above proposition, we deduce the following estimate for the maximal time of existence of flow:

[TABLE]

Definition 2.5**.**

Let $T$ be the maximal time of existence of the mean curvature flow. If there is a constant $C>1$ such that

[TABLE]

then we say that the flow develops a Type I singularity at instant $T$. Otherwise, that is, if

[TABLE]

we say that is a Type II singularity.

We conclude this brief section by pointing out that there have been substantial breakthroughs in the study and understanding of the singularities of Type I, whereas Type II singularities have been much more difficult to study. This seems reasonable since, according to the above definition and the results we have seen, the singularities of Type I are those for which one has the best possible control of blow-up of the second fundamental form.

3 Translators

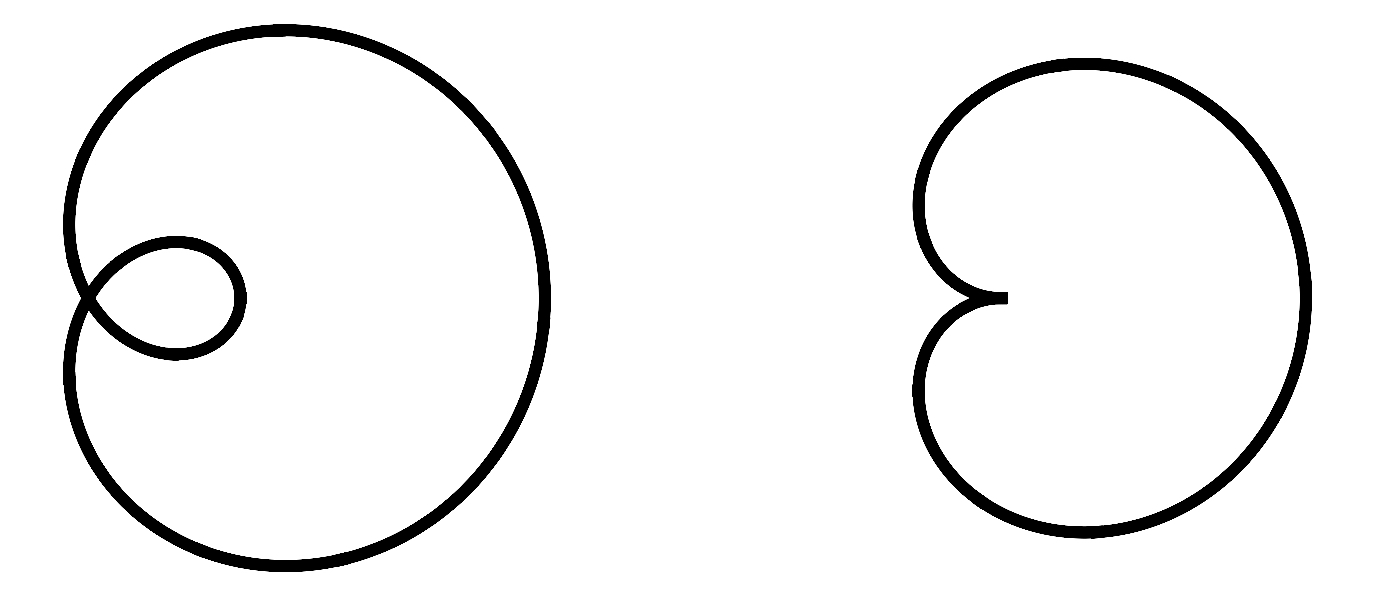

A standard example of Type II singularity is given by a loop pinching off to a cusp (see Figure 3). S. Angenent [An1] proved, in the case of convex planar curves, that singularities of this kind are asymptotic (after rescaling) to the above mentioned grim reaper curve (1.3), which moves set-wise by translation. In this case, up to inner diffeomorphisms of the curve, it can be seen as a solution of the curve shortening flow which evolves by translations and is defined for all time. In this paper we are interested in this type of solitons, which we will call translating solitons (or translators) from now on. Summarizing this information, we make the following definition:

Definition 3.1** (Translator).**

A translator is a hypersurface $M$ in $\mathbf{R}^{n+1}$ such that

[TABLE]

is a mean curvature flow, i.e., such that normal component of the velocity at each point is equal to the mean curvature at that point:

[TABLE]

The cylinder over a grim-reaper curve, i.e. the hypersurface in $\mathbf{R}^{n+1}$ parametrized by $\mathscr{G}:\left(-\tfrac{\pi}{2},\tfrac{\pi}{2}\right)\times\mathbf{R}^{n-1}\longrightarrow\mathbf{R}^{n+1}$ given by

[TABLE]

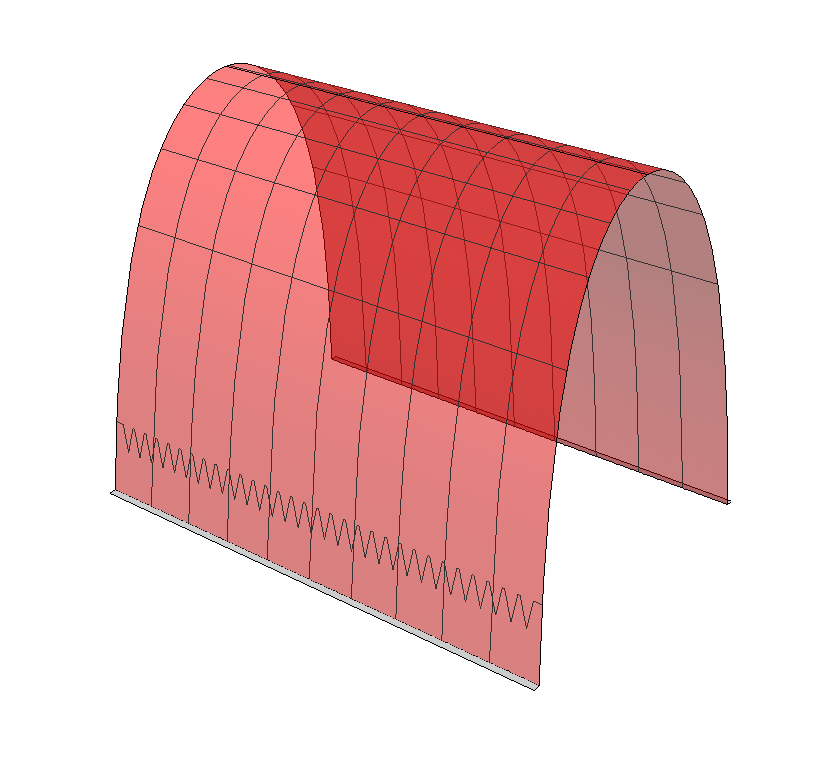

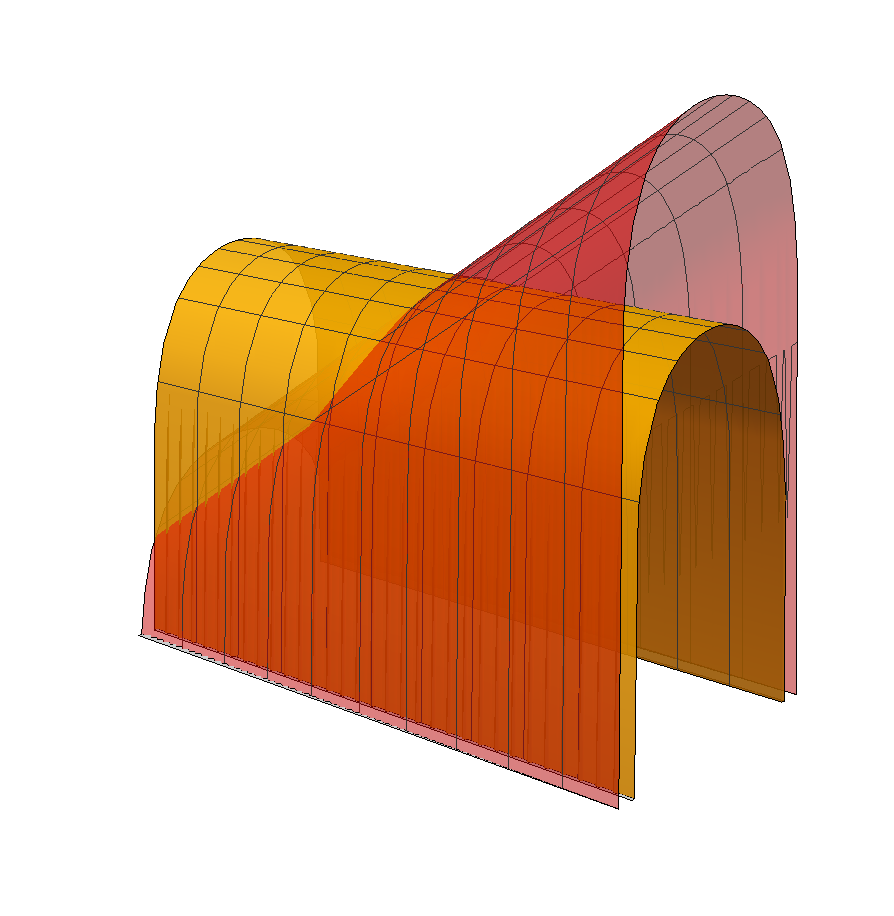

is a translating soliton. It appears as limit of sequences of parabolic rescaled solutions of mean curvature flows of immersed mean convex hypersurfaces. For example, we can take product of the loop pinching off to a cusp times $\mathbf{R}^{n-1}$. We can produce others examples of solitons just by scaling and rotating the grim reaper. In this way, we obtain a $1-$parameter family of translating solitons parametrized by $\mathscr{G}_{\theta}:\left(-\tfrac{\pi}{2\cos(\theta)},\tfrac{\pi}{2\cos(\theta)}\right)\times\mathbf{R}^{n-1}\longrightarrow\mathbf{R}^{n+1}$

[TABLE]

where $\theta\in[0,\pi/2).$ Notice that the limit of the family $F_{\theta}$, as $\theta$ tends to $\pi/2$, is a hyperplane parallel to $\mathbf{e}_{n+1}$.

3.1 Variational approach

Ilmanen [ilmanen] noticed that a translating soliton $M$ in $\mathbf{R}^{n+1}$ can be seen as a minimal surface for the weighted volume functional

[TABLE]

where $f$ represents the Euclidean height function, that is, the restriction of the last coordinate $x_{n+1}$ to $M$. We have the following

Proposition 3.2** (Ilmanen).**

Let $M^{n}$ be a translating soliton in $\mathbf{R}^{n+1}$ and let $N$ be its unit normal. Then the translator equation

[TABLE]

on the relatively compact domain $\Omega\subset M$ is the Euler-Lagrange equation of the functional

[TABLE]

Moreover, the second variation formula for normal variations is given by

[TABLE]

where the stability operator $L_{f}$ is defined by

[TABLE]

where $\operatorname{\Delta}^{f}$ is the drift Laplacian given by

[TABLE]

Proof. Given $\varepsilon>0$, let $\Psi:(-\varepsilon,\varepsilon)\times M\to\mathbf{R}^{n+1}$ be a variation of $M$ compactly supported in $\Omega\subset M$ with $\Psi(0,\,\cdot\,)=\mbox{Id}$ and normal variational vector field

[TABLE]

for some function $u\in C^{\infty}_{0}(\Omega)$ and a tangent vector field $T\in\Gamma(TM)$. Here, $N$ denotes a local unit normal vector field along $M$. Then

[TABLE]

Hence, stationary immersions for variations fixing the boundary of $\Omega$ are characterized by the scalar soliton equation

[TABLE]

which yields (3.3). Now we compute the second variation formula. At a stationary immersion we have

[TABLE]

Using the fact that

[TABLE]

(where $\mathscr{W}$ means the Weingarten map) then we compute

[TABLE]

Since

[TABLE]

and $\nabla\eta=\mathbf{e}_{n+1}^{\top}$, we obtain for normal variations (when $T=0$)

[TABLE]

This finishes the proof of the proposition. $\square$

The previous result has important consequences. It means that a hypersurface $M\subset\mathbf{R}^{n+1}$ is a translator if and only if it is minimal with respect to the Riemannian metric

[TABLE]

Although the metric $g_{ij}$ is not complete (notice that the length of vertical half-lines in the direction of $\mathbf{e}_{n+1}$ is finite), we can apply all the local results of the theory of minimal hypersurfaces in Riemannian manifolds. Thus we can freely use curvature estimates and compactness theorems from minimal surface theory; cf. [white-intro, Chapter 3]. In particular, if $M$ is a graphical translator, then (since vertical translates of it are also $g$-minimal) $\left<\mathbf{e}_{3},\nu\right>$ is a nowhere vanishing Jacobi field, so $M$ is a stable $g$-minimal surface. It follows that any sequence $M_{i}$ of complete translating graphs in $\mathbf{R}^{3}$ has a subsequence that converges smoothly to a translator $M$. Also, if a translator $M$ is the graph of a function $u:\Omega\to\mathbf{R}$, then $M$ and its vertical translates from a $g$-minimal foliation of $\Omega\times\mathbf{R}$, from which it follows that $M$ is $g$-area minimizing in $\Omega\times\mathbf{R}$, and thus that if $K\subset\Omega\times\mathbf{R}$ is compact, then the $g$-area of $M\cap K$ is at most $1/2$ of the $g$-area of $\partial K$. Hence, if we consider sequences of translators that are manifolds-with-boundary, then the area bounds described above together with standard compactness theorems for minimal surfaces (such as those in [white-curvature-estimates, white-controlling]) give smooth, subsequential convergence, including at the boundary. This has been a crucial tool in [mpss, himw, families-1, families-2] (The local area bounds and bounded topology mean that the only boundary singularities that could arise would be boundary branch points. In the situations that occur in these papers, obvious barriers preclude boundary branch points.)

The situation for higher dimensional translating graphs is more subtle; (see [himw, Appendix A] and [nino]).

4 Examples of translators

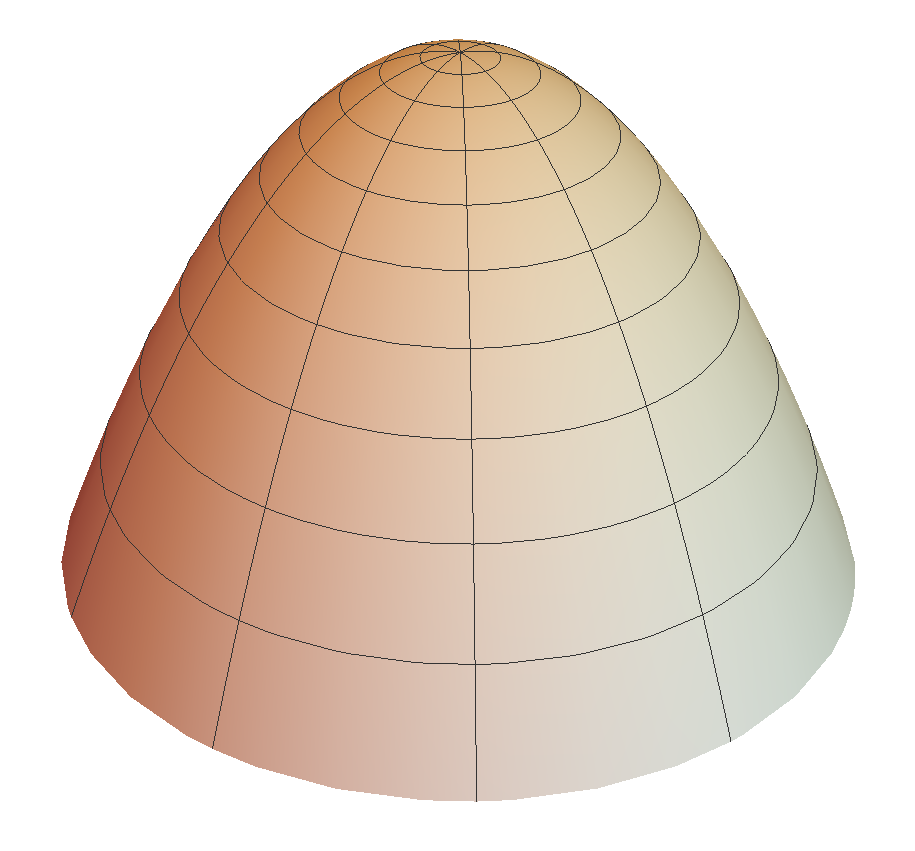

Besides the grim reapers that we have already described, the last decades have witnessed the appearance of numerous examples of translators. Clutterbuck, Schnürer and Schulze [CSS] (see also [Altschuler-Wu]) proved that there exists an entire graphical translator in $\mathbf{R}^{n+1}$ which is rotationally symmetric, strictly convex with translating velocity $-\mathbf{e}_{n+1}$. This example is known as the translating paraboloid or bowl soliton. Moreover, they classified all the translating solitons of revolution, giving a one-parameter family $\{W^{n}_{\lambda}\}_{\lambda>0}$ of rotationally invariant cylinders called translating catenoids. The parameter $\lambda$ controls the size of the neck of each translating soliton. The limit, as $\lambda\to 0$, of $W^{n}_{\lambda}$ consists of two superimposed copies of the bowl soliton with a singular point at the axis of symmetry. Furthermore, all these hypersurfaces have the following asymptotic expansion as r approaches infinity:

[TABLE]

where $r$ is the distance function in $\mathbf{R}^{n}$.

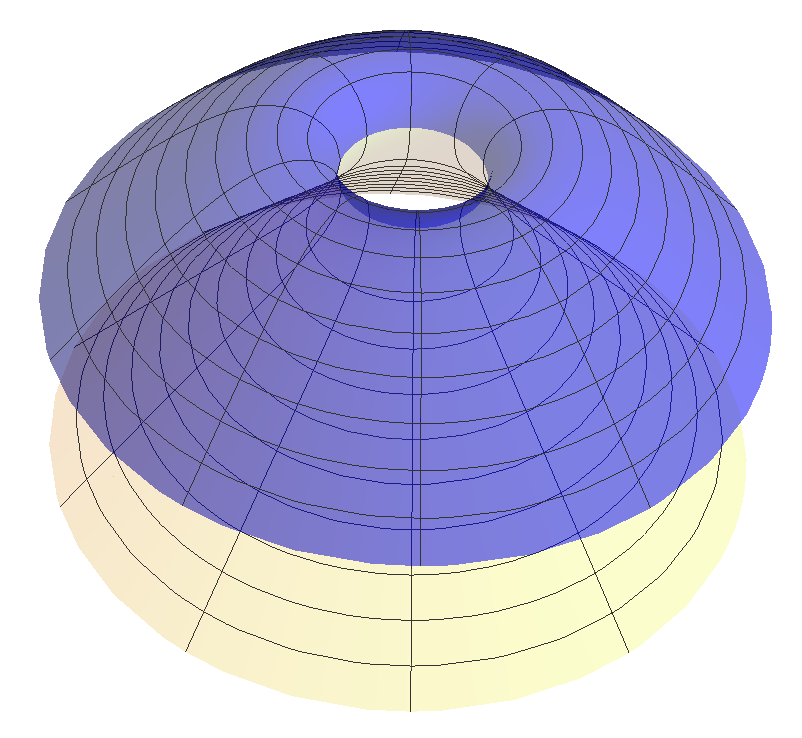

These rotationally symmetric translating catenoids can be seen as the desingularization of two paraboloids connected by a small neck of some radius.

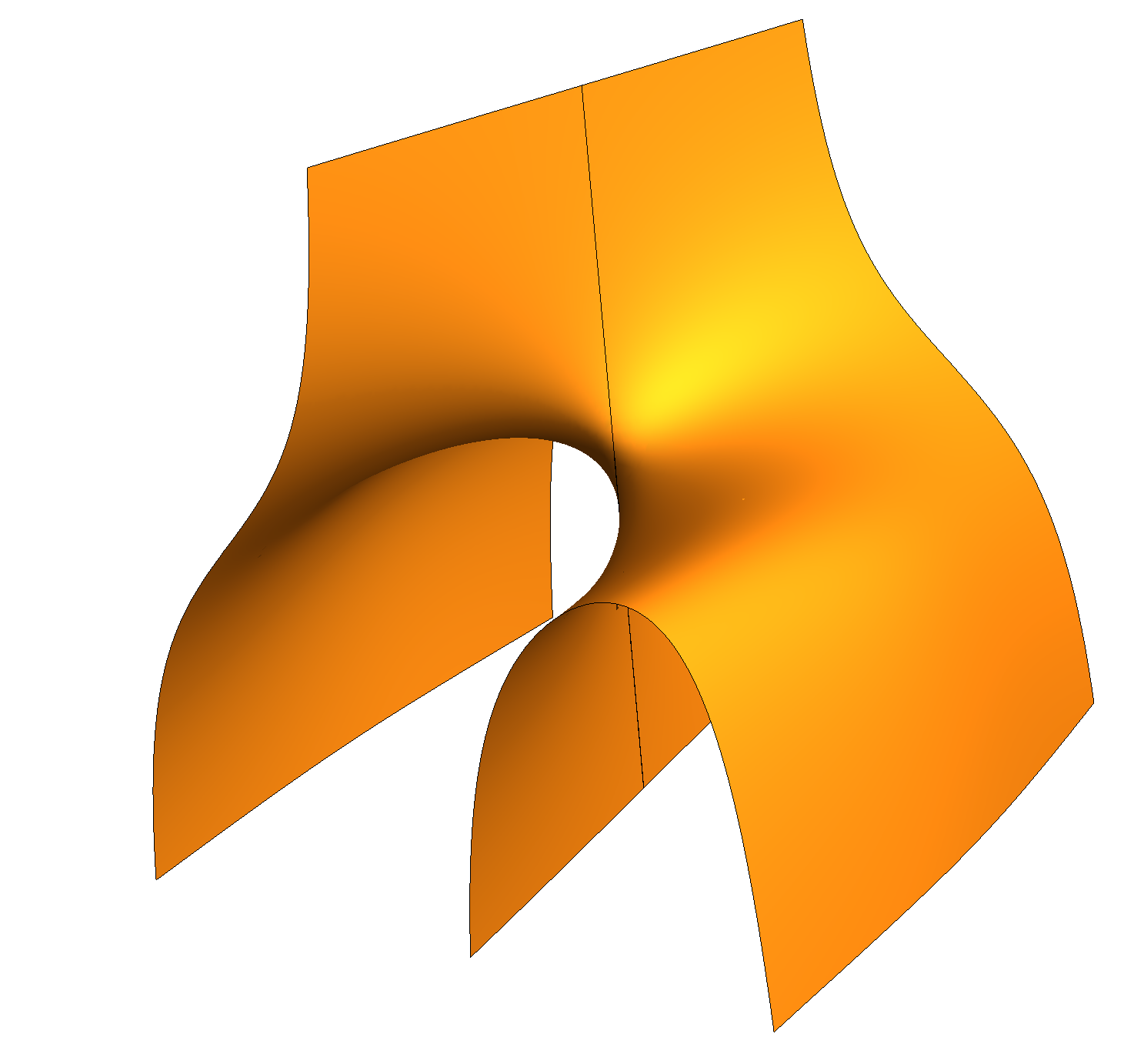

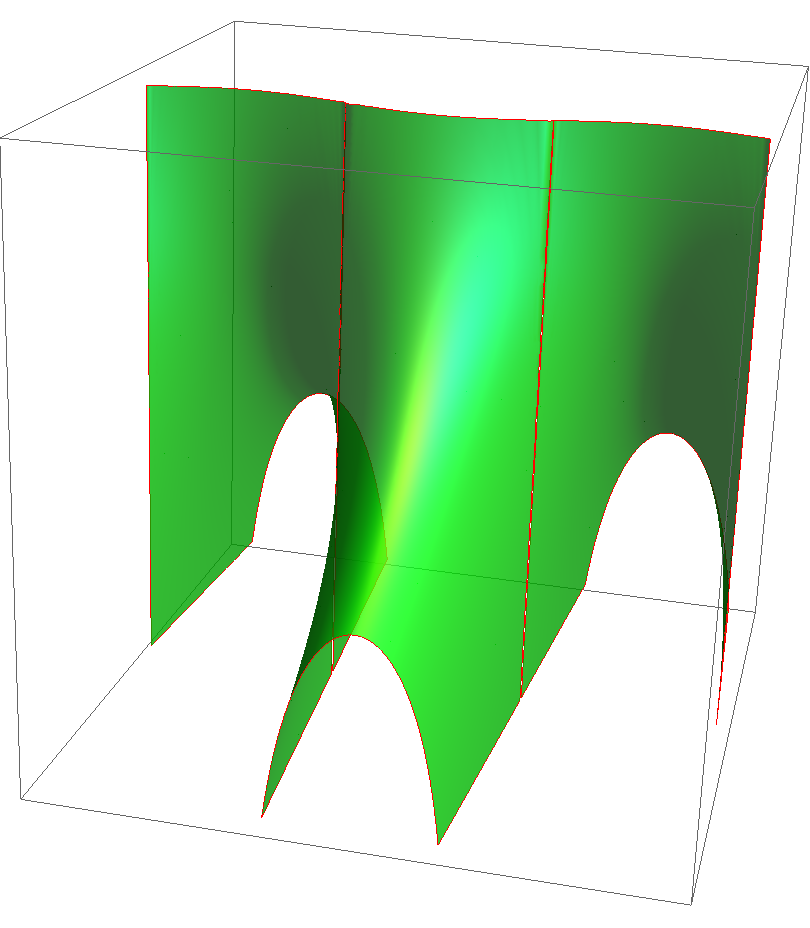

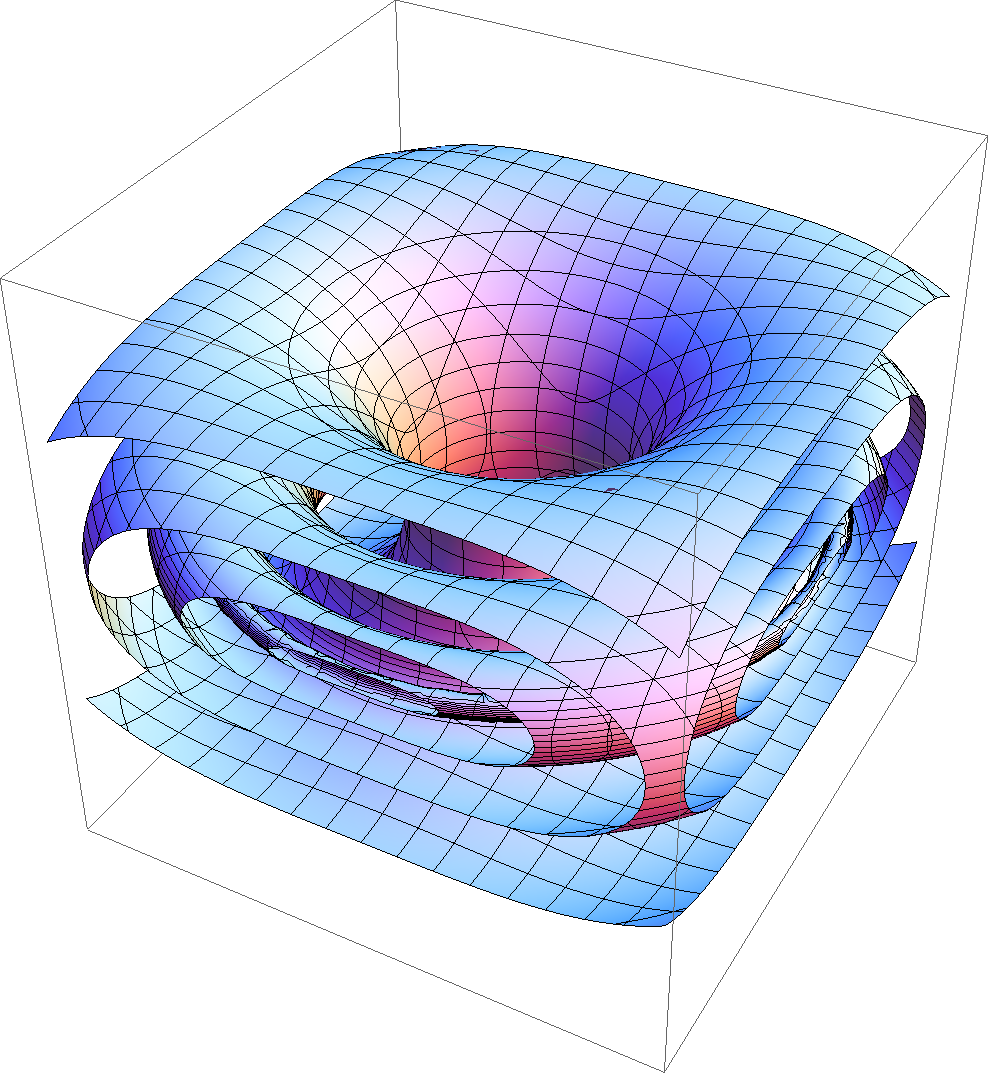

Recall that the Costa-Hoffman-Meeks surfaces can be regarded as desingularizations of a plane and catenoid: a sequence of Costa-Hoffman-Meeks surfaces with genus tending to infinity converges (if suitably scaled) to the union of a catenoid and the plane through its waist. This suggests that one try to construct translators by desingularizing the union of a translating catenoid and a bowl solition. Dávila, del Pino, and Nguyen  [DDPN] were able to do that (for large genus) by glueing methods, replacing the circle of intersection by a surface similar to the singly periodic Scherk minimal surface (see also [smith].) Previously, Nguyen in [Nguyen09],[Nguyen13] and [Nguyen15] had used similar techniques to desingularize the intersection of a grim reaper and a plane. In this way she obtained a complete periodic embedded translator of infinite genus, that she called a translating trident.

Once this abundance of translating solitons is guaranteed, there arises the need to classify them. One of the first classification results was given by X.-J. Wang in [wang]. He characterized the bowl soliton as the only convex translating soliton which is an entire graph.

Very recently, J. Spruck and L. Xiao [spruck-xiao] have proved that a complete translating soliton which is graph over a domain in $\mathbf{R}^{2}$ must be convex (see Section 6 below.) So, combining both results we have:

Theorem 4.1**.**

The bowl soliton is the only translator that is an entire graph over $\mathbf{R}^{2}$.

Using the Alexandrov method of moving hyperplanes, Martín, Savas-Halilaj, and Smoczyk [mss] showed that the bowl soliton is the only translator (not assumed to be graphical) that has one end and is $C^{\infty}$-asymptotic to a bowl soliton. Hershkovits [Her18] improved this by showing uniqueness of the bowl soliton among (not necessarily graphical) translators that have one cylindrical end (and no other ends). Haslhofer [Has15] proved a related result in higher dimensions: he showed that any translator in $\mathbf{R}^{n+1}$ that is noncollapsed and uniformly $2$-convex must be the $n$-dimensional bowl soliton. At this point, we would like to mention the recent classification result of Brendle and Choi [brendle]. They prove that the rotationally symmetric bowl soliton is the only noncompact ancient solution of mean curvature flow in $\mathbf{R}^{3}$ which is strictly convex and noncollapsed.

Martín, Savas-Halilaj and Smoczyk also obtained one of the first characterizations of the family of tilted grim reapers:

Theorem 4.2**.**

[mss]* Let $M$ be a connected translating soliton in $\mathbf{R}^{n+1}$, $n\geq 2$, such that the function $|A|^{2}H^{-2}$ has a local maximum in $\{x\in M:H(x)\neq 0\}$. Then $M$ is a tilted grim reaper.*

5 Graphical translators

If a translator $M$ is the graph of function $u:\Omega\subset\mathbf{R}^{n}\to\mathbf{R}$, we will say that $M$ is a translating graph; in that case, we also refer to the function $u$ as a translator, and we say that $u$ is complete if its graph is a complete submanifold of $\mathbf{R}^{n+1}$. Thus $u:\Omega\subset\mathbf{R}^{n}\to\mathbf{R}$ is a translator if and only if it solves the translator equation (the nonparametric form of (3.1)):

[TABLE]

The equation can also be written as

[TABLE]

In a recent preprint, we classify all complete translating graphs in $\mathbf{R}^{3}$. In two other papers [families-1, families-2], we construct new families of complete, properly embedded (non-graphical) translators: a two-parameter family of translating annuli, examples that resemble Scherk’s minimal surfaces, and examples that resemble helicoids. In [families-2], we also construct several new families of complete translators that are obtained as limits of the Scherk-type translators mentioned above. They include a $1$-parameter family of single periodic surfaces called Scherkenoids (see Fig. 6) and a simply-connected translator called the pitchfork translator (see Fig. 7). The pitchfork translator resembles Nguyen’s translating tridents [Nguyen09] (see also [families-1.5]): like the tridents, it is asymptotic to a plane as $z\to\infty$ and to three parallel planes as $z\to-\infty$. However, the pitchfork has genus [math], whereas the tridents have infinite genus.

As a consequence of Theorem 4.2, we have that every translator $\mathbf{R}^{3}$ with zero Gauss curvature is a grim reaper surface, a tilted grim reaper surface, or a vertical plane.

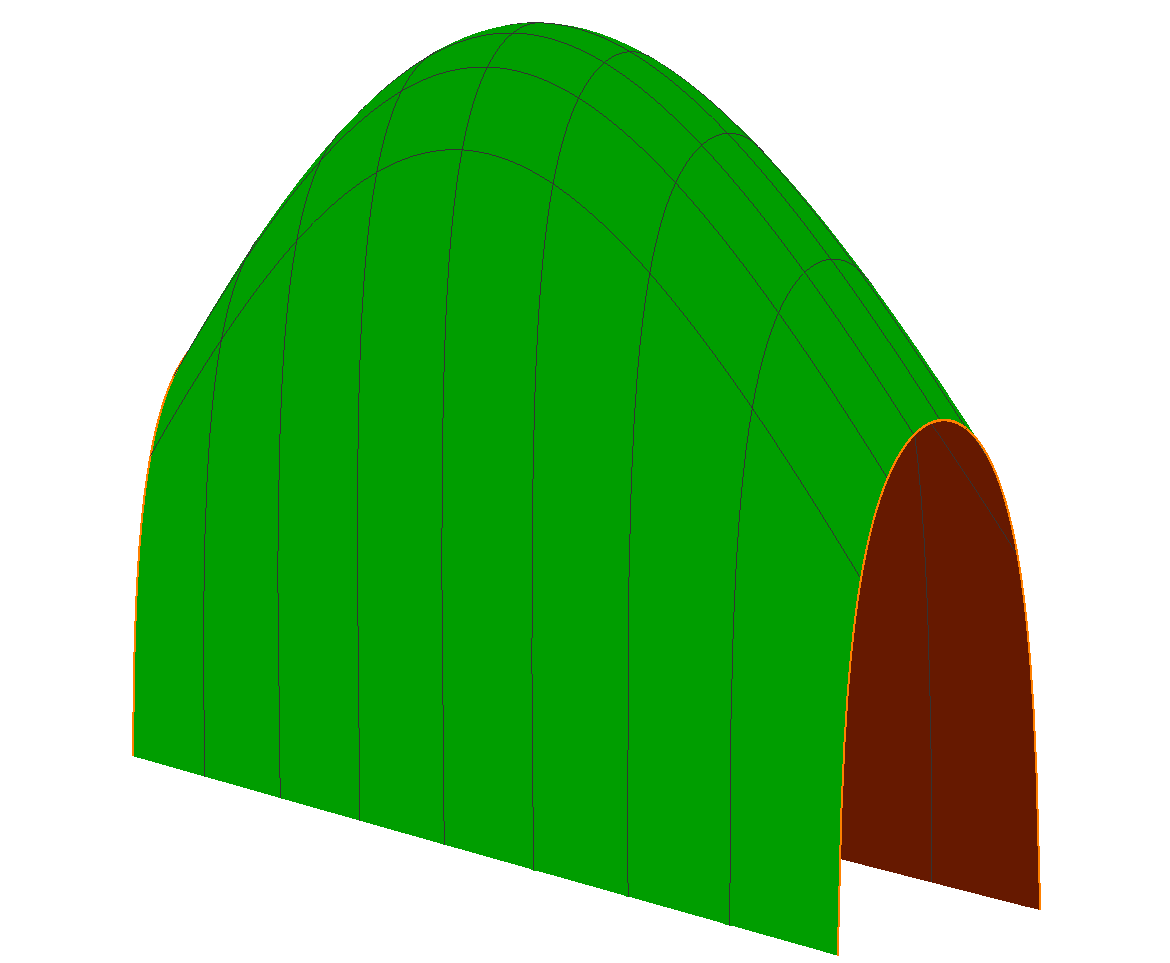

In addition to the examples described in the previous section, Ilmanen (in unpublished work) proved that for each $0<k<1/2$, there is a translator $u:\Omega\to\mathbf{R}$ with the following properties: $u(x,y)\equiv u(-x,y)\equiv u(x,-y)$, $u$ attains its maximum at $(0,0)\in\Omega$, and

[TABLE]

The domain $\Omega$ is either a strip $\mathbf{R}\times(-b,b)$ or $\mathbf{R}^{2}$. He referred to these examples as $\operatorname{\Delta}$-wings. As $k\to 0$, he showed that the examples converge to the grim reaper surface. Uniqueness (for a given $k$) was not known. It was also not known which strips $\mathbf{R}\times(-b,b)$ occur as domains of such examples. The main result in [himw] is the following:

Theorem 5.1**.**

For every $b>\pi/2$, there is (up to translation) a unique complete, strictly convex translator $u^{b}:\mathbf{R}\times(-b,b)\to\mathbf{R}.$ Up to isometries of $\mathbf{R}^{2}$, the only other complete translating graphs in $\mathbf{R}^{3}$ are the grim reaper surface, the tilted grim reaper surfaces, and the bowl soliton.

Although the paper [himw] is primarily about translators in $\mathbf{R}^{3}$, the last sections extend Ilmanen’s original proof to get $\operatorname{\Delta}$-wings in $\mathbf{R}^{n+1}$ that have prescribed principal curvatures at the origin. For $n\geq 3$, the examples include entire graphs that are not rotationally invariant. At the end of the paper, we modify the construction to produce a family of $\operatorname{\Delta}$-wings in $\mathbf{R}^{n+2}$ over any given slab of width $>\pi$. See [wang] for a different construction of some higher dimensional graphical translators.

6 The Spruck-Xiao Convexity Theorem

One of the fundamental results in the recent development of soliton theory has been the paper by Spruck and Xiao [spruck-xiao], where they proved that complete graphical translators (or, more generally, complete translators of positive mean curvature) are convex. The ideas contained in this paper are really inspiring and we would like to provide a slightly simplified exposition of their proof.

At any non-umbilic point, we let $\kappa_{1}>\kappa_{2}$ be the principal curvatures and $H=\kappa_{1}+\kappa_{2}>0$ be the mean curvature. We let $v_{1}$ and $v_{2}$ be the principal direction unit vector fields, so

[TABLE]

Note $\nabla_{u}v_{1}$ is perpendicular to $v_{1}$. Thus

[TABLE]

for some functions $\alpha_{1}$ and $\alpha_{2}$. Since $0=\nabla_{v_{i}}(v_{1}\cdot v_{2})=(\nabla_{v_{i}}v_{1})\cdot v_{2}+v_{1}\cdot(\nabla_{v_{i}}v_{2})$, we see that

[TABLE]

Thus

[TABLE]

But $\nabla_{u}v_{1}$ is perpendicular to $v_{1}$, so $A(\nabla_{u}v_{1},v_{1})\equiv 0$. Thus

[TABLE]

In particular,

[TABLE]

where $h_{ij}=A(v_{i},v_{j})$ and $h_{ij,k}=(\nabla_{v_{k}}A)(v_{i},v_{j})$. From $A(v_{1},v_{2})\equiv 0$, we see that

[TABLE]

by (6.1) and (6.2). Thus

[TABLE]

Also, if we let $u_{i}=v_{i}$ at a particular point and extend by parallel transport on radial geodesics, we have

[TABLE]

Thus

[TABLE]

where

[TABLE]

(The second equality follows from the Codazzi equations.)

Now suppose the surface is a translator. Then, we have that (see [spruck-xiao, Lemma 2.1] or [mss, Lemma 2.1]):

[TABLE]

Hence,

[TABLE]

by (6.3). Thus

[TABLE]

Recall that the drift Laplacian (see (3.7)) is given by

[TABLE]

Likewise,

[TABLE]

Adding these gives

[TABLE]

From (6.7) and (6.8),

[TABLE]

Thus

[TABLE]

so

[TABLE]

Theorem 6.1** (Spruck-Xiao).**

Let $M\subset\mathbf{R}^{3}$ be a complete translator with $H>0$. Then $M$ is convex.

Proof 6.2**.**

Suppose the theorem is false. Then

[TABLE]

*Note that the set of points where $H/\kappa_{1}<2$ contains no umbilic points, which implies that $H/\kappa_{1}$ is smooth on that set and that we can apply the formulas in this section (§6), which were derived assuming that $\kappa_{1}>\kappa_{2}$.

Step 1*: The infimum $\eta$ is not attained. For suppose it is attained at some point.

Then by (6.10) and the strong minimum principle (see [gilbarg-trudinger, Theorem 3.5] or [evans-book, Chapter 6, Theorem 3]), $H/\kappa_{1}$ is constant on $M$. Therefore $\kappa_{2}/\kappa_{1}=H/\kappa_{1}-1$ is constant on $M$. Since $H>0$ and since $H/\kappa_{1}$ is constant, we see from (6.9) that $Q\equiv 0$, i.e., (see (6.6)) $h_{12,1}\equiv h_{12,2}\equiv 0$. Hence by (6.5), (6.1) and (6.2), the frame $\{v_{1},v_{2}\}$ is parallel, so $\kappa_{1}\kappa_{2}\equiv 0$,

contadicting (6.11). Thus the infimum is not attained. *

Step 2*: If $p_{n}\in M$ is a sequence with $H(p_{n})/\kappa_{1}(p_{n})\to\eta$, then (after passing to a subsequence) $M-p_{n}$ converges smoothly to a limit by the curvature estimates mentioned at the end of Section 3. We claim that the limit must be a vertical plane. For suppose not. Then (after passing to a subsequence) $M-p_{n}$ converges smoothly to a complete translator $M^{\prime}$ with $H>0$. By the smooth convergence, $H/\kappa_{1}$ attains its minimum value on $M^{\prime}$ at the origin, and that minimum value is $\eta$, contradicting Step 1. *

Step 3*: Now we apply the Omori-Yau maximum principle (see Theorem 6.3 below) to get a sequence $p_{n}\in M$ such that*

[TABLE]

From (6.13) and (6.14), we see that

[TABLE]

By Step 2, we can assume that $M-p_{n}$ converges smoothly to a vertical plane. For the rest of the proof, any statement that some quantity tends to a limit refers only to the quantity at the points $p_{n}$.

Since $A$ is a quadratic form with eigenvalues $\kappa_{1}$ and $\kappa_{2}$, $A/\kappa_{1}$ is a a quadratic form with eigenvalues $1$ and $\kappa_{2}/\kappa_{1}=H/\kappa_{1}-1$. Thus (by passing to a subsequence) we can assume that $A/\kappa_{1}$ (at $p_{n}$) converges to a quadratic form with eigenvalues $1$ and $\eta-1$. (Note that the eigenvalue $\eta-1$ is negative by Hypothesis (6.11).)

Recall that

[TABLE]

(See, for example, [mss, Lemma 2.1].) Since $\mathbf{e}_{3}^{T}\to\mathbf{e}_{3}$, we see that $\nabla H/\kappa_{1}$ (at $p_{n}$) converges to a nonzero vector $N$:

[TABLE]

Now

[TABLE]

By Omori-Yau (see (6.13)), this tends to [math], so

[TABLE]

or, equivalently (see (6.4)),

[TABLE]

where $N_{i}=N\cdot v_{i}$.

We can rewrite (6.17) as

[TABLE]

Multiply by $H/\kappa_{1}$:

[TABLE]

By Omori-Yau (see (6.13)), this tends to [math], so (using (6.18)),

[TABLE]

or, equivalently (by (6.4)),

[TABLE]

Combining (6.19) with $i=2$ and (6.21) with $i=1$ gives

[TABLE]

Note that $\lambda^{2}>0$ because $N\neq 0$ and $\eta<1$ by Hypothesis (6.11).

Now multiply (6.9) by $H/\kappa_{1}$:

[TABLE]

Using (6.12) and (6.15) for the left side, (6.12) and (6.22) for the first term on the right, and (6.18) and (6.13) for the second term, we can let $n\to\infty$ to get:

[TABLE]

a contradiction (since $\eta$ and $\delta$ are nonnegative).

We used the Omori-Yau Theorem (see, for example, [Alias-et-al]):

Theorem 6.3** (Omori-Yau Theorem).**

Let $M$ be a complete Riemannian manifold with Ricci curvature bounded below. Let $f:M\to\mathbf{R}$ be a smooth function that is bounded below. Then there is a sequence $p_{n}$ in $M$ such that

[TABLE]

The theorem remains true if we replace the assumption that $f$ is smooth by the assumption that $f$ is smooth on $\{f<\alpha\}$ for some $\alpha>\inf_{M}f$.

To see the last assertion, let $\phi:\mathbf{R}\to\mathbf{R}$ be a smooth, monotonic function such that $\phi(t)=0$ for $t\geq\alpha$ and such that $\phi\equiv 1$ on an open interval containing $\inf_{M}f$. Then $\phi\circ f$ is smooth, so the Omori-Yau Theorem holds for $\phi\circ f$, from which it follows immediately that the Omori-Yau Theorem also holds for $f$.

In our case, the function $H/\kappa_{1}$ is smooth except at umbilic points. At such points, $H/\kappa_{1}=2$. Since we assumed that the infimum was $<1$, we could invoke the Omori-Yau Theorem.

7 Characterization of translating graphs in $\mathbf{R}^{3}$

As we mentioned before, the authors of these notes have obtained the complete classification of the complete graphical translators in Euclidean $3$-space.

Recall that by translator we mean a smooth function $u:\Omega\rightarrow\mathbf{R}$ such that $M=\operatorname{Graph}(u)$ is a translator. Then $u$ must be solution of the equation:

[TABLE]

If we impose that $M$ is complete, then we will say that $u$ is a complete translator. In this setting Shahriyari [shari] proved in her thesis the following

Theorem 7.1** (Shahriyari).**

If $M$ is complete, then $\Omega$ must be a strip, a halfspace, or all of $\mathbf{R}^{2}$.

In [wang], X. J. Wang proved that the only entire convex translating graph is the bowl soliton, and that there are no complete translating graphs defined over halfplanes. Thus by the Spruck-Xiao Convexity Theorem, the bowl soliton is the only complete translating graph defined over a plane or halfplane.

Hence, it remained to classify the translators $u:\Omega\to\mathbf{R}$ whose domains are strips. Our main new contributions in this line are:

For each $b>\pi/2$, we prove ([himw][Theorem 5.7]) existence and uniqueness (up to translation) of a complete translator $u^{b}:\mathbf{R}\times(-b,b)\to\mathbf{R}$ that is not a tilted grim reaper. We call $u^{b}$ the $\operatorname{\Delta}$-wing of width $2b$. 2. 2.

We give a simpler proof (see [himw][Theorem 6.7]) that there are no complete graphical translators in $\mathbf{R}^{3}$ defined over halfplanes in $\mathbf{R}^{2}$.

Furthermore, there are no complete translating graphs defined over strips of width $<\pi$ (see [spruck-xiao, bourni-et-al]), and the grim reaper surface is the only translating graph over a strip of width $\pi$ (see [himw]). Consequently, we have a classification: every complete, translating graph in $\mathbf{R}^{3}$ is one of the following: a grim reaper surface or tilted grim reaper surface, a $\operatorname{\Delta}$-wing, or the bowl soliton.

We remark that Bourni, Langford, and Tinaglia gave a different proof of the existence (but not uniqueness) of the $\operatorname{\Delta}$-wings in (1) [bourni-et-al].

{bibsection}

[References] AltschulerS. J.WuL. F.Translating surfaces of the non-parametric mean curvature flow with prescribed contact angle Calc. Var. Partial Differential Equations219941101–111@article{Altschuler-Wu, author = {Altschuler, S. J.}, author = { Wu, L. F.}, title = {Translating surfaces of the non-parametric mean curvature flow with prescribed contact angle}, journal = { Calc. Var. Partial Differential Equations}, volume = {2}, date = {1994}, number = {1}, pages = {101–111}} AngenentS.On the formation of singularities in the curve shortening flow J. Differential Geom.331991601–633@article{An1, author = {Angenent, S.}, title = {On the formation of singularities in the curve shortening flow}, journal = { J. Differential Geom.}, volume = {33}, date = {1991}, pages = {601-633}} BourniT.LangfordM.TinagliaG.On the existence of translating solutions of mean curvature flow in slab regionsAnalysis & PDE (to appear), arXiv:1805.0517320181–25@article{bourni-et-al, author = {Bourni, T.}, author = {Langford, M.}, author = {Tinaglia, G.}, title = {On the existence of translating solutions of mean curvature flow in slab regions}, journal = {Analysis & PDE (to appear), arXiv:1805.05173}, date = {2018}, pages = {1-25}} BrendleS.ChoiK.Uniqueness of convex ancient solutions to mean curvature flow in $\mathbf{R}^{3}$Inventiones math.2171201935–76@article{brendle, author = {Brendle, S.}, author = {Choi, K.}, title = {Uniqueness of convex ancient solutions to mean curvature flow in $\R^3$}, journal = {Inventiones math.}, volume = {217}, number = {1}, date = {2019}, pages = {35-76}} ClutterbuckJ.SchnürerO.SchulzeF.Stability of translating solutions to mean curvature flowCalc. Var. and Partial Differential Equations292007281–293@article{CSS, author = {Clutterbuck, J.}, author = { Schn{"u}rer, O.}, author = {Schulze, F.}, title = {Stability of translating solutions to mean curvature flow}, journal = {Calc. Var. and Partial Differential Equations}, volume = {29}, date = {2007}, pages = {281–293}} ColdingT.H.MinicozziW.A course on minimal surfacesGraduate Studies in MathematicsAMS1213132011@book{colding-minicozzi, author = {Colding, T.H.}, author = {Minicozzi, W.}, title = {A course on minimal surfaces}, series = {Graduate Studies in Mathematics}, publisher = {AMS}, volume = {121}, pages = {313}, year = {2011}} DávilaJuandel PinoManuelNguyenXuan HienFinite topology self-translating surfaces for the mean curvature flow in $\mathbb{R}^{3}$Adv. Math.3202017674–729ISSN 0001-8708Review MathReviewsDocument@article{DDPN, author = {D'{a}vila, Juan}, author = {del Pino, Manuel}, author = {Nguyen, Xuan Hien}, title = {Finite topology self-translating surfaces for the mean curvature flow in $\Bbb{R}^3$}, journal = {Adv. Math.}, volume = {320}, date = {2017}, pages = {674–729}, issn = {0001-8708}, review = {\MR{3709119}}, doi = {10.1016/j.aim.2017.09.014}} DierkesU.HildebrandtS.KüsterA.WohlrabO.Minimal surfaces i, boundary value problemsGrundlehren der mathematischen Wissenschaften295Springer-Verlag1992@book{hildebrandt, author = {Dierkes, U.}, author = {Hildebrandt, S.}, author = {Küster, A.}, author = {Wohlrab, O.}, title = {Minimal surfaces I, Boundary Value Problems}, series = {Grundlehren der mathematischen Wissenschaften}, volume = {295}, publisher = {Springer-Verlag}, year = {1992}} EckerK.Regularity theory for mean curvature flowBirkhauser2004@book{regularityTheoryMCF, author = {Ecker, K.}, title = {Regularity Theory for Mean Curvature Flow}, publisher = {Birkhauser}, date = {2004}} EvansL. C.Partial differential equationsGraduate Studies in Mathematics192American Mathematical Society, Providence, RI2010xxii+749ISBN 978-0-8218-4974-3Review MathReviewsDocument@book{evans-book, author = {Evans, L. C.}, title = {Partial differential equations}, series = {Graduate Studies in Mathematics}, volume = {19}, edition = {2}, publisher = {American Mathematical Society, Providence, RI}, date = {2010}, pages = {xxii+749}, isbn = {978-0-8218-4974-3}, review = {\MR{2597943}}, doi = {10.1090/gsm/019}} GamaE.S.MartínF.Translating solitons of the mean curvature flow asymptotic to hyperplanes in $\mathbf{R}^{n+1}$Int. Math. Res. Not., to appearISSN 1073-7928@article{nino, author = {Gama, E.S.}, author = {Martín, F.}, title = {Translating solitons of the mean curvature flow asymptotic to hyperplanes in $\RR^{n+1}$}, journal = {Int. Math. Res. Not., to appear}, issn = {1073-7928}} GilbargD.TrudingerN. S.Elliptic partial differential equations of secondClassics in MathematicsReprint of the 1998 editionSpringer-Verlag, Berlin2001xiv+517ISBN 3-540-41160-7Review MathReviews@book{gilbarg-trudinger, author = {Gilbarg, D.}, author = {Trudinger, N. S.}, title = {Elliptic partial differential equations of second }, series = {Classics in Mathematics}, note = {Reprint of the 1998 edition}, publisher = {Springer-Verlag, Berlin}, date = {2001}, pages = {xiv+517}, isbn = {3-540-41160-7}, review = {\MR{1814364}}} HaslhoferR.Uniqueness of the bowl solitonGeom. Top.19420152393–2406@article{Has15, author = {Haslhofer, R.}, title = {Uniqueness of the bowl soliton}, journal = {Geom. Top.}, volume = {19}, number = {4}, date = {2015}, pages = {2393-2406}} HershkovitsO.Translators asymptotic to cylindersJ. Reine Angew. Math. (to appear), arXiv:1805.105532018@article{Her18, author = {Hershkovits, O.}, title = {Translators asymptotic to cylinders}, journal = {J. Reine Angew. Math. (to appear), arXiv:1805.10553}, date = {2018}} HoffmanD.IlmanenT.MartínF.WhiteB.Graphical translators for mean curvature flow2019Calc. Var. and Partial Differential Equations58:117 paperinfo=Preprint arXiv:1805.10860Document@article{himw, author = {Hoffman, D.}, author = {Ilmanen, T.}, author = {Martín, F.}, author = {White, B.}, title = {Graphical Translators for Mean Curvature Flow}, date = {2019}, journal = {Calc. Var. and Partial Differential Equations}, volume = {{58:117} paperinfo={Preprint arXiv:1805.10860}}, doi = {https://doi.org/10.1007/s00526-019-1560-x}} HoffmanD.MartínF.WhiteB.Scherk-like translators for mean curvature flow.2019Journal of Differential Geometry (to appear), arXiv:1903.04617 paperinfo=In preparation@article{families-1, author = {Hoffman, D.}, author = {Martín, F.}, author = {White, B.}, title = {Scherk-like Translators for Mean Curvature Flow. }, date = {2019}, journal = {{Journal of Differential Geometry (to appear), arXiv:1903.04617} paperinfo={In preparation}}} HoffmanD.MartínF.WhiteB.Nguyen’s tridents and the classification of semigraphical translators for mean curvature flow.2019 arXiv:1909.09241@article{families-1.5, author = {Hoffman, D.}, author = {Martín, F.}, author = {White, B.}, title = {Nguyen's Tridents and the Classification of Semigraphical Translators for Mean Curvature Flow.}, date = {2019}, journal = { arXiv:1909.09241}} HoffmanD.MartínF.WhiteB.Translating annuli for mean curvature flow2020in preparation@article{families-2, author = {Hoffman, D.}, author = {Martín, F.}, author = {White, B.}, title = {Translating Annuli for Mean Curvature Flow}, date = {2020}, journal = {in preparation}} HuiskenG.Flow by mean curvature of convex surfaces into spheresJournal of Differential Geometry20 date=1984237–266@article{huisken84, author = {Huisken, G.}, title = {Flow by Mean Curvature of Convex Surfaces into Spheres}, journal = {Journal of Differential Geometry}, volume = {{20} date={1984}}, pages = {237–266}} HuiskenG.Asymptotic behaviour for singularities of the mean curvature flowJournal of Differential Geometry31 date=1990285–299@article{huisken90, author = {Huisken, G.}, title = {Asymptotic behaviour for singularities of the mean curvature flow}, journal = {Journal of Differential Geometry}, volume = {{31} date={1990}}, pages = {285–299}} IlmanenT.Elliptic regularization and partial regularity for motion by mean curvatureMem. Amer. Math. Soc.1081994520x+90@article{ilmanen, author = {Ilmanen, T.}, title = {Elliptic regularization and partial regularity for motion by mean curvature}, journal = {Mem. Amer. Math. Soc.}, volume = {108}, date = {1994}, number = {520}, pages = {x+90}} MantegazzaC.Lectures notes on mean curvature flowBirkhäuser2011@book{LecturesNotesOnMCF, author = {Mantegazza, C.}, title = {Lectures Notes on Mean Curvature Flow}, publisher = {Birkh�user}, date = {2011}} MartínF.Savas-HalilajA.SmoczykK.On the topology of translating solitons of the mean curvature flowCalc. of Var. and Partial Differential Equations54201532853–2882@article{mss, author = {Martín, F.}, author = {Savas-Halilaj, A.}, author = {Smoczyk, K.}, title = {On the topology of translating solitons of the mean curvature flow}, journal = {Calc. of Var. and Partial Differential Equations}, volume = {54}, date = {2015}, number = {3}, pages = {2853–2882}} MartínF.Pérez-GarcíaJ.Savas-HalilajA.SmoczykK.A characterization the of the grim reaper cylinderJ. Reine Angew. Math.20192019746209–234ISSN 0075-4102@article{mpss, author = {Martín, F.}, author = {Pérez-García, J.}, author = {Savas-Halilaj, A.}, author = {Smoczyk, K.}, title = {A characterization the of the grim reaper cylinder}, journal = {J. Reine Angew. Math.}, volume = {2019}, date = {2019}, number = {746}, pages = {209–234}, issn = {0075-4102}} MeeksW.H.title= A survey on classical minimal surface theoryPérez, J.University Lecture Series (AMS) vol. 602012182@book{meeks-perez, author = {Meeks, W.H.}, author = {{Pérez, J.} title={ A survey on classical minimal surface theory}}, publisher = {University Lecture Series (AMS) vol. 60}, year = {2012}, pages = { 182}} NguyenX. H.Translating tridentsComm. Partial Differential Equations3432009257–280@article{Nguyen09, author = {Nguyen, X. H.}, title = {Translating tridents}, journal = {Comm. Partial Differential Equations}, volume = {34}, number = {3}, date = {2009}, pages = {257-280}} NguyenX. H.Complete embedded self-translating surfaces under mean curvature flowJ. Geom. Anal. volume=23320131379–1426@article{Nguyen13, author = {Nguyen, X. H.}, title = {Complete embedded self-translating surfaces under mean curvature flow}, journal = {{J. Geom. Anal.} volume={23}}, number = {3}, date = {2013}, pages = {1379-1426}} NguyenX. H.Doubly periodic self-translating surfaces for the mean curvature flowGeom. Dedicata17412015177–185@article{Nguyen15, author = {Nguyen, X. H.}, title = {Doubly periodic self-translating surfaces for the mean curvature flow}, journal = {Geom. Dedicata}, volume = {174}, number = {1}, date = {2015}, pages = {177-185}} ShahriyariL.Translating graphs by mean curvature flowGeom. Dedicata175201557–64@article{shari, author = {Shahriyari, L.}, title = {Translating graphs by mean curvature flow}, journal = {Geom. Dedicata}, volume = {175}, date = {2015}, pages = {57–64}} SmithG.On complete embedded translating solitons of the mean curvature flow that are of finite genus arXiv:1501.0414920151–69@article{smith, author = {Smith, G.}, title = {On complete embedded translating solitons of the mean curvature flow that are of finite genus}, journal = { arXiv:1501.04149}, date = {2015}, pages = {1-69}} SpruckJ.XiaoL.Complete translating solitons to the mean curvature flow in $\mathbf{R}^{3}$ with nonnegative mean curvatureAmerican J. Math. (to appear), arXiv:1703.01003v220171–23@article{spruck-xiao, author = {Spruck, J.}, author = {Xiao, L.}, title = {Complete translating solitons to the mean curvature flow in $\R^3$ with nonnegative mean curvature}, journal = {American J. Math. (to appear), arXiv:1703.01003v2}, date = {2017}, pages = {1-23}} WangX.J.Convex solutions of the mean curvature flowAnn. Math.17320111185–1239@article{wang, author = {Wang, X.J.}, title = {Convex solutions of the mean curvature flow}, journal = {Ann. Math.}, volume = {173}, date = {2011}, pages = {1185-1239}} WhiteB.Curvature estimates and compactness theorems in $3$-manifolds for surfaces that are stationary for parametric elliptic functionalsInvent. Math.8819872243–256ISSN 0020-9910Review MathReviewsDocument@article{white-curvature-estimates, author = {White, B.}, title = {Curvature estimates and compactness theorems in $3$-manifolds for surfaces that are stationary for parametric elliptic functionals}, journal = {Invent. Math.}, volume = {88}, date = {1987}, number = {2}, pages = {243–256}, issn = {0020-9910}, review = {\MR{880951}}, doi = {10.1007/BF01388908}} WhiteB.Introduction to minimal surface theorytitle={Geometric analysis}, series={IAS/Park City Math. Ser.}, volume={22}, publisher={Amer. Math. Soc., Providence, RI}, 2016387–438Review MathReviews@article{white-intro, author = {White, B.}, title = {Introduction to minimal surface theory}, conference = {title={Geometric analysis}, }, book = {series={IAS/Park City Math. Ser.}, volume={22}, publisher={Amer. Math. Soc., Providence, RI}, }, date = {2016}, pages = {387–438}, review = {\MR{3524221}}} WhiteB.Controlling area blow-up in minimal or bounded mean curvature varietiesJ. Differential Geom.10220163501–535ISSN 0022-040XReview MathReviews@article{white-controlling, author = {White, B.}, title = {Controlling area blow-up in minimal or bounded mean curvature varieties}, journal = {J. Differential Geom.}, volume = {102}, date = {2016}, number = {3}, pages = {501–535}, issn = {0022-040X}, review = {\MR{3466806}}}
