Differential Astrometric Framework for the Jupiter Relativistic Experiment with Gaia

TL;DR

This paper develops a differential astrometric method using Gaia data to achieve micro-arcsecond precision for the Jupiter relativistic experiment, analyzing the impact of unmodeled parameters on measurement accuracy.

Contribution

It introduces a novel differential astrometric framework for high-precision measurements near Jupiter, accounting for calibration and unmodeled effects in Gaia observations.

Findings

Achieved sub-micro-arcsecond precision along scan

Proper motions significantly affect residuals more than parallaxes

Catalog errors minimally impact measurement stability

Abstract

We employ differential astrometric methods to establish a small field reference frame stable at the micro-arcsecond ($\mu$as) level on short timescales using high-cadence simulated observations taken by Gaia in February 2017 of a bright star close to the limb of Jupiter, as part of the relativistic experiment on Jupiter's quadrupole. We achieve sub$\mu$as-level precision along scan through a suitable transformation of the field angles into a small-field tangent plane and a least-squares fit over several overlapping frames for estimating the plate and geometric calibration parameters with tens of reference stars that lie within $\sim$0.5 degs from the target star, assuming perfect knowledge of stellar proper motions and parallaxes. Furthermore, we study the effects of unmodeled astrometric parameters on the residuals and find that proper motions have a stronger effect than unmodeled parallaxes. For e.g., unmodeled Gaia DR2 proper motions introduce extra residuals of $\sim$23$\mu$as (AL) and 69$\mu$as (AC) versus the $\sim$5$\mu$as (AL) and 17$\mu$as (AC) due to unmodeled parallaxes. On the other hand, assuming catalog errors in the proper motions such as those from Gaia DR2 has a minimal impact on the stability introducing sub$\mu$as and $\mu$as level residuals in the along and across scanning direction, respectively. Finally, the effect of a coarse knowledge in the satellite velocity components (with time dependent errors of 10$\mu$as) is capable of enlarging the size of the residuals to roughly 0.2 mas.

Figures

Tables

Table 1. Table 1: List of the reference star id and the number of times that it is seen in total and the values of its astrometric parameters (i.e. parallaxes and proper motions with their respective errors) from Gaia DR2.

starId	nObs	$\pi$[mas]	${\sigma }_{\pi }$[mas]	${\mu }_{\alpha \ast }$[mas/yr]	${\sigma }_{{\mu }_{\alpha \ast }}$[mas/yr]	${\mu }_{\delta }$[mas/yr]	${\sigma }_{{\mu }_{\delta }}$[mas/yr]
1	104	0.580	0.047	-43.699	0.079	-15.470	0.057
2	88	0.271	0.037	-5.453	0.067	-0.527	0.052
3	80	2.325	0.051	-26.436	0.079	6.346	0.070
4	80	3.059	0.051	-43.430	0.090	-3.309	0.067
5	88	1.008	0.050	-2.197	0.066	2.964	0.053
6	104	0.689	0.066	0.590	0.081	-9.552	0.077
7	88	2.810	0.058	20.508	0.098	-49.644	0.117
8	96	1.866	0.039	-19.363	0.077	-10.430	0.056
9	56	0.876	0.065	4.522	0.236	-8.638	0.096
10	112	0.417	0.037	-5.592	0.080	0.653	0.055
11	112	6.977	0.040	-76.545	0.074	-7.742	0.060
12	112	1.179	0.043	-8.800	0.077	12.454	0.059
13	104	2.350	0.036	-16.248	0.076	15.734	0.048
14	80	3.980	0.045	22.883	0.083	-17.226	0.058
15	80	3.443	0.050	-22.019	0.080	-18.794	0.069
16	88	5.450	0.045	-23.764	0.081	-16.905	0.063
17	88	5.609	0.049	-112.627	0.081	-30.181	0.083
18	88	2.569	0.038	-29.627	0.082	0.251	0.057
19	88	8.986	0.078	104.889	0.104	-48.145	0.102
20	88	1.297	0.046	-10.022	0.075	4.051	0.055
21	85	0.556	0.045	-25.758	0.086	-7.016	0.064
22	112	1.314	0.040	-5.323	0.070	-0.234	0.053
23	96	0.603	0.046	-10.050	0.086	-24.174	0.077
24	104	1.401	0.038	-16.193	0.072	-4.848	0.056
25	80	1.534	0.049	-0.476	0.075	-3.760	0.059
26	80	0.671	0.094	-3.727	0.209	2.446	0.272
27	80	2.643	0.101	4.523	0.166	-7.290	0.130
28	104	1.316	0.066	4.191	0.094	0.802	0.071
29	56	0.351	0.040	5.266	0.079	-15.818	0.065
30	88	2.628	0.072	-31.088	0.117	-5.173	0.109
31	56	3.439	0.053	-57.511	0.116	-22.168	0.110

Table 2. Table 2: Total number of reference stars seen on each transit.

transit no.	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
no. of ref stars	13	8	20	18	31	25	27	31	23	28	22	22	28	21	28

Equations

$$|(t_{ot}-t_{os})|<\Delta t$$

$$\eta (t_{ot})$$

$$\zeta (t_{ot})$$

$$\dot{\eta }$$

$$\dot{\zeta }$$

$${\eta }_{fn}(\mu ,t)={\eta }_n^0+\sum _{r=0}^2\Delta {\eta }_{rfn}{L}_r^{\ast }\left(\frac{\mu -13.5}{1966}\right)$$

$${\zeta }_{fn}(\mu ,t)={\zeta }_{fn}^0+\sum _{r=0}^2\Delta {\zeta }_{rfn}{L}_r^{\ast }\left(\frac{\mu -13.5}{1966}\right)$$

$${\mu }_{\eta }$$

$${\mu }_{\zeta }$$

$$\eta$$

$$\zeta$$

$$X_{ij}^{{}^{\prime }}=\tan ({\eta }_{ij}^{{}^{\prime }}),Y_{ij}^{{}^{\prime }}=\frac{\tan ({\zeta }_{ij}^{{}^{\prime }})}{\cos ({\eta }_{ij}^{{}^{\prime }})}$$

$$X_{ij}^{{}^{\prime }}$$

$$Y_{ij}^{{}^{\prime }}$$

$$\displaystyle\frac{\partial X^{\prime}_{ij}}{\partial\eta}\Bigr{|}_{\begin{subarray}{c}\eta_{ij}\zeta_{ij}\end{subarray}}$$

$$\times \left(-\cos ({\zeta }_{ij})\sin ({\eta }_{ij})\right)$$

$$\displaystyle\frac{\partial X^{\prime}_{ij}}{\partial\zeta}\Bigr{|}_{\begin{subarray}{c}\eta_{ij}\zeta_{ij}\end{subarray}}$$

$$\times \left(-sin({\zeta }_{ij})cos({\eta }_{ij})\right)$$

$$\displaystyle\frac{\partial Y^{\prime}_{ij}}{\partial\eta}\Bigr{|}_{\begin{subarray}{c}\eta_{ij}\zeta_{ij}\end{subarray}}$$

$$\displaystyle\frac{\partial Y^{\prime}_{ij}}{\partial\zeta}\Bigr{|}_{\begin{subarray}{c}\eta_{ij}\zeta_{ij}\end{subarray}}$$

$$\times \left(-\sin ({\zeta }_{ij})\cos ({\eta }_{ij})\right)$$

$$X_{0j}^{{}^{\prime }}(t_{0t})$$

$$Y_{0j}^{{}^{\prime }}(t_{0t})$$

Full text

††pubyear: 2018††pagerange: Differential Astrometric Framework for the Jupiter Relativistic Experiment with Gaia–Differential Astrometric Framework for the Jupiter Relativistic Experiment with Gaia

1 Introduction

The on-going Gaia space mission (Gaia Collaboration et al., 2016a) has provided high-precision global astrometric catalogues in two successive data releases over the past few years (Gaia Collaboration et al., 2016b; Gaia Collaboration et al., 2018). This has heralded the beginning of an era of high-precision astrometry in which the models and methodologies are required to demonstrate at least micro-arcsecond ($\mu$as) level, if not higher, precision (Lattanzi, 2012). Indeed, as part of the Gaia Data Processing and Analysis Consortium (DPAC) activities, the description of stellar positions in Gaia measurements, using the baseline Gaia RElativistic Model (GREM) model in the Astrometric Global Iterative Solution (AGIS) (Klioner, 2003) or its Relativistic Astrometric MODel (RAMOD) (Crosta et al., 2008c; Crosta & Vecchiato, 2010) counterpart in the Global Sphere Reconstruction (GSR) module for the astrometric verification of the AGIS solution, is accurate at the sub-$\mu$as level.

The astrometric parameters (position, proper motion and parallaxes) as provided in past Gaia data releases are absolute parameters obtained by the AGIS solution, (e.g. Lindegren et al. 2016, 2018). The scanning motion of the satellite is specifically designed to provide measurements over the whole celestial sphere in 6 months’ time through a combination of three motion: a) rotation of Gaia around its spin axis every 6 hours, b) the precession of the spin axis every 63 days, and, c) the orbital motion of the satellite around the Sun (Lindegren et al., 2016). It is possible to perform differential astrometry starting with Gaia’s global astrometric measurements, constructing a high-precision inertial astrometric reference frame over small fields with a size essentially defined by the dimensions of Gaia’s field of view (FOV). This approach requires a sophisticated methodology that uses the set of coordinates (field angles) in the focal plane of the satellite as input and depends mainly on the geometric calibrations of the CCDs and the satellite attitude. The main challenge to face concerns the ability to robustly define such a local reference frames over the very different time-scales associated to diverse scientific applications of this approach, such as relativistic deflection of light tests (duration of a few days), astrometric microlensing events (duration up to monhts), and orbital reconstruction of binary and substellar companions, including exoplanets (duration of years). The developed methodology must be able to account for highly different distributions and number of comparison stars at different epochs of Gaia observations (transits), depending on the satellite’s scanning direction, as well as highly changing geometric calibrations, particularly when the timespan of the observations exceeds a few weeks (Lindegren et al., 2018).

In Abbas et al. 2017 we provided an initial assessment of this approach using Gaia simulated high-cadence observations around the ecliptic poles as a backbone, finding that the so-defined local reference frame would be stable at the $\mu$as level with a modest number (30-40) of stars over a $0.24\times 0.24$ deg field. In this paper we further develop our methodology, focusing on the observational scenario setup for the purpose of the Gaia relativistic light deflection experiment around Jupiter, particularly due to its flattened mass distribution that induces a quadrupole term (hence the name GAREQ - Gaia Relativistic Experiment on Jupiter’s Quadrupole, Crosta & Mignard 2006; Crosta et al. 2008a, b). In order to carry out the experiment, the Gaia nominal scanning law was specifically optimized in its two free parameters, the initial precession and the spin phase angles, in order to obtain the most suitable arrangement of a bright star observed as close as possible to Jupiter’s limb (Gaia Collaboration et al., 2016a; de Bruijne et al., 2010). As the quadrupole light deflection term scales with the inverse cube of the impact parameter, the induced effect is transient and lasts only about 20 hours for a detection at the 10$\mu$as level (for a light ray grazing Jupiter’s limb the effect is $\sim$240 $\mu$as). An optimized observational campaign was therefore key to obtaining the best possible signal as a compromise with the dominant stray light effects very close to Jupiter and away from the bright trail of light left behind by Jupiter on the CCDs during the scanning motion of Gaia. Furthermore, the GAREQ experiment is a special case scenario, with high-cadence observations obtained by Gaia on several successive transits on a timespan of 3 days.

In this paper we perform a differential astrometric analysis of Gaia simulated observations of a GAREQ event that occurred in February 2017, to gauge the best approach towards obtaining a reference frame stable at the $\mu$as level. The analysis described here improves on Abbas et al. 2017 in several respects, including a) a novel implementation of the methodology to significantly reduce the number of unknown parameters, b) the inclusion of stellar parallaxes, and c) the investigation of the effects on the stability of the reference frame in the presence of unmodeled proper motions and parallaxes as well as when the known astrometric parameters are removed a priori.

The paper is laid out as follows: in Sec. 2 we discuss the simulation setup, in Sec. 3 we present the procedure for transforming the field angles into the tangent plane and then for obtaining a least squares fit on the unknown parameters. In the following Sec. 4 we present our most relevant findings, closing up with a summary and brief discussion in Sec. 5.

2 The Gaia simulations for GAREQ

We will attempt to construct a small field ($\sim$0.3 sq. degs) reference frame using the real-time observations with Gaia of the field angles as measured in its FOV. These field angles are given by $\eta$ and $\zeta$ along and across Gaia’s scanning direction respectively. The angles are simulated with the AGISLab software package that is ideal for running realistic small-scale experiments on a laptop and is faithful to the Gaia satellite. The package uses a subset of the most important functionalities of the AGIS mainstream pipeline used to analyze the actual Gaia data (Holl & Lindegren, 2012).

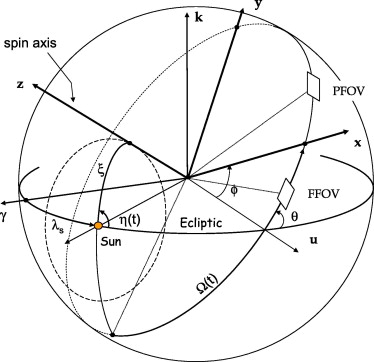

2.1 The scanning law and its optimization

The Gaia space satellite scans the sky through a uniform revolving motion that is designed to maximize the uniformity of the coverage with the following three main ingredients (Gaia Collaboration et al., 2016a): a) spin rate, $\omega_{z}\sim$ 60.0"$s^{-1}$ around the spin axis corresponding to a rotation period of 6 hours, b) solar aspect angle, $\xi$ = 45∘ to maintain a good thermal stability (and in turn a constant basic angle between the two fields of view) and high parallax sensitivity that depends on $\sin{\xi}$, and, c) precession of the spin axis around the Sun with a period of 63 days that causes a sinusoidal varying across-scan speed over 6 hours of the stellar images across the focal plane. A figure showing these three motions is given in Fig. 1.

This uniform motion of the satellite unfolds in the ecliptic plane with the Sun at its center and is determined by two heliotropic angles: a) the precession phase, $\nu(t)$ that is the angle between the ecliptic plane and the plane (Sun-z) containing the Sun and satellite $z$ axis, b) the spin phase, $\Omega(t)$ that is the angle on the great circle between the Sun-z and the satellite $zx$ planes (see Fig.1, note that in the figure $\nu(t)$ is given as $\eta(t)$). Their time dependent equations have two free parameters; the initial precession phase and the initial spin phase angles at the start of science operations (Gaia Collaboration et al., 2016a). These free parameters have been optimized in order to obtain the best possible observing conditions necessary to obtain the highest possible signal for the GAREQ experiment. A dedicated and non-trivial optimization campaign carried out by the RElativistic Modeling And Testing (REMAT) group within the Gaia Data Processing and Analysis Consortium was successful in predicting a set of 3 bright stars ($G=15.75$ mag) all observed close to Jupiter with the brightest star ($G=12.7$ mag) seen barely a few arcseconds from Jupiter’s limb during its passage across the sky (Klioner & Mignard, 2014a, b). This star field is shown in Fig.2 where each observing time is clocked when the stellar image centroid passes the fiducial line of a CCD and represents the fundamental observed quantity. The fiducial line is generally halfway between the first and last line used during the time-delayed integration (TDI) mode of Gaia. In the Focal Plane of Gaia there are 9 fiducial lines for all the columns that make up the Astrometric Field having 62 CCDs from 7 rows and 9 columns, except for the last column with 6 CCD rows (Prusti et al. 2016, Fig. 4).

2.2 The simulated field angles and reference stars

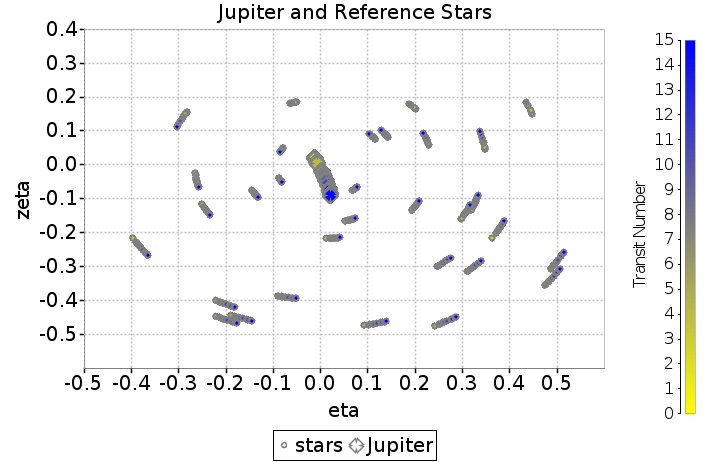

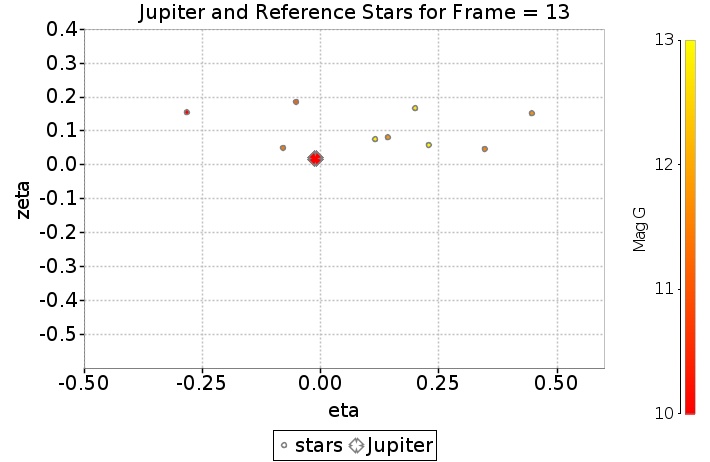

The adopted setup is based on the Gaia satellite equipped with two FOVs that are separated by the basic angle of 106.5 degs and rotating at a fixed rate of 59".9605 $s^{-1}$ around its spin axis (Gaia Collaboration et al. 2016). The simulator is run using nominal CCD size, focal plane geometry and FOV size and orbital parameters. The observed source direction or its proper direction, is computed using a suitable relativistic model necessary for highly accurate astrometric observations in the parametrized post-Newtonian (PPN) framework and specifically adopted by Gaia (Klioner, 2003). This formulation takes into account the relativistic modeling of the motion of the observer and modeling of relativistic aberration and gravitational light deflection, as well as a relativistic treatment of the parallaxes and proper motions.

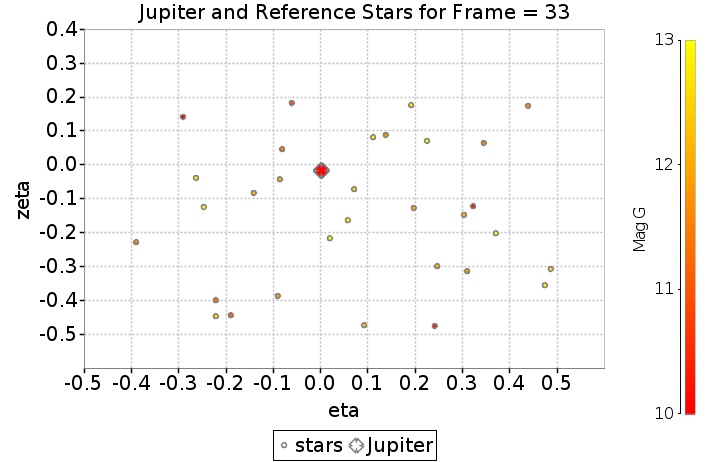

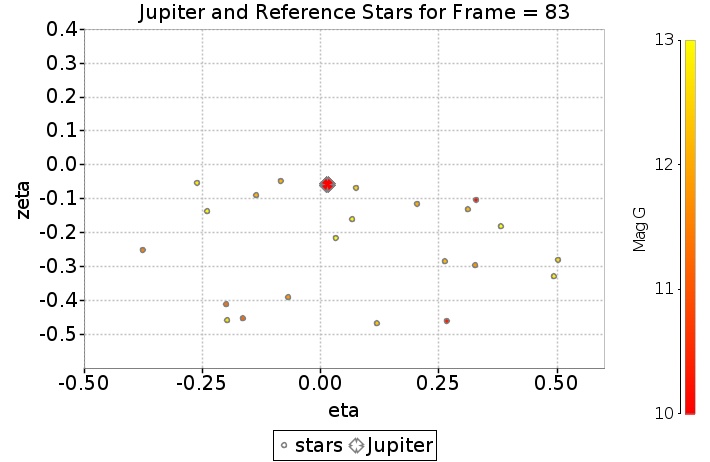

The first 15 transits around the target star (G=12.68 mag) in Februrary 2017 were used that also coincide with when Jupiter is seen within the same frame. In order to maximize the number of observations, close bright stars (10 $<$ G $<$ 13 mag) having 2d windows, and, hence the $\eta$ and $\zeta$ coordinates, are chosen to lie within $\pm$30 secs of the observing time of the target star for the same CCD column. This ensures that the target star always lies at the center of the frame surrounded by the set of reference stars that are not necessarily seen by Gaia on each and every one of the 15 transits during which the target star is present, mainly depending on the scanning direction during those instants of time causing different orientations of the astrometric field. This leads to different ’subsets’ of reference stars observed on different transits as some areas of the field are ’cut off’ depending on the scanning angle, for e.g. the target star that is ideally seen in the central row 4 leading to the whole surrounding star field being visible, could be seen on row 1 or 7 in the following transit caused by the shift in the focal plane leading to the whole lower or upper part respectively of the star field to remain hidden from Gaia and unobserved (see Fig.3). Under these conditions we have chosen the reference frame to contain the maximum number of reference stars, in this case 31 stars, surrounding the target star. This high number of stars are given by the observing times as seen by AF1 during Gaia’s fifth transit over the star field and converted into spatial coordinates as described in Section2.3. The AF1-AF8 observations were used, AF9 observations were rejected due to the presence of the WFS. Table 1 shows the total number of times each of the reference stars is seen. All the reference stars are seen 8 times during a whole transit except for star no. 21 that is seen a few times less on the second transit as it falls at the very edge of the FOV as mentioned earlier. Table 2 gives the total number of reference stars seen on each transit that constitutes 8 frames.

2.3 Effect due to the AL-AC motion of a star

We need to define a set of frames (our ’plates’), each one identified by a unique observing time. For convenience we can choose it to be the $t_{ot}$ of the target star - to which the measurements of all the stars observed some $\pm\Delta t$ from $t_{ot}$ are referred to. For each $t_{ot}$ we will have a different local frame, with coordinate axes identified by the along and across scan direction at time $t_{ot}$, and we must model accordingly all measurements that we assign to that frame. Then, we use the principles of differential astrometry to adjust all the frames to a common frame by means of translations, rotations, scale terms and possible distortion terms if necessary.

It is important that for each star observed at time $t_{os}$, such that

[TABLE]

we refer its measured coordinates to the same local frame. To do so, we first compute the star’s field angles ($\eta,\zeta$) using the best current calibration parameters; then, we use the time derivatives of the field angles ($d\eta/dt,d\zeta/dt$) to take into account the variation of the direction of the ($\eta$,$\zeta$) axes that occurred in the elapsed time $\Delta t$. To first order approximation, the local coordinates of a star observed in the frame defined by $t_{ot}$ are:

[TABLE]

For the field-angle rates we can use the formulae:

[TABLE]

where $\omega_{x},\omega_{y}$ and $\omega_{z}$ are the components of the instantaneous inertial angular velocity of Gaia, and $\varphi=\eta\pm\gamma/2$, where the plus or minus sign is used for preceding or following FOV respectively and $\gamma$ being the basic angle between the two fields of view of Gaia.

2.4 Calibration effects

Amongst the possible distortion effects we take into account the Large-scale AL and AC calibrations where the former could potentially vary over time scales of a day. As we are considering observations over a couple of days, we assume these large scale calibrations to be constant to first approximation. The AL large-scale calibration is modeled as a low-order polynomial in the across-scan pixel coordinate $\mu$ (that varies from 13.5 to 1979.5 across the CCD columns, Lindegren et al. 2012) and can be written as:

[TABLE]

where f is the FOV index, n is the CCD index and r is the degree of the shifted Legendre polynomial $L_{r}^{*}(\tilde{\mu})$ as a function of the normalized AC pixel coordinate ($\tilde{\mu}$) and $\eta^{0}_{n}$ is the nominal calibration. A similar equation holds for the AC large-scale calibrations which can be written as:

[TABLE]

We will assume non-gated observations which is technically only valid for faint sources; brighter star observations involve as many as a dozen gates that would need to be calibrated. Saturated images by stars brighter than about G = 12 is mitigated through the use of TDI gates, activated to inhibit charge transfer and hence to effectively reduce the integration time for bright sources (Gaia Collaboration et al., 2016b). The adopted TDI gate scheme impacts the bright-star errors and it can be seen that predicted end-of-mission parallax errors averaged over the sky vary in the range of 5-16 $\mu$as (see Fig. 10 in de Bruijne 2012). However, the advantage of using sources brighter than G $\sim$ 13 mag is that they will always be observed as two-dimensional images, and therefore have high-precision measurements in both coordinates, though the precision of the AC coordinate is a factor of five worse than the AL one due to the rectangular shape of the CCD pixels (de Bruijne 2005, also see Table 1 in Abbas et al. 2017).

3 Transformation and fitting procedure

The field angles are transformed by first rotating them onto the (1,0,0) vector and then projecting them onto the tangent plane through a gnomonic transformation. The least squares fitting procedure then involves the taylor series expansion of the transformed field coordinates.

3.1 A priori removal of parallaxes and proper motions

With the aim of keeping the number of unknowns to be estimated to a minimum, we show the procedure of removing a priori the parallaxes and proper motions from Gaia DR2. As can be seen in Table1 the Gaia DR2 proper motions for this set of stars varies up to 116 mas/yr and with parallaxes up to 9 mas. In the simulation we account for these errors as gaussian distributions with standard deviations from Gaia DR2. These quantities are given in equatorial coordinates that then need to be converted to the Satellite Reference System (SRS) giving the projected along and across scan values. This transformation is completely determined by the position angle of the scan given by:

[TABLE]

When treating the parallaxes, $\mu_{\alpha}$ and $\mu_{\delta}$ can be replaced with the parallax factors $f_{\alpha}$ and $f_{\delta}$ respectively to obtain the transformed parallax factors along and across the scanning direction. These transformed quantities are then subtracted from the $\eta$ and $\zeta$ positions of the stars after multiplying the proper motions by the time passed since a chosen reference epoch and the parallaxes by the parallax factors.

The ’corrected’ field angles are then given as:

[TABLE]

where $\eta_{calc}$ and $\zeta_{calc}$ are calculated from the CCD and FOV information such as the CCD row and column numbers and FOV index combined with the geometrical calibrations. The proper direction to the star at a given time is then obtained through the field angles by including the attitude at that instant.

3.2 Pre-rotation and Gnomonic transformation

The fundamental ingredients to the model are the SRS field angles ($\eta$, $\zeta$) for these stars including their geometric calibrations (Sec.2.4) and AL-AC motion (Sec.2.3). Furthermore, the operations mentioned in Sec.3.1 are performed that involve the estimation and a priori removal of the Gaia DR2 proper motions and parallaxes. We denote the target star as measured in the $i$th frame by $\eta^{{}^{\prime}}_{i0}$ and $\zeta^{{}^{\prime}}_{i0}$, whereas $\eta^{{}^{\prime}}_{ij}$ and $\zeta^{{}^{\prime}}_{ij}$ are the observed calibrated field angles of the $j$th star in the $i$th frame.

Before trying a global adjustment of all the frames using the principles of tangent-plane astrometry, field angle measurements must be rectified via a gnomonic transformation. In order to minimize the differential effect of the so-called $\it tilt$ terms, which are second-order quantities arising from a misalignment of the nominal vs. true position of the telescope’s optical axis, all the reference stars, including the target, are rotated in such a way that the position of the target star becomes aligned with the (1,0,0) vector defining the optical axis of Gaia.

Then these field angles are converted to coordinates in the tangent plane with tangent point (0,0) using gnomonic transformations as follows:

[TABLE]

for the $i$th frame and the $j$th star.

3.3 Taylor series expansion

We linearize the expressions from eq.8 and perform a Taylor series expansion of the reference star coordinates in the tangent plane from above around the nominal position of the star, i.e. the fiducial position free from any calibrations. This operation has the added advantage of reducing the number of calibration unknowns by a factor of three with respect to the astrometric model used in Abbas et al. 2017 as will be shown below.

The nominal positions will be denoted by the unprimed quantities $\eta_{ij}$ and $\zeta_{ij}$. The expansion to first order can be written as:

[TABLE]

where the partial derivatives are evaluated at the nominal position and are treated as known quantities. They are given as:

[TABLE]

[TABLE]

where $f(\eta_{ij},\zeta_{ij})=\cos(\zeta^{{}^{\prime}}_{ij})\cos(\eta^{{}^{\prime}}_{ij})$.

The differences multiplying the partial derivatives are the calibration terms given in eqns.4 $\&$ 5 that are to be estimated through the least-squares technique mentioned later on.

3.4 Astrometric model

The positions of the stars in each frame are adjusted to its reference frame value through a simple linear plate transformation given as:

[TABLE]

where $X^{{}^{\prime}}$ and $Y^{{}^{\prime}}$ are the star coordinates in the tangent plane, with $X^{{}^{\prime}}_{0j}$ and $Y^{{}^{\prime}}_{0j}$ being the coordinates of the $j$th star on the reference frame. The plate constants are given by $a_{i}$, $b_{i}$, $c_{i}$, $d_{i}$, $e_{i}$ and $f_{i}$.

The software package GAUSSFit (Jefferys et al., 1988) is used to solve this set of equations through a least squares procedure that minimizes the sum of squares of the residuals weighted according to the input errors. The estimated plate/frame parameters ($a_{i}$ through $f_{i}$) allow to transport the calibrated observations ($X^{{}^{\prime}}_{ij}$, $Y^{{}^{\prime}}_{ij}$) to a common reference frame. The distribution of residuals then informs us as to how well the model accounts for various effects. As can be expected, it is found that $a_{i}$ and $e_{i}$ are almost unity, whereas $b_{i}$ = $-d_{i}$ and together they give the rotation and orientation. The offsets $c_{i}$ and $f_{i}$ give the zero point of the common system (see Abbas et al. 2017, for more details).

4 Results

We summarize here the most relevant findings of our numerical experiments aimed at determining the ultimate systematic floor of our methodology for differential astrometry. We study in particular its behaviour a) as a function of unmodelled parallaxes and proper motions that are not removed a priori, b) when taking into account catalog errors in the astrometric parameters, and, c) in the case of lower-precision knowledge of the satellite velocity.

4.1 Systematic floor of the methodology

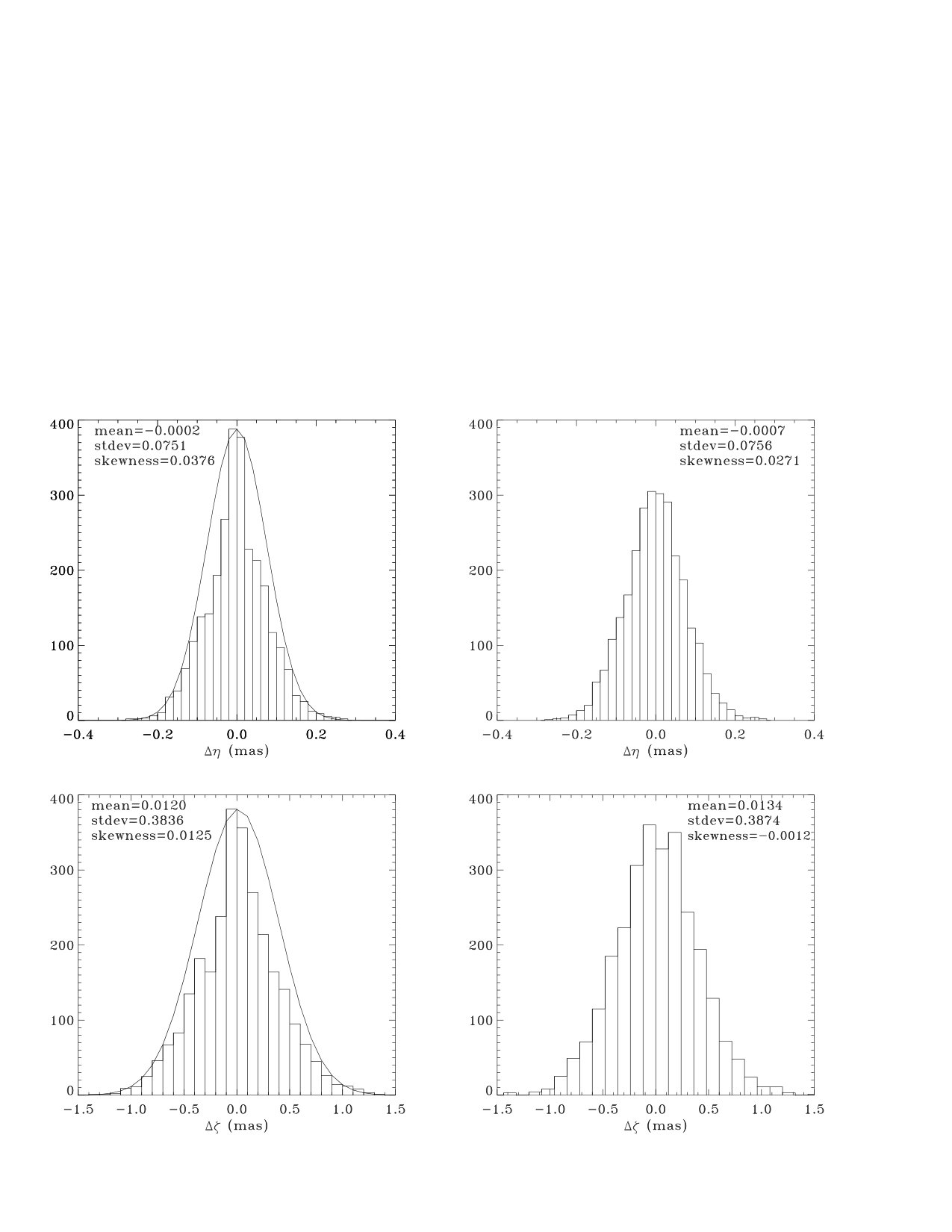

Fig.4 shows the sub$\mu$as-level stability achievable in the AL direction (1$\mu$as in AC) when no physical effects are included in the simulation (i.e. aberration and gravitational light deflection are turned off) and after an a priori removal of the star’s parallax and proper motion (following the procedure mentioned in Sec.3.1). The figure shows the differences between the fitted $\eta$ and $\zeta$ per star (Eq.3.4) using the best-fit plate and calibrations parameters obtained through the least-squares procedure of GAUSSFit and the corresponding values on the reference frame as a function of the transit number. Each transit is the average over eight frames from the first eight columns in the astrometric field (reason for this is described at the end of Sec.2.2), and the green points depict the average differences with respect to the reference frame values for each star seen on that transit. The black points are the averages over all the reference stars for that transit and the error bars show the standard deviation of the green points. The AL/AC input error and output residual distributions are shown in Fig.5 demonstrating the full recovery of the input standard errors in the methodology.

4.2 Residuals due to unmodeled effects

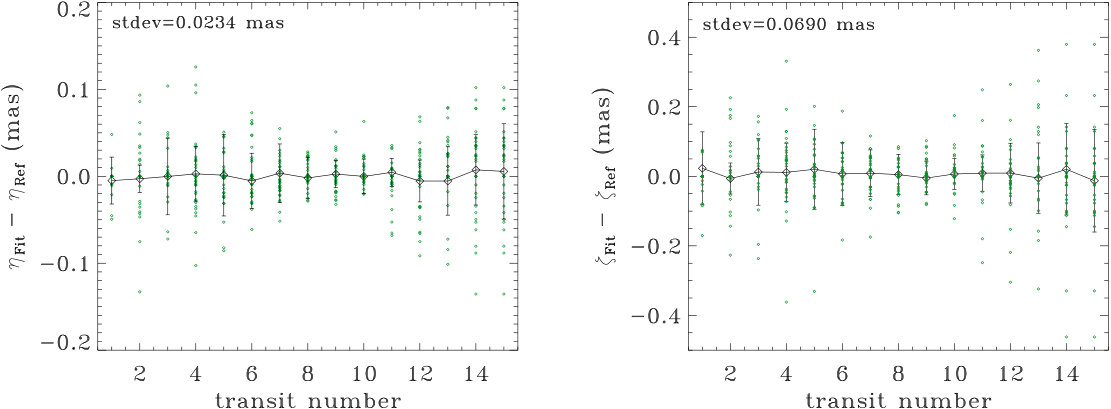

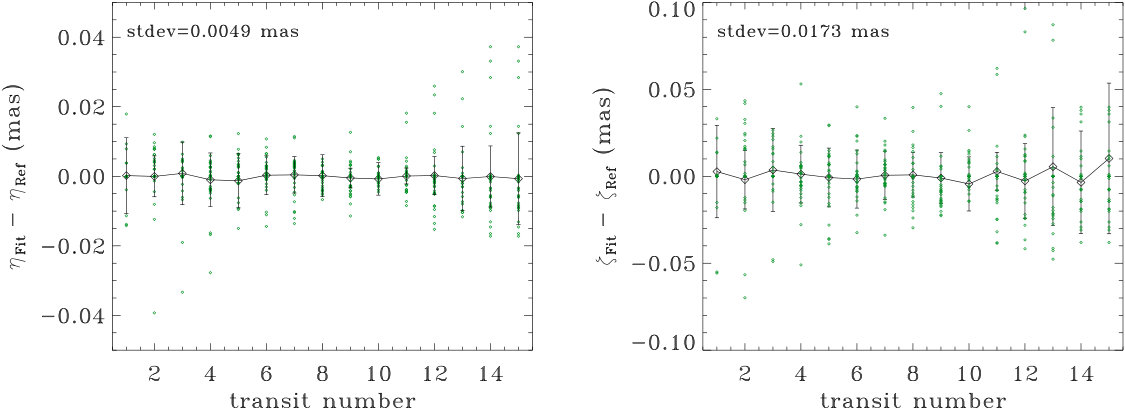

Here we will look at the effect of not accounting for the stars’ parallaxes nor their proper motions by neither removing their estimated values a priori nor attempting to model their contribution with appropriate unknown parameters that are subsequently estimated through a least-squares fitting procedure. These astrometric parameters would then augment the systematic floor and Figs.6 and 7 show the contributions from unmodelled parallaxes and proper motions respectively to the differences between the best-fitted star parameters for that transit and its reference frame value (see the previous Sec.4.1 for a more detailed description of the plot and points).

We can see that unmodeled proper motions have a 4-5 times larger effect on the stability than unmodeled parallaxes, where unmodeled Gaia DR2 proper motions introduce extra residuals of $\sim$23$\mu$as (AL) and 69$\mu$as (AC) versus the $\sim$5$\mu$as (AL) and 17$\mu$as (AC) due to unmodeled parallaxes. This result stems from the contribution of the average proper motions of the field (observed over the short time scale of the GAREQ experiment) and from that due to the effective parallax offset of the full field. It can also be argued that the smaller magnitudes of the parallaxes versus the much larger proper motions in combination with the time of year (contributing to the size of the parallax factor) and time span of observations are critical factors as well.

4.3 Effect of parameter errors

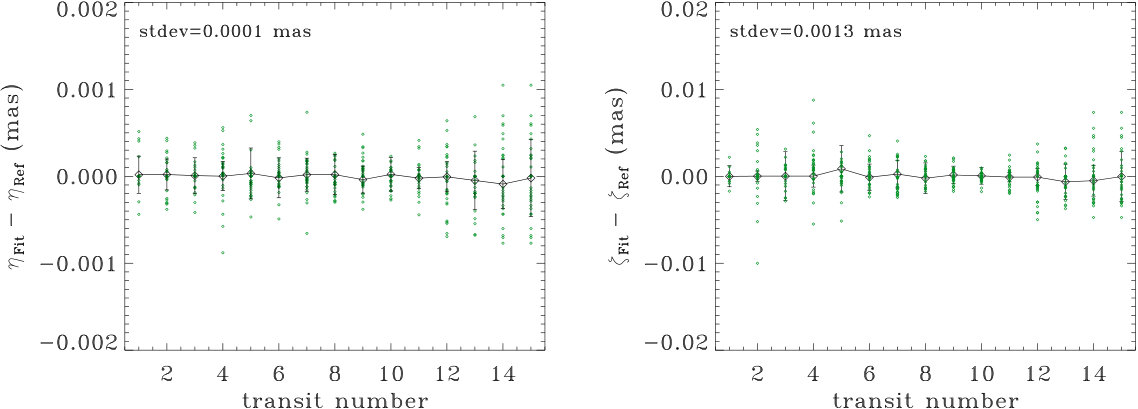

In order to see the effect that catalog errors in the astrometric parameters have on the stability, we add them as gaussian deviates to the parameter values and remove projected estimates of the original error-free astrometric parameters a priori. Figs.8 and 9 show the effects of the catalog errors in the parallaxes and proper motions. We can see that the stability remains at the sub $\mu$as-level in AL and $\mu$as level in AC for both the parallaxes and proper motions demonstrating the minimal effect of such errors.

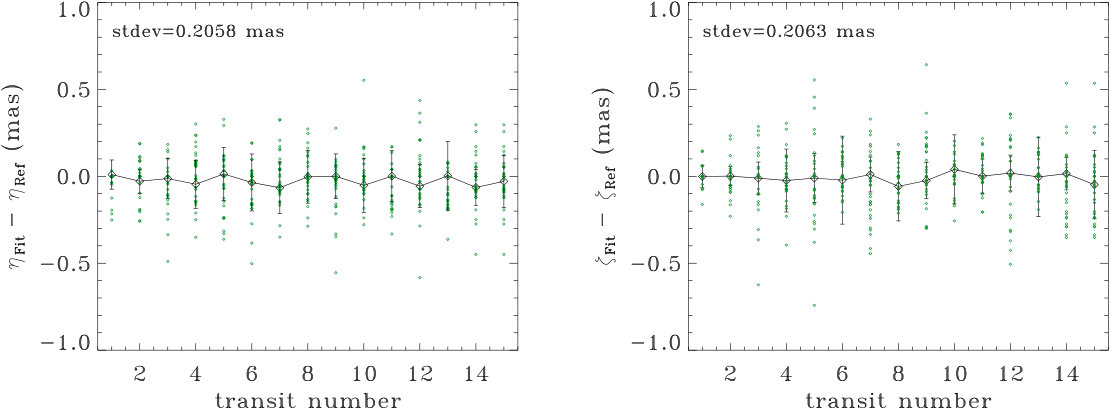

To see the effect an imprecise satellite velocity has on the residuals, we artificially perturb its value by adding a time-dependent error of 10$\mu$as s*-1* in each of the components of the satellite velocity. The effect is shown in Fig.10 giving AL and AC scan residuals of roughly 0.2mas each. We noticed that by introducing even a small time dependence on the uncertainty quickly translates into a much larger error on the stability of the reference system over the time span of the observations. This is a highly conservative estimate in light of a variety of attitude errors such as microclanks and micrometeoroid hits (Lindegren et al., 2016). Interestingly enough, this type of error contributes large residuals eventually giving AL and AC stability values that are almost equal.

5 Summary and discussion

In this paper we have further developed a differential astrometric framework for the analysis of Gaia observations, initially introduced in Abbas et al. (2017). We have specifically targeted high-cadence, short timescale observations in one of the fields of the GAREQ experiment, which is set to provide an unprecedented measurement of the relativistic deflection of light due to Jupiter’s quadrupole and a first-time measurement in the optical of the light deflection due to Jupiter’s monopole (expected to be $\sim$16mas for a grazing light, Crosta & Mignard 2006) .

We have demonstrated the sub$\mu$-as level stability of a local reference frame composed of a few tens of comparison stars surrounding the bright target star that is expected to show a large value for the relativistic light deflection due to its proximity to Jupiter’s limb. Our differential astrometric methodology relies upon pre-rotations that minimize second-order differential effects by transporting the various frames containing the field angles at different times to be overlapping around the target star, aligned with the unit vector defining the optical axis of Gaia. Subsequent gnomonic transformations convert the field angles into tangent plane coordinates centered on the target star. Furthermore, a Taylor series expansion of each reference star’s position around its fiducial point allows us to keep the number of calibration parameters to be estimated at a minimum, i.e. only two per CCD for each direction.

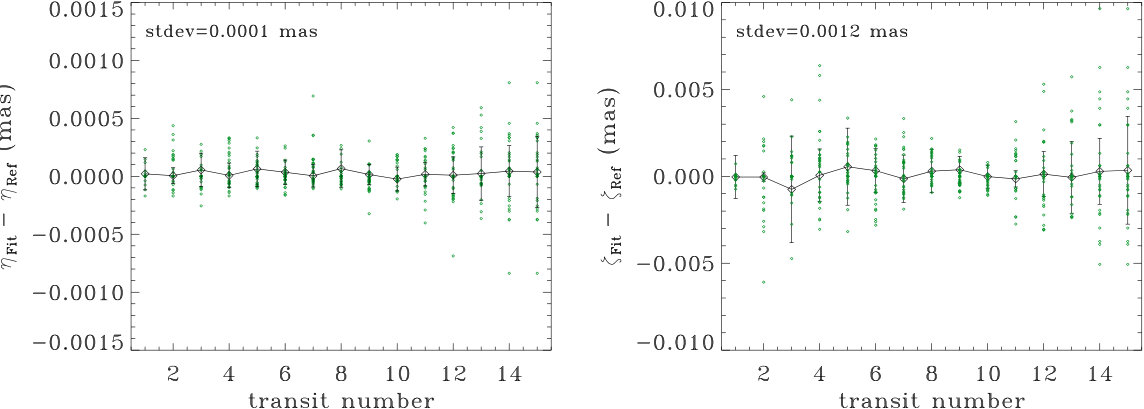

We show that a procedure for removing a priori error-free parallaxes and proper motions of reference stars brings the advantage of reducing the number of unknown parameters to be estimated to only the calibration and plate parameters. Indeed if such a procedure is not adopted and the parallaxes and proper motions are left unmodeled, the residuals are enlarged with the most dominant effect (by a factor of 4-5) being that due to the proper motion. The inclusion of catalog errors in the parallaxes and proper motions has a minimal impact, i.e. at the sub-$\mu$as level in AL, mainly due to the smaller magnitudes in the errors. We also show that a lower precision knowledge of the satellite velocity with 10$\mu$as s*-1* errors in its velocity components has a relatively important effect on the residuals giving conservative estimates of $\sim$ 0.2mas in both AL and AC.

We plan next to apply the methodology presented here to the analysis of the actual observations of events in the GAREQ experiment, and carry out detailed modeling of the various effects discussed in this paper. Additional, future applications of the differential astrometric approach to the analysis of Gaia observations naturally include configurations in which Gaia data are gathered on significantly longer timescales than those (around 24 hr) encompassed by the GAREQ experiment. Possible science cases include studies of future microlensing events (e.g., Mustill et al. 2018; Bramich 2018), the astrometric detection of orbital motion induced by planetary-mass companions (e.g., Sozzetti et al. 2014, 2016; Perryman et al. 2014), and investigations of the brown dwarf binary fraction (e.g., Marocco et al. 2015, and references therein). All the above analyses will require further improvements in the modeling of calibration and instrument attitude effects, that become important for Gaia astrometric time series with years-long baselines. A robust modeling framework for differential astrometry is also mandatory in view of future developments in the field aimed at pushing the ultimate precision in position measurements in the $\mu$as regime (e.g., Malbet et al. 2016) significantly beyond that achievable by Gaia.
