Compact bulk-machined electromagnets for quantum gas experiments

K. Roux, B. Cilenti, V. Helson, H. Konishi, and J.P. Brantut1$*\dagger$

1 Institute of Physics, École Polytechnique Fédérale de Lausanne, 1015 Lausanne, Switzerland ∗ jean-philippe.brantut@epfl.ch

†http://lqg.epfl.ch

Abstract

**We present an electromagnet combining a large number of windings in a constrained volume with efficient cooling. It is based on bulk copper where a small pitch spiral is cut out and impregnated with epoxy, forming an ensemble which is then machined at will to maximize the use of the available volume. Water cooling is achieved in parallel by direct contact between coolant and the copper windings. A pair of such coils produces magnetic fields suitable for exploiting the broad Feshbach resonance of 6Li at $832.2\,$G. It offers a compact and cost-effective alternative solution for quantum gas experiments. **

1 Introduction

Strong, homogeneous magnetic fields of the order of a thousand Gauss are at the core of quantum gas experiments, from laser cooling and trapping [1] to the use of Feshbach resonances controlling the inter-atomic interactions [2]. As experimental apparatus become more and more complex, with more laser beams or high-aperture imaging systems to accommodate, space occupation as well as heat management constraints become more and more acute, calling for optimized and flexible electromagnet designs. Efforts in this direction have been reported in the past years, in particular novel designs for Zeeman slowers [3, 4], Bitter electromagnets [5, 6, 7] or improved heat management methods [8]. More compact systems of magnetic traps use in-vacuum electromagnets [9, 10, 11], or atom chips [12, 13], but those are not adapted to experiments requiring large homogeneous fields.

The common ground of these electromagnet concepts is the improvement over the widely used design based on wound copper wire (see for example [14]). This solution is privileged due to its robustness, and the use of hollow wire allows for water cooling with good contact between copper and the coolant. It suffers however from several drawbacks, the first being the need for coolant and electrical current to follow the same path, yielding a large coolant pressure drop across the magnet even for a moderate number of turns. Several circuits of coolant fluid are then needed to limit temperature inhomogeneities in the coil. Another drawback is the lack of flexibility and poor space occupation efficiency: hollow copper wires are typically several millimeters wide, restricting the number of windings in a given volume. In addition, the epoxy matrix and coolant circuit inlets and outlets limit the fraction of volume actually used for current carrying copper.

The Bitter-type configuration addresses some of these drawbacks [5, 6, 7], in particular it offers very good heat management thanks to the improved flow of coolant through the magnet, at the cost of requiring each winding to bear several coolant connections. Space occupation was addressed in a recent improvement where several layers are used to increase the number of windings [15]. Other alternatives include the use of mixed configurations where hollow copper is combined with bulk copper wires [16] in a single assembly, or a scheme with fully parallel cooling demonstrated in a few-windings coil directly machined from a bulk copper block [8].

In this article, we present electromagnets optimizing space occupation, offering very large shape flexibility while allowing to reach the high fields required for the use of Feshbach resonances in 6Li [17]. Our design is based on a bulk copper plate in which a spiral is cut by wire erosion [8], and impregnated with epoxy. The resulting ensemble is machinable using standard tools, allowing for carving out ridges to maximize space occupation or holes for electrical connections and clamping. As a result, the limited volume of a reentrant vacuum viewport accommodates $31$ windings over a single $22\,$mm thick layer. We present the detailed fabrication procedure of the ensemble, as well as performance in terms of magnetic fields and heat management, demonstrating the suitability of this approach for quantum gas experiments.

2 Concept and design

The maximum magnetic field that a coil electromagnet can produce is limited by the geometric constraints on the coil dimensions and the total allowable power dissipation. In designing electromagnets for cold atoms experiments, the dimensions are constrained by the vacuum systems and necessary optical access, which limits the distance to the atoms and restricts the total volume available for the current carrying coil. In addition, the electric current is limited by practical constraints such as the diameter of cables, heating at the contacts and availability of power supplies.

In our design, the electromagnet has to fit in the limited volume of a reentrant vacuum viewport, while allowing for the use of high-resolution optics. At the same time, a pair of such electromagnets shall achieve magnetic fields of hundreds of Gauss several centimeters below the coil, in order to reach Feshbach resonances in 6Li atoms, with a current limited to $440$ A by the power supply. We meet these requirements using a coil comprising $31$ turns horizontally stacked in a single $22\,$mm thick layer, depicted in figure 1, with a large aspect ratio of $23.9$ for an individual winding. The inner and outer radii are $32$ and $72\,$mm respectively.

With the geometry fixed, the performance is limited by power dissipation, which is achieved by forced convection with cold water. Three different processes determine cooling efficiency and thus the temperature distribution within the electromagnet: (i) heat conduction within the bulk of the coil, measured by the temperature difference across the copper coil $\Delta T_{c}$ (ii) heat transfer at the coil-coolant interface, measured by the temperature difference between the coil and the coolant $\Delta T_{w}$ and (iii) coolant flux through the assembly, measured by the coolant temperature difference $\Delta T_{f}$ between the inlet and outlet. The regime $\Delta T_{f}\gg\Delta T_{c}+\Delta T_{w}$ corresponds to flux-limited cooling, where the coolant and magnet are thermalized and heat removal is limited by the flow, while $\Delta T_{f}\ll\Delta T_{c}+\Delta T_{w}$ corresponds to a transfer-limited regime where heat transfer between the coil and the coolant limits the cooling.

To guide our design, we estimate the parameter dependence of these three temperature differences for our horizontal stack configuration, where the electromagnet is cooled by cold water in direct contact with the upper surface of the coil. For a given current $I$ in the windings, neglecting lateral heat flow between windings, the temperature difference between the top and bottom of the coil reads

[TABLE]

with $\rho_{\mathrm{Cu}}$ and $\lambda_{\mathrm{Cu}}$ the electrical resistivity and heat conductivity of copper, respectively, and $w$ the width of one winding (see Appendix A for the derivation). For a current of $400\,$A and $w=1\,$mm, we get $\Delta T_{c}=3.4\,$K, showing that gradients within the coil will be minimal in spite of the very large aspect ratio for individual windings.

The heat transfer at the copper-water interface depends on the nature of the flow. For a typical total flow rate in the coil $0.23$ l$\cdot$s*-1*, a simple estimate based on the hydraulic diameter of the duct yields turbulent flow with a Reynolds number of $\sim 6.4\cdot 10^{3}$[18]111The large aspect ratio and short length of the duct would call for a more detailed analysis of the flow, beyond the scope of the present work. We deduce a heat transfer coefficient $h_{w}\sim 5\cdot 10^{3}\,\mathrm{W\cdot m^{-2}K^{-1}}$ and thus a temperature difference (see Appendix A for derivation)

[TABLE]

with $H$ the coil thickness. For our design, we evaluate the ratio $\Delta T_{c}/\Delta T_{w}\sim 0.14$, which indicates that the interface is the limiting factor in the cooling 222Within the fluid, heat is carried predominantly by convection rather than conduction, as indicated by a Nusselt number of $\sim 70$[18].

Last, we can easily estimate the increase of water temperature across the coil from simple energy conservation considerations, yielding

[TABLE]

where $R$ is the total electrical resistance of the coil, $Q$ is the coolant flux and $C_{w}$ is the volumetric heat capacity of water. For our system allowing large water fluxes of $0.23$ l$\cdot$s*-1*, we estimate $\Delta T_{f}\sim 0.7\,$K for $I=400\,$A.

This shows that even with an extreme aspect ratio for the coil windings, heat diffuses efficiently through the coil up to the water-copper interface, and that we operate well in the transfer-limited regime in contrast to most designs [14, 7]. Operating in the transfer-limited regime has the advantage that heat removal is less sensitive to the water flux since the flux enters only through the heat transfer coefficient with a sub-linear dependence [18].

3 Manufacturing and assembly

Manufacturing of the electromagnet followed the concept of [8], where a coil is carved out from bulk copper rather than wound out of wires. As described below, a major advantage of this concept is that the thick body of the coils forms a single, rigid ensemble, which can then be shaped using standard lathe and milling machines. As long as machining does not significantly affect the windings, the final shape can fulfill a wide variety of space constraints, with negligible effects on the magnetic field distribution. We used this capability in order to carve out tapped holes for holding the cap, a through hole carrying current through the coil body from the inner to the outer part and an edge in order to fit the exact geometry of the reentrant viewport, as can be seen in figure 1.

3.1 Coil body

Manufacturing started from a $24\,$mm thick oxygen-free copper plate. Wire-erosion machining creates a spiral with a pitch of $1.3\,$mm, leaving a gap between consecutive windings of $0.38\,$mm. Fiber-glass reinforced plastic spacers were inserted between successive windings to preserve uniform spacing and ensure electrical insulation. After cleaning and drying, the spiral was impregnated with epoxy glue. We used commercial low viscosity, room-temperature curing epoxy333Sicomin SR1710/SD7820, loaded with $10\%$ of $0.25\,\mu$m fiber glass flake and $30\%$ aluminium nitride (AlN) powder444Sigma Aldritch 10$\mu$m powder, $\geq 98\%$ purity. Preliminary tests showed that cracks can develop in the inter-windings regions due to thermal stress when using high temperature curing expoxy, hence the use of a fiber glass load to reinforce the structure. We also found that the use of AlN load improves the heat dissipation from the inner and outer windings of the coils, which are not in direct contact with water.

The impregnated coil was then machined with a lathe in order to remove the excess glue and expose the copper on the coil facet to be water cooled. The resulting surface quality is high, as can be seen in figure 2, demonstrating the efficiency of machining of the composite assembly. Further machining could be used to roughen the surface on purpose, favoring turbulent flow to improve heat transfer. The assembly consists in more than $70\%$ copper in volume. Blind threaded holes were machined on the top surface to fit screws pressing the cap against the coil. A transverse through-hole was drilled and an fiber-glass insulating tube glued inside to accommodate a $5.5$ mm diameter copper screw carrying current from the inner to outer winding (see figure 1).

3.2 Electromagnet assembly

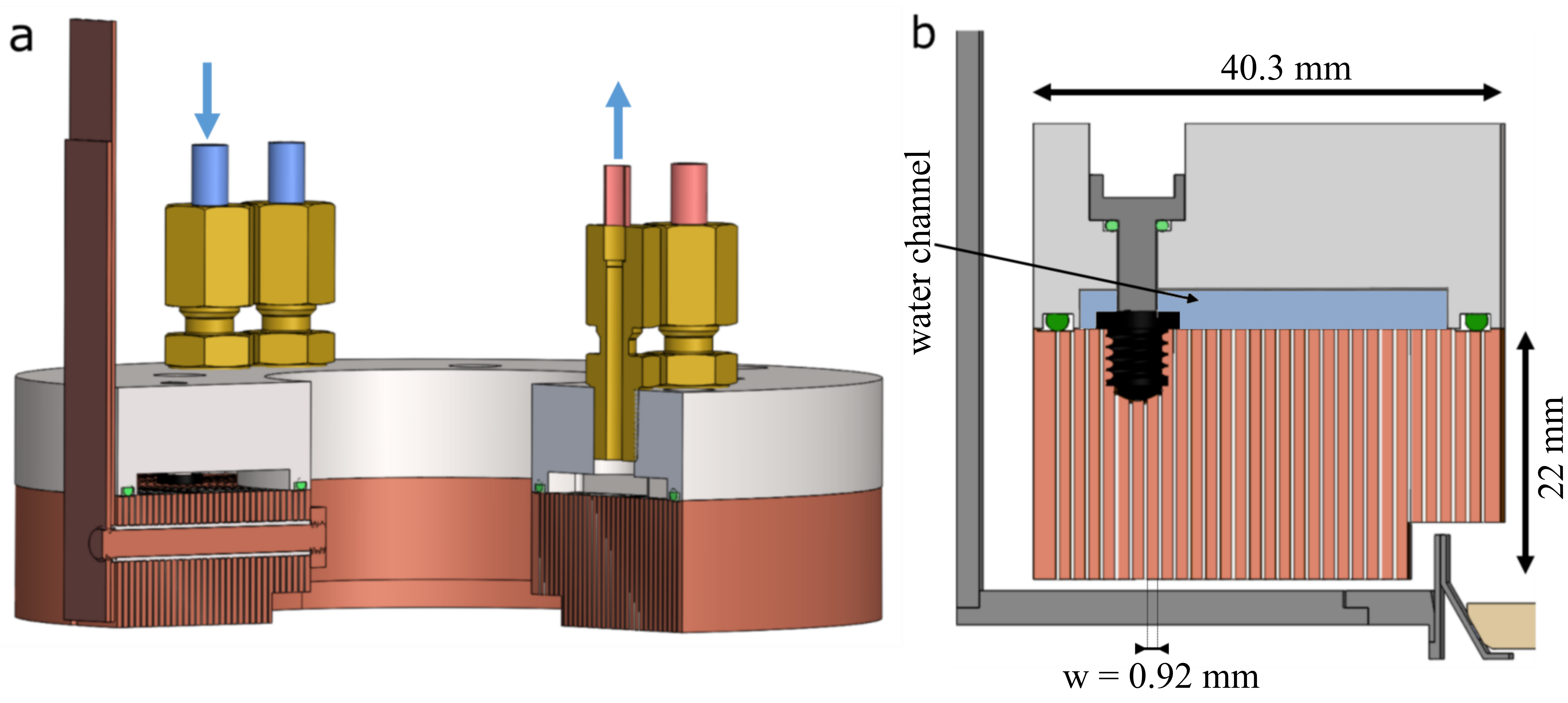

As shown in figure 1, the electromagnet mainly consists of the coil and the plastic cap creating the water cooling channel and holding the ensemble together. The cap is a U-shaped PEEK555Polyether ether ketone part forming a $3\,$mm high channel on the top surface of the coil, with a cross-sectional area of $102$ mm2. To increase the water flux, the channel is split in two half-circles with separate inlets. The cap is attached to the coil body by $8$ titanium screws fitting in threaded holes machined on the top surface of the coil, with peak inserts for electrical isolation. Titanium offers high stiffness, is non-magnetic, and is more cathodic than copper which reduces the risk of galvanic corrosion. PEEK inserts fit into the threaded holes to electrically insulate the coil from the screws, and holes are rendered leak tight using EPDM666Ethylene Propylene Diene Methylene rubber. EPDM 70, Shore A, 1.5 mm cord, 6 mm diameter O-rings. Two long O-rings pressed in the inner and outer sides of the cap ensure that the ensemble is leak-tight777We use Curil T (Elring) grease for matching the O-rings with the surface. up to 4 bars overpressure.

Electric current is injected and collected via two copper plates separated by a thin electrical insulation, minimizing stray magnetic fields (see figure 1). Current is collected from the inner side via a copper screw going through the coil itself. This configuration, made possible by our machinable coil concept, further optimizes the use of space and minimizes stray fields since it does not require an electrical wire running from the inner part of the coil888We use Chemtronics CW7100 grease for contact between the copper bolt and the windings.

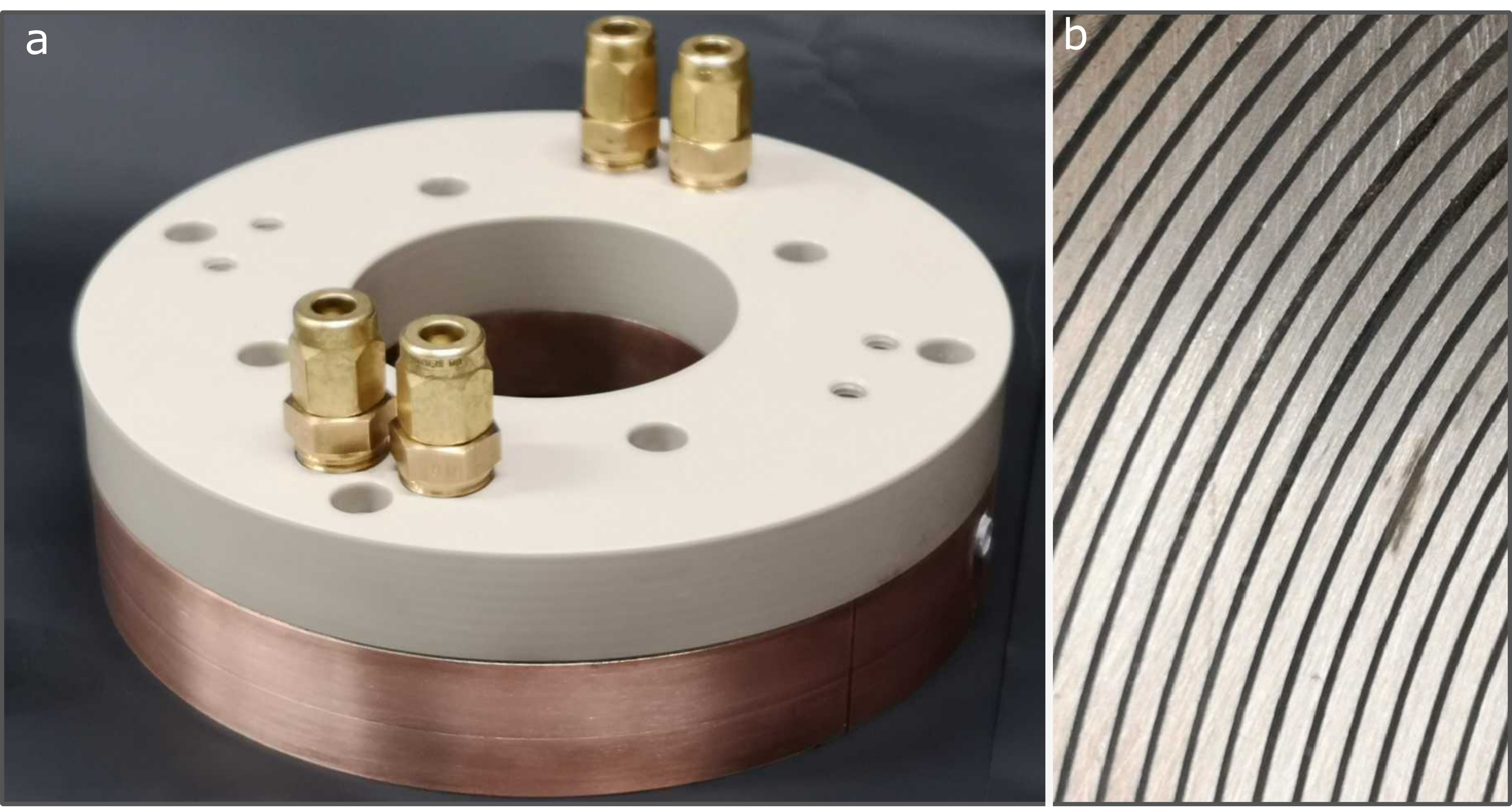

The resulting system, shown in figure 2, is highly compact. The cap is used to suspend the ensemble such that all the available space of the reentrant viewport is occupied by current carrying copper, maintained as close as possible to the vacuum chamber surface but mechanically disconnected from it.

4 Performance

4.1 Electromagnetic properties

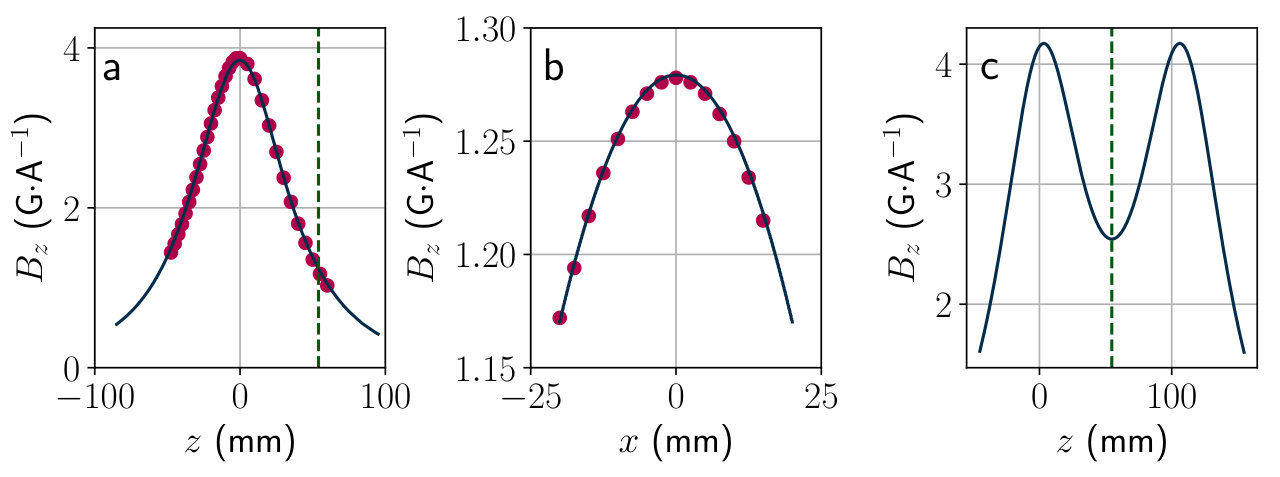

We first characterized the magnetic field distribution with a DC current and the electromagnet in the steady state. The axial component of the magnetic field $B_{z}$ produced by the electromagnet was measured with a uniaxial Hall probe999Lakeshore 425 with HMNA-1904-VR probe as a function of position. The results are presented in figure 3. For comparison, we performed numerical simulations using the Radia package [19] considering homogeneous current distributions inside the coil body. These are presented as solid lines in the figure, showing very good agreement with the measurements.

We measured a peak magnetic field at the expected position of the atoms, $52.2$ mm below the mean coil position, of $1.28\,\mathrm{G}\cdot\mathrm{A}^{-1}$, implying that a pair of such coils separated by $104.4$ mm will yield a field of $832.2$ G, the position of the broad Feshbach resonance of 6Li [17], at a current of $325$ A. Our simulation predicts the field distribution for this pair of coils, as shown in figure 3c. At the position of the atoms, the field varies quadratically with a curvature along the axial direction of $0.11$ $\mathrm{G}\cdot\mathrm{A}^{-1}\mathrm{cm}^{-2}$. The combination of a finite curvature, yielding magnetic trapping of high-field seeking atoms along the radial directions, with a dipole trap providing confinement along the axial direction is a standard configuration for cold 6Li atoms experiments [20]. Variations of magnetic fields across a typical atomic cloud close to the Feshbach resonance are negligible compared with the $262\,$G width of the resonance. The simulation also showed that the current carried in the through hole from the inner to outer winding, which breaks the cylindrical symmetry of the ensemble, results in negligible disturbance in the field distribution.

We measured the inductance of the coil, which characterizes its dynamical response. Its impedance was measured as a function of frequency between $0.16\,$Hz and $320\,$Hz. We fitted a DC resistance of $10.4(10)\,$m$\Omega$ and an inductance of $116(2)$ $\mu$H, in reasonable agreement with the magnetic field simulation yielding $94$ $\mu$H and with the expected intrinsic resistance of $8.7\,$m$\Omega$. This is comparable with the results obtained for Bitter electromagnets with similar geometry and number of turns [7].

4.2 Heat management

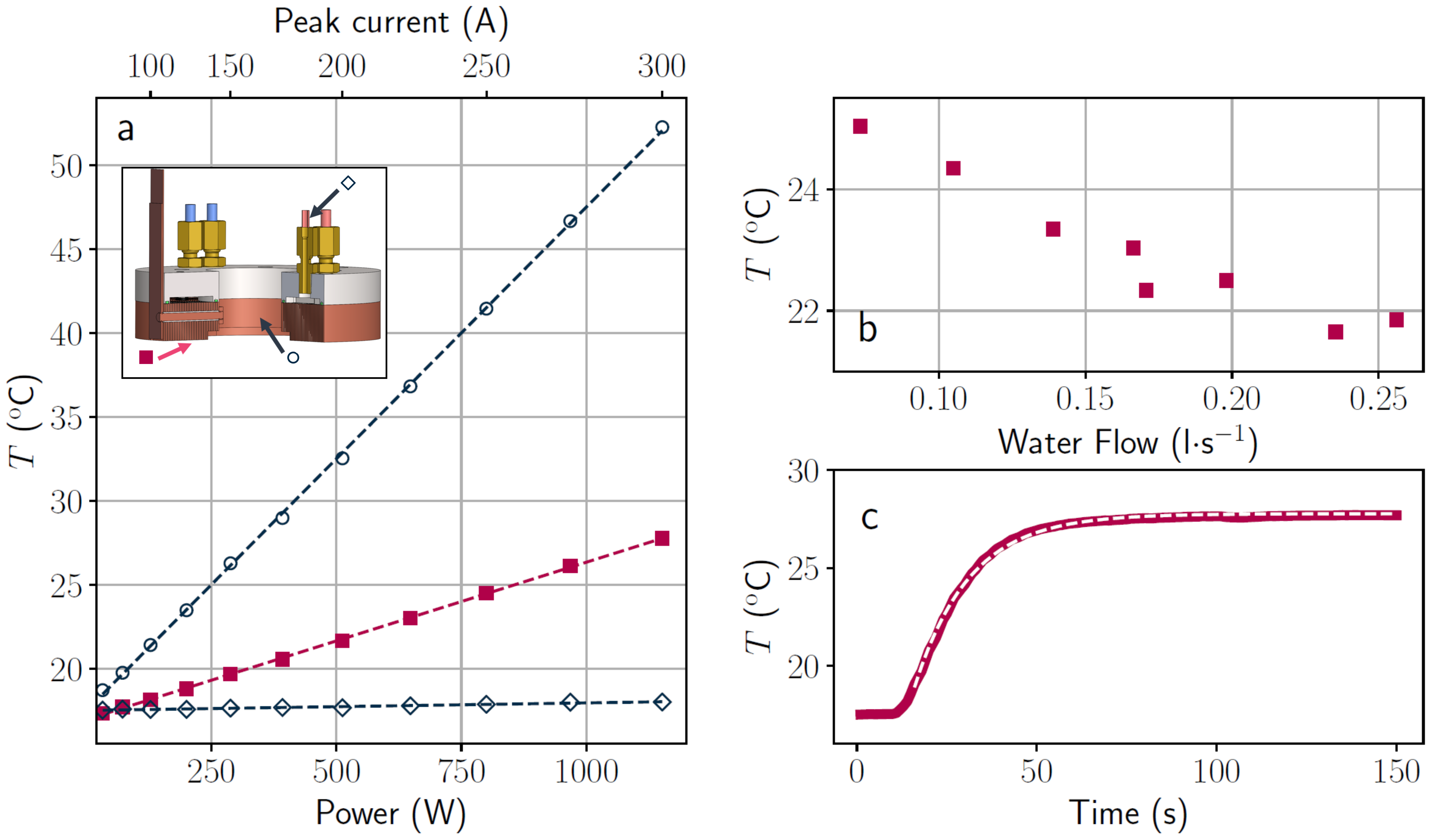

We tested the thermal performance of the electromagnet by measuring the temperature at different points of the assembly during operation. We first imposed a fixed cooling water flux of $0.23$ l$\cdot$s*-1* with a water temperature of $17.5^{\mathrm{o}}$C. The steady state temperature as a function of current is presented in figure 4a at various locations in the system. The overall temperature of the coil body, except for the first inner and outer winding, measured on the bottom side of the coil, remains below $30^{\mathrm{o}}$C. This confirms our expectations that heat is efficiently removed by water running over the edges of the coil windings. The heating rate of the coil body is $9.4$ K$\cdot$kW*-1*.

The water temperature increase across the system was very low, and remained lower than at any other point in the electromagnet, confirming that it operates in the transfer-limited regime. We observed that the temperature is larger at the inner and outer windings than in the bulk of the ensemble, because these windings are not in direct contact with water, as can be observed in figure 1. This results from the design choice to privilege the number of windings over the thermal homogeneity101010Using the same machining capabilities, our concept allows for the use of a variable pitch spiral ensuring direct water cooling of each winding. In the present case, this would have reduced the number of windings by $\sim 4$. Operating the electromagnet in realistic experimental conditions, with $350\,$A current and a duty cycle of $30\%$, we observed that the highest temperature was reached in the inner winding, with a steady-state value of $34^{\mathrm{o}}$C, compatible with routine operations in the laboratory.

We then measured the temperature variations with coolant flux. Thanks to the wide section of the coolant circuit, the water flux was only limited by the diameter of the inlet pipes, allowing for total fluxes up to $0.26\,\mathrm{l}\cdot\mathrm{s}^{-1}$ for a moderate water pressure drop of $3.5$ bars across the electromagnet. The heating of the coil body is reduced upon increasing the water flux, which is expected due to the dependence of the heat transfer coefficient on velocity in the turbulent regime.

Finally, we measured the dynamics of the thermalization of the coils, monitoring the temperature after switching on the electrical current to $300$ A, with a water flux of $0.23$ l$\cdot$s*-1*. The result is shown in figure 4c. The evolution is well fitted by a single exponential, which timescale $\tau$ allows for an estimate of the average copper-water heat transfer coefficient $h$: energy balance considerations, supposing a homogeneous temperature within the coil, yields $\tau\sim wC_{\mathrm{Cu}}/h=15.3$ s, with $C_{\mathrm{Cu}}$ the specific heat of copper, from which we obtain $h\sim 5\cdot 10^{3}$ W$\cdot$m*-2K-1*, in agreement with our initial expectations.

This short thermalization time is favorable since thermal expansion of the coils changes the magnetic field, such that accurate calibration requires a steady-state situation. For our geometry, we estimate that changes of the coil radius with temperature produce relative variations of the magnetic fields of $\sim 1.3\cdot 10^{-5}\,\mathrm{K}^{-1}$. Thermal effects upon varying the coil temperature will be comparable with the effects of finite accuracy of standard power supplies.

5 Conclusions

We have presented a compact and flexible electromagnet concept adapted to quantum gas experiments requiring both large homogeneous magnetic fields and minimal space occupation. The overall costs are minimal, limited to that of the raw copper, inexpensive epoxy glue, and a home made custom plastic mold for the gluing operation. Cutting the spiral required $\sim 40$ hours on the wire erosion machine of our institute’s mechanical workshop, running fully automatically.

Our experimental system is constrained by the need for high numerical aperture together with the accommodation of a large, in-vacuum experimental platform, leaving only limited space for the main electromagnets. Thanks to the compactness of the main electromagnets, the reentrant viewports of our experimental setup can also accommodate 4 pairs of compensation coils in the cloverleaf configuration [21], allowing for moving the saddle point of the field in the plane of the coil. This possibility will allow for precise positioning of the atomic cloud with respect to the experimental platform. It will also allow for transport measurements with lithium quantum gases in the two-terminal configuration [22].

Acknowledgements

We acknowledge the technical assistance of Claude Amendola, Olivier Haldimann, Gilles Grandjean, Philippe Zuercher and Damien Fasel.

Funding information

We acknowledge funding from the ERC project DECCA (Project No. 714309), the Sandoz Family Foundation-Monique de Meuron program for Academic Promotion and EPFL.

Appendix A Temperature gradients across the electromagnet

A.1 Conduction through the coil body

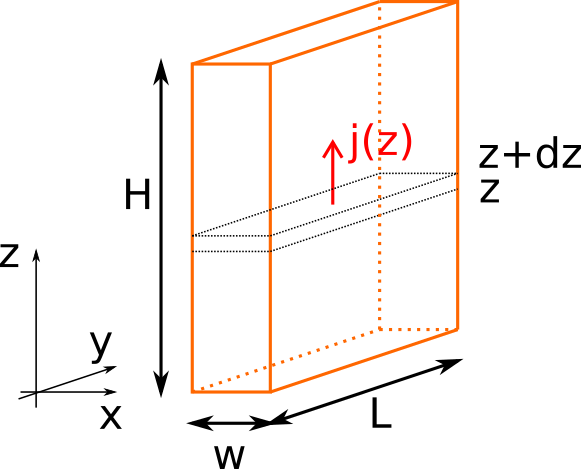

We consider one winding of the coil as a prism with rectangular section of width $w$ and height $H$, with a total length $L$, as illustrated in figure 5. With the notations of the main text, the total power dissipated is

[TABLE]

where we introduced the power dissipated per unit volume $p$.

To calculate the temperature profile we neglect heat flowing on the sides, and consider the temperature as homogeneous in the $x-y$ plane. In the steady state, the energy contained in the slice between $z$ and $z+dz$ is constant, imposing

[TABLE]

where $j$ is the heat flux through unit area. With $j(0)=0$ we get $j(z)=pz$. Fourier’s law then relates the temperature profile $T(z)$ to the heat flux

[TABLE]

which yields

[TABLE]

Evaluating this expression for $z=H$ yields equation 1. The dependence on $H$ has dropped since upon varying the thickness at fixed total current, the increase of heat resistance is balanced by the decrease of total dissipated power.

A.2 Coil-water interface

We consider the temperature at the coil-coolant interface in the presence of forced convection. In steady state, the continuity of the heat flux at the interface imposes that

[TABLE]

where $T_{w}$ and $T(H)$ are the temperatures of the coolant and coil at height $H$ calculated above, $h_{w}$ is the heat transfer coefficient at the interface, and $p$ is the power dissipation per unit volume within the coil. We obtain

[TABLE]
