Is Pretraining Necessary for Hyperspectral Image Classification?

TL;DR

This paper investigates whether pretraining is necessary for hyperspectral image classification, finding that training from scratch can match pretraining performance, but pretraining benefits deeper networks.

Contribution

It introduces a method for pretraining on multiple datasets and evaluates the effectiveness of pretraining versus training from scratch for hyperspectral CNNs.

Findings

Training from scratch performs as well as pretraining.

Pretraining offers advantages for deeper networks.

Pretraining helps when deeper architectures are used.

Abstract

We address two questions for training a convolutional neural network (CNN) for hyperspectral image classification: i) is it possible to build a pre-trained network? and ii) is the pre-training effective in furthering the performance? To answer the first question, we have devised an approach that pre-trains a network on multiple source datasets that differ in their hyperspectral characteristics and fine-tunes on a target dataset. This approach effectively resolves the architectural issue that arises when transferring meaningful information between the source and the target networks. To answer the second question, we carried out several ablation experiments. Based on the experimental results, a network trained from scratch performs as good as a network fine-tuned from a pre-trained network. However, we observed that pre-training the network has its own advantage in achieving better performances when deeper networks are required.

Figures

Tables

Table 1. Table 1 : Hyperspectral datasets. The notation for each dataset is shown next to dataset name. We use these notations in this paper. For each dataset, the number of frequency bands of the dataset acquired by the same sensor may be different because some bands were deleted according to the dataset task. Sensor notations: A : AVIRIS, R : ROSIS, H : Hyperion

Domain	Dataset	# Class	# Data	Sensr	Bands
Target	Indian Pines (I)	8	8504	A	200
Source	Salinas (S)	17	54129	A	204
	Pavia Centre (PC)	10	148152	R	102
	Pavia University (PU)	10	42776	R	103
	Kennedy Space Center (KSC)	14	5211	A	176
	Botswana (B)	15	3248	H	145

Table 2. Table 2 : Step size and iteration for different training sets. Notations of pre-training datasets: P5 : S + PC + PU + KSC + B , P4 : S + PU + KSC + B , P3 : PU + KSC + B , and P2 : KSC + B

Dataset	I	P5		P4	P3	P2
SS/Iter.	4K/5K	Step I (PC)	Step II	20K/50K	10K/25K	10K/25K
		40K/100K	20K/50K

Table 3. Table 3 : Classification accuracy when varying the training schedules. SS: Step size.

SS/Iter.	2K/3K	4K/5K	6K/7K	8K/9K	10K/11K
w/ pre-train	0.9363	0.9508	0.9545	0.9567	0.9618
random init	0.9127	0.9253	0.9477	0.9563	0.9652

Table 4. Table 4 : Accuracy comparison w.r.t. source data sensors. Sensor notations: A : AVIRIS, R : ROSIS, H : Hyperion

Target	Sensor	Source	Sensor	$\#$ of data	Accuracy
I	A	S+KSC	A	59340	0.9217
		PU+B	R & H	46024	0.9286

Table 5. Table 5 : Performance comparison of using single source and multiple sources.

Source	$\#$ of data	Accuracy
P5: S+PC+PU+KSC+B	253516	0.9508
PC	148152	0.9438
P4: S+PU+KSC+B	105364	0.9332

Full text

**Index Terms— ** Hyperspectral image classification, Cross-Domain CNN, Pre-training, Fine-tuning

1 Introduction

In many classification tasks, convolutional neural network (CNN) has been showing a series of innovative performances. However, when only given a small-sized target dataset, it is difficult to avoid the overfitting issue due to a large number of parameters that need to be optimized in a CNN. One widely known approach to go around this issue is to fine-tune the network from the first few layers of a pre-trained network which was trained on a large-scale dataset [1]. However, this approach can be applied effectively when the source and the target datasets share equivalent spectral characteristics (e.g., RGB to RGB). When these characteritics do not match between the source and target domains as with the hyperspectral datasets acquired with different sensors, it becomes a challenge in transferring the information effectively, thus posing a problem in constructing a pre-trained model.

In this paper, we have devised an approach which allows the pre-training of a network on multiple hyperspectral “source” datasets and uses the pre-trained network to be fine-tuned on a “target” dataset. Our fine-tuning process is heavily motivated by the shared layers in the Cross-Domain CNN [2]. In [2], the shared portion is used to train effectively on multiple hyperspectral datasets with different characteristics. In our approach, we exploit this set of shared layers to be used as the “pre-trained” portion for the fine-tuning process, and show that it is indeed possible to build a pre-trained network for hyperspectral image classification.

Although pre-trained networks have been used without any doubt in the past several years, researchers recently have begun a comprehensive analyses on the effectiveness of pre-training. Mahajan et al. [3] analyze the effect of the pre-trained network when increasing the pre-training dataset size. To significantly increase the dataset size, [3] collect social media images and adopt weakly supervised strategy due to a lack of labels of these images. When dataset scale was extremely enlarged, the classification performance was proportionally increased. He et al. [4] questioned whether using a pre-trained network actually increases the classification performance. According to [4], a randomly initialized network provides compatible accuracy to the network fine-tuned from a pre-trained network as long as it is trained with extremely large amount of training time. Based on this observation, they conclude that using pre-trained networks trained on large datasets is not requirement in achieving high accuracy.

Following the recent trends in carrying out comprehensive studies on using pre-trained models, we address relevant questions for hyperspectral image domain:

Is pre-trained network necessary for hyperspectral image classification? 2. 2.

Does a larger source dataset improve accuracy? 3. 3.

Is pre-training effective when target and source datasets are obtained from different sensors? 4. 4.

Does introducing more variety in the source datasets for pre-training increase the performance?

2 Method

Backbone CNN Architecture. For the analysis, we used 9-layer fully convolutional network architecture introduced in [5, 6]. The anterior part of the network is composed of a multi-scale filter bank and one convolutional layer ($C_{2}$). Two residual modules (res{$C_{3}$, $C_{4}$}, res{$C_{5}$, $C_{6}$}), and three convolutional layers ($C_{7}$, $C_{8}$, $C_{9}$) are appended after that. Multi-scale filter bank consists of three types of convolutional filters whose dimensions are $1\times 1$ ($C_{1\times 1}$), $3\times 3$ ($C_{3\times 3}$), and $5\times 5$ ($C_{5\times 5}$). The residual modules are connected via skip connection, where each module consists of two convolutional layers. At the end of $C_{7}$ and $C_{8}$, dropout layers are attached during training. Batch normalization and ReLU (Rectified Linear Unit) are appended at the end of all convolutional layers except the last layer. Each layer consists of 128 filters.

Cross-Domain CNN. Lee et al. [2] introduced Cross-Domain CNN which simultaneously trains multiple networks for classifying multiple hyperspectral image domains. In our implementation, all the networks have the same CNN backbone except the last layer for each network because the dimension has to match the number of categories for the corresponding domain. Weights of two residual modules are shared across all the networks so as to guide the weights to be tuned to a large combined dataset, rather than to fit towards each independent dataset. This sharing mechanism increases the classification accuracy over all the domains.

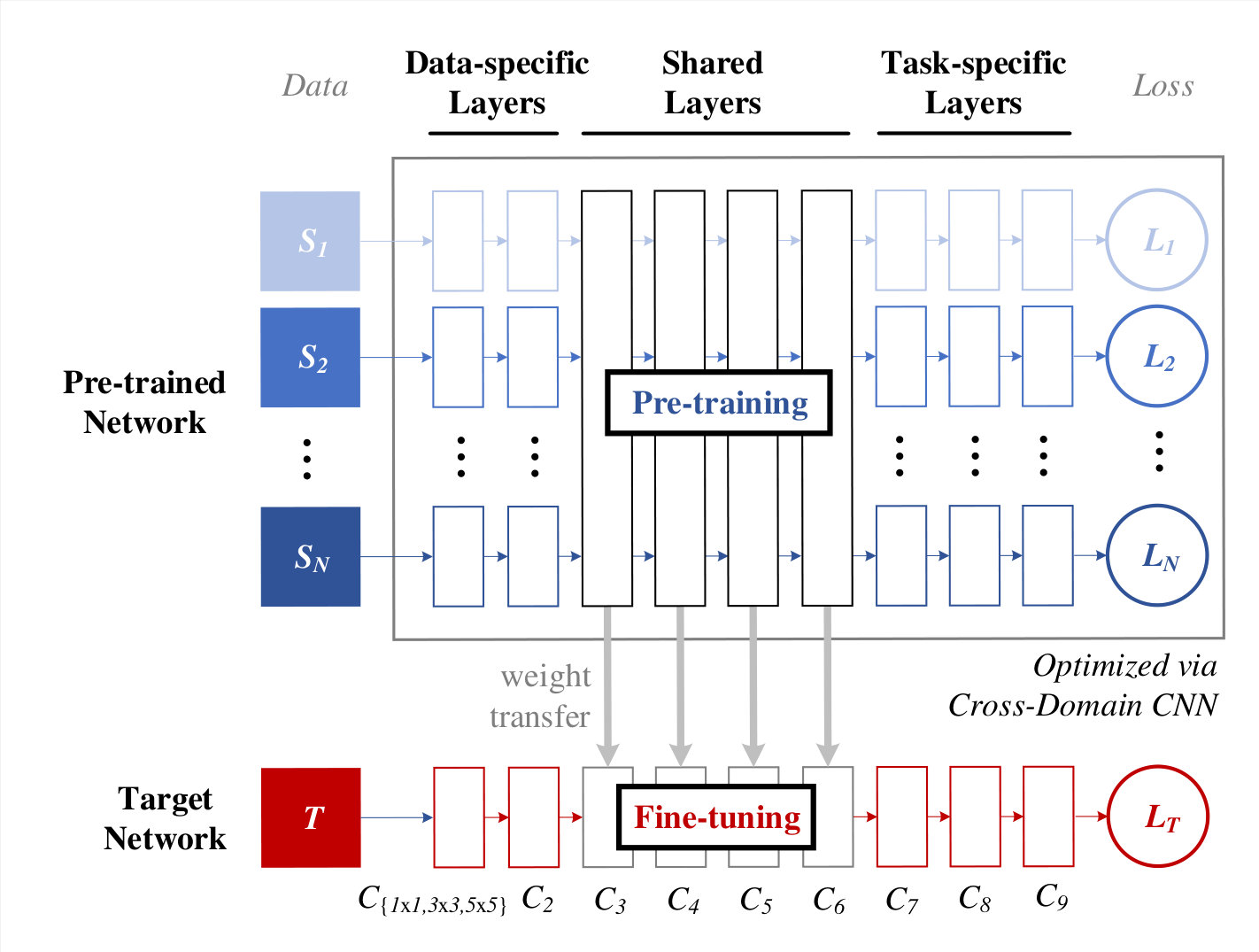

Pre-training and Fine-tuning. We can observe from [2] that the middle portion of a hyperspectral CNN can serve as a highly beneficial portion which carries common representation across various datasets with different spectral characteristics. In constructing a pre-trained hyperspectral CNN for all the following experiments, we train a Cross-Domain CNN whenever more than one dataset (“source” dataset) are involved in training. In making use of a pre-trained network for domain adaptation towards a “target” dataset, we fine-tune the middle portion (i.e., two residual modules) while other network parameters are learned from scratch. This pre-training and fine-tuning process is illustrated in Figure 1.

3 Experiments

3.1 Settings

Dataset. Six hyperspectral image datasets shown in Table 1 are used for the experiments. Indian Pines dataset is used as the target domain while various combinations of the remaining five datasets are used as source domains. When a network is trained on a target domain, 200 pixels randomly selected from each category are used for training and all the remaining pixels are used for testing. To train each pre-trained network, all the pixels from source datasets are used.

Optimization. We have used stochastic gradient descent to train the networks with the batch size of 128 examples, momentum of 0.9, gamma of 0.1, and weight decay of 0.0005. To avoid overfitting while training, data is augmented 8 times by mirroring each example horizontally, vertically, and diagonally. When the network is trained from scratch, $C_{\{1\times 1,3\times 3,5\times 5\}}$, $C_{2}$, and $C_{9}$ are initialized according to a Gaussian distribution with mean of zero and standard deviation of 0.01. The remaining layers are initialized with standard deviation of 0.005. Base learning rate is set as 0.001 which is divided by 10 for every step size. Table 2 shows different step sizes and iterations for different training sets.

When learning the network on multiple datasets, the base learning rate of the shared layers are multiplied by 1/$N$, where $N$ is the number of the datasets involved in training. This is because the shared layers are affected by multiple back-propagations from multiple losses.

When using all five source datasets (P5) for training, we should consider a potential issue caused by the imbalanced dataset sizes. Since the Pavia Center dataset has much more data than the others, it requires more iterations than the others. To cope with this issue, we adopt a two-step optimization strategy introduced in [7, 8]. Under this scheme, the network is initially trained on only the largest dataset (Step I (PC)) and then is updated using the whole dataset for multi-task learning (Step II).

3.2 Ablation Studies

Note that for training a network on a target domain, 200 pixels are randomly selected from each category for training while the rest is used for testing. We use the same set consistently throughout all the experiments in the ablation studies. All accuracies reported in the ablation studies are calculated with the target dataset (Indian Pines).

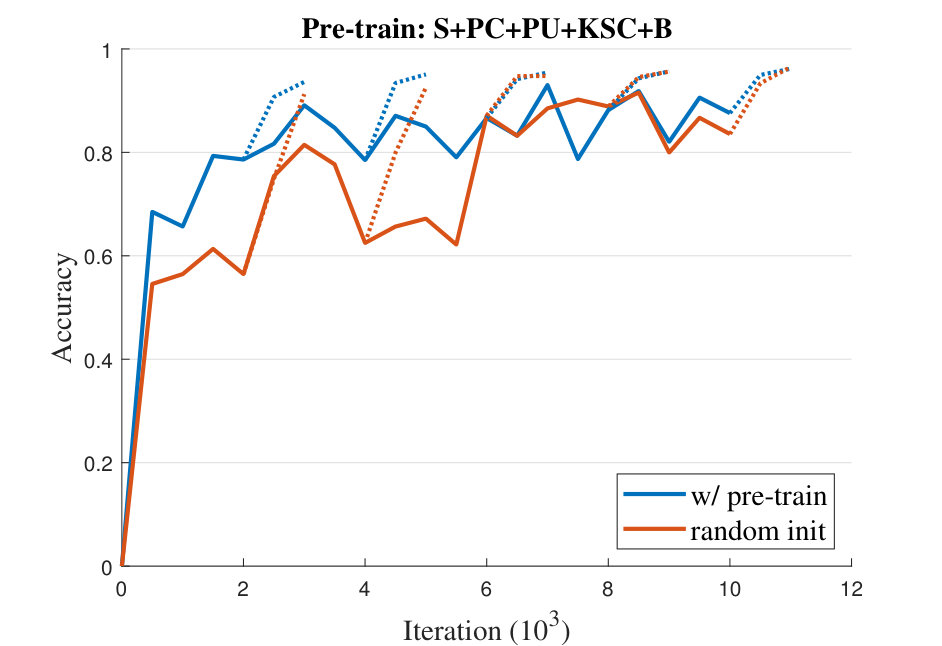

Training from Scratch vs. Using Pre-training. Figure 2 compares how the classification accuracy progresses when trained from scratch (random initialization of weights) and from a pre-trained network. Several different training schedules have been tested and the resulting accuracy is listed in Table 3. Training schedules are varied by changing the maximum iteration and the step size. The base learning rate is 0.001 and is dropped to 0.0001 at the step size. In this experiment, we have used all five source datasets to train a pre-trained network.

From Figure 2 and Table 3, we observe that the network using pre-training converges faster than its counterpart. However, when trained with sufficient amount of iterations, the randomly initialized network eventually reaches an accuracy comparable to the one trained on a pre-trained network (0.9652 vs. 0.9618).

For the remaining experiments, we used accuracy of the network trained with step size/iterations of 4K/5K.

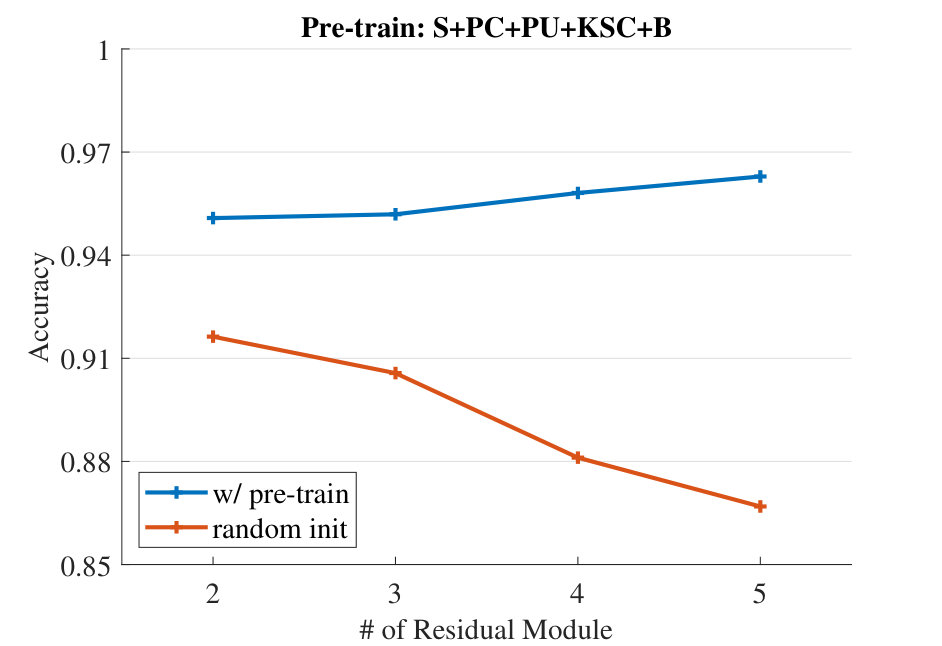

Going Deeper with Residual Modules. If a large-scale data is available for training, a network with a large number of parameters can be trained with less probability of hitting the overfitting issue. Based on this notion, a pre-trained network which was trained with a large dataset may allow a better chance of training a deeper or wider network which contains more weights. To validate, we compare how the two cases (random init. vs. pre-trained) behave when the depth of the networks is increased with additional residual modules. The accuracy comparison is depicted in Figure 3. In this experiment, we have used all five source data sets to train a pre-trained network.

While the accuracy of randomly initialized network decreases greatly as the network gets deeper, the pre-trained network rather improves its performance. This supports our argument that fine-tuning from a pre-trained network is beneficial to avoid the overfitting issue when the network gets deeper. In addition, 9-layer CNN using pre-training may be underfitted.

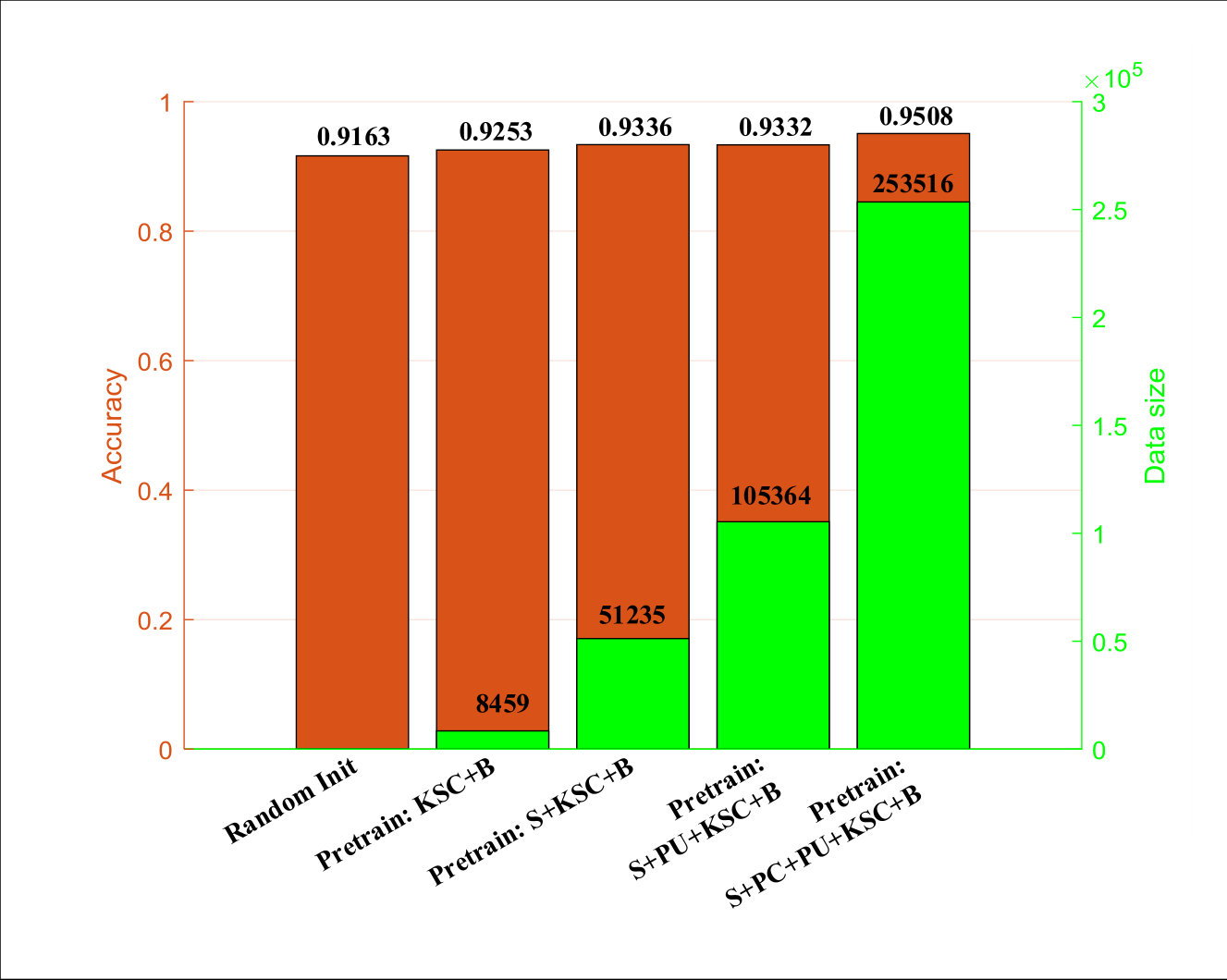

Source Data Size. In this section, we question how much influence the size of a pre-training dataset has over the classification performance. To answer this question, we generate four pre-training datasets by combining two or more source datasets and use them to train separate networks. Figure 4 shows the classification accuracy and dataset sizes of these four cases. From this figure, we can confirm that the larger the size of the data used for pre-training, the better the performance.

Sources from the Same Sensor vs. Multiple Sensors. We verify the effect of pre-training a network on a source dataset acquired by a sensor different from the target data. In general, using a pre-trained network to fine-tune is effective if the source data which is used for pre-training and the target data shares the same domain. In this experiment, we prepare two different pre-training datasets. One is S+KSC which is acquired using the same sensor used to acquire the target data (AVIRIS sensor) and the other is PU+B which is obtained by different sensors, ROSIS and the Hyperion sensor. These two datasets contain similar numbers of examples (59K and 46K).

Table 4 shows the classification accuracy when using these two pre-training sets. Regardless of the fact that PU+B is smaller in data size (46024 vs. 59340) and that it does not match the source target data in terms of the acquisition sensor when compared with S+KSC, its performance is better (0.9286 vs. 0.9217). This observation indicates that our pre-training and fine-tuning strategy is effective regardless of source data characteristics.

Single Source vs. Multiple Sources. The source training dataset can be either a single dataset or a combination of multiple datasets. For optimizing a network with multiple datasets, we apply Cross-Domain CNN approach. We compare the accuracy of using single source dataset (PC) and multiple source dataset (P4 and P5). The results are shown in Table 5.

When using single source dataset, its accuracy was worse than using P5 but better than using P4. This trend indicates that the accuracy improves proportional to the number of data regardless of whether you are using single or multiple datasets.

4 Discussions

Is pre-training necessary? Yes.

In terms of performance, the network which is trained from scratch shows comparable results when compared with the case where a pre-trained network is used. However, using pre-training with large-scale dataset has other advantages, such as having more potential in gaining the performance when increasing the depth of a network.

Does a larger source dataset improve accuracy? Yes.

In our experiment, as the size of the pre-training datasets gets larger, the accuracy achieved via fine-tuning on a pre-trained network improves. This improvement is, in part, acquired as the overfitting issue is reduced with the enlarged source dataset.

Is a source dataset from different sensors effective? Yes.

In our experiment, pre-training was effective regardless of the sensor type by which the source dataset was obtained.

Does introducing more variety in the source datasets for pre-training always increase the performance? No.

The experimental results show that the accuracy is more affected by the number of samples in the overall dataset than how many different source datasets are involved in the pre-training.
