Heavy ion jet physics studies using precision jet substructure and quark-gluon jet classification

TL;DR

This paper explores advanced jet substructure techniques and quark-gluon jet classification to improve understanding of jet quenching and modifications in heavy ion collisions, with implications for future heavy ion physics research.

Contribution

It introduces precise jet substructure analysis methods and quark-gluon classification techniques to identify new jet modification signatures in heavy ion collisions.

Findings

Jet grooming aids in testing jet quenching mechanisms.

Soft-drop jet mass distribution calculated for proton-proton and heavy ion collisions.

Enhanced understanding of jet substructure for future heavy ion studies.

Abstract

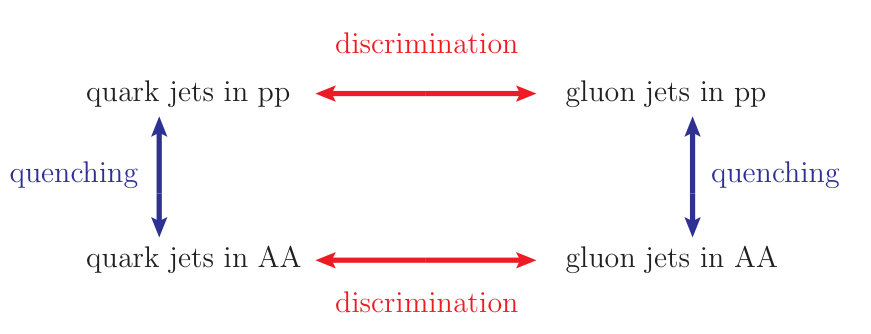

In the first talk I discuss the usefulness of jet grooming for testing jet quenching mechanisms, and I present a calculation of soft-drop jet mass distribution in proton-proton and heavy ion collisions. In the second talk I discuss the comprehensive studies of quark and gluon jet substructure as a way to search for qualitatively new jet modification signatures. I emphasize the importance of precise understanding of jet substructure as well as powerful analysis tools in future heavy ion jet physics studies, with direct applications to hard probes using heavy flavors and hadronically-decaying electroweak bosons.

Figures

Equations

$$J_i^{SD}(m^2,\mu )=\int d{p}^{2}dk{J}_i(p^2,\mu )S_i^{SD}(k,R,z_{cut},\mu )\delta (m^2-p^2-2E_{J}k),$$

$$J_i^{SD}(m^2,\mu )=\sum _{j,k}{\int }_{PS}dxd{k}_{\perp }{\mathcal{P}}_{i\to jk}(x,k_{\perp })\delta (m^2-M^2(x,k_{\perp })){\Theta }_{alg.}{\Theta }_{SD}.$$

$$\frac{d\sigma }{d{m}^2}=\sum _{i=q,g}{\int }_{PS}d{p}_{T}dy\frac{d{\sigma }^i}{d{p}_{T}dy}{P}_i^{SD}(m^2,\mu ),\mathrm{where}{P}_i^{SD}(m^2,\mu )=\frac{J_i^{SD}(m^2,\mu )}{J_{un}^i(\mu )}.$$

Full text

1 Introduction

A precise understanding of the redistribution of jet energy is among the priorities of jet physics in heavy ion collisions. Various proposed jet quenching mechanisms capture the picture of energy loss by transporting the jet energy to wider angle. Possible contributions from medium response to jets also affect the energy distribution. Therefore designing jet substructure observables which can probe aspects of jet-medium interaction is vital for revealing possible, novel signatures of jet quenching. On the other hand, techniques which help clean up jets – generally referred to as jet grooming – have been introduced to mitigate background soft radiation in order to enhance the signal sensitivity. Groomed jet observables with different grooming parameters thus have different sensitivities to radiation inside jets, giving the opportunities to test the details of jet quenching mechanisms and rigorously determine the medium properties.

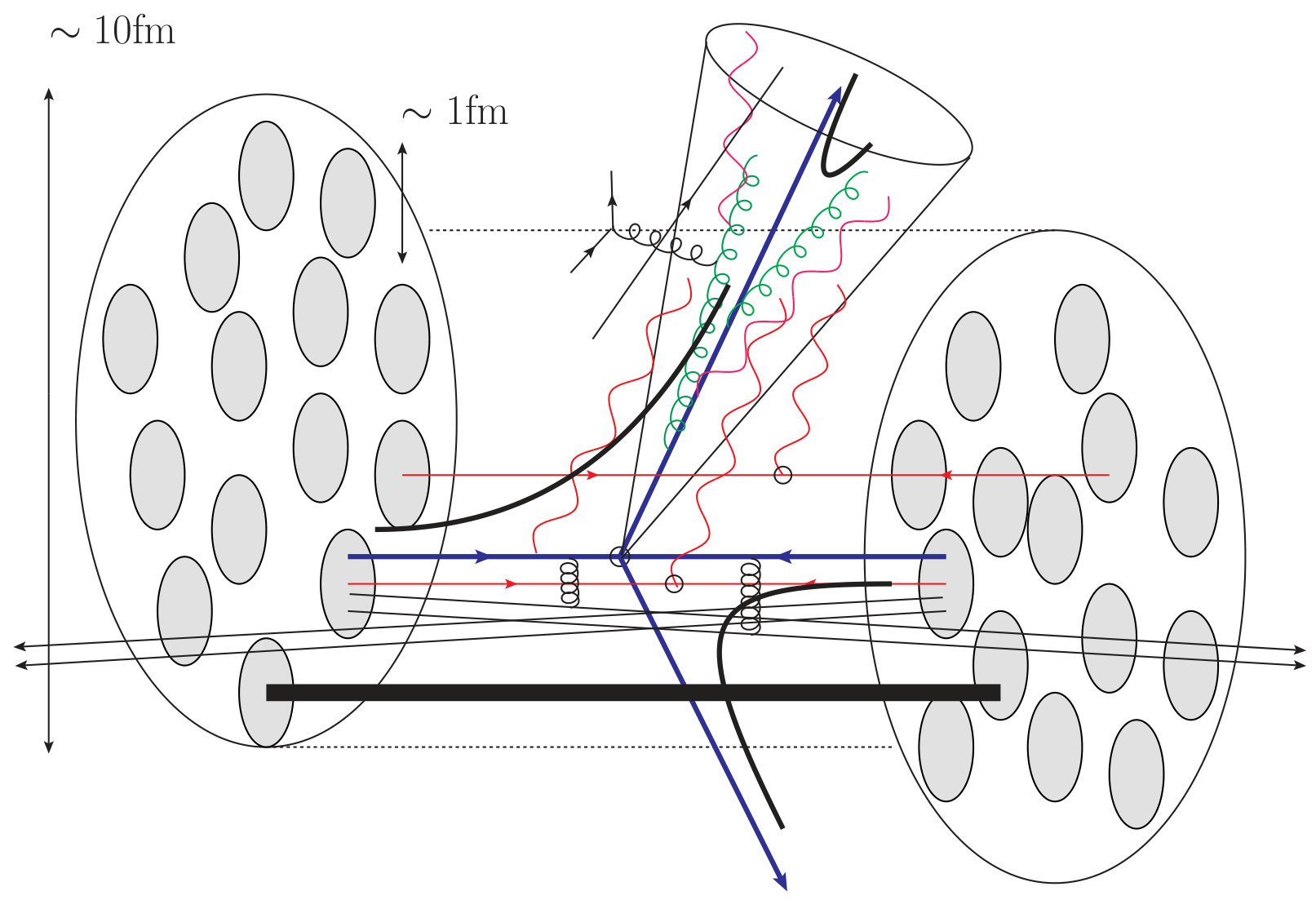

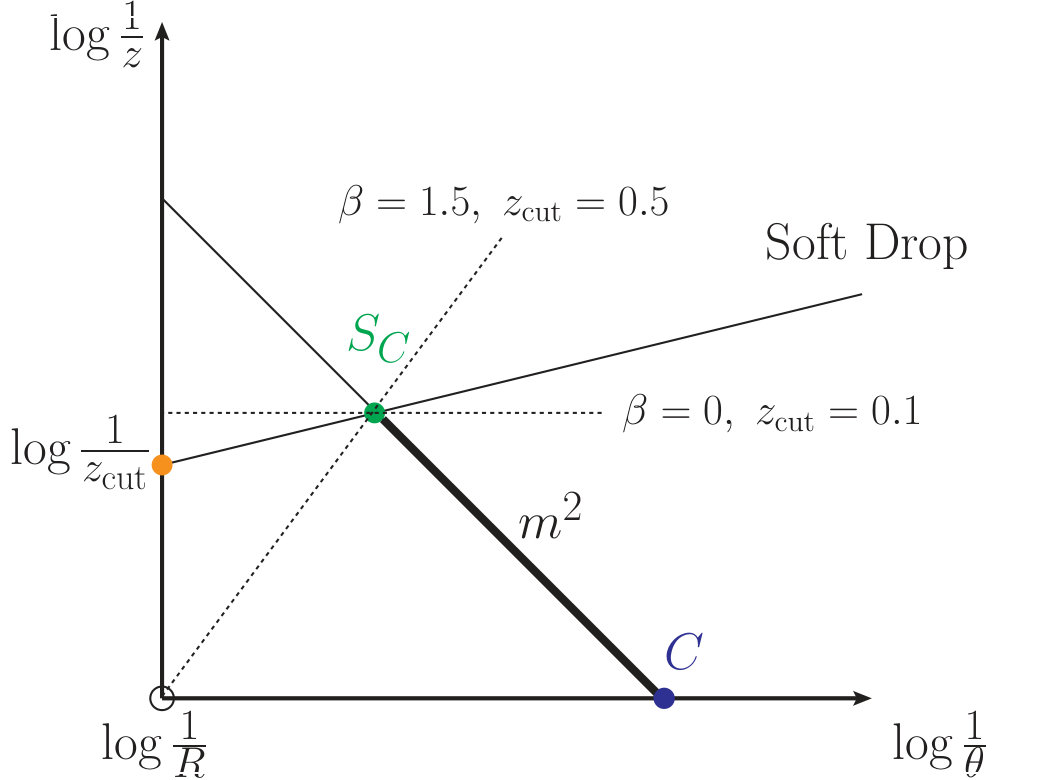

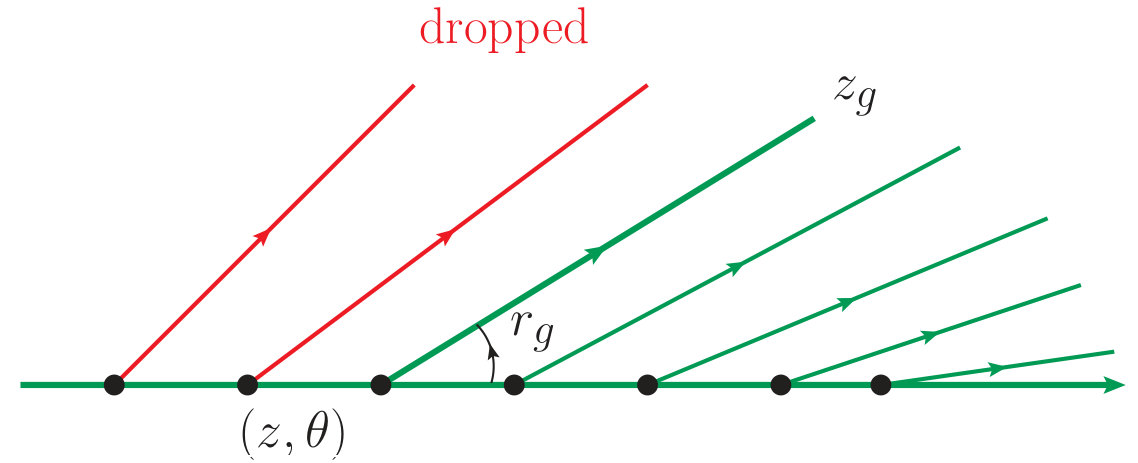

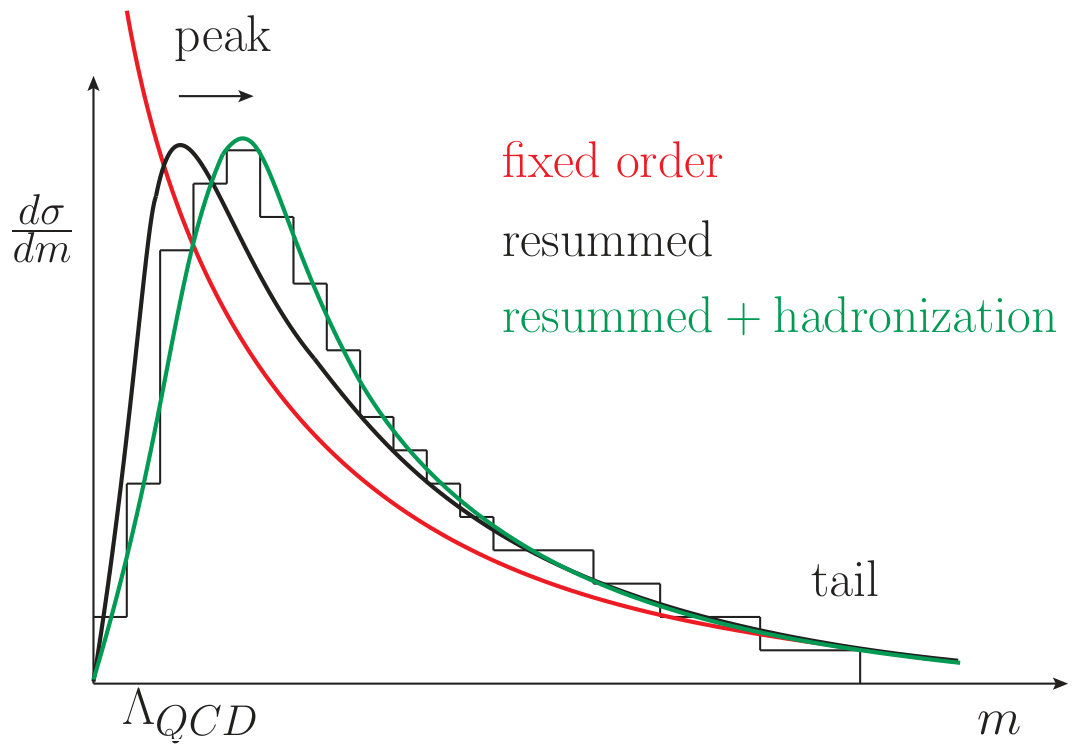

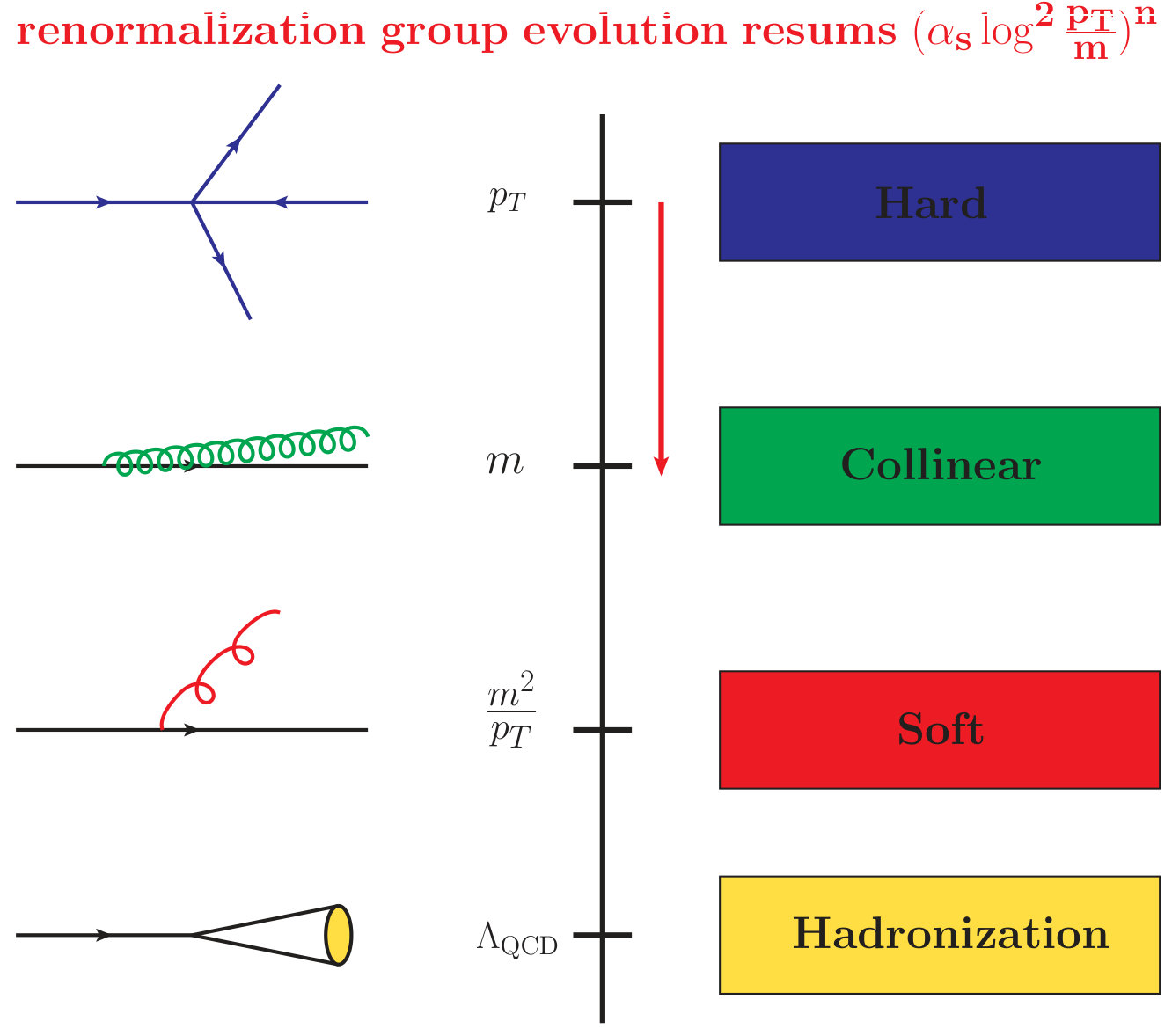

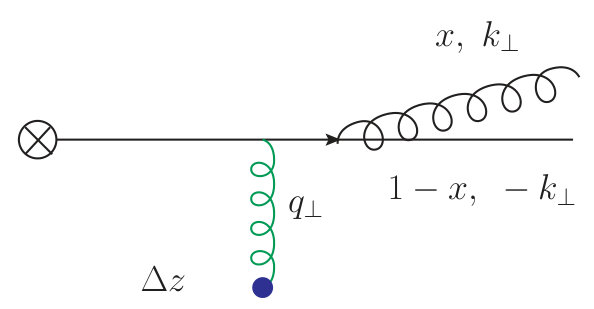

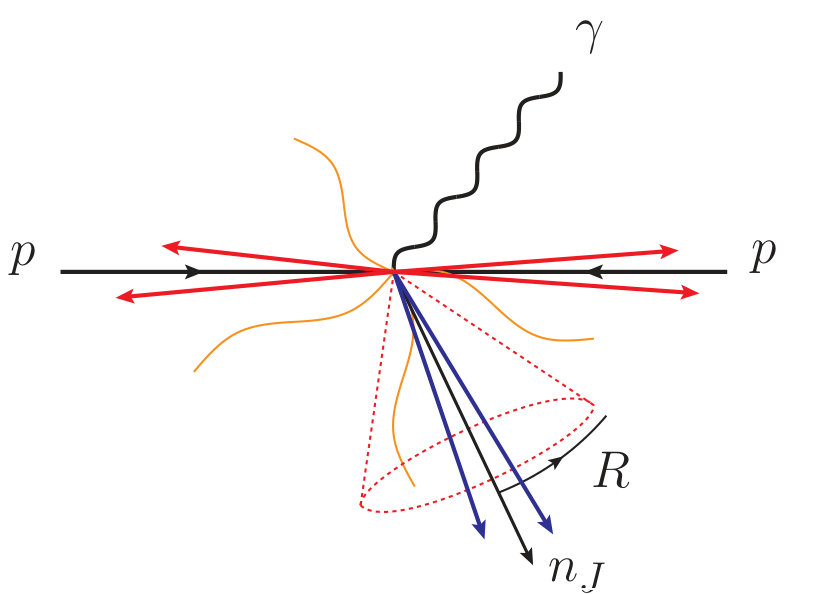

In this proceeding we exploit the connection between jet quenching and jet grooming and present a calculation for groomed jet mass distributions. The jet mass is a classic jet observable which is sensitive to both energetic, collinear radiation as well as soft, wide-angle radiation (represented by the green and red lines, respectively, in the left panel of Fig. 1). There are many possible sources of soft radiation, including final-state and initial-state radiation, underlying events activity correlated or uncorrelated with the hard collision, medium-induced radiation and medium response. The calculation of jet mass distribution requires all-order resummation of logarithmically-enhanced terms, as well as modeling non-perturbative contributions (right panel of Fig. 1). We use soft-collinear effective theory (SCET) to factorize the cross section, and to resum, via the renormalization group evolution, the logarithmic corrections appearing among different scales (left panel of Fig. 2). We focus on the medium modification contribution caused by induced radiation via Glauber interaction [1]. We use the soft drop [2] grooming procedure to remove soft, wide-angle radiation (right panel of Fig. 2). Below we summarize the formalism for calculating the soft drop jet mass distribution and present some preliminary results.

2 Framework

Following the framework developed in [3, 4, 5, 6] for various jet substructure calculations, at next-to-leading logarithmic (NLL) accuracy one can define a process-independent groomed jet mass function $J^{SD}(m^{2},\mu)$ which captures all the soft-collinear radiation inside jets ($i=q,g$ labeling quark-initiated or gluon-initiated jets),

[TABLE]

where $S^{SD}_{i}(k,R,z_{cut},\mu)=S^{C}_{i}(k,R,z_{cut},\mu)S^{G}_{i}(R,z_{cut},\mu)$ can be further factorized. At fixed-order, the jet mass function can be directly calculated using the collinear splitting function,

[TABLE]

Here $M^{2}(x,k_{\perp})=\frac{k^{2}_{\perp}}{x(1-x)}$ is the jet mass measurement function, while $\Theta_{\rm k_{T}}=\Theta(E_{J}Rx(1-x)-k_{\perp})$ and \Theta_{SD}=\Theta(E_{J}Rx(1-x)\Big{(}\frac{x}{z_{cut}}\Big{)}^{1/\beta}-k_{\perp}) are the jet algorithm and soft drop phase space constraints, respectively. The medium modification can also be included using medium-induced splitting functions. The full jet mass distribution can then be calculated by weighing the groomed jet mass functions with the corresponding jet cross sections,

[TABLE]

Note that the ratio $P^{SD}_{i}(m^{2},\mu)$ between the jet mass function and the unmeasured jet function is renormalization-group invariant and can be interpreted as the probability distribution of the jet mass for jets initiated by parton $i$.

3 Preliminary results

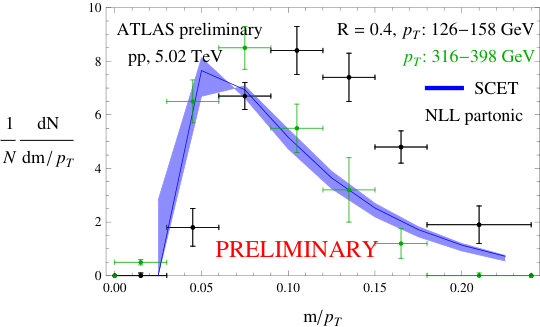

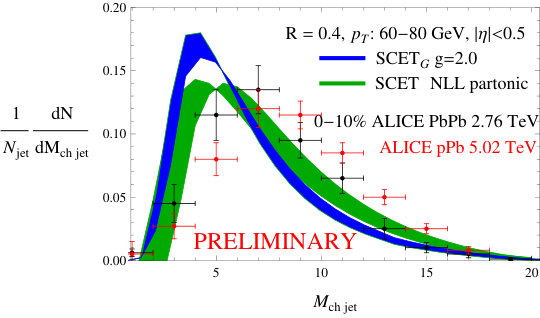

Having outlined the framework of our calculation, we present some preliminary results to compare with PYTHIA simulations and to currently available measurements. The left panel of Fig. 3 shows the comparison between NLL SCET calculations and ALICE measurements [7] of inclusive charged jet mass distributions in 2.76 TeV PbPb and 5.02 TeV pPb collisions. In the calculation we relate the total jet mass to the charged jet mass assuming isospin symmetry. The calculation does not yet include non-perturbative effects therefore the jet mass is systematically lower than the measured values. However, we can see that the medium modifies the jet mass towards smaller values. The right panel of Fig. 3 shows the comparison between SCET calculation and ATLAS measurement [8] of inclusive jet mass over jet transverse momentum ($m/p_{T}$) distribution in 5.02 TeV pp collisions. We see that the partonic calculation agrees well with the measured distribution for jets at higher $p_{T}$ where non-perturbative effects are small.

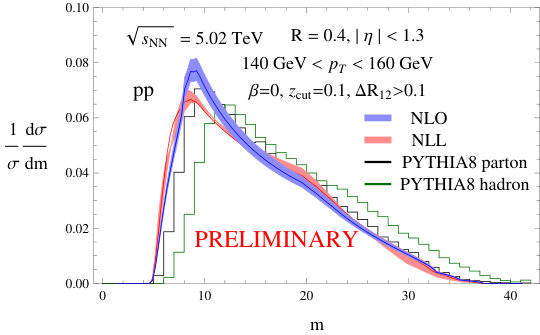

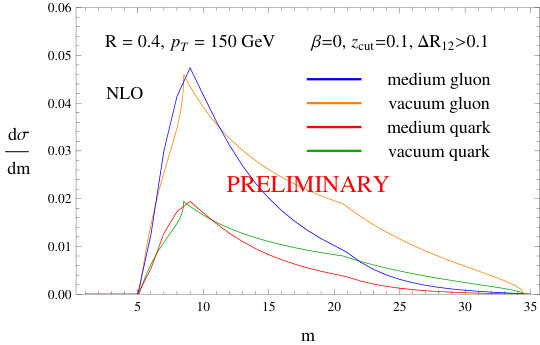

The left panel of Fig. 4 shows the comparison of NLO and NLL+NLO SCET calculation with PYTHIA simulations at parton and hadron level for inclusive soft drop jet mass distribution in 5.02 TeV pp collisions. We see that the parton level results agree quite well, and that hadronization affects the distribution significantly in all regions. The right panel shows the NLO vacuum and medium contributions and suggests that the small jet mass region is enhanced by the medium.

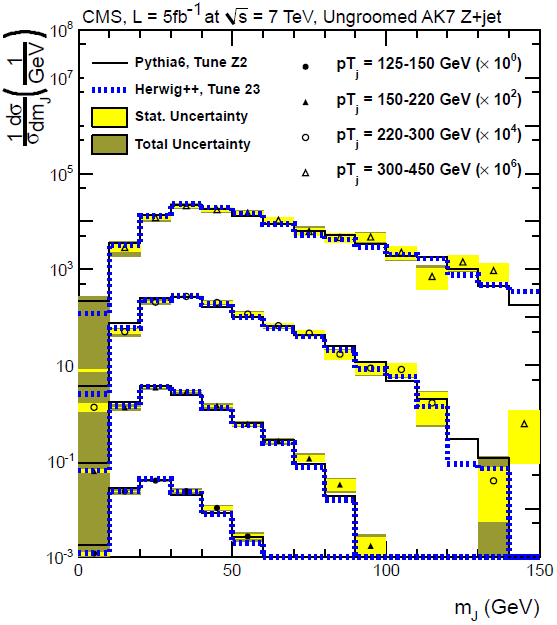

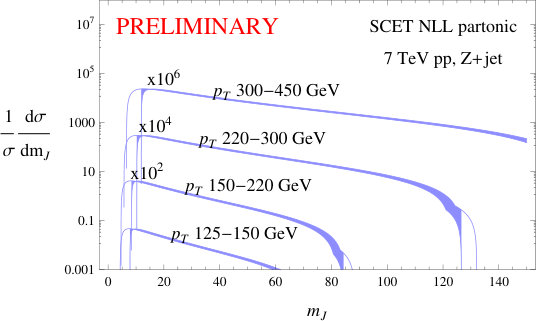

The CMS measurement imposes a $\Delta R_{12}$ cut to constrain the angle between two soft drop branches therefore removing the Sudakov peak region [9]. The formalism allows us to calculate the jet mass distribution for jets from arbitrary hard scattering process. Fig. 5 shows the NLL SCET calculation (left panel) of jet mass distribution for $Z$+jet events in 7 TeV pp collisions and compare with CMS measurements [10] (right panel). We see the very good agreement which further confirms the validity of the framework.

4 Conclusions

Jet mass contains rich information of the radiation inside jets, and jet grooming gives a concrete strategy to probe specific regions which can reveal possible jet quenching features. We provide an effective field theory framework to systematically resum logarithmically-enhanced contributions and calculate the jet mass distribution at NLL accuracy for any arbitrary hard scattering process with jets in the final state. This work provides a baseline for future precision jet substructure studies.
