Anisotropic magnetic excitations and incipient N\'eel order in Ba(Fe$_{1-x}$Mn$_{x}$)$_{2}$As$_{2}$

TL;DR

This study investigates how Mn doping in Ba(Fe$_{1-x}$Mn$_{x}$)$_{2}$As$_{2}$ affects magnetic excitations, revealing anisotropic behavior and suppression of high-temperature superconductivity due to emerging Nél order and damping of magnetic excitations.

Contribution

It provides the first detailed RIXS analysis of magnetic excitations in Mn-doped BaFe$_2$As$_2$, showing how Mn impurities induce anisotropy and suppress superconductivity.

Findings

Magnetic excitations become anisotropic with increasing Mn content.

Emerging Nél order is evidenced by anisotropic dispersion and lineshape.

High Mn doping suppresses magnetic excitations and likely inhibits superconductivity.

Abstract

It is currently understood that high temperature superconductivity (SC) in the transition metal $(M)$ substituted iron arsenides Ba(Fe$_{1-x}$$M$$_{x}$)$_{2}$As$_{2}$ is promoted by magnetic excitations with wave vectors $(\pi,0)$ or $(0,\pi)$. It is known that while a small amount of Co substitution leads to SC, the same does not occur for Mn for any value of $x$. In this work, magnetic excitations in the iron arsenides Ba(Fe$_{1-x}$Mn$_{x}$)$_{2}$As$_{2}$ ($x=0.0$, $0.007$, $0.009$, $0.08$) are investigated by means of Resonant Inelastic X rays Scattering (RIXS) at the Fe $L_{3}$-edge, for momentum transfer $\boldsymbol{q}$ along the high symmetry Brillouin zone $(\pi,0)$ and $(\pi,\pi)$ directions. It is shown that with increasing Mn content ($x$), the excitations become anisotropic both in dispersion and lineshape. Both effects are detected even for small values of $x$, evidencing a cooperative phenomenon between the Mn impurities, that we ascribe to emerging N\'eel order of the Mn spins. Moreover, for $x=0.08$, the excitations along $\boldsymbol{q}\parallel(\pi,0)$ are strongly damped and nearly non dispersive. This result suggests that phases of arsenides containing local moments at the FeAs layers, as in Mn or Cr substituted phases, do not support high temperature SC due to absence of the appropriate magnetic excitations.

Figures

Equations

$${\chi }^{\prime \prime }(\omega )={\chi }_0^{\prime \prime }\left(\frac{\Gamma \omega }{({\omega }^2-{\omega }_0^2{)}^2+{\omega }^2{\Gamma }^2}\right)$$

$$=\frac{{\chi }_0^{\prime \prime }}{{\omega }_{\mathbf{q}}}\left(\frac{\Gamma /2}{(\omega -{\omega }_{\mathbf{q}}{)}^2+(\Gamma /2{)}^2}-\frac{\Gamma /2}{(\omega +{\omega }_{\mathbf{q}}{)}^2+(\Gamma /2{)}^2}\right)$$

Full text

I Introduction

Iron based superconductors (Kamihara et al., 2008) encompass a broad family of electronic correlated materials for which orbital and spin excitations are believed to play a key role in determining the system properties (Haule and Kotliar, 2009). Of special interest are the iron arsenides, of which BaFe2As2 is particularly well explored and the subject of much attention (Johnston, 2010; Hosono and Kuroki, 2015).

BaFe2As2 (BFA) undergoes an itinerant spin density wave (SDW) phase transition at about $T_{N}=134$ K (Rotter et al., 2008). For BFA, superconductivity (SC) is achieved by means of chemical substitution on either Ba, Fe or As sites, which suppresses the SDW phase (Hosono and Kuroki, 2015). SC is observed with critical temperatures ($T_{SC}$) as high as $\sim 20-30$ K in the case of transition metal substitution at the Fe site (Johnston, 2010; Hosono and Kuroki, 2015).

It is known that the composition versus temperature ($x$ vs $T$) phase diagram of the transition metal ($TM$) substituted Ba(Fe${}_{1-x}TM_{x}$)2As2 systems presents an unexpected asymmetry, which concerns the fact that SC is not observed for Cr and Mn substituted samples, that are on the hole-doped side of the phase diagram (Thaler, 2011). The unique aspect related to Mn, or Cr substitution, is the presence of strongly localized magnetic moments at the dopant site (Rosa et al., 2014; Texier et al., 2012; Lafuerza et al., 2017), contrasting with the moments observed for Co and K substituted phases, which still present a high degree of itinerancy (Pelliciari et al., 2017a). Indeed, magnetic moments within the FeAs layers seem to be detrimental to SC, which in other cases has been shown to persist when magnetism is formed between these planes (Jiang et al., 2009; Matusiak et al., 2011).

The present work discusses magnetic excitations of Ba(Fe1-xMnx)2As2 ($x=0.0$, $0.007$, $0.009$, $0.08$) as probed by means of Resonant Inelastic X-ray Scattering (RIXS), for momentum transfer $\boldsymbol{q}$ along the high symmetry Brillouin zone (BZ) $(\pi,0)$ and $(\pi,\pi)$ directions. Cooper pairing in the high temperature superconducting phases in arsenides, likely a $s\pm$ (extended $s$-wave) phase, is understood to be promoted by excitations with $(\pi,0)/(0,\pi)$ wave vectors, derived from the Fe electronic degrees of freedom (Korshunov and Eremin, 2008; Zhang et al., 2009). Excitations with a $(\pi,\pi)$ wave vector would give rise to relatively weaker superconducting phase, with a gap of $d$-wave symmetry (Korshunov and Eremin, 2008; Zhang et al., 2009; Fernandes and Millis, 2013). Our experiment reveals that with increasing Mn content, the Fe derived magnetic excitations become anisotropic, both in dispersion and lineshape. In particular, the excitations along the $(\pi,0)$ direction are strongly damped and nearly non dispersive. Therefore, it is found that the system lacks the magnetic excitations that promote the most efficient channel for inter orbital SC pairing (Zhang et al., 2009). Thus, our findings contribute to understanding the absence of SC in phases of arsenides containing Mn, in particular, or in phases containing Cr, that also introduces strongly localized moments at the FeAs layers. In addition, the Fe derived excitations are affected by small amounts of Mn, evidencing a cooperative behavior of the Mn impurities, that is ascribed to an emerging Néel order in the system.

The case of Mn substitution presents a particular interesting case study (Kim et al., 2010; Thaler, 2011; Tucker et al., 2012; Inosov et al., 2013). The observed behavior is involved and understood to be related to the presence of strong $Q_{\text{N\'{e}el}}=(\pi,\pi)$ short range spin fluctuations (Tucker et al., 2012; Inosov et al., 2013). The decisive role of magnetic moments sitting in the Mn sites is clear since, as suggested by X-ray Absorption (XAS) and Photoemission Spectroscopy (PES), the Mn ions do not act as charge dopants (Suzuki et al., 2013).

II Methods

Our experiments were performed at the ADRESS beamline of the Swiss Light Source at Paul Scherrer Institute (Ghiringhelli et al., 2006; Strocov et al., 2010). All RIXS spectra shown in this work have been acquired for an incident photon energy tuned to the maximum of the Fe $L_{3}$- XAS edge and for $\pi$-polarized incident photons. Each spectrum intensity has been normalized to the maximum intensity of the fluorescence peak $I_{0}$. The total energy resolution of the RIXS experiment was about $95$ meV. The temperature was kept constant throughout the experiment at $T=15$ K and a base pressure of $2\times 10^{-10}$ mbar or better was achieved. The $1$ - Fe magnetic (orthorhombic) unit cell is adopted here for describing the orientation of the samples (Park et al., 2010). Ba(Fe1-xMnx)2As2 ($x=0.0$, $0.007$, $0.009$, $0.08$) single crystals were synthesized by the In-flux method as described in Ref. (Garitezi et al., 2013). The resistivity of the samples was measured by employing a commercial Physical Properties Measurements System (PPMS) from Quantum Design.

III Results and Discussion

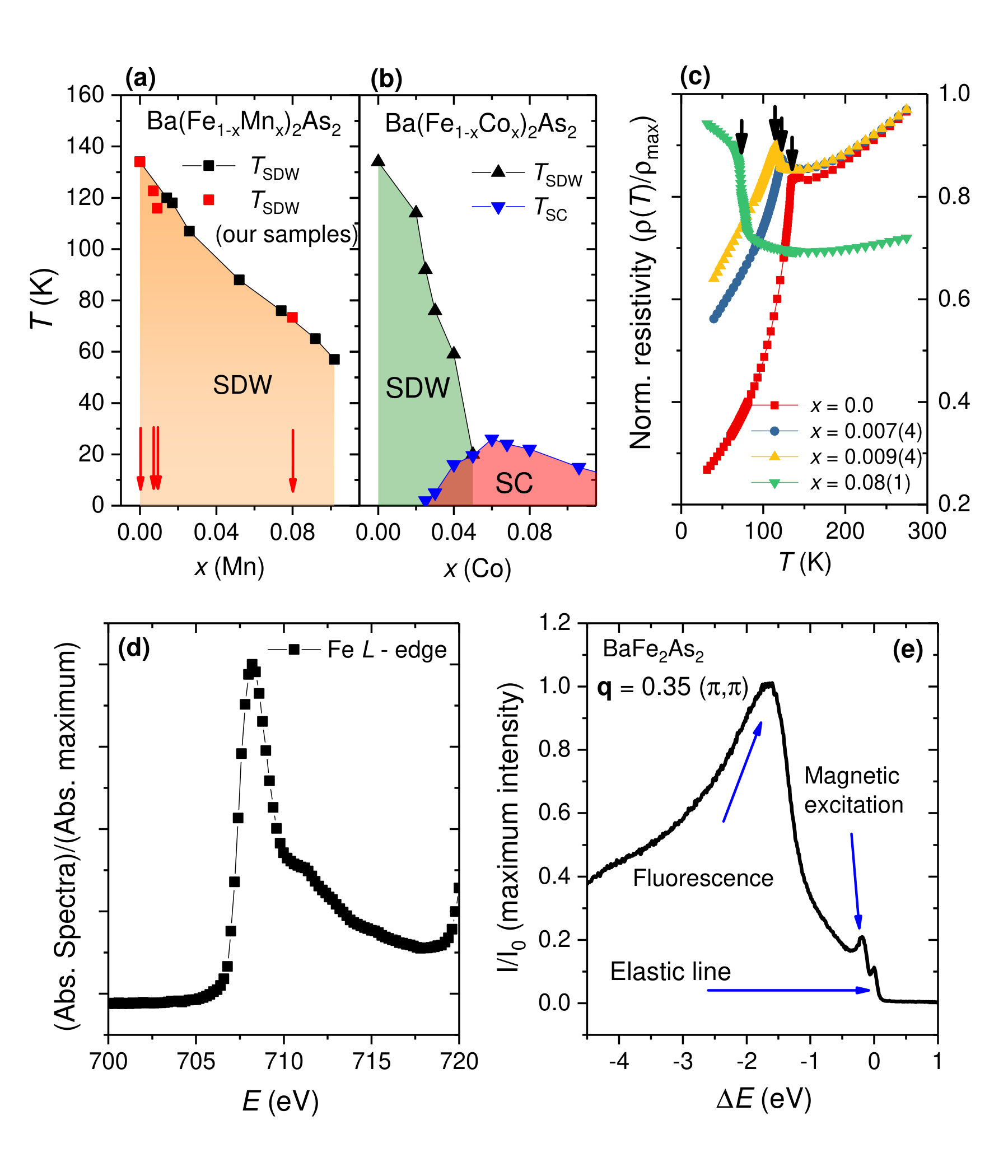

In Figs. 1 $(a)$-$(b)$, $x$ vs. $T$ phase diagrams for the Mn and Co substituted samples are presented (data from Ref. (Thaler, 2011)). The red arrows and red squares indicate (Fig. 1 $(a)$) the doping values at which samples were investigated in our experiments. The transition temperatures were determined by the peaks (or inflection points) on the resistivity curves, as it is shown in Fig. 1$(c)$. By assuming that the SDW transition temperature is a qualitative measure of the energy scale of the magnetic interactions between the Fe derived itinerant spins in both systems, our Mn-substituted $x=0.08$ sample and the $x\sim 0.03$ Co- substituted system are to be compared. As can be seen in Figs. 1 $(a)$-$(b)$, the systems have similar SDW onset, yet only the Co-substituted compound is a SC-SDW coexisting system.

Fig. 1 $(d)$-$(e)$ display, respectively, XAS and RIXS spectra at the Fe $L_{3}$-edge of our pristine BaFe2As2 samples. The XAS spectrum obtained with $\pi-$polarized incident photons is in good agreement with previously reported results of BaFe2As2 (Yang et al., 2009; Zhou et al., 2013). The RIXS spectrum in Fig. 1$(e)$ presents the main features observed for a diverse range of compositions of iron arsenides: a broad fluorescence line, reflecting the deexcitation of electrons from the valence bands having a high density of states of Fe character, and the magnetic excitation at low energy loss $\Delta E$. The later is well defined and can be distinguished from the elastic peak at $\Delta E=0$. In general, RIXS experiments of arsenides unveiled dispersive magnetic excitations, that were found to have nearly isotropic dispersions along the high symmetry BZ directions $(\pi,0)$ and $(\pi,\pi)$, presenting characteristics that depend weakly on composition (Zhou et al., 2013; Pelliciari et al., 2016a, 2017b, b). Contrasting with this picture, the RIXS spectra presented in this study display a different behavior as a function of composition.

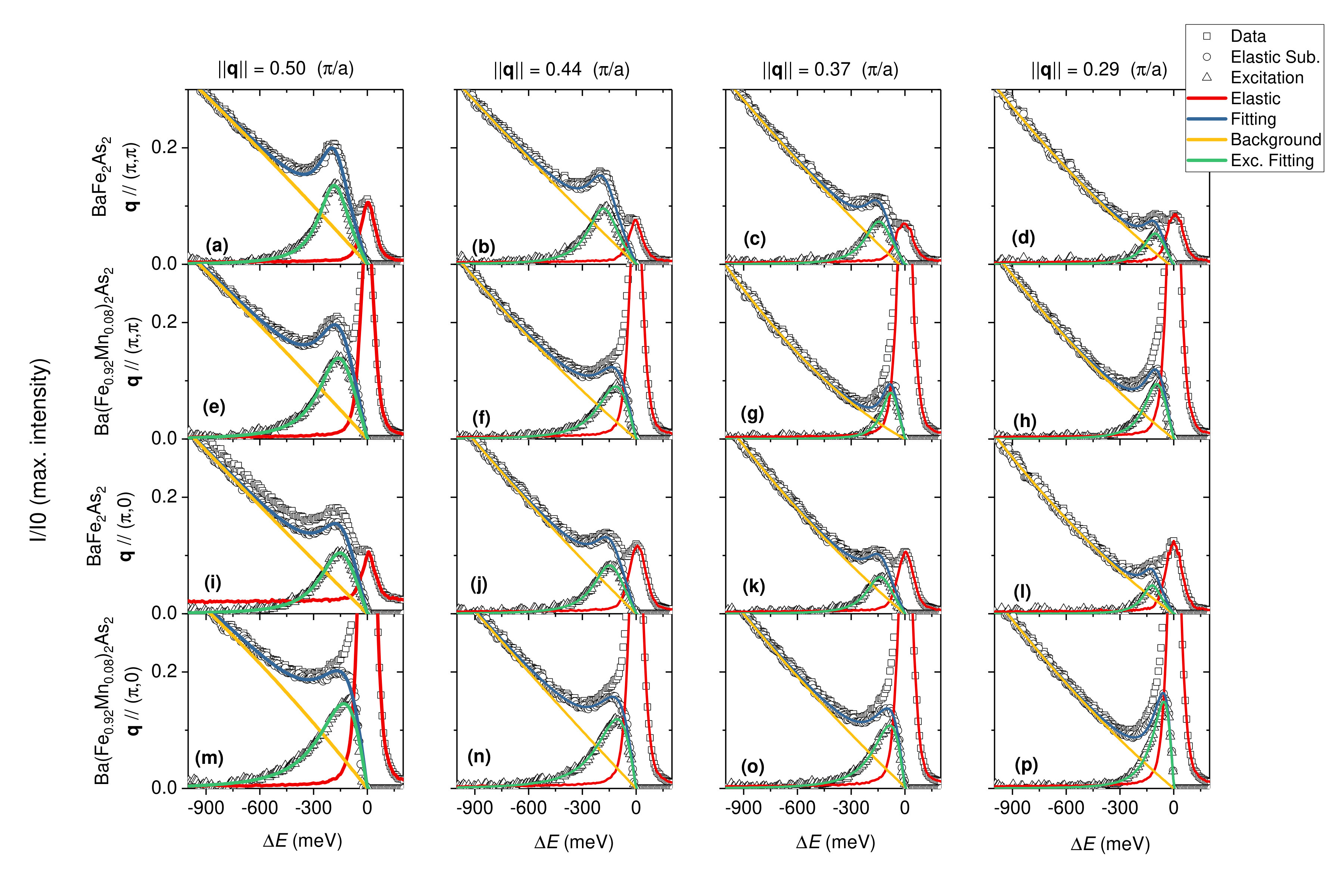

In Figs. 2$(a)$-$(p)$ we show a representative survey of our results, focusing the attention on the elastic line and background subtraction, along with the magnetic excitation fitting. The figures show data of the $x=0.0$ and $x=0.08$ samples, for distinct $||\boldsymbol{q}||$ along the main directions of the BZ zone as indicated. For the parent compound, even at low $||\boldsymbol{q}||$ (Figs. 2$(d)$ and $(l)$), the magnetic excitation can be distinguished from the elastic peak at $\Delta E=0$. Substitution by Mn, however, unavoidably introduces scattering centers which increase the elastic line relative intensity, as observed for all spectra obtained for the $x=0.08$ sample. Indeed, the elastic lines of this sample overlap with the magnetic excitations. For $\boldsymbol{q}$ along $(\pi,\pi)$, the magnetic excitations are well defined for the highest values of $||\boldsymbol{q}||$ and appear as weak bumps for the lowest values of $||\boldsymbol{q}||$. For $\boldsymbol{q}$ along $(\pi,0)$, even for the highest value of $||\boldsymbol{q}||$ the magnetic excitations overlap with the elastic line, a situation which calls for a careful procedure for its subtraction.

We extract the elastic line contribution assuming that the RIXS signal for $\Delta E>0$ is exclusively due to the elastic line and that it is symmetric with respect to $\Delta E=0$ (Suzuki et al., 2018). We then mirror the data for $\Delta E>0$ and subtract it from the respective RIXS signal, unveiling the underlining magnetic excitation along with the fluorescence background. At low energy loss, the later can be well described by a polynomial fitting (see yellow line in Figs. 2$(a)$-$(p)$). The RIXS magnetic excitation is proportional to the complex part of the dynamic susceptibility $\chi^{\prime\prime}(\omega)$, that is described by a damped harmonic oscillator. The associated expression reads:

[TABLE]

[TABLE]

where $\chi^{\prime\prime}_{0}$ is a constant, $\omega_{0}$ is the excitation bare frequency (without the damping effect), $\Gamma$ is the excitation lifetime and $\omega_{\boldsymbol{q}}=\sqrt{\omega_{0}^{2}-(\Gamma/2)^{2}}$ is the propagation frequency of the excitation along the $\boldsymbol{q}$ direction. The final expression to fit the excitation is given by $\chi^{\prime\prime}(\omega)(1+n_{B}(\omega))$ where $n_{B}(\omega)$ is the Bose-Einstein distribution function ($n_{B}=(\exp(\hbar\omega/k_{\text{B}}T)-1)^{-1}$). All the spectra of the parent compound are well described by the model outlined above and the results are in good agreement with what was found previously (Zhou et al., 2013). For the $x=0.08$ sample, all excitations exhibit large values of $\Gamma$, being strongly damped. For $\boldsymbol{q}$ along $(\pi,0)$, in particular, the magnetic excitatons are broadly spread in energy rendering $\Gamma\approx\omega_{0}$ which, in turn, suggests that the excitations along $(\pi,0)$ are heavily damped or even overdamped for the $x=0.08$ sample.

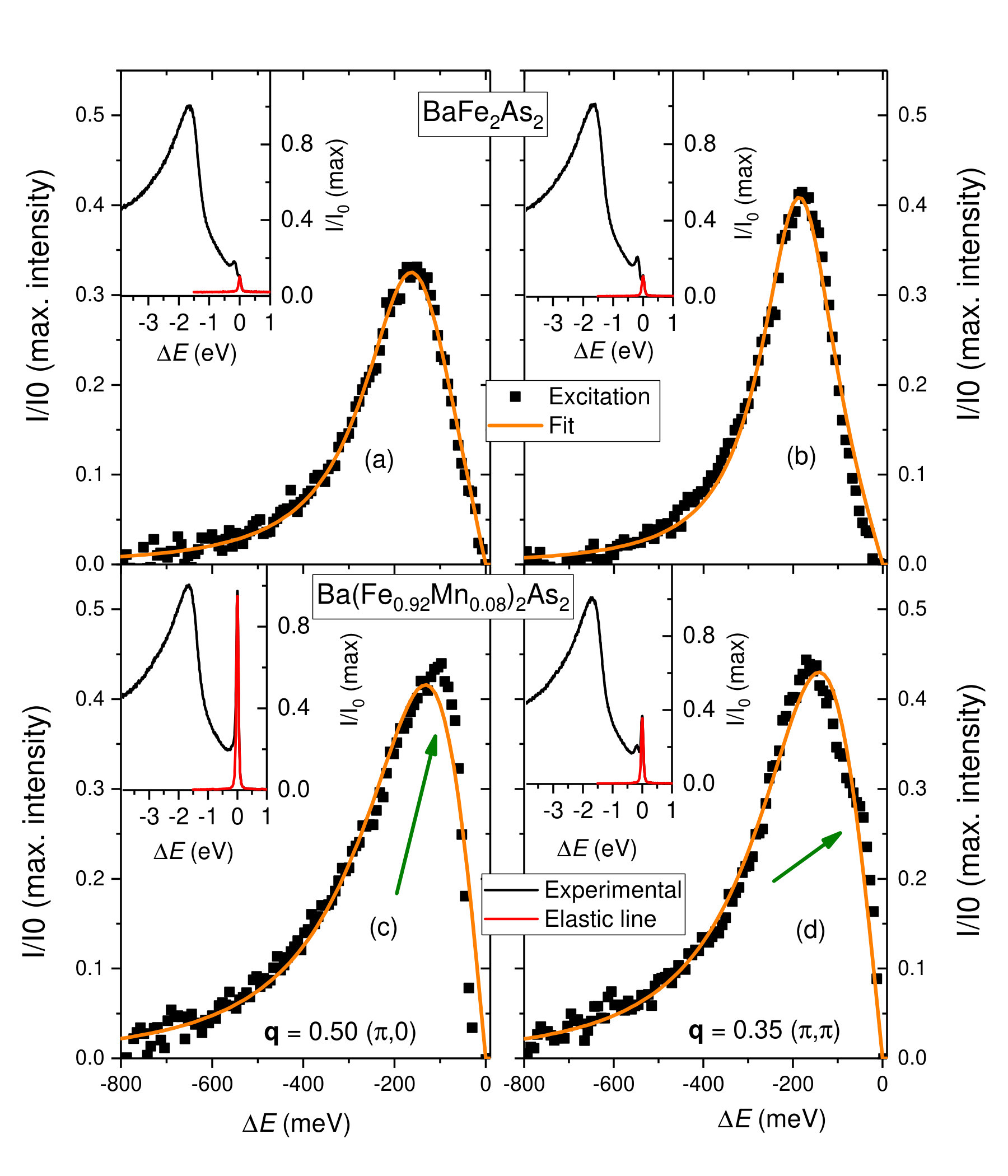

A more detailed inspection of the obtained spectra is presented Figs.3$(a)$-$(d)$, wherein the magnetic excitations for the Ba(Fe1-xMnx)2As2 samples at the two extreme dopings used here, $x=0.0$ and $x=0.08$, are presented. The excitations were measured at maximum accessible (by RIXS) momentum transfer $\left\|\boldsymbol{q}\right\|$, for $\boldsymbol{q}$ along the high symmetry BZ $(\pi,0)$ and $(\pi,\pi)$ directions. The respective raw spectra with the elastic-line fits are shown in the insets.

The contrast between the results for our samples at the two extreme dopings, $x=0.0$ and $x=0.08$, is clear. For the parent compound, the fit magnon excitation frequencies $\omega_{\boldsymbol{q}}$ along both directions are about $\omega_{\boldsymbol{q}}\approx 170$ meV, with the excitation along $(\pi,0)$ being a little broader. In both cases, the proposed model fits well to the experimental lineshape. For the $x=0.08$ sample, one observes that for $\boldsymbol{q}$ along the $(\pi,\pi)$ direction the excitation peaks at $\approx-170$ meV and the fit frequency is $\omega_{(\pi,\pi)}\approx 100(10)$ meV. As for $\boldsymbol{q}$ along the $(\pi,0)$ direction, the excitation peaks at about $-100$ meV and the excitation frequency is $\omega_{(\pi,0)}\approx 60(15)$ meV 111One must keep in mind that the line broadening usually shifts the magnon excitation frequency to lower energies in comparison with the peak position. Indeed in the damped harmonic oscillator model $\omega_{\boldsymbol{q}}=\sqrt{\omega_{0}^{2}-(\Gamma/2)^{2}}$ where $\omega_{0}$ is the bare frequency, closely corresponding to the peak position and $\Gamma$ relates to the half maximum linewidth. . It is noteworthy that for both directions the excitation are considerably broader and there appears to be some extra spectral weight (indicated by the arrows) close to $\Delta E=0$, that is not properly described by the fitting function. For $\boldsymbol{q}$ along $(\pi,0)$, this new feature overlaps strongly with the main excitation. Since for $\boldsymbol{q}$ along $(\pi,\pi)$ the main excitation disperses a little further, this extra component can be better distinguished.

These results are surprising since the magnetic excitations observed by RIXS in doped iron arsenides did not show so far any considerable evolution with composition (Zhou et al., 2013; Pelliciari et al., 2016a, 2017b), similarly to what has been found for hole-doped cuprates (Le Tacon et al., 2011; Dean et al., 2013). Thus, for the first time, anisotropic magnetic excitations are observed for iron arsenides by RIXS. It suggests, as well, that the excitations are not properly described by a simple model of a damped harmonic oscillator, which is unable to capture a very low energy feature close to $\Delta E=0$, the intensity of which is increasing with Mn content.

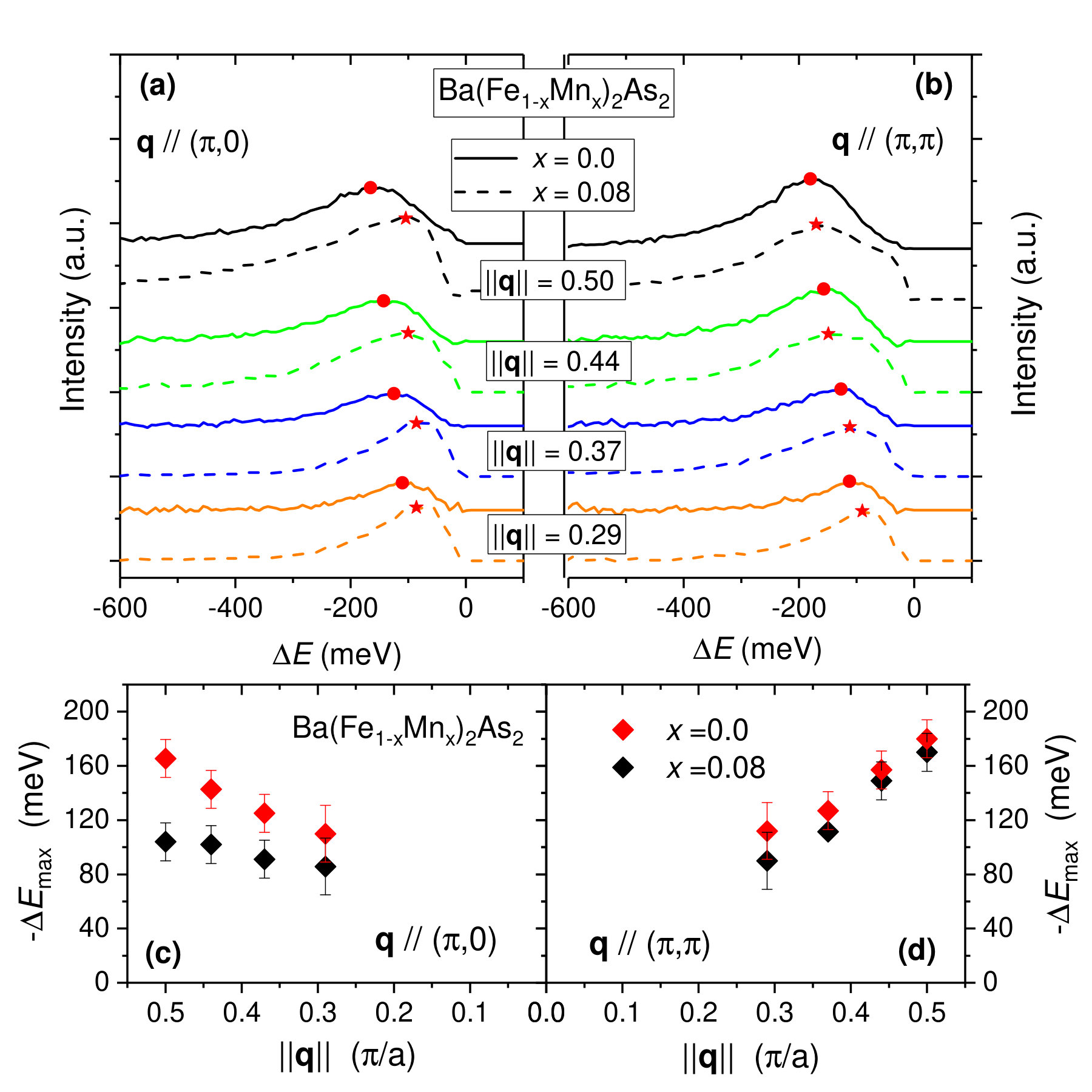

Therefore, to analyze the spectra obtained for other values of momentum transfer, we adopt a phenomenological description, taking the peak position at the maximum intensity, $\Delta E_{\text{max }}$, of the low-energy excitation as a measurement of the excitation propagation energy. The spectra and peak positions are shown in Fig. 4$(a)$-$(b)$ for the $x=0.0$ and $x=0.08$ samples as a function of momentum transfer $\left\|\boldsymbol{q}\right\|$ for the two directions being considered ($\boldsymbol{q}$ along $(\pi,0)$, left panel; and $\boldsymbol{q}$ along $(\pi,\pi)$, right panel). Direct observation reveals that while for $\boldsymbol{q}$ along $(\pi,\pi)$ the spectra of both samples present a similar pattern as a function of $\left\|\boldsymbol{q}\right\|$ , for $\boldsymbol{q}$ along $(\pi,0)$ the excitation of the $x=0.08$ sample is nearly non-dispersive. The scenario drawn on the basis of Fig. 4$(a)$-$(b)$ is summarized in Fig. 4$(c)$-$(d)$, where the peak positions are marked by red diamonds and black diamonds for the two cases, respectively. The anisotropy of the excitation dispersion for the $x=0.08$ sample is clear: while the low-energy excitation disperses up to $170$ meV along $(\pi,\pi)$ in the $x=0.08$ sample, it hardly disperses from $80$ to $100$ meV along $(\pi,0)$.

The observed anisotropy between the excitations along $(\pi,0)$ and $(\pi,\pi)$ in Mn-doped iron arsenides, both in their dispersions and lineshape, calls for an explanation. We start by discussing two possible mechanisms addressing the specifics of the RIXS physics in the arsenides. In short, these two mechanisms are (i) the increasing contribution of electron-hole excitations at low-energy, overlapping with a possibly weakened magnetic excitation or (ii) a magnetic excitation overdamped by strong scattering with intralayer magnetic impurities.

(i) RIXS at the Fe $L_{3}$-edge probes both Fe derived spin and charge excitations and both can in principle contribute to the low-energy excitations close to the elastic line. It has been shown that electron-hole excitations between bands close to the Fermi level can lead to dispersive peaks in RIXS, for instance in the semimetal TiSe2 (Monney et al., 2012), in the nickelate NdNiO3 (Bisogni et al., 2016) or in hole-doped cuprates (Kanász-Nagy et al., 2016; Bisogni et al., 2016; Minola et al., 2017). In the case of doped iron arsenides, doping-induced changes of the electron bands at the BZ border could allow more electron-hole excitations between bands near the Fermi level. This would mean an increase of RIXS signal coming from electron-hole excitations upon doping along $(\pi,0)$, since it is the vector connecting electron and hole pockets at $(\pi,0)$ and at $\Gamma$ in iron arsenides. In the case of bands crossing the Fermi level, one would expect to see in RIXS electron-hole contributions already at zero energy loss. Thus, the small RIXS signal at very low energy (see green arrows in Fig. 3) could be due to some electron-hole excitations near the Fermi level. However, it is rather weak and could be due to some imperfect subtraction of the large elastic line at high $x$. We note that XAS and PES suggest that the Mn ions do not act as charge dopants (Suzuki et al., 2013), with the Mn $3d$ partial density of states distributed over an energy range $2$-$13$ eV below the Fermi level.

(ii) A recent RIXS study of Eu-based iron arsenides has shown that the magnetic excitations are mostly unaffected by the presence of strong Eu2+ $S=7/2$ local moments (Pelliciari et al., 2017b), evidencing that the unique feature related to Mn substitution is the appearance of strongly localized moments at the Mn sites inside the (Fe1-xMnx)2As2 layers. The Mn impurities introduce strong $Q_{\text{N\'{e}el}}=(\pi,\pi)$ short range spin fluctuations in the system (Tucker et al., 2012; Inosov et al., 2013), which might have an indirect influence on the related magnetic excitations.

Indeed, here our main finding concerns the strong damping and the softening of the magnetic excitation along the $(\pi,0)$ direction. In the ordered SDW phase of pnictides, it is interpreted that the magnons have predominant intra-orbital $xy\rightarrow xy$ character (Kaneshita et al., 2011). Orbitals with $xy$ character contribute to bands whose extrema are centered around the BZ points $(\pi,0)$ and $(0,\pi)$, which are separated by a $(\pi,\pi)$ wave vector (Zhang et al., 2009; Graser et al., 2009). Therefore, $Q_{\text{N\'{e}el}}=(\pi,\pi)$ fluctuations are able to scatter electrons with $xy$ character from distinct bands into one another, providing a possible mechanism for understanding why the excitations along the $(\pi,0)$ direction are strongly affected by Mn substitution. We propose that $Q_{\text{N\'{e}el}}=(\pi,\pi)$ fluctuations lead to a transient change of the occupation number of the electronic states of $xy$ orbital character at $(\pi,0)$ and $(0,\pi)$. We caution, however, that RIXS at the Fe $L_{3}$-edge can reach in-plane momentum transfers $\boldsymbol{q}$ up to $\sim 0.5(\pi,0)$, meaning that we only probe a fraction of the magnon dispersion.

We now turn our attention to the the relevance of our results to the physics of the arsenides. We first call attention that one must keep in mind that RIXS at the Fe $L_{3}$-edge probes Fe derived excitations. Therefore, it is interesting that while K and Co substitution lead both to SC, the RIXS probed excitations are largely unaffected by the change of composition in these instances (Zhou et al., 2013; Pelliciari et al., 2016a, 2017a). In contrast, SC is not observed for phases with Mn, that is here shown to be a strong scatter of the Fe derived excitations along the $(\pi,0)/(0,\pi)$ directions. Thus, the absence of superconductivity in pnictide samples containing Mn spins can be understood in terms of electron scattering by $Q_{\text{N\'{e}el}}=(\pi,\pi)$ fluctuations which suppress the high temperature superconducting $s^{+-}$ phase, favoring the more fragile $d$-wave superconductivity (Fernandes and Millis, 2013).

The specifics of Mn substitution should also be addressed. Indeed, the remarkable fact that small amounts of Mn impurities impact strongly the Fe derived magnetic excitations was not yet discussed. This finding suggests the kind of cooperative behavior of the Mn impurities as discussed in Ref. (Gastiasoro and Andersen, 2014) or a strong coupling between the order parameter of the incipient Néel-type and the SDW ordering wave vector $Q_{\text{SDW}}=(\pi,0)$ or $(0,\pi)$ as proposed in Ref. (Wang and Fernandes, 2014). Such collective behavior of Mn impurities is investigated in Fig. 5$(a)$-$(d)$, where an overview of the composition dependence of RIXS spectra is presented. First we track in Fig. 5$(a)$-$(c)$ the doping evolution of the magnon modes for maximum momentum transfer. For all investigated samples, the modes along $(\pi,\pi)$ disperse to about $170$ meV, while the modes along $(\pi,0)$ present a clear trend toward softening starting from the $x=0.009$ sample (see also Fig. 5$(c)$). A more comparative scenario is highlighted in Fig. 5$(d)$. The anisotropy in the dispersion of the magnon modes as a function of $||\boldsymbol{q}||$ tends to disappear for small $||\boldsymbol{q}||$ and develops strongly with its increase, even for the $x=0.009$ sample. This result illustrates the impact of the cooperative behavior of magnetic disorder on the Fe-derived magnetic excitations due to the growing Mn impurity density that is related to an incipient Néel order.

IV Summary and Outlook

Magnetic excitations in Mn substituted iron arsenides were investigated by means of RIXS at the Fe $L_{3}$-edge. The Fe derived excitations were shown to be composition and momentum dependent, in contrast to previous RIXS experiments of the arsenides. Our pnictide sample with the highest Mn doping ($x=0.08$) display magnetic excitations along the directions $(\pi,0)$ and $(0,\pi)$ that are strongly damped and softened. It suggests that the absence of SC in phases of arsenides with Mn can thus be naturally explained by the lack of the $(\pi,0)$ and $(0,\pi)$ fluctuations that promote the most efficient Cooper pairing channel. The cooperative behavior of Mn impurities was also highlighted. It was shown that small amounts of Mn have a large impact on the Fe derived excitations.

We propose that the intraorbital character of the Fe derived magnons is key to understand why the introduction of $Q_{\text{N\'{e}el}}=(\pi,\pi)$ fluctuations, derived from the Mn local spins, are able to scatter the magnons along the $(\pi,0)$ and $(0,\pi)$ directions. Certainly, more theoretical and experimental work is needed to better understand this phenomenon. In this regard, the formal valence of Mn in Ba(Fe1-xMnx)2As2 is $2+$, thus Mn impurities carry a large $S=5/2$ spin. It remains to be investigated if our results are due to the specifics of this spin configuration, or if it is a general feature concerning the presence of strongly localized moments at the FeAs layers. In this line of thinking, it is interesting to investigate phases containing Cr, which do not present SC as well. The investigation of Cu containing samples is also invited. Although Cu leads to a SC phase (Hosono and Kuroki, 2015) the critical temperature is low and that could be due to the scattering of $(\pi,0)/(0,\pi)$ fluctuations. In this case, one expects $d$-wave SC in Cu containing samples.
