Relativistic dissipation obeys Chapman-Enskog asymptotics: analytical and numerical evidence as a basis for accurate kinetic simulations

TL;DR

This paper analytically derives transport coefficients for a relativistic gas in (2+1) dimensions, demonstrating that Chapman-Enskog asymptotics accurately captures dissipative effects and enabling precise kinetic simulations of relativistic fluids.

Contribution

The paper provides the first analytical derivation of relativistic gas transport coefficients in (2+1) dimensions and develops a calibration method linking kinetic theory to hydrodynamics.

Findings

Chapman-Enskog method accurately captures dissipative effects

Grad's expansion method does not match numerical simulations

Calibration procedure enables quantitative kinetic modeling of relativistic fluids

Abstract

We present an analytical derivation of the transport coefficients of a relativistic gas in (2+1) dimensions for both Chapman-Enskog (CE) asymptotics and Grad's expansion methods. Moreover, we develop a systematic calibration method, connecting the relaxation time of relativistic kinetic theory to the transport parameters of the associated dissipative hydrodynamic equations. Comparison between the analytical results and numerical simulations, shows that the CE method correctly captures dissipative effects, while Grad's method does not. The resulting calibration procedure based on the CE method opens the way to the quantitative kinetic description of dissipative relativistic fluid dynamics under fairly general conditions, namely flows with strongly non-linearities, in non-ideal geometries, across both ultra-relativistic and near-non-relativistic regimes.

Figures

Equations

$$p^{\alpha }\frac{\partial f}{\partial x^{\alpha }}=\frac{p^{\mu }{U}_{\mu }}{\tau }\left(f-f^{eq}\right);$$

$$f^{\mathrm{eq}}=\frac{n{e}^{\zeta }}{2\pi T^2(\zeta +1)}{e}^{-\frac{p^{\mu }{U}_{\mu }}{T}};$$

$${\partial }_{\alpha }{N}^{\alpha }$$

$${\partial }_{\beta }{T}^{\alpha \beta }$$

$$N^{\alpha }=\int f{p}^{\alpha }\frac{{\mathrm{d}}^{2}p}{p_0}$$

$$T^{\alpha \beta }=\int f{p}^{\alpha }{p}^{\beta }\frac{{\mathrm{d}}^{2}p}{p_0}$$

$$q^{\alpha }$$

$${\pi }^{<\alpha \beta >}$$

$$\varpi$$

$$\begin{array}[]{lcl}\nabla^{\alpha}&=&\Delta^{\alpha\beta}\partial_{\beta}\quad,\\ \Delta^{\alpha}_{\beta}&=&\Delta^{\alpha\gamma}\Delta_{\gamma\beta}\quad.\end{array}$$

$$f=f^{\mathrm{eq}}+f^{\mathrm{neq}}=f^{\mathrm{eq}}(1+\varphi ),$$

$$n$$

$$=U^{\alpha }\int f{p}_{\alpha }\frac{{\mathrm{d}}^{2}p}{p_0},$$

$$ne$$

$$=U^{\alpha }{U}^{\beta }\int f{p}_{\alpha }{p}_{\beta }\frac{{\mathrm{d}}^{2}p}{p_0}.$$

$$U_{\alpha }\int f^{\mathrm{eq}}\varphi p^{\alpha }\frac{{\mathrm{d}}^{2}p}{p_0}=0,$$

$$U_{\alpha }{U}_{\beta }\int f^{\mathrm{eq}}\varphi p^{\alpha }{p}^{\beta }\frac{{\mathrm{d}}^{2}p}{p_0}=0.$$

$$p^{\alpha }\frac{\partial f^{\mathrm{eq}}}{\partial x^{\alpha }}=-\frac{U^{\alpha }{p}_{\alpha }}{\tau }{f}^{\mathrm{eq}}\varphi ,$$

$$U_{\alpha }{\partial }^{\alpha }n+n{\nabla }^{\alpha }{U}_{\alpha }$$

$$n{c}_v{U}_{\alpha }{\partial }^{\alpha }T+P{\nabla }_{\alpha }{U}^{\alpha }$$

$${\nabla }^{\beta }P-(P+ϵ)U_{\alpha }{\partial }^{\alpha }{U}^{\beta }$$

$$\varphi =-\frac{\tau }{p^{\mu }{U}_{\mu }}{p}^{\alpha }[\frac{{\partial }_{\alpha }n}{n}-\left(1+\zeta +\frac{1}{1+\zeta }\right)\frac{{\partial }_{\alpha }T}{T}$$

$$+p^{\beta }\frac{U_{\beta }{\partial }_{\alpha }T}{k{T}^2}-\frac{p^{\beta }{\partial }_{\alpha }{U}_{\beta }}{kT}];$$

$$q^{\alpha }$$

$$P+\varpi$$

$${\pi }^{<\gamma \delta >}$$

$$\lambda$$

$$\times$$

$$\mu$$

$$\eta$$

$$\Gamma (\alpha ,x)={\int }_x^{\infty }{y}^{\alpha -1}{e}^{-y}\mathrm{d}y,$$

$${\lambda }_{\mathrm{ur}}$$

$${\mu }_{\mathrm{ur}}$$

$${\eta }_{\mathrm{ur}}$$

$$\lambda$$

$$\mu$$

$$\eta$$

$${\lambda }_{\mathrm{ur}}$$

$${\mu }_{\mathrm{ur}}$$

$${\eta }_{\mathrm{ur}}$$

$$u_x(x,y,0)$$

Full text

I Introduction

In the recent years, relativistic fluid dynamics Rezzolla and Zanotti (2013) has met with a major surge of interest, due to its crucial role in several areas of modern physics, such as the transport properties of high-temperature astrophysical plasmas Uzdensky and Rightley (2014), dark-matter cosmology Hui et al. (2017) and the dynamics of quark-gluon plasmas in high-energy heavy-ion collisions Baier et al. (2006); Romatschke and Romatschke (2017).

In this context, there is major scope for developing efficient and accurate numerical solvers for the study of dissipative relativistic hydrodynamics, since controlled experimental setups are often not viable, while analytical methods suffer major limitations in describing complex phenomena which arise from strong nonlinearities and/or non-ideal geometries of direct relevance for experiments. In the last decade, mesoscale lattice kinetic schemes Mendoza et al. (2010); Romatschke et al. (2011); Gabbana et al. (2017a) have emerged as a promising tool for the study of dissipative hydrodynamics in relativistic regimes.

One of the assets of the kinetic approach is that the emergence of viscous effects does not break relativistic invariance and causality, because space and time are treated on the same footing, i.e. both via first order derivatives (hyperbolic formulation). This overcomes many conceptual issues associated with the consistent formulation of relativistic transport phenomena. Indeed, it is well known that a straightforward relativistic extension of the Navier-Stokes equations is inconsistent with relativistic invariance, because second order space derivatives imply superluminal propagation, hence non-causal and unstable behaviour. In 1979 Israel and Stewards (IS) introduced a hyperbolic formulation Israel (1976); Israel and Stewart (1979) able to restore causal dissipation, thus providing a valuable reference framework for subsequent studies to this day. However, recent work has highlighted both theoretical shortcomings Denicol et al. (2012) of the IS formulation, as well as poor agreement with numerical solutions of the Boltzmann equation Huovinen and Molnar (2009); Bouras et al. (2010); Florkowski et al. (2013). Several alternative formulations have been proposed in recent years Muronga (2007a, b); Betz et al. (2009); El et al. (2010); Denicol et al. (2010); Betz, B. et al. (2011); Denicol et al. (2012); Jaiswal et al. (2013); Jaiswal (2013a, b); Bhalerao et al. (2013, 2014); Chattopadhyay et al. (2015), but a consistent definition of a causal theory of relativistic viscous hydrodynamics and the accurate determination of the associated transport coefficients, is still under debate.

The IS formulation follows from the Boltzmann equation, using a relativistic extension of Grad’s moments method, Grad (1949), commonly used to derive hydrodynamic equations from the Boltzmann equation. Grad’s method is not the only route from kinetic theory to hydrodynamics, another viable alternative being provided by the Chapman-Enskog (CE) expansion Chapman and Cowling (1970).

The two differ significantly in spirit and technical detail as well: Grad’s method is basically an expansion of the Boltzmann probability distribution function in Hilbert space, which is usually truncated at the level of the third kinetic moment (energy flux). Chapman-Enskog asymptotics, on the other hand, is a multi-scale expansion based on a weak-gradient approximation, i.e. weak departure from local equilibrium.

Both procedures come with well-known limitations: Grad’s truncation endangers positive-definiteness of the distribution function, while the Chapman-Enskog expansion suffers convergence problems in the presence of strong gradients, or, more precisely, whenever the heterogeneity scale of hydrodynamic fields becomes comparable with the molecular mean free path (finite Knudsen number).

Despite these differences and limitations, in the non-relativistic regime, both methods connect kinetic theory and hydrodynamics in a consistent way, i.e. they provide the same transport coefficients. Yet, in the relativistic regime, this is no longer the case and the immediate question arises as to which (if any) of the two provides the correct description of the hydrodynamic limit.

This question has been studied by several authors, at the theoretical level Denicol et al. (2010, 2012); Molnár et al. (2014); Jaiswal (2013a); Tsumura and Kunihiro (2012); Tsumura et al. (2015); Kikuchi et al. (2015, 2016), but only very recently has this extensive analysis – complemented by results of numerical simulations Plumari et al. (2012); Florkowski et al. (2013); Bhalerao et al. (2014) – decidedly pointed in favour of the CE procedure; All these analyses are restricted to three-dimensional fluids in the ultra-relativistic limit, with virtually no results available in the mildly relativistic regime or for the two-dimensional case. A notable exception in $(3+1)$ dimensions Gabbana et al. (2017b) shows that numerical simulations are able to clearly discriminate between CE and Grad’s method on a wide range of kinematic regimes and neatly confirms that the CE approach is the correct one. While the (3+1)-dimensional case is obviously relevant in terms of potential applications, the study of relativistic fluids in lower dimensions may be of practical interest since it is considerably simpler to handle both at a mathematical Kremer and Devecchi (2002) and computational level Kellerman et al. (2008).

More interestingly, it has been recently realised that two-dimensional relativistic fluid dynamics captures several aspects of the collective dynamics of exotic systems, e.g. graphene sheets and Weyl semi-metals Müller and Sachdev (2008); Müller et al. (2008); Fritz et al. (2008); Müller et al. (2009); Yoshino and Murata (2015); Hartnoll and Sachdev (2016); Lucas et al. (2016a, b); Lucas (2016); Crossno et al. (2016); Bandurin et al. (2016); Gabbana et al. (2018a); Lucas and Fong (2018). Graphene is particularly relevant for our analysis, since in this material charge carriers mimic ultra-relativistic particles Wallace (1947), positioning itself in a regime of parameters for which the differences between the results of Grad’s method of moment and Chapman-Enskog expansion are larger, as we shall see in the following.

Furthermore, a fascinating connection between hydrodynamics and black hole physics has been established and intensively explored in the last decade Son and Starinets (2007). Of particular interest is the AdS/CFT duality Maldacena (1999); Aharony et al. (2000), which connects (d+1)-dimensional gravity with d-dimensional field theory Bhattacharyya et al. (2008). In this framework, fluid dynamic solutions in (2+1)-dimensions provide valuable information for the study of gravity in (3+1)-dimensions. For example, the development of turbulence in (3+1)-dimensional gravitational perturbations Adams et al. (2014) has sparked a significant interest for the analysis of relativistic turbulent flows in (2+1)-dimensions (Carrasco et al. (2012); Green et al. (2014); Westernacher-Schneider and Lehner (2017)).

In spite of its importance, a robust methodology connecting kinetic and hydrodynamic parameters in (2+1)-dimensions is still lacking; Mendoza et al. Mendoza et al. (2013) derived transport coefficients for an ultra-relativistic ideal gas using Grad’s method of moments and the relaxation time approximation (RTA) while, to the best of our knowledge, the Chapman-Enskog expansion has not been fully derived, with only one calculation of thermal conductivity available in literature García-Perciante et al. (2017).

Starting from this state of affairs, in this paper we develop a robust simulation environment for viscous relativistic fluid dynamics, based on a two step approach: i) a complete theoretical derivation of the transport coefficients of an ideal gas in $(2+1)$ dimensions for all kinematic regimes (from ultra-relativistic to near non-relativistic) using both the CE approach and Grad’s method; ii) a comparison of the predictions of both approaches against accurate numerical simulations, based on a recent lattice kinetic scheme Gabbana et al. (2017a).

Our main results are as follows; i) neat numerical evidence that also in (2+1)-dimensions the CE expansion accurately describes dissipative effects in the relativistic regime, while Grad’s method fails to do so, and ii) a controlled and systematic procedure relating macroscopic transport parameters to the kinetic relaxation time, thus allowing an accurate calibration of the numerical simulations.

Items i) and ii) provide a unified framework for accurate numerical studies of transport phenomena in relativistic fluids under quite general conditions, i.e. flows with strong nonlinearities, in non-ideal geometries, across both ultra-relativistic and near-non relativistic regimes.

This paper is structured as follows: in Section II we introduce the relevant equations describing a relativistic fluid in (2+1)-dimensions at both the mesoscopic and macroscopic levels. We then sketch the Chapman-Enskog expansion and provide the analytical results of both CE and Grad’s method of moments. In Section III we present a numerical analysis giving clear evidence that the transport coefficients calculated using the Chapman-Enskog expansion provide the correct bridge between the mesoscopic and the macroscopic layers. To conclude, in Section IV we summarize our results and future directions of research.

II Hydrodynamic derivations

In the following, we consider a $(2+1)$ Minkowski space, with metric tensor $\eta^{\alpha\beta}=diag(1,-1,-1)$ and use the Einstein summation convention over repeated indexes, with Latin indexes for 2-D space coordinates and Greek indexes for $(2+1)$ space-time coordinates. We use natural units, $c=k_{B}=\hbar=1$.

Our starting point is the relativistic Boltzmann equation in the RTA given by the Anderson-Witting model Anderson and Witting (1974a, b):

[TABLE]

the particle distribution function $f(x^{\alpha},p^{\beta})$ depends on space-time coordinates $x^{\alpha}=\left(t,\bm{x}\right)$ and momenta $p^{\alpha}=\left(p^{0},\bm{p}\right)=\left(\sqrt{\bm{p}^{2}+m^{2}},\bm{p}\right)$, with $\bm{x},\bm{p}\in\mathbb{R}^{2}$, $U^{\alpha}$ is the macroscopic relativistic velocity, $\tau$ is the relaxation (proper-) time, and $f^{\rm eq}$ is the equilibrium distribution function, here taken to be the Maxwell-Jüttner distribution which in $(2+1)$ dimensions writes as

[TABLE]

$n$ is the particle density, and $\zeta$ is the ratio between the rest mass $m$ and the temperature $T$. The parameter $\zeta$ physically characterizes the kinematic regime of the macroscopic fluid, with $\zeta\rightarrow 0$ in the ultra-relativistic regime and $\zeta\rightarrow\infty$ in the classical one. The Anderson-Witting model ensures the local conservation of particle number, energy and momentum:

[TABLE]

with $N^{\alpha}$ and $T^{\alpha\beta}$ respectively the particle flow and energy momentum tensors. These equations are purely formal until a specific form for $N^{\alpha}$ and $T^{\alpha\beta}$ is specified. The Anderson-Witting model is compatible with the Landau-Lifshitz decomposition Cercignani and Kremer (2002):

[TABLE]

$\epsilon$ is the energy density, $P$ the hydrostatic pressure, $q^{\alpha}$ is the heat flux, $\pi^{<\alpha\beta>}$ the pressure deviator, $\varpi$ the dynamic pressure, and $\Delta^{\alpha\beta}=U^{\alpha}U^{\beta}-\eta^{\alpha\beta}$ is the (Minkowski-)orthogonal projector to the fluid velocity $U^{\alpha}$; the latter, in the Landau frame, is defined as $T^{\alpha\beta}U_{\beta}=\epsilon U^{\alpha}$. It is useful to recall that in equilibrium $\varpi=0$, $q^{\alpha}=0$ and $\pi^{<\alpha\beta>}=0$. On the other hand, the non-equilibrium contribution to the energy momentum tensor can be used to define the transport coefficients Cercignani and Kremer (2002):

[TABLE]

$\lambda$ is the thermal conductivity, $\eta$ and $\mu$ the shear and bulk viscosities, and we have used the shorthand notation

[TABLE]

The CE expansion allows to define a pathway between kinetic theory and fluid dynamics, linking the macroscopic transport coefficients $\lambda$, $\mu$, $\eta$ to the mesoscopic ones, in our case the relaxation time $\tau$.

The CE expansion of the relativistic Boltzmann equation was derived several decades ago in $(3+1)$ dimensions, see, e.g., Cercignani and Kremer (2002). Here we briefly summarize the main steps of the procedure and derive results in $(2+1)$ dimensions, leaving full mathematical details to an extended version of this paper.

The starting point is to approximate the one-particle distribution with the sum of two terms, the equilibrium distribution $f^{\rm eq}$ and a non equilibrium part $f^{\rm neq}$, under the assumption that $f^{\rm neq}$ is a small deviation from equilibrium:

[TABLE]

with $\phi$ of the order of the Knudsen number $\rm Kn$, defined as the ratio between the mean free path and a typical macroscopic length scale. From Eq. 5 and 6 we infer the following constraints on the particle distribution function:

[TABLE]

These conditions together with Eq. 11 lead to the following constraints for the non-equilibrium part:

[TABLE]

Plugging Eq. 11 into Eq. 1 we obtain

[TABLE]

where on the LHS we have ignored the term $p^{\alpha}\frac{\partial f^{\rm eq}\phi}{\partial x^{\alpha}}$ since it is $\mathcal{O}(\rm{Kn}^{2})$. We multiply Eq. 16 by $\{1,p^{\beta}\}$, integrate in momentum space and use the result in combination with Eq. 14 and  15 to derive the conservation equations:

[TABLE]

where $c_{v}=(\zeta^{2}+4\zeta+2)/(1+\zeta)^{2}$ is the heat capacity at constant volume. From Eq. 16 we then obtain an expression for $\phi$:

[TABLE]

Next, we apply the projectors $\Delta^{\alpha}_{\beta}$ to $N_{\alpha}$ (Eq. 5) and respectively $\Delta_{\alpha\beta}$ and $(\Delta_{\beta}^{\gamma}\Delta_{\alpha}^{\delta}-\frac{1}{2}\Delta^{\gamma\delta}\Delta_{\alpha\beta})$ to $T^{\alpha\beta}$ (Eq. 6) to obtain:

[TABLE]

We now use Eq. 11 together with Eq. II to calculate $N^{\alpha}$ and $T^{\alpha\beta}$ via their integral definitions, eliminate the convective time derivatives using Eqs. 17, and obtain the expression of the transport coefficients by direct comparison of Eq. 19, 20 and 21 with respectively Eq. 7,  8 and  9:

[TABLE]

where

[TABLE]

is the upper incomplete gamma function. In the ultra-relativistic limit these expressions simplify to

[TABLE]

For Grad’s method, following a procedure similar to those described in Cercignani and Kremer (2002) for the $(3+1)$ dimensional case, and in Mendoza et al. (2013) for the ultra-relativistic $(2+1)$ dimensional case, we obtain the following expressions:

[TABLE]

with the ultra-relativistic limit given by:

[TABLE]

These limiting values are the same as those computed by Mendoza et al. (2013) for $\mu$ and $\eta$, while we have a discrepancy of a factor $2$ for $\lambda$. This discrepancy, whose origin is not clear to us, has no impact on our phenomenological analysis, as we discuss in the following.

III Numerical validation

Precisely in the same way as in $(3+1)$ dimensions (see Cercignani and Kremer (2002) for details), the CE expansion and Grad’s method yield different results for the transport coefficients. In order to discriminate between the two, we perform numerical experiments using a recently developed lattice kinetic scheme Gabbana et al. (2017a). We consider relativistic flows for which we are able to compute approximate solutions explicitly depending on the transport coefficients, and compare with numerical results, obtaining an explicit correspondence of the values of the transport coefficients with the relaxation time $\tau$.

First, we consider shear viscosity; we follow Gabbana et al. (2017b) and consider as a benchmark the Taylor-Green vortex Taylor and Green (1937), a well known example of a decaying flow with an exact solution of the classic Navier-Stokes equations, and for which an approximate solution can be derived in the relativistic regime Gabbana et al. (2017b). From the following initial conditions in a 2D periodic domain:

[TABLE]

with $v_{0}$ a initial velocity, it is possible to define the following approximated solution:

[TABLE]

with

[TABLE]

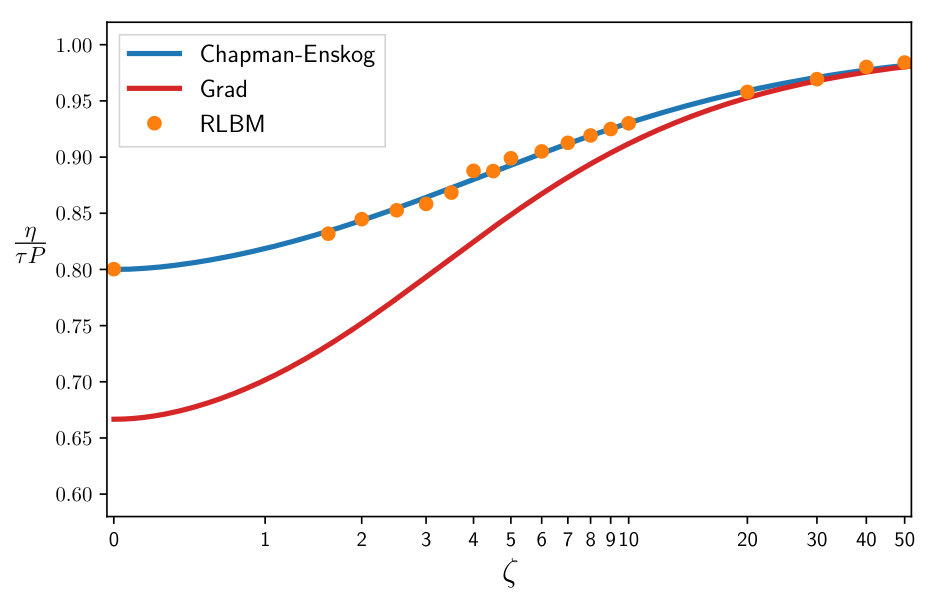

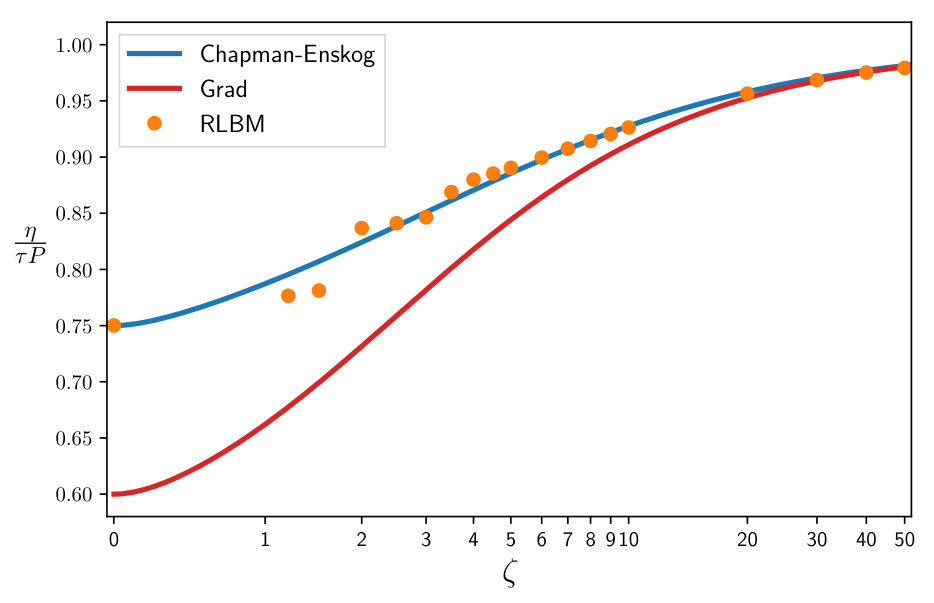

which allows us to numerically measure $\eta$. We perform several simulations with different value of the relaxation time $\tau$ and fit the coefficient linking $\eta$ and $\tau$ at different values of $\zeta$. Fig. 1a shows our new results for the non-dimensional shear viscosity in $(2+1)$ dimensions, while Fig. 1b shows results for the $(3+1)$ dimensional case, previously presented in Gabbana et al. (2017b). Our data clearly show that the Chapman-Enskog expansion correctly matches the measured behavior in all regimes, while this is not the case for Grad’s method.

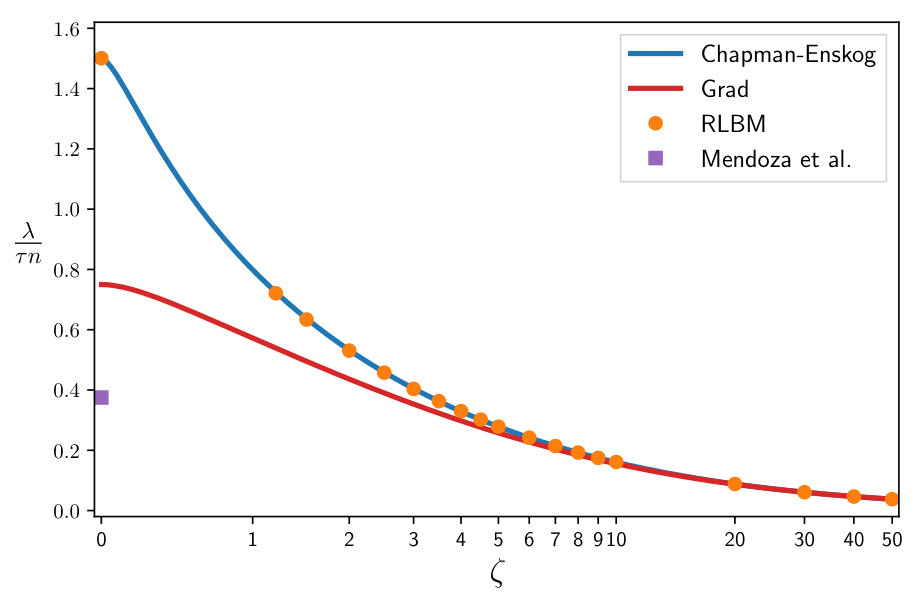

Further evidence is given when taking into consideration thermal conductivity. We consider a second benchmark, in which following Coelho et al. (2018), two parallel plates are kept at constant temperatures, $T_{0}$ and $T_{1}$, $T_{1}-T_{0}=\Delta T$. For sufficiently small values of $\Delta T$, and consequently low velocities compared to the speed of light, Eq. 7 reduces to Fourier’s law. Under these settings, simulations reach a steady state in which we obtain an approximately constant value for the heat flux $q^{\alpha}$, measured via Eq. 5, as well as a constant temperature gradient allowing to use Eq. 7 to numerically fit $\lambda$.

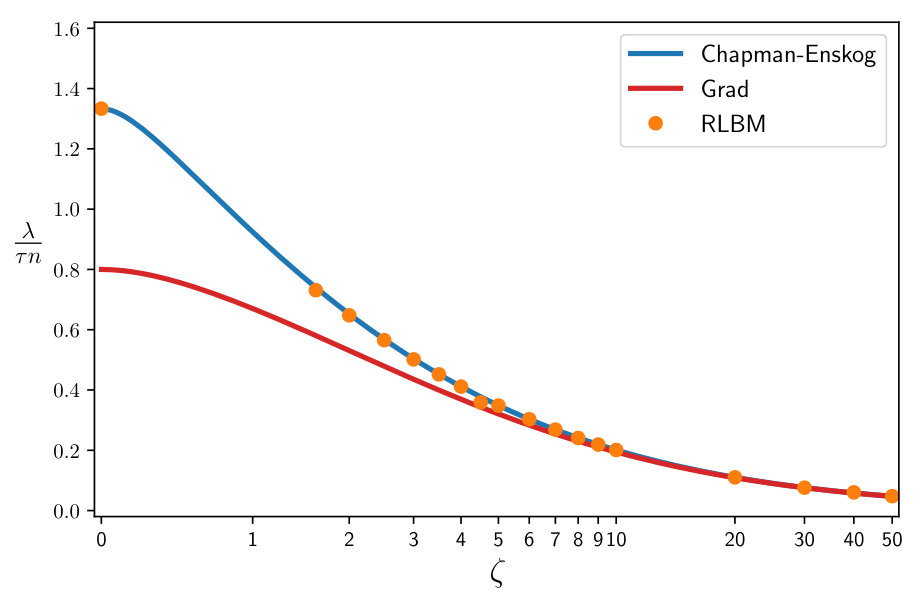

Results shown in Fig. 1 are once again in excellent agreement with CE predictions, while the results obtained with Grad’s are at strong variance with our numerical findings in the mild-relativistic to ultra-relativistic regime. This conclusion is in no way affected by the discrepancy between our results and those of Mendoza et al. Mendoza et al. (2013) in the ultra-relativistic limit.

Before closing, we wish to spend a few tentative comments on the reasons why relativistic dissipation obeys Chapman-Enskog asymptotics rather than Grad’s expansion. As mentioned earlier on, the two procedures differ considerably in spirit, before they do in their mathematical formulation. Grad’s expansion is based on a low-order truncated representation of the Boltzmann distribution in Hilbert space, while the Chapman-Enskog expansion is basically a weak-gradient approximation. The recognized weakness of Grad’s procedure is that truncation endangers positive-definiteness, while Chapman-Enskog is, in principle, confined to comparatively mild inhomogeneities, i.e. weak departures from local equilibrium. Other authors have indeed shown Denicol et al. (2012) that extending Grad’s method to account for higher moments, beyond the 14-terms of the standard IS formulation, one eventually approaches the CE results. Since hydrodynamics is a weak-gradient approximation of kinetic theory, on purely intuitive grounds, the Chapman-Enskog route appears indeed a more natural candidate to describe transport phenomena than Grad’s expansion. In this respect, it is worth noting that, for all its formal elegance, even for non-relativistic fluids Grad’s has only met with mixed success, while Chapman-Enskog techniques have proved significantly more viable (for a detailed discussion see Chapter 6 of Succi (2018)). In other words, even though they provide the same analytical transport coefficients, they are not equivalent at all in practical and numerical terms. Relativity exposes this gap already at the analytical level.

IV Conclusions and Future Directions

In summary, this paper has presented a complete analytical derivation of the transport coefficients of an ideal gas in $(2+1)$ dimensions, encompassing both ultra-relativistic and near non-relativistic regimes, for both Chapman-Enskog and Grad’s methods. A detailed comparison between analytical and numerical results, unambiguously shows that relativistic dissipation obeys Chapman-Enskog asymptotics. The present works marks a concrete step towards a unified kinetic scheme for computational studies of two and three dimensional dissipative relativistic fluid dynamics. We plan to further extend the present methodology to include quantum statistics, so as to perform more detailed studies of hydrodynamic phenomena in graphene Gabbana et al. (2018b) and other exotic two-dimensional quantum materials Lucas et al. (2016a); Moll et al. (2016); Wang et al. (2017), including problems related to the AdS/CFT fluid/gravity correspondence Succi (2015).
