Entanglement Swapping with Semiconductor-generated Photons

TL;DR

This paper demonstrates entanglement swapping using photons from a semiconductor quantum dot, achieving high fidelity and Bell inequality violation, advancing practical quantum communication technologies.

Contribution

First demonstration of entanglement swapping with semiconductor quantum dot photons, enabling hybrid quantum repeaters and practical quantum communication.

Findings

Achieved entanglement swapping with fidelity up to 0.81.

Confirmed nonlocality by violating CHSH-Bell inequality.

Photon source compatible with atom-based quantum memories.

Abstract

Transferring entangled states between photon pairs is essential for quantum communication technologies. Semiconductor quantum dots are the most promising candidate for generating polarization-entangled photons deterministically. Recent improvements in photonic quality and brightness now make them suited for complex quantum optical purposes in practical devices. Here we demonstrate for the first time swapping of entangled states between two pairs of photons emitted by a single quantum dot. A joint Bell measurement heralds the successful generation of the Bell state $\Psi^+$ with a fidelity of up to $0.81 \pm 0.04$. The state's nonlocal nature is confirmed by violating the CHSH-Bell inequality. Our photon source is compatible with atom-based quantum memories, enabling implementation of hybrid quantum repeaters. This experiment thus is a major step forward for semiconductor based quantum communication technologies.

Figures

Equations

$${|{\Phi }^{+}⟩}_i=|H_X{H}_{XX}⟩+|V_X{V}_{XX}⟩.$$

$$\begin{array}{rl}|\alpha ⟩& ={|{\Phi }^{+}⟩}_1{|{\Phi }^{+}⟩}_2\\ & =\frac{1}{2}({|{\Phi }^{+}⟩}_X{|{\Phi }^{+}⟩}_{XX}+{|{\Phi }^{-}⟩}_X{|{\Phi }^{-}⟩}_{XX}\\ & +{|{\Psi }^{+}⟩}_X{|{\Psi }^{+}⟩}_{XX}+{|{\Psi }^{-}⟩}_X{|{\Psi }^{-}⟩}_{XX})\end{array}$$

$$\begin{array}{rl}|{\Phi }^{\pm }⟩& =|HH⟩\pm |VV⟩\\ |{\Psi }^{\pm }⟩& =|HV⟩\pm |VH⟩\end{array}$$

$${|{\Phi }^{+}⟩}_{AB}=|HV⟩+|VH⟩$$

Full text

Semiconductor light sources have revolutionized science and technology since laser diodes Hall et al. (1962); Kroemer (1963) and vertical-cavity surface-emitting lasers (VCSELs) Melngailis (1965); Soda et al. (1979) arrived in the 1960’s. Quantum mechanics lies at the roots for these devices, yet quantum states of light have only in recent decades been studied extensively in their own right - sparking the ”second quantum revolution”. Semiconductor sources can now emit single photons Somaschi et al. (2016) and entangled photons Salter et al. (2010) on demand (see Fig. 1a), more reliably and intensely than non-linear crystals. They hold great potential for a range of applications in quantum communication Gisin et al. (2002), quantum metrology Dowling (2008) and quantum computation Knill et al. (2001).

The next step towards building quantum networks is to transfer entangled states between distinct pairs of photons Kimble (2008); Bose et al. (1998); Briegel et al. (1998). This entails substituting the pairwise entanglement in two-photon states with entanglement between photons from different pairs Bennett et al. (1993); Żukowski et al. (1993). The first experiment to do this two decades ago Pan et al. (1998) used a technique based on spontaneous parametric down conversion in a nonlinear optical crystal Kwiat et al. (1995); Shih and Alley (1988). Though such sources are widely used, for example to entangle multiple photons Wang et al. (2016), their brightness and therefore scalability is fundamentally limited owing to Poissonian emission statistics Scarani et al. (2005).

Semiconductor quantum dots (QDs), by contrast, are able to generate entangled photon pairs deterministically one by one Akopian et al. (2006). However, until recently, QDs were too faint and of poor degree of entanglement and indistinguishability to use for advanced quantum applications. Improvements of the past three years have overcome these limitations. Highly coherent Jahn et al. (2015) and strongly entangled photons Keil et al. (2017); Huber et al. (2017) can now be generated with high brightness Chen et al. (2018) and reproducibility Keil et al. (2017) from QDs.

Here we demonstrate, for the first time, entanglement swapping between polarization-entangled photons emitted by a semiconductor QD. The Bell state $\Psi^{+}$ is generated with high fidelity and strong nonlocal characteristics, proven by violating the CHSH-Bell inequality Bell (1964); Clauser et al. (1969). Our semiconductor sources are compatible with atom-based quantum memories. This opens up their use in devices such as quantum repeaters (the quantum equivalent of a classical amplifier) Rakher et al. (2013) which are essential for long distance quantum communication.

I Entangled state generation

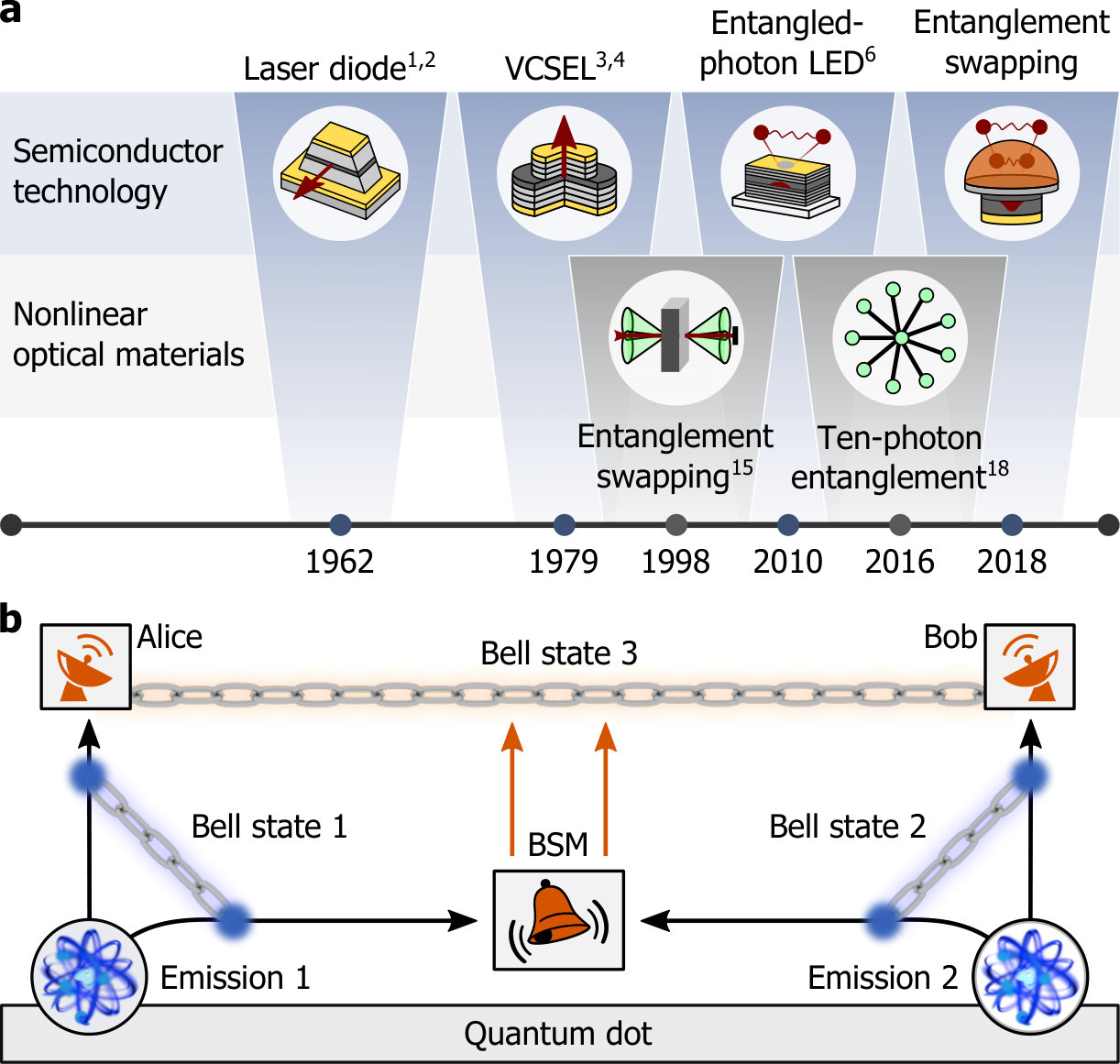

The experimental concept is sketched in Fig. 1b. Two pairs of polarization-entangled photons are consecutively emitted (emission 1 and 2) by a single semiconductor quantum dot. The polarization of one photon from each pair is measured by separate detectors, labeled Alice and Bob. Then, a joint Bell state measurement (BSM) is made on the remaining two photons; this swaps the entanglement of the original pairs to the photons that Alice and Bob receive. The source of entangled photons in our experiment are GaAs/AlGaAs QDs grown by local droplet etching, as they are reliable and reproducable to make with entanglement fidelities close to unity Keil et al. (2017) and highly indisitinguishable photons Huber et al. (2017). The QDs are embedded in a nanomembrane which is sandwiched by a silver reflector and a spacing layer, attached to a gallium phosphide hemsipherical lens Chen et al. (2018). This design provides a broadband optical antenna, offering photon extraction efficiencies up to 65 % while preserving a high single photon purity and entanglement fidelity.

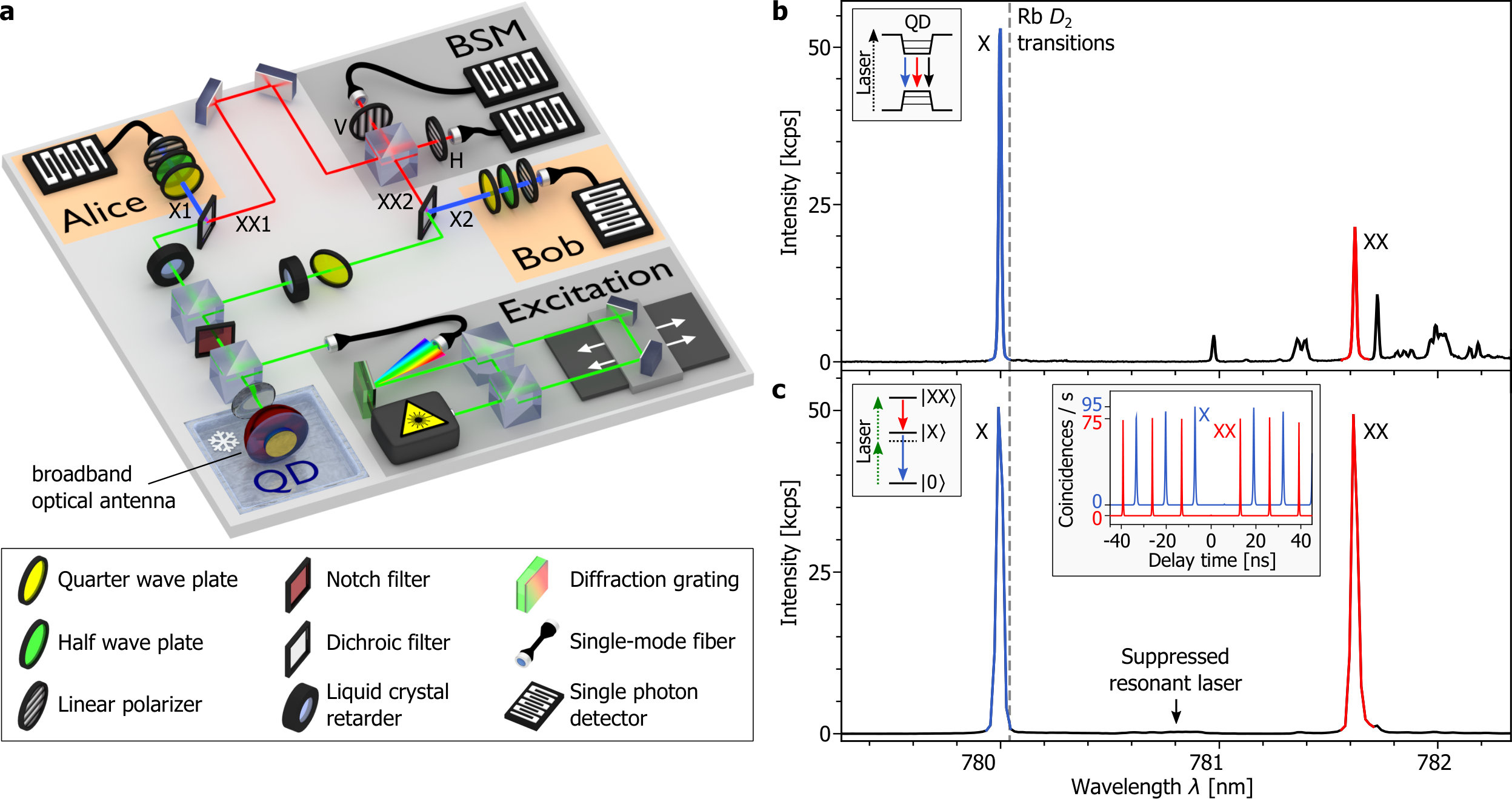

The QD antenna’s operating temperature of $T=4$ K is reached using a closed-cycle helium cryostat. A selected QD is first triggered by optically pumping the surrounding host semiconductor material. The emission spectrum in Fig. 2b displays two prominent features: the exciton (X) emission at $780.0$ nm and the bi-exciton (XX) emission at $781.6$ nm. Here, the X photons reside near the optical $\mathrm{D_{2}}$ transitions of rubidium, a prominent quantum memory candidate Körber et al. (2018).

To generate two consecutive polarization-entangled photon pairs (emission 1 and 2), we exploit the bi-exciton(XX)-exciton(X) radiative cascade Akopian et al. (2006). Deterministic excitation of the XX state is ensured by resonant two-photon excitation Müller et al. (2014). A pair of photons is emitted in the successive decay via the intermediate X states to the ground state (left inset of Fig. 2c). The photons share the polarization-entangled Bell state $\ket{\Phi^{+}}_{i}$ in the respective emission $i=1,2$:

[TABLE]

with $H$ and $V$ representing horizontal and vertical polarization of the rectilinear basis.

For efficient resonant excitation we use a pulsed Ti:sapphire laser operating at a $76$MHz repetition rate. Guiding the laser light into a tunable, unbalanced Mach-Zehnder interferometer yields two consecutive excitation pulses. The laser’s spectral width is reduced and the central wavelength adjusted by a successive diffraction grating and single-mode fiber. Thus the laser emission wavelength is fixed at the XX two-photon resonance between the X and XX emission. Notch filters are used to suppress the scattered laser in the QD emission signal. The signal intensity is enhanced further by exciting the QD by a weak continuous wave laser emitting at 650nm.

Fig. 2c shows the resulting emission spectrum of the XX cascade emission and a well-suppressed resonant laser. The right inset shows the intensity auto-correlation $g^{(2)}(\tau)$ of the X and XX emissions obtained in a Hanbury Brown and Twiss measurement Hanbury Brown and Twiss (1956). Vanishing coincidences at zero delay time bear witness to a high single photon purity, with values of $g^{(2)}_{X}(0)=0.0041\pm 0.0003$ and $g^{(2)}_{XX}(0)=0.0050\pm 0.0005$. We attribute the residual coincidences at zero delay to laser background, which can in principle be suppressed further using additional notch filters.

So far the two photon pairs share the same light path upon emission. As laid out in Fig. 2a, a non-polarizing beam splitter is used together with time-gated detection in order to separate emissions 1 and 2. The XX and X photons from each pair are split apart using dichroic optical filters, which transmit XX photons and reflect the X emission.

At this stage, the four-photon state $\ket{\alpha}$ is a product of the states from emissions 1 and 2. It can be rewritten into products of Bell states between the X and XX photons:

[TABLE]

with the four polarization Bell states being

[TABLE]

Projecting $\ket{\alpha}$ to a Bell state between photons XX1 and XX2 will in turn result in a Bell state shared by the previously uncorrelated X1 and X2. We project to the state $\ket{\Psi^{+}}$ by performing the following BSM: First, photons XX1 and XX2 are sent to interfere on a non-polarizing beam splitter. To ensure successful quantum interference, the arrival times of XX1 and XX2 have to be matched. Therefore the XX1 photons are delayed before the BSM, in order to compensate for the time difference between emission 1 and 2. After interference, the photons pass through an H- or V-oriented polarizer in each beam splitter output, respectively. Single-mode fibers then deliver the photons to superconducting nanowire single photon detectors (SNSPDs) with time resolutions of $50$ps.

Successful coincidence detection at the BSM now leaves the two remaining photons X1 and X2 in the Bell state

[TABLE]

sent to Alice and Bob for measurement. Subsequent arrangement of a quarter-wave plate, half-wave plate, polarizer and SNSPD allows for projection on any desired polarization state. In order to compensate for an accumulated phase and retardation in the setup we employ liquid crystal retarders and tilted quarter wave plates.

II Initial state characterization

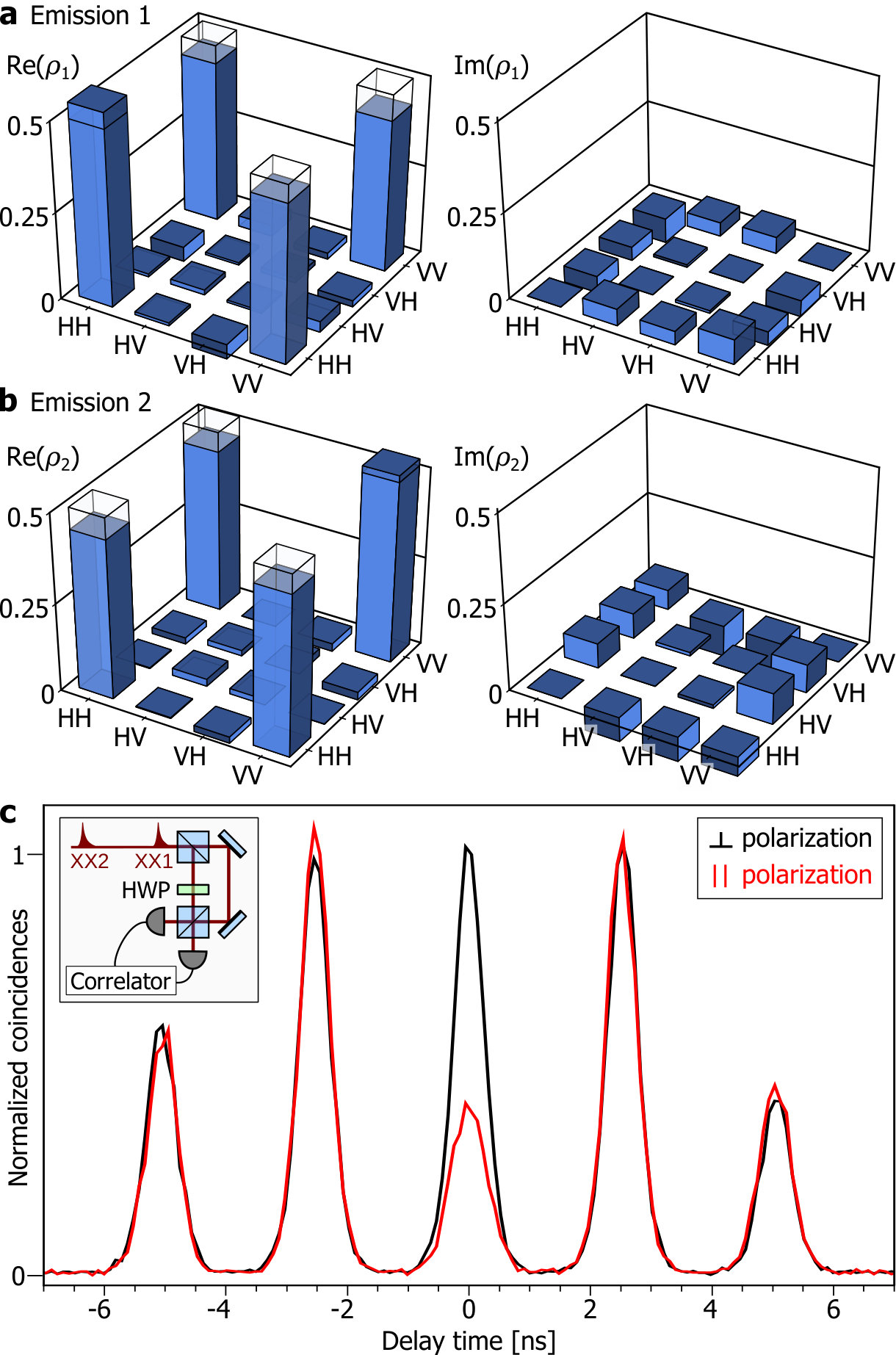

Successful entanglement swapping relies on high entanglement fidelities $f_{i}$ of the initial photon pairs (emission $i=1,2$) and on high photon indistinguishabilities $I$ of the XX photons sent to the BSM. We perform quantum state tomography James et al. (2001) to reconstruct the full two-photon density matrix $\rho_{i}$ of emissions $i=1,2$ as shown in Fig. 3a and Fig. 3b, respectively. The real (left) and imaginary parts (right) clearly resemble the Bell state $\ket{\Phi^{+}}$. We obtain fidelities of $f_{1}=0.9369\pm 0.0004$ (emission 1) and $f_{2}=0.9267\pm 0.0004$ (emission 2) indicating highly entangled photon emission. We attribute the deviation from unity fidelity to the slightly polarizing optical filters in the setup and the minor presence of a QD emission in the red-shifted vicinity of the XX photons (see Fig. 2c). The marginally lifted exciton spin degeneracy by $(0.4\pm 0.1)\,\mathrm{\mu}$eV, evanescent laser light background and polarization-dephasing during the QD’s emission process are expected to have only a small effect on the fidelity Keil et al. (2017).

Fig. 3c shows a coincidence histogram obtained in an indistinguishability measurement Santori et al. (2002) based on Hong-Ou-Mandel interference Hong et al. (1987). The two consecutive XX photons are guided into an unbalanced Mach-Zehnder interferometer featuring a time delay identical to that between XX1 and XX2. Indistinguishable XX photons will interfere at the second beam splitter and exit it pairwise, observable in the detection of reduced photon coincidences. Using a half-wave plate (HWP), the photon polarizations at the beam splitter can be made orthogonal. This renders the photons distinguishable which in turn gives rise to coincidences. At zero delay time between the detection events, the coincidences for parallel polarizations (red) show a significant reduction in comparison with those for perpendicular polarizations (black). We extract photon indistinguishabilities of $I=0.569\pm 0.009$, which directly specifies the success probability of the BSM in the entanglement swapping experiment. The offset from unity arises most likely from internal dephasing processes and spectral jittering. Further spectral filtering or time-gating of detection events in the BSM can circumvent these effects at the expense of the BSM coincidence rate.

III Entanglement Swapping

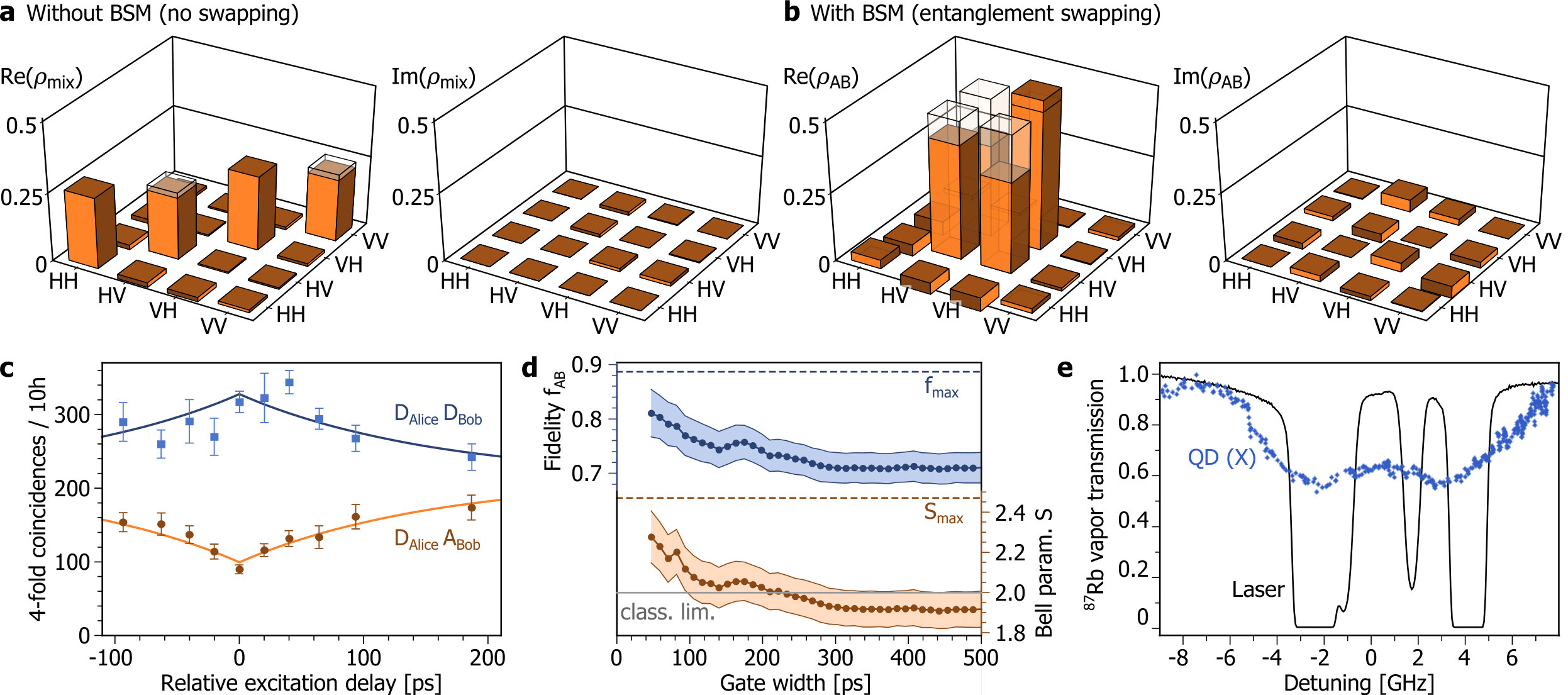

Having ensured high-fidelity emission of entangled photons we can focus on the execution of the entanglement swapping experiment. As a control measurement, the photon state shared by Alice and Bob is first investigated without considering the BSM. The density matrix $\rho_{mix}$ extracted from our observations via quantum state tomography is shown in Fig. 4a. The signature of a statistical mixture of polarization states is evident, with a fidelity of $f_{mix}=0.9960\pm 0.0004$ to the completely mixed state $\frac{1}{4}\mathbb{1}$. This is expected, since the photons X1 and X2 do not stem from the same emission cascade.

Now the entanglement shall be swapped from the initial photon pairs to the photons received by Alice and Bob, as established by coincidences at the BSM. Each SNSPD in the setup detects approx. 0.5 million QD photons per second. To increase the entanglement swapping fidelity we use time gating of BSM detection events (gate width: $47$ ps) at the expense of the total rate of heralding events. Quantum state tomography is performed using sets of four-fold coincidences at different polarization settings for Alice and Bob. The determined density matrix shown in Fig. 4 closely resembles the Bell state $\ket{\Psi^{+}}$. The fidelity of $f_{AB}=0.81\pm 0.04$ clearly surpasses the classical limit of $0.5$ and therefore testifies to the successful swapping of the entangled state.

Fig. 4c features the measurement of four-fold coincidences in the co- and cross-polarized diagonal bases as a function of the relative time delay between emission 1 and 2. In this fashion the temporal overlap of the XX photons at the beam splitter in the BSM is tuned. The highest XX photon indistinguishability is found at zero delay, resulting in a distinct coincidence offset for co- and cross-polarized bases. As the delay time departs from zero the BSM success starts to drop. This results in assimilating four-fold coincidences. The data, obtained without time gating at the BSM, can be well fitted to double-sided exponential functions denoted as solid lines.

The main bottleneck in reaching higher $f_{AB}$ is the XX photon indistinguishability. This can also be seen from $Re(\rho_{AB})$ in Fig. 4b: The well-fitting diagonal elements are mainly determined by the high initial fidelities $f_{1}$ and $f_{2}$. However, the more deviant off-diagonal elements depend on both the degree of entanglement and the XX photon indistinguishability. In Fig. 4d the fidelity $f_{AB}$ and the Bell parameter $S$, as used in the CHSH-Bell inequality Bell (1964); Clauser et al. (1969), are plotted against the temporal gate width. For large gate widths the fidelity decreases to $f_{AB}=0.71\pm 0.03$. This is in perfect agreement with the calculated fidelity of $f_{AB}=0.71$, given the observed entanglement fidelities $f_{i}$ and XX photon indistinguishability $I$ discussed above. The maximum achievable fidelity for our QD emission is $f_{max}=0.89$, assuming unity indistinguishability (a gate width approaching zero). In reality this value cannot be approached due to the limited time resolution of the detectors. The Bell parameter $S=2.28\pm 0.13$ at the $47$ ps gate violates the CHSH-Bell inequality, $S\leq 2$, by more than two standard deviations. Assuming perfect indistinguishability it reaches $S_{max}=2.47$.

In a final step we investigate the compatibility of our semiconductor entangled photon source with atomic transitions of rubidium, a prominent quantum memory candidate. Maintaining entangled photon emission, the emission frequency is tuned over the Rb $D_{2}$ transitions at $780.04$ nm by controlling the QD temperature Ding et al. (2016). Fig. 4e displays the 87Rb vapor cell transmission against the relative frequency detuning of a spectrally narrow laser (black). Two prominent absorption features are observed corresponding to the two 87Rb ground states split by the hyperfine interaction Penselin et al. (1962). Residual 85Rb in the vapor cell results in the smaller absorption features visible at detunings of $-1$ GHz and $2$ GHz. The transmission of the QD photons (blue) shows two clear absorption dips, which are broadened due to the QD linewidth of $\Delta\nu=(4.9\pm 0.2)$ GHz. This opens the door for further experiments involving the storage of polarization-encoded qubits in atomic quantum memories. In addition, Rb atomic transitions could serve as a common and global reference at which the QD emission can be frequency-stabilized Zopf et al. (2018). Thus the indistinguishability of photons from distant nodes in a quantum network could be ensured.

IV Discussion and Outlook

Demonstrating entanglement swapping between photon pairs emitted from semiconductor QDs marks a milestone for quantum photonics, since these sources surpass existing technologies in terms of on-demand photon emission and scalability. Compatibility with atom-based quantum memories paves the way for hybrid quantum repeater implementations. An efficient photon-atom interface requires the linewidths of both systems to be matched, e.g. by combining lifetime-limited QD emission and Purcell broadening of atomic lines Gallego et al. (2018).

Further experiments that now become feasible with these sources are entanglement swapping with photons from distant emitters, multi-photon entanglement or entanglement distillation. The outcome will be dictated by the optical quality of these sources. Promising improvements include silicon-integrated strain-tuning platforms, which facilitates the emission of wavelength-tunable entangled photons Chen et al. (2016). Integrating QDs into micro-cavities can increase their brightness and photon indistinguishability Senellart et al. (2017); Sapienza et al. (2015). Another key ingredient towards a scalable quantum photonic network is electrically triggered photon emission Zhang et al. (2015); Müller et al. (2018). Decoherence due to coupling to the solid-state environment can be controlled by electric fields in QD integrated diode structures Kuhlmann et al. (2013). Overcoming the challenge of combinig these techniques in fabricated devices will be a next major step in realizing semiconductor based quantum networks.
