Transitional disk archeology from exoplanet population synthesis

TL;DR

This paper investigates how the structures observed in transitional protoplanetary disks relate to the formation and evolution of exoplanetary systems by using synthetic population models based on current observations.

Contribution

It introduces a novel approach linking observed disk features to the later stages of exoplanet system development through population synthesis simulations.

Findings

Synthetic exoplanet populations reflect observed disk inhomogeneities.

Simulations suggest dust traps influence planet formation pathways.

Results support the connection between disk features and exoplanet system architectures.

Abstract

Increasingly better observations of resolved protoplanetary disks show a wide range of conditions in which planets can be formed. Many transitional disks show gaps in their radial density structure, which are usually interpreted as signatures of planets. It has also been suggested that observed inhomogeneities in transitional disks are indicative of dust traps which may help the process of planet formation. However, it is yet to be seen if the configuration of fully evolved exoplanetary systems can yield information about the later stages of their primordial disks. We use synthetic exoplanet population data from Monte Carlo simulations of systems forming under different density perturbation conditions, which are based on current observations of transitional disks. The simulations use a core instability, oligarchic growth, dust trap analytical model that has been benchmarked against exoplanetary populations.

Figures

Equations

$${\Sigma }_p(r)=\Sigma (r)\left(1+A\cos \left(2\pi \frac{r}{fH(r)}\right)\right).$$

Full text

††volume: 345††journal: Origins: from the Protosun to the First Steps of Life††editors: Bruce G. Elmegreen, L. Viktor Tóth, Manuel Güdel, eds.

1 Introduction

Planet-forming disks can have either smooth or density perturbed profiles ([van der Marel, van Dishoeck, Bruderer, et al. (2015), van der Marel et al. 2015]). Gas-depleted, density perturbed disks are often called transitional disks. Gaps, cavities, or radial perturbations in such disks sometimes show dust traps in which planet formation may be taking place. Such dust traps may be caused by pressure bumps, which are often theorized as a consequence of the presence of an already-formed planet in the disk ([Pinilla, P., et al.(̃2011), Pinilla et al. 2011]). In this work, we are interested in the impact of disk density perturbations in planetary populations while making no assumptions about the exact mechanism that causes such inhomogeneities in the disk. In order to explore the link between transitional disks and exoplanetary systems, we intend to compare synthetic and observed populations of exoplanetary systems. However, instead of looking at individual cases ([Raymond, Boulet, Izidoro, et al. (2018), Raymond et al. 2018]) we take a Bayesian inference approach to reconstruct probability distributions of general properties of 3000+ simulated synthetic planetary systems. We thus study the effect of radial density perturbations in the disk structure on the formation of exoplanetary systems. For many transitional disks, a radial density perturbation can be described as a succession of over-dense and under-dense regions which appear as the radial distance $r$ changes ([Pinilla, P., et al.(̃2011), Pinilla et al. 2011]),

[TABLE]

Here $\Sigma(r)$ is the surface density distribution ([Miguel et al.(̃2011), Miguel et al. 2011]), $A$ is the amplitude of the perturbation, $f$ is the length scale of the perturbation and $H(r)$ is the scale height of the disk. Here we consider $A=0$ for smooth disks, and $A=0.3$ for transitional disks.

2 Synthetic planetary systems

Population synthesis models are often used for modeling individual exoplanetary systems ([Raymond, Boulet, Izidoro, et al. (2018), Raymond et al. 2018]) in order to estimate properties of individual planets in the system. We extend this method for 3000 synthetic planetary systems formed in smooth and transitional disks (following the perturbation recipe described above). Each system has initial conditions drawn from prior probability distributions on stellar mass, disk mass and radial extent, stability, metallicity, and gas dissipation timescale from [Miguel et al.(̃2011), Miguel et al. (2011)]. This planet population synthesis framework is also described as part of the review in [Benz, Ida, Alibert, et al. (2014), Benz et al. (2014)]. The result of each simulation is a system with orbital data like planetary semi-major axis and mass (solid+gas). We calculate consolidated quantities that summarize general properties of each simulated system. Thus, we use quantities like the number of terrestrial and giant planets, total terrestrial planetary mass, average terrestrial planet mass, total planetary mass/disk mass ratio, and what we refer here to as center of mass. This center of mass is not the barycenter of the system but rather the first moment of the mass distribution of planets with respect to their semi-major axes. With the consolidated results per system, we can reconstruct the posterior probability distribution from the simulated quantities mentioned above. This reconstructed posterior can be used to make educated predictions for existing exoplanetary systems based on known properties like stellar mass, metallicity, planetary masses and semi-major axes distributions, etc.

3 Results

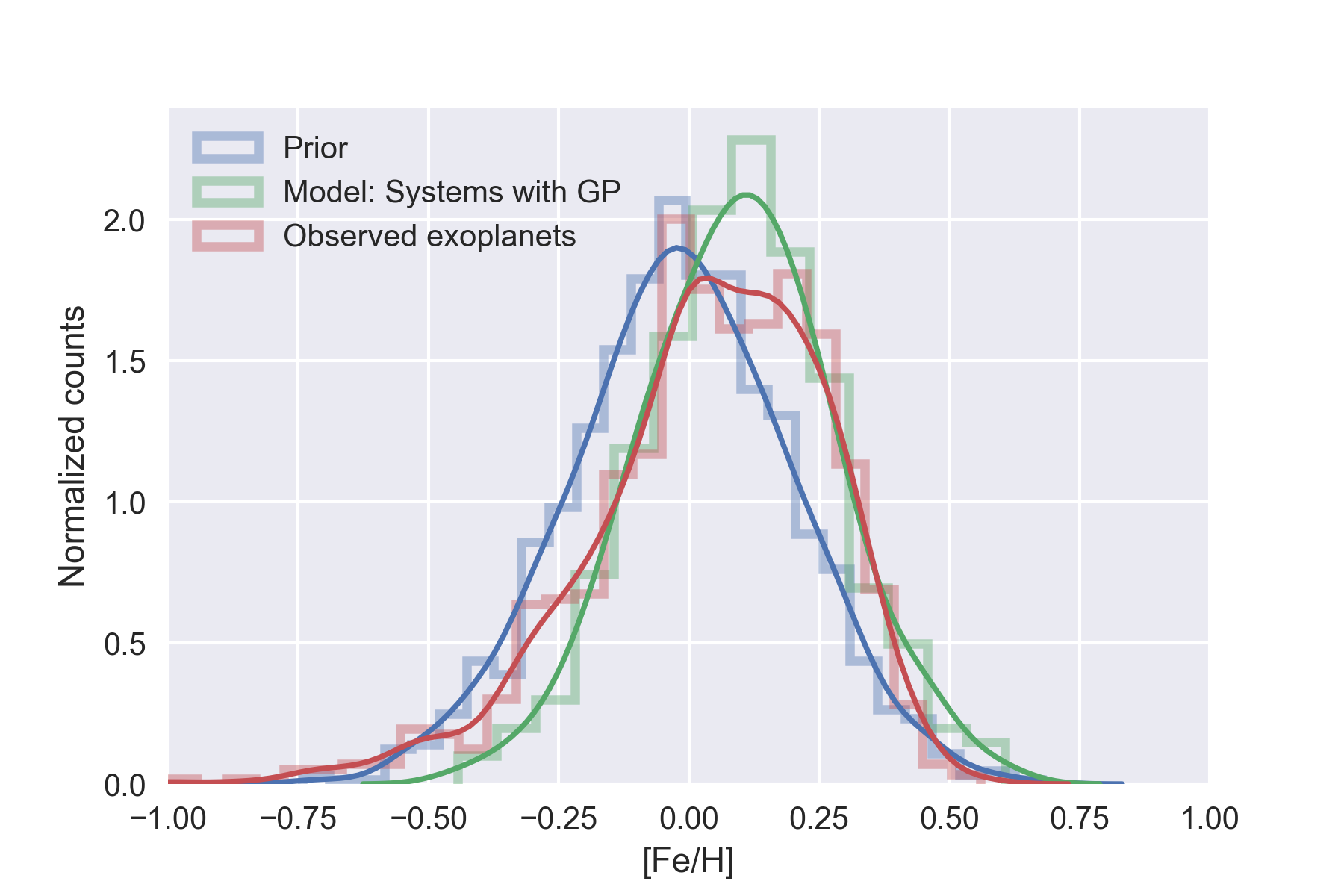

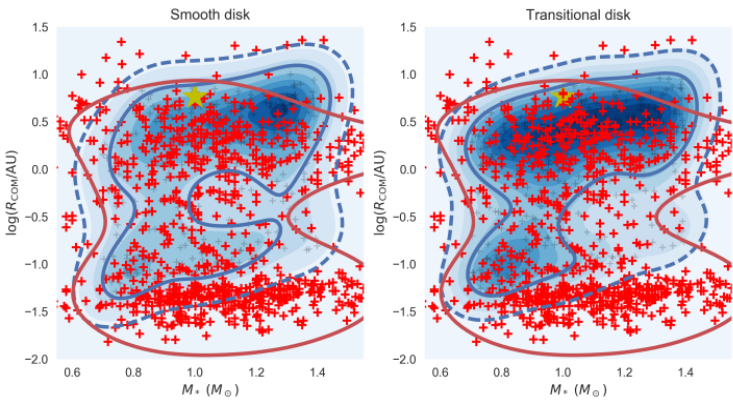

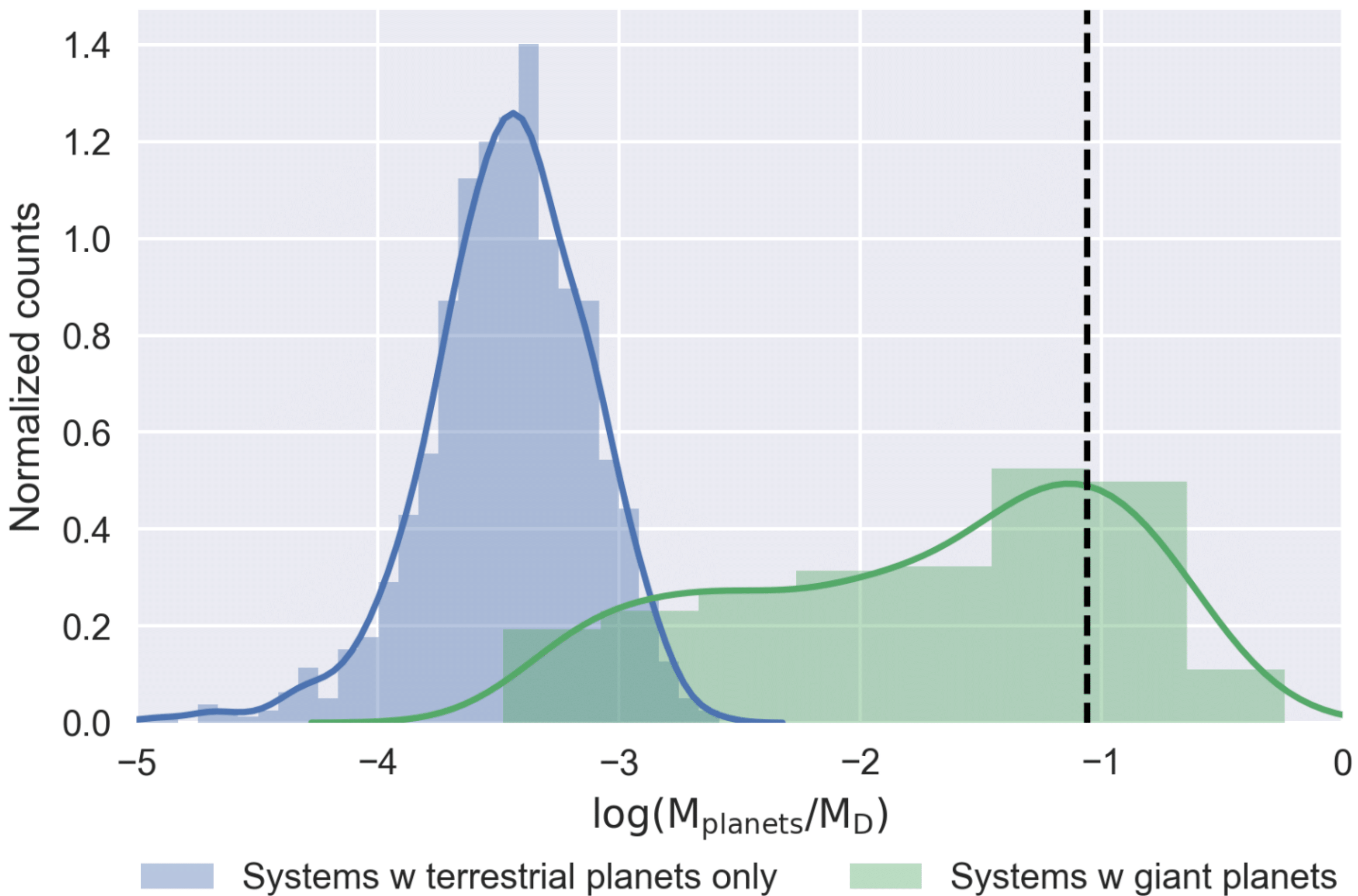

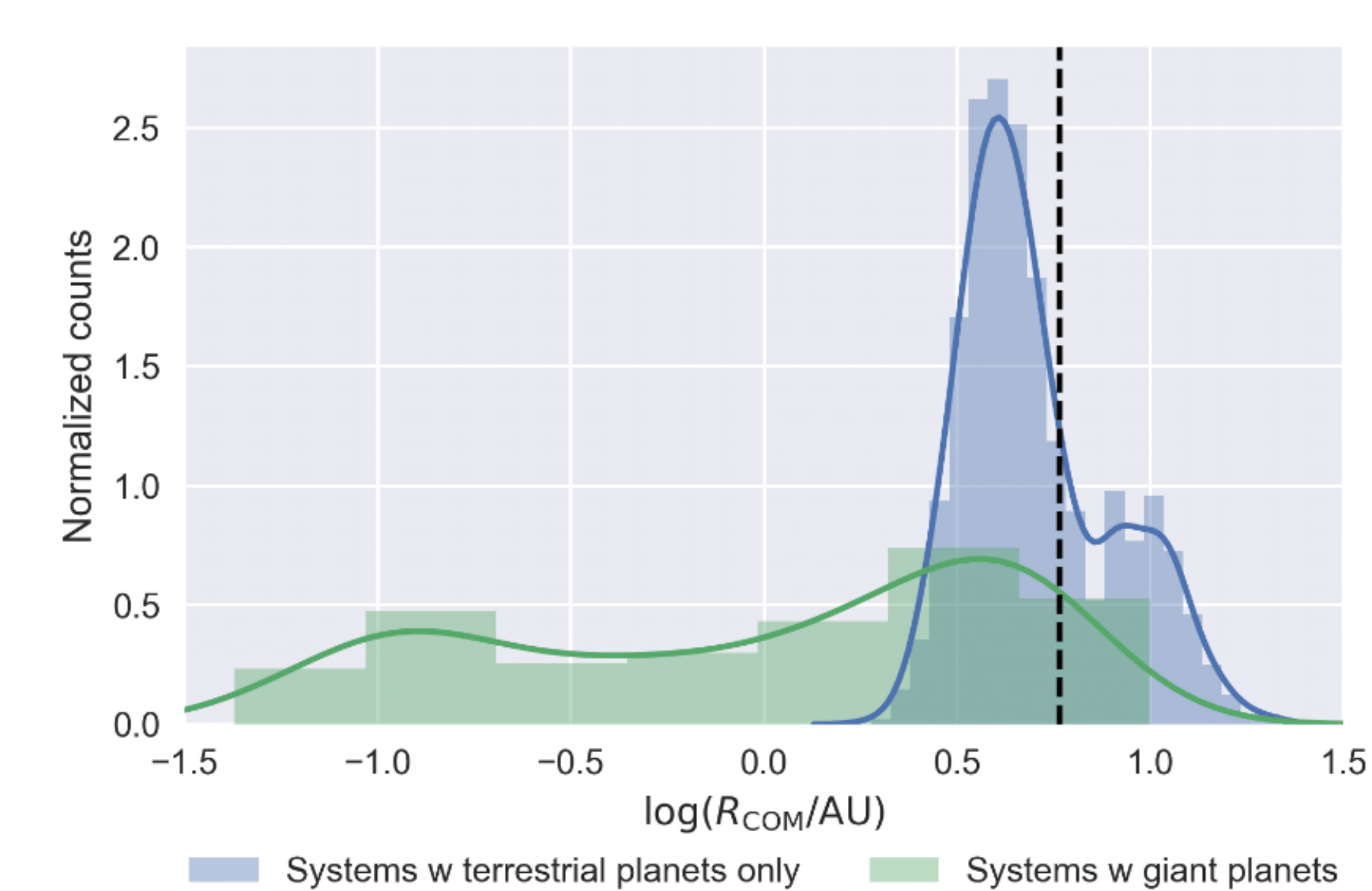

As an initial benchmark, we looked at the resulting distributions of the location of the center of mass and the total planetary mass/disk mass ratio for systems formed in smooth disks. Figure 1 shows that systems with giant planets are more spread inwards (closer to the star) than systems that only formed terrestrial planets, due to giant planet migration. On the other hand, more of the original disk mass goes to form planets in systems with giant planets than in terrestrial planet-only systems (Figure 1). Both of these results are expected from exoplanet and planet-forming disk observations. The resulting synthetic planetary systems were divided among systems with giant planets (20-25% of all systems), and systems with terrestrial planets only. We benchmarked our results of the distribution of planetary systems with respect to metallicity. Figure 2), shows that systems with giant planets tend to be formed in metal-rich systems, both in our simulations and in observations from exoplanet.eu. Comparatively, most exoplanetary systems discovered to date tend to be distributed uniformly around the solar value in the HARPS 2011 catalog ([Mayor, Marmier, Lovis et al. (2011), Mayor et al. 2011]), which we used as a prior for our simulations. For the same initial disk mass, transitional disks form more systems with giant planets than smooth disks (Figure 3). This is due to transitional disks having over-dense regions that favor planet growth. Figure 4 shows the distribution of stellar mass vs. center of mass for synthetic and observed planetary systems. The 1$\sigma$ and 2$\sigma$ contours show that there is a significant overlap in parameter space between synthetic and observed planetary systems. For exoplanetary systems with a low center of mass the overlap breaks down, which is likely a result of observational bias.

4 Conclusions

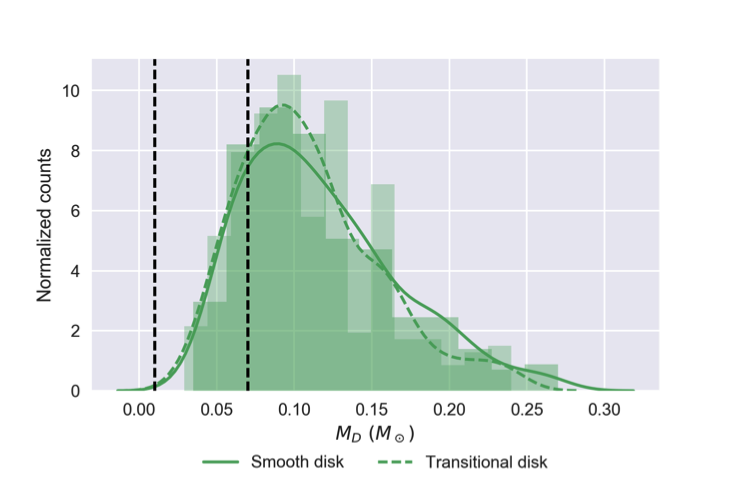

Our comparison between smooth and transitional disks shows that transitional disks favor the formation of giant planets at lower disk masses than smooth disks. Benchmarking of the results of our simulations show a very good parameter space overlap between synthetic and observed exoplanetary systems. The method of approximating a posterior probability distribution for exoplanetary parameters from our simulations can be used to make educated predictions that direct future surveys of observed exoplanetary systems.
