Endoscopic vs. volumetric OCT imaging of mastoid bone structure for pose estimation in minimally invasive cochlear implant surgery

TL;DR

This study evaluates the use of volumetric OCT imaging of mastoid bone structures to improve pose estimation in minimally invasive cochlear implant surgery, providing additional depth information over traditional endoscopy.

Contribution

It demonstrates the feasibility of using OCT for detailed 3D imaging of mastoid bone, enhancing registration accuracy and safety in cochlear implant procedures.

Findings

OCT-based segmentation shows 73.6% similarity to ground truth.

OCT provides more robust segmentation due to depth information.

Volumetric OCT images can improve drill trajectory estimation.

Abstract

Purpose: The facial recess is a delicate structure that must be protected in minimally invasive cochlear implant surgery. Current research estimates the drill trajectory by using endoscopy of the unique mastoid patterns. However, missing depth information limits available features for a registration to preoperative CT data. Therefore, this paper evaluates OCT for enhanced imaging of drill holes in mastoid bone and compares OCT data to original endoscopic images. Methods: A catheter-based OCT probe is inserted into a drill trajectory of a mastoid phantom in a translation-rotation manner to acquire the inner surface state. The images are undistorted and stitched to create volumentric data of the drill hole. The mastoid cell pattern is segmented automatically and compared to ground truth. Results: The mastoid pattern segmented on images acquired with OCT show a similarity of J = 73.6 % to ground truth based on endoscopic images and measured with the Jaccard metric. Leveraged by additional depth information, automated segmentation tends to be more robust and fail-safe compared to endoscopic images. Conclusion: The feasibility of using a clinically approved OCT probe for imaging the drill hole in cochlear implantation is shown. The resulting volumentric images provide additional information on the shape of caveties in the bone structure, which will be useful for image-to-patient registration and to estimate the drill trajectory. This will be another step towards safe minimally invasive cochlear implantation.

Figures

Equations

$$f(x)=A\sin (\omega x+\phi )+D$$

$$J(A,B)=\frac{|A\cap B|}{|A\cup B|}$$

Full text

Methods A catheter-based OCT probe is inserted into a drill trajectory of a mastoid phantom in a translation-rotation manner to acquire the inner surface state. The images are undistorted and stitched to create volumentric data of the drill hole. The mastoid cell pattern is segmented automatically and compared to ground truth.

Results The mastoid pattern segmented on images acquired with OCT show a similarity of $J=73.6\,\%$ to ground truth based on endoscopic images and measured with the Jaccard metric. Leveraged by additional depth information, automated segmentation tends to be more robust and fail-safe compared to endoscopic images.

Conclusion The feasibility of using a clinically approved OCT probe for imaging the drill hole in cochlear implantation is shown. The resulting volumentric images provide additional information on the shape of caveties in the bone structure, which will be useful for image-to-patient registration and to estimate the drill trajectory. This will be another step towards safe minimally invasive cochlear implantation.

††journal: IJCARS

1 Introduction

Safe drilling in minimally invasive cochlear implantation (MICI) needs verification of the drill trajectory before passing the facial recess by intraoperative imaging or other sensor data Labadie2013 ; Weber2017 . The X-ray-based and costly gold standard method using an intraoperative computed tomography (CT) scan can be replaced by using optical modalities, like endoscopy. This provides visual access to the inner drill hole surface, but the stitched two-dimensional endoscopy images provide no corresponding volumetric information of surfaces visible from within the drill hole. Nevertheless, image-to-patient registration is feasible with the endoscopic and preoperative CT data Bergmeier2017 . The features used for this registration and pose estimation of the trajectory derive from the pattern of bone and air-pockets in the mastoid, intersected by the drill trajectory. Volumetric information from the optical imaging modality is anticipated to raise the accuracy of the registration method.

In previous publications, we have demonstrated that optical coherence tomography (OCT) is useful for intraoperative guidance in head surgery Diaz-Diaz2013 as well as for pose estimation Gessert2018 . The potential of using OCT for precise navigation in bony structures has also been illustrated by Zhang et al. Zhang2014 . Additionally, we investigated catheter-guided OCT imaging and related volume reconstructions methods Latus2018 . This paper evaluates to what extend OCT can be used to acquire volumetric images of the inner drill hole in mastoid structure during MICI for future pose estimation of the drill trajectory and image-to-patient registration. We compare the stitched image information of our endoscopic and the OCT exploration technique.

2 Methods

2.1 Experimental setup

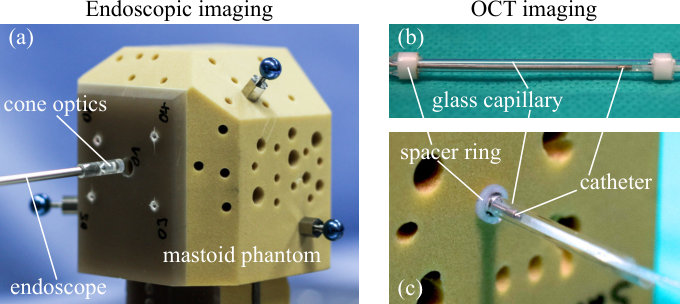

A mastoid phantom consisting of bone substitute material was used for the experiments (see Fig. 1). For the OCT measurements, a clinically approved imaging catheter (Dragonfly Duo Kit, Abbott) with an outer diameter of 0.9 mm is connected via a custom made adapter to a spectral-domain OCT device (Telesto I, Thorlabs) with an A-scan rate of $f=91$ kHz, as proposed in Latus2018 . The catheter is positioned straight in the drill hole using a glass capillary which is fitted in the drill trajectory with two rings at both ends (see Fig. 1).

The imaging probe within the catheter is rotated by the custom made adapter at 390 rpm to obtain radial A-scans at a rate of 91 kHz, resulting in B-scans (OCT slice) comprising 14k A-scans per full rotation. After acquisition of an OCT slice, the imaging probe is pulled backwards by $d=$200\text{,}\mathrm{\SIUnitSymbolMicro m}\text{/}$$ to acquire the next slice. This procedure is repeated over a pullback length of $30\text{\,}\mathrm{mm}\text{/}$, resulting in an image with 150 slices.

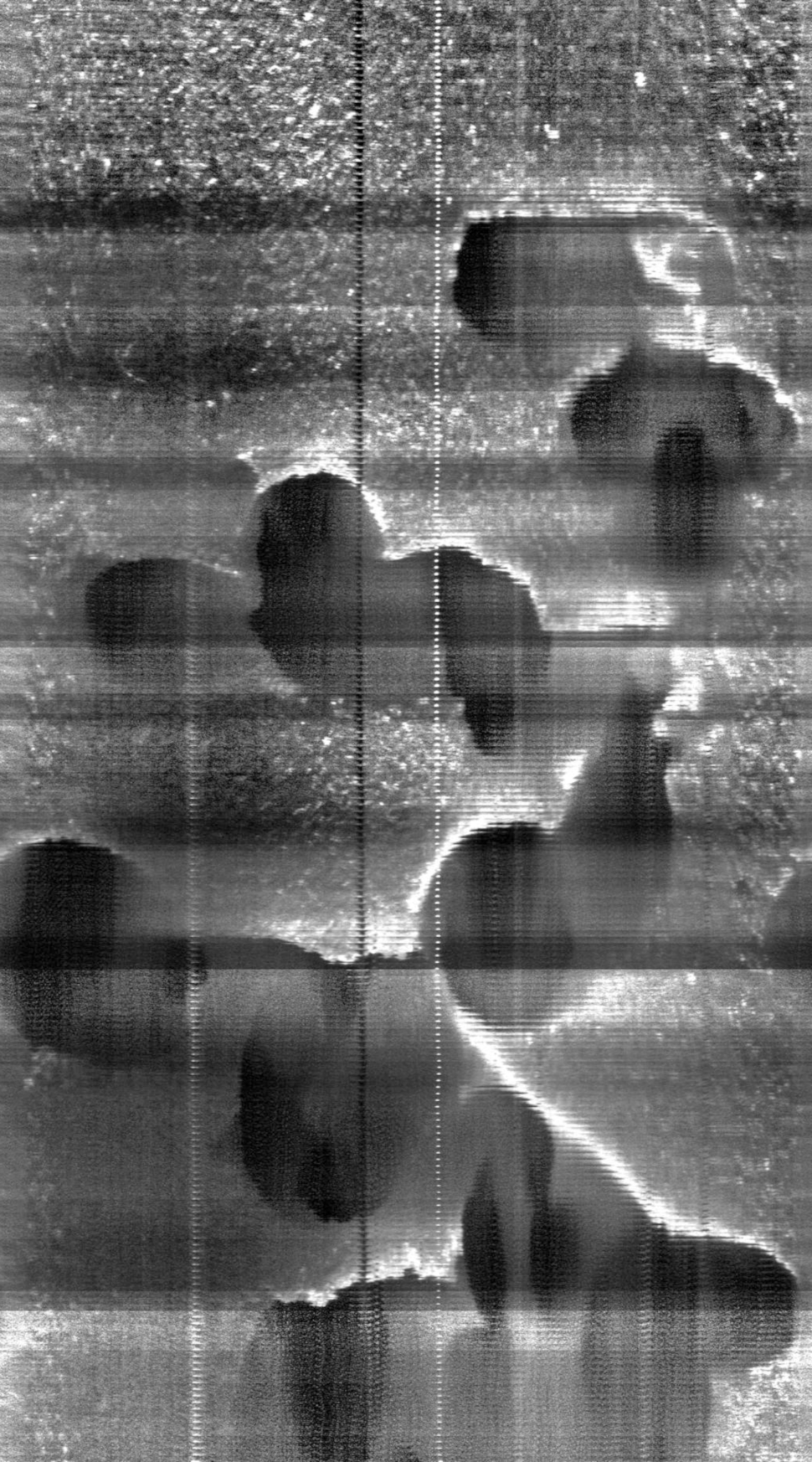

The endoscopic image data for comparison is recorded using a straight viewing Hopkins II Telescope (KARL STORZ GmbH & Co. KG, Tuttlingen, Germany), extended by a cone mirror setup, as described before Bergmeier2017a . A reflective cone surface provides a $360\text{\,}\mathrm{\SIUnitSymbolDegree}\text{/}$ orthogonal view onto the drill hole surface by reflecting perpendicular incoming light-rays into the endoscope optics. Similar to the OCT-recording, consecutive frames are recorded while moving the endoscope through the drill hole. Each frame is unrolled into an image-stripe, performing a transformation from polar to Cartesian coordinates. Considering the visible area and the feed motion, all stripes are stitched to generate the panoramic view of the drill hole surface.

2.2 Image undistortion

Due to the catheter not being perfectly centrically aligned in the capillary glass, the resulting unrolled OCT slices show sinusoid distortions. In order to correct this, the following imaging pipeline is employed. In every OCT slice, the glass-air transition of the capillary tube and drill hole cavity is clearly visible and appears to be with sinusoid profile depicting the collinear misalignment (see Fig. 2). To segment it, the parameters $A,\omega,\varphi,D$ of the sine wave function

[TABLE]

are optimized by using a RANSAC robust estimator with manually estimated starting values. The data used for this optimization are the $u,v$ coordinates of all non-zero pixels after local threshold binarization. To make the thresholding more robust, image enhancement is applied by wavelet-based denoising and contrast limited histogram equalization. The final image is undistorted by the inverse of the found sine wave function.

2.3 Extracting mastoid pattern

The mastoid pattern is extracted by cropping the undistorted image and performing a maximum intensity projection (MIP) along the vertical image axis. Using the maximum value indices, a 1D signal is obtained that represents the depth information of the drill hole surface at one axial position. This is repeated for each of the slices individually. Every 1D signal forms a row of a new image, which in the end shows the complete unrolled surface of the drill hole.

Additionally, the undistorted and cropped slices can directly be used to reconstruct a dense 3D hollow cylinder, which also shows subsurface information. The images can be exploited for 2D-3D or 3D-3D image-to-patient registration with preoperative CT scans, respectively.

3 Results

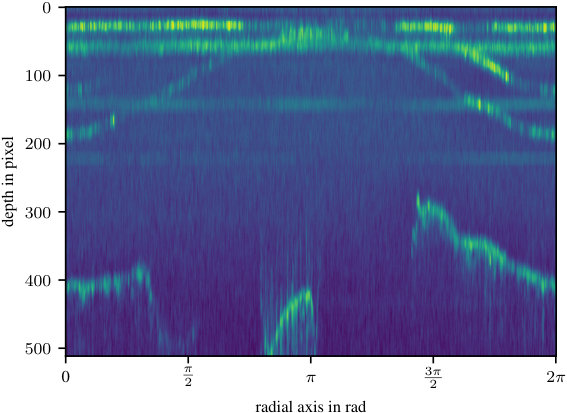

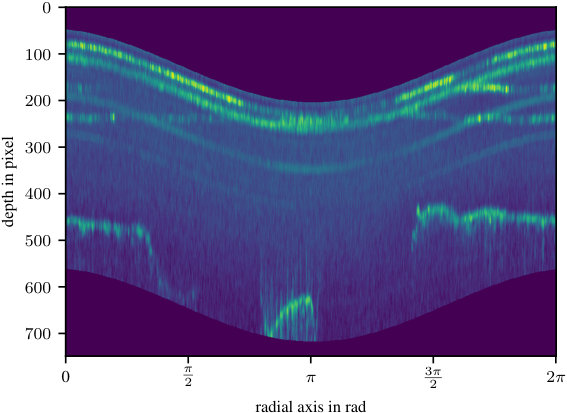

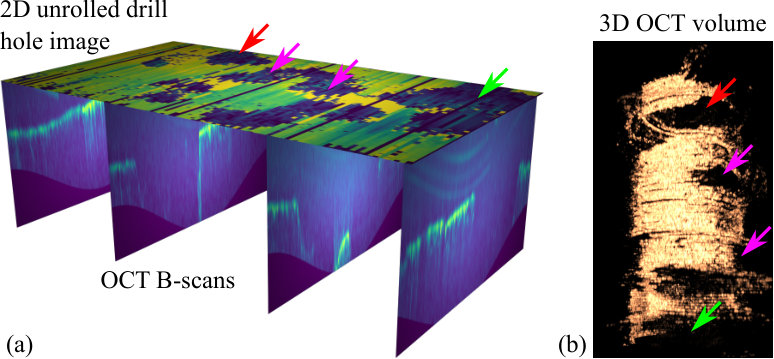

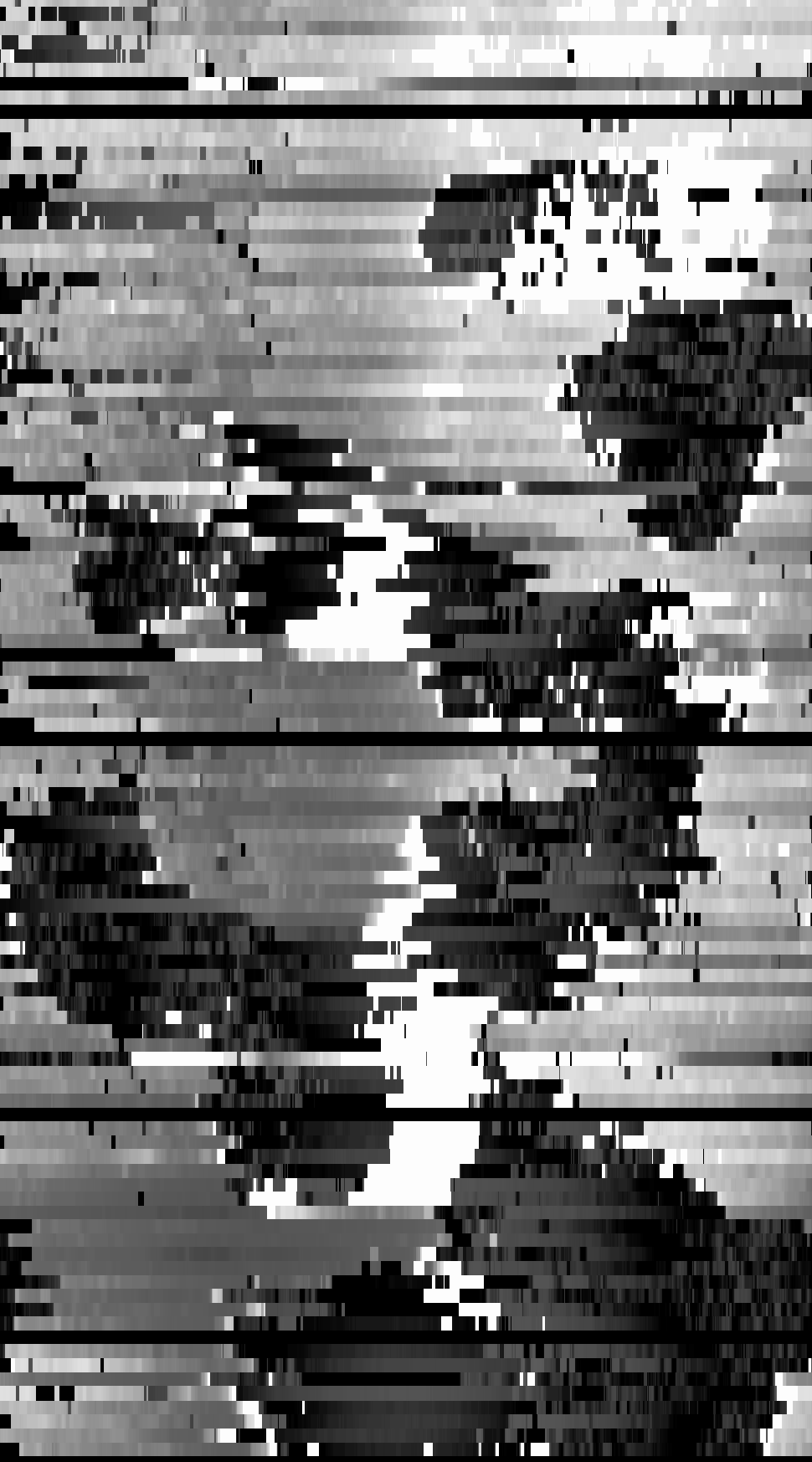

A raw B-scan at one axial position and the respective undistorted image are shown in Fig. 2. The result of the presented approach is shown in Fig. 3 (b), in which the 1D depth information are stacked to compose the final OCT image of the drill hole. The mastoid patterns are clearly visible and due to the depth information of the OCT B-scans a robust recognition of the air-pockets is possible. Fig. 4 emphasizes the use of available depth information.

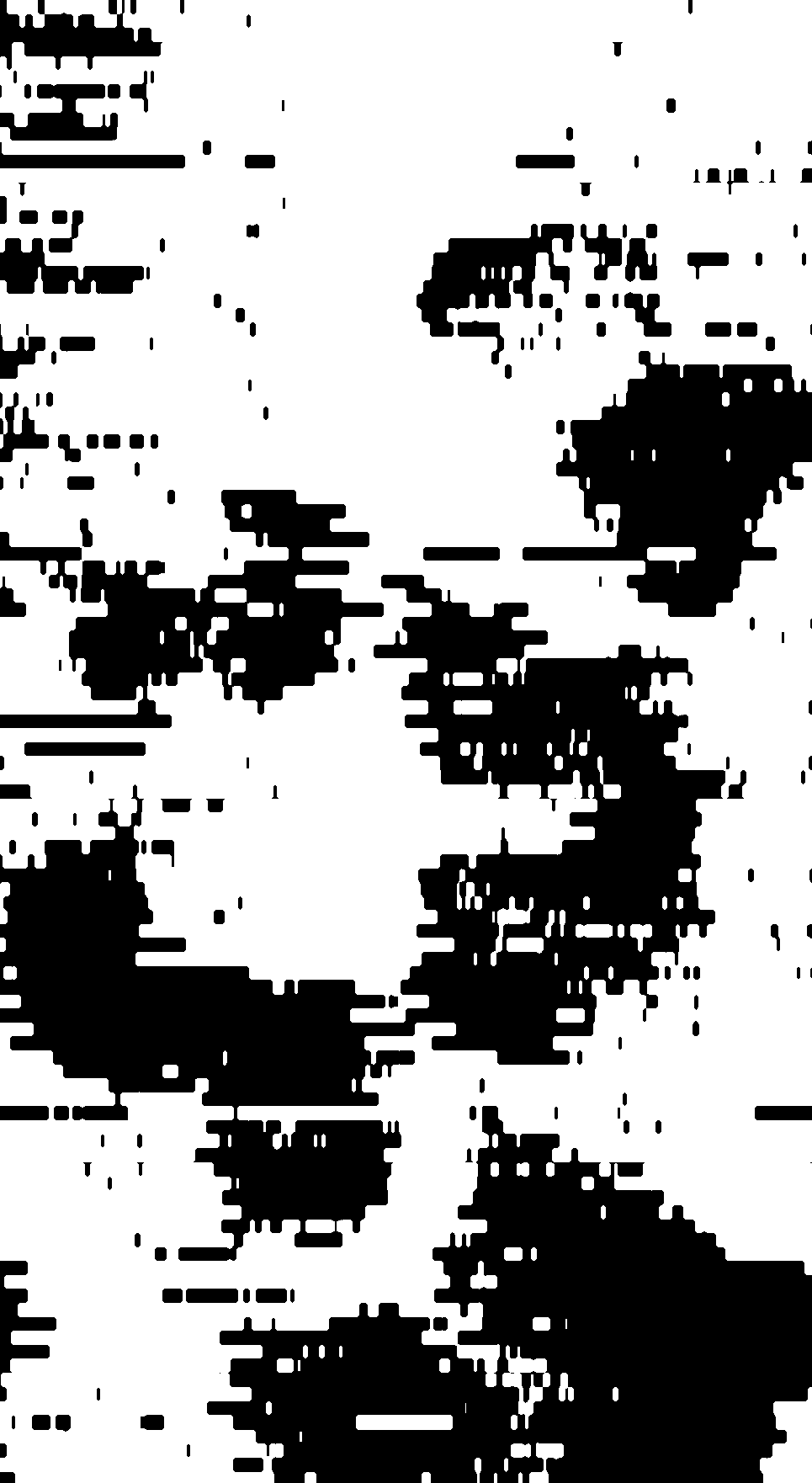

To evaluate the approach quantitatively, the mastoid patterns are segmented employing minimum cross entropy thresholding Li1998 (see Fig. 3 (d)). Next, the Jaccard similarity coefficient

[TABLE]

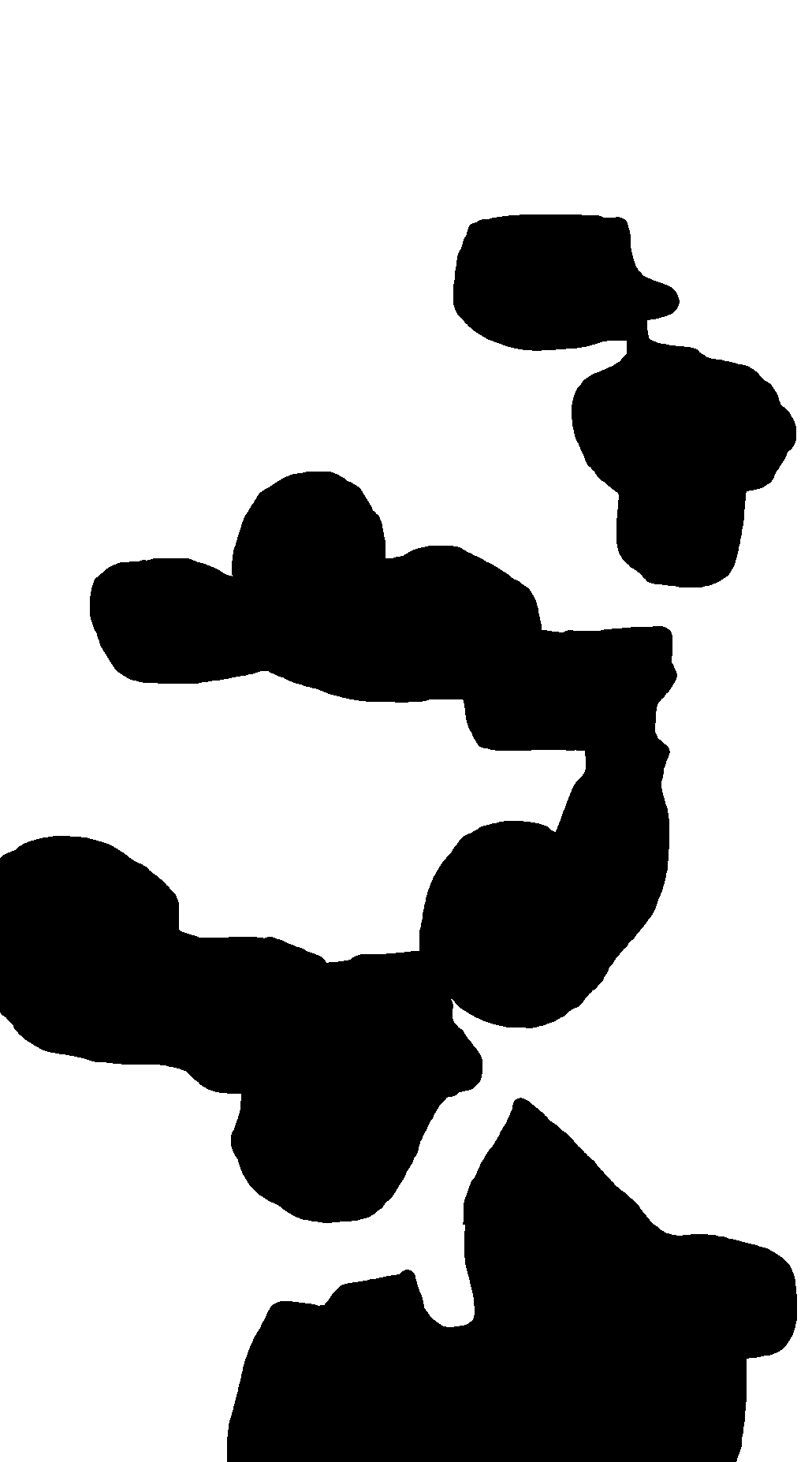

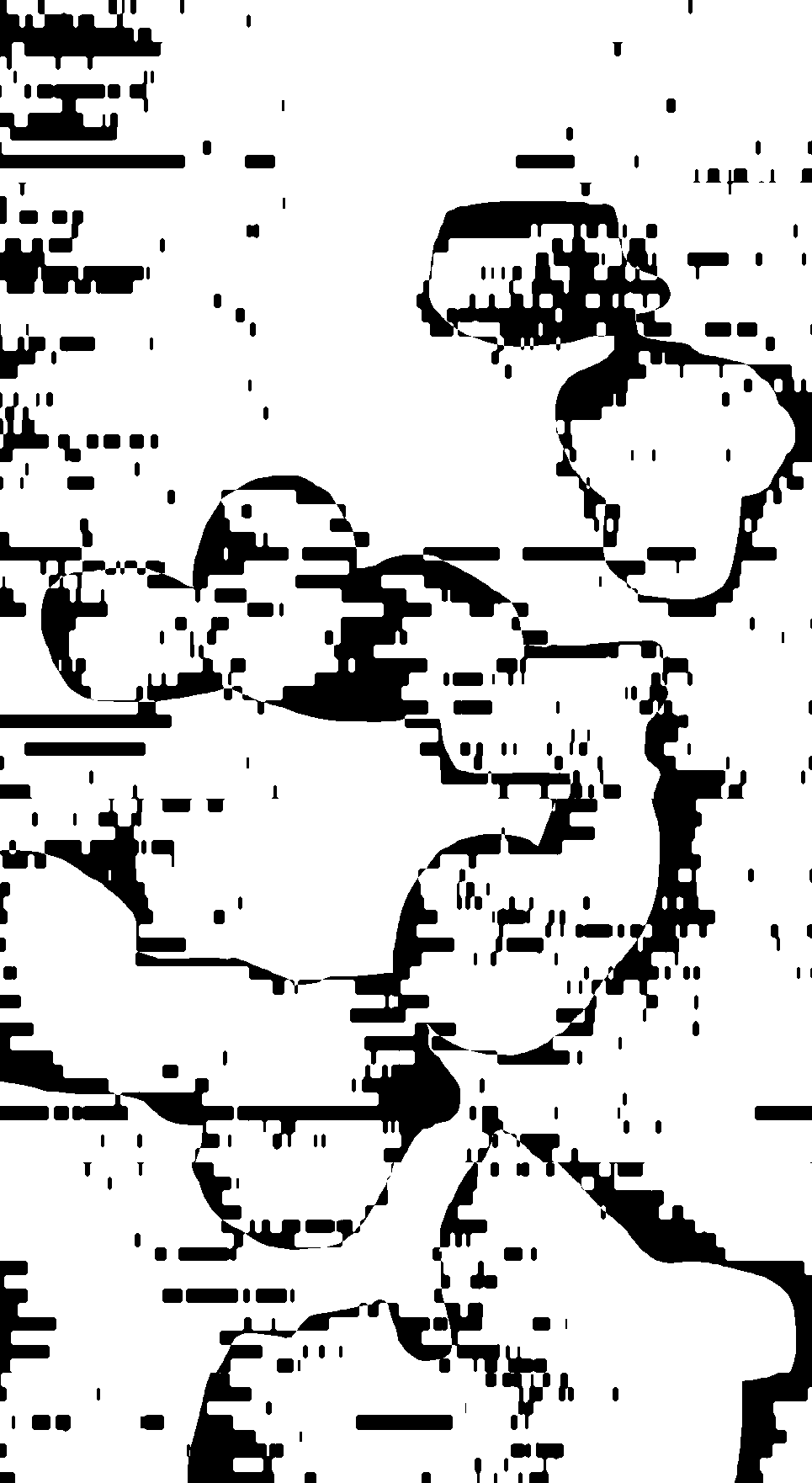

is calculated between the binarized mastoid pattern sets $A$ acquired with the endoscope (Fig. 3 (c)) and $B$ acquired with the catheter-guided OCT (Fig. 3 (d)). The presented approach is able to image the inner drill hole and with $J=73.6\,\%$ and the overlap shows significant similarity (see Fig. 3 (e)). Note, that the similarity is computed with respect to the endoscopic images, where depth is not is not considered and may lead to artifacts.

4 Conclusion

MICI depends on safety methods to ensure a passage through the facial recess without harming any vital structures. Beyond our existing endoscopic pose estimation and image-to-patient registration technique Bergmeier2017 this paper compares and extends the input image for this method with a new approach based on catheter-guided OCT. Feasibility of OCT imaging in the drill hole for MICI was proven with experiments based on a mastoid bone phantom. High similarities of catheter-based OCT and endoscopic images were shown.

Next steps of our research will include using the OCT image Fig. 3 (b) for image-to-patient registration with CT data to allow drill trajectory pose estimation not only on the basis of endoscopic but also on OCT data. Further on, beside those 2D-3D registration techniques, the obtained imaging depth inside the OCT data is intended for a 3D-3D registration approach with CT data. This will allow additional comparison including determination of the error of both methods.

Due to OCT imaging artifacts related to the catheter structure, e.g., non-uniform rotational distortion, inaccuracies in the reconstructed drill hole occur. On the one hand, a specific torsionally rigid OCT probe with an outer diameter fitted to the drill hole should be used to reduce the artifacts and to simpilfy the OCT image pre-processing. On the other hand, the OCT imaging catheters that were used in this paper are already clinically approved, achieving immediate implementation for MICI cadaver and human studies.
