Observations of solar small-scale magnetic flux-sheet emergence

TL;DR

This paper presents the first observational evidence of magnetic sheet emergence in the solar photosphere, revealing a new form of flux emergence characterized by horizontal magnetic fields and dynamic interactions with granules.

Contribution

It provides the first clear observational characterization of magnetic sheet emergence, expanding understanding beyond the well-studied magnetic loops in solar magnetic flux emergence.

Findings

Magnetic sheet emergence involves horizontal magnetic flux densities up to 194 Mx/cm$^{2}$.

Emergence occurs within 10 minutes with fluxes around 10^{18} Mx.

Magnetic flux interacts with convective motions, forming magnetic loops at granule edges.

Abstract

Aims. Moreno-Insertis et al. (2018) recently discovered two types of flux emergence in their numerical simulations: magnetic loops and magnetic sheet emergence. Whereas magnetic loop emergence has been documented well in the last years, by utilising high-resolution full Stokes data from ground-based telescopes as well as satellites, magnetic sheet emergence is still an understudied process. We report here on the first clear observational evidence of a magnetic sheet emergence and characterise its development. Methods. Full Stokes spectra from the Hinode spectropolarimeter were inverted with the SIR code to obtain solar atmospheric parameters such as temperature, line-of-sight velocities and full magnetic field vector information. Results. We analyse a magnetic flux emergence event observed in the quiet-sun internetwork. After a large scale appearance of linear polarisation, a magnetic sheet with horizontal magnetic flux density of up to 194 Mx/cm$^{2}$ hovers in the low photosphere spanning a region of 2 to 3 arcsec. The magnetic field azimuth obtained through Stokes inversions clearly shows an organised structure of transversal magnetic flux density emerging. The granule below the magnetic flux-sheet tears the structure apart leaving the emerged flux to form several magnetic loops at the edges of the granule. Conclusions. A large amount of flux with strong horizontal magnetic fields surfaces through the interplay of buried magnetic flux and convective motions. The magnetic flux emerges within 10 minutes and we find a longitudinal magnetic flux at the foot points of the order of $\sim$$10^{18}$ Mx. This is one to two orders of magnitude larger than what has been reported for small-scale magnetic loops. The convective flows feed the newly emerged flux into the pre-existing magnetic population on a granular scale.

Figures

Full text

*Methods. *Full Stokes spectra from the Hinode spectropolarimeter were inverted with the SIR code to obtain solar atmospheric parameters such as temperature, line-of-sight velocities and full magnetic field vector information.

Results. We analyse a magnetic flux emergence event observed in the quiet-sun internetwork. After a large scale appearance of linear polarisation, a magnetic sheet with horizontal magnetic flux density of up to 194 Mx/cm2 hovers in the low photosphere spanning a region of 2 to 3 arcsec. The magnetic field azimuth obtained through Stokes inversions clearly shows an organised structure of transversal magnetic flux density emerging. The granule below the magnetic flux-sheet tears the structure apart leaving the emerged flux to form several magnetic loops at the edges of the granule.

*Conclusions. *A large amount of flux with strong horizontal magnetic fields surfaces through the interplay of buried magnetic flux and convective motions. The magnetic flux emerges within 10 minutes and we find a longitudinal magnetic flux at the foot points of the order of \sim$$10^{18} Mx. This is one to two orders of magnitude larger than what has been reported for small-scale magnetic loops. The convective flows feed the newly emerged flux into the pre-existing magnetic population on a granular scale.

1 Introduction

Time series of magnetograms reveal patches of horizontal and vertical magnetic flux with apparent random distributions, which are then advected by the granular flows. Moreno-Insertis et al. (2018) have reported two distinct processes for magnetic flux emergence in their numerical simulations. In the magnetic flux tube emergence case, a magnetic loop emerges within a well established granule. The loop foot points, with predominantly vertical magnetic fields, are connected by horizontal magnetic patches. The foot points are then further separated and dragged to the intergranular lanes. Observations of this case were shown for example in Centeno et al. (2007) and studied statistically in e.g. Smitha et al. (2017). Martínez González & Bellot Rubio (2009) who analysed in detail the physical properties of small-scale loops found an emerged longitudinal magnetic flux in each foot point of on average 9.1 $\times$ 1016 Mx. The second scenario found by Moreno-Insertis et al. (2018) in their simulations is the emergence of a magnetic flux-sheet. In contrast to the magnetic loop emergence, sheet emergence is linked to the evolution and expansion (upward and sideways) of a granule with an organised horizontal magnetic flux-sheet spanning over an entire granule forming a mantle. These authors compared their simulations with the observations by Centeno et al. (2017). Those observations took place in a forming active region and involved several granules, leading to elongated abnormal granule structures. We report here of a magnetic sheet emergence event observed in the quiet-sun.

2 Observations

The quiet-sun data set used in this study covers two and a half hours of near disc centre ($\mu=0.98$) observations and had been described in detail in Fischer et al. (2017). Here we select only the $\emph{H}inode$ Solar Optical Telescope (Tsuneta et al., 2008) data recorded by the Spectropolarimeter (SP) instrument. This slit scanning instrument records spectra in the 630 nm wavelength band encompassing the Fe i 630.15 nm and Fe i 630.25 nm lines (effective Landé-factors of $1.67$ and $2.5$, respectively). The SP data was recorded in binned mode with a pixel size of about 0.32 arcsec. The field-of-view resulted in about $9\times 81$ arcsec2, at a spectral sampling of 21.5 mÅ/pixel, and a map cadence of \sim$$\,70 s. We prepared level 1 data using the sp$\_$prep.pro program (Lites & Ichimoto, 2013). The output contains, amongst other parameters, the apparent longitudinal magnetic flux density and the apparent transverse magnetic flux density. Inversions were performed using the SIR code (Ruiz Cobo & del Toro Iniesta, 1992) with 3 nodes in temperature, two nodes in magnetic field strength and inclination, as well as in line-of-sight velocity ($v_{LOS}$). Finally, only one node was employed in the azimuth of the magnetic field. This made it possible to account, for example, for gradients in the line-of-sight velocity and magnetic field. The inversions are performed using the laboratory wavelength of the spectral lines for the rest wavelength. We correct the retrieved velocity values by subtracting a correction value of 341 m/s which accounts for the gravitational redshift and for the convective blueshift of -295 m/s obtained by precise Lasercomb measurements by Löhner-Böttcher et al. (2018).

3 Results

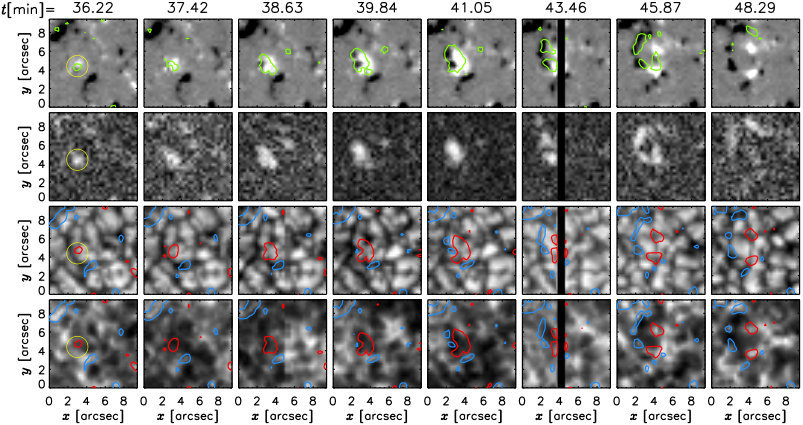

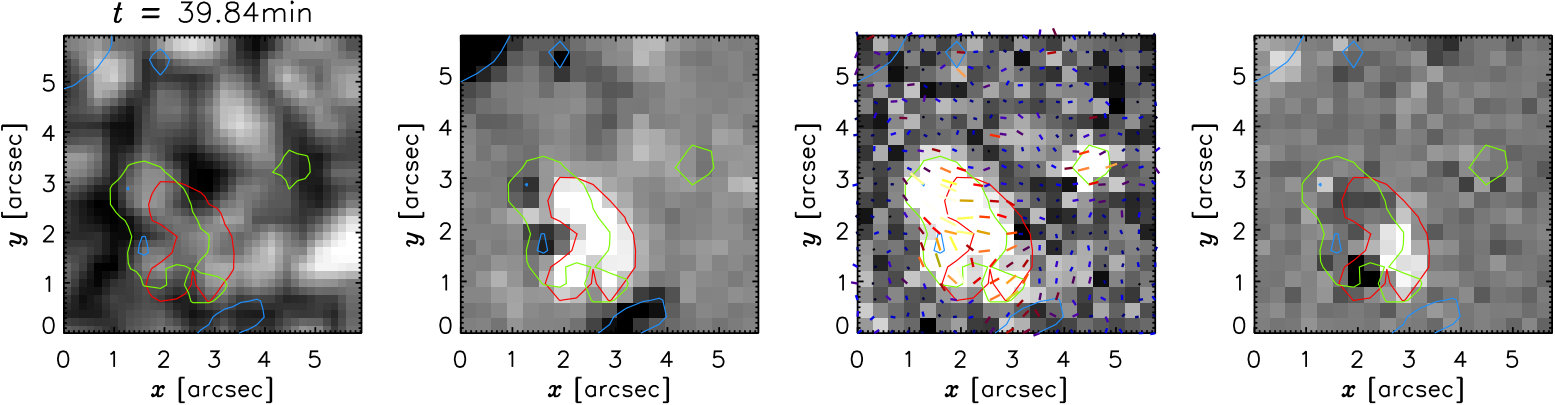

We follow the time evolution of the emergence event in Fig. 1. We found during the calibration process that data for a few scan positions were missing. This happened at ($t=43.46\,min$) and we mask the values in the images for those scan positions with zero. A movie of the event showing a smaller FOV, starting already at t=32.60 min, and including overlays of the horizontal magnetic field can be found as online material ($event\_sheet\_emergence.mov$ see Fig. 5).

The first indication of the emergence is a strong apparent transverse magnetic flux density patch (B${}_{trans}^{app}$) of 0.4 arcsec2 with the apparent magnetic flux density reaching up to 194 Mx/cm2. The horizontal field strength inferred from inversions is at a maximum of 296 G (at t=36.22 min). At this point, positive polarity patches are observed towards the edge of the horizontal field. At t=39.84 min, we observe negative polarity elements next to the positive polarity elements. By then, the horizontal field patch has also expanded in size. As more and more longitudinal magnetic flux emerges, the horizontal magnetic flux increases and develops into a large and coherent horizontal magnetic flux structure resembling a mantle while expanding sideways. At its maximum extent, the horizontal magnetic flux density region covers an area of $\approx$ 4.4 arcsec2, as large as the granule beneath it. At t=43.46 min, the horizontal magnetic field structure seems to separate into two. Unfortunately, we could not retrieve the data at several scan positions. However, one can see clearly in the following time frame that the horizontal magnetic flux structure has now three distinct entities which move spatially farther apart later on. According to the continuum images (third row in Fig. 1), one finds a large granule expanding during this development. This granule seems to be responsible for the breaking up of the magnetic flux structure. The line-core images of Fe i 630.15 nm seen in the last row of Fig. 1 show the growing granule very clearly in the reversed granulation as an expanding dark blob surrounded by the longitudinal magnetic elements.

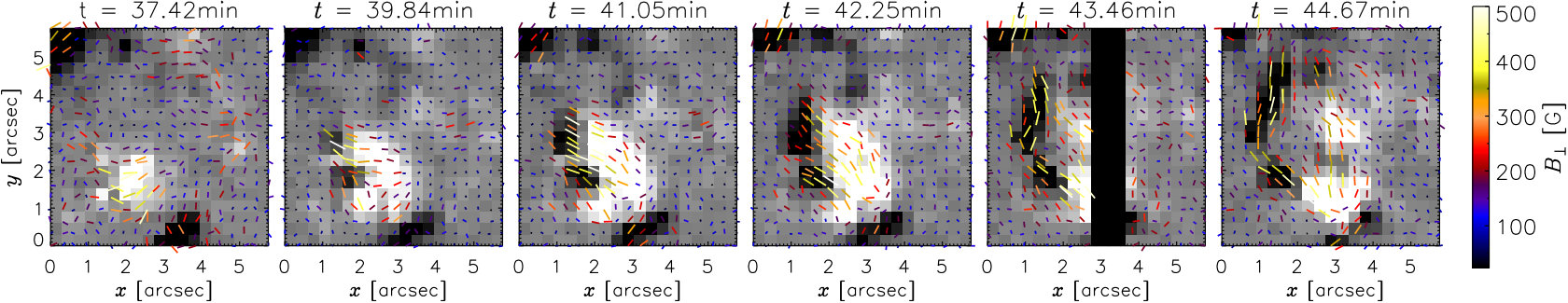

The lines showing the direction of the transverse field ($B_{\perp}$, given by the azimuth) in Fig. 2 confirm the impression of a large and coherent magnetic flux mantle as the direction of $B_{\perp}$ remains the same over an extended area. One could argue that the breaking of the flux-mantle is only apparent and is due to its top part moving out of the line-forming region. However, a close inspection of the azimuthal direction of the magnetic field vectors as in, for example, t=44.67 min, shows that positive and negative polarities are now connected at the sides of the former region of the magnetic flux-mantle. If the top of the flux-mantle had moved out of the line-forming region one would expect arrows pointing towards the middle (away from the middle) of the flux-mantle site from all directions.

We do not observe any abnormal granulation pattern. The granular flows are dominant and they push and separate the magnetic foot points and the mantle.

The emerged magnetic flux at the mantle foot points is estimated by tracking the emerging magnetic elements using a modification of the Multilevel-tracking-code (MLT) (Bovelet & Wiehr, 2001) to account for negative as well as positive signals in the longitudinal magnetic flux maps. A threshold of 30 Mx/cm2, which corresponds to about 2.5 $\sigma$ of the signal in our maps, was chosen to track the magnetic elements. Once the emergence concluded the value of the total flux of the positive polarity foot points amounted to 1.4 $\times$ 1018 Mx. The emergence takes place within $9.6$ minutes and we find therefore a flux emergence rate of 1.47 $\times$ 1017 Mx/min.

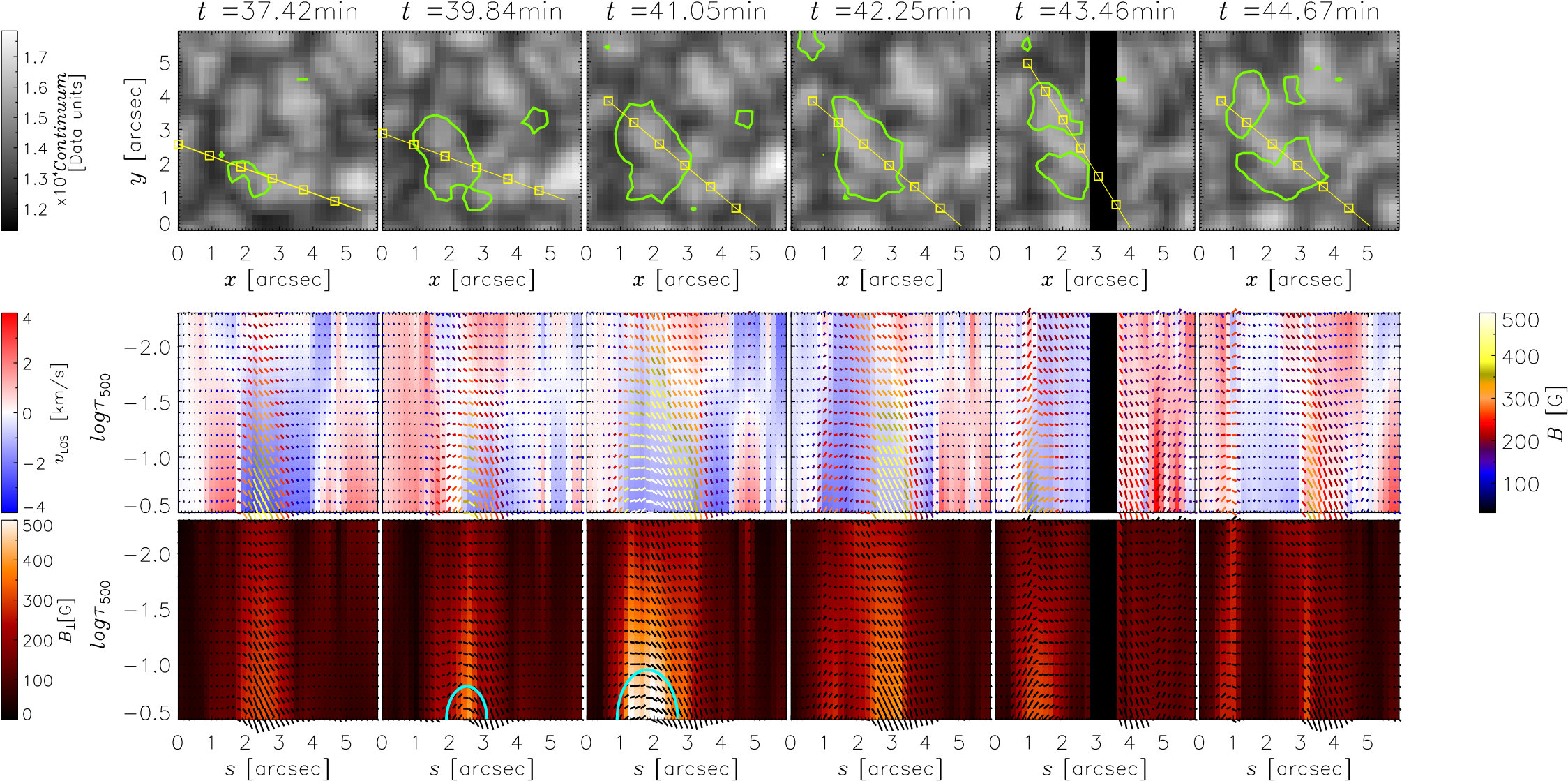

We obtained Stokes inversion results of which we show in Fig. 3 the line-of-sight velocities and magnetic field parameters in the range of $\log\tau_{500}$=-0.5 and $\log\tau_{500}$=-2.3, a good approximation of the formation height of the 630 nm lines (Cabrera Solana et al., 2005)111$\log\tau_{500}$ refers here to the logarithm of optical depth for the $\lambda$=500 nm wavelength. We show cross sections chosen through the emerging feature at different times. For this, we consider a slice along the direction ”s” that connects the top-left and bottom-right opposite polarities of the flux-mantle. From the velocity values in the second row of Fig. 3 one can see that at t=37.42 min, the horizontal flux emerges at a location of a granular up flow. The transverse field calculated as $B_{\perp}=B\sin\gamma$ from the inversion results (shown in the last row) reaches $500\,G$. The magnetic field direction is seen in the lines overlaid on the $v_{LOS}$ and transverse field images. The more vertical field lines identify the location of the apparent longitudinal magnetic flux density patch emerging almost co-spatially to the horizontal field patch. At t=39.48 min, a ”loop-like” structure seems to form between $\approx\,s\in[1,3]$ arcsec. Cyan-coloured loops in the second and third frame of the last row in Fig. 3 should aid the reader’s eye in identifying the ”loop-like” structure. This can be interpreted as our cross section cutting through the horizontal magnetic flux-mantle. The positive polarity vertical field and the horizontal magnetic field are still located in the up flow region, whereas the negative polarity vertical field is at the edge of the granule and in the intergranular lane. At t=41.05 min, the magnetic mantle has fully developed and one can clearly observe that the main horizontal magnetic field lies between $\approx\,s\in[1,3]$ arcsec encompassed by the vertical field. The horizontal structure covers the entire granular up flow region as seen from the velocity images, and it does not seem to rise further in height, staying below or at $\log\tau_{500}$=-1.5 during the entire time sequence. At t=42.25 min, the horizontal field strength in the last row has developed a gap with weaker field strength at around $s$=2 arcsec. The structure is being broken up and in the last time frame (last column) the horizontal magnetic field strength is confined to two locations at $s\approx 1$ and $s\approx 3$ arcsec. We do not observe anymore the loop structure, and the up flow region above the granule, which was covered before with horizontal magnetic flux, seems field-free.

We observe several pixels, within the emergence event time-sequence, where the circular polarisation (i.e. Stokes $V$) profiles show a blue lobe whose area can be very different from that of the red lobe. As those pixels exhibit also a net circular polarisation, the asymmetries must be caused by gradients in the atmospheric parameters along the line of sight. The animation provided as online material shows in the last panel locations of blue-lobe dominated Stokes V profiles in white and red-lobe dominated pixels in black. The entire emerging patch shows asymmetric Stokes $V$ profiles with larger blue lobes at the beginning of the time sequence. At the later time steps, the asymmetric profiles are located more on the edge of the structure, where the horizontal and longitudinal fields overlap. In general, more blue-lobe dominated pixels are located above the granules and red-lobe dominated at intergranular sites. This finding is consistent with the topology of a horizontal field region stacked above longitudinal foot points located at its edges.

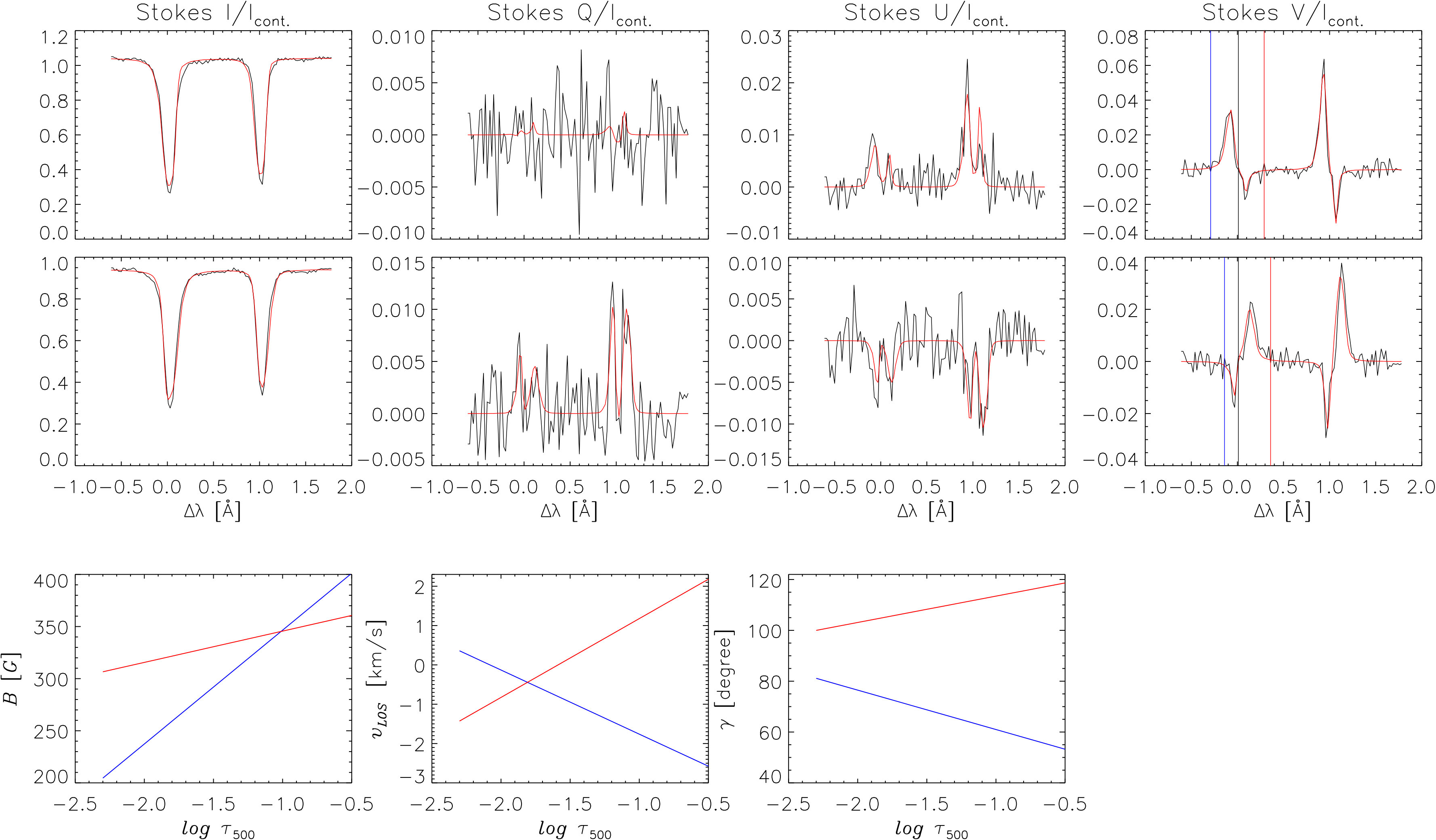

In Fig. 4, representatives of the either blue-lobe dominated or red-lobe dominated profiles are shown. The pixel in the upper row of Fig. 4 is taken during the first appearance of the emerging flux above a granule. We observe (as seen in the lower panel) an up flow in the deeper layers gradually decreasing and showing a slight down flow in the uppermost atmospheric layers at the edge of the formation layer of the Fe i 630 nm lines. The magnetic field is around 400 Gauss for the inclined magnetic field decreasing in strength with height and finally shows a weaker and more horizontal field at 200 Gauss. For the pixel at the edge of the horizontal mantle, shown in the second row of Fig. 4, we have a similar situation in field strength, however, now the velocity gradient is reversed with down flows experienced in the lower atmosphere and gradually decreasing with height.

4 Discussion

Our observations show a similarity to the description of magnetic flux-sheet emergence in the quiet-sun simulations of Moreno-Insertis et al. (2018). In contrast to a small-scale magnetic loop emergence, the horizontal magnetic flux and the foot points of a magnetic sheet do not emerge within a granule in its late development, but develop with the granule. The horizontal magnetic flux-mantle we observe shows the topology of such a flux-sheet. We also observe an elongation of the longitudinal magnetic flux density patches at the edge of the flux-sheet during this process. This has been also seen in the simulation of magnetic flux-sheet emergence (private communication F. Moreno-Insertis). Moreno-Insertis et al. (2018) found in their simulations a rate of 0.3 to 1 magnetic sheet emergence events per day and per Mm2. The example we present here is the most prominent example of magnetic flux-sheet emergence we found in our (2.5 hours) quiet-sun time series. We can not make a statement yet on the importance of magnetic flux-sheet emergence for the magnetic flux emergence rate.

The dark blob we observe in the line-core images of Fe i 630.15 nm is reminiscent of the magnetic bubbles of cool plasma described by Ortiz et al. (2014) in their observations of granular-sized magnetic flux emergence in an active region. They observe a dark bubble in the wing of the Ca ii 854.2 nm line and follow its rise throughout the solar atmosphere. The bubble mimics the behaviour of the horizontal magnetic field patch during flux emergence and is located between the longitudinal foot points. In our observations, the dark blob seems to be rather a signature of reversed granulation, as it mimics the expanding granule and is also still visible once the horizontal magnetic flux-sheet has been torn apart.

Gömöry et al. (2010) studied a magnetic loop emergence in the quiet-sun and found an emerged magnetic flux of $\sim$ 3 $\times$ 1017 Mx. Centeno et al. (2007) reported a magnetic flux of the order of $\sim$ 1017 Mx for their example of magnetic flux emergence, and Martínez González & Bellot Rubio (2009) found for the longitudinal magnetic flux an average of 9.1 $\times$ 1016 Mx at the foot points of their studied emerging magnetic loops. The event described in this letter carries 1.4 $\times$ 1018 Mx, therefore, a significantly larger amount of magnetic flux to the surface.

5 Conclusion

We observe a case of emerging magnetic flux in the quiet-sun showing an organised transversal magnetic flux-sheet. The emerged magnetic flux is of the order of 1018 Mx. The horizontal magnetic flux emerges together with the granule and the flux-sheet spans over the entire granular cell thereby ”growing” with the expanding granule that carried the magnetic flux to the surface. To determine the contribution of magnetic flux-sheet emergence to the flux budget of the quiet-sun, statistics on these events are needed, which we will endeavour in the future.
